2010 ESP JAPAN “RON WOOD” SIGNATURE TELE IN BLACK FINISH

Visually and sonically, the Ron Wood Signature looks and sounds the part of an iconic rock and blues guitar.

Ron Wood is an English rock musician, songwriter, multi-instrumentalist, artist, author, and radio personality best known as a member of the Rolling Stones since 1975, as well as a member of Faces and the Jeff Beck Group. Wood began his career in 1964, when he joined the Birds on guitar.
 

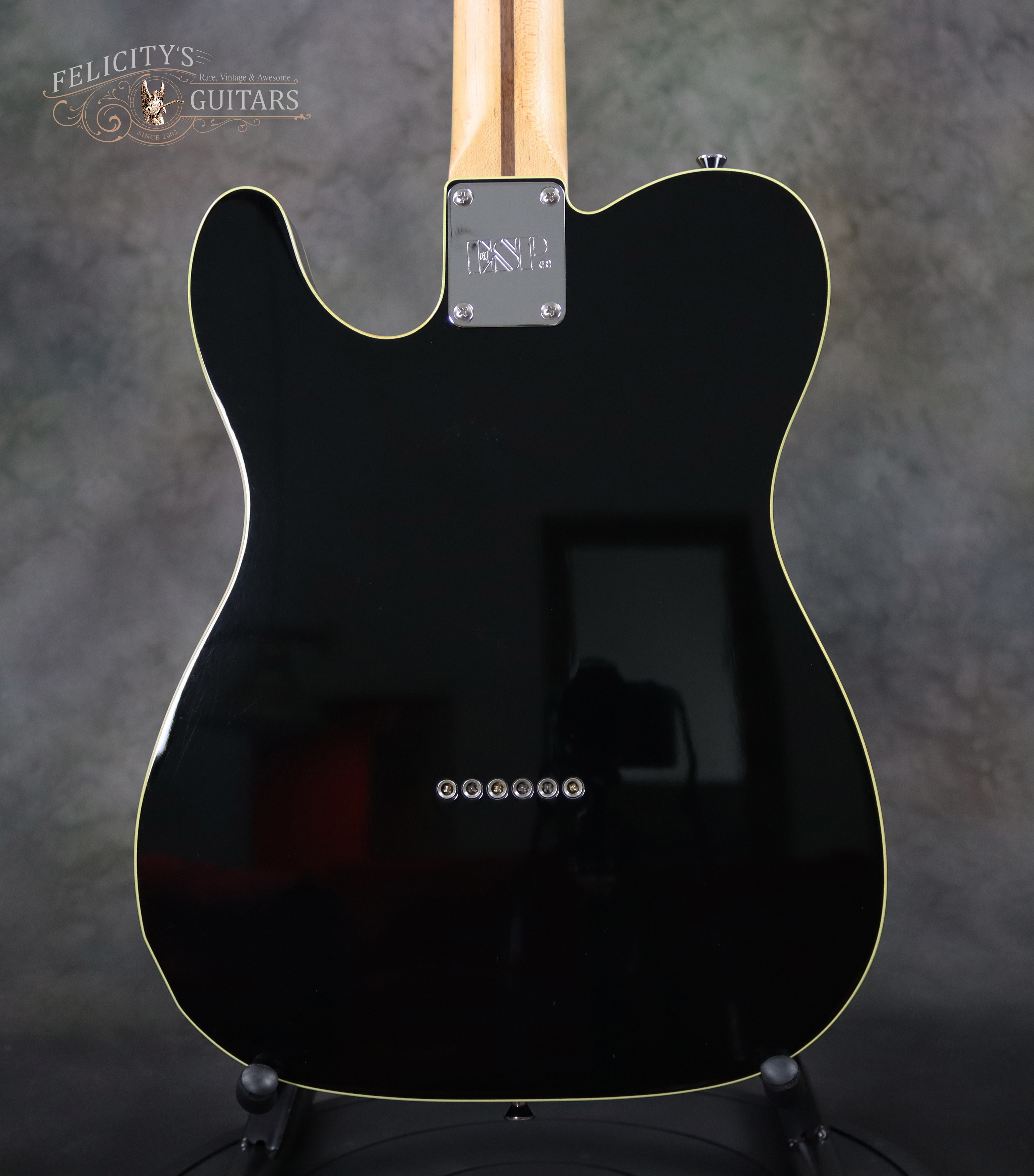

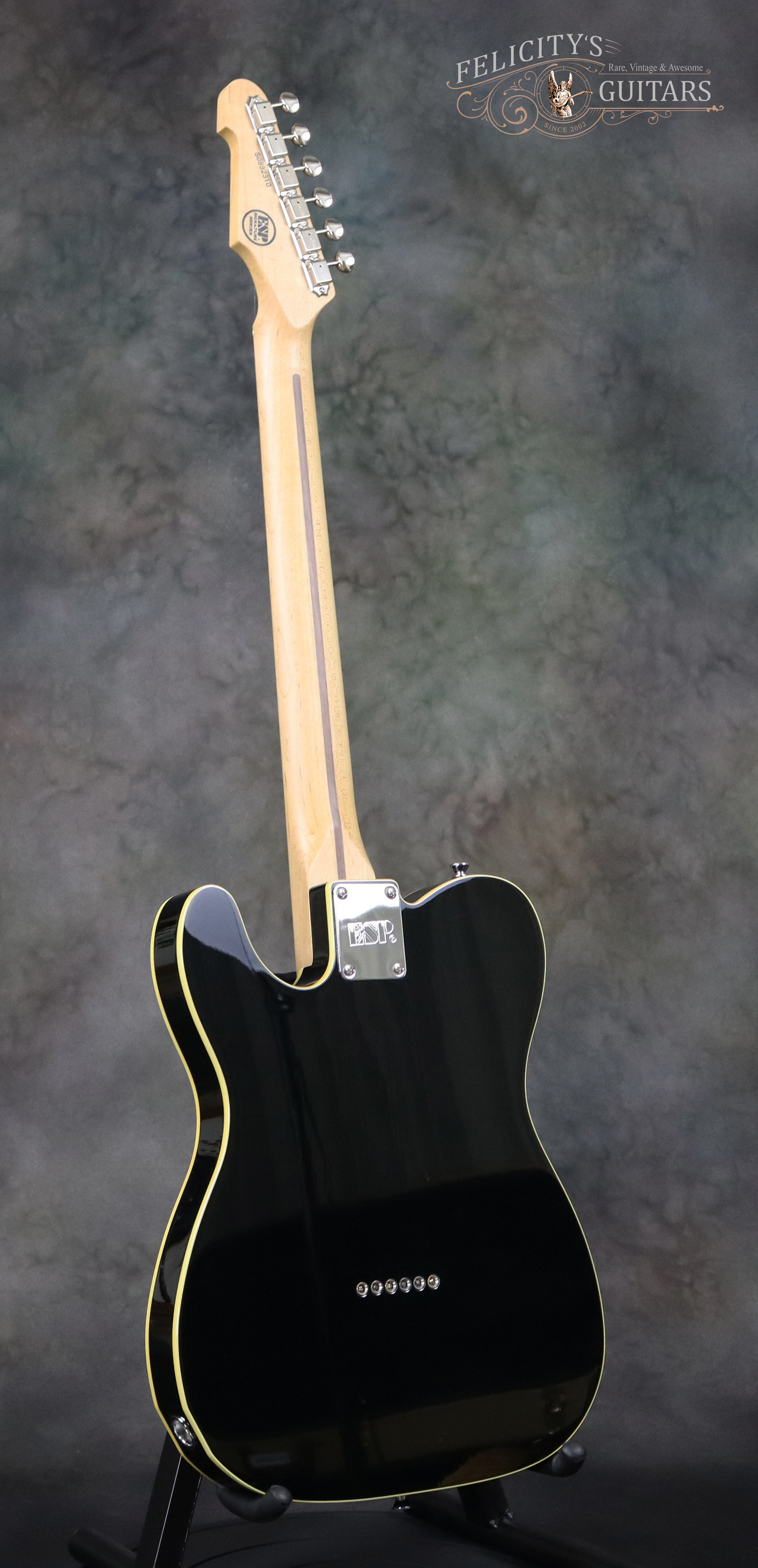

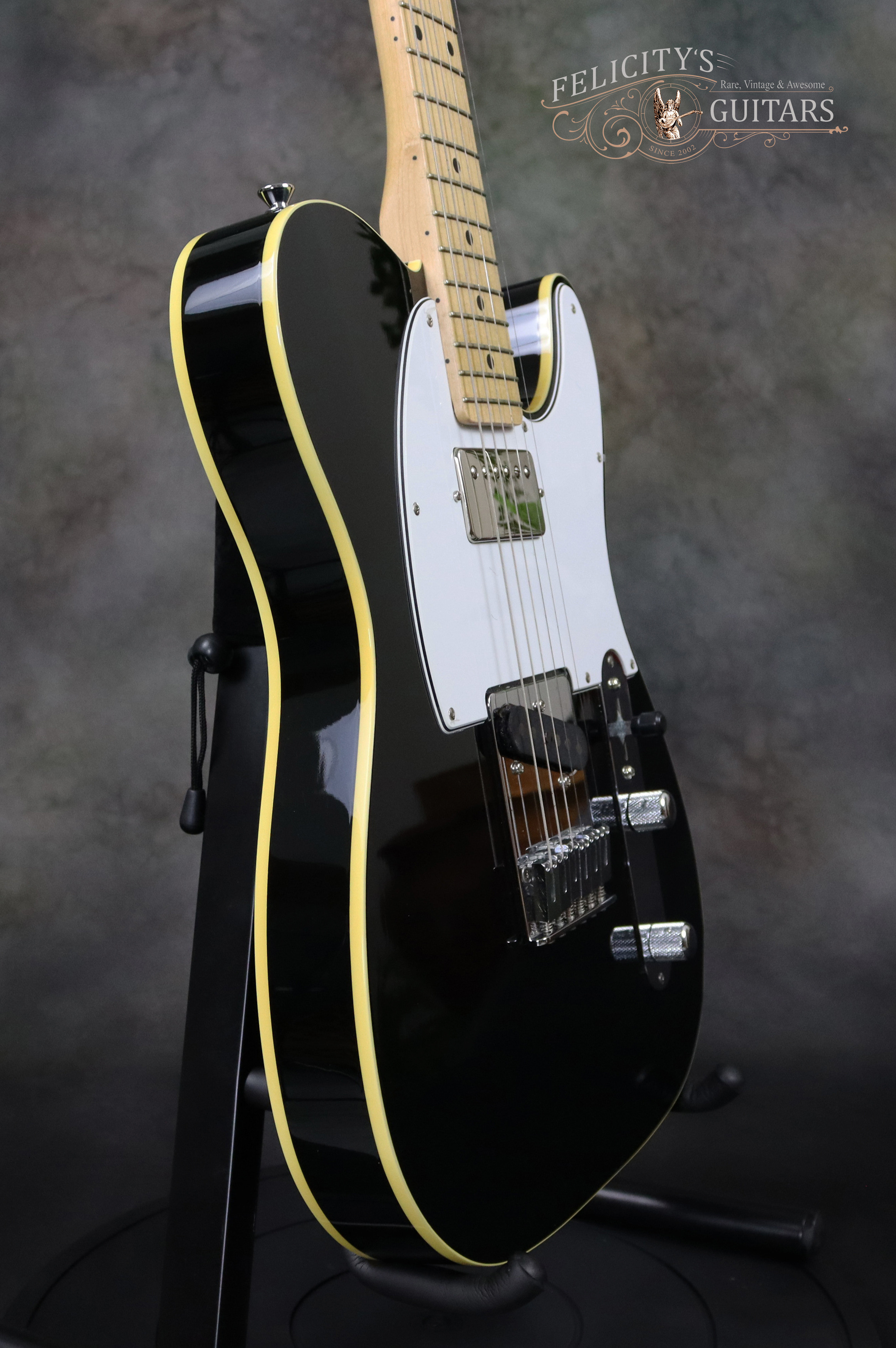

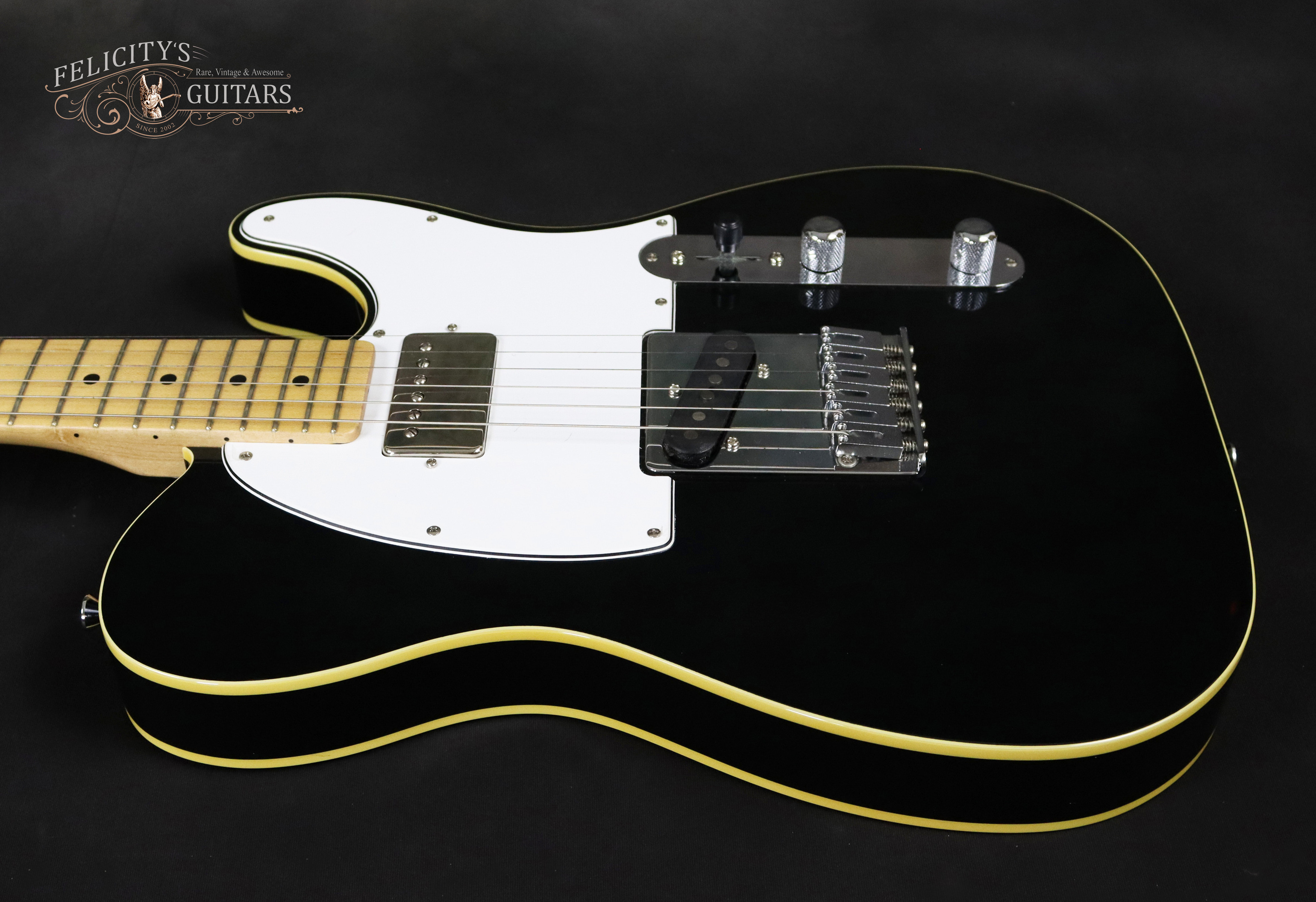

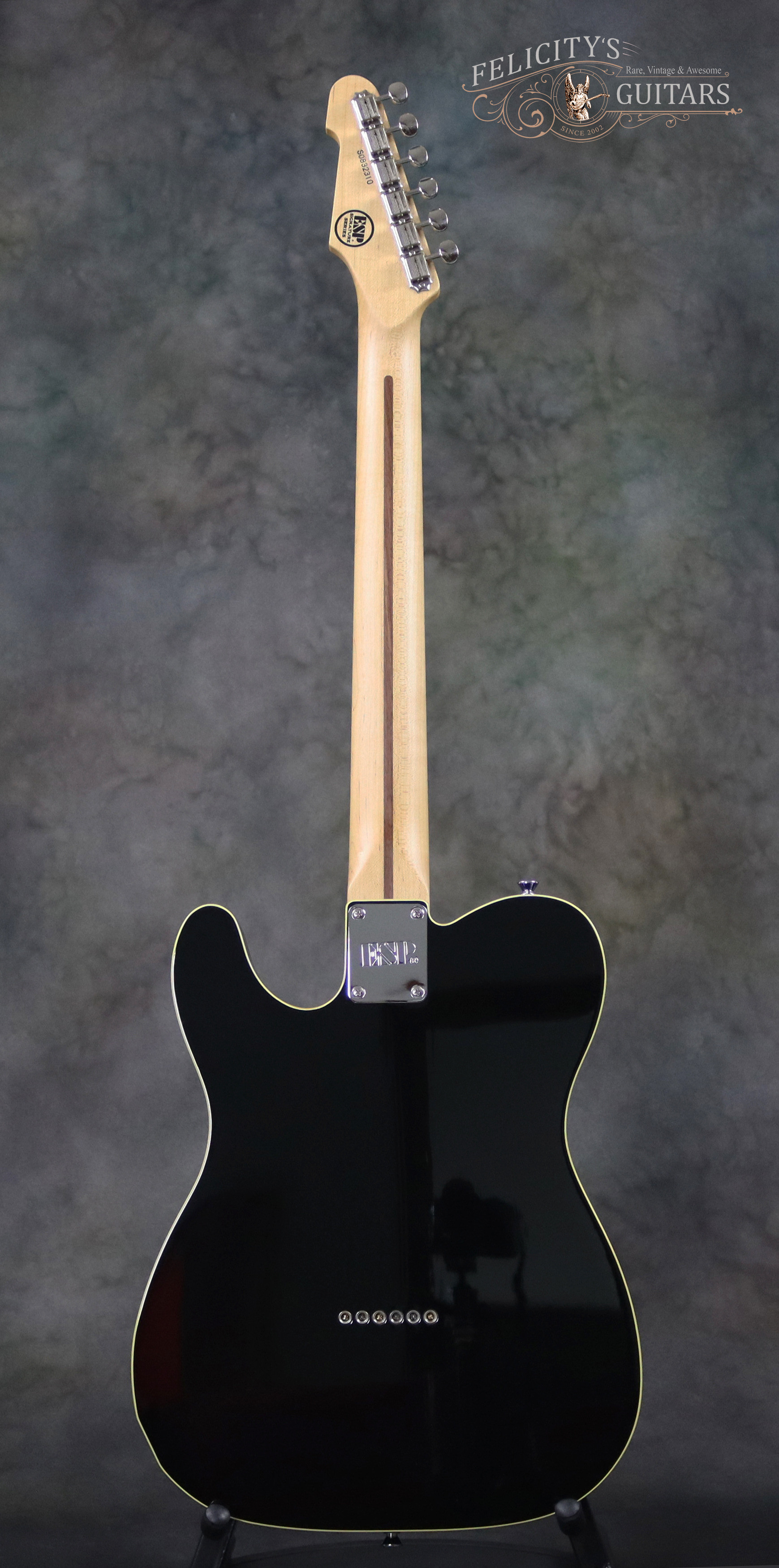

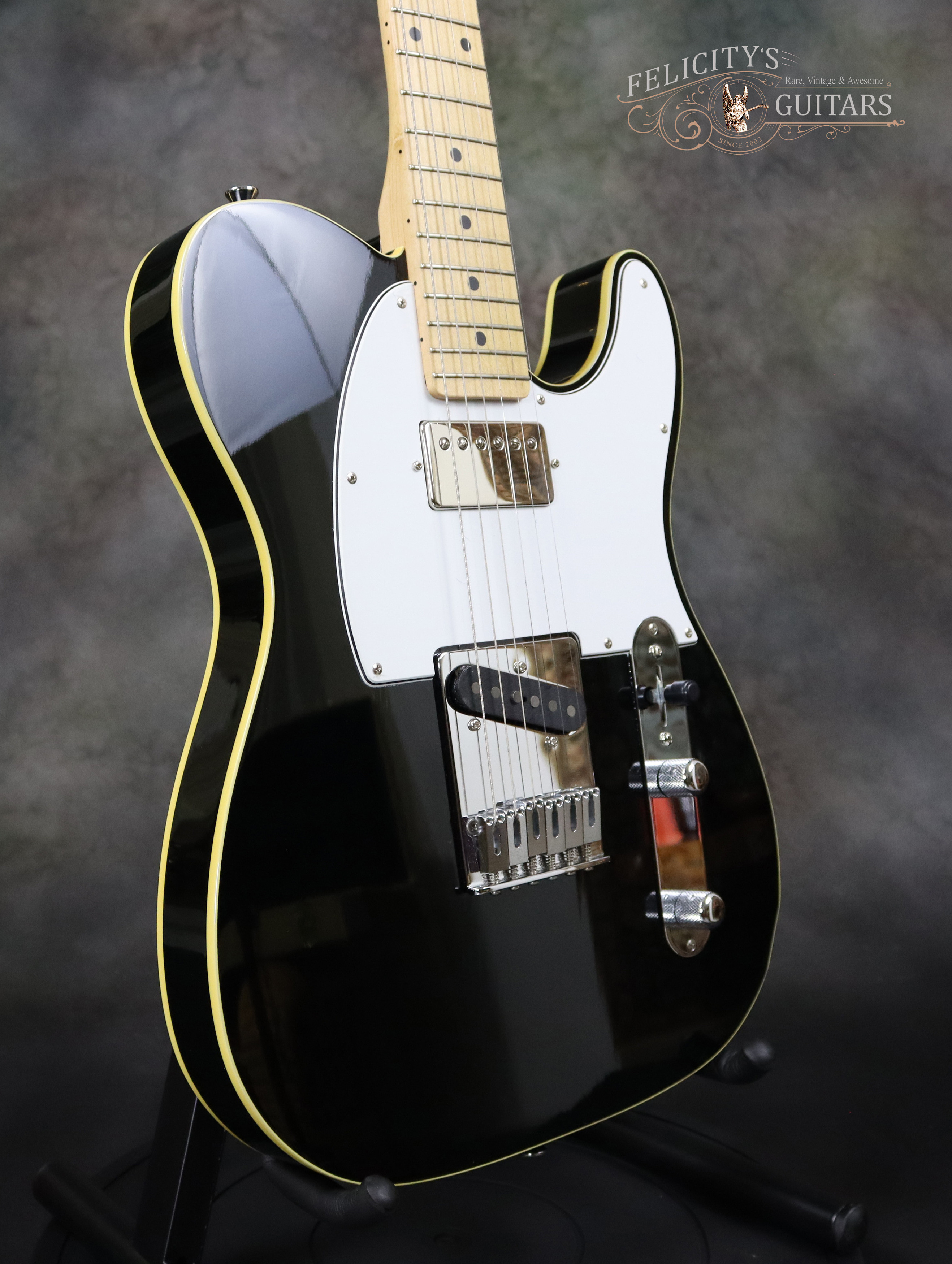

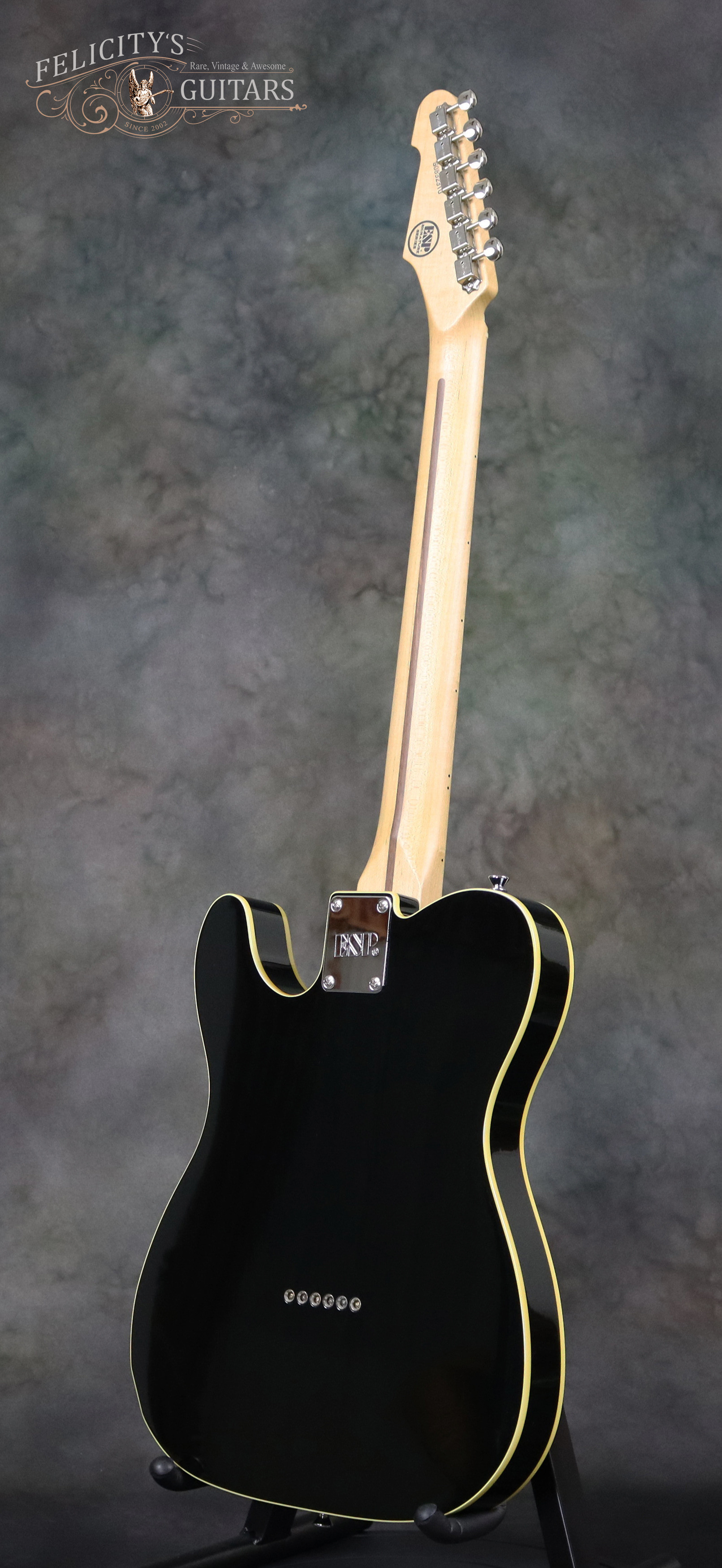

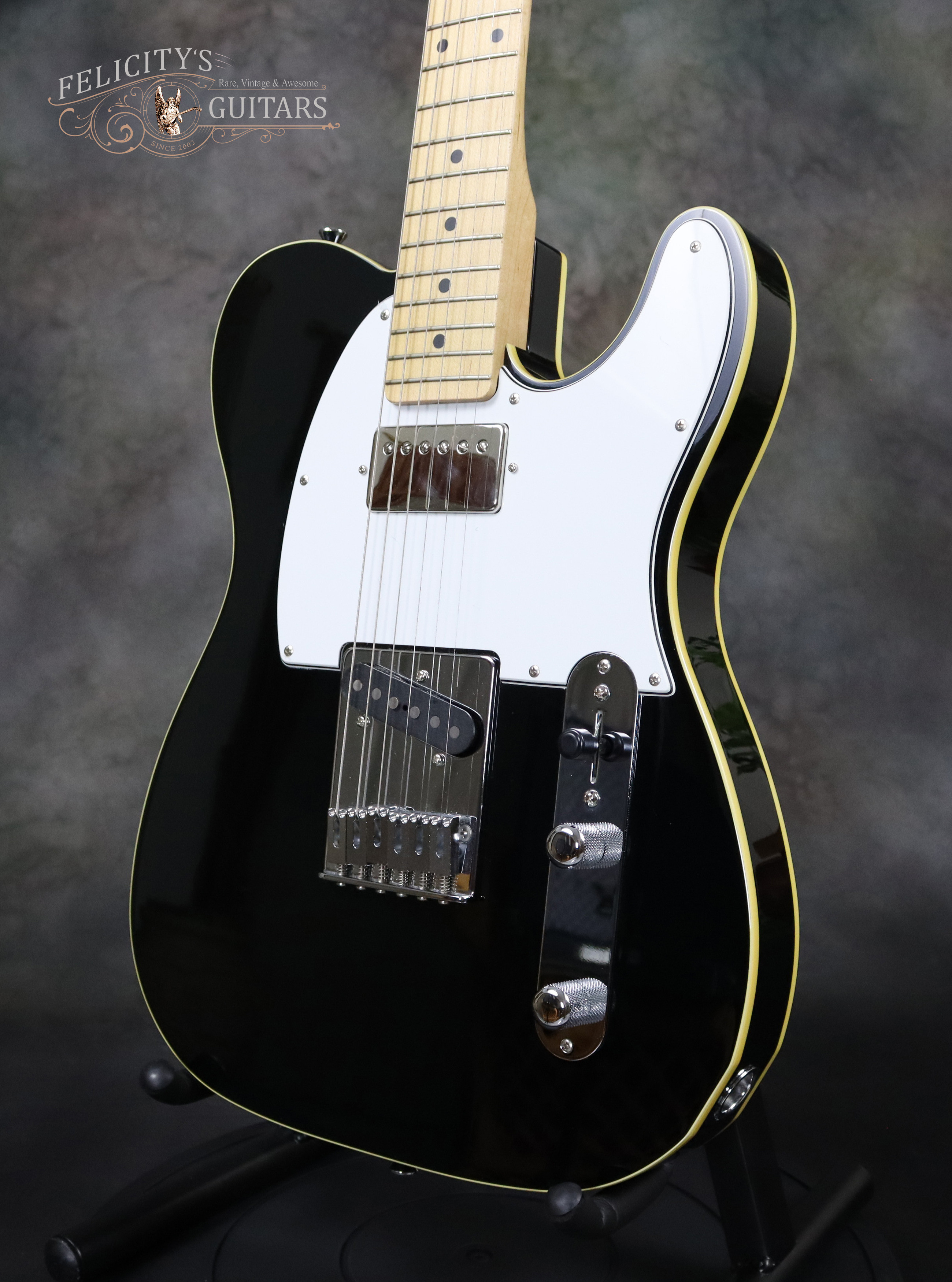

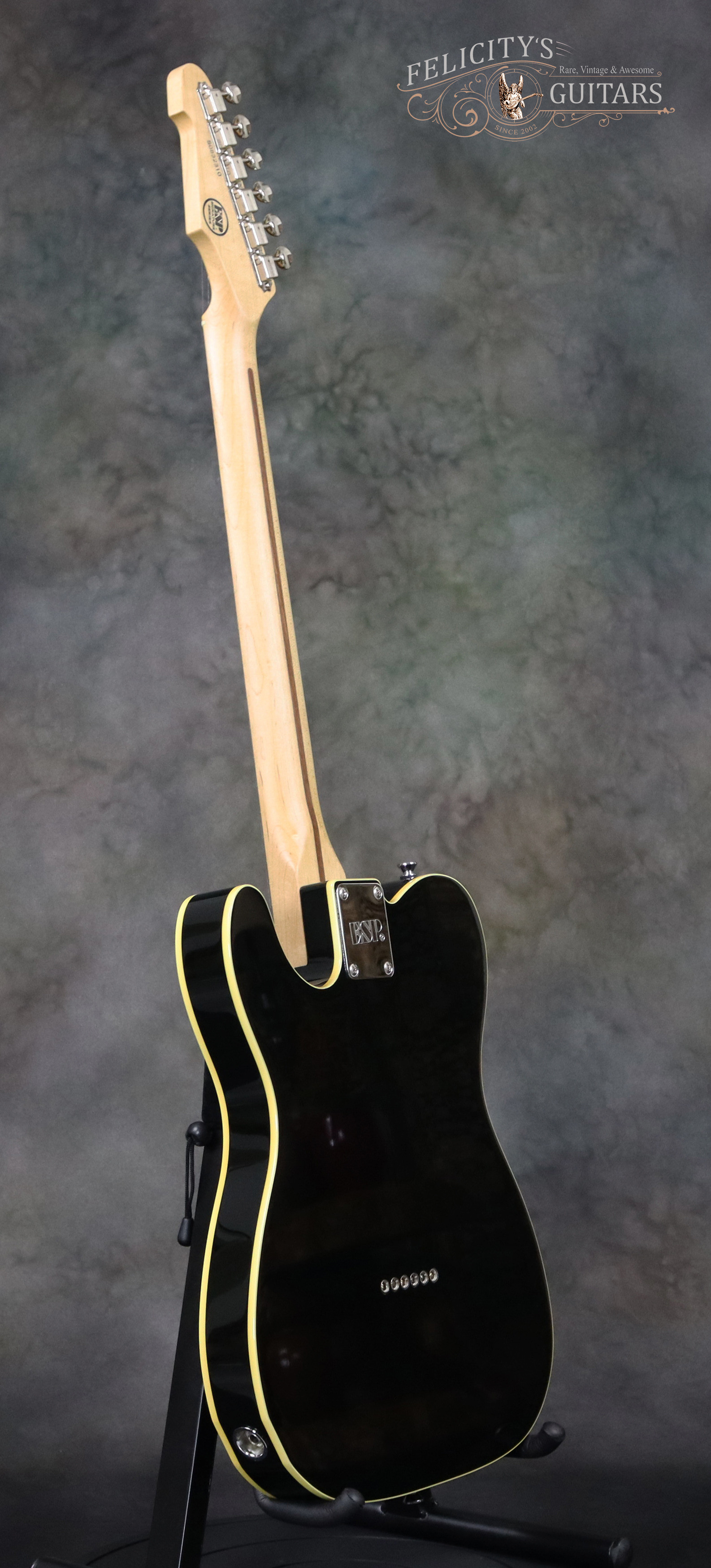

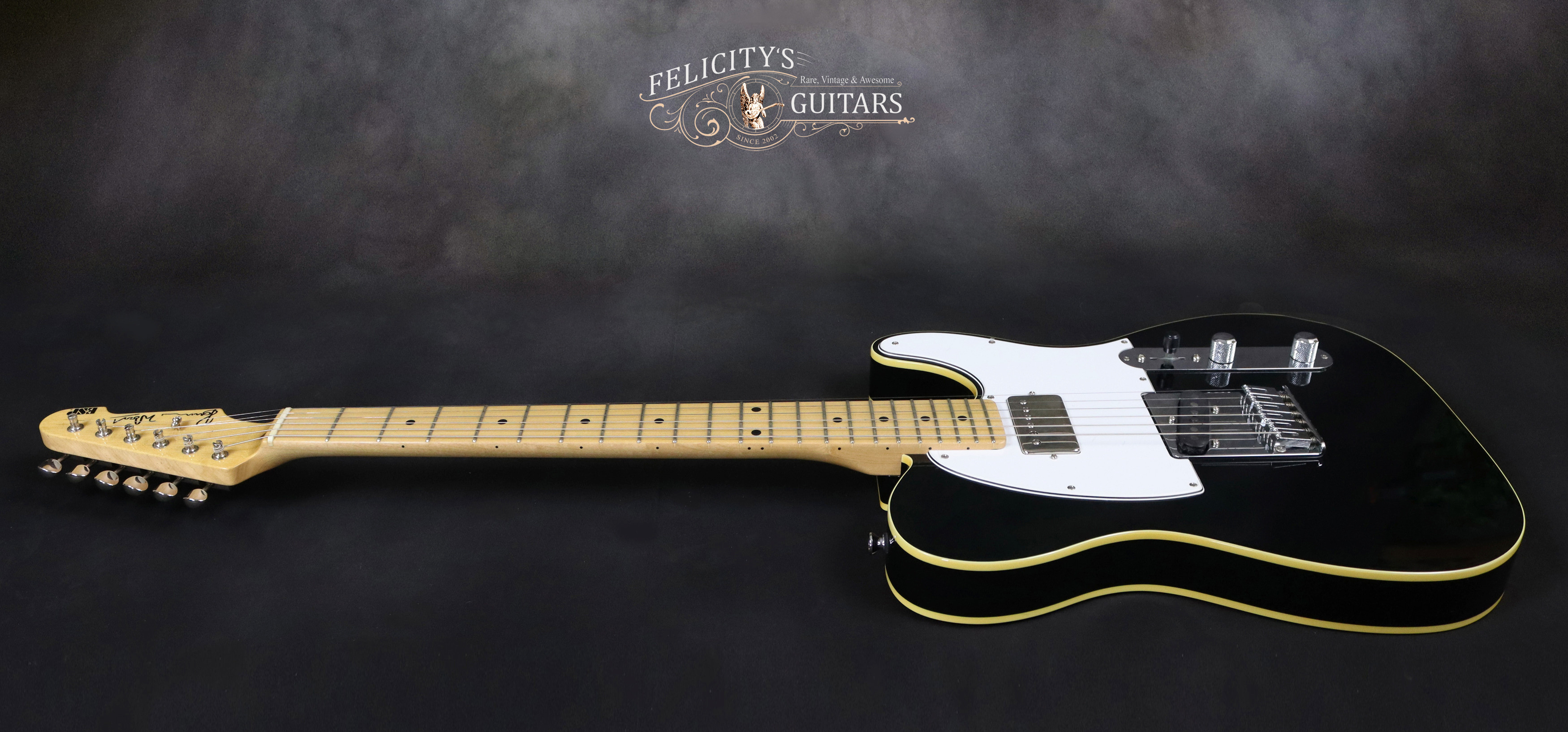

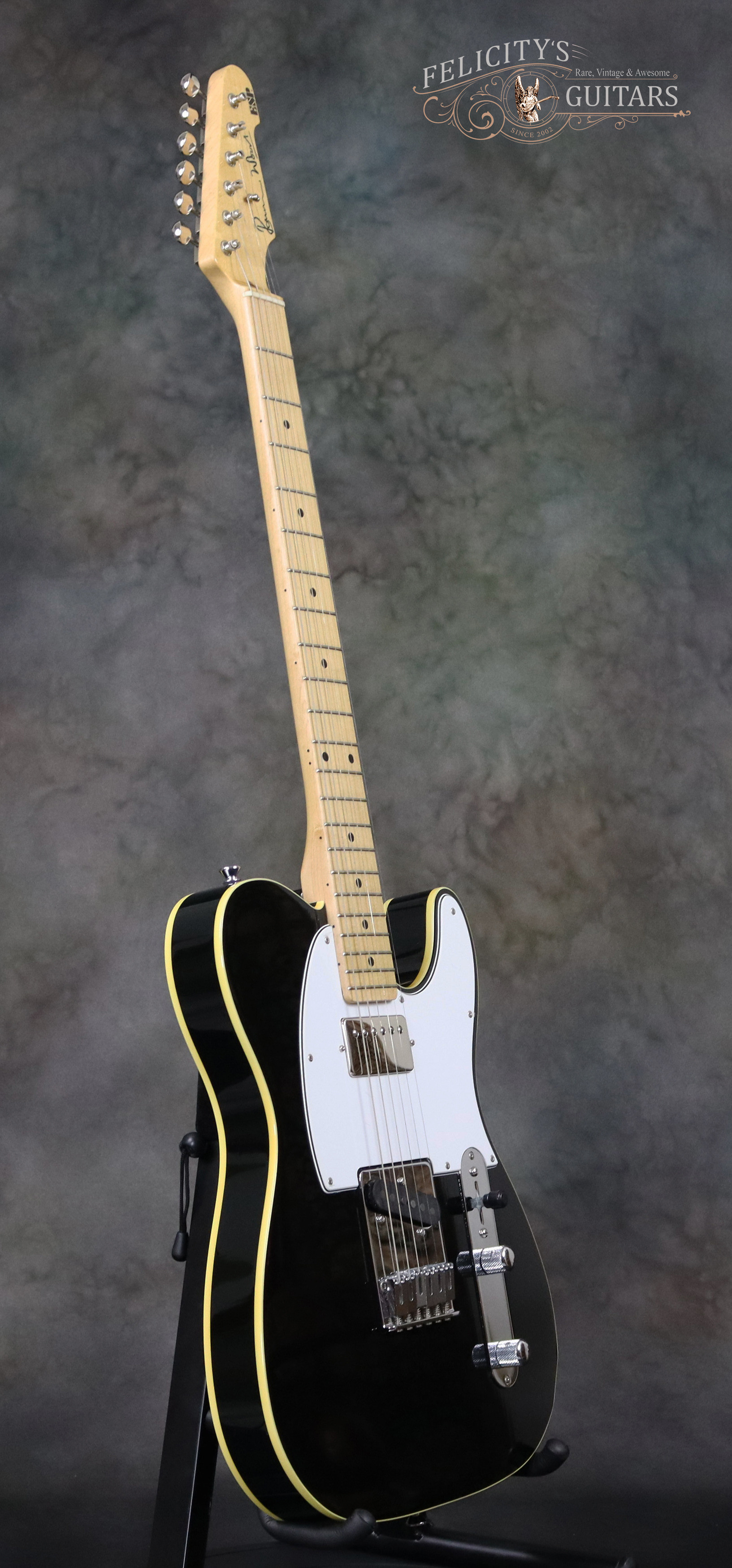

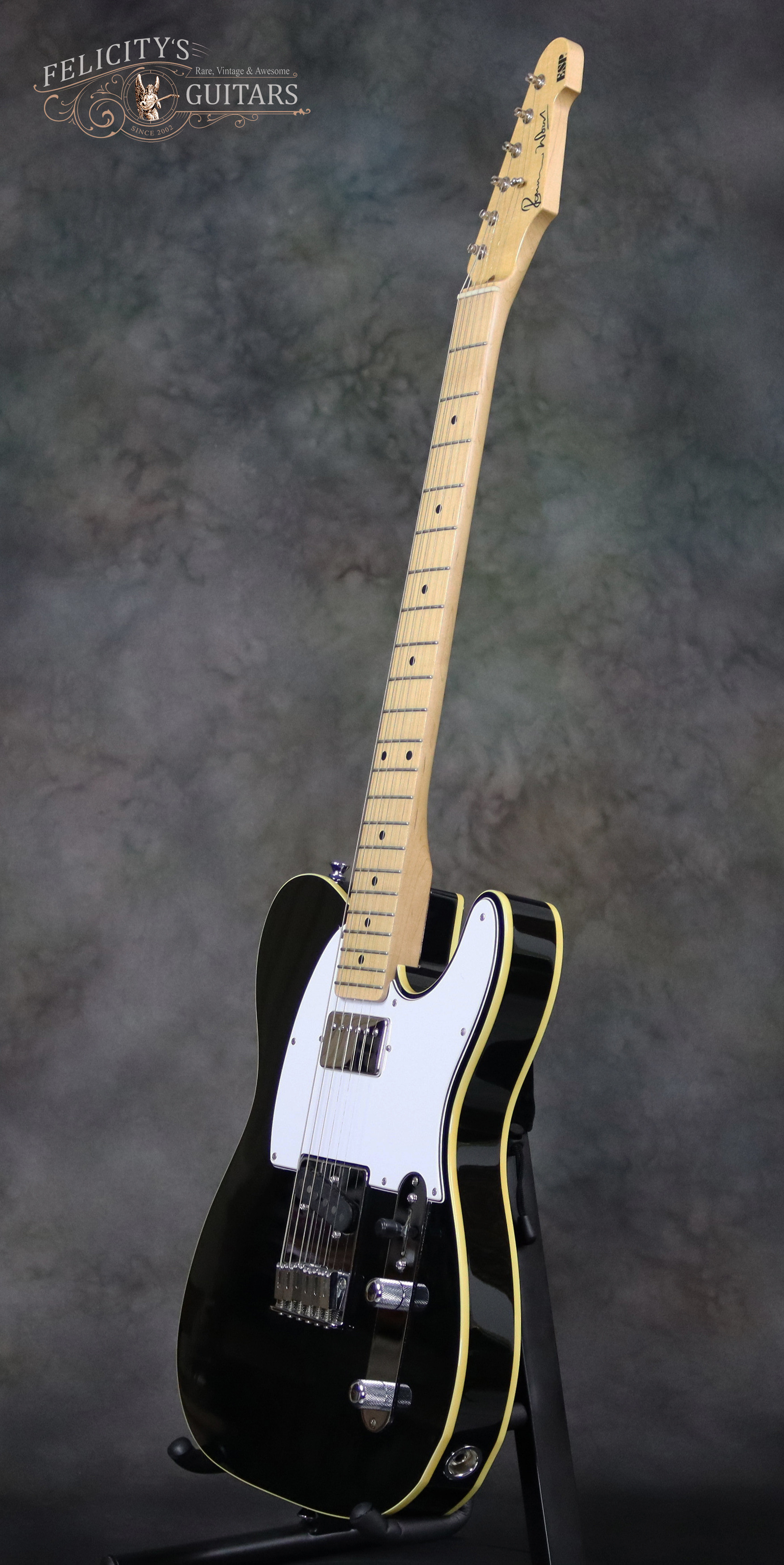

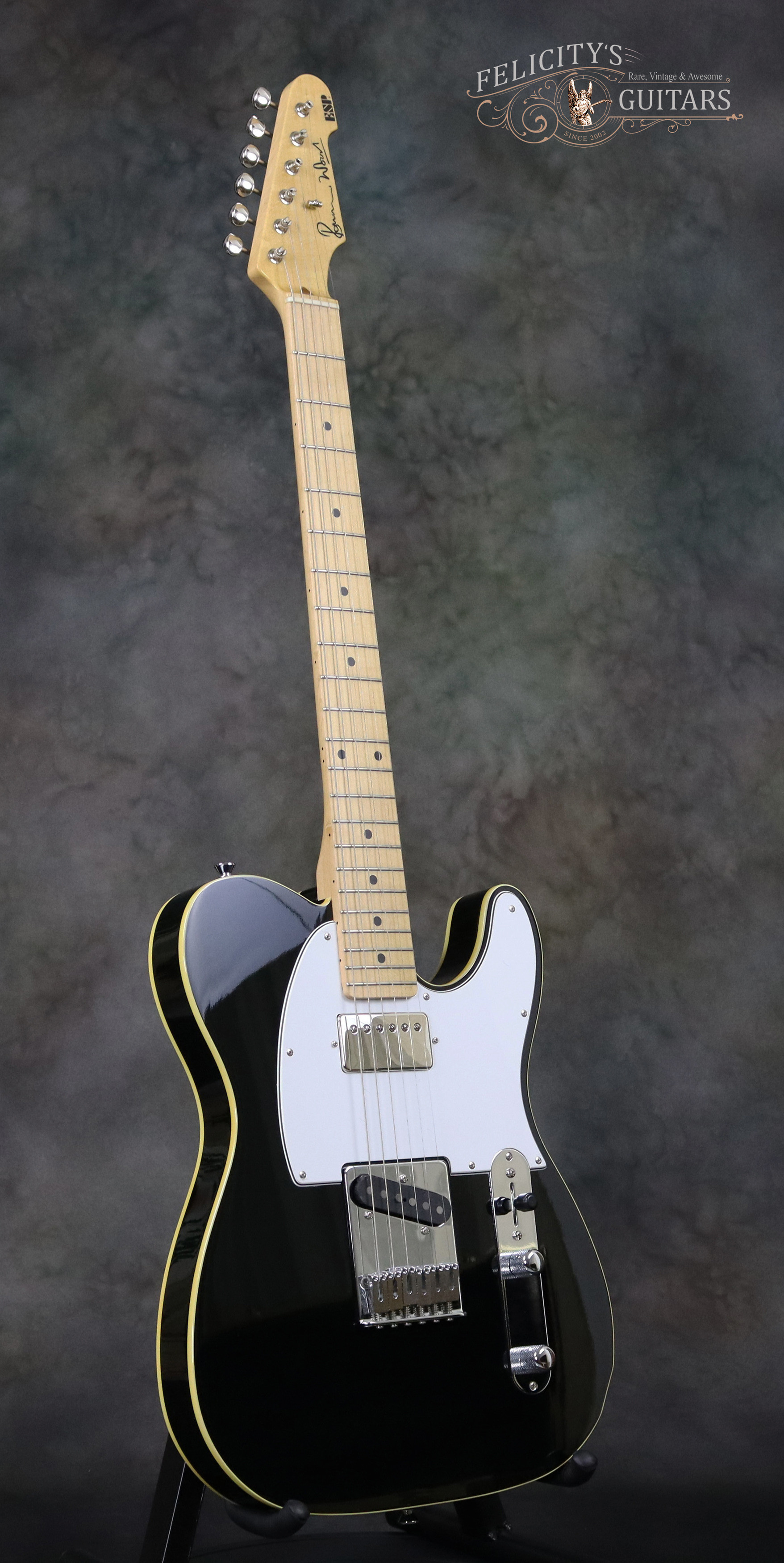

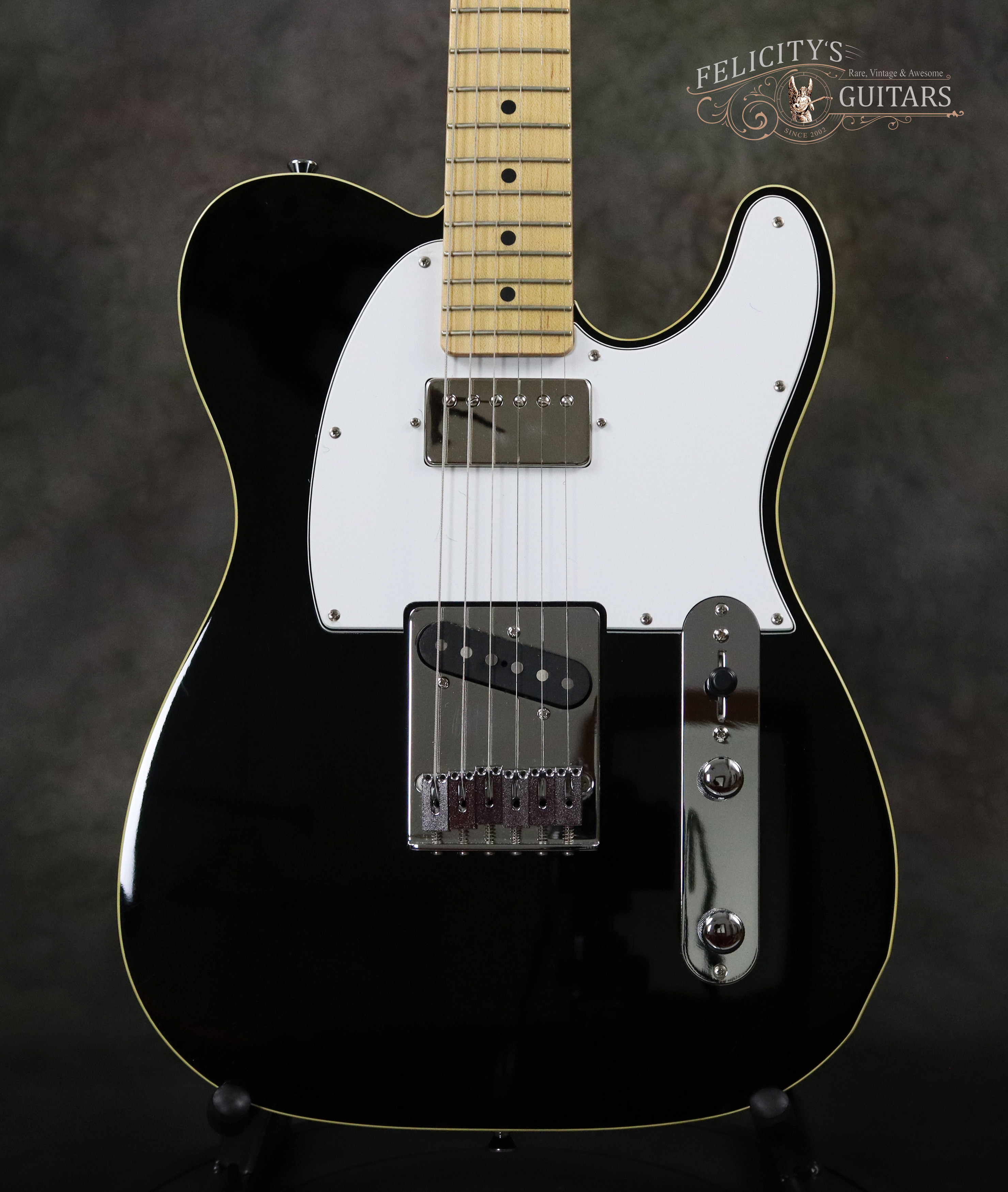

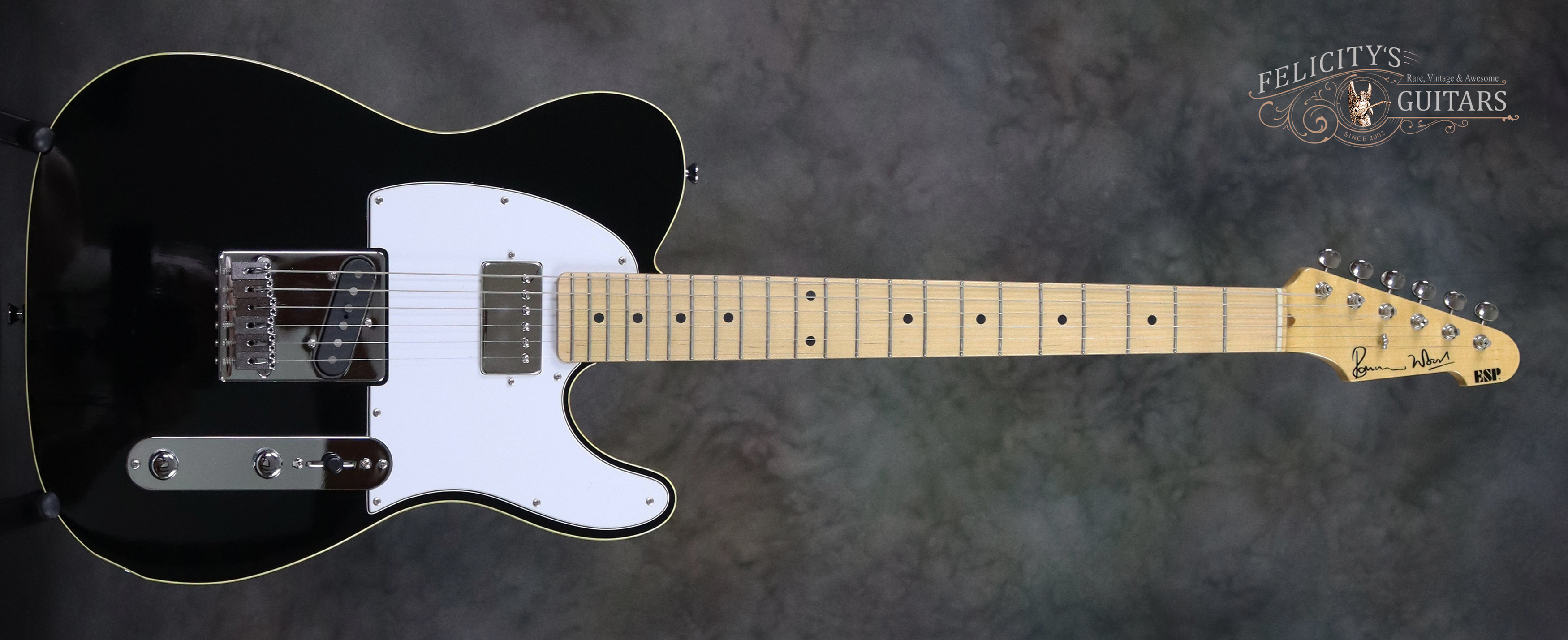

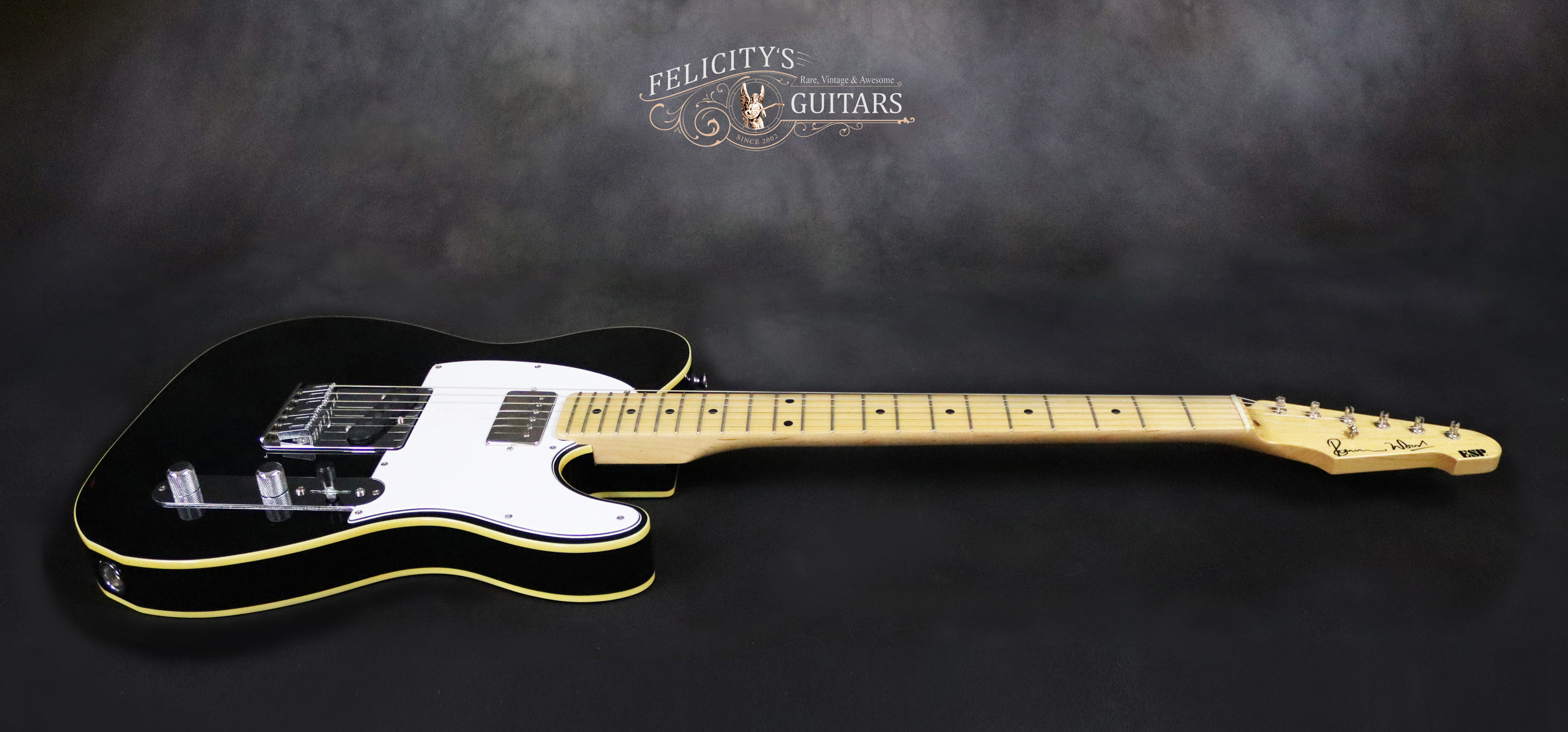

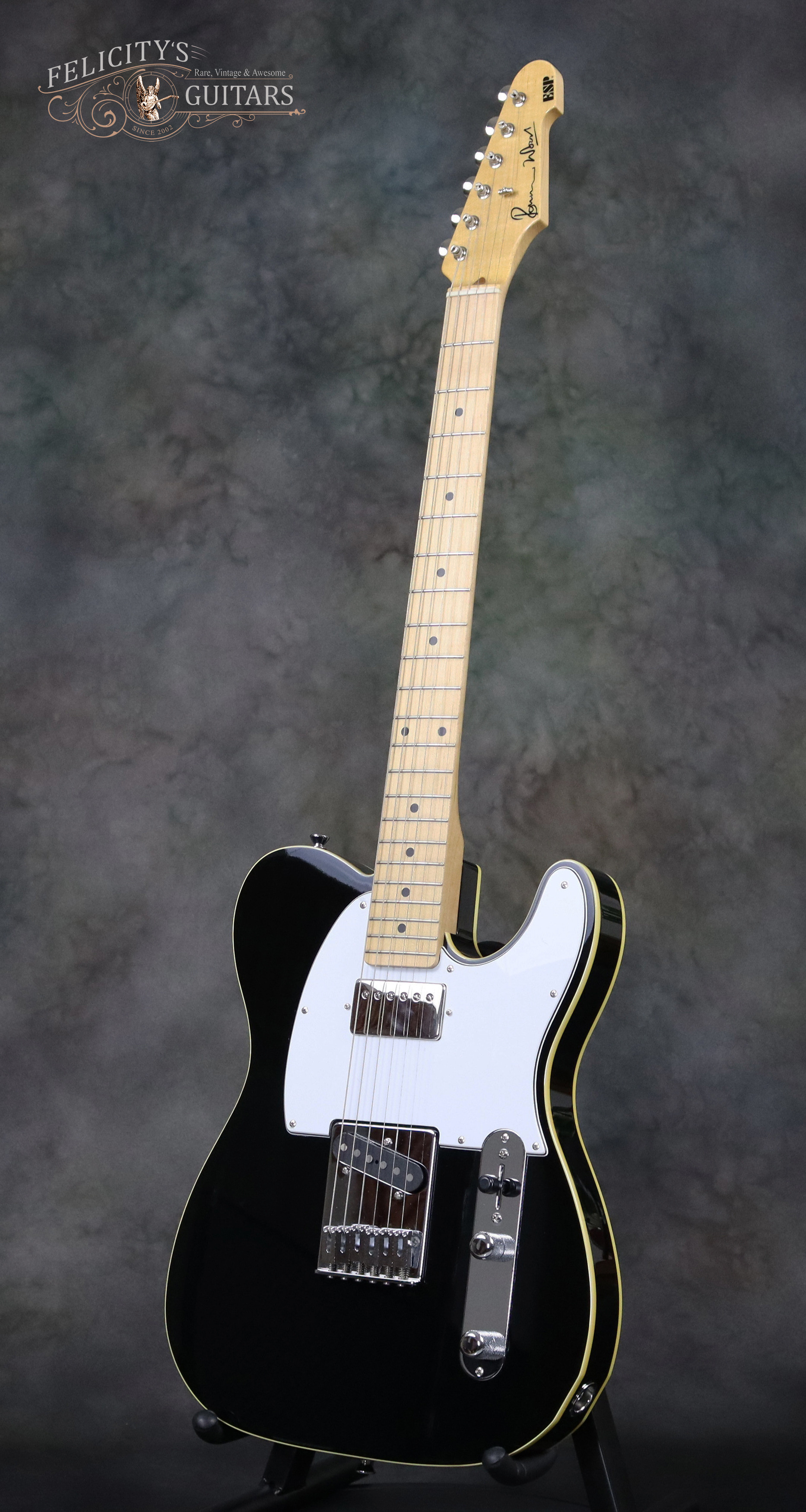

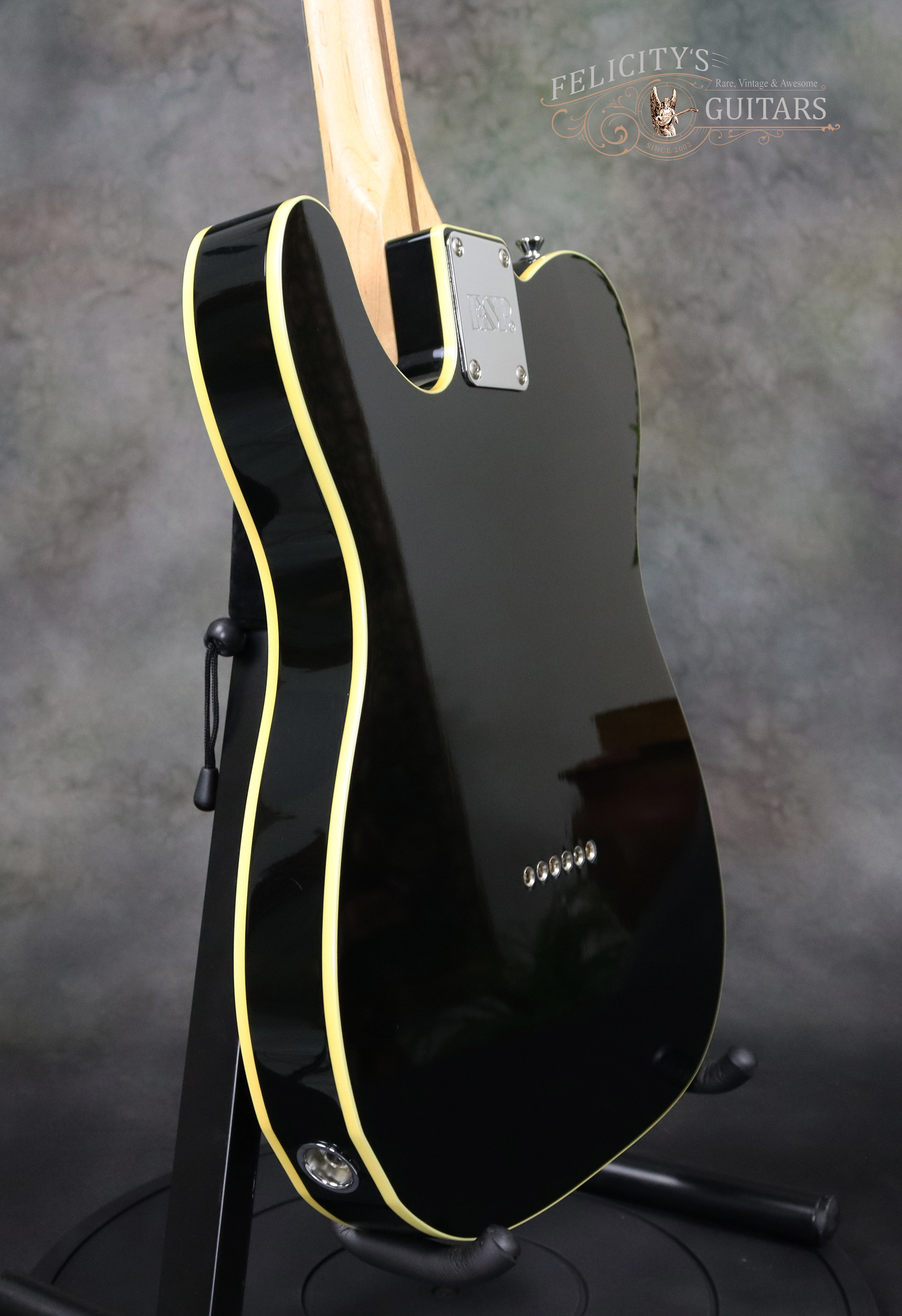

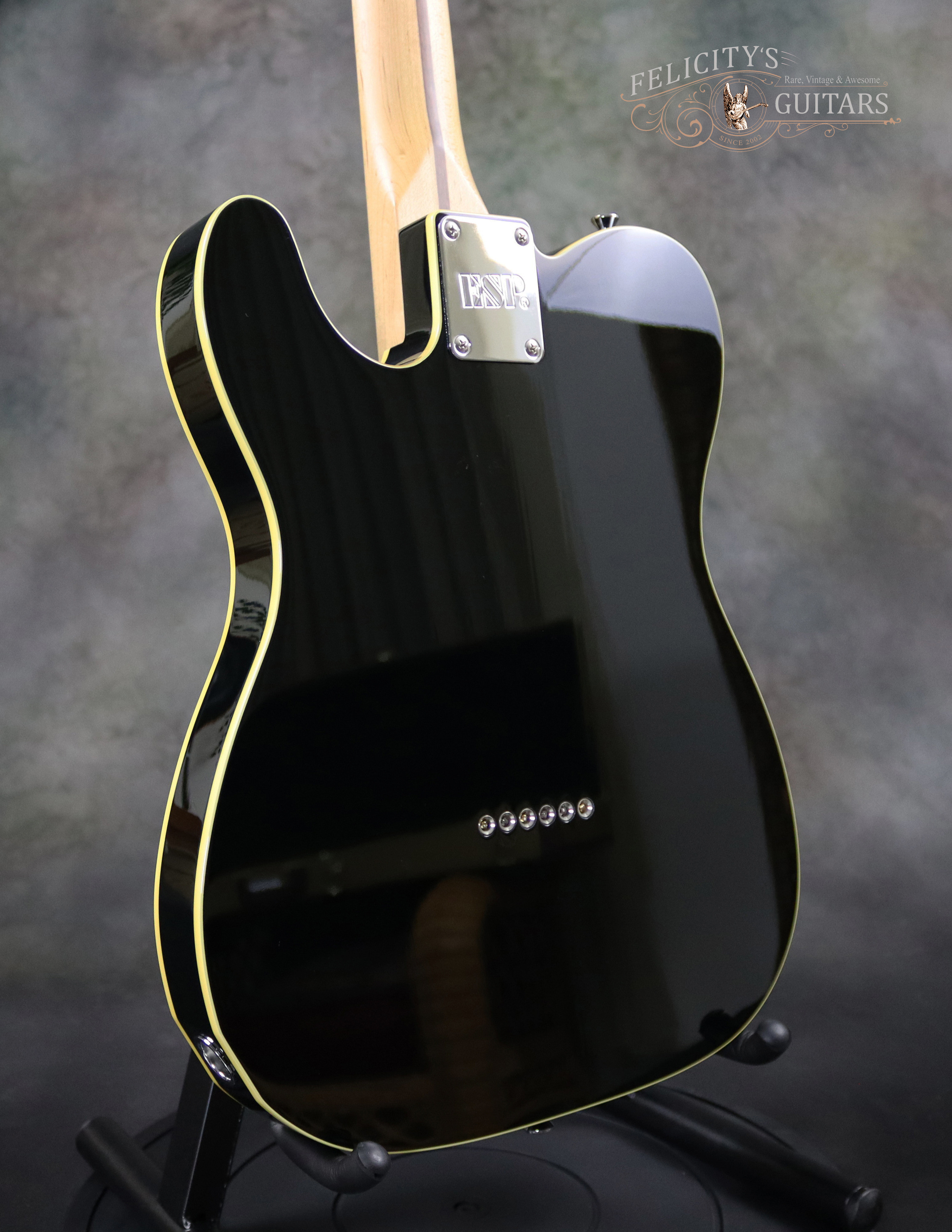

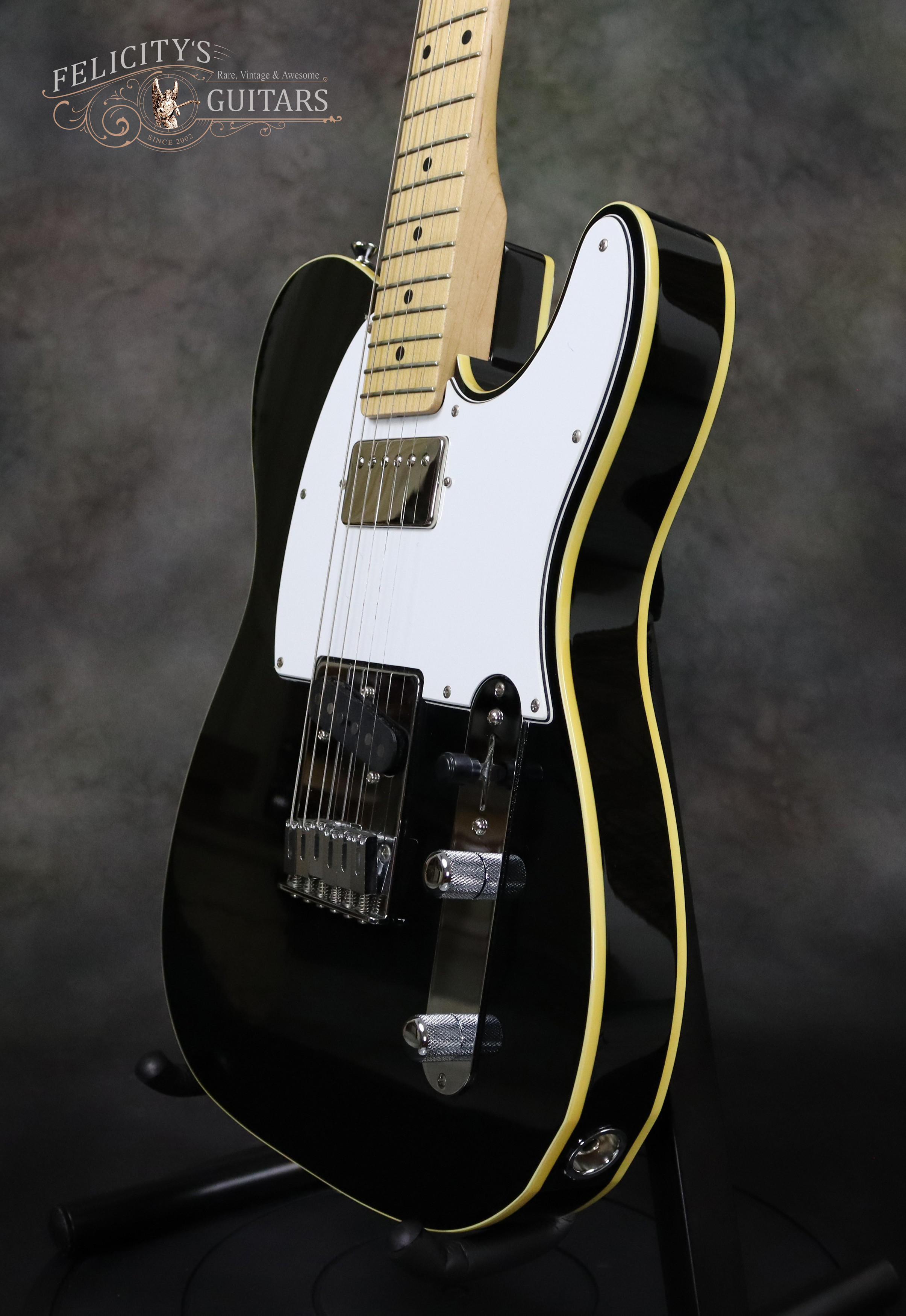

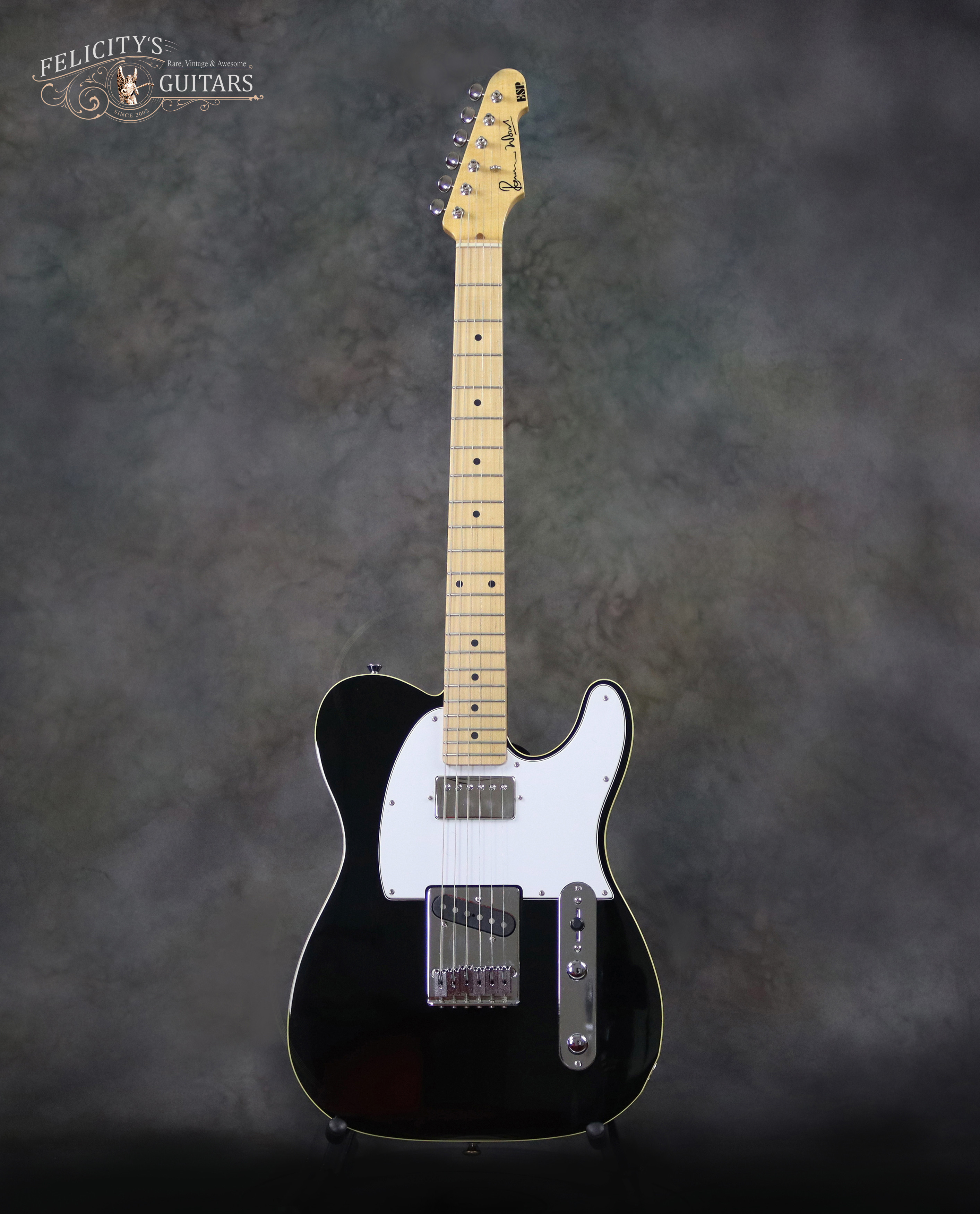

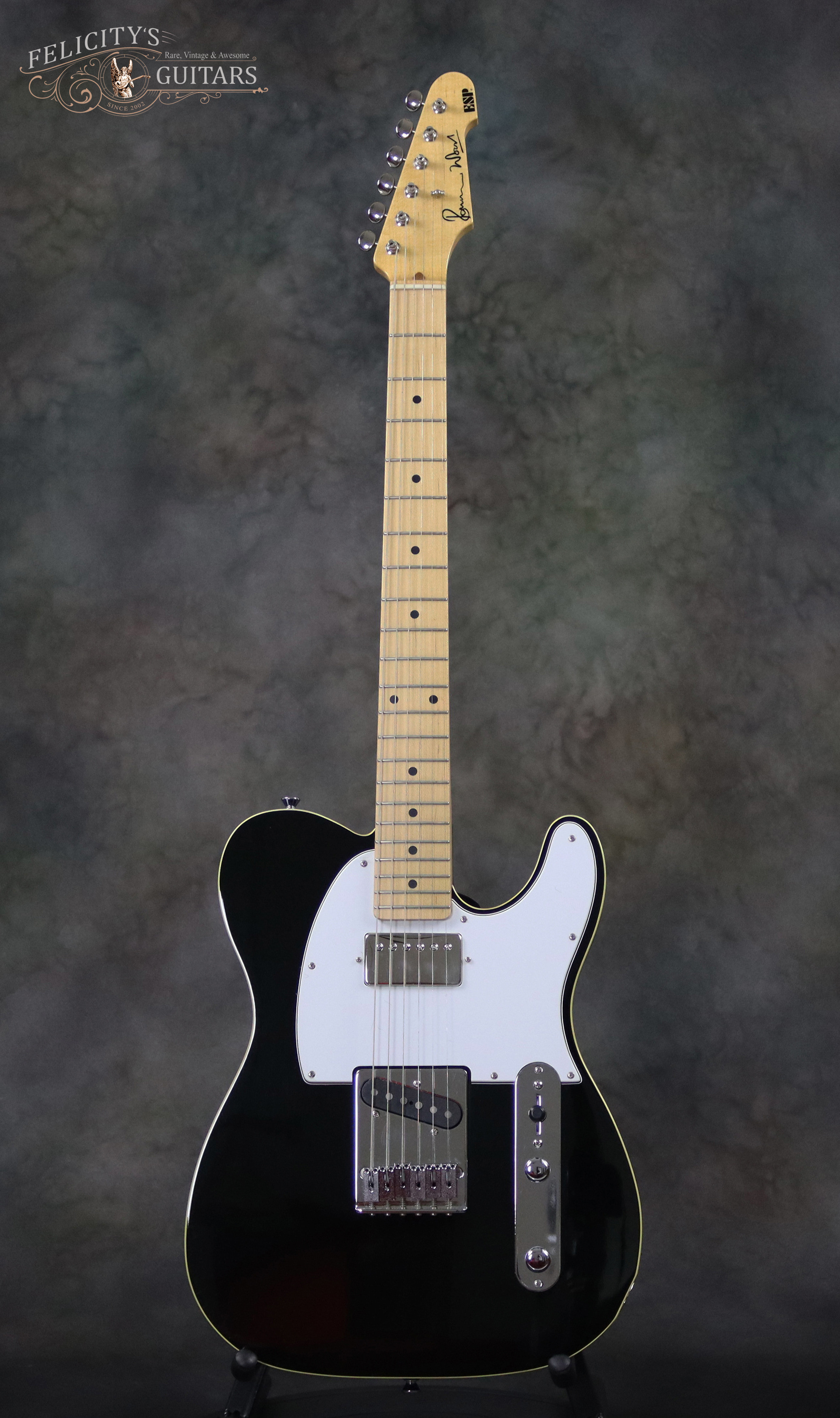

 Made at ESP’s Tokyo workshop, ESP’s Ron Wood Signature is a Tele-style guitar with an alder body and bolt-on maple neck and fingerboard. Visually, the Ron Wood features a classic glossy black finish with top and back cream binding.
 

  The 2010 ESP Signature Series “Ron Wood” Tele at a glance:

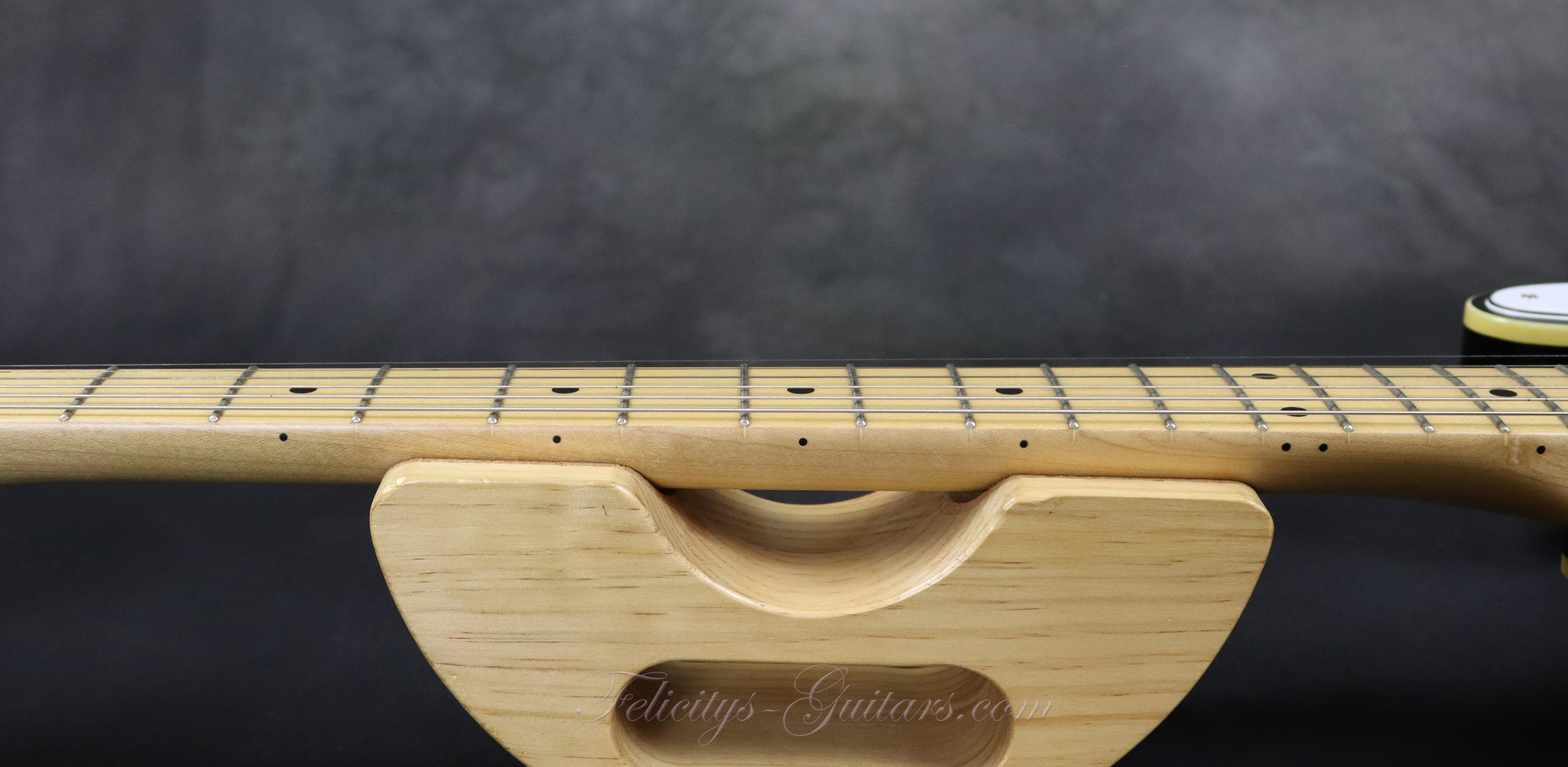

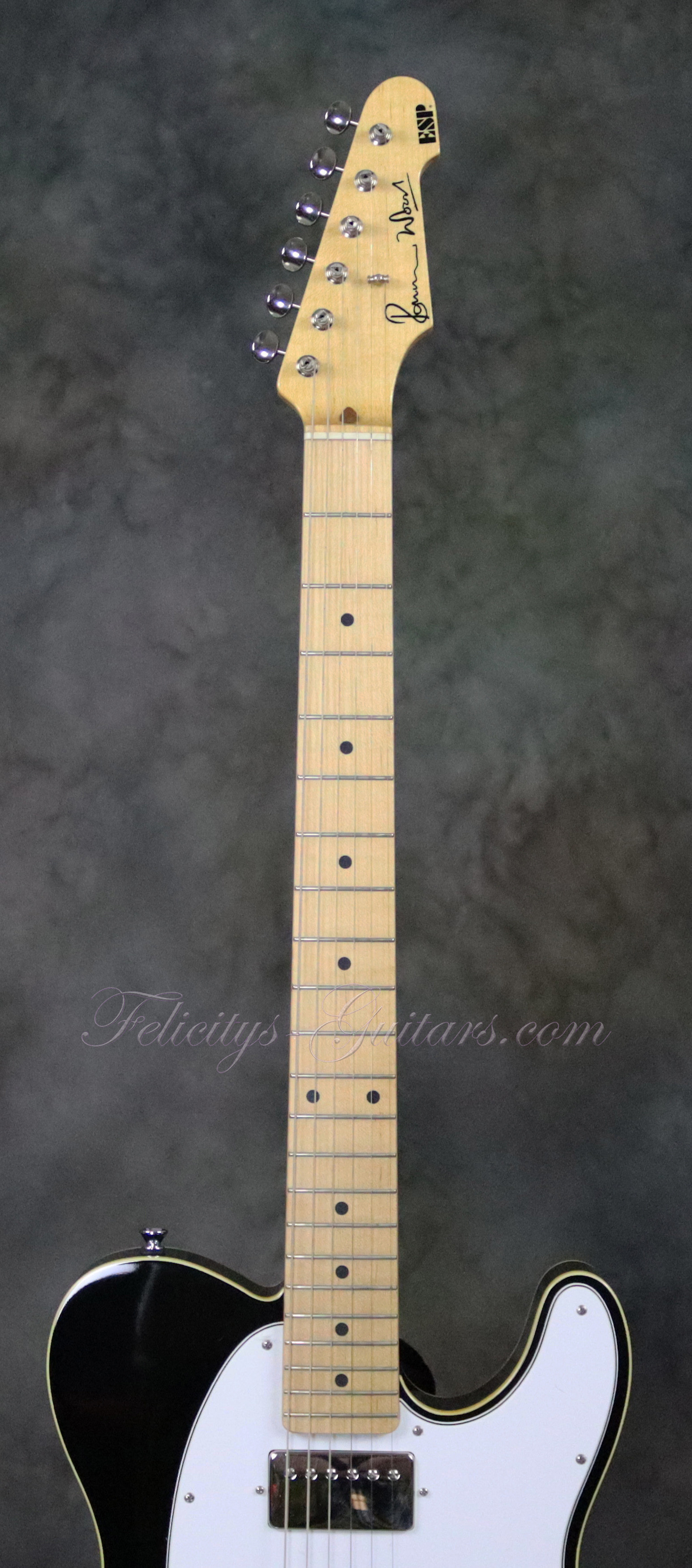

  • Quarter-Sawn Maple Satin Finished Neck back, and Gloss Finished Maple fingerboard with 22 jumbo frets

  • ESP® designed LH-200 humbucker in the neck, and a single-coil ESP® TS-120 pickup in the bridge position provide iconic rock and blues guitar tones

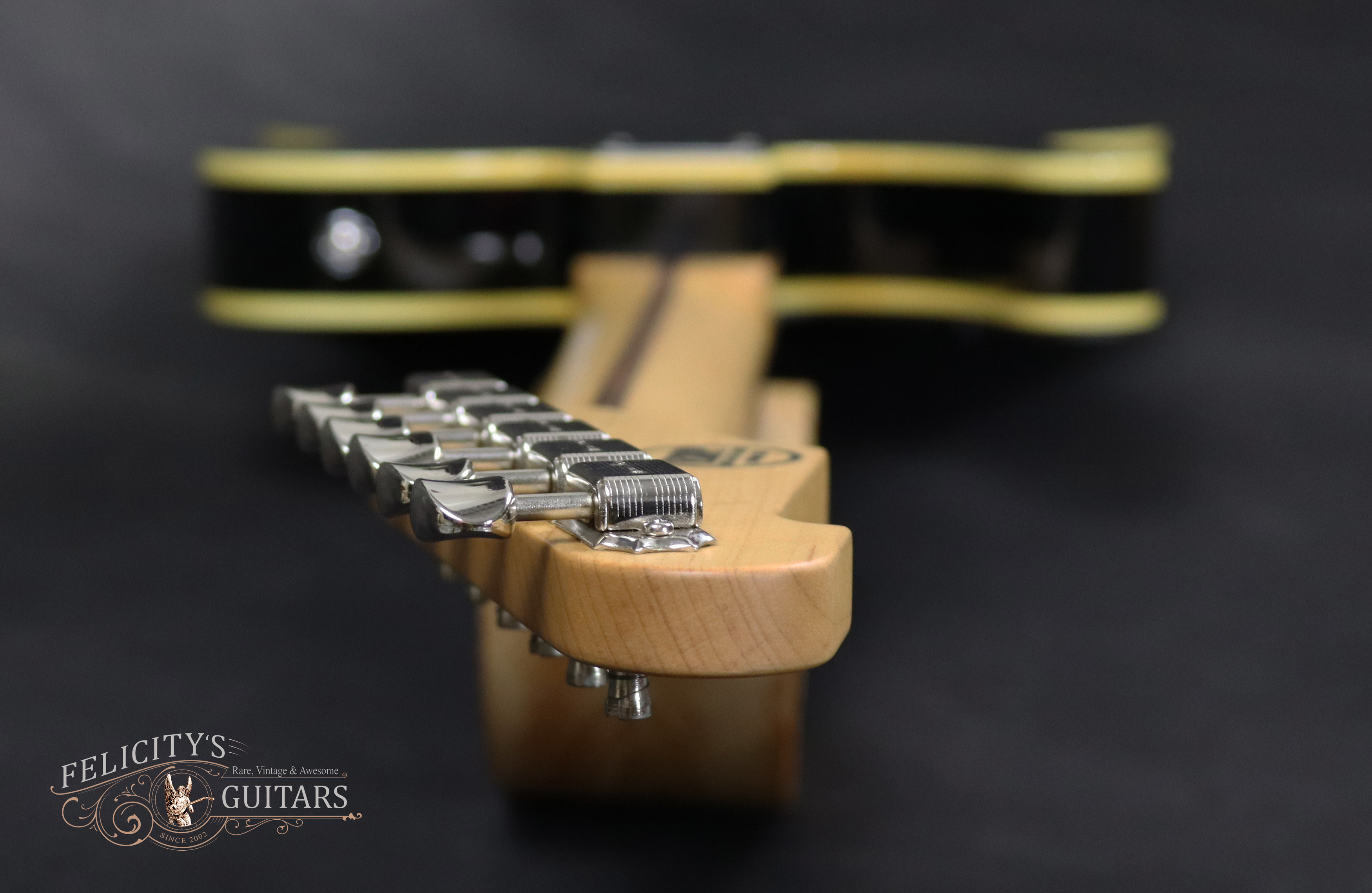

  • Gotoh 6-in-line Deluxe Vintage Style Tuners

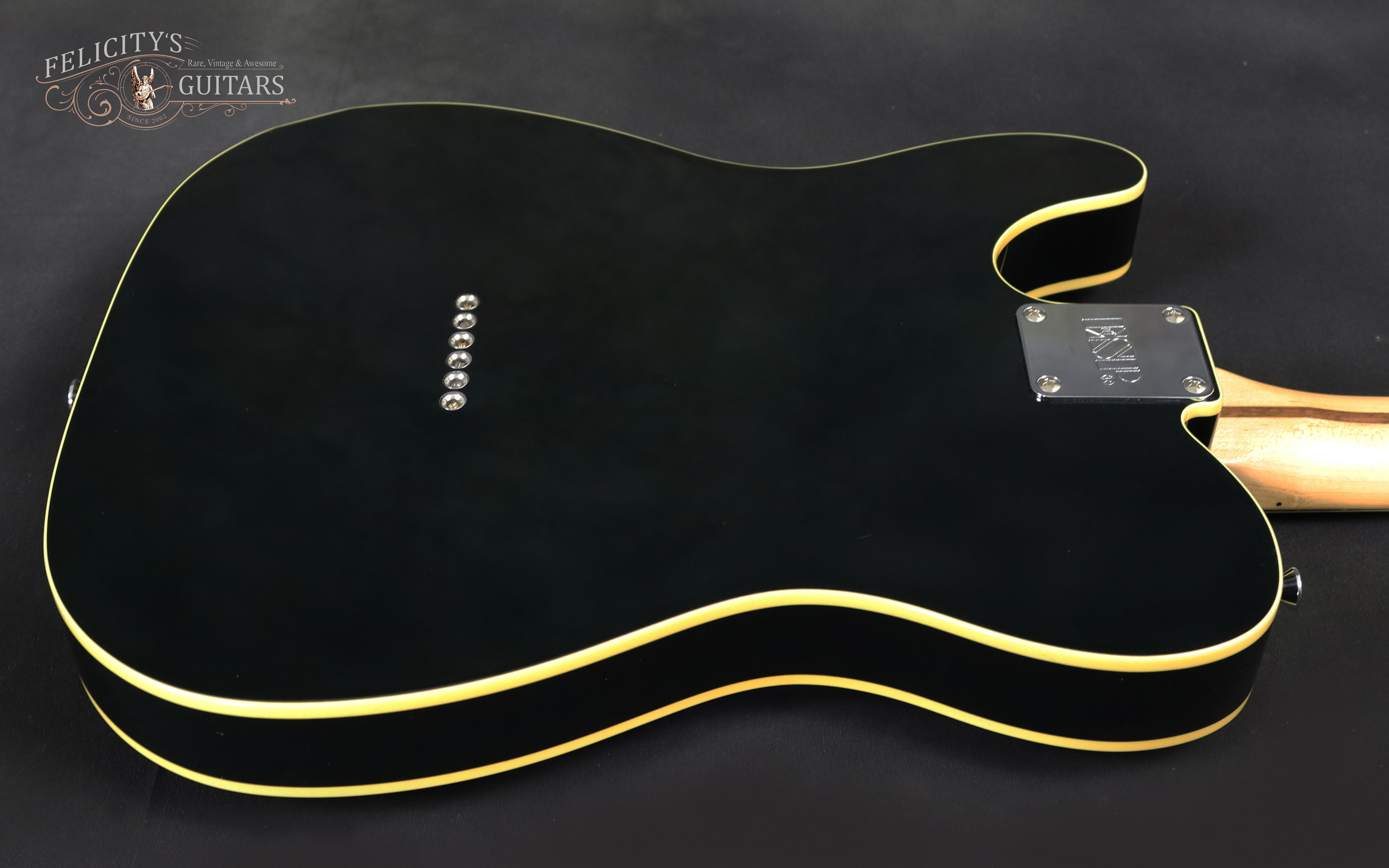

  • Flat-mount Fixed Bridge, Strings-thru-Body with 6 Stainless Steel Block-Saddles


2010-ESP-USA-Telecaster-Ron-Wood-Black

USD 1,000,000

Add to Cart

Shipping will be calculated at check out

description

Holding its own among Ronnie Wood's invaluable collection of classic guitars, the ESP Ron Wood is handcrafted by the expert luthiers at the ESP Custom Shop in Japan for the Rolling Stones' guitarist of more than 40 years. Seen onstage during nearly every Stones tour of the past 20+ years, the ESP Ron Wood offers a traditional vibe taken to the highest level of tone and playability.

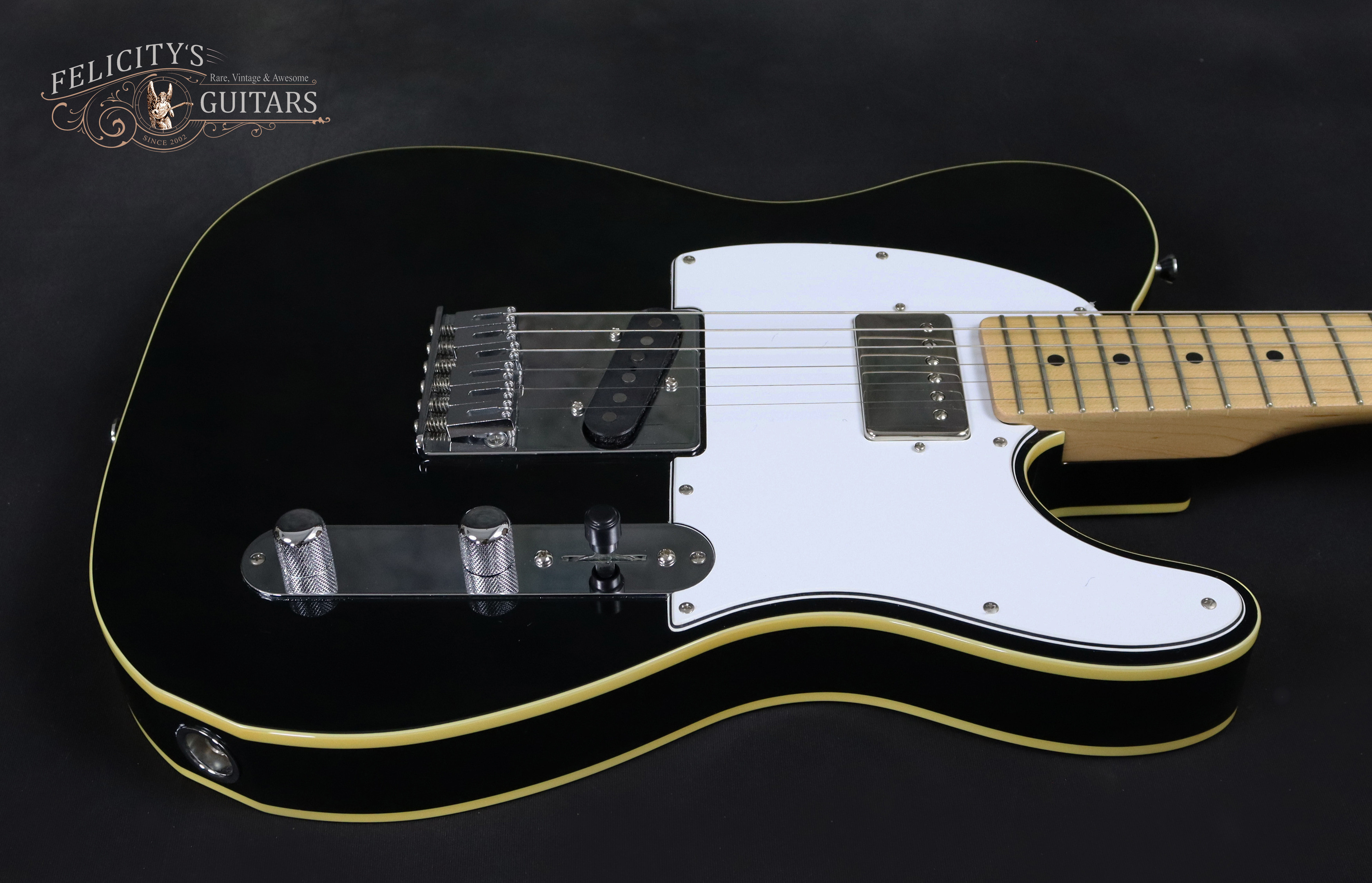

A bolt-on neck design, the ESP Ron Wood pairs a comfortable fully-bound alder body to a maple neck with maple fingerboard and 22 jumbo frets. Its sound is powered by an ESP Designed LH-200 humbucker in the neck, and a single-coil ESP TS-120 pickup in the bridge position. It includes a bone nut, Gotoh tuners, and a traditional flat mount bridge and multi-ply pickguard design. Available in Black finish.

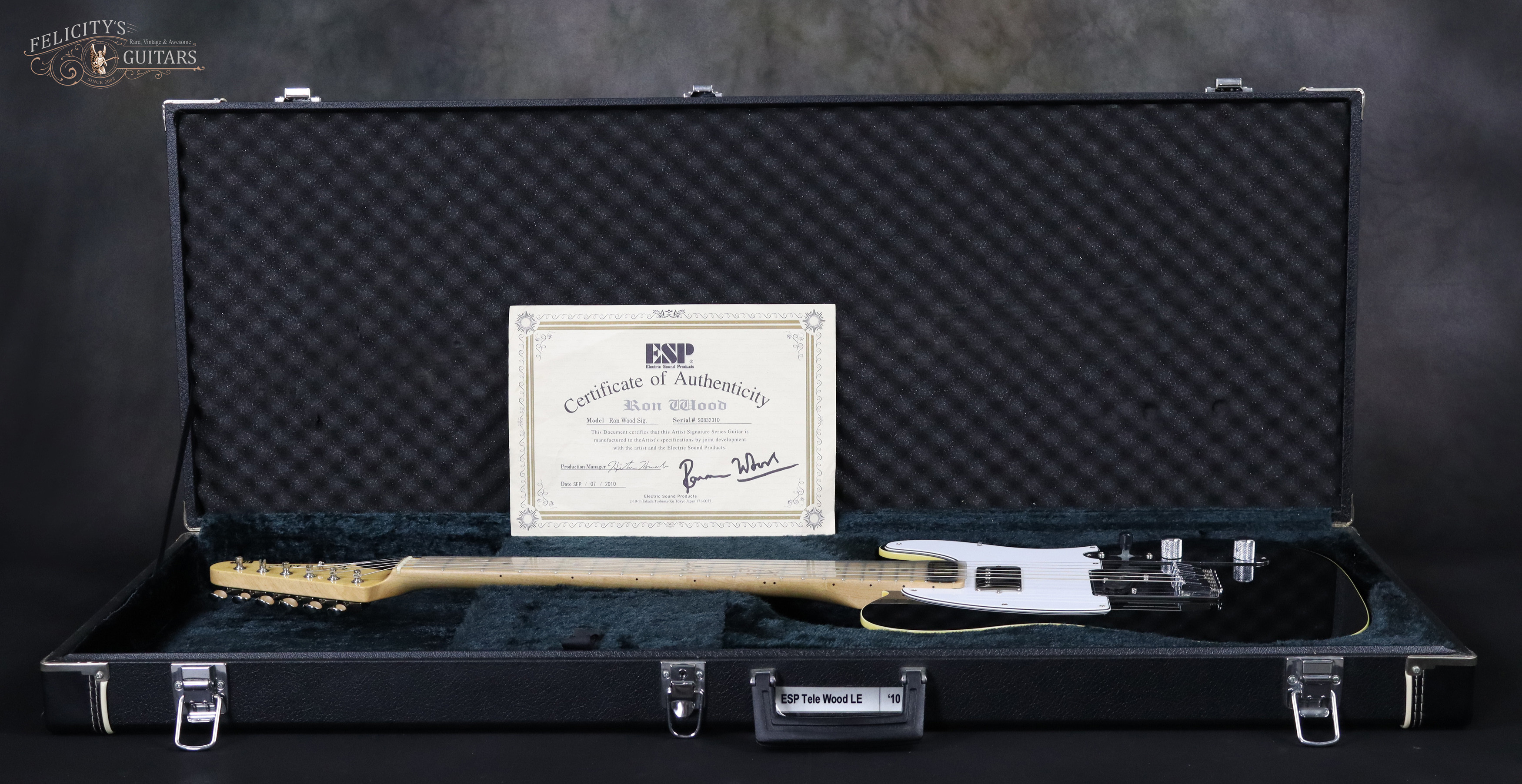

The 2010 ESP Japan Signature Series “Ron Wood” Tele comes with an ESP form-fit Hardcase and Certificate of Authenticity

Specifications

General

Condition

Brand New (NOS)

Number of Strings

6

Orientation

Right-handed

Country of Origin

Japan

Year

2010

Limited Edition / Series

No

Weight

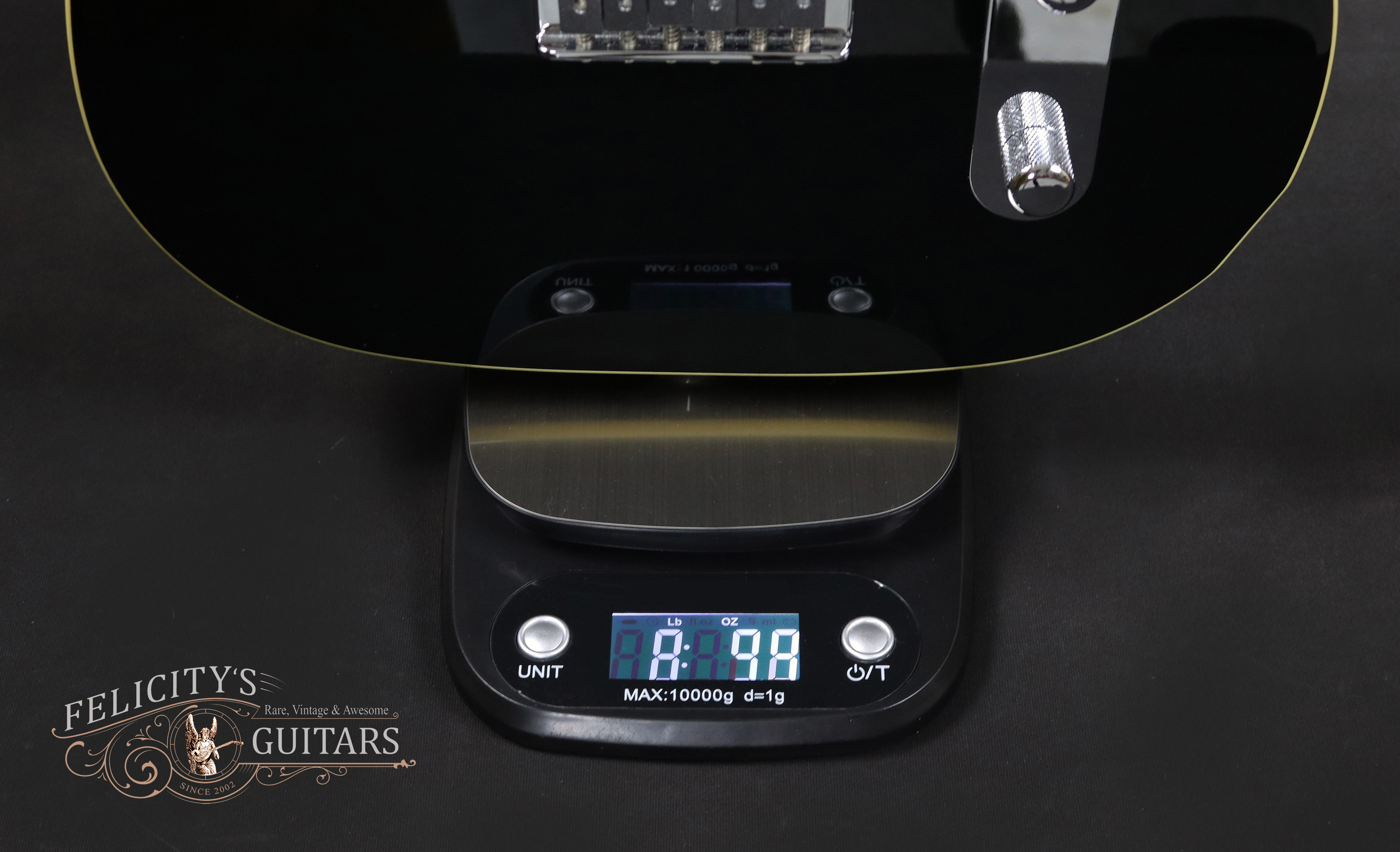

8-lbs 9.8-oz

body

Body Type

Solidbody, String-through

Body Shape

Singlecut Tele-Style

Body Material

2-pc  Alder

Body Carve

Front: Flat

Back: Flat

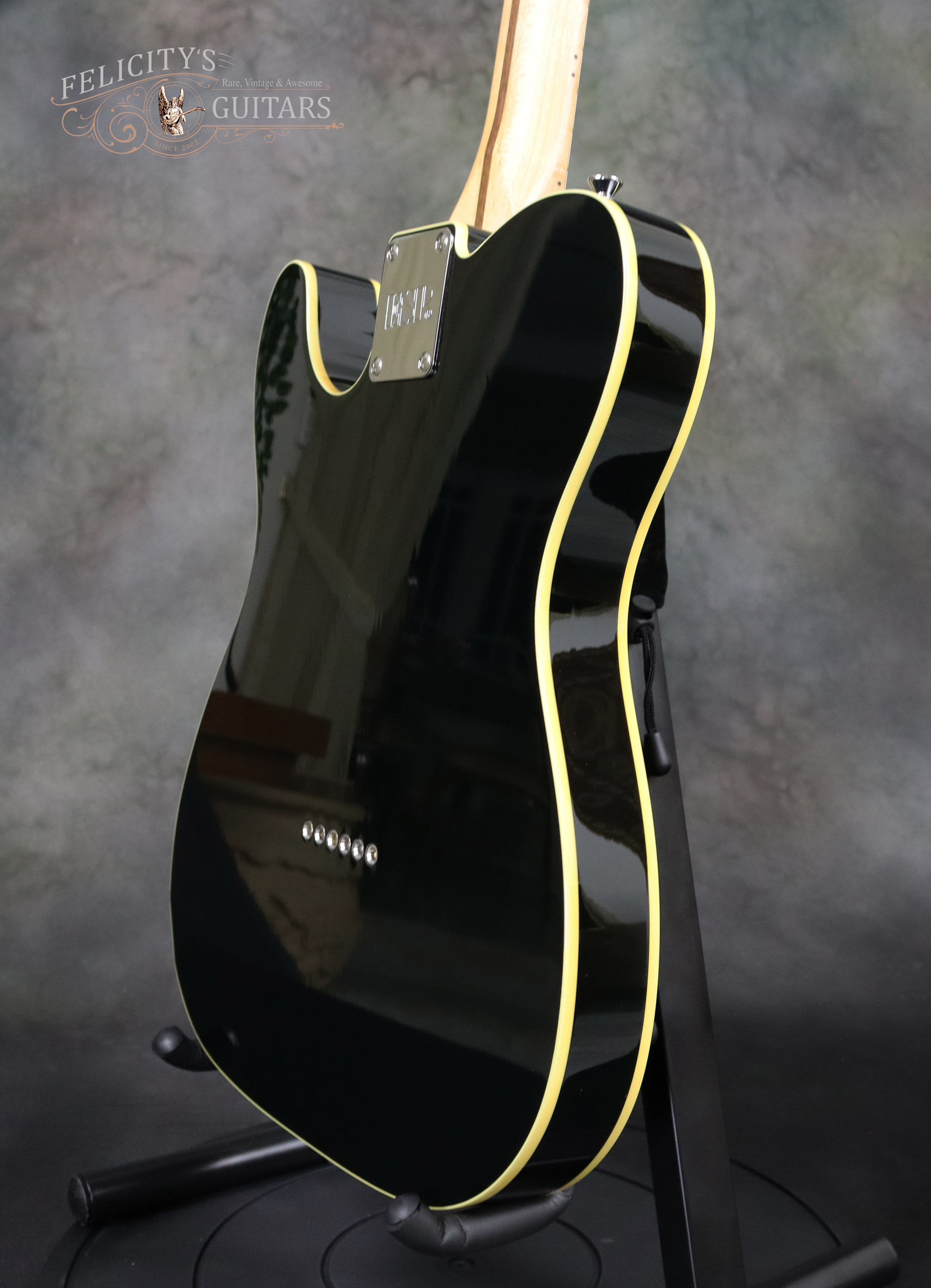

Body Binding

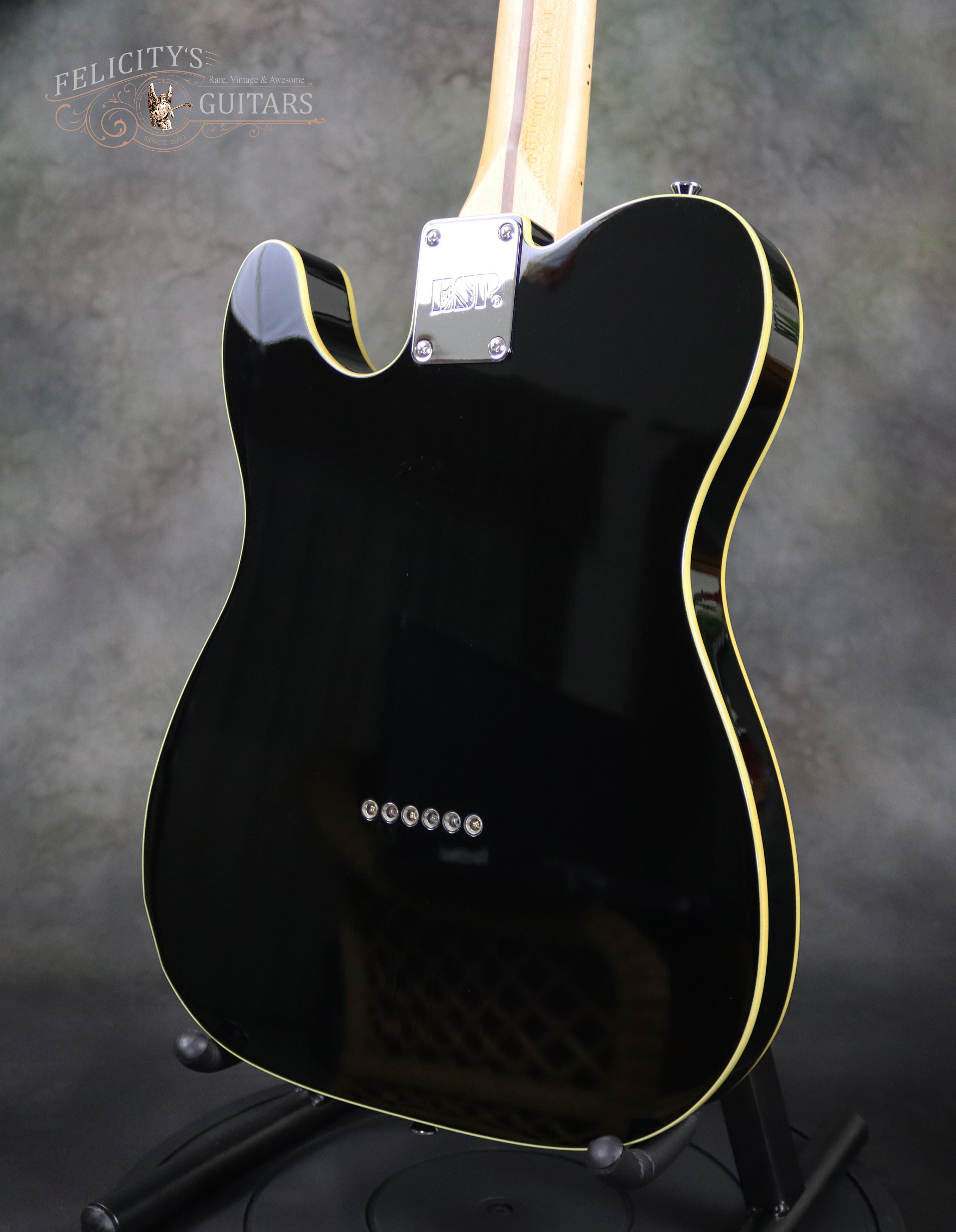

Front: 1-ply Cream Binding

Back: 1-ply Cream Binding

Weight Relief

Un-chambered

Build Materials Used

ESP® Proprietary Bonding Glue

Body Finish Type

Hi-Gloss Polyurethane

Color

Front: Glossy Black

Back: Glossy Black

neck

Neck Material

1-pc Quarter-Sawn Maple with Skunk-stripe, Satin Back & Gloss Front Finishes

Truss Rod

2-way Adjustable

Truss Rod Cover

No (open)

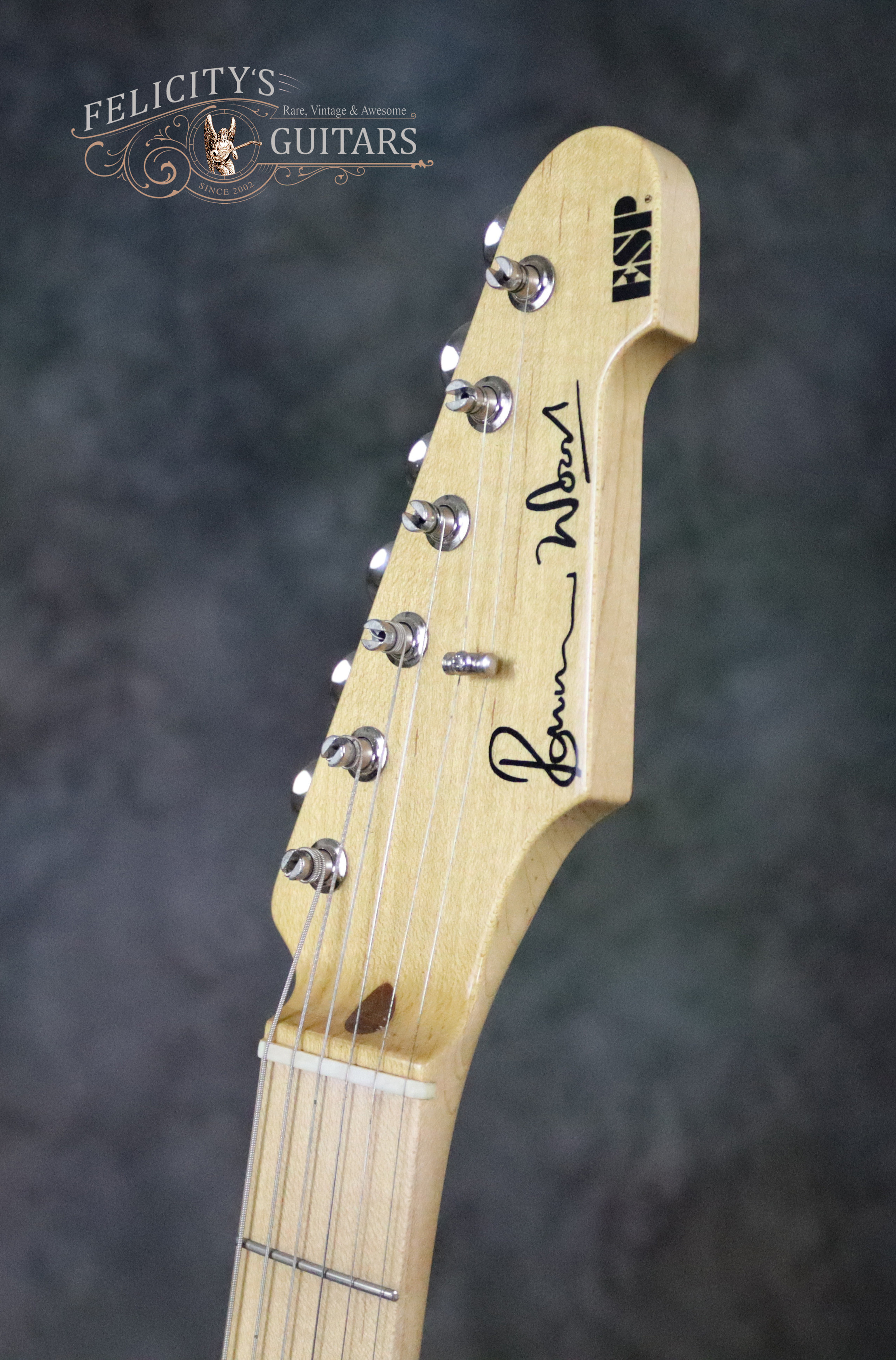

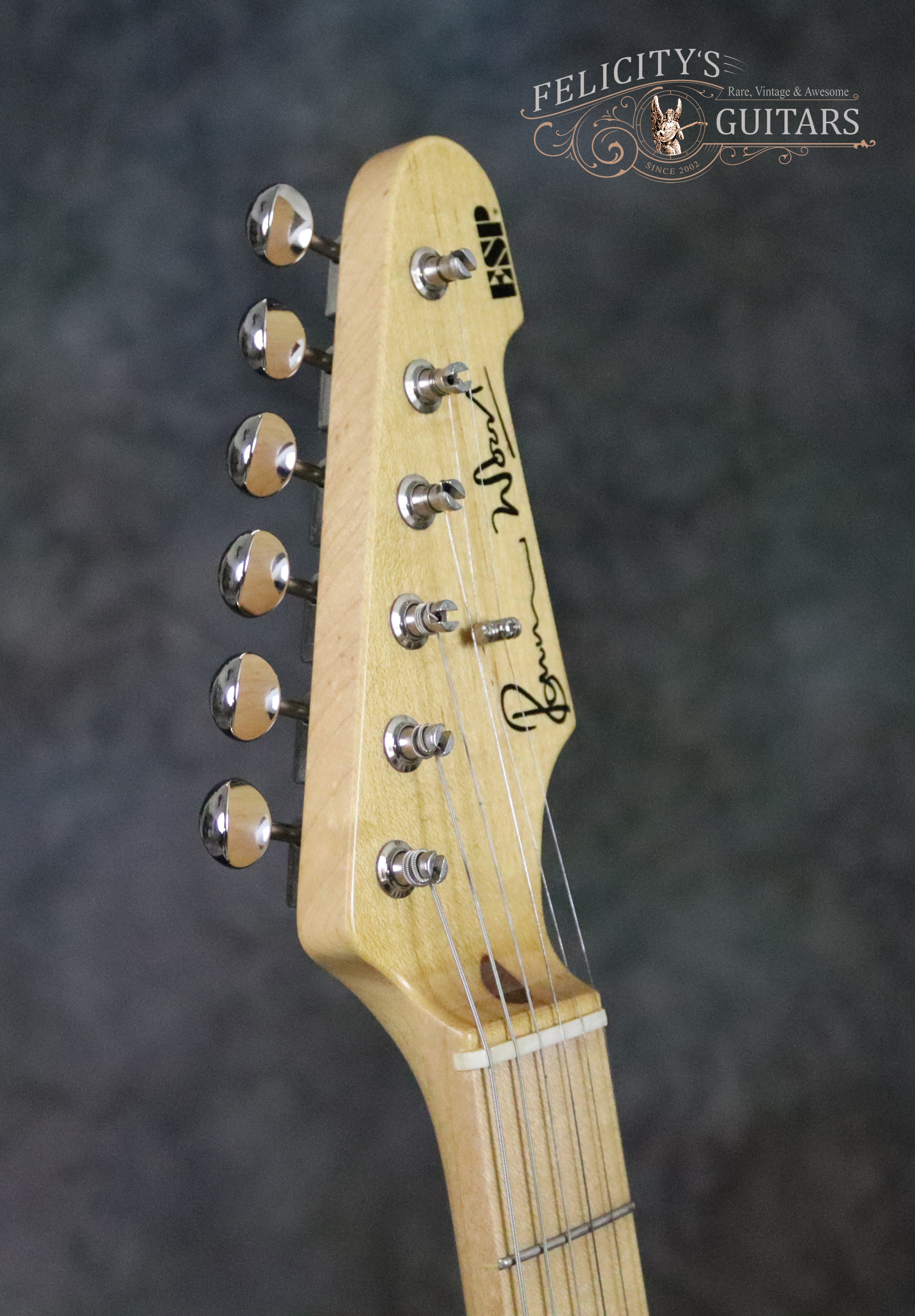

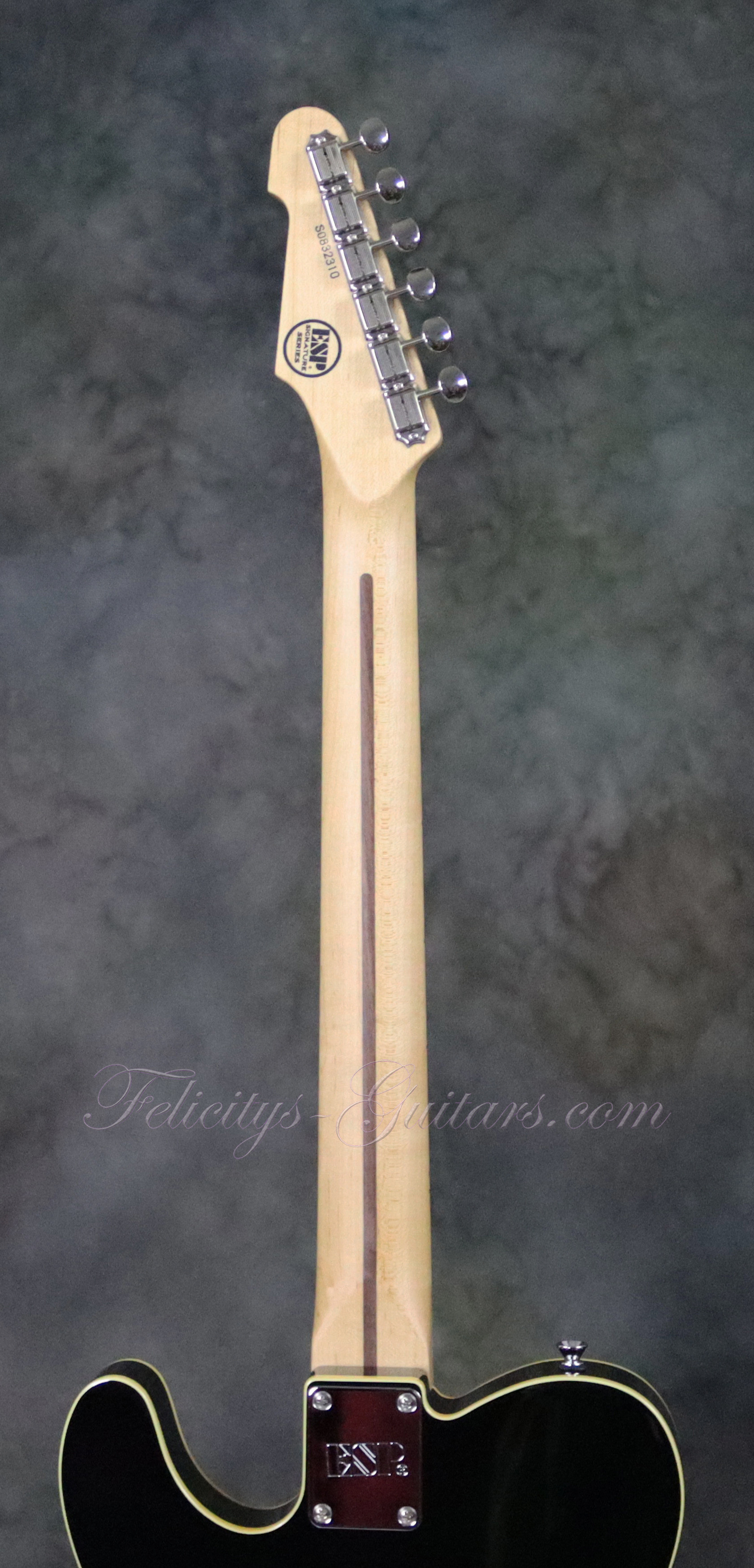

Peghead Particulars

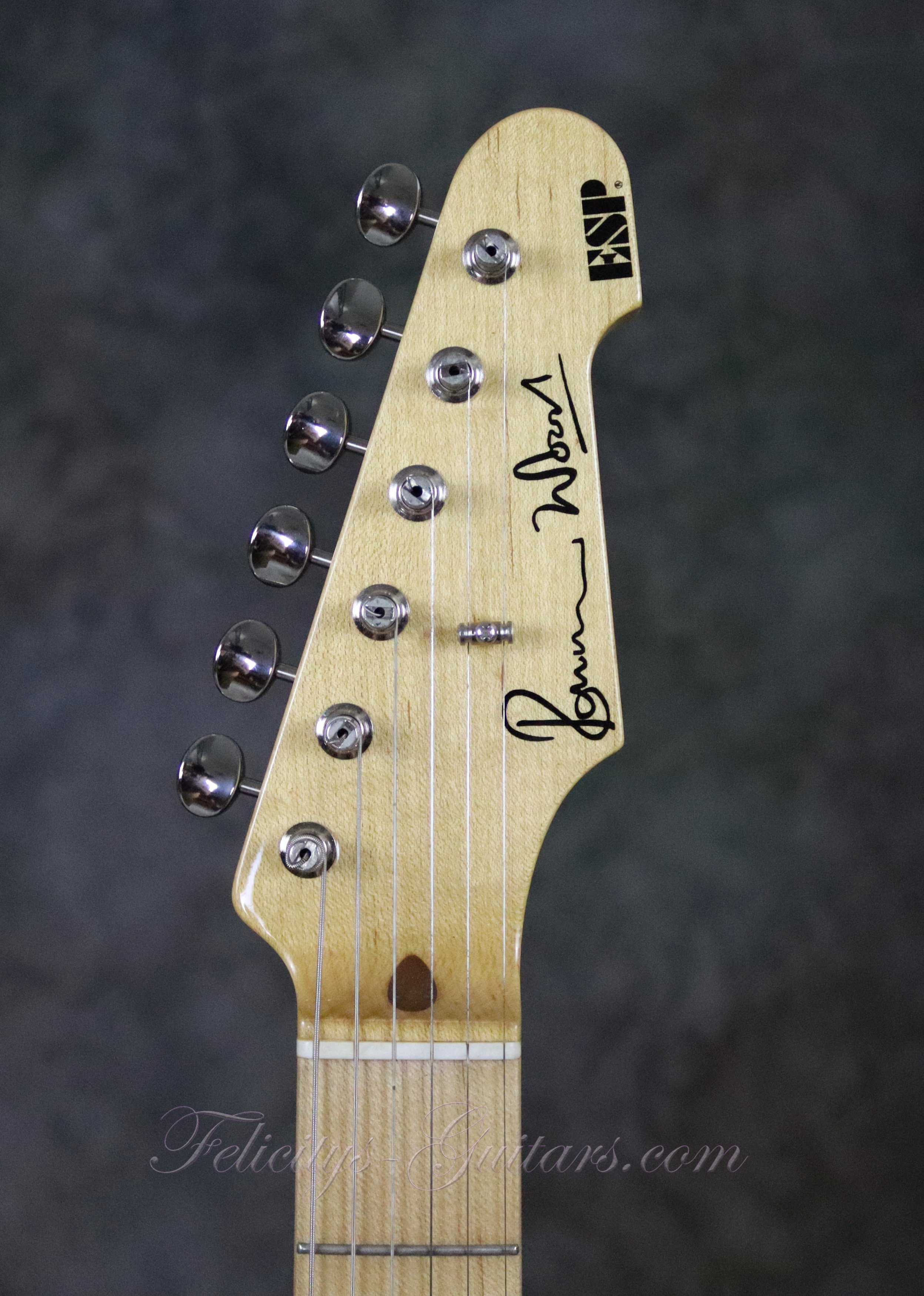

Front: Unbound Natural Color, Silkscreen Ron Wood Signature and ESP® Logo Decals

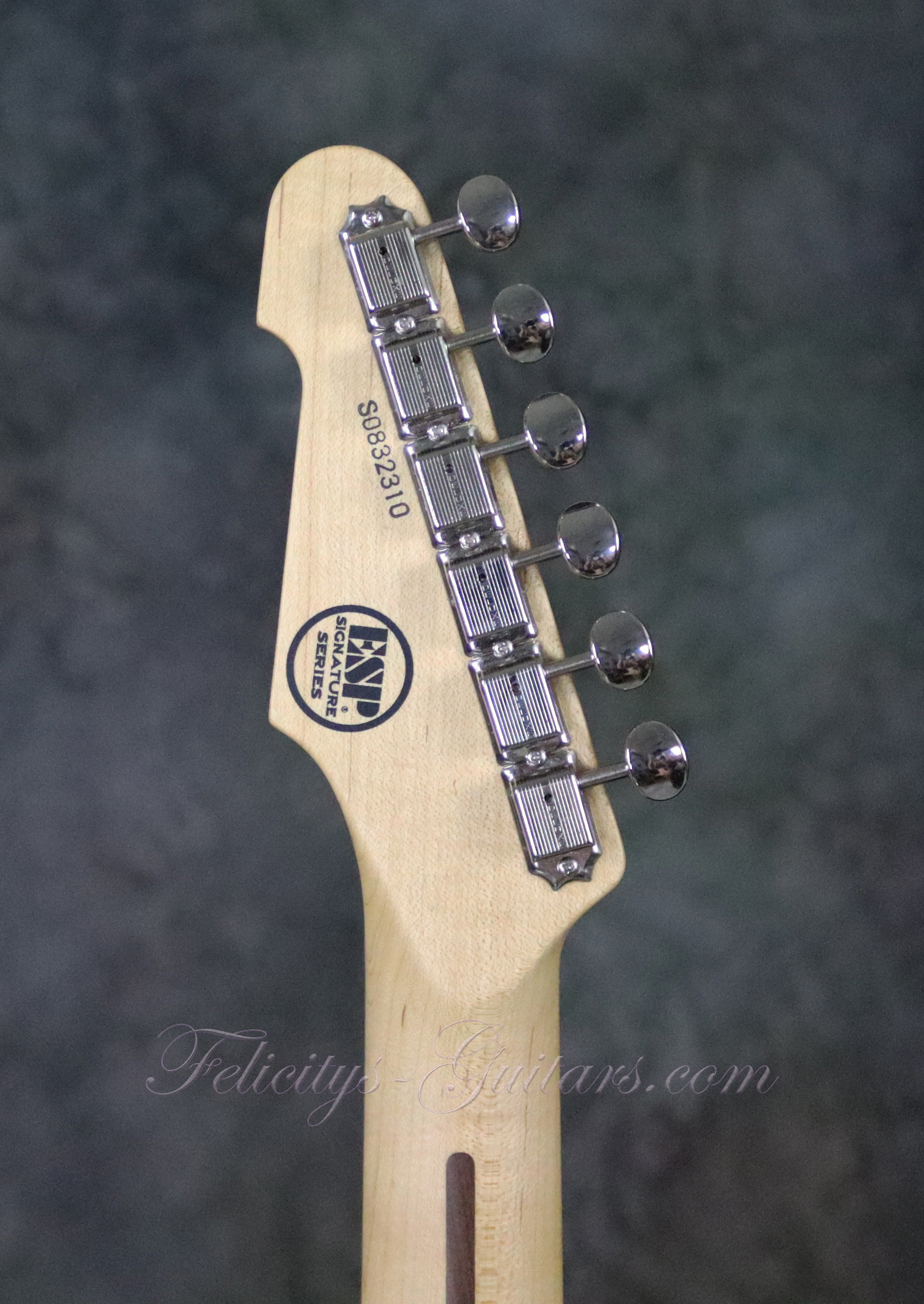

Back: Soft Volute, Silkscreen ESP® Signature Series Circle and Serial Number Decals

Neck Profile

‘U’ Profile

Fingerboard Material

Maple, with Gloss Lacquer Finish

Fingerboard Radius

9.5”

Scale Length

25.5"

No. Frets / Type

22 Jumbo / Stainless Steel

Nut Size / Material

1.650” / Bone

Neck Width

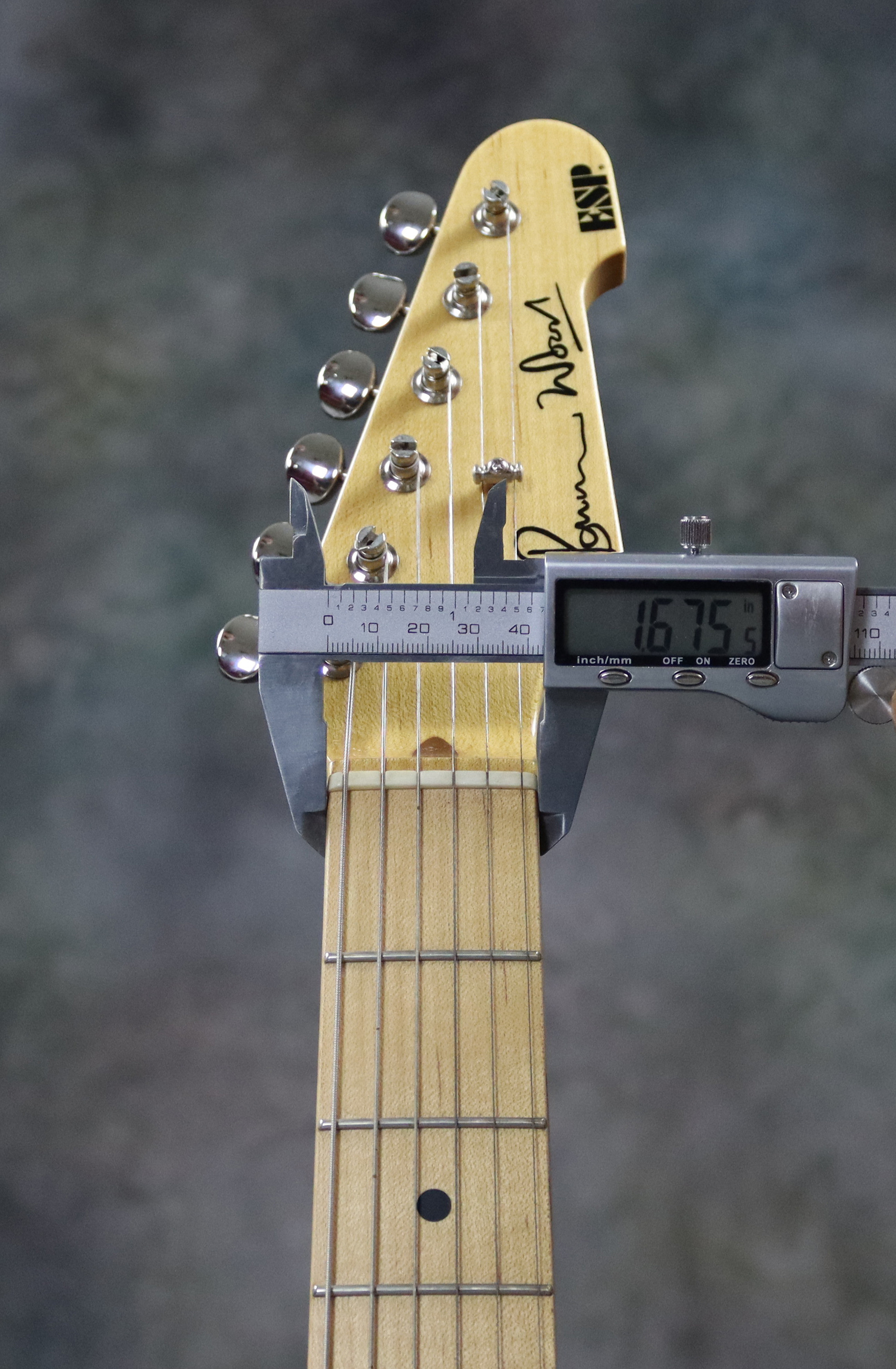

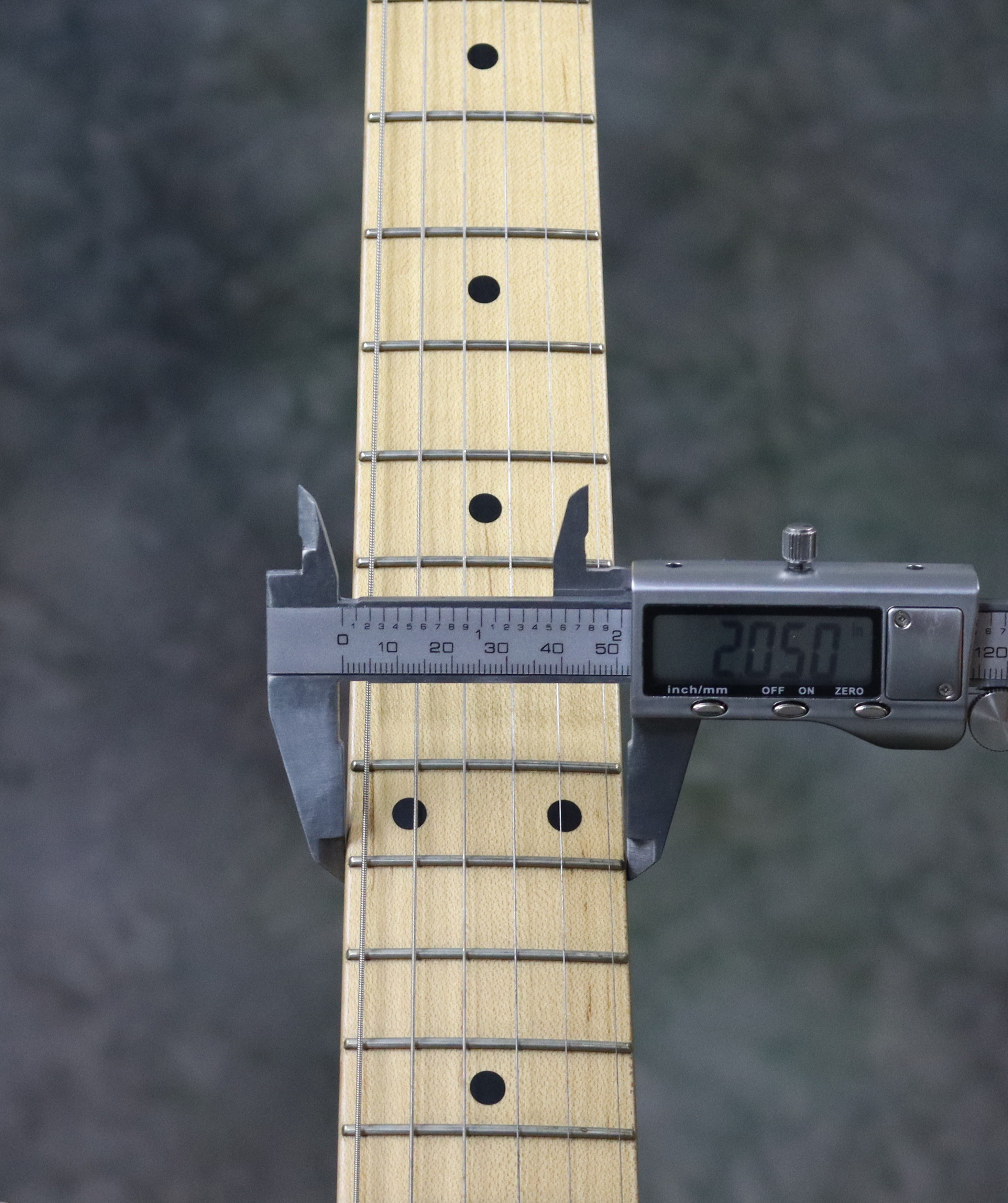

1.675” at 1st fret / 2.050” at 12th fret

Neck Depth

0.890” at 1st Fret / 0.980” at 12th Fret

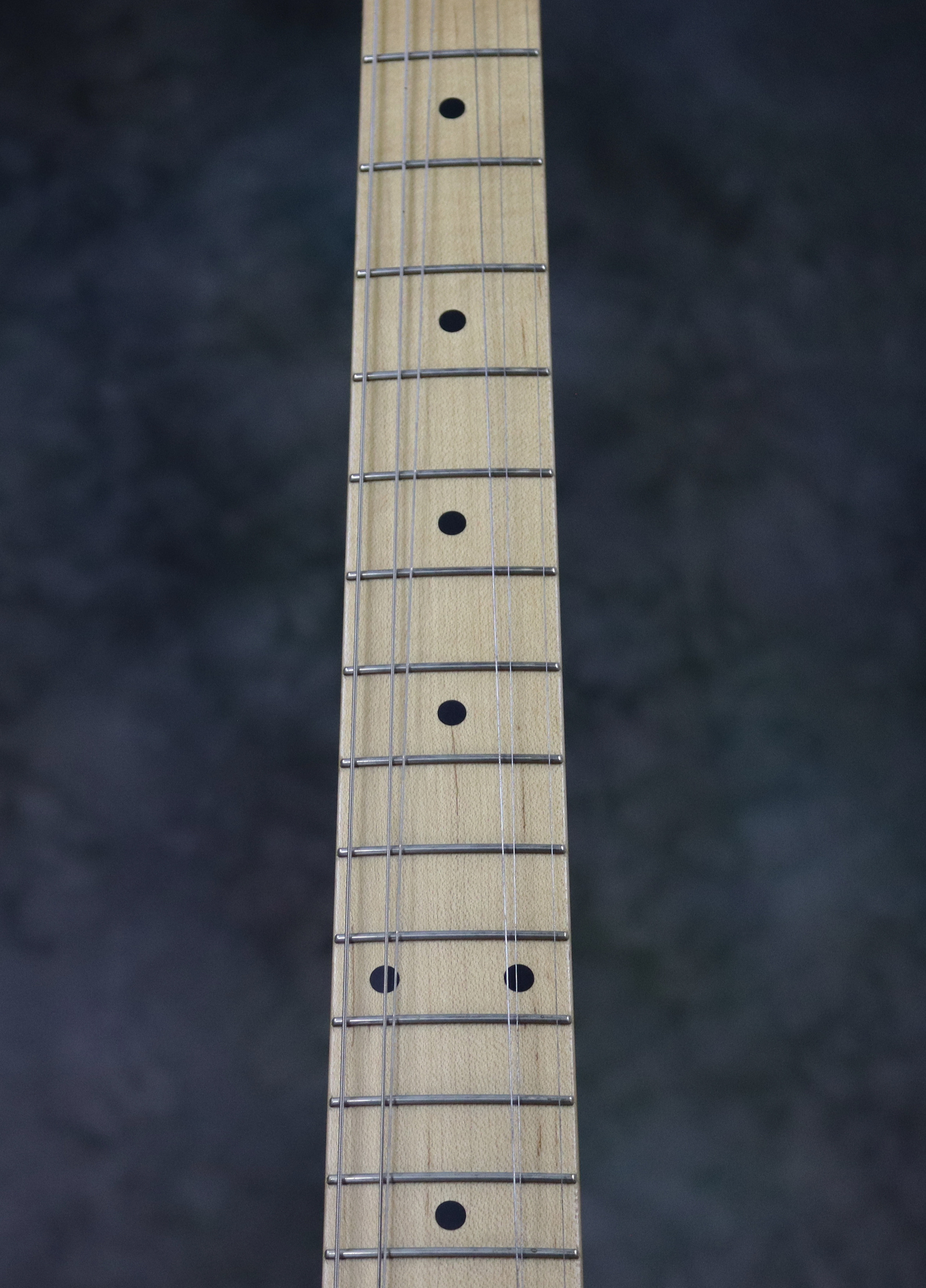

Fingerboard Inlays

Large Black Pearloid Dots

Neck Binding

No

Side Dots

Black Pearloid

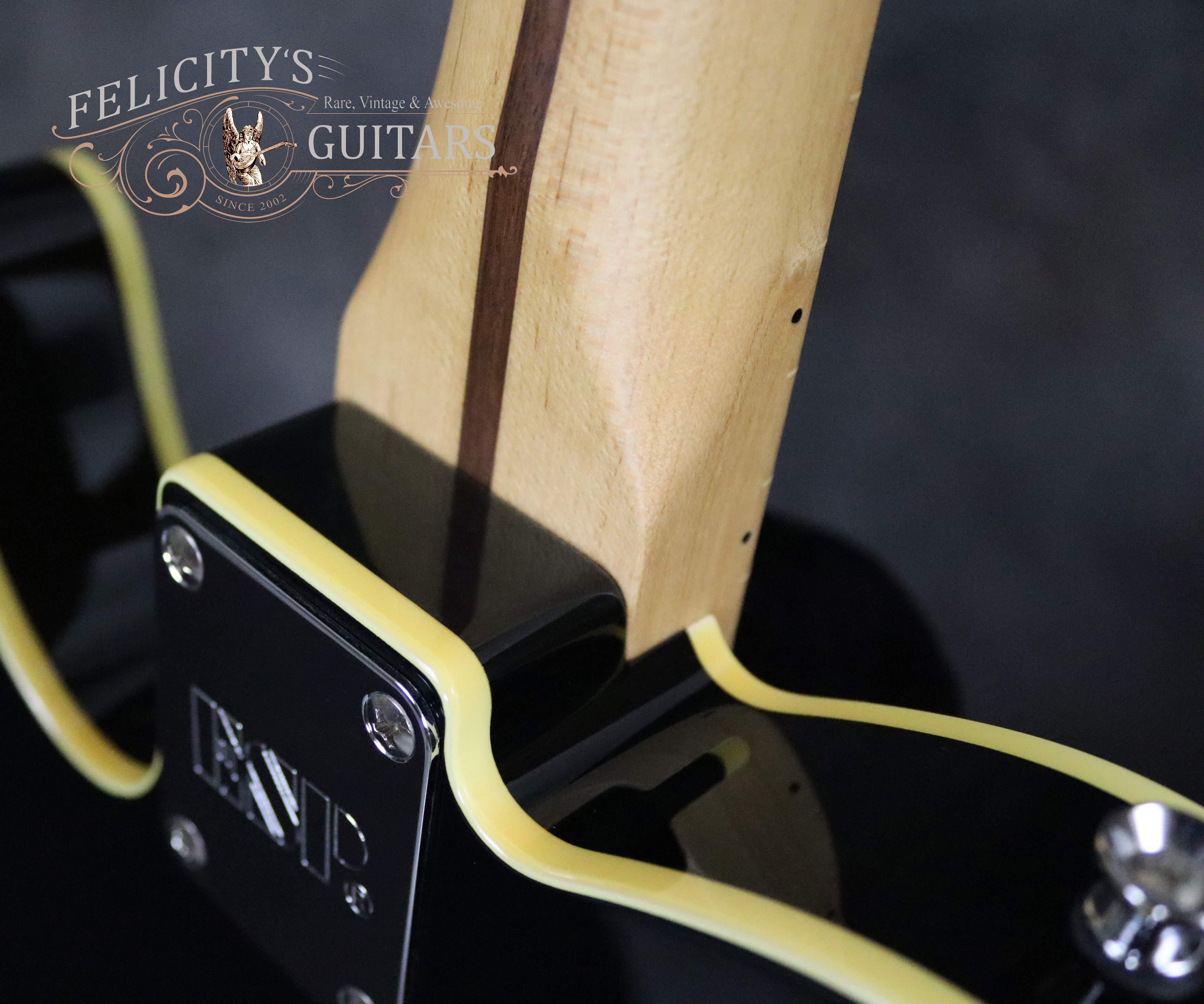

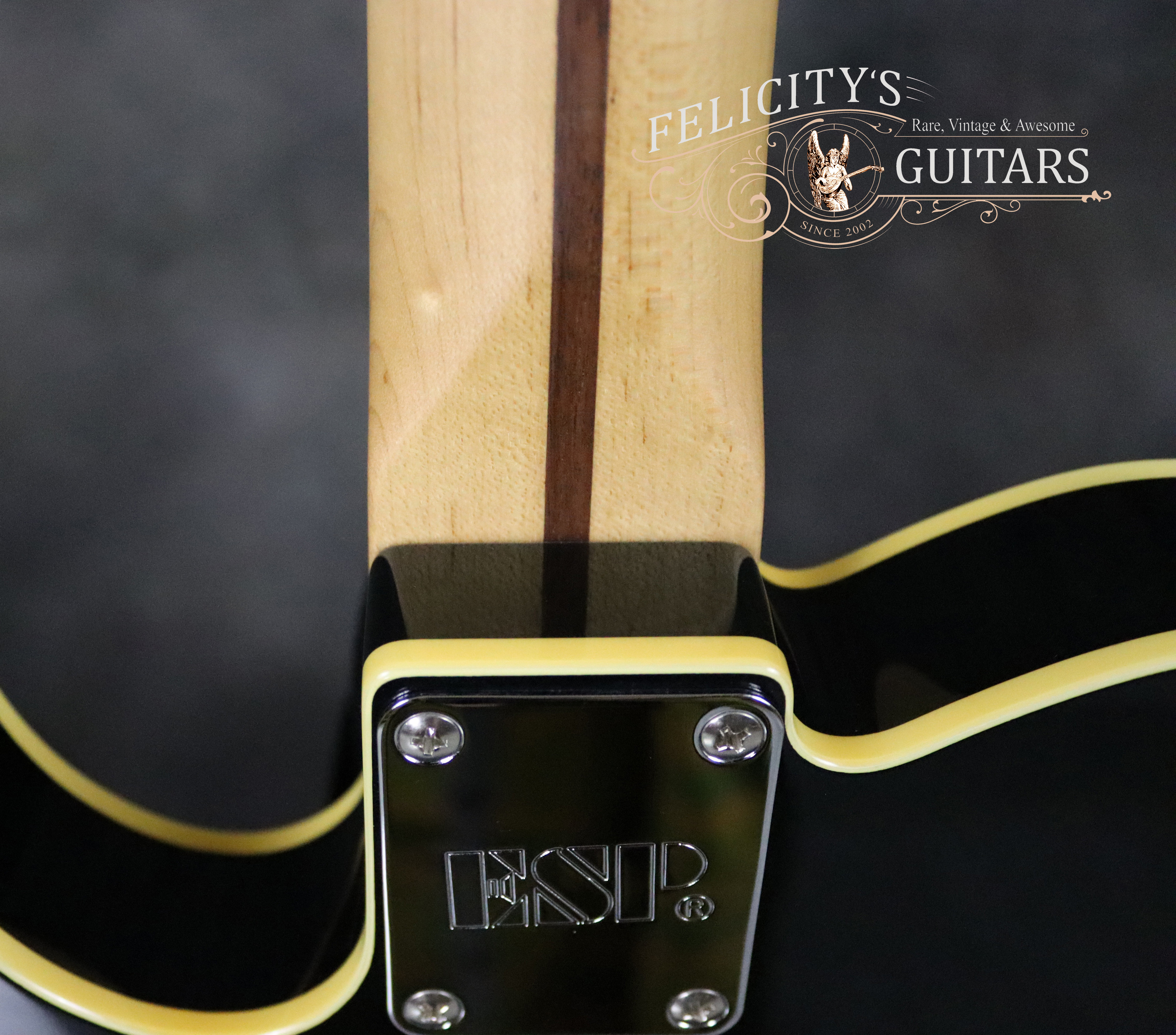

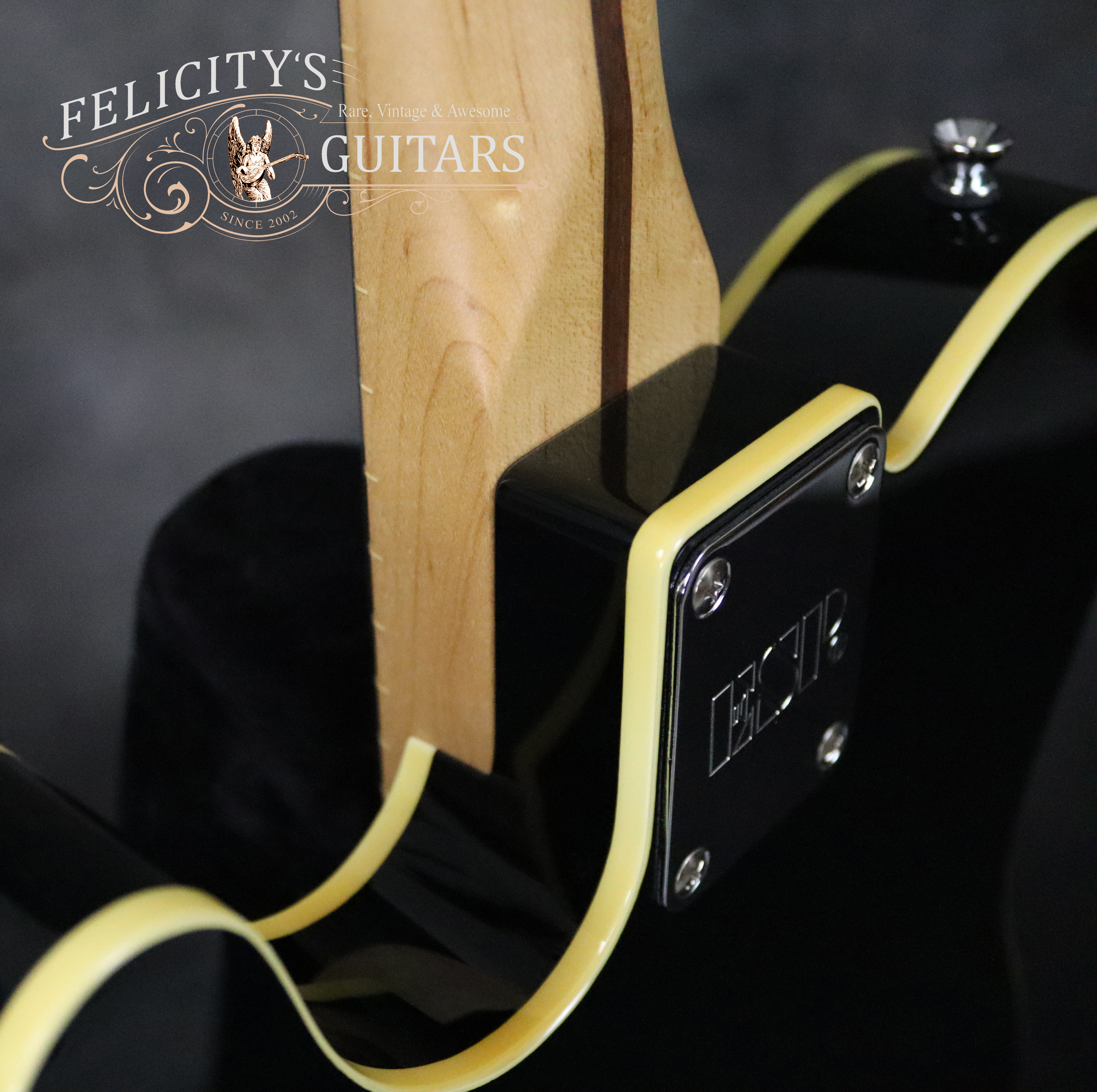

Neck Joint

Bolt-on

hardware

Bridge

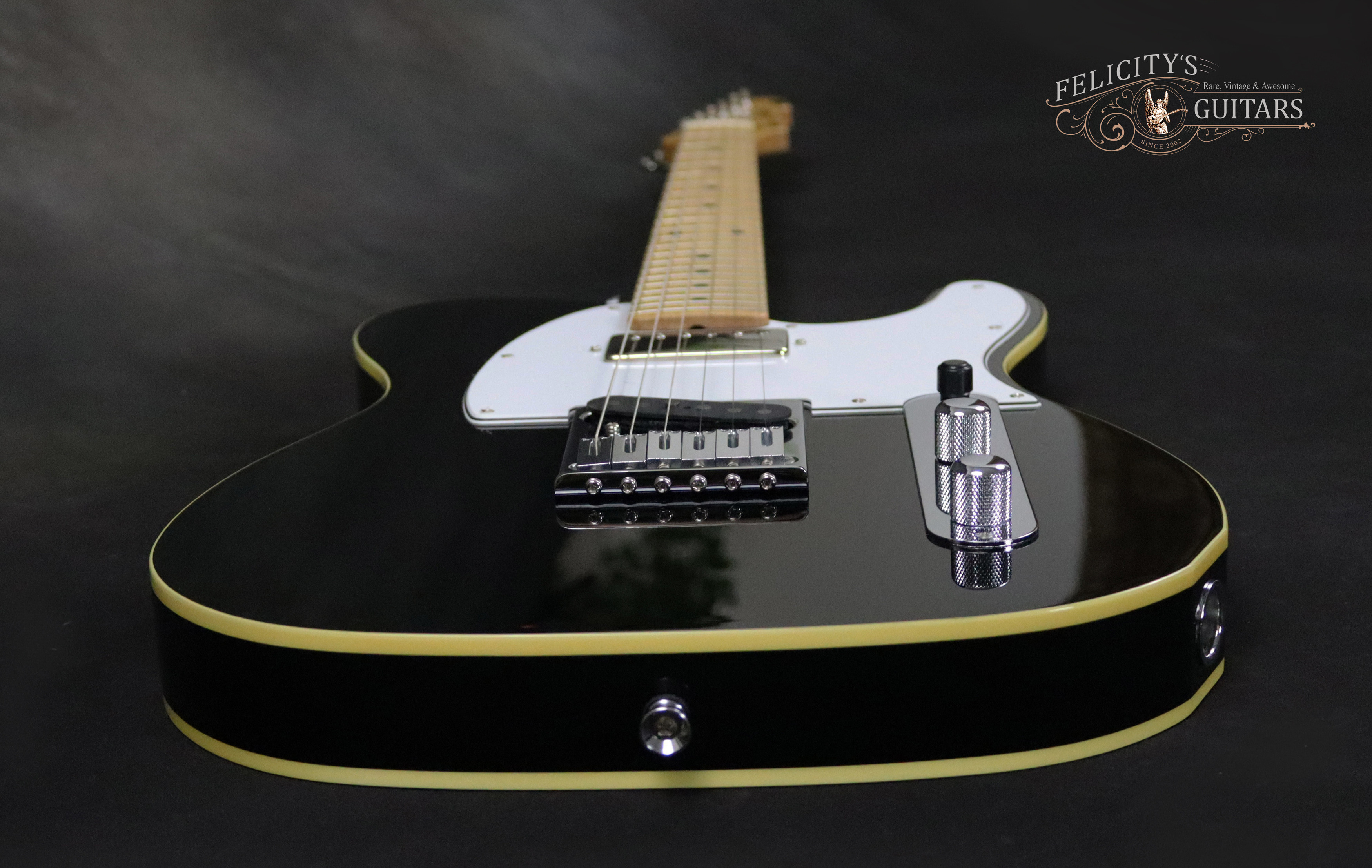

Chrome Plated, Flat-mount Fixed Bridge, Strings-thru-Body, 6 Stainless Block-Saddles

T-String

Chrome Plated, Ezy-Glide Roller

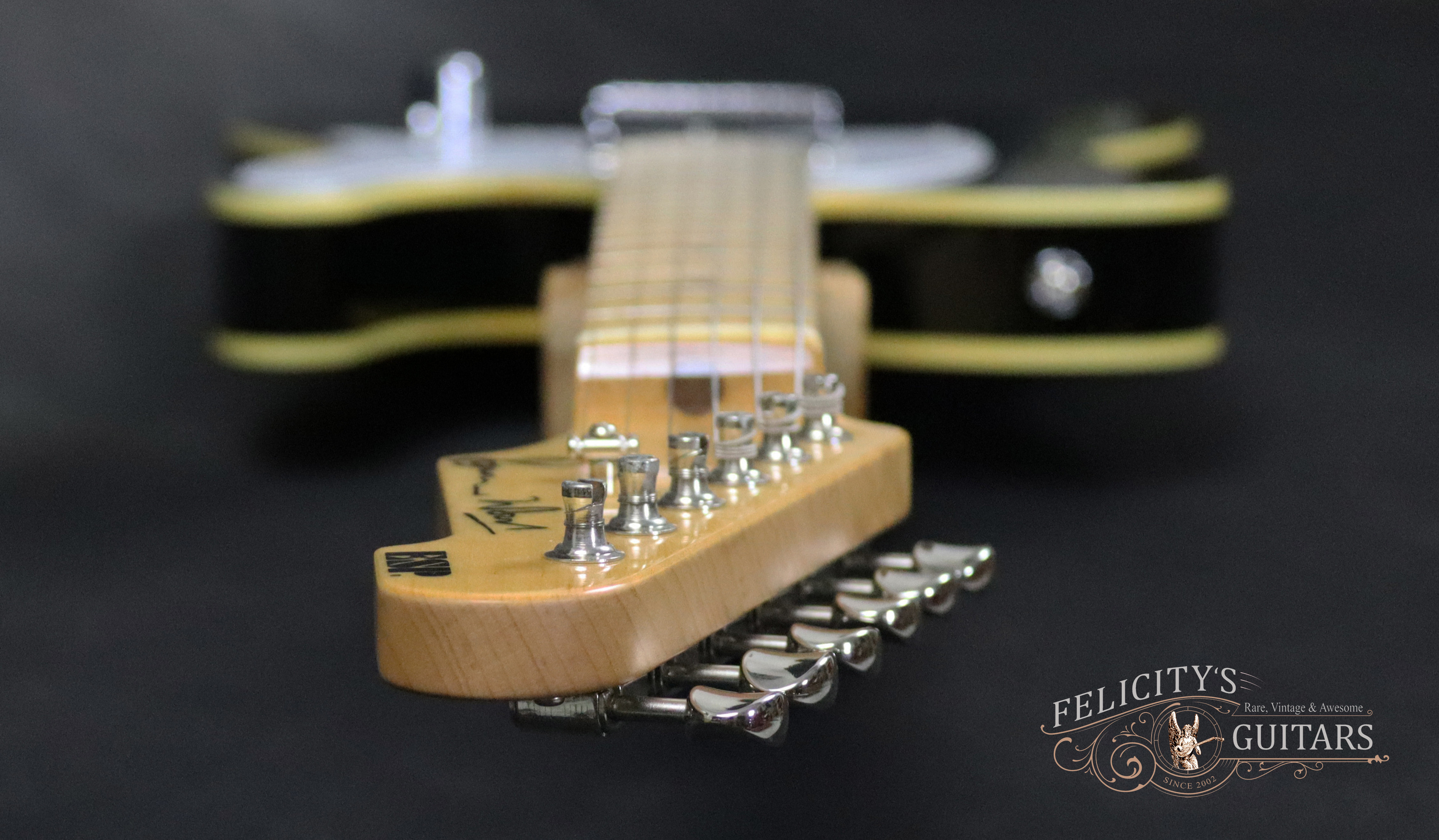

Tuning Machines

Nickel-Chrome, 6-in-line Gotoh® DLX Vintage w/Chrome Kidney Buttons / 14:01 Ratio

Pickup Cover / Ring

Bridge: Black (uncovered)  Single-Coil / Neck: Chrome Plated Humbucker with No Ring

Strap Buttons

Chrome Plated, Aluminum End Pins

Pickguard

3-ply W/B/W, 60o bevel, 8-hole, Tele Style

Control Knobs

Chrome Plated, Tele Control-Plate with Chrome Knurled-Rim Dome Top Knobs

Switch

Black, Plastic ‘Barrel’ Tip (3-pos Blade)

Output Jack

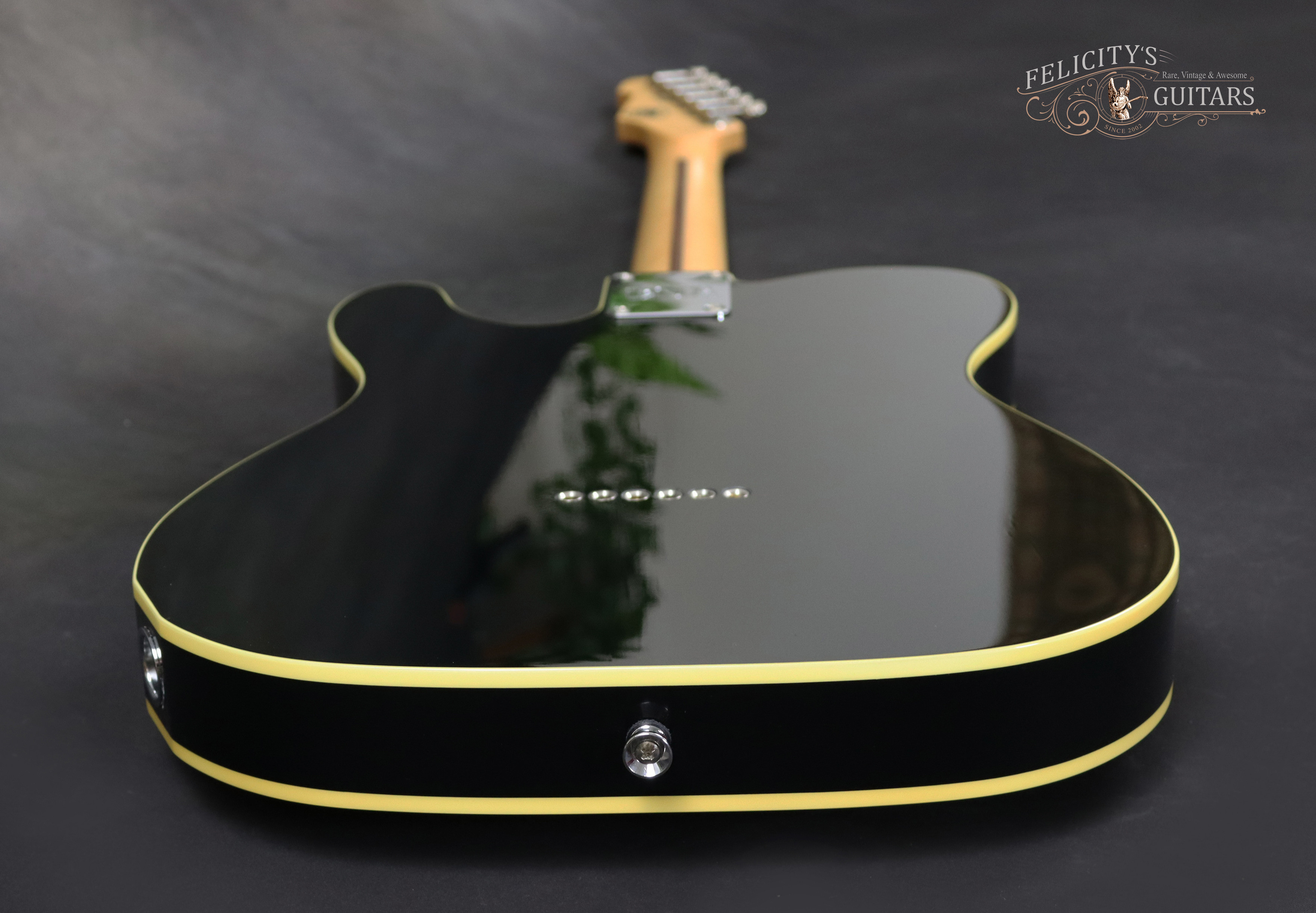

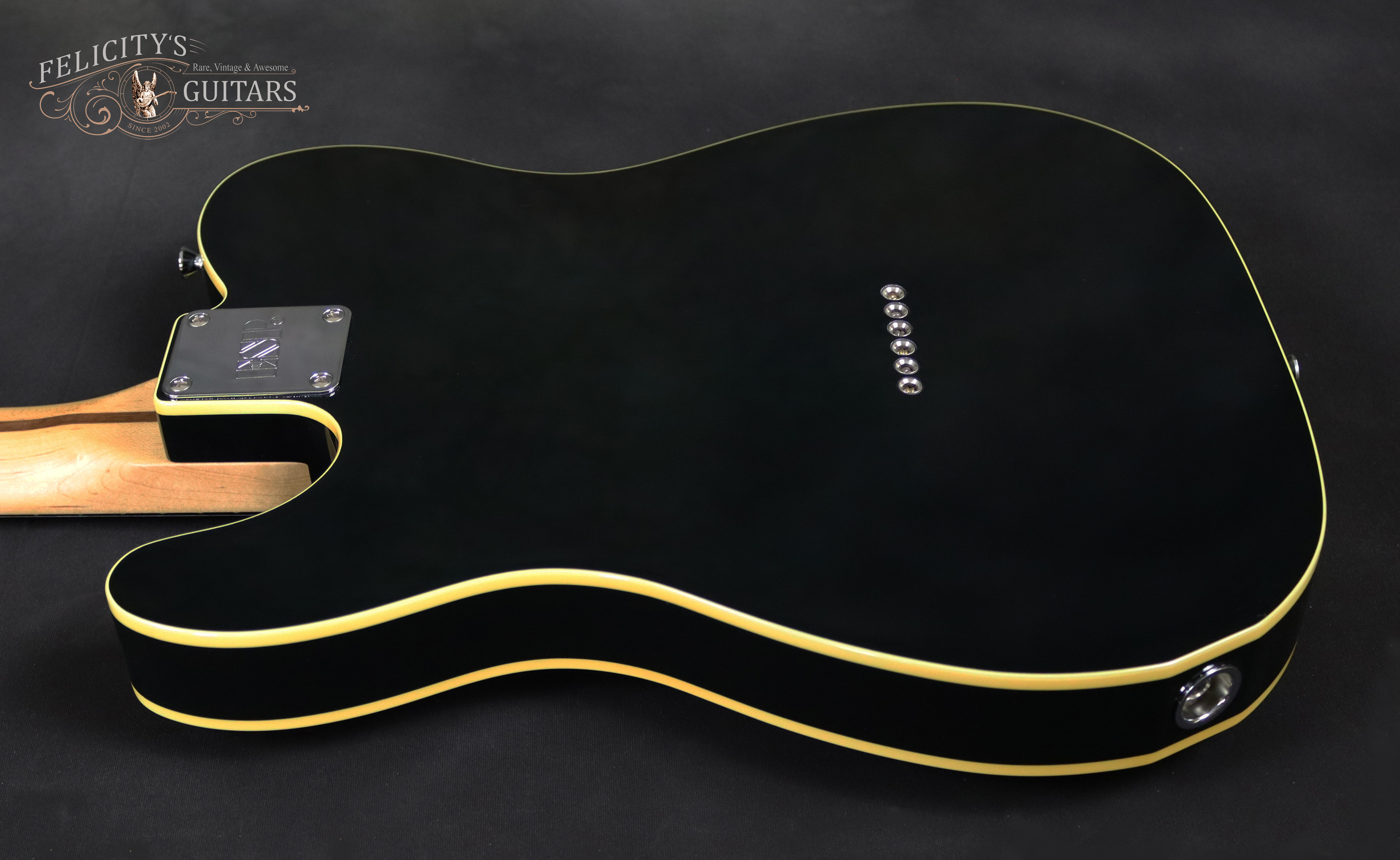

Chrome Plated, rear-lower-bout mounted

electronics

Bridge Pickup

Black, Uncovered Direct-mount ESP® TS-120 Single-Coil, Alnico 5, DCR 6.0k

Middle Pickup

No

Neck Pickup

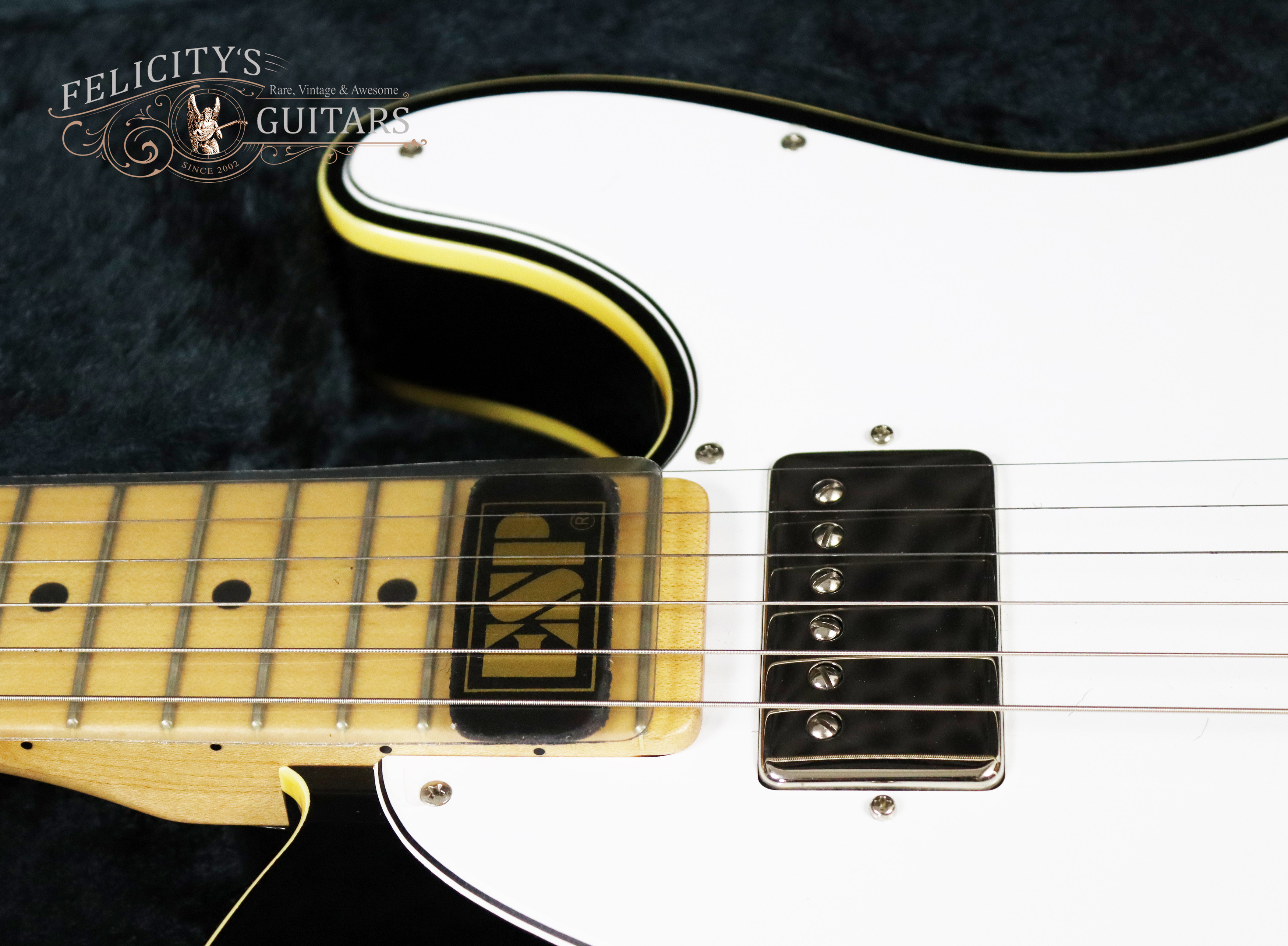

Chrome Plated, Direct-mount ESP® LH-200 Humbucker, Alnico 3, DCR 7.3k

Active / Passive

Passive

Series / Parallel

Series

Controls

Master Volume, Master Tone, 3-position Blade Pickup Selector

Vol Potentiometer

500k

Tone Potentiometer

500k

Capacitor / Resistor

.022uF – 20% – 50v values

Harness

Standard Control-plate mounted Telecaster Wiring

Coil-split / Coil-tap

No

Piezo

No

Active EQ

No

Kill switch

No

Output Jack

1/4" 2-Conductor

miscellaneous

Case / Gigbag

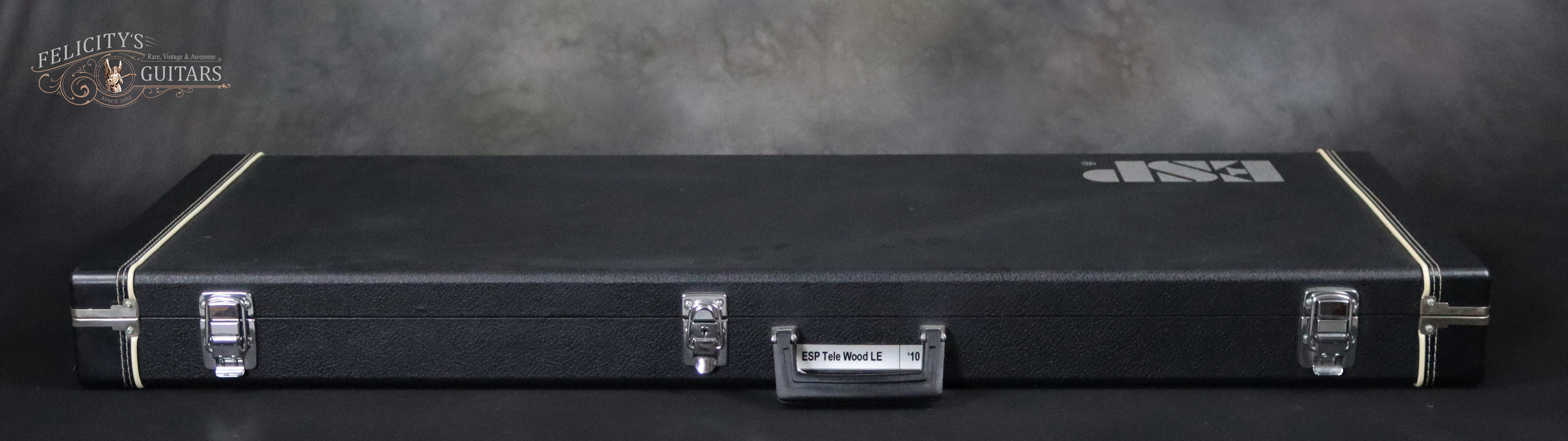

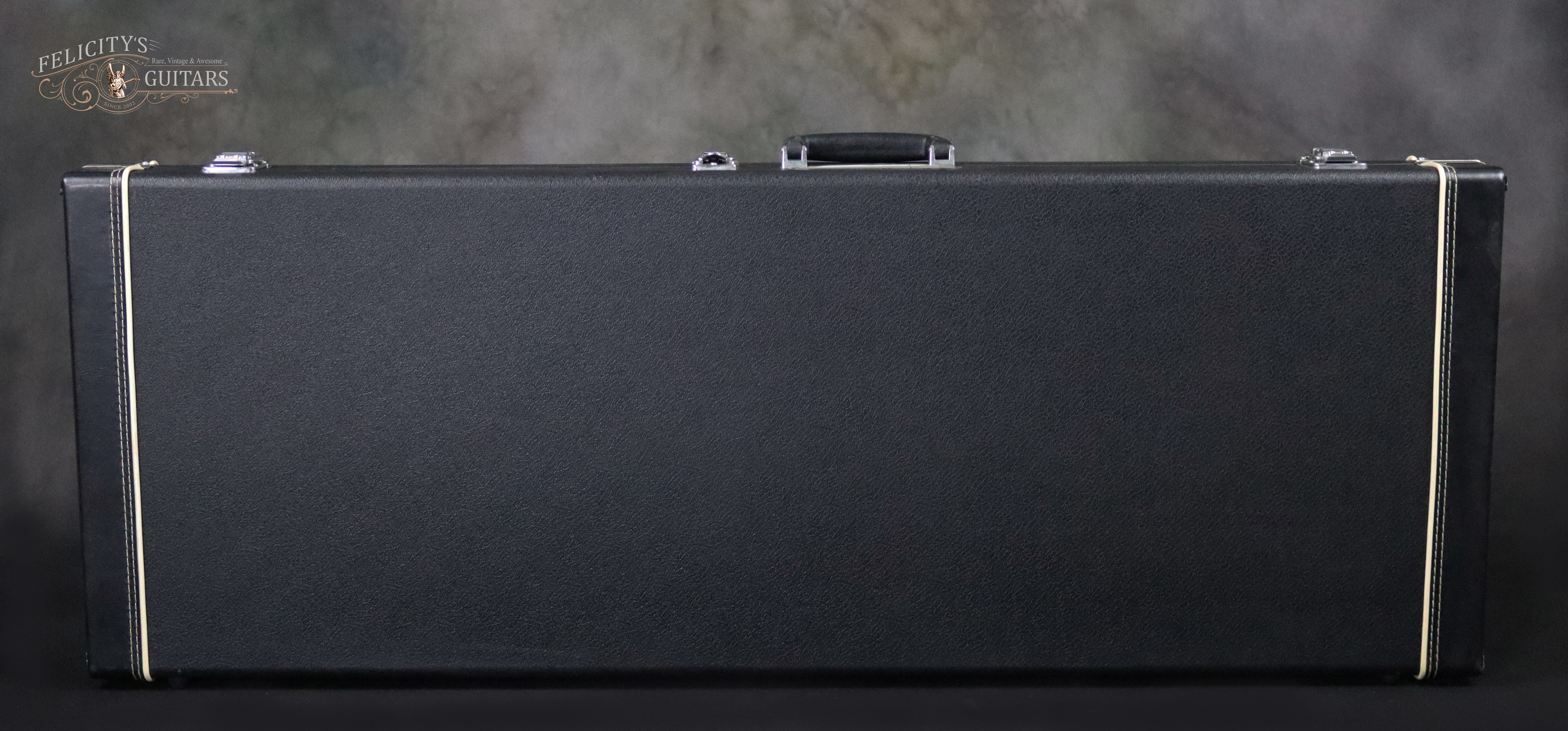

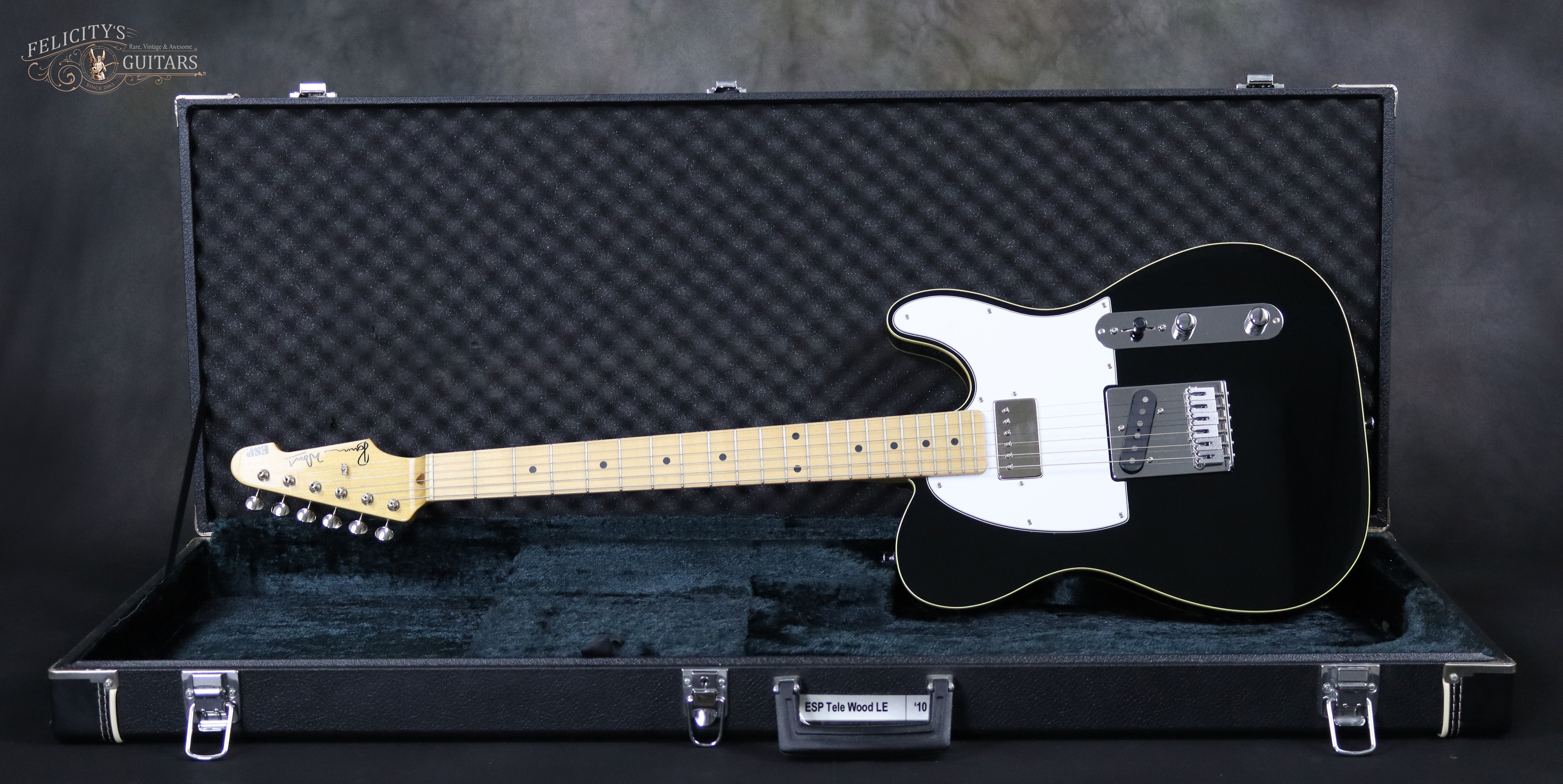

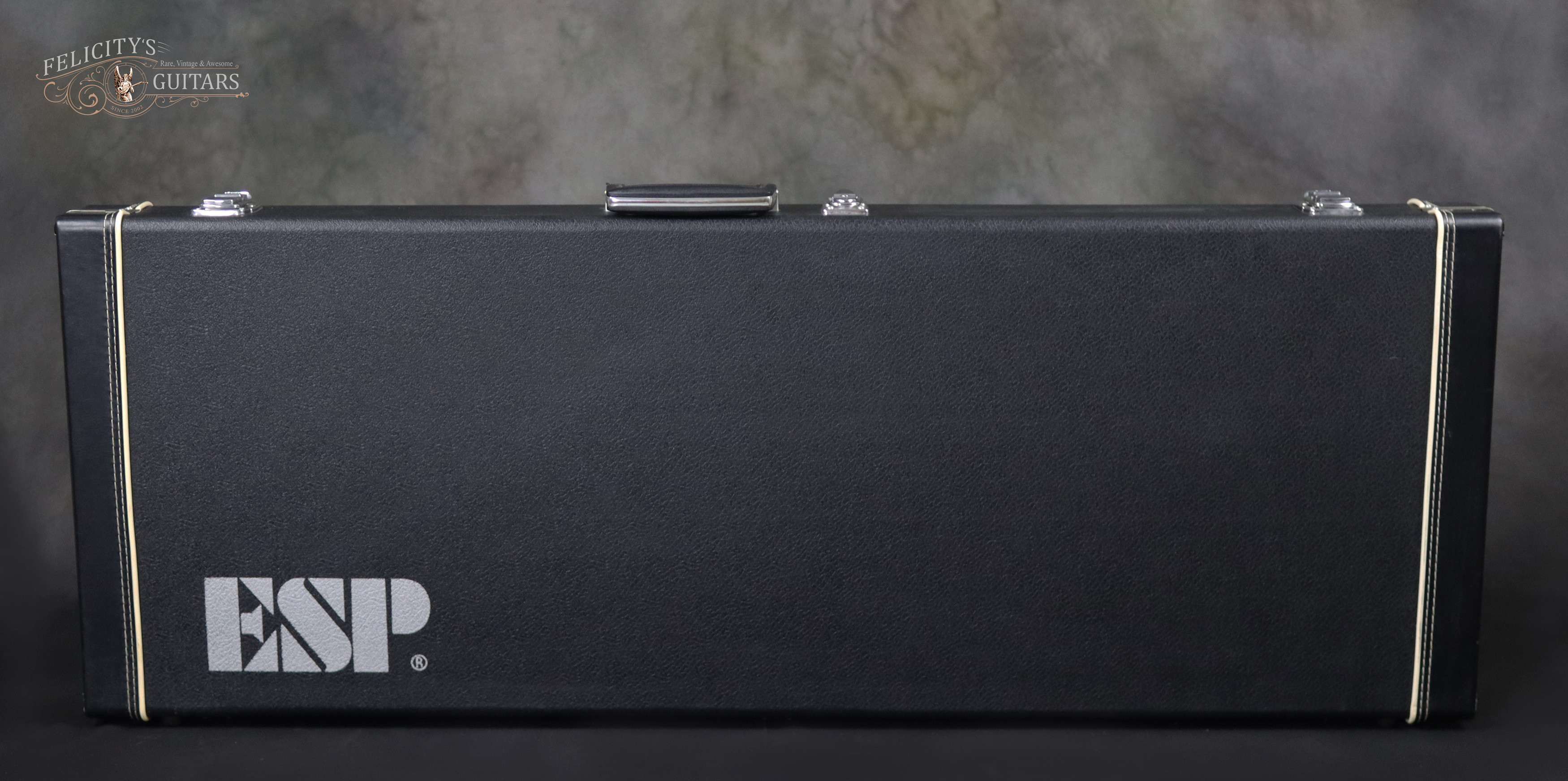

ESP® Japan ‘Form-Fit’ Black Hardshell Case with Dark Teal Interior & 1 Key-lock Latch

Strap Locks

No

Strings

Elixir® Nanoweb Light (.010 - .046 Gauges)

Tools / Accessories

No

Manual / Literature

ESP® Japan Owner’s Manual

C.O.A.

Ron Wood Signature and SN Numbered Certificate of Authenticity

Other

No

Weight

Is the actual weighed-value in US Standard Units



Disclosure



Some technical Specs may have been extracted from ESP® Japan and/or internet archives. The words ESP® / Gotoh® / Ron Wood, and the associated designs are registered trademarks of the ESP® Company, Japan, and the other named entities, respectively
