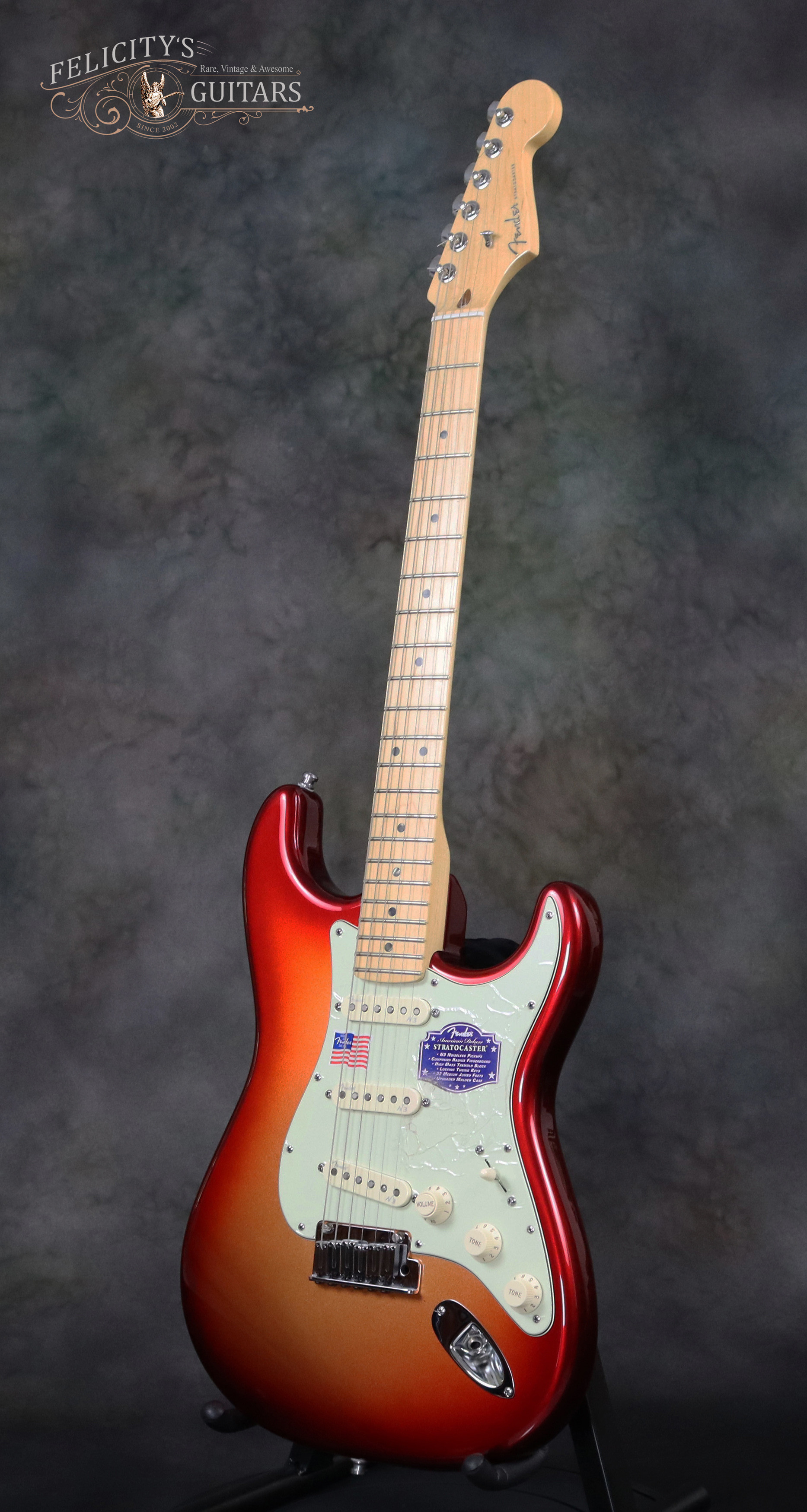

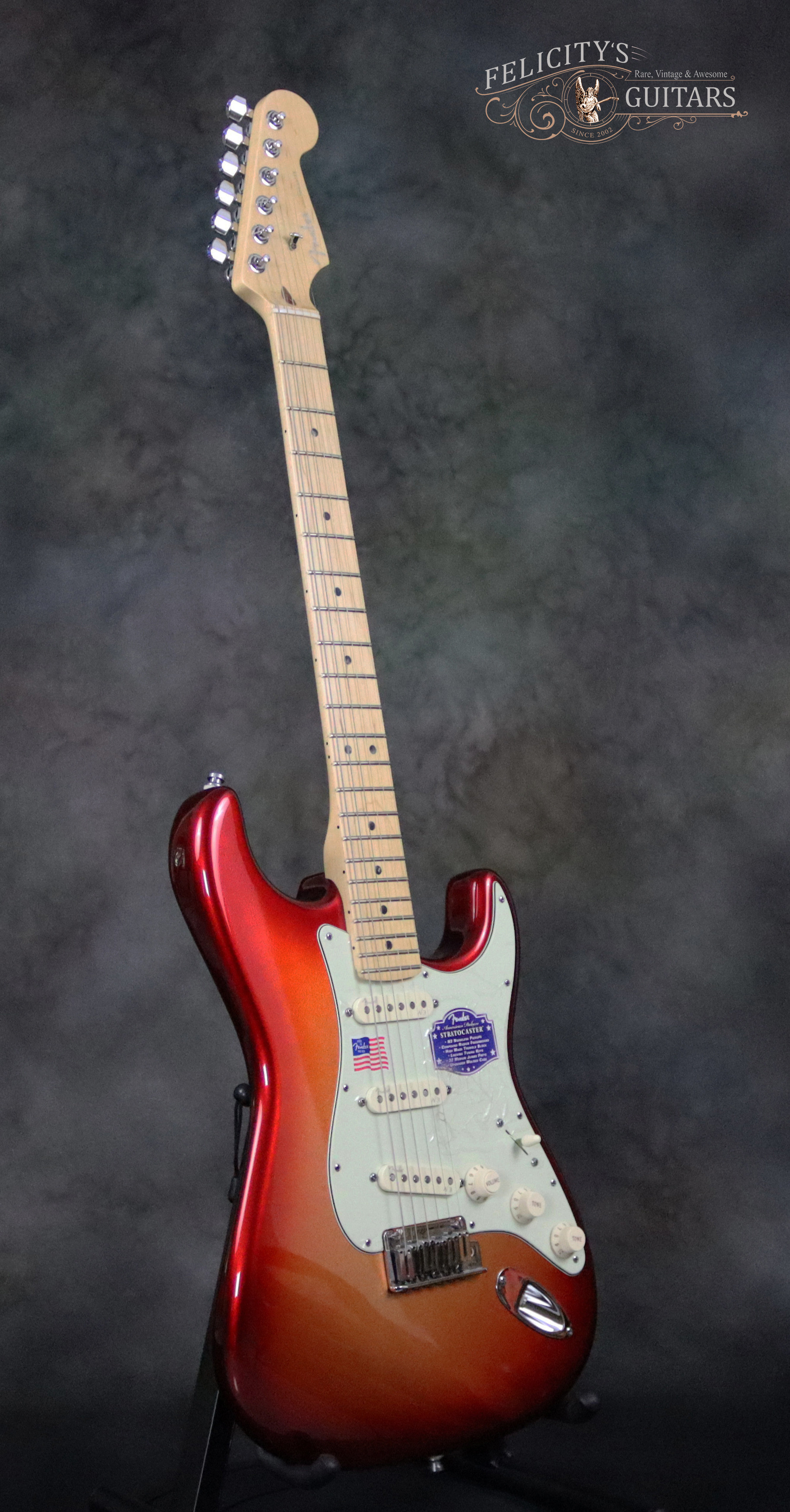

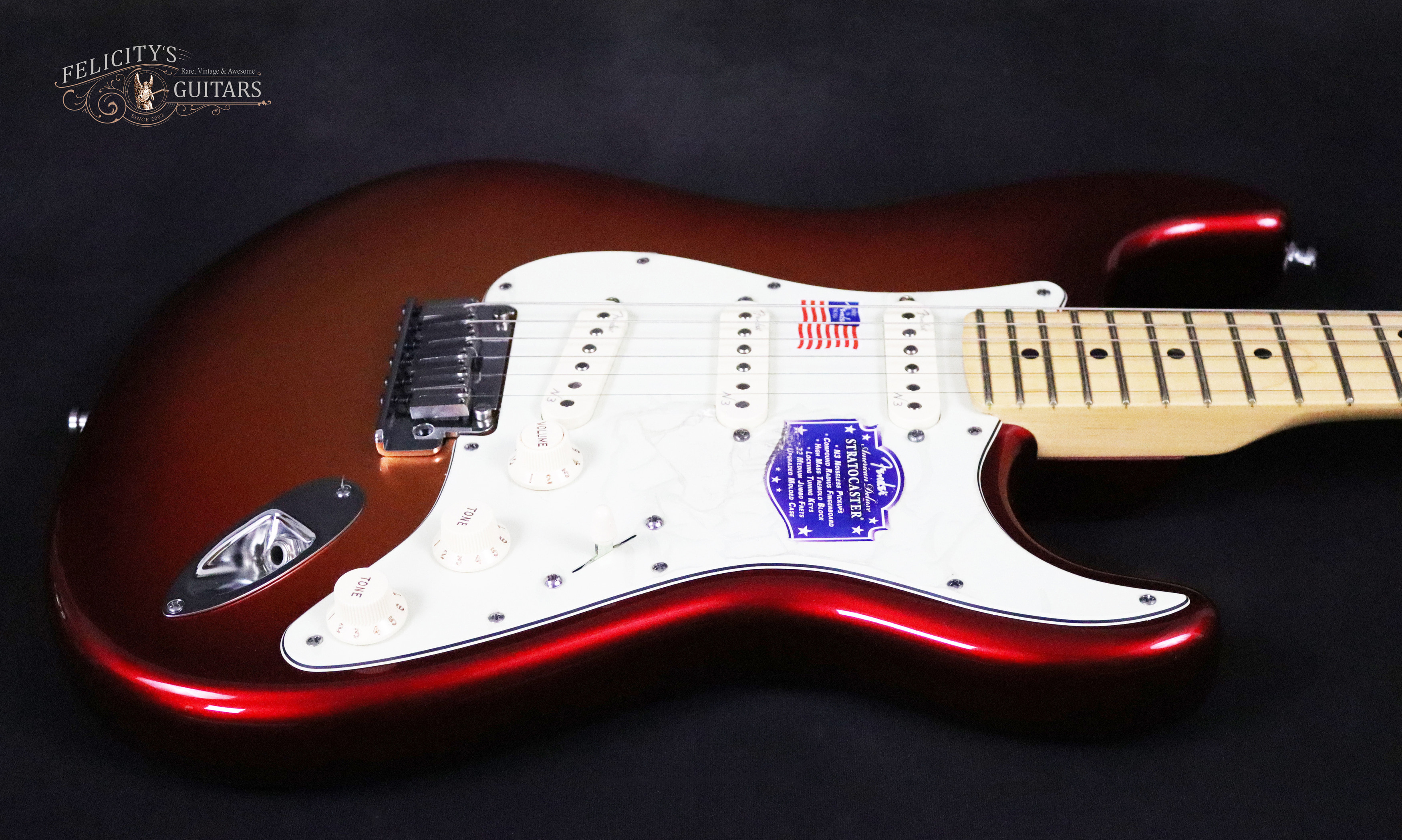

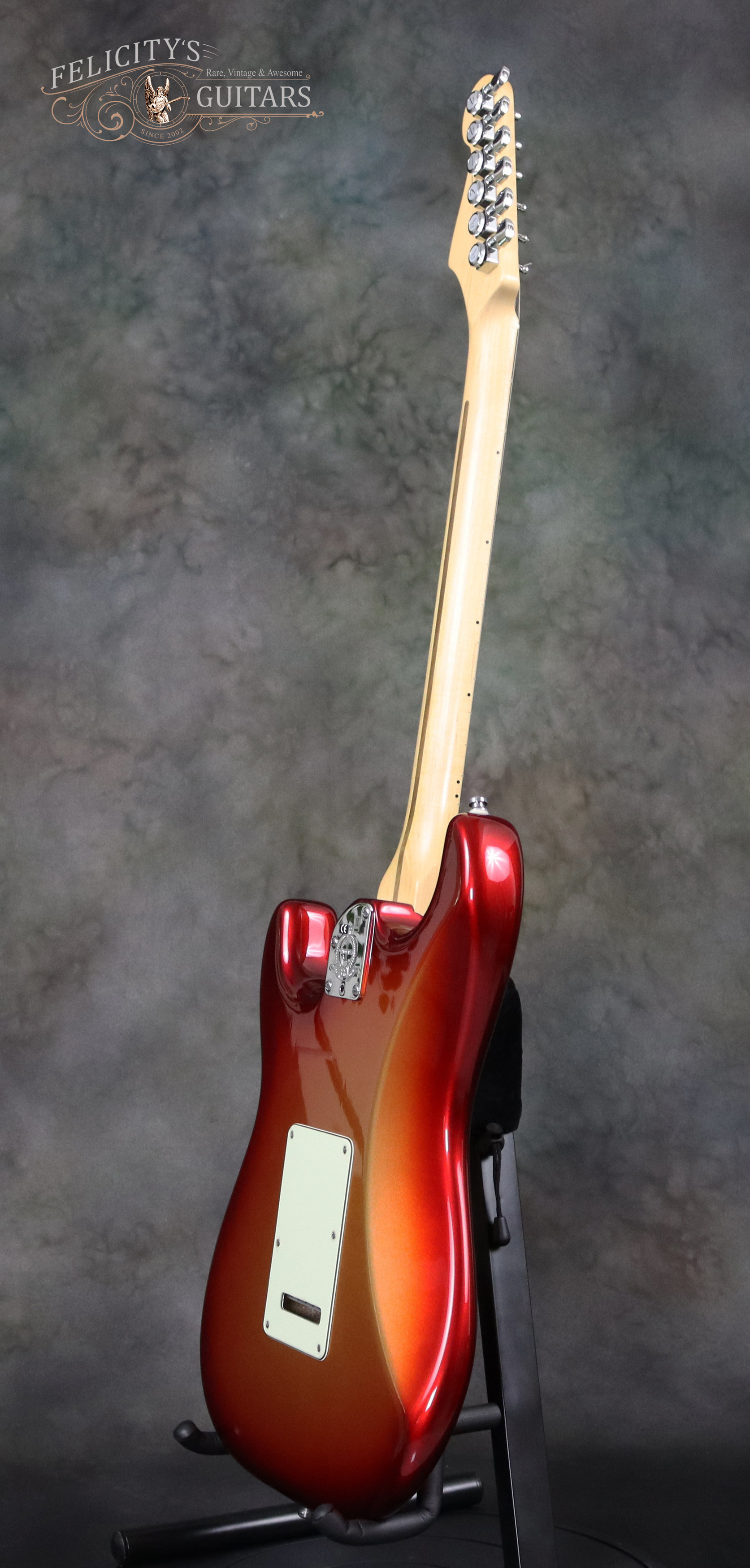

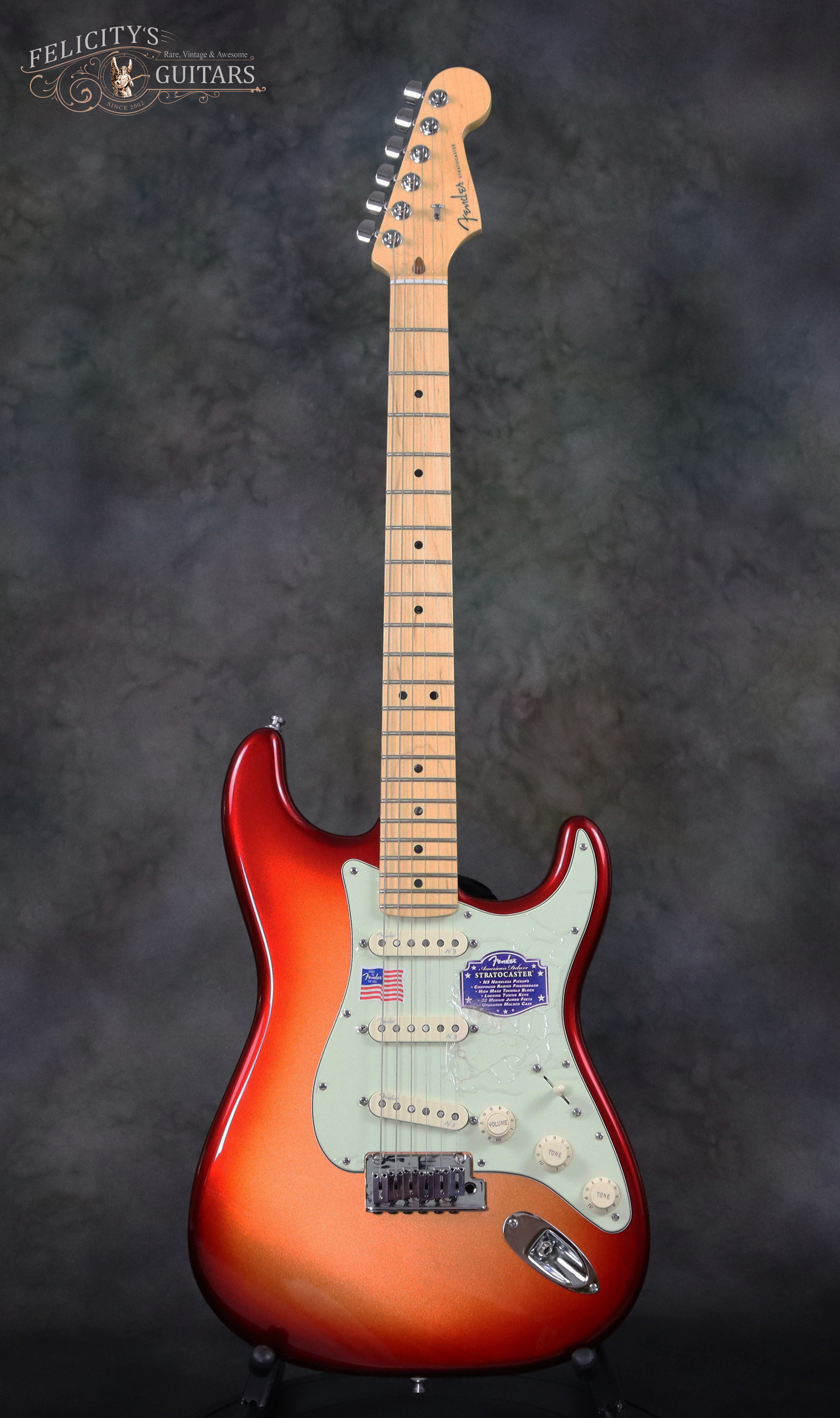

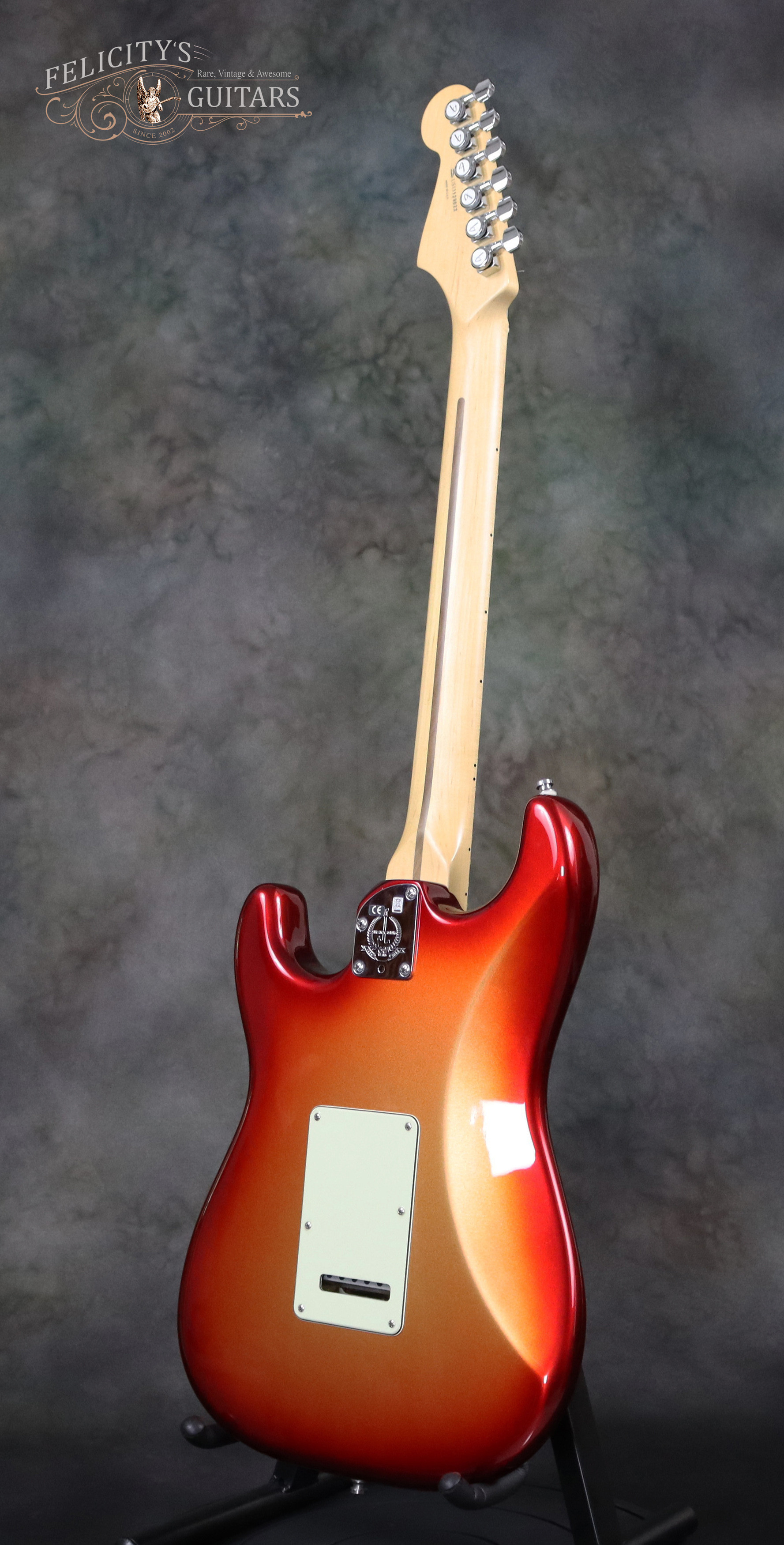

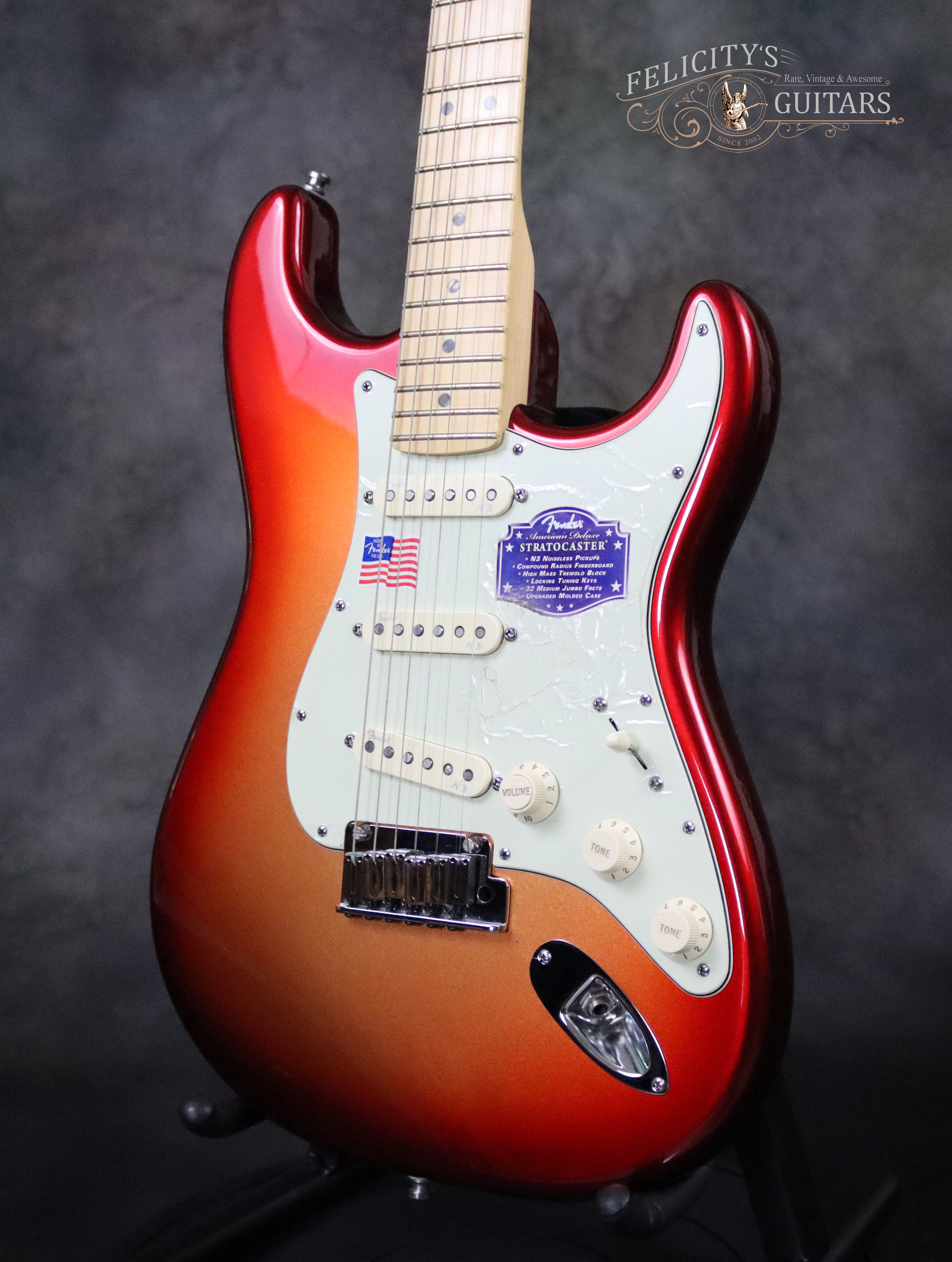

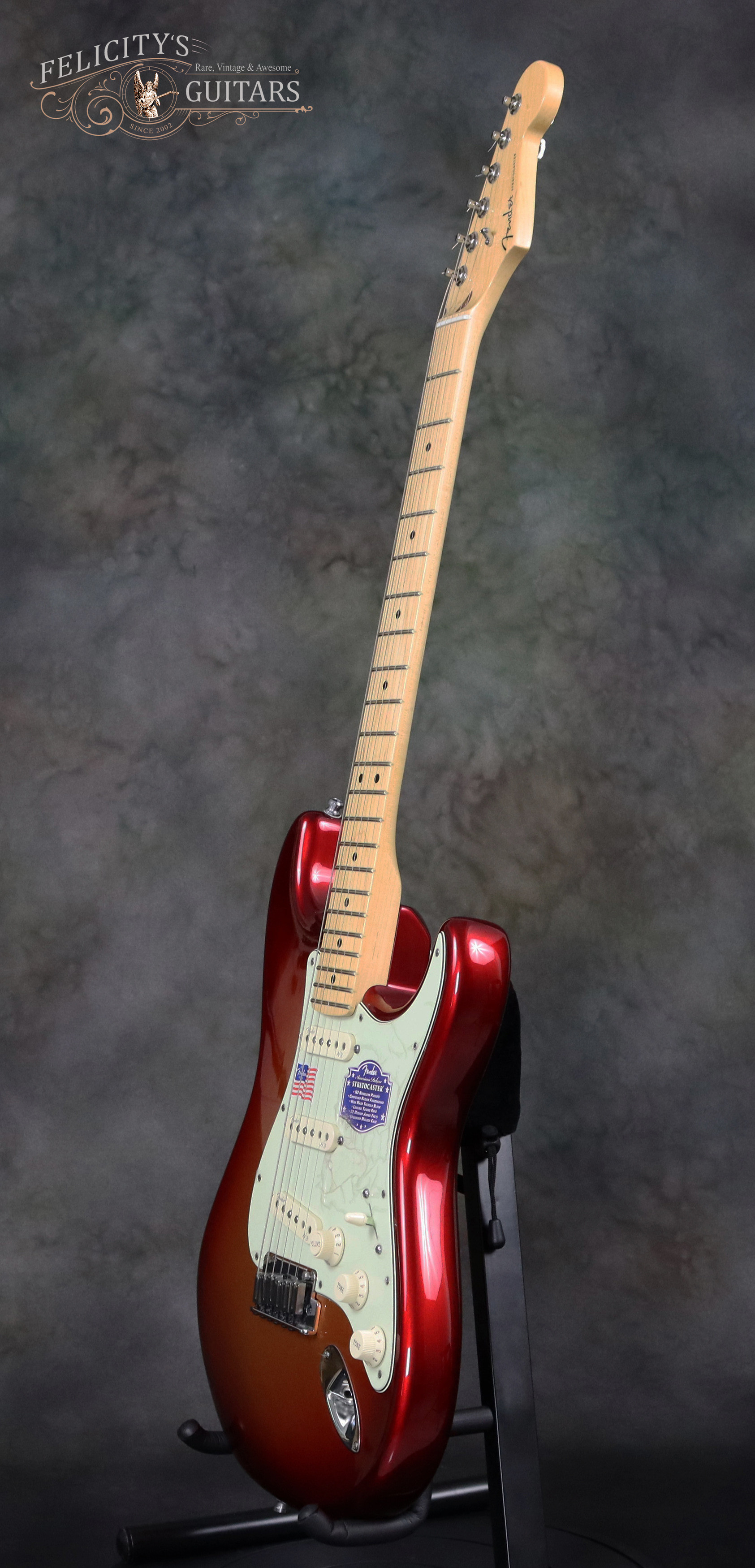

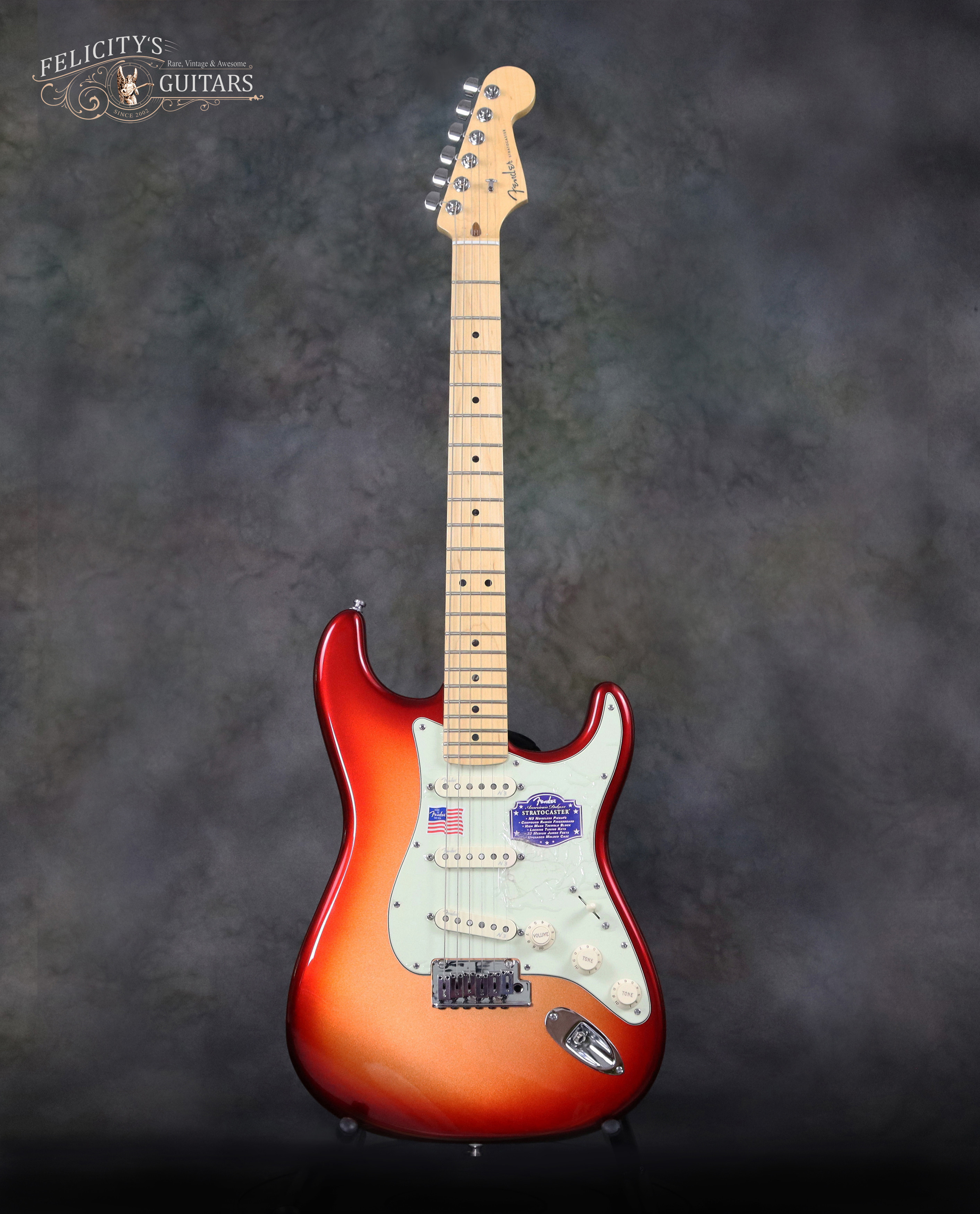

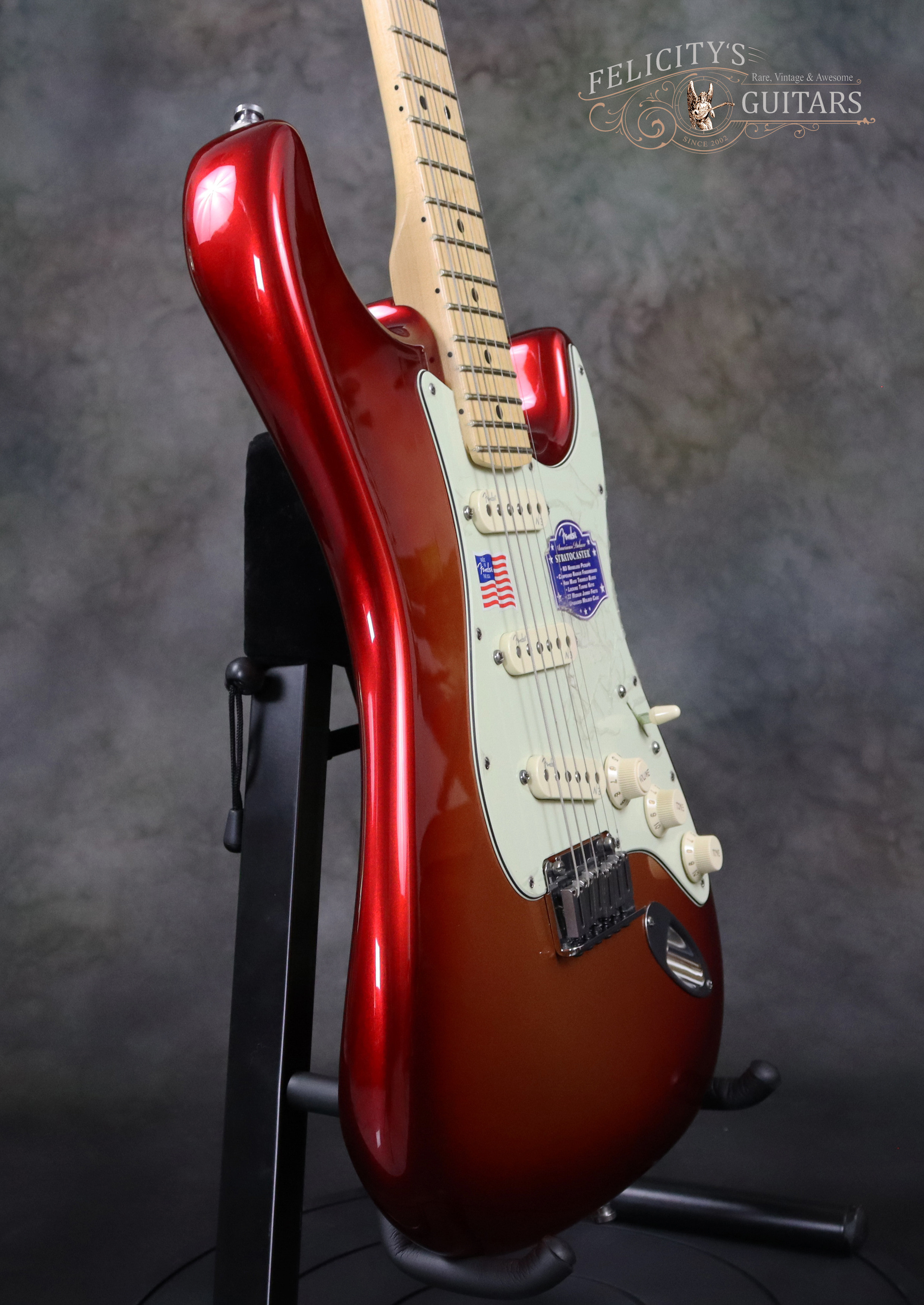

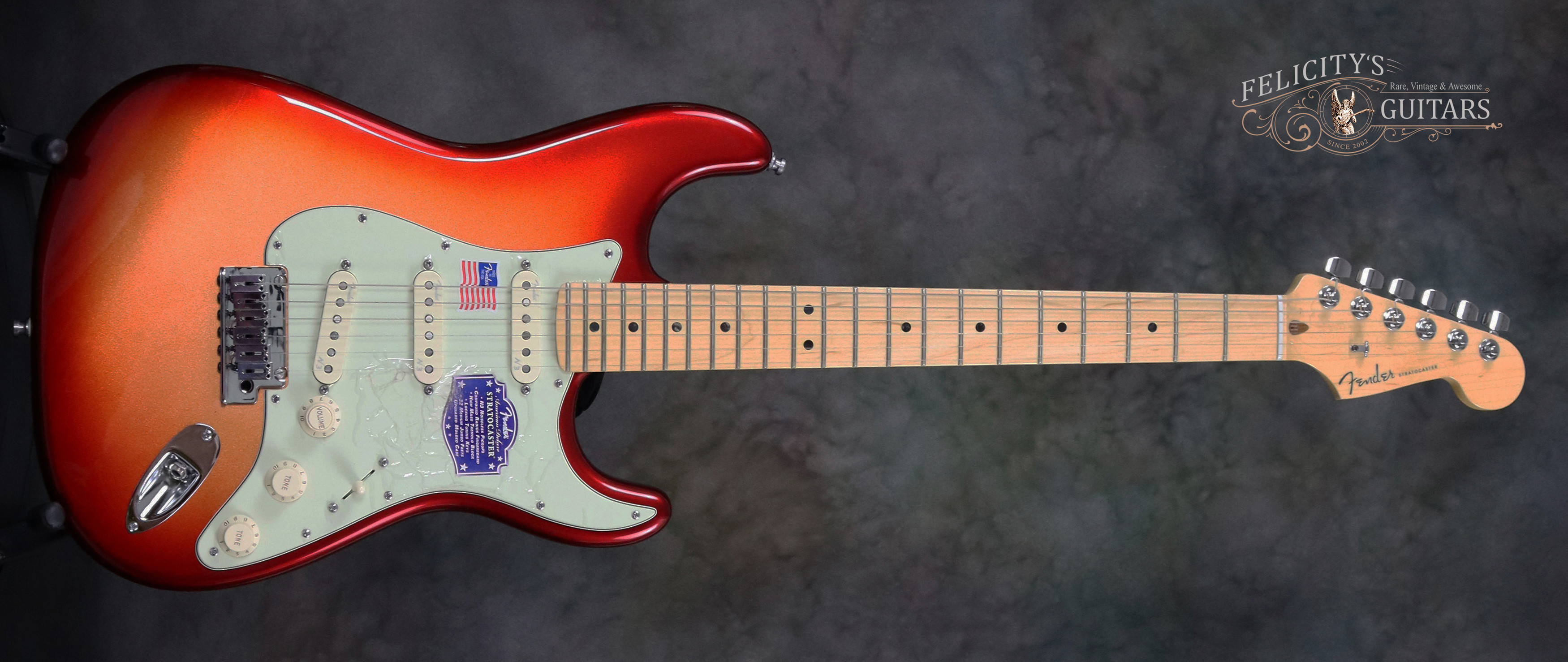

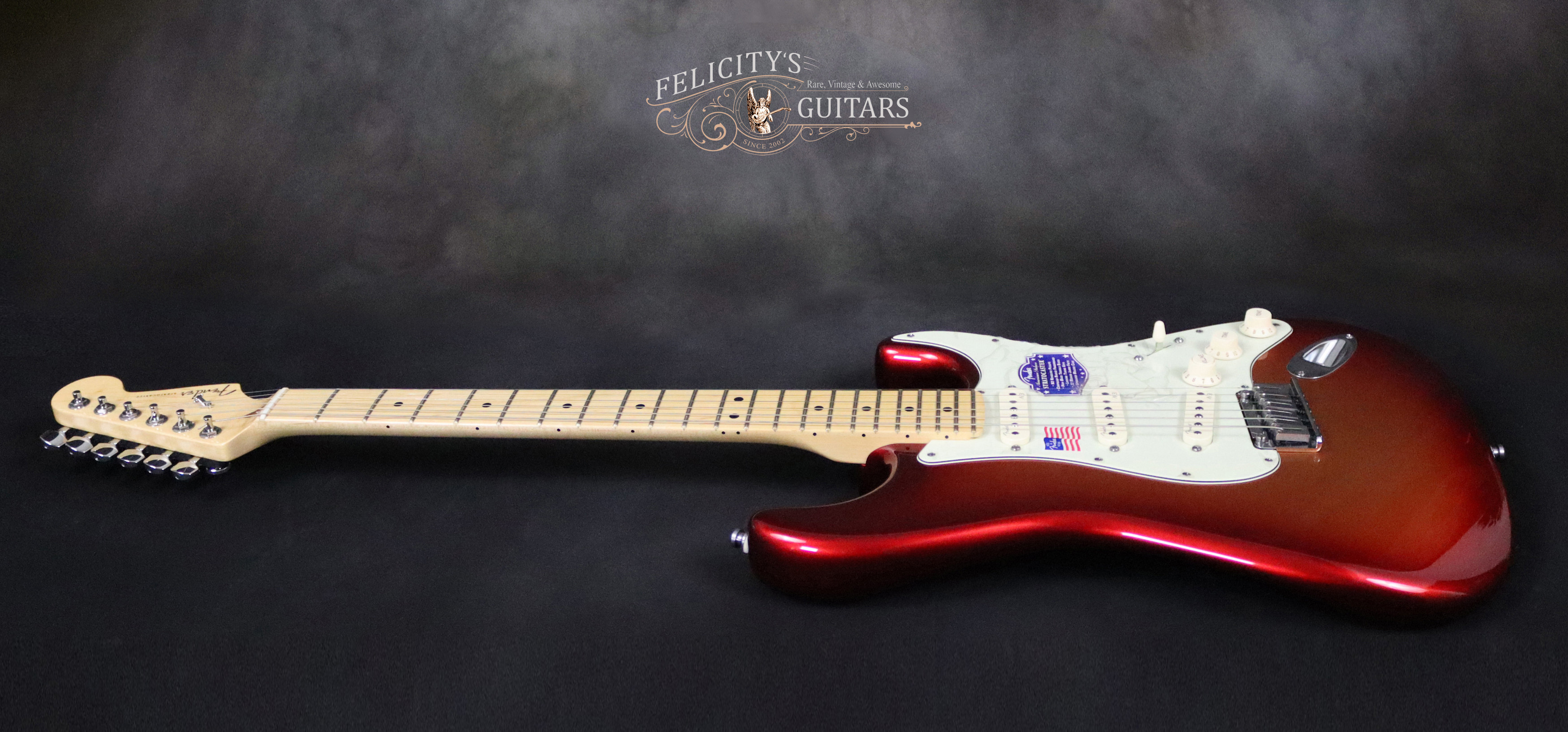

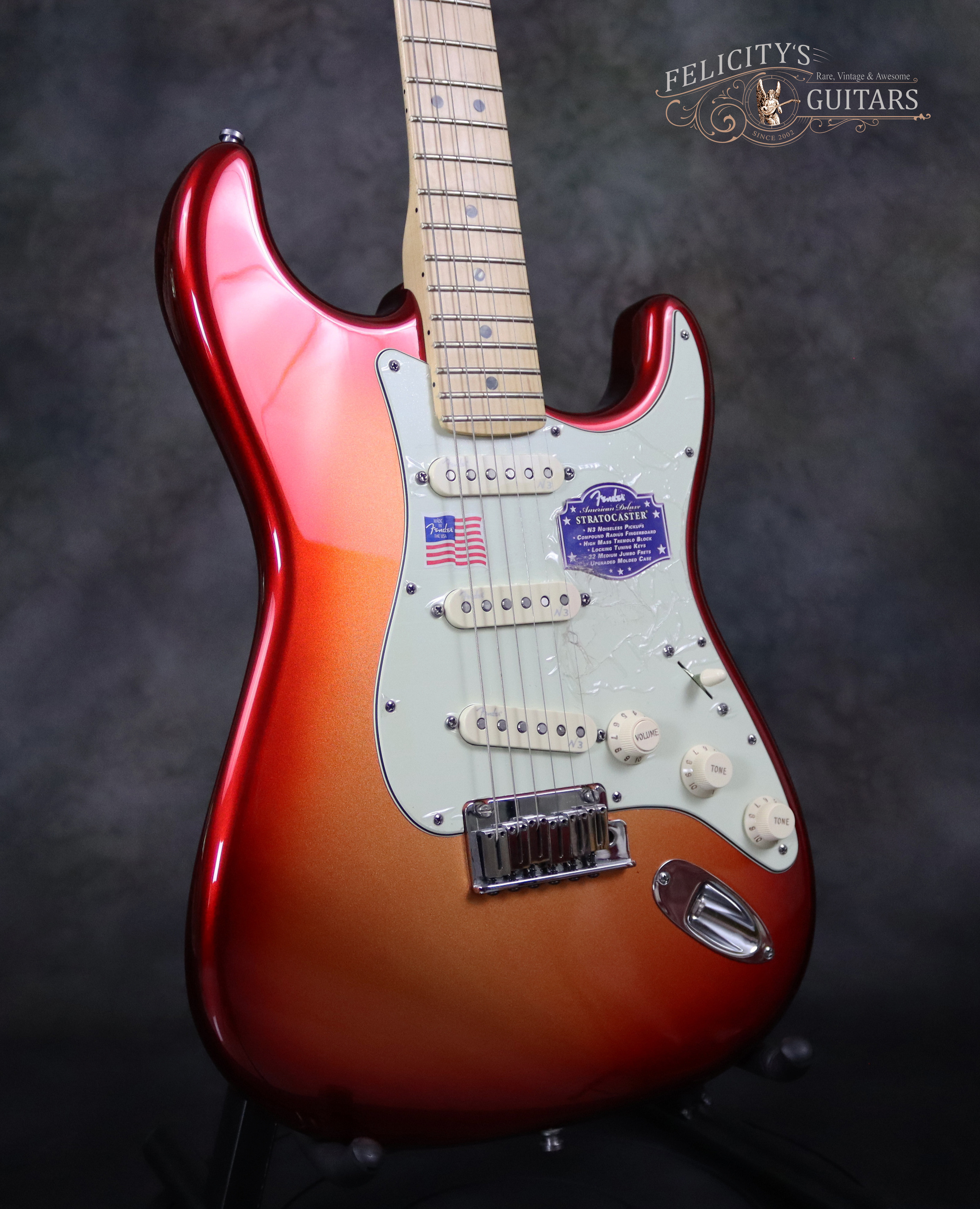

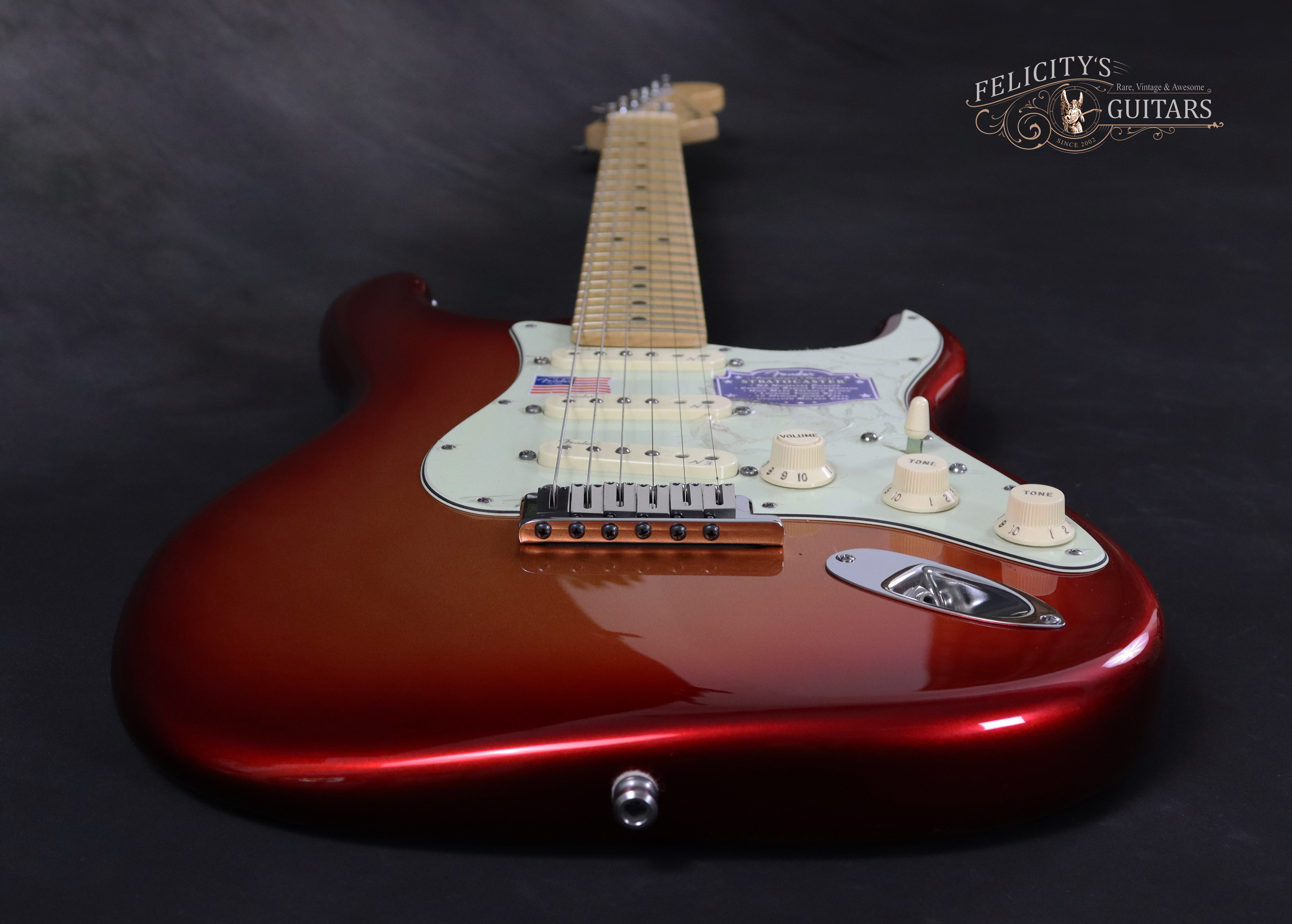

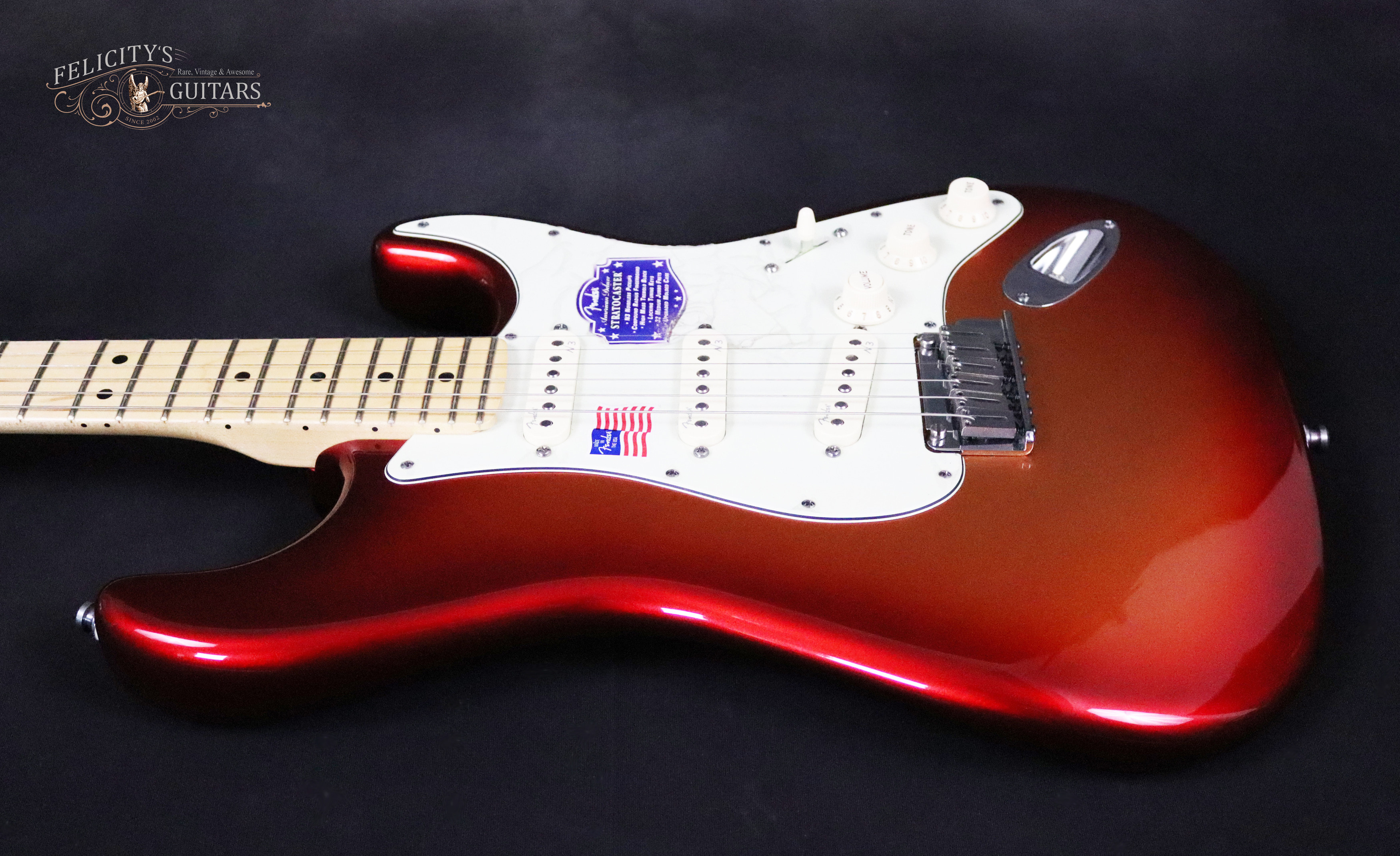

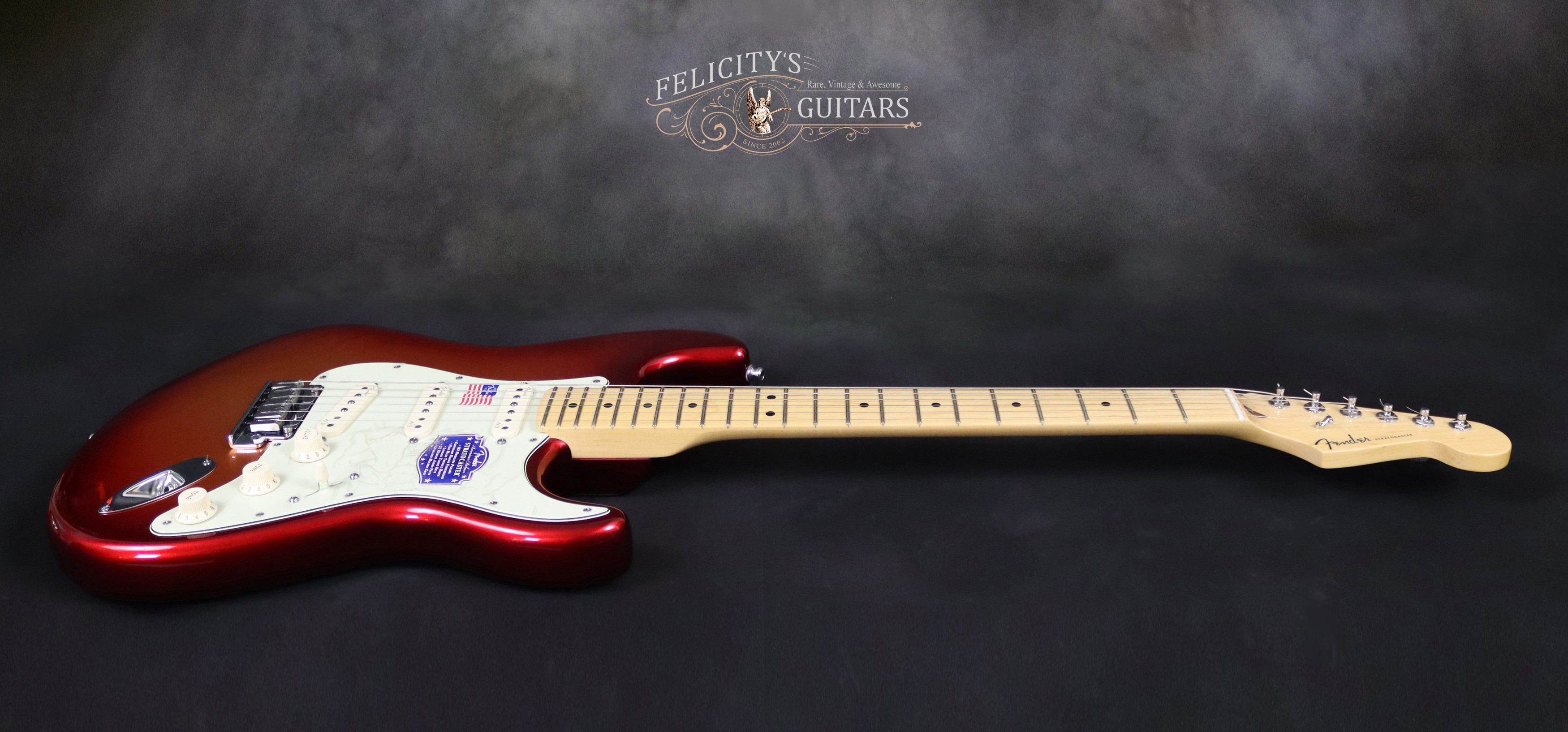

2013 FENDER AMERICAN DELUXE 60TH ANNIVERSARY STRATOCASTER IN SUNSET METALLIC

Tone, tradition and innovation.

Stepping up from the American Standard series, the Fender American Deluxe Stratocaster tacks on a few extra appointments that appeal to higher-end sensibilities.


The 2013 American Deluxe 60th Anniversary Stratocaster at a glance:

  • Lightweight Select Alder body is incredibly comfortable to play extremely resonant with long sustain and thick warm tones
  • Modern “C” shaped Maple Neck and fingerboard with smooth playing feel
  • Speedy, Maple 9.5"–14" compound radius fingerboard with comfortable hand-rolled edges allow for effortless string bending anywhere along the neck
  •  Deluxe two-point Synchronized Tremolo Bridge with pop-in arm
  • N3 Noiseless pickups with Alnico 2, 3 and 5 magnets provide improved Stratocaster tones for sparkling bell-like chime with no hum and harmonically complex tonal versatility 
  • Reconfigured S-1™ Push-Push Control allow full control over pickup series/parallel operations for an unlimited tone palette

2013-Fender-Strat-American-Deluxe-60th-Sunset-Metallic

USD 1,000,000

Add to Cart

Shipping will be calculated at check out

description

Fender's new American Deluxe Stratocaster has all the modern features today's guitarists require. The compound radius fretboard allows effortless string bending anywhere along the neck, and new N3 Noiseless pickups provide improved Stratocaster tones for sparkling bell-like chime with no hum, moreover the Bridge, Middle and Neck N3 Noiseless pickups have varied Alnico 2, 3 and 5 magnets which produces harmonically complex tonal versatility. Reconfigured S-1™ switching offers other distinctive tonal options, and other features include staggered locking tuners, two-point synchronized American Deluxe Tremolo Bridge with pop-in arm, and beveled neck heel.

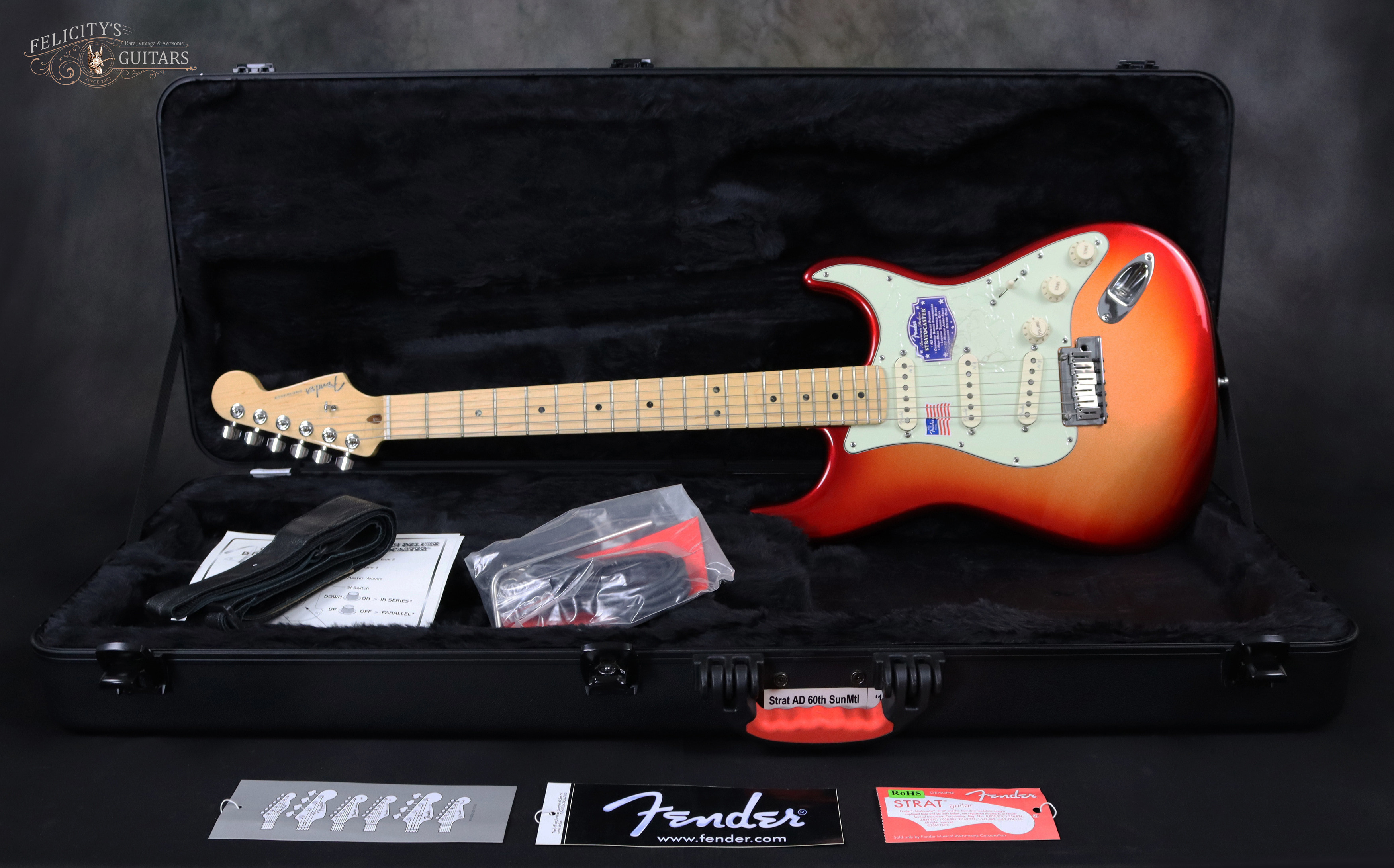

Comes with deluxe OHSC. This guitar is in brand new and unplayed condition and you can be the first person to play it!

Specifications

General

Condition

Brand New (NOS)

Number of Strings

6

Orientation

Right-handed

Country of Origin

U.S.A.

Year

2013

Limited Edition / Series

60th Anniversary

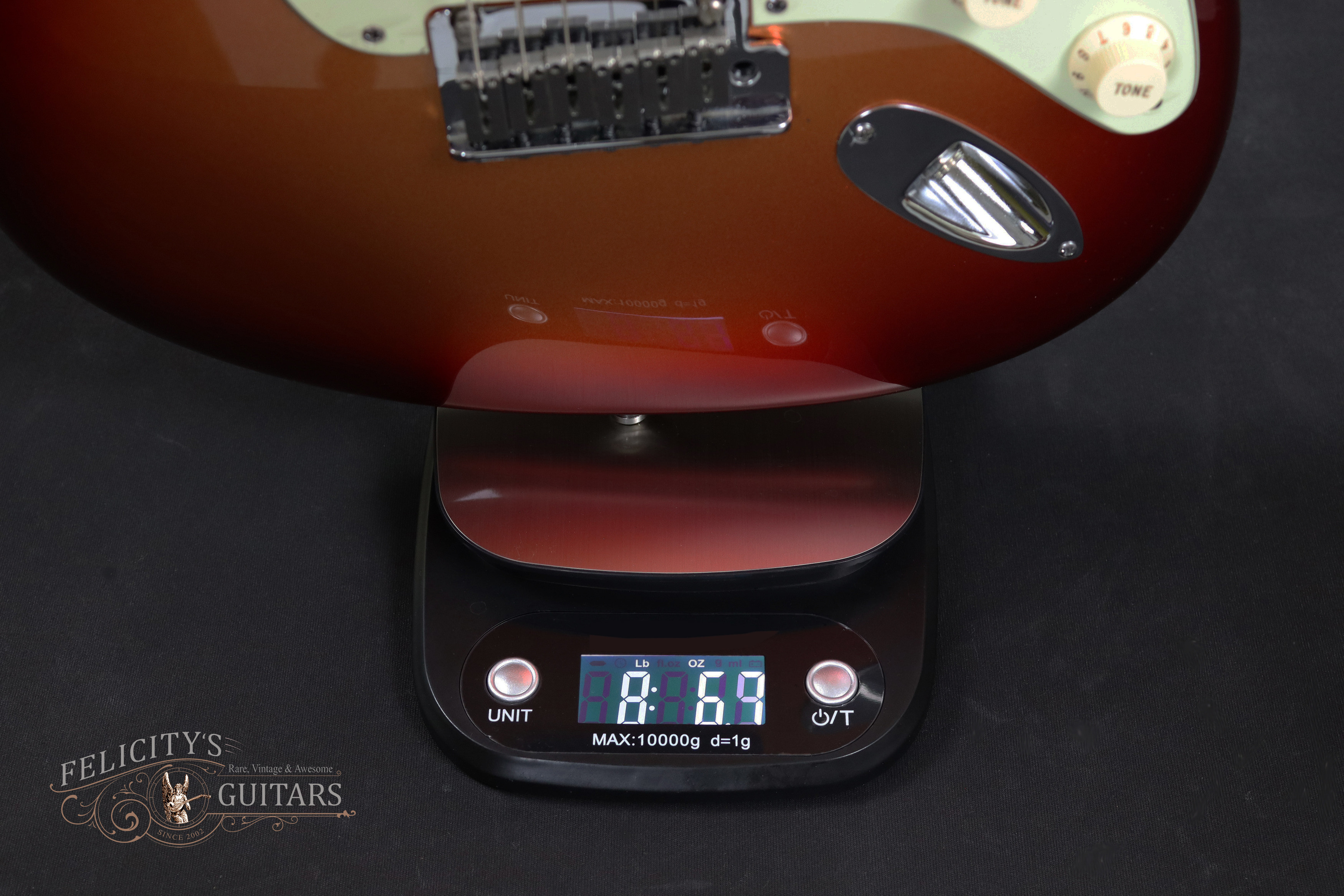

Weight

8-lbs 6.7-oz

body

Body Type

Solidbody

Body Shape

Double Cutaway SSS Stratocaster

Body Material

2-pc Select Alder

Body Carve

Front: Flat

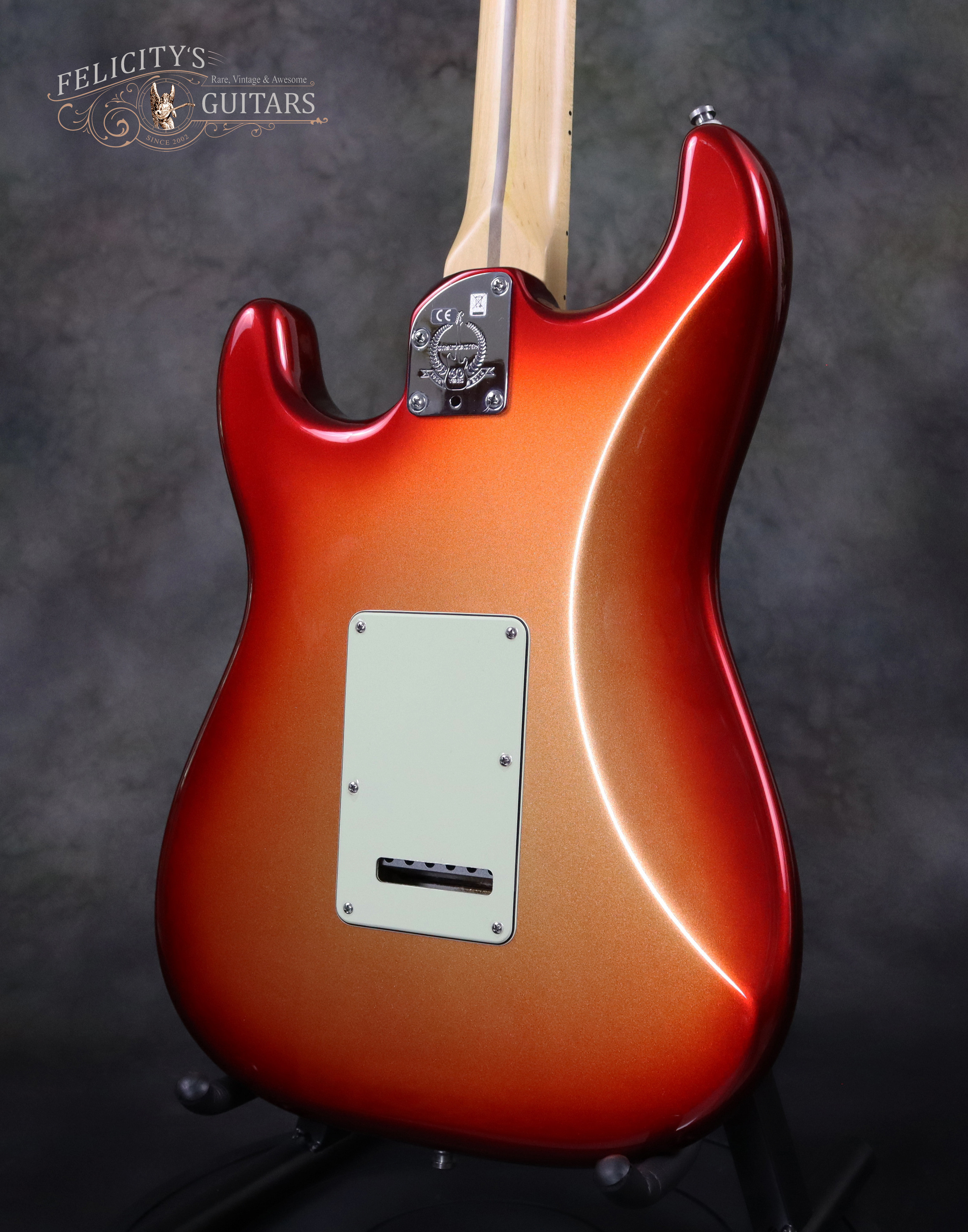

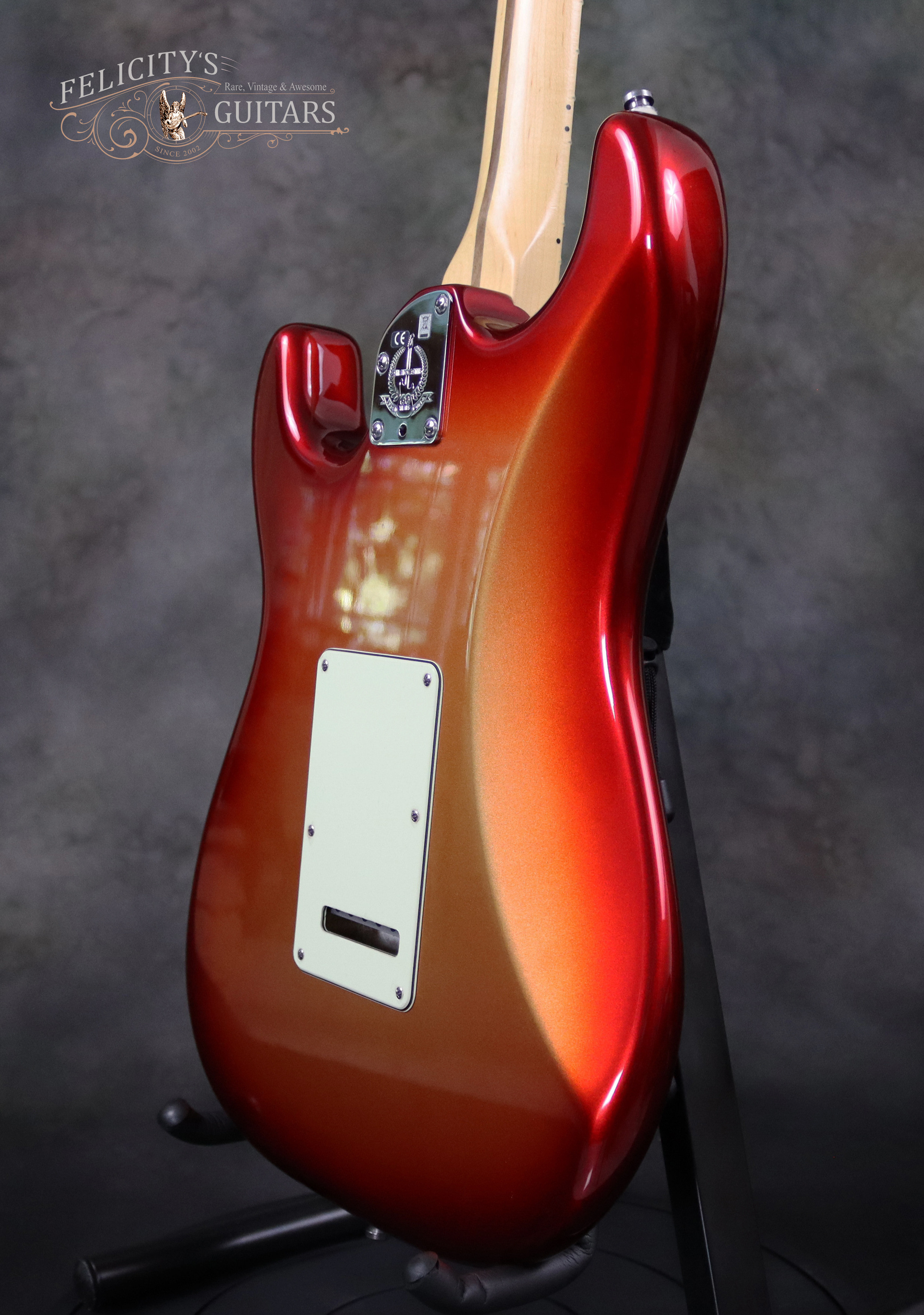

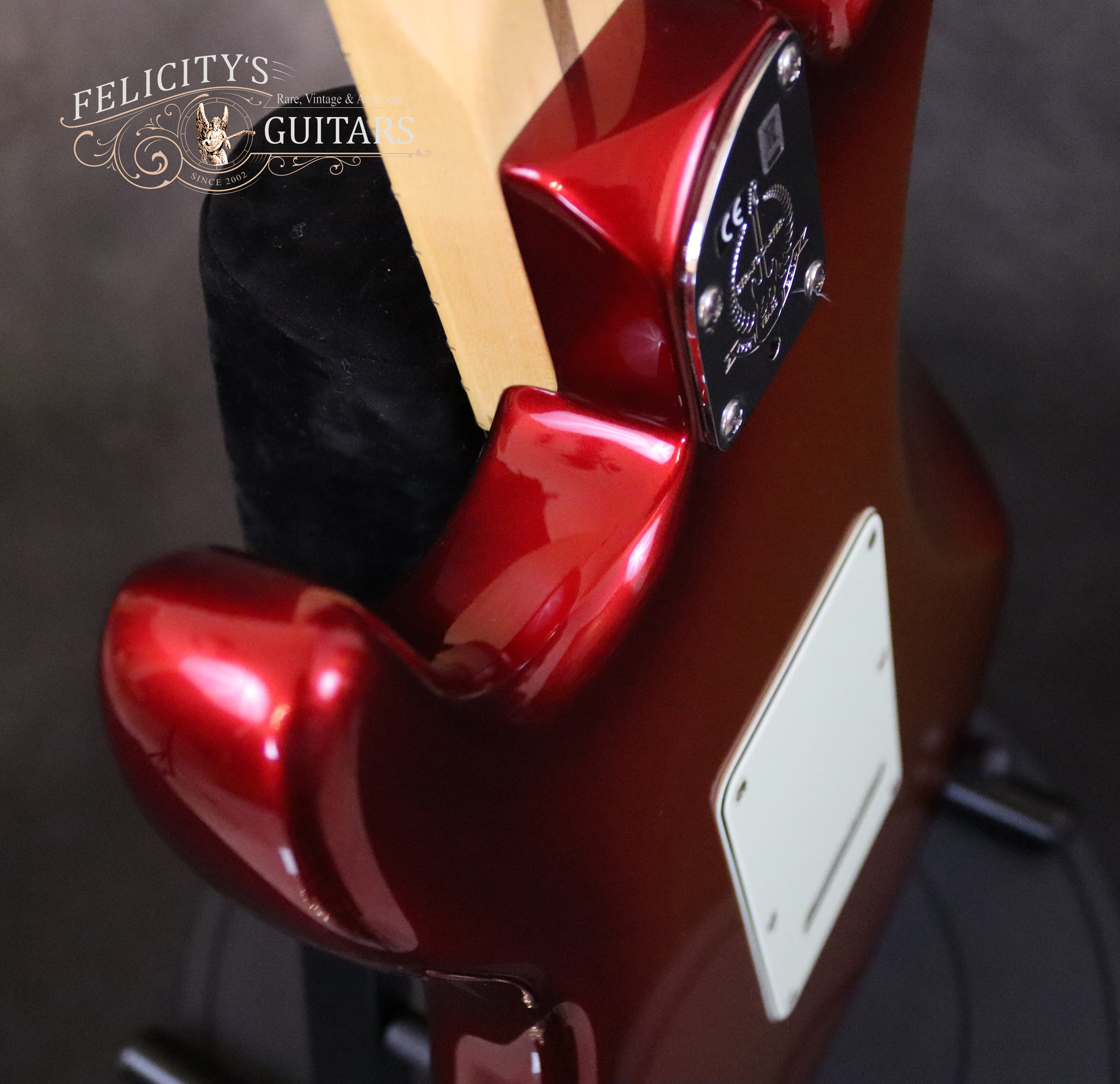

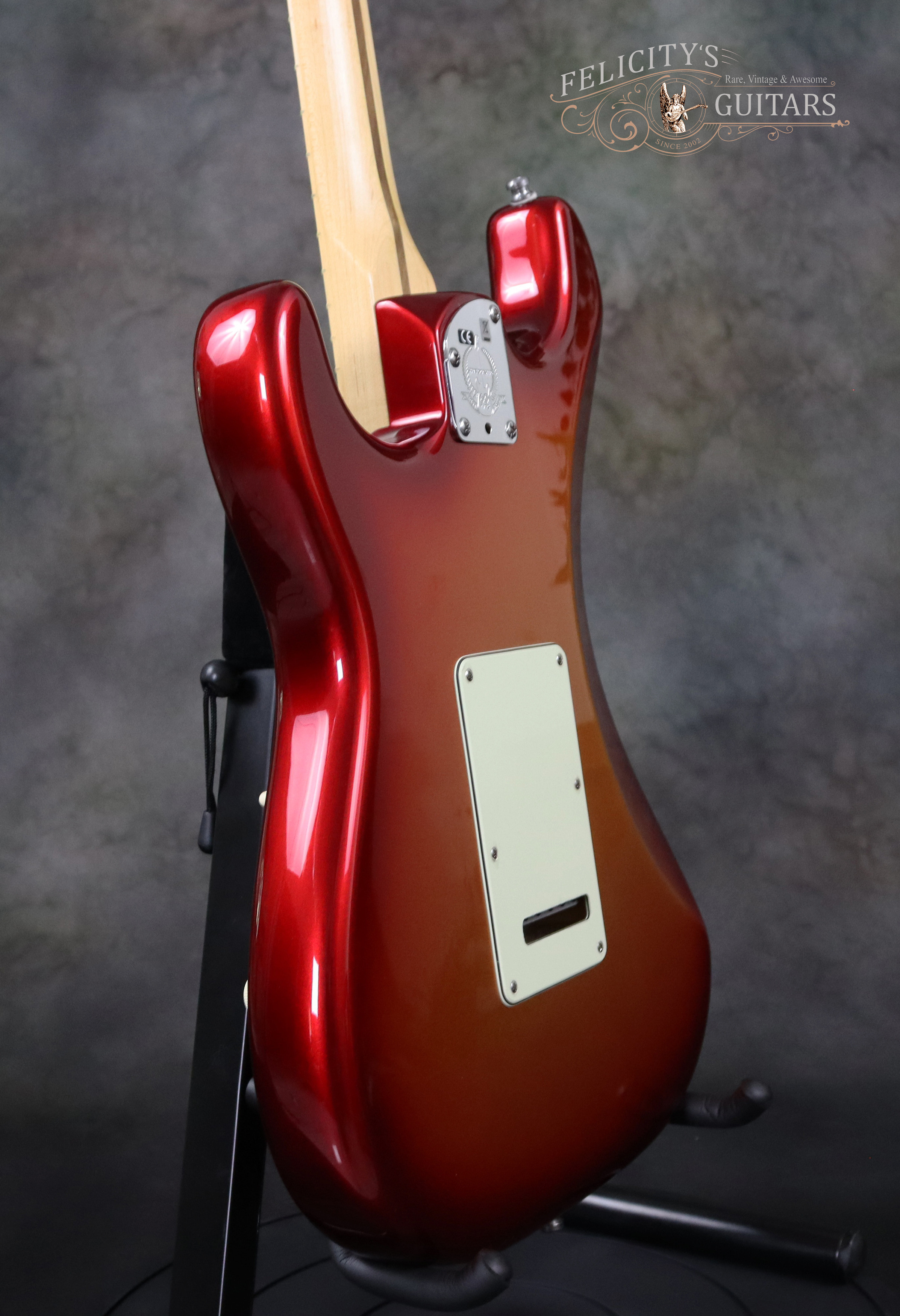

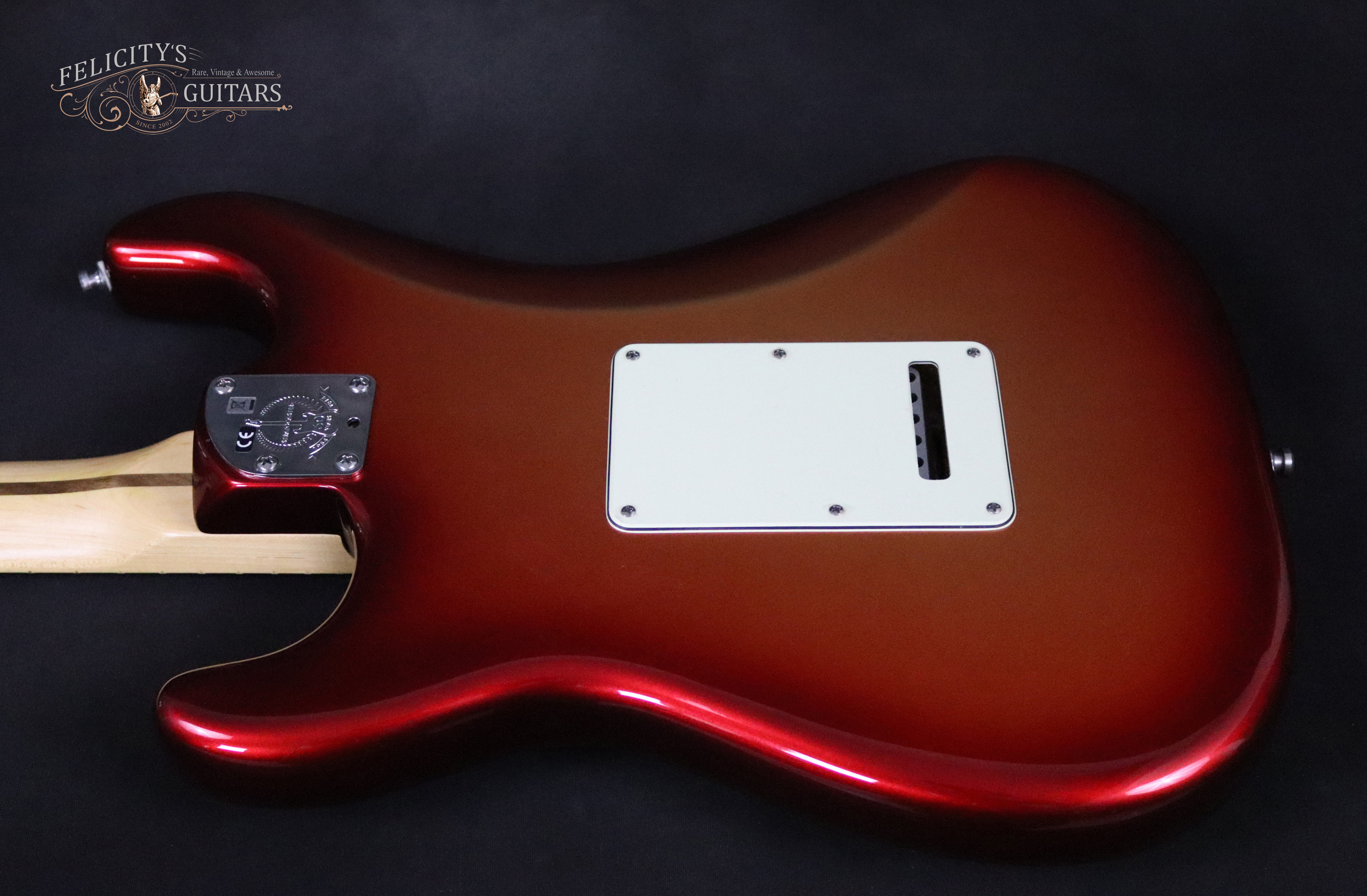

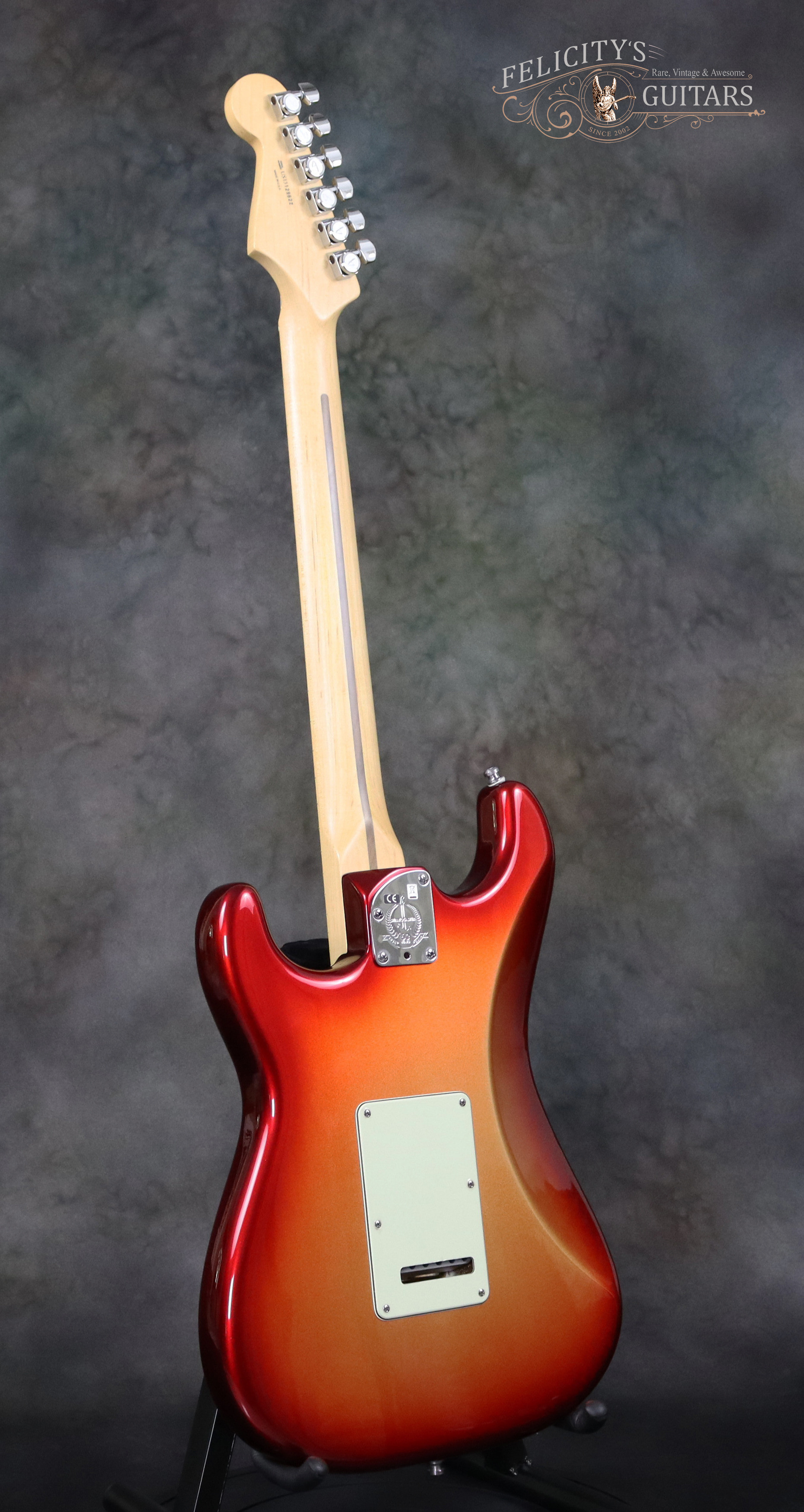

Back: Waist Contour, Beveled Neck Heel

Body Binding

Front: No

Back: No

Weight Relief

Un-chambered

Body Finish Type

High-gloss Polyurethane

Color

Front: Sunset Metallic

Back: Sunset Metallic

neck

Neck Material

1-pc Maple with ‘Skunk’ Stripe and Satin Urethane finished Back

Truss Rod

Bi-flex 2-way Adjustable

Truss Rod Cover

No

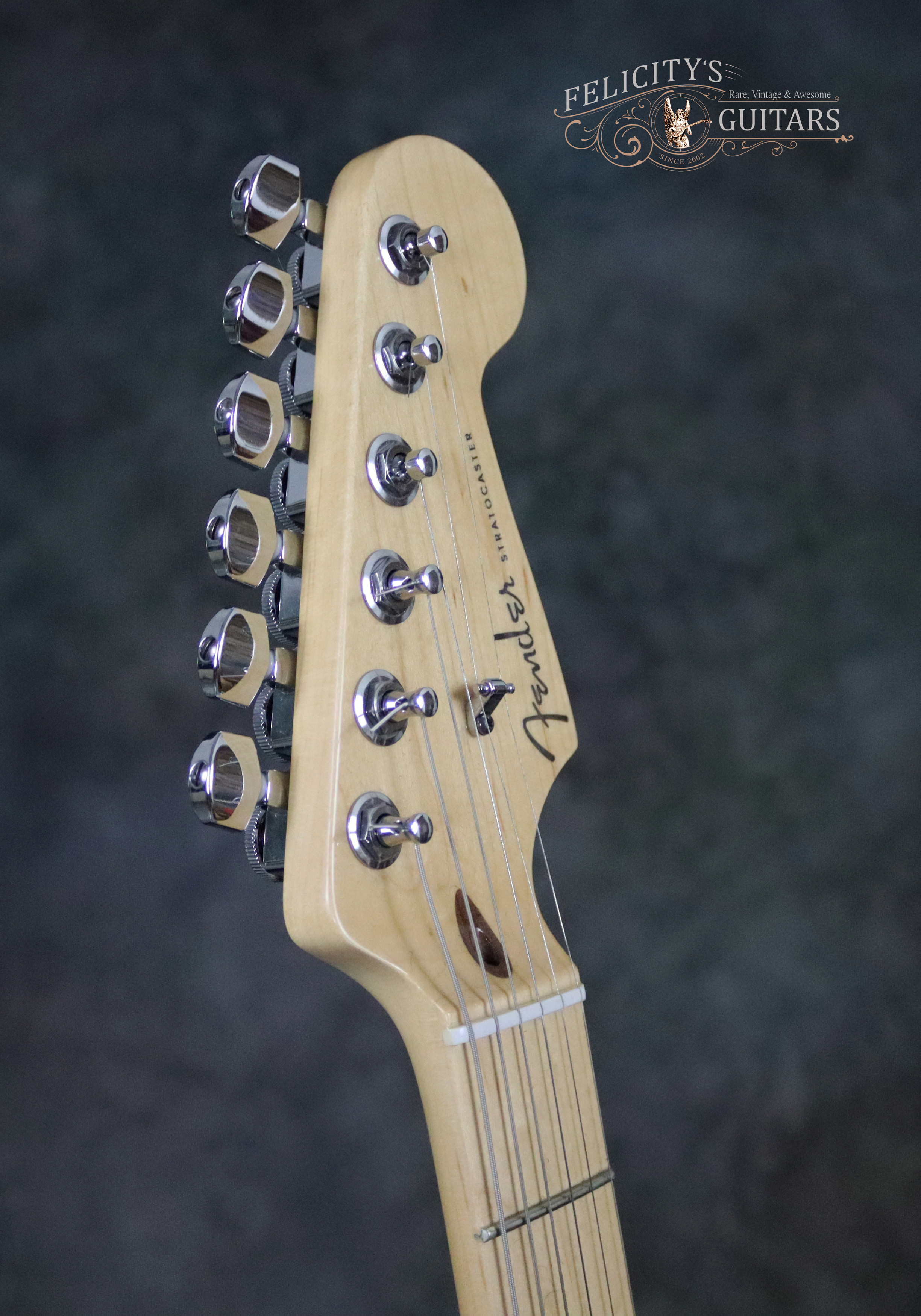

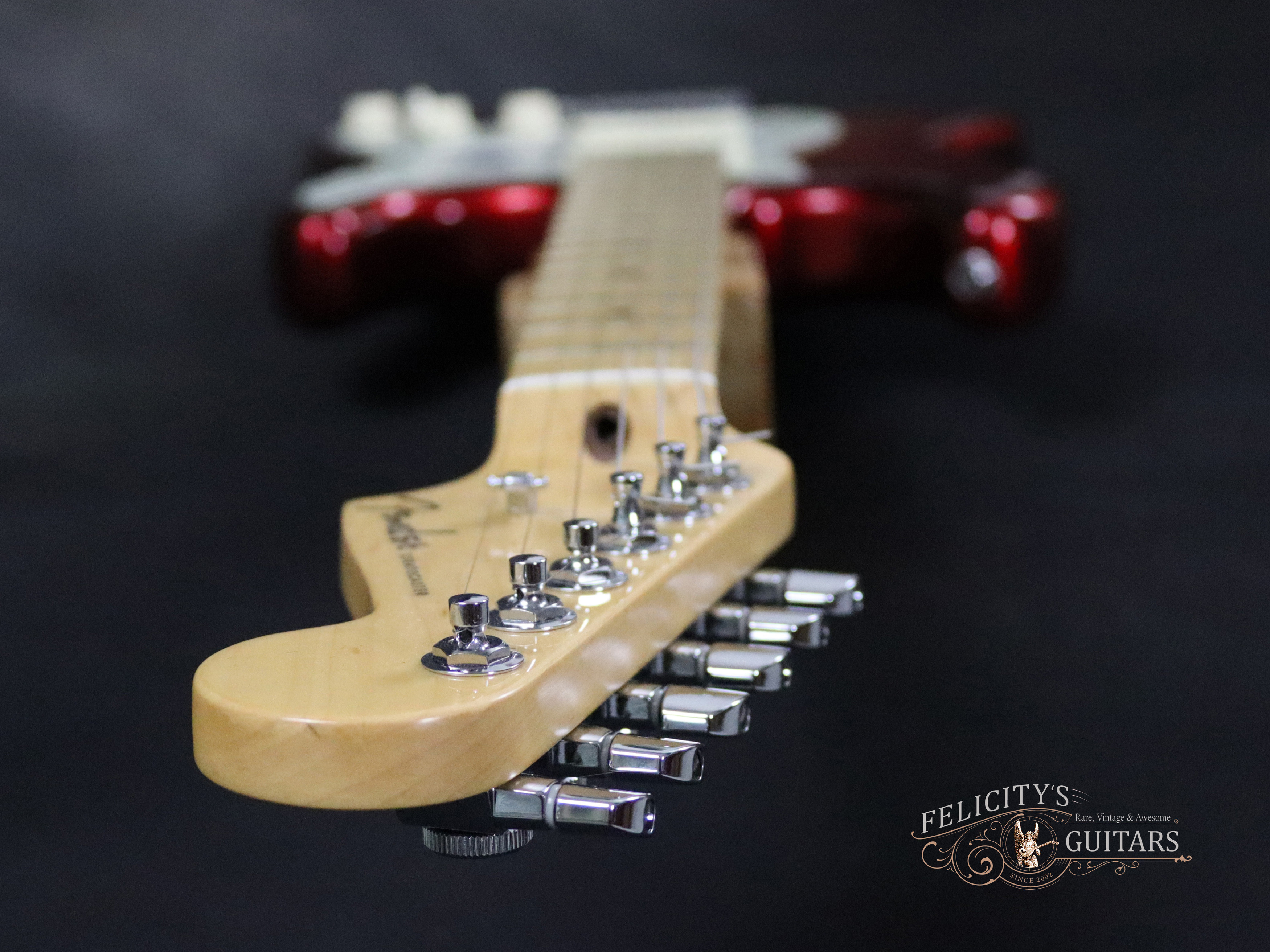

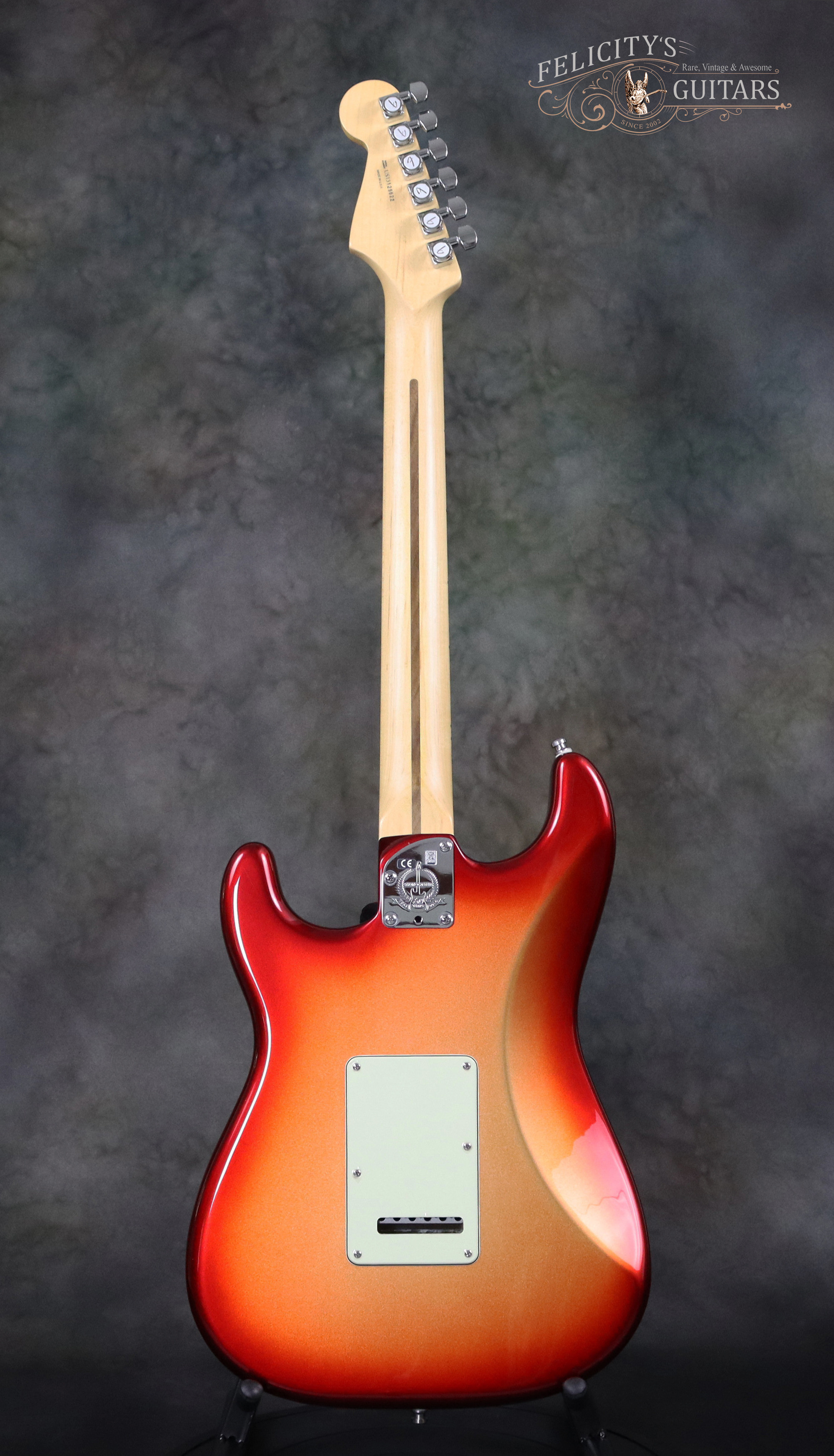

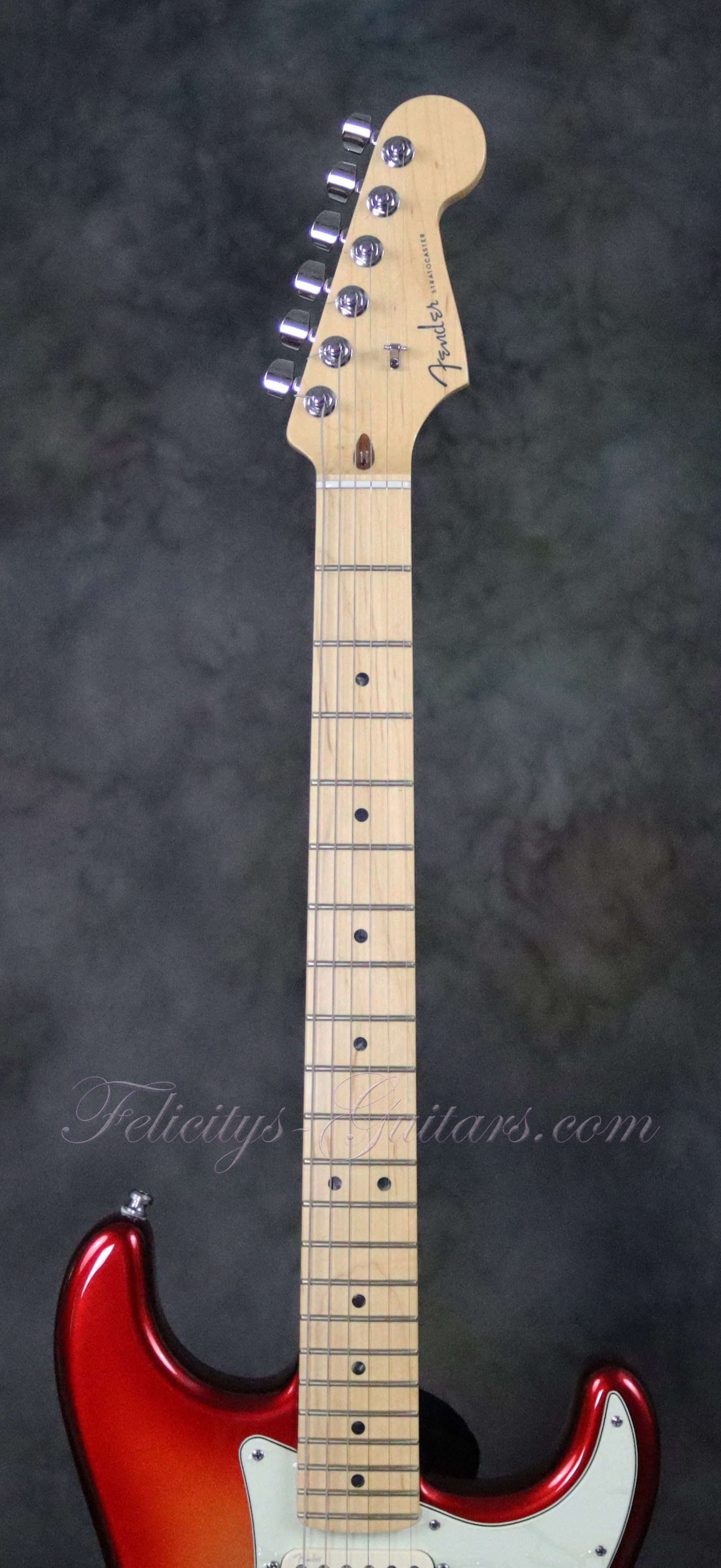

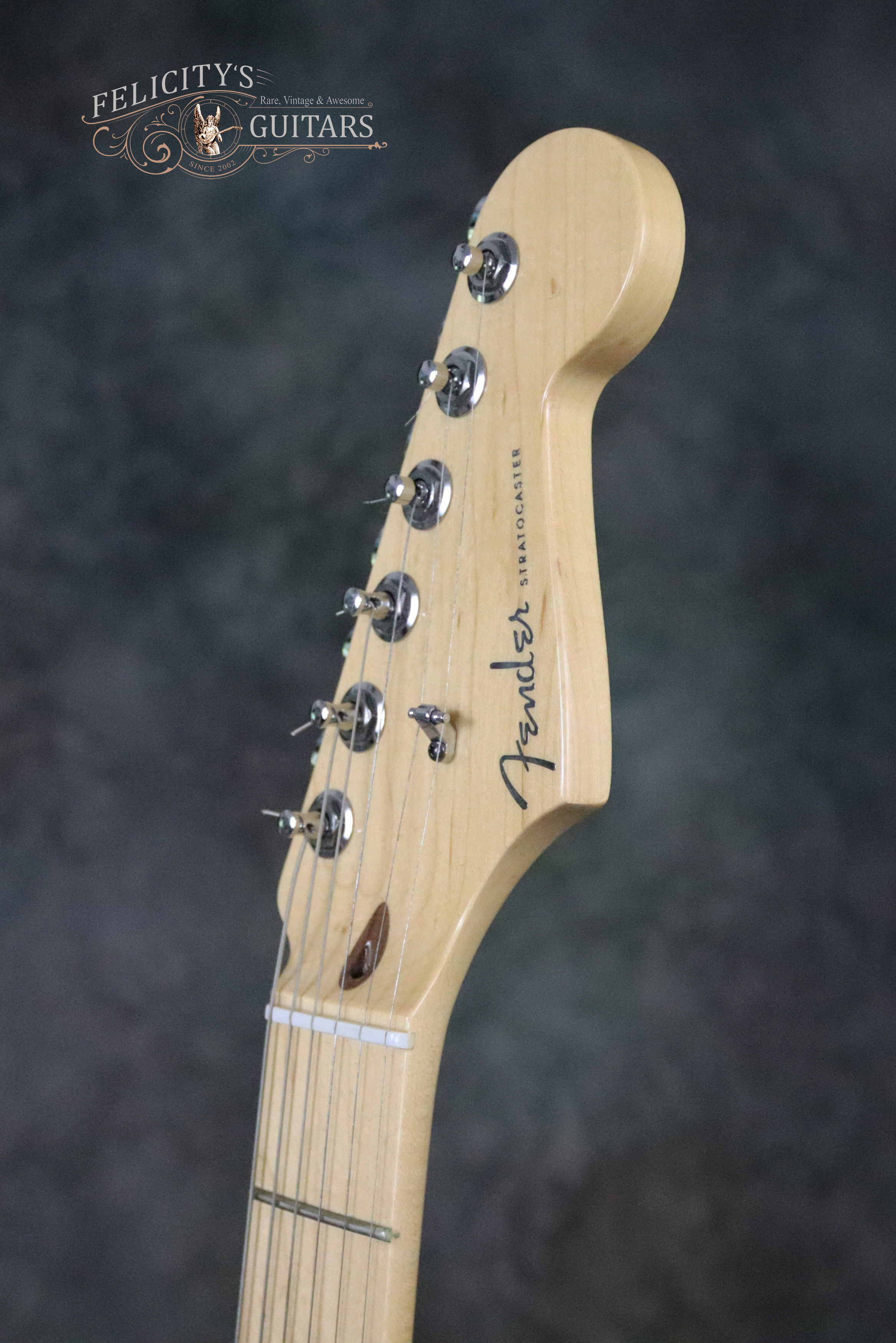

Peghead Particulars

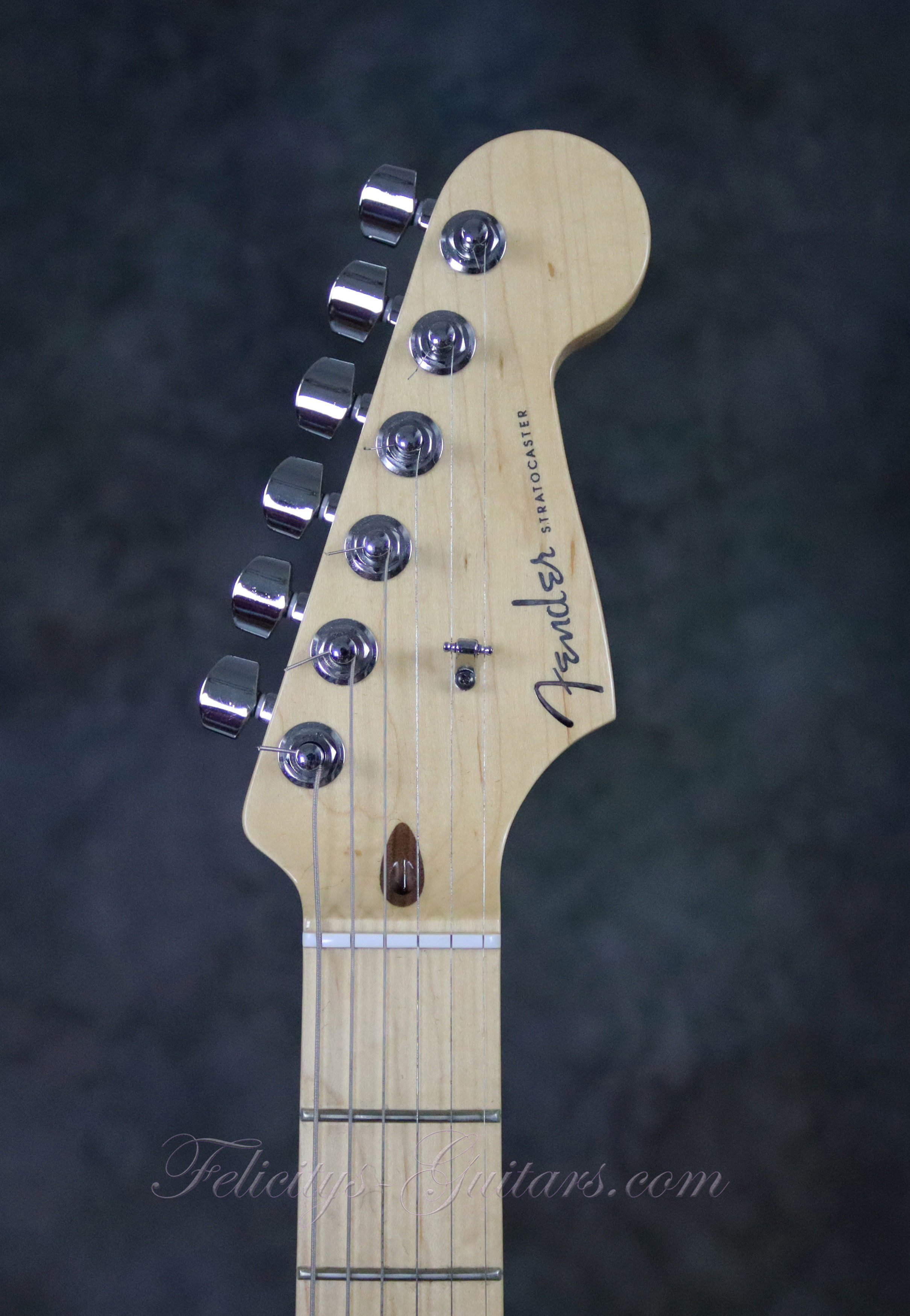

Front: Natural Maple with Fender® ’Spaghetti’ Logo and Stratocaster™ Synchronized Tremolo Decals

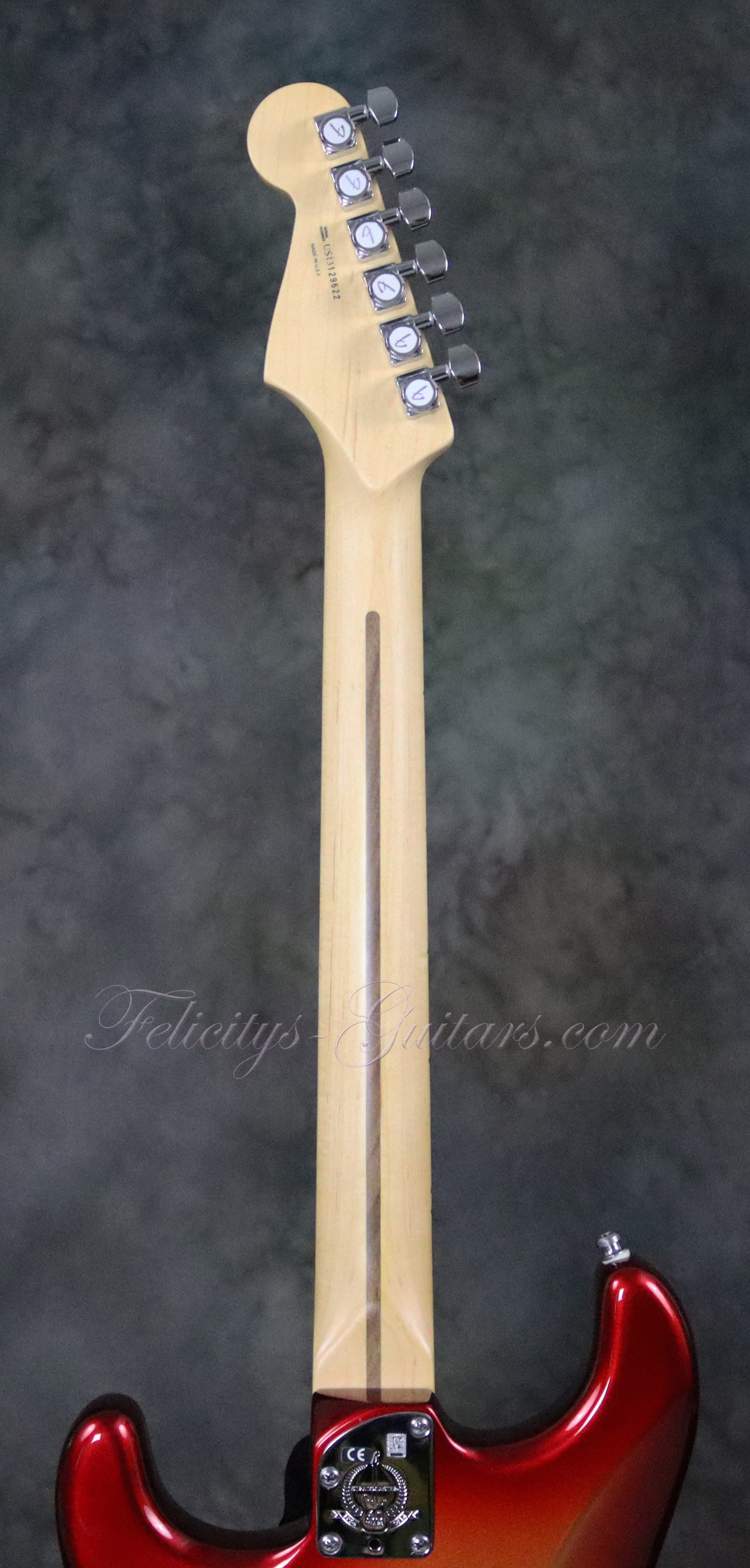

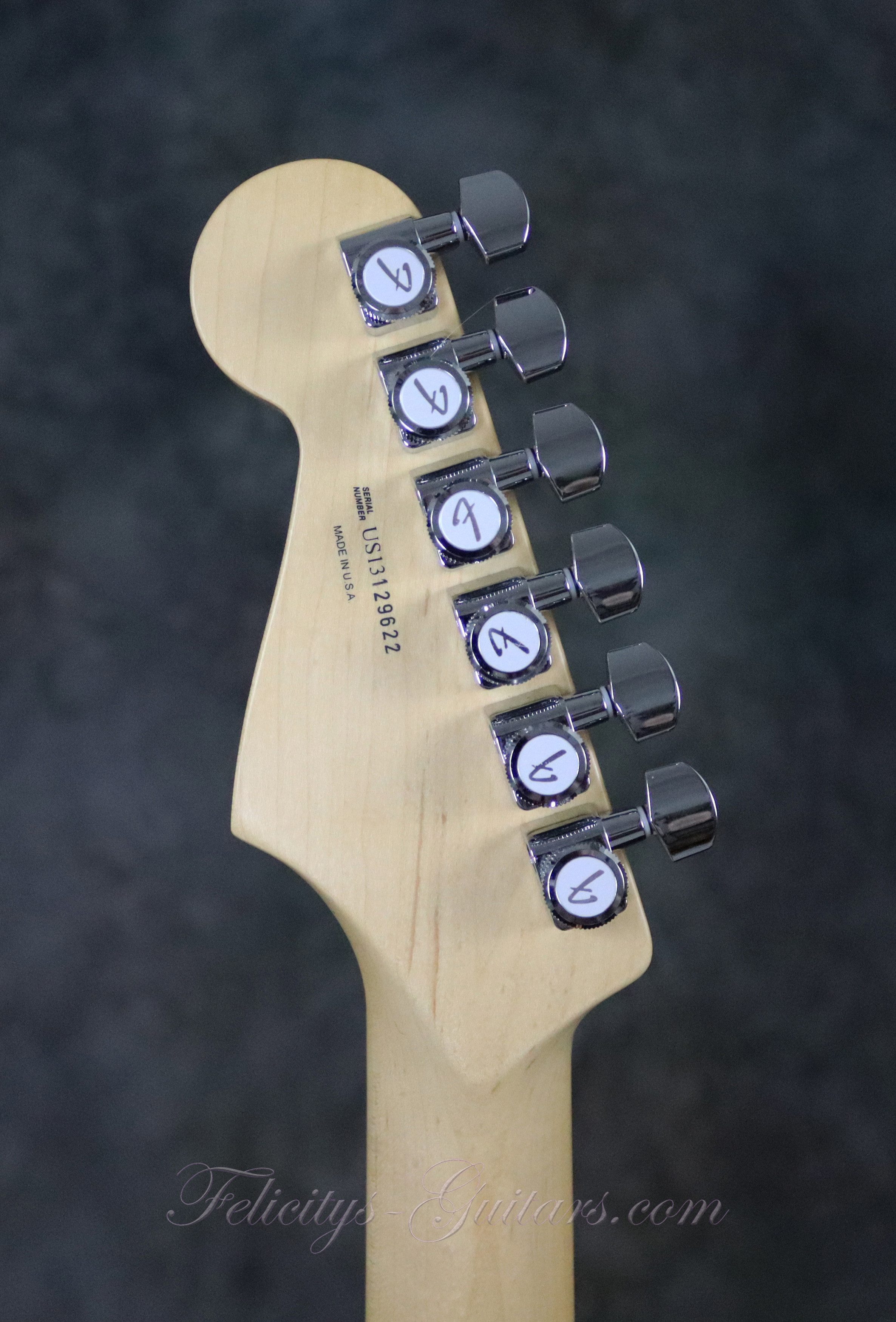

Back: Ink Stamped ‘Made in U.S.A.’ and US Serial Number

Neck Profile

Modern “C”

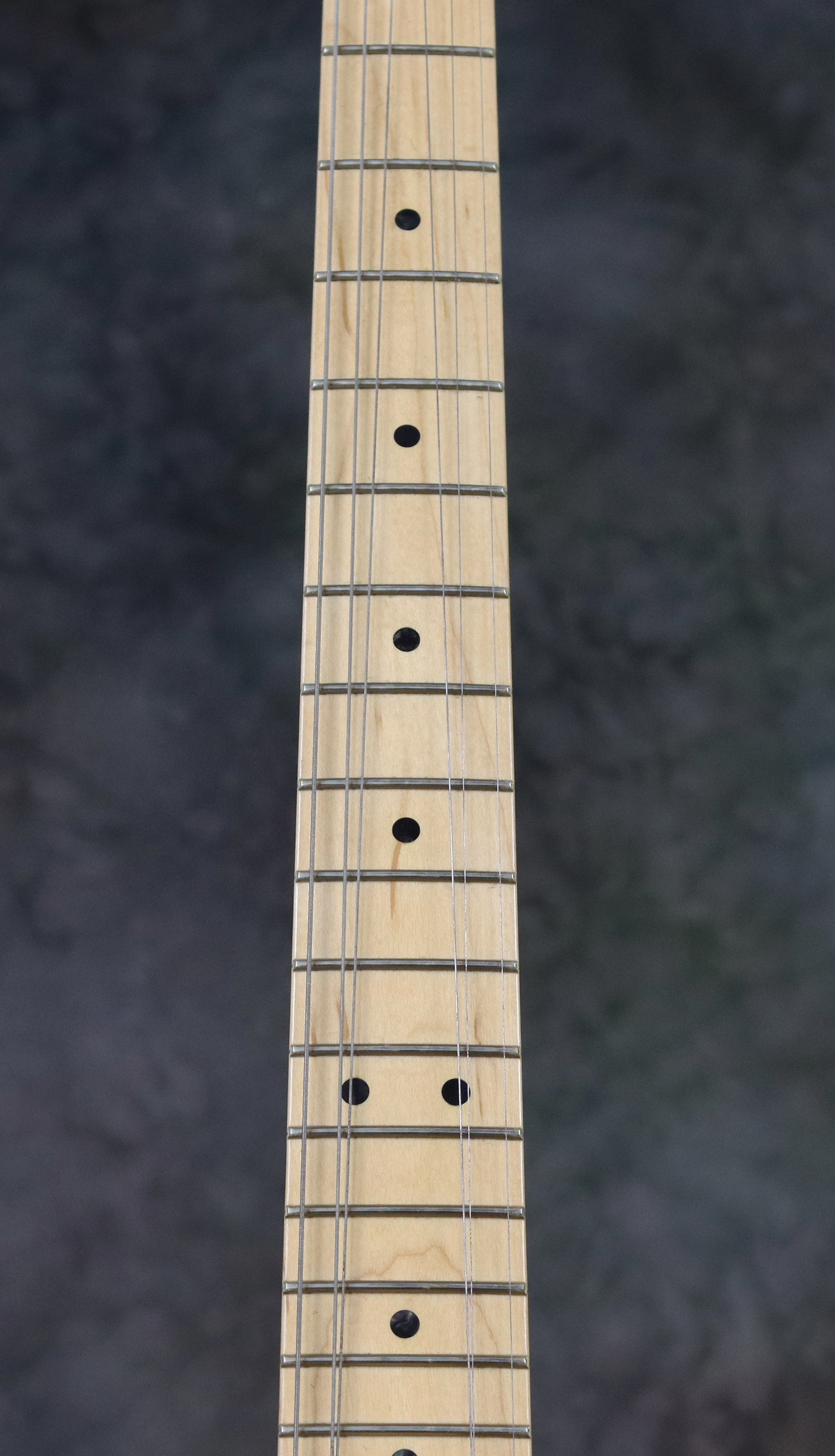

Fingerboard Material

Maple

Fingerboard Radius

9.5"−14" Compound Radius

Scale Length

25.5"

No. Frets / Type

22 Medium Jumbo

Nut Size / Material

1.625” / Synthetic Bone

Neck Width

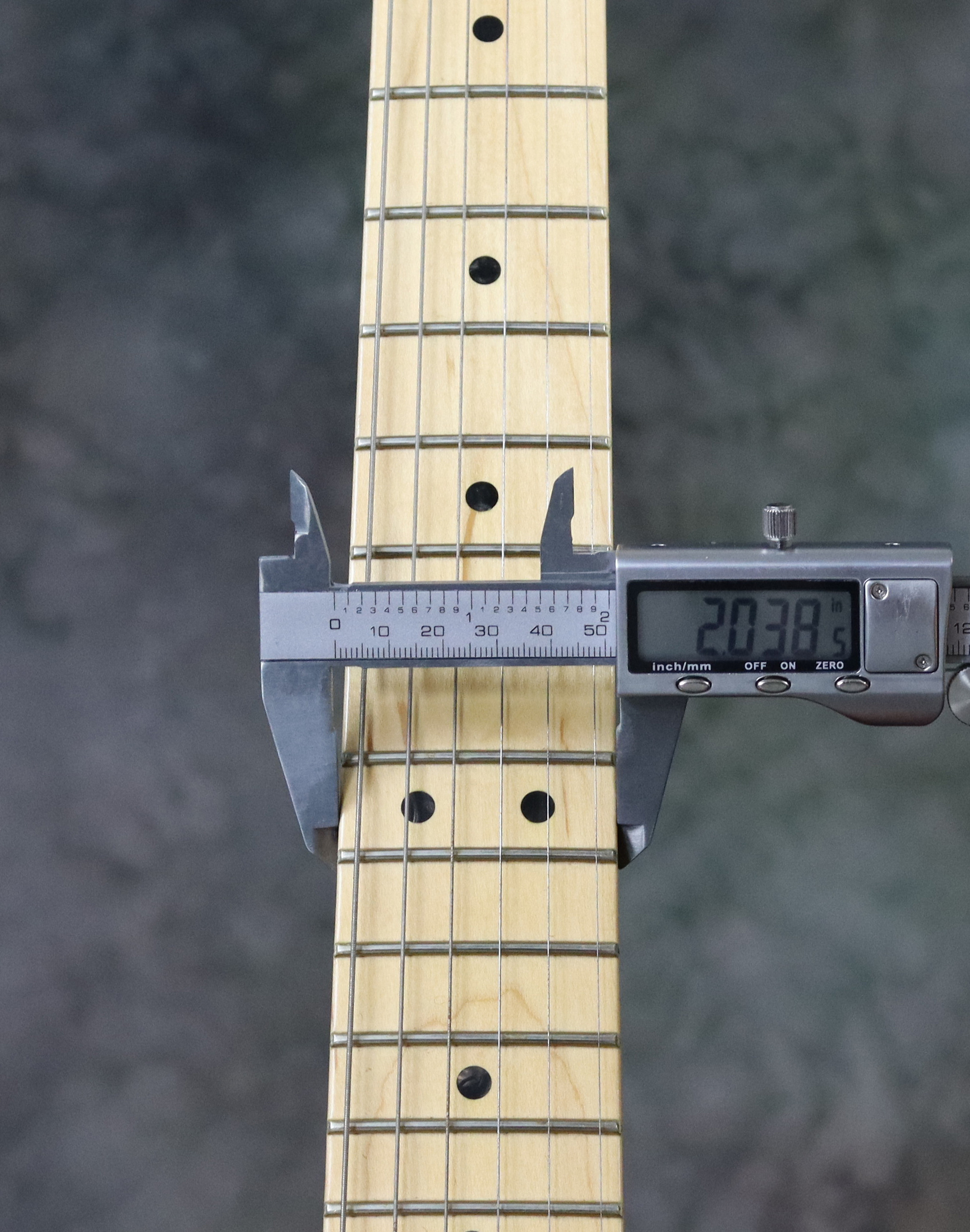

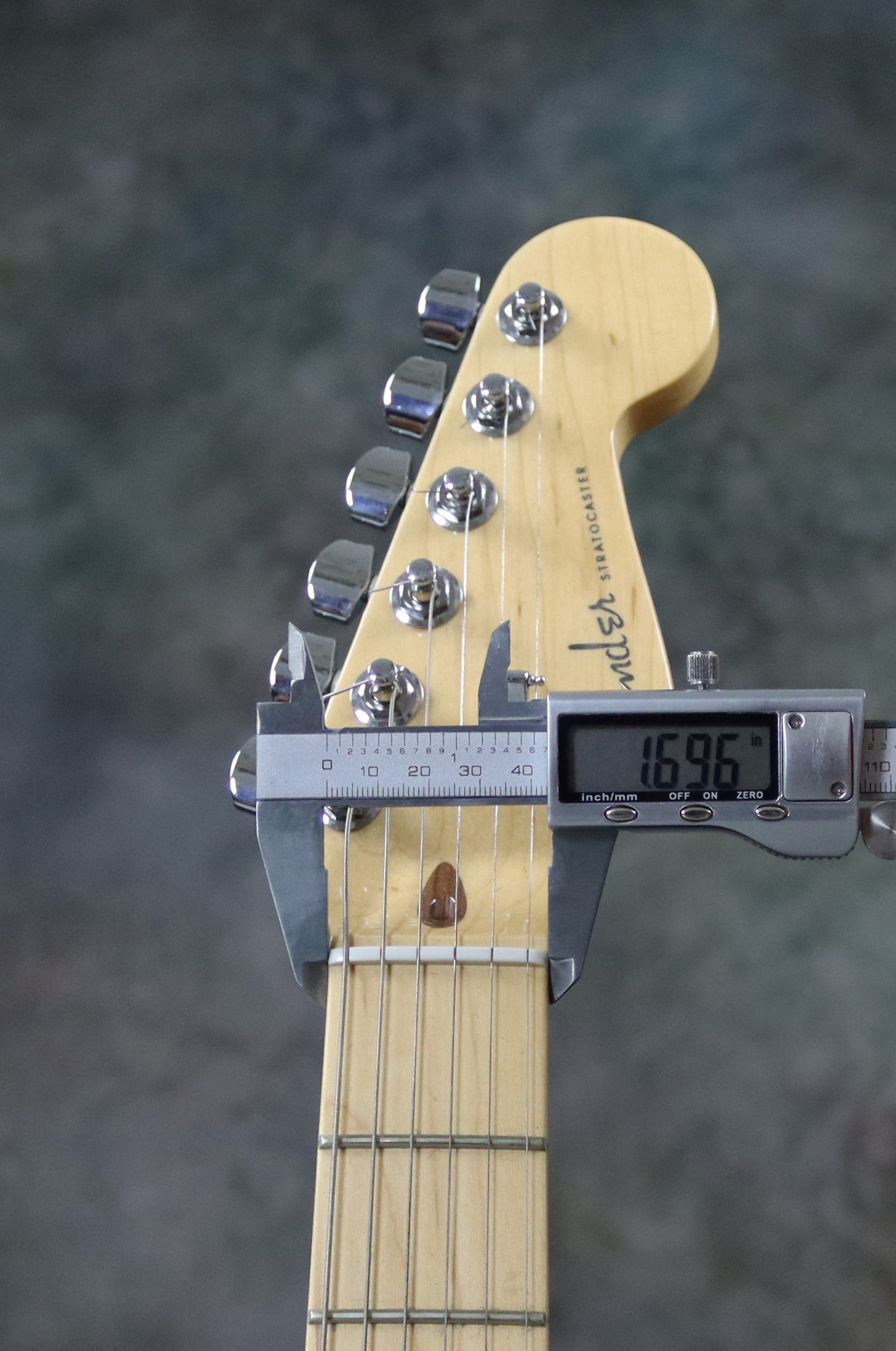

1.696” at 1st fret / 2.038” at 12th fret

Neck Depth

0.820" at 1st fret / 0.870" at 12th fret

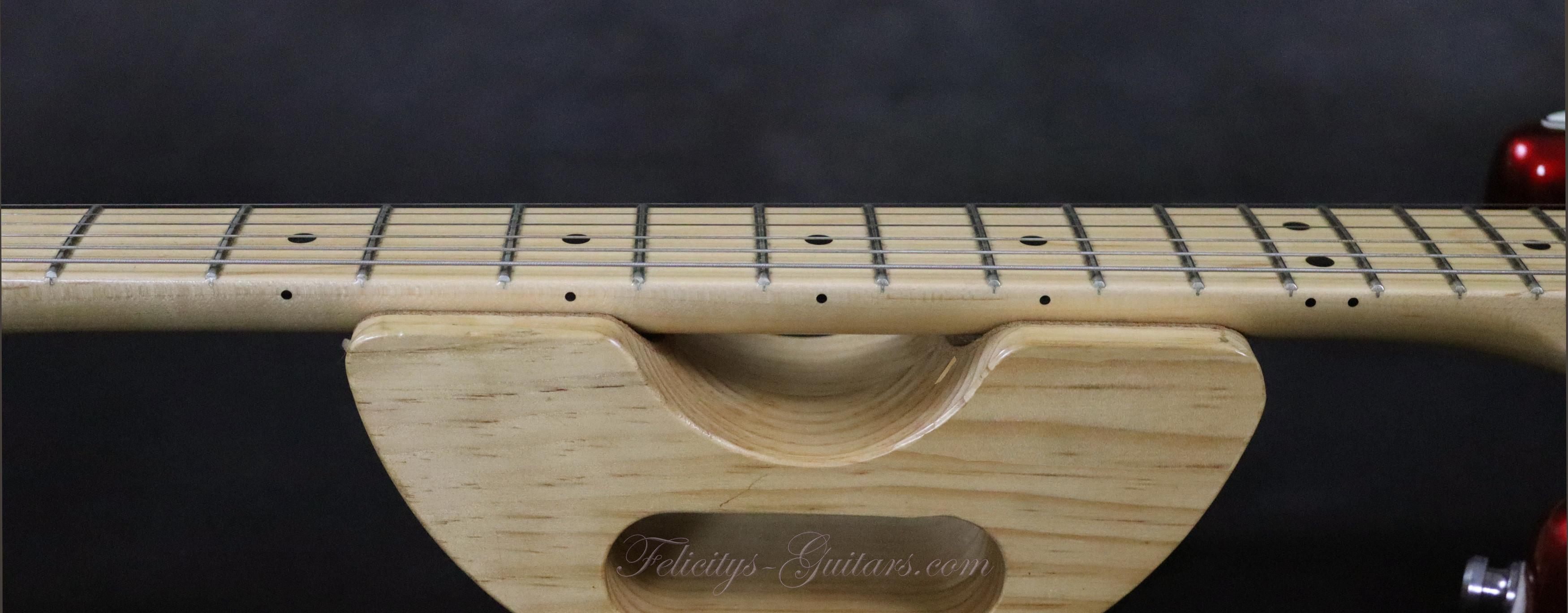

Fingerboard Inlays

Pearloid Black Dot

Neck Binding

No

Side Dots

Black

Neck Joint

Bolt-on

hardware

Bridge / Tremolo

Chrome, Deluxe two-point Synchronized Tremolo with pop-in Arm & 6-Block Saddles

String Tree

N/A

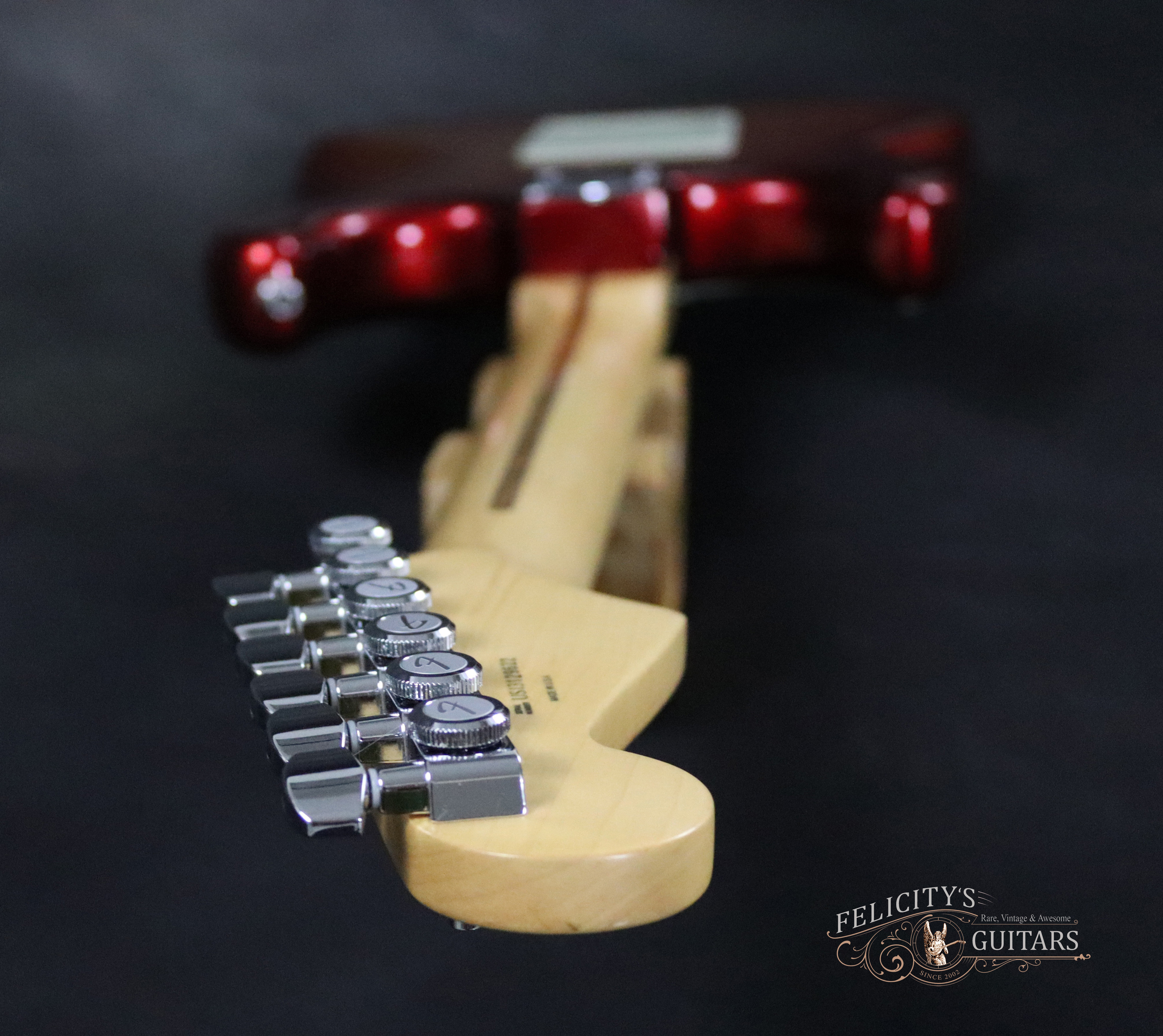

Tuning Machines

Chrome, Fender® Deluxe Staggered-Post Cast/Sealed Locking, 18:01 Ratio

Pickup Cover / Ring

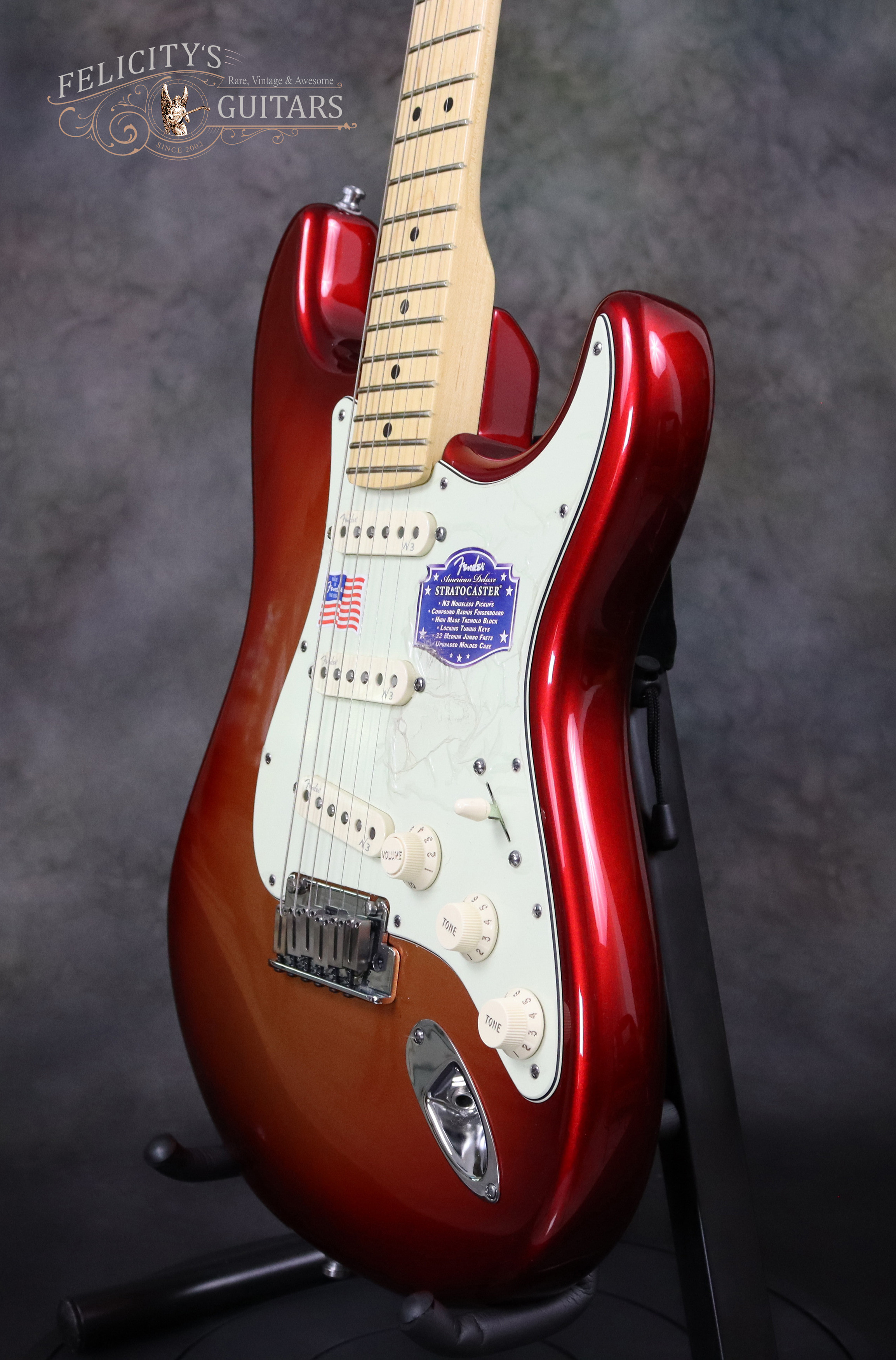

White Plastic, Exposed Pole, Pickguard-mounted SSS configuration / no Rings

Strap Buttons

Chrome, Strap lock Pins

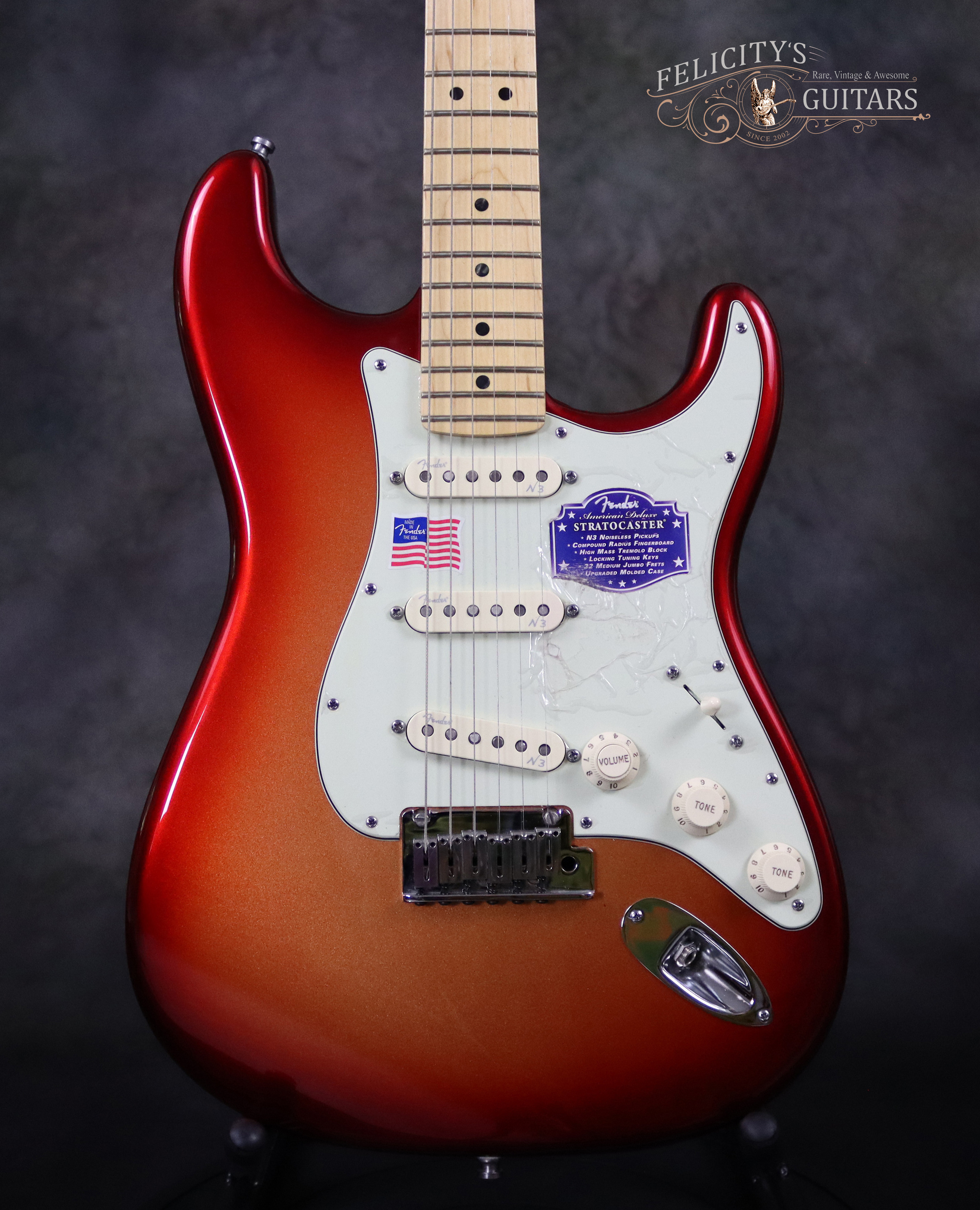

Pickguard

3-ply W/B/W, 11-hole (modern config.) Shielded

Control Knobs

White Plastic Strat™ Knobs with no Dial Pointers

Switch

White Plastic Blade Tip

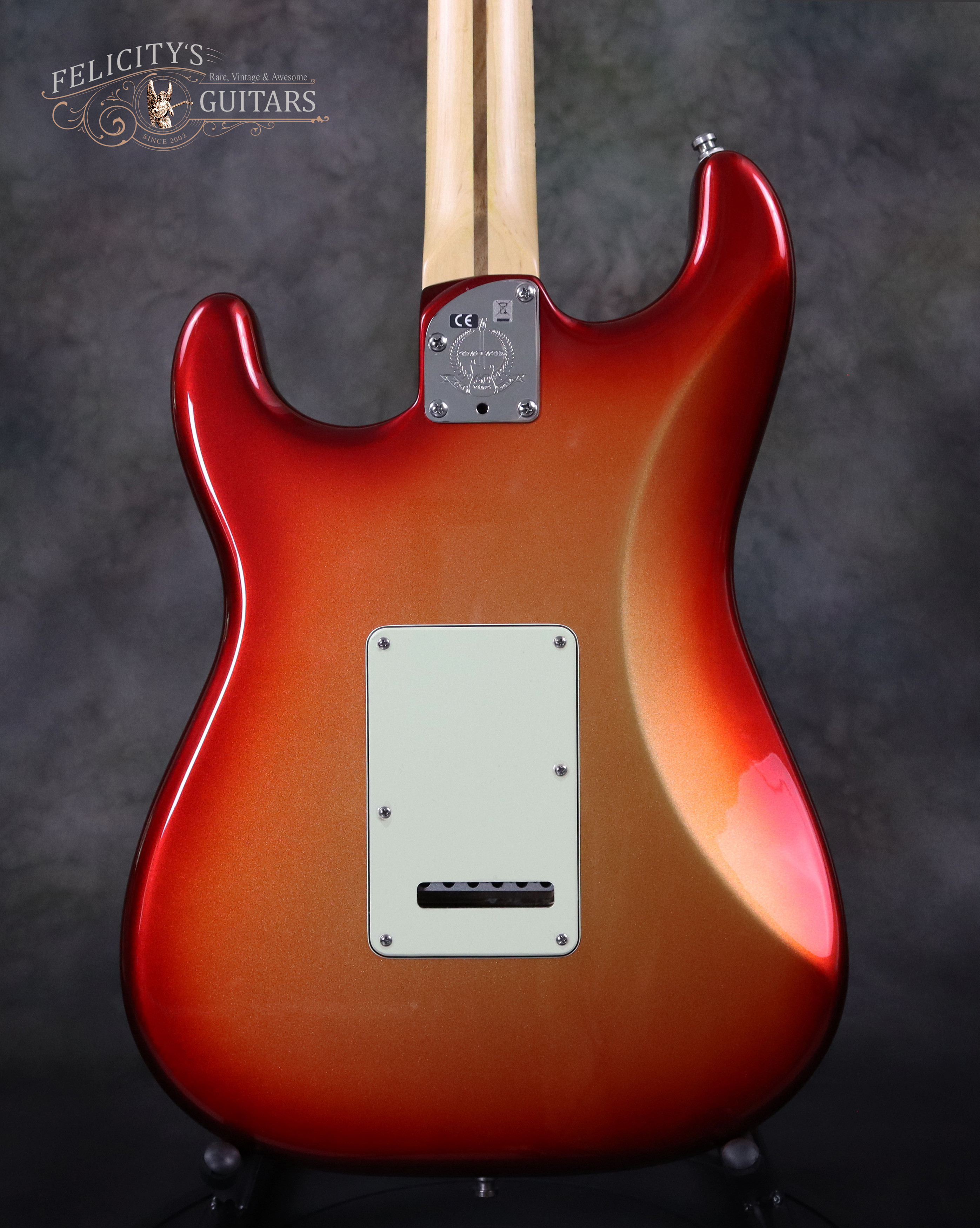

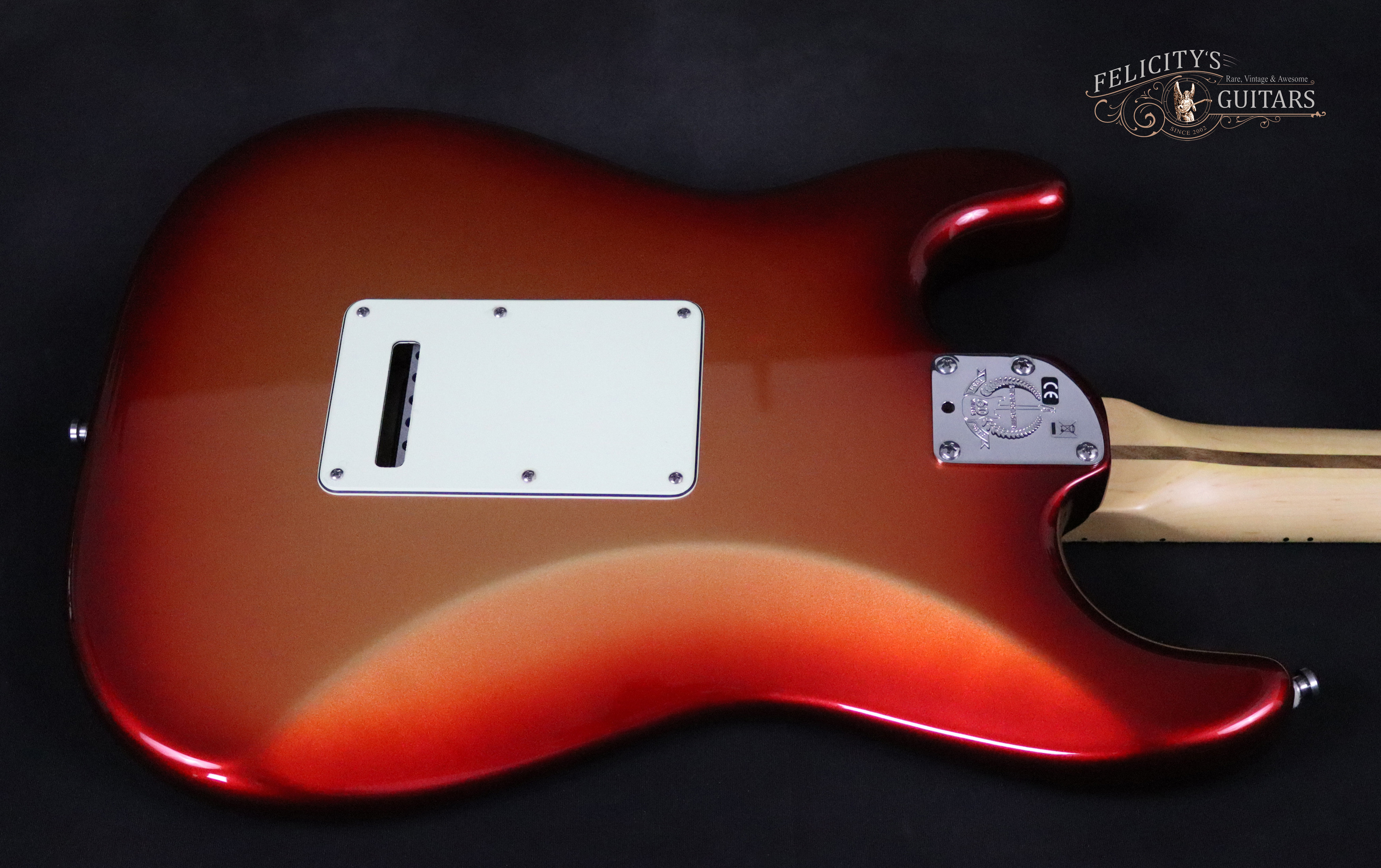

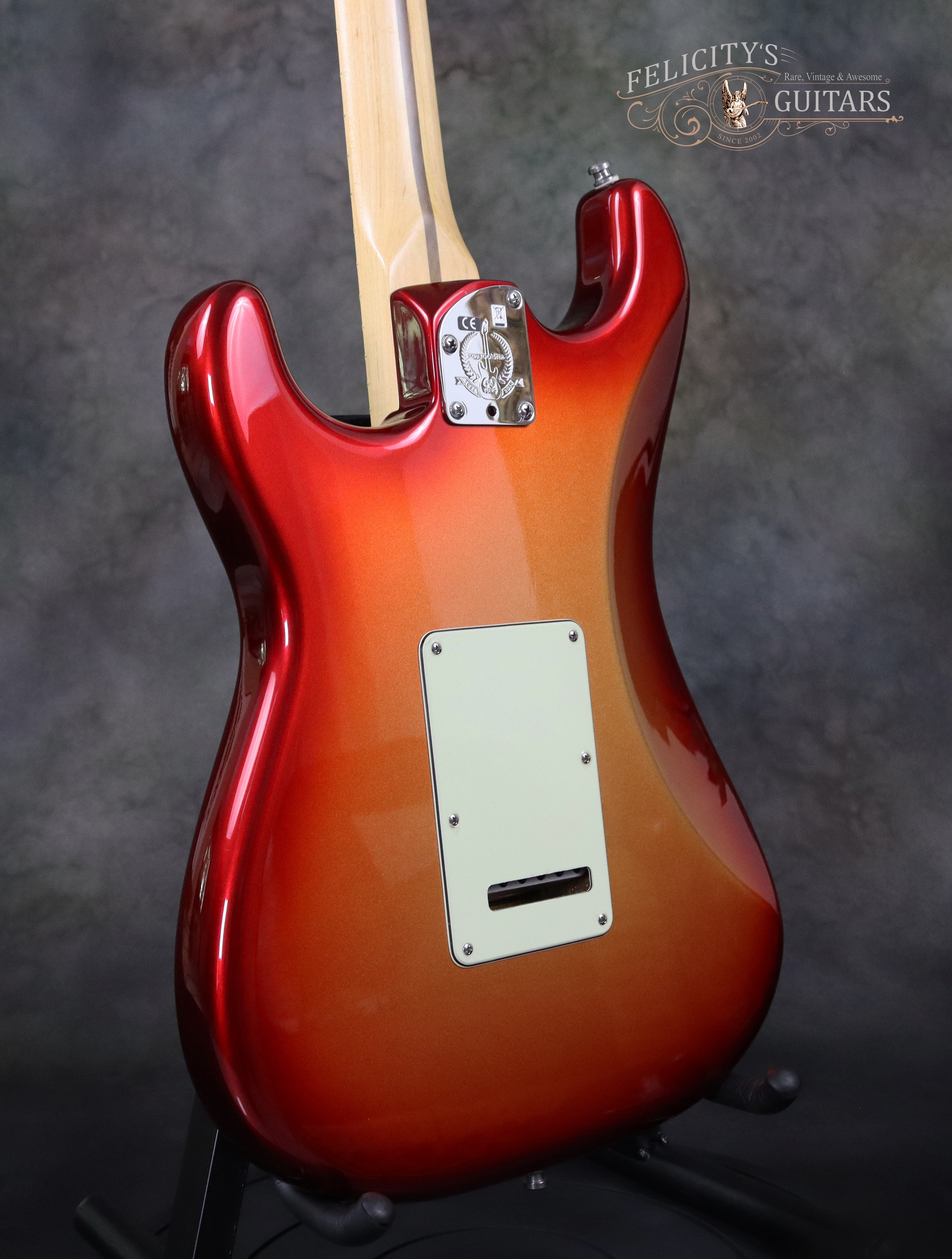

Neck Plate

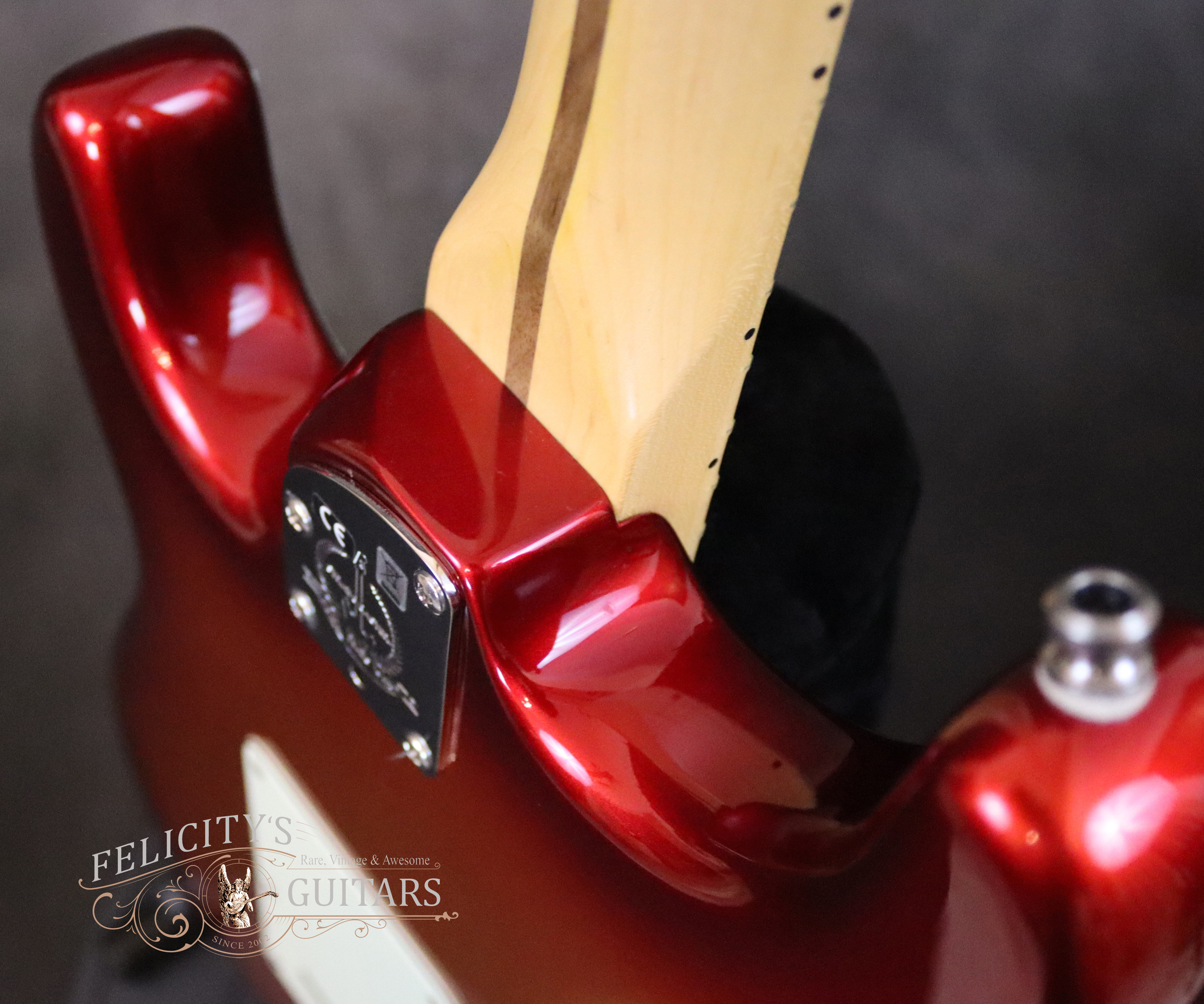

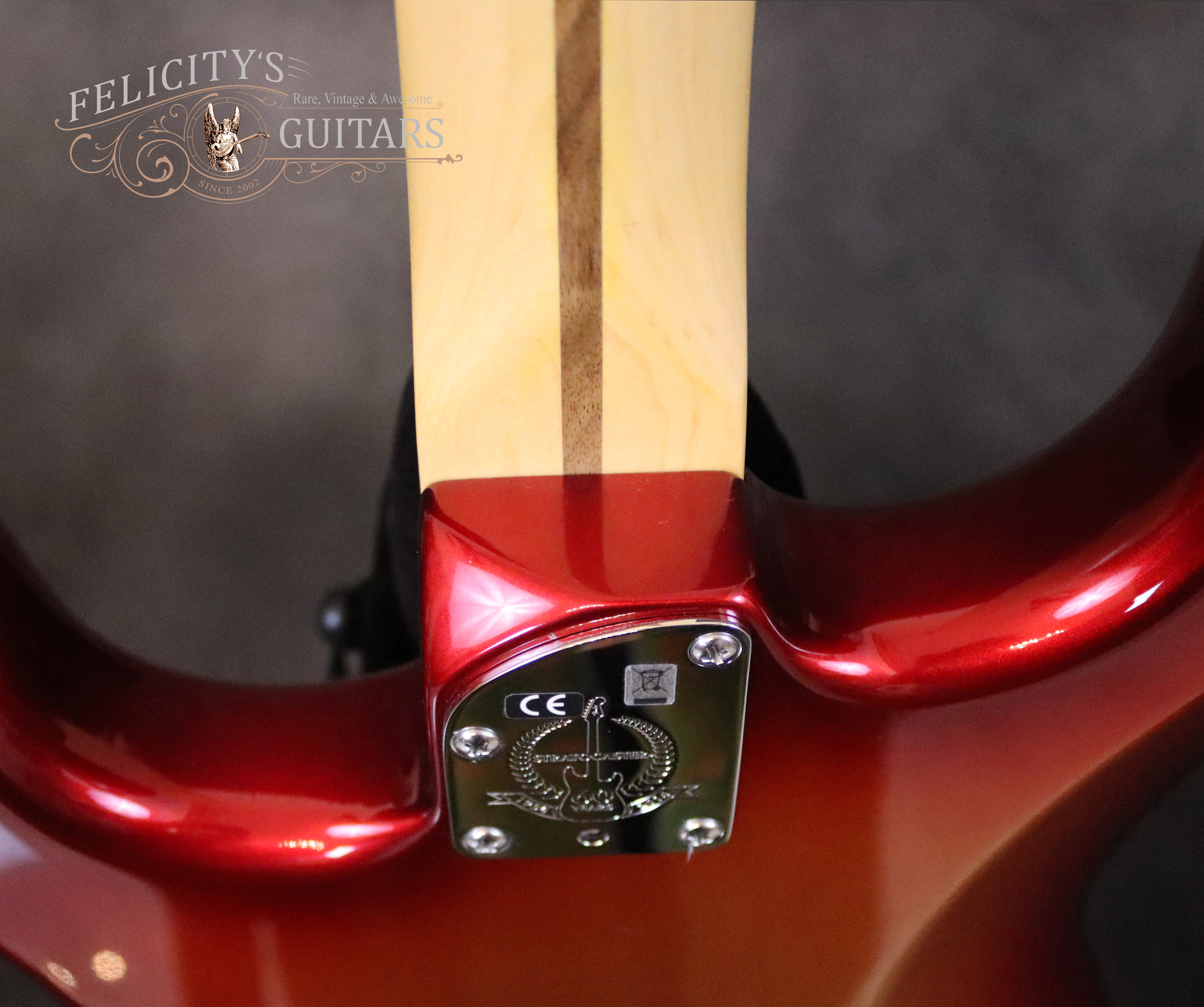

4-Bolt Neck Plate with Micro-Tilt

Output Jack Plate

Chrome, Boat Style

electronics

Bridge Pickup

Fender® Noiseless™ N3 Strat Singlecoil, Alnico 5, DCR 6.8k

Middle Pickup

Fender® Noiseless™ N3 Strat Singlecoil, Alnico 3, DCR 6.8k

Neck Pickup

Fender® Noiseless™ N3 Strat Singlecoil, Alnico 2, DCR 6.8k

Active / Passive

Passive

Series / Parallel

Fully configurable via 1st Tone Knob Push/Push S-1™ Switch

Controls

1 Master Volume, 1 Std. Tone, 1 Tone Push/Push S-1™ , 5-pos. Blade Pickup Selector

Vol Potentiometer

250k

Tone Potentiometers

250k

Capacitor / Resistor

Tone 2 .022uF and Tone 1/S-1™ .01uF Values

Harness

Standard pickguard-mounted Strat™ Wiring

S-1 Switch

*2013 Series Reconfigured S-1™ Switching

Greasebucket T-Circuit

No

MDX / TBX Circuit

No

Active Electronics

No

Piezo

No

Kill Switch

No

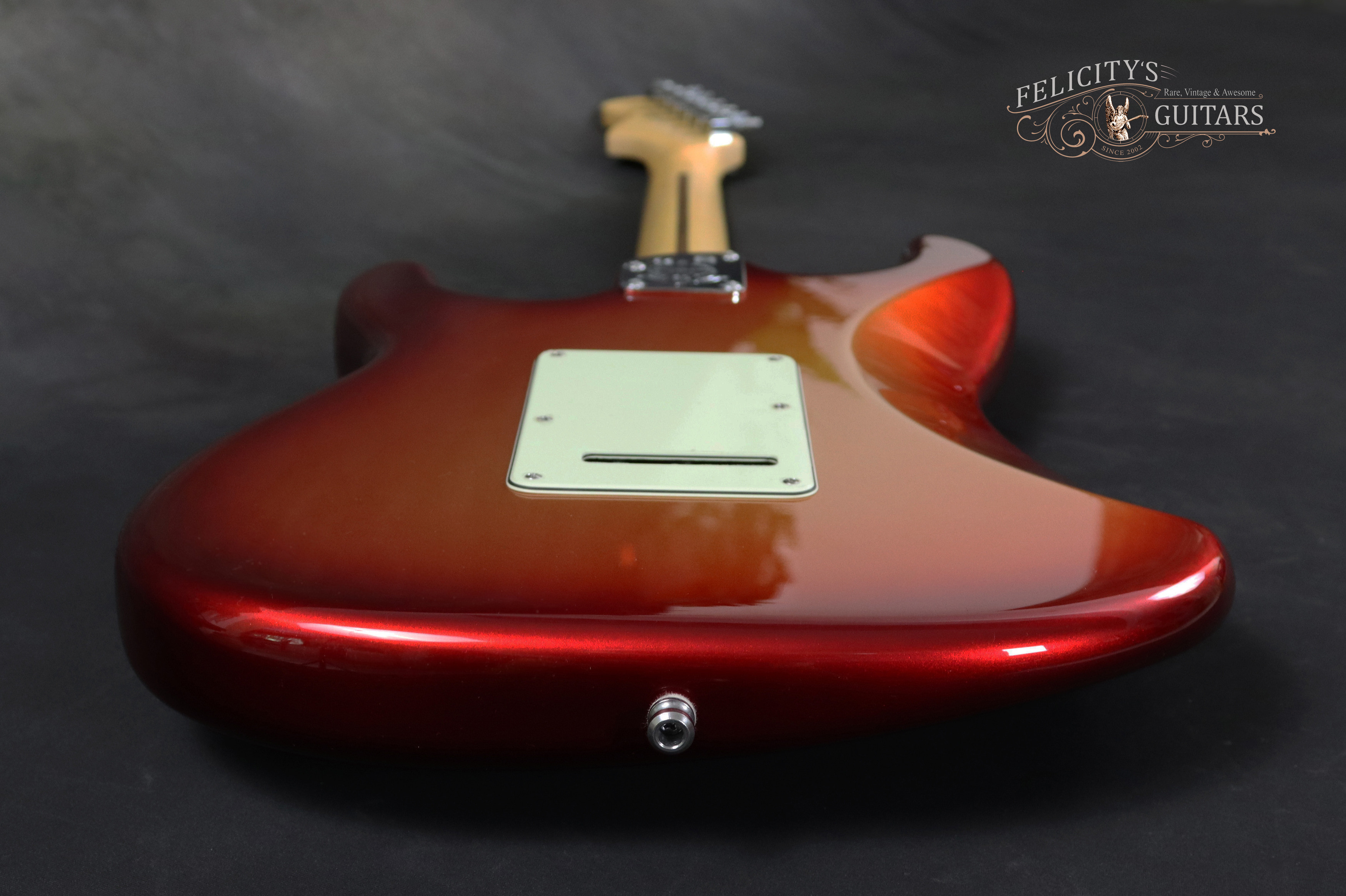

Output Jack

Switchcraft™ 1/4" 2-Conductor

miscellaneous

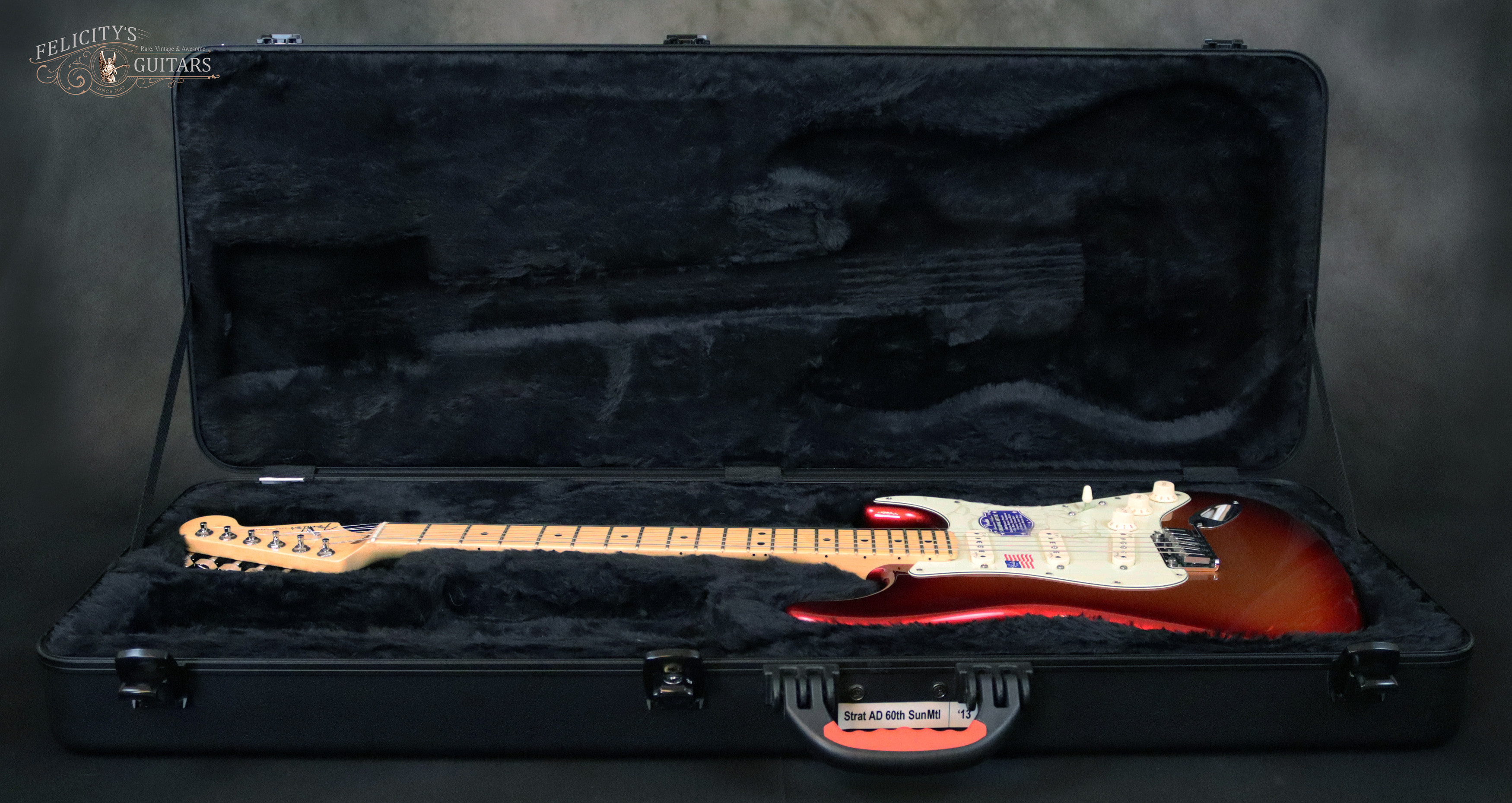

Case / Gigbag

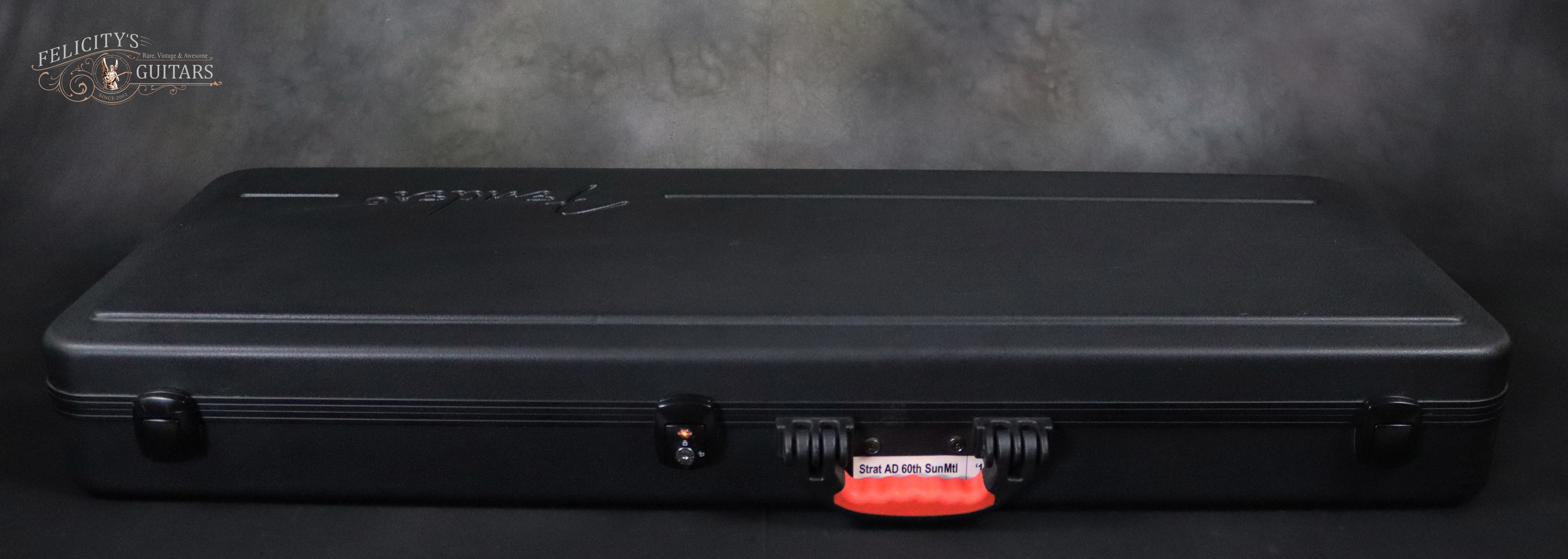

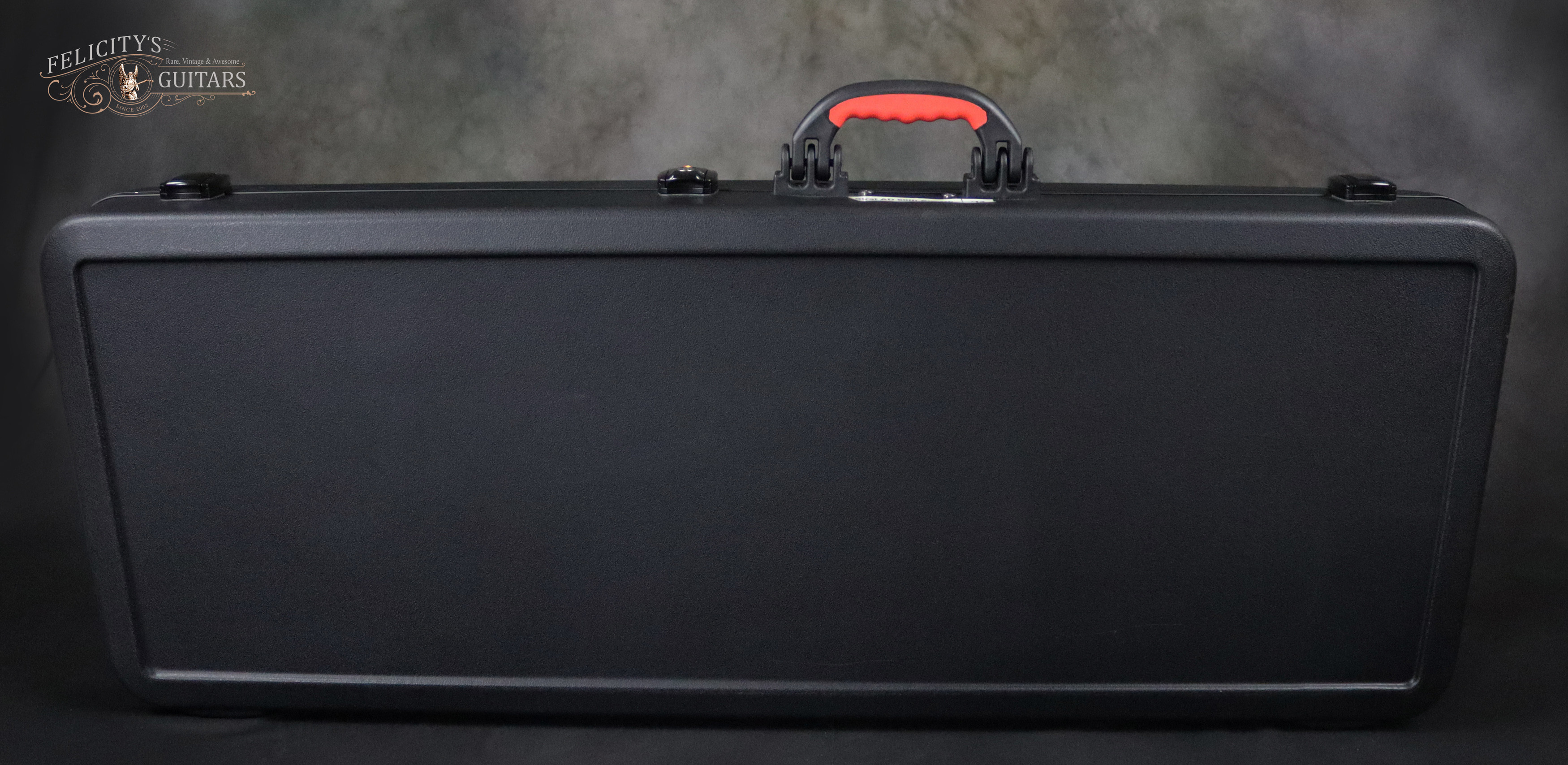

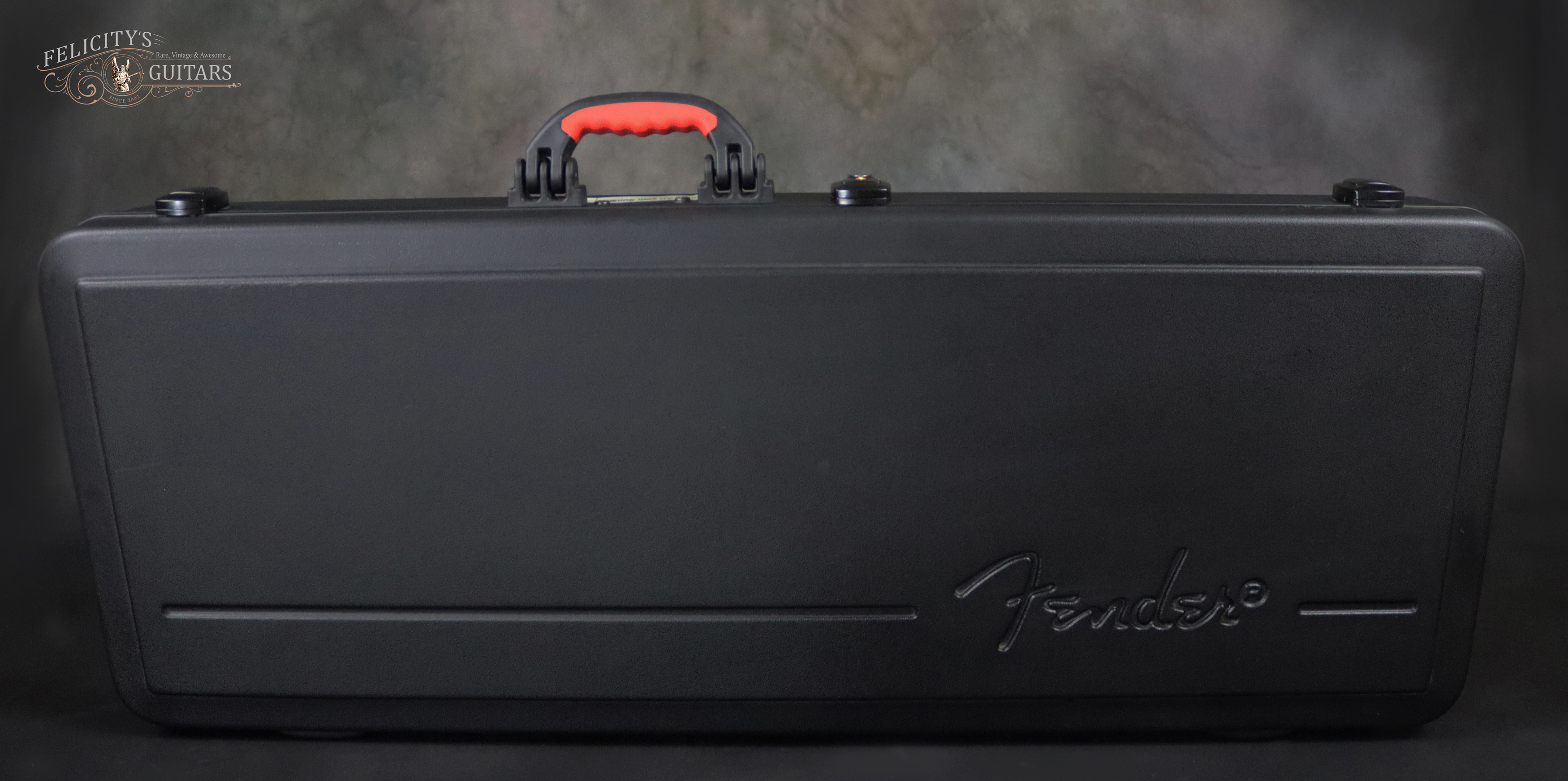

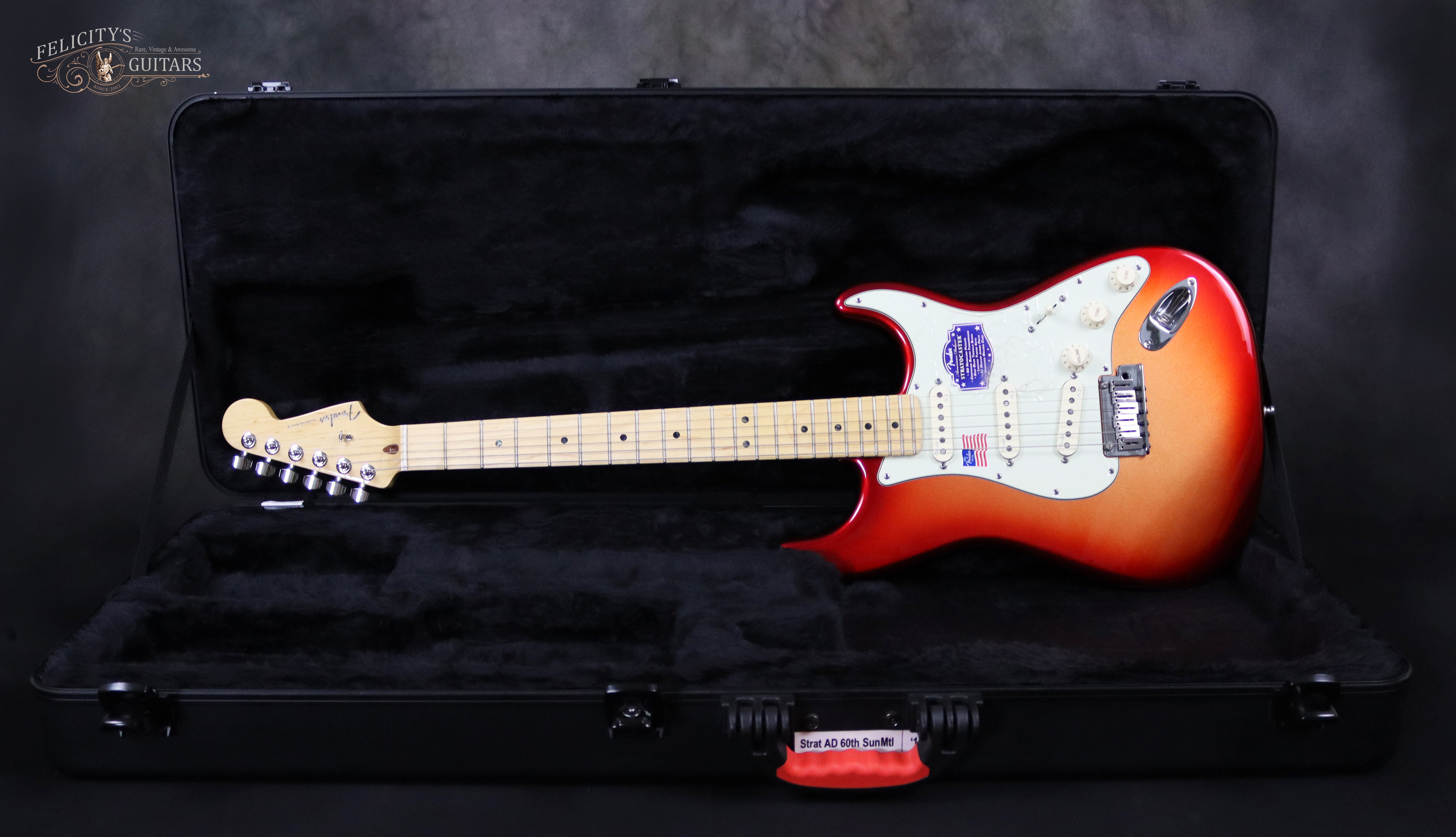

Fender® U.S.A. Hi-Tech Molded Black Rectangular SKB Hardshell Case w/Black Interior

Strap Locks

Yes

Strings

Fender® U.S.A. Super Bullets 3250L, NPS, .009-.042 Gauges

Tools / Accessories

.050" Hex Wrench (saddle height) / Cable, Strap and Straplocks

Manual / Literature

Fender® U.S.A. Owner’s Manual, S-1 Switching Instruction, Hang Tags

C.O.A.

No

Other

*2013 Series S-1™ operation information available here:


https://www.deluxeguitar.com/207/the-fender-american-deluxe-stratocaster-s-1-switching-system/

Weight

Is the actual weighed-value in US Standard Units


Disclosure



Some technical Specs may have been extracted from Fender® U.S.A. and/or internet archives. The words Fender®/ Switchcraft™ and the associated designs are registered trademarks of the Fender Musical Instruments Corporation and other named entities, respectively
