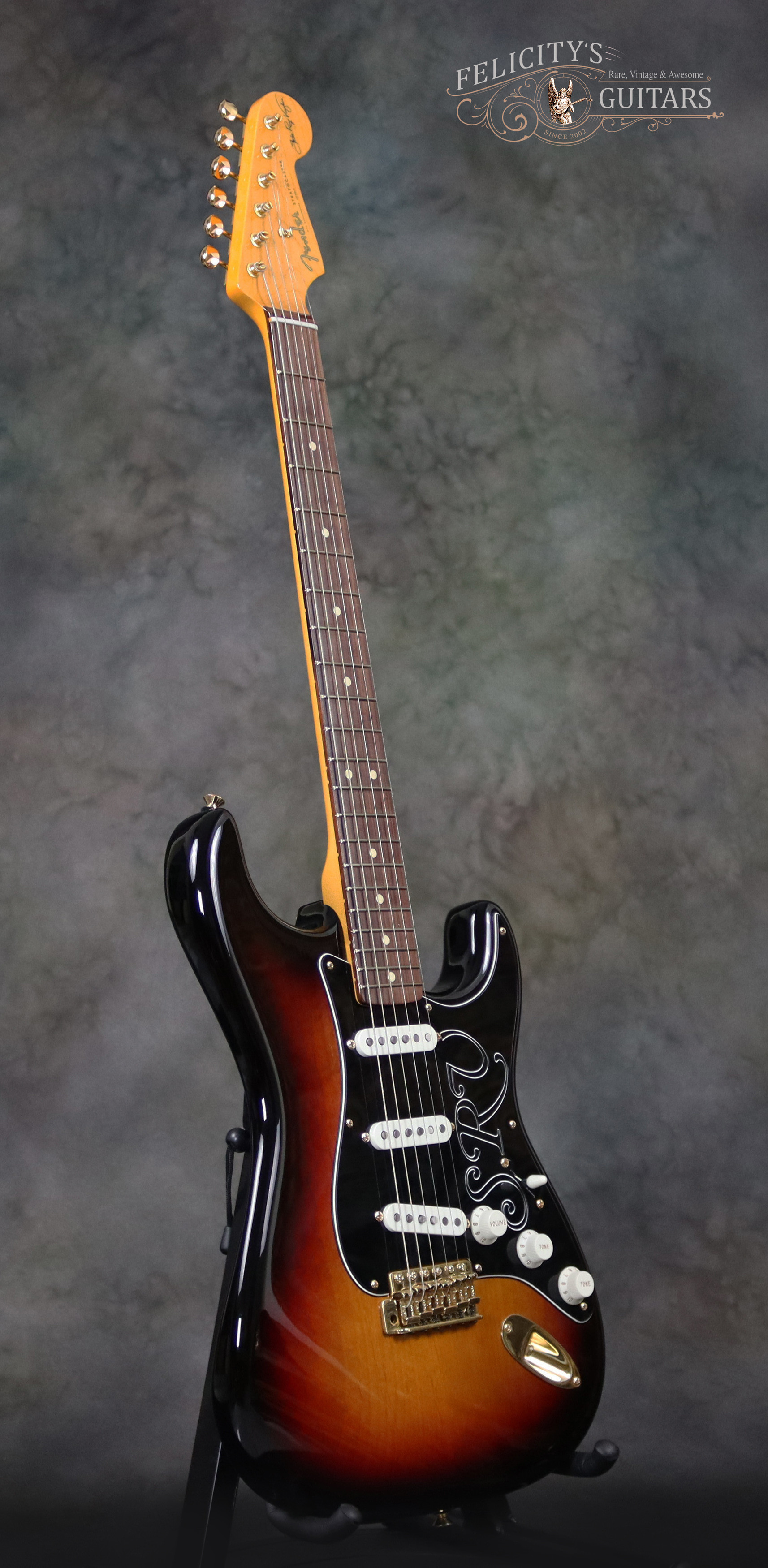

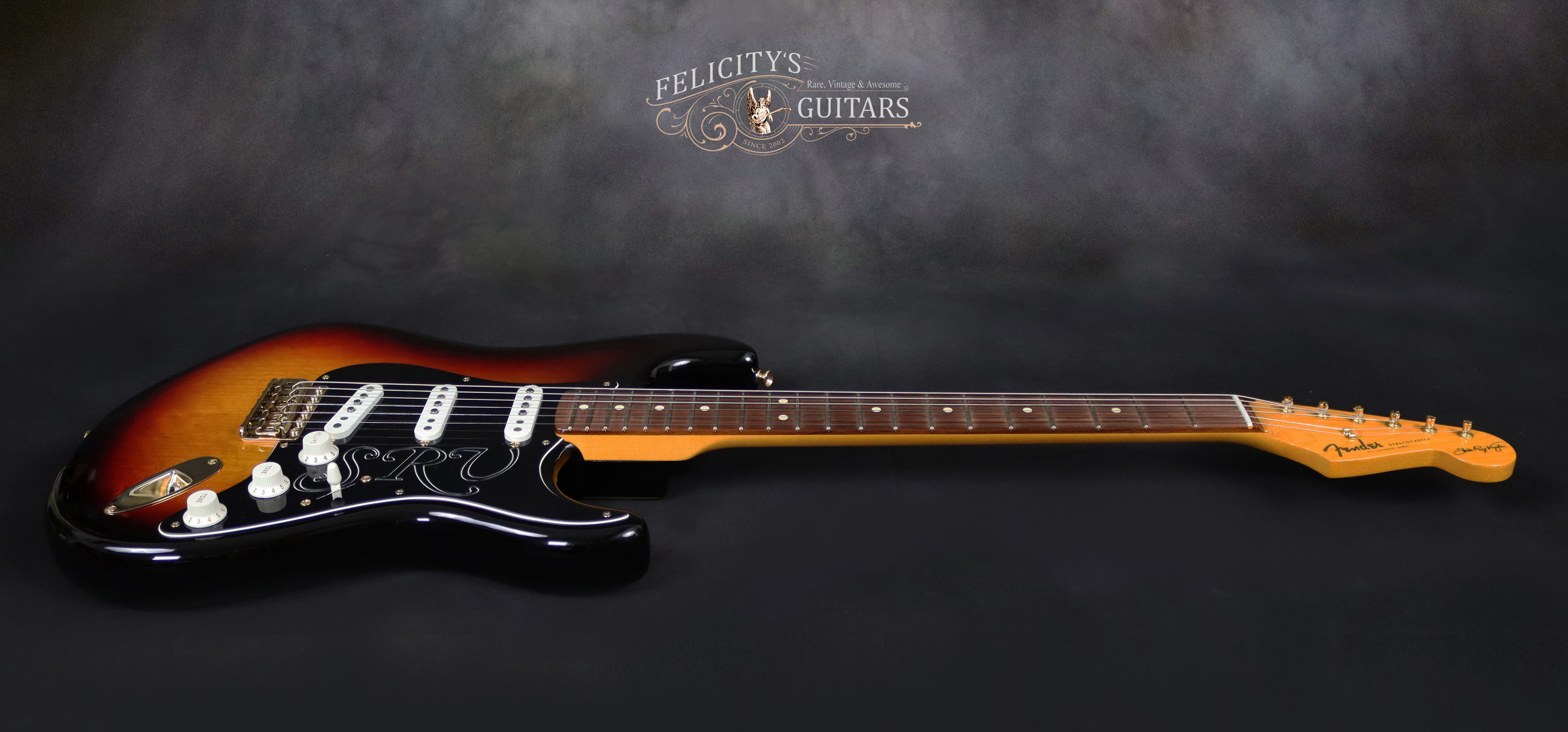

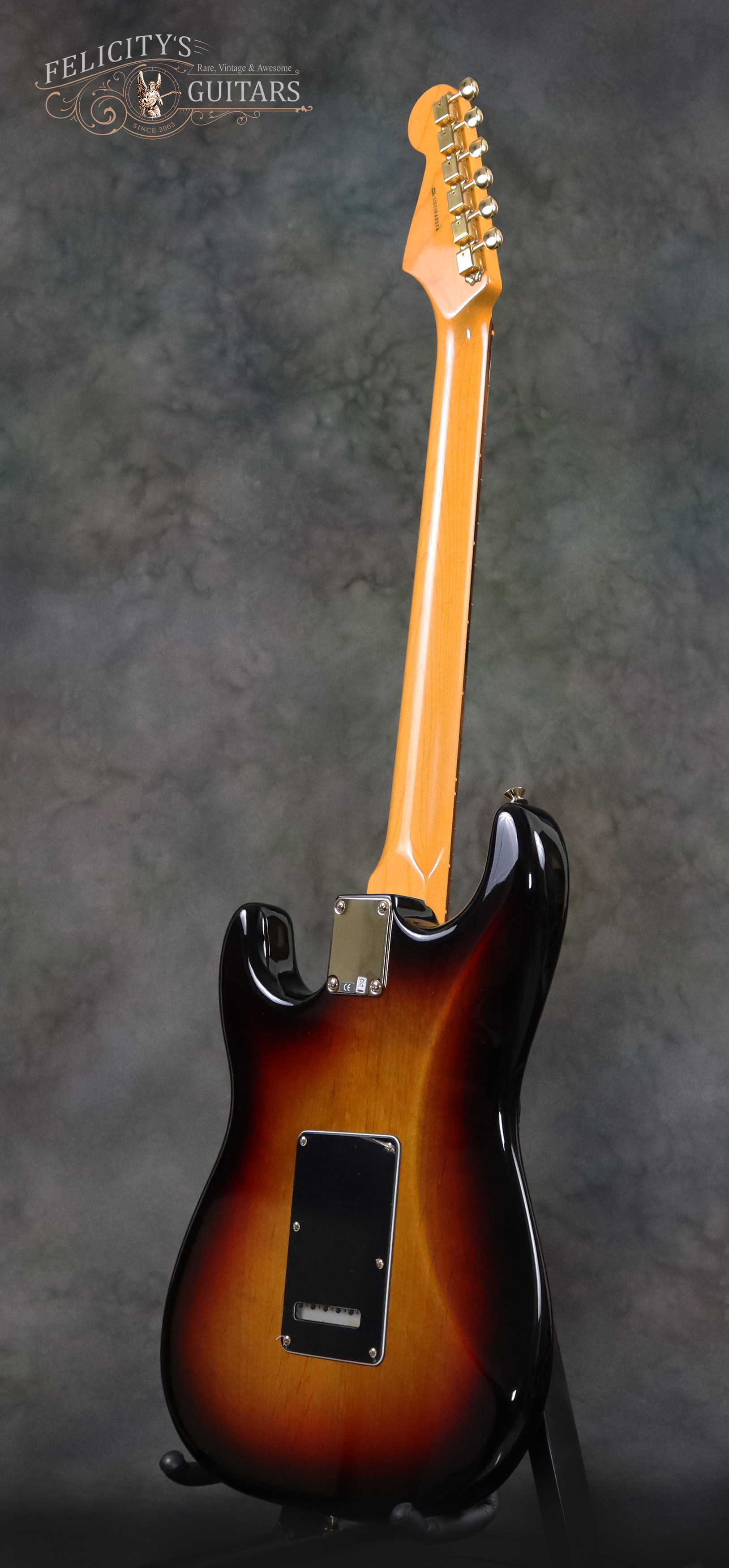

2013 FENDER STRATOCASTER ‘STEVIE RAY VAUGHAN’ SIG. IN 3-COLOR SUNBURST

If there were a Mount Rushmore of the Stratocaster, Stevie Ray Vaughan would be one of the Greats enshrined there

Fender U.S.A. says - Fender's Stevie Ray Vaughan Stratocaster is a finely crafted like-new version of Vaughan's favorite guitar, the famous "Number One" Strat® with which he electrified listeners everywhere and seared scorching Texas blues into the top of the charts. For pure SRV tone and style that evokes one of the Stratocaster's most revered masters, this is the "One."

The 2013 Fender Stevie Ray Vaughan Stratocaster at a glance:

Early-’60s thick oval “C” neck profile like Stevie’s famous “Number One”

Pau Ferro fingerboard with 6105 tall & narrow frets like Stevie preferred

Three Fender® Custom Shop Texas Special Singlecoil Strat pickups

Classic and stylish SRV engraved pickguard

All Gold-plated hardware

Reverse vintage-style ‘lefty” tremolo bridge ala “Hendrix” style just like Stevie rocked

Deluxe “tweed” hardshell case included

USD 1,000,000

Add to Cart

Shipping will be calculated at check out

Photo Gallery

description

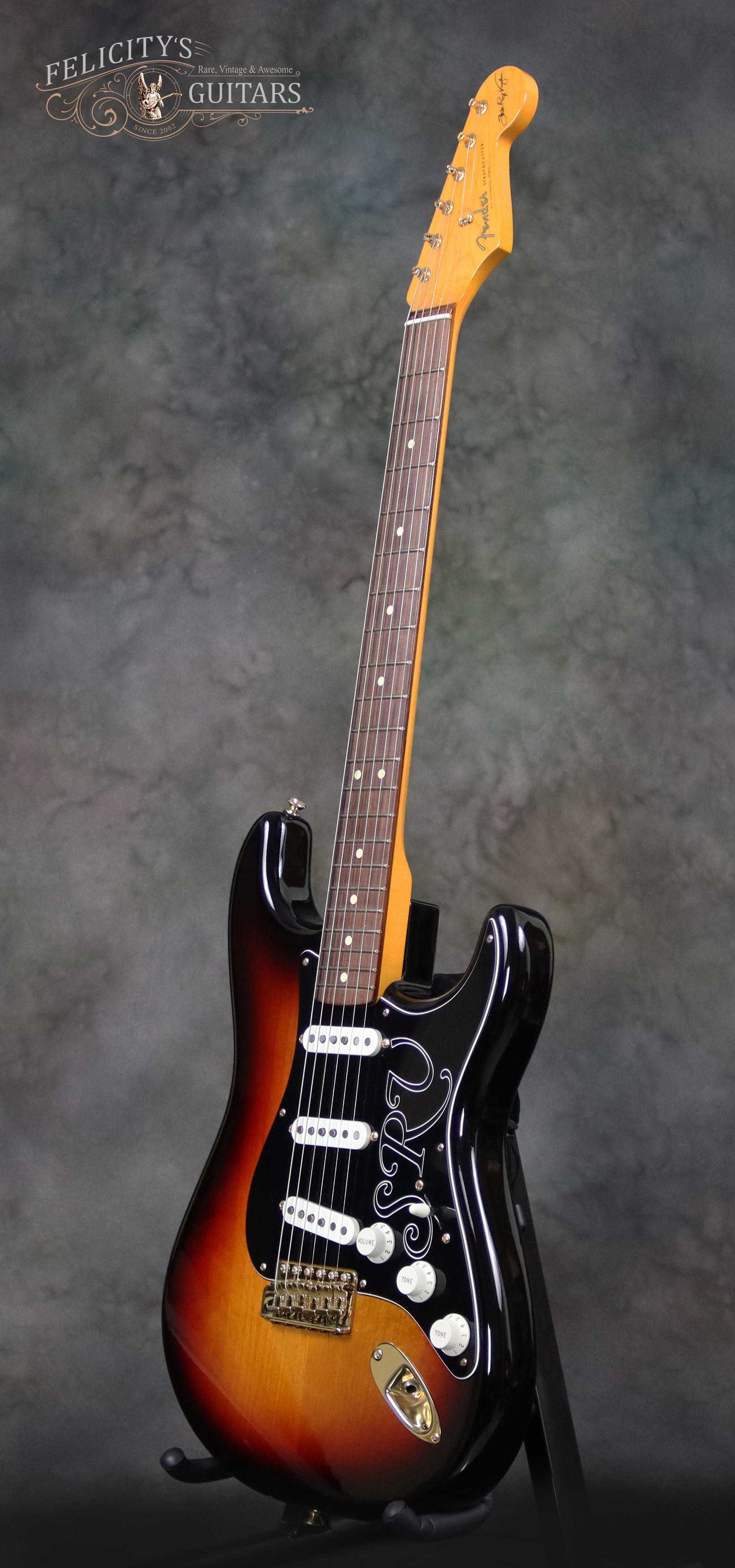

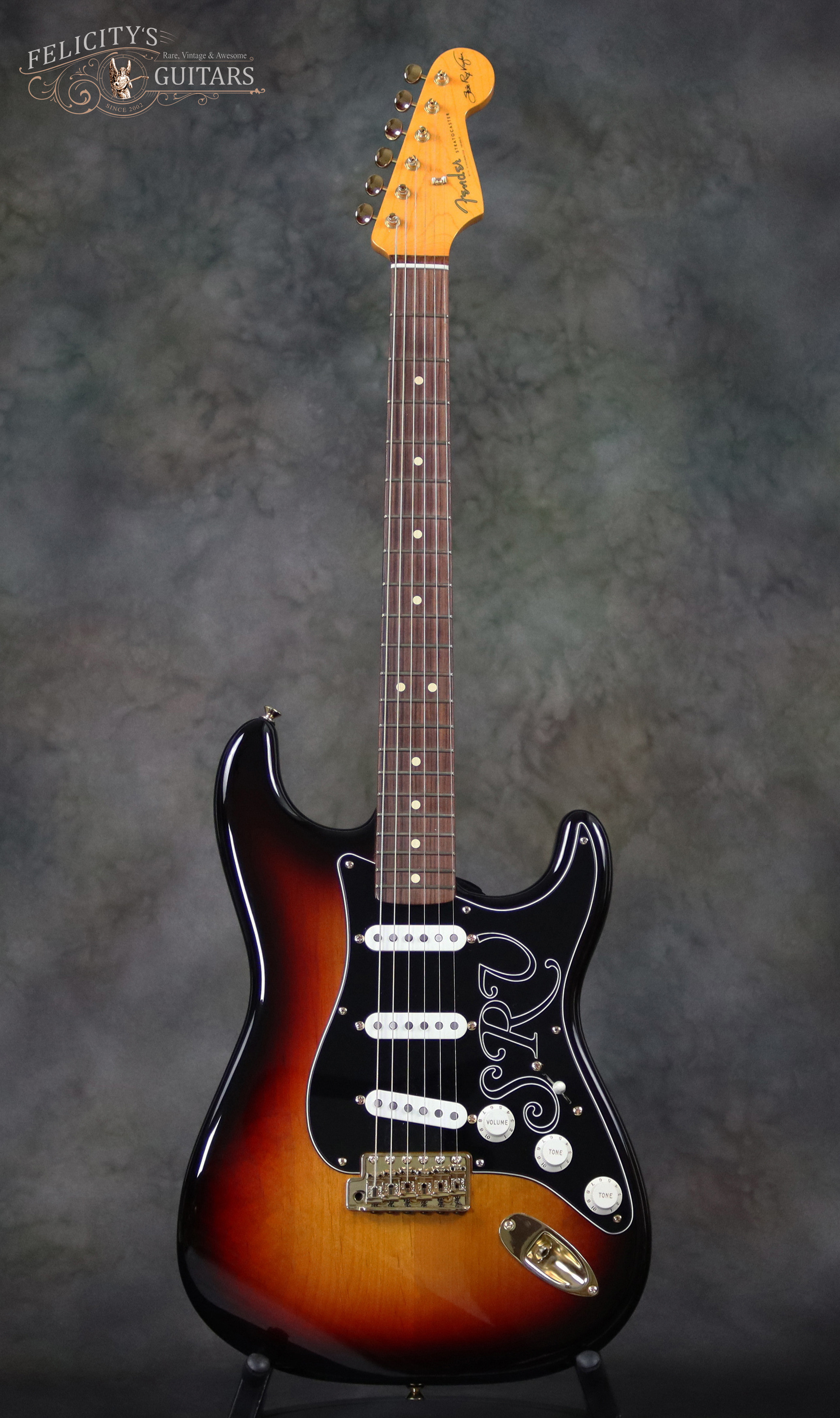

Stevie Ray Vaughan’s Stratocaster was one of the most recognizable guitars in the world. Famous "Lenny" was known as Stevie’s No.1 and Stevie’s first wife. This model is a nod to the late legend and his beloved guitar. It comes with a solid body made of alder and oval maple neck. Oval maple neck is equipped with bolt-on joint and 21-fret rosewood fingerboard.

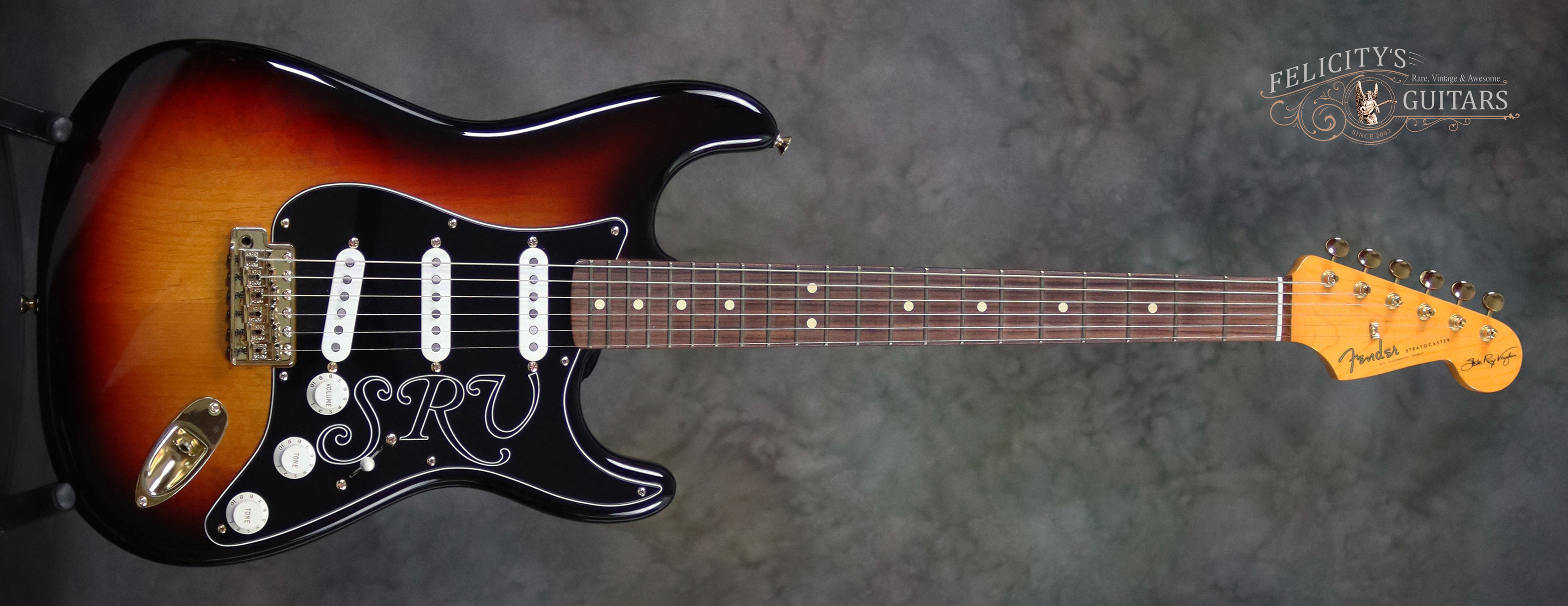

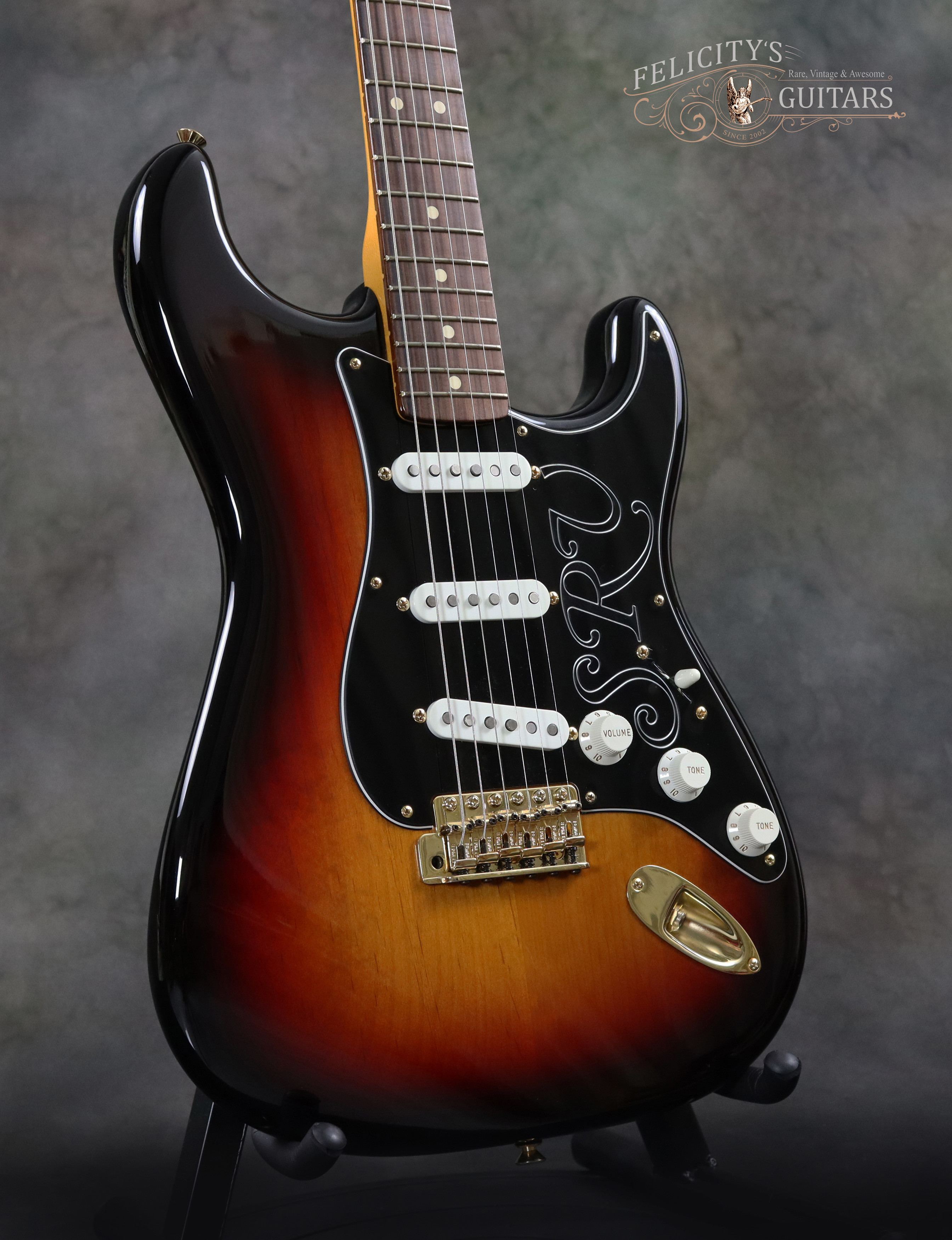

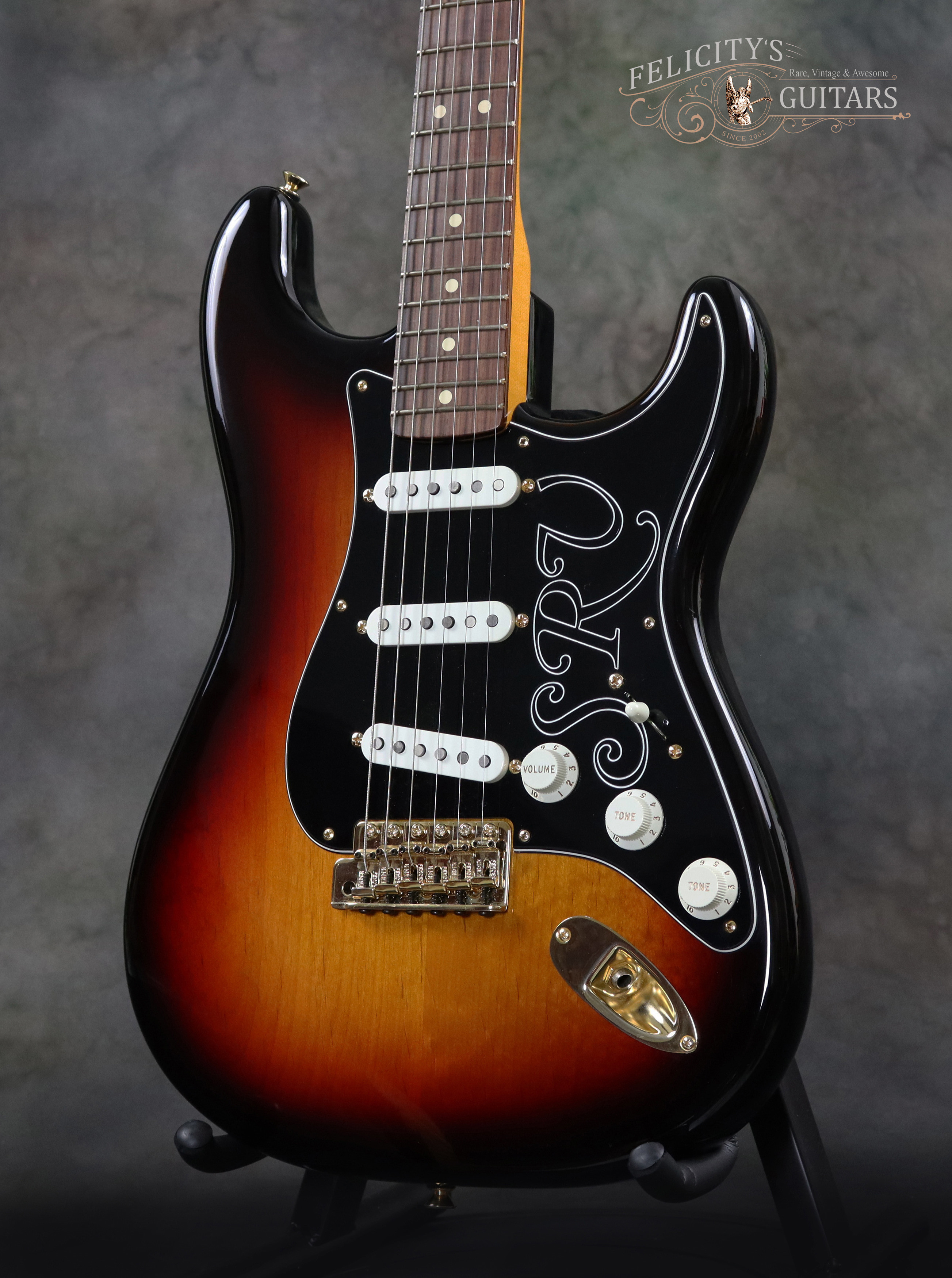

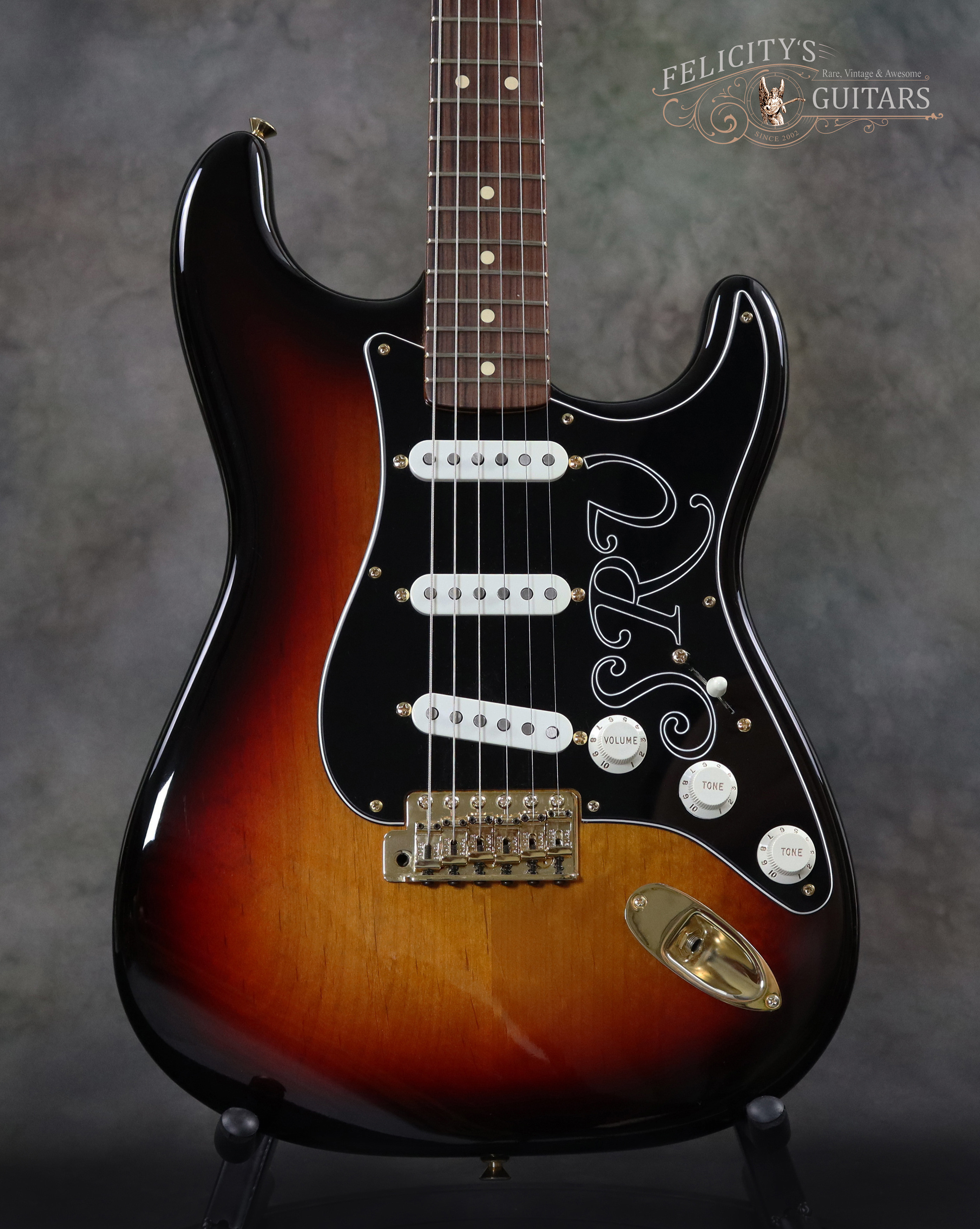

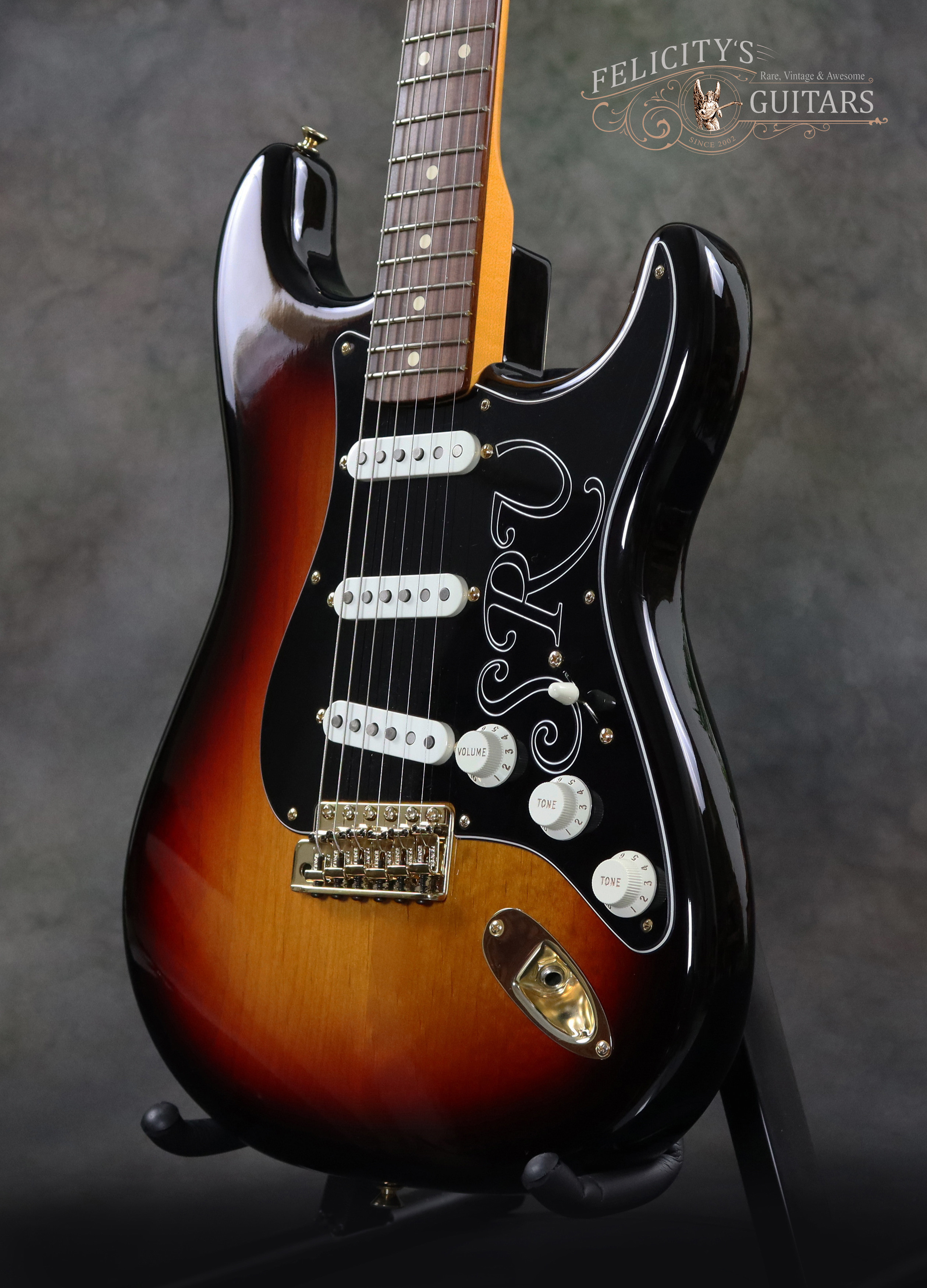

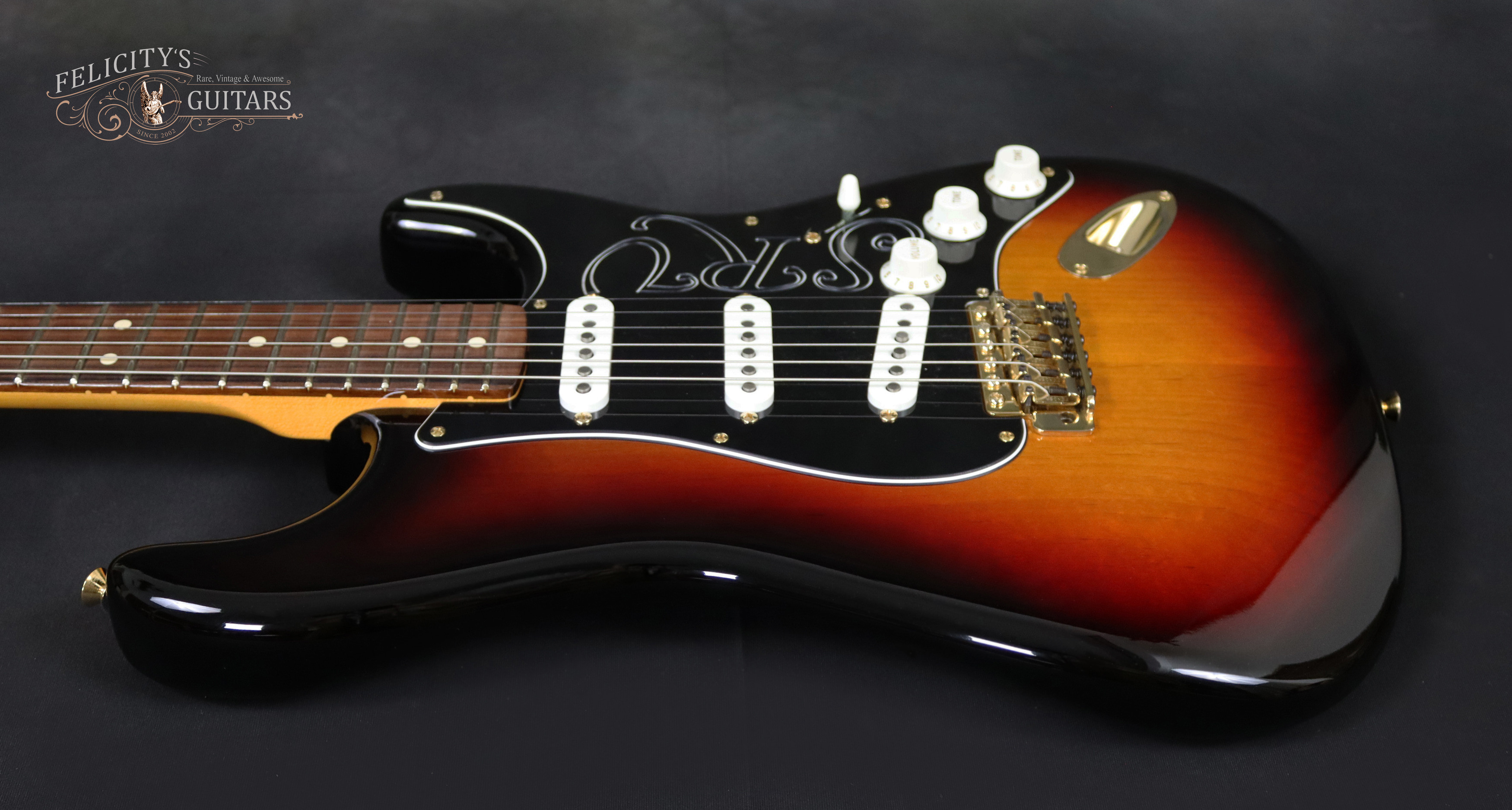

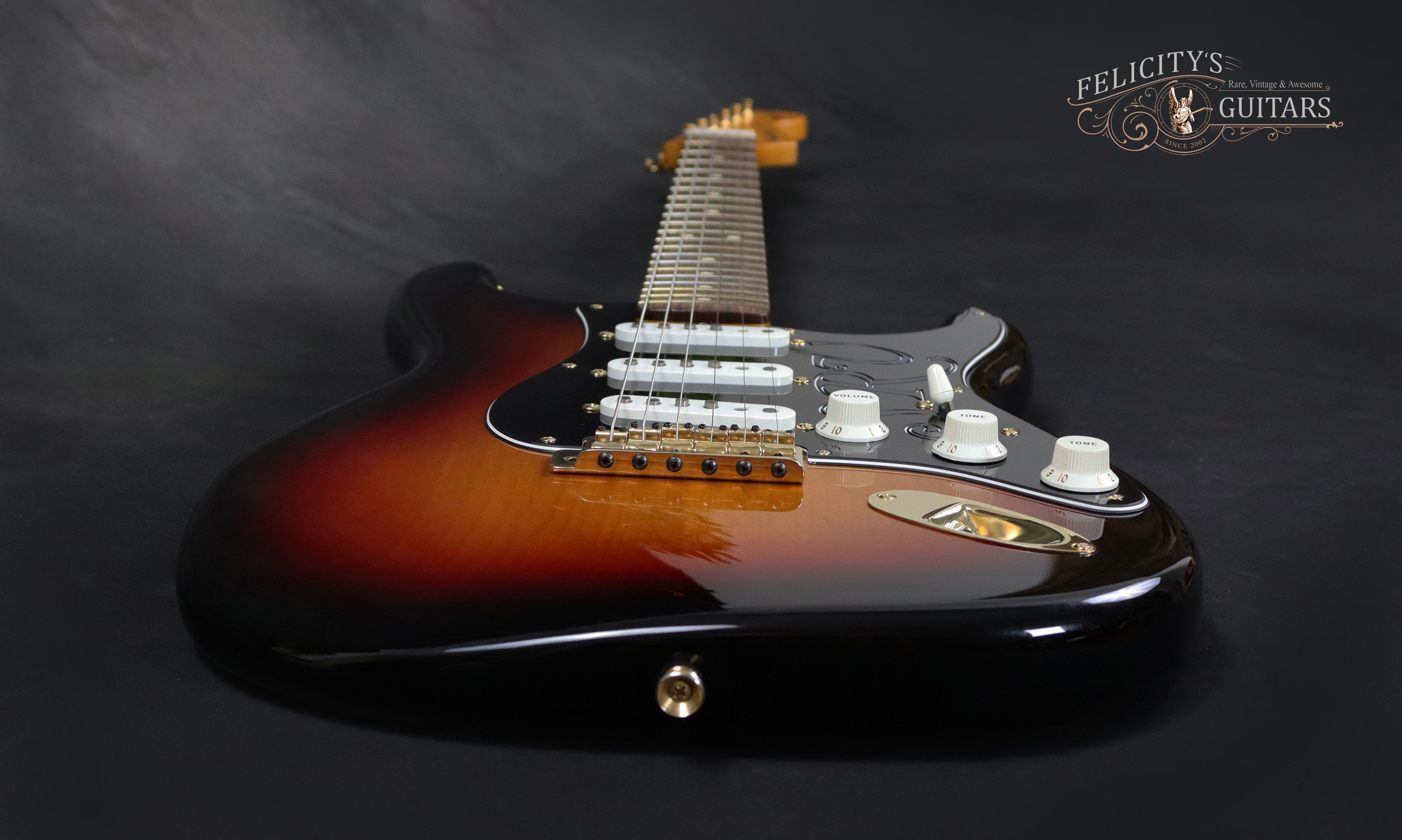

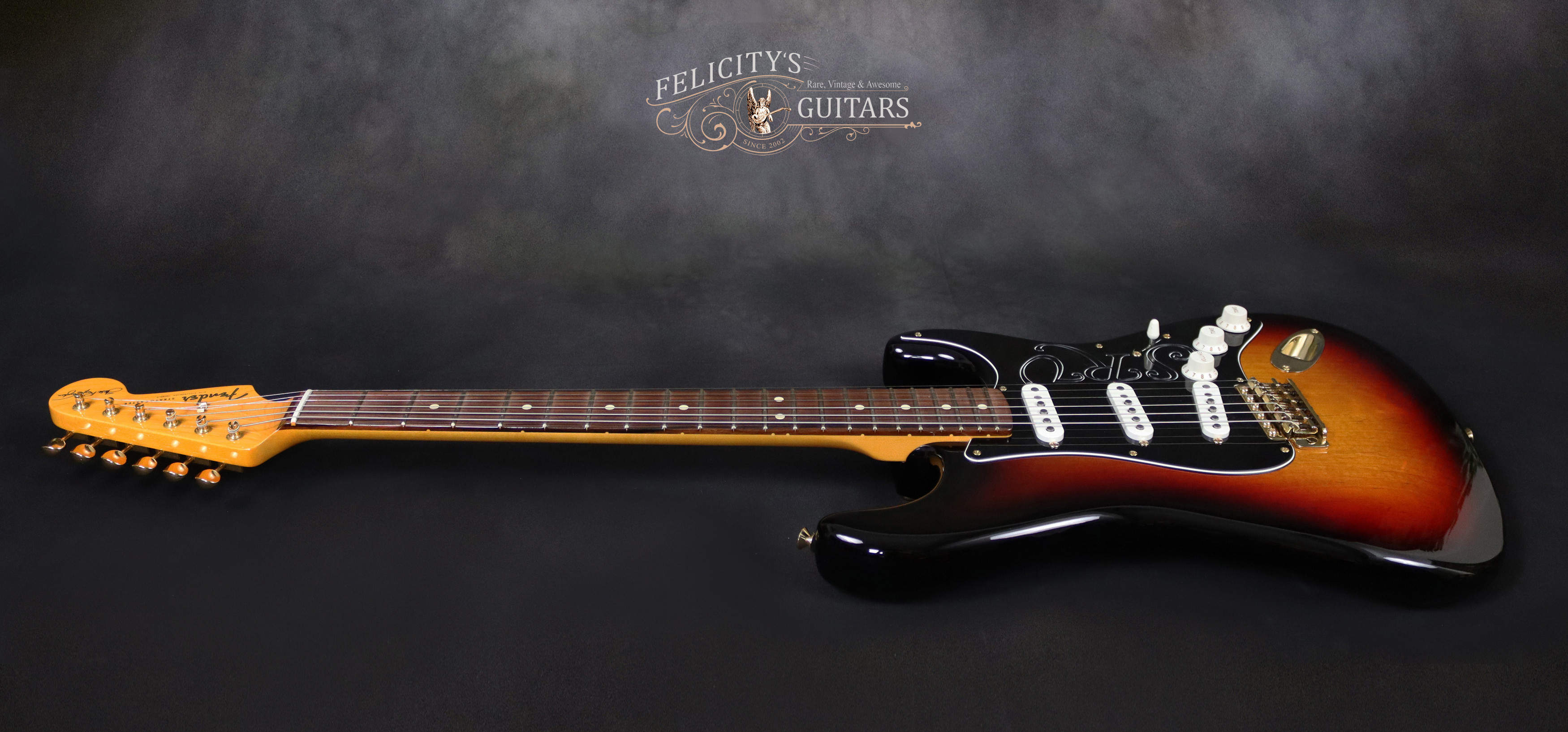

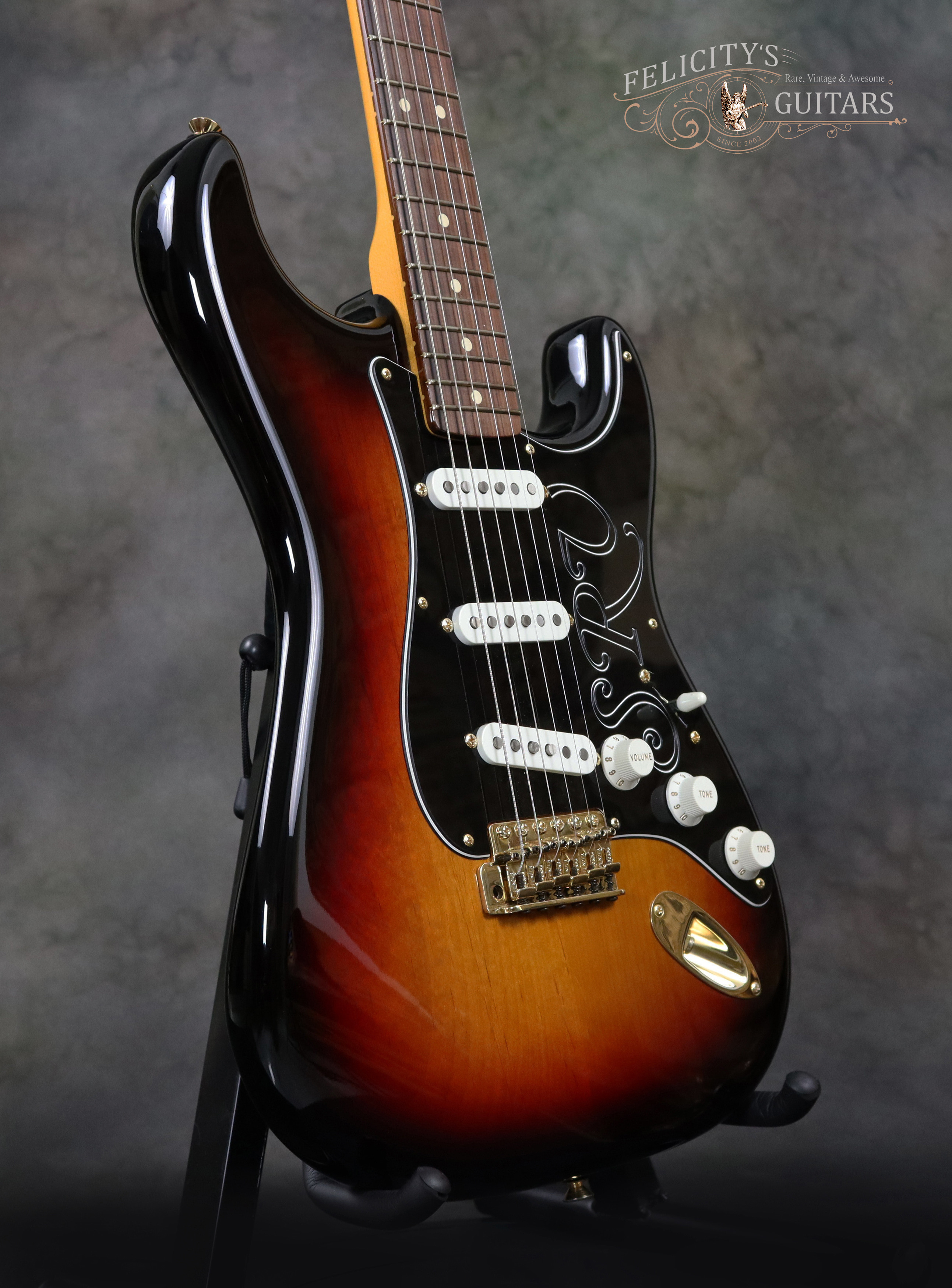

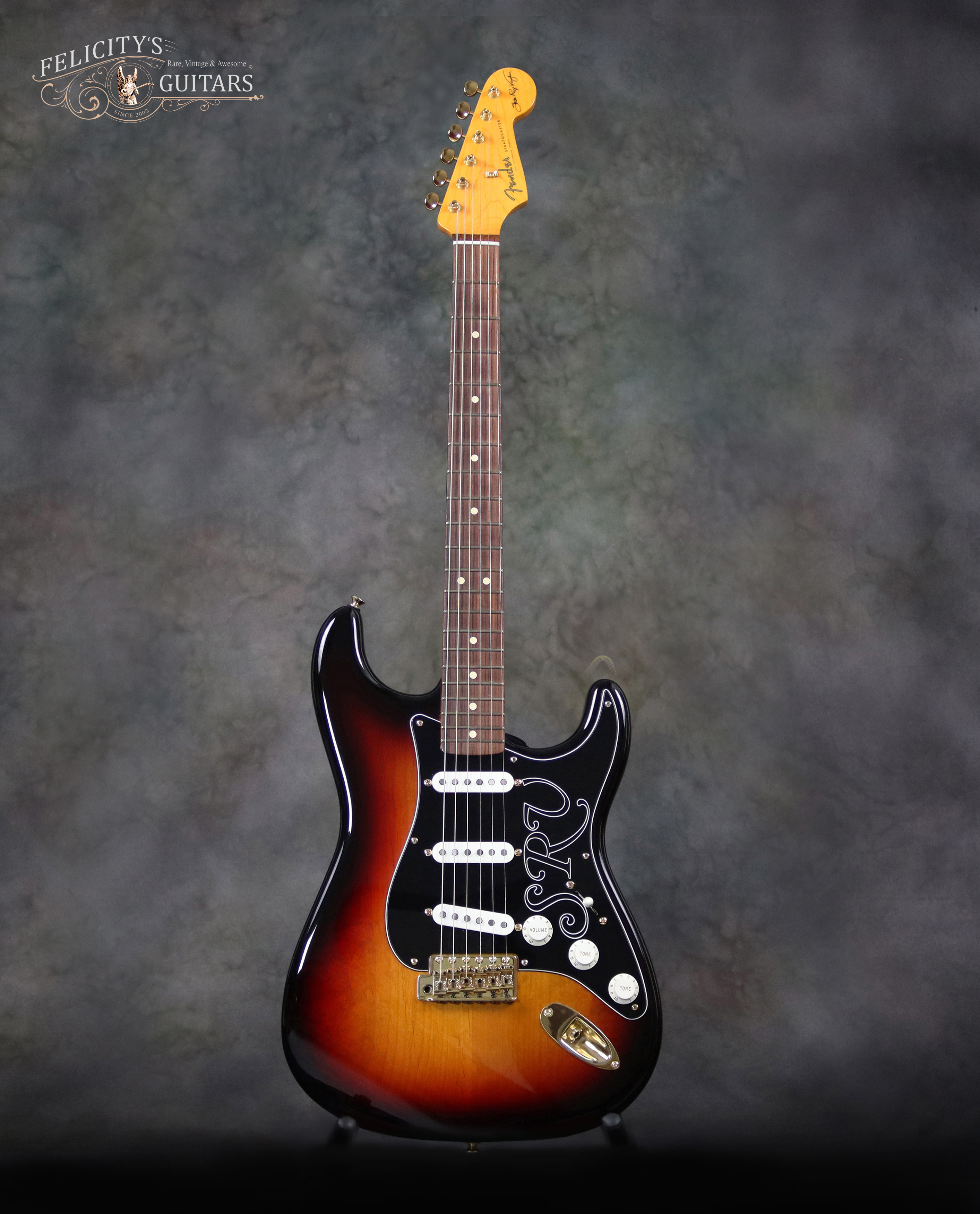

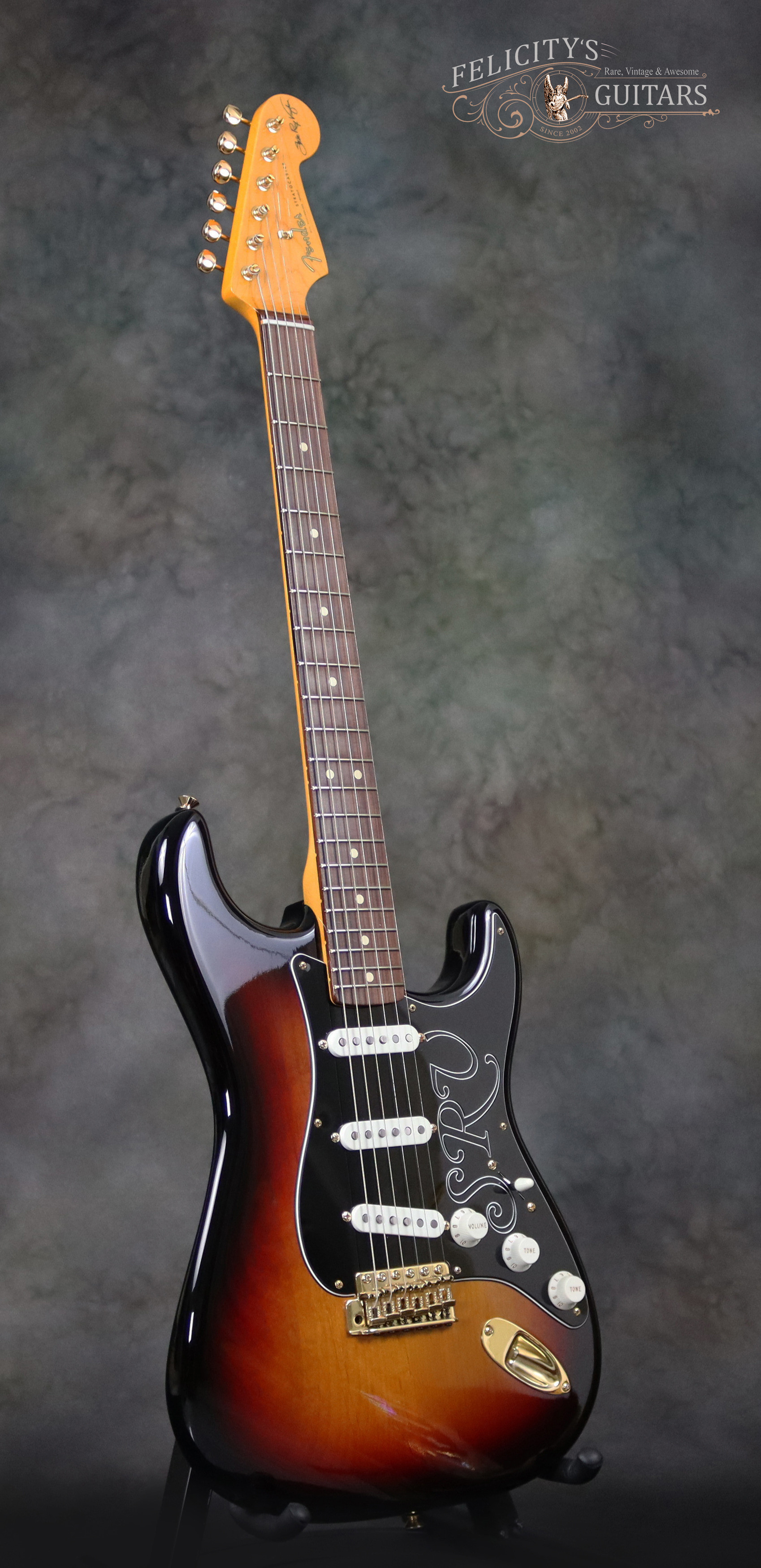

The Body is flat and it features a black pickguard on top against the 3-Color Sunburst color scheme. Finish is done in gloss. Bridge is a gold-plated tremolo for left-handed guitars. Vaughan is said to have preferred the left-handed (or upside-down) tremolo because its placement on a right-handed guitar was more like the arrangement used by Jimi Hendrix—with the trem arm above the strings rather than below them. Three Texas Special single coil pickups are installed in front of the bridge. Control knobs are, like pickups, white, while the tuners and bridge are plated in gold.

Deluxe “tweed” hardshell case is included. We just removed the wrinkled protective plastic film from the pickguard to take more aesthetic photographs. This guitar is in brand new, 100% unplayed condition, and you can be the first person to play it!

Specifications

General

Condition	Brand New (NOS)
Number of Strings	6
Orientation	Right-handed
Country of Origin	U.S.A.
Year	2013
Limited Edition / Series	No

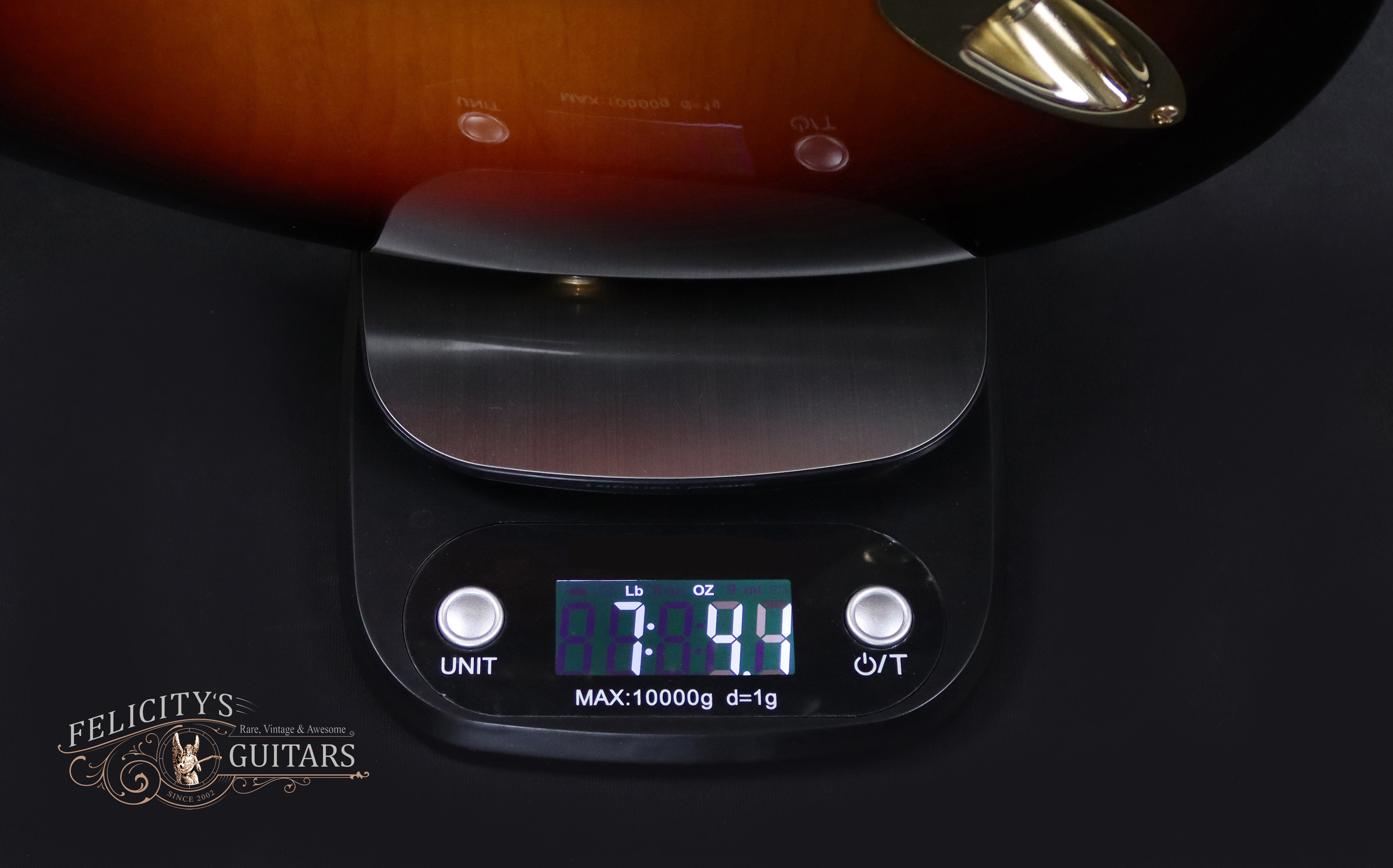

Weight	7-lbs 4.1-oz

body

Body Type	Solidbody
Body Shape	Double Cutaway Strat™
Body Material	2-pc Alder

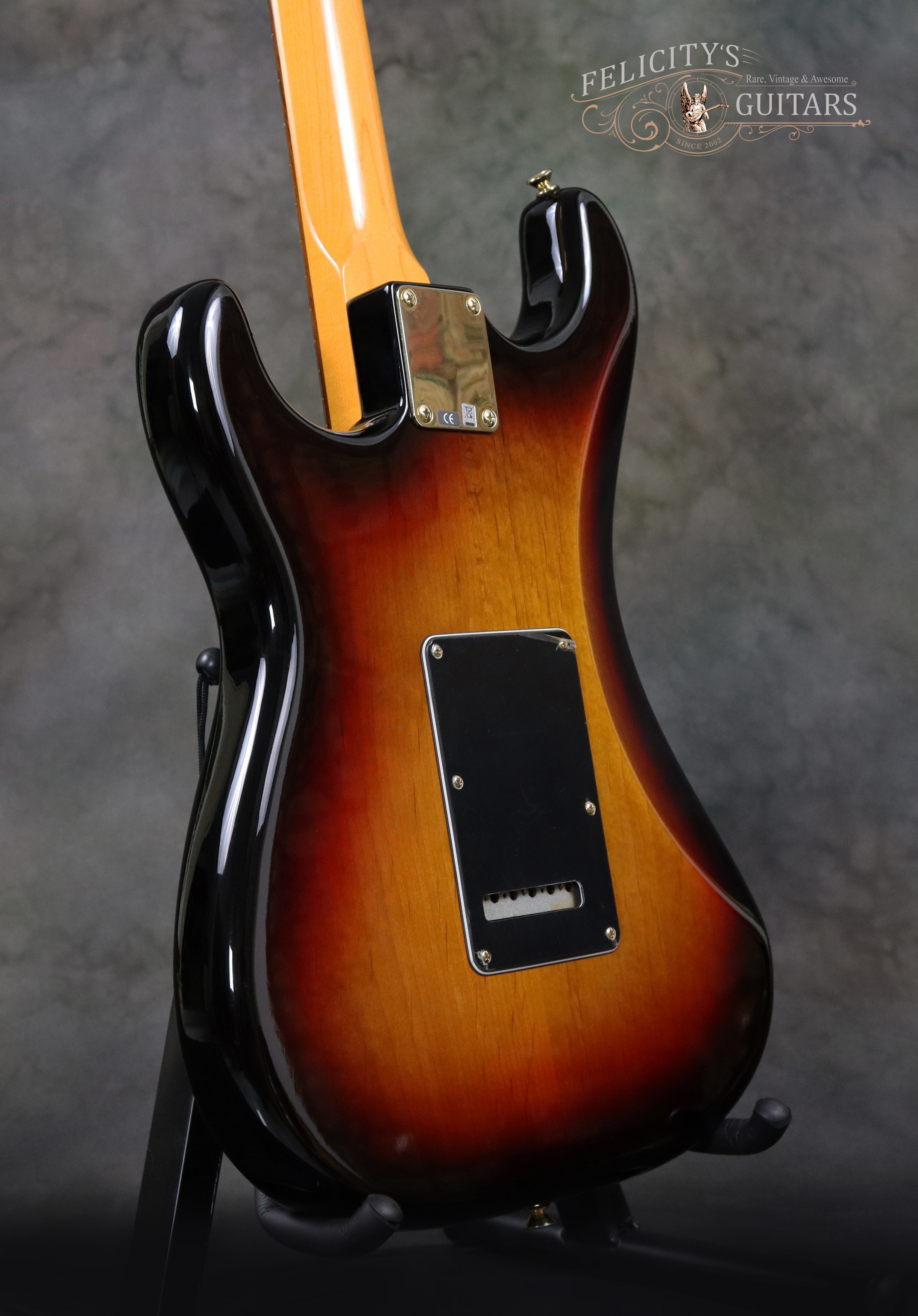

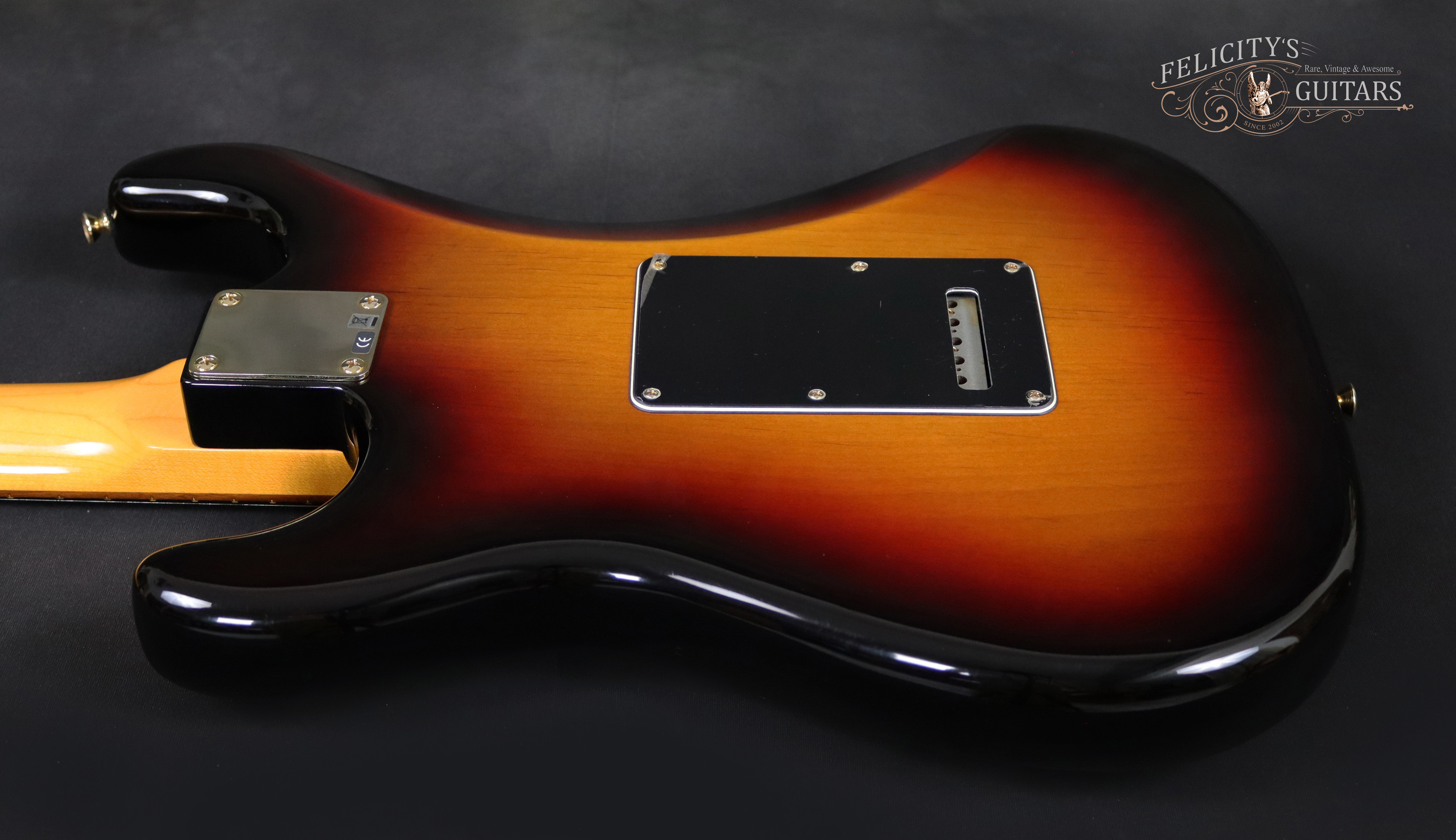

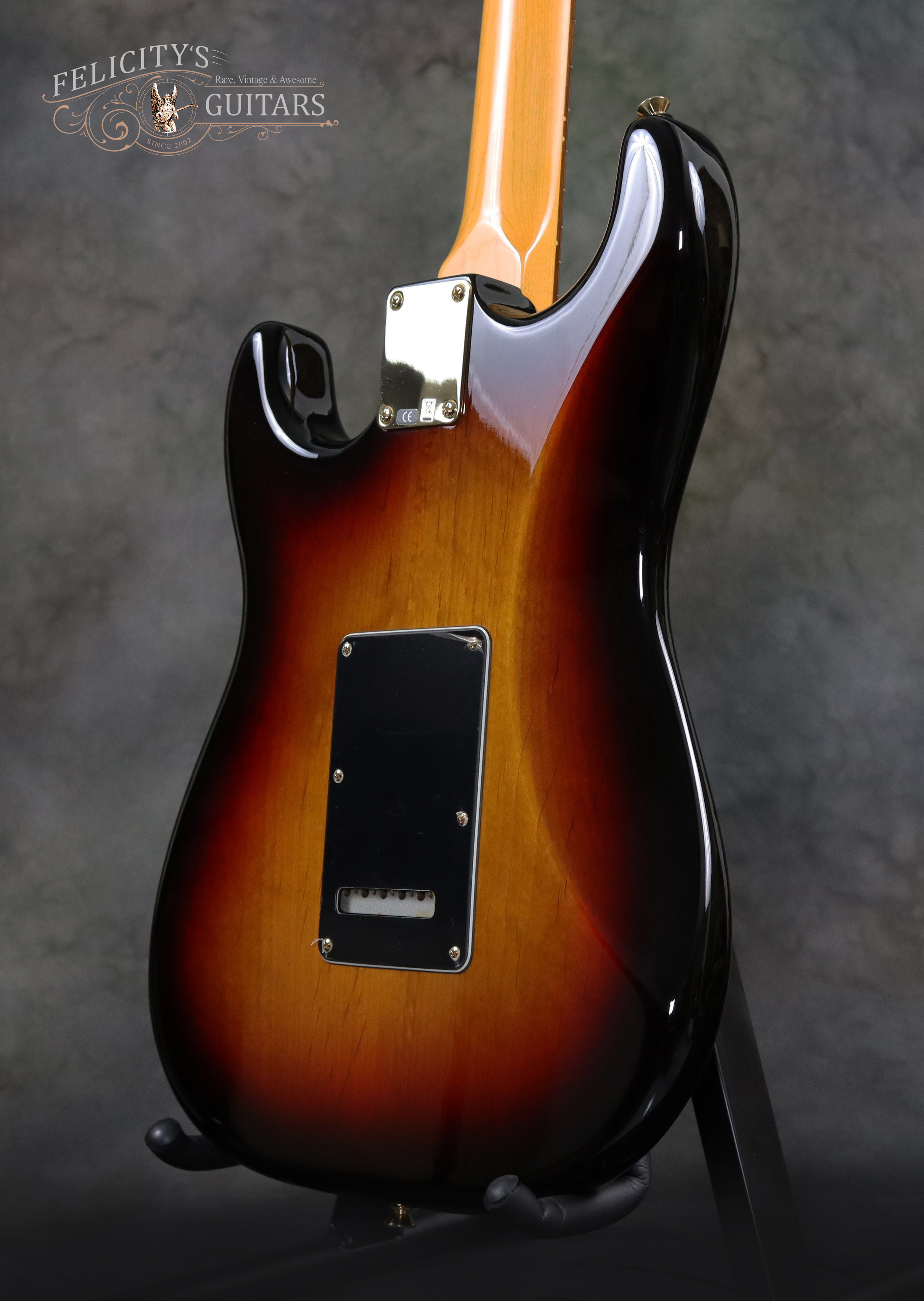

Body Carve	Front: Arm Contour	Back: Waist Contour
Body Binding	Front: No	Back: No
Weight Relief	Un-chambered
Body Finish Type	High-gloss Polyurethane
Color	Front: 3-Color Sunburst	Back: 3-Color Sunburst

neck

Neck Material	1-pc Quartersawn Maple
Truss Rod	Neck Butt Access 2-way Adjustable

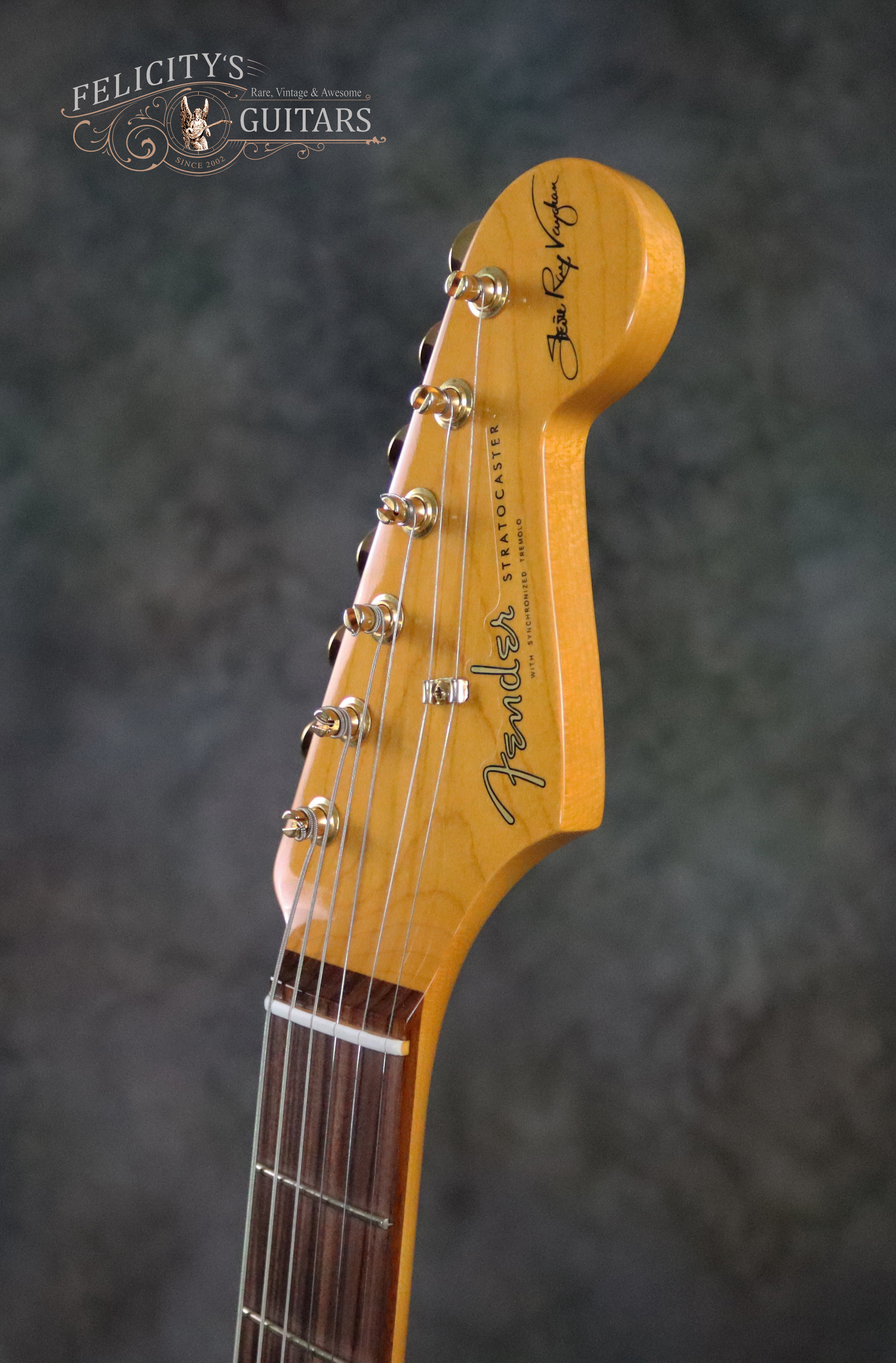

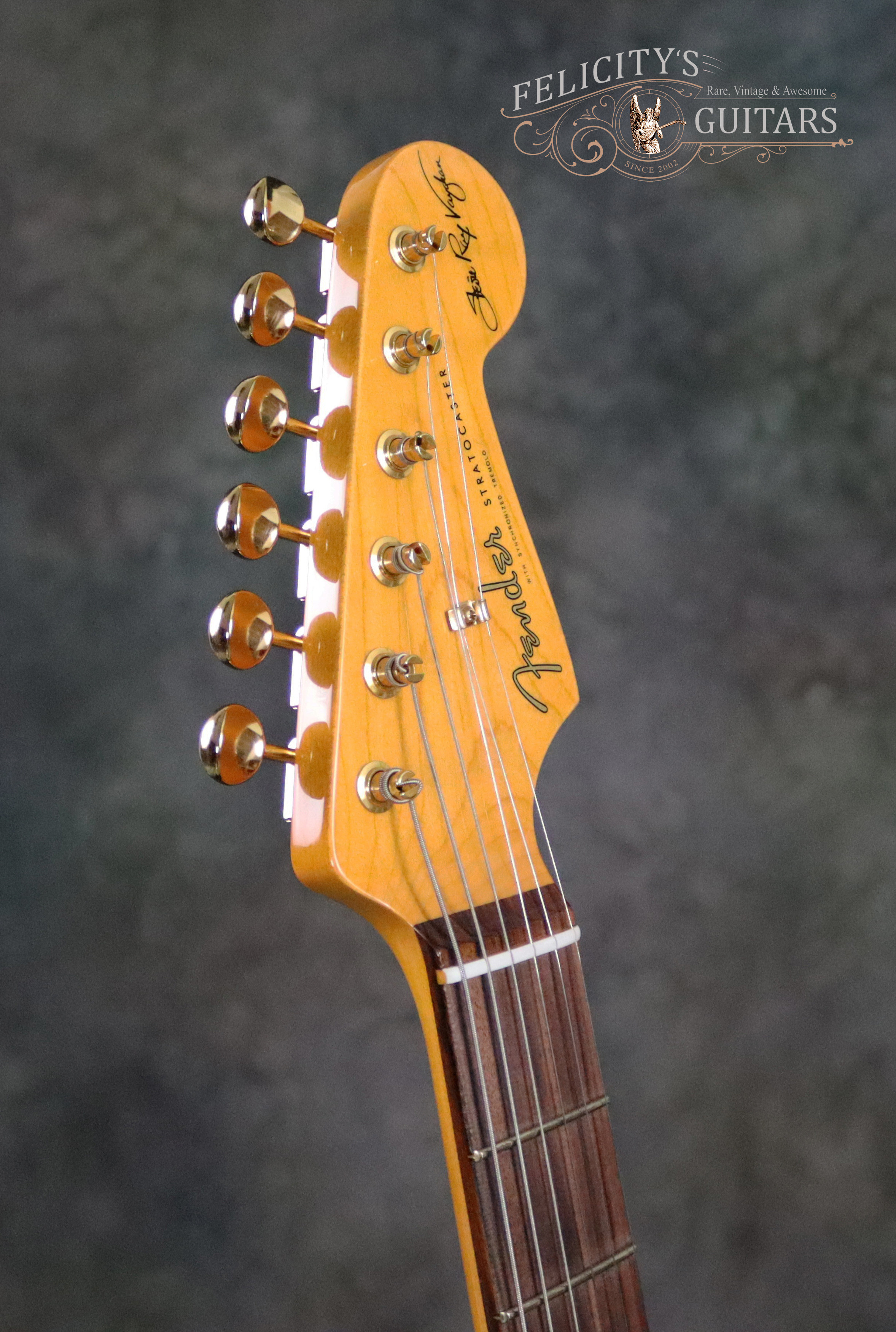

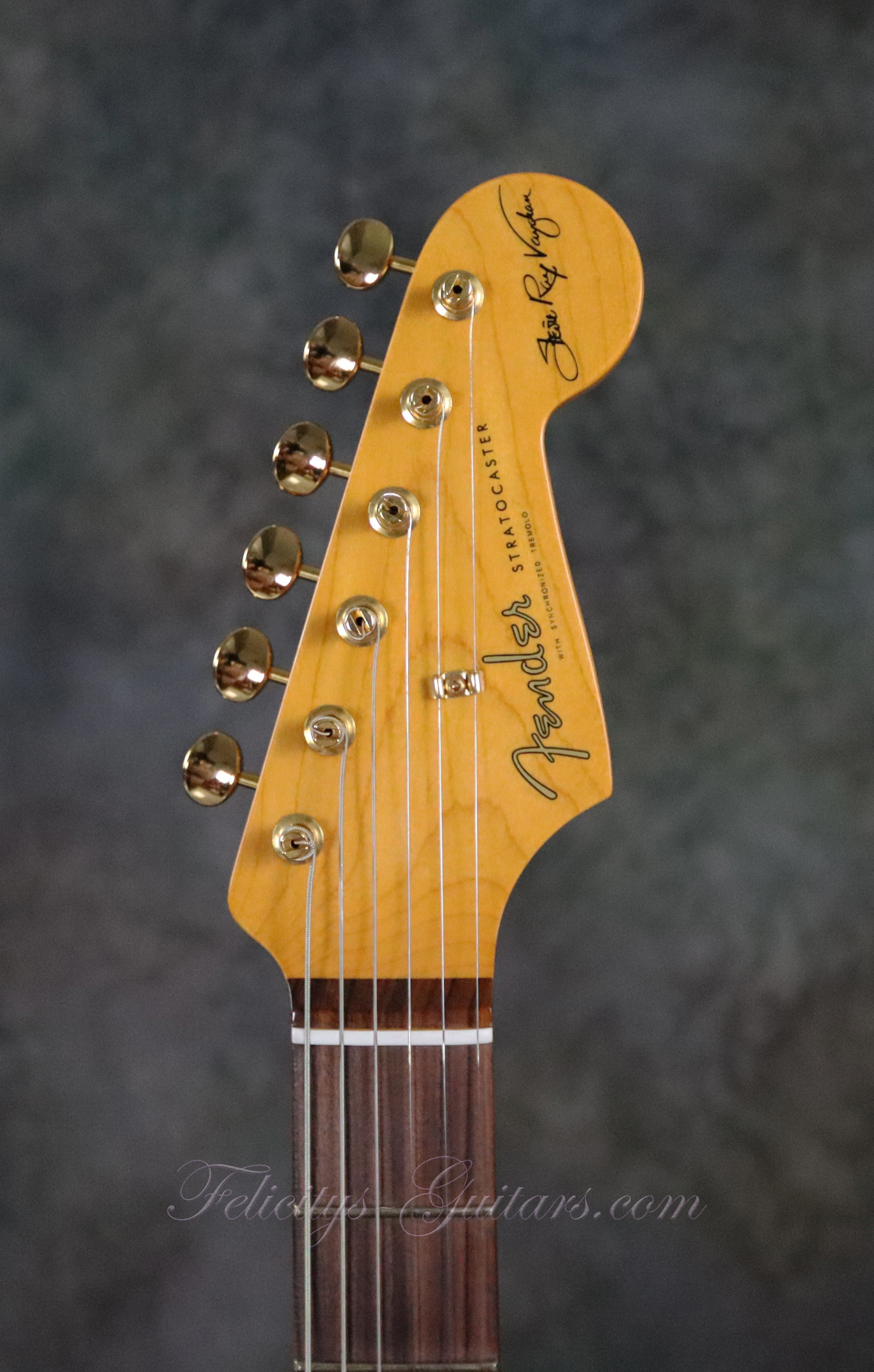

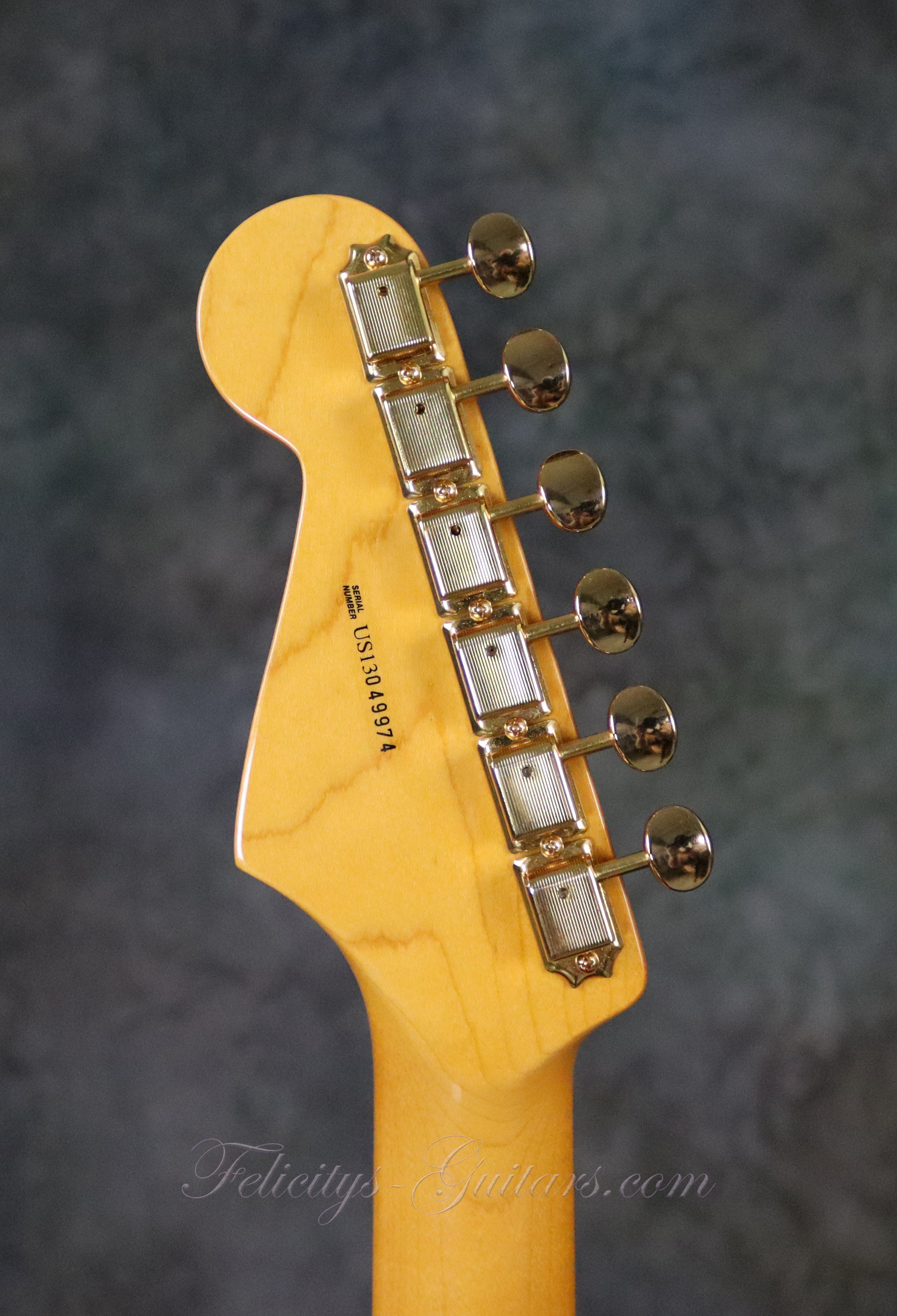

Peghead Particulars	Front: Vintage Gloss with ‘Spaghetti’ Fender® Stratocaster™ Synchronized Tremolo Logo Decal and Artist's Sig Decal

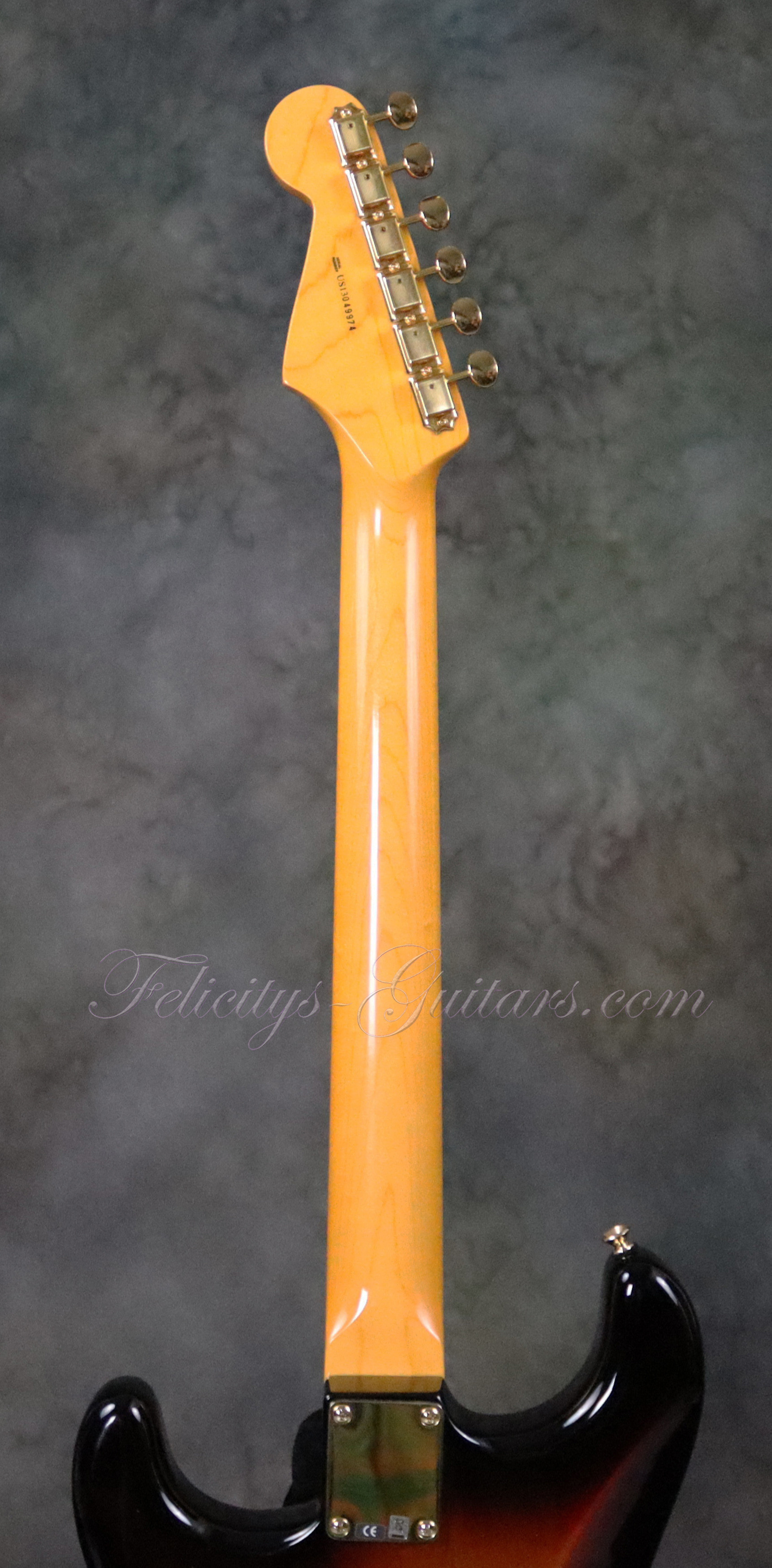

	Back : Ink Stamped US Serial Number
Neck Profile	Thick Oval ‘C’

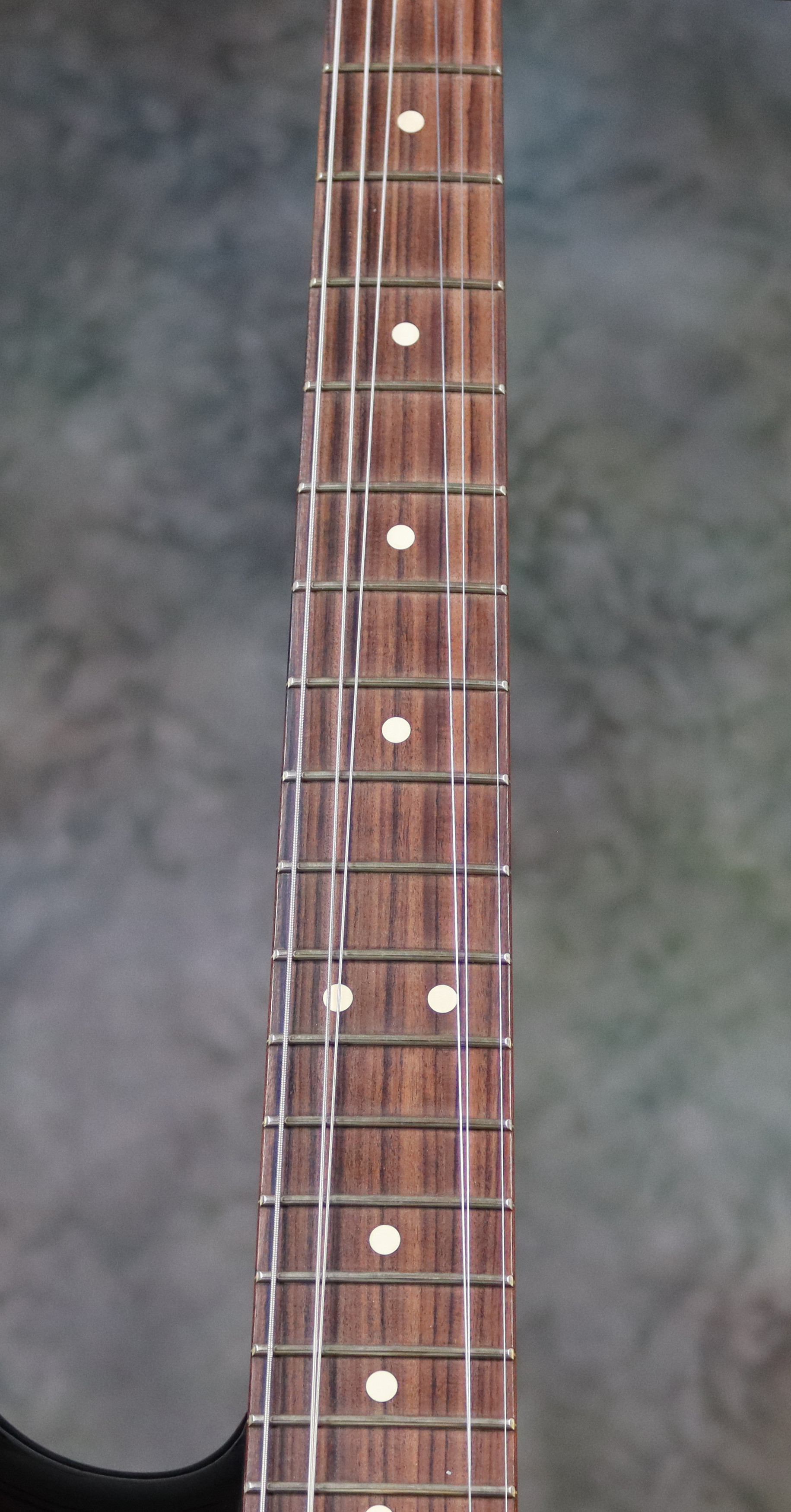

Fingerboard Material	Pao Ferro
Fingerboard Radius	12”
Scale Length	25.5"
No. Frets / Type	21 Narrow Tall (6105)
Nut Size / Material	1.650” / Synthetic Bone

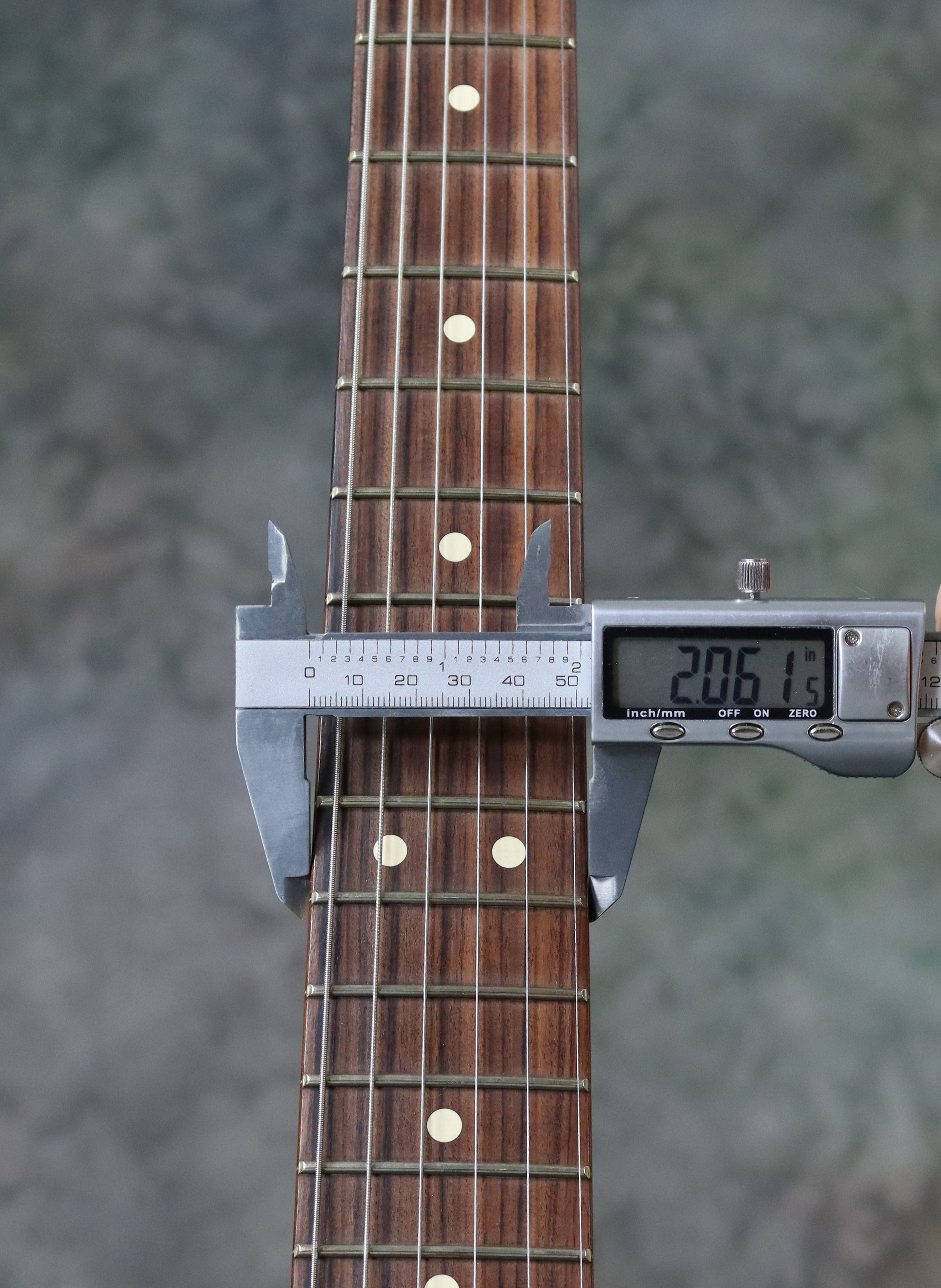

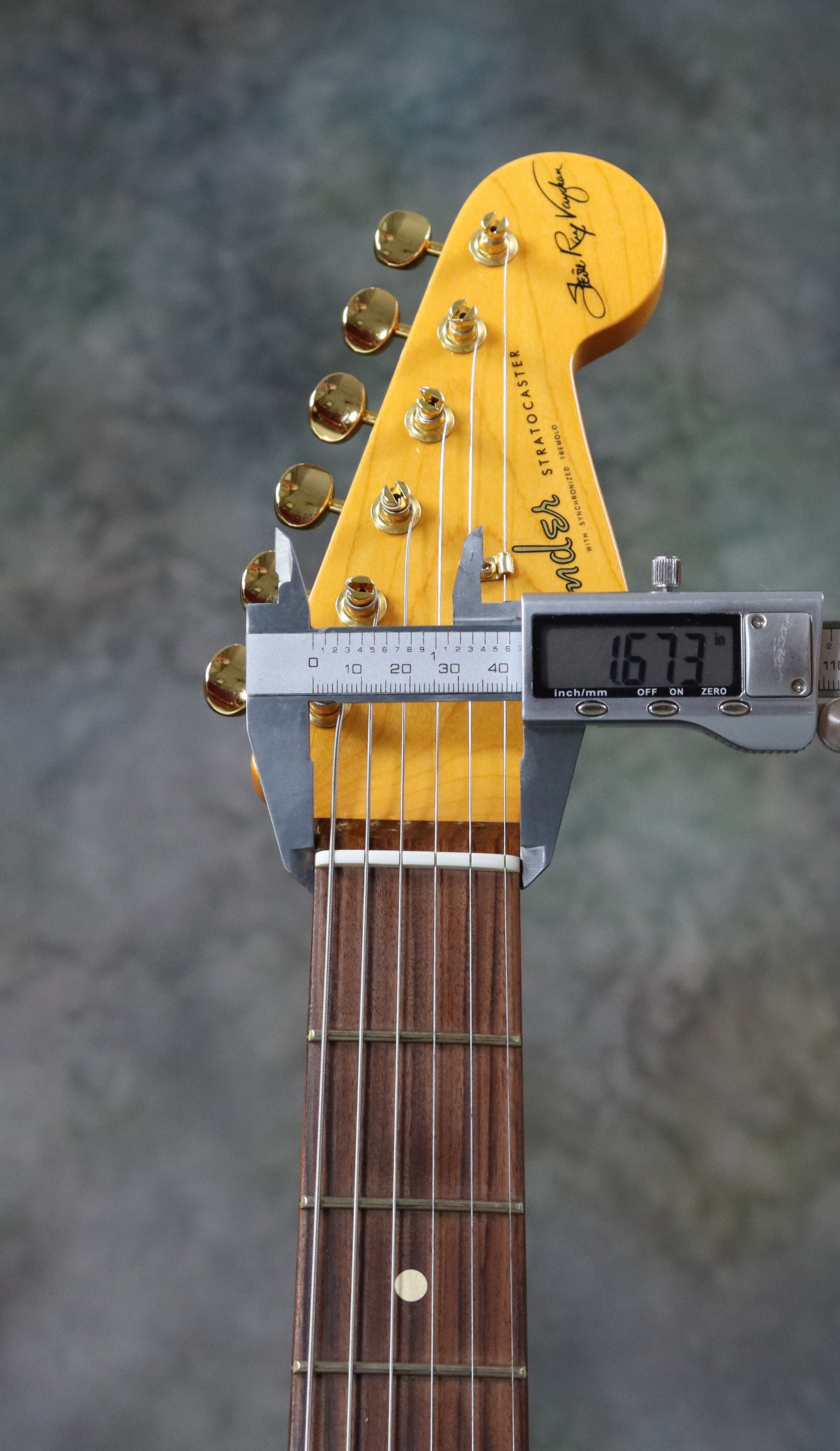

Neck Width	1.673” at 1st fret / 2.061” at 12th fret
Neck Depth	0.825" at 1st fret / 0.945" at 12th fret
Fingerboard Inlays	Acrylic White Dot
Neck Binding	No
Side Dots	White

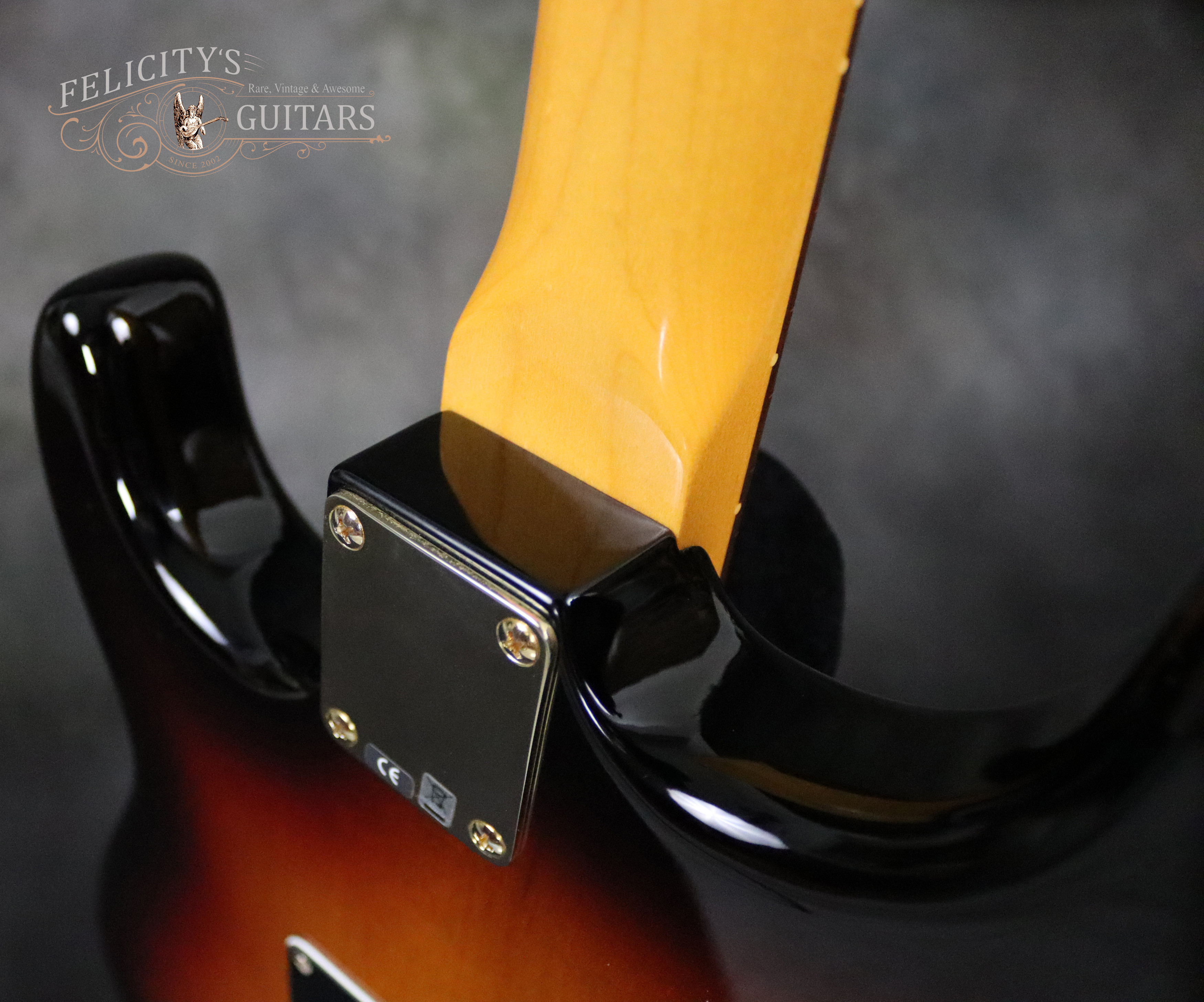

Neck Joint	Bolt-on

hardware

Bridge / Tremolo	Gold-Plated, 6-Saddle American Vintage Synchronized “Lefty” Tremolo
String Tree	Gold-Plated, Vintage T-Tree Guide

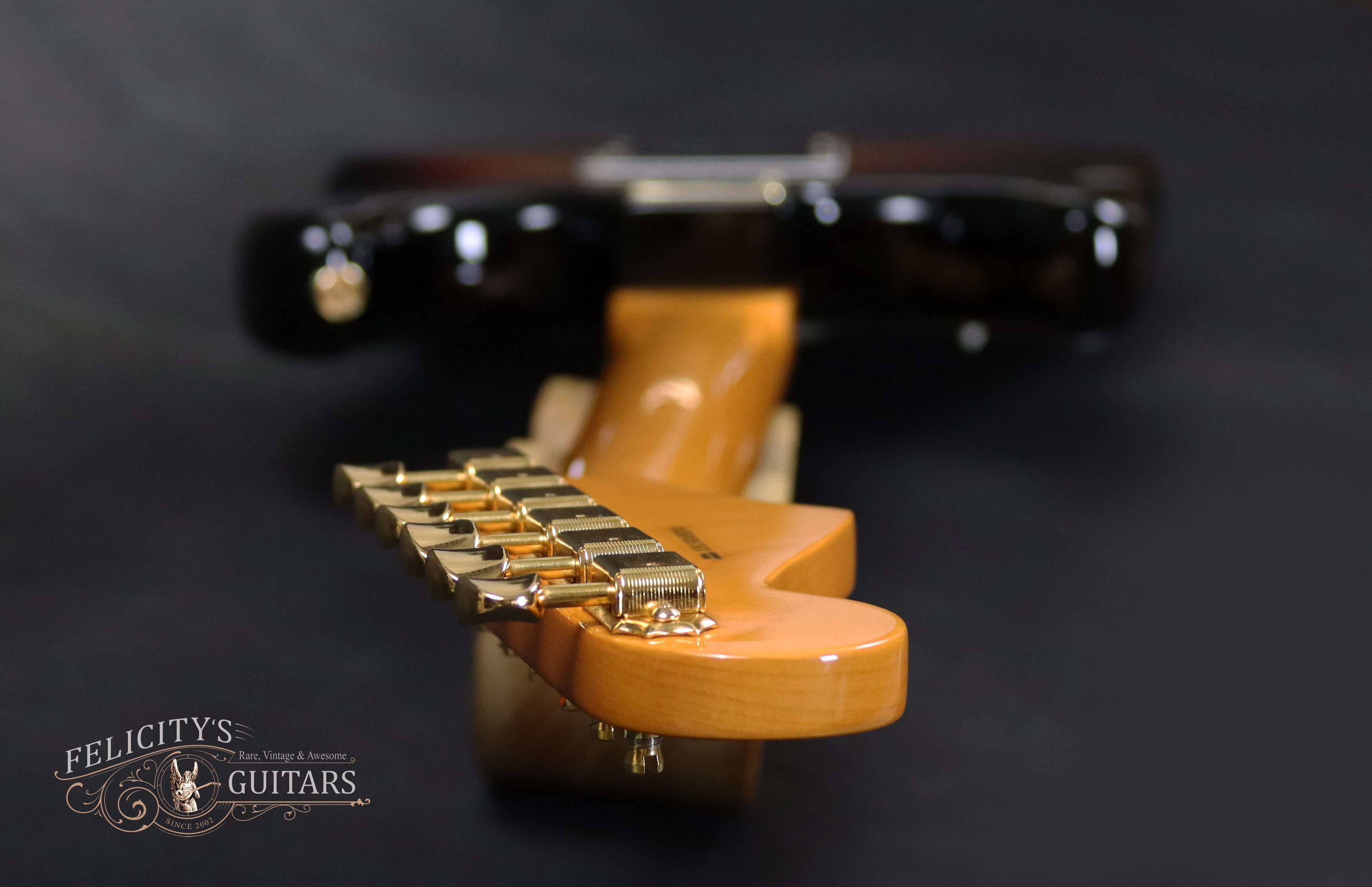

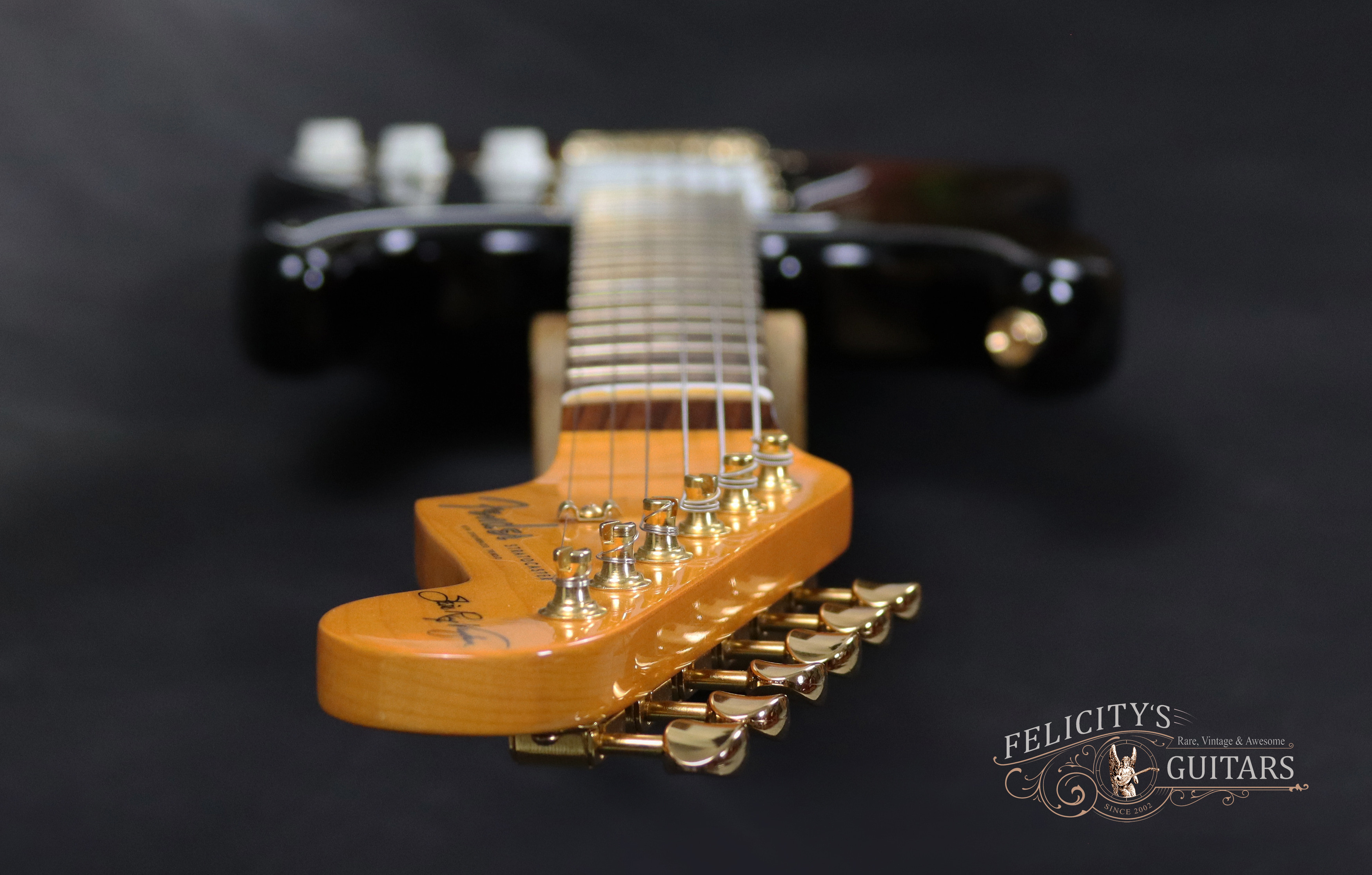

Tuning Machines	Gold-Plated, Fender®/Gotoh® 6-in-Line Vintage Style w/gold Buds, 14:01 Ratio
Pickup Cover / Ring	White Plastic, Exposed Pole, Pickguard-mounted SSS configuration / no Rings
Strap Buttons	Polished Aluminum End Pins

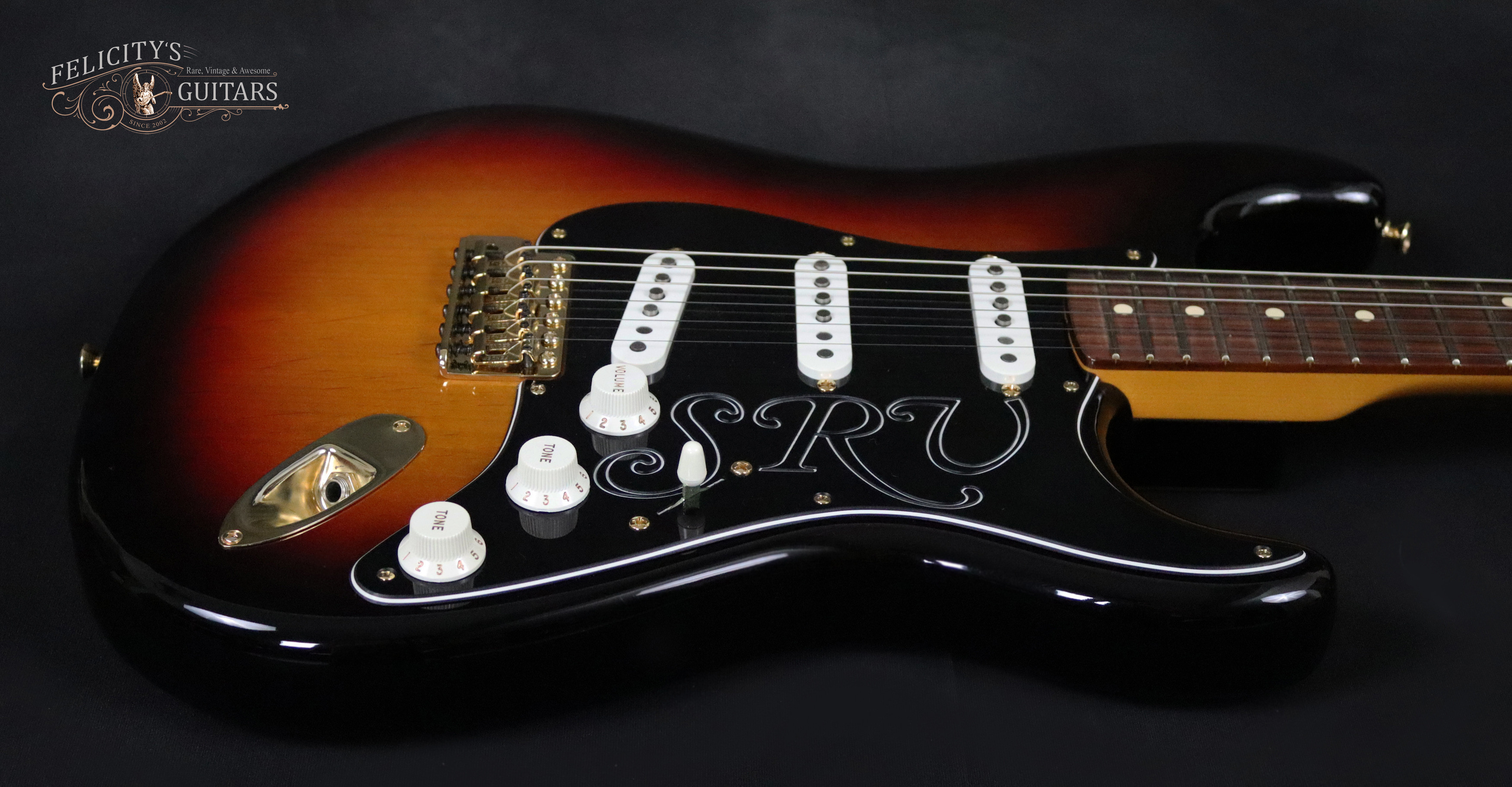

Pickguard	3-Ply B/W/B with Engraved and White-hot-stamped “SRV”
Control Knobs	White Plastic Strat™ Knobs with no Dial Pointers
Switch	White Plastic Blade Tip

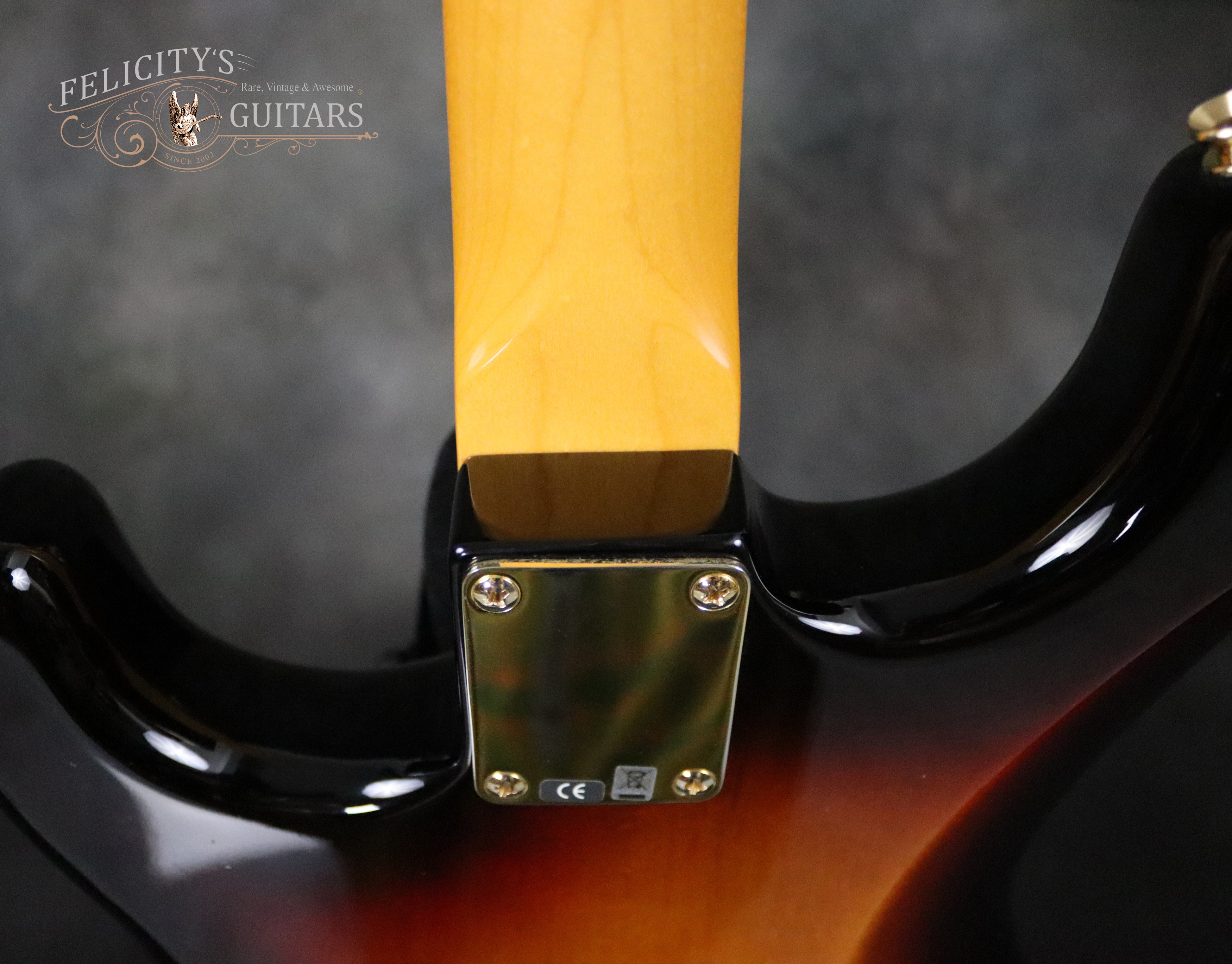

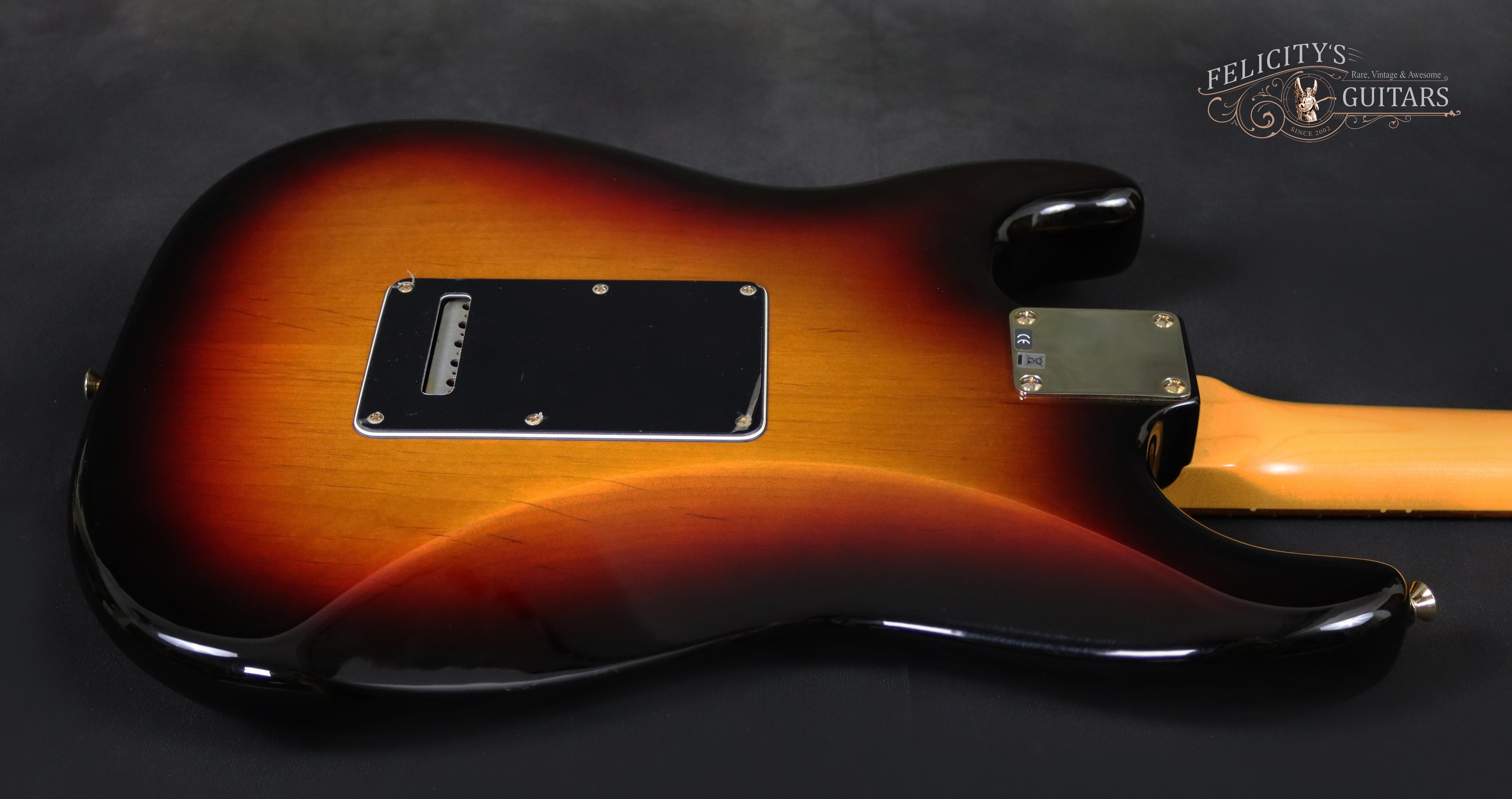

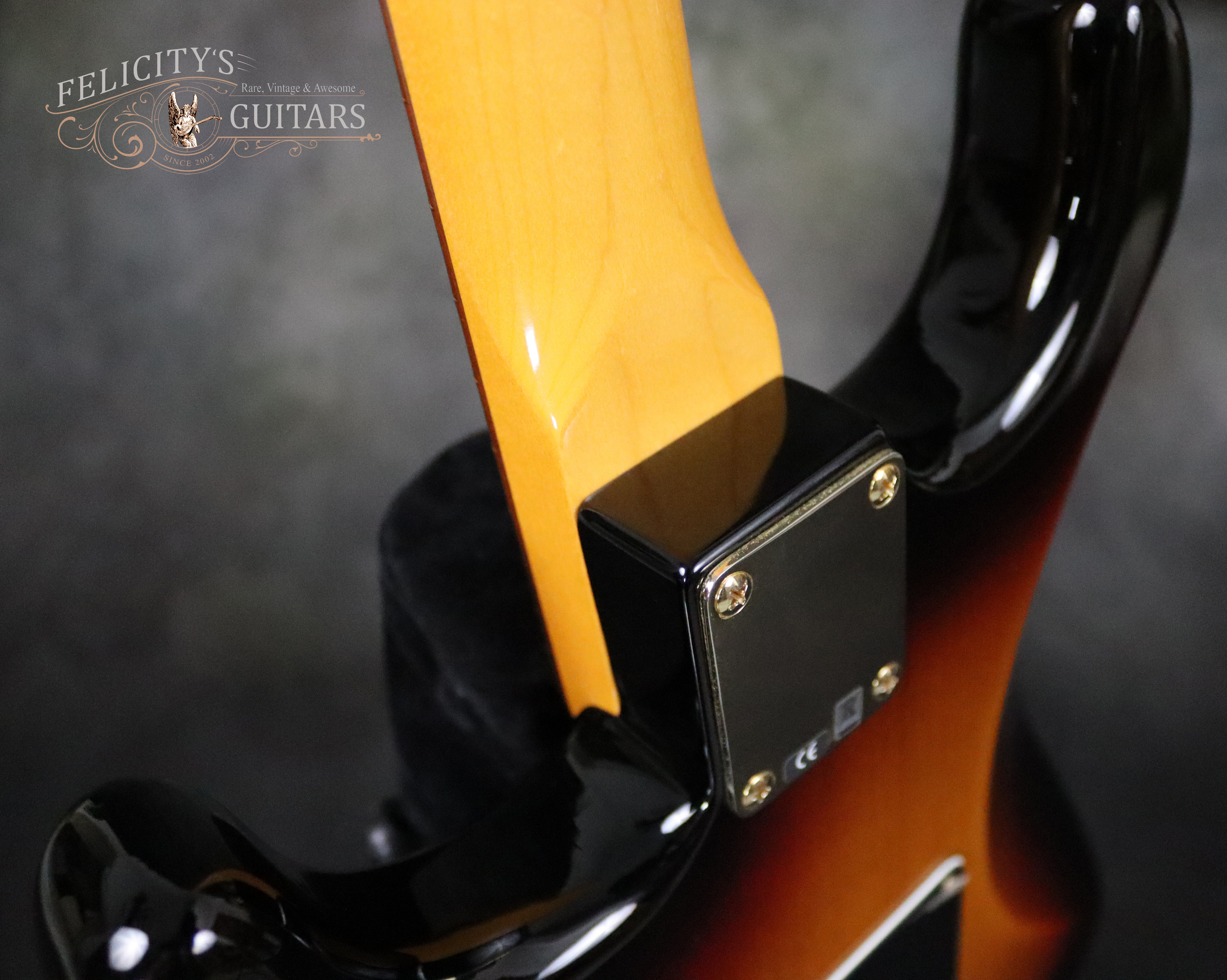

Neck Plate	Chrome, 4-bolt Plain

electronics

Bridge Pickup	Fender® Custom Shop Texas Special Singlecoil Strat, Staggered Alnico V, DCR 7.6k
Middle Pickup	Fender® Custom Shop Texas Special Singlecoil Strat, Staggered Alnico V, DCR 6.5k
Neck Pickup	Fender® Custom Shop Texas Special Singlecoil Strat, Staggered Alnico V, DCR 6.2k
Active / Passive	Passive
Series / Parallel	Series
Controls	1 Volume, 2 Tone, 5-position Blade Pickup Selector
Vol Potentiometer	250k
Tone Potentiometers	250k
Capacitor / Resistor	Texas Special™ Singlecoil .22uF Values
Harness	Standard pickguard-mounted Strat™ Wiring
S-1 Switch	No
Greasebucket T-Circuit	No
MDX/TBX Circuit	No
Active Electronics	No
Piezo	No
Kill Switch	No
Output Jack	Switchcraft™ 1/4" 2-Conductor Mono

miscellaneous

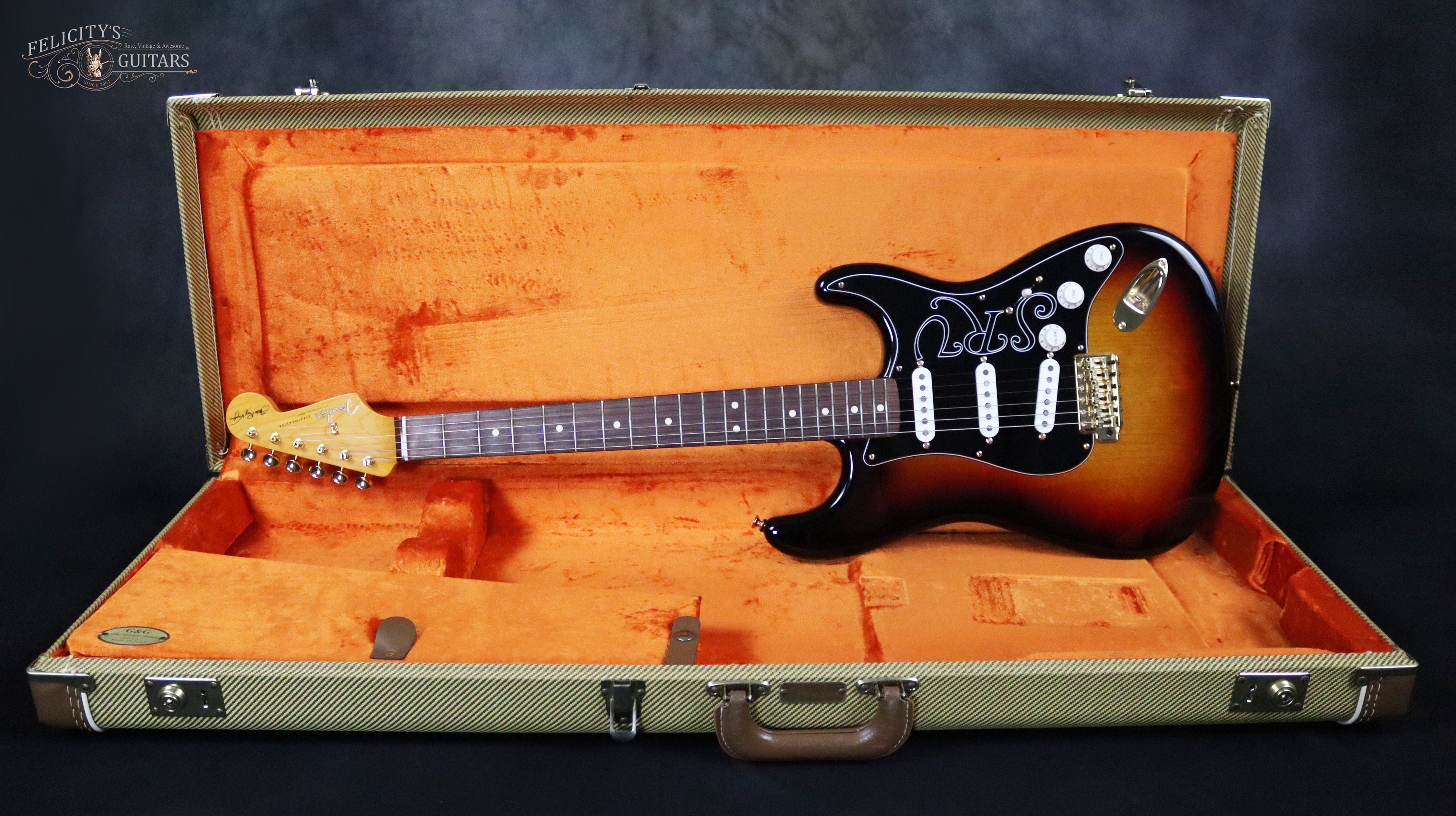

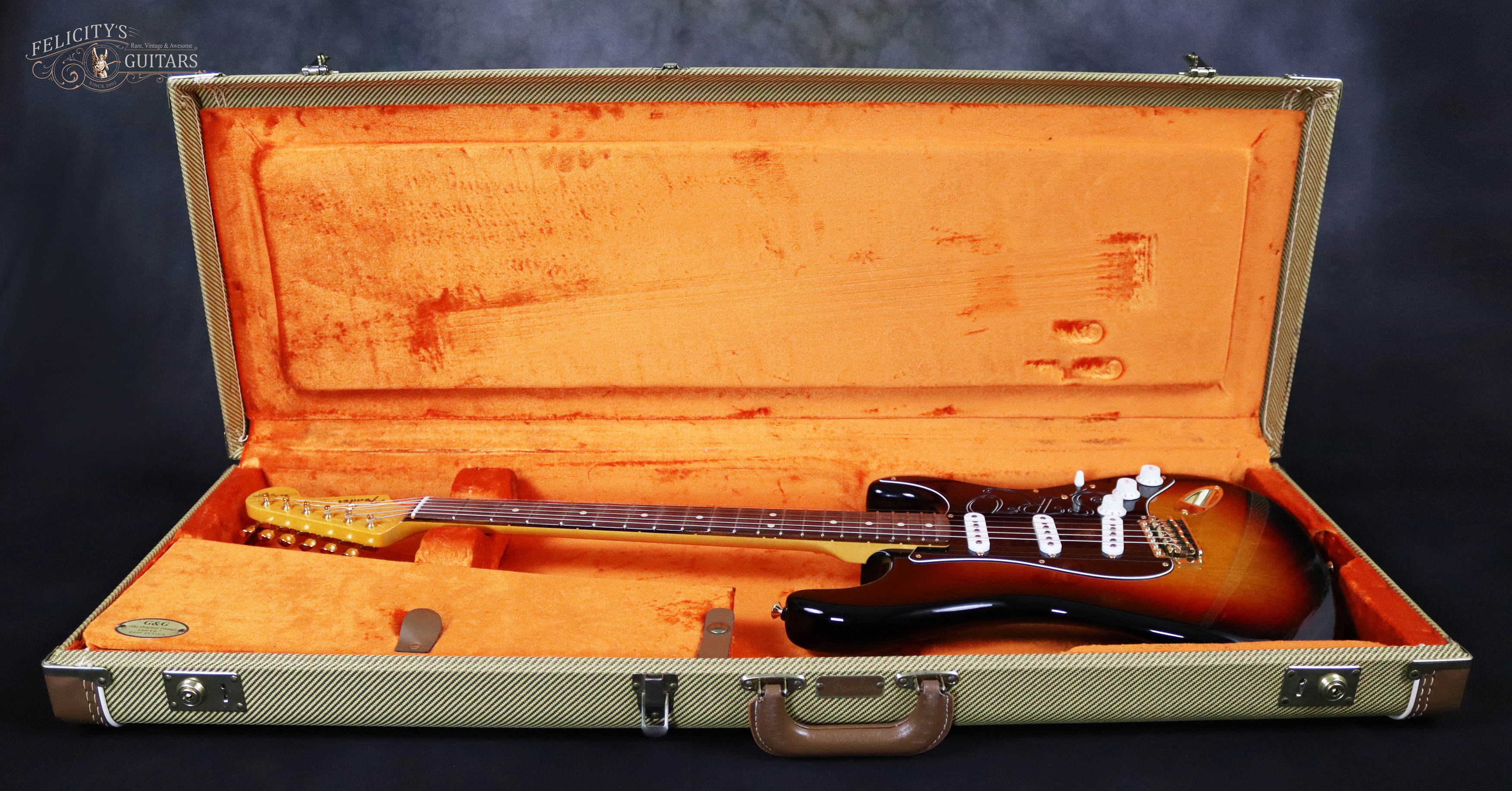

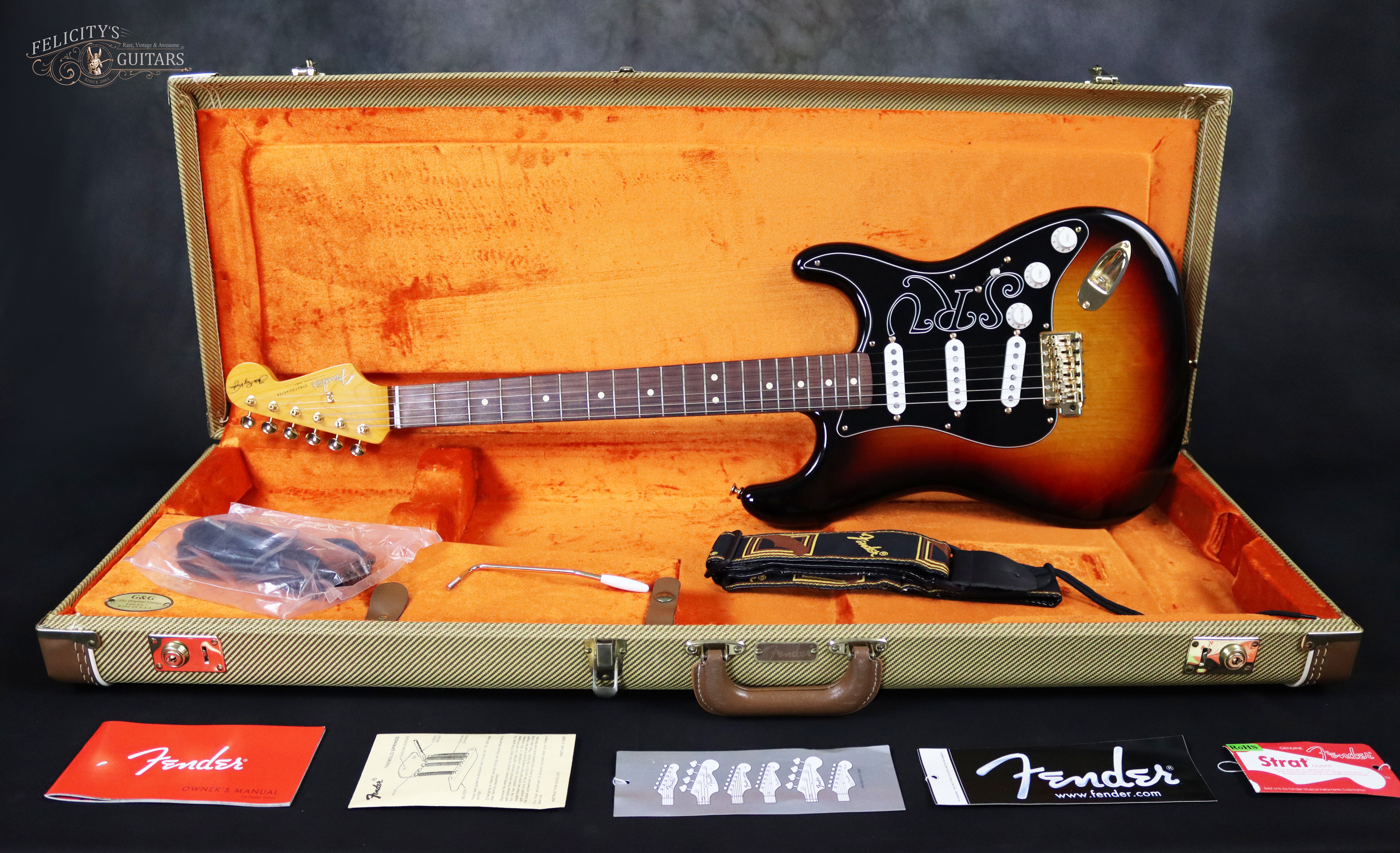

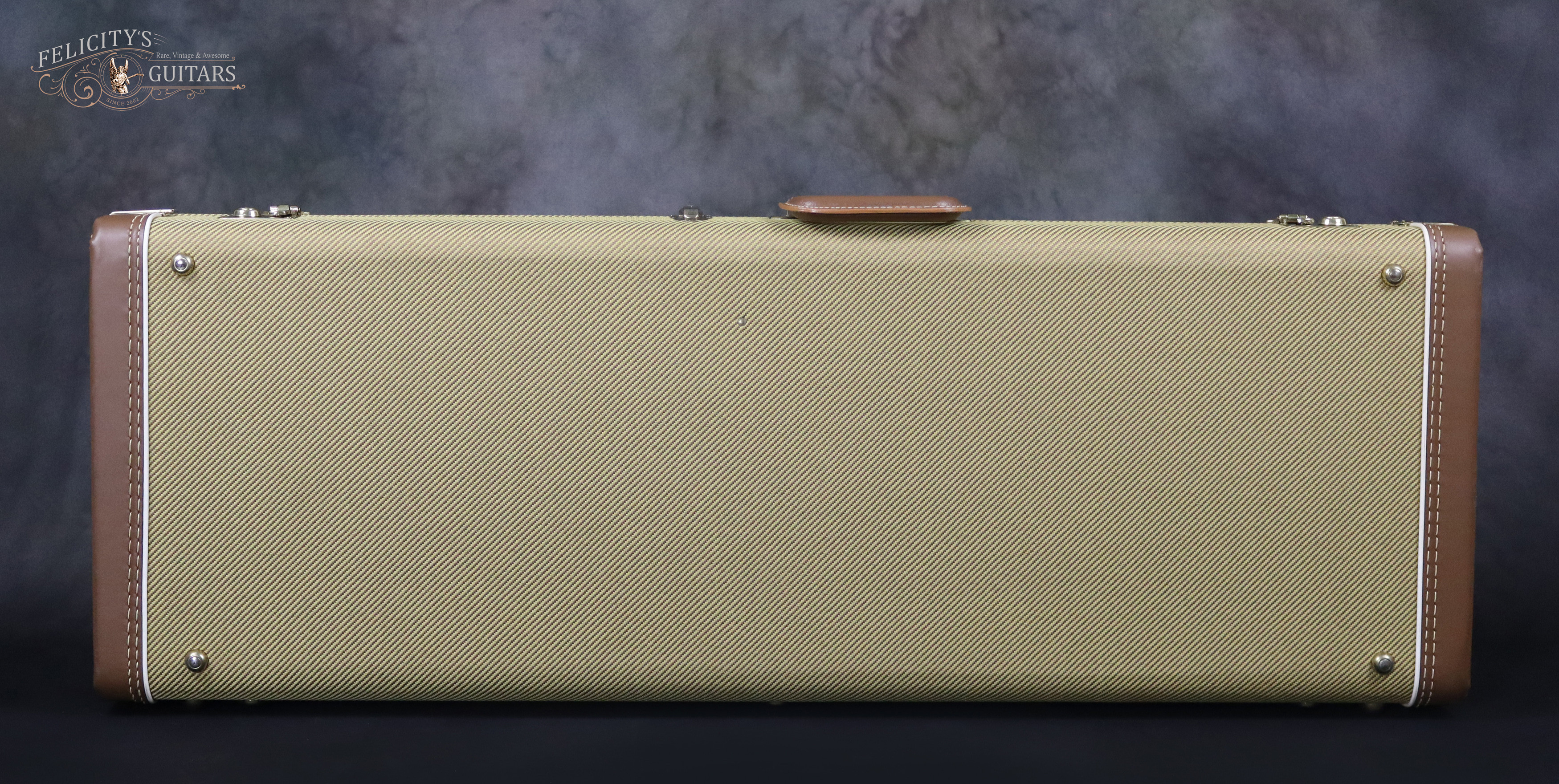

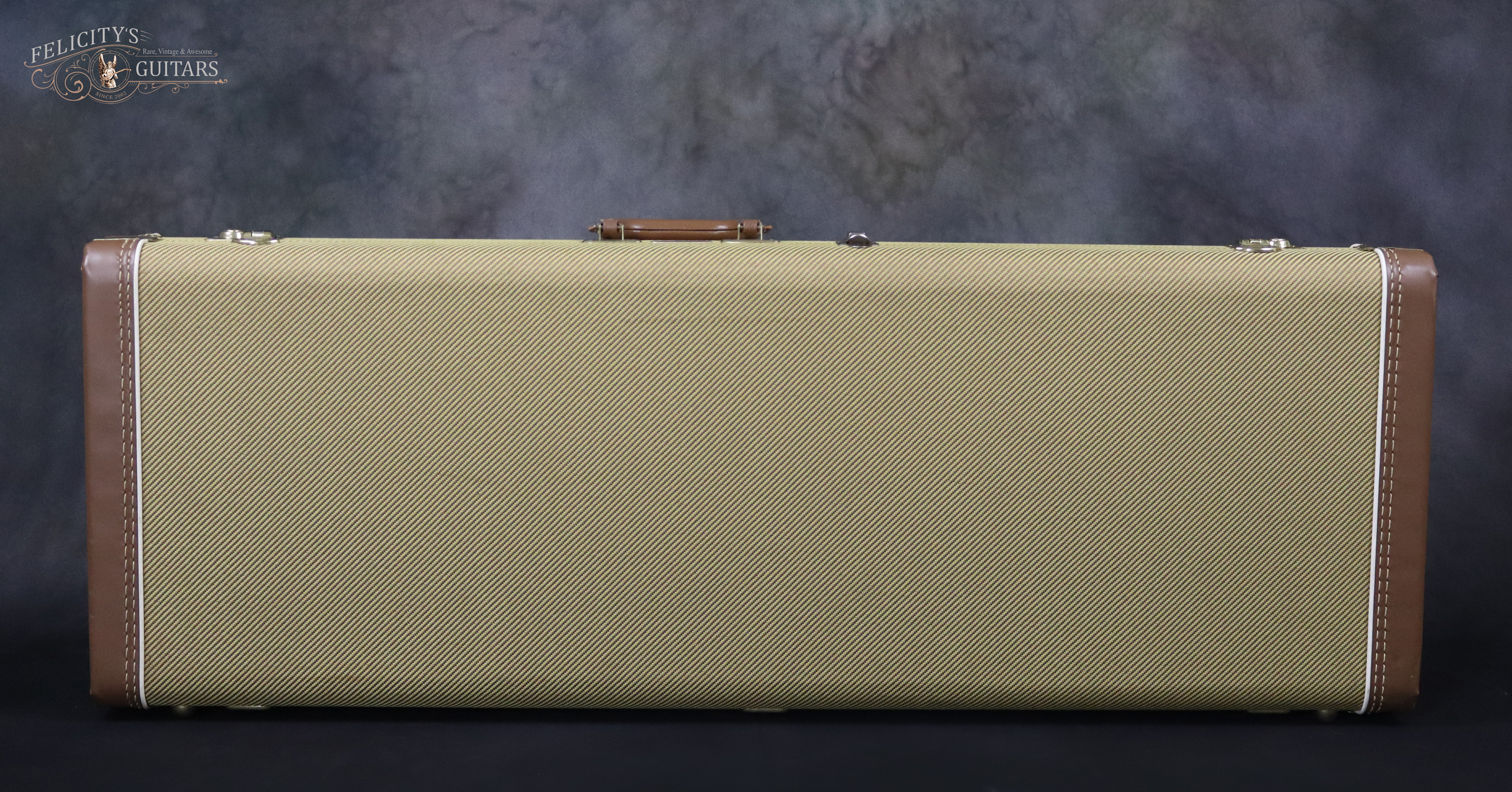

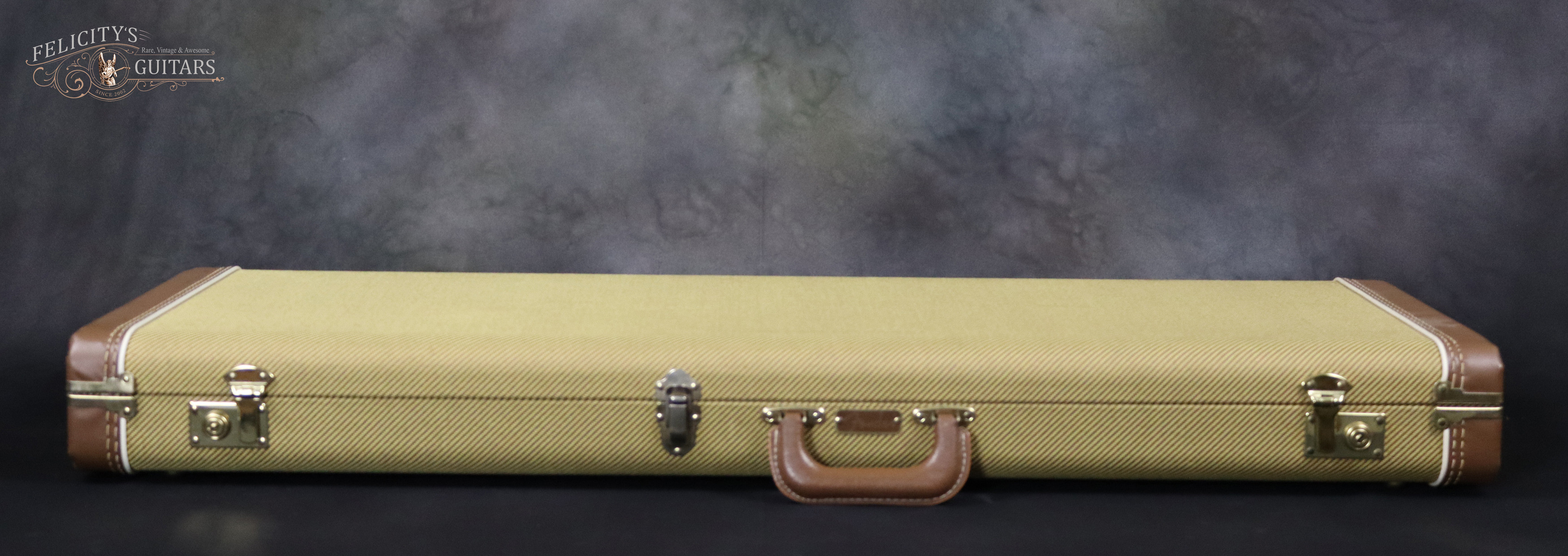

Case / Gigbag	Fender® U.S.A. Vintage Tweed Hardshell Case with Tangerine Padded Interior and locks
Strap Locks	No
Strings	Fender® U.S.A. 250R Nickel Plated Steel (.010-.046 Gauges)
Tools / Accessories	Truss Rod Wrench / Fender® Motif Strap, Cable (sealed), Tremolo Arm, Case Keys
Manual / Literature	Fender® U.S.A. Owner’s Manual, Ltd Lifetime Warranty, Spring instruction, Hang Tags
C.O.A.	No
Other	No
Weight	Is the actual weighed-value in US Standard Units

Disclosure	Some technical Specs may have been extracted from Fender® U.S.A. and/or internet archives. The words Fender® / Gotoh™ and the associated designs are registered trademarks of the Fender Musical Instruments Corporation and the other named entities, if any, respectively
