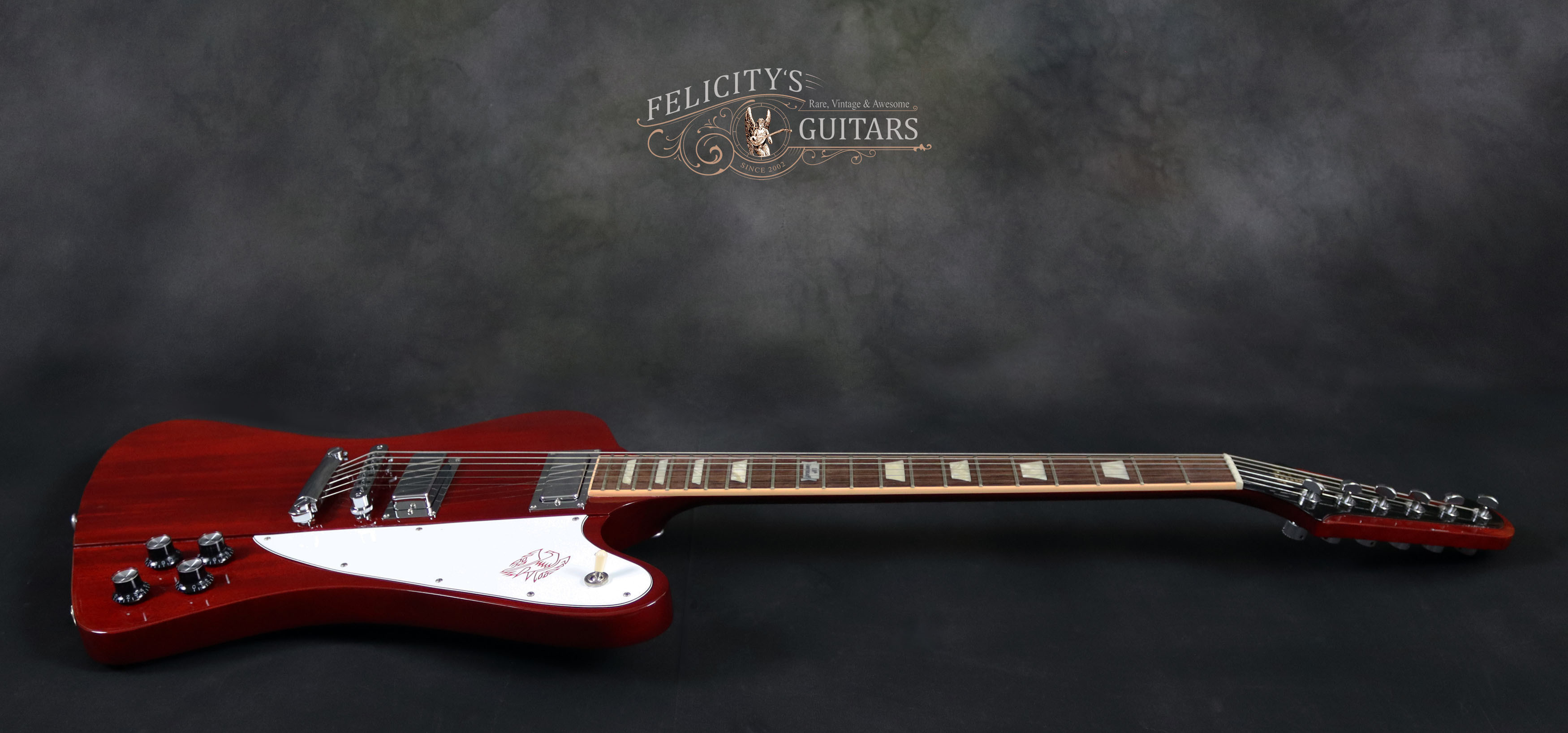

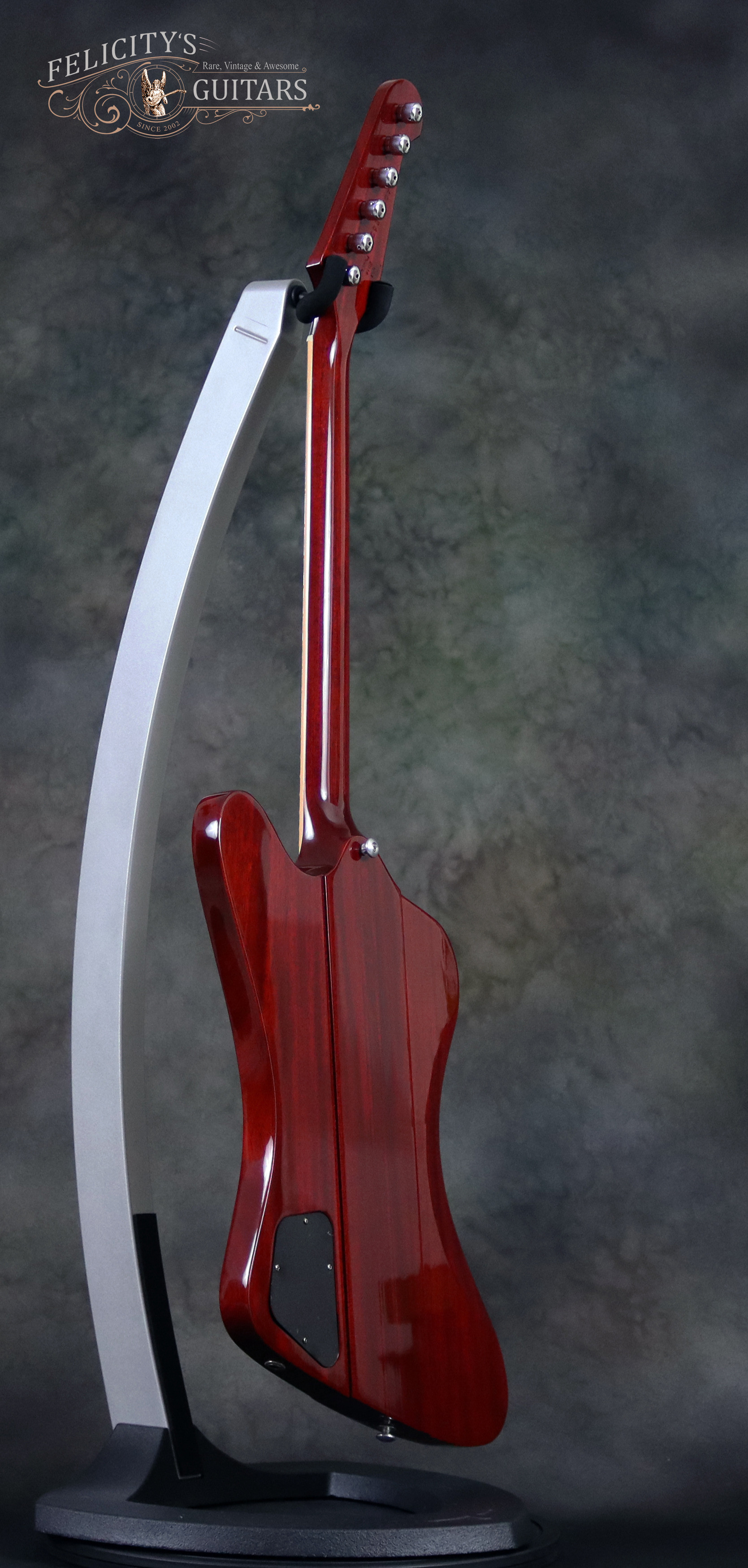

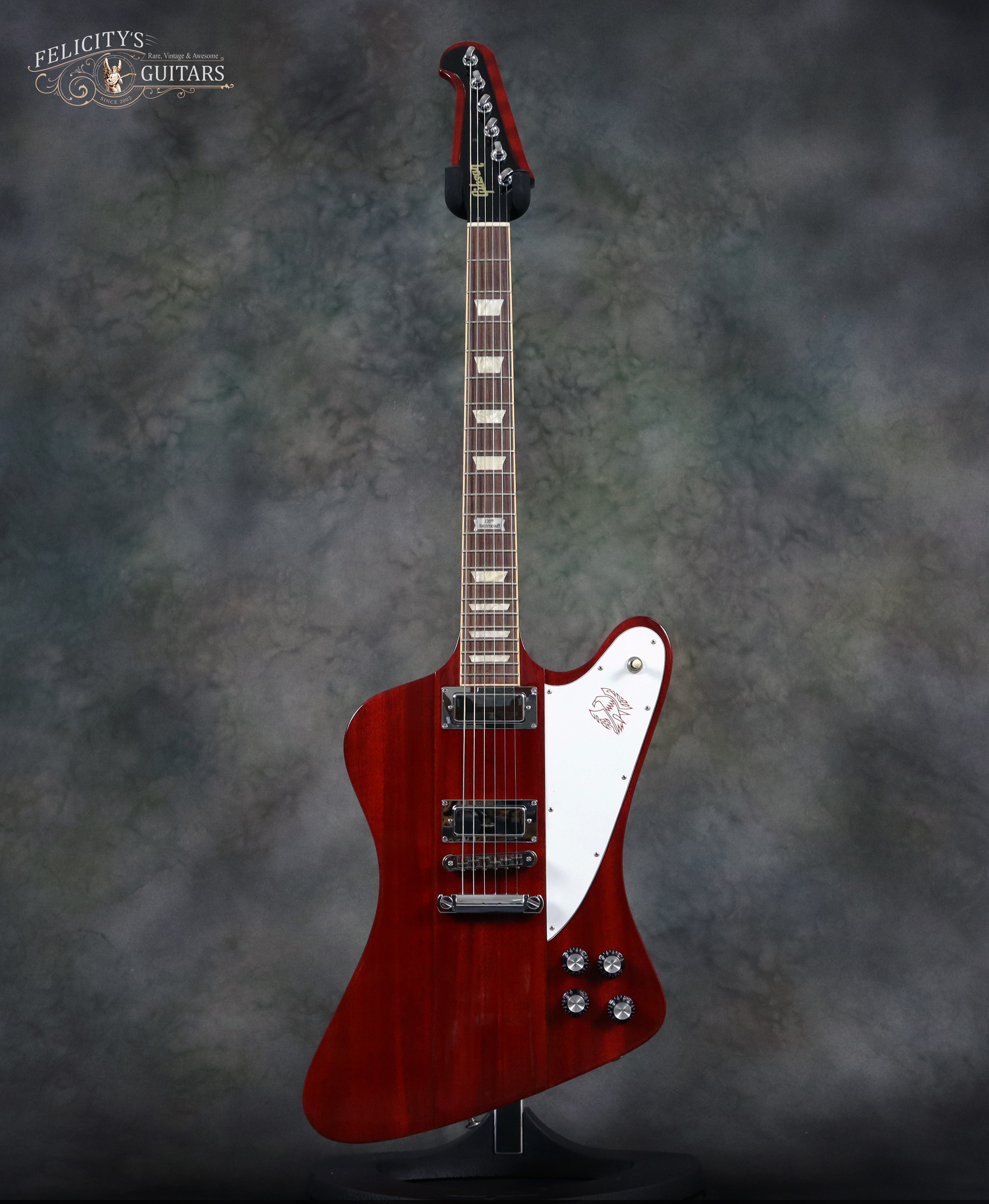

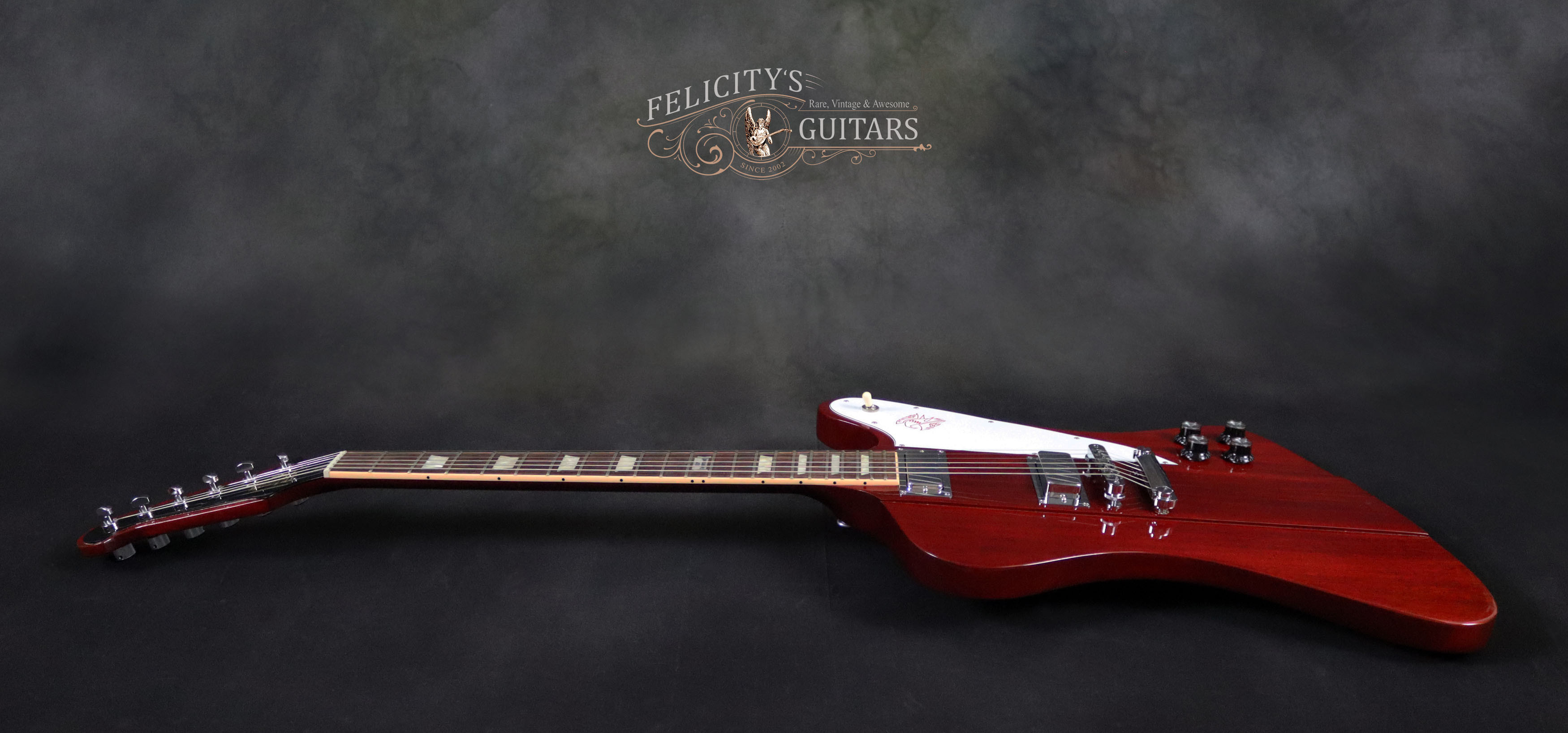

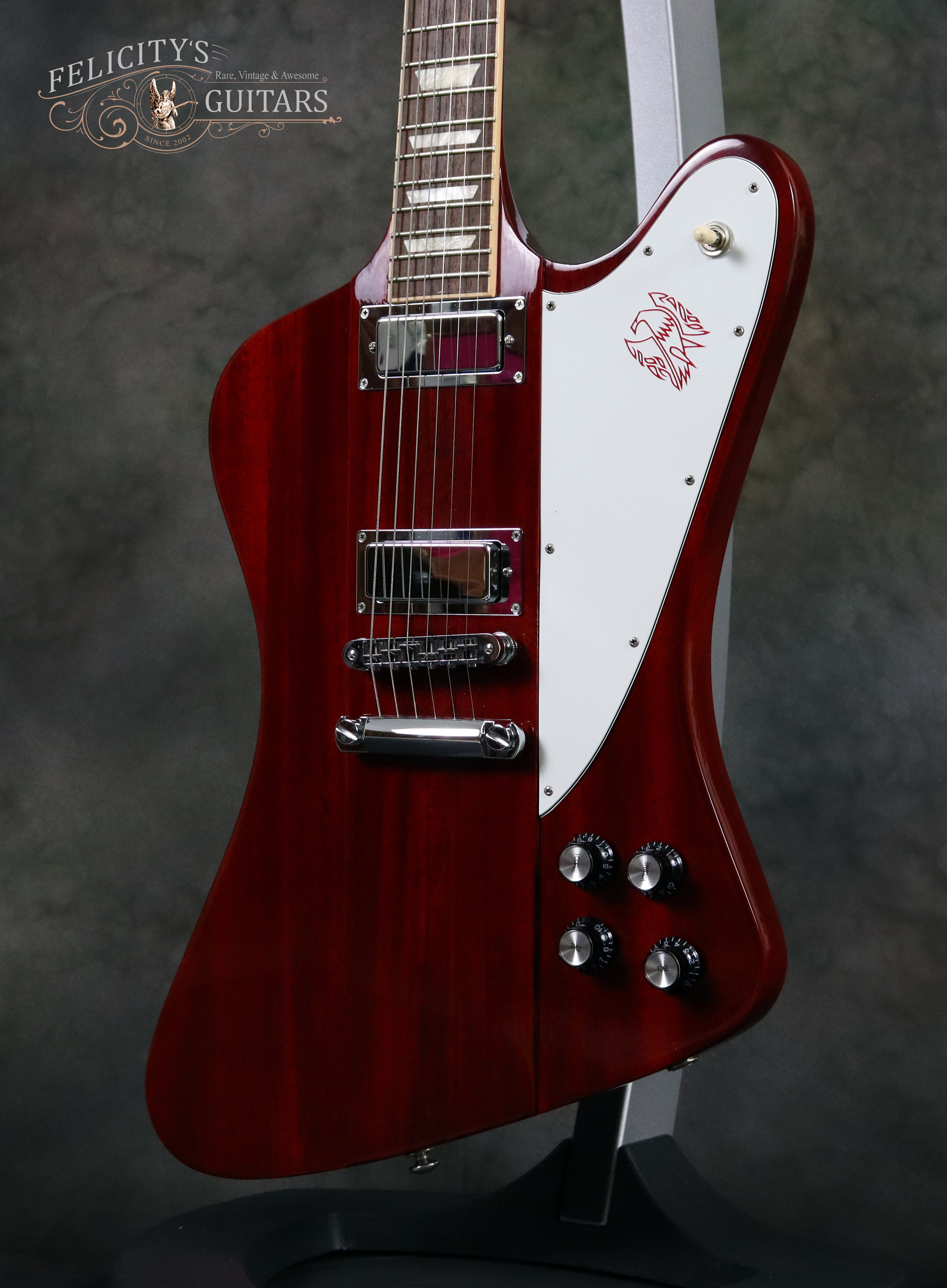

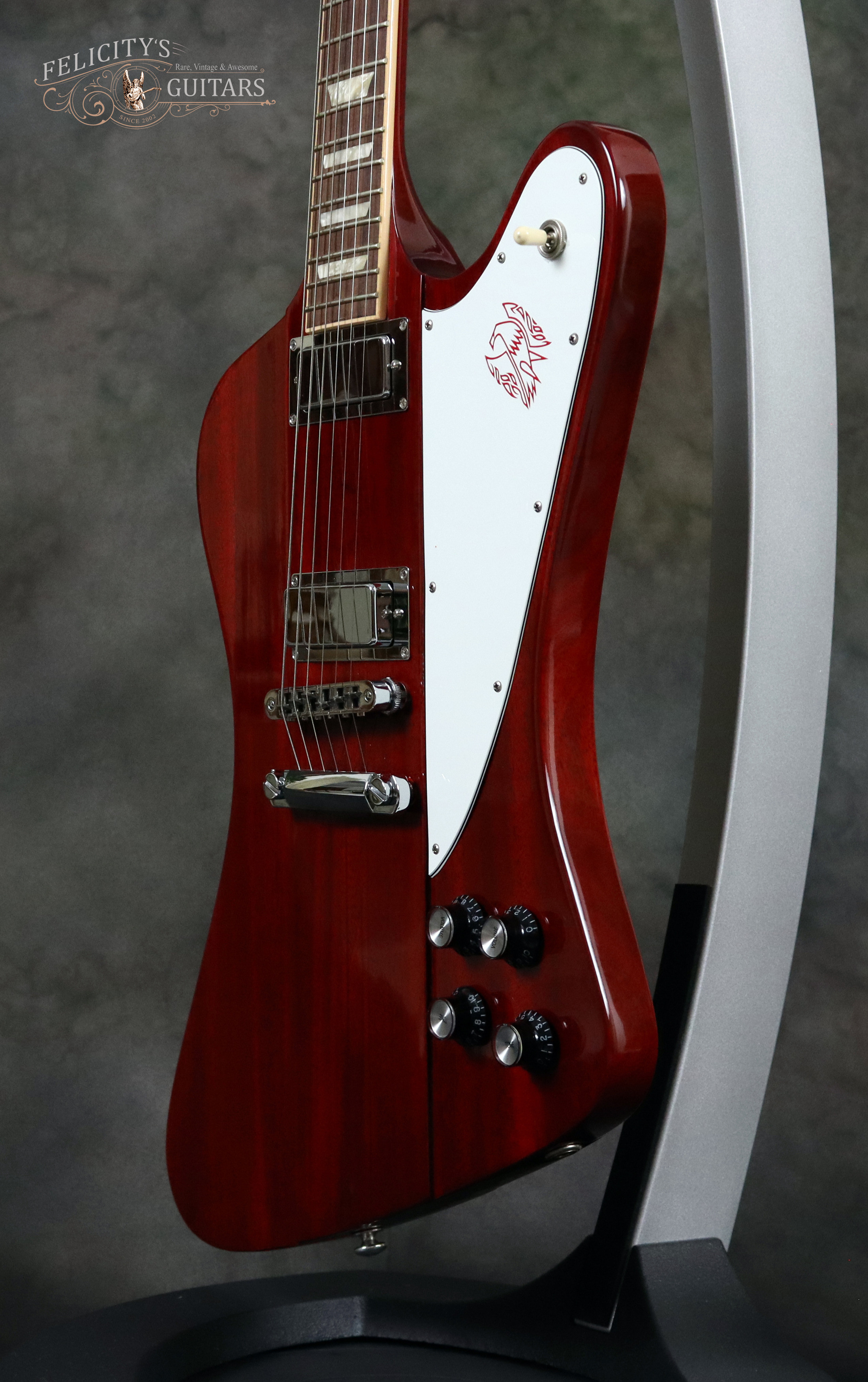

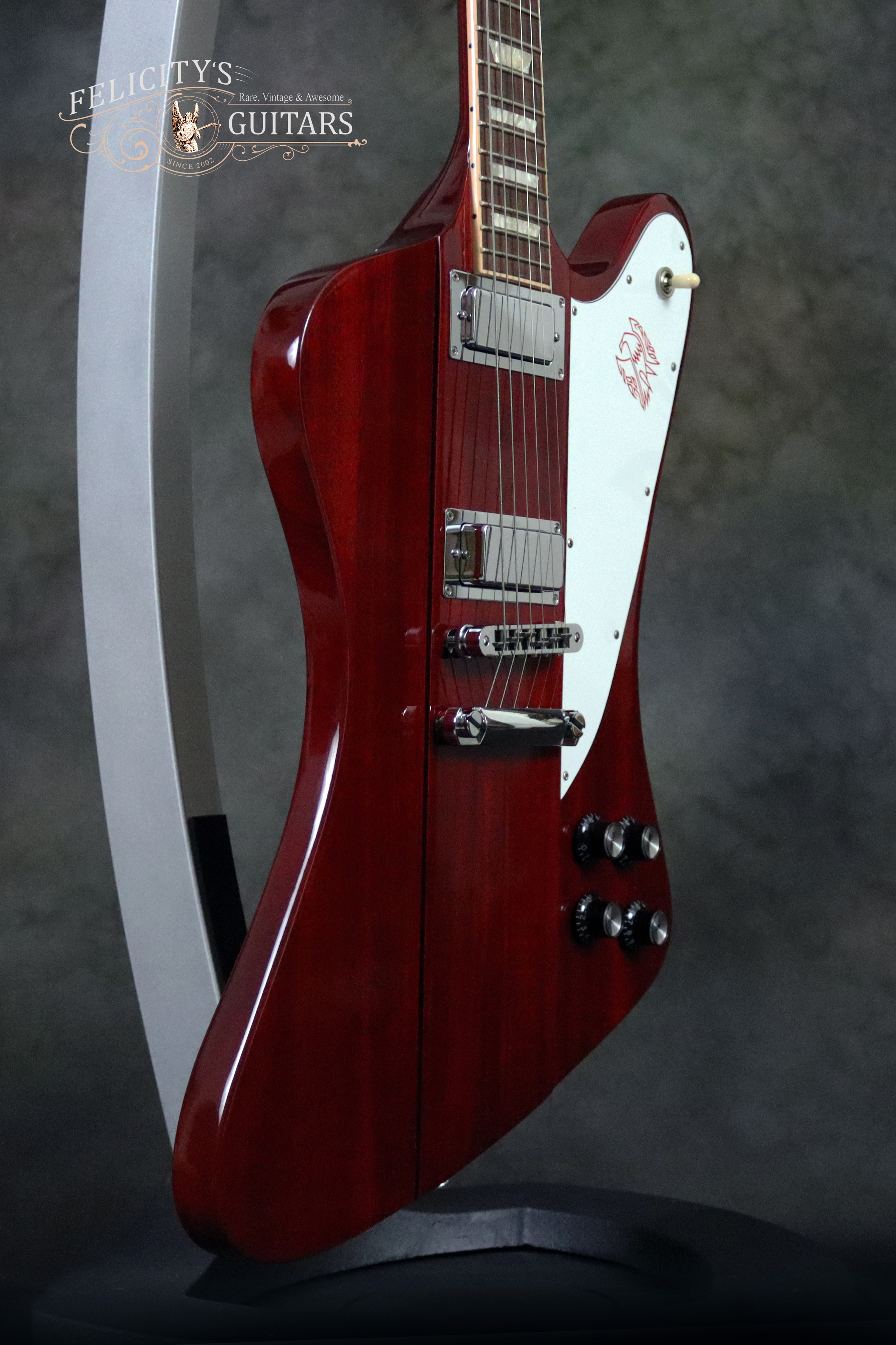

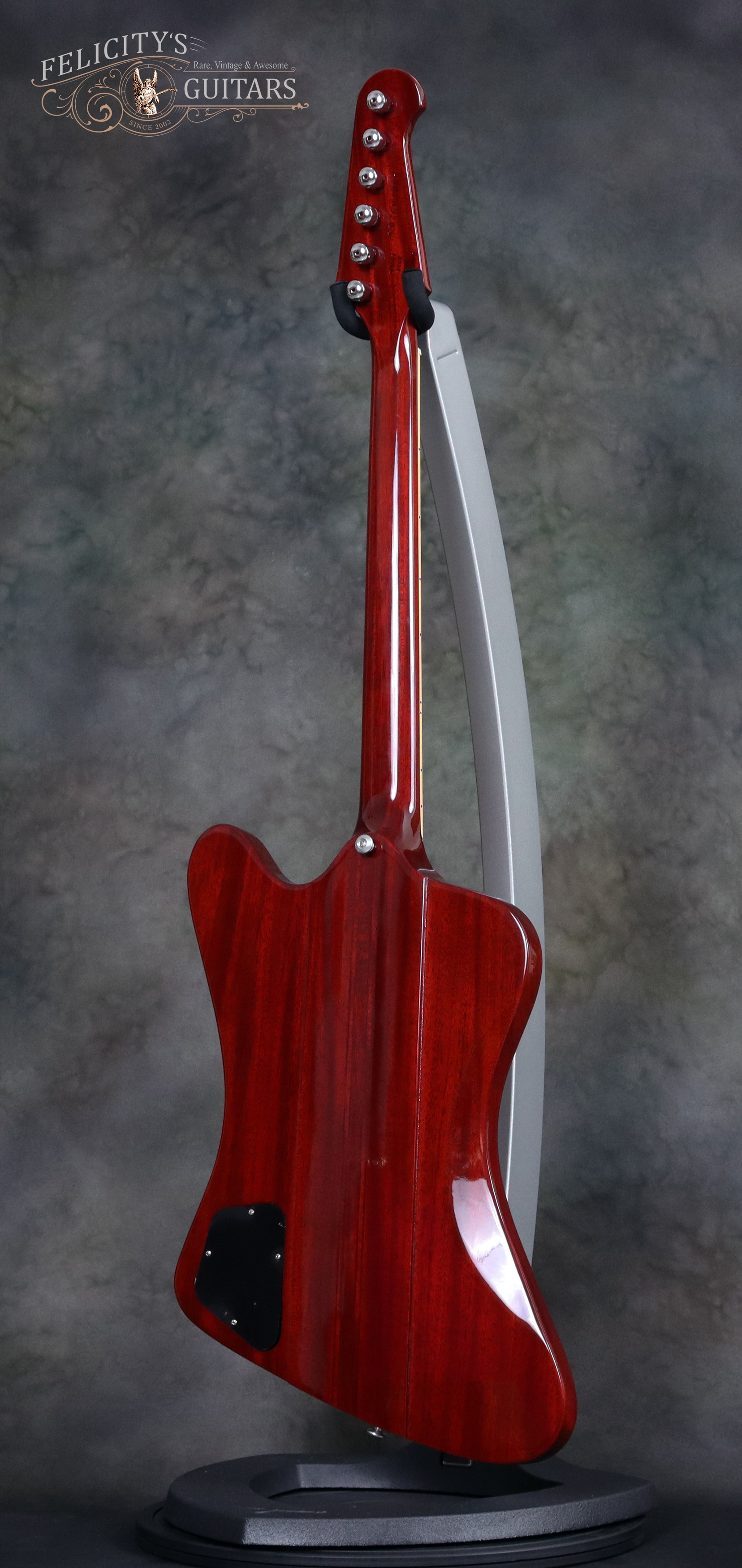

2014 GIBSON FIREBIRD V 120TH ANNIVERSARY LTD ED IN HERITAGE CHERRY

The Gibson Firebird 2014 celebrates Gibson's 120th Anniversary in great style.

The Gibson Firebird 2014 celebrates Gibson's 120th Anniversary in great style. The body is realized with two mahogany wings wrapping a multi-ply laminate neck-through body (walnut/mahogany).

The 2014 Gibson 120th Anniversary Firebird-V at a glance:

Mahogany Body & Multi-piece Mahogany neck with slim, super-fast Firebird profile

Rosewood Fingerboard with Rolled Over Frets

Aluminum Tune-O-Matic Bridge and Stopbar Tailpiece

Steinberger Gearless Tuners with 40:01 Ratio

Chrome Hardware

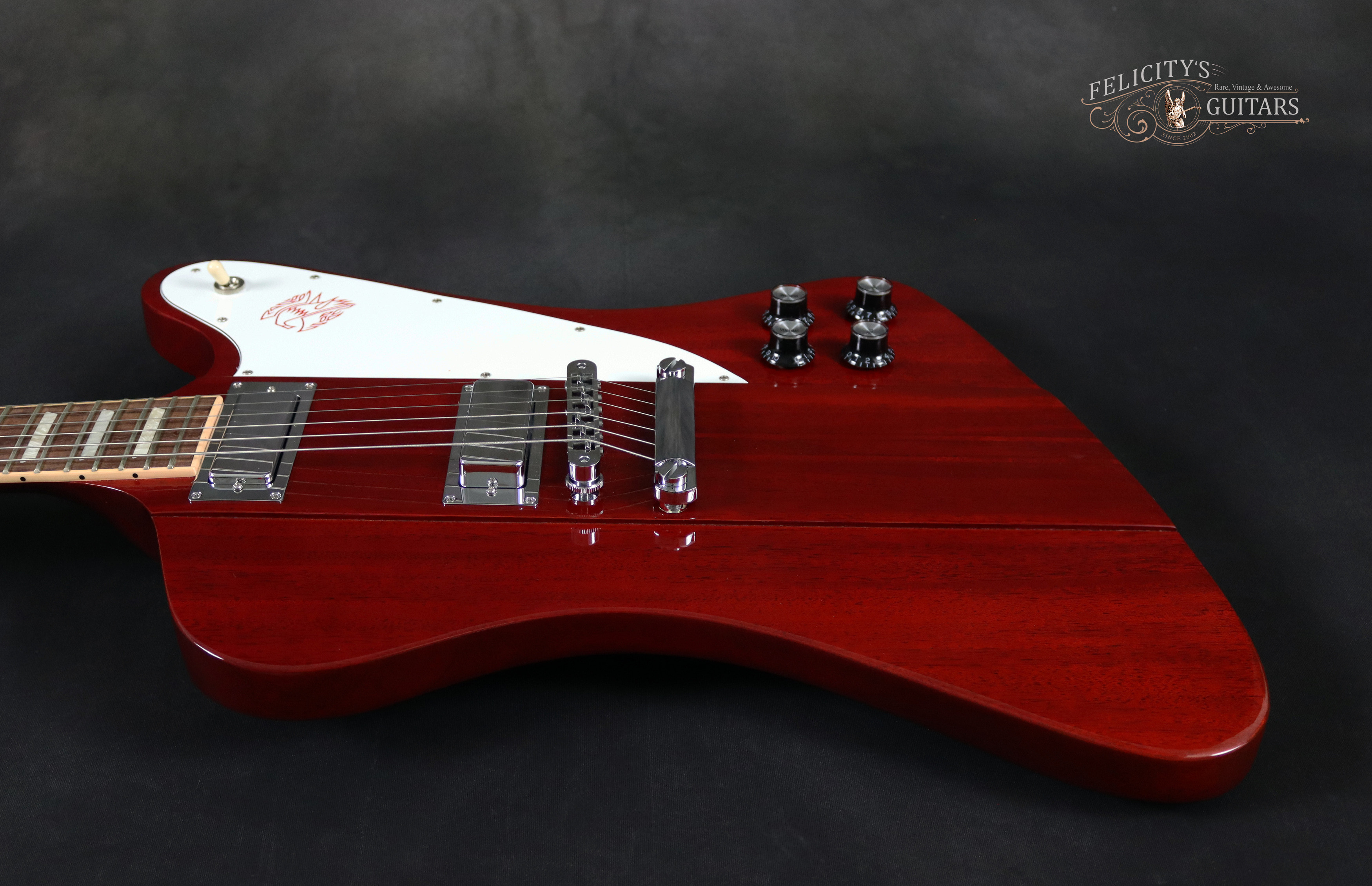

High Output 495T and 495R Mini Humbucking Pickups

Classic Heritage Cherry Finish

Comes with Original Hardshell Case

USD 1,000,000

Add to Cart

Shipping will be calculated at check out

Photo Gallery

description

Celebrating its 120th Anniversary, the company’s 2014 guitar and bass lineup is striking in its variety, its beauty and its host of updated and upgraded features. This fine guitar traces the evolution of Gibson, from its beginnings in a small shop in Michigan to its current roll out of new models that will appeal to musicians of every stripe.

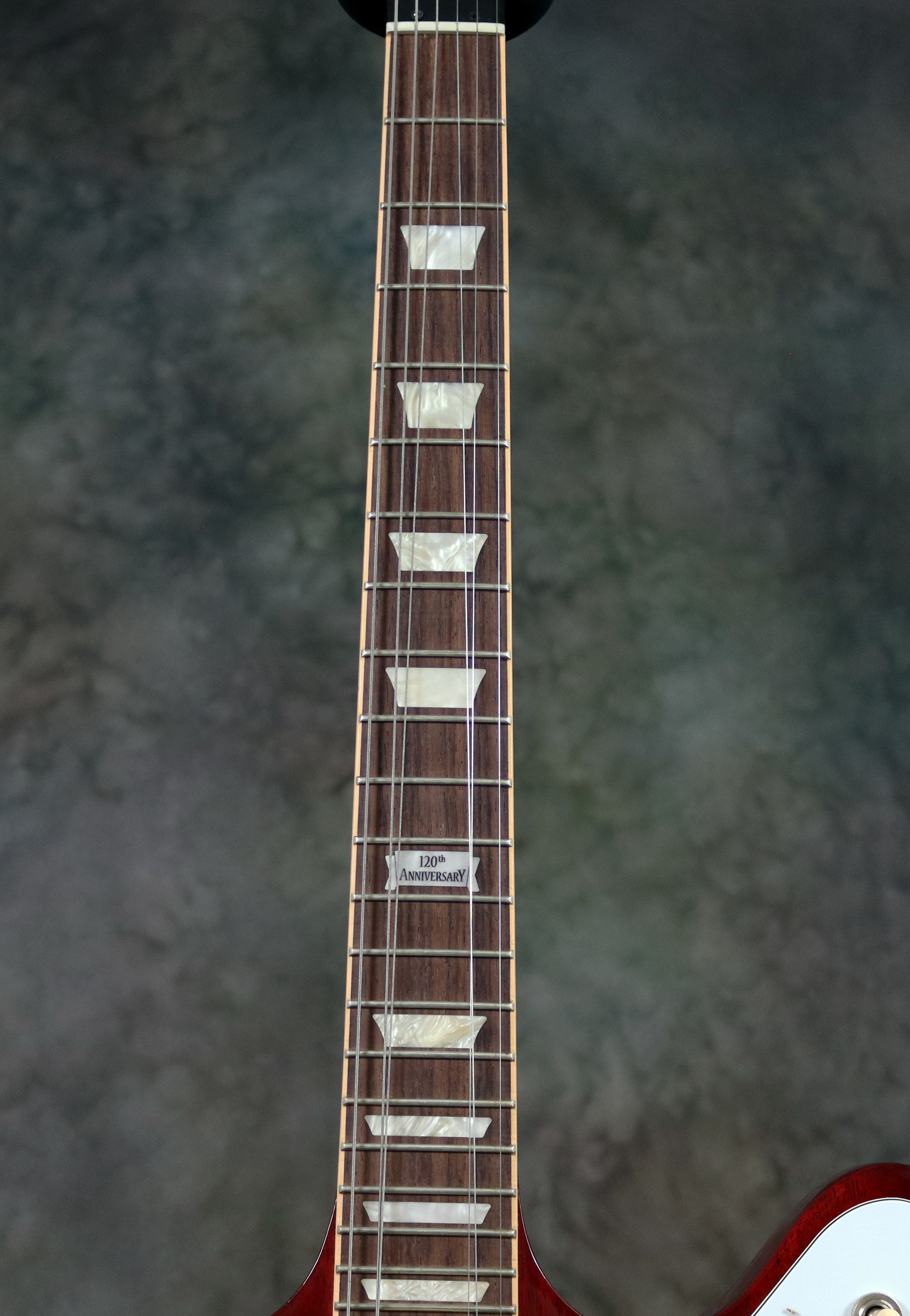

The bound rosewood fingerboard has undercut frets over the binding to increase the "playing" surface of the frets and features a 120th Anniversary inlay at the 12th fret. Other key features are the mini-humbucker pickups, generating a bright unique tone, max grip speed knobs, Steinberger tuners, Graph Tech nut and a chrome tune-o-matic bridge with Stopbar tailpiece.

This guitar is professionally setup and protected in the original Gibson hardshell case.

Specifications

General

Condition	Used E Condition
Number of Strings	6
Orientation	Right-handed
Country of Origin	United States
Year	2014
Limited Edition / Series	Anniversary Model

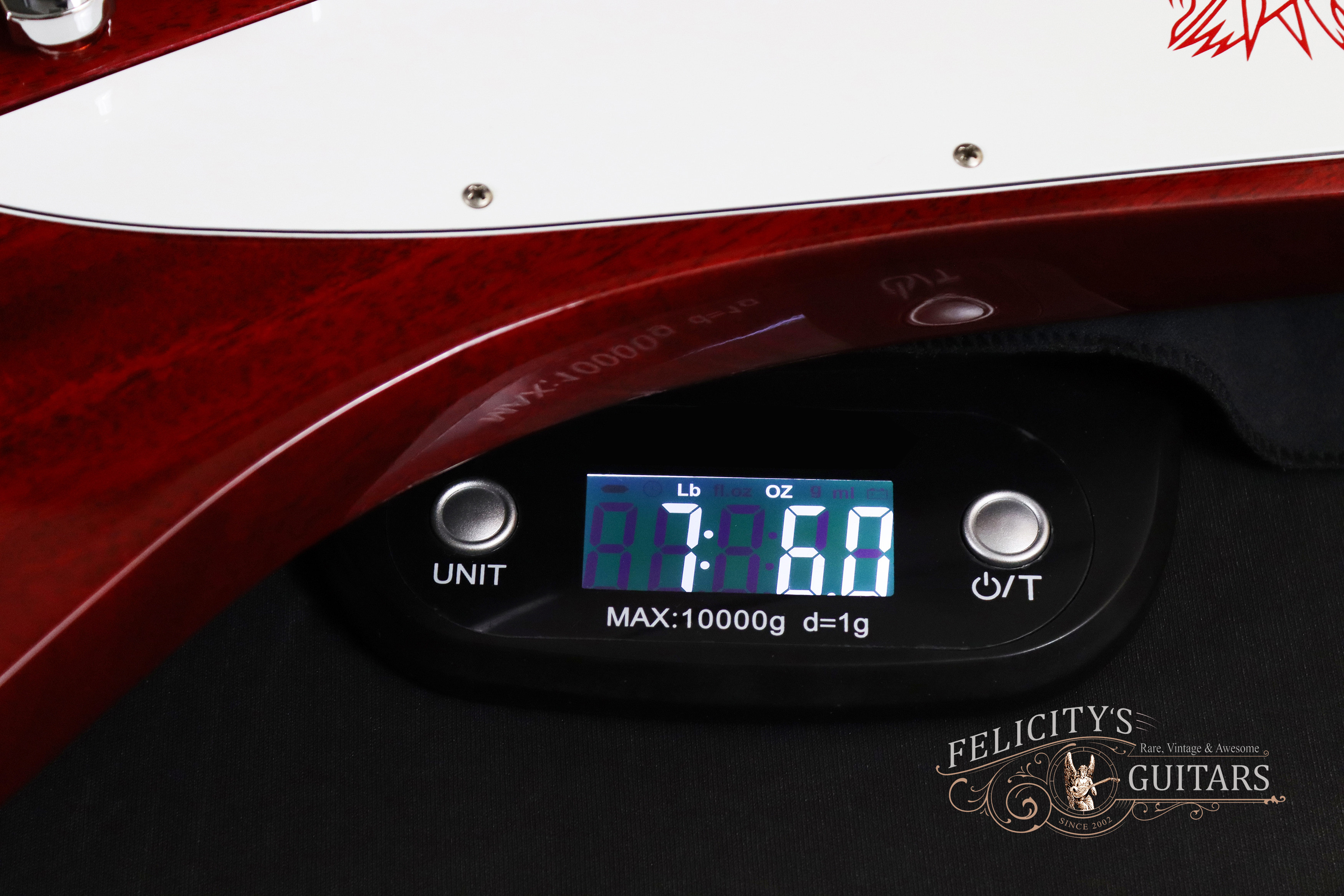

Weight	7-lbs 6.0-oz

body

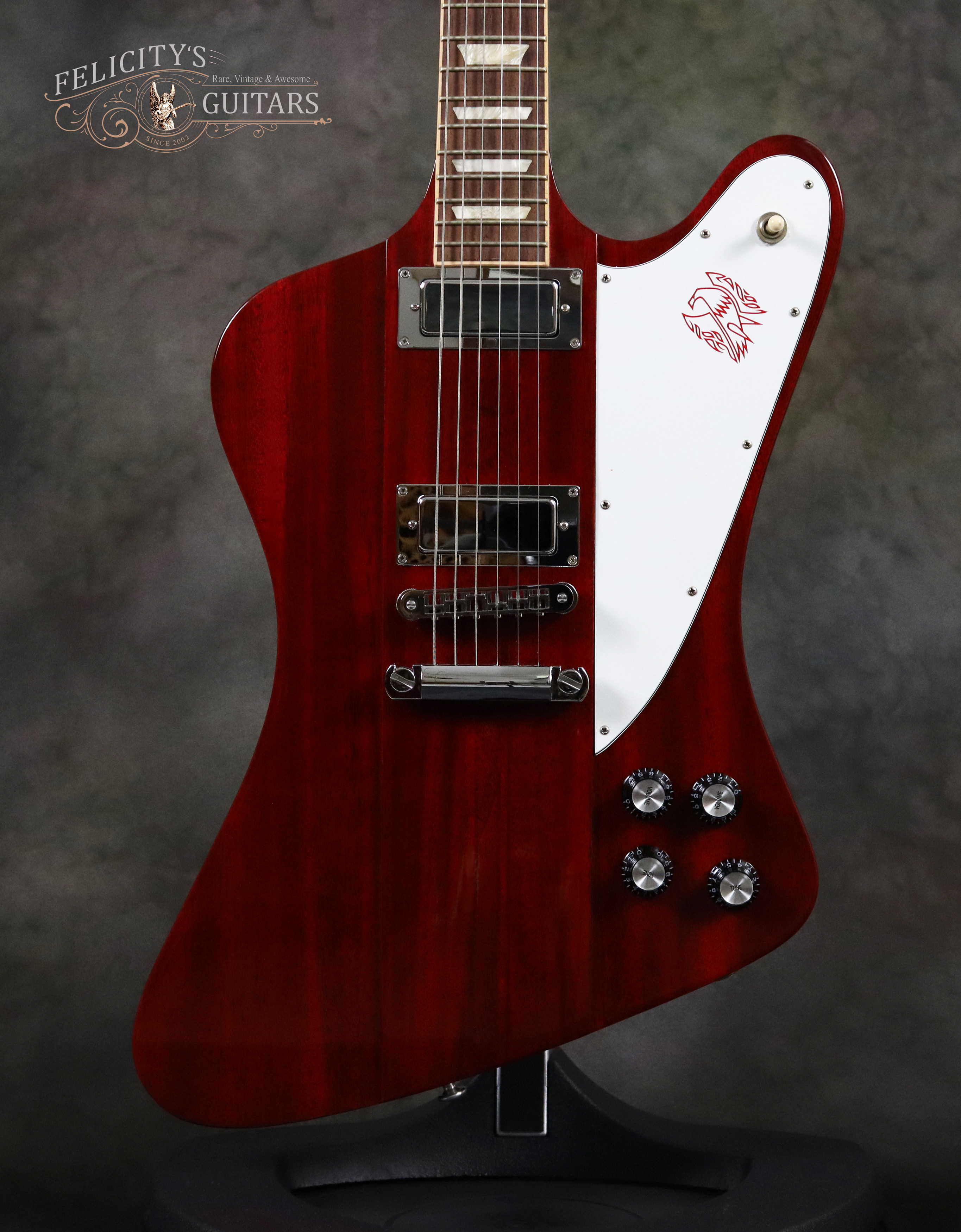

Body Type	Offset, Solidbody

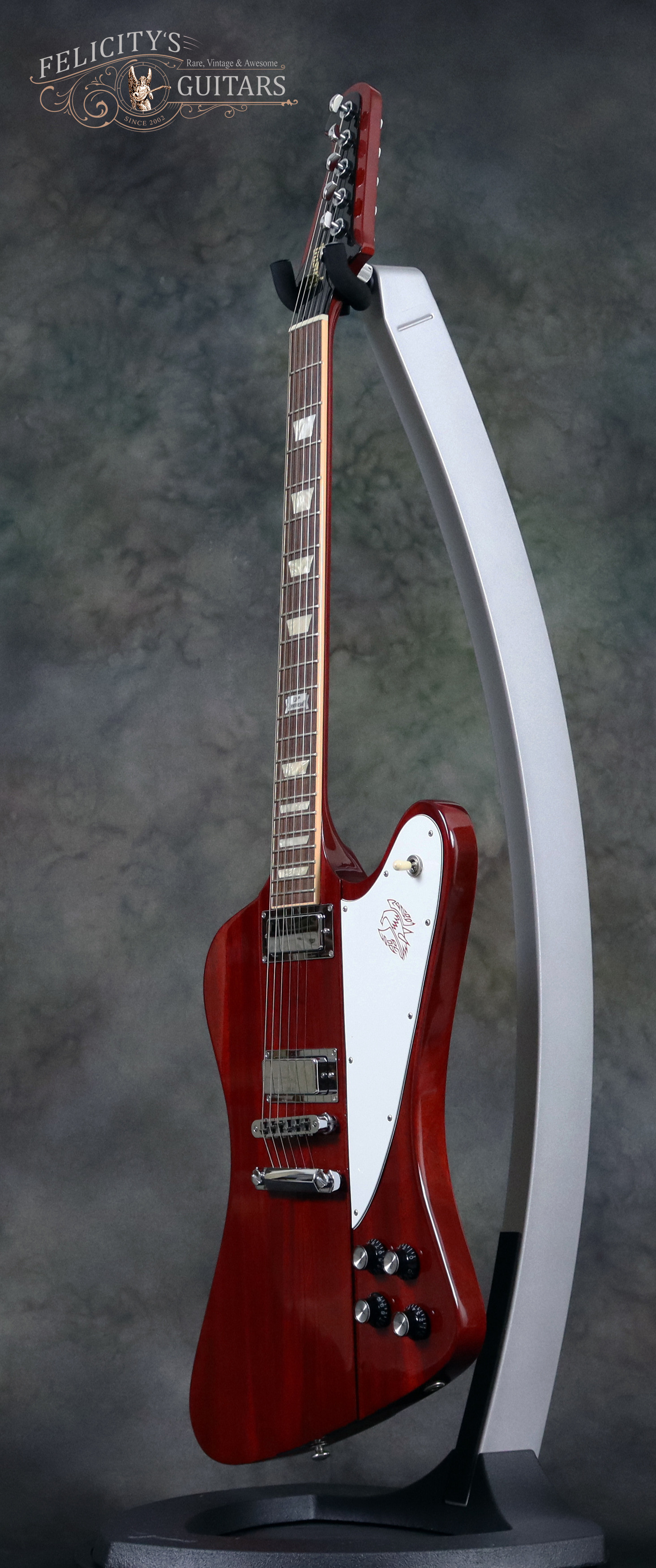

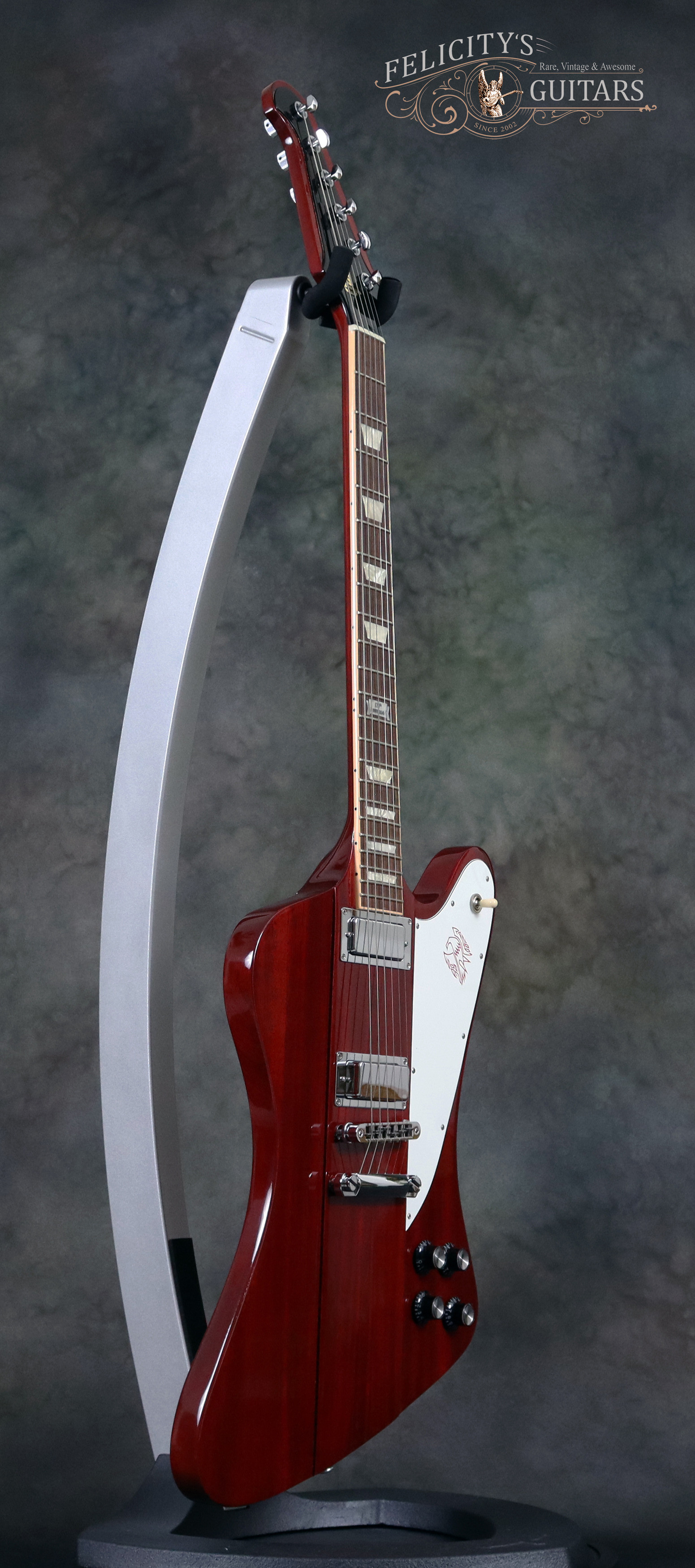

Body Shape	Reverse Firebird
Body Construction	Neck-thru-Body with affixed Upper & Lower Body Wings

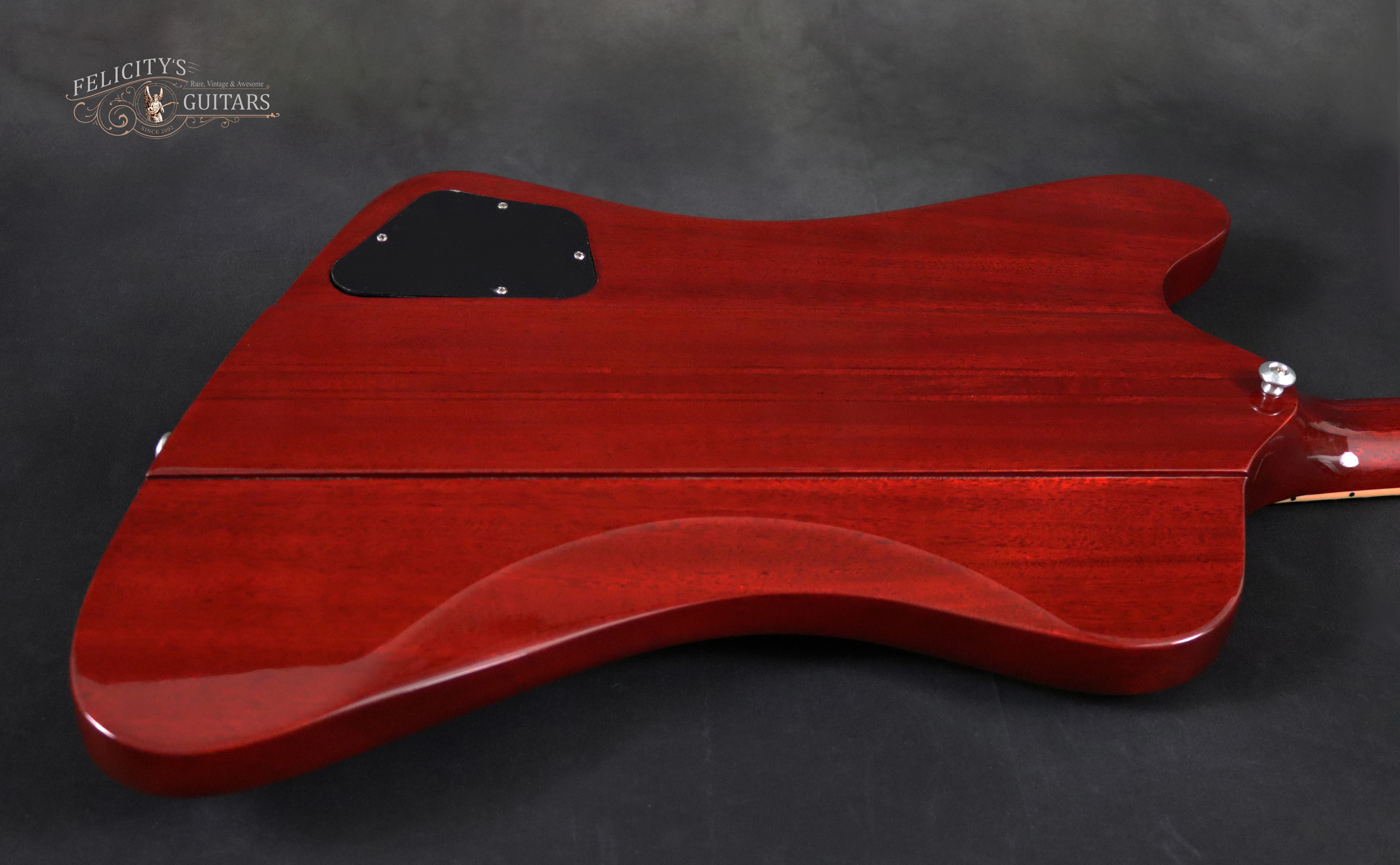

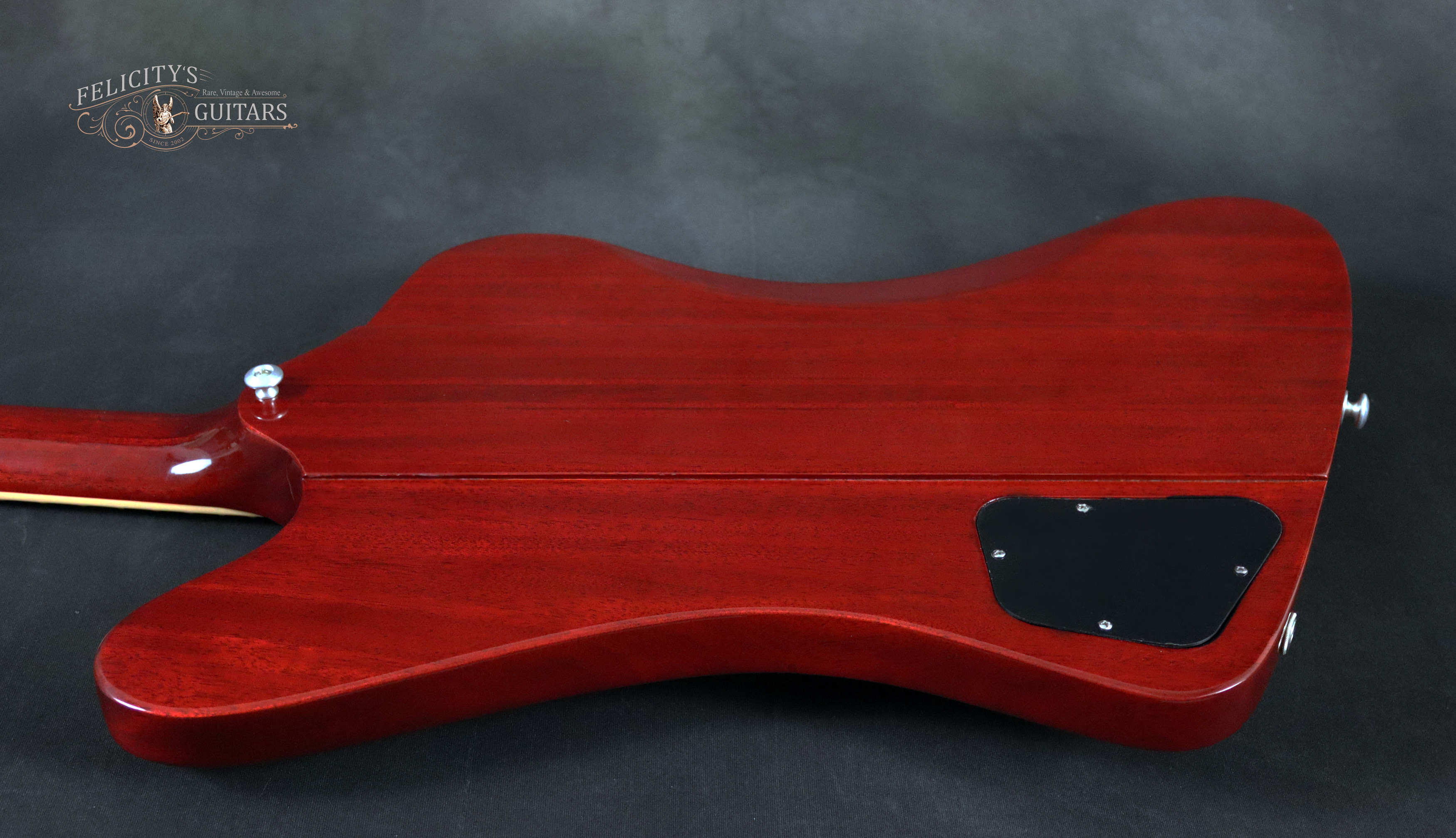

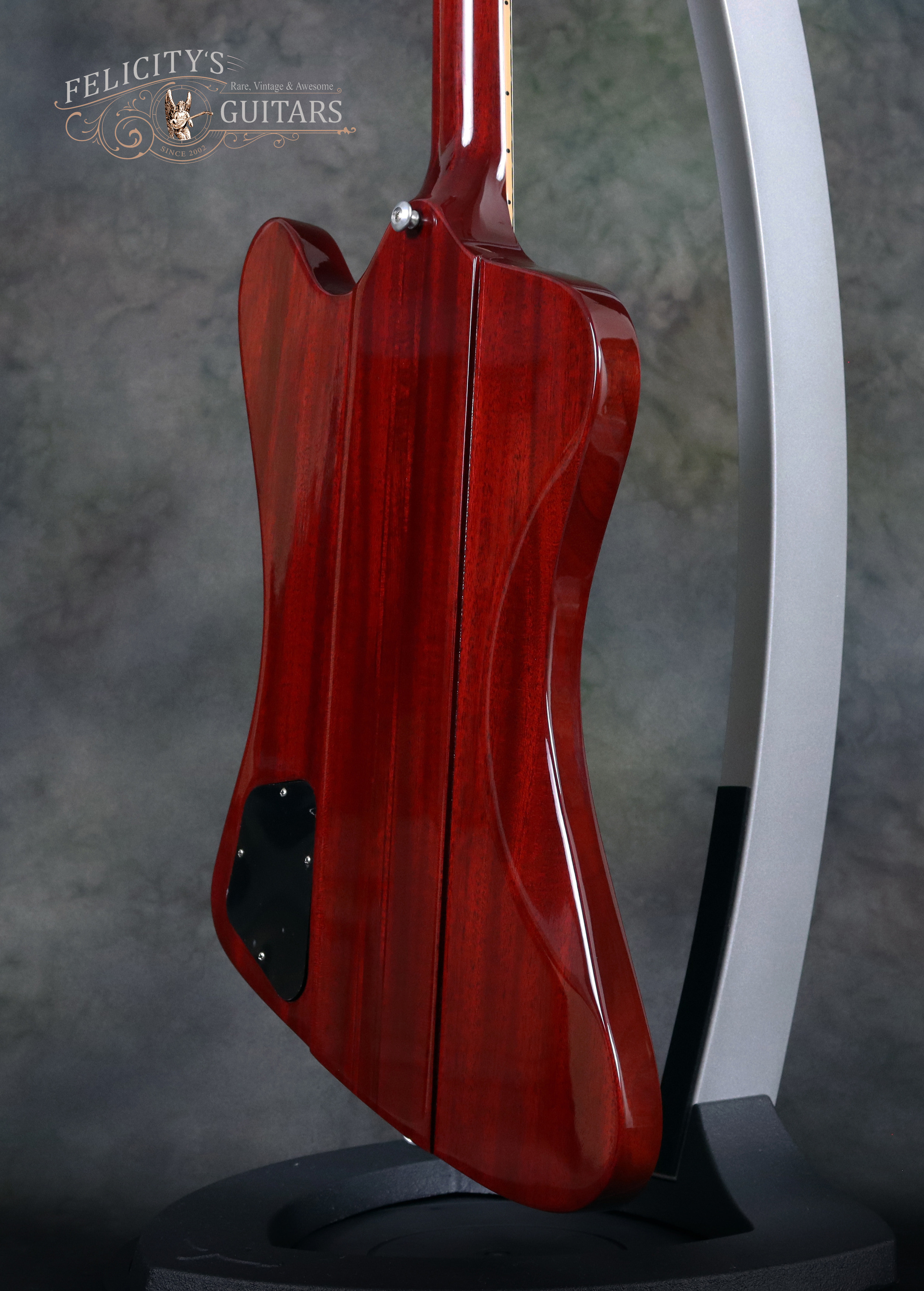

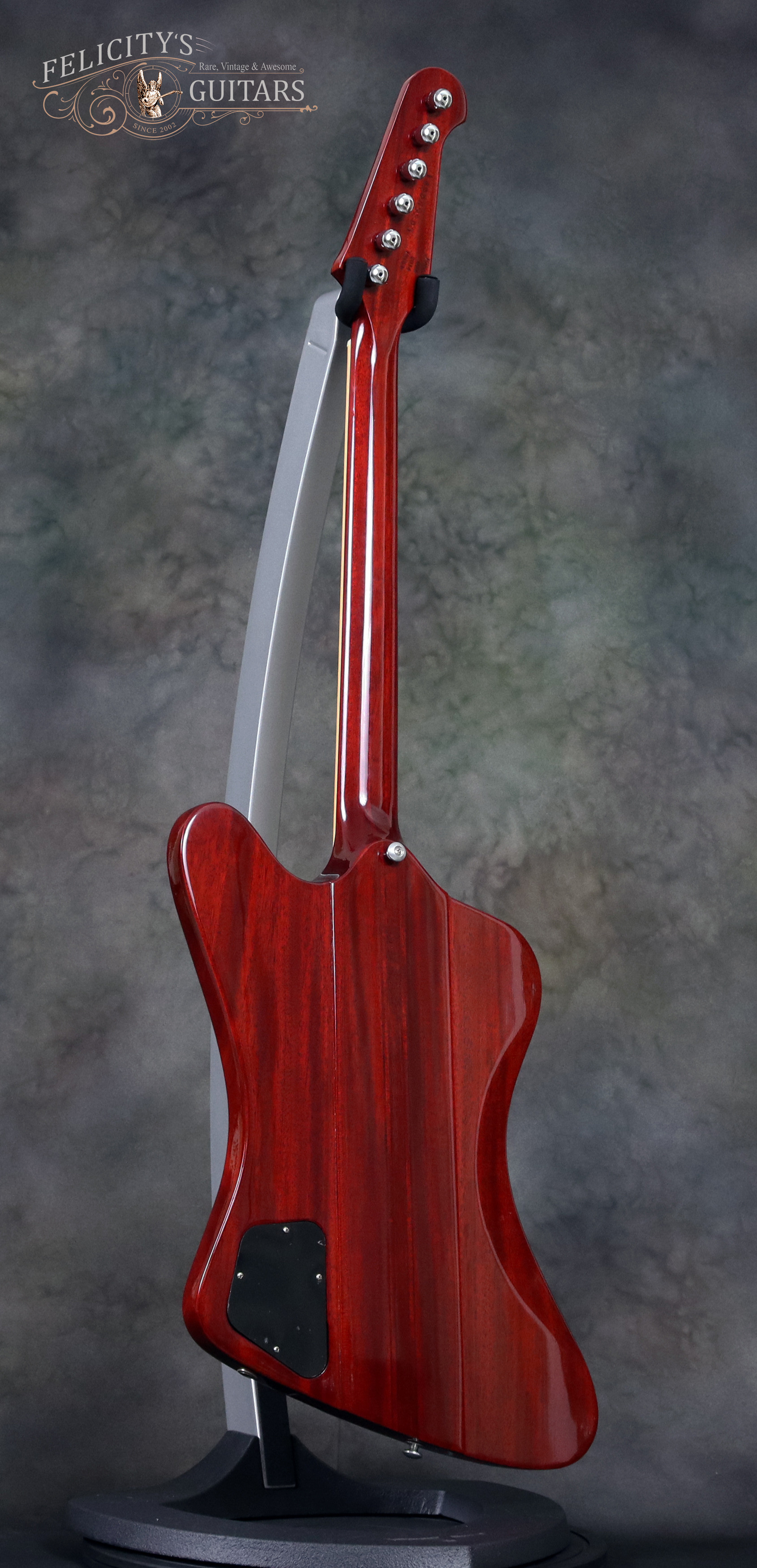

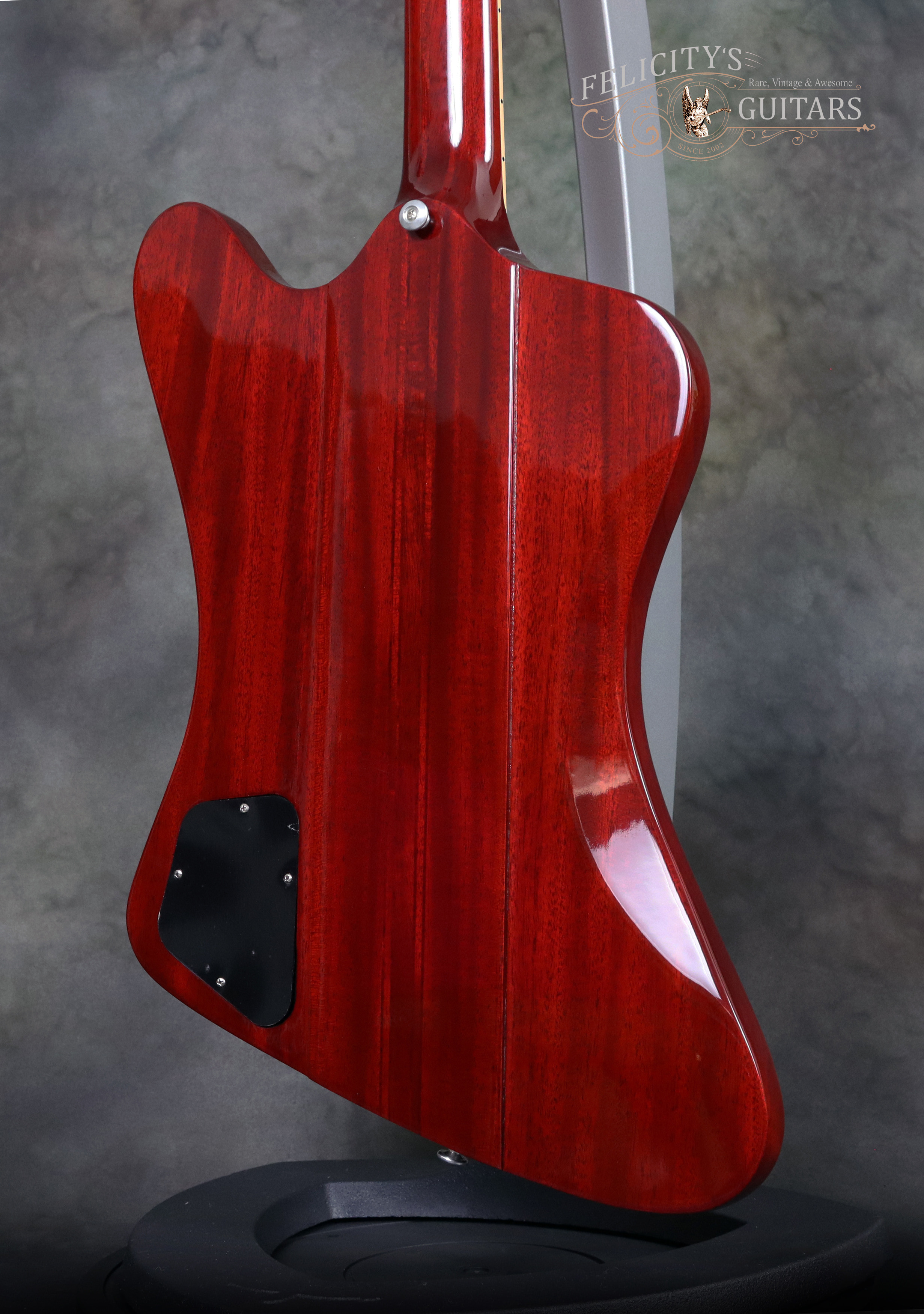

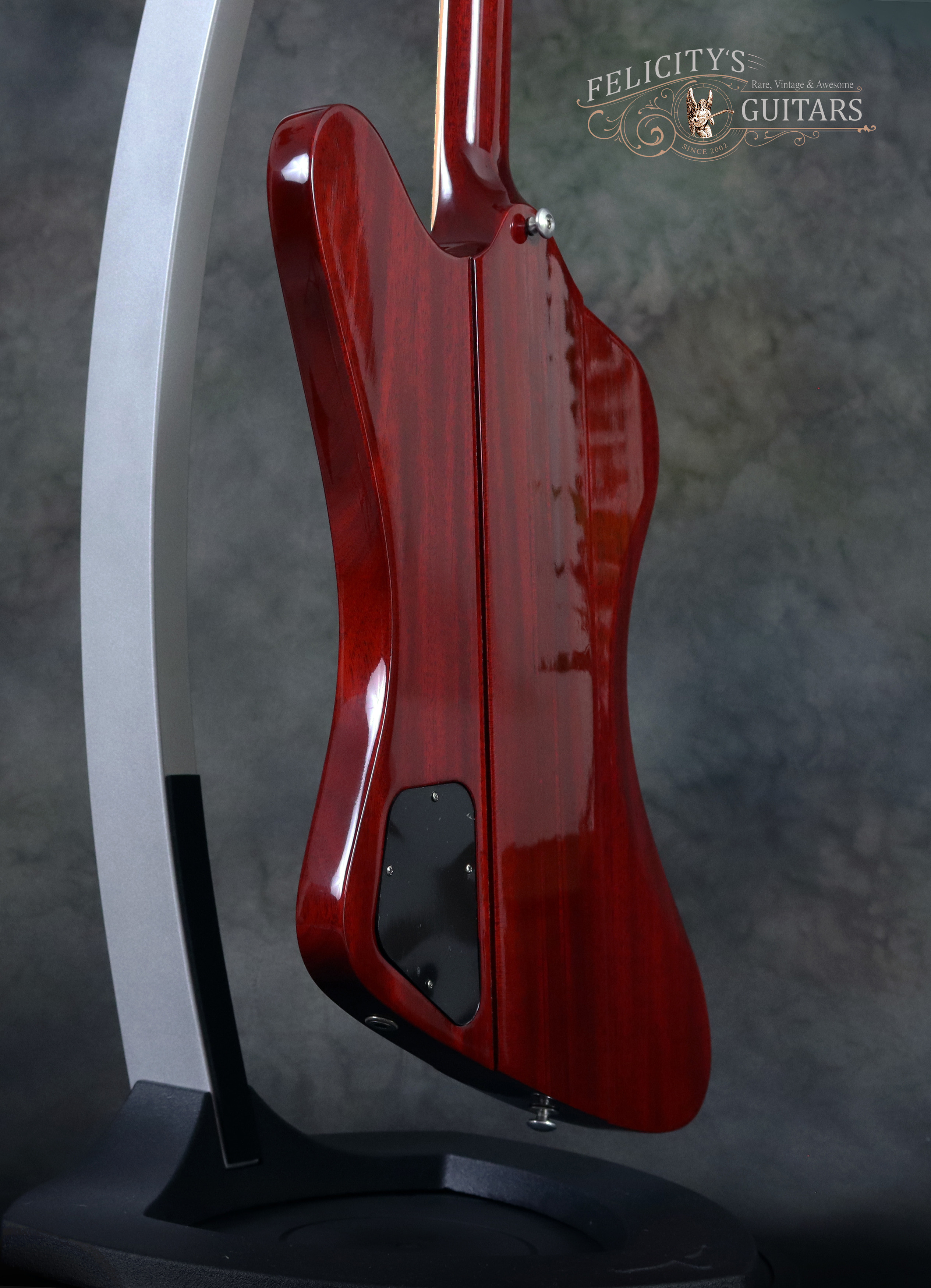

Body Carve	Front: Flat / Back: Waist Contour
Body Material	2-pc Mahogany
Body Binding	Front: No / Back: No
Weight Relief	No
Materials Used	Franklin Titebond 50
Body Finish Type	High-gloss Nitrocellulose Lacquer
Color	Front: Heritage Cherry / Back and Neck: Heritage Cherry

neck

Neck Material	9-ply Mahogany/Walnut Laminate
Truss Rod	2-way Adjustable
Truss Rod Cover	1-ply Black, Reverse Firebird Style with Gold Silkscreen Gibson Logo

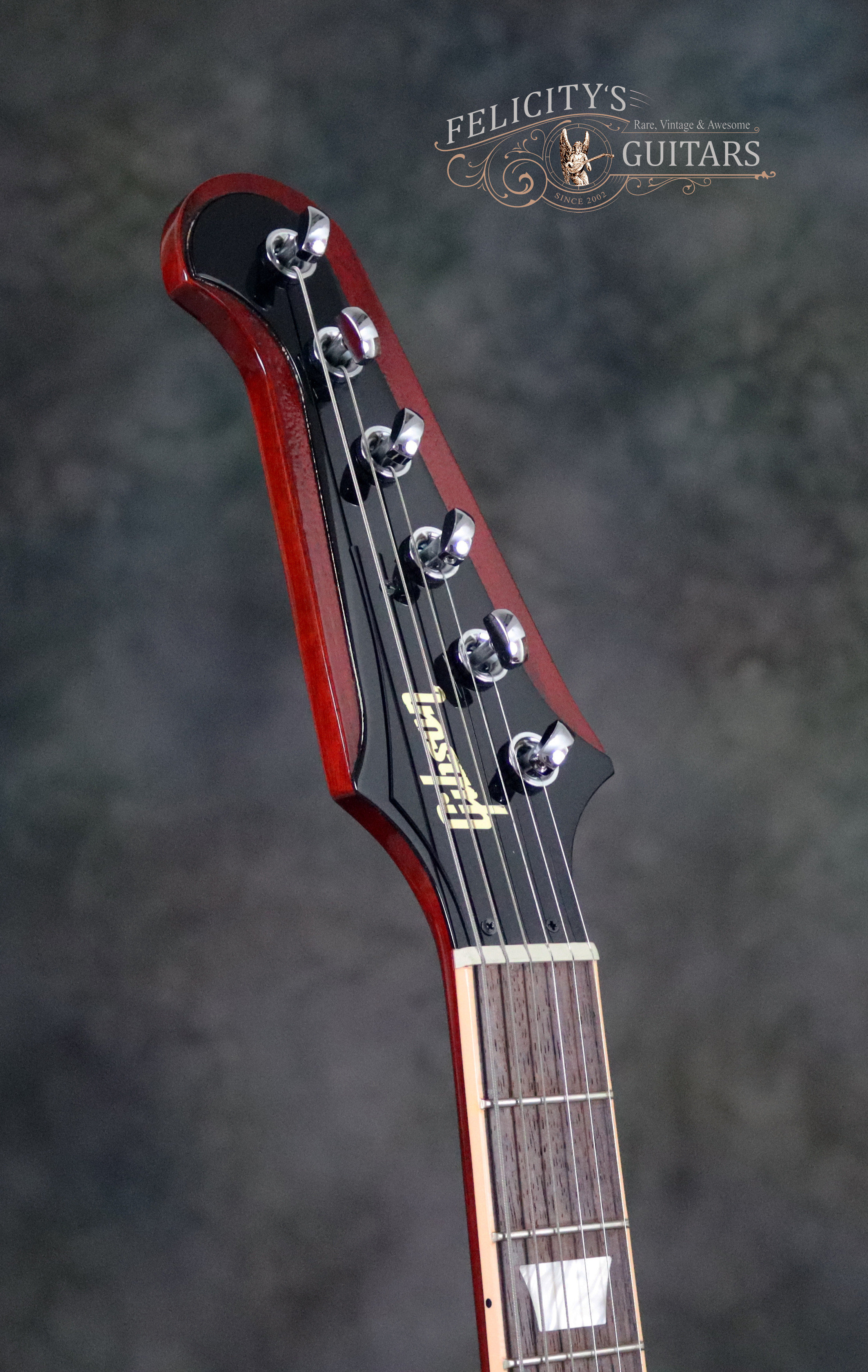

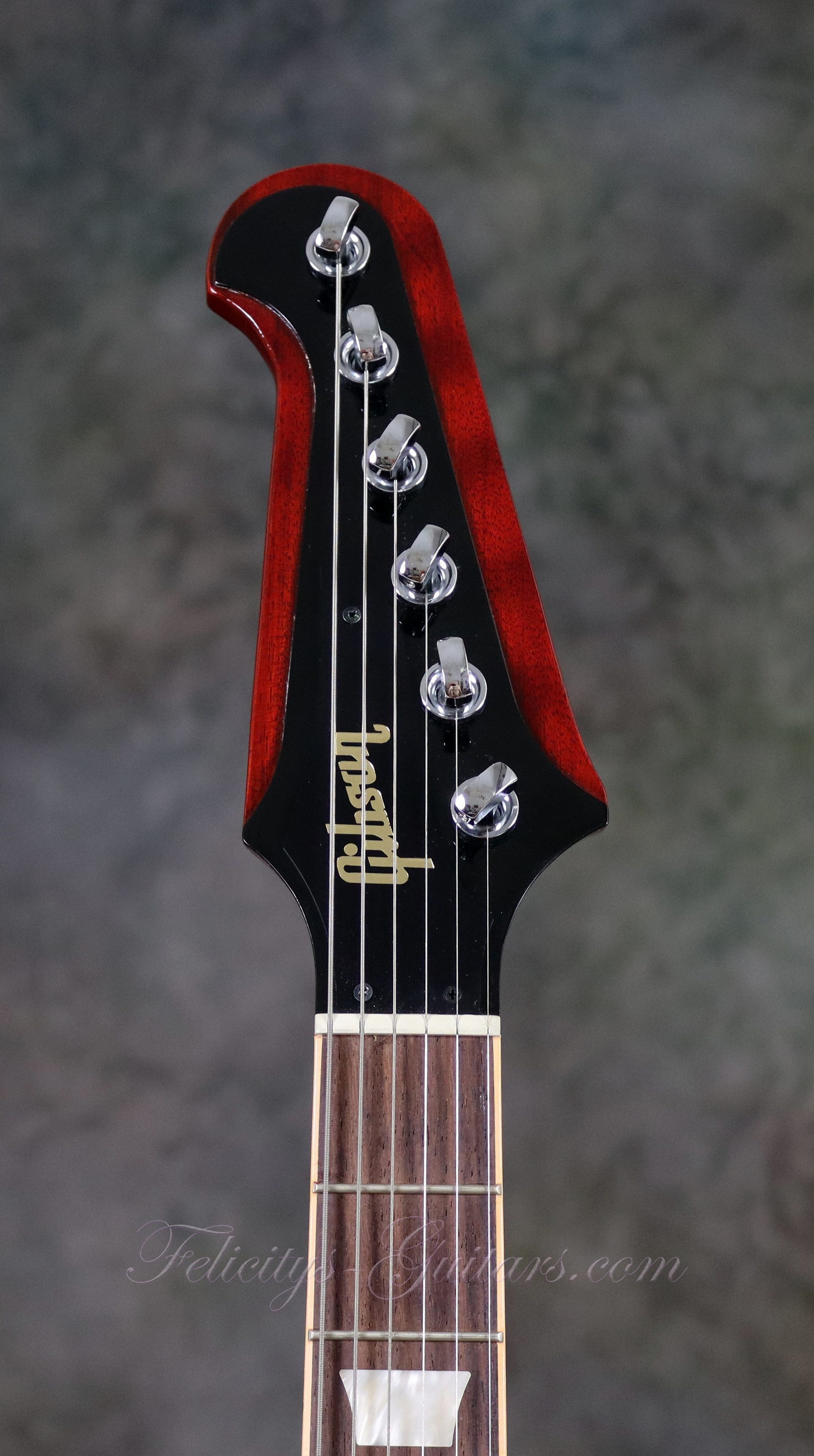

Peghead Particulars	Front: 1-ply Black, Reverse Firebird Style with Gold Silkscreen Gibson Logo

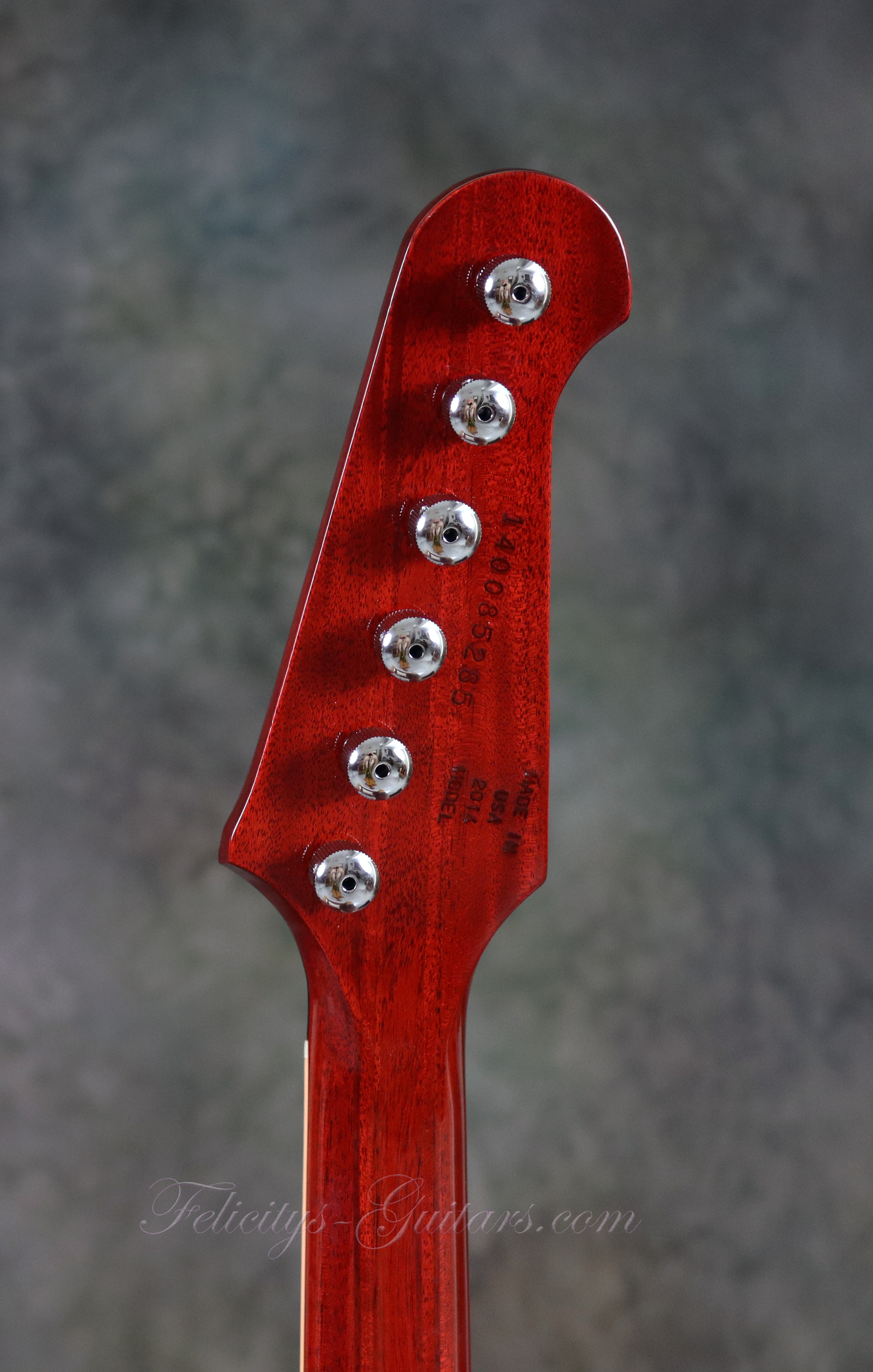

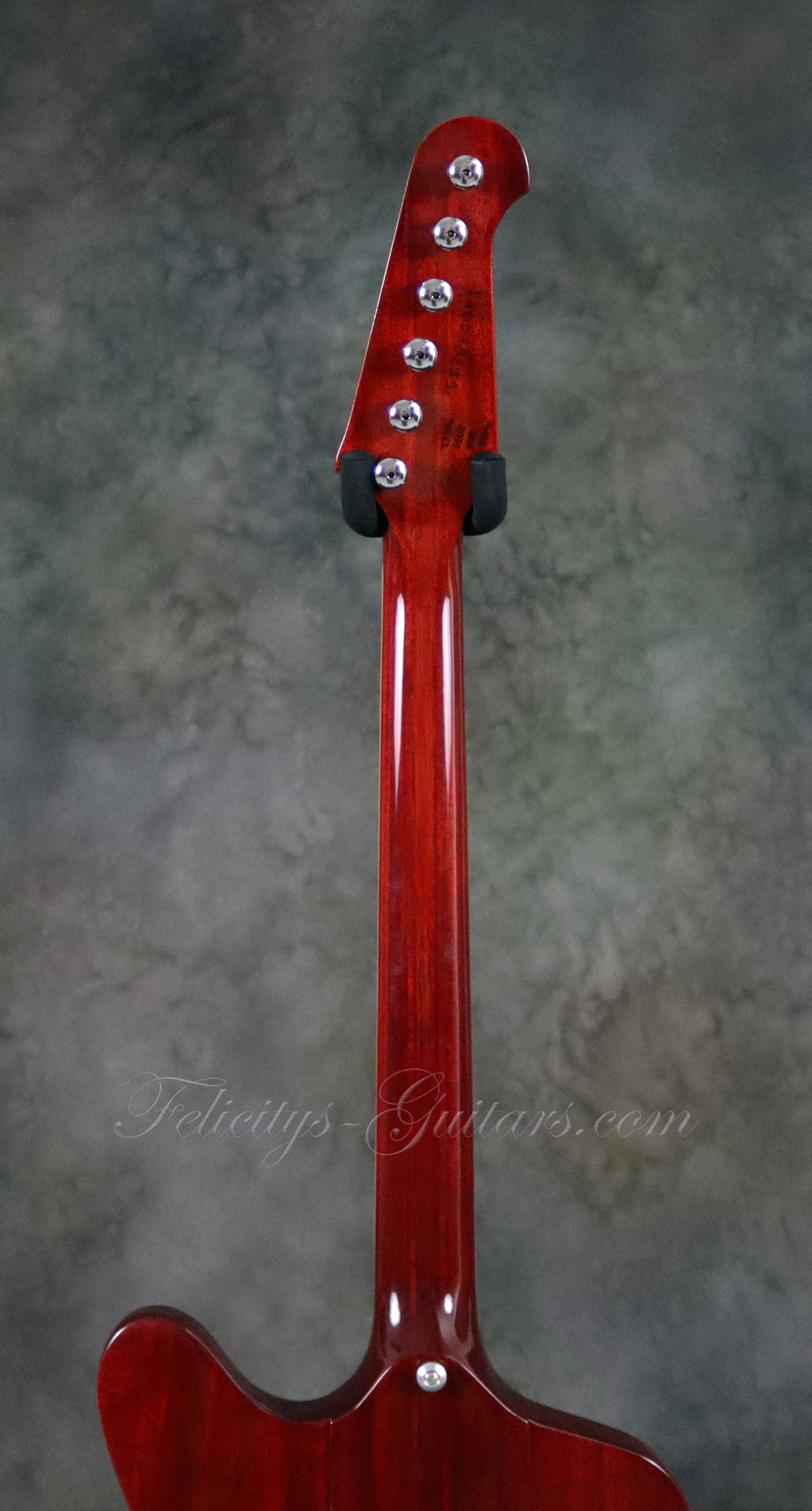

	Back: Wood-stamped ‘Made in U.S.A. 2014 Model’ and Serial Number
Neck Profile	Slim ‘C’ Taper
Fingerboard Material	Rosewood
Fingerboard Radius	12”
Scale Length	24.75"

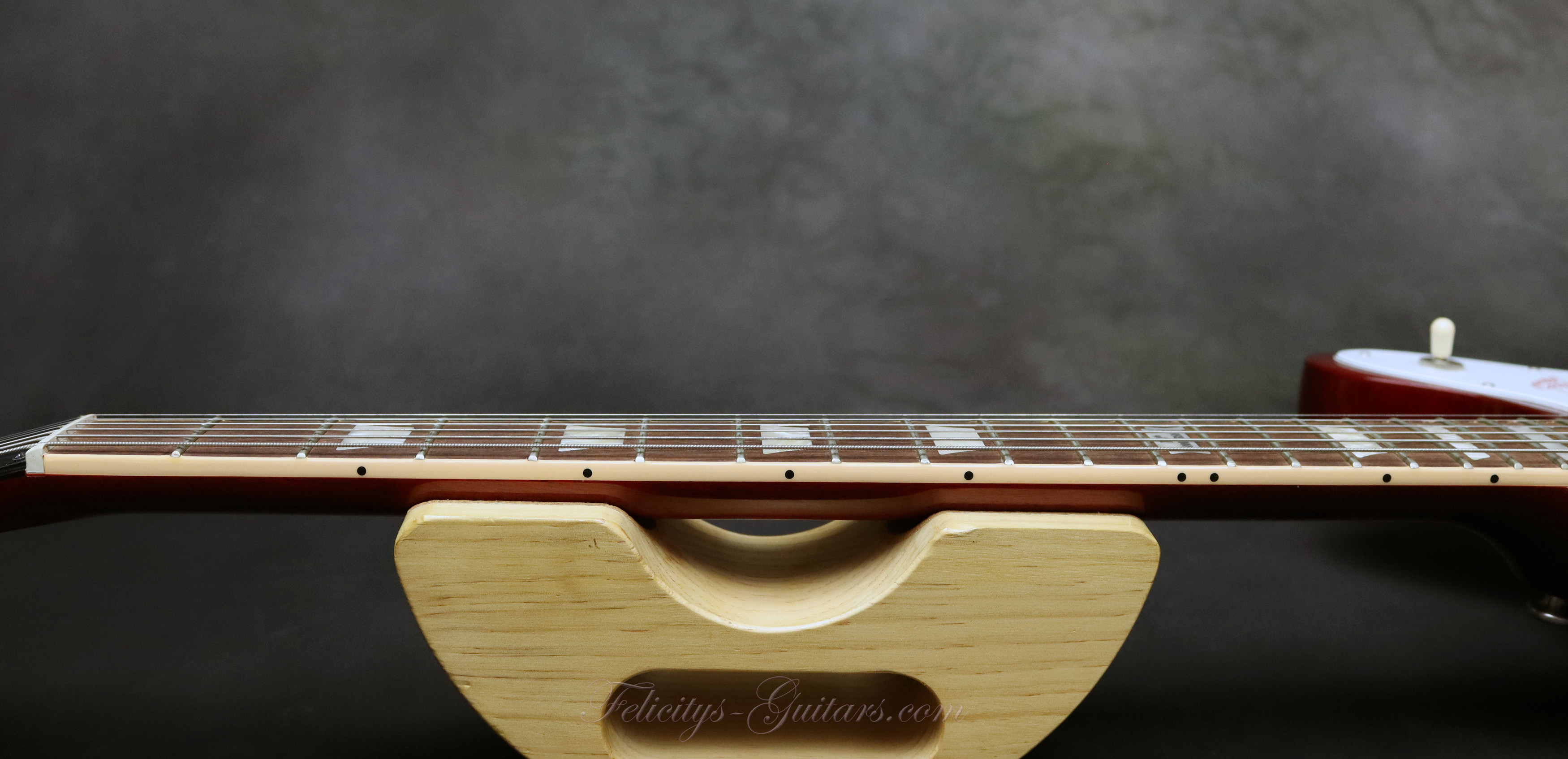

No. Frets / Type	22 Medium – Undercut Fret-Over Binding
Nut Size / Material	1.695" / Plek’d White Tektoid

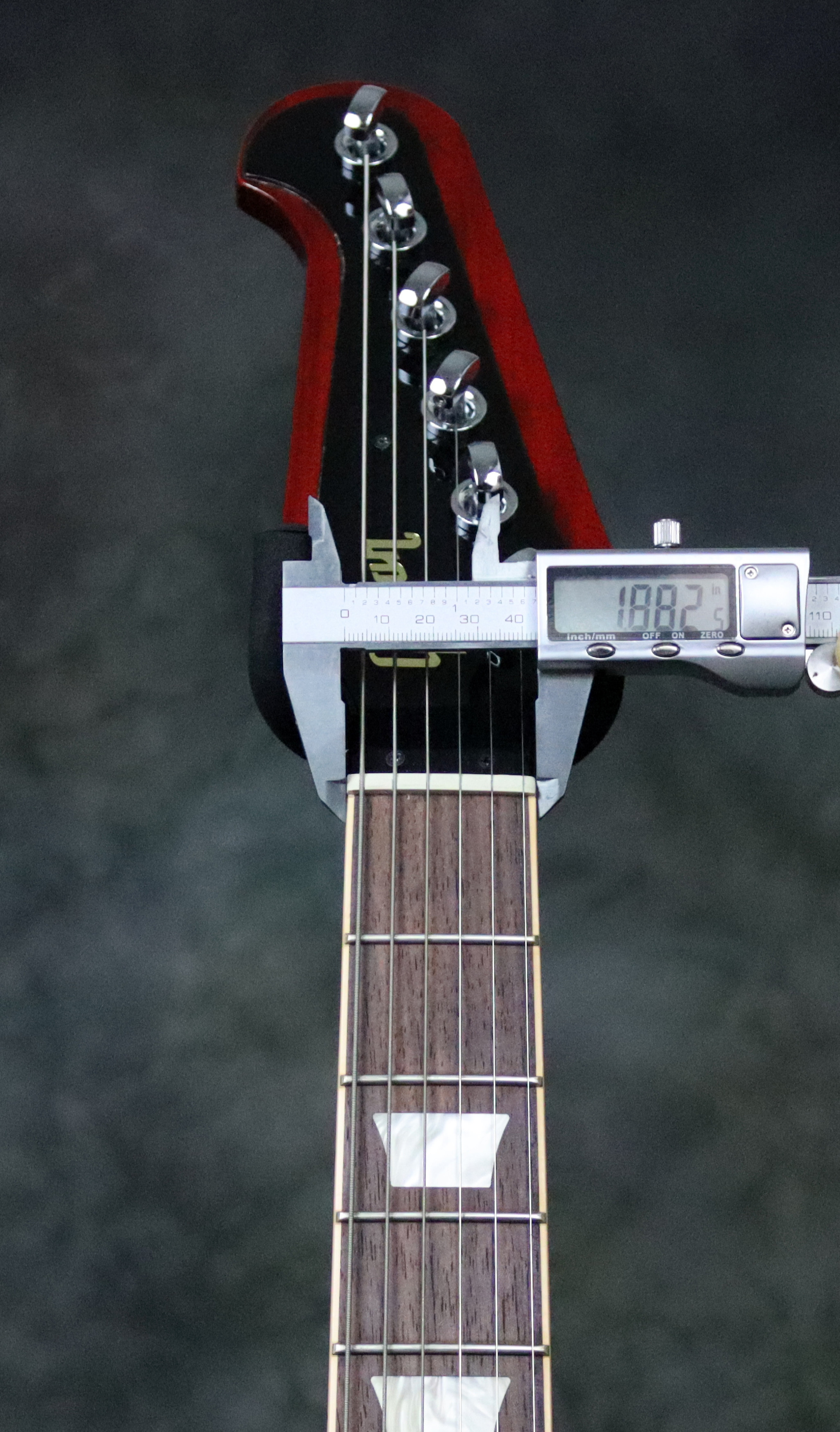

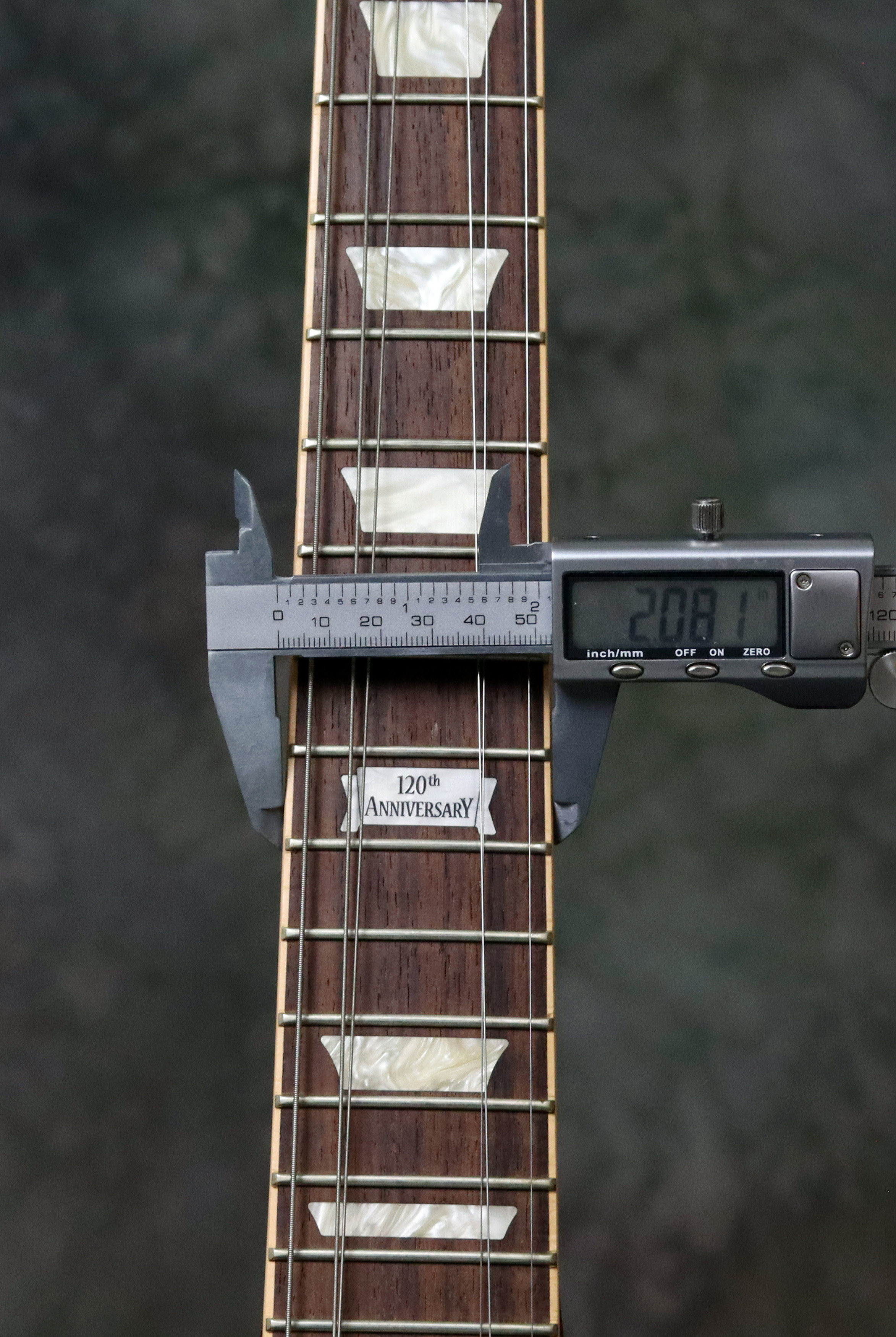

Neck Width	1.882” at 1st fret / 2.081" at 12th fret
Neck Depth	0.800” at 1st fret / 0.860" at 12th fret

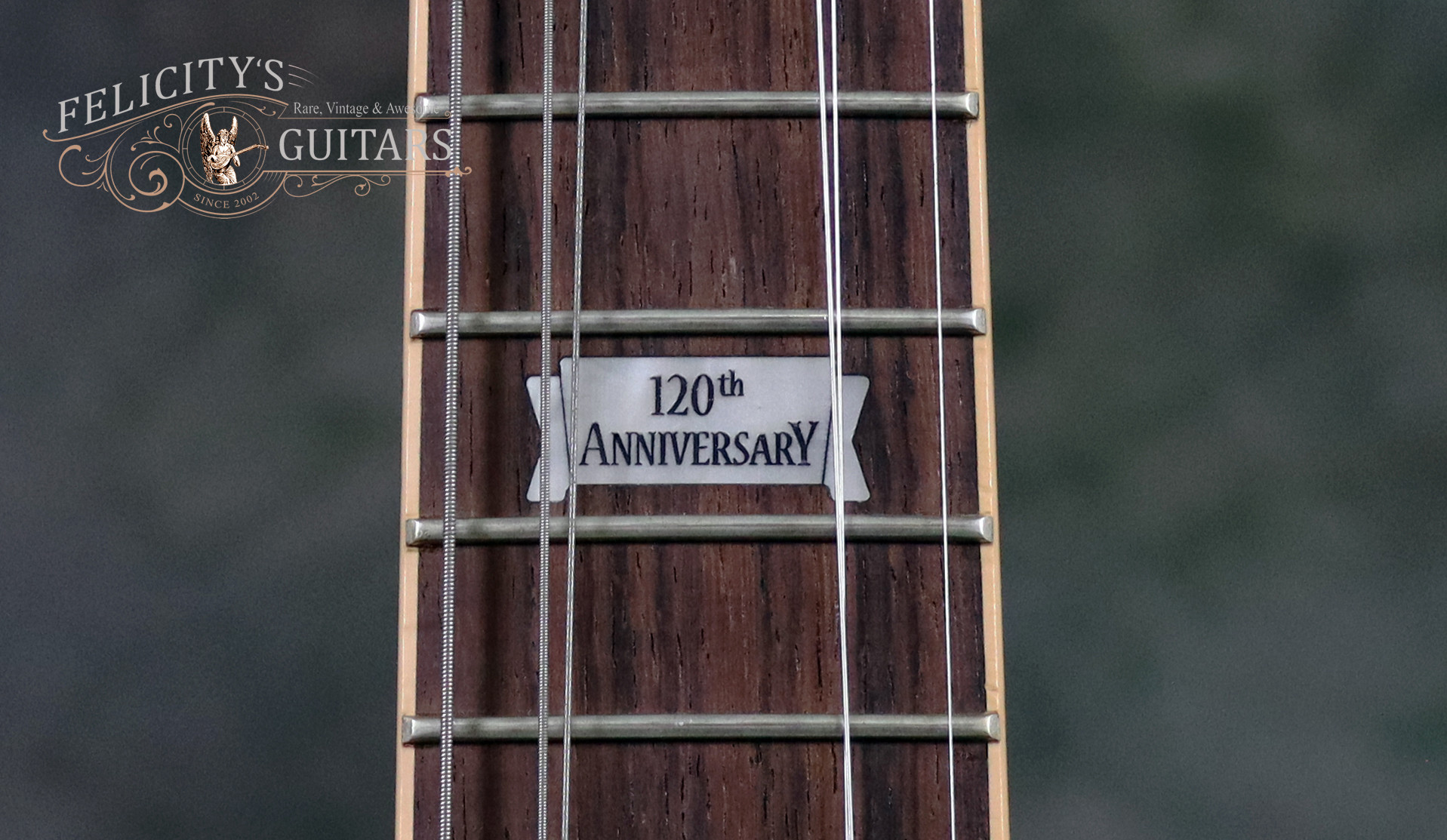

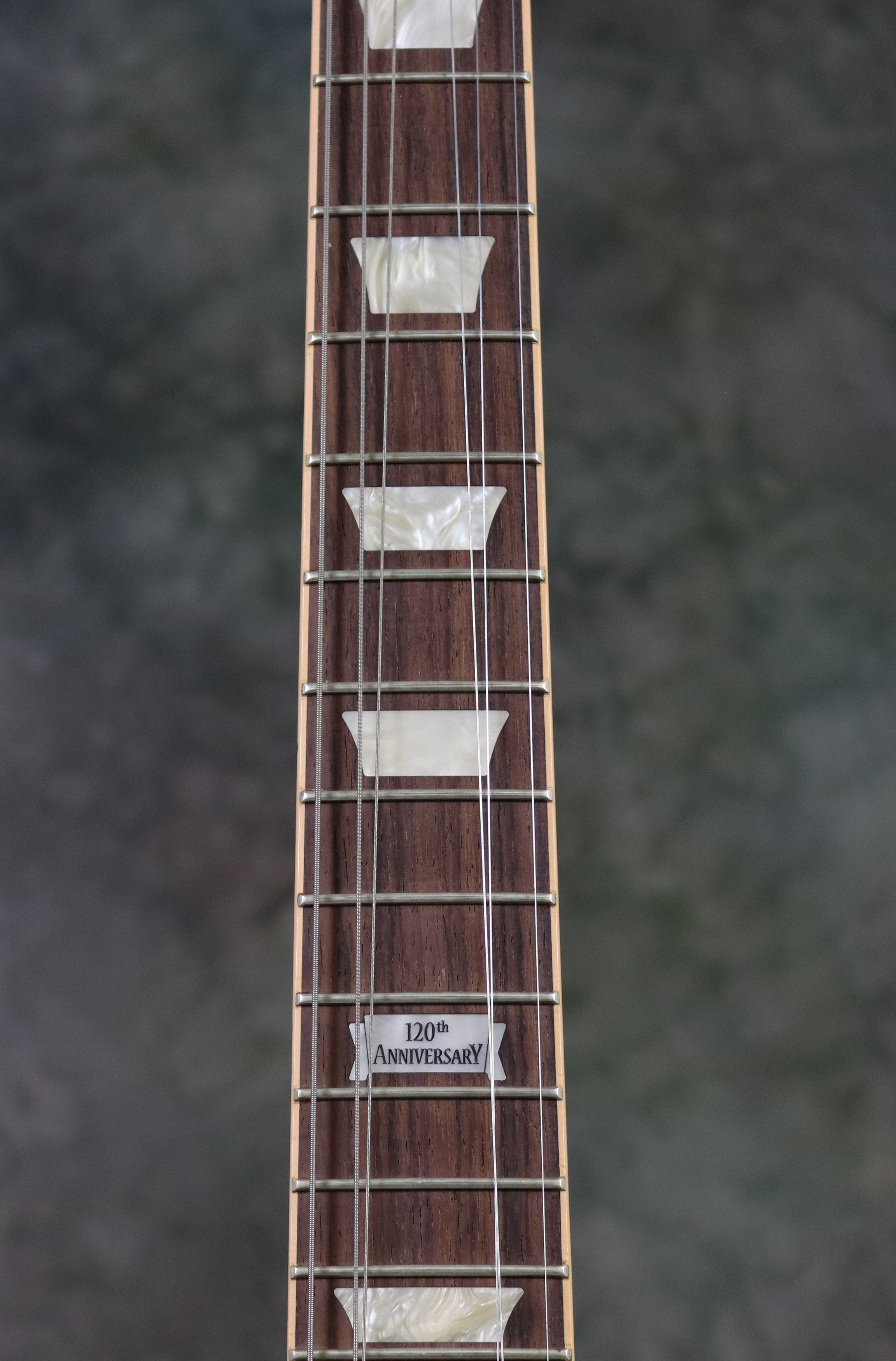

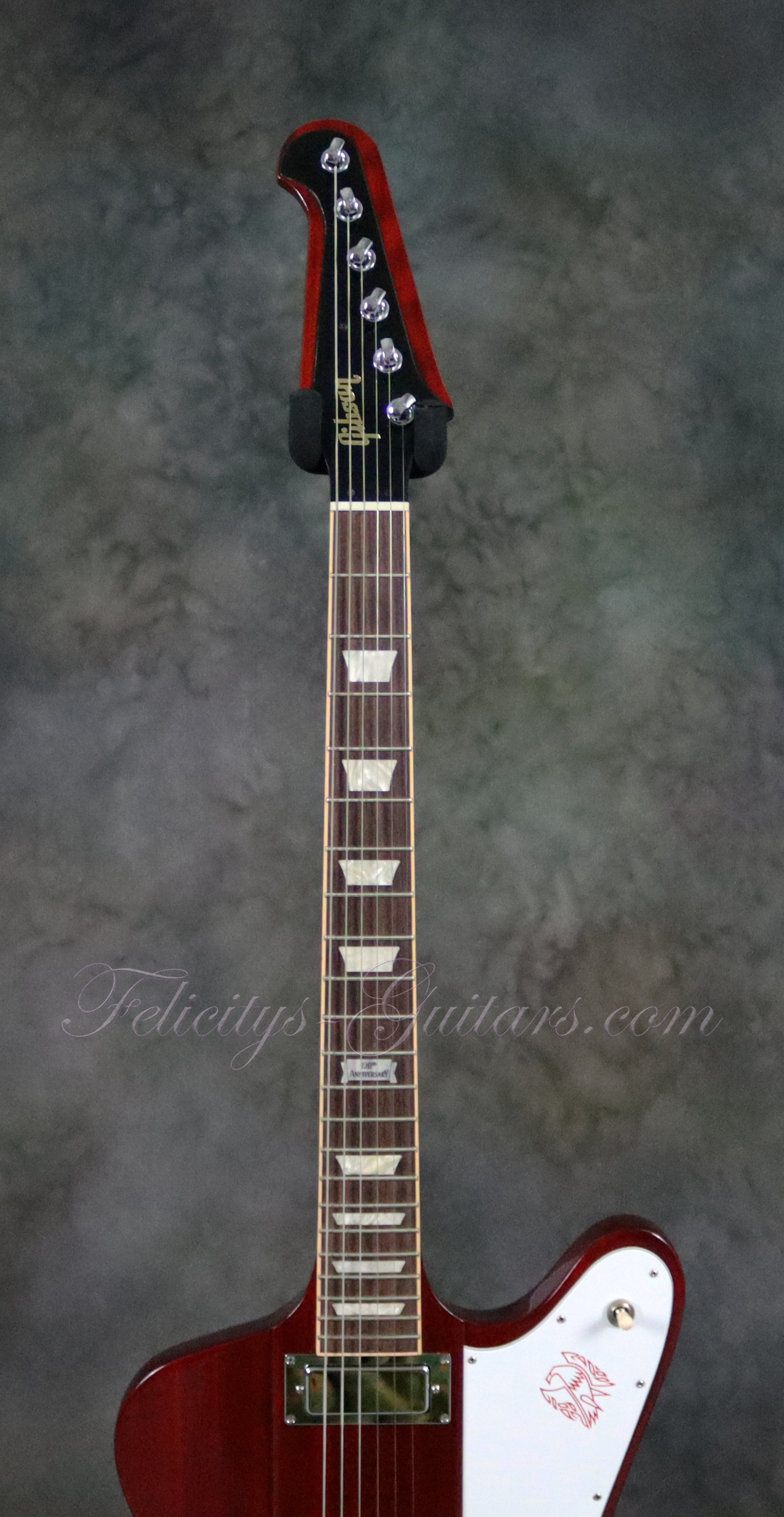

Fingerboard Inlays	Acrylic MOP ‘Trapezoids with ‘120th Anniversary’ Banner Inlay at 12th fret
Neck Binding	White
Side Dots	Black
Neck Joint	Neck-thru-Body, Franklin Titebond 50

hardware

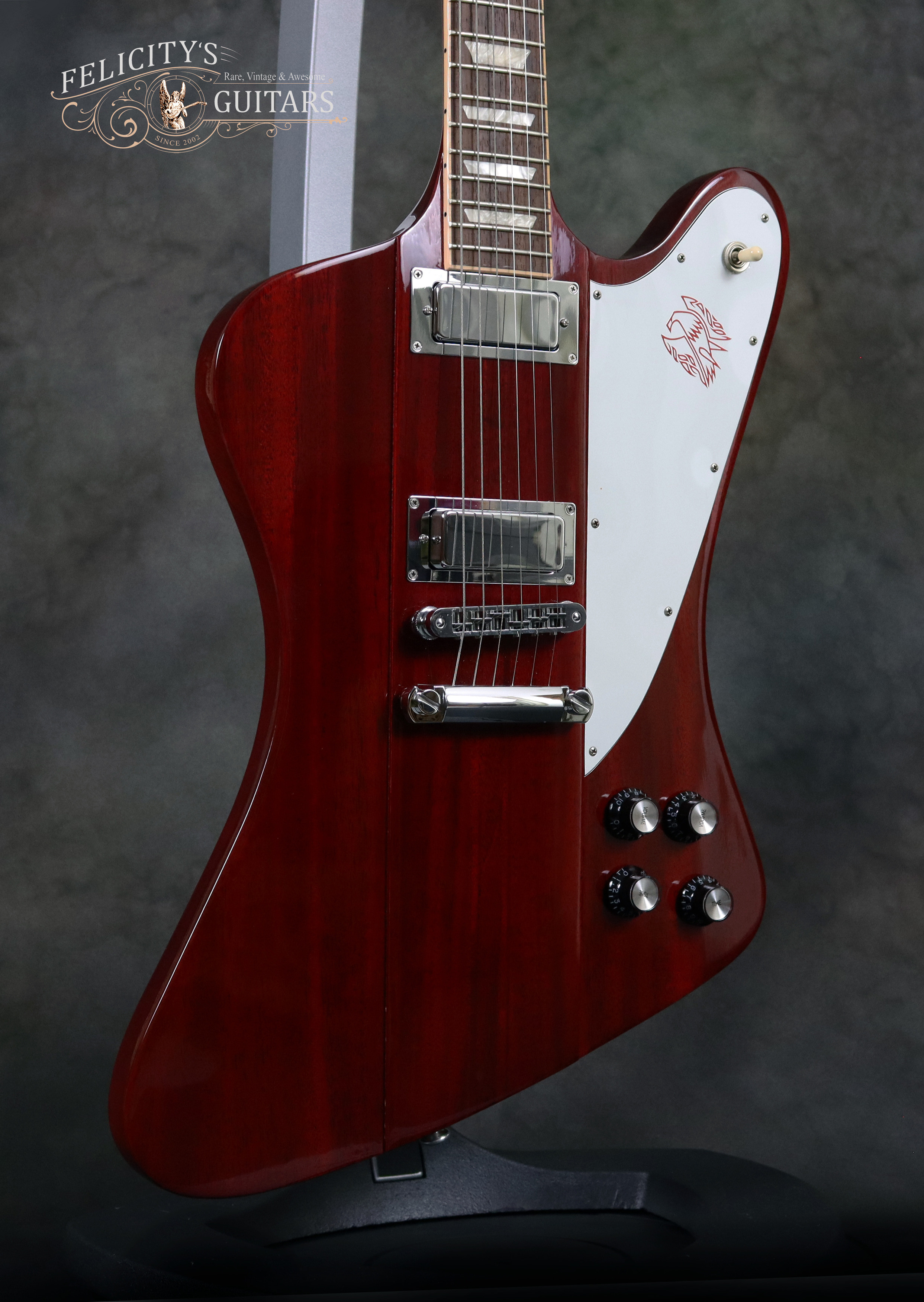

Bridge	Chrome, Aluminum Tune-O-Matic
Tailpiece / Tremolo	Chrome, Aluminum Stop Bar

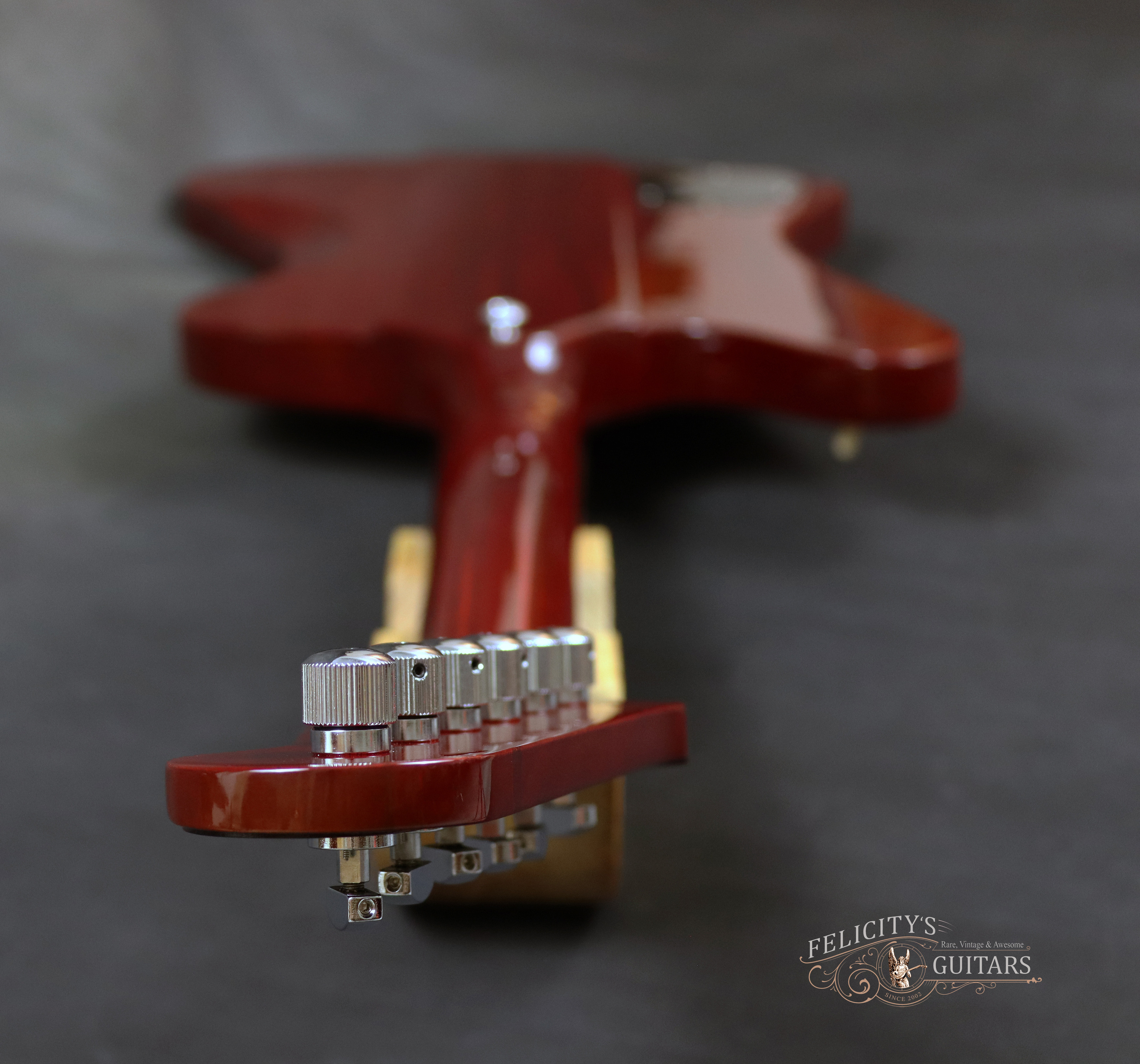

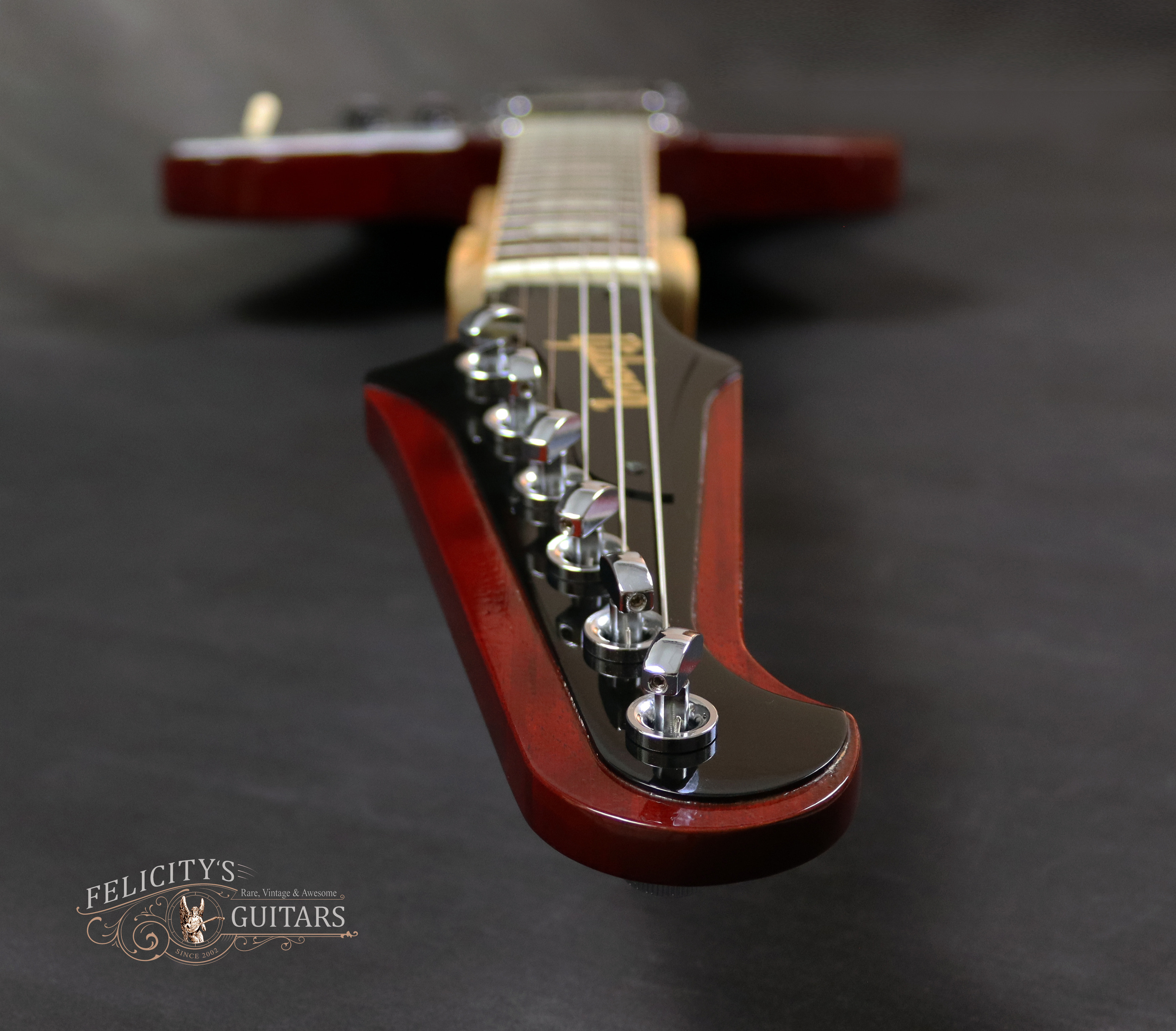

Tuning Machines	Chrome, Steinberger Gearless, 40:01 Ratio
Pickup Cover / Ring	Chrome, with Chrome Rings fixed to Body & no Seats
Strap Buttons	Gold, Aluminum End Pins
Pickguard	3-ply W/B/W with Hot Stamped Red Firebird Emblem
Control Knobs	Black Top Hats with Silver Inserts and no Dial Pointers
Switch	3-position, White Tip, No Plastic Washer

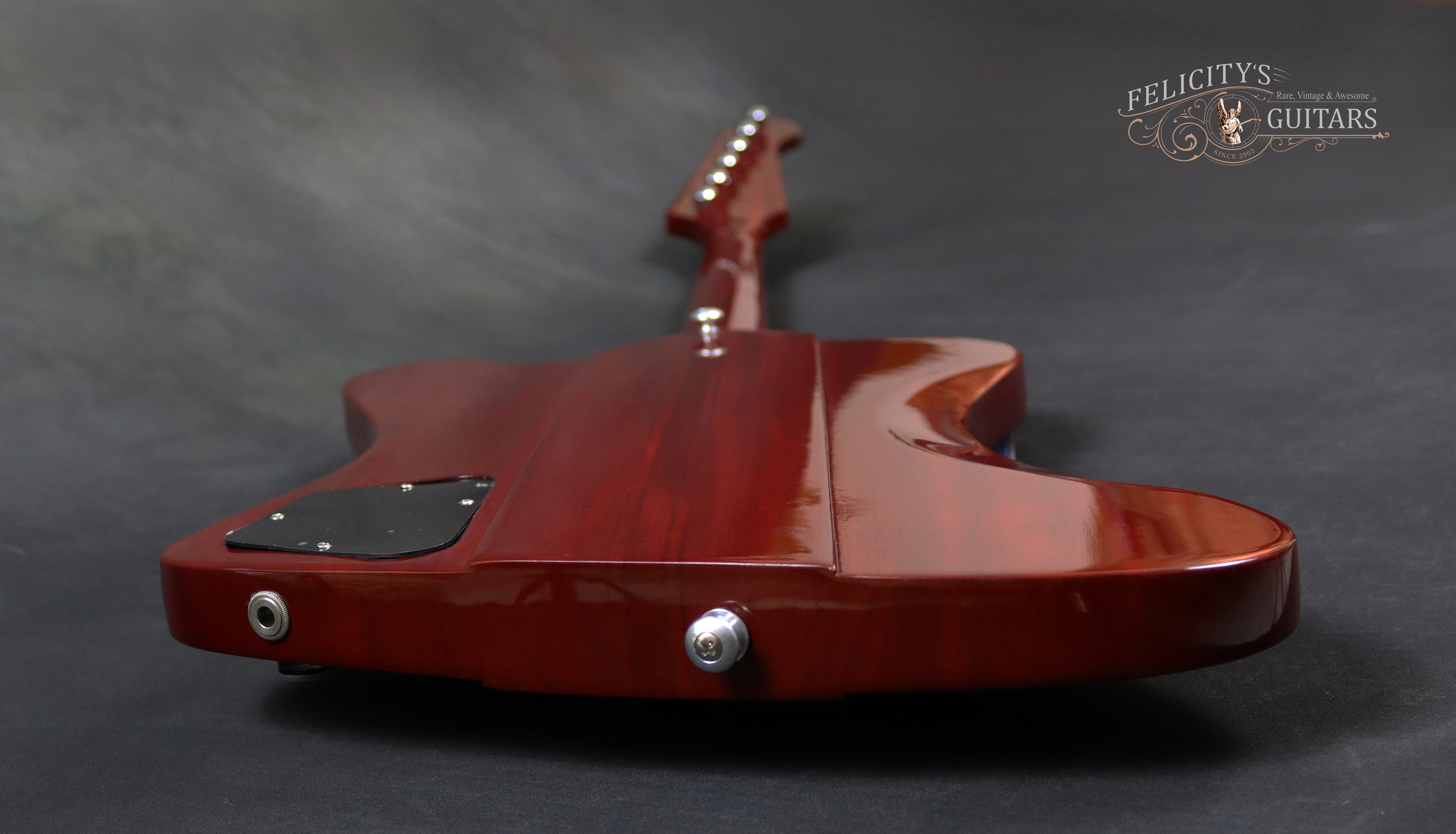

Output Jack	1/4" Barrel Jack in Rim − moved from traditional location at front

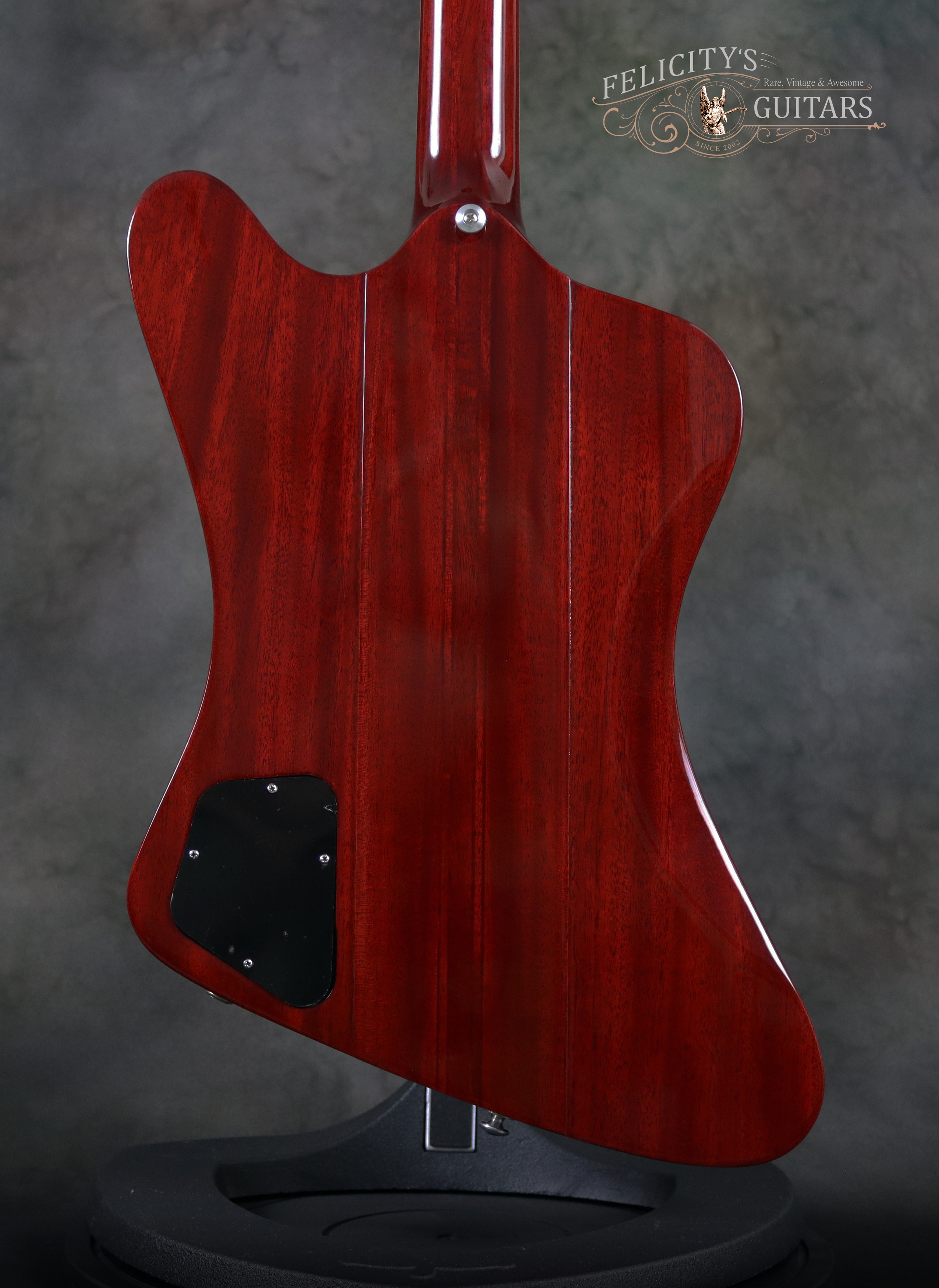

Back Plates	Black Plastic Harness Covers

electronics

Bridge Pickup	495T Mini-Humbucker, Dual-ceramic, 24.8k
Middle Pickup	No
Neck Pickup	495R Mini-Humbucker, Dual-ceramic, 15.8k
Active / Passive	Passive
Series / Parallel	Series
Controls	2 Volume, 2 Tone, 3-way Pickup Selector Toggle Switch
Vol Potentiometer	500k
Tone Potentiometer	500k
Capacitors	.023uF Values Blue Ceramic

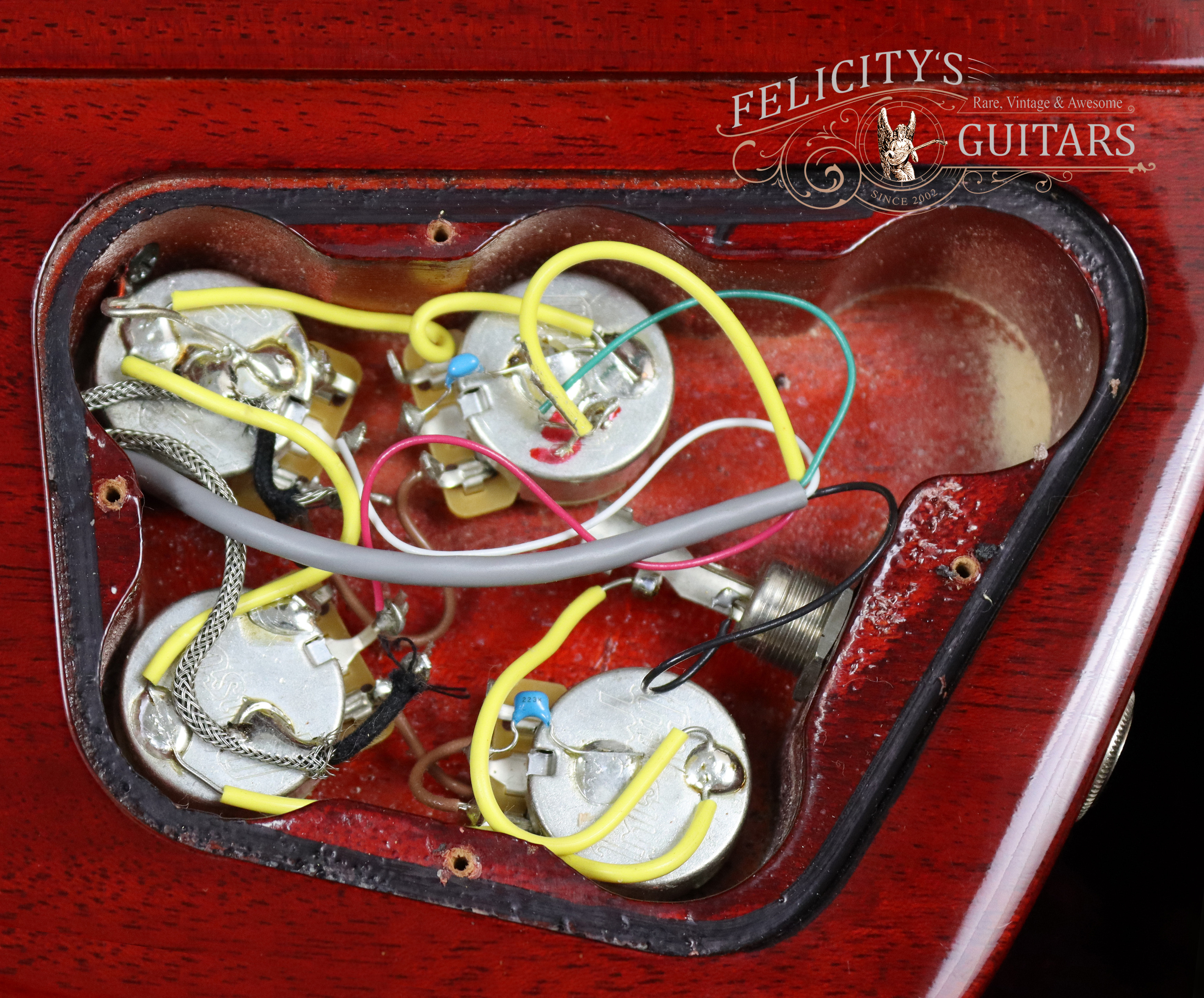

Harness	Gibson Firebird Standard in Rear-access Cavity with Cover
Push-pull	No
Piezo	No
Active EQ	No
Kill switch	No
Output Jack	1/4" 2-Conductor Mono

miscellaneous

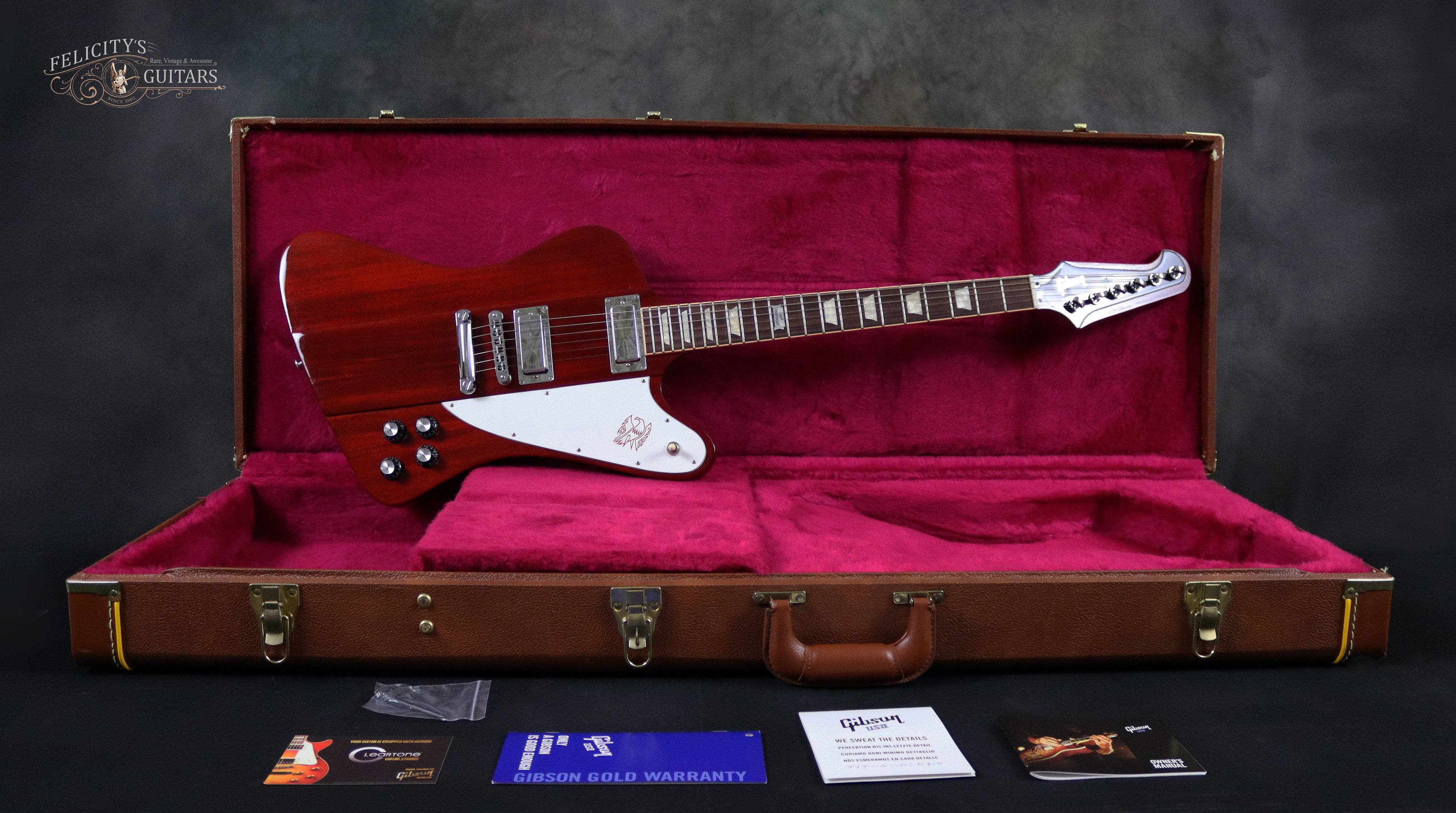

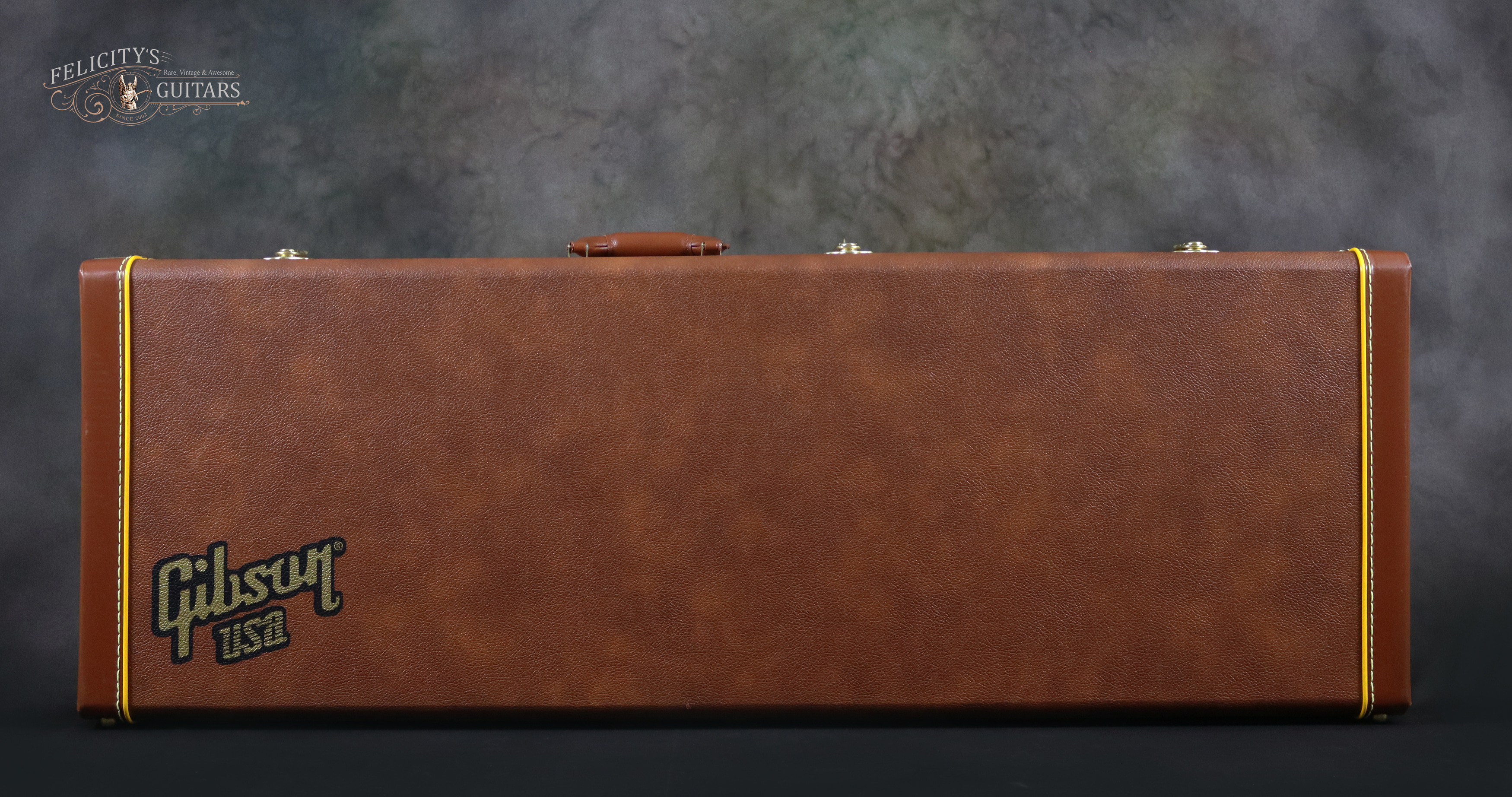

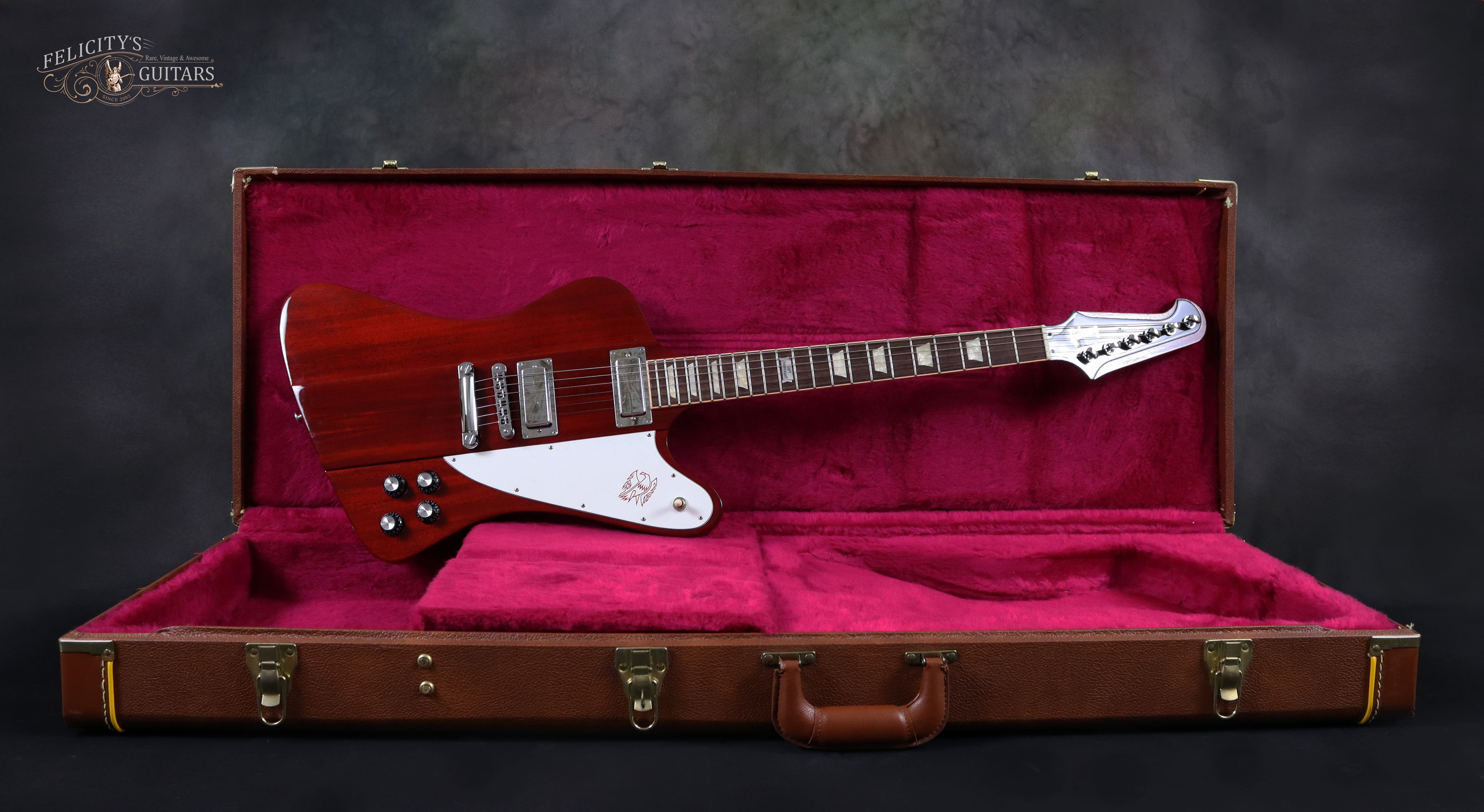

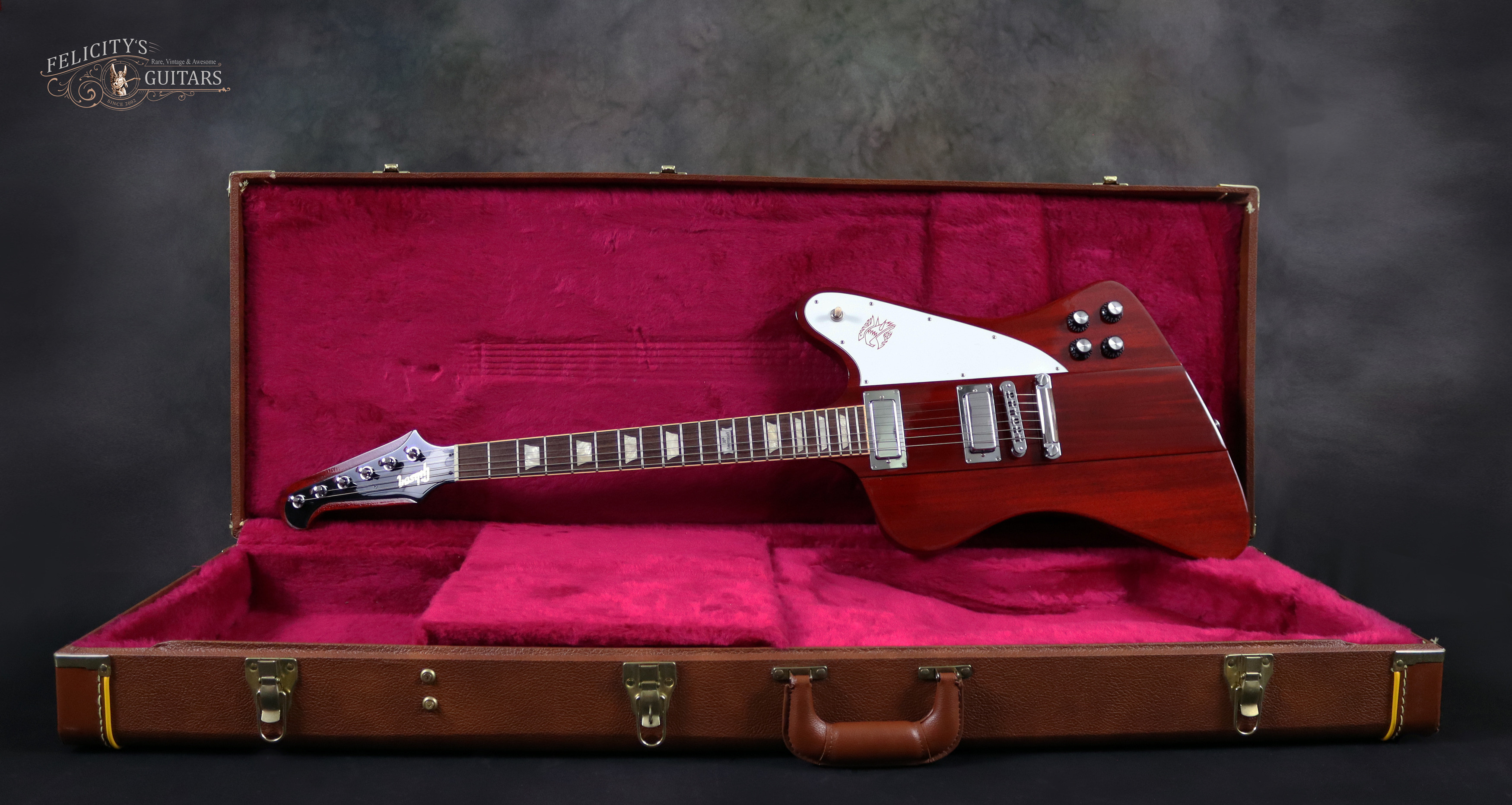

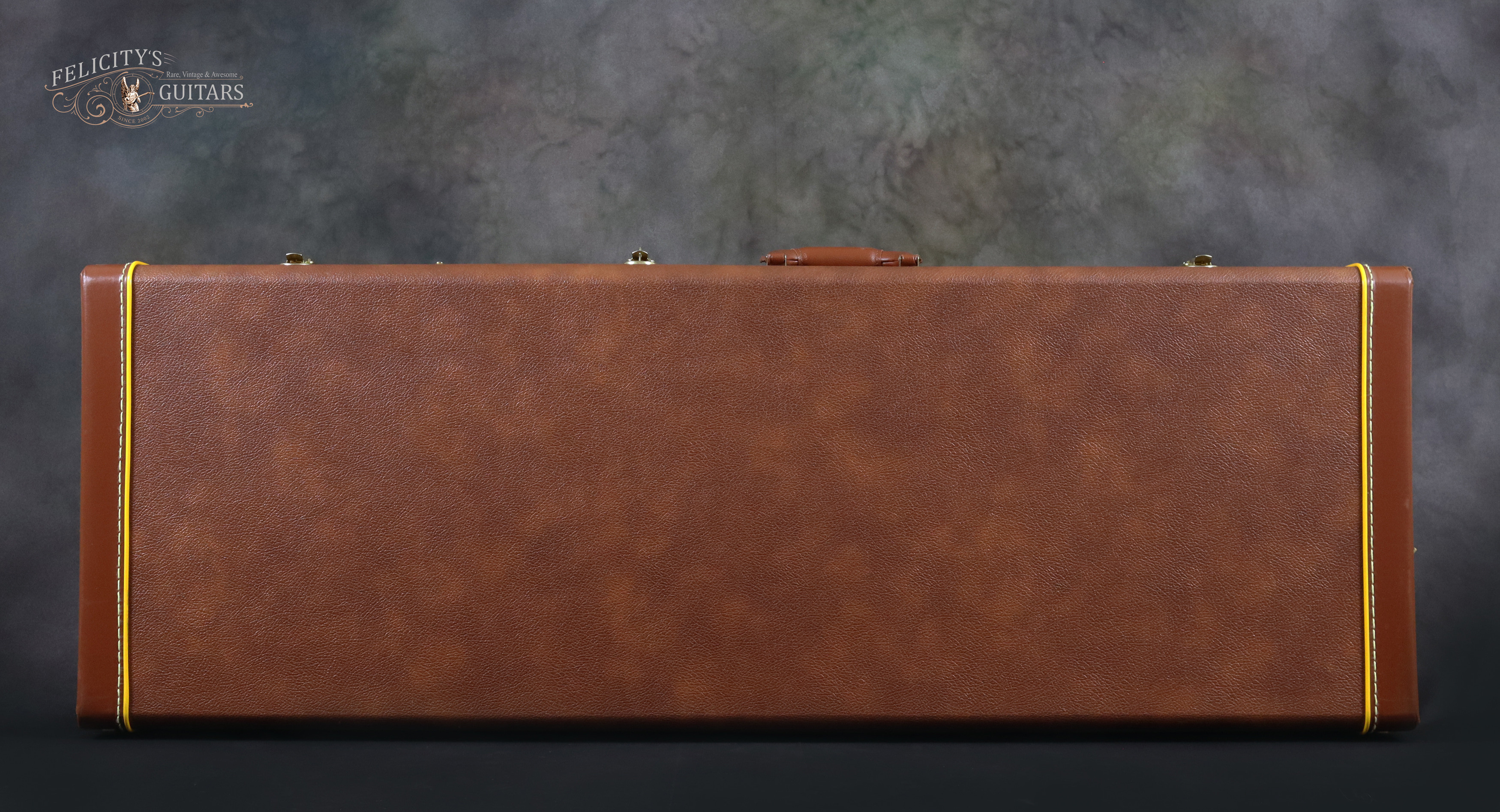

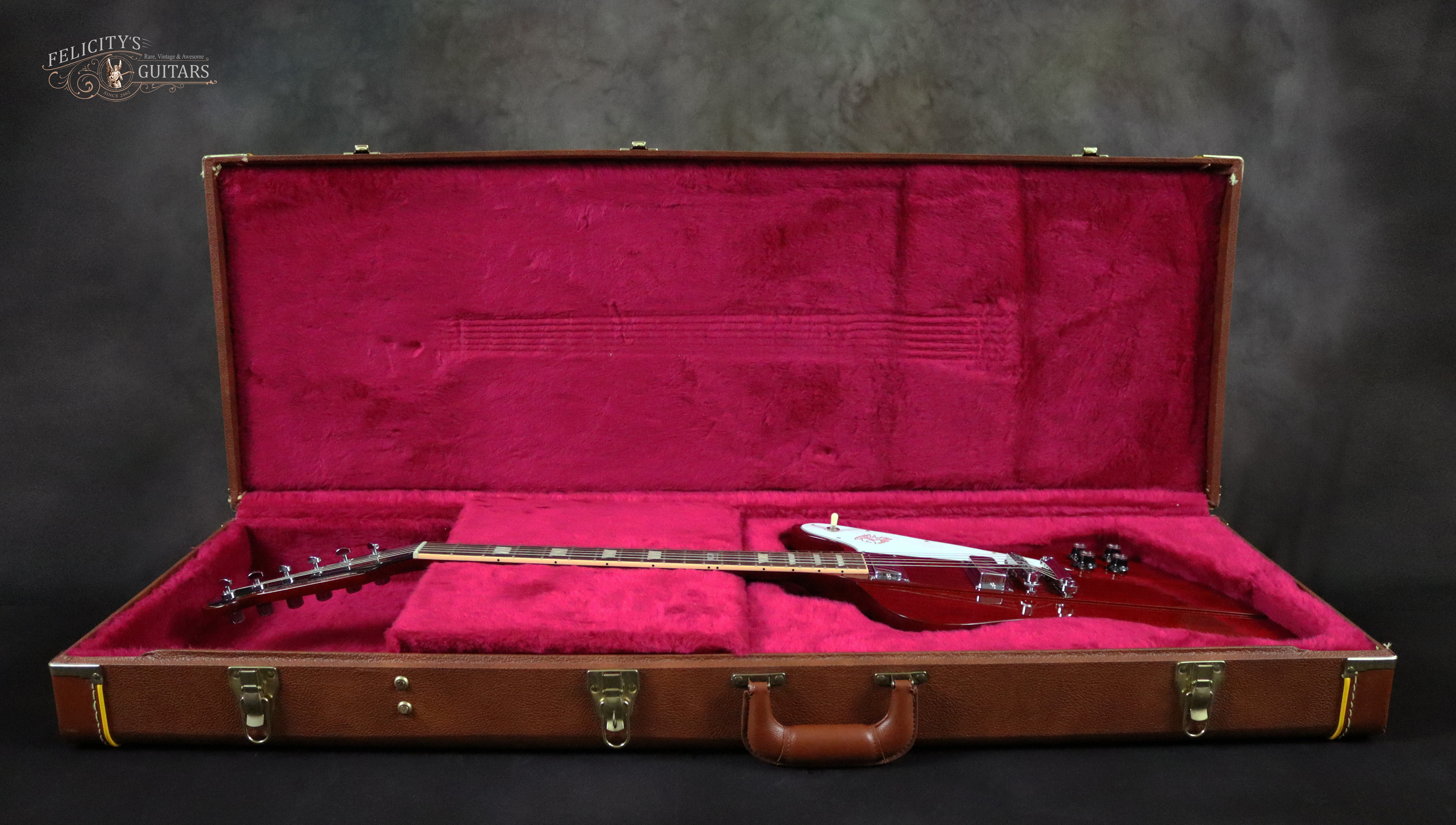

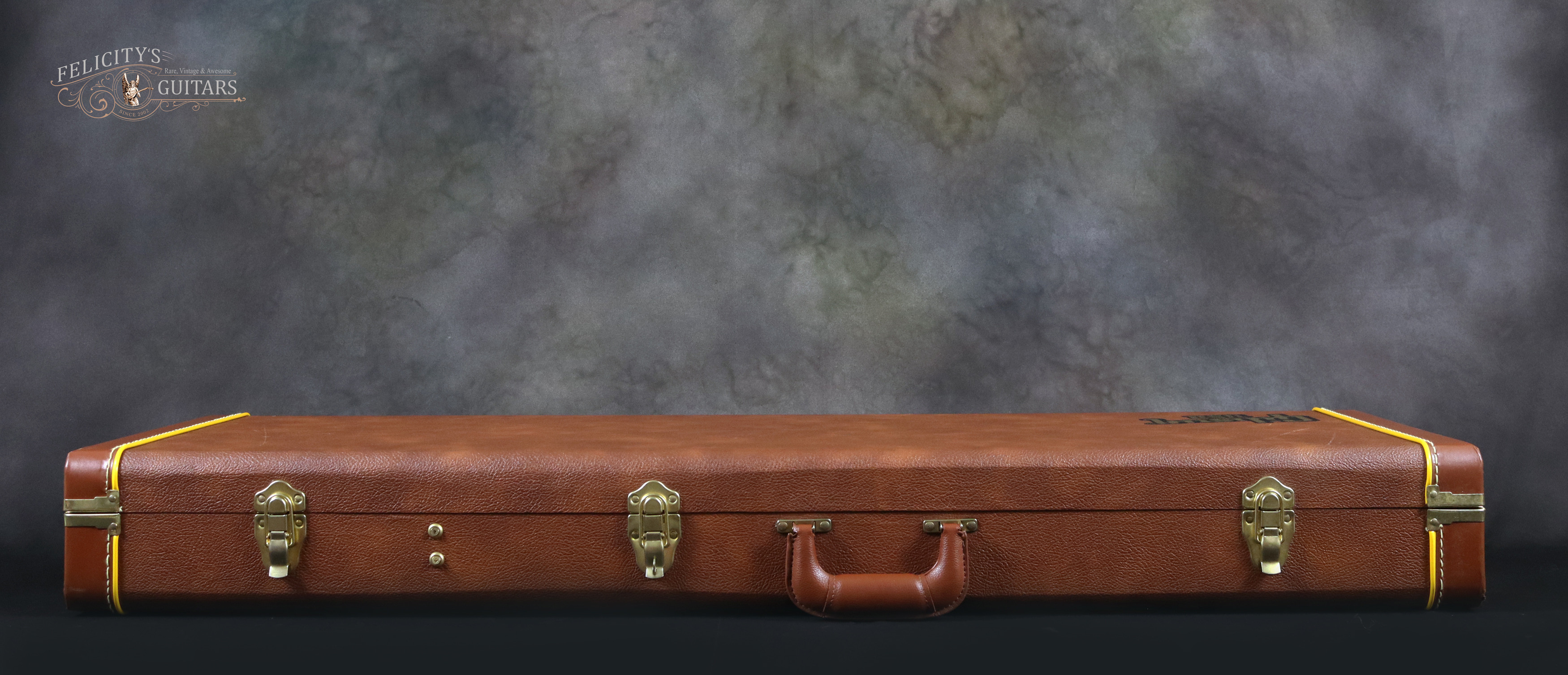

Case / Gigbag	Gibson® U.S.A. Firebird Original Hardshell Case w/lock
Strap Locks	No
Strings	Elixir® Polyweb .010, .012, .016, .026, .036, .046 − Gauges
Tools / Accessories	Truss Rod Wrench / No Accessories
Manual / Literature	Gibson® U.S.A. Owner’s Manual, Gold Warranty Card, No Baby Photo
C.O.A.	None
Other	No
Weight	Is the actual weighed-value in US Standard Units

Disclosure	Certain technical specs may have been extracted from Gibson® website and/or internet archives. The words Gibson® / Steinberger® and the associated designs are registered trademarks of Gibson® Brands, Inc. and the other named manufacturers, if any, respectively.
