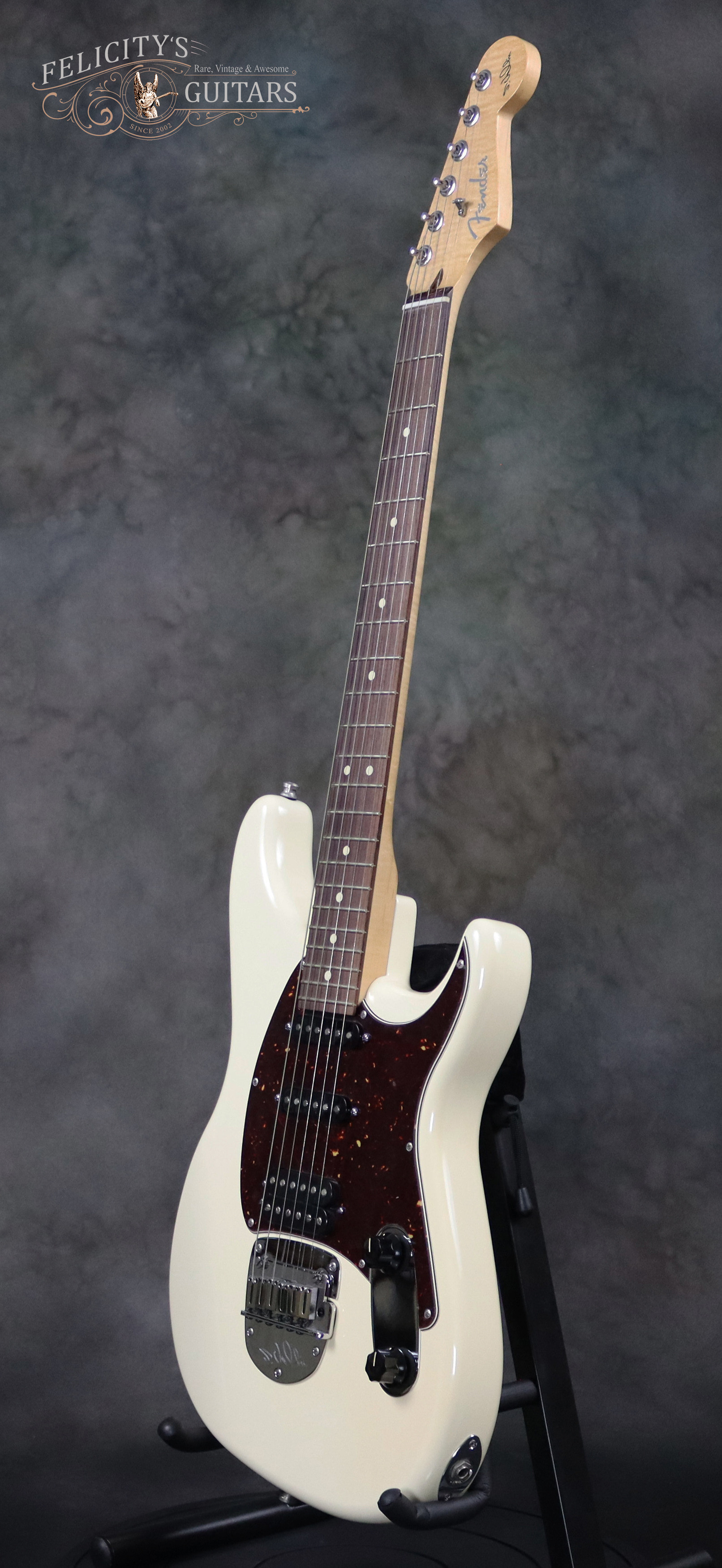

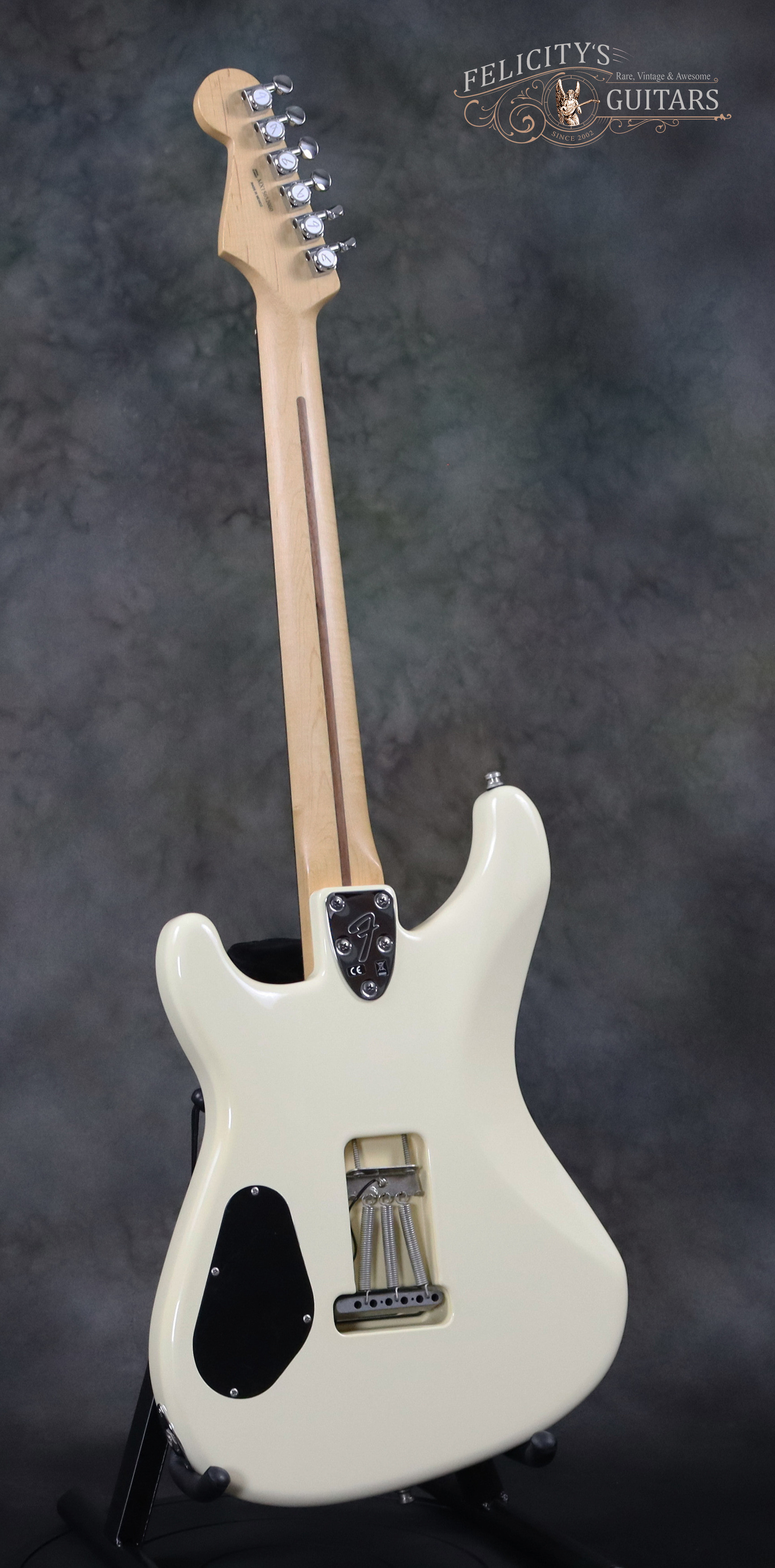

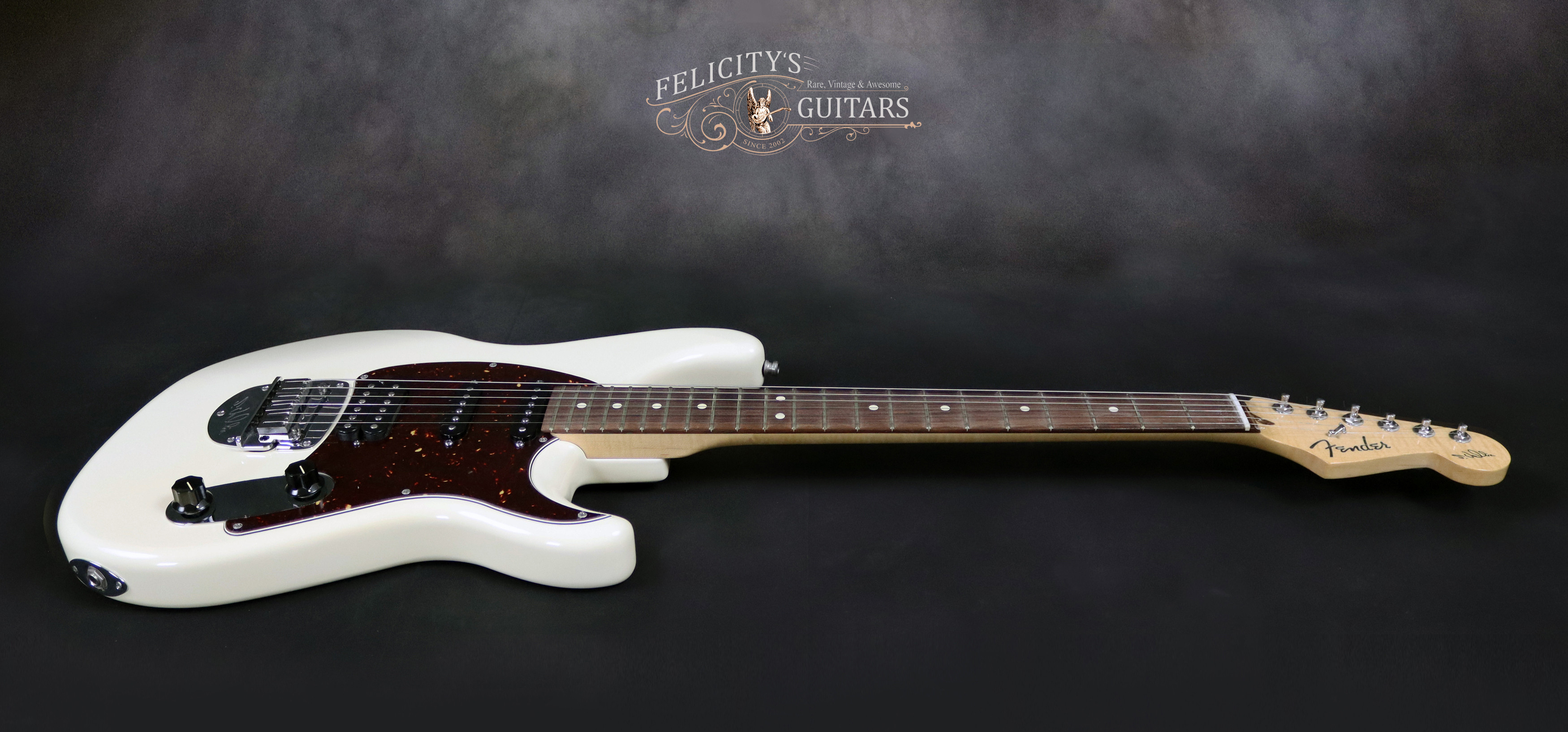

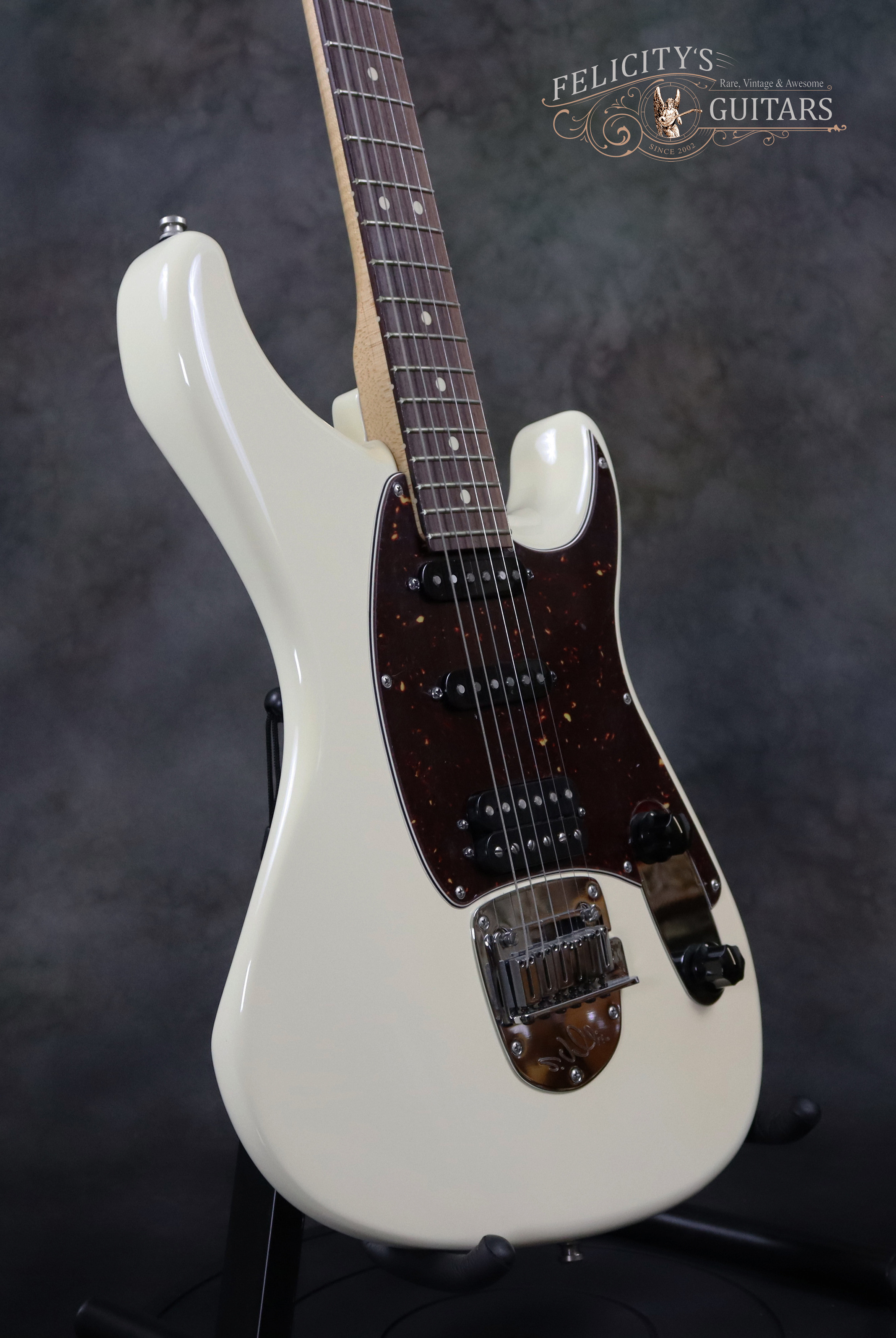

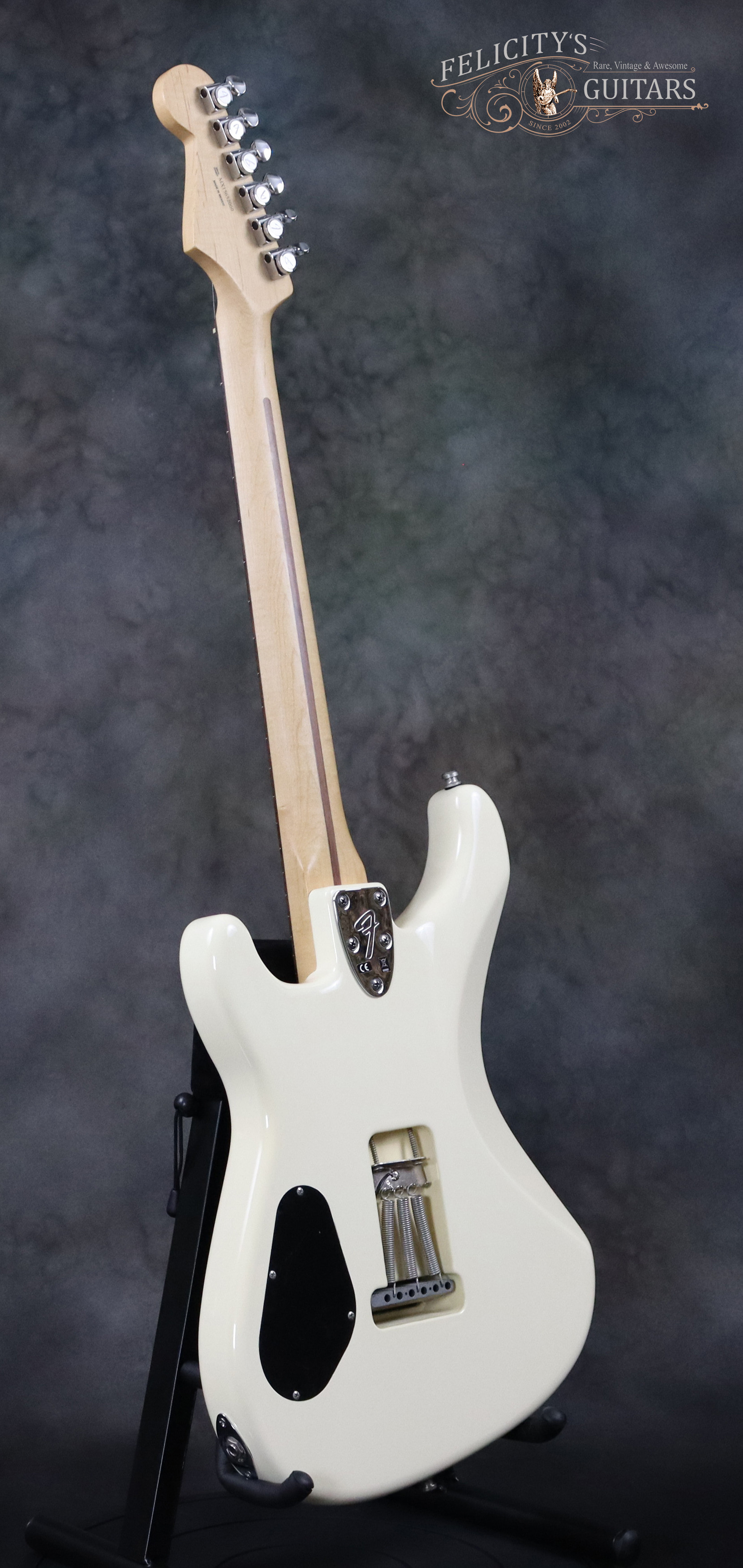

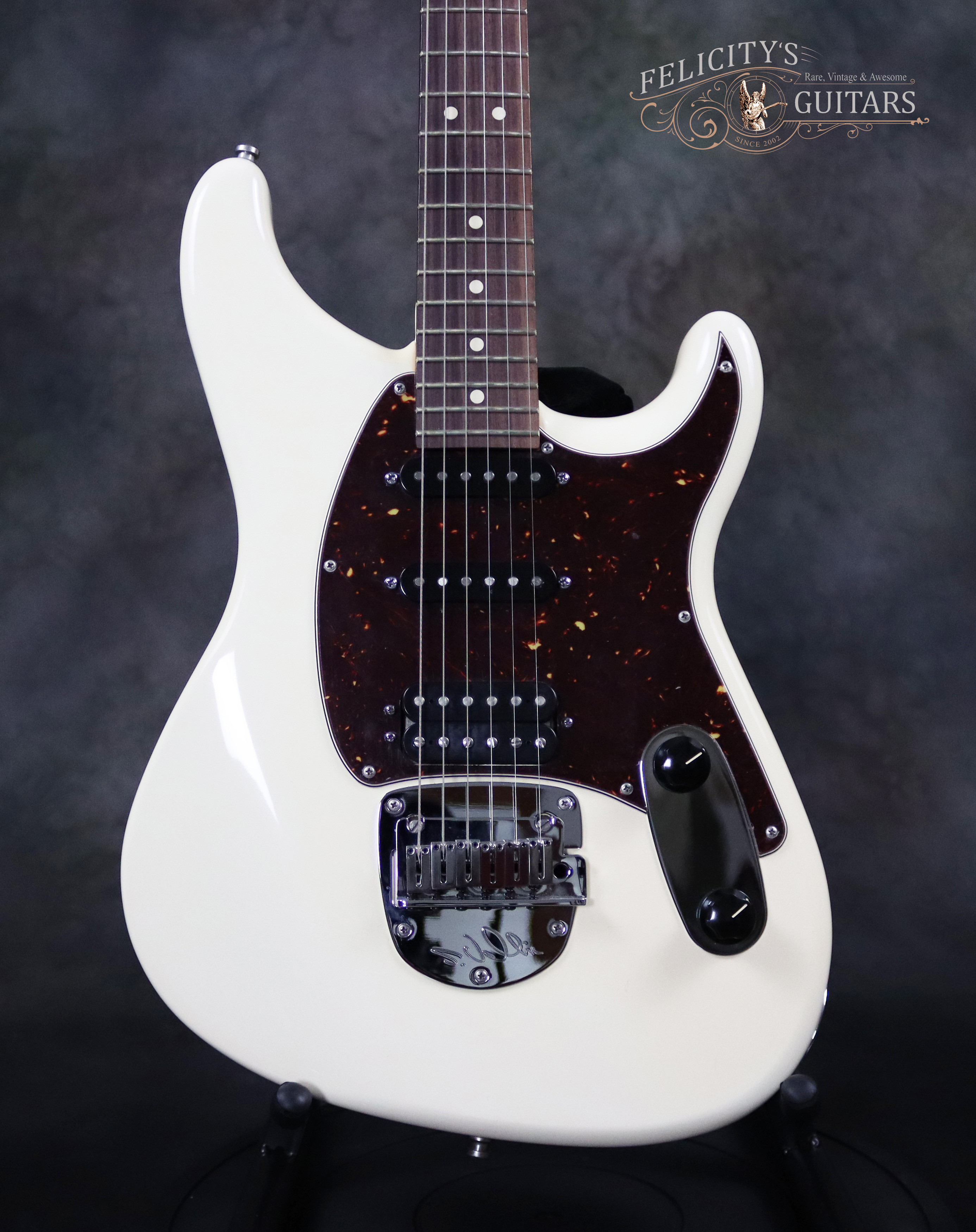

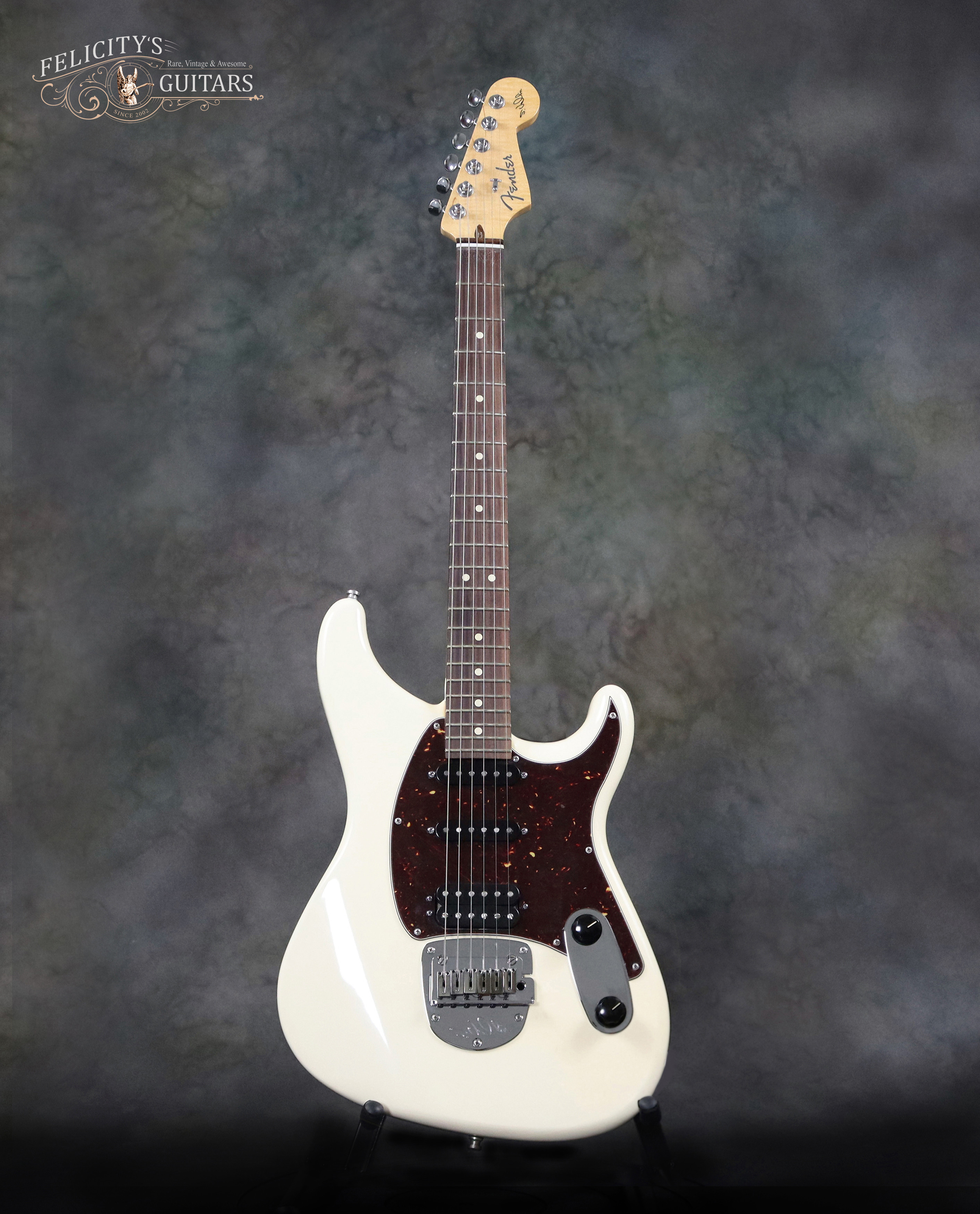

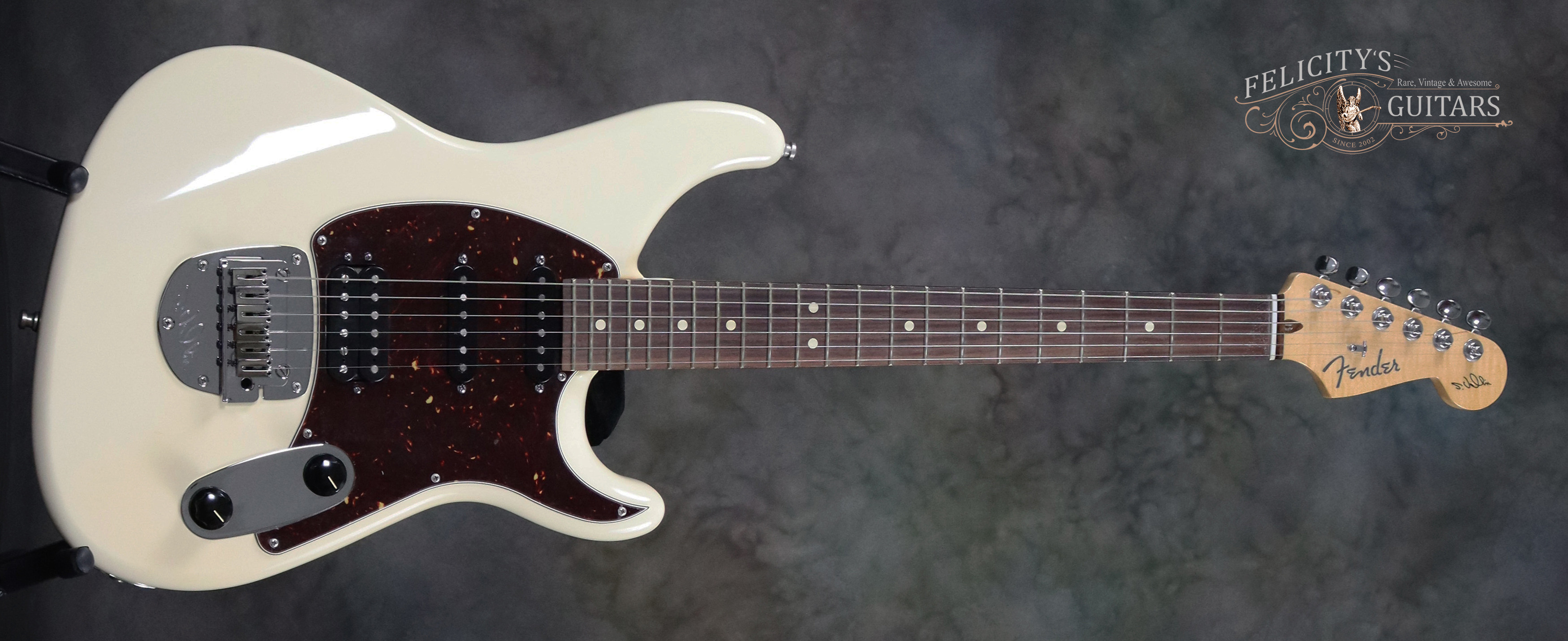

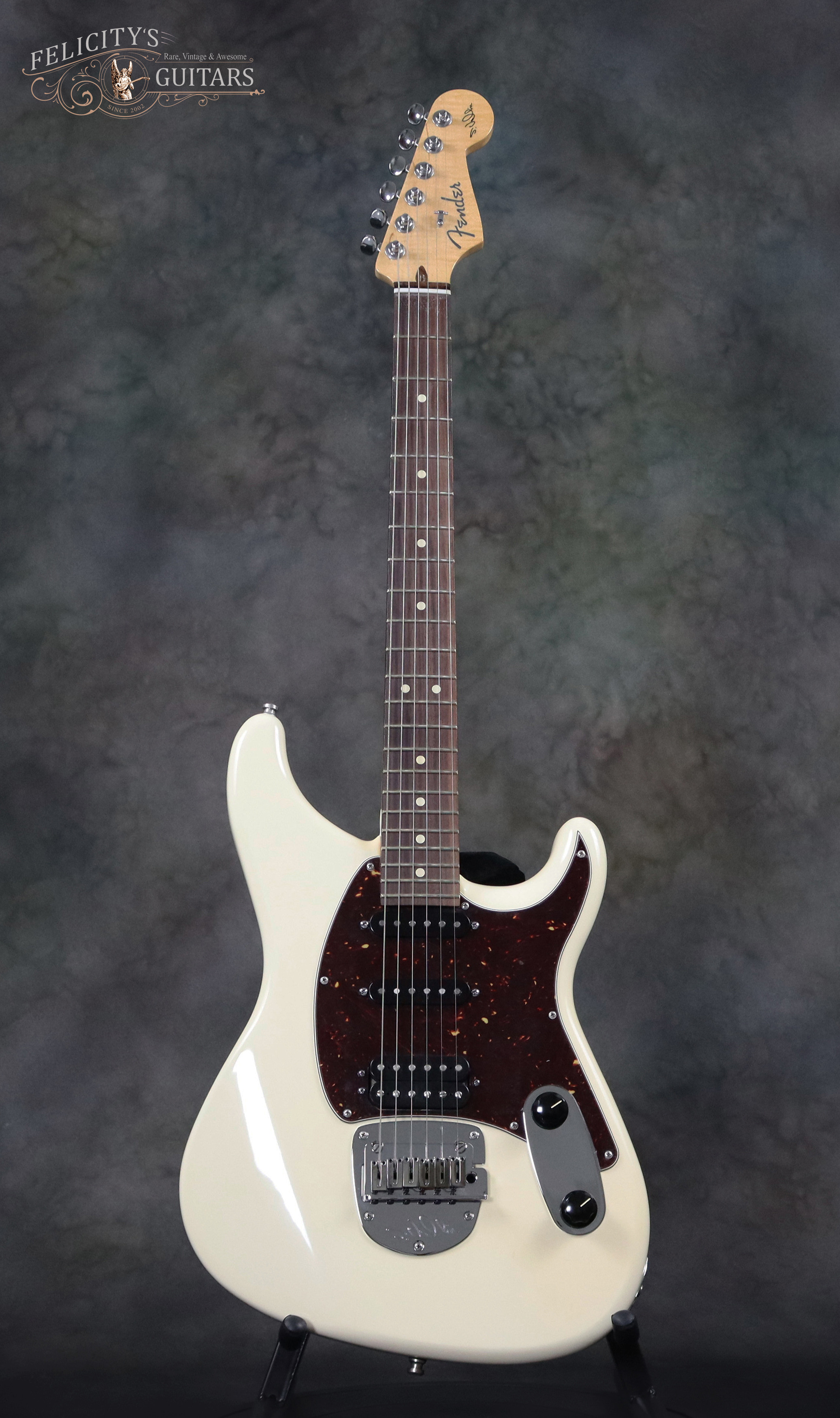

2015 FENDER ‘SERGIO VALLIN’ SIGNATURE IN OLYMPIC WHITE FINISH

A new silhouette with triple pickups and Latin flavor.

Electrifying Mexican quartet “Mana” is the world' biggest Latin rock band, thanks in no small part to the masterful guitar work of Sergio Vallin. Fender and Valln collaborated closely on the Sergio Vallín Signature guitar model, one of the most distinctive instruments in the Fender Artist series. With a brand-new offset body shape, tonally versatile HSS pickup layout with special switching, and other special appointments, it' a bold new Fender design loaded with pure Vallin sound, personality and playability.


The 2015 Fender ‘Sergio Vallin’ at a glance:
  • Modern “C” shaped Maple Neck with Rosewood fingerboard; focused mid-range, crisp highs and smooth playing feel

  • Fender® 2-point Synchronized Tremolo/Vibrato, with 6 independent Block Saddles

  • HSS Configuration; Hotter-wound FSV Humbucker bridge pickup, and FSV Single-Coil Strat pickups with crystal-clear character


USD 1,000,000

Shipping will be calculated at check out

description

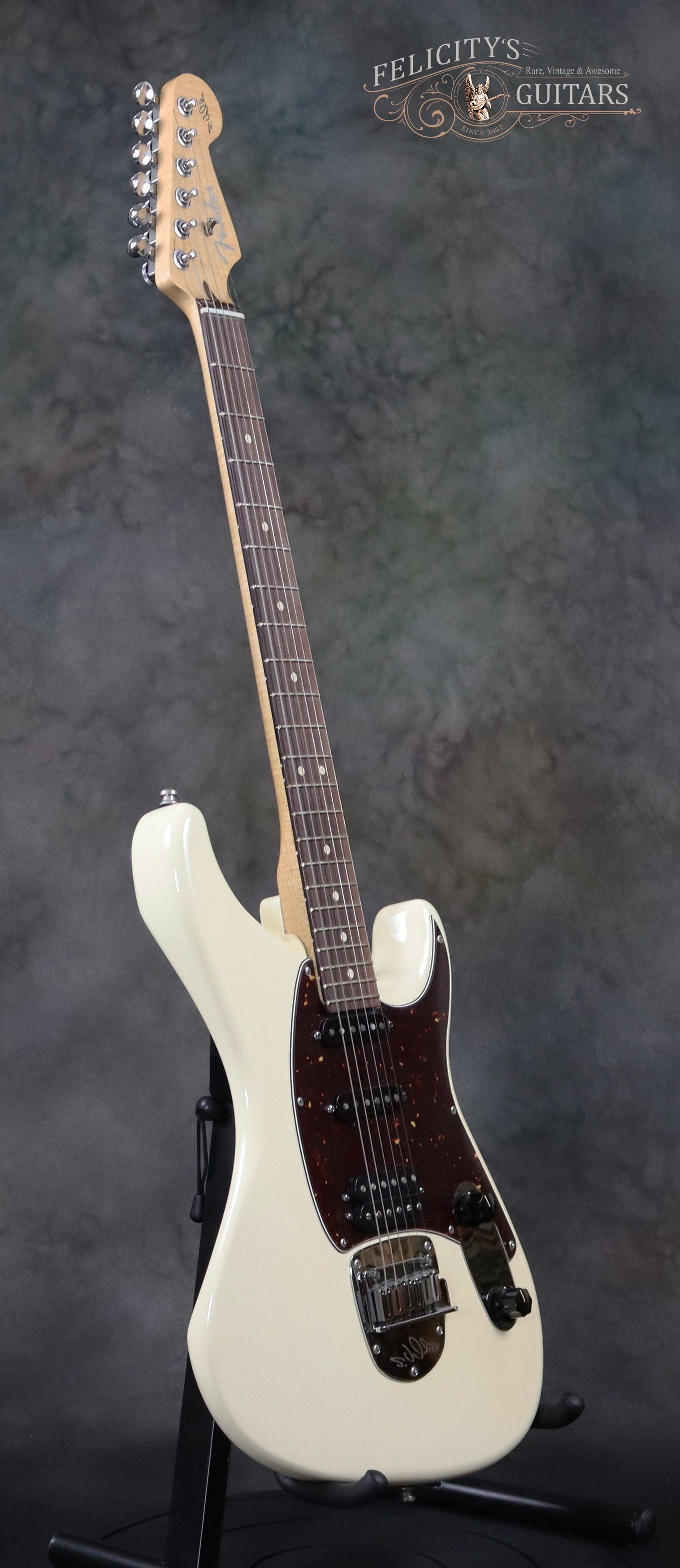

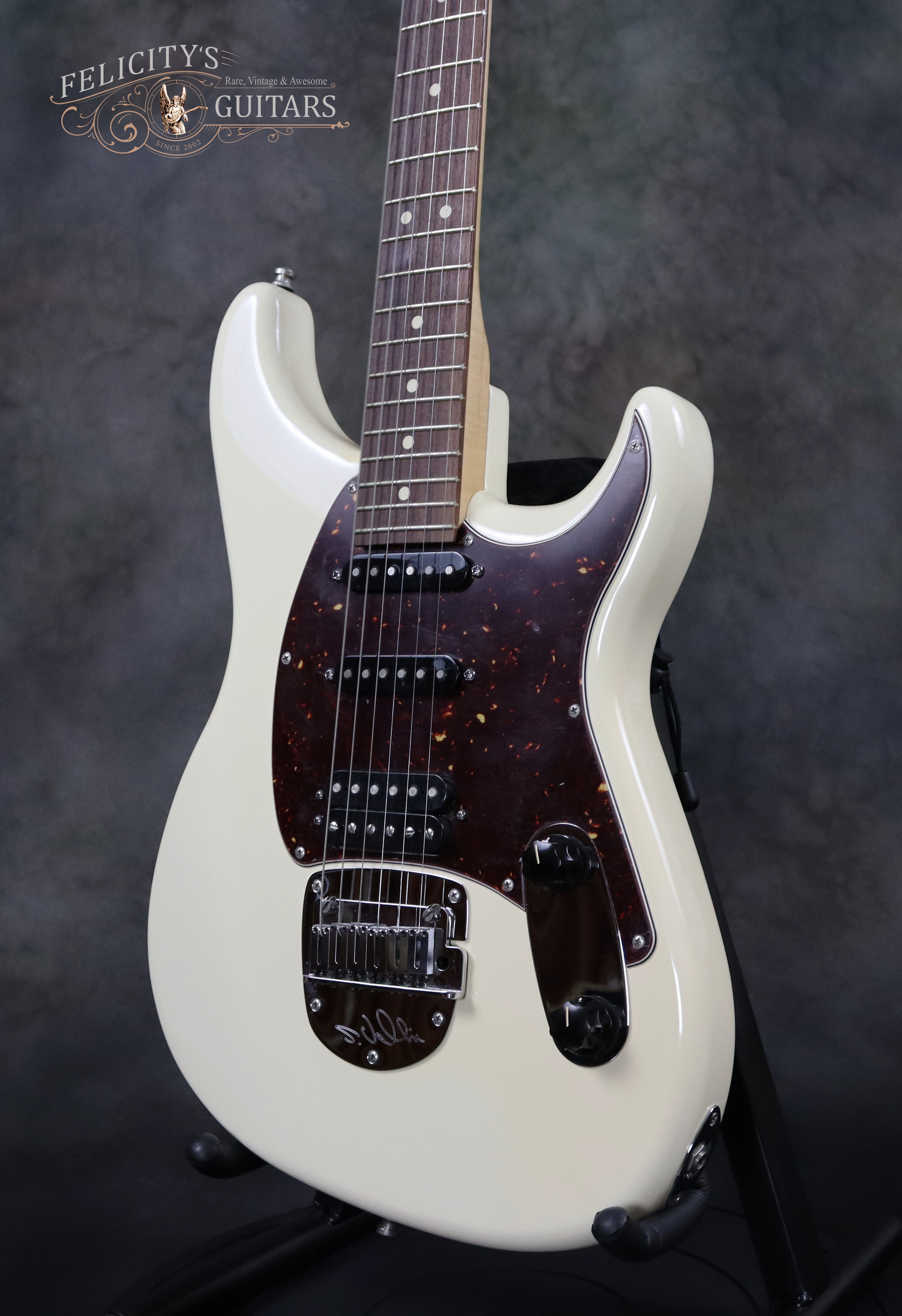

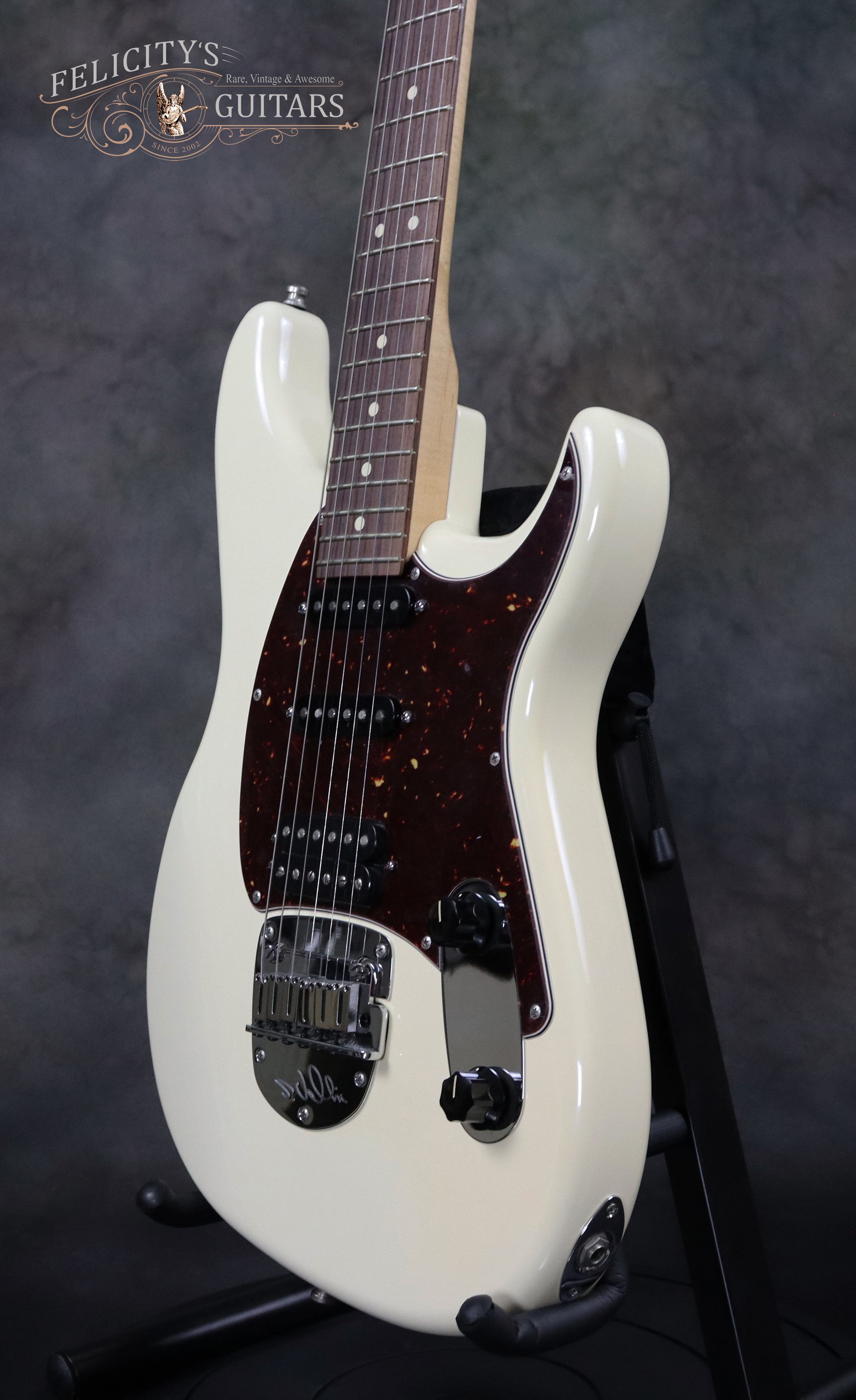

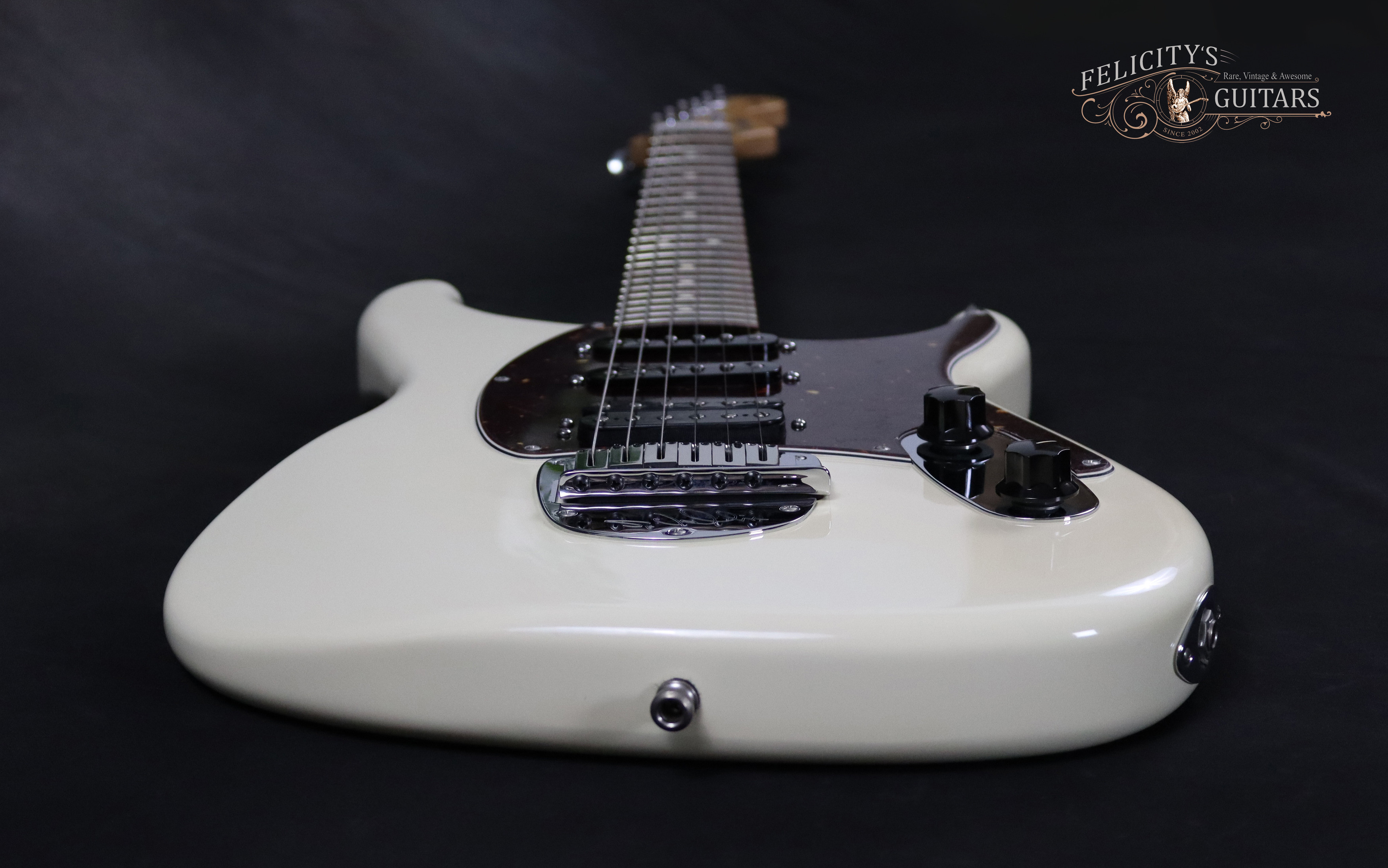

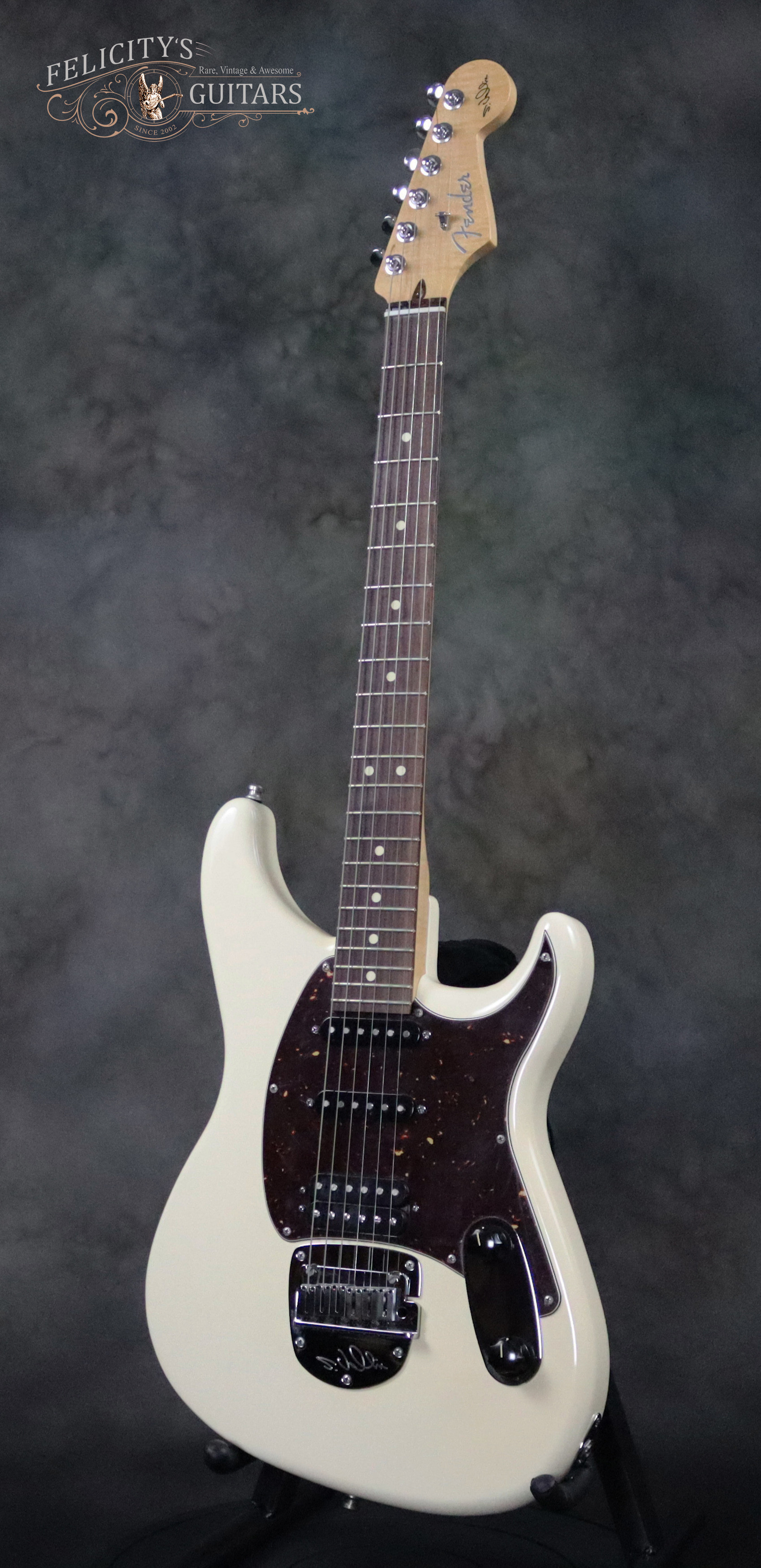

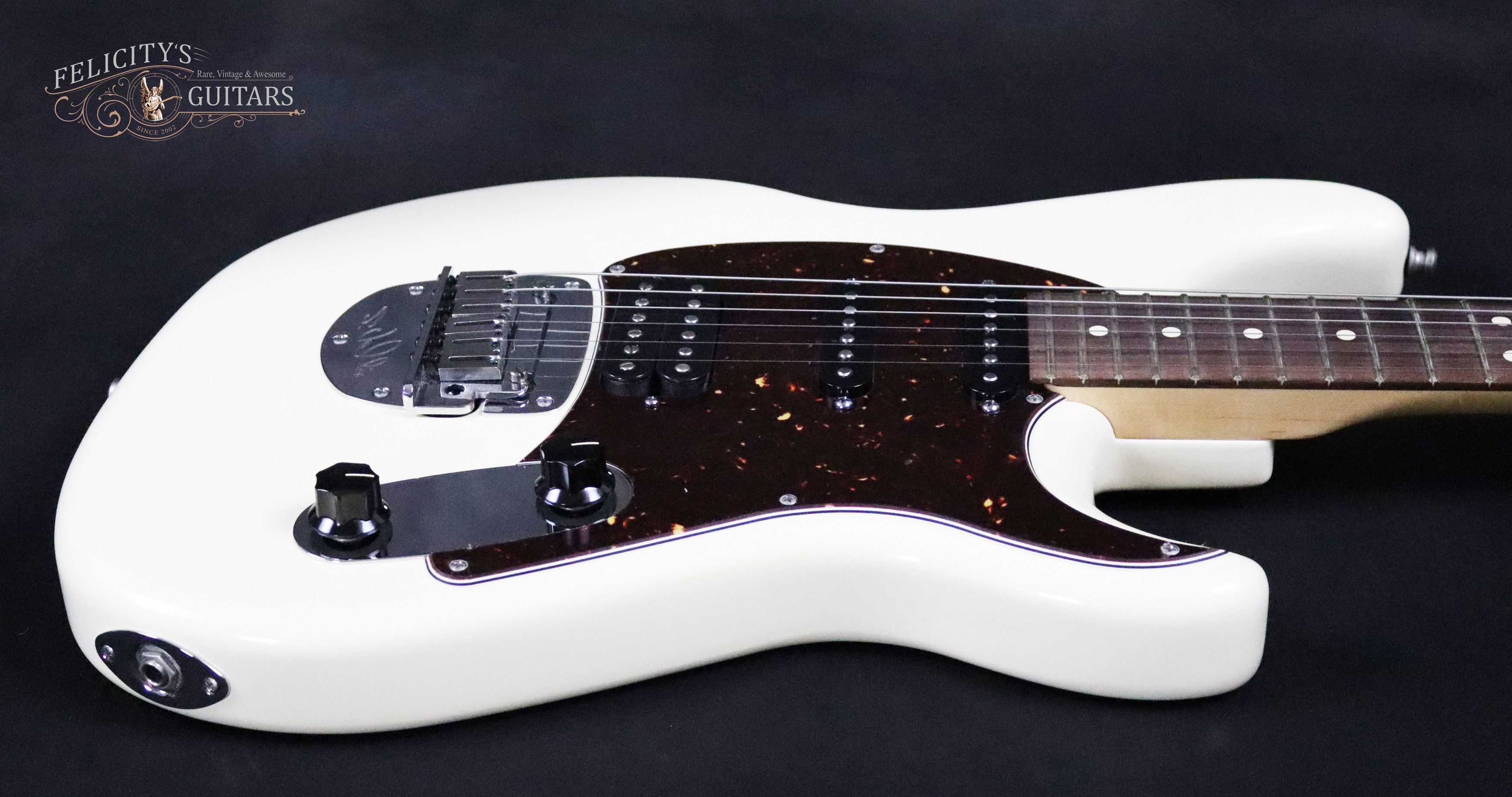

Sergio Vallin Signature Guitar is one of two Stratocaster signatures added for 2015. Though not a classic Strat, Vallin`s signature double-cut has been listed under the Stratocaster signatures on Fender`s site. This curvaceous six-string is a solid and double-cut guitar with flat-top design and bolt-on neck construction. For 2015, Fender has assigned only two color options for this model: Olympic White and Black. Both feature glossy finish over the body and headstock, with satin finish in the back of the neck. Also, combined nickel/chrome hardware is used. On the top of the flat, asymmetrical body, Fender installs a tortoise shell pickguard (both color options feature a tortoise shell pickguard).

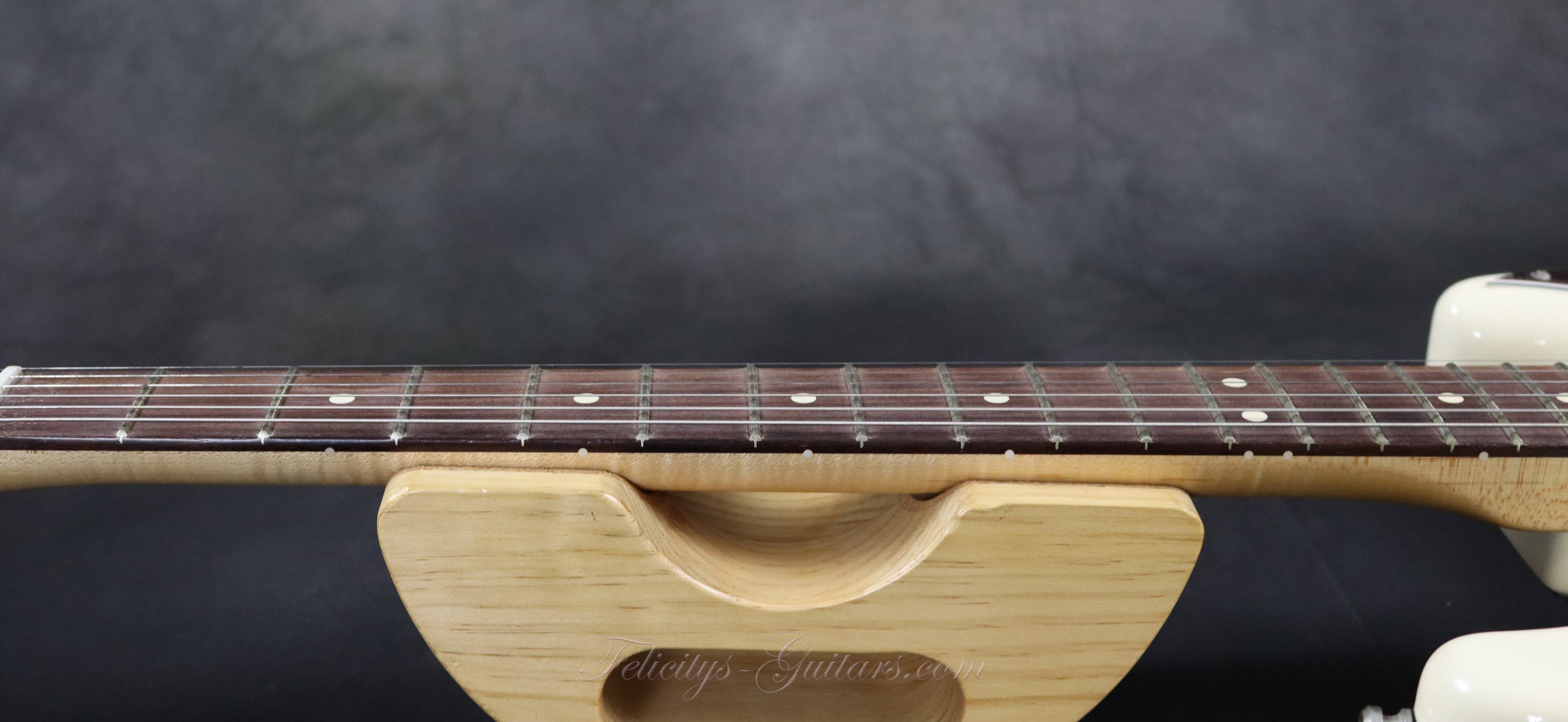

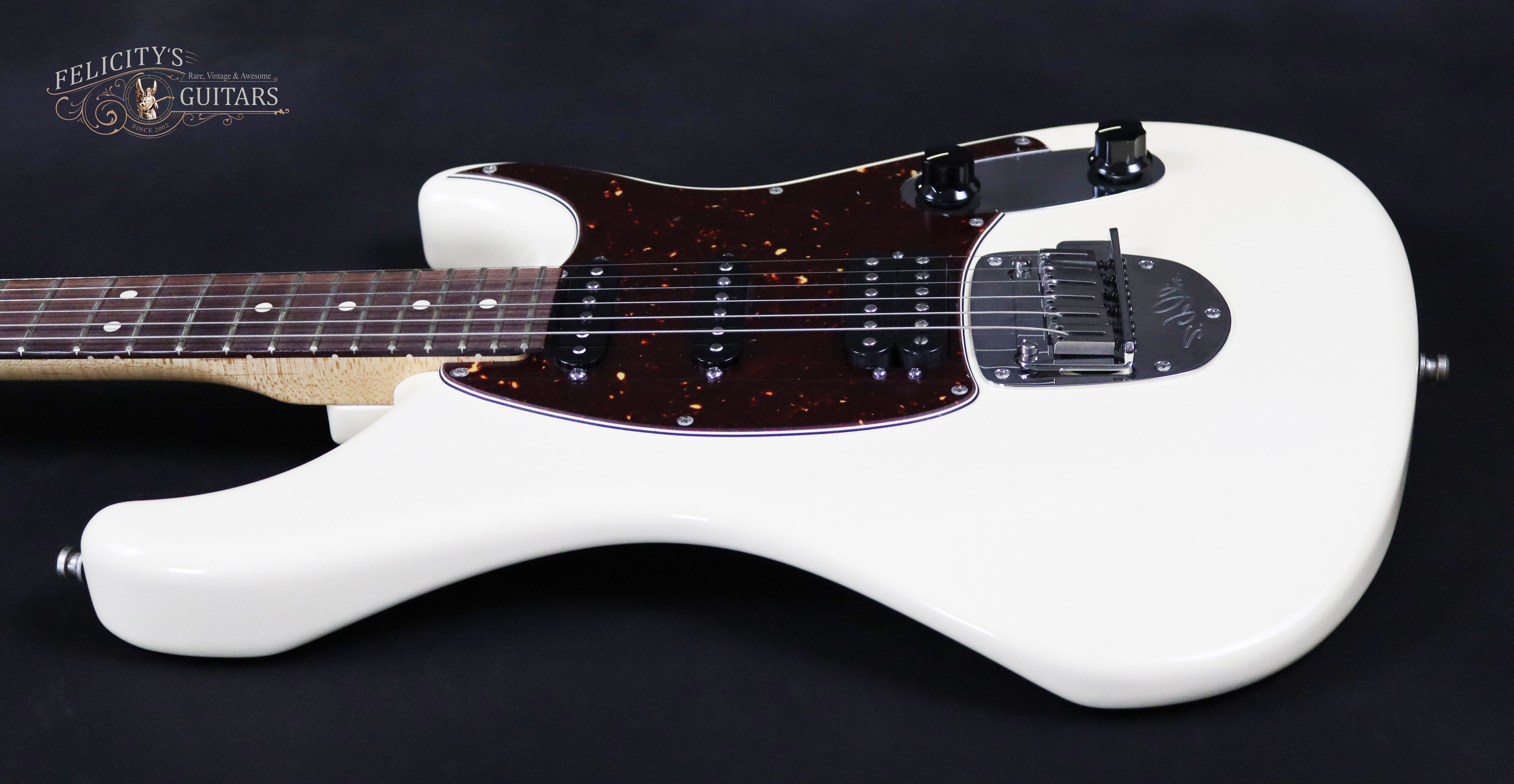

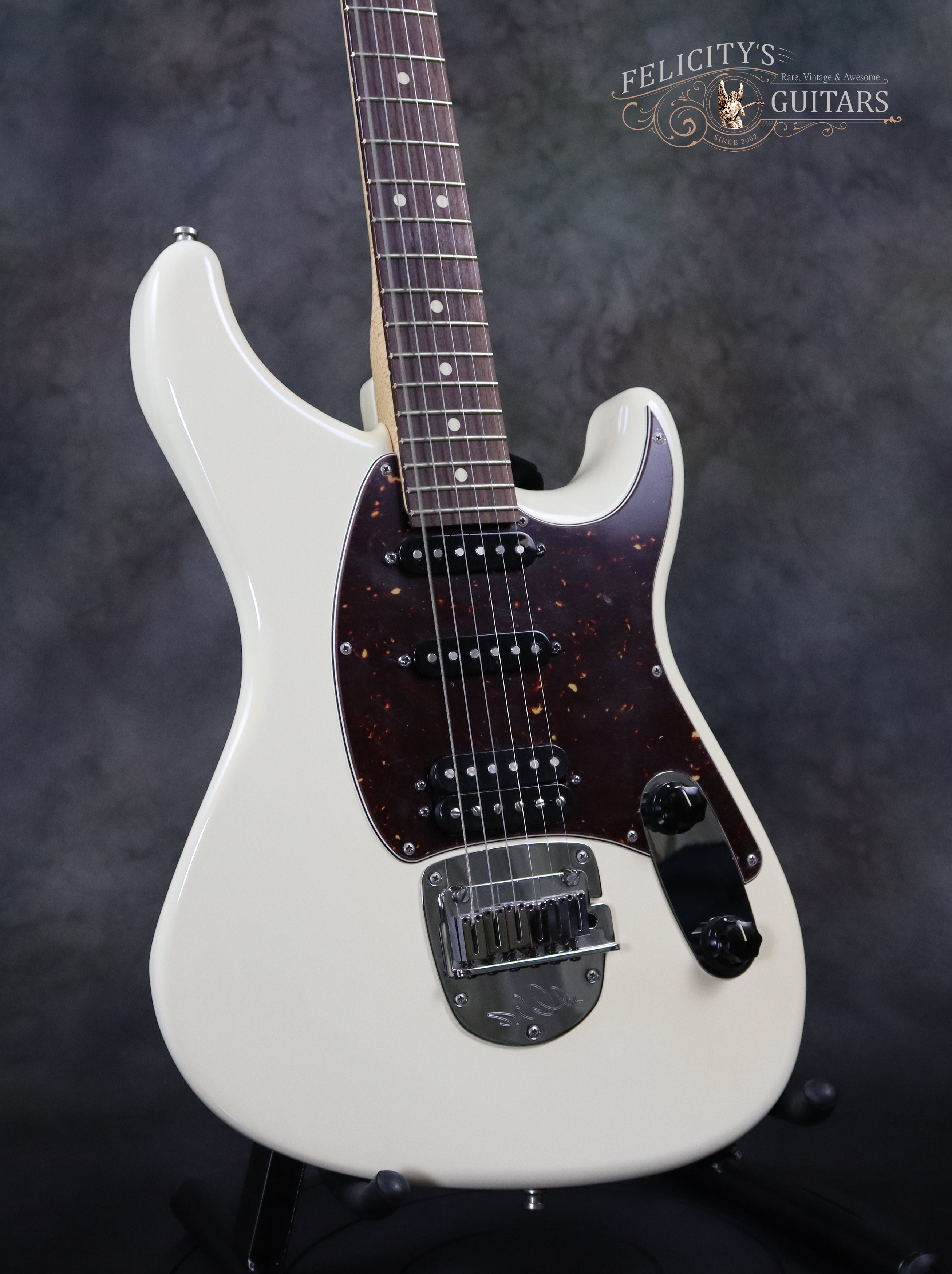

Pickups department is equipped with a selection of three passive pickups (humbucker in the bridge and two singlecoils in the middle and neck positions). Master volume knob and a five-position pickup switch knob comprise the controls. Maple neck on Sergio Vallin Signature Guitar is attached to the body via a special five-bolt joint. Back of the neck is, as it`s been mentioned before, finished in satin urethane, while the top features a 22-fret rosewood fingerboard with medium jumbo frets, dot inlays and 1.685" wide synthetic bone nut. To wrap the specs list, Fender has assigned a set of sealed locking tuners to this outstanding six-shooter.

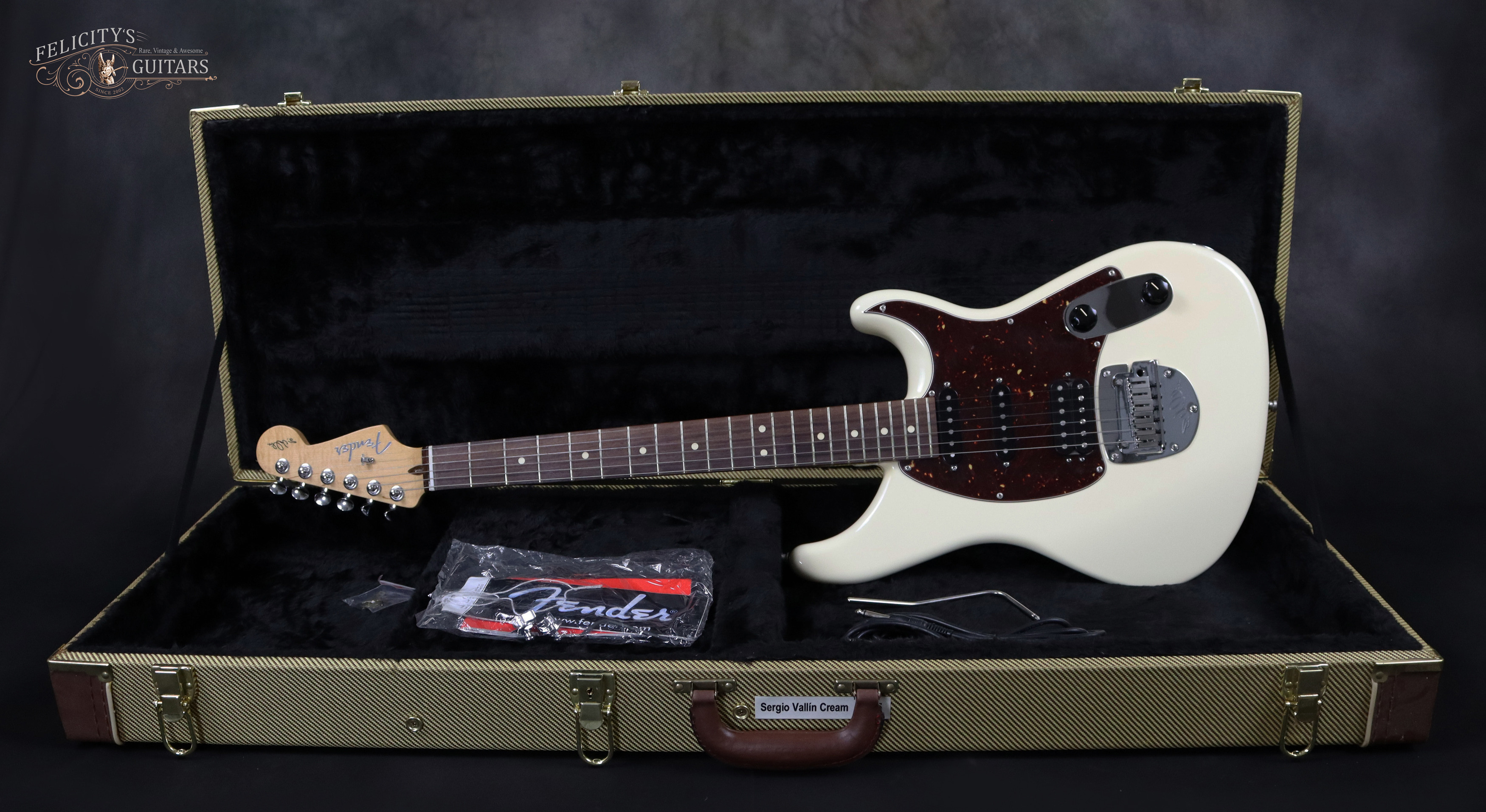

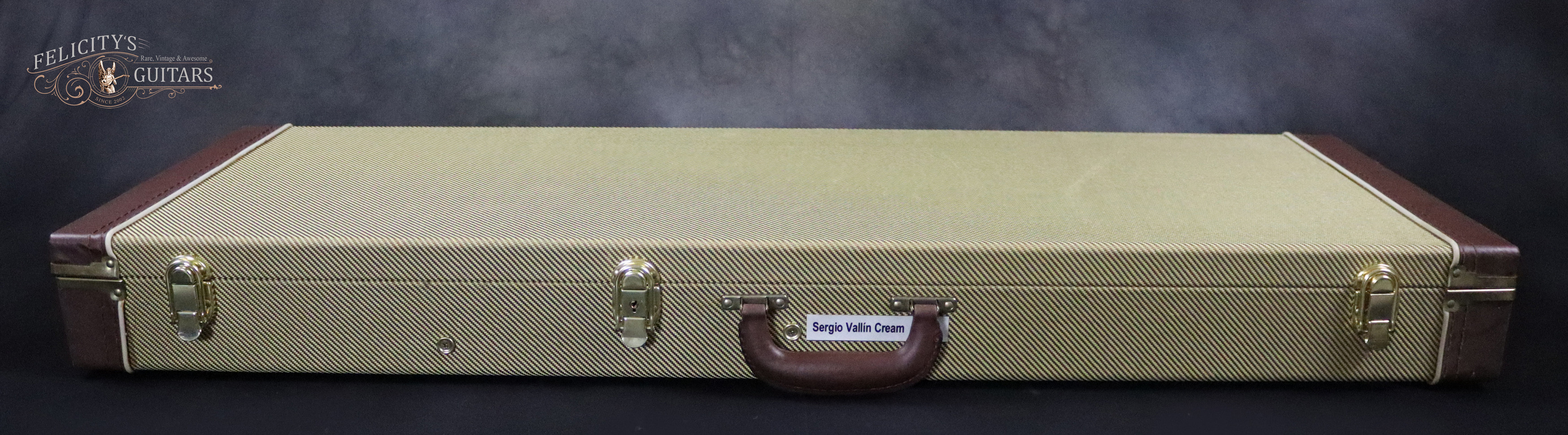

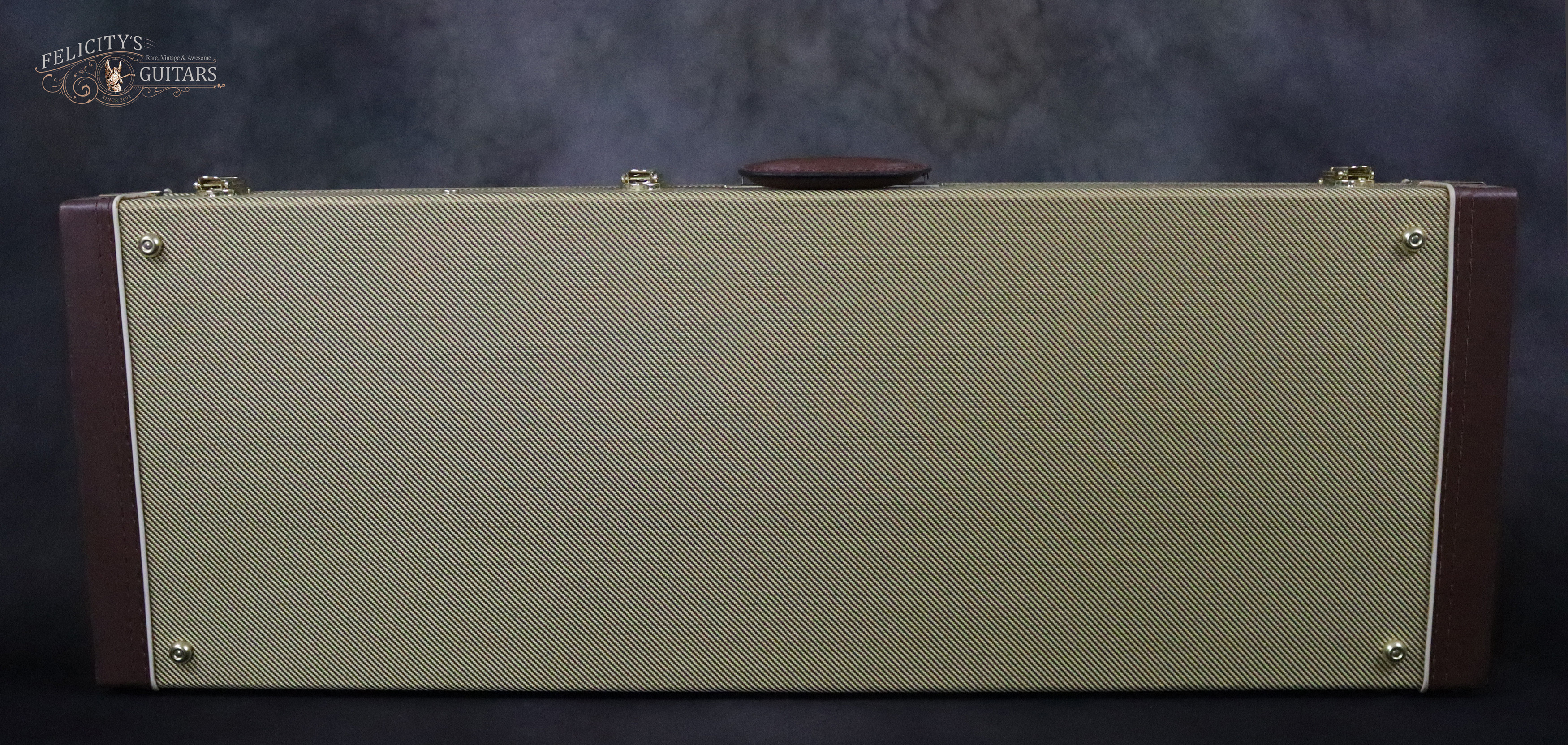

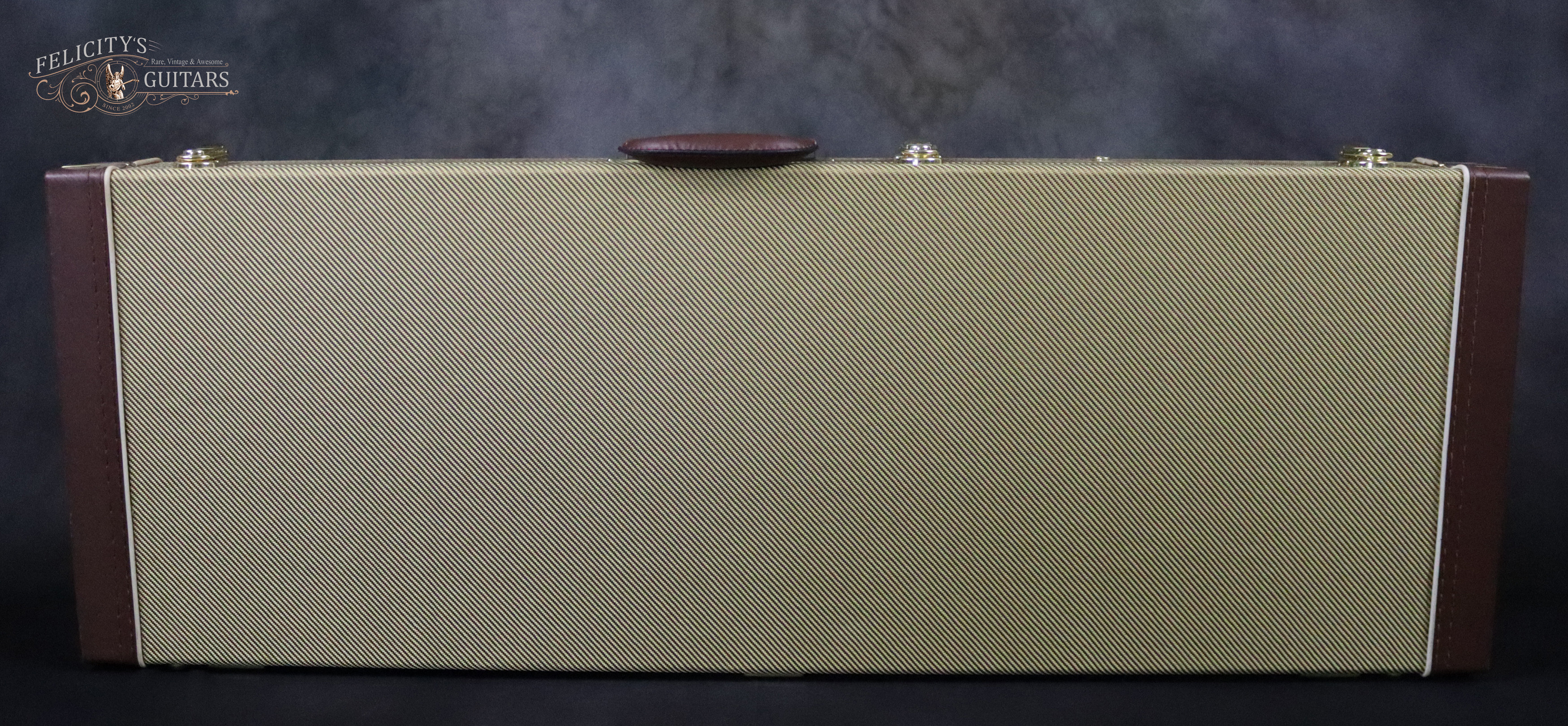

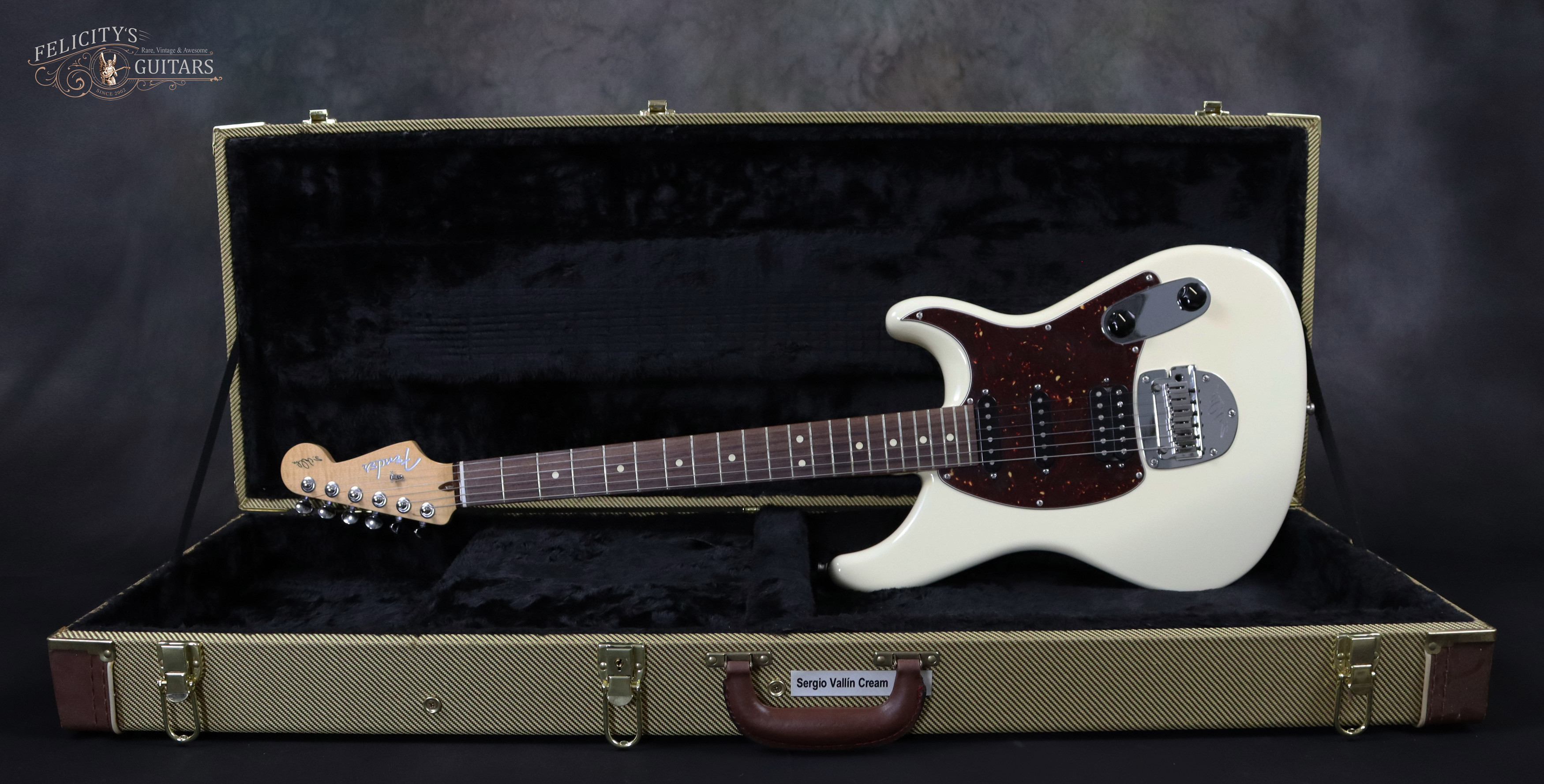

Fender supplied a Gig Bag with this guitar originally, however we protect her in a custom ‘tweed’ hardshell case which is included.

Specifications

General

Condition

Brand New (NOS)

Number of Strings

6

Orientation

Right-handed

Country of Origin

Mexico

Year

2015

Limited Edition / Series

No

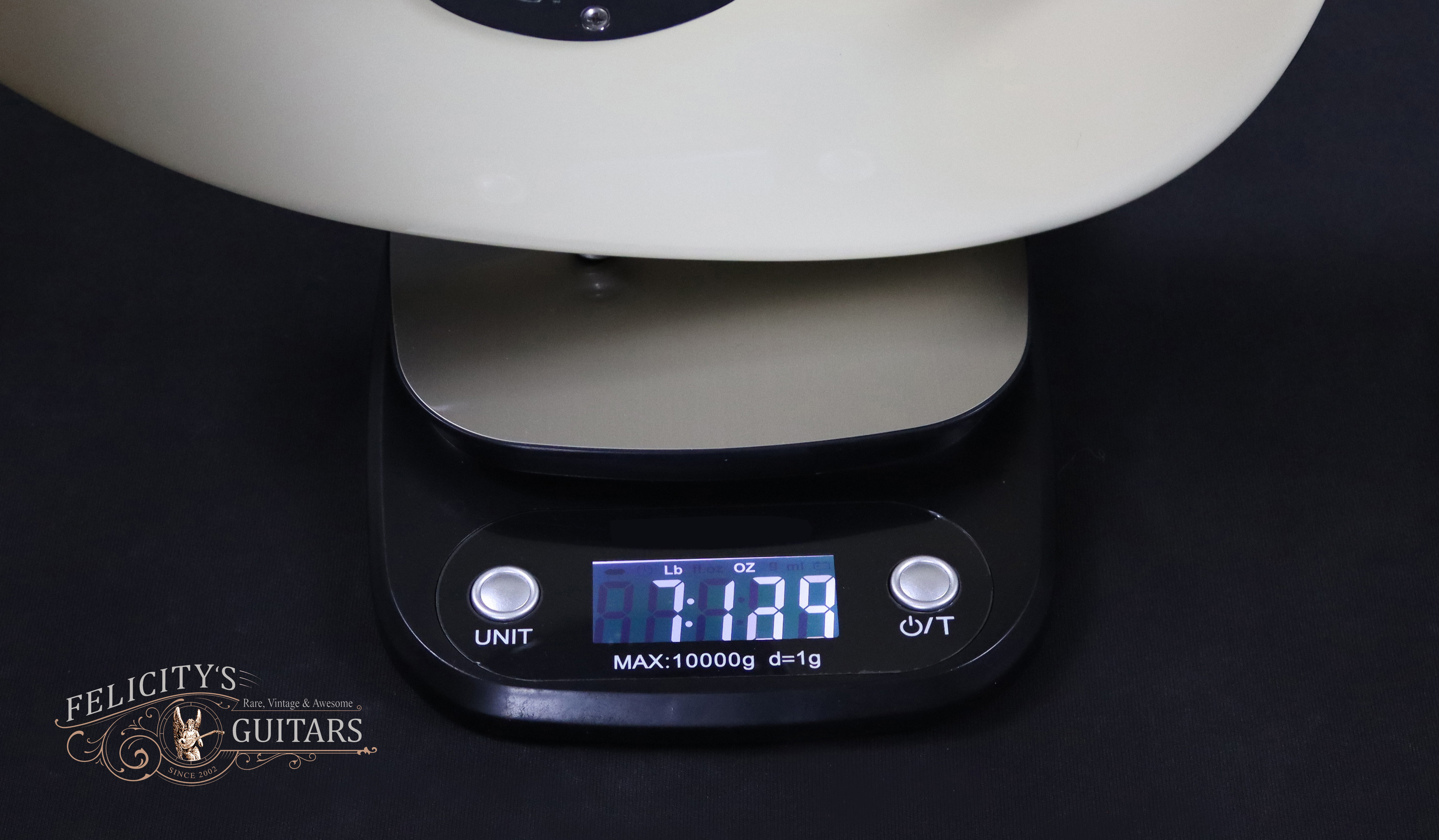

Weight

7-lbs 12.9-oz

body

Body Type

Solidbody

Body Shape

Double Cutaway Strat™

Body Material

2-pc Alder

Body Carve

Front: Arm Contour

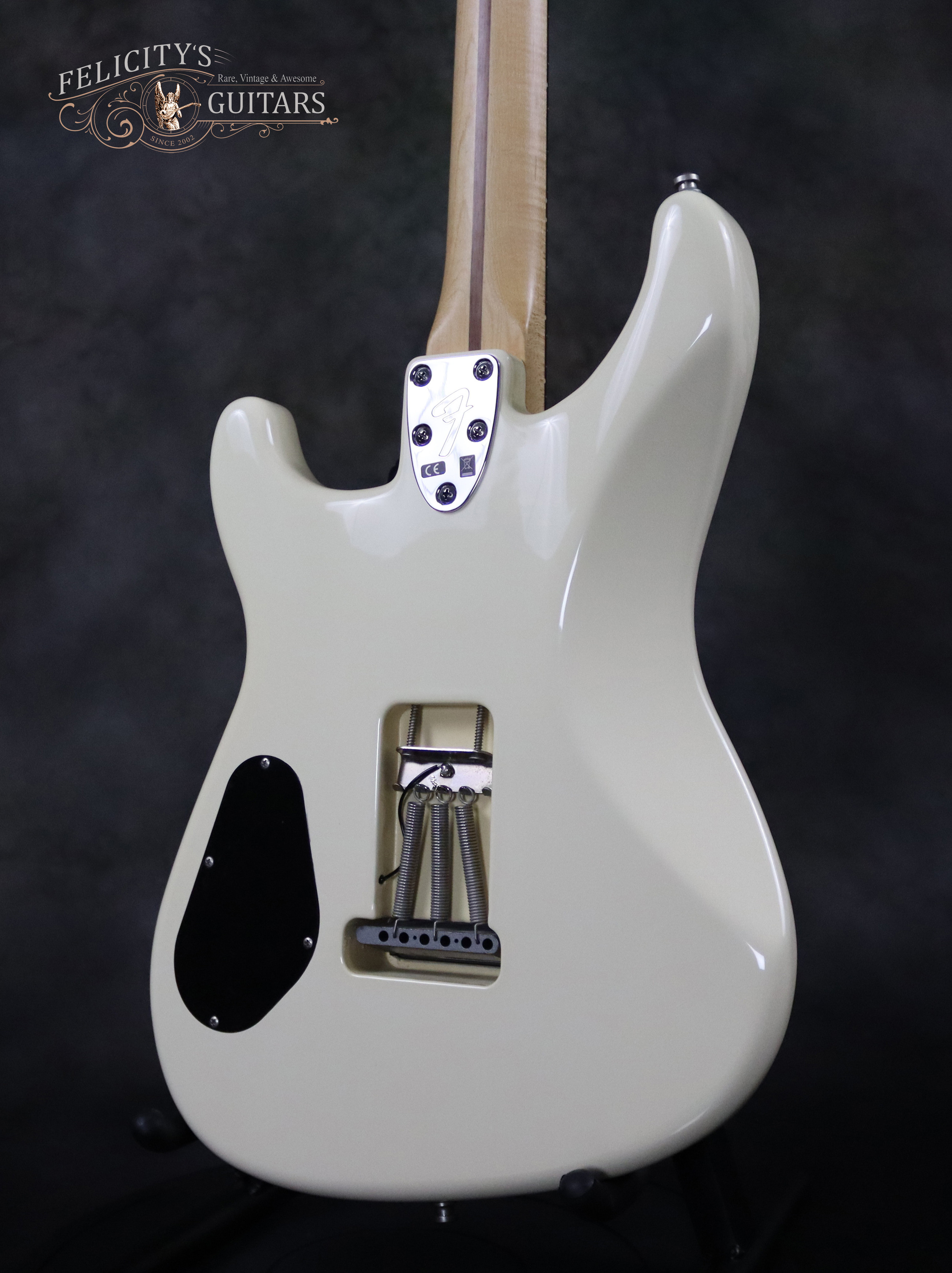

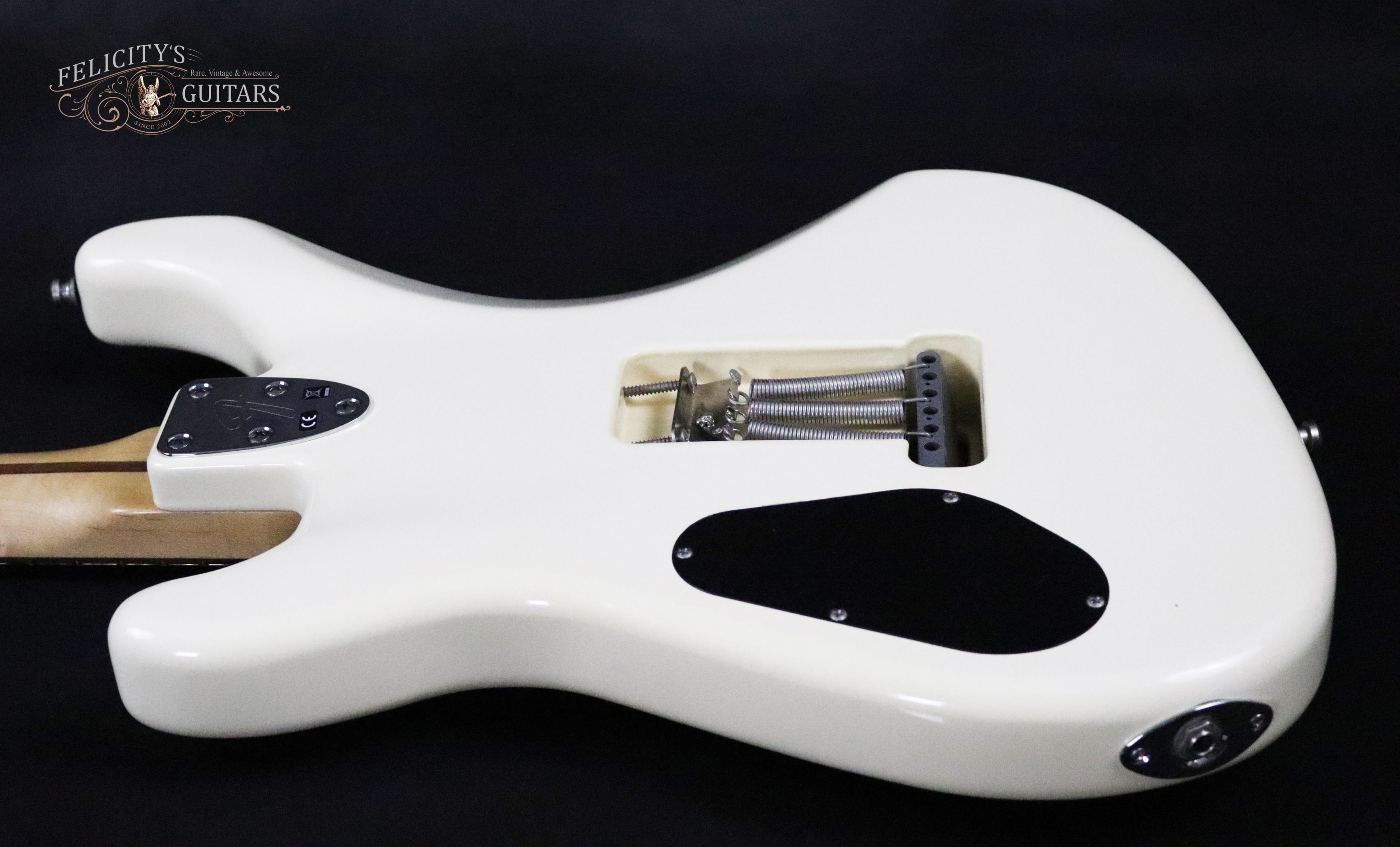

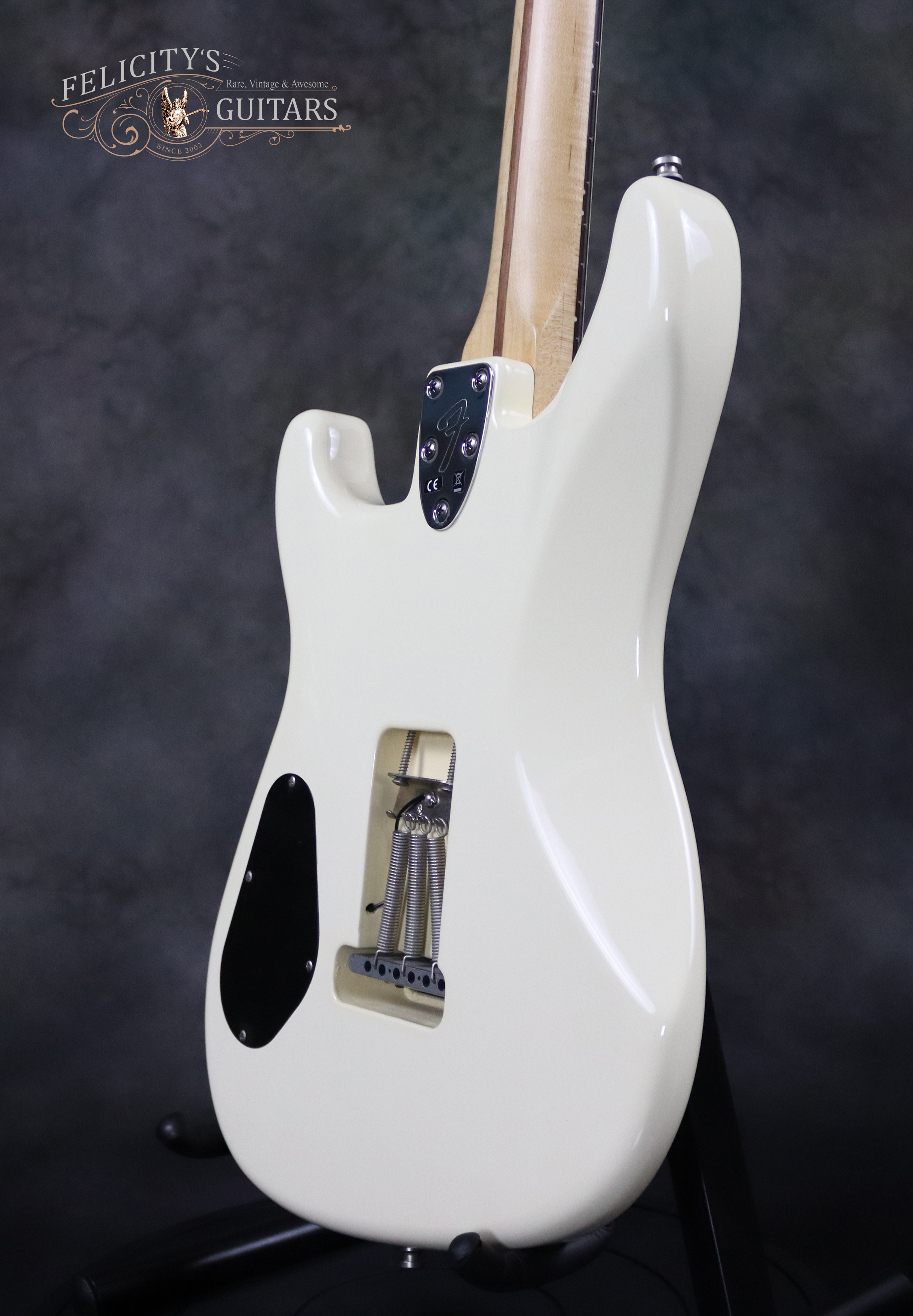

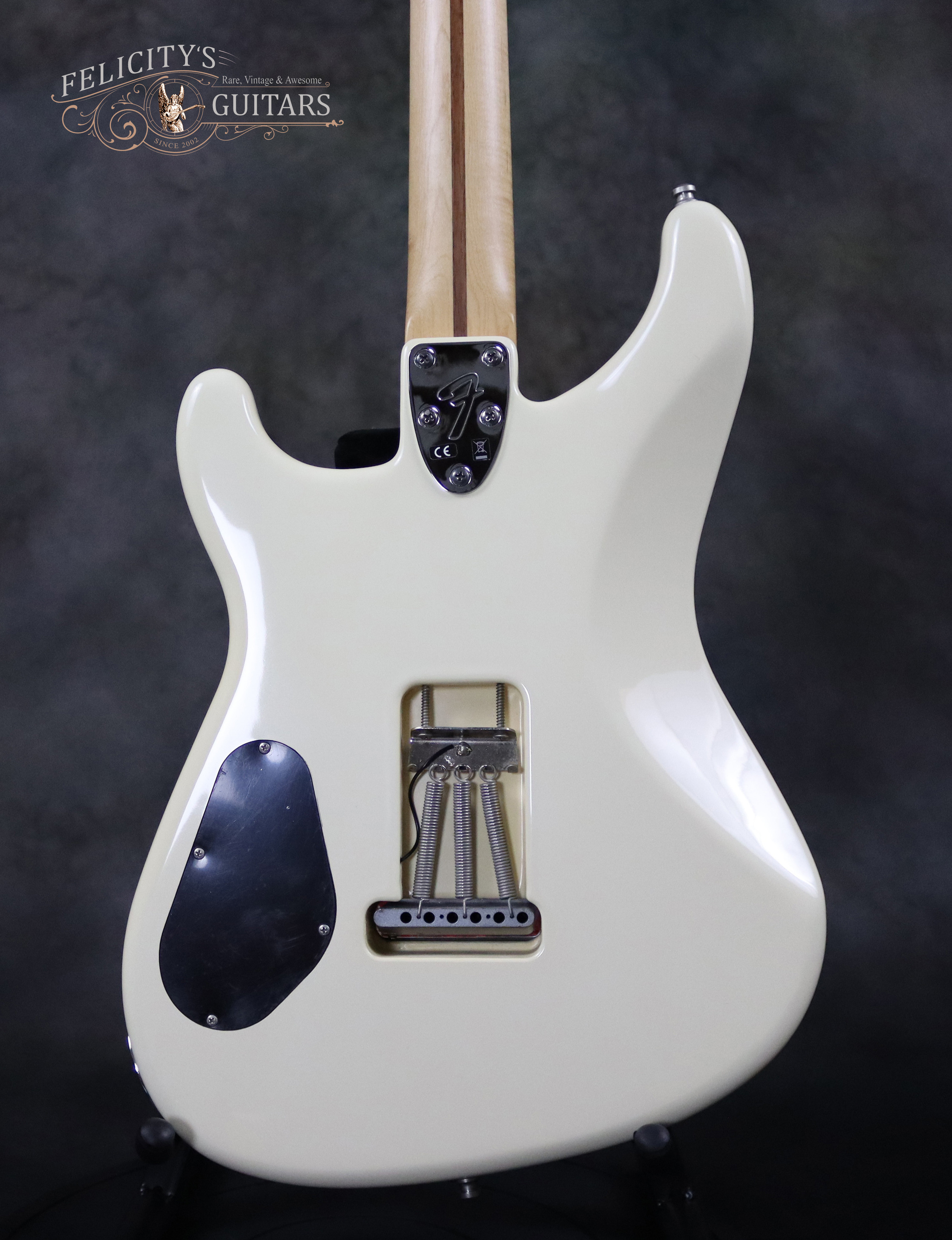

Back: Extra-deep Waist Contour

Body Binding

Front: No

Back: No

Weight Relief

Un-chambered

Body Finish Type

High-gloss Polyurethane

Color

Front: Olympic White

Back: Olympic White

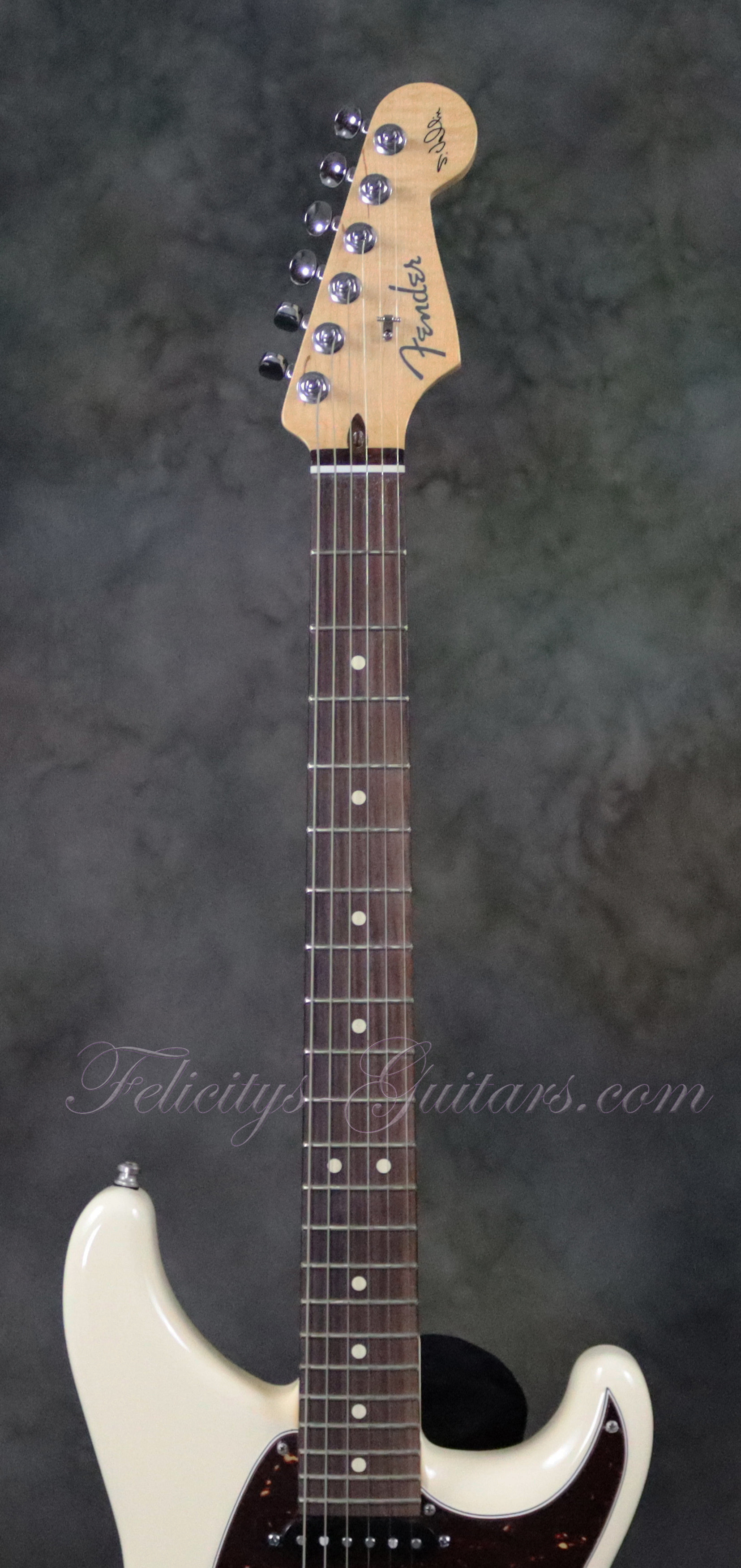

neck

Neck Material

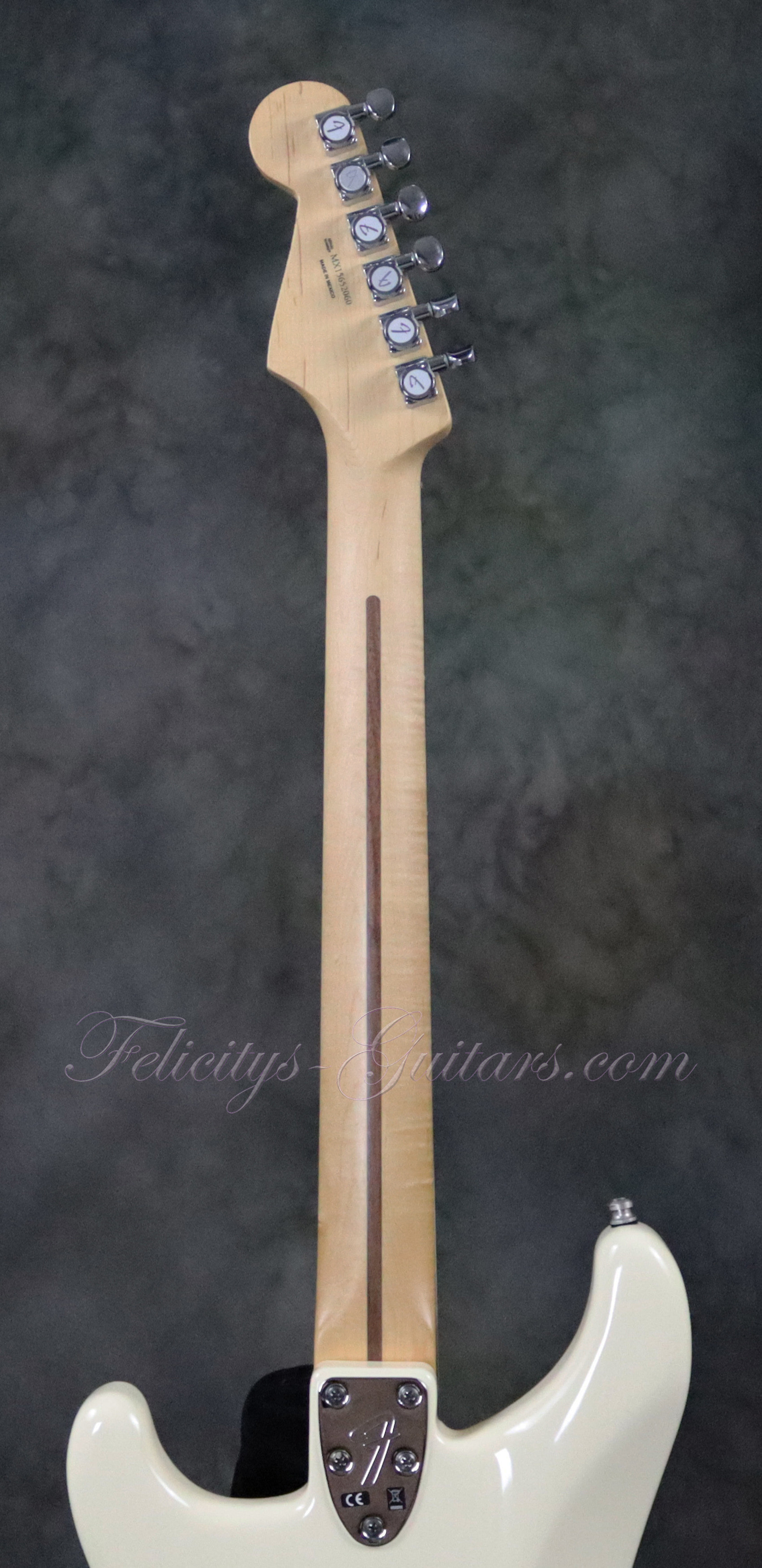

1-pc Maple with Skunk Stripe and Satin Urethane finish Back

Truss Rod

Bi-flex 2-way Adjustable

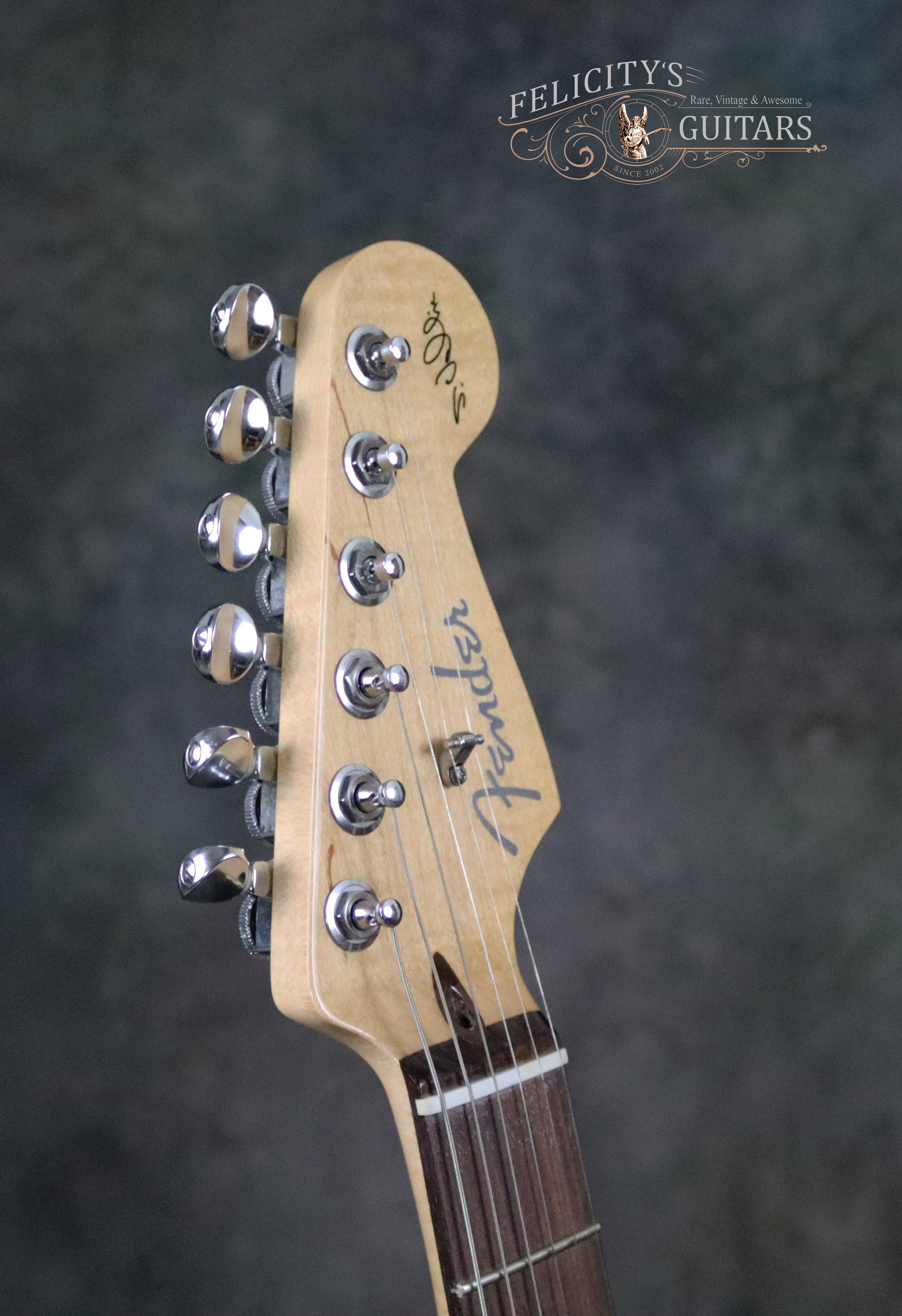

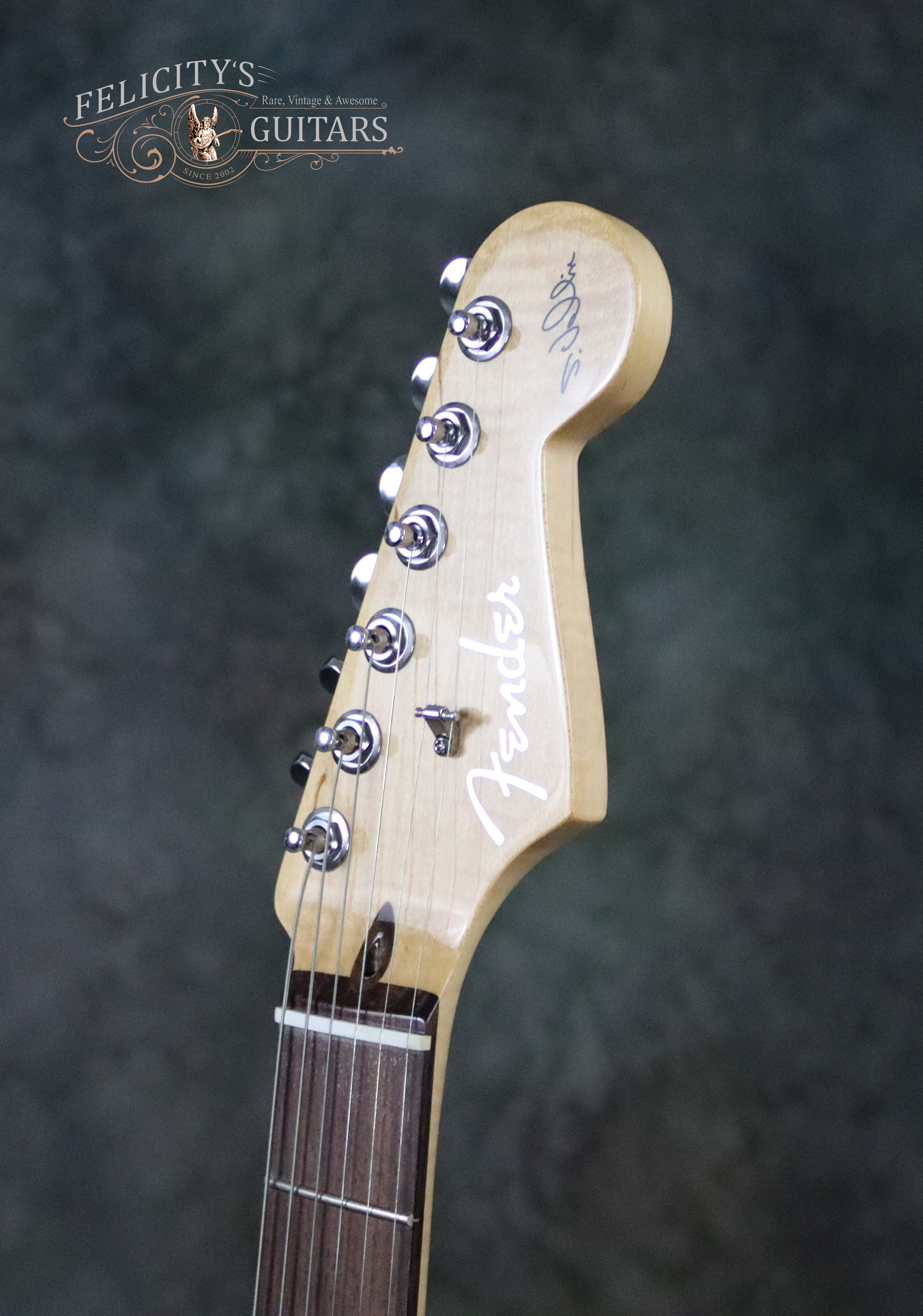

Peghead Particulars

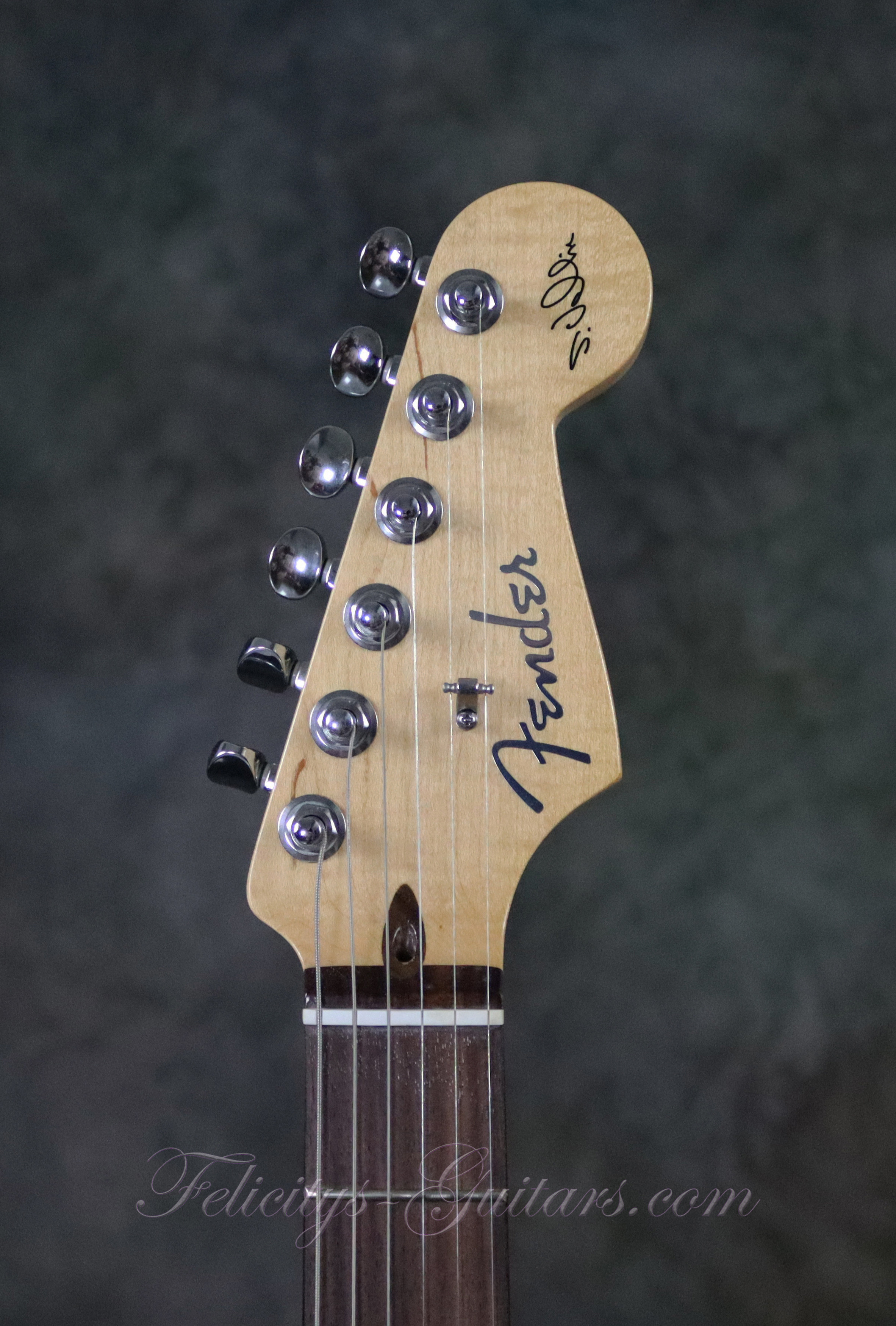

Front: Natural Maple with Black Fender® Logo and Artist Signature

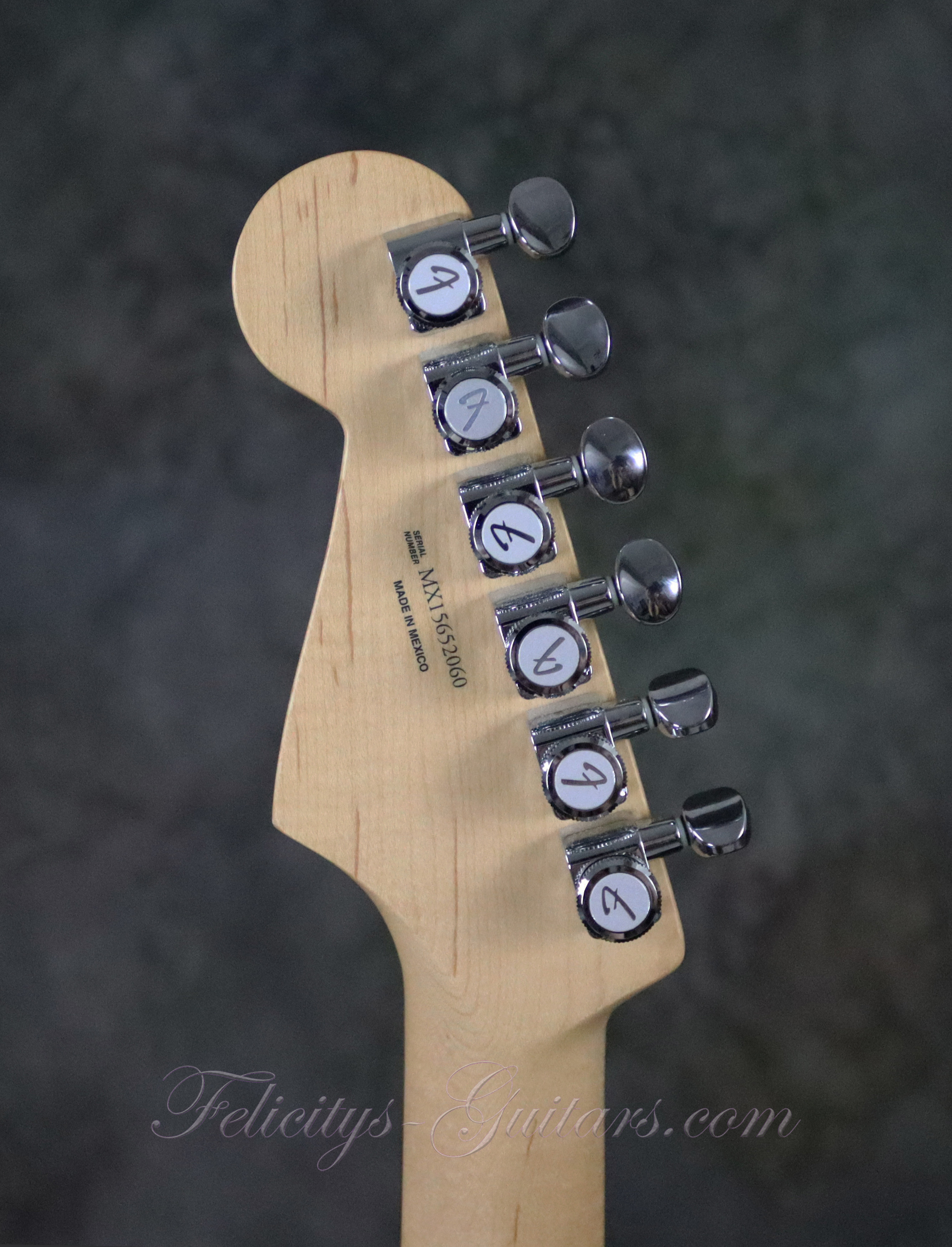

Back: Ink Stamped Serial Number and ‘Made in Mexico’

Neck Profile

Modern ‘C’

Fingerboard Material

Rosewood

Fingerboard Radius

9.5”

Scale Length

25.5"

No. Frets / Type

22 Medium Jumbo

Nut Size / Material

1.6875” / Synthetic Bone

Neck Width

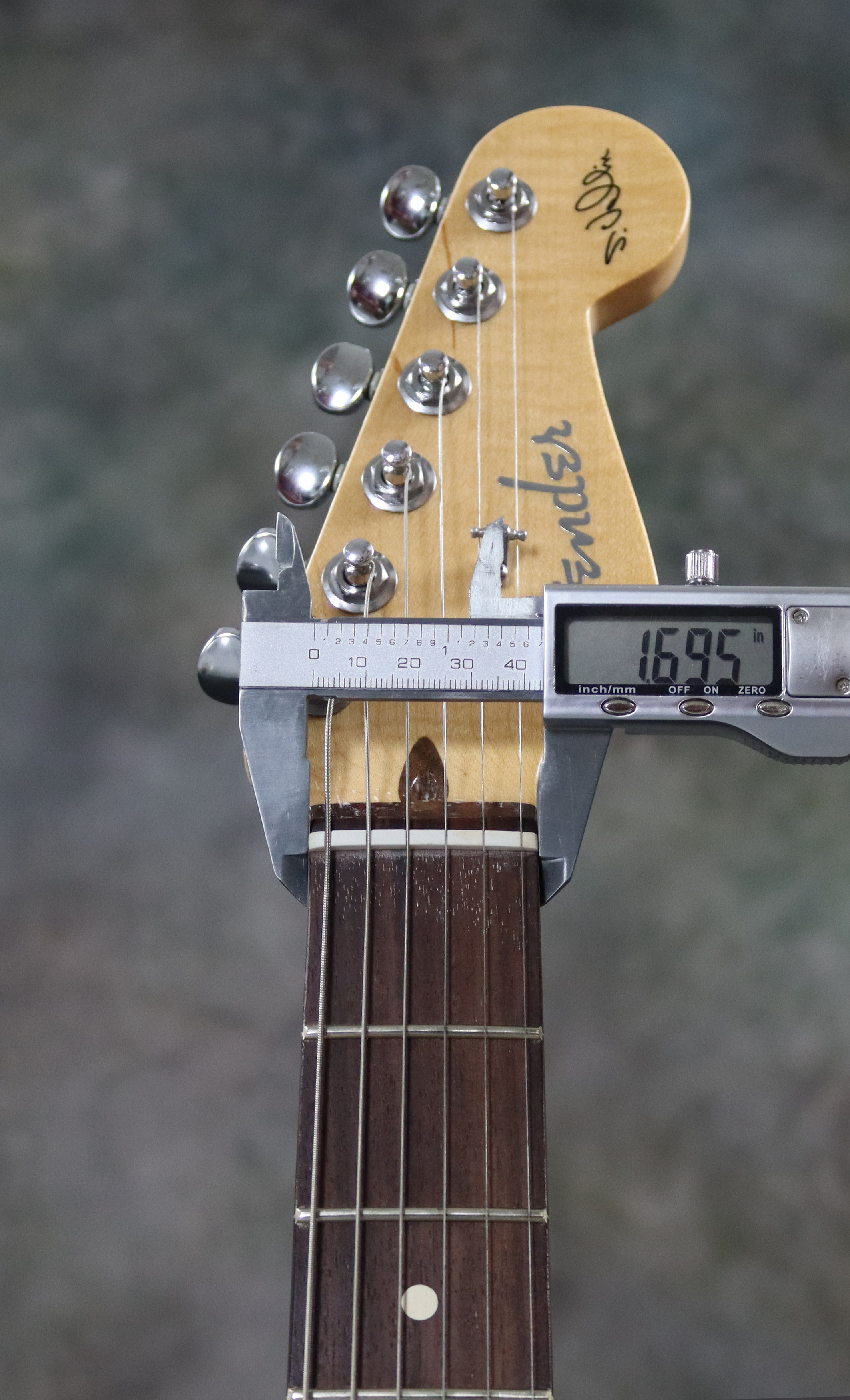

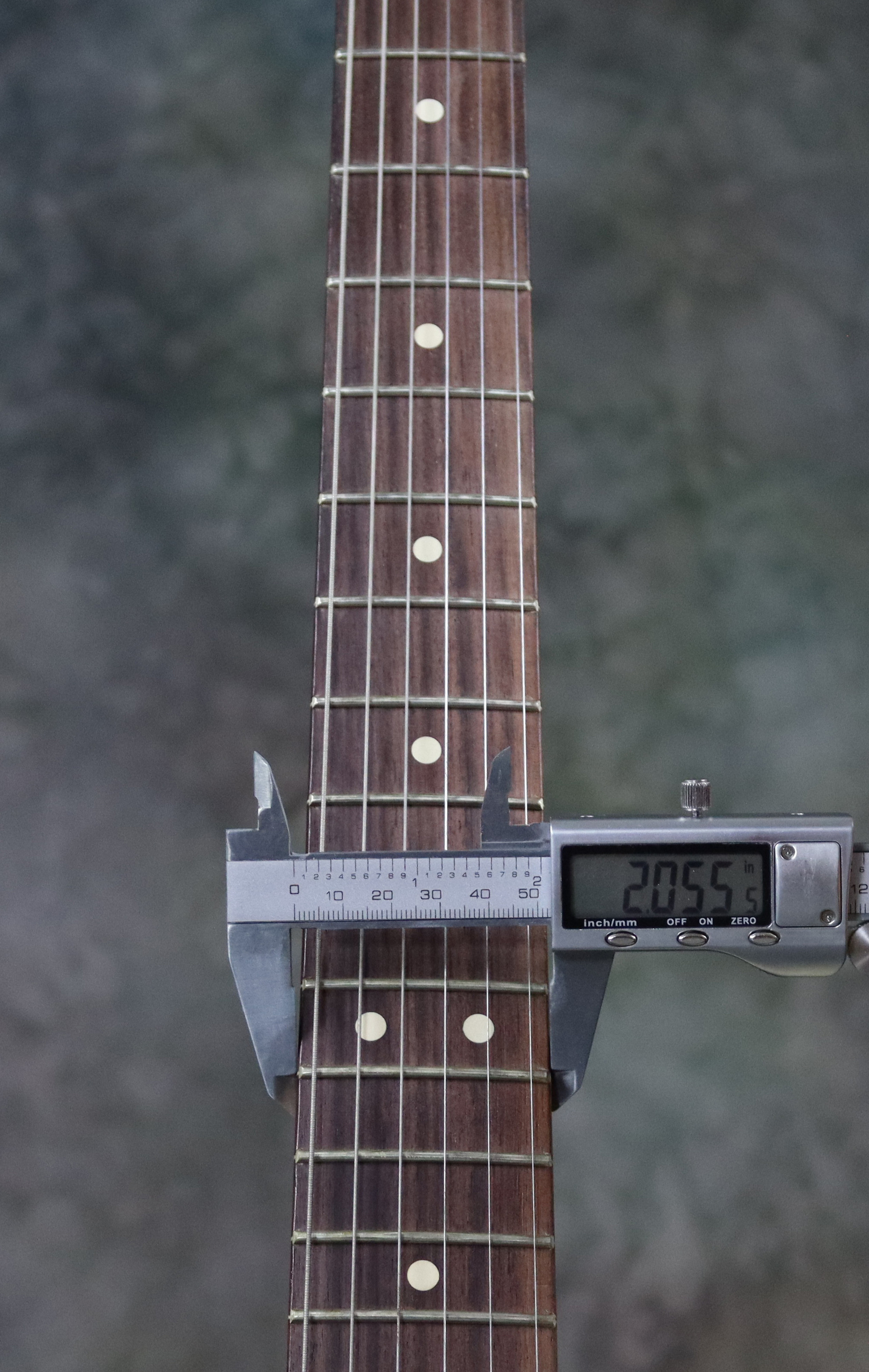

1.695” at 1st fret / 2.055” at 12th fret

Neck Depth

0.820" at 1st fret / 0.870" at 12th fret

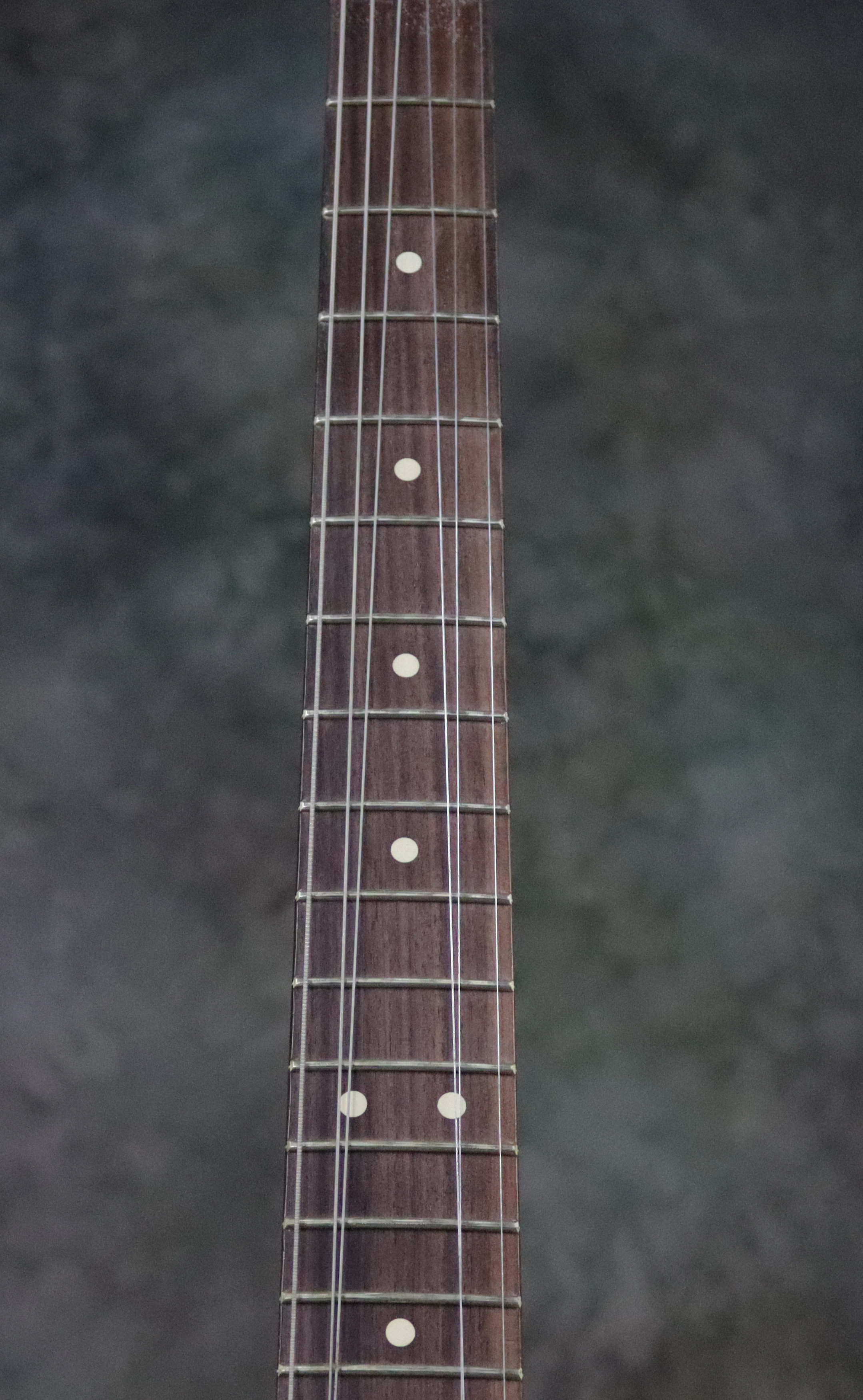

Fingerboard Inlays

Acrylic White Dot

Neck Binding

No

Side Dots

White

Neck Joint

Bolt-on

hardware

Bridge / Tremolo

Chrome, 6-Saddle Fender® 2-point Synchronized Tremolo w/etched Artist Signature

String Tree

Chrome, Ezy-Glide™ T-style Roller Tree

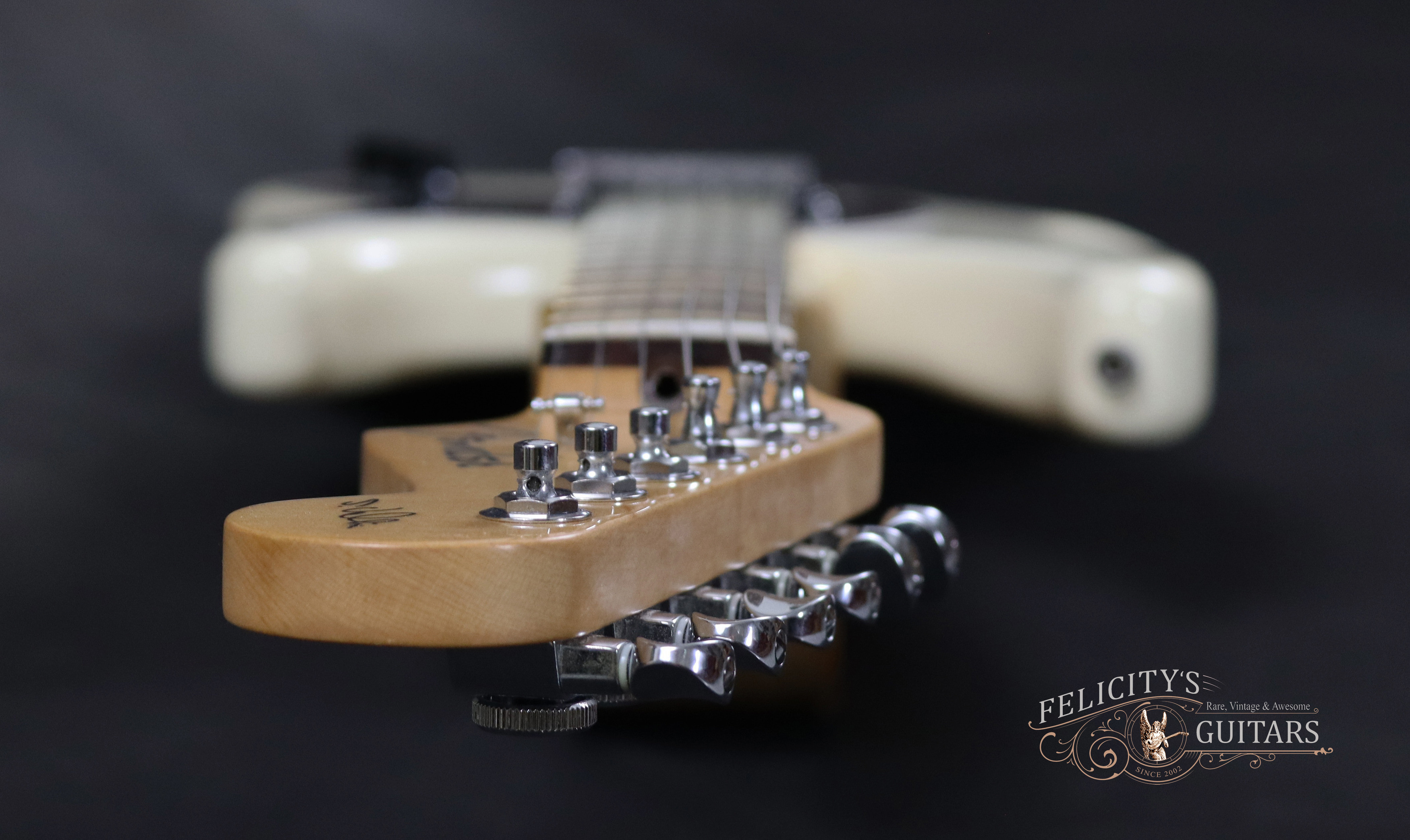

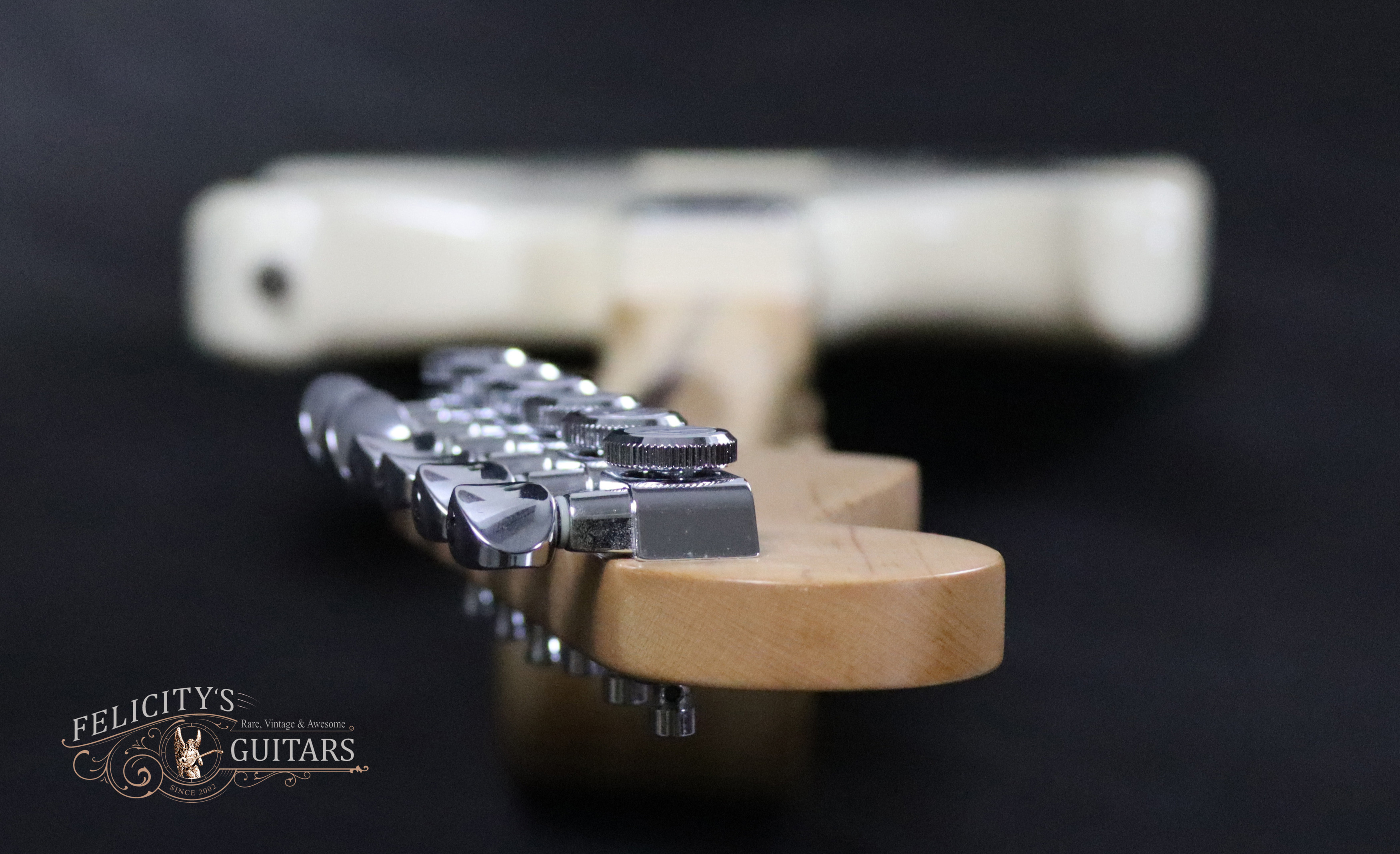

Tuning Machines

Chrome, Fender® Vintage Style Sealed Locking / 14:01 Ratio

Pickup Cover / Ring

Black Plastic, Exposed Pole, Pickguard-mounted HSS configuration / no Rings

Strap Buttons

Polished Aluminum End Pins

Pickguard

4-ply Tortoiseshell™ (shielded)

Control Knobs

1 Black Rotary Knob with no Dial Pointer

Switch

1 Black Rotary Knob with no Dial Pointer

Neck Plate

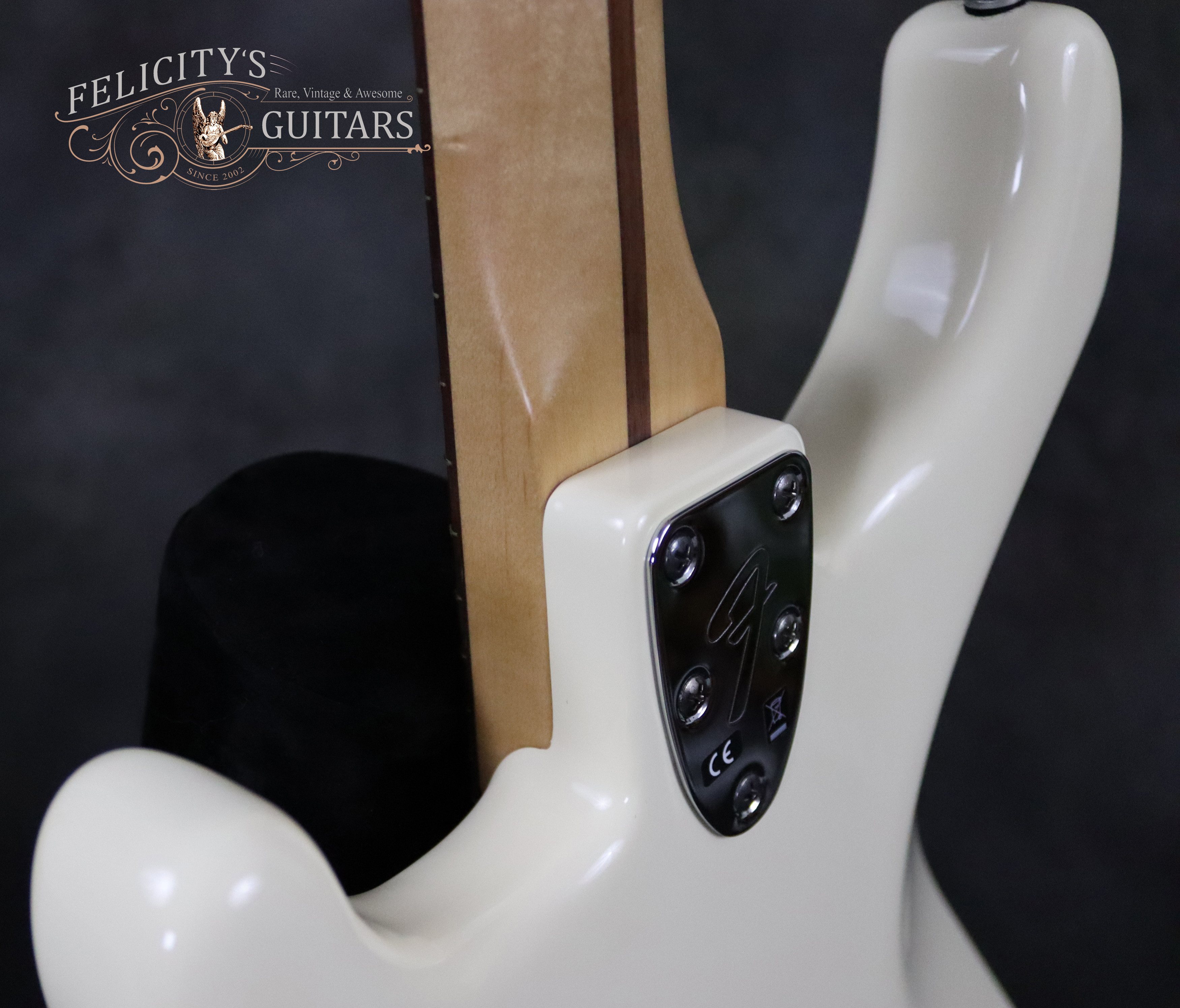

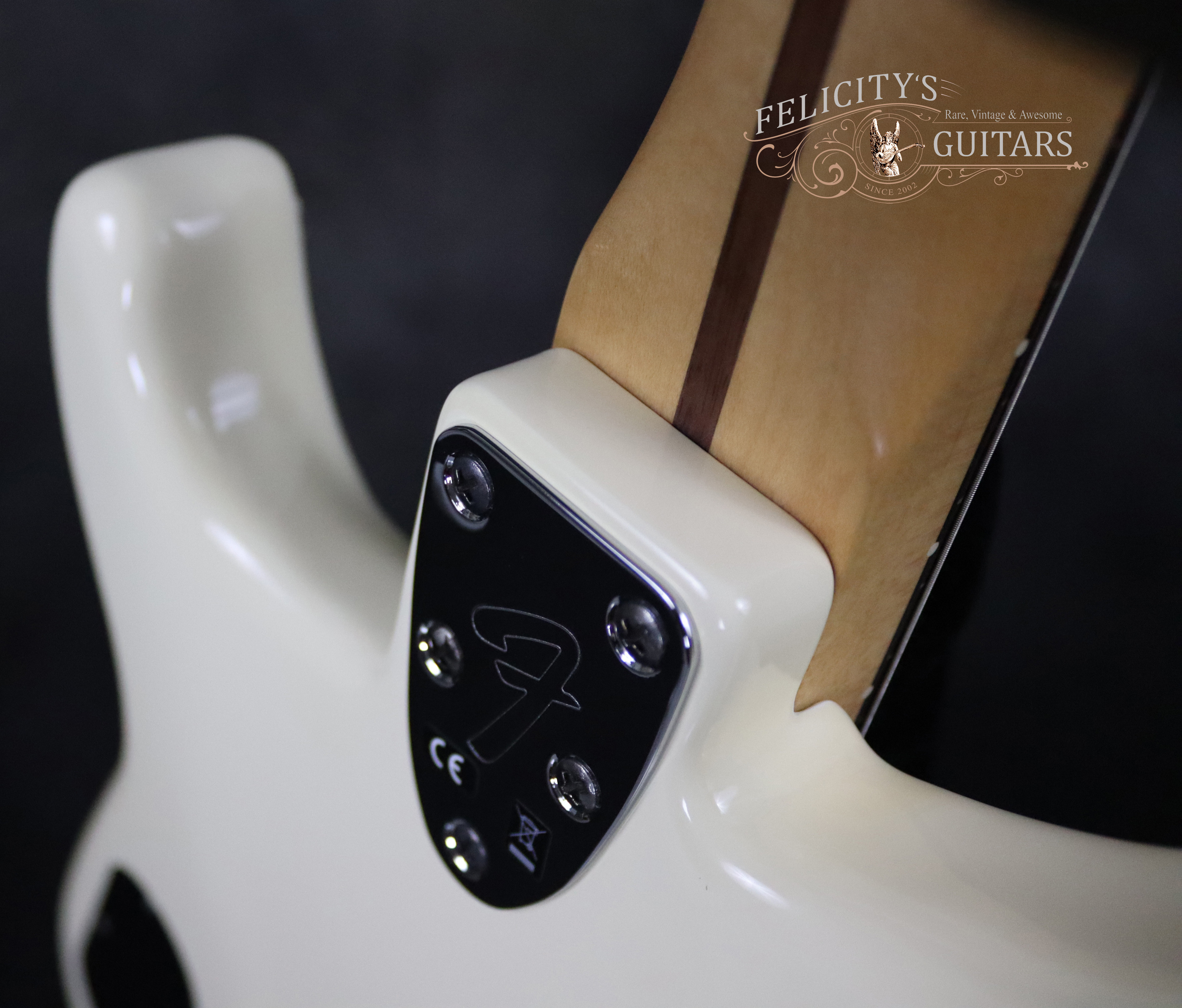

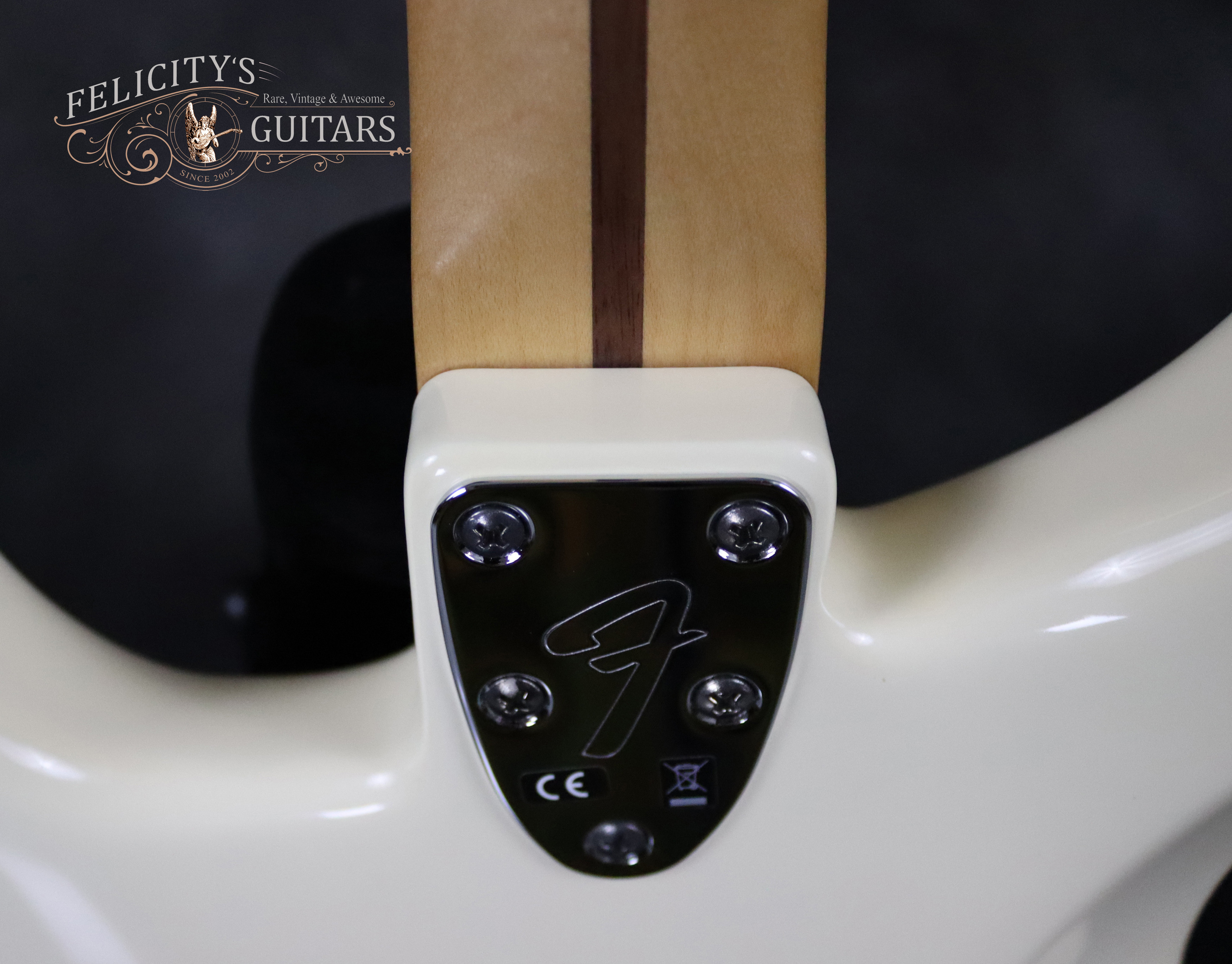

Chrome, 5-bolt, Bullet shape with “F” stamped

electronics

Bridge Pickup

Fender® Sergio Vallin Humbucker, Alnico V, DCR 8.7k

Middle Pickup

Fender® Sergio Vallin Single-Coil Strat, Alnico V, DCR 6.4k

Neck Pickup

Fender® Sergio Vallin Single-Coil Strat, Alnico V, DCR 6.4k

Active / Passive

Passive

Series / Parallel

Series

Controls

1 Master Volume, 1 Master 5-pos. Rotary Switch: Pos-1 Bridge, Pos-2 Bridge & Middle, Pos-3 Neck & Bridge, Pos-4 Neck


and Middle, Pos-5 Neck Pickup

Vol Potentiometer

330k

Tone Potentiometers

250k

Capacitor / Resistor

.22uF / .47uF

Harness

Control-plate-mounted (horn) “SV” Wiring

S-1 Switch

No

Greasebucket T-Circuit

No

MDX/TBX Circuit

No

Special Electronics

Push/Pull Volume sends signal through Humbucker bypassing Volume & Pickup Switch

Piezo

No

Kill Switch

No

Output Jack

Switchcraft™ 1/4" 2-Conductor Mono

miscellaneous

Case / Gigbag

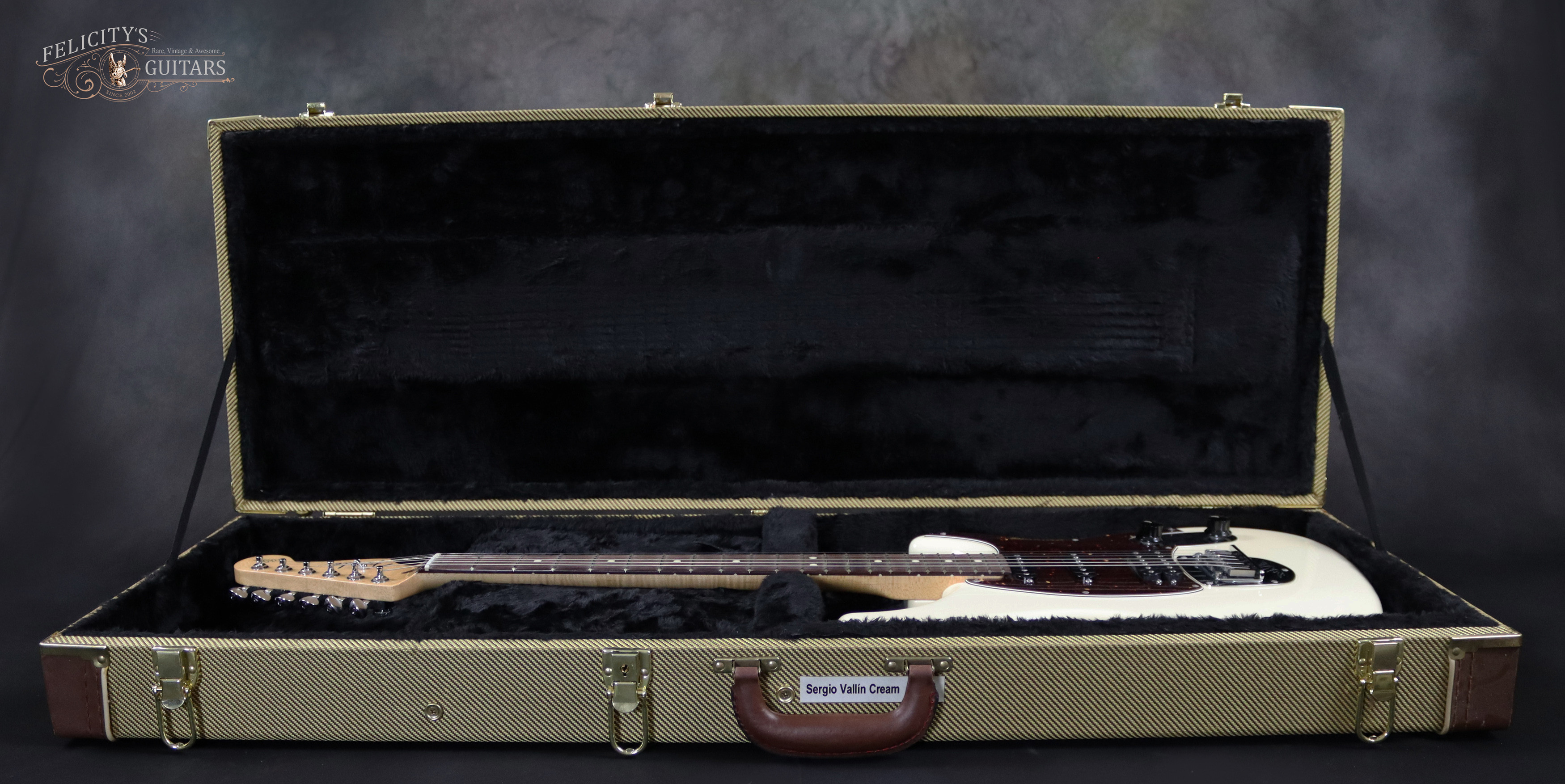

Fender® provides Gigbag. We offer Tweed Hardshell Case with Padded Interior & locks

Strap Locks

Yes

Strings

Fender® U.S.A. 250R Nickel Plated Steel (.010-.046 Gauges)

Tools / Accessories

No / Tremolo Arm and Case Keys

Manual / Literature
Fender® Owner’s Manual & instructions, Hang Tags

C.O.A.

No

Other

No

Weight

Is the actual weighed-value in US Standard Units


Disclosure



Some technical Specs may have been extracted from Fender® U.S.A. and/or internet archives. The words Fender® and the associated designs are registered trademarks of the Fender Musical Instruments Corporation and the other named entities, respectively
