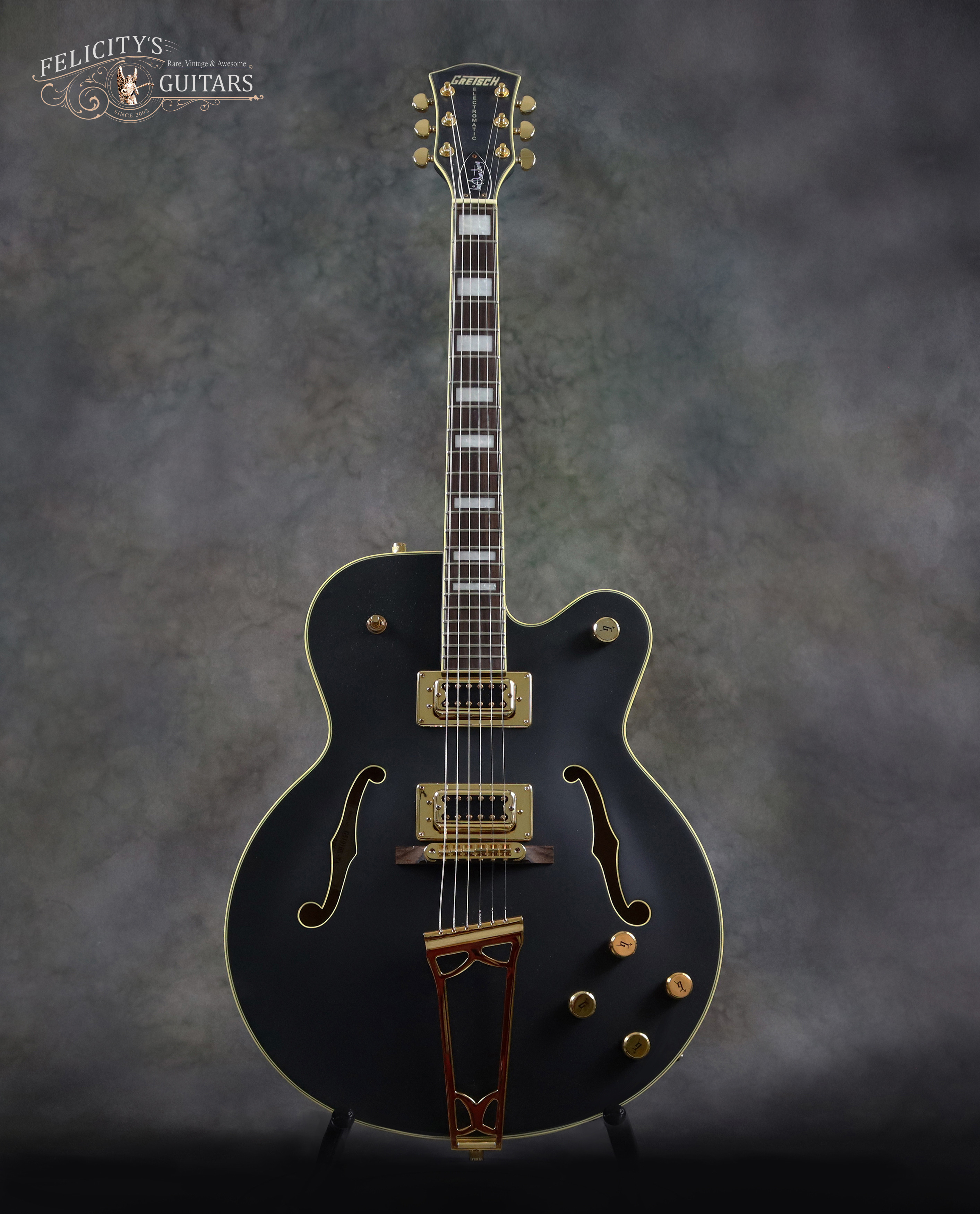

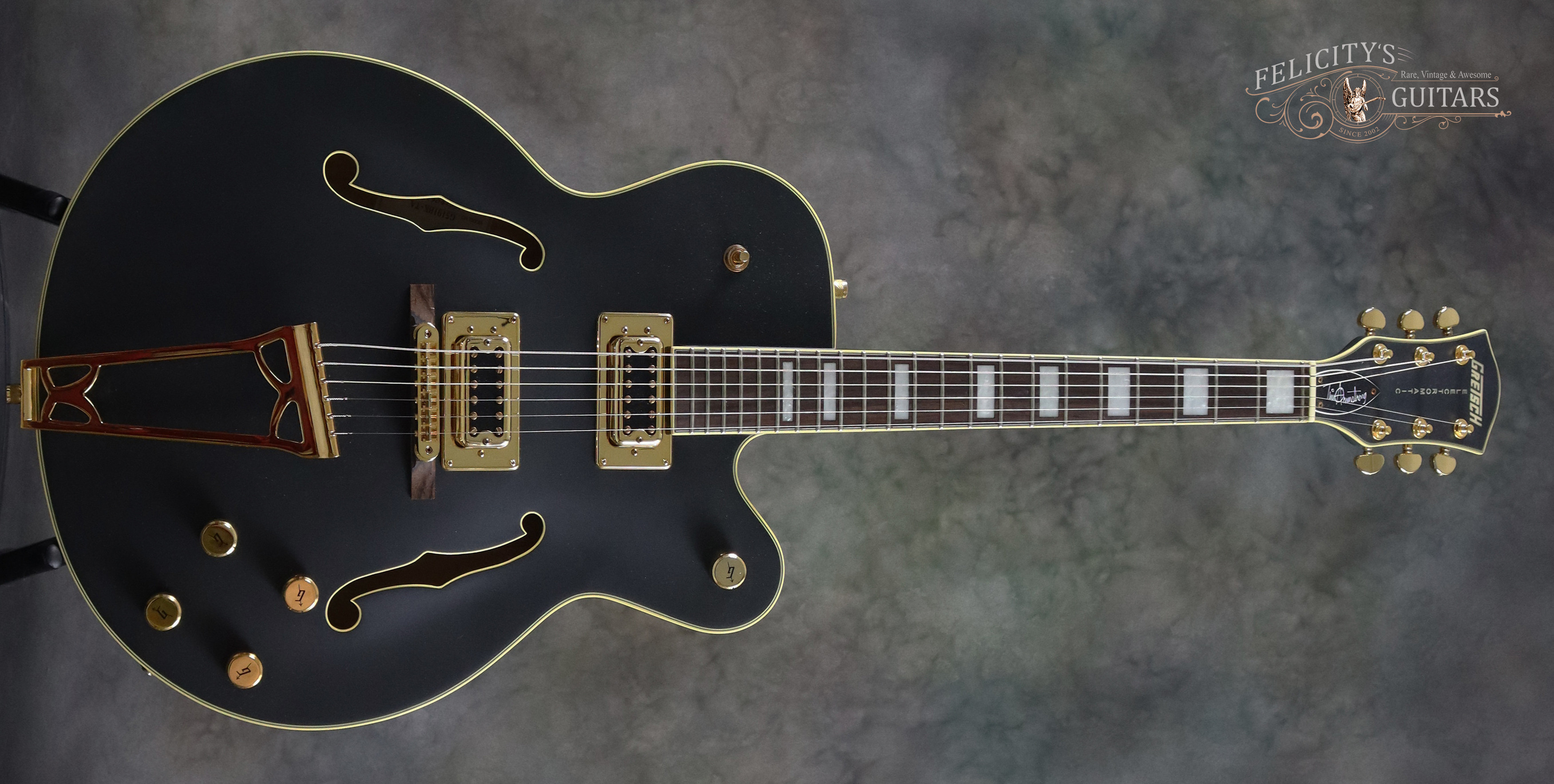

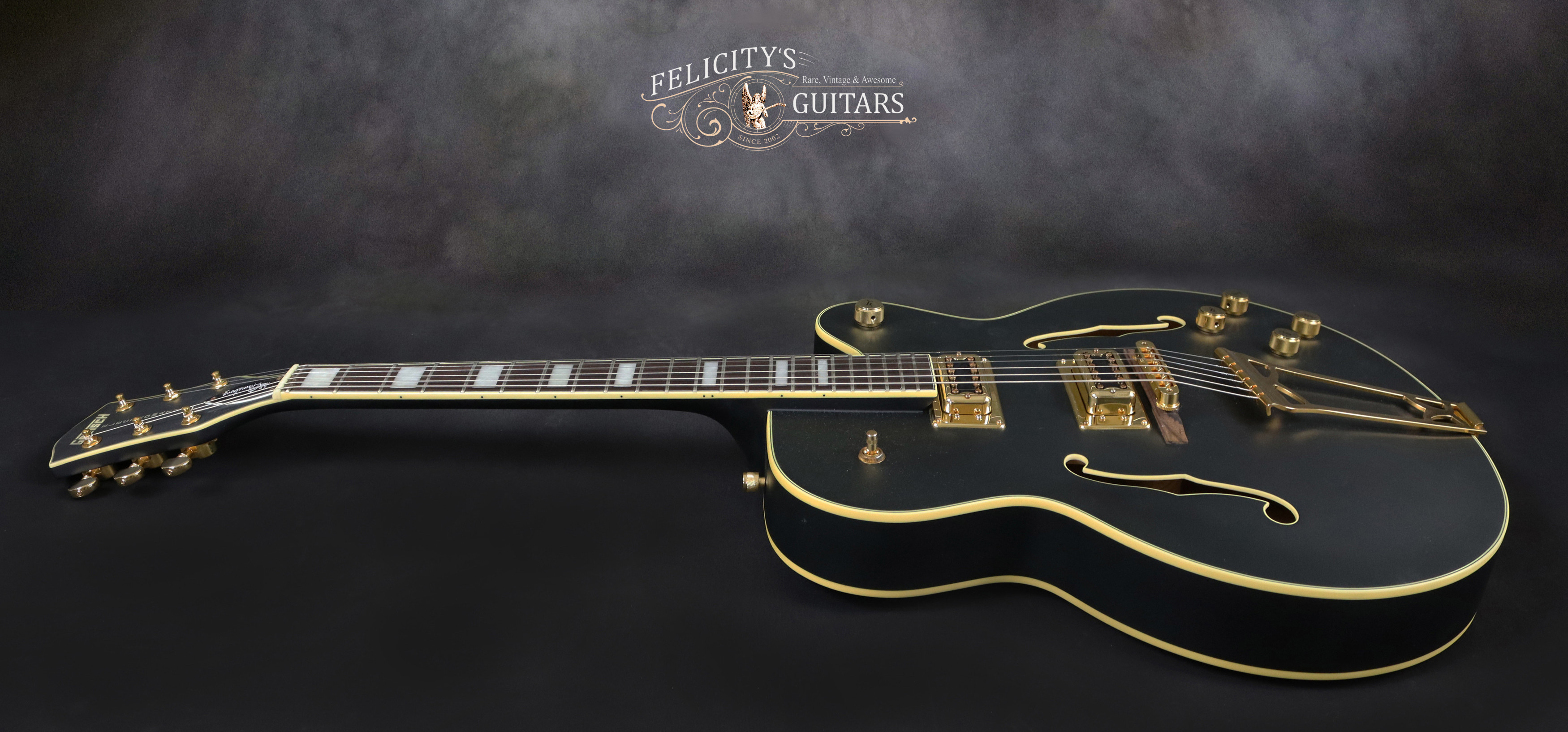

2015 GRETSCH G5191BK TIM ARMSTRONG SIGNATURE ARCHTOP IN SATIN BLACK FINISH

Loud and ferocious, the Gretsch® G5191BK Tim Armstrong Electromatic.

This 2015 Gretsch G5191BK Tim Armstrong Signature Archtop in brand new and unplayed condition. Gretsch says; “Loud and ferocious, the Gretsch® G5191BK Tim Armstrong Electromatic® Hollow Body bears the personal stamp of Rancid founder and punk Godfather Tim Armstrong”.


The 2015 Gretsch G5191BK Tim Armstrong Signature Archtop at a glance:

  • Black-Top Filter'Tron™ Humbucking pickups handle everything from rockabilly to hard rock and indie jangle

  • Combines classic Gretsch® playability with Tim Armstrong’s distinctive modifications

  • Great intonation with the ‘Zero’ fret, Graphite nut, Adjusto-Matic™ bridge and Floating tailpiece

  • Legendary construction features a special "open" internal body design with Parallel Tone Bar Bracings, which greatly enhance resonance and sustain

  • Matte Black Satin Finish and gold-plated hardware is unique and looks fantastic

USD 1,000,000

Shipping will be calculated at check out

description

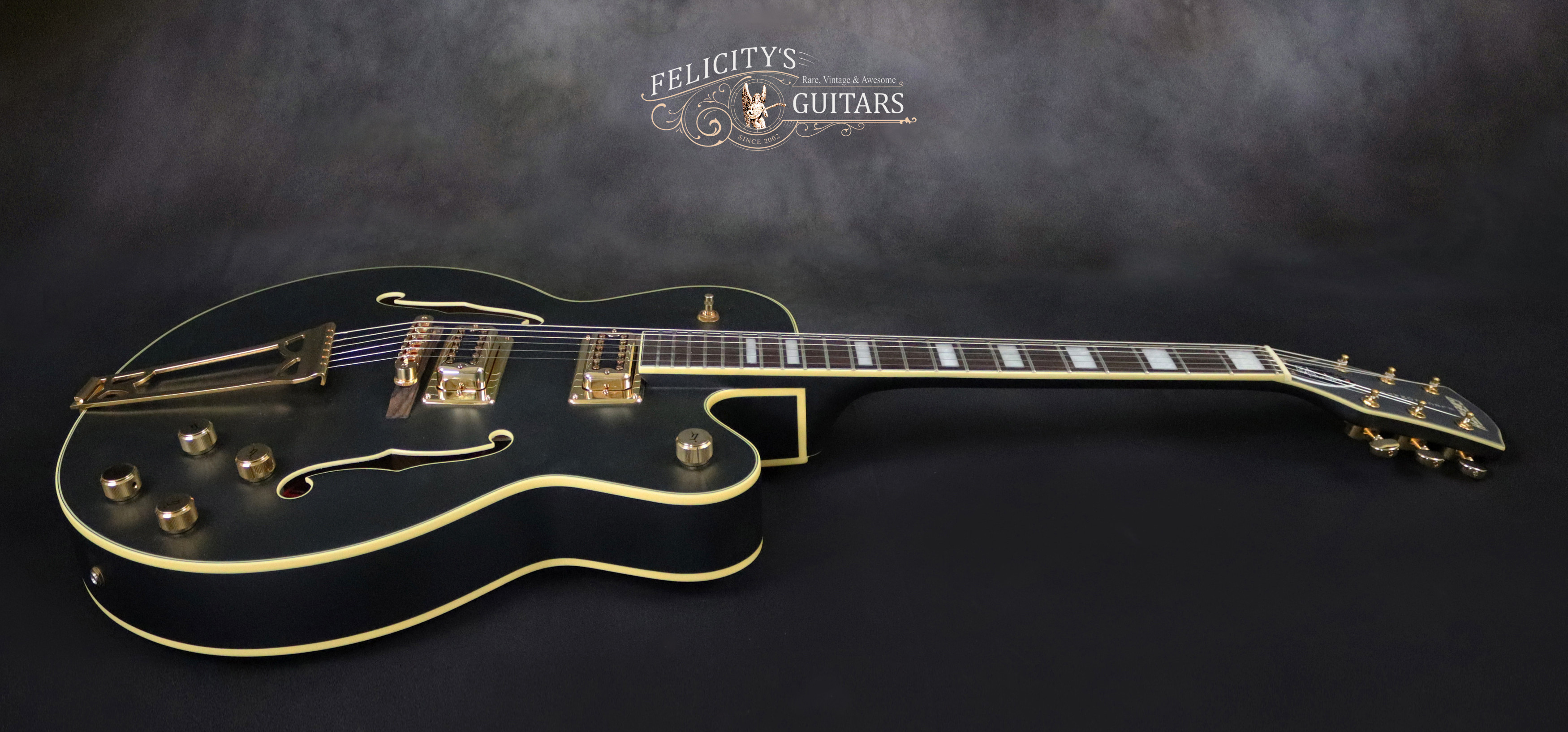

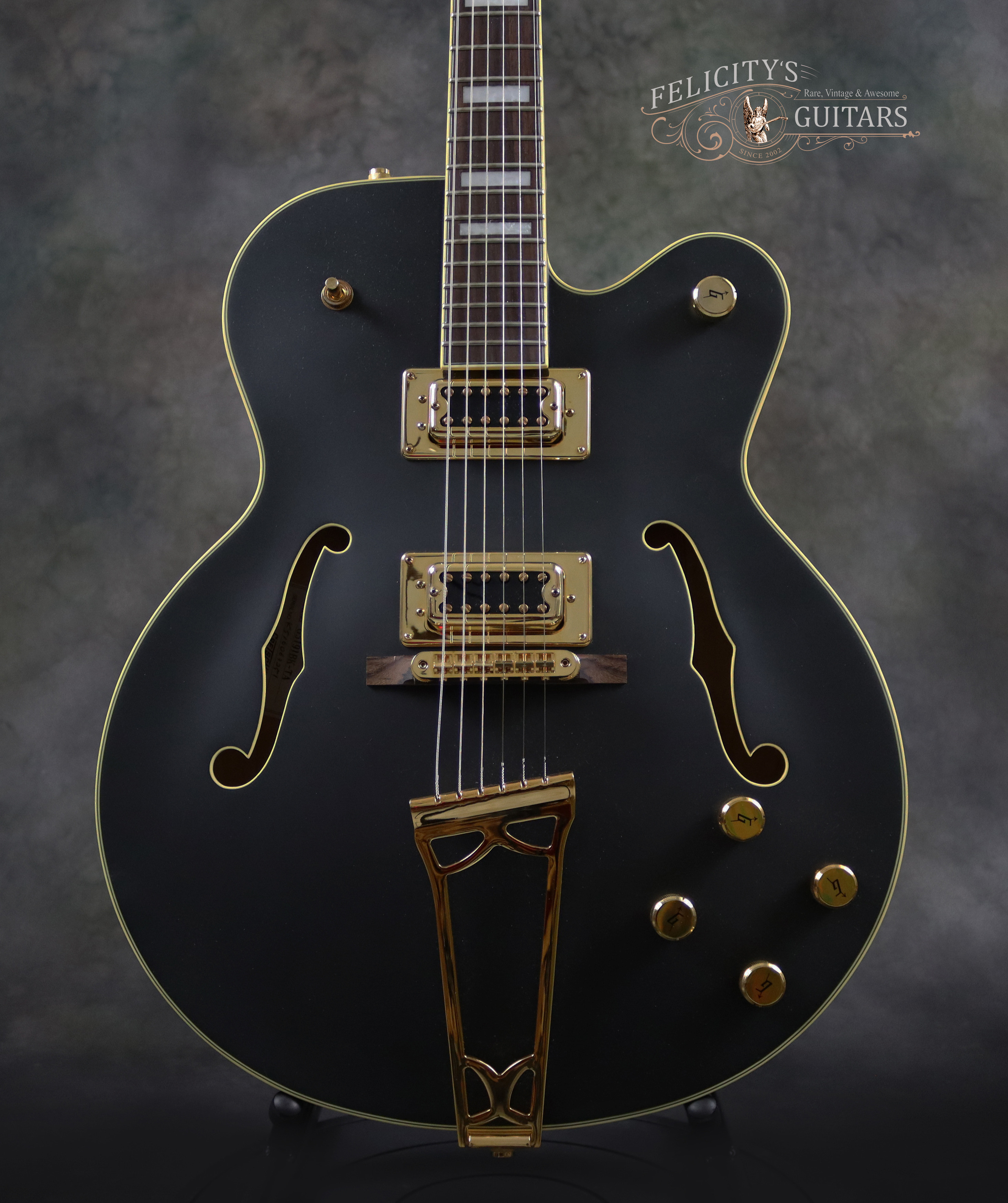

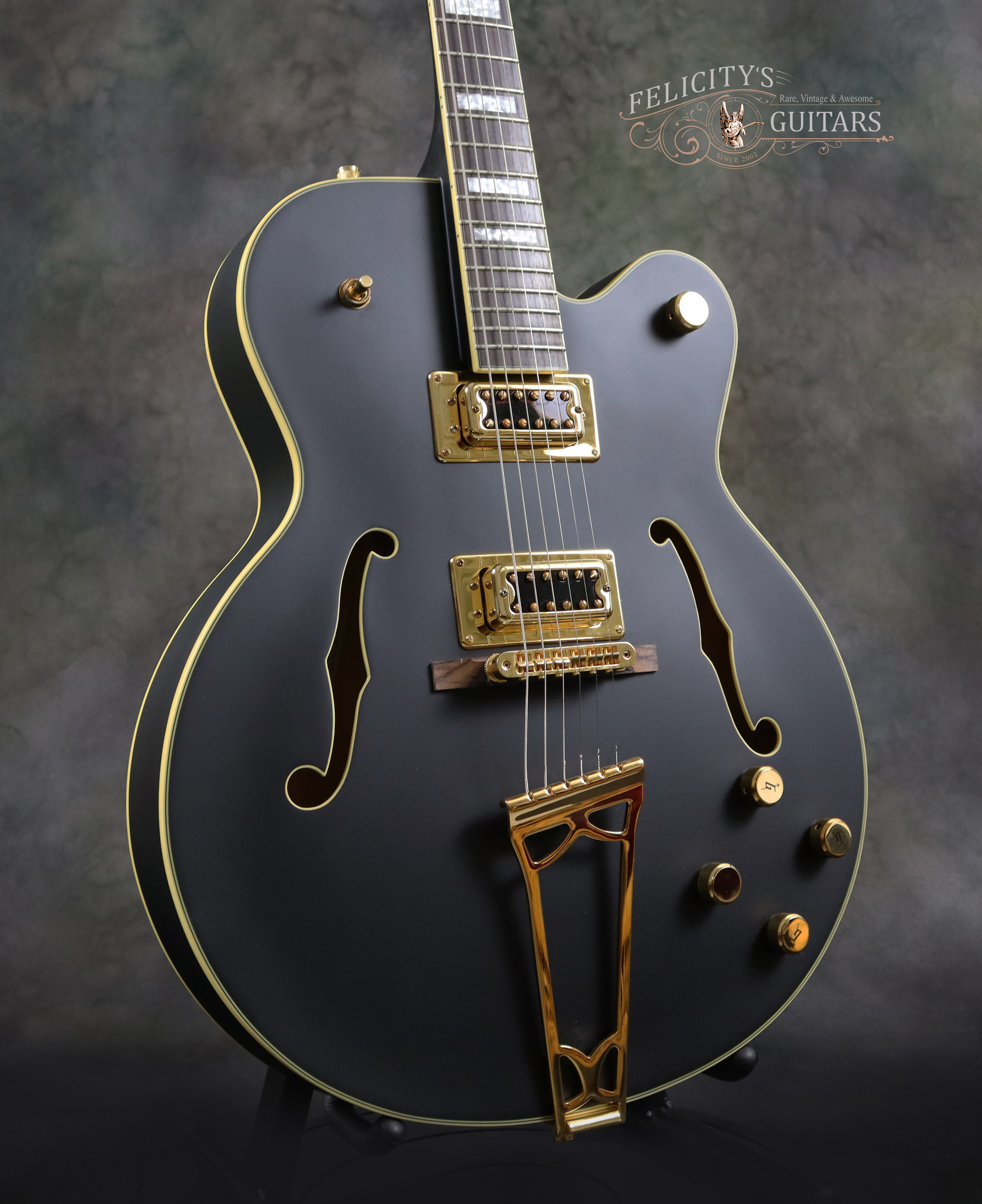

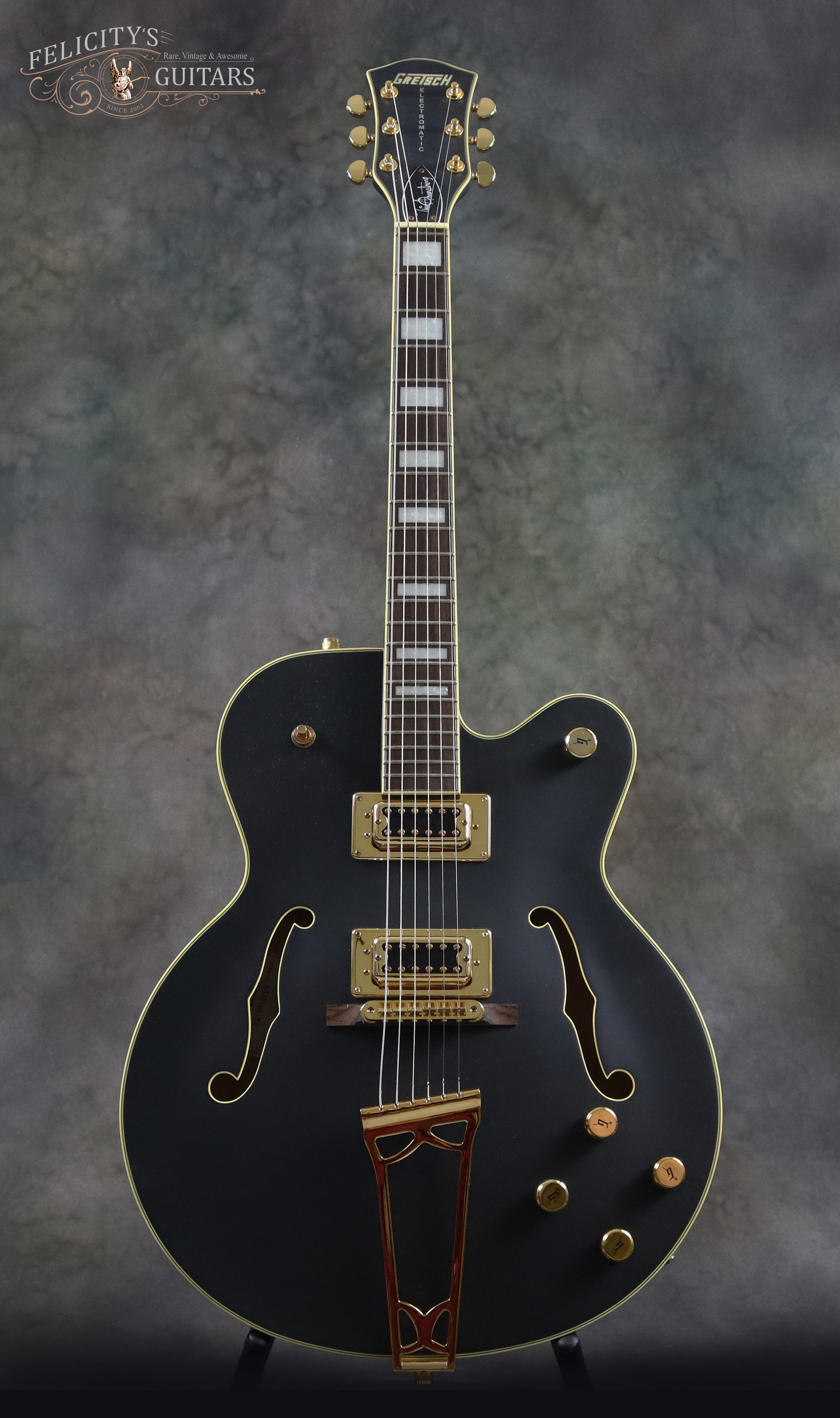

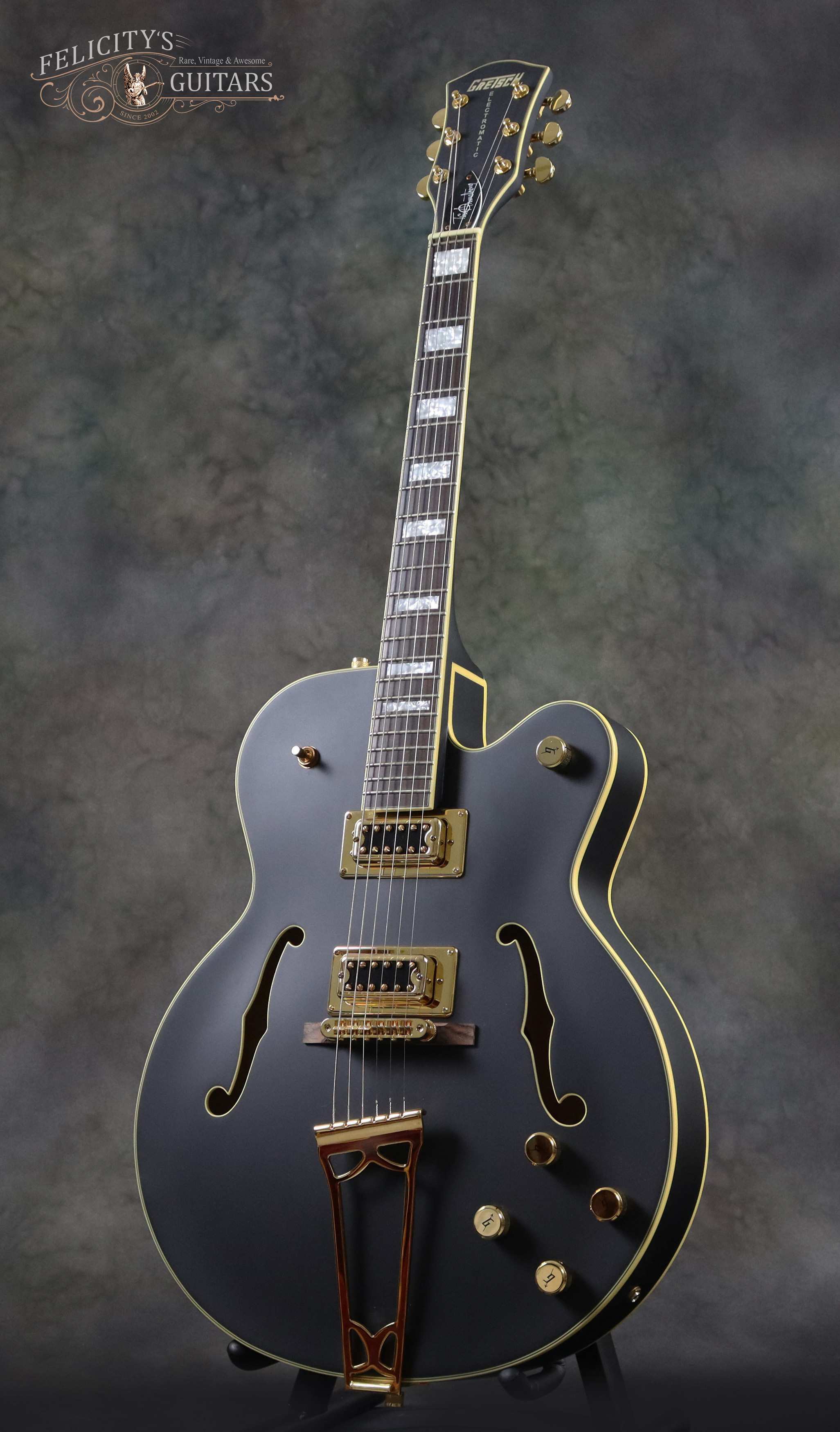

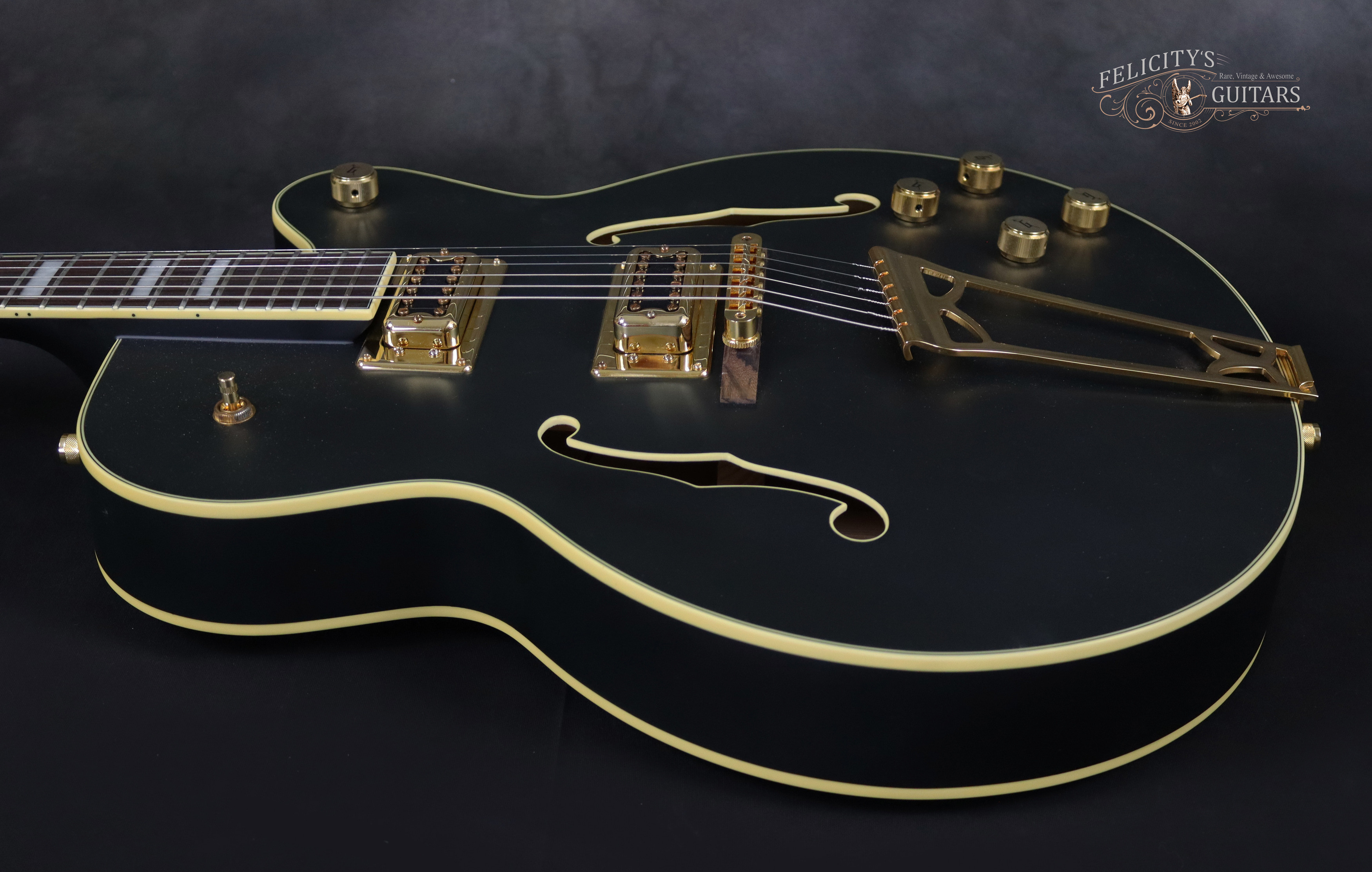

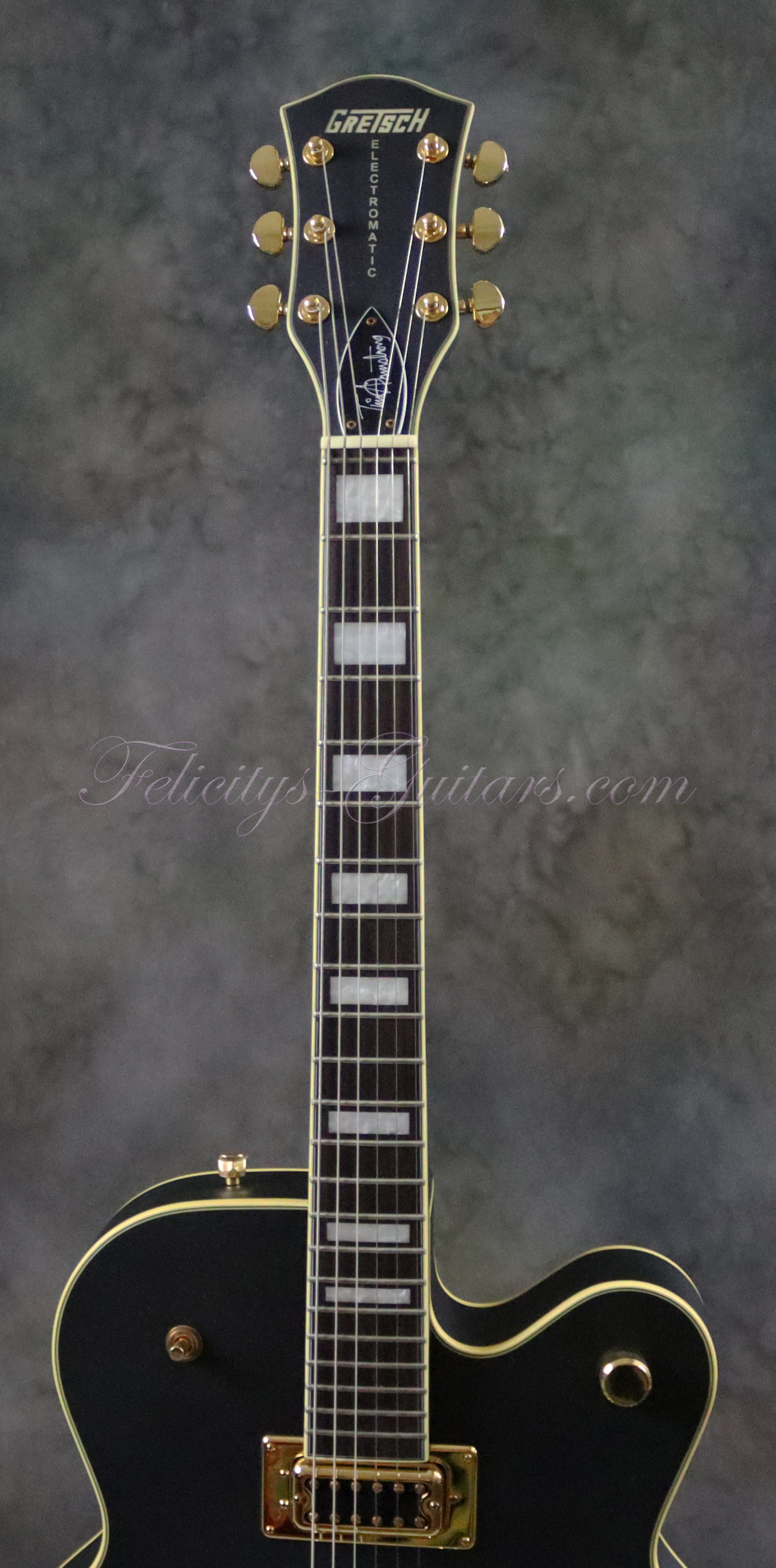

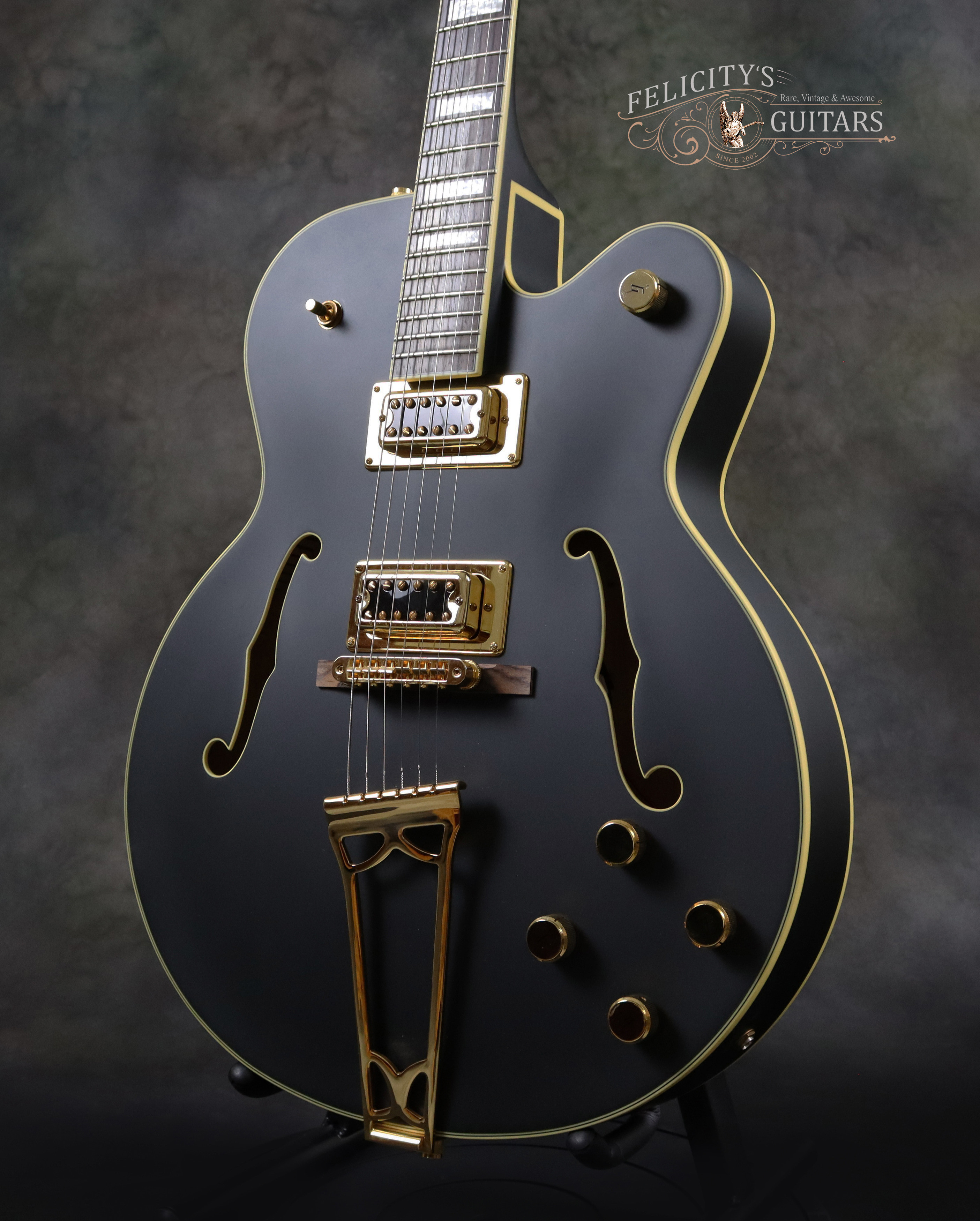

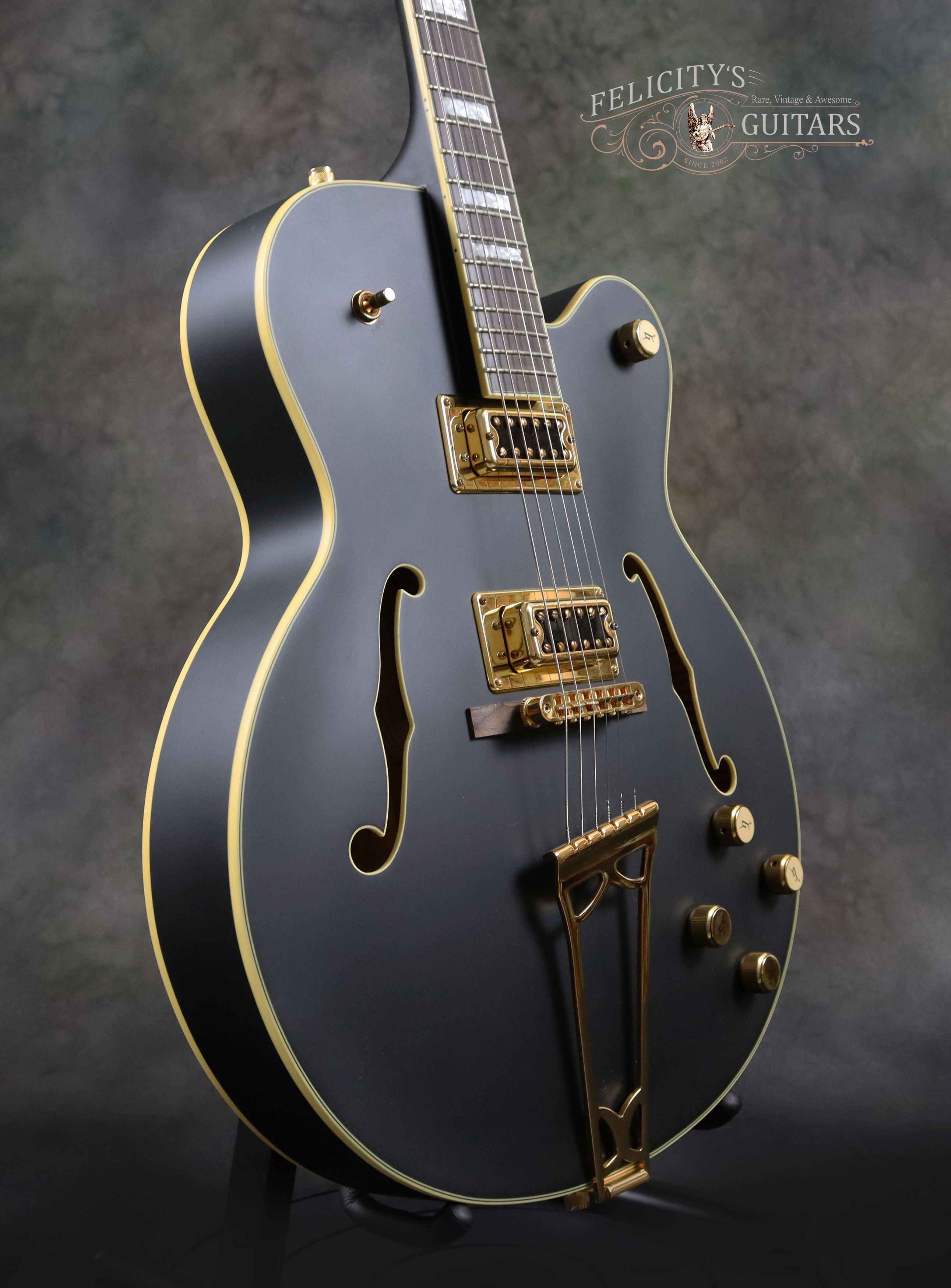

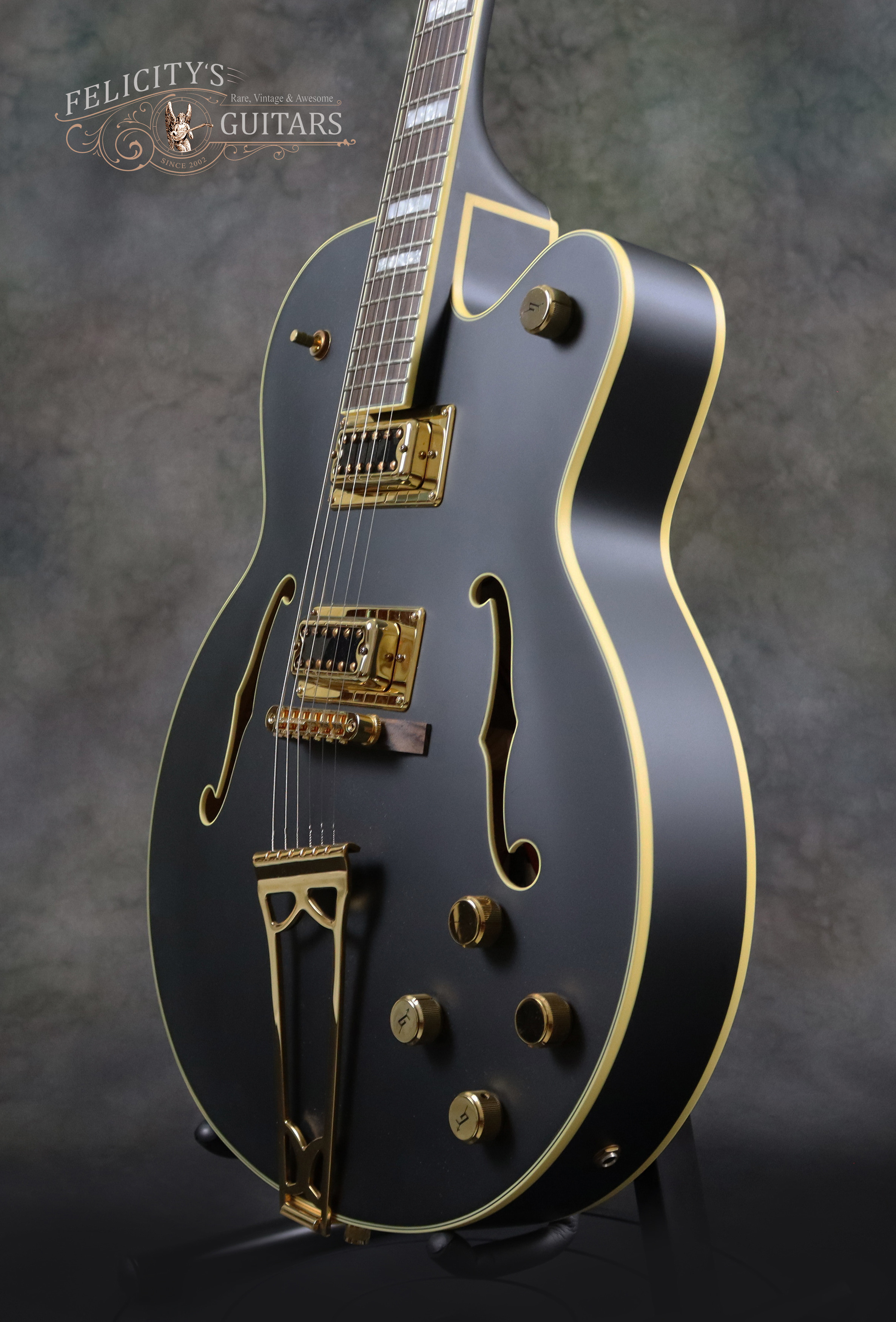

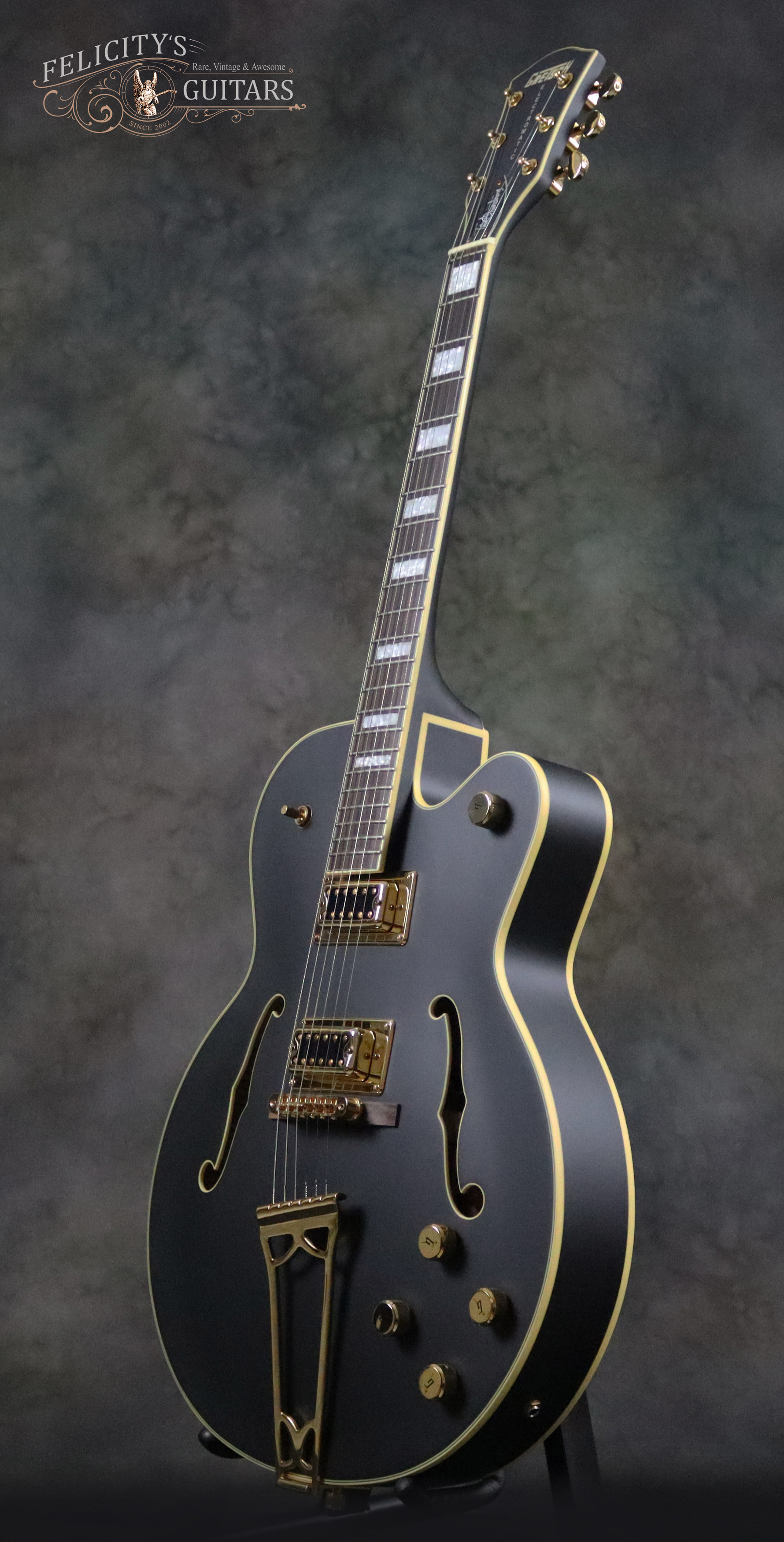

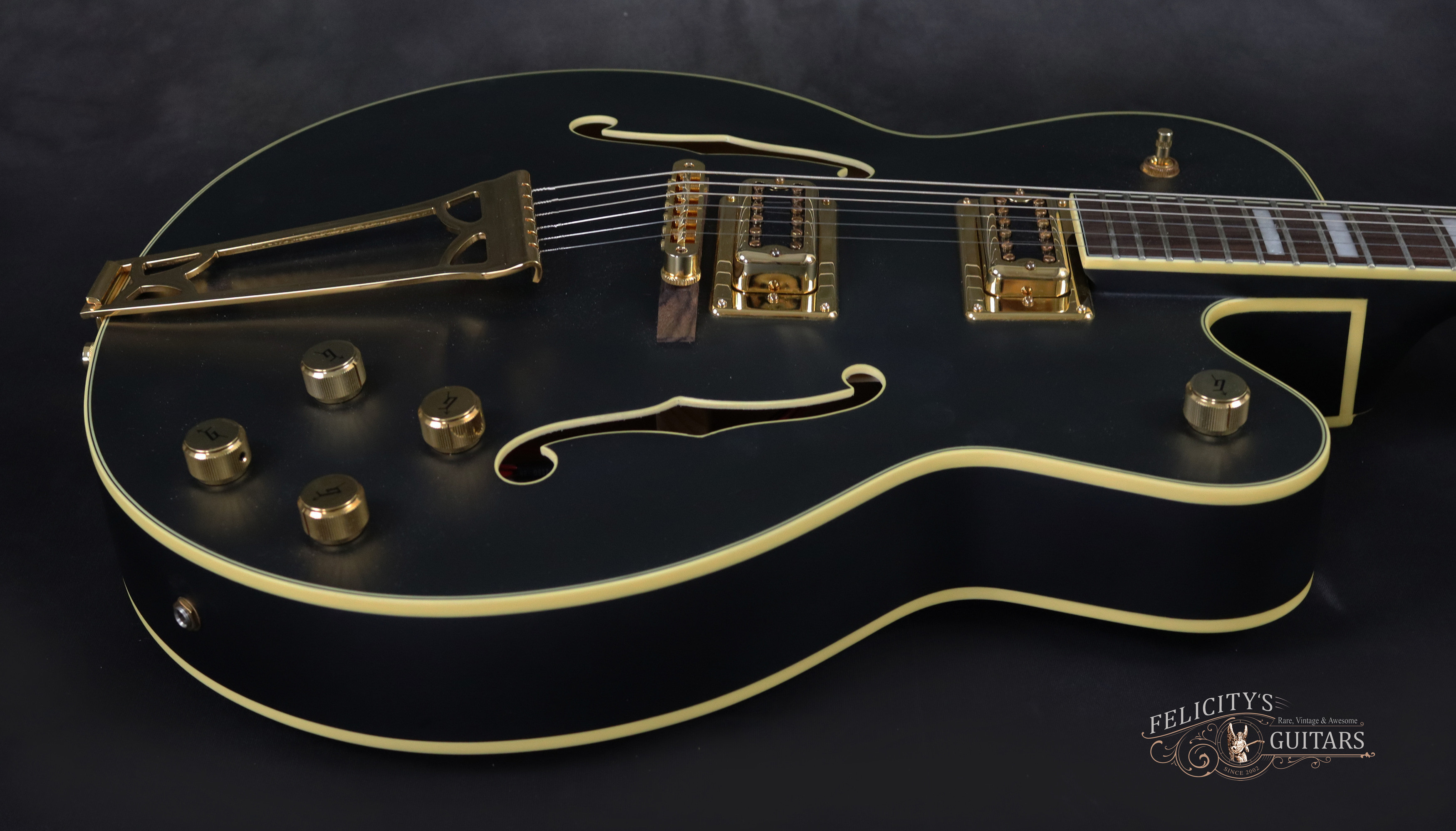

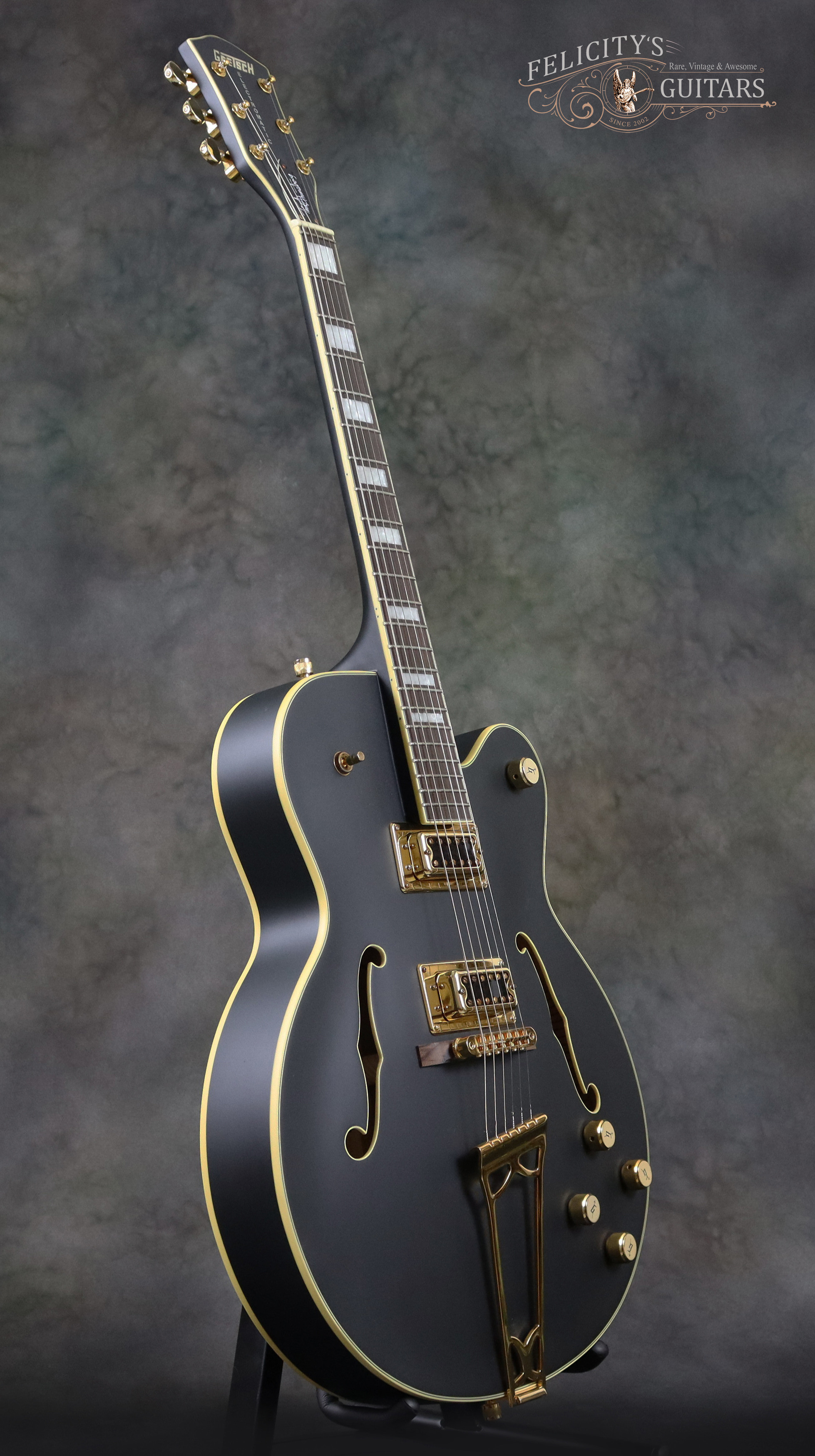

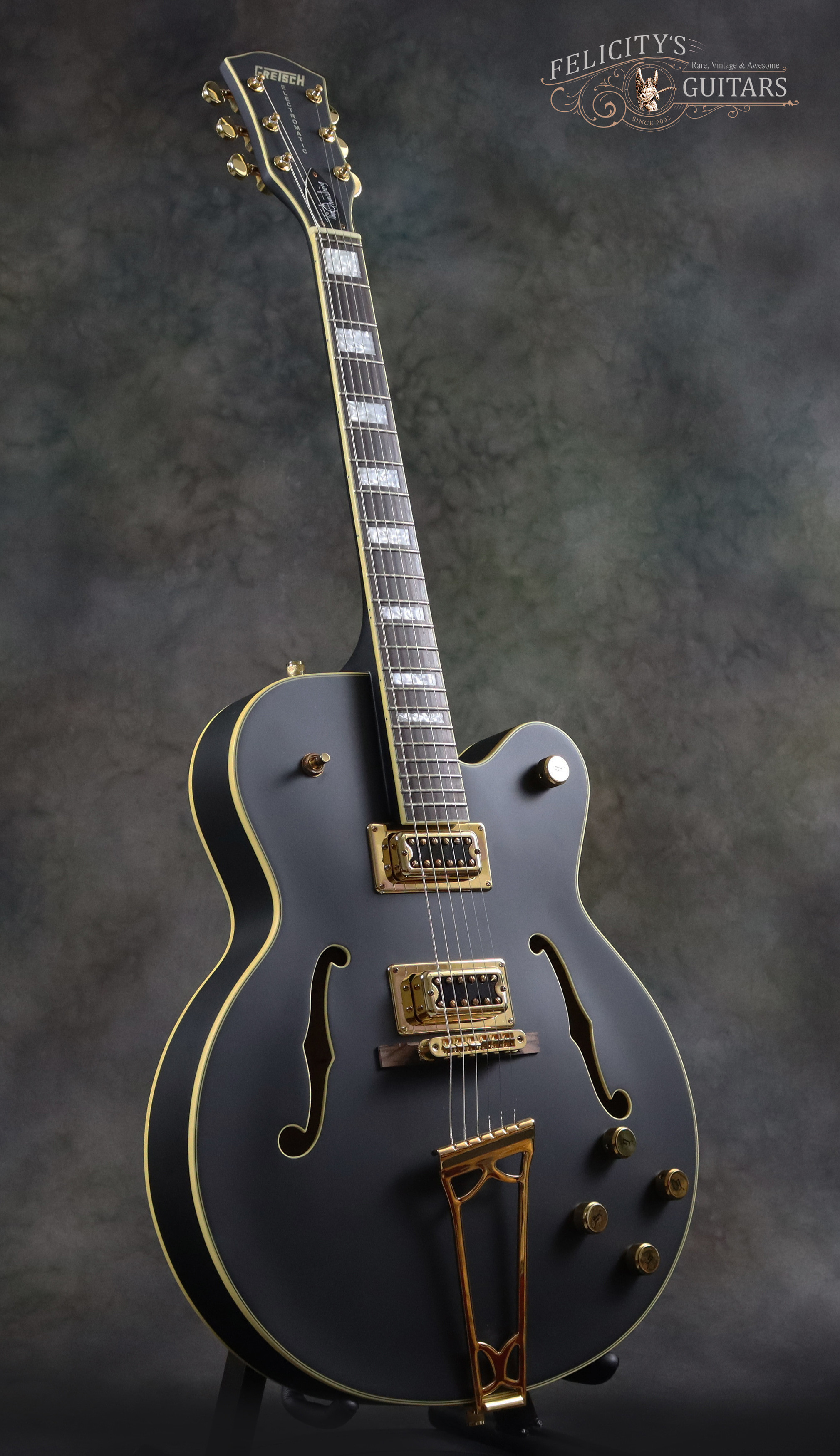

Huge tone resonates from deep within its bound single-cutaway hollow body archtop, which features parallel tone bar bracing with sound post and bound F-holes. The one-piece maple neck has a white graphite nut and bound rosewood fingerboard with acrylic block inlays. Other features include dual Black Top Filter’Tron™ humbucking pickups with gold-plated bezels, three-position pickup switch, gold-plated hardware, bound headstock with pearloid Gretsch inlay and Armstrong’s signature on the truss rod cover, Grover® tuners, Adjusto-Matic™ bridge and harp tailpiece.


In the hands of players as diverse as Brian Seltzer, George Harrison, Malcolm Young, Pete Townshend and John Squire, Filter’Tron Pickups have shown they can handle everything from 1950s rockabilly to hard rock and indie jangle. Clean, the Filter’Tron has a beautiful jazz sound without the inherent muddiness that a PAF sometimes exhibits. When slightly overdriven, it is the sound of rockabilly. These pickups have a treble snarl that is just on the pleasant end of strident without becoming too harsh. These factors combine to make the Filter’Tron a great bridge between the Fender and Gibson sound, carving out its own signature sonic space. Filter’Trons typically have a DCR of 3k-5k, which seems very low. However, due to the size of the magnet and the tall and narrow configuration of the coils, Filter’Trons are considered to be on the louder side of the pickup range. This lower output allows the pickups to keep a single-coil-esque clarity, while the construction allows for classic humbucker warmth.

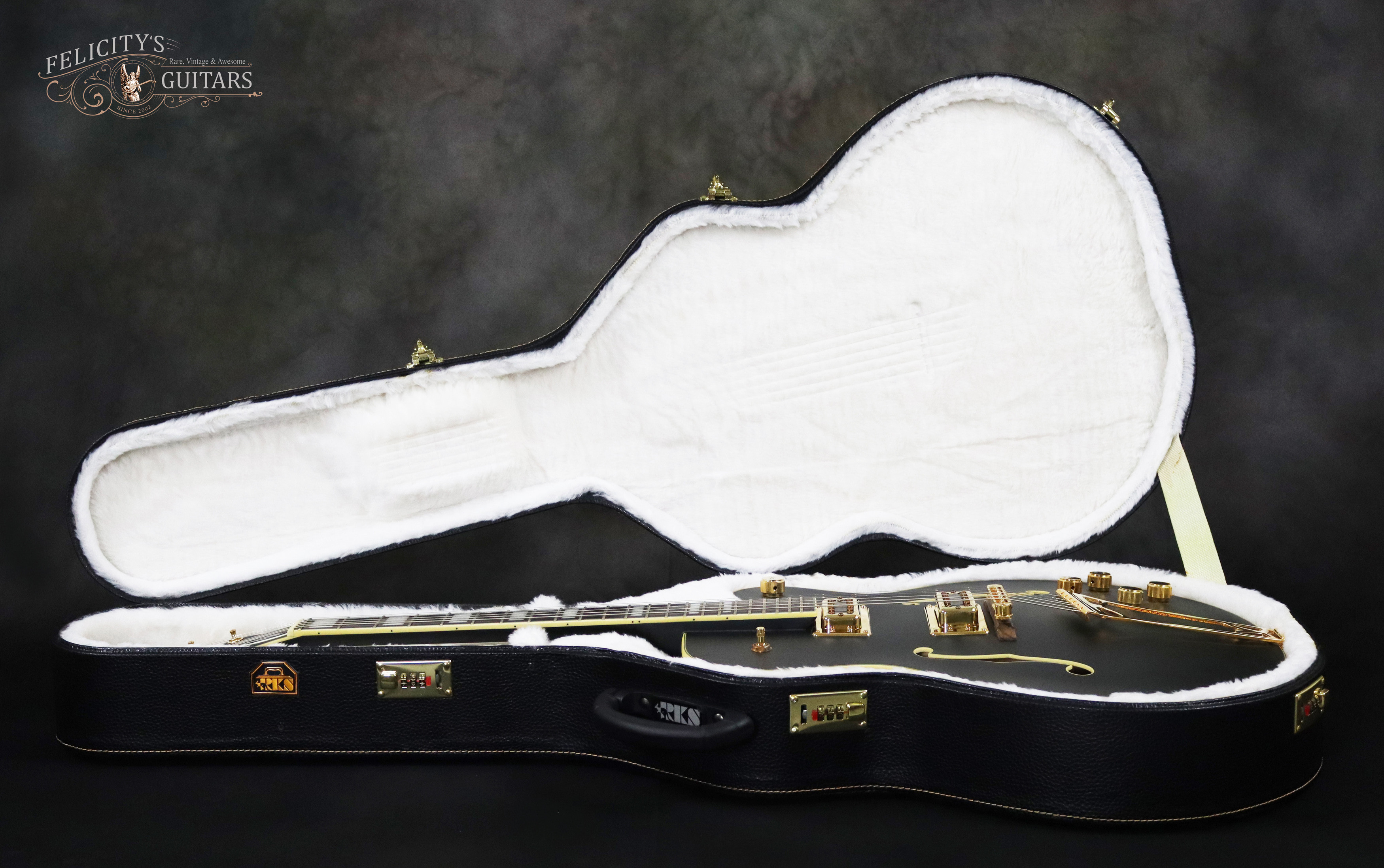

The 2015 Gretsch G5191BK Tim Armstrong Signature Archtop guitar does not come with a case/gigbag by default, so Felicity’s Guitars provide a high-quality custom fit ‘RKS’ hardshell case with plush white interior, included in price. This guitar is brand new condition as when it left the factory, and you can be the first person to play it!

Specifications

General

Condition

Brand New (NOS)

Number of Strings

6

Orientation

Right-handed

Country of Origin

Korea

Year

2015

Limited Edition / Series

No

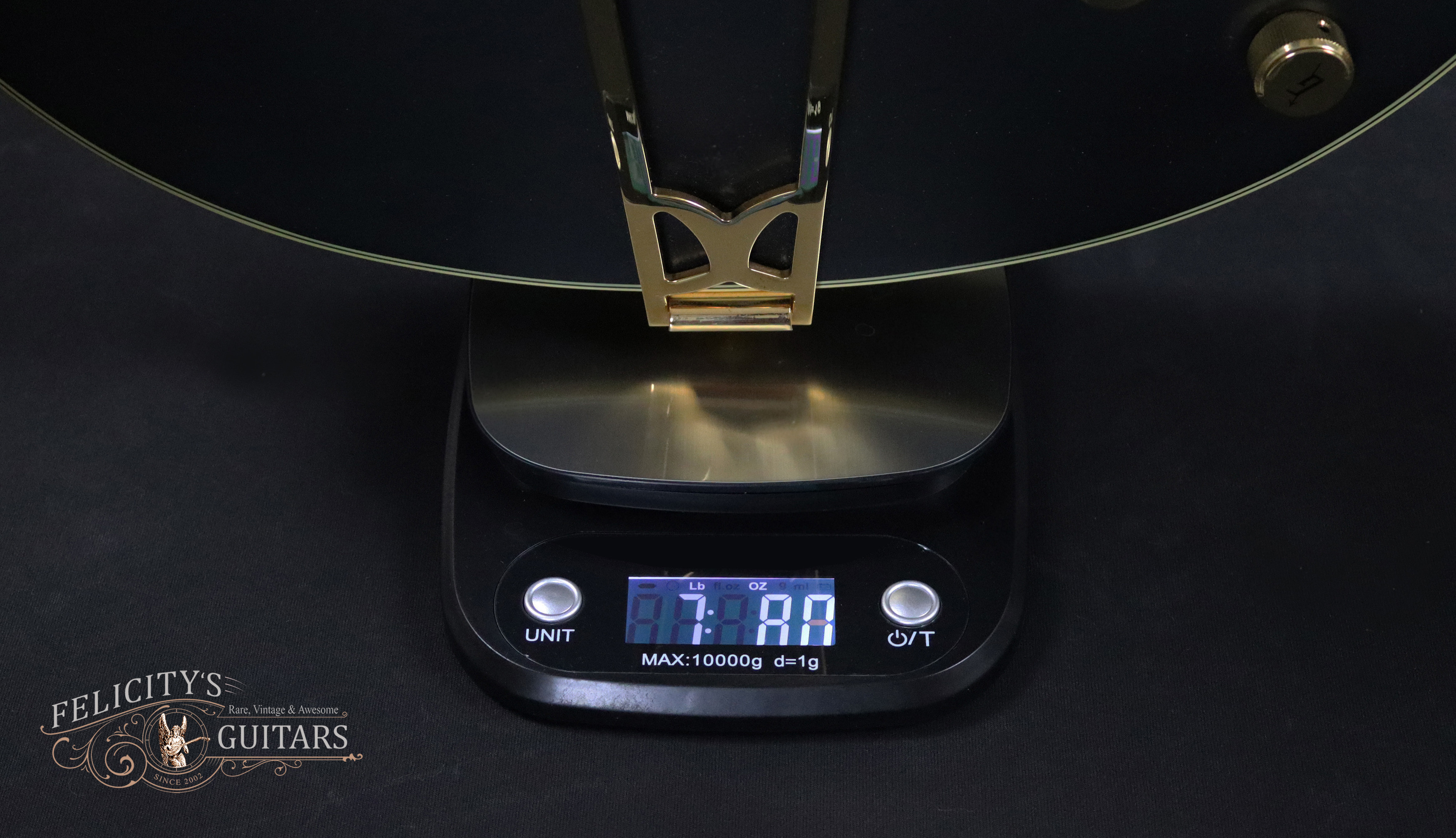

Weight

7-lbs 8.0-oz

body

Body Type

Hollowbody Archtop with F-Holes

Body Shape

Single Cutaway Electromatic® / 2.75" Depth

Body Material

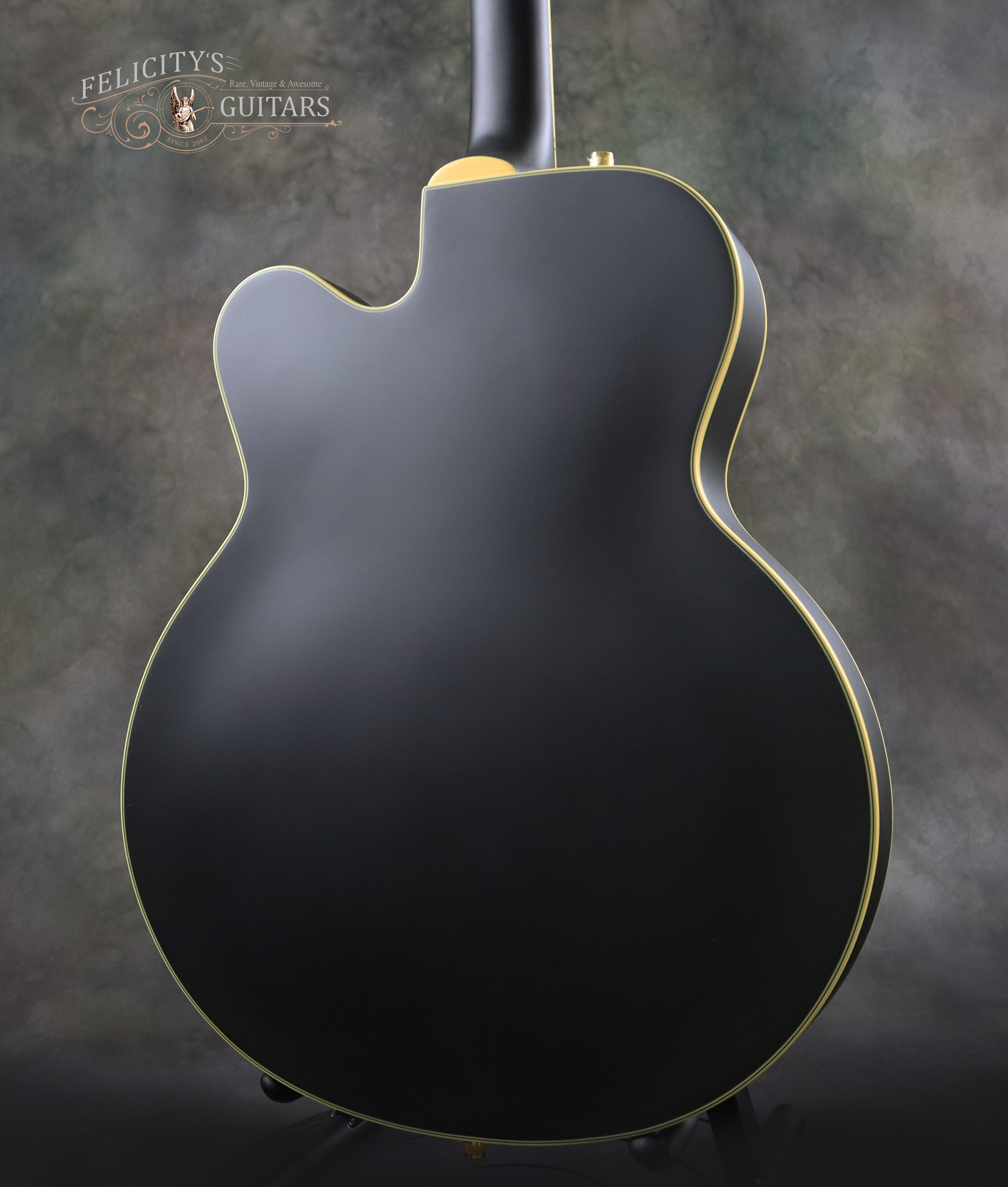

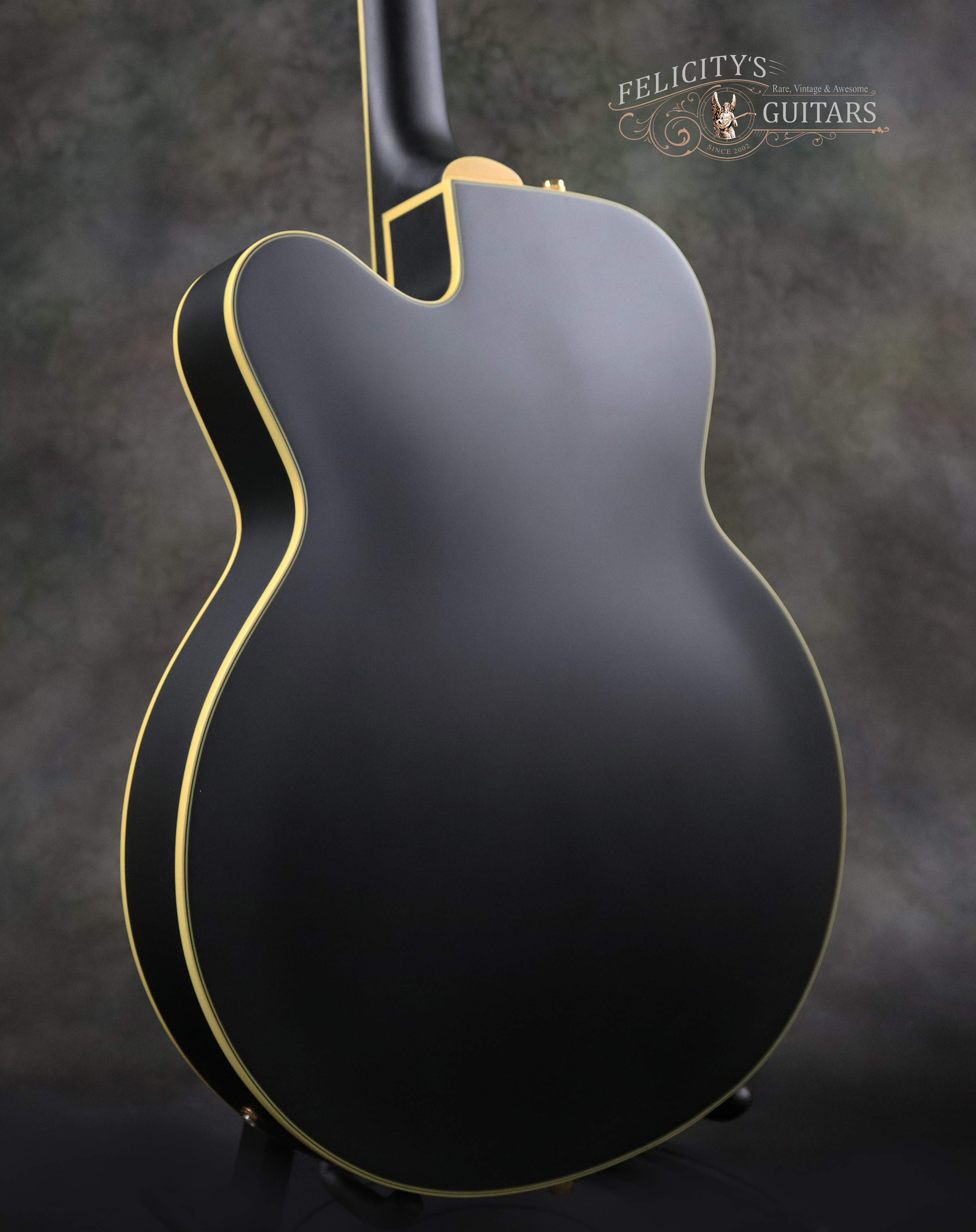

5-ply Laminated Maple Top, Back and Rims with Parallel Tone Bar Bracings

Body Carve

Front: Arched

Back: Arched

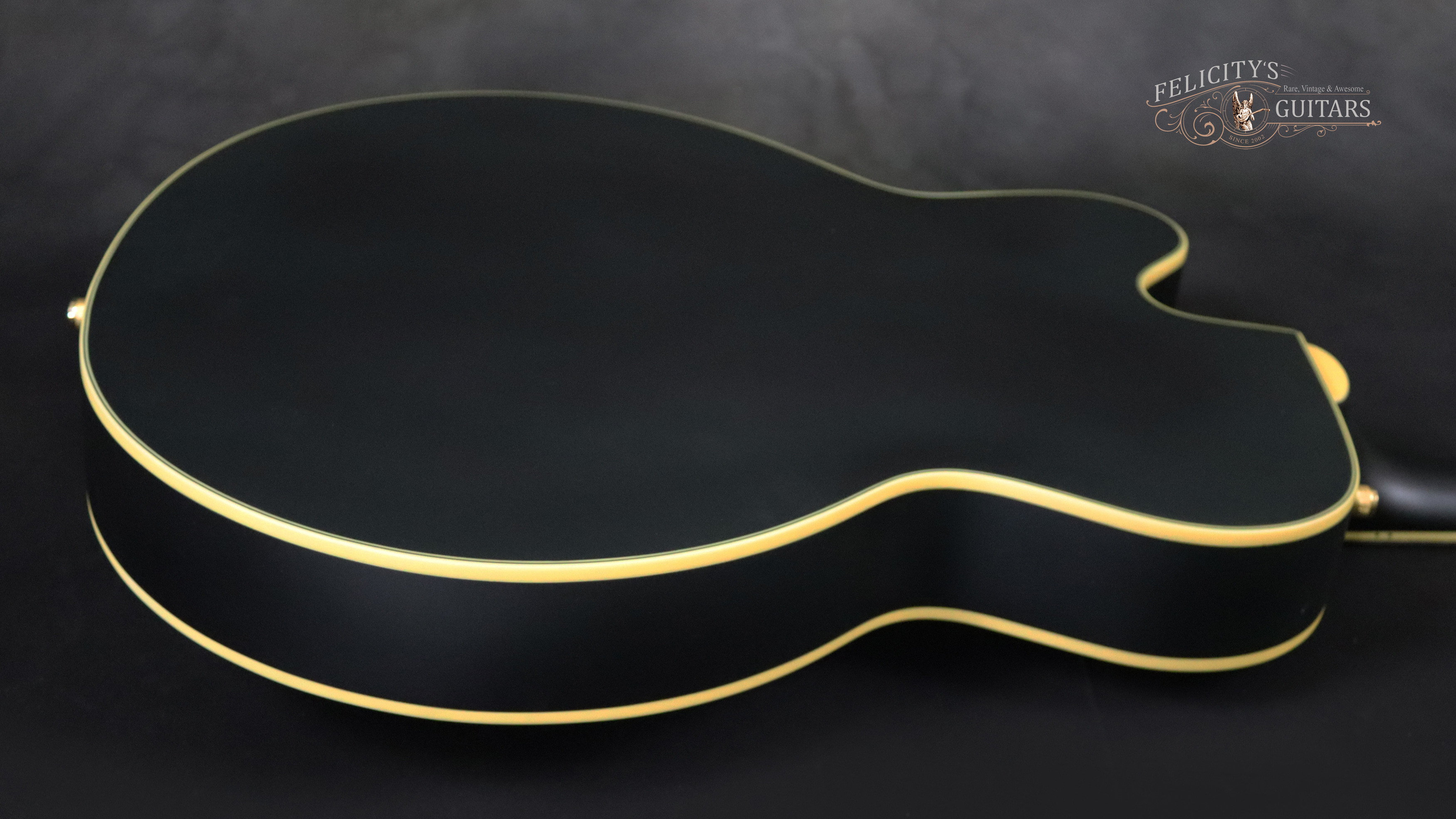

Body Binding

Front: 4-ply B/W and 1-ply ‘W’ F-Holes

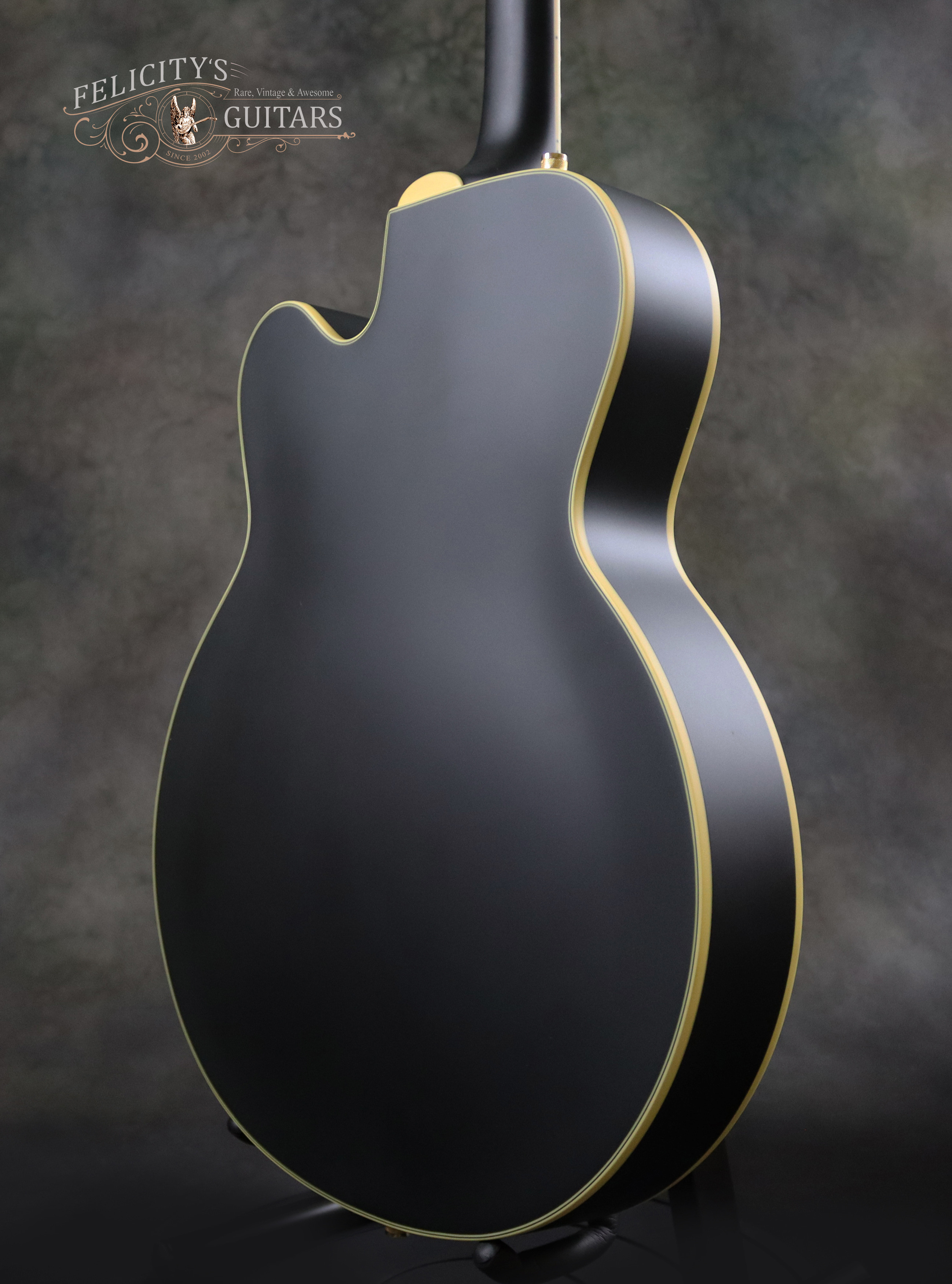

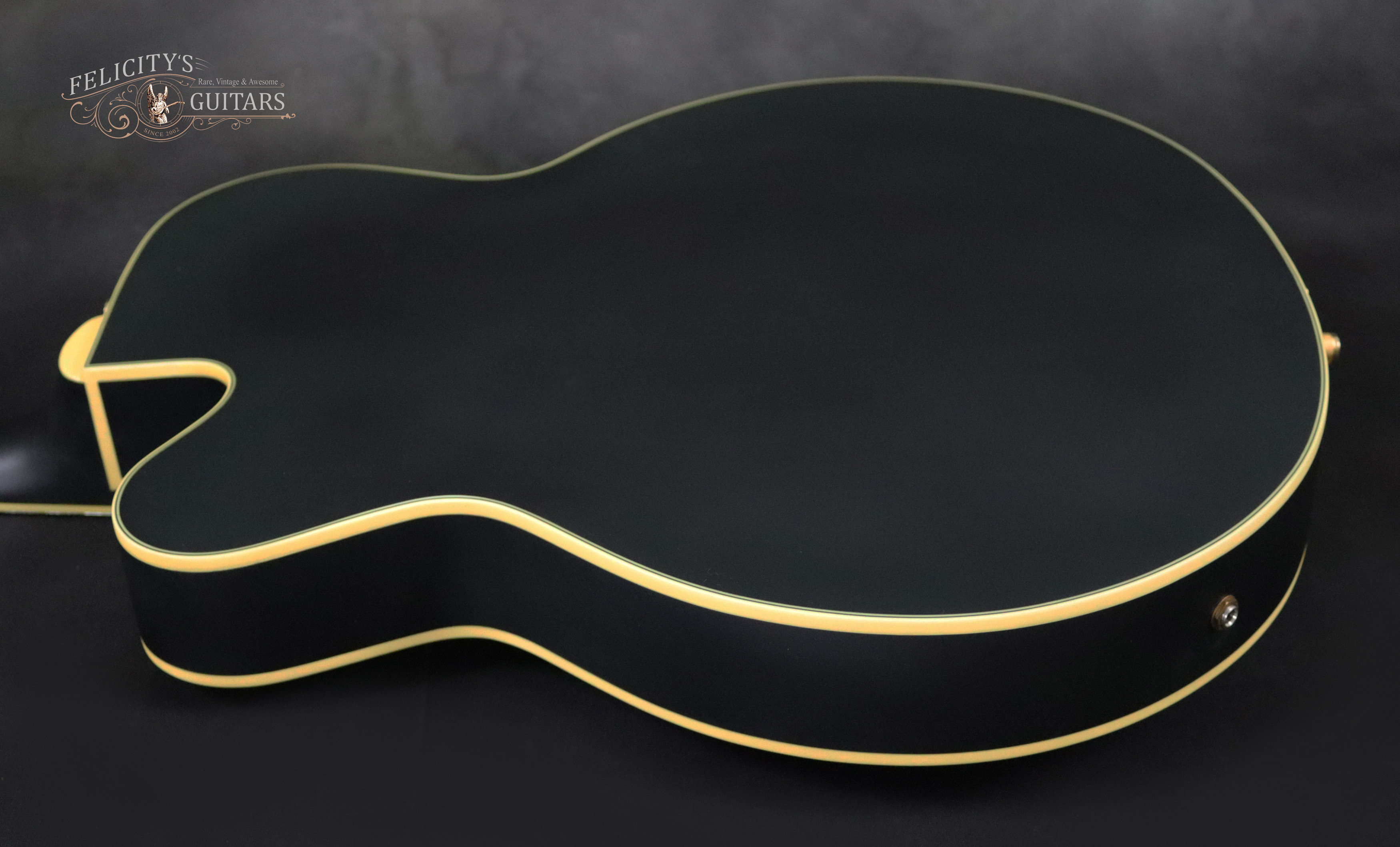

Back: 4-ply B/W

Weight Relief

Hollow

Build Materials Used

Gretsch Proprietary Bonding Glue

Body Finish Type

Matte Polyurethane

Color

Front: Matte Black

Back & Neck: Matte Black

neck

Neck Material

1-pc Maple

Truss Rod

2-way adjustable

Truss Rod Cover

2-ply B/W Spear-tip Style with hot-stamped White "Tim Armstrong"

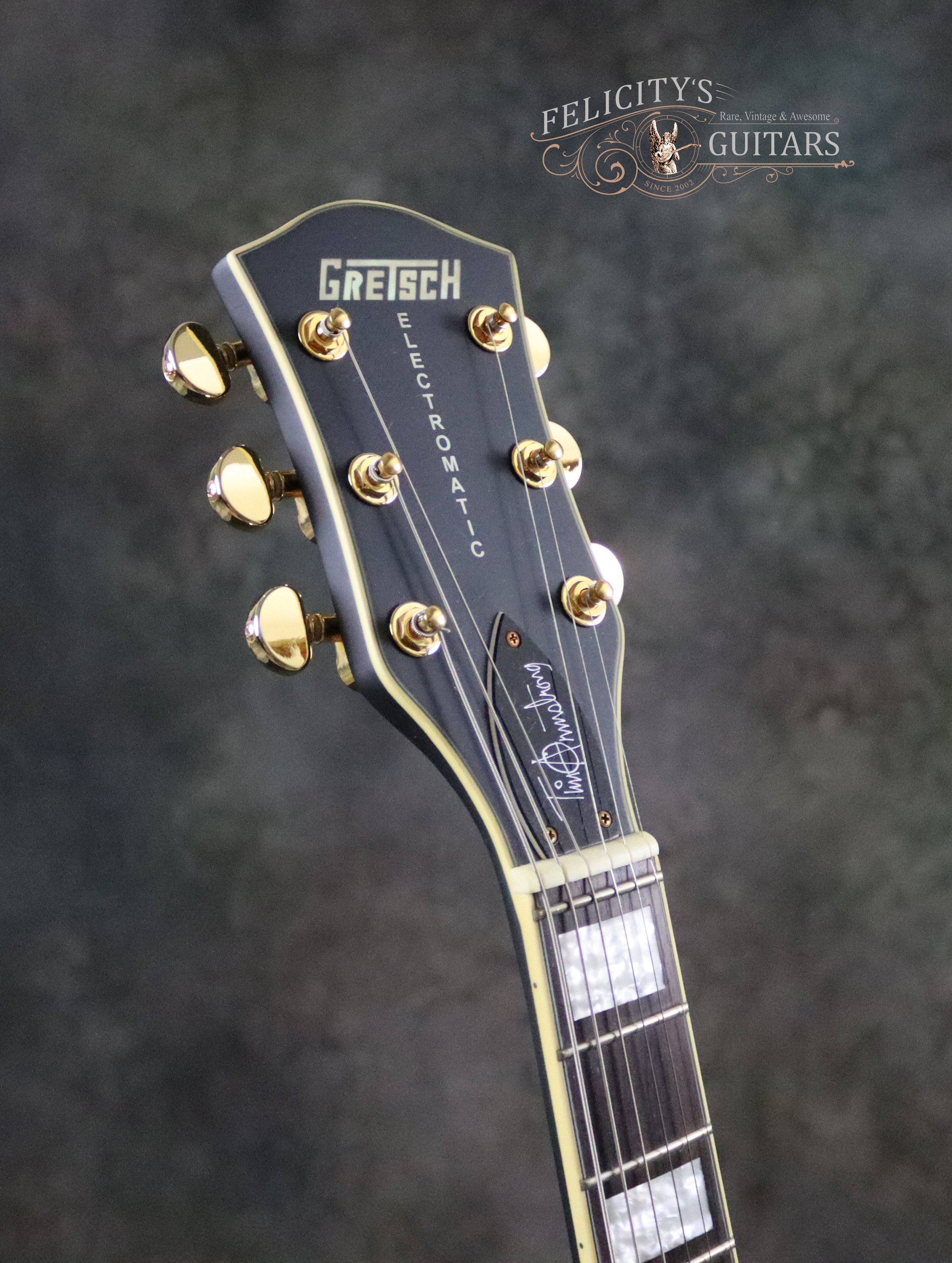

Peghead Particulars

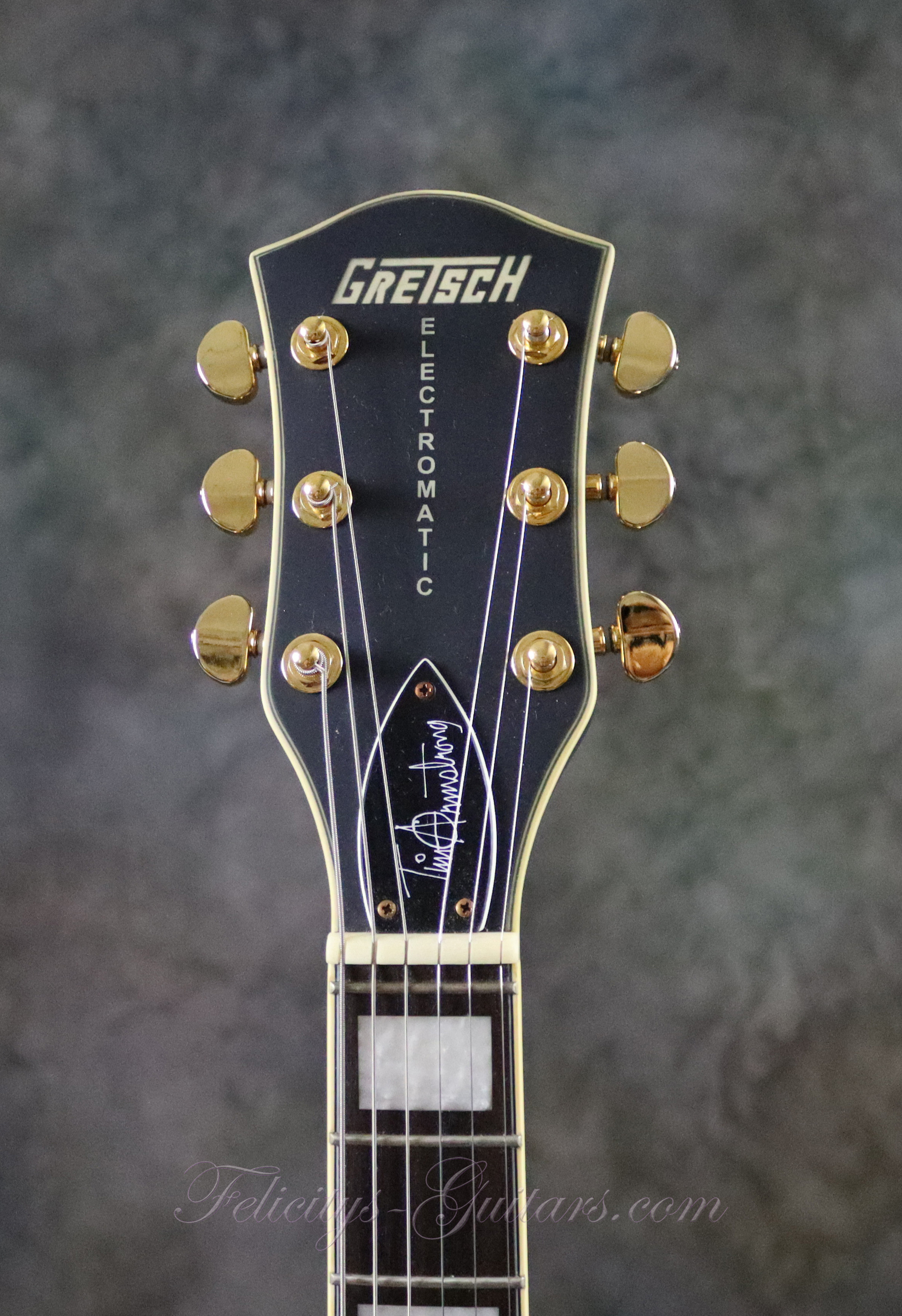

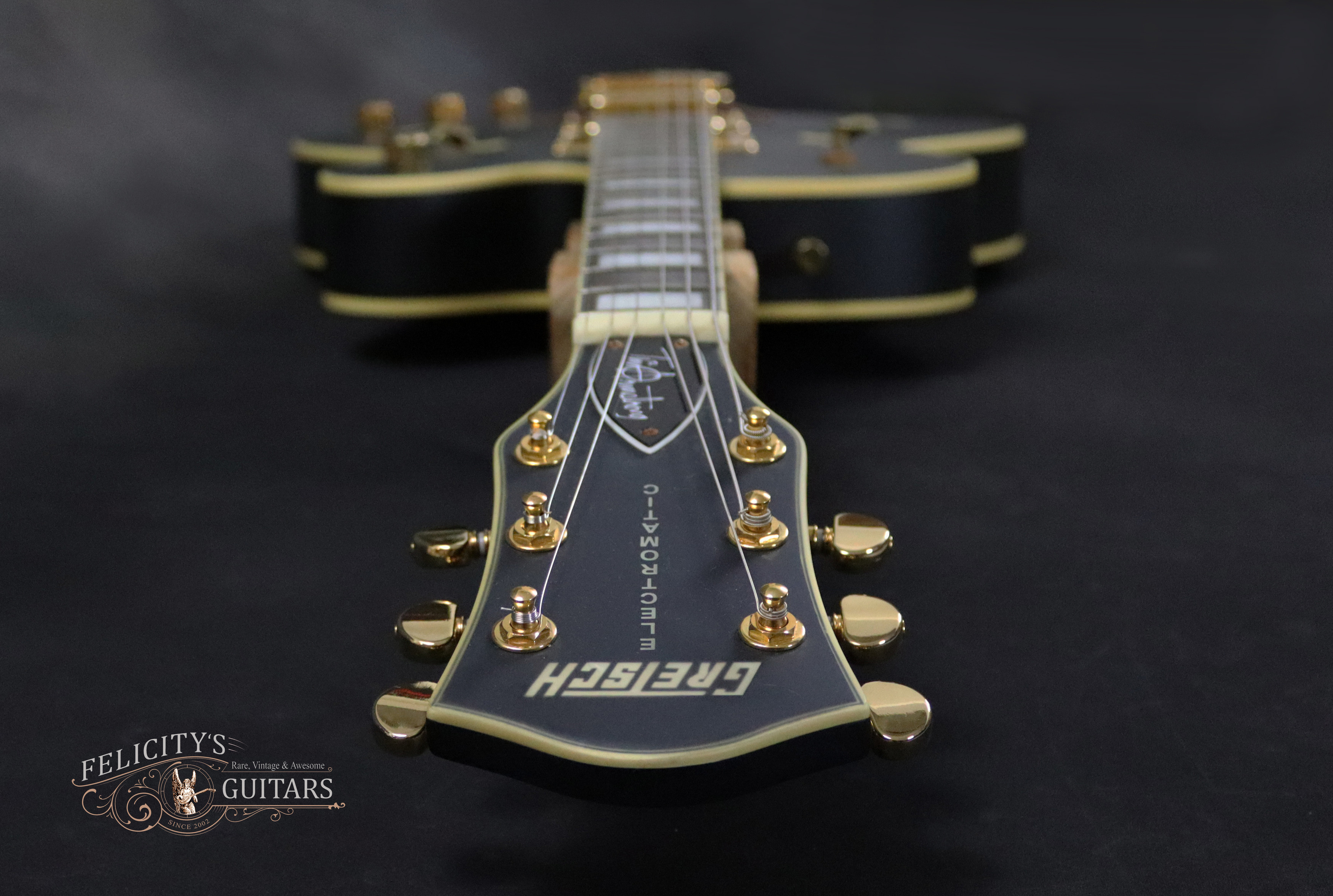

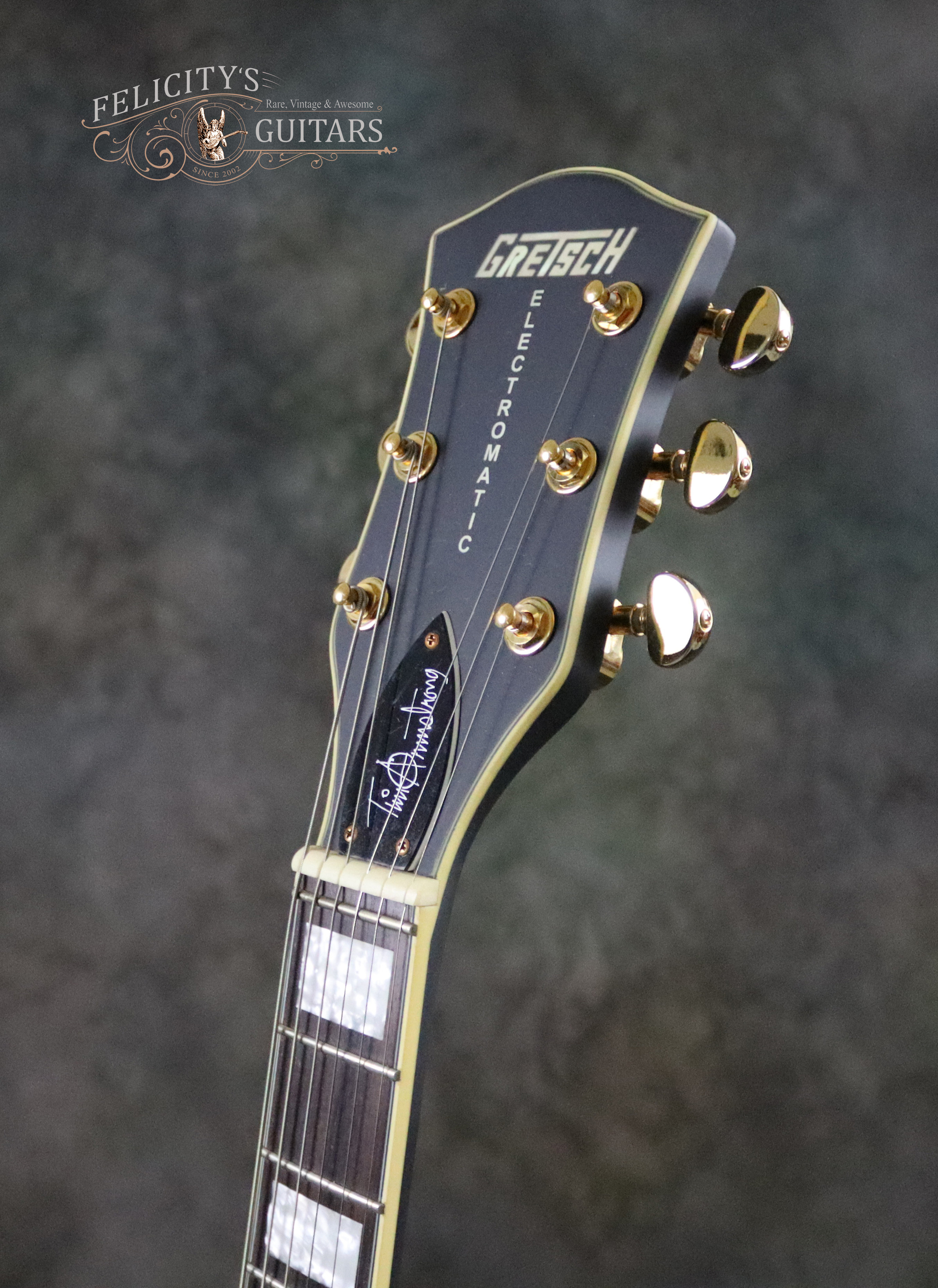

Front: 4-ply B/W Bound, Matte Black w/Acrylic Gretsch® Electromatic™ Logos

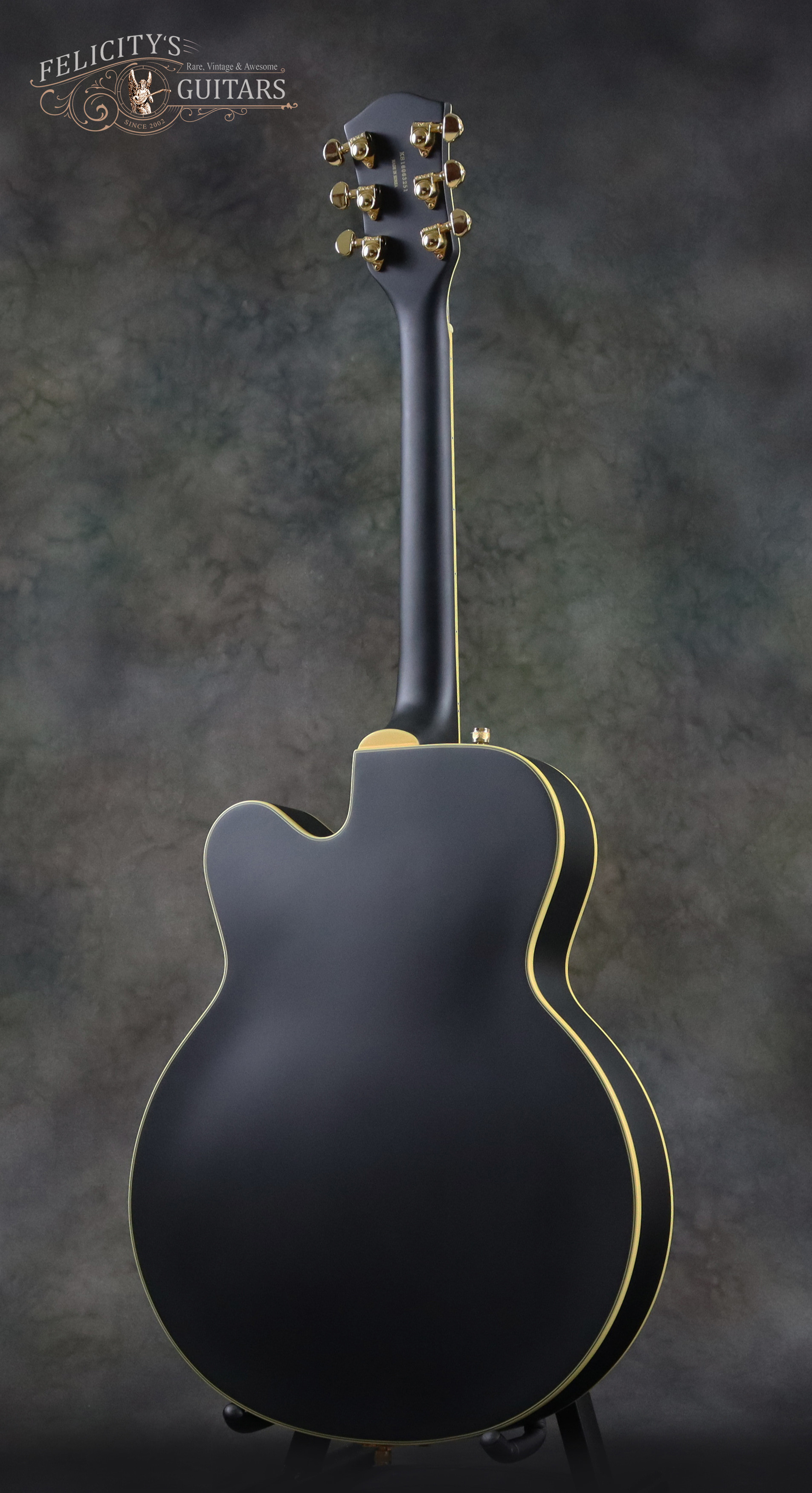

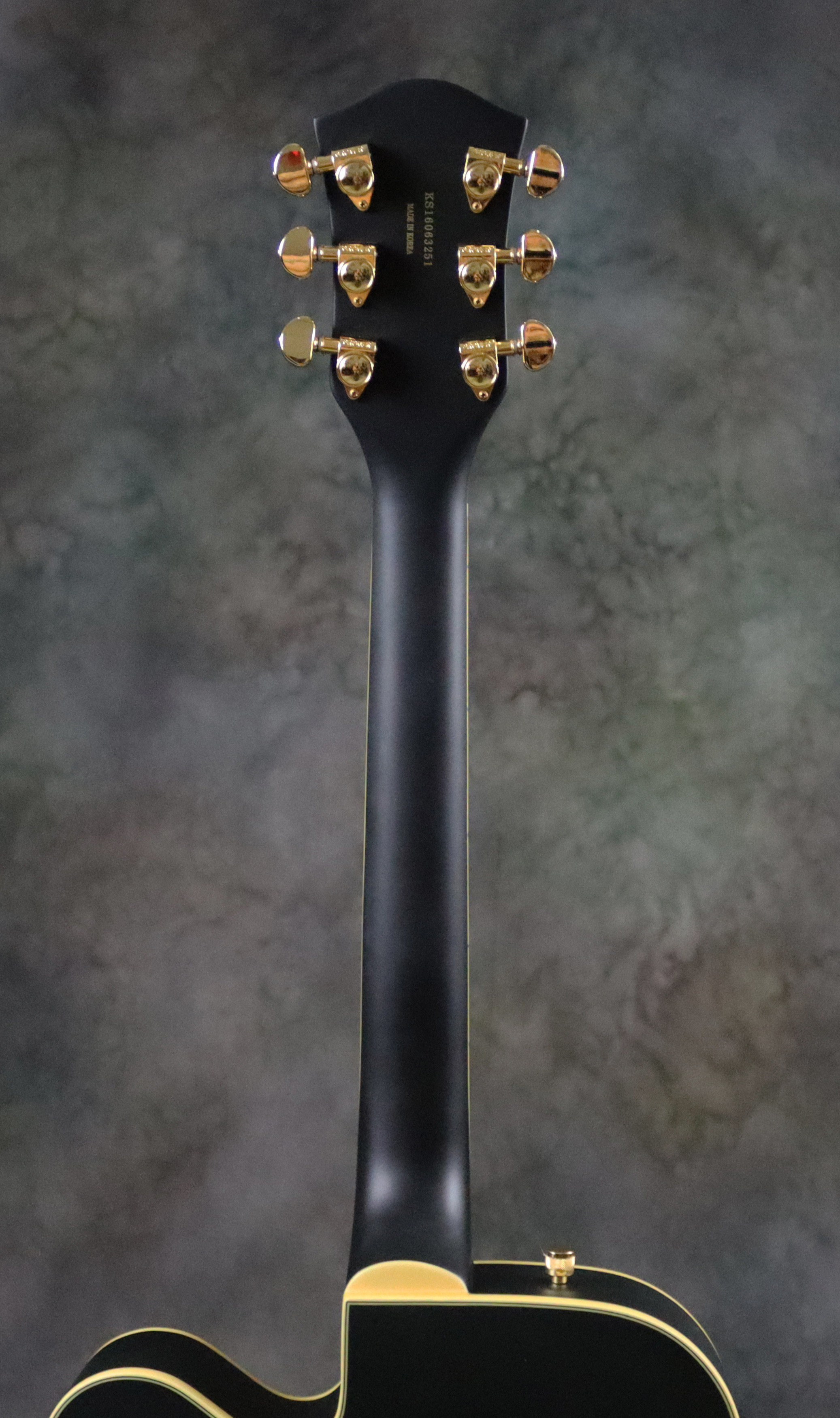

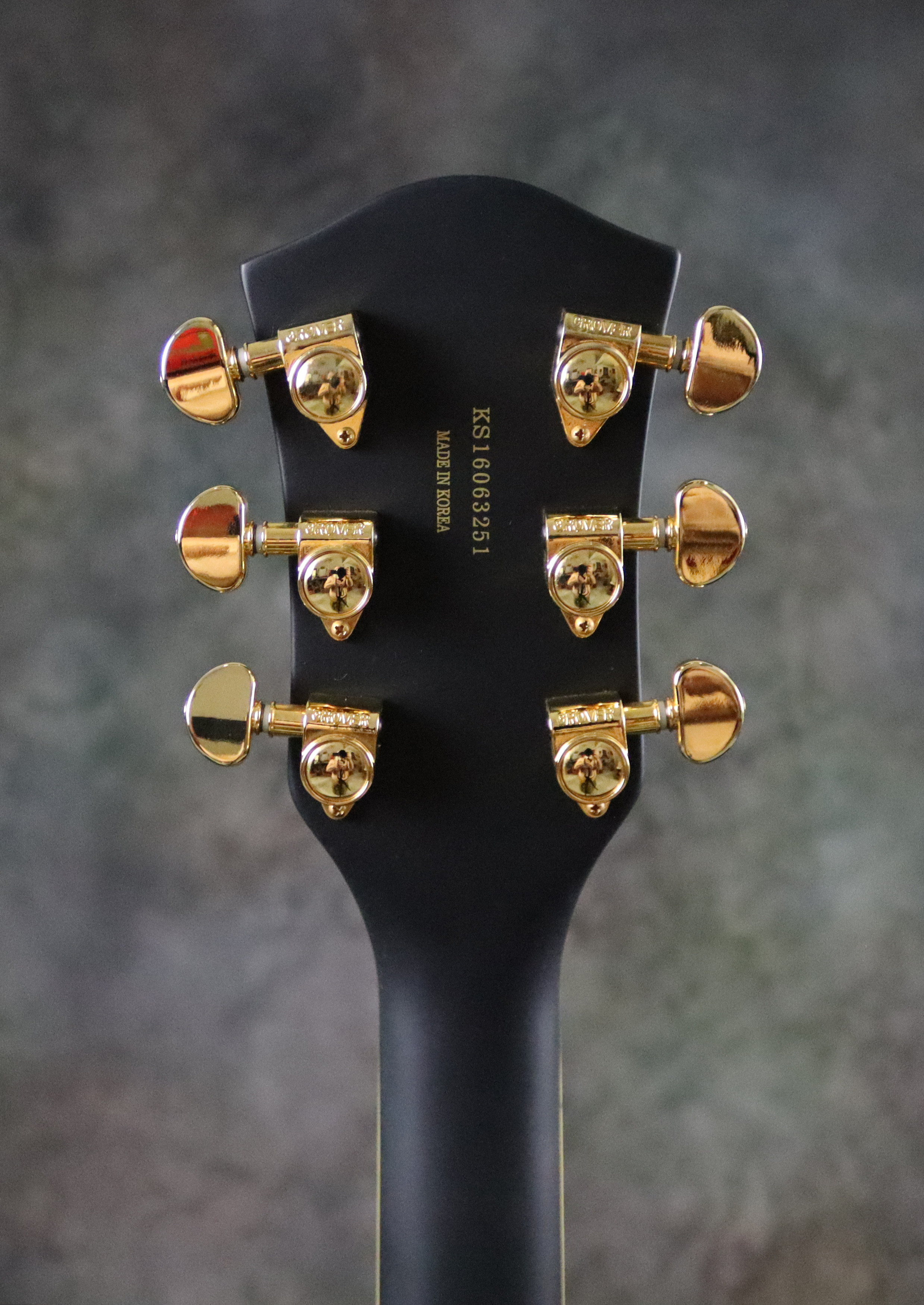

Back: Matte Black, No Volute, Hot-ink Stamped ‘Made in Korea’ and Serial Number

Neck Profile

‘C’ Profile

Fingerboard Material

Rosewood

Fingerboard Radius

12.6"

Scale Length

24.33"

No. Frets / Type

22 Jumbo with “Zero” fret at Nut

Nut Size / Material

1.6875" /  Graphite

Neck Width

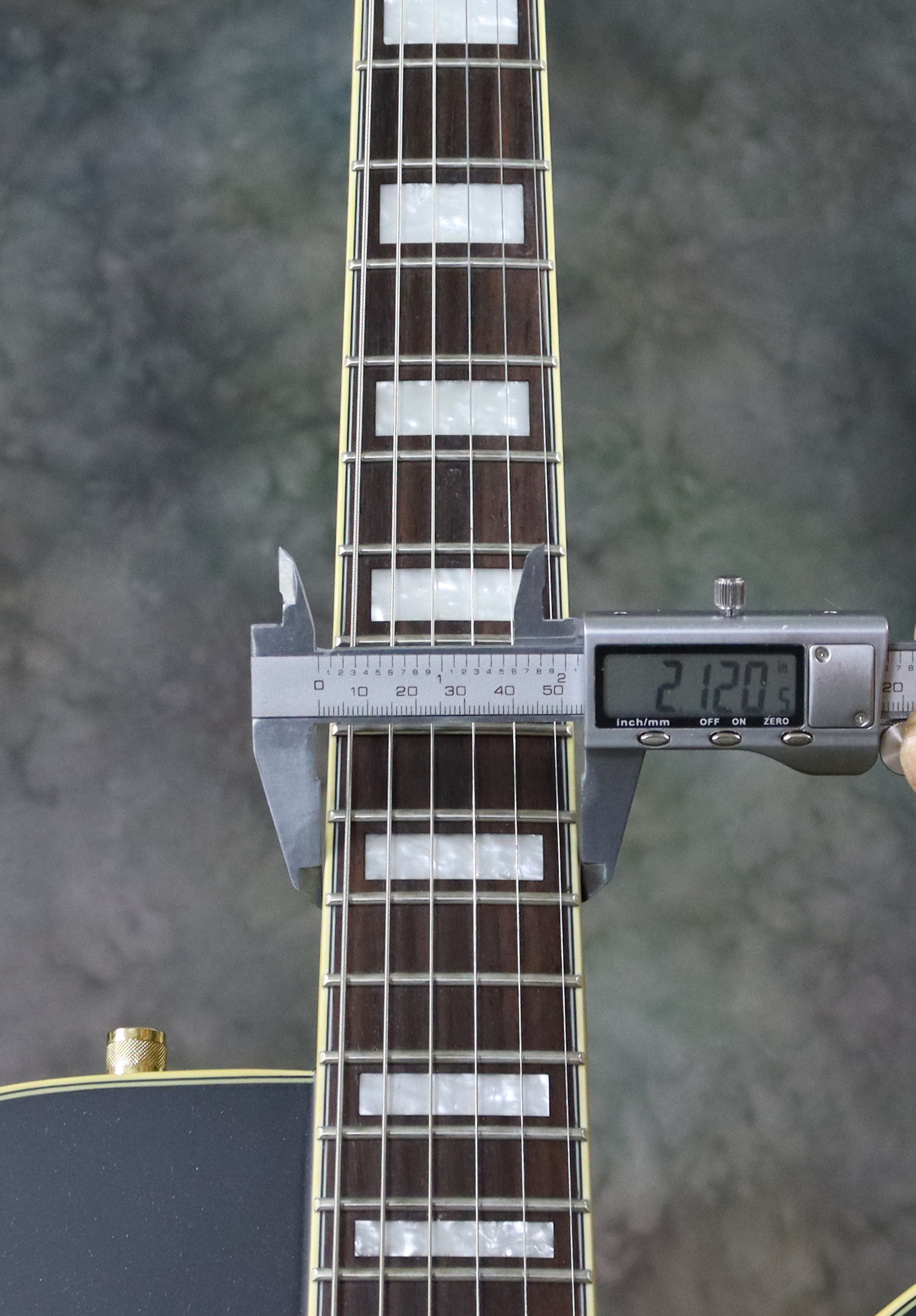

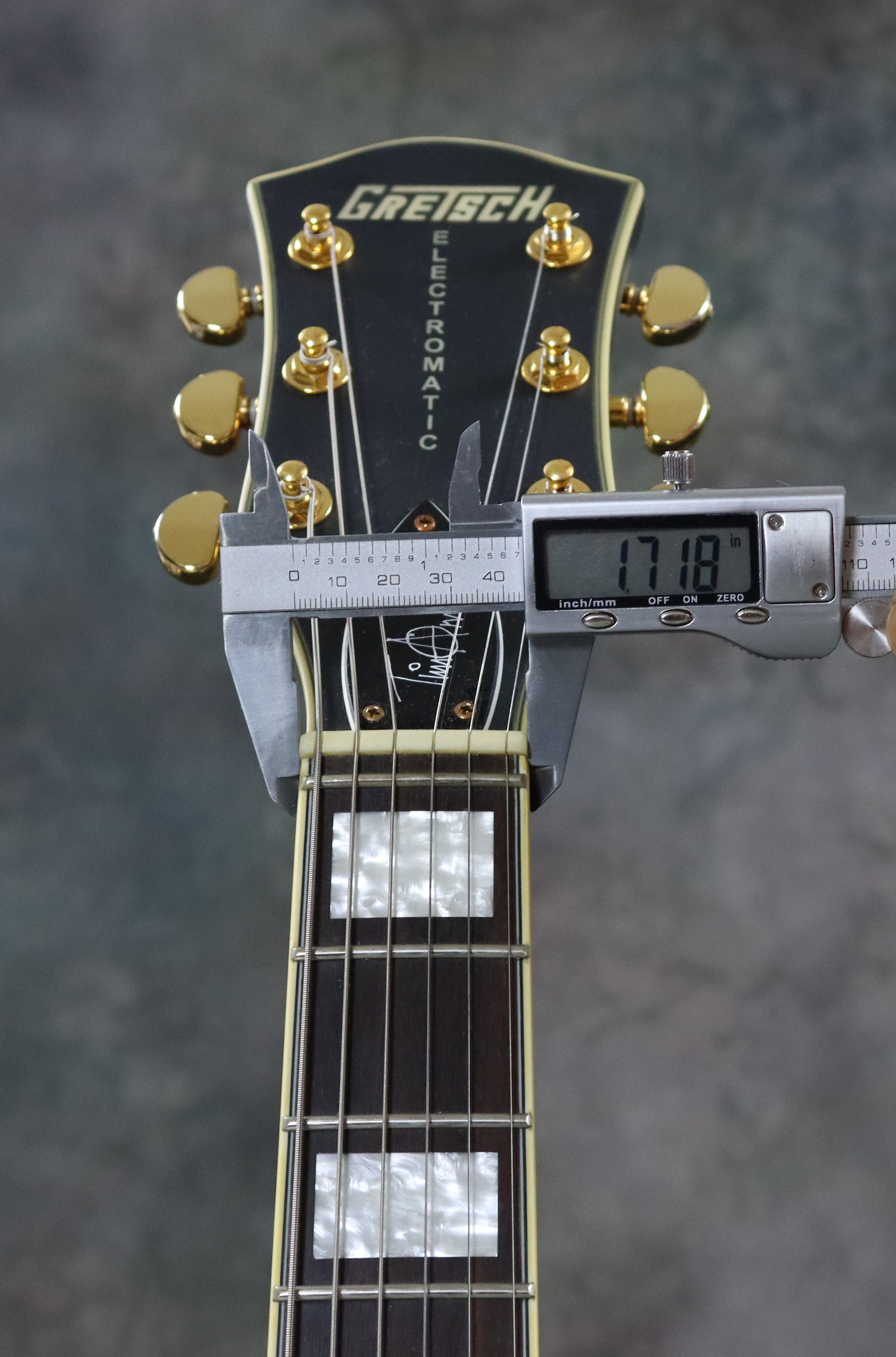

1.718” at 1st fret / 2.120” at 12th fret

Neck Depth

0.850" at 1st fret / 0.900" at 9th fret

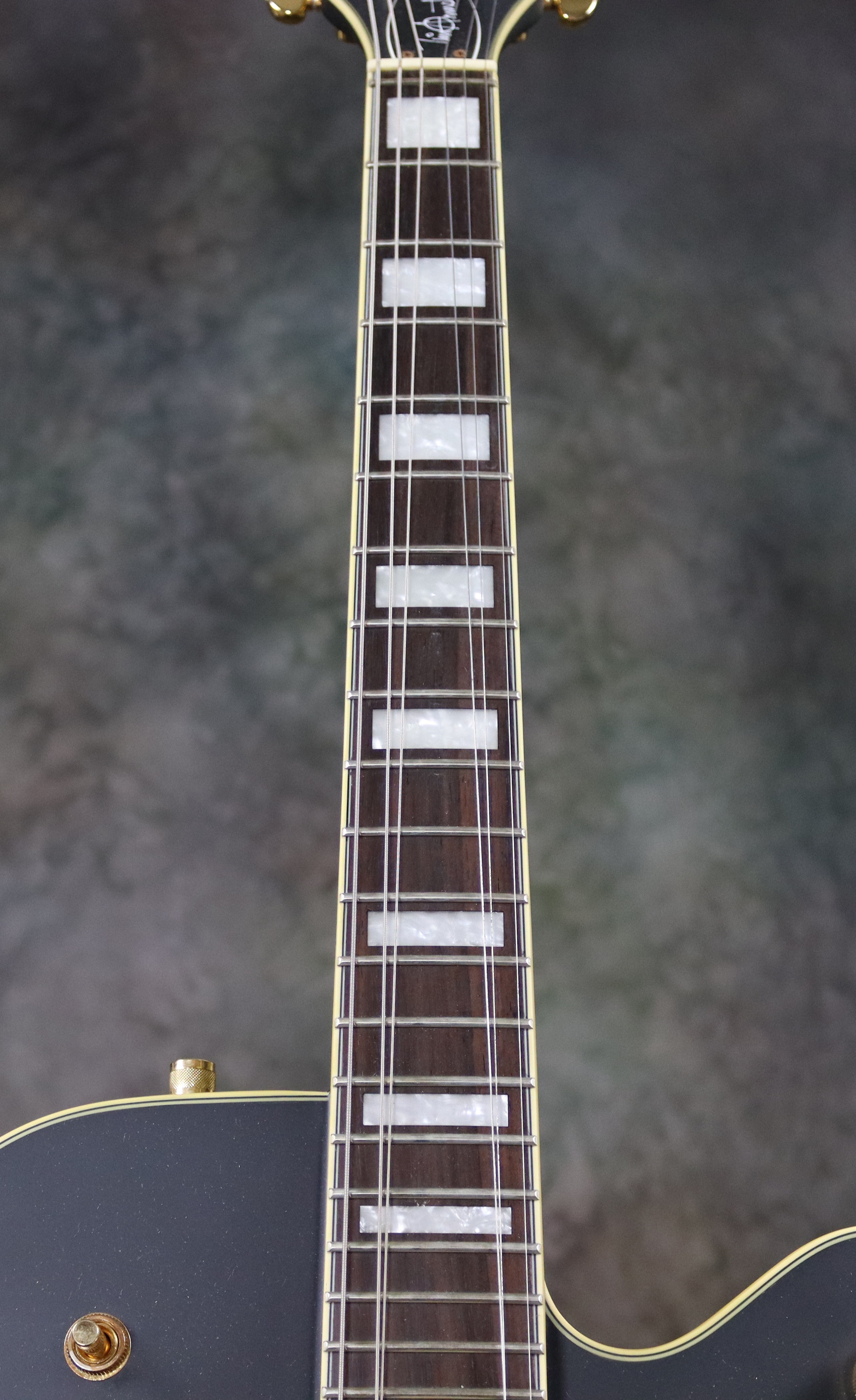

Fingerboard Inlays

White Pearloid Block Inlays

Neck Binding

1-Ply Cream

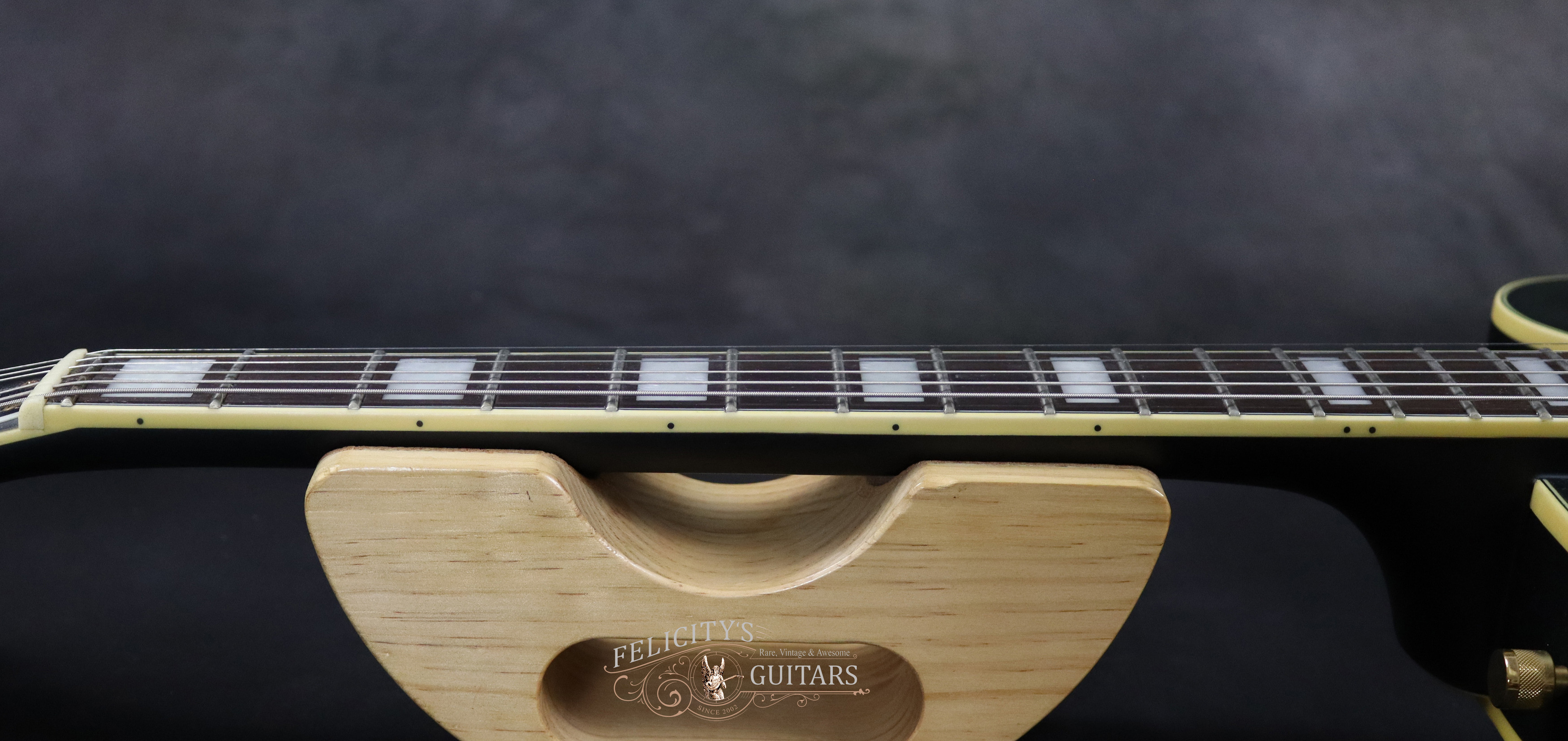

Side Dots

Black

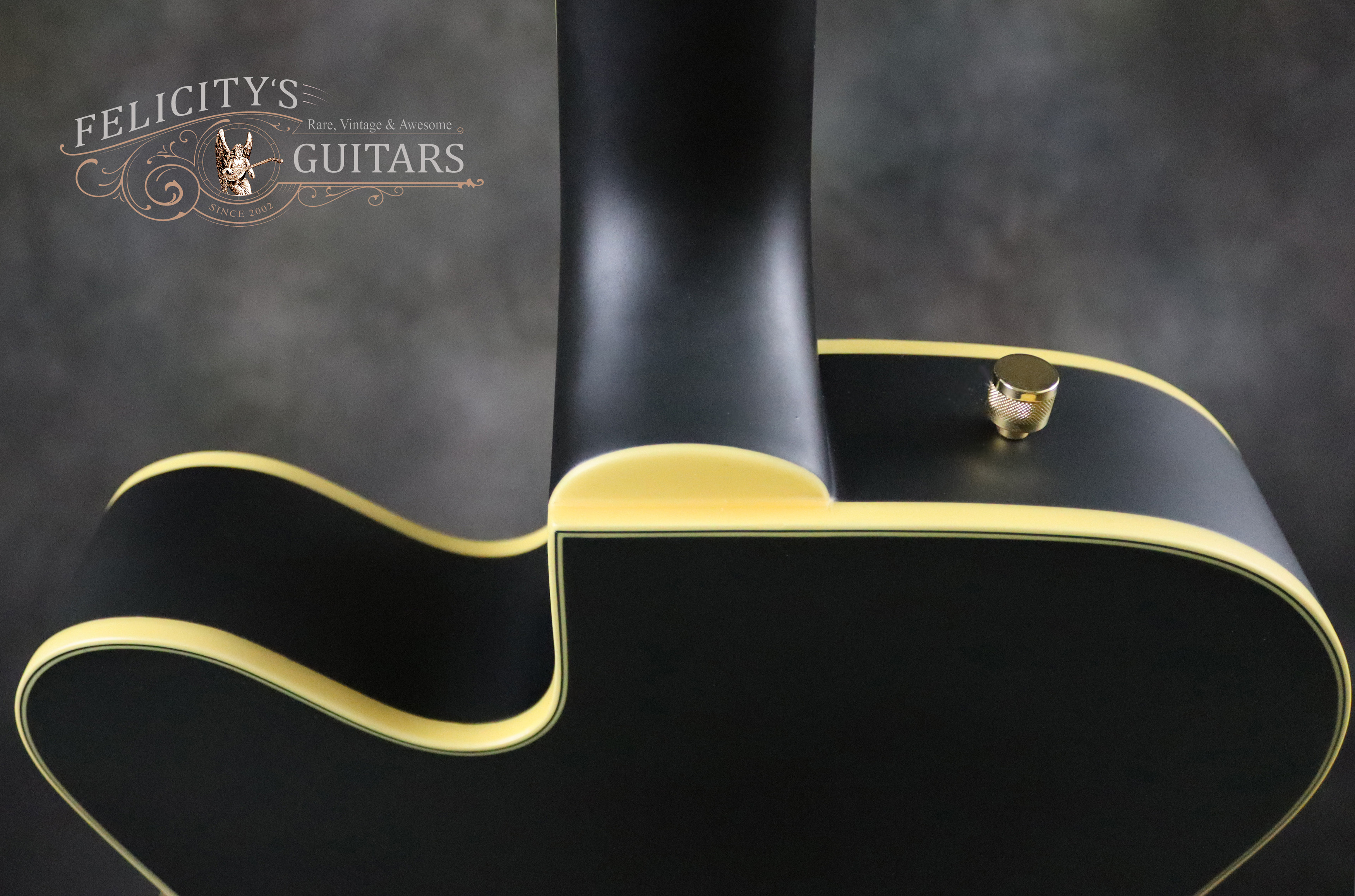

Neck Joint

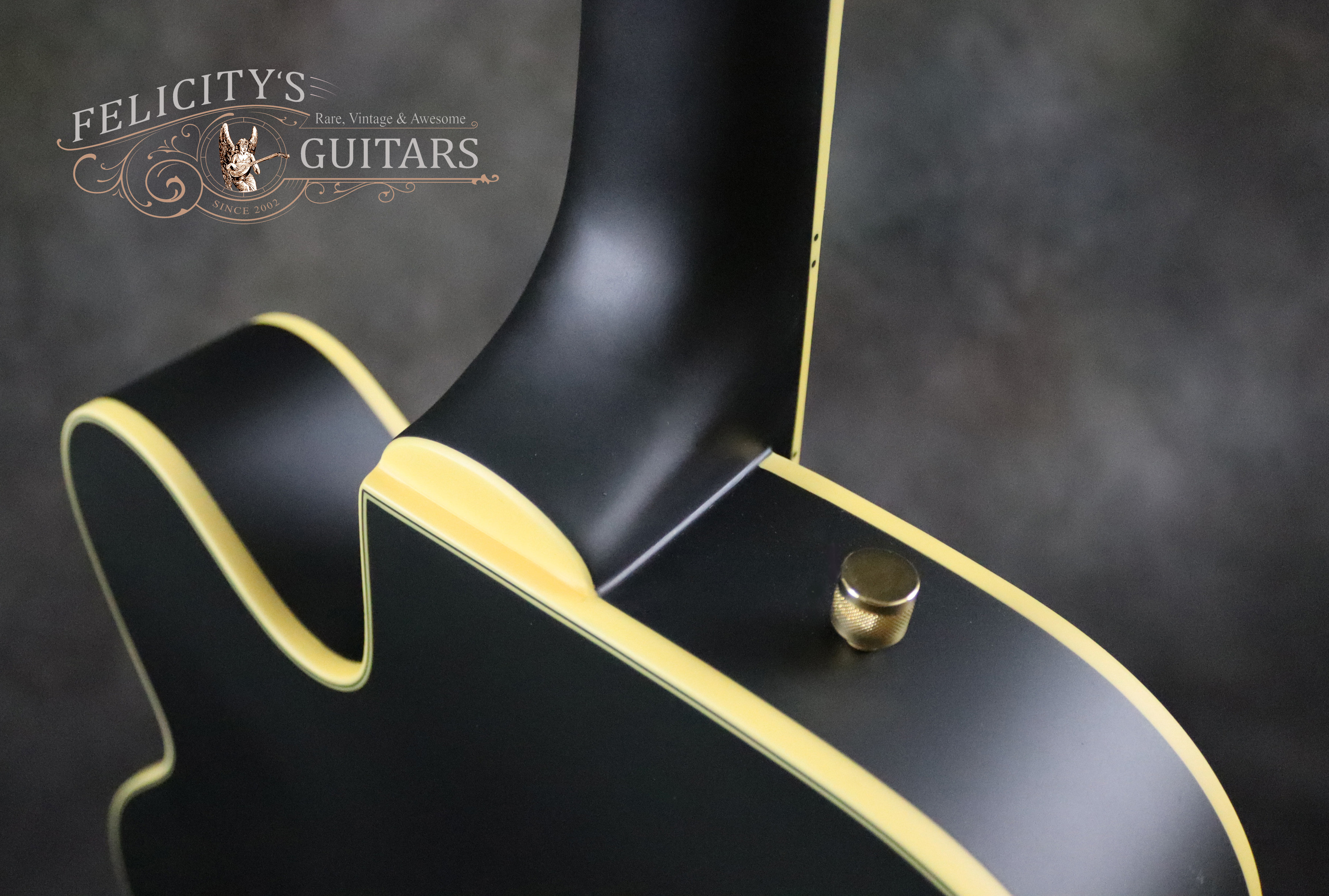

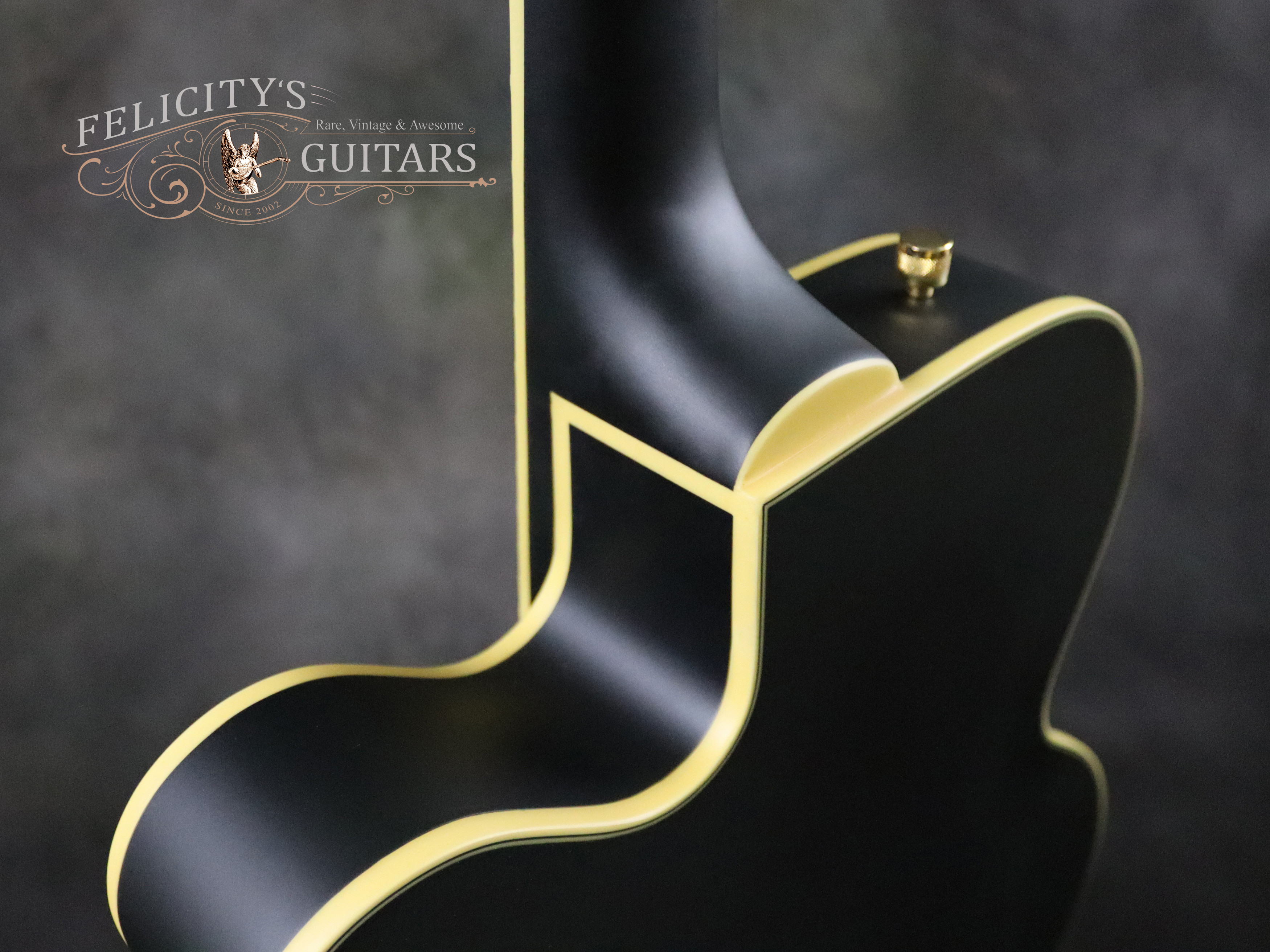

Set Neck, with 2−3/4” Heel

hardware

Bridge

Gold Plated, Adjusto-Matic™ with Rosewood Base

Tailpiece / Tremolo

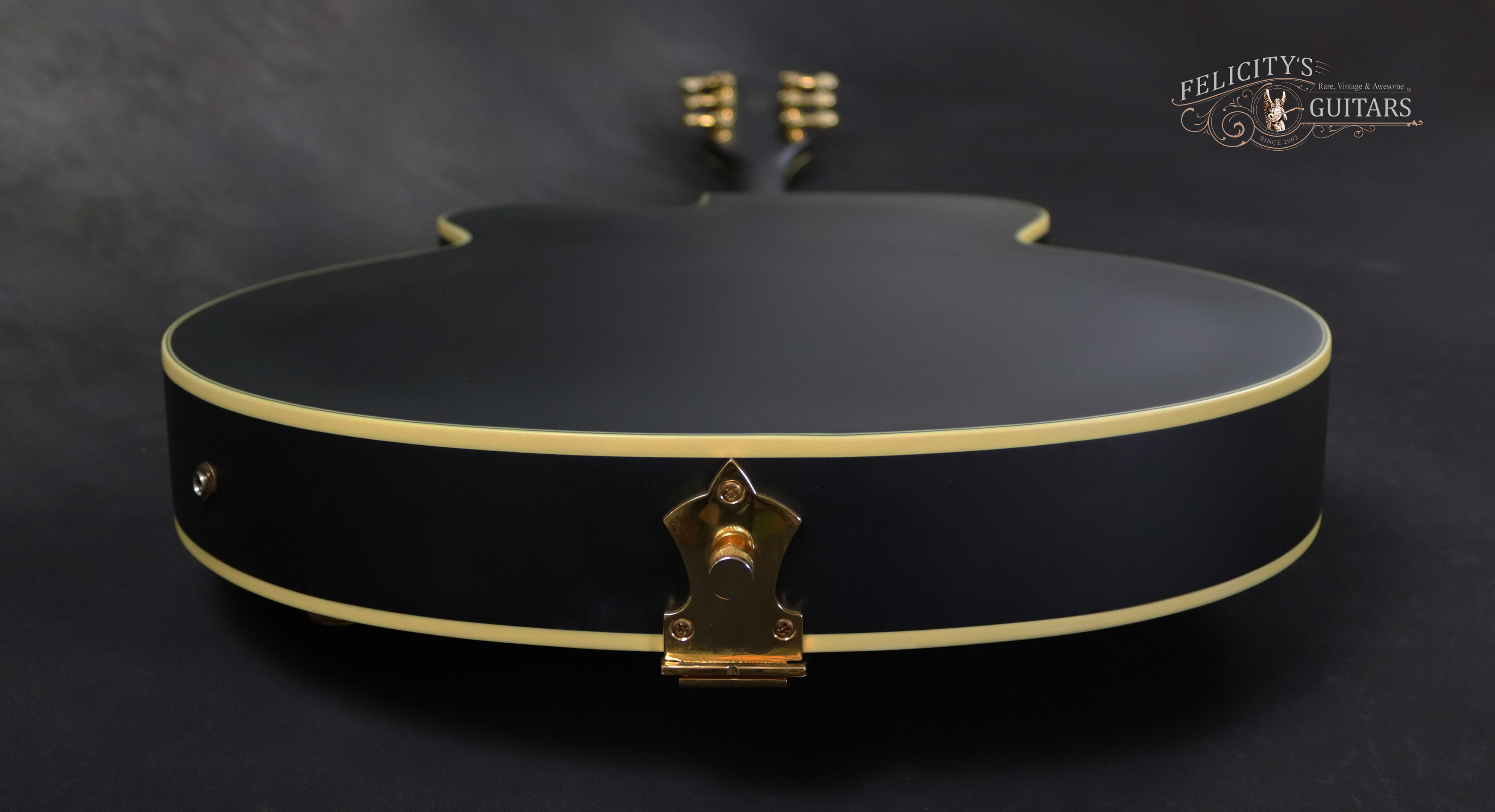

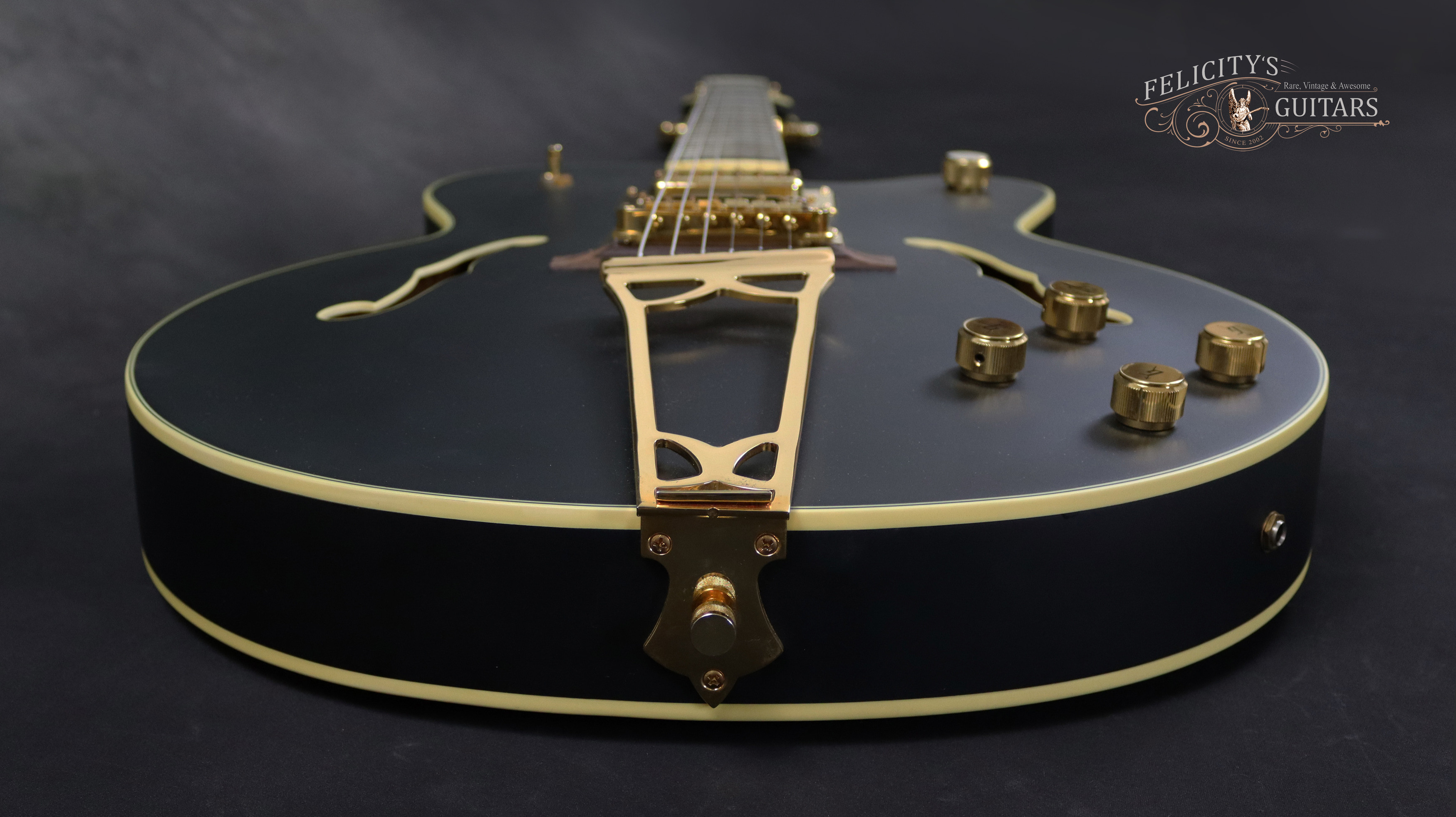

Gold Plated, Floating Trapeze Tailpiece / No Tremolo

Tuning Machines

Gold Plated, Grover® Sta-Tite™ Die-Cast Tuners with Kidney Buttons, 12:01 Ratio

Pickup Cover / Ring

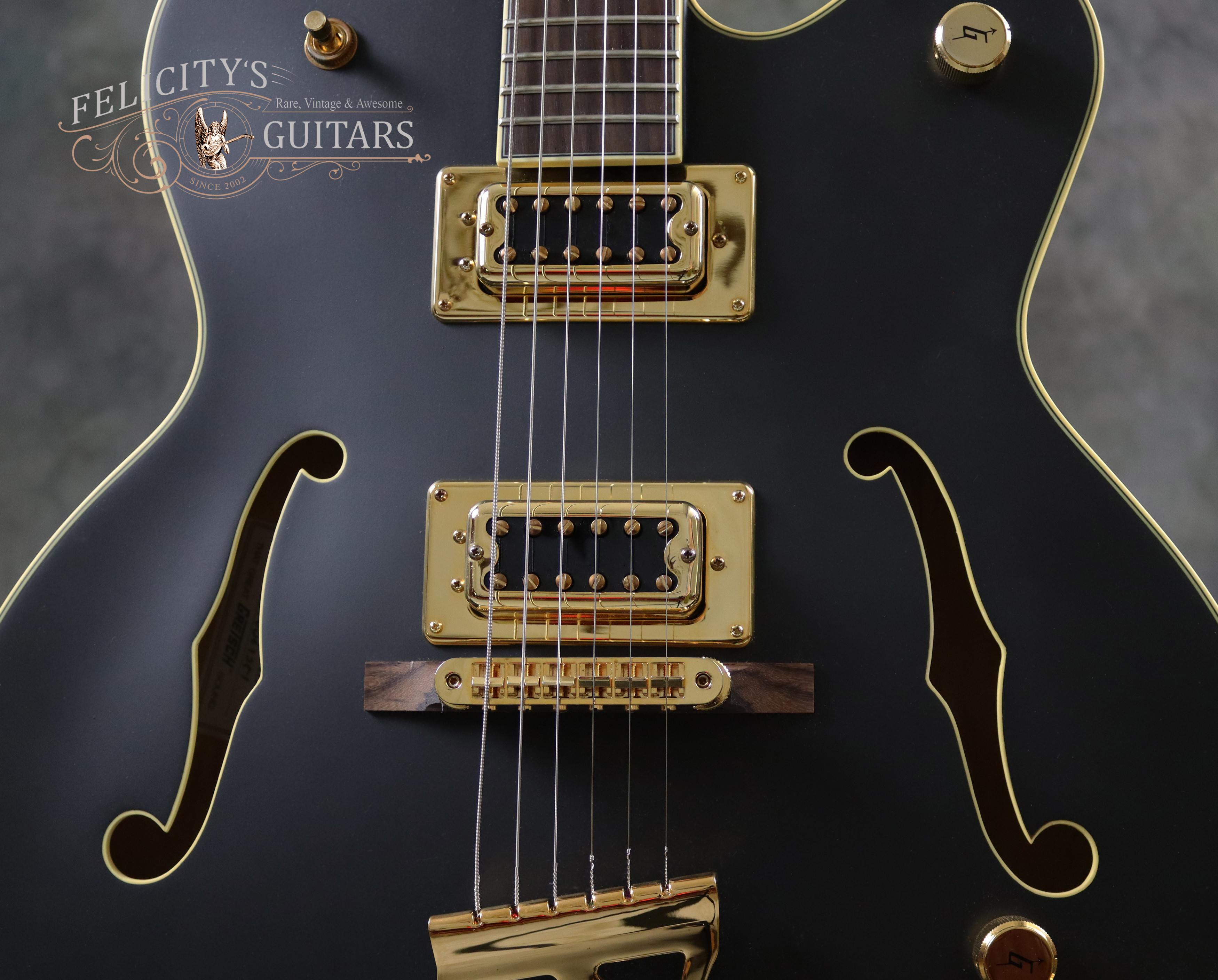

Gold Plated, Black-Top Filter'Tron™ with Gold Mounting Ring/Bezels

Strap Buttons

Gold Plated, Gretsch® ‘Knurled’ Retainer Knobs

Pickguard

No

Control Knobs

Gold Plated, Gretsch® “G-Arrow” w/knurled rims and no Dial Pointers

Switch

Gold Plated ‘Barrel’ Tip

electronics

Bridge Pickup

Gold Plated, Black-Top Filter'Tron™ Humbucking, Alnico V (potted), DCR 4.58k

Middle Pickup

No

Neck Pickup

Gold Plated, Black-Top Filter'Tron™ Humbucking, Alnico V (potted), DCR 3.93k

Active / Passive

Passive

Series / Parallel

Series

Controls

2 Volume Neck/Bridge, 2 Tone Neck/Bridge, 1 Master Volume, 3-pos Pickup Toggle

Vol Potentiometer

500k

Tone Potentiometer

500k

Capacitor / Resistor

Per Black-Top Filter'Tron™ matched-set Values

Harness

Gretsch® Standard Wiring

Push-pull

No

Piezo

No

Active EQ

No

Kill switch

No

Output Jack

1/4" 2-Conductor

miscellaneous

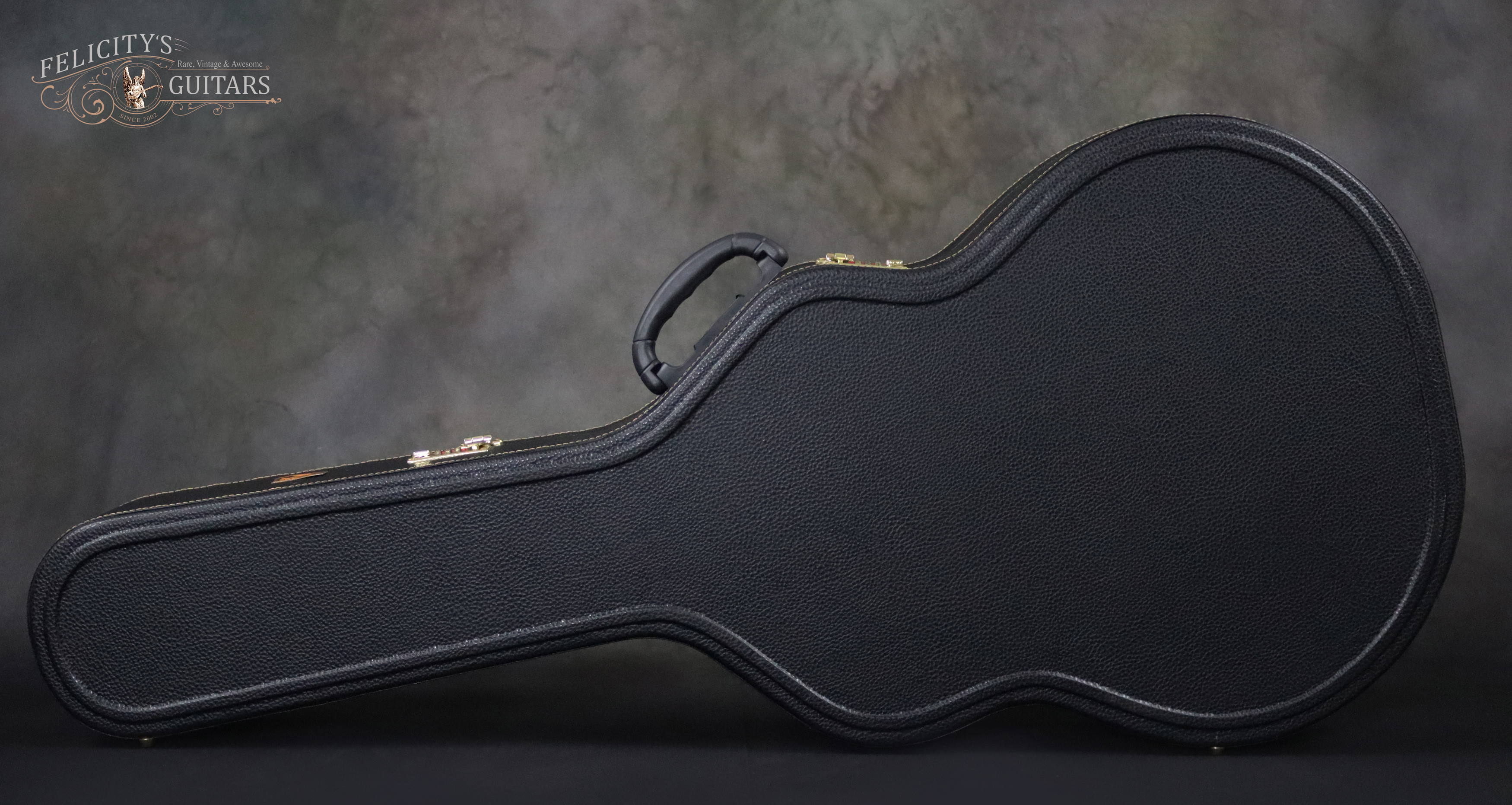

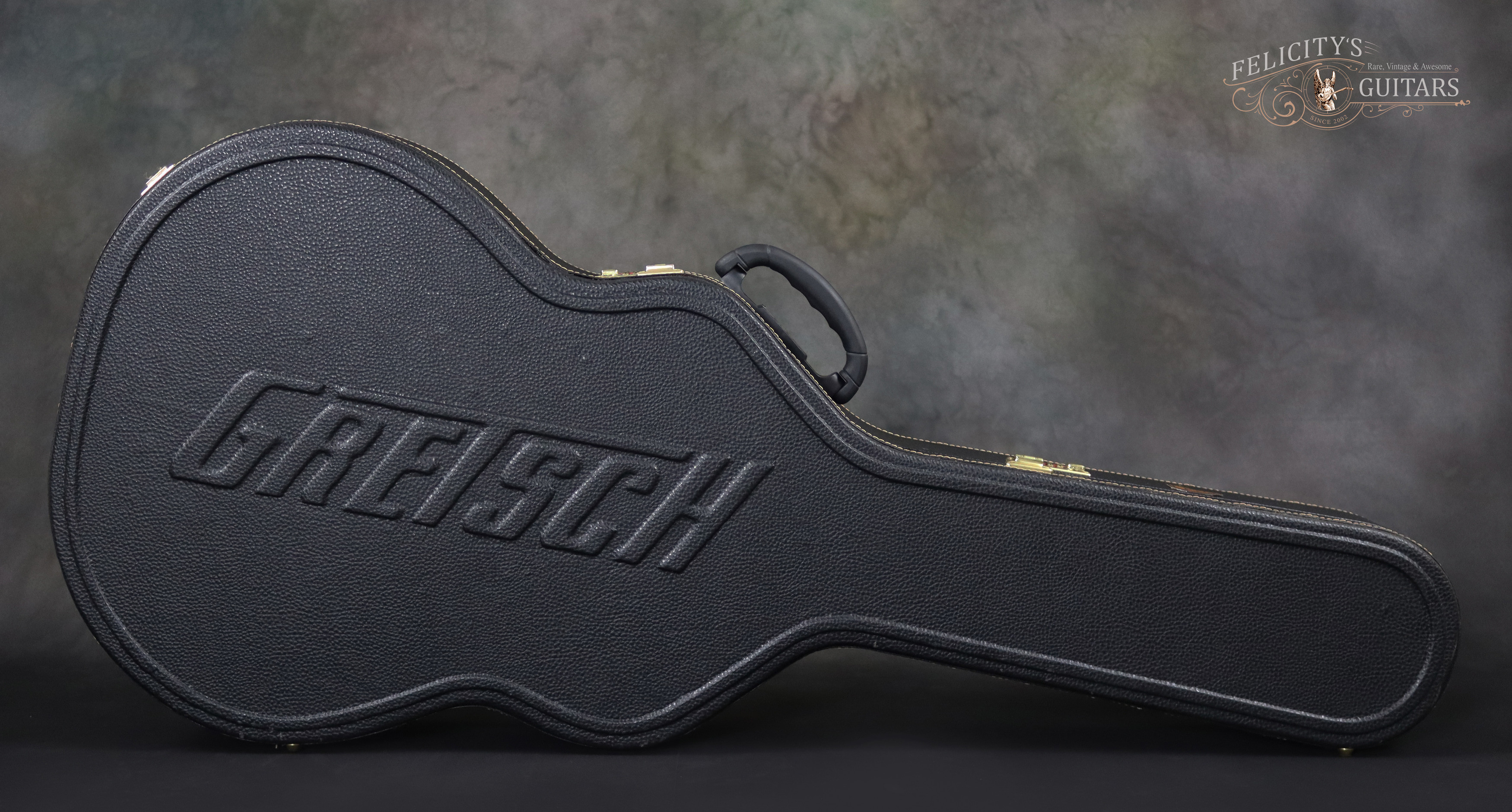

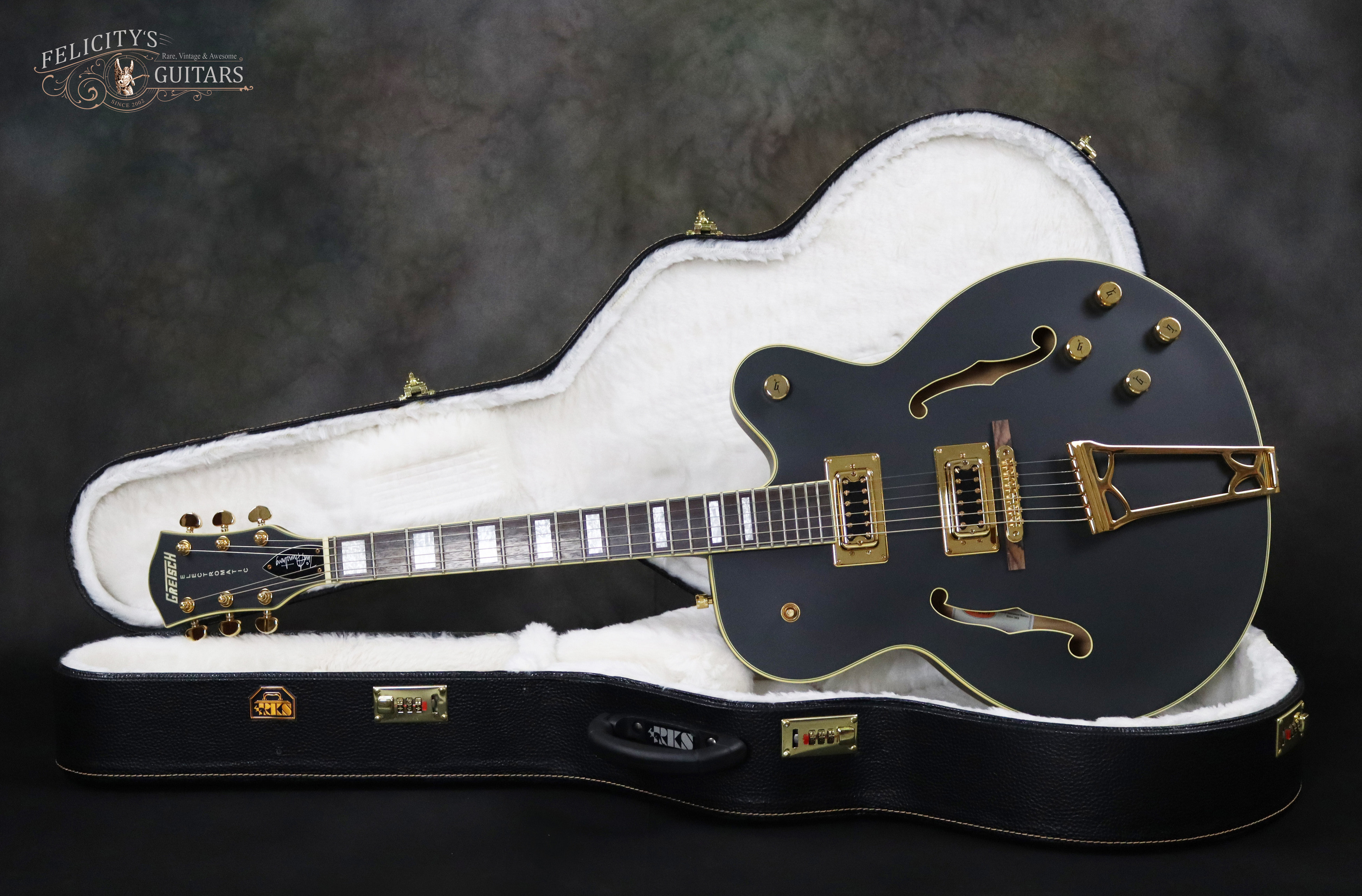

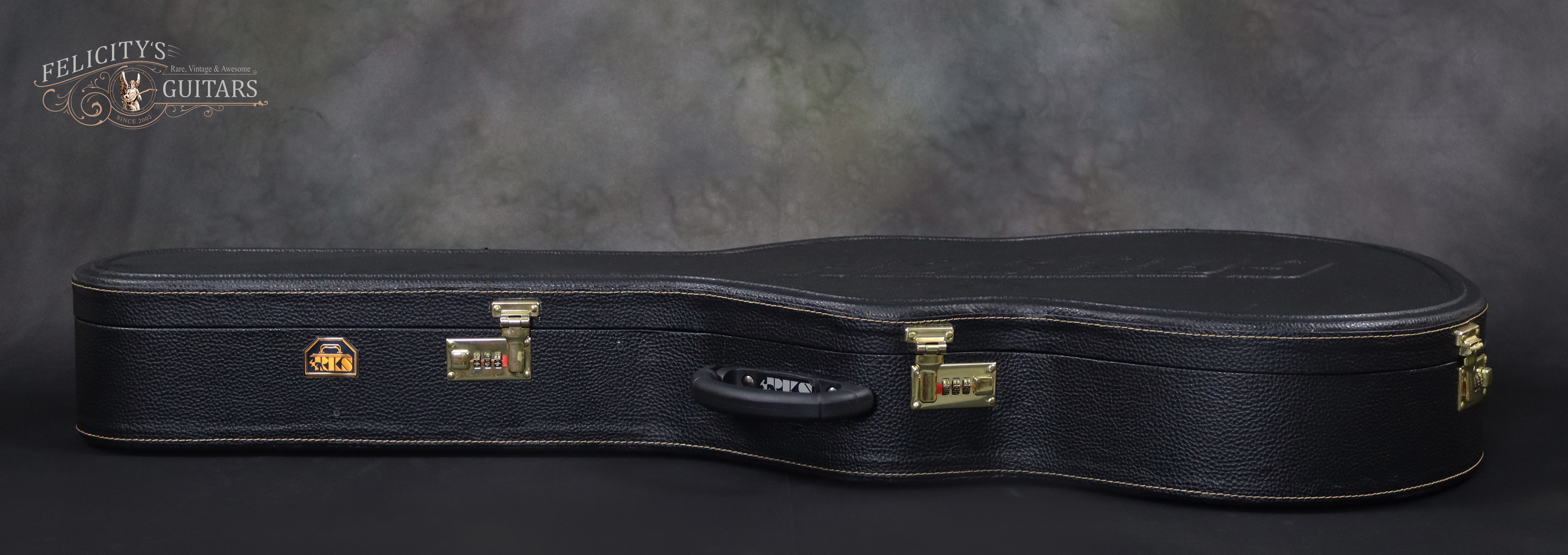

Case / GigbagSKS Australia Hardshell Case, Black with White Interior and 2 combination locks
Strap Locks
No

Strings

D’Addario® NYXL .010, .011, .016, .026, .036, .046 Gauges

Tools / Accessories

No

Manual / Literature

No

C.O.A.

No

Other

No

Weight

Is the actual weighed-value in US Standard Units


Disclosure



Some technical Specs may have been extracted from Gretsch® and/or internet archives. The words Gretsch® / Grover® / Tim Armstrong and the associated designs are registered trademarks of the Gretsch® Company, and the other named entities, respectively
