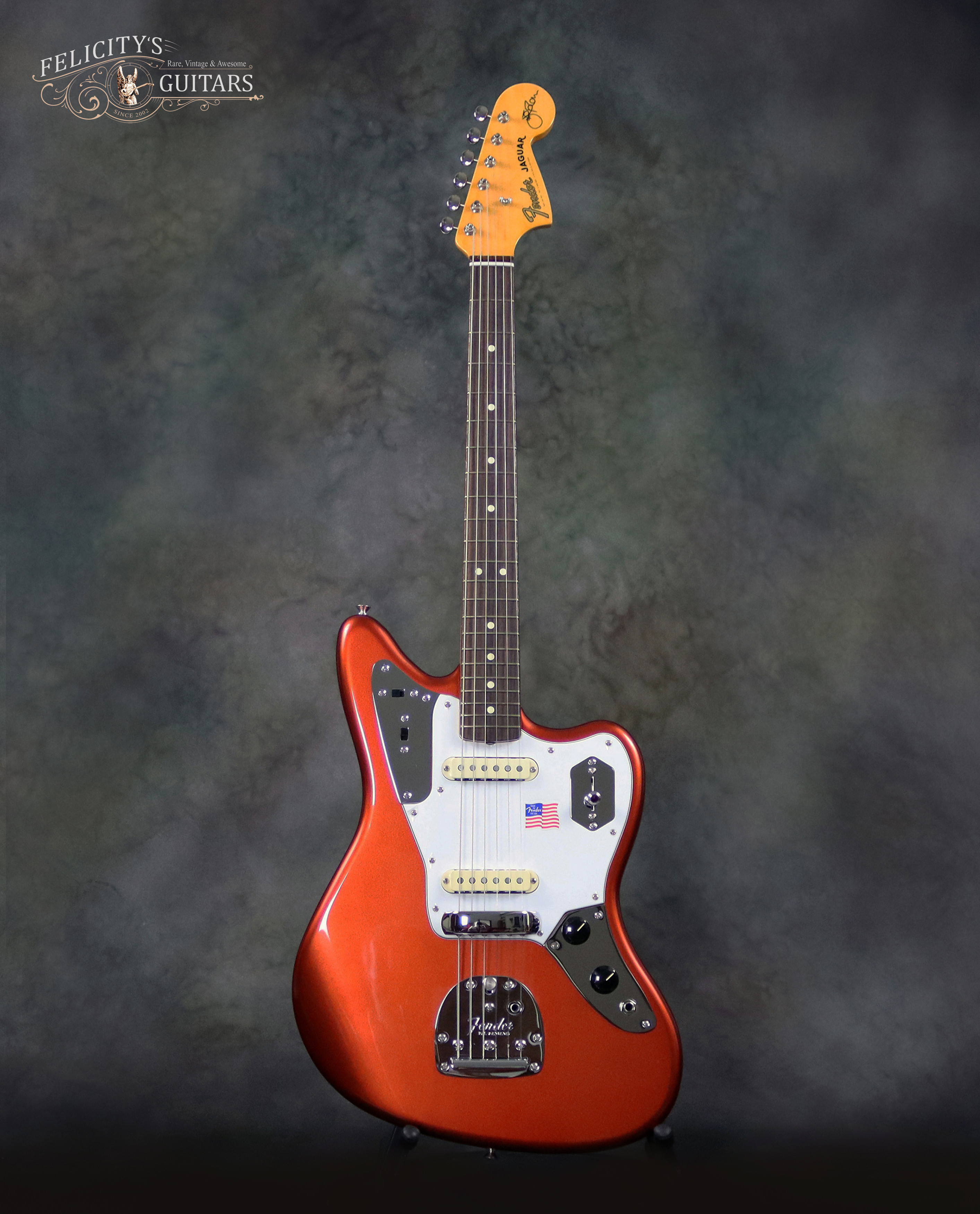

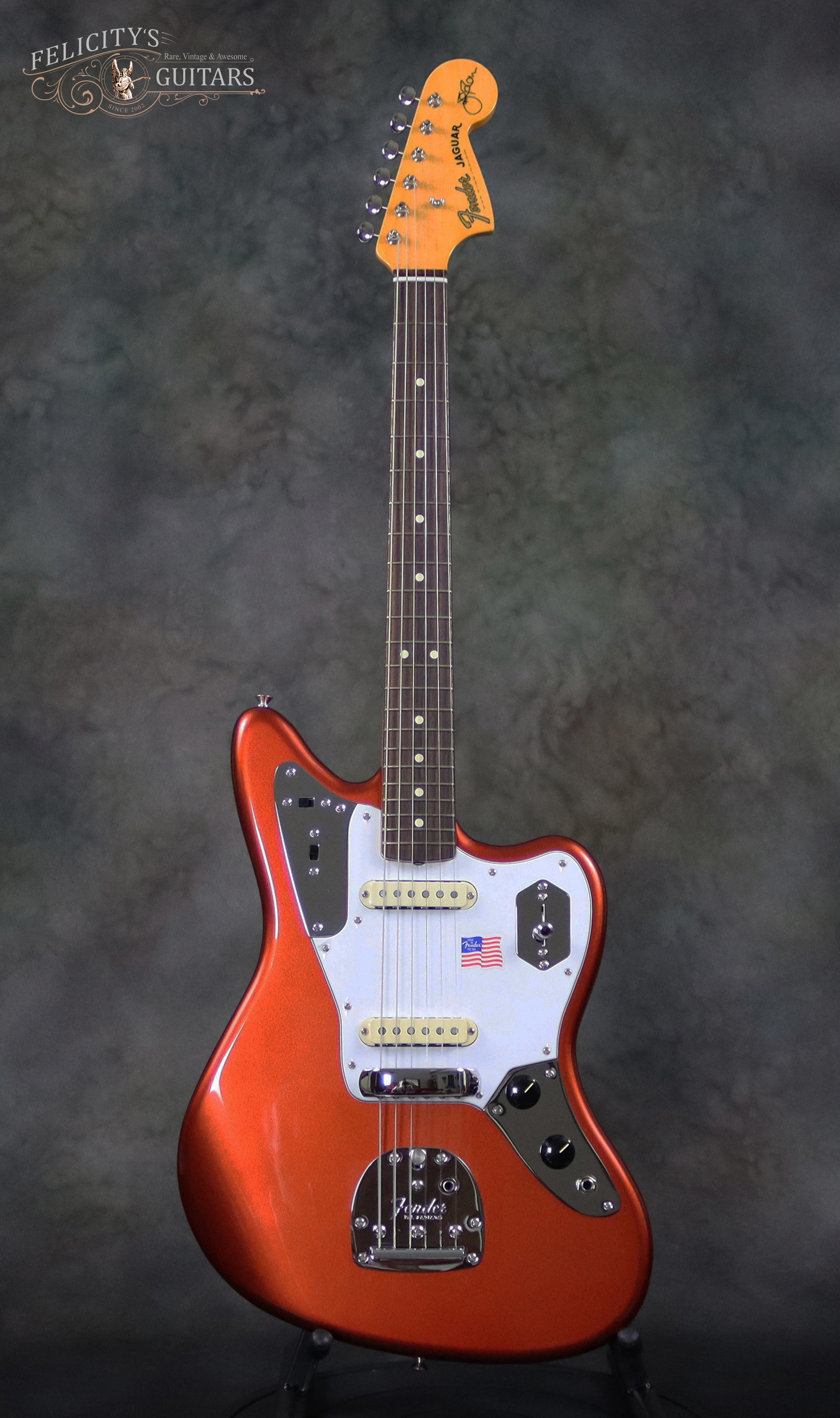

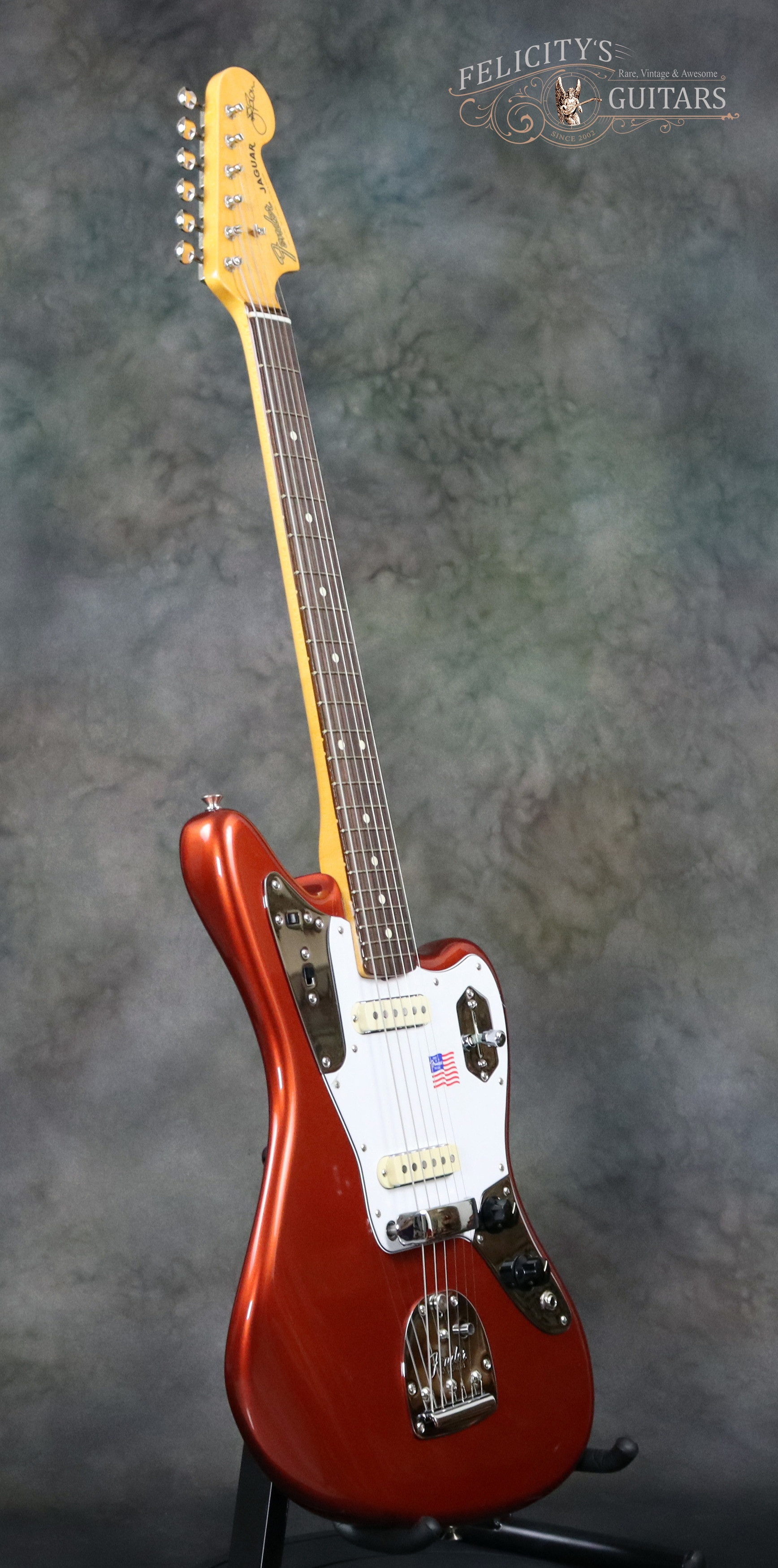

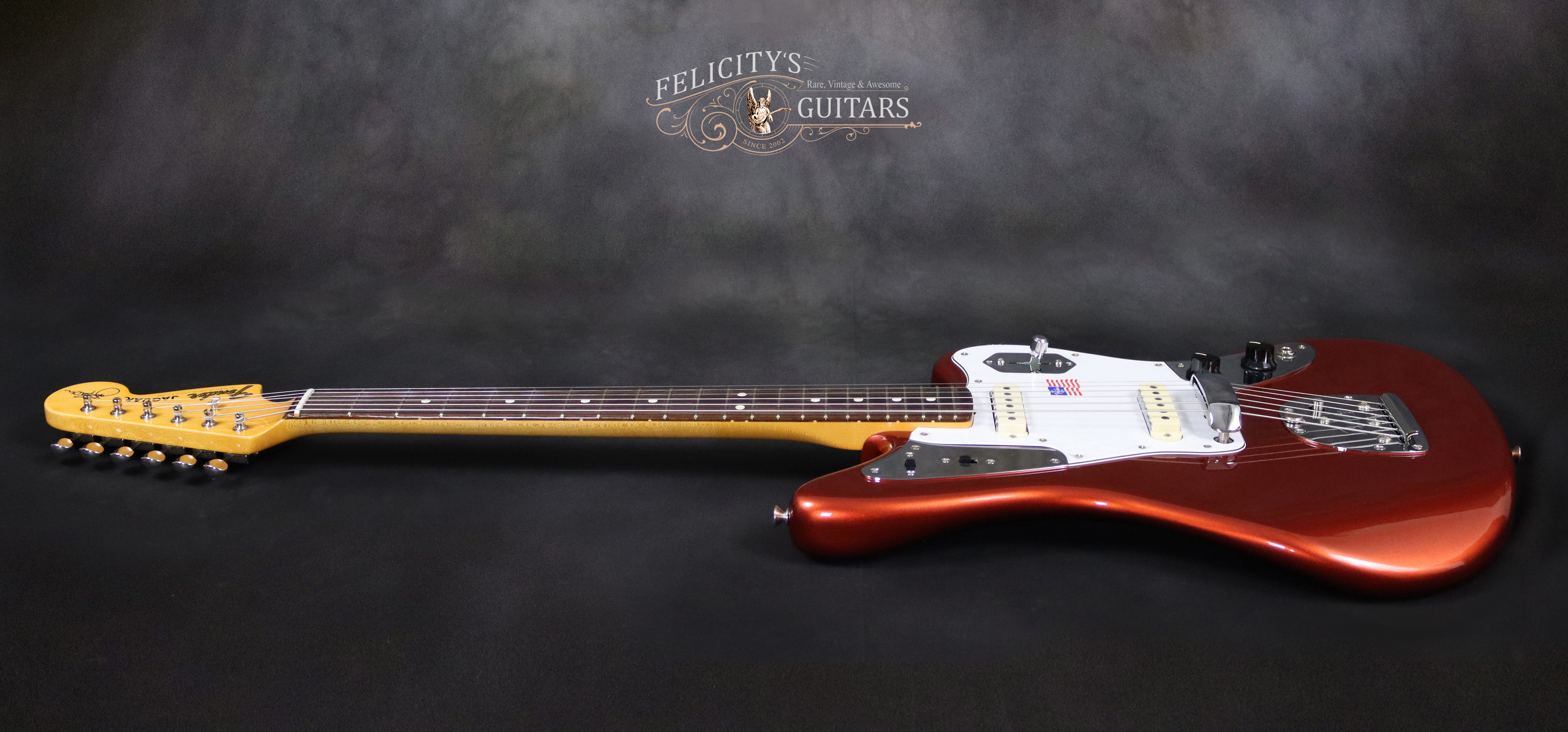

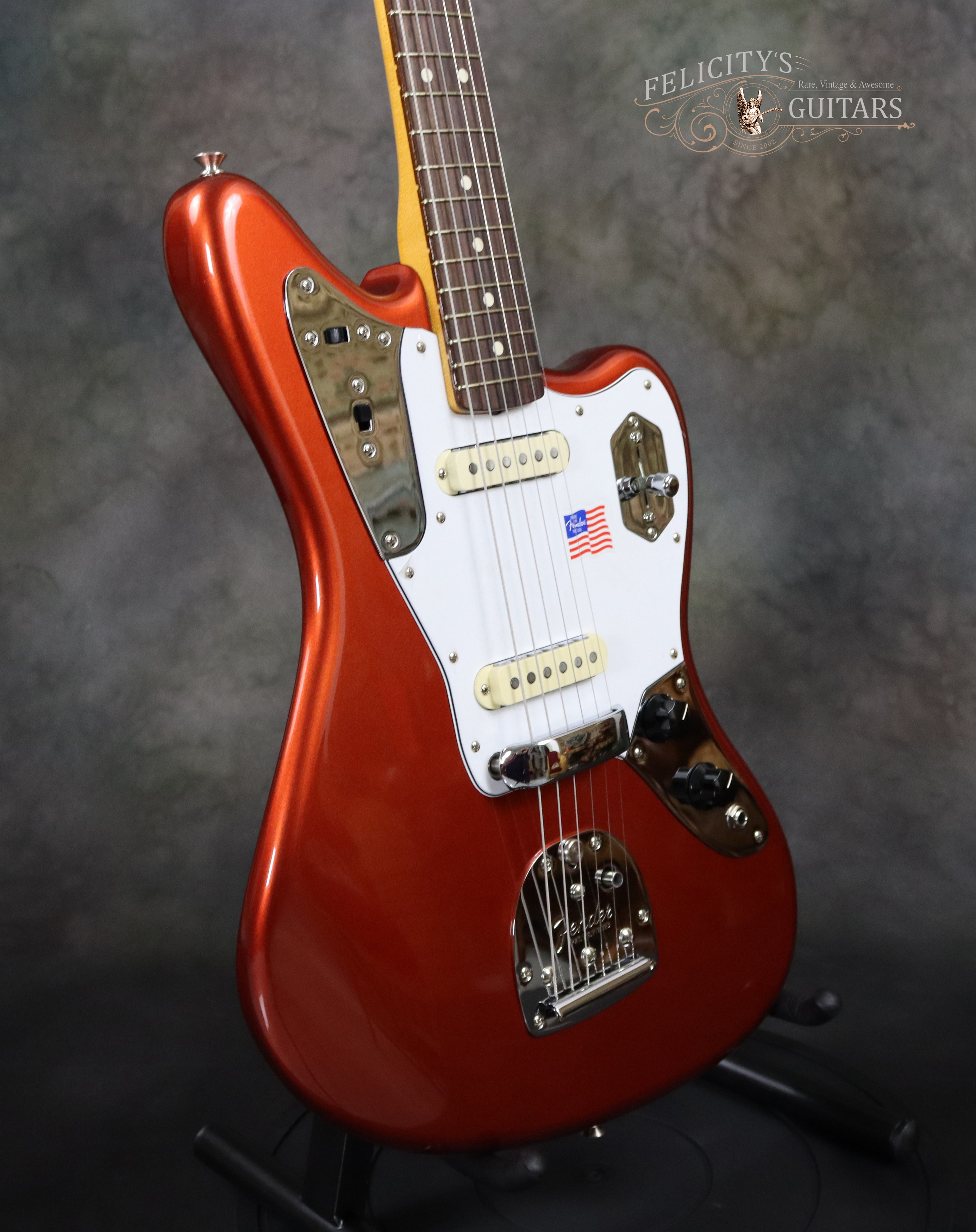

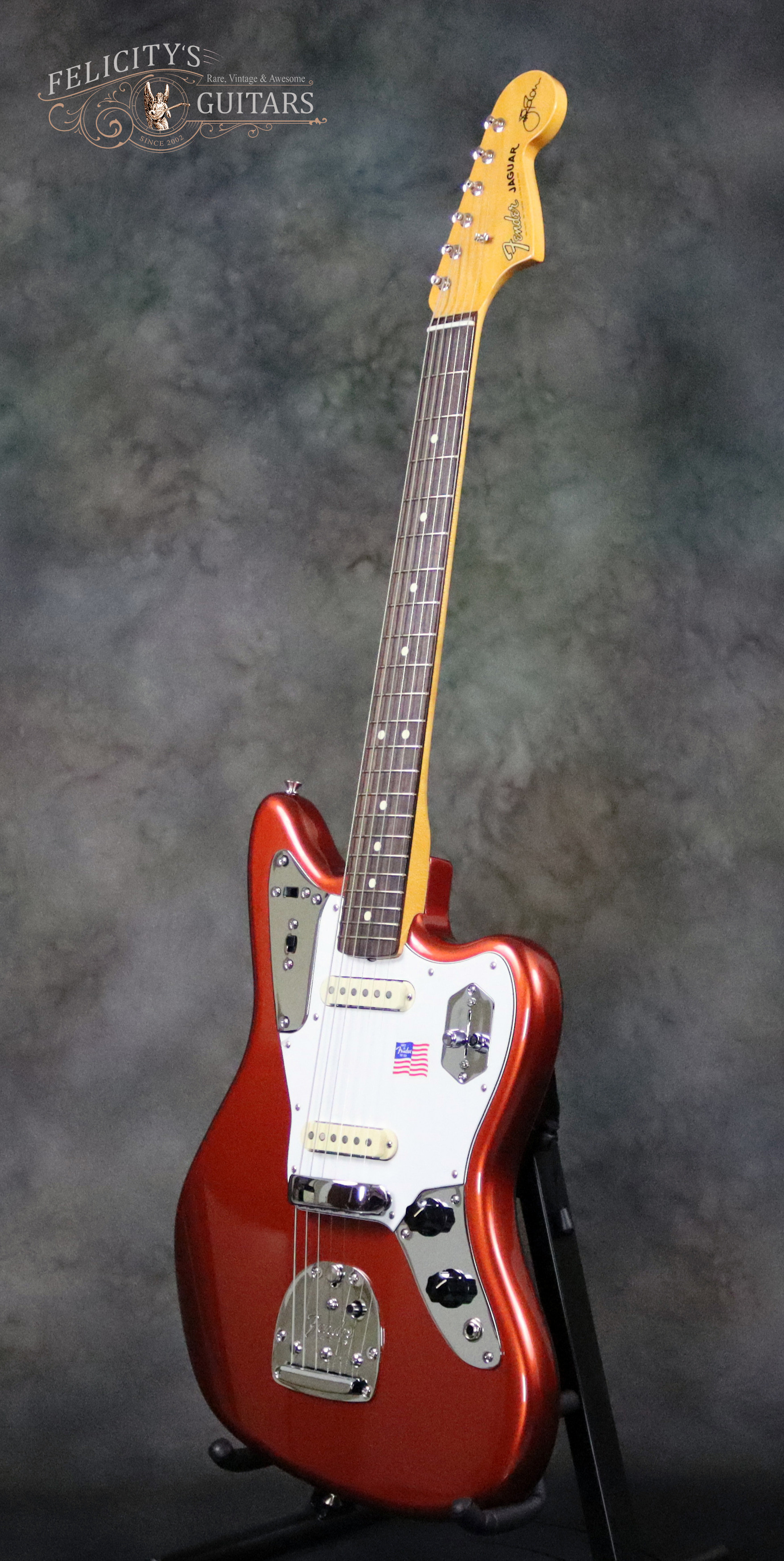

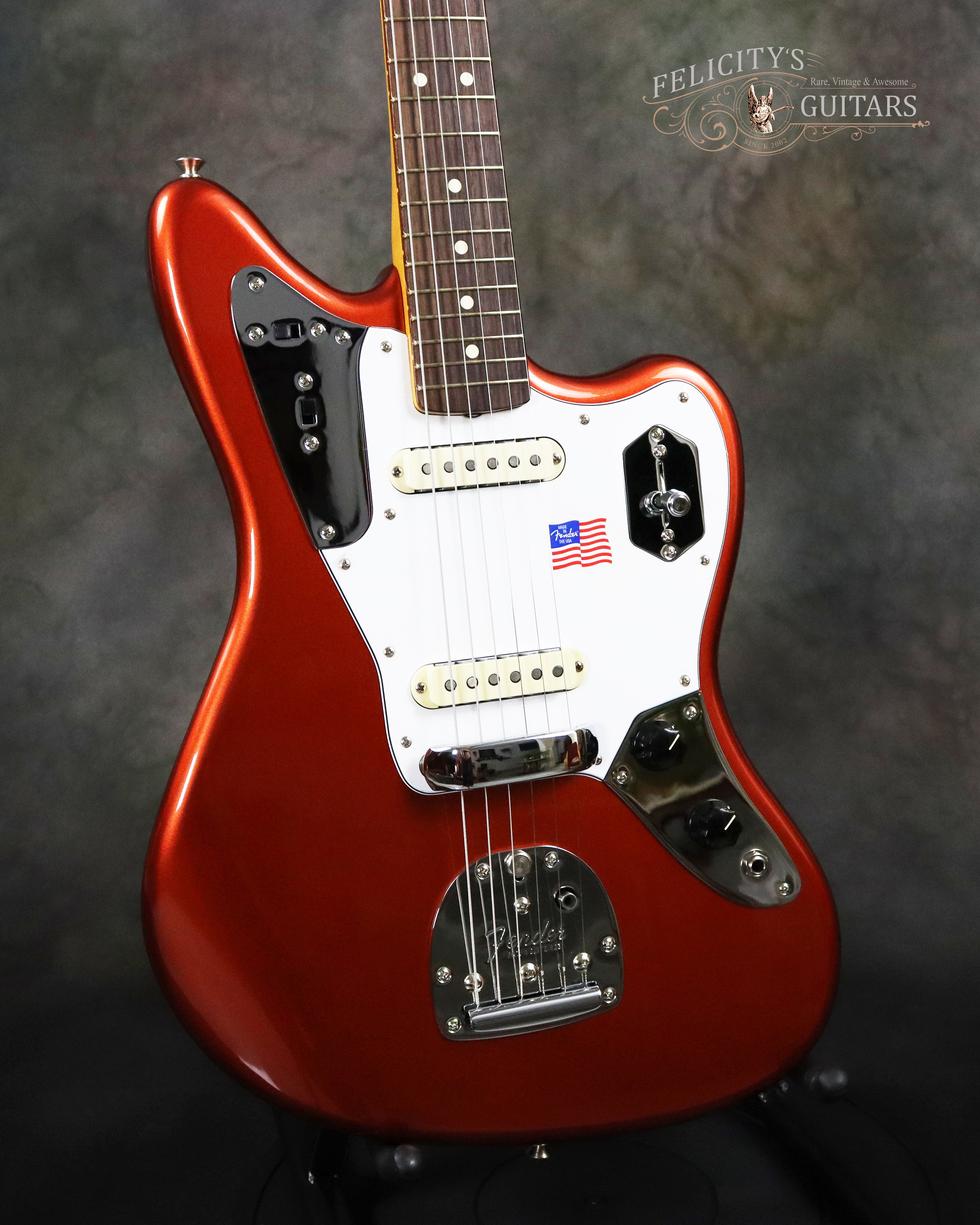

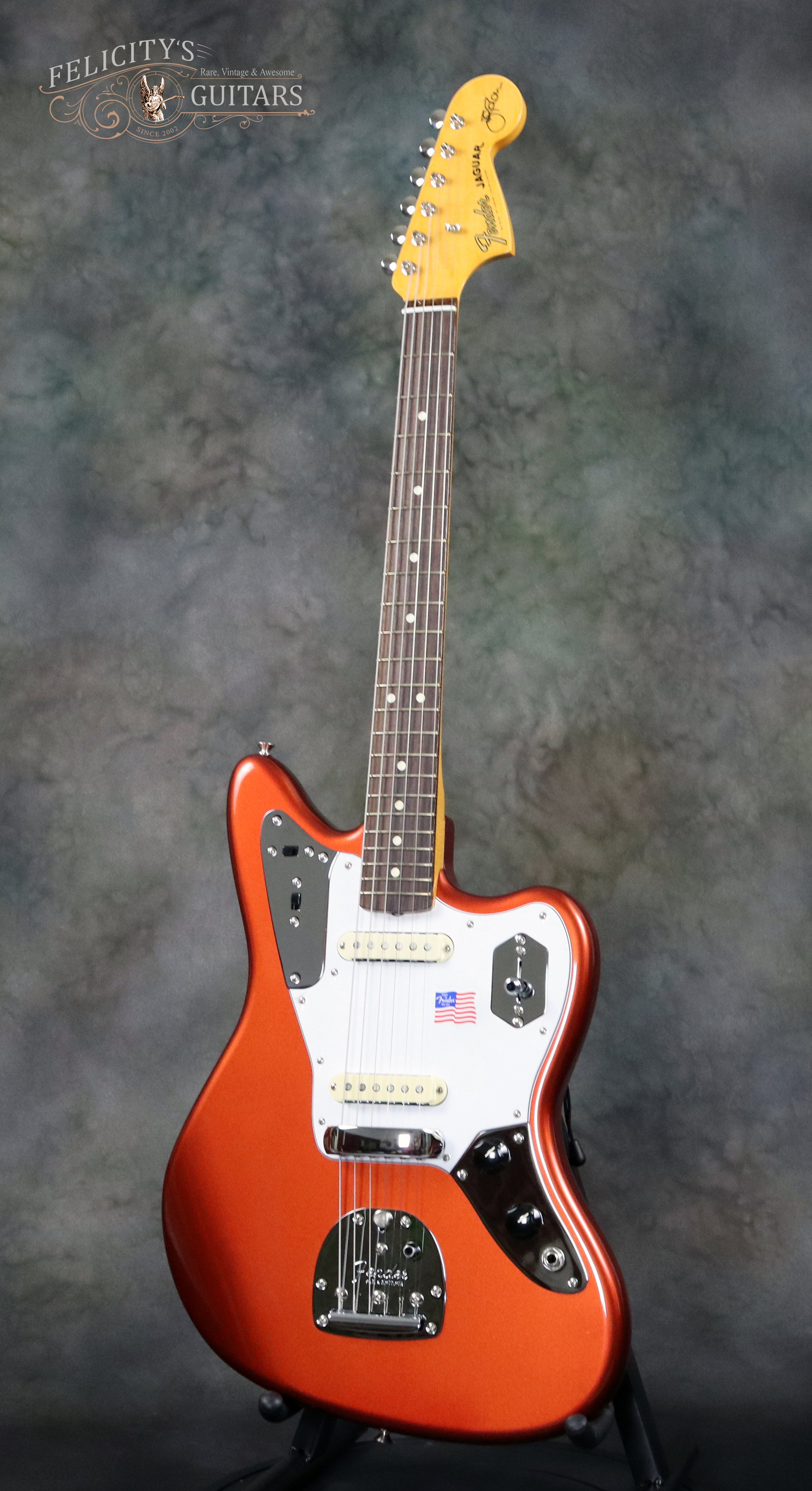

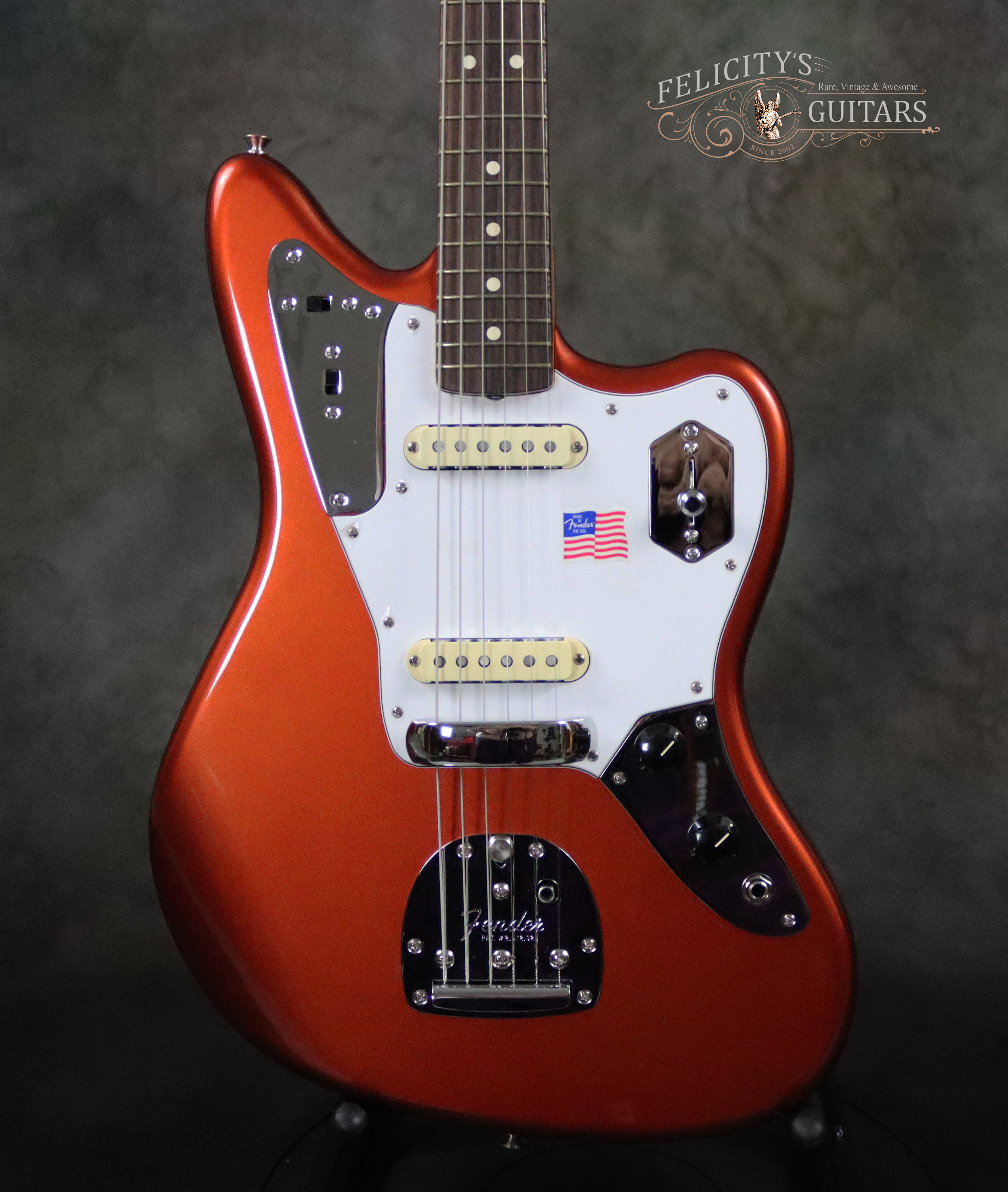

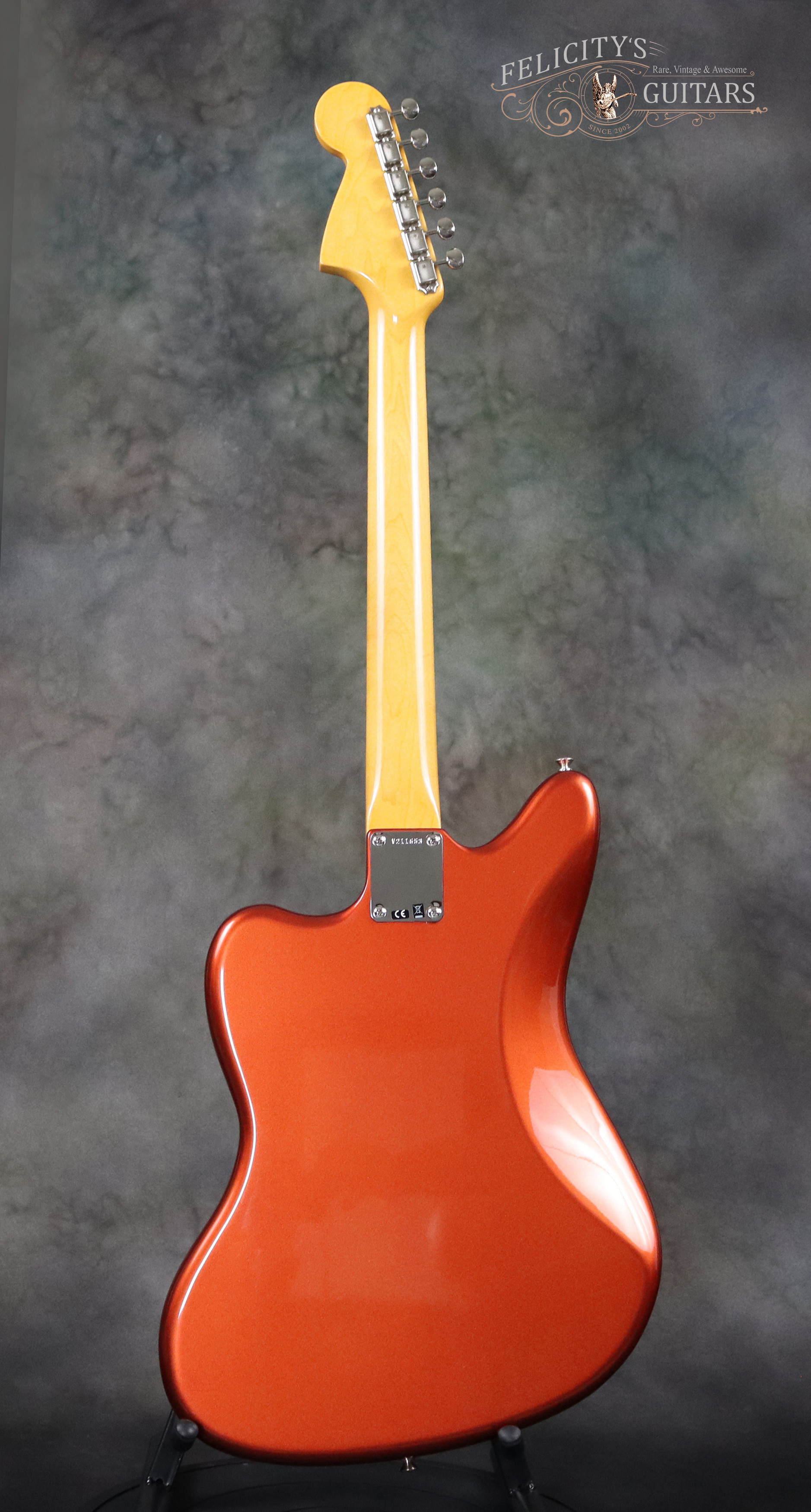

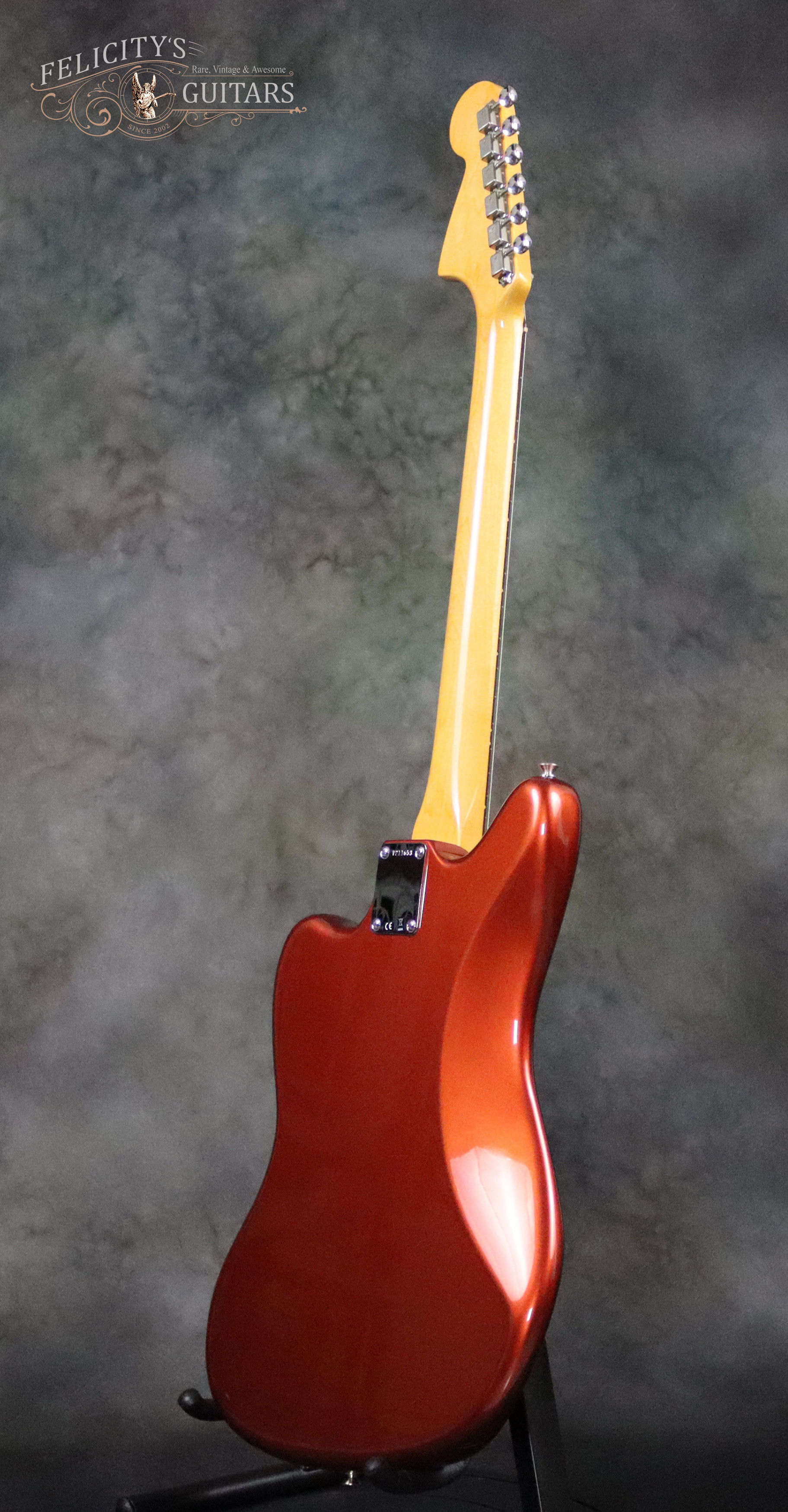

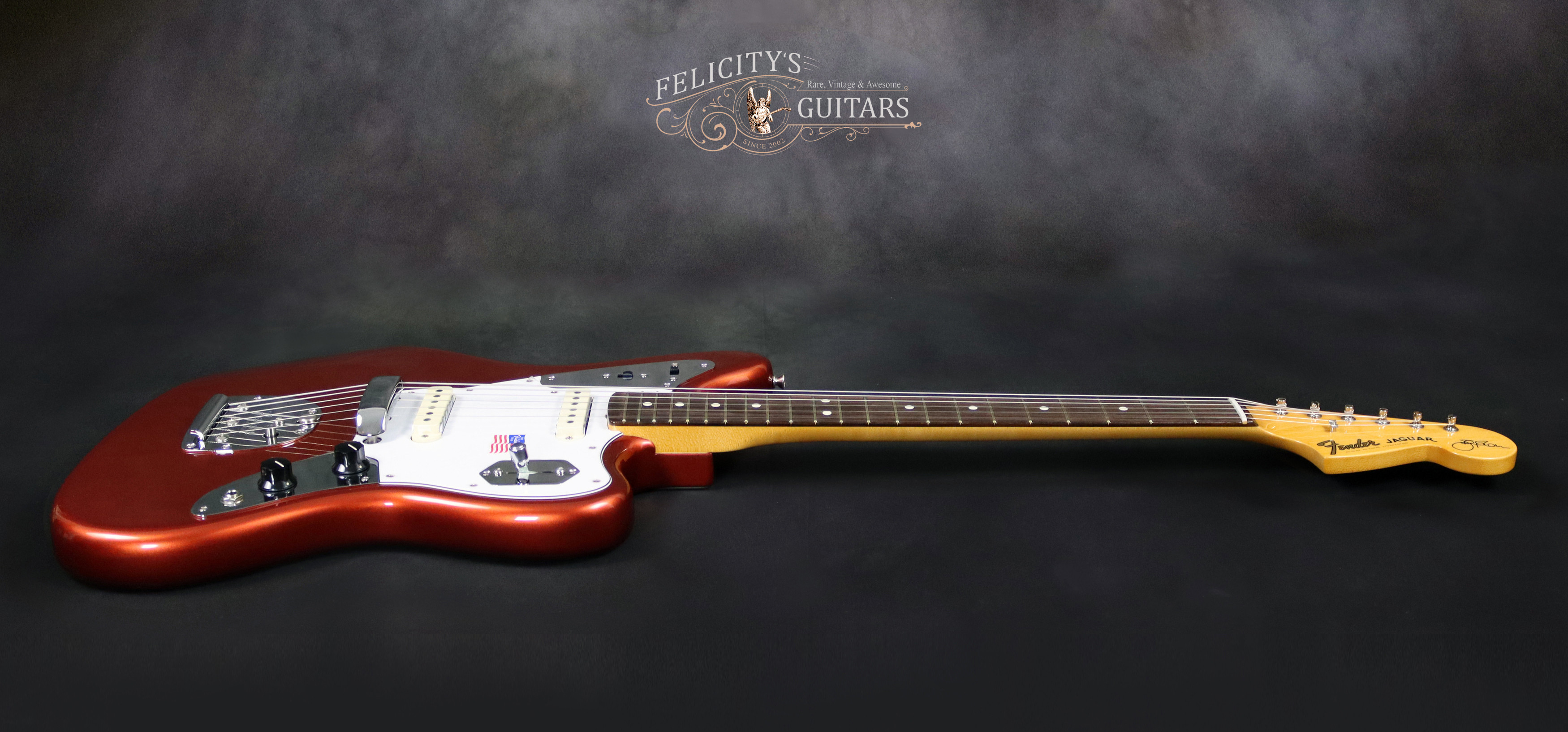

2016 FENDER ’65 ‘JOHNNY MARR’ SIG. JAGUAR IN KANDY ORANGE METALLIC FINISH

The Johnny Marr Jaguar is a fantastically non-standard model that is as distinctive as the sounds he wrings from it.

 Johnny Marr is best known as the strikingly dynamic guitarist-arranger-songwriter behind the Smiths, who redefined and ruled U.K. pop in the 1980s. A master of melody, layering and texture, Marr has brought his own instantly identifiable genius to the proceedings ever since, in stints with The Pretenders, Modest Mouse and the Cribs—to say nothing of his solo career and innumerable guest appearances.

 

 The 2016 Fender ’65 Johnny Marr Signature Jaguar at a glance:

  • Custom-shaped maple neck based on Marr’s 1965 Jaguar, with vintage-style truss rod, lacquer finish and Marr’s signature on the front of the headstock.

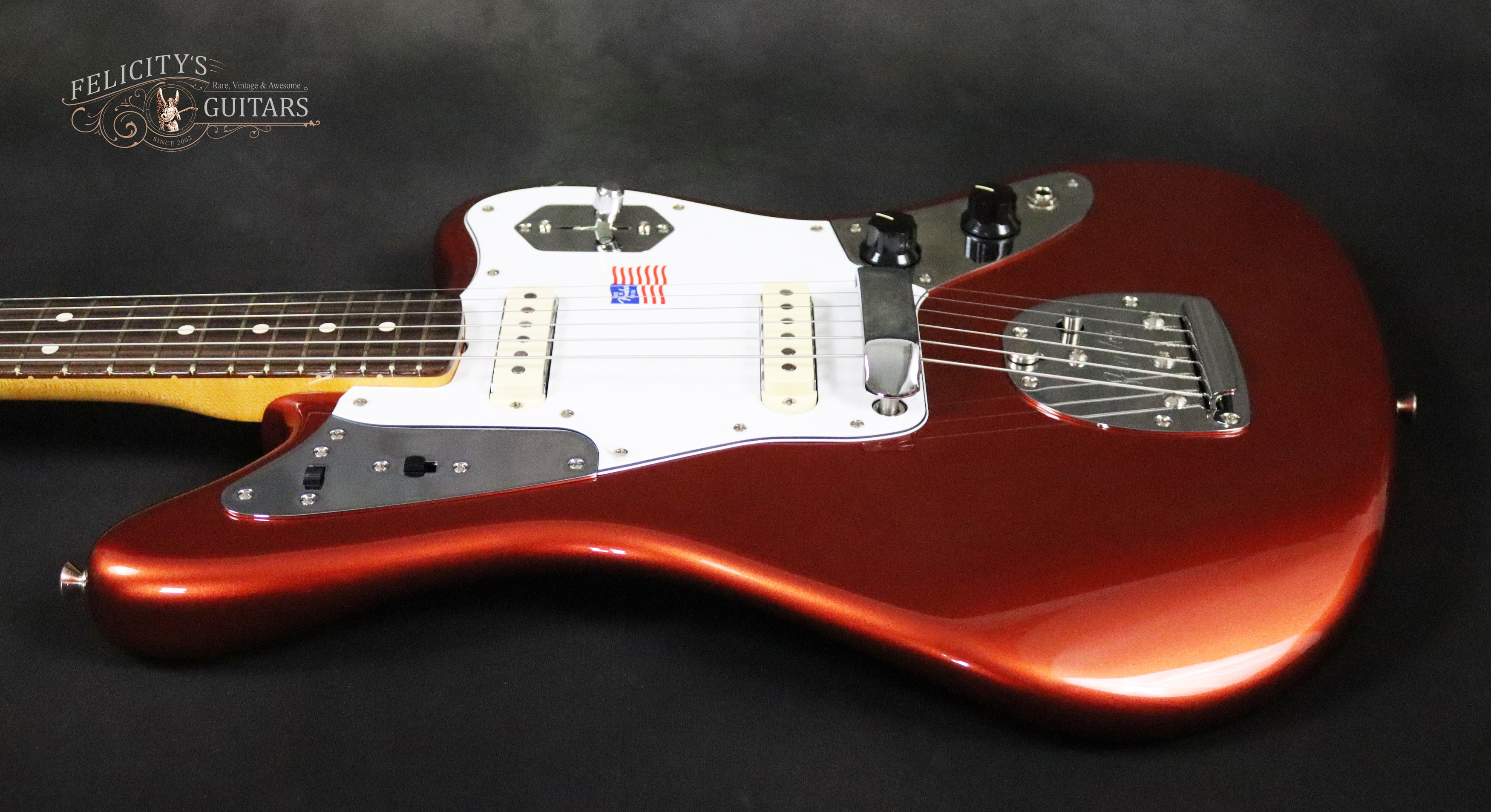

  • Four-position blade-style pickup switch mounted to the lower-horn chrome plate (bridge, bridge and neck in parallel, neck, bridge and neck in series).

  • Two upper-horn slide switches (universal bright and pickup switch position #four bright).

  • Jaguar Bridge with Mustang saddles, nylon bridge post inserts for improved stability, chrome cover and vintage-style floating tremolo tailpiece.


2016-Fender-'65-Jaguar-Marr-Kandy-Orange

USD 1,000,000

Add to Cart

Shipping will be calculated at check out

description

Premium features include the classic Jaguar 24” scale length, lacquer-finished alder body, 7.25”-radius rosewood fingerboard with 22 vintage-style frets, custom-wound Bare Knuckle Johnny Marr single-coil neck and bridge pickups, master volume and tone controls, three-ply pickguard (white-black-white) and chrome hardware.


"Making this signature Jaguar has been a four year journey,” “I've taken all the aspects of the guitar in every direction I could, to improve it without losing the classic features that I liked from the original design. It's been a labour of love and obsession, and a privilege. I've used it for everything I've done since I started making it. It's my perfect guitar." -- Johnny Marr

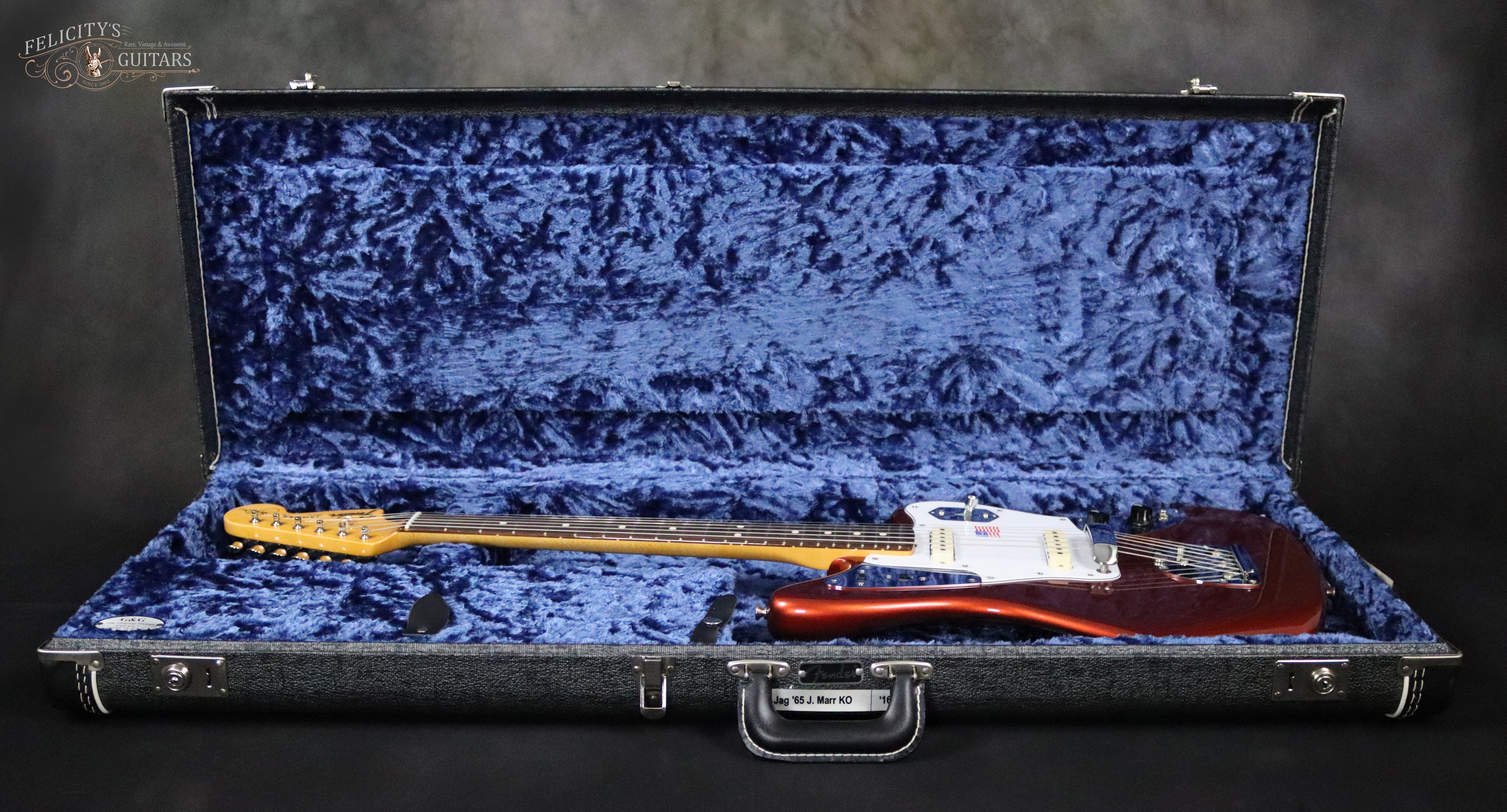

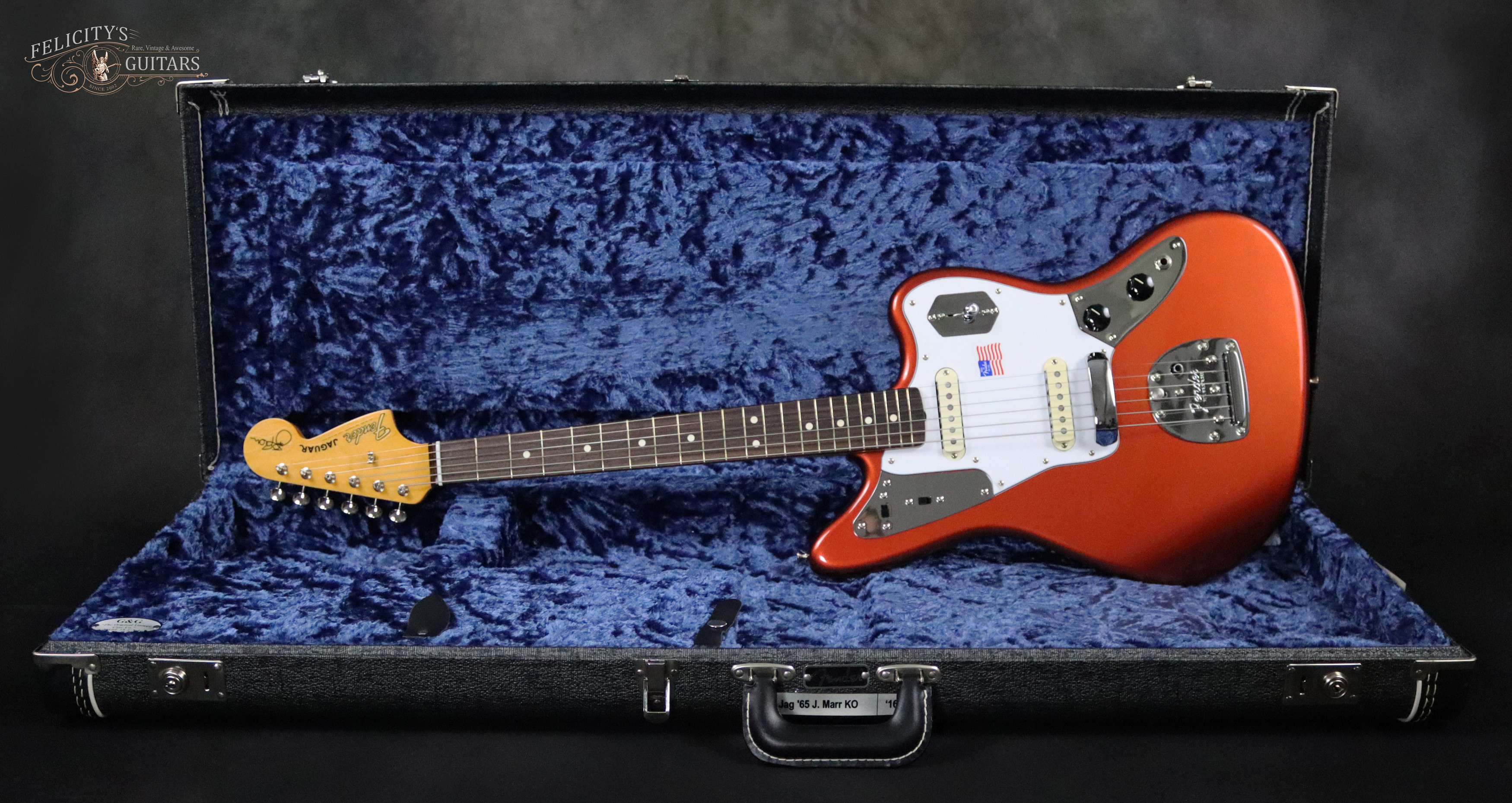

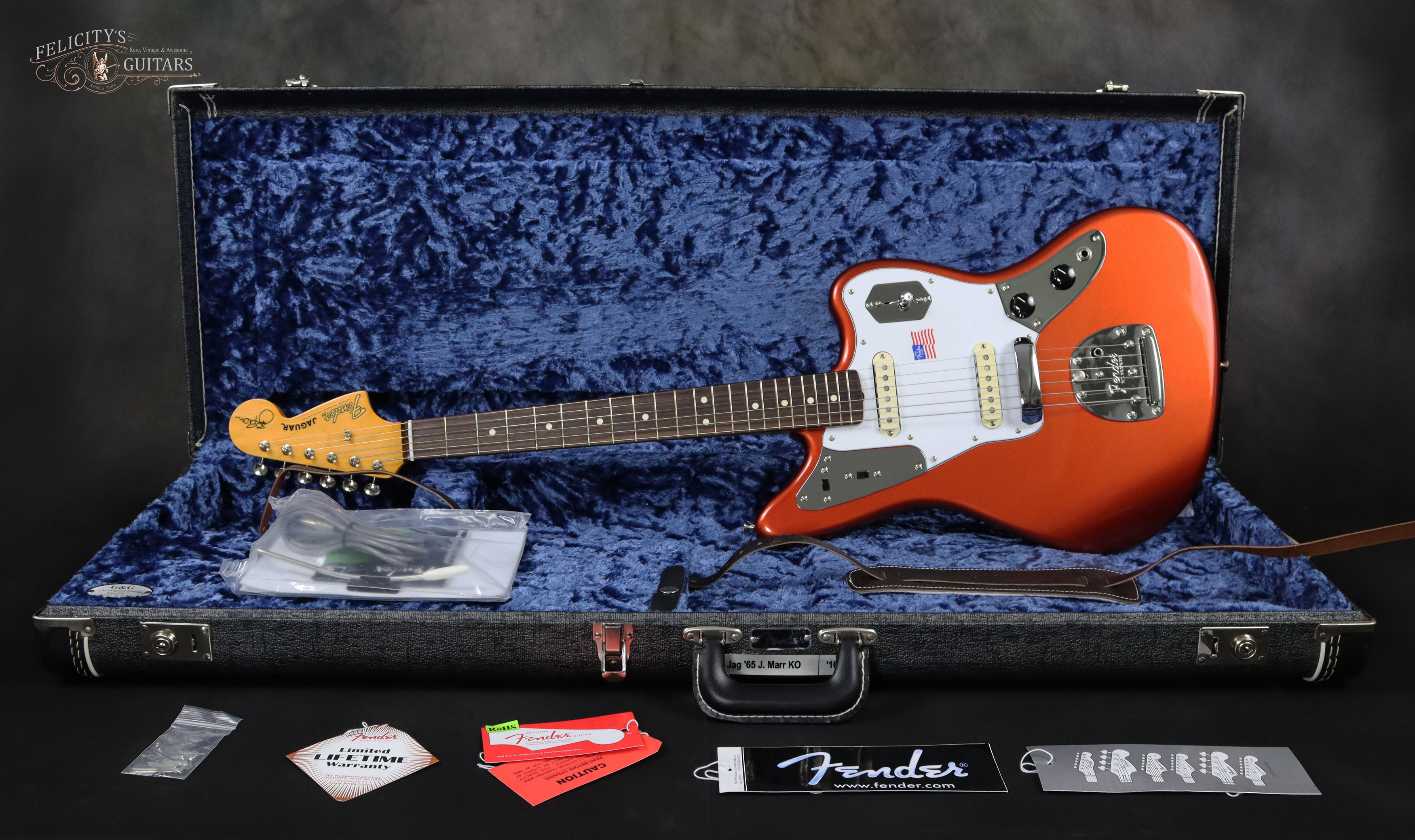

Accessories include a custom case with blue crushed velvet interior, strap, cable and flatwound strings.

Specifications

General

Condition

Brand New (NOS)

Number of Strings

6

Orientation

Right-handed

Country of Origin

U.S.A.

Year

2016

Limited Edition / Series

No

Weight

8-lbs 9.9-oz

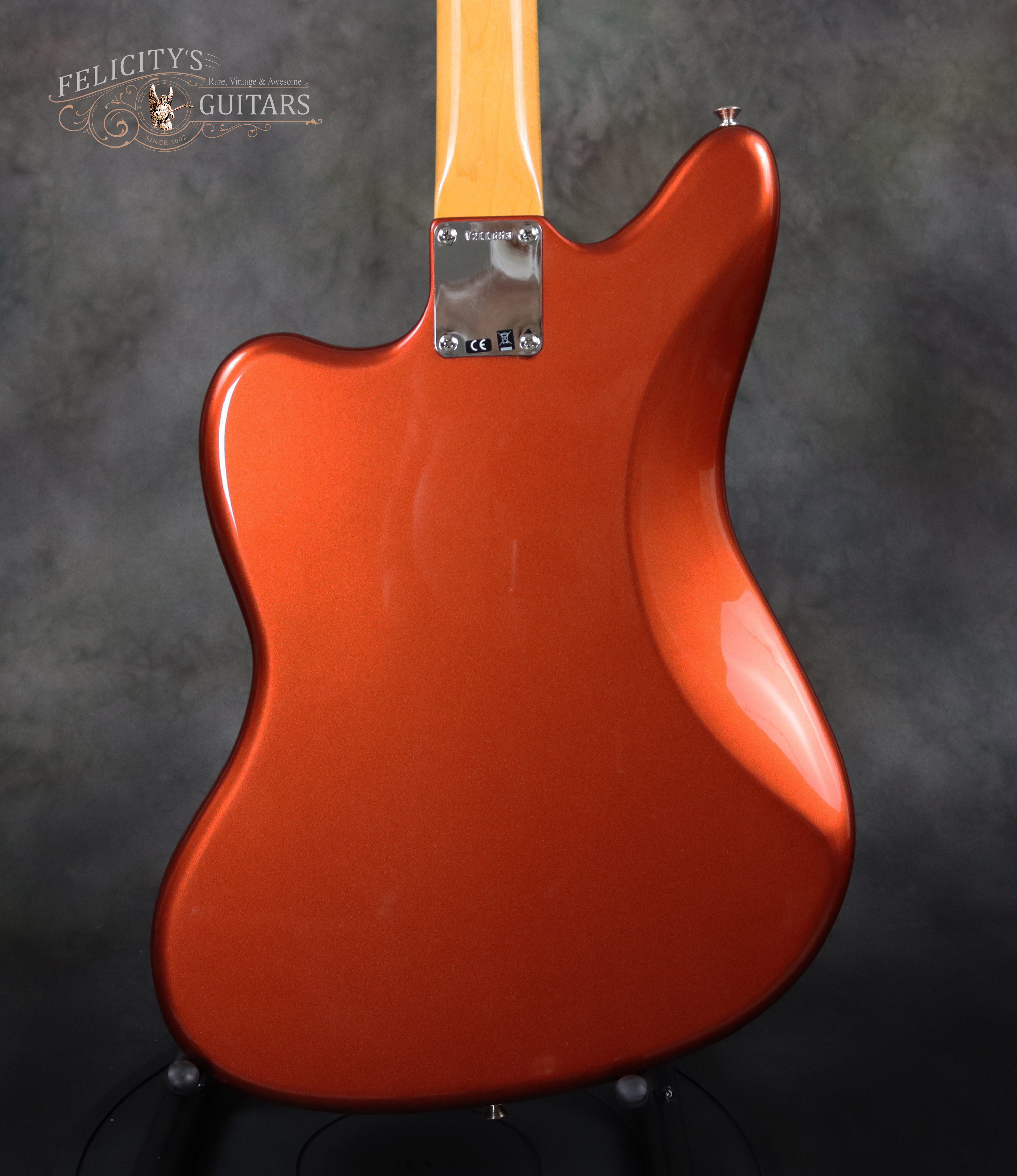

body

Body Type

Offset Solidbody

Body Shape

Doublecut SS Jaguar™

Body Material

2-pc Alder

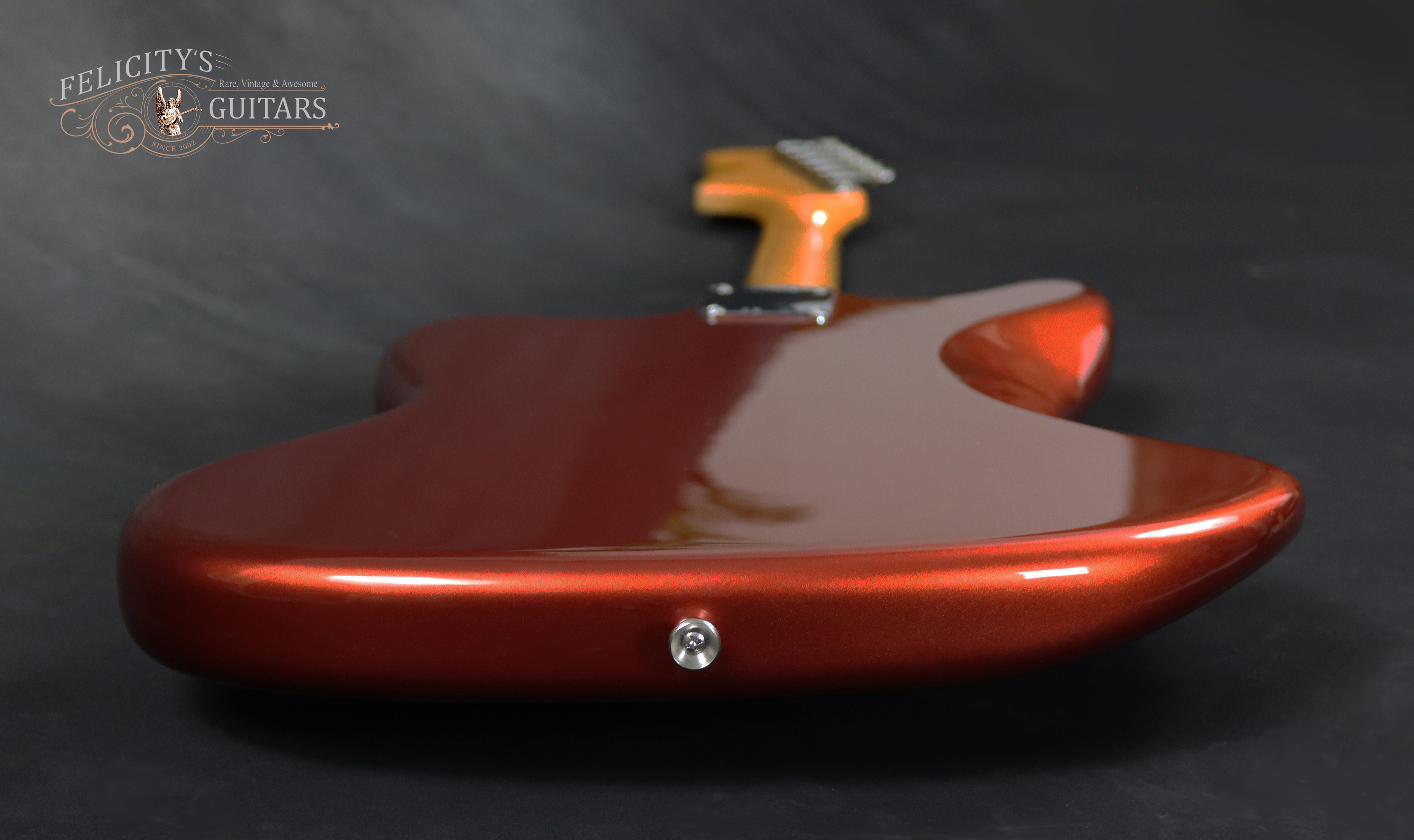

Body Carve

Front: Arm Contour

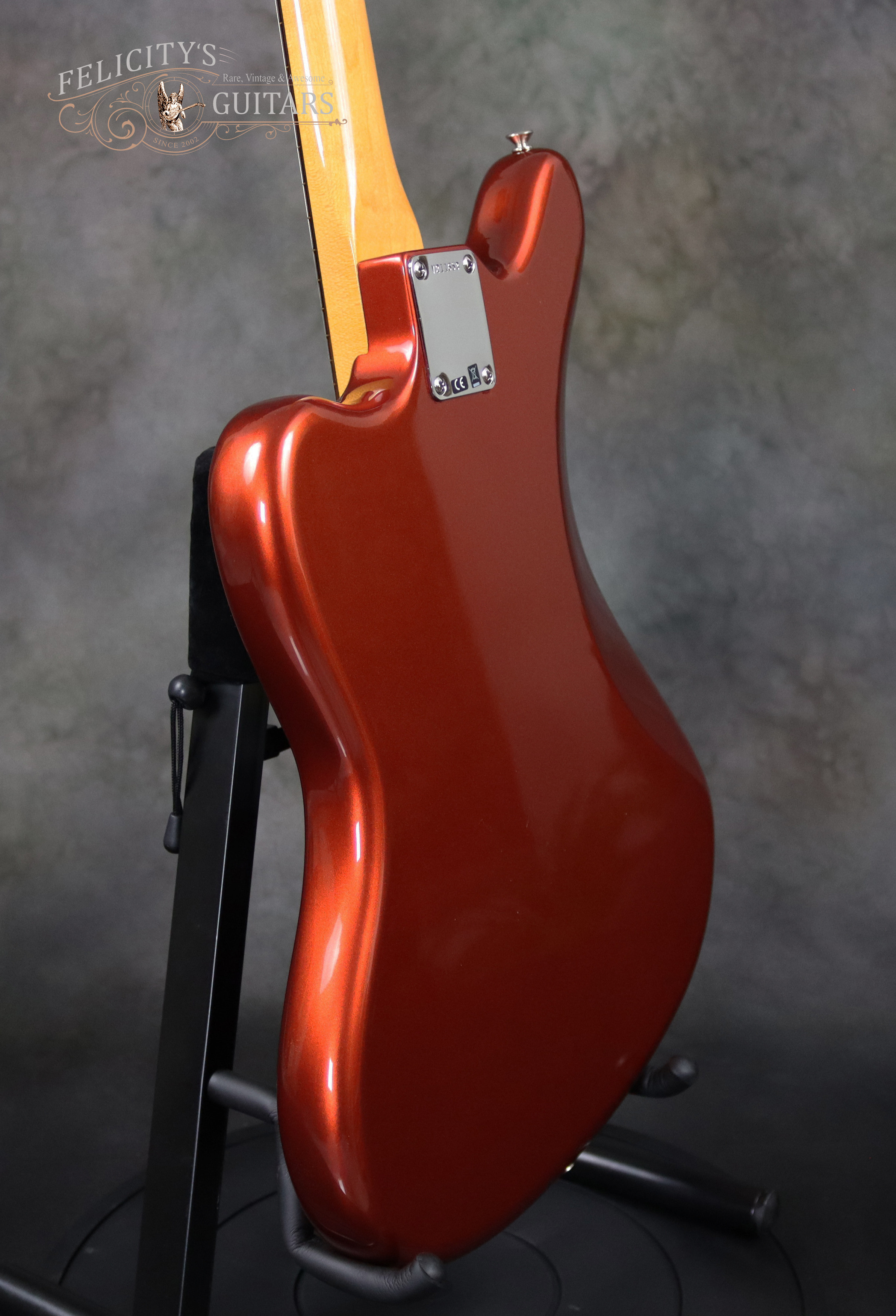

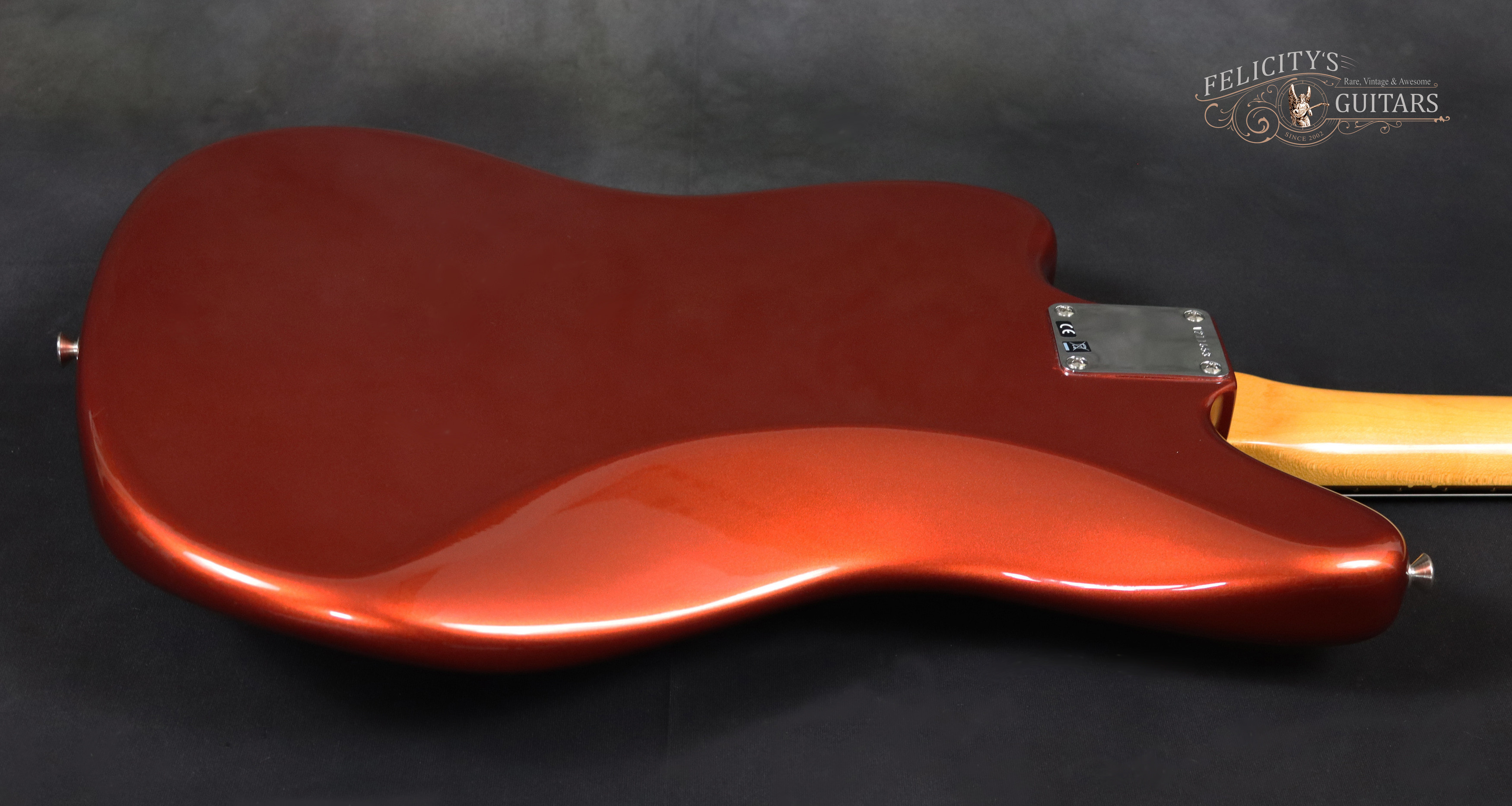

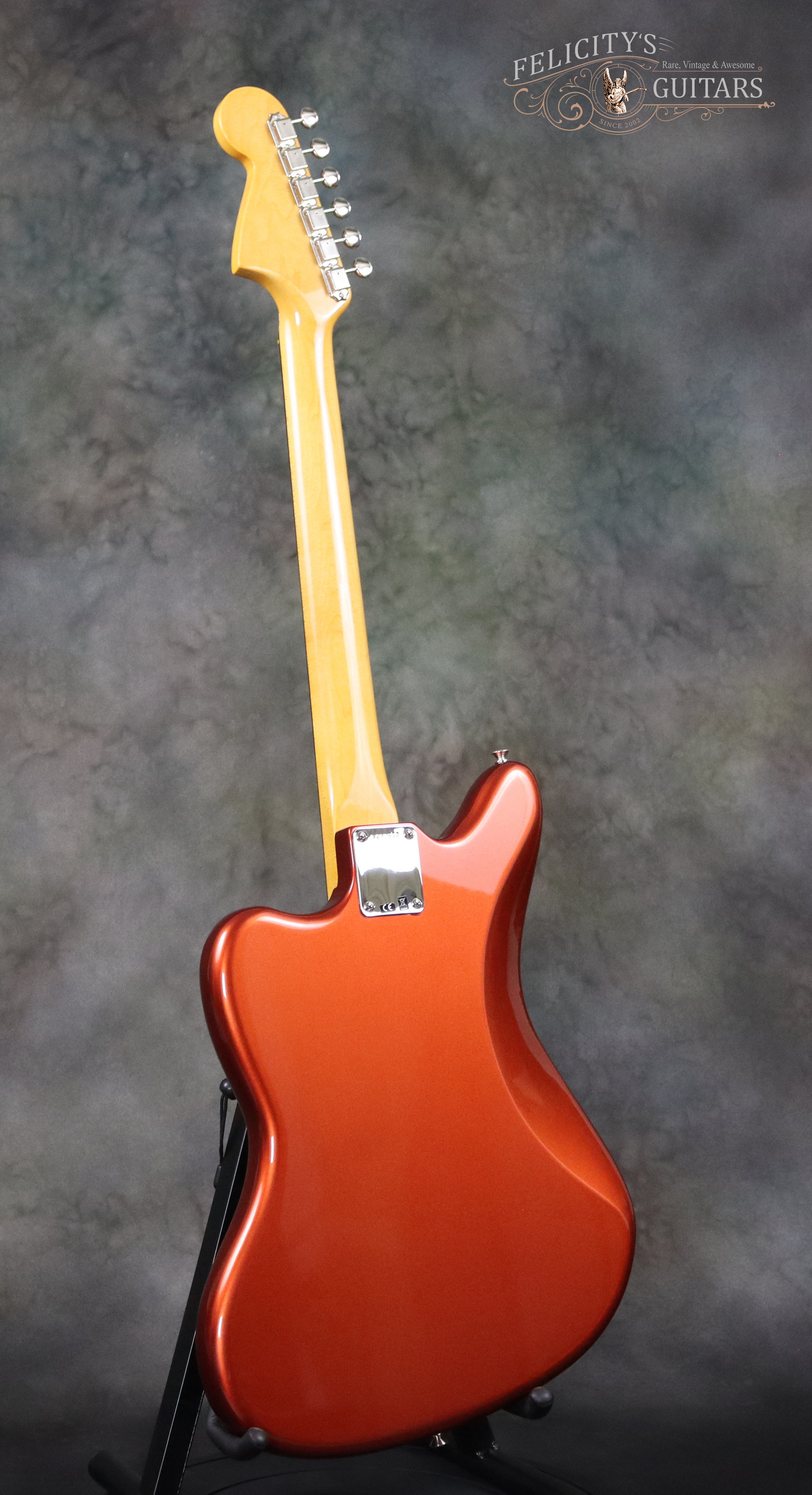

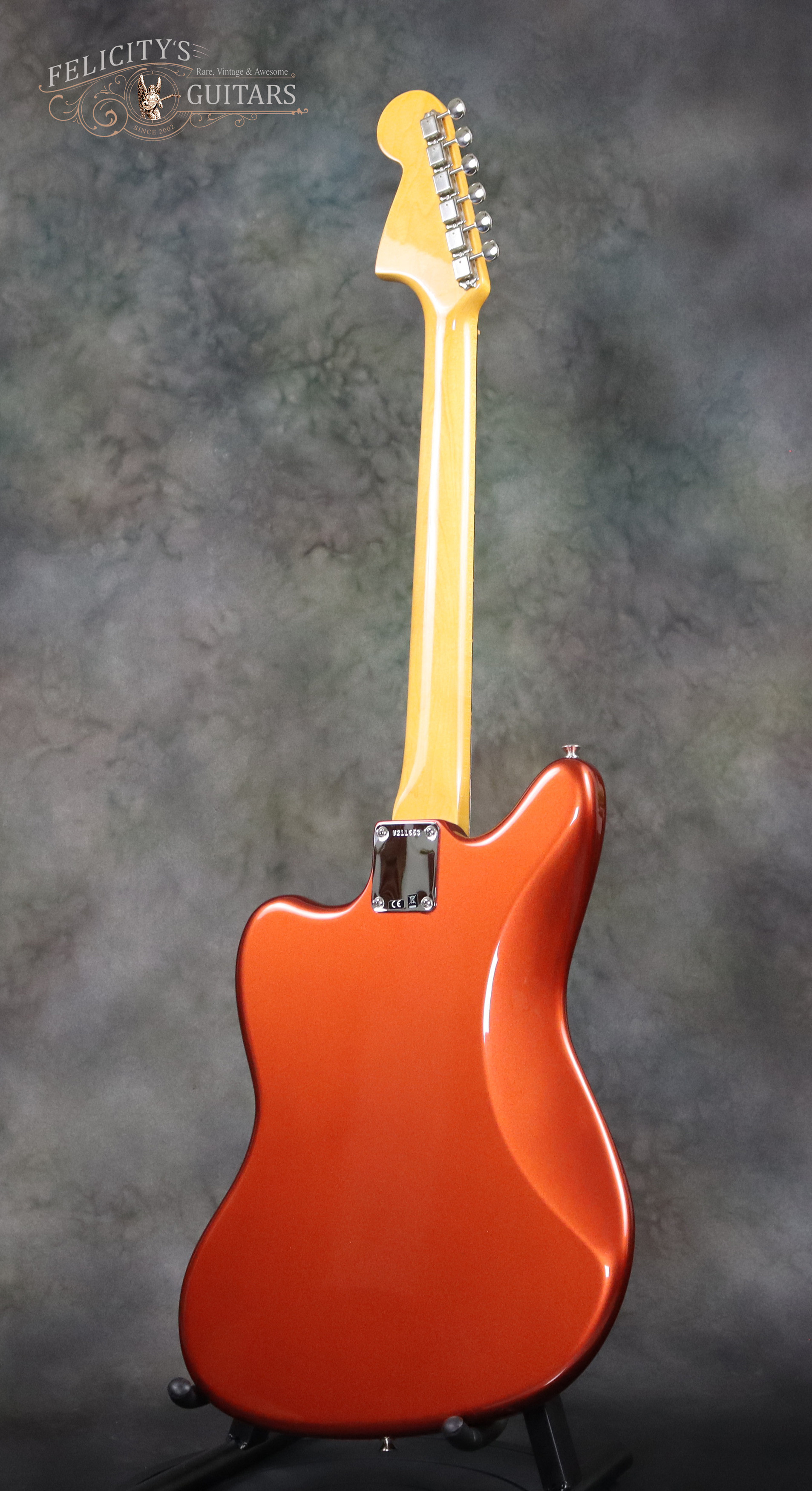

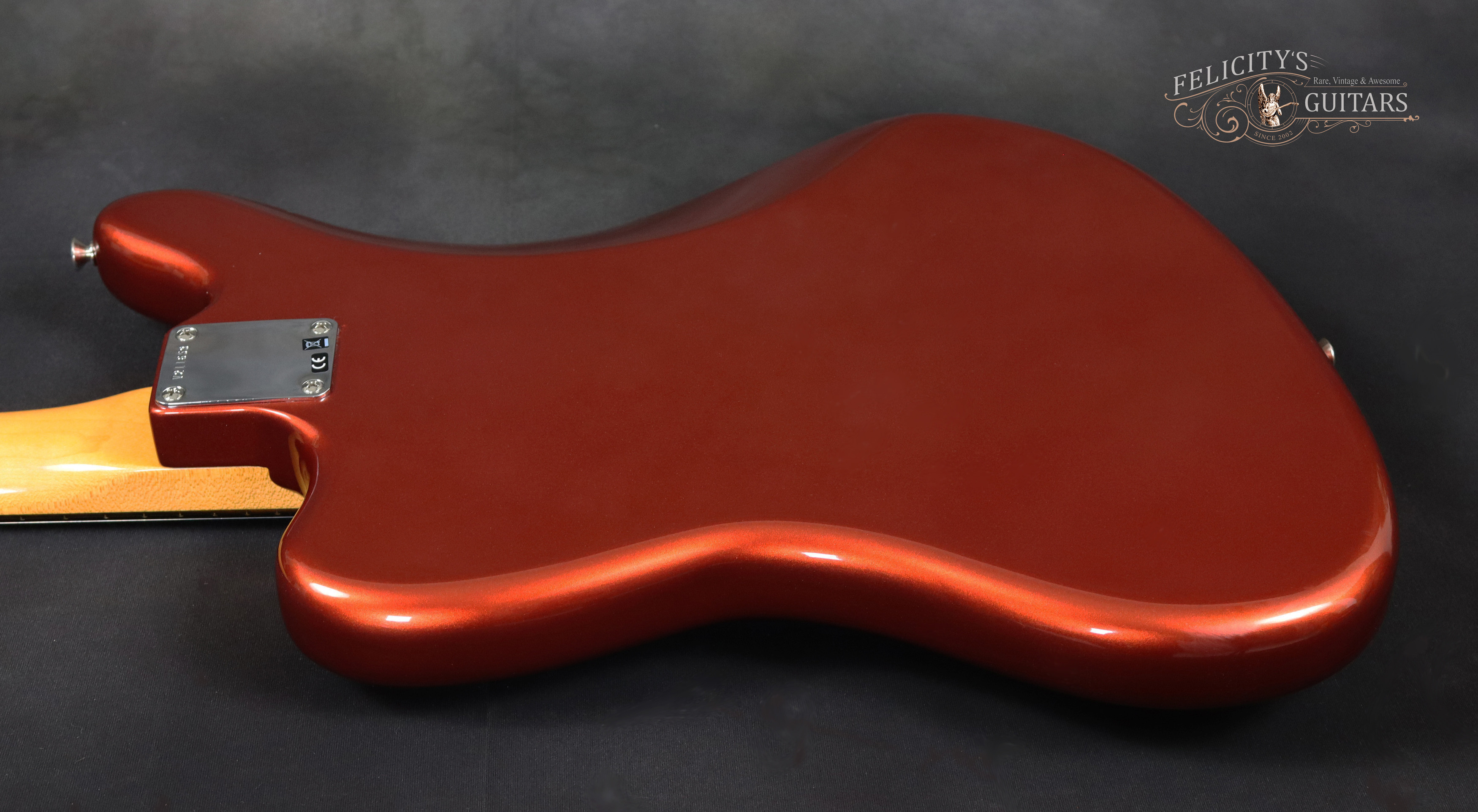

Back: Vintage Spec Waist Contour

Body Binding

Front: No

Back: No

Weight Relief

Un-chambered

Body Finish Type

Gloss Polyurethane

Color

Front: Kandy Orange “KO” Metallic

Back: Kandy Orange “KO” Metallic

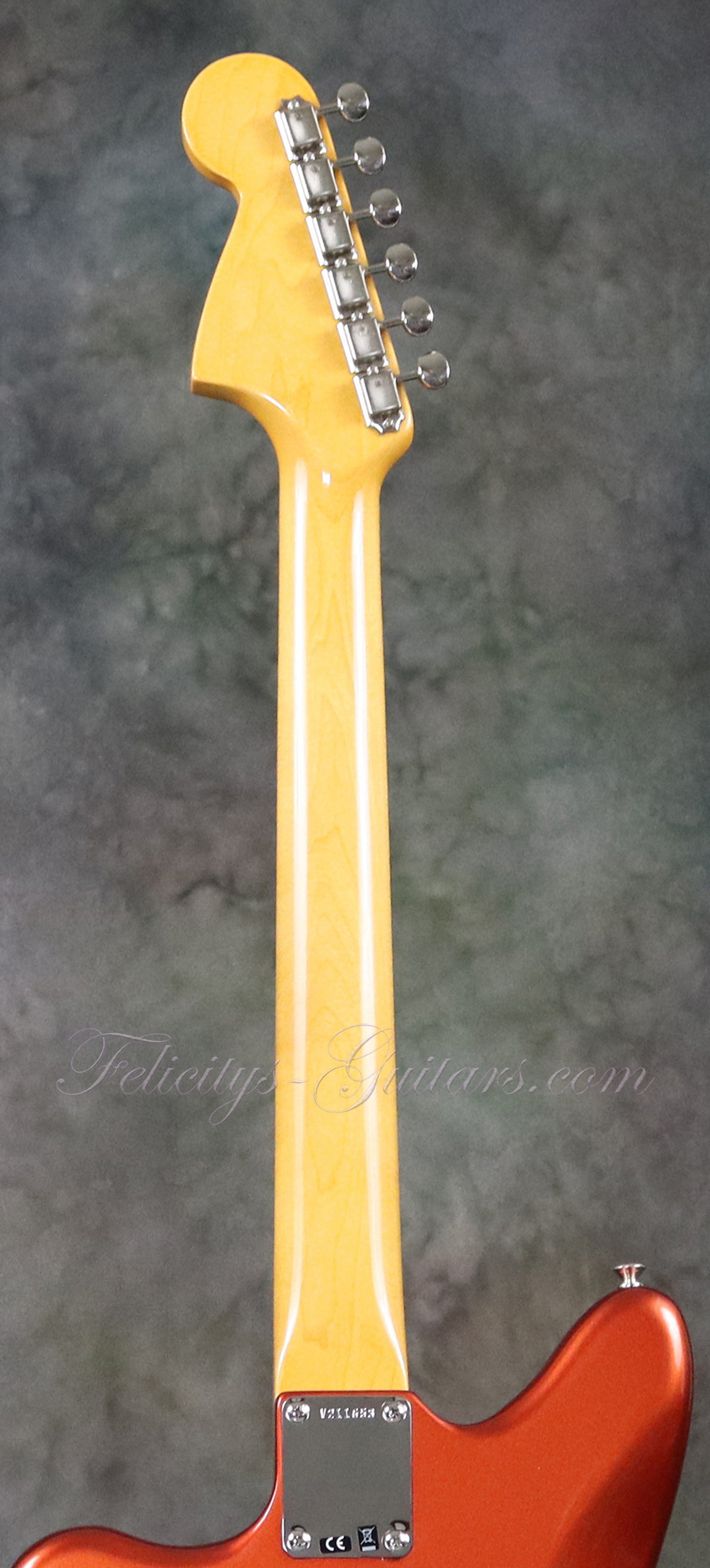

neck

Neck Material

1-piece Quartersawn Maple with Satin Urethane Finish Back

Truss Rod

Vintage Neck Butt Access, 2-way Adjustable

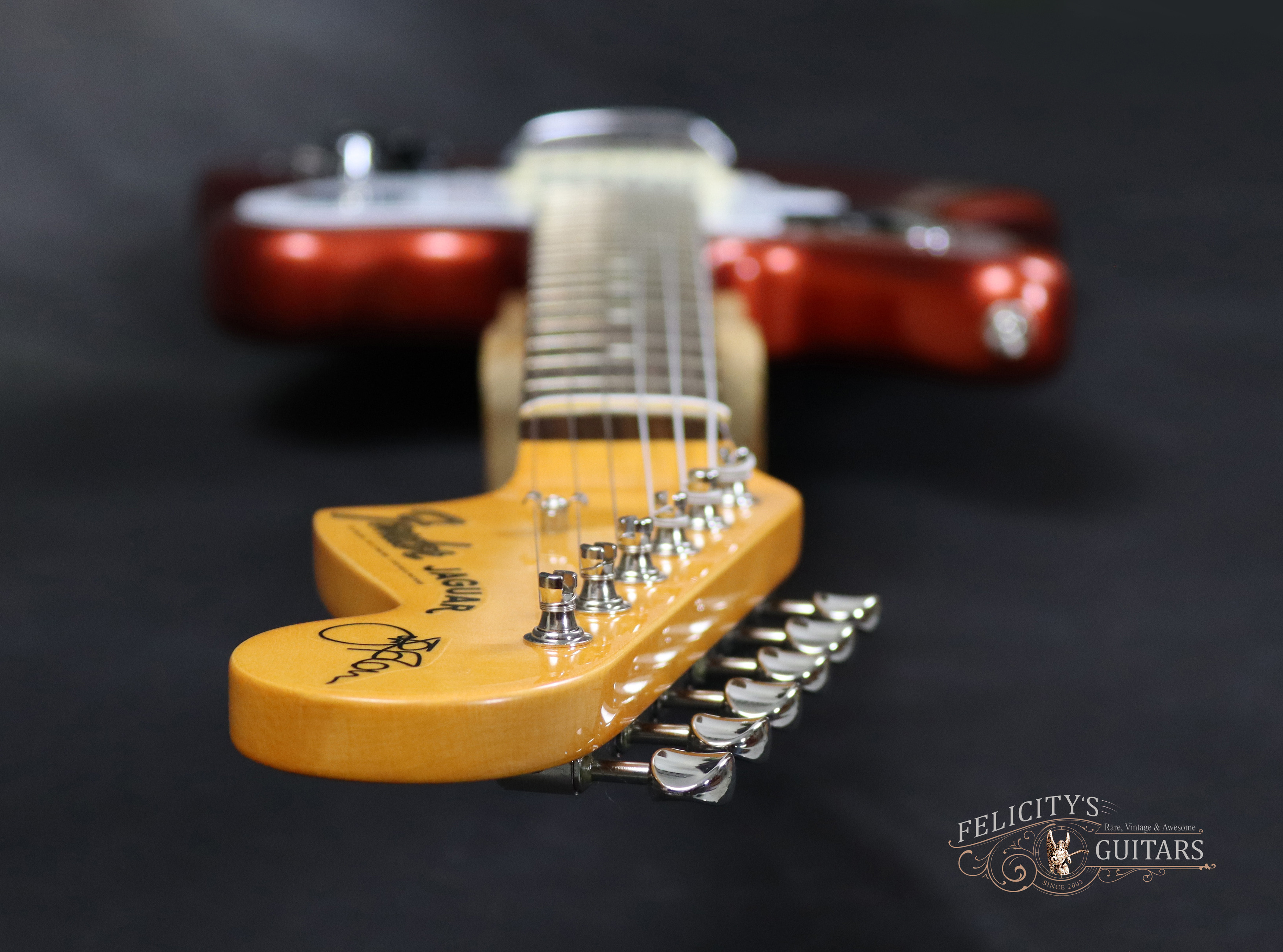

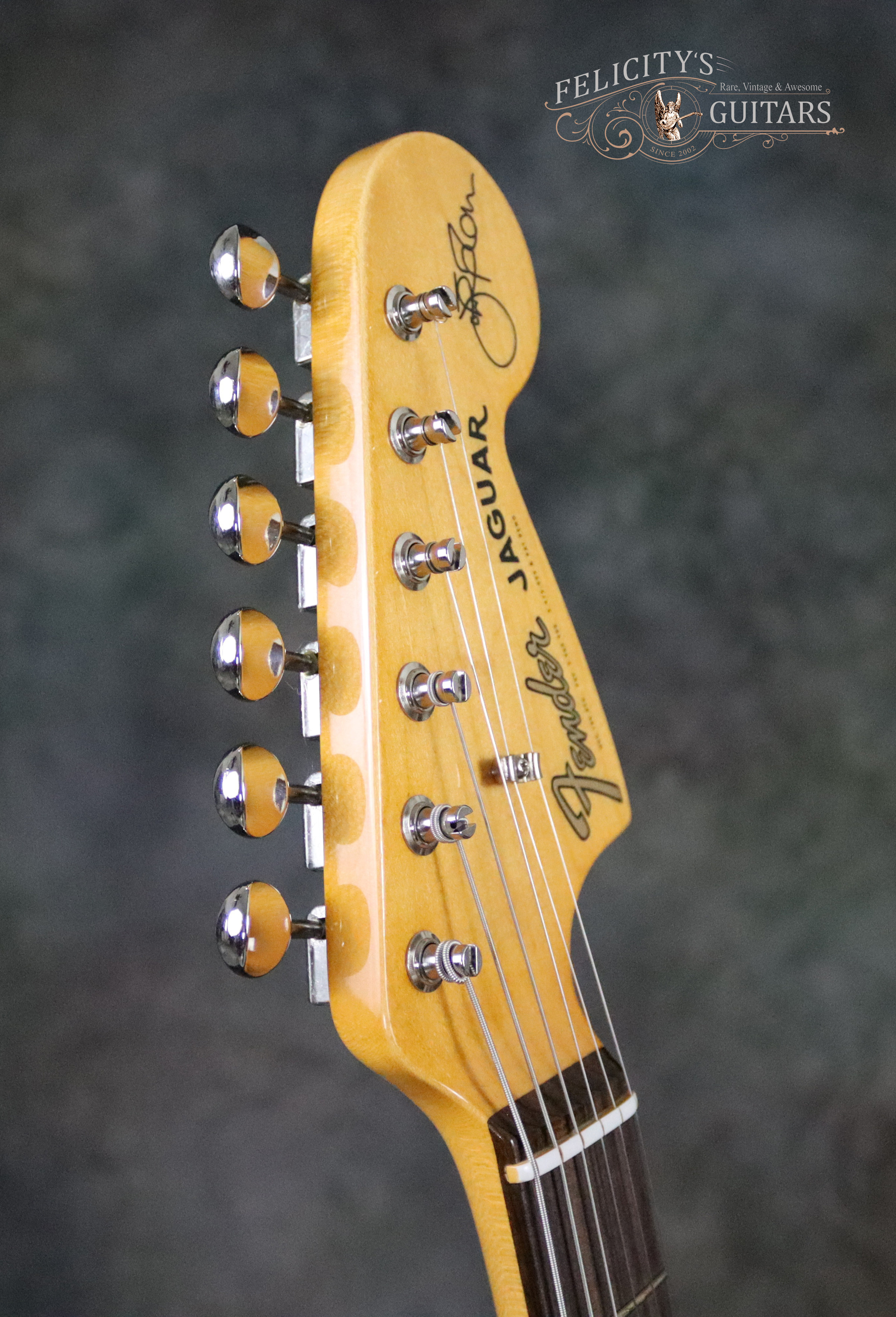

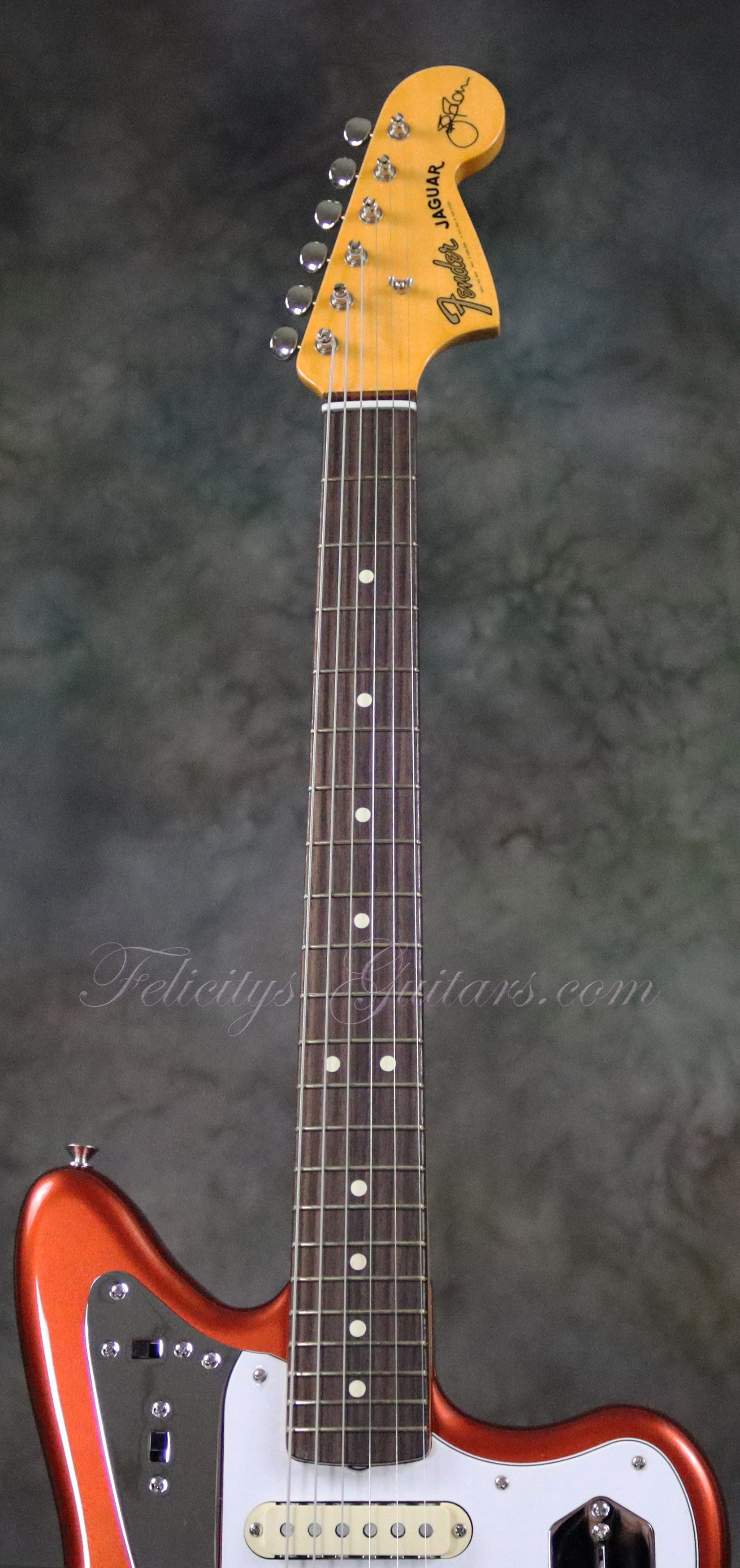

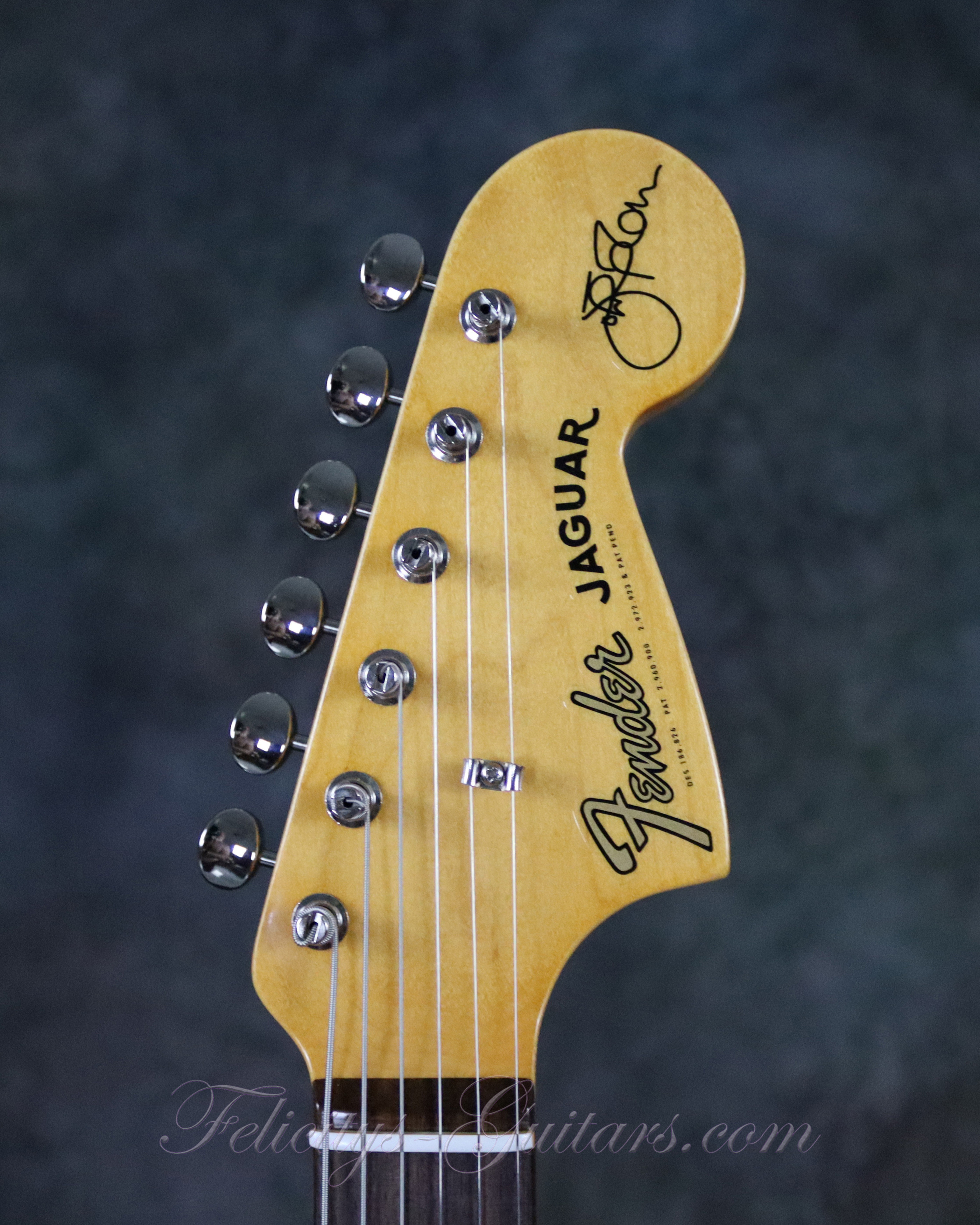

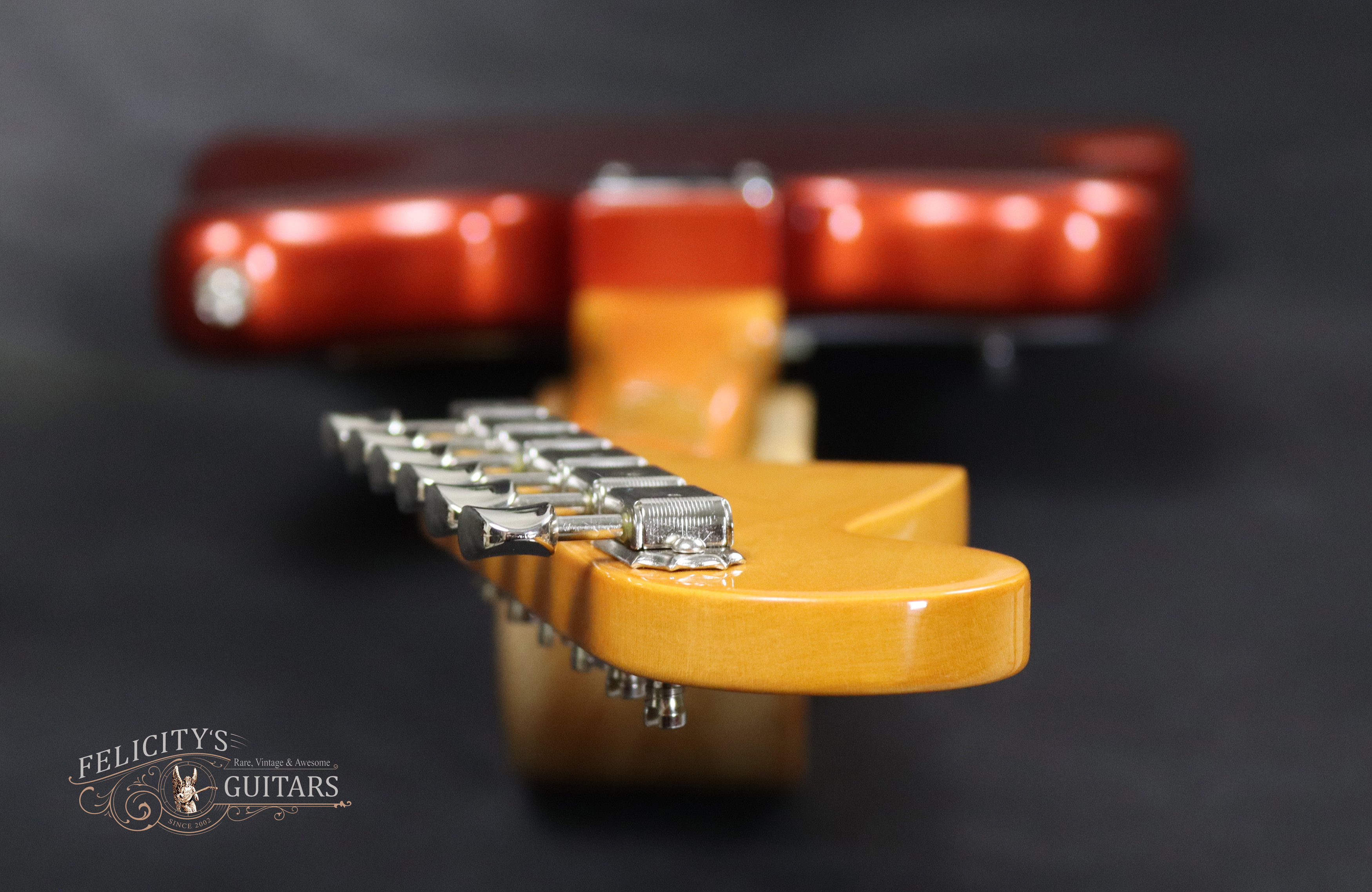

Peghead Particulars

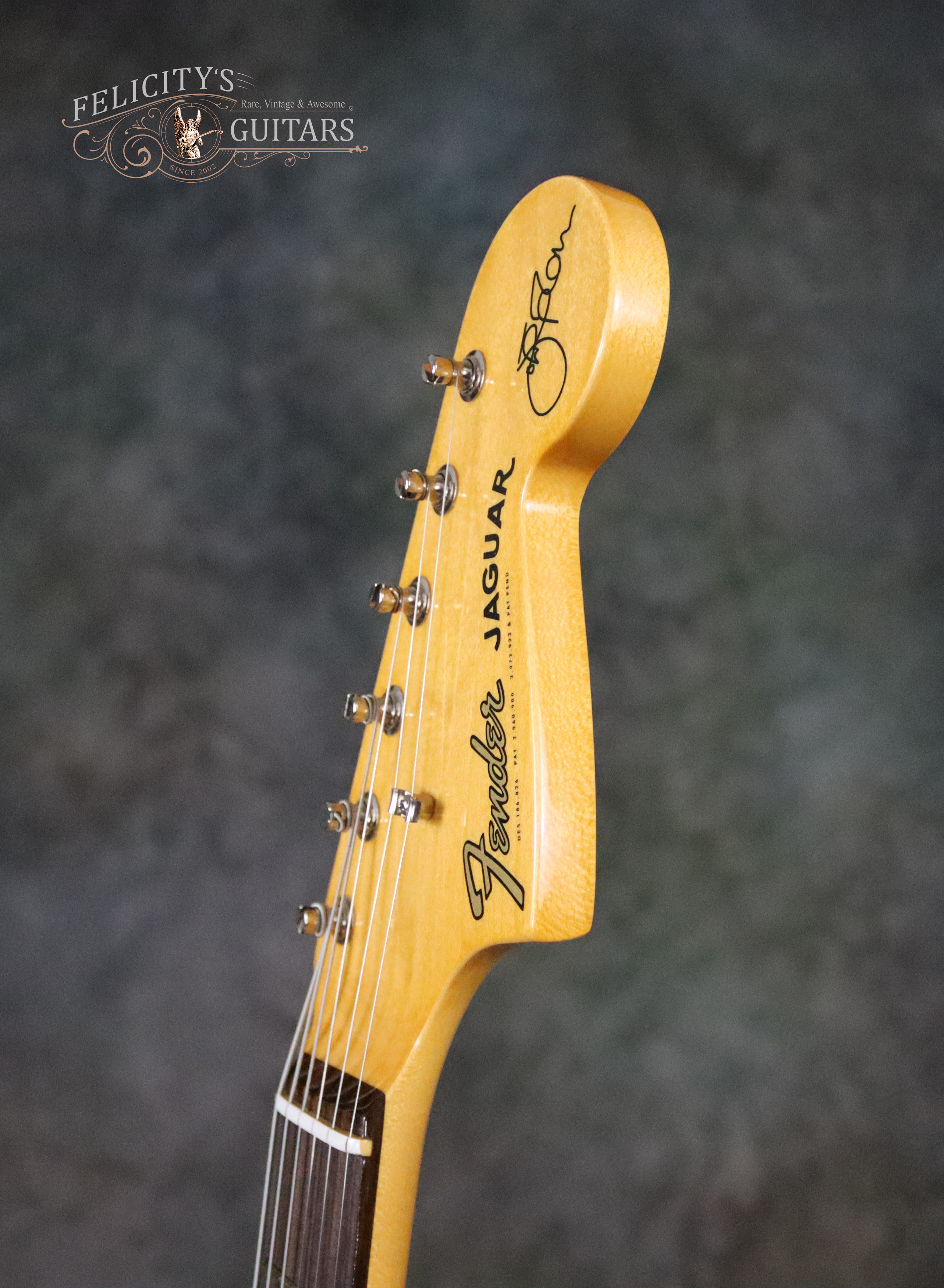

Front: Unbound Natural Maple, Pre-CBS Fender® Jaguar™ Logos and PAT # Decals and Artists' Signature Decal


Back: Blank

Neck Profile

Custom ‘D’ Shape − based on Johnny's favored '65 Jaguar™

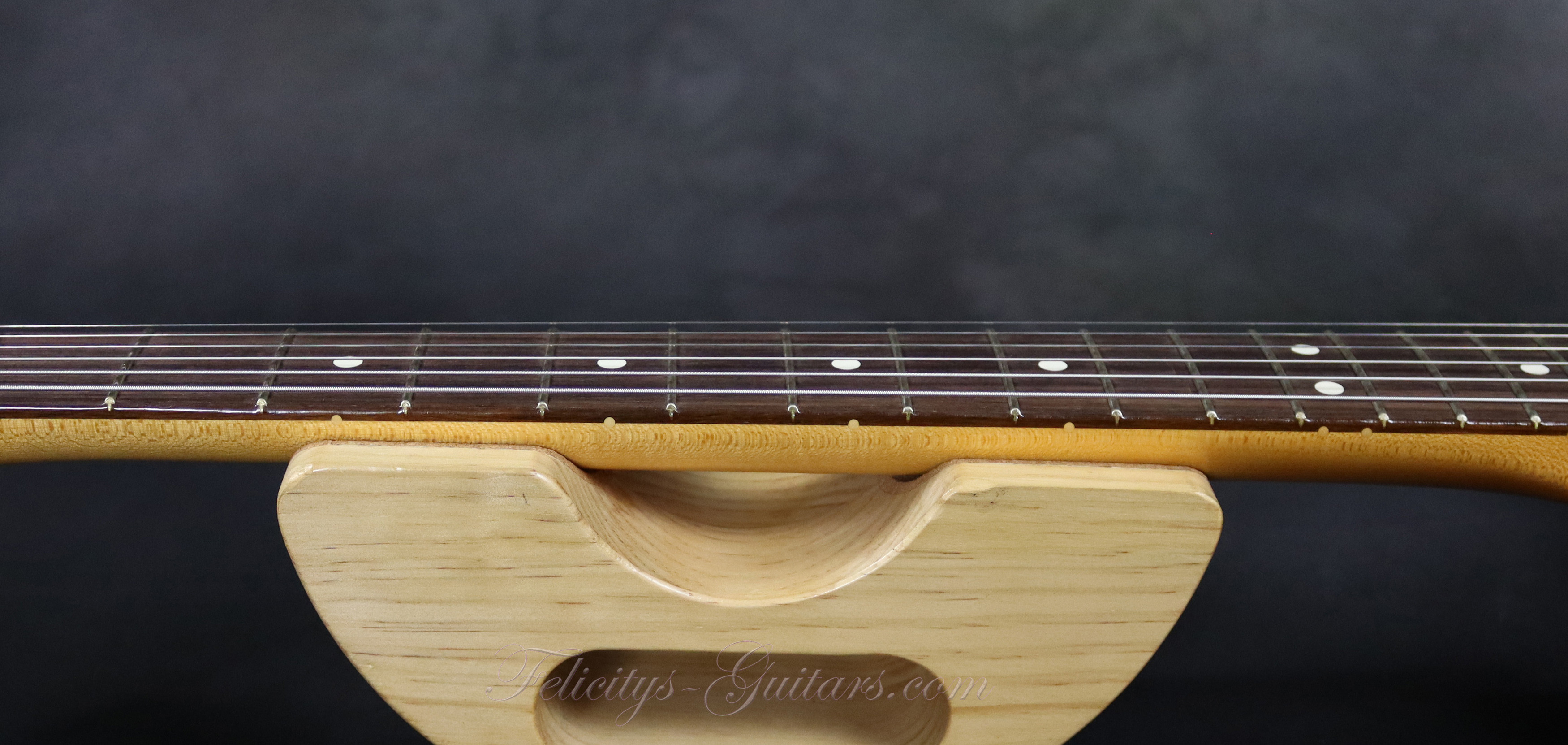

Fingerboard Material

Rosewood

Fingerboard Radius

7.25”

Scale Length

24" Scale

No. Frets / Type

22 Vintage (tall & narrow)

Nut Size / Material

1.653” / Synthetic Bone

Neck Width

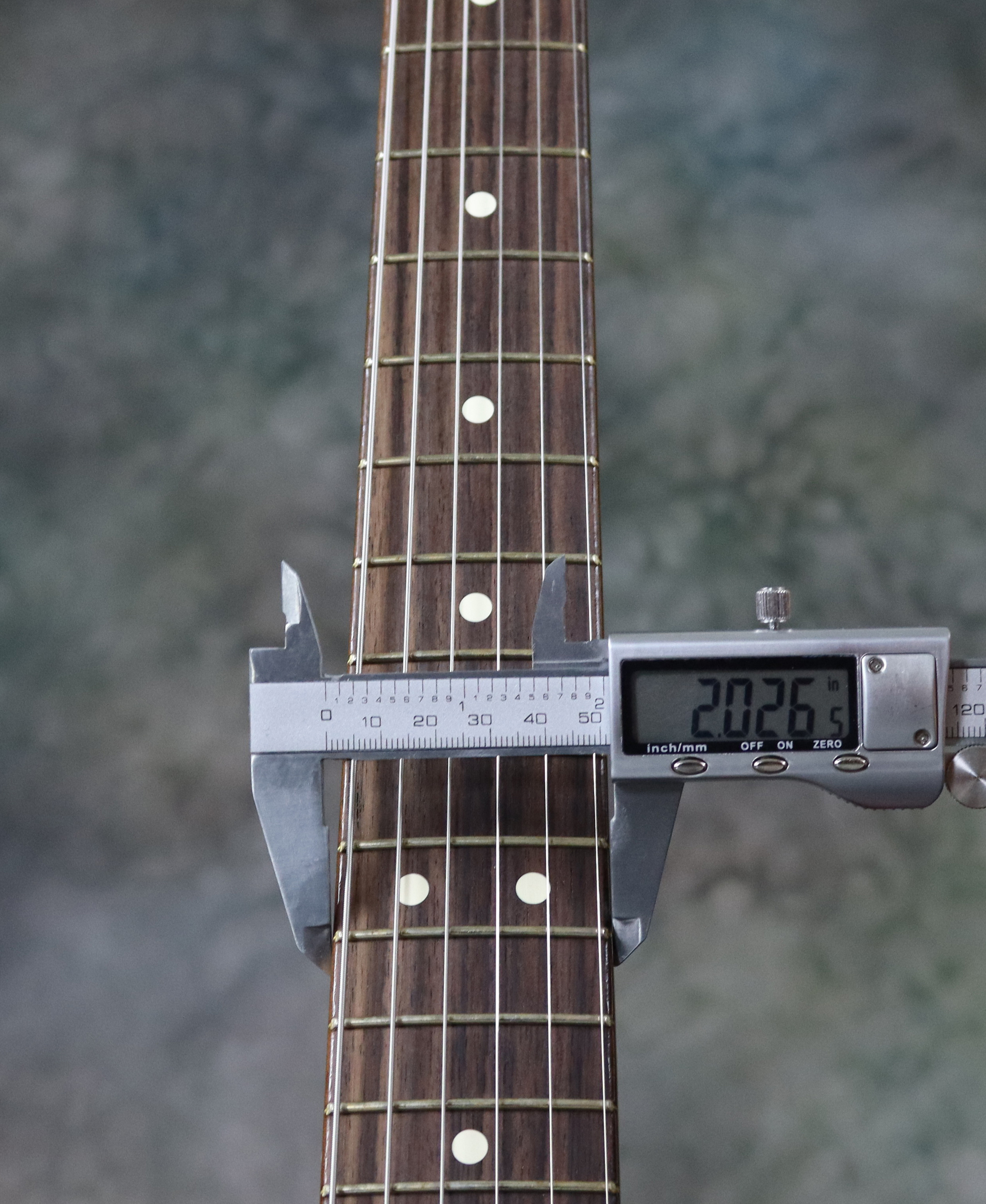

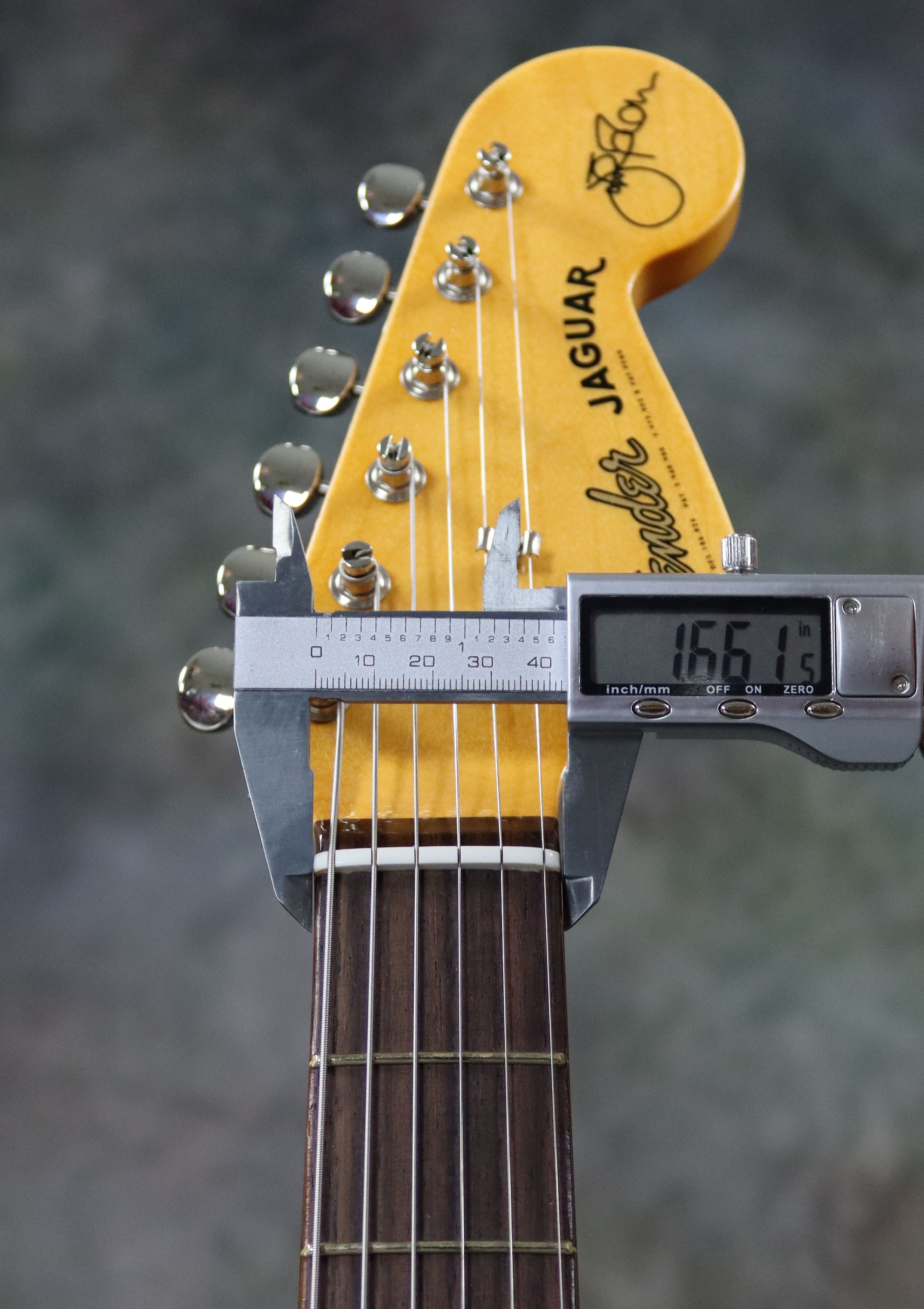

1.661” at 1st fret / 2.026” at 12th fret

Neck Depth

0.851" at 1st fret / 0.983" at 12th fret

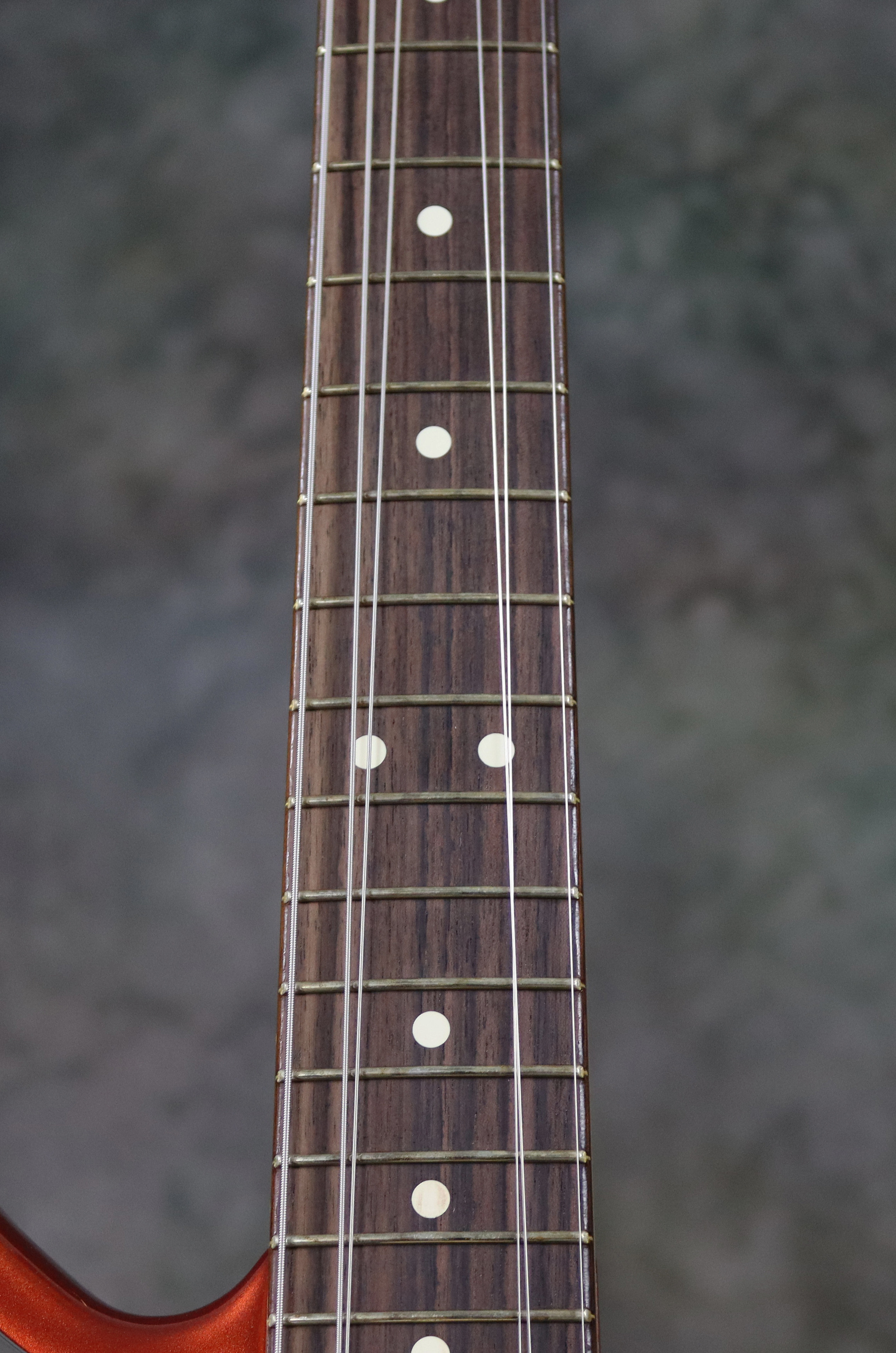

Fingerboard Inlays

Large White Pearloid Dots

Neck Binding

No

Side Dots

White Acrylic

Neck Joint

Bolt-on

hardware

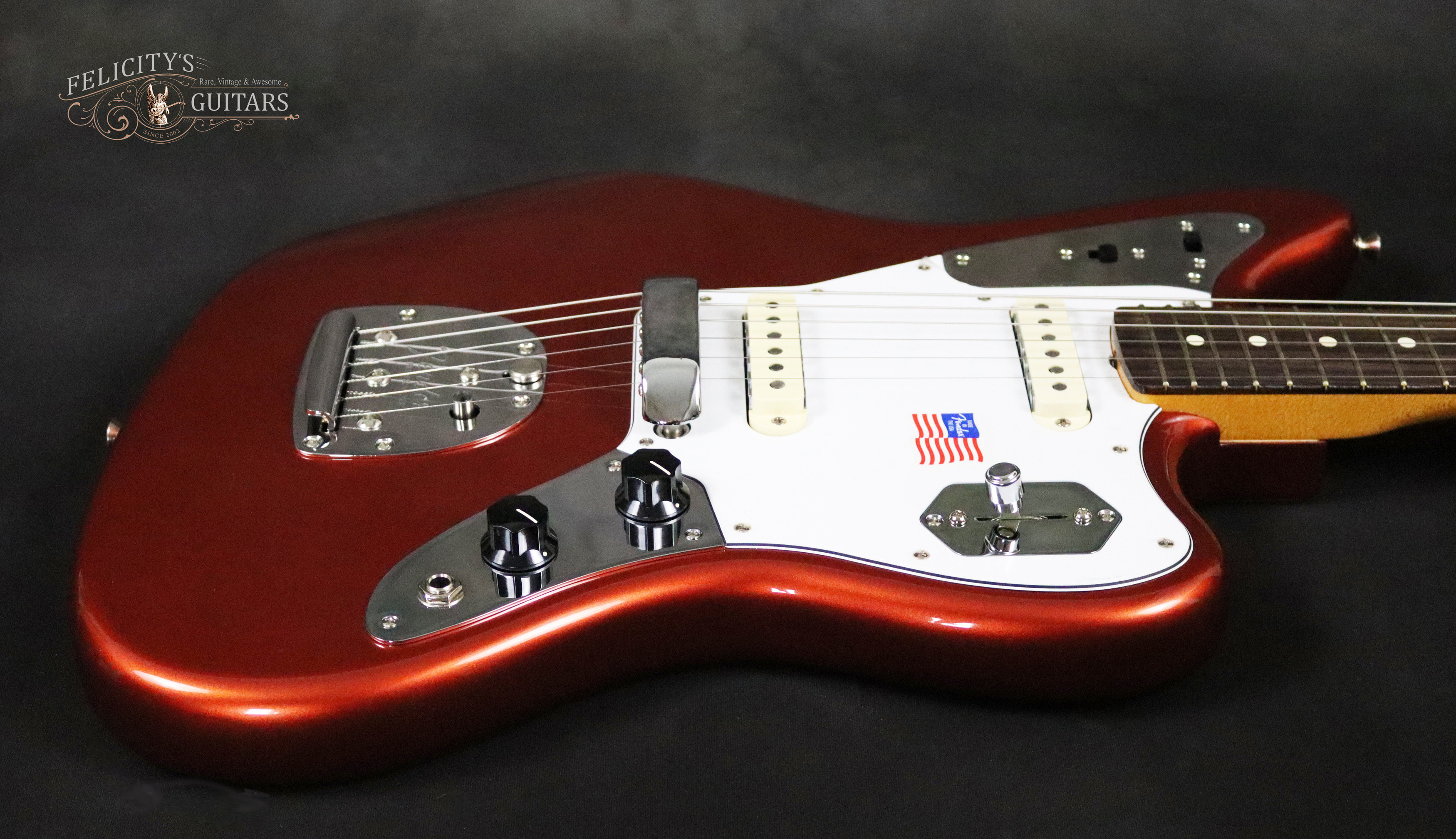

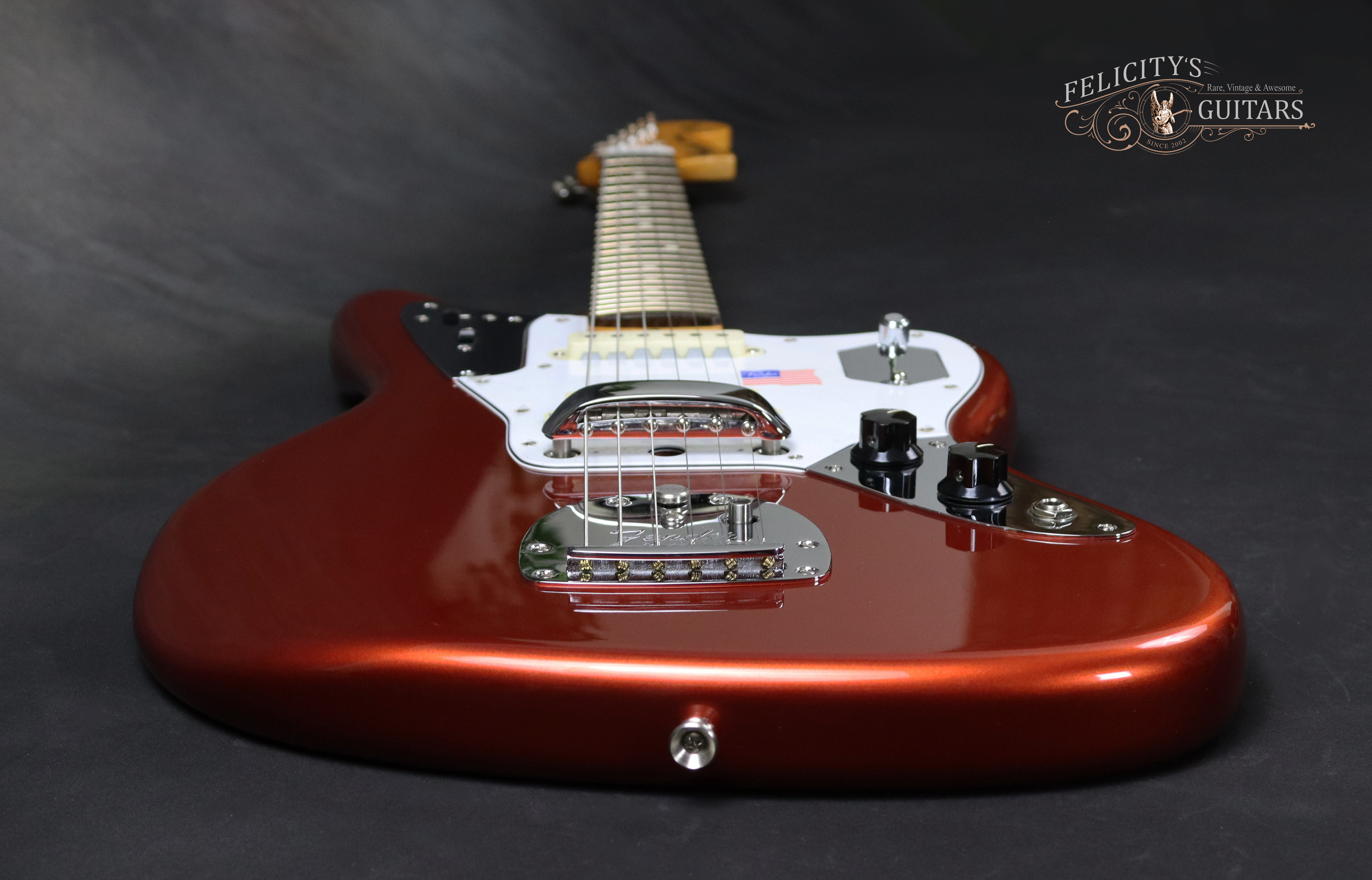

Bridge / Saddles

Chrome Plated, Jaguar® Bridge with Mustang® Saddles, Nylon Bridge Post Inserts for improved stability and


removable Chrome Bridge Cover

Tailpiece / Tremolo

Vintage Style "Floating" Tremolo Tailpiece, with Nylon Insert in Trem Arm Sleeve

String Tree

Chrome, T-Style

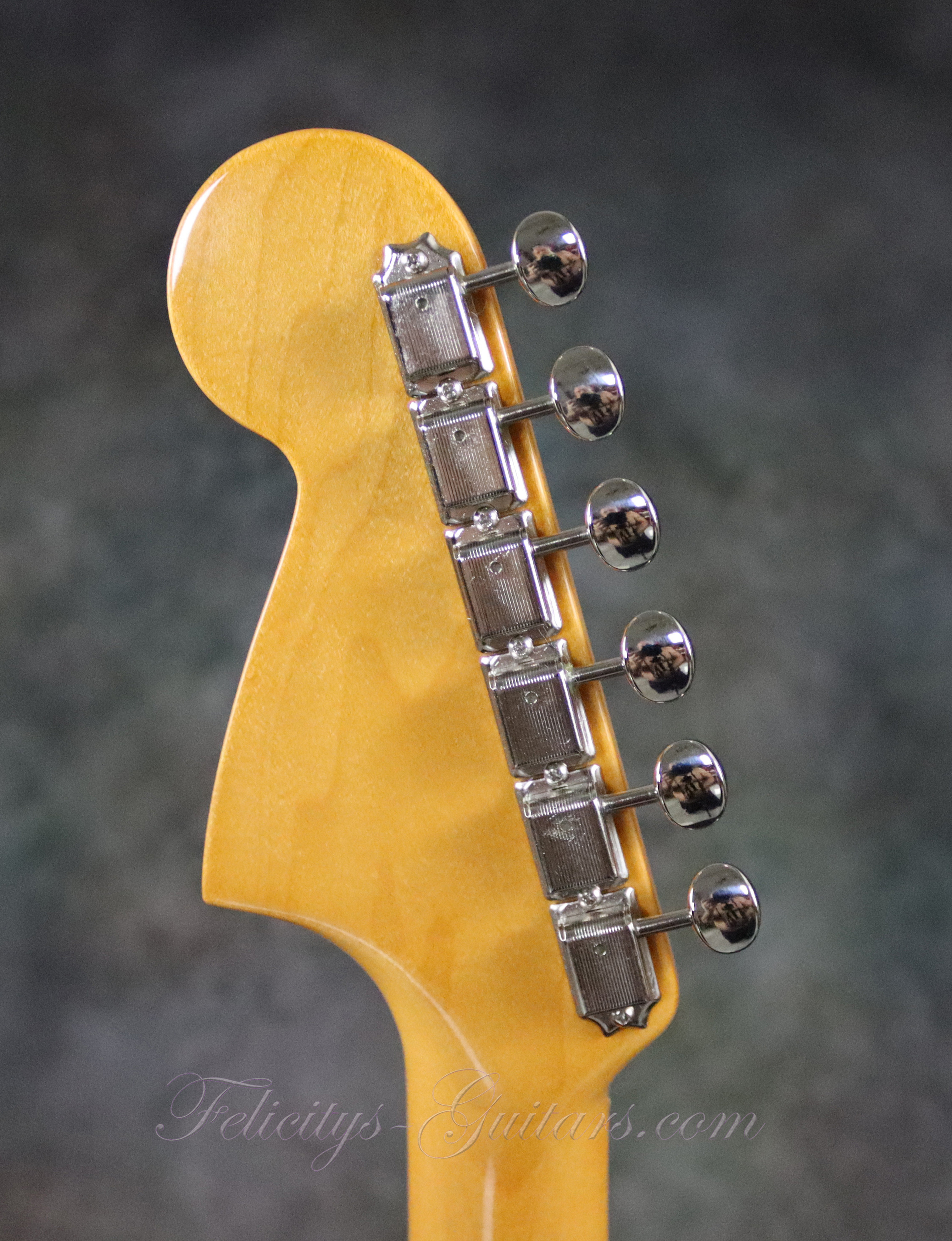

Tuning Machines

Chrome Plated, 6-in-Line American Vintage with Chrome Buttons / 14:01 Ratio

Pickup Cover / Ring

White (uncovered) Plastic, Exposed Pole / no Rings

Strap Buttons

Polished Aluminum End Pins

Pickguard

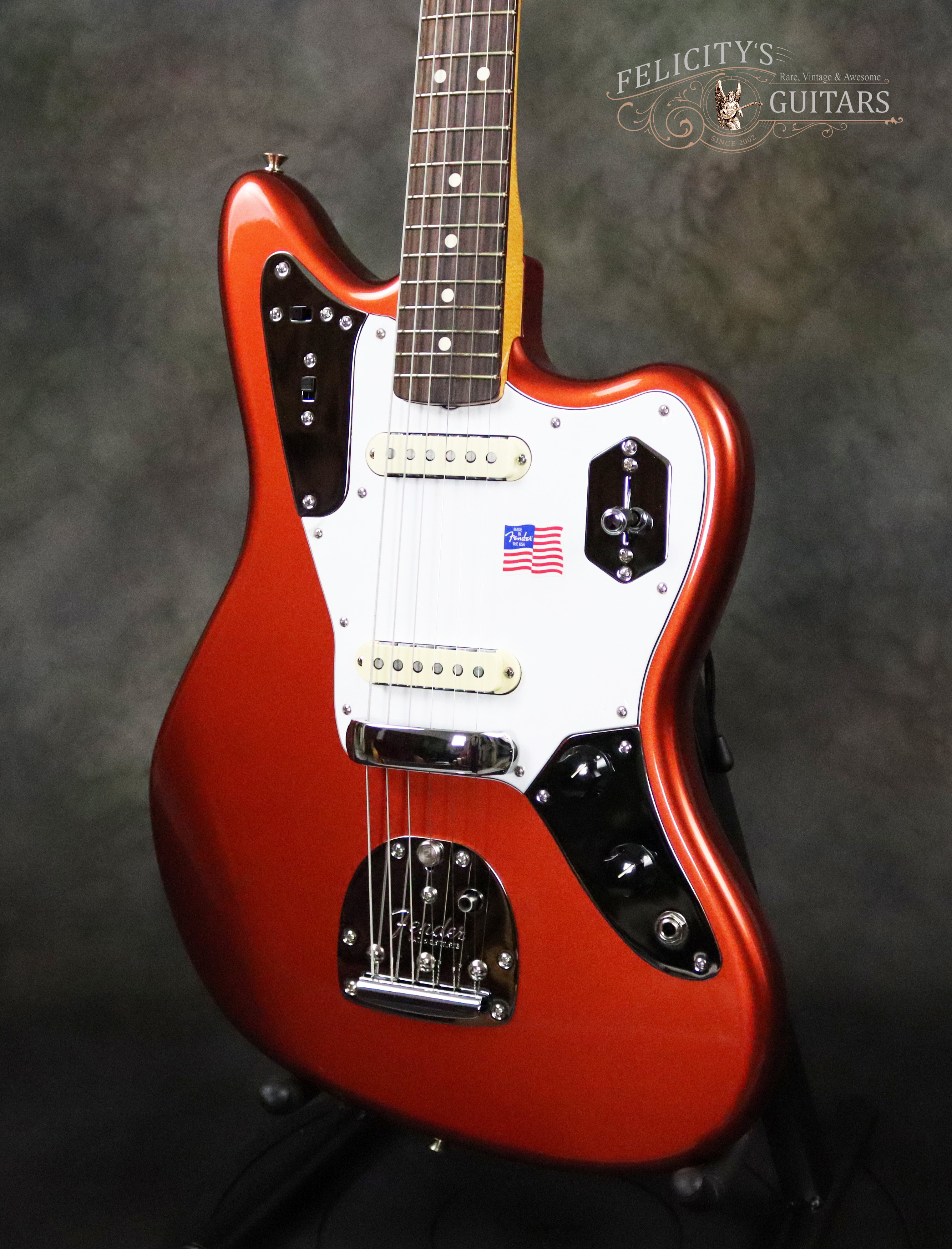

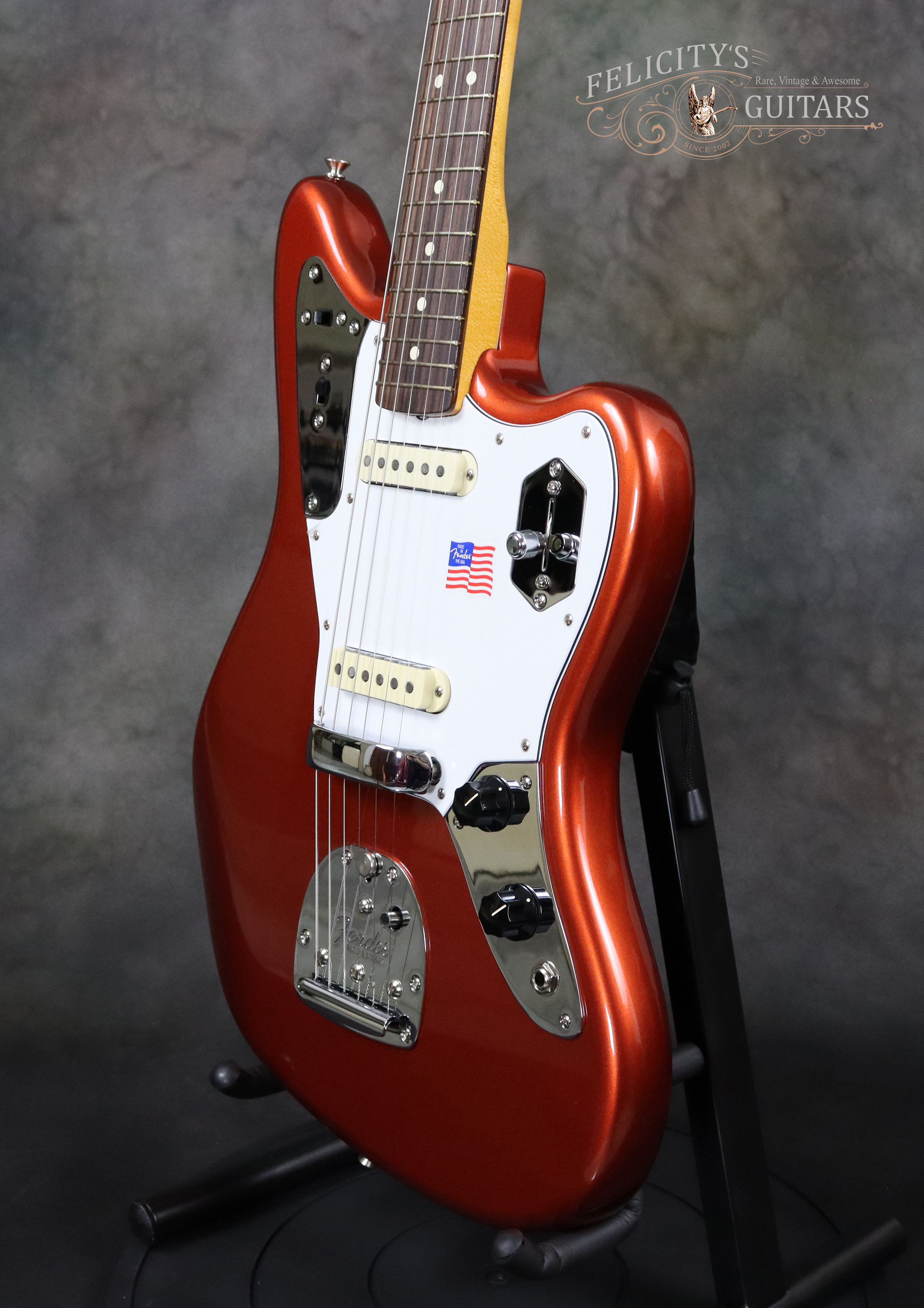

3-Ply W/B/W, with Chrome Partitioned Upper & Lower Horn Control Plates

Control Knobs

Black Ribbed, Speed Knobs and no Dial Pointers

Switches

Chrome Plated Barrel Style Pickup Toggle and 2 Black Vol/Tone Circuit Sliders

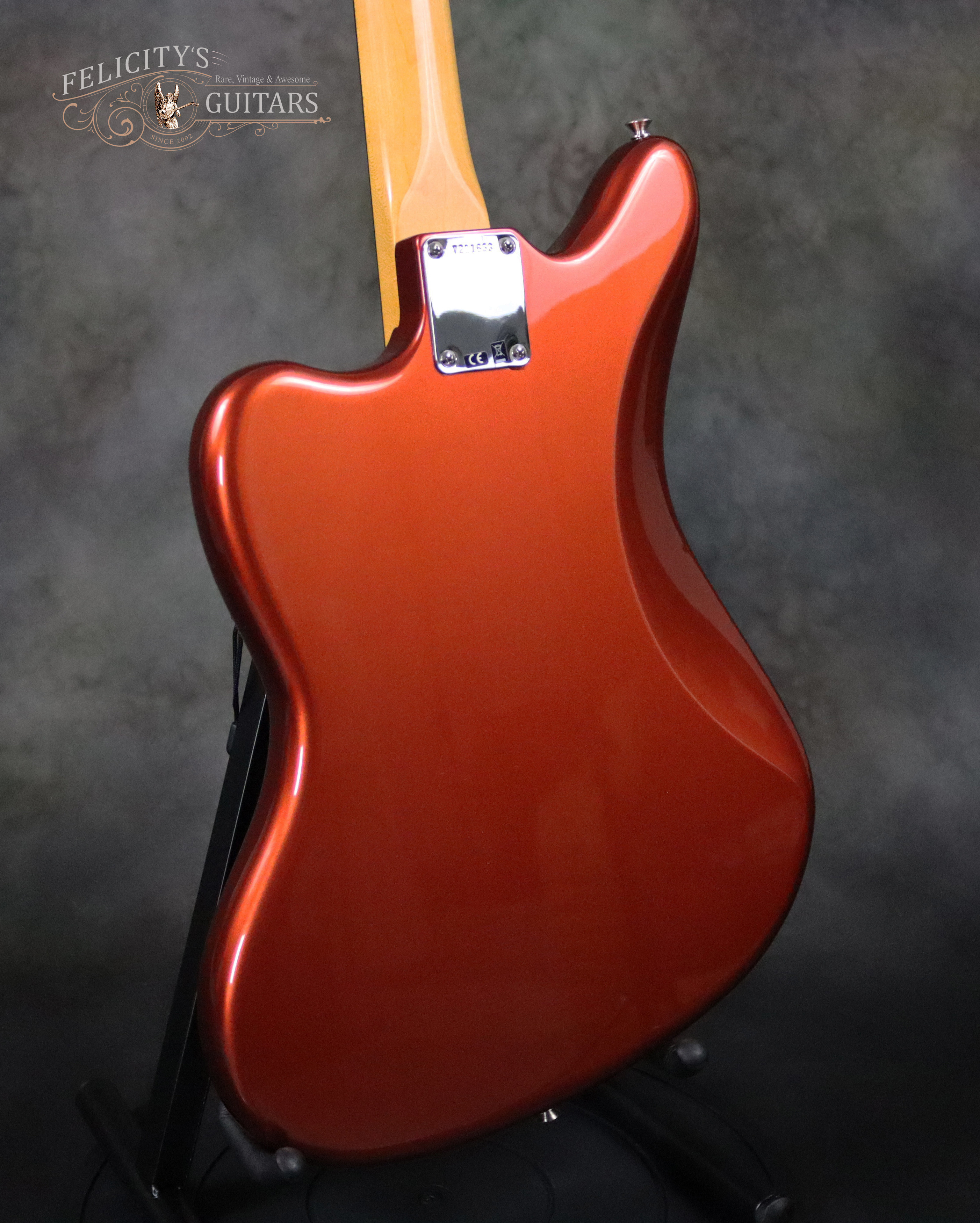

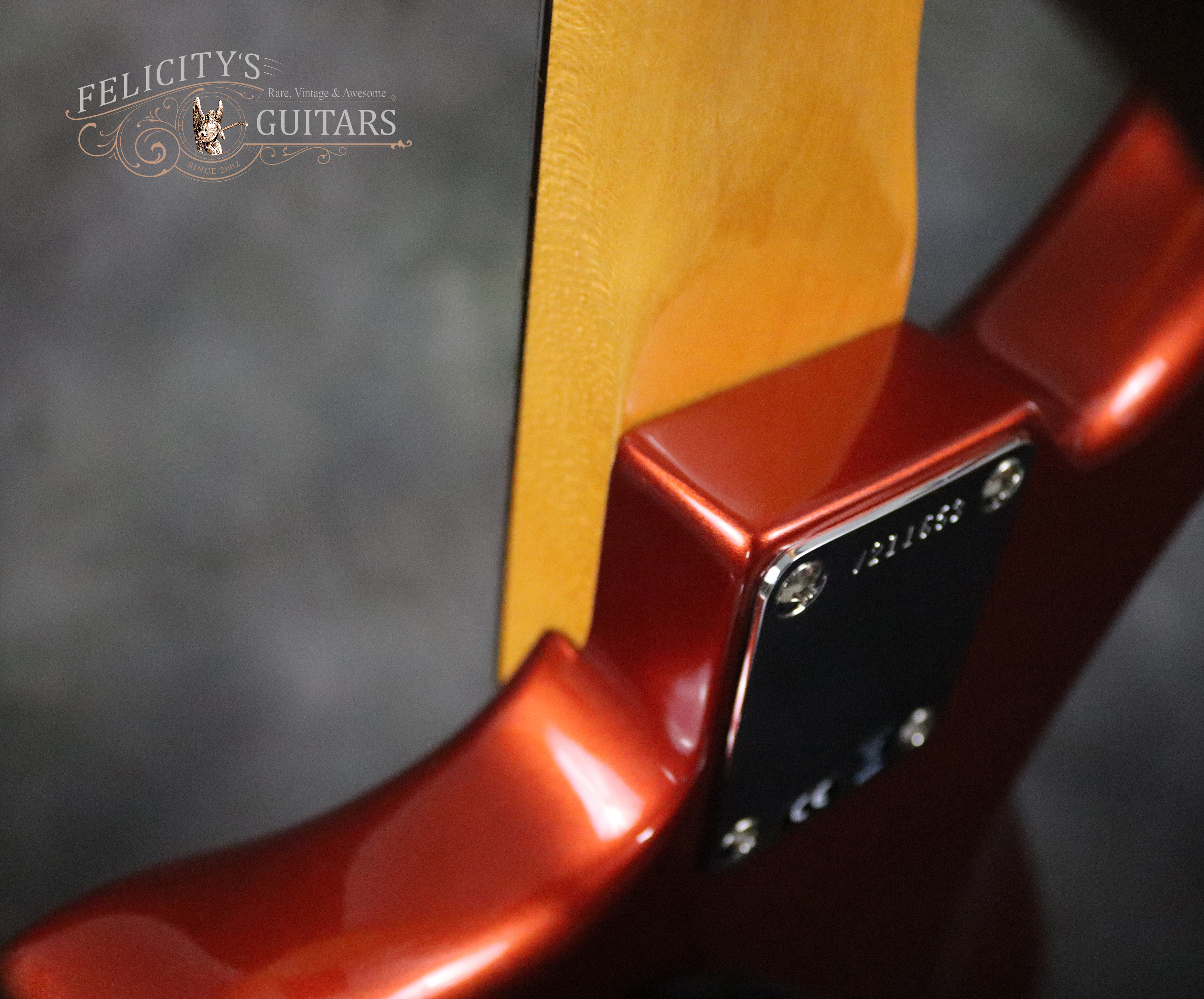

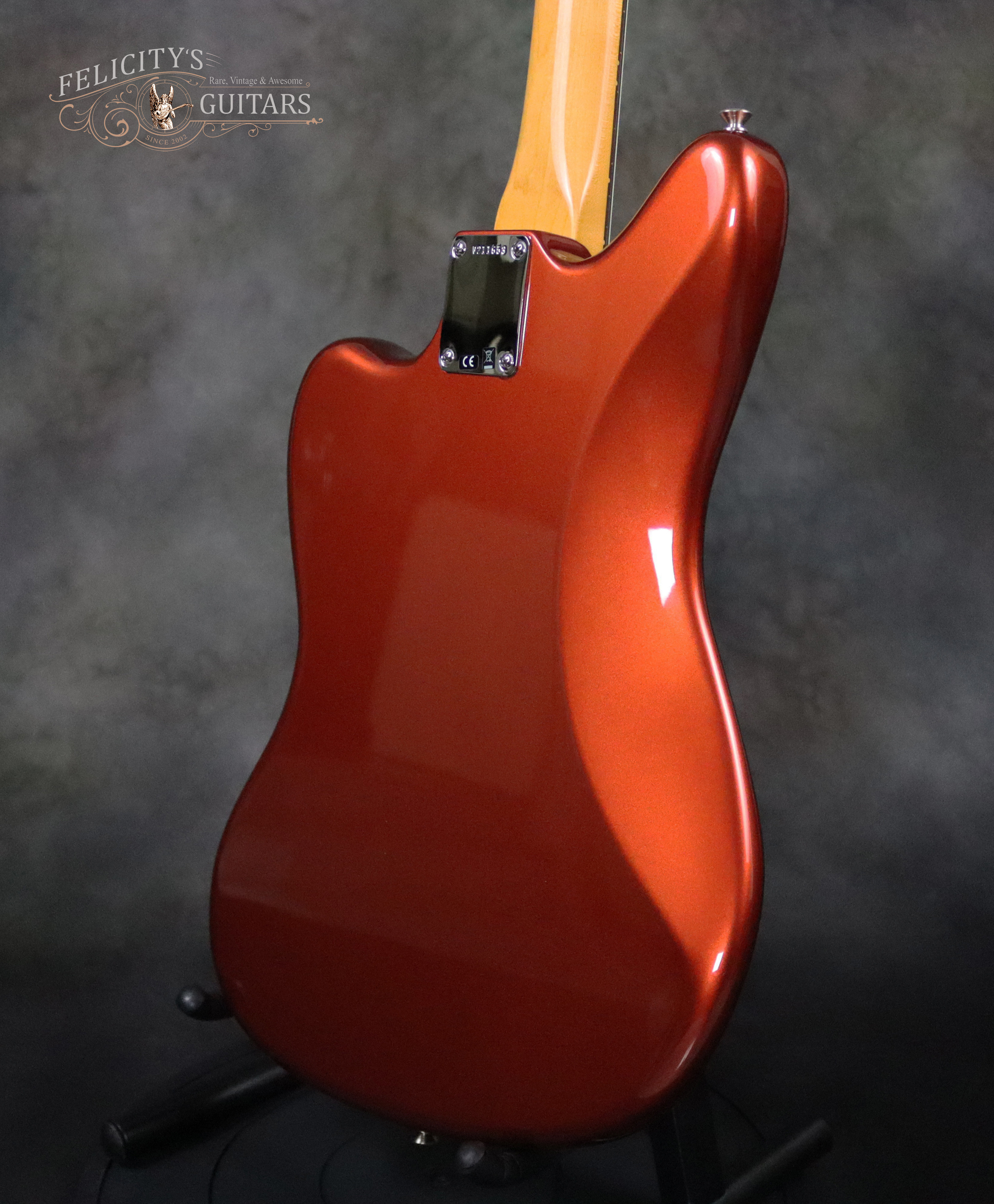

Neck Plate

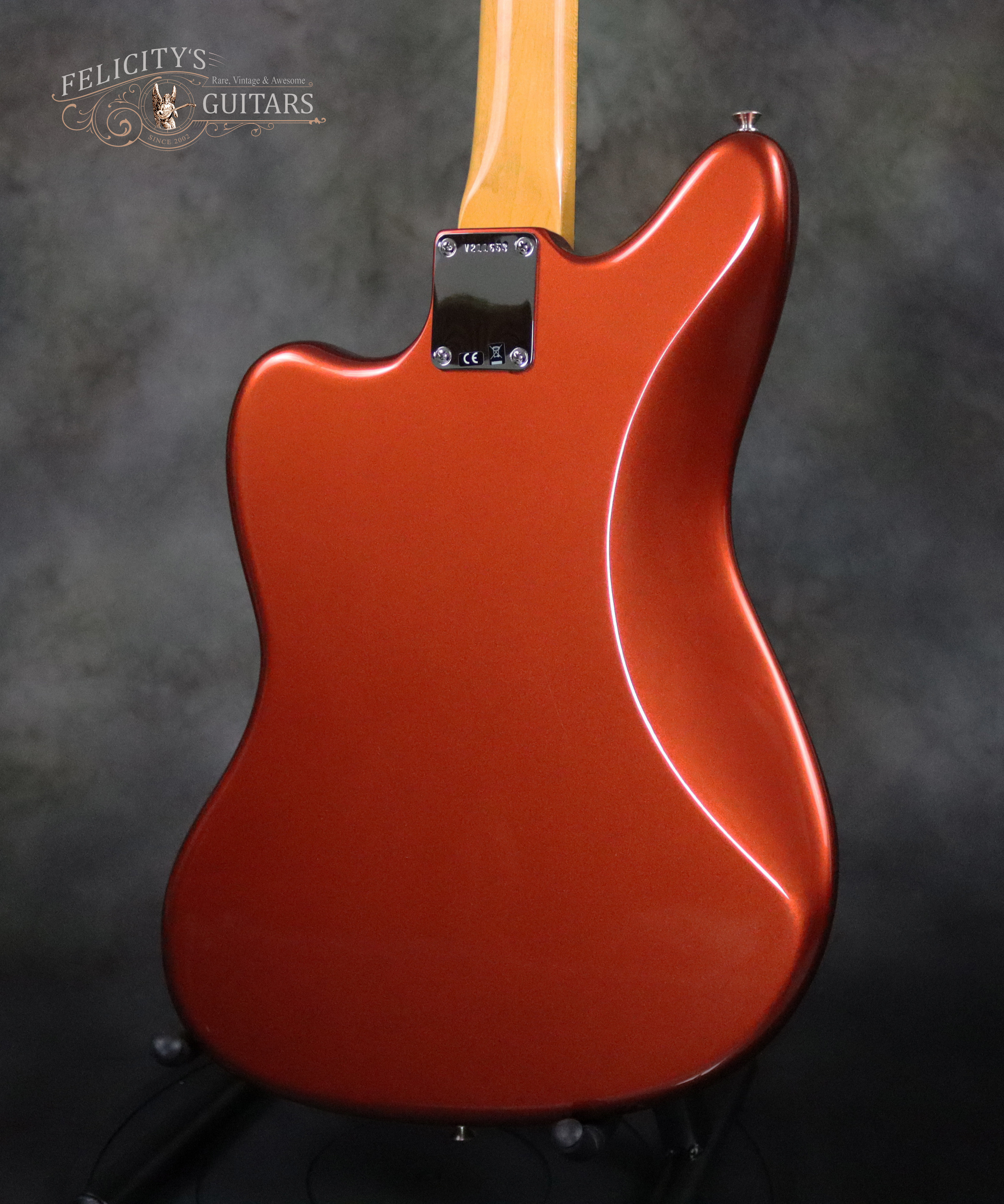

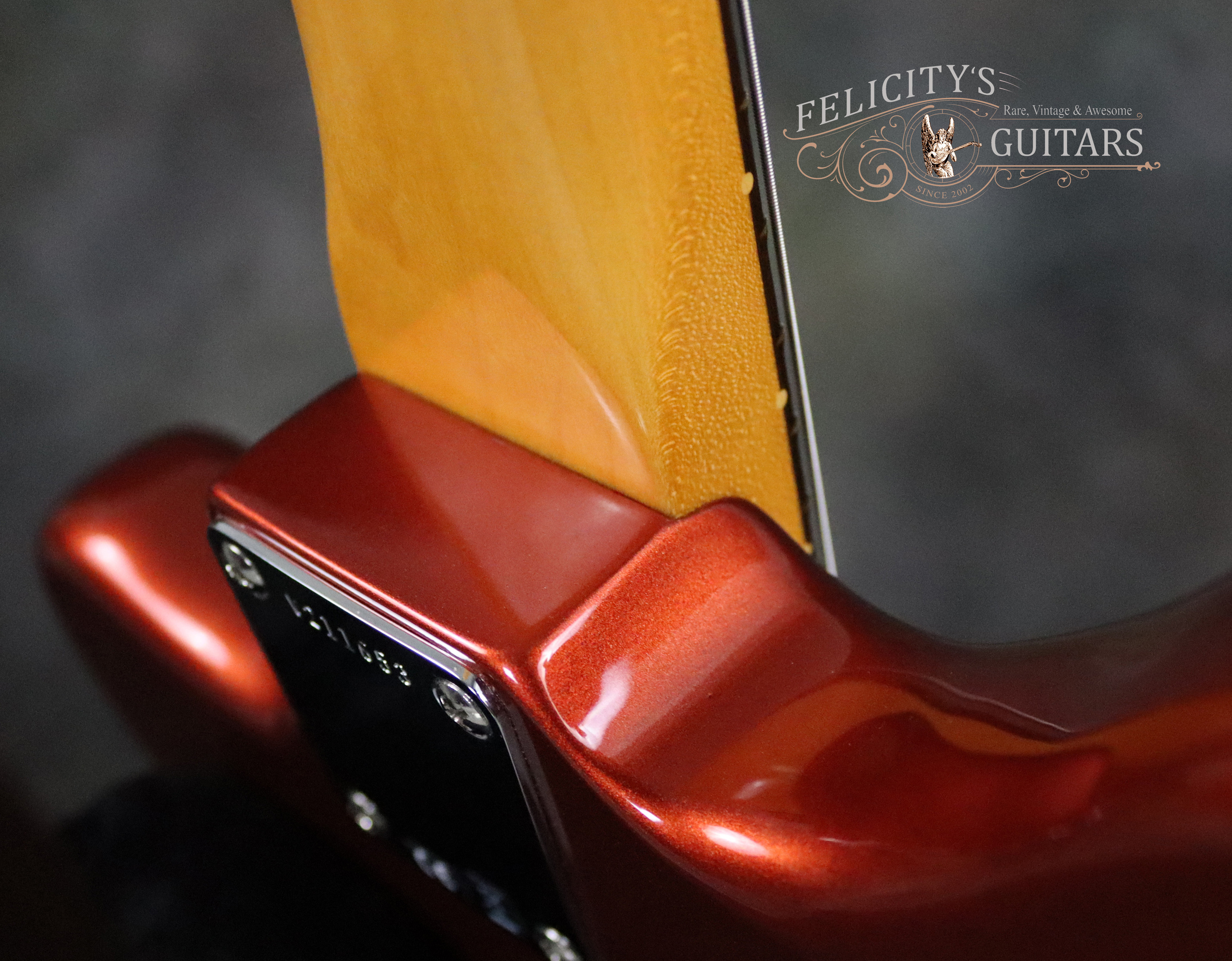

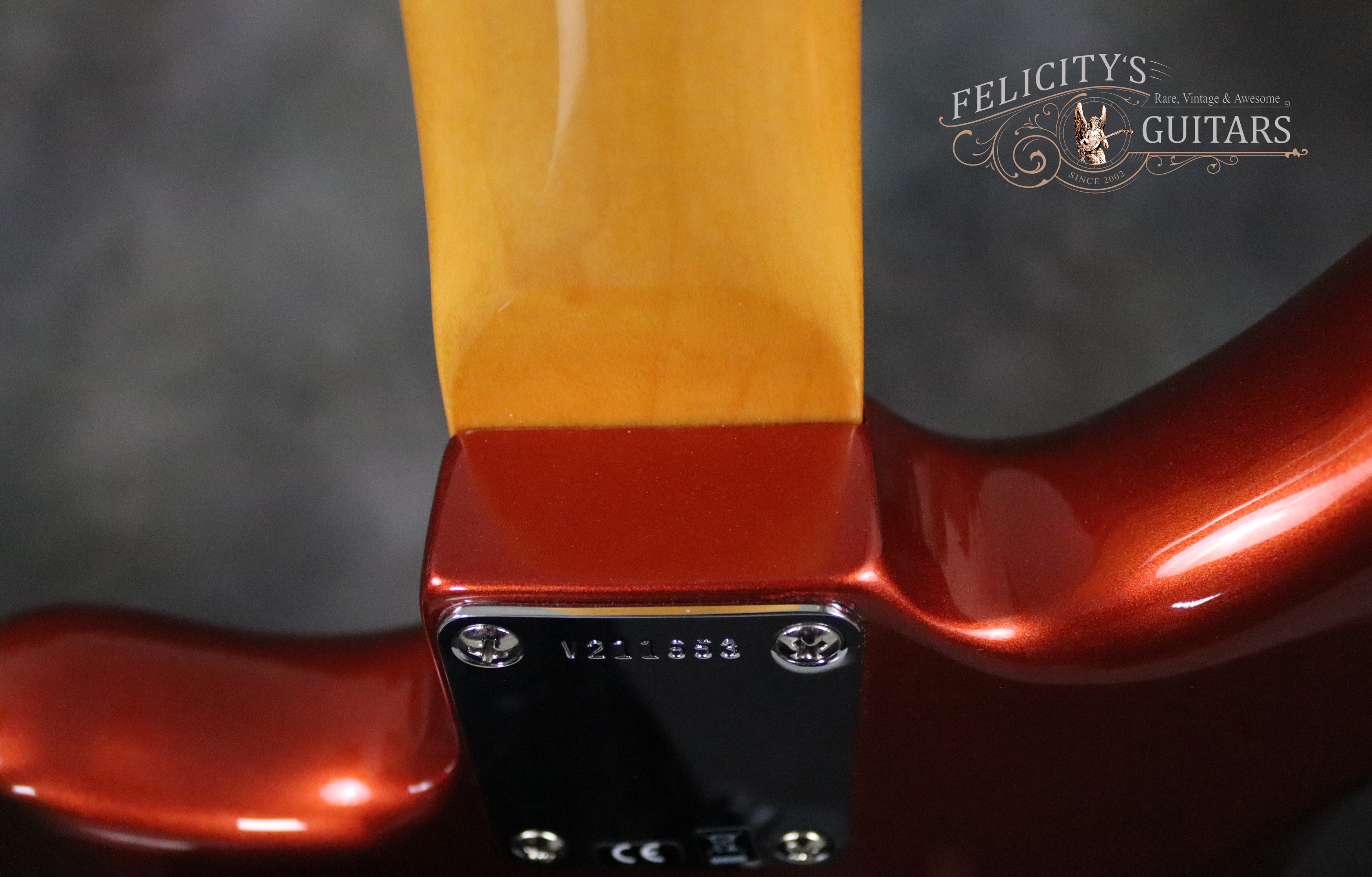

Chrome, 4-bolt with Stamped Serial Number

electronics

Bridge Pickup

Custom (hand) Wound Bare Knuckle® Johnny Marr Bridge Pickup, Alnico 5, DCR 6.5k

Middle Pickup

No

Neck Pickup

Custom (hand) Wound Bare Knuckle® Johnny Marr Neck Pickup, Alnico 5, DCR 5.6k

Active / Passive

Passive

Series / Parallel

Series (via Pickup Selector Blade Circuit)

Controls

Master Volume, Master Tone, 4-Position Blade: Pos-1 Bridge Pickup, Po-2 Bridge and Neck Pickups (In Parallel),


Pos-3 Neck Pickup, Pos-4 Neck and Bridge Pickups (In Series)

Auxiliary Switching

2 Slide-Switches: Universal Bright Switch; Bright Switch for Blade Position 4

Vol Potentiometer

250k

Tone Potentiometers

250k

Capacitor / Resistor

.22uF – 20% – 100v Ceramic

Harness

JM Jag™ Wiring Config

Active Electronics

No

Piezo

No

Kill Switch

No

Output Jack

Switchcraft™ 1/4" 2-Conductor Mono

miscellaneous

Case / Gigbag

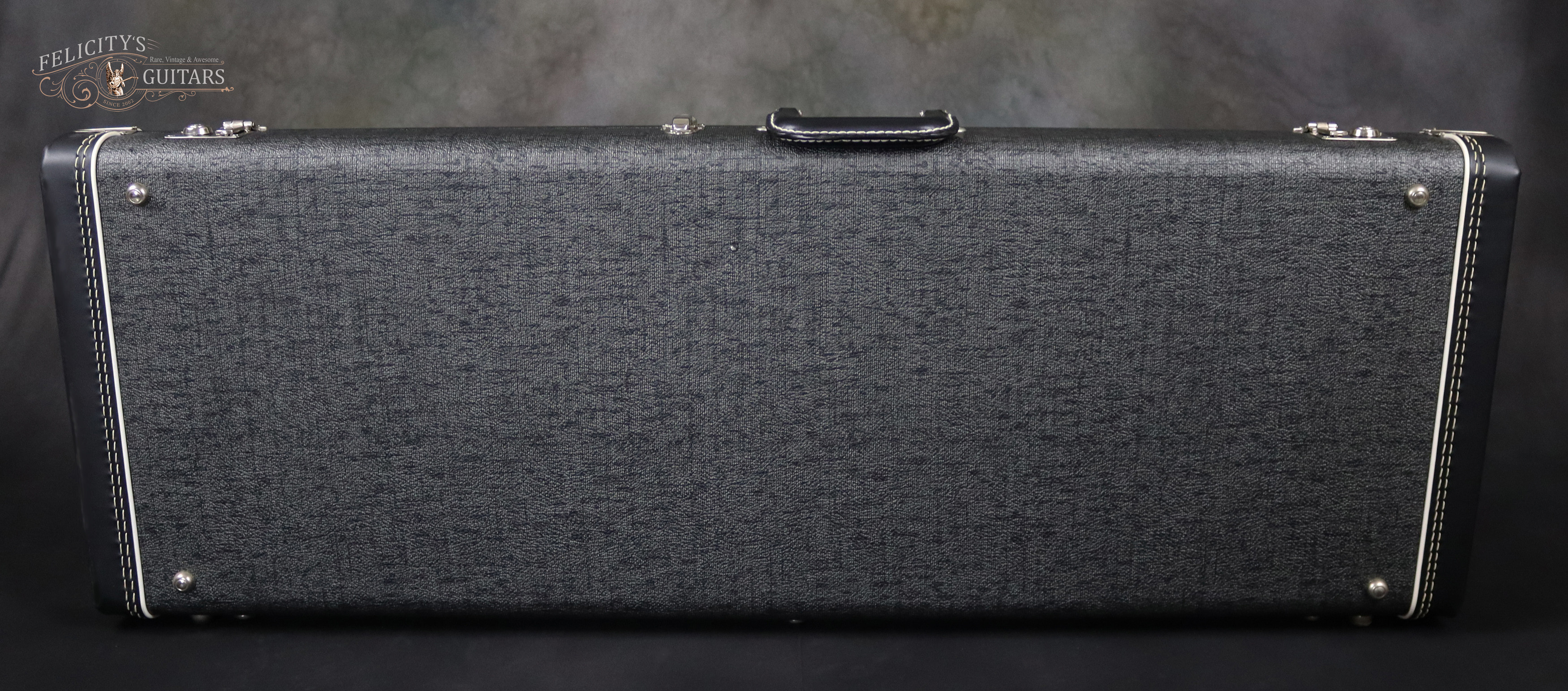

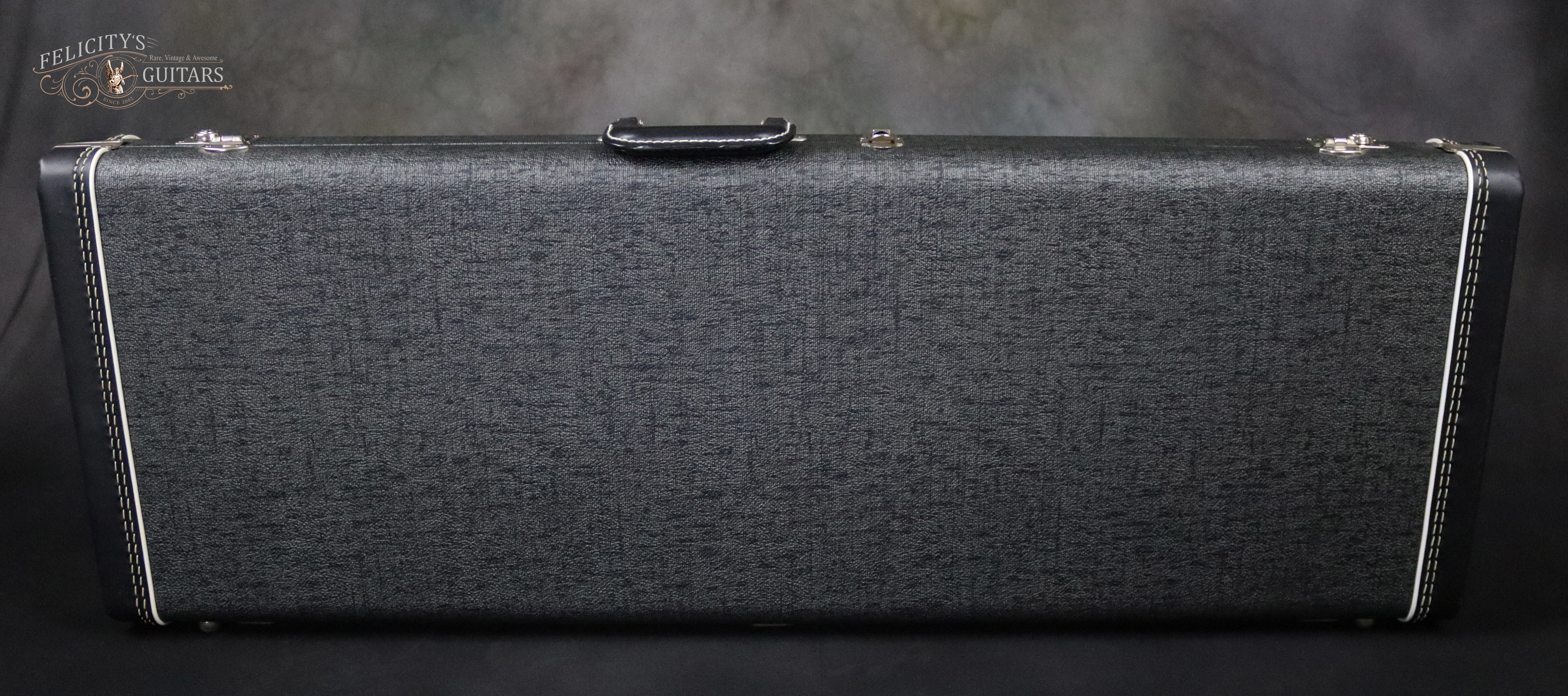

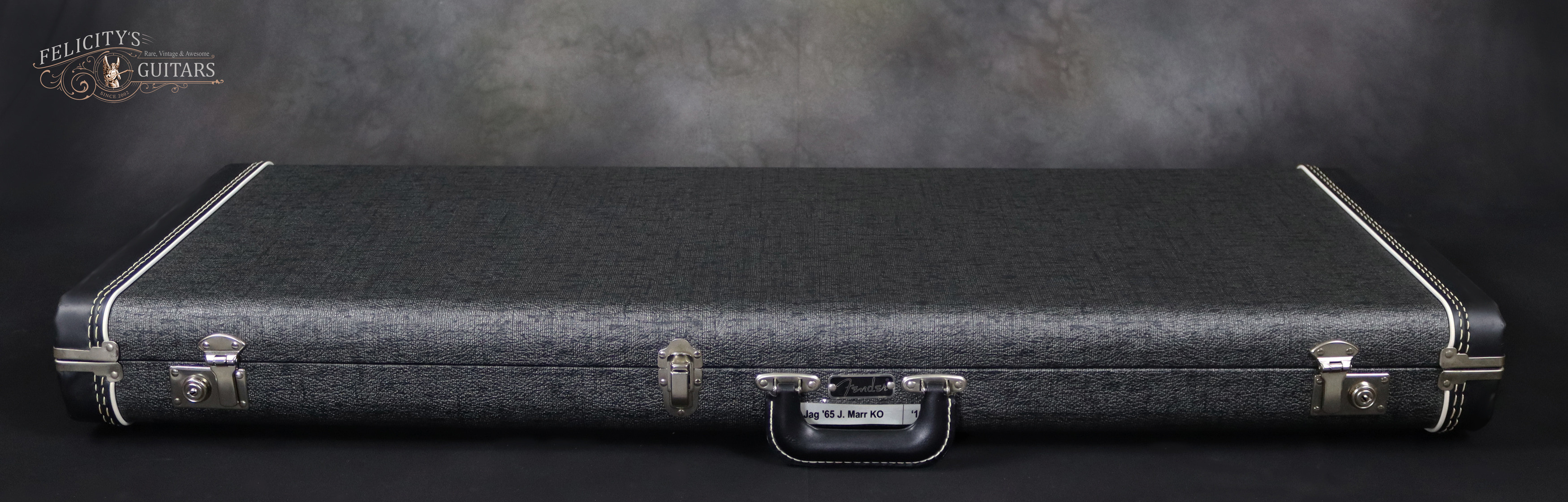

Fender® U.S.A. / G&G® Tolex Hardshell Case with Blue Crushed Velvet Interior & lock

Strap Locks

No

Strings

Fender® U.S.A. ST250R, Nickel Plated Steel (.010 − .046) Gauge

Tools / Accessories

1/8” Truss Rod Wrench / Black Vintage Style Leather Strap and Cable, Bridge Cover, Tremolo Arm (unopened plastic)

Manual / Literature

Fender® U.S.A. Owner’s/Instruction Manual, Ltd Lifetime Warranty Card and Hang Tags

C.O.A.

No

Other

Case Keys

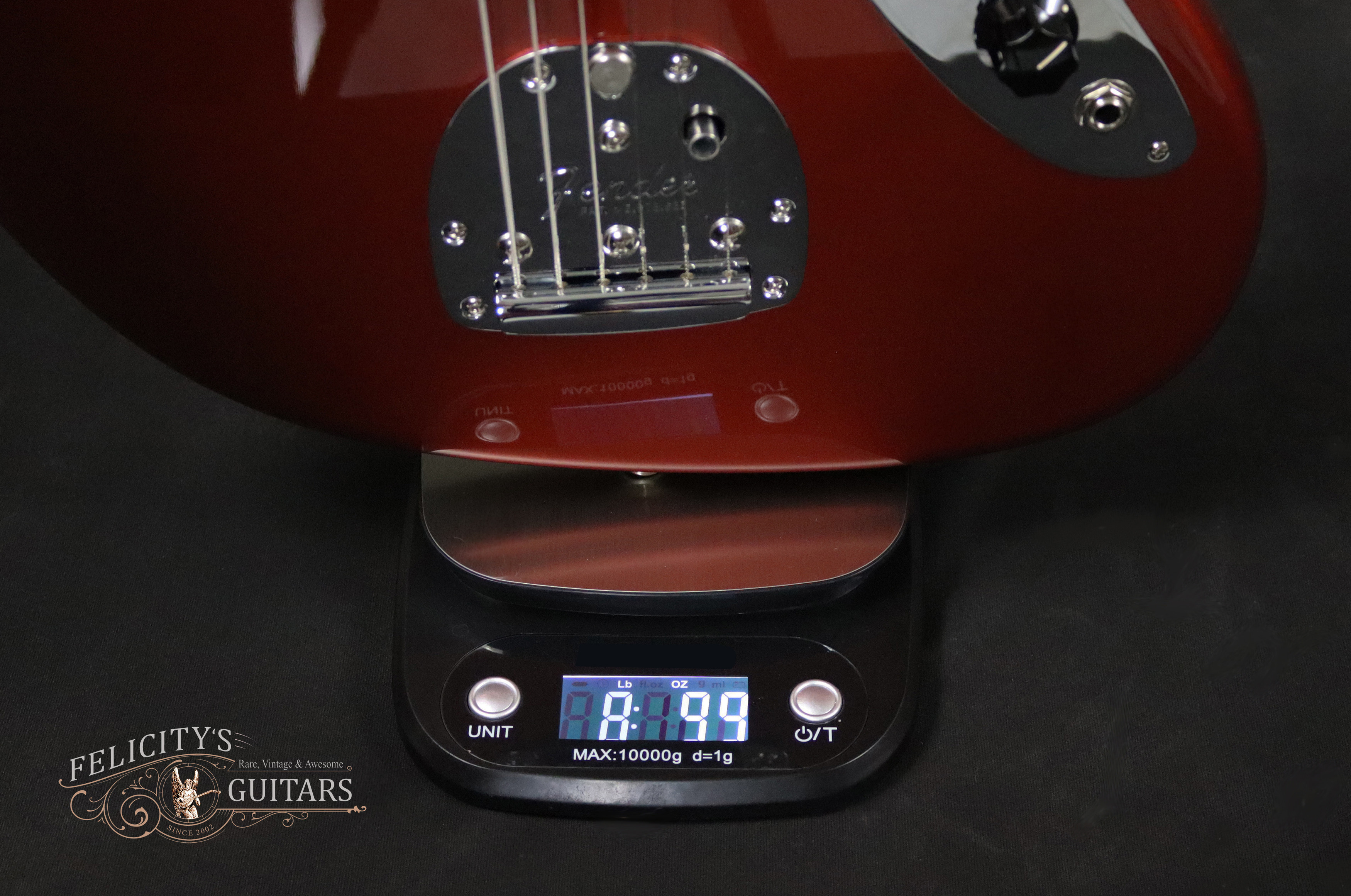

Weight

Is the actual weighed-value in US Standard Units


Disclosure



Some technical specs may have been extracted from Fender® U.S.A. and/or internet archives. The words Fender® / Jaguar® and the associated designs are registered trademarks of the Fender Musical Instruments Corporation and the other named entities, if any, respectively
