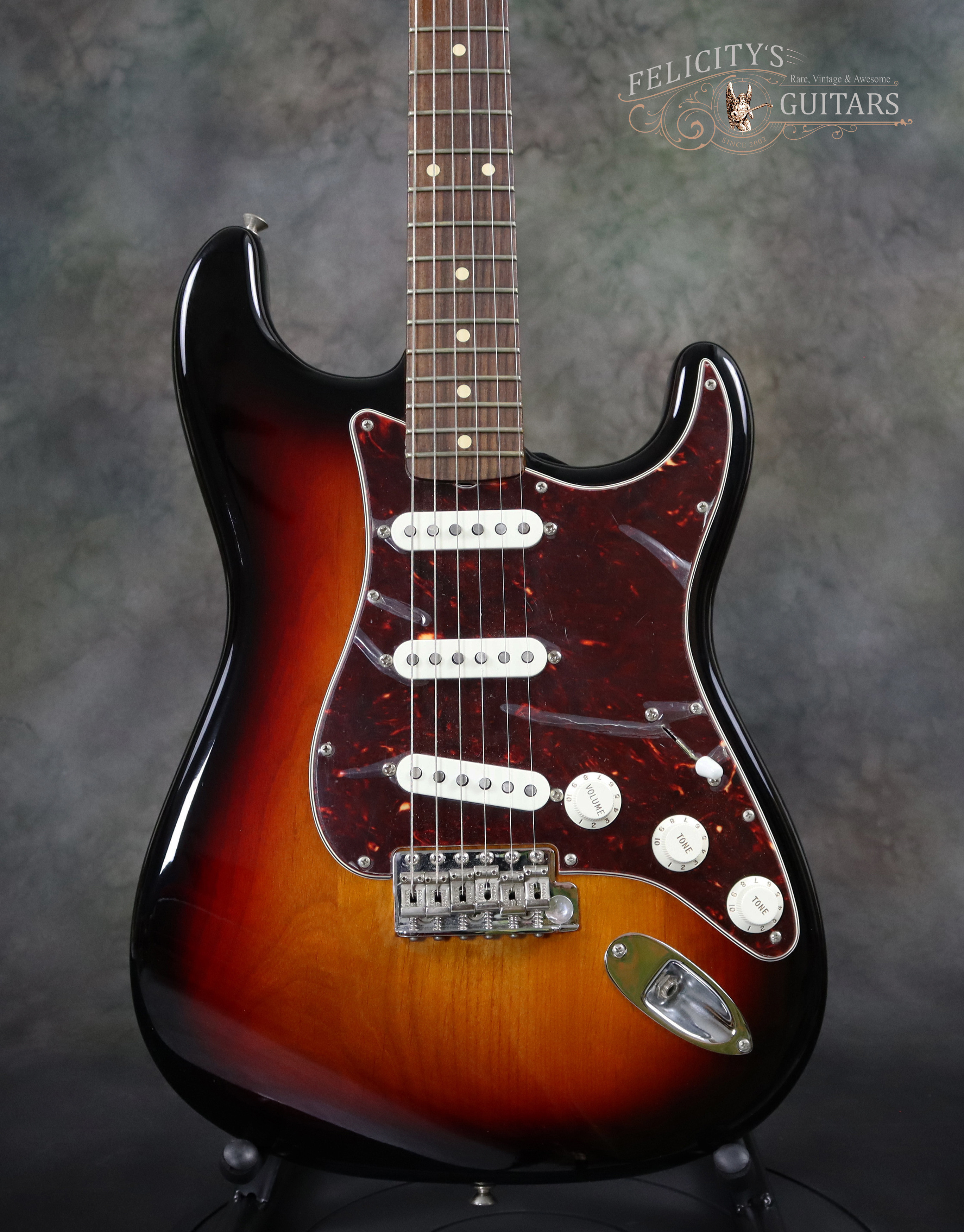

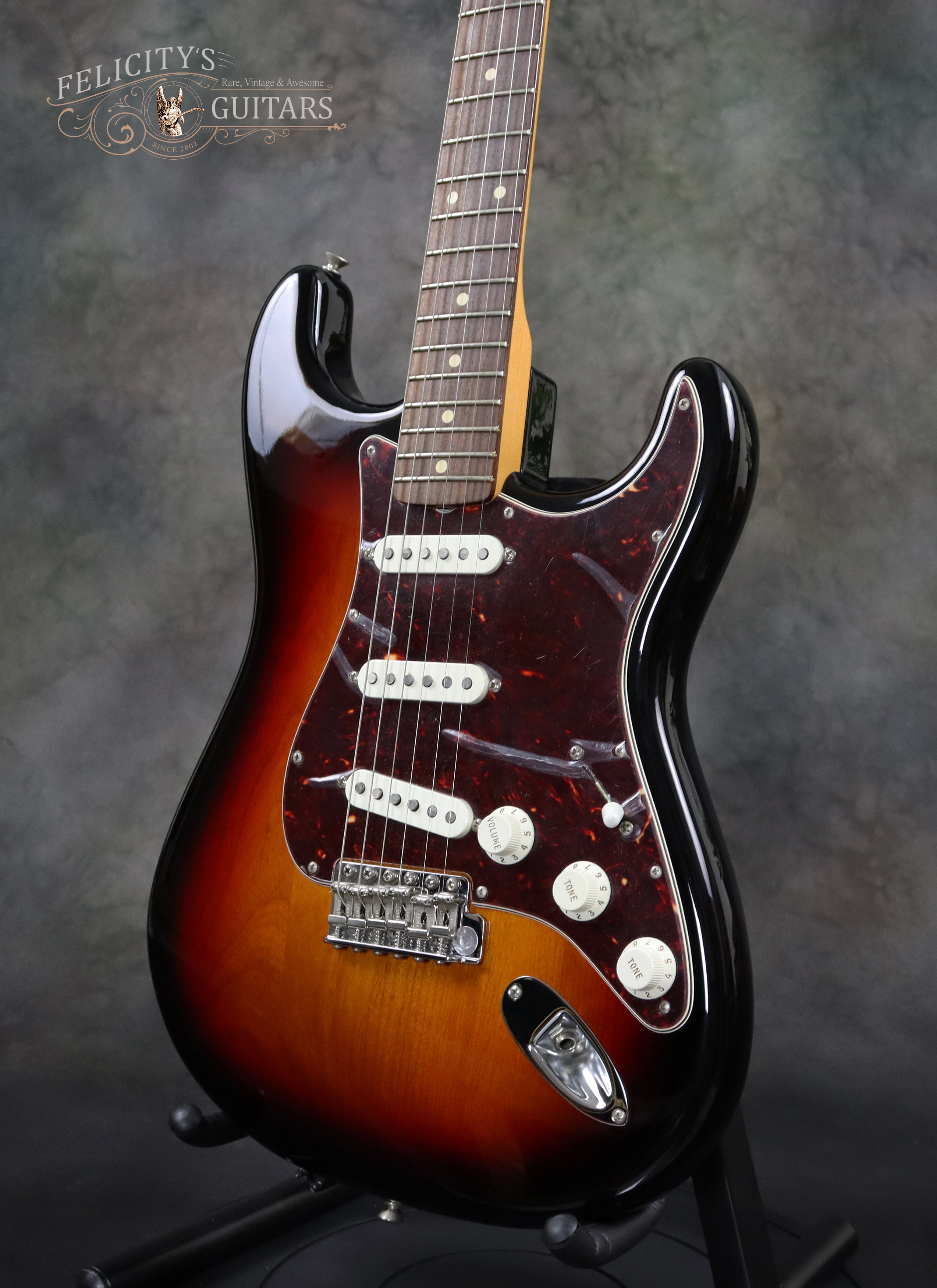

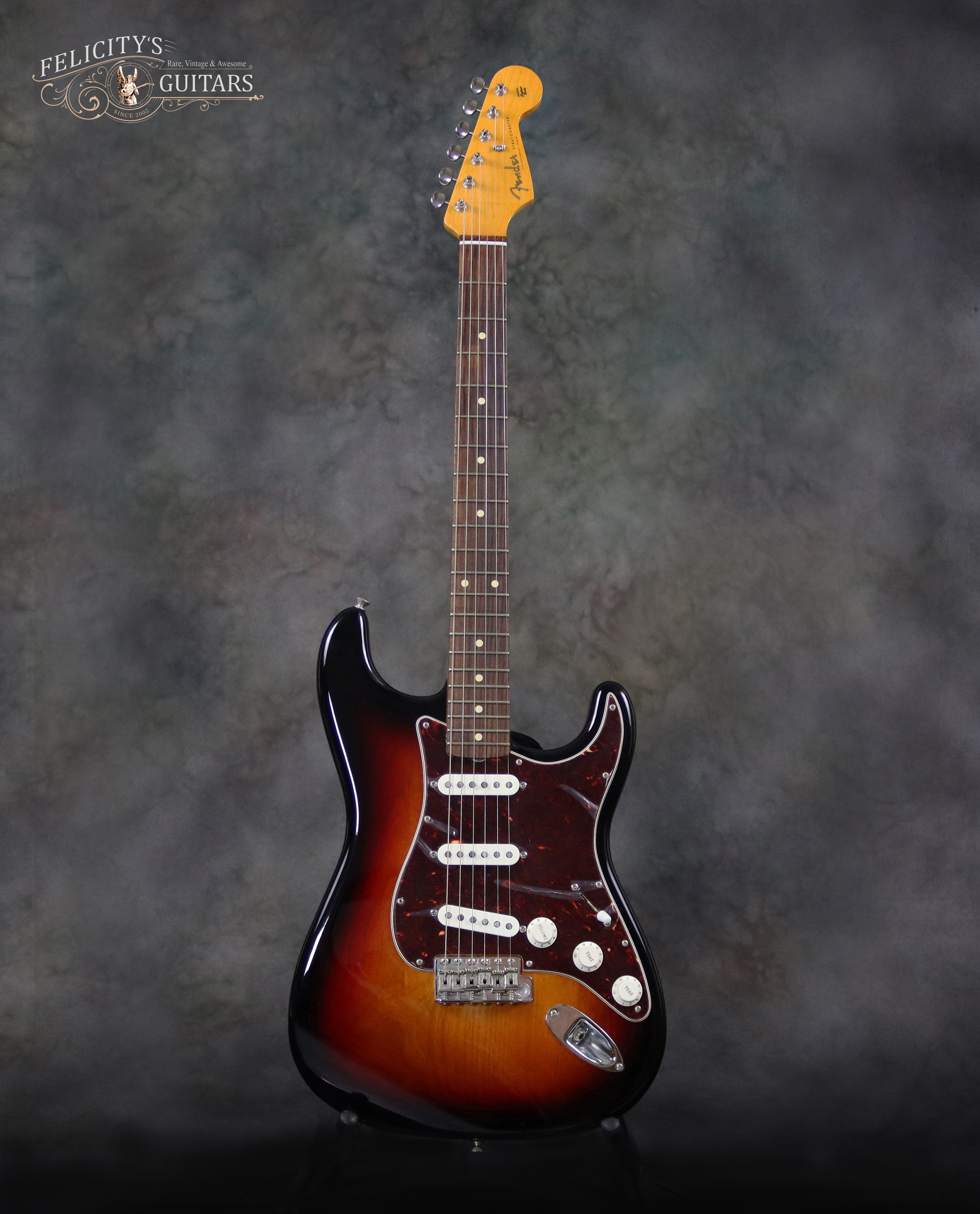

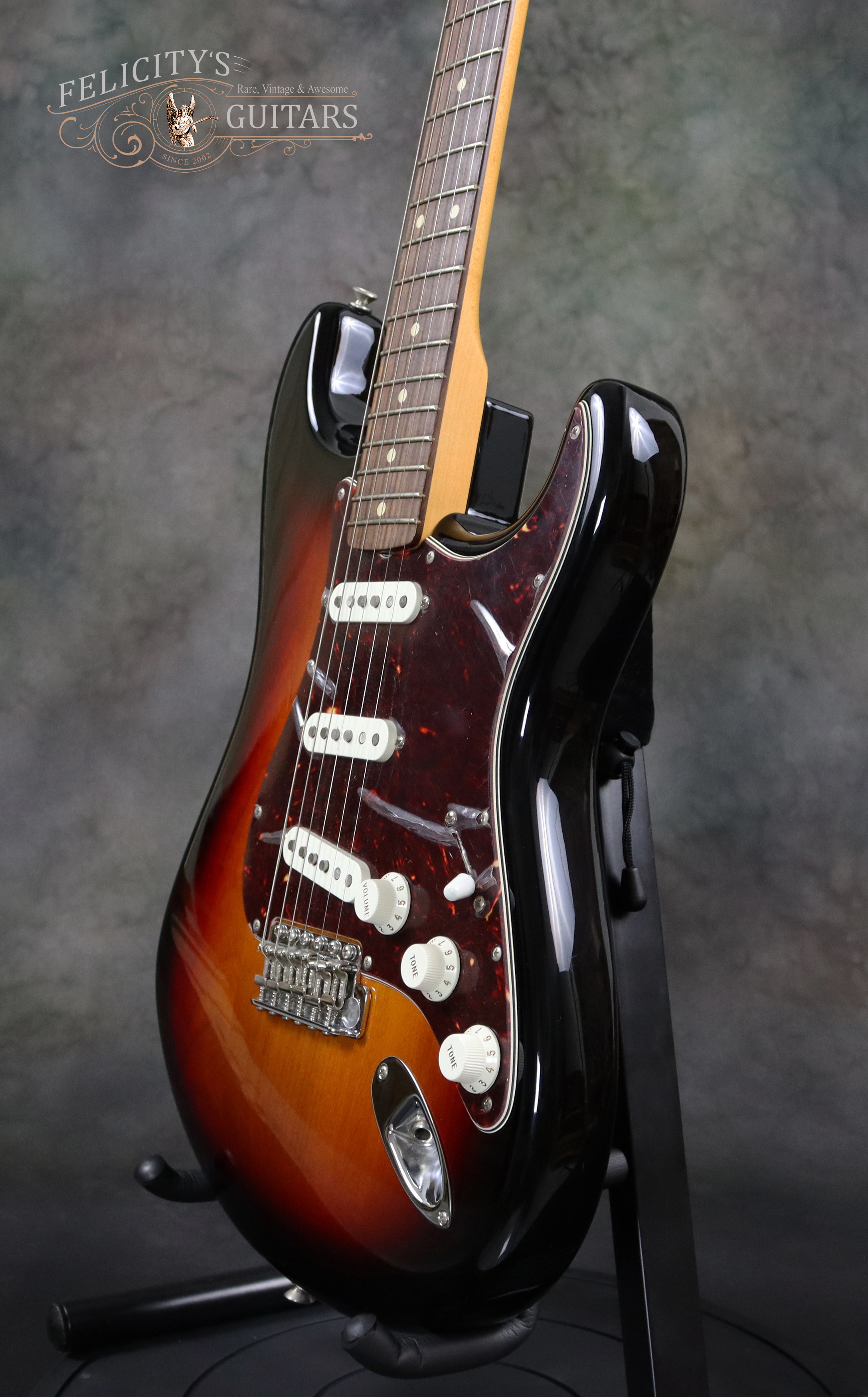

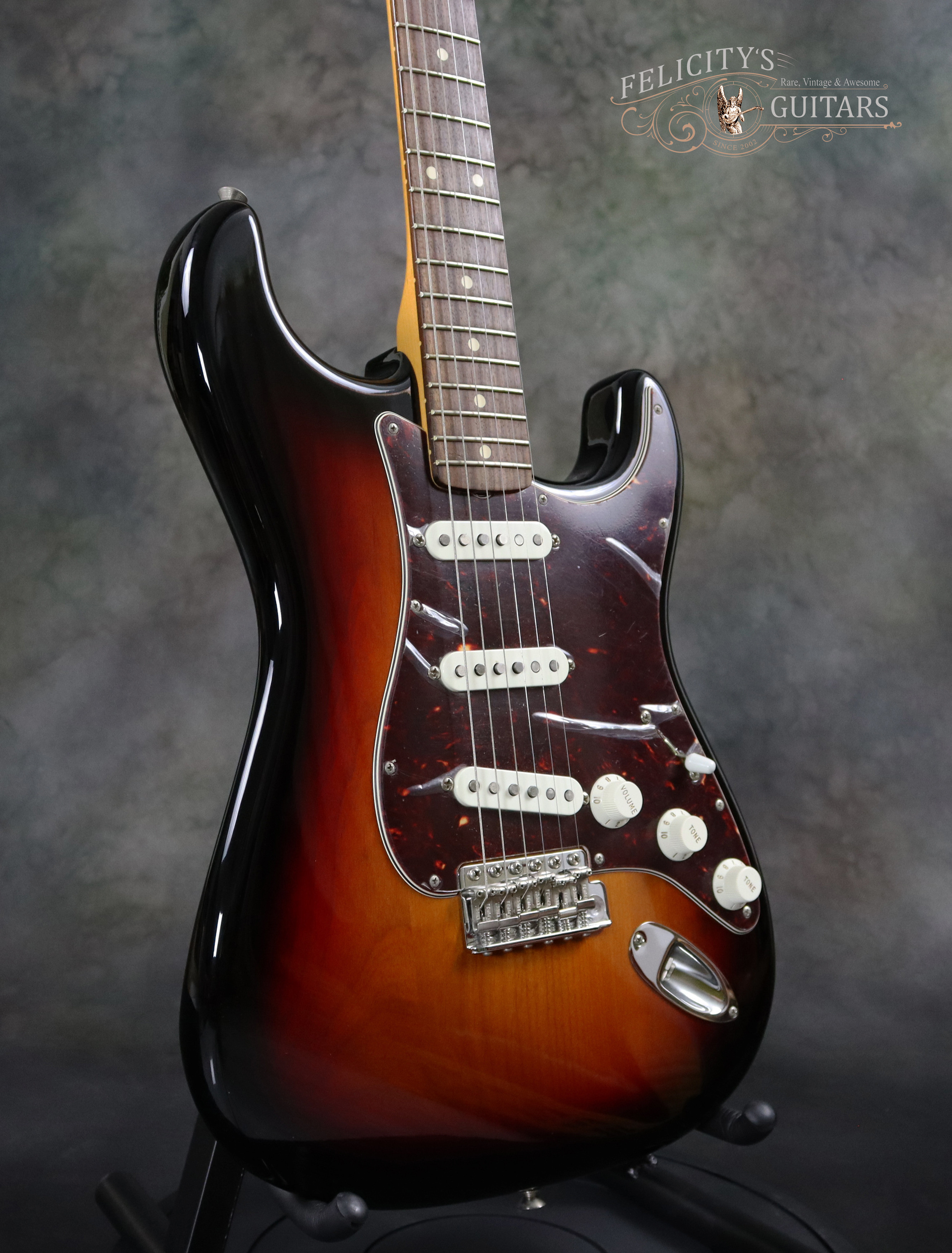

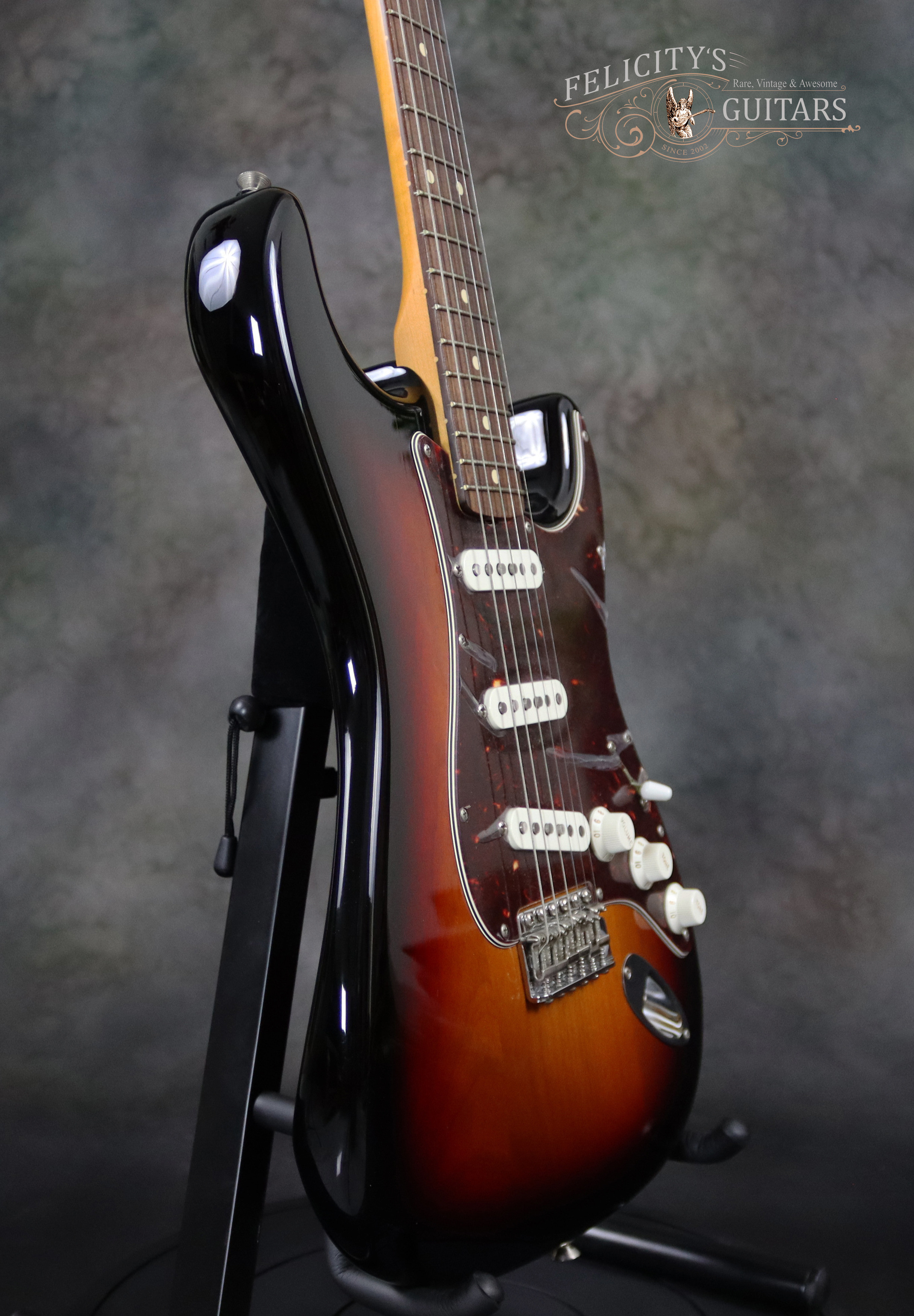

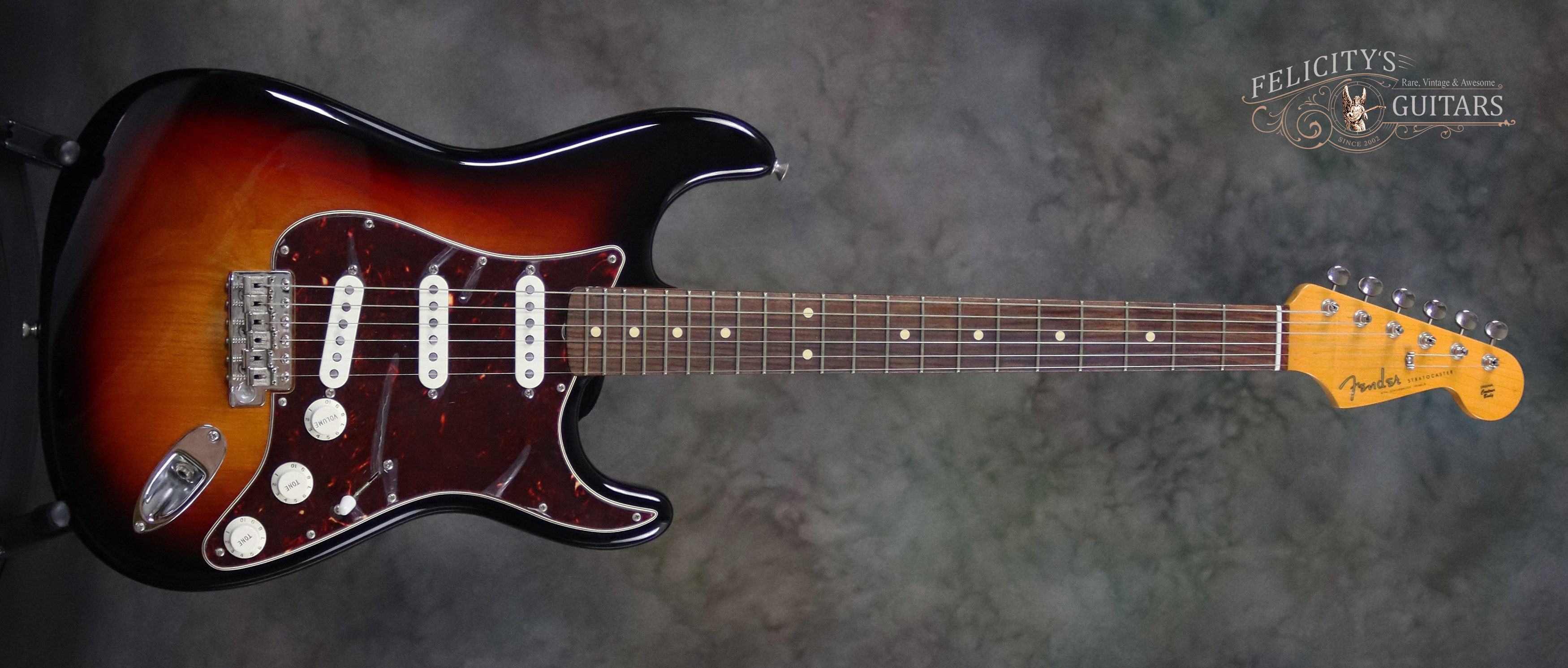

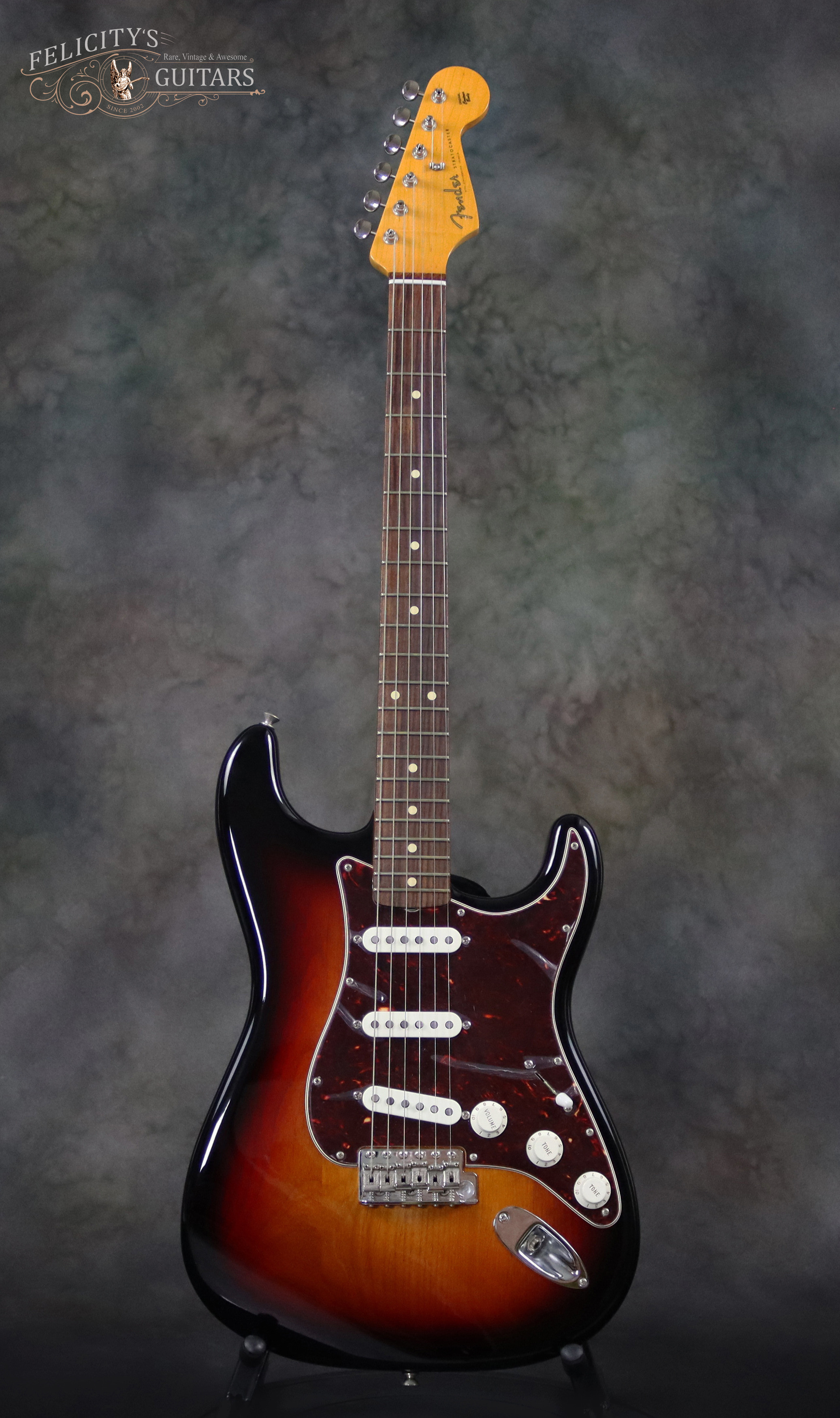

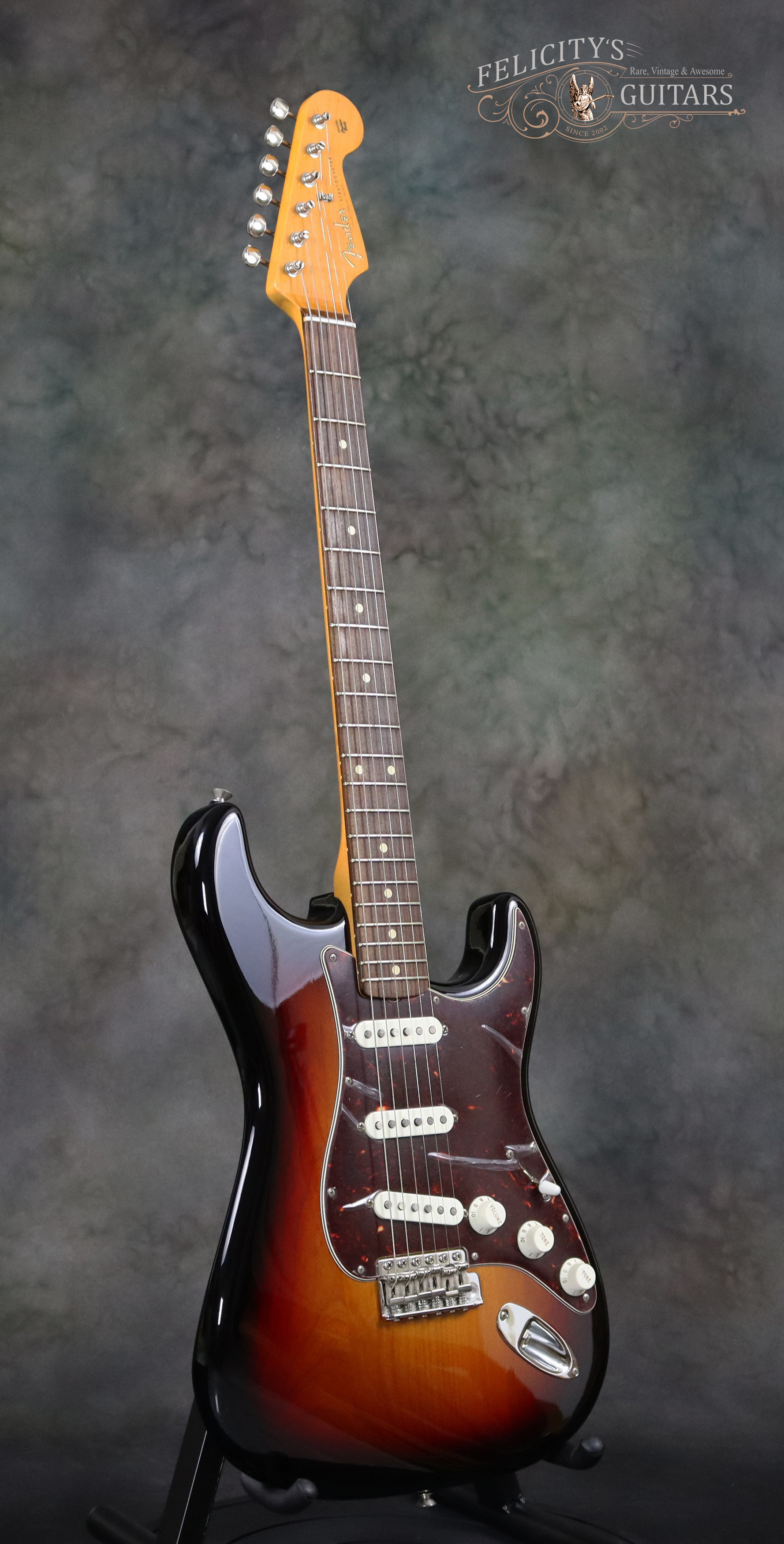

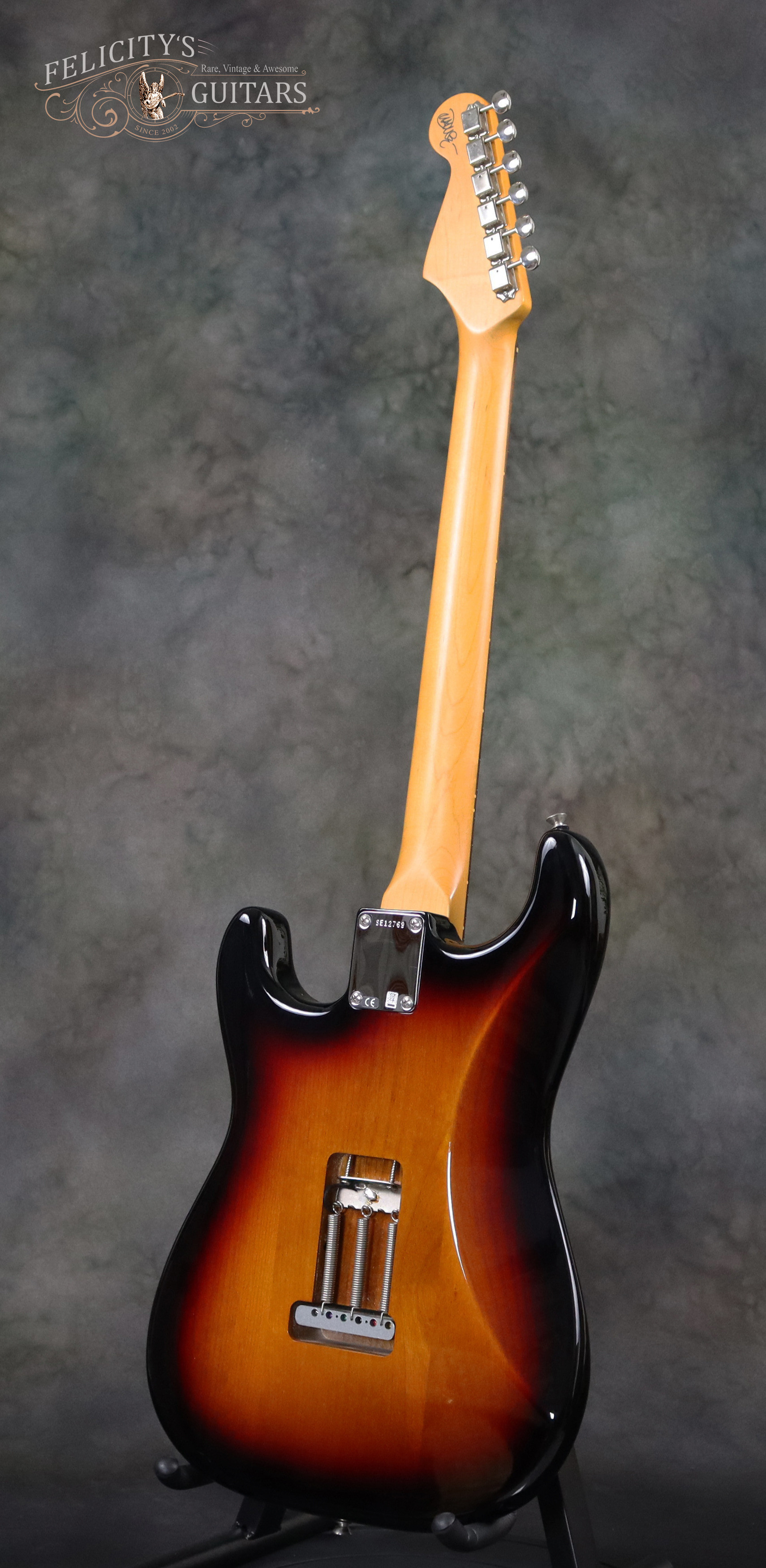

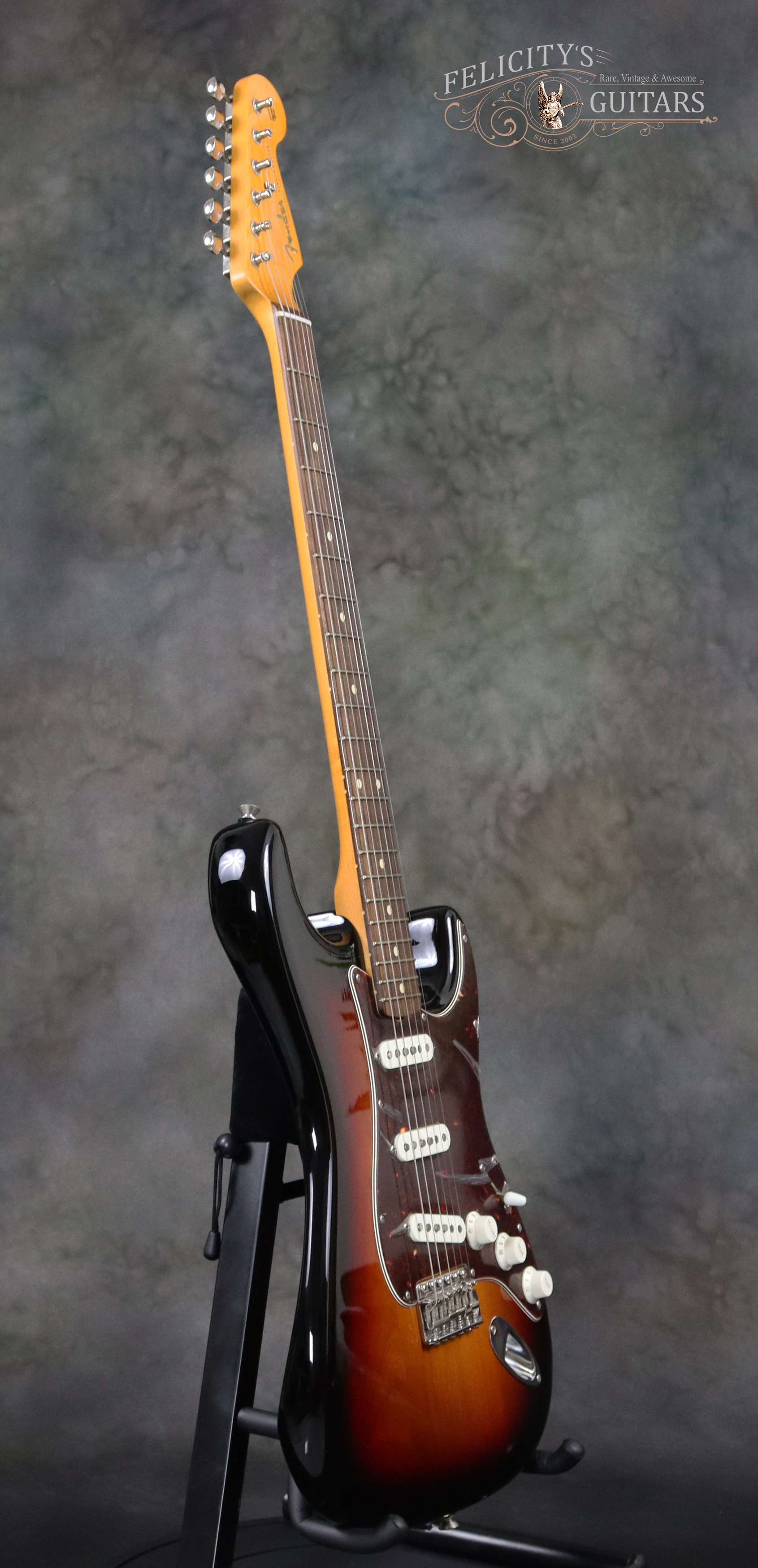

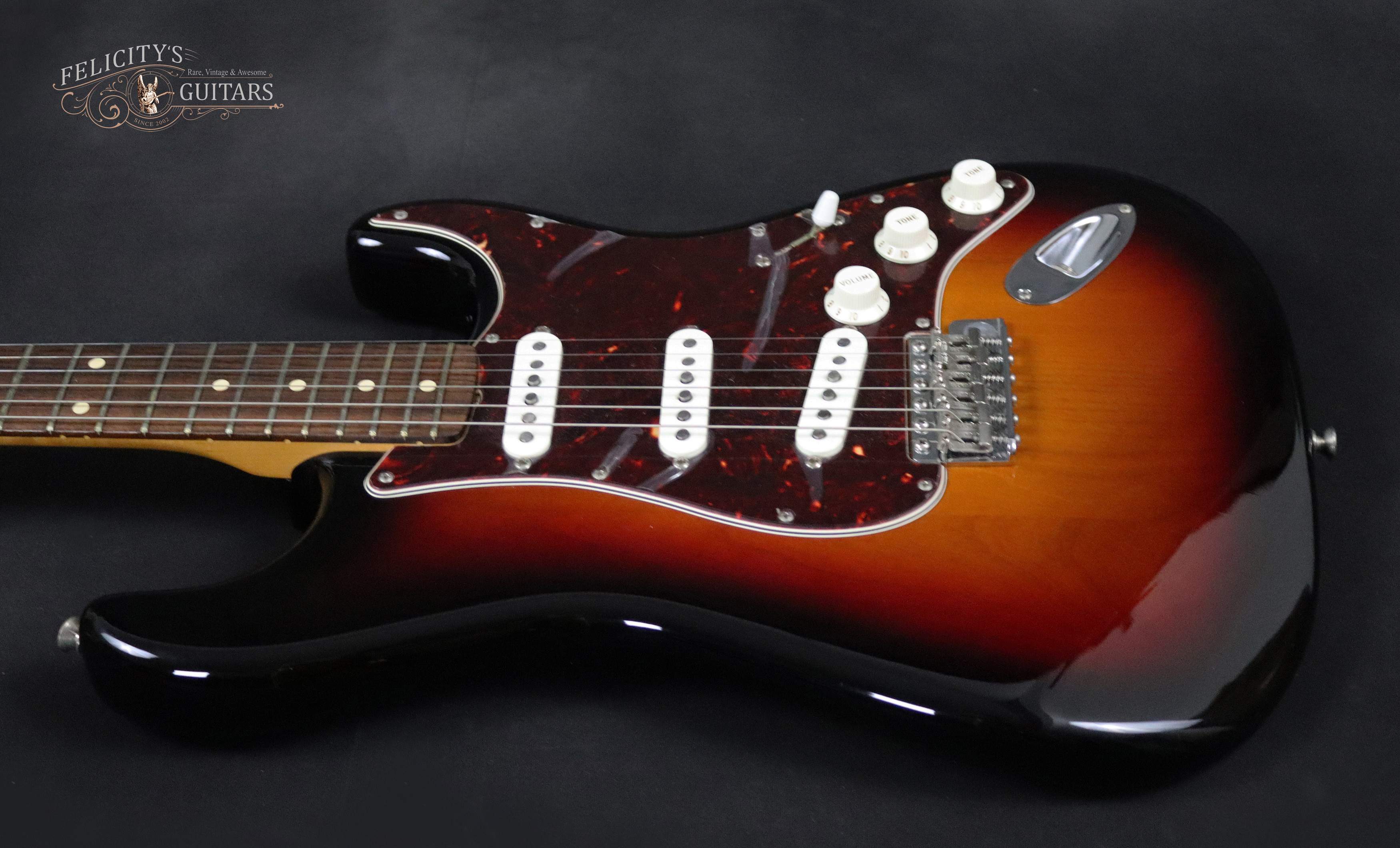

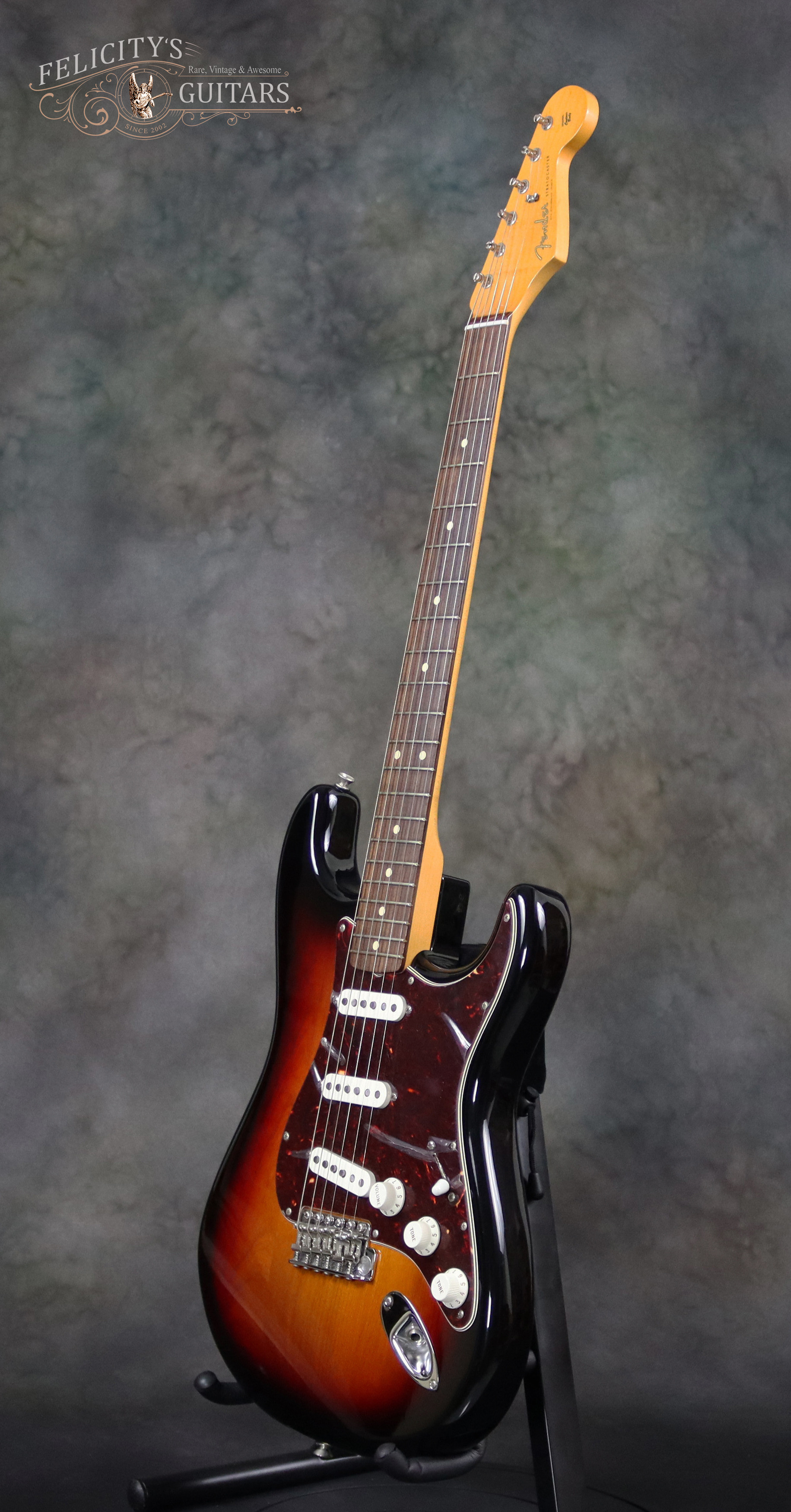

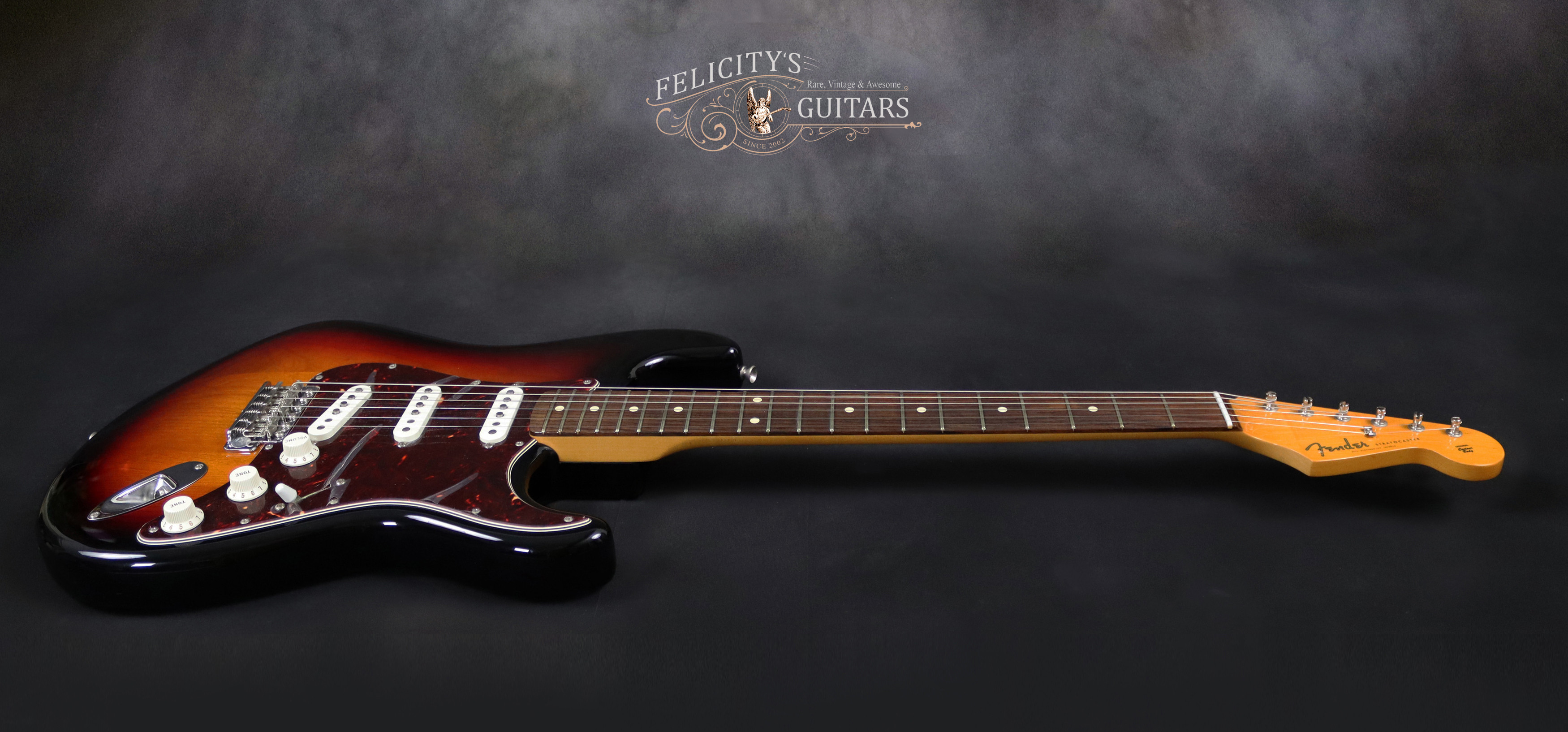

2016 FENDER STRATOCASTER ‘JOHN MAYER’ SIGNATURE IN 3-COLOR SUNBURST FINISH

Grammy award winner John Mayer teamed with Fender to create his must-have signature instrument.

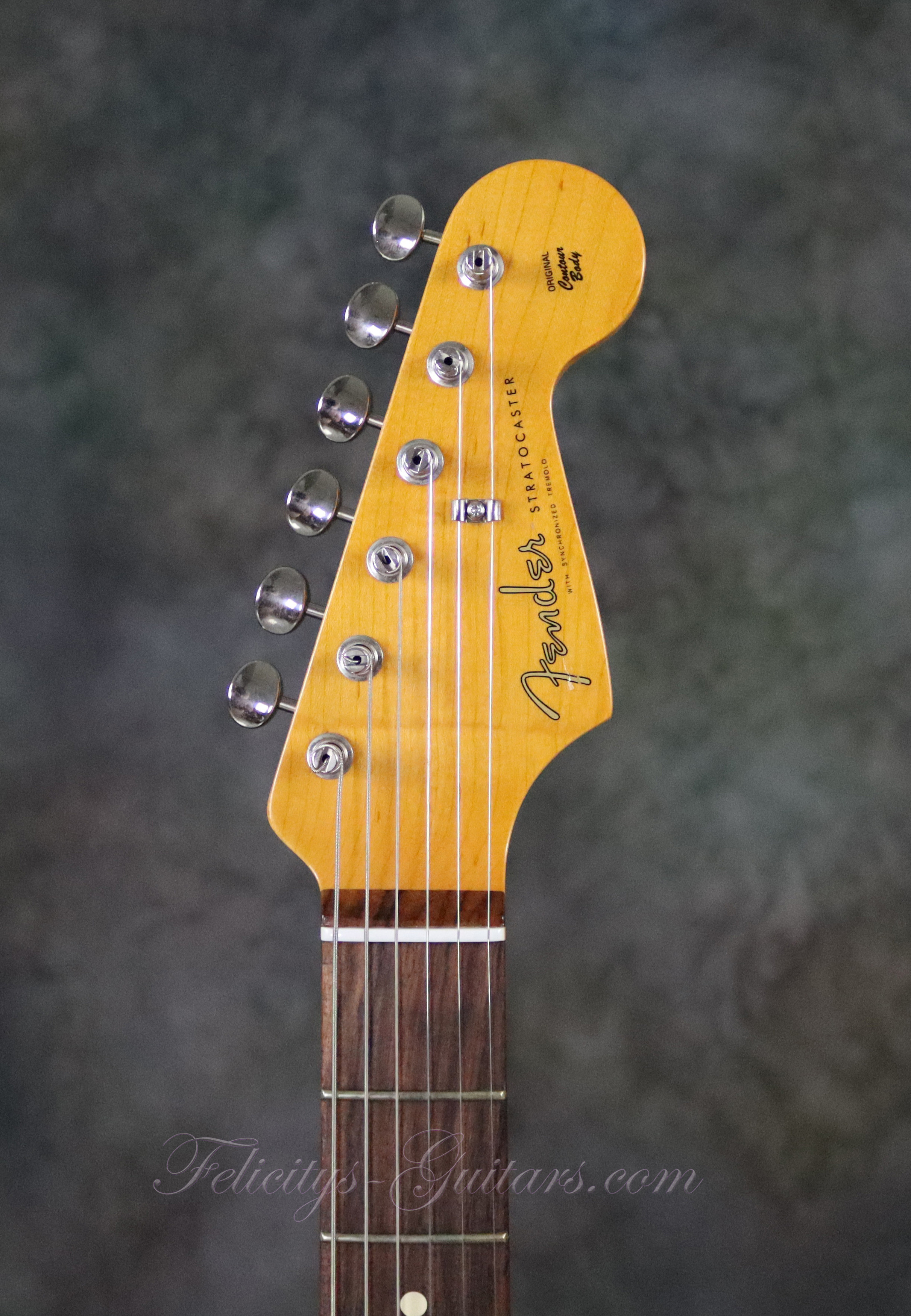

The John Mayer Stratocaster guitar features an alder body, satin urethane-finished maple neck with a slightly larger C shape, 9.5"-radius African rosewood fingerboard with Dunlop 6105 frets, and buffed headstock with vintage-style ´50s decal and string tree placed slightly farther from the nut.

The 2016 John Mayer Signature Stratocaster at a glance:

Lightweight Alder body is extremely resonant with long sustain and thick warm tones
Satin Urethane Finished thick C-Shape Maple Neck with African Rosewood fingerboard and polished Dunlop 6105 frets; focused mid-range, crisp highs and smooth playing feel
Fender/Gotoh vintage-style tuners
American vintage synchronized tremolo with five Tremolo Springs installed at Factory

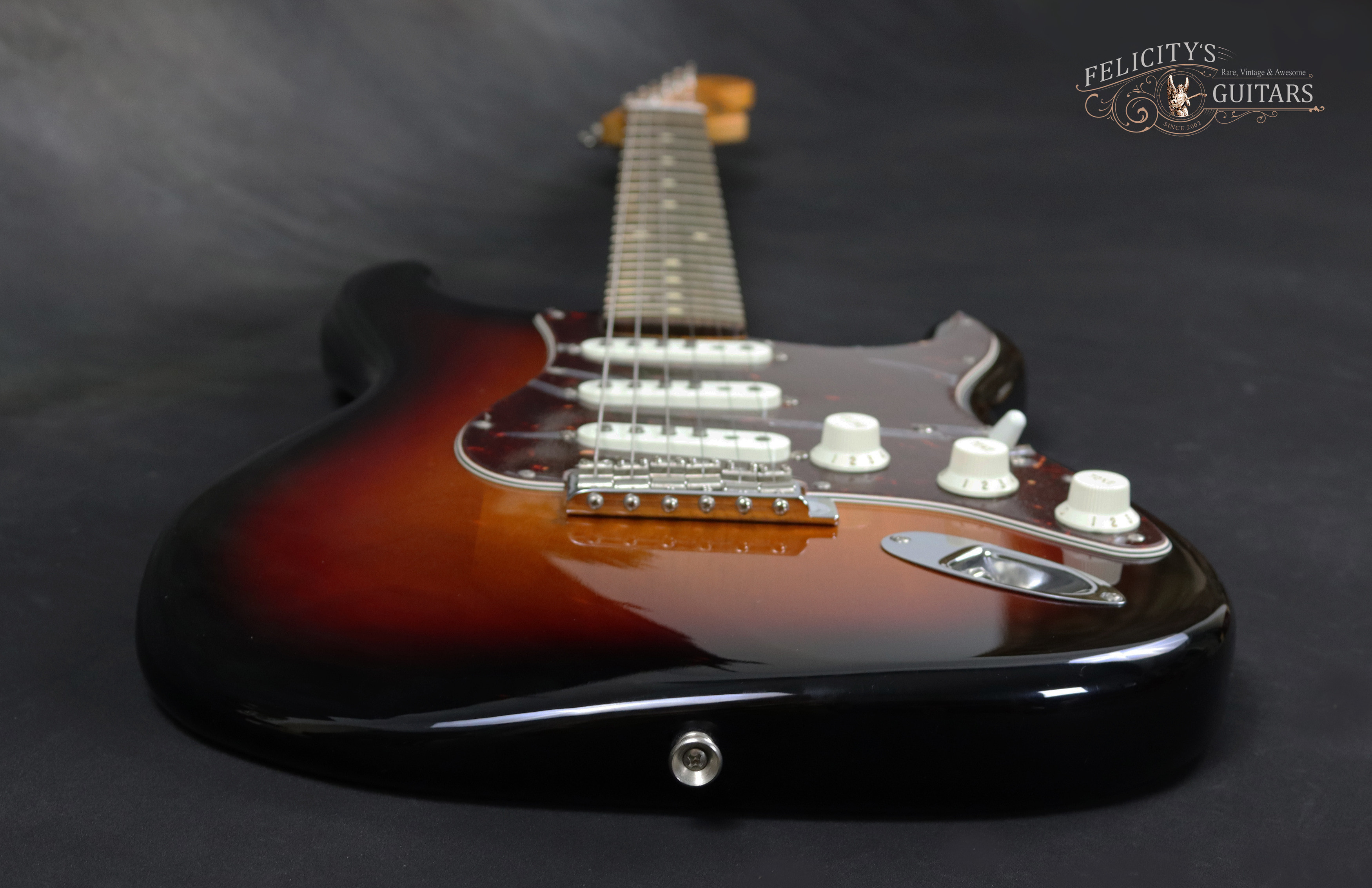

3 Big Dipper Single-Coil Strat Pickups with Special "Scooped" Mid-range Voicing

USD 1,000,000

Add to Cart

Shipping will be calculated at check out

Photo Gallery

description

No one has galvanized younger blues and pop guitarists quite like John Mayer in the last two decades. His tasteful playing, outsize personality and ranging styles of songwriting have kept him in the conversation for a long time. At the center of any Mayer talk is always the tone—pure, glassy, smooth, and saturated at times. Part of that is his use of Dumble and Two Rock amps, but another part was the unique, mid-scooped Big Dipper pickups in his now-discontinued signature Fender John Mayer Stratocaster. While Mayer has moved onto to PRS and the Silver Sky model, these earlier signature Fenders are still excellent instruments that demand the attention of any Mayer fan.

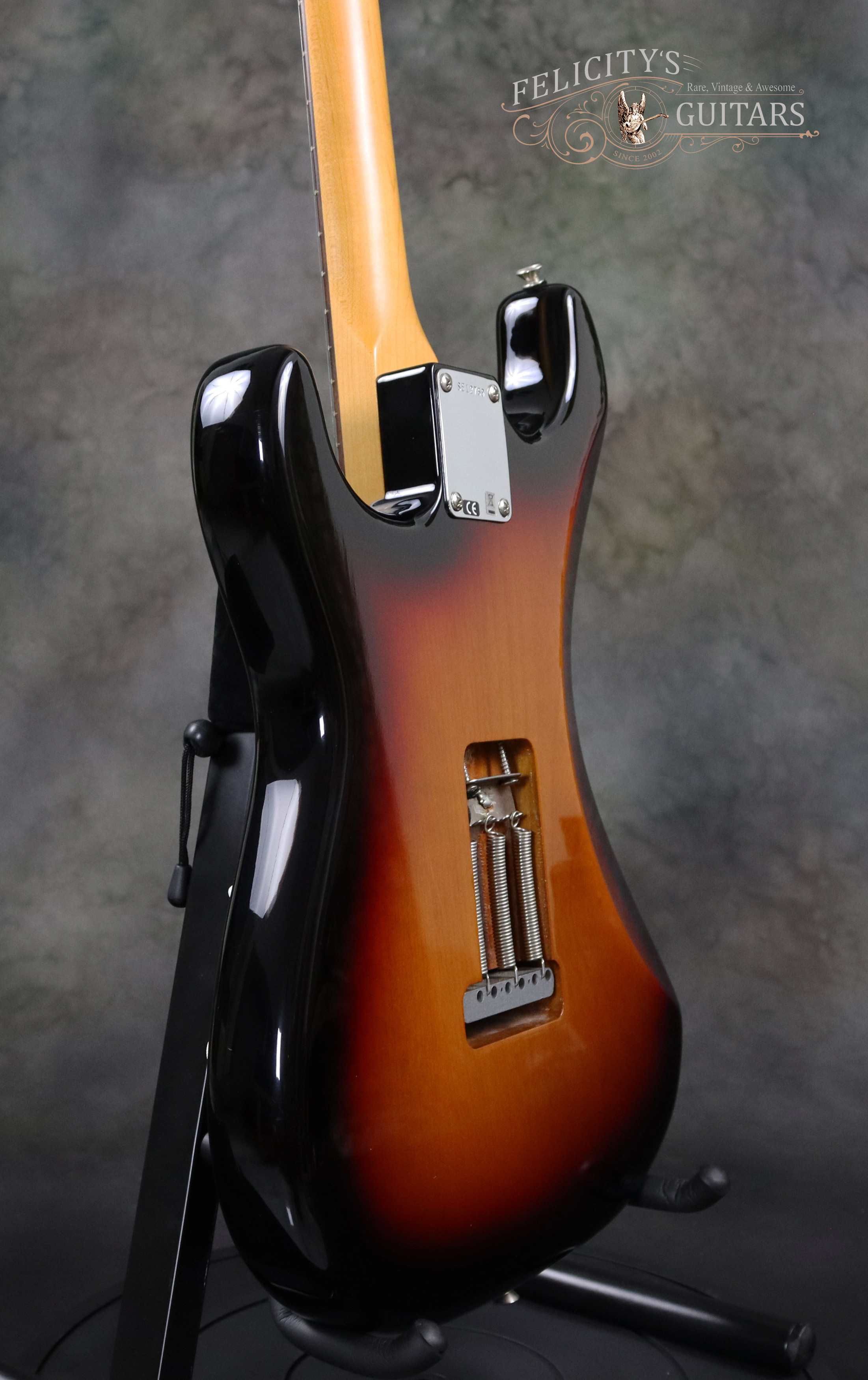

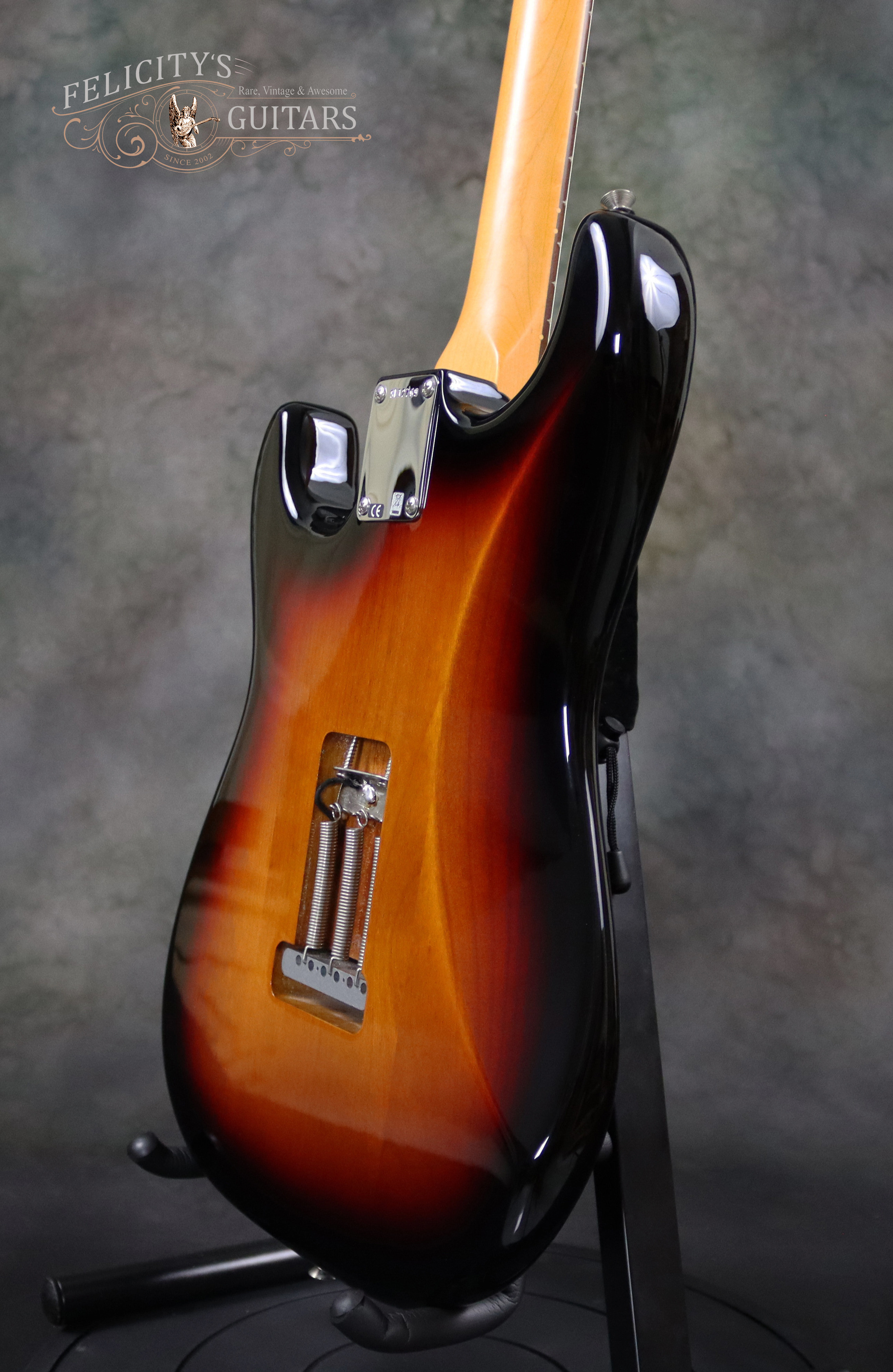

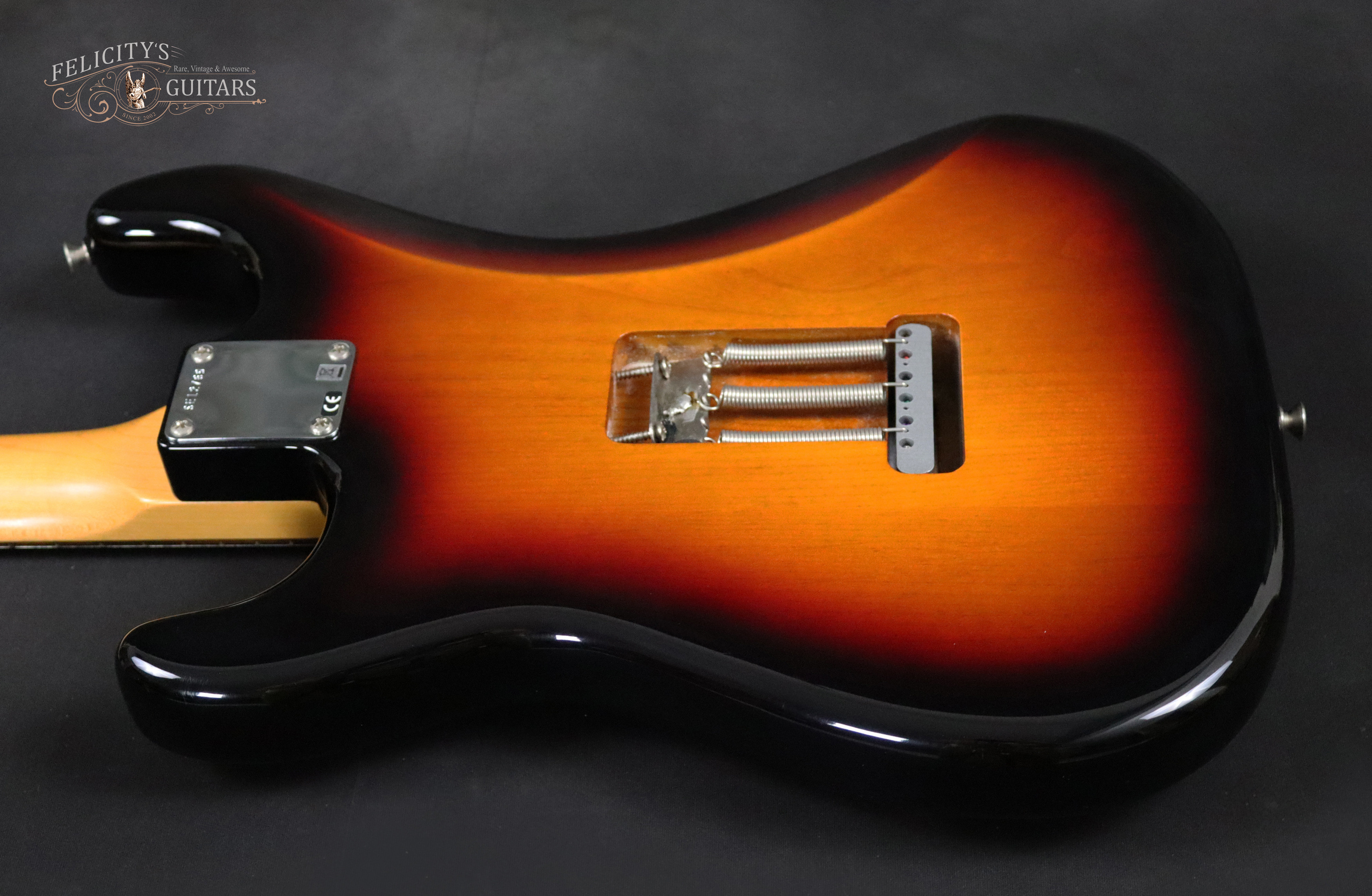

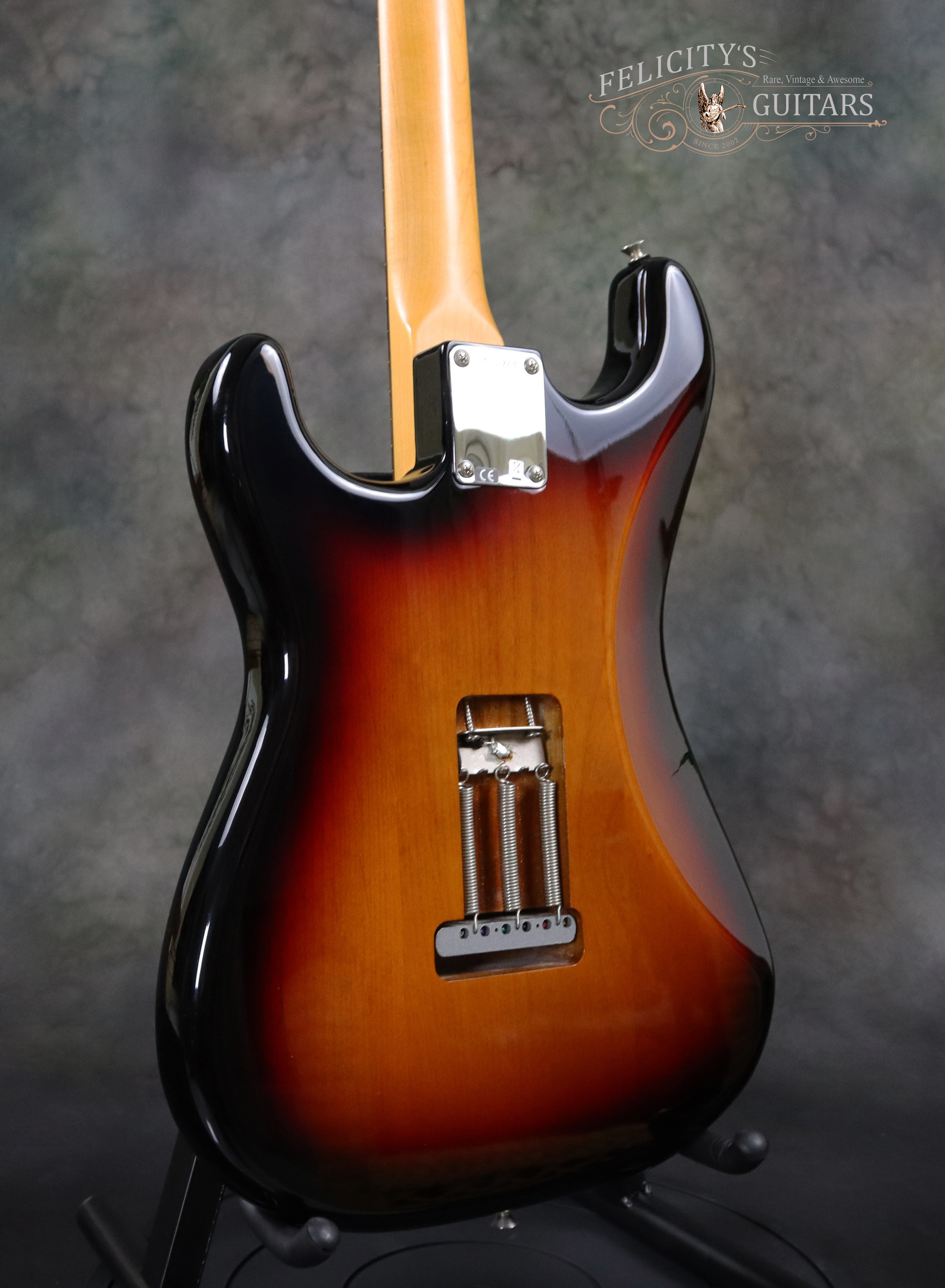

Thick C-Shape Neck, Vintage Hardware, Five Tremolo Springs installed at Factory, Per the Artist's Request, the Back Tremolo Cover Plate is Not Installed nor Included with the Guitar, String Tree is Farther from the Nut, 3 Big Dipper Single-Coil Strat Pickups with Special "Scooped" Mid-range Voicing to Meet John Mayer's Specifications, '50s Spaghetti Logo Decal, Satin Urethane Finish on Back of Neck, Gloss Finish on the Face of the Headstock.

This guitar is in brand new condition, and you can be the first person to play it!

Specifications

General

Condition	Brand New (NOS)
Number of Strings	6
Orientation	Right-handed
Country of Origin	U.S.A.
Year	2016
Limited Edition / Series	No

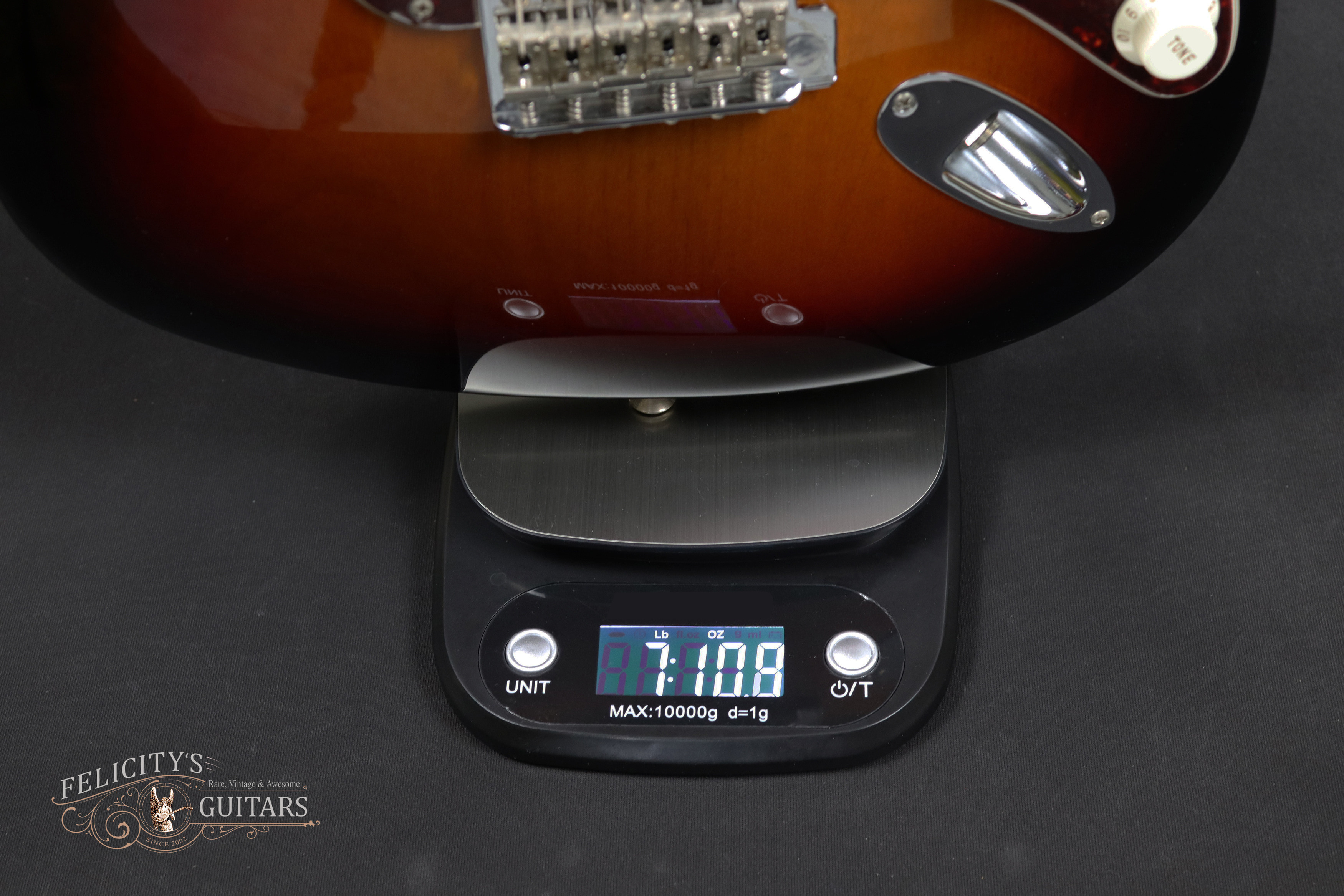

Weight	7-lbs 10.8-oz

body

Body Type	Solidbody
Body Shape	Double Cutaway Strat™
Body Material	2-pc Alder
Body Carve	Front: Flat	Back: Waist Contour
Body Binding	Front: No	Back: No
Weight Relief	Un-chambered
Body Finish Type	High-gloss Polyurethane
Color	Front: 3-Color Sunburst	Back: 3-Color Sunburst

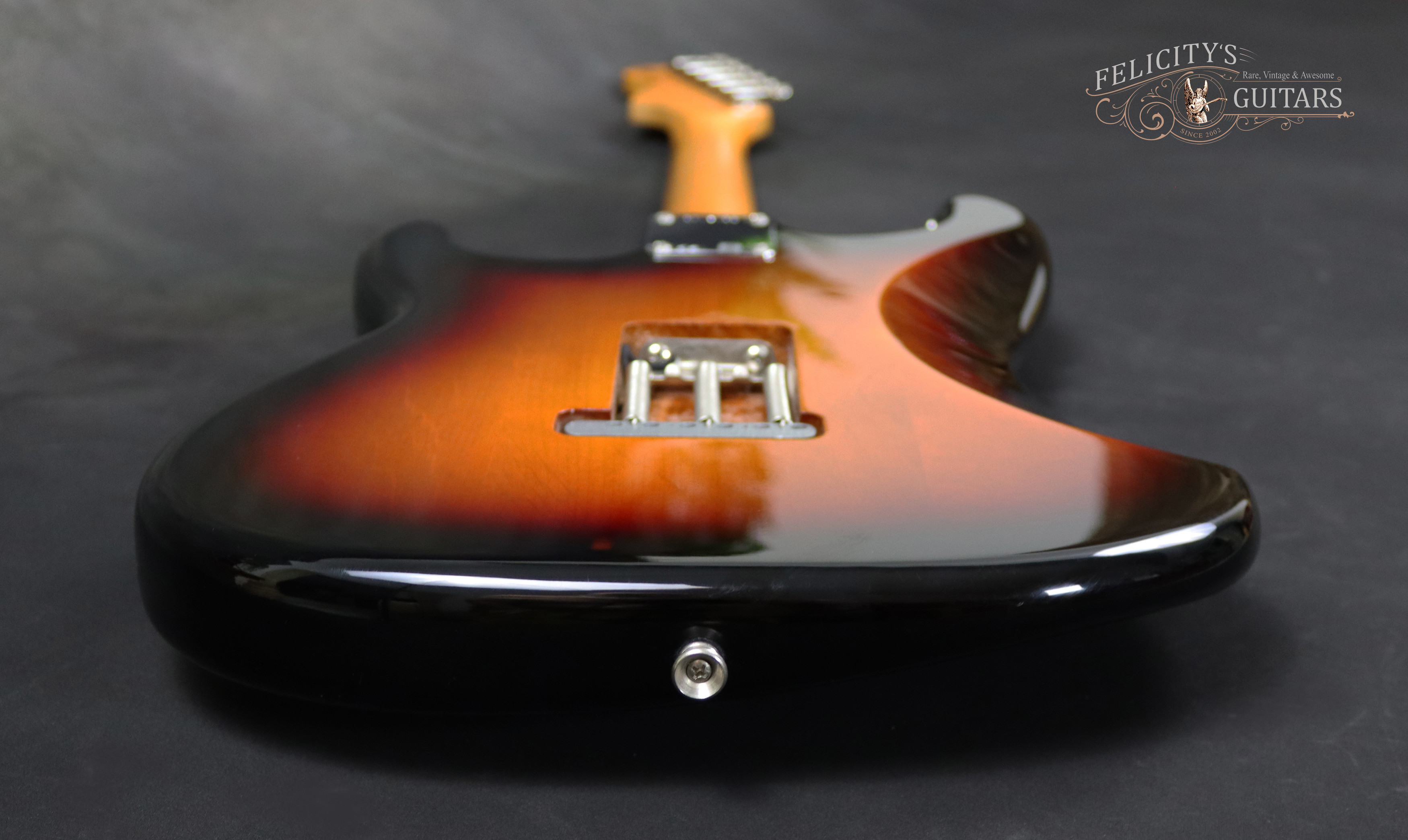

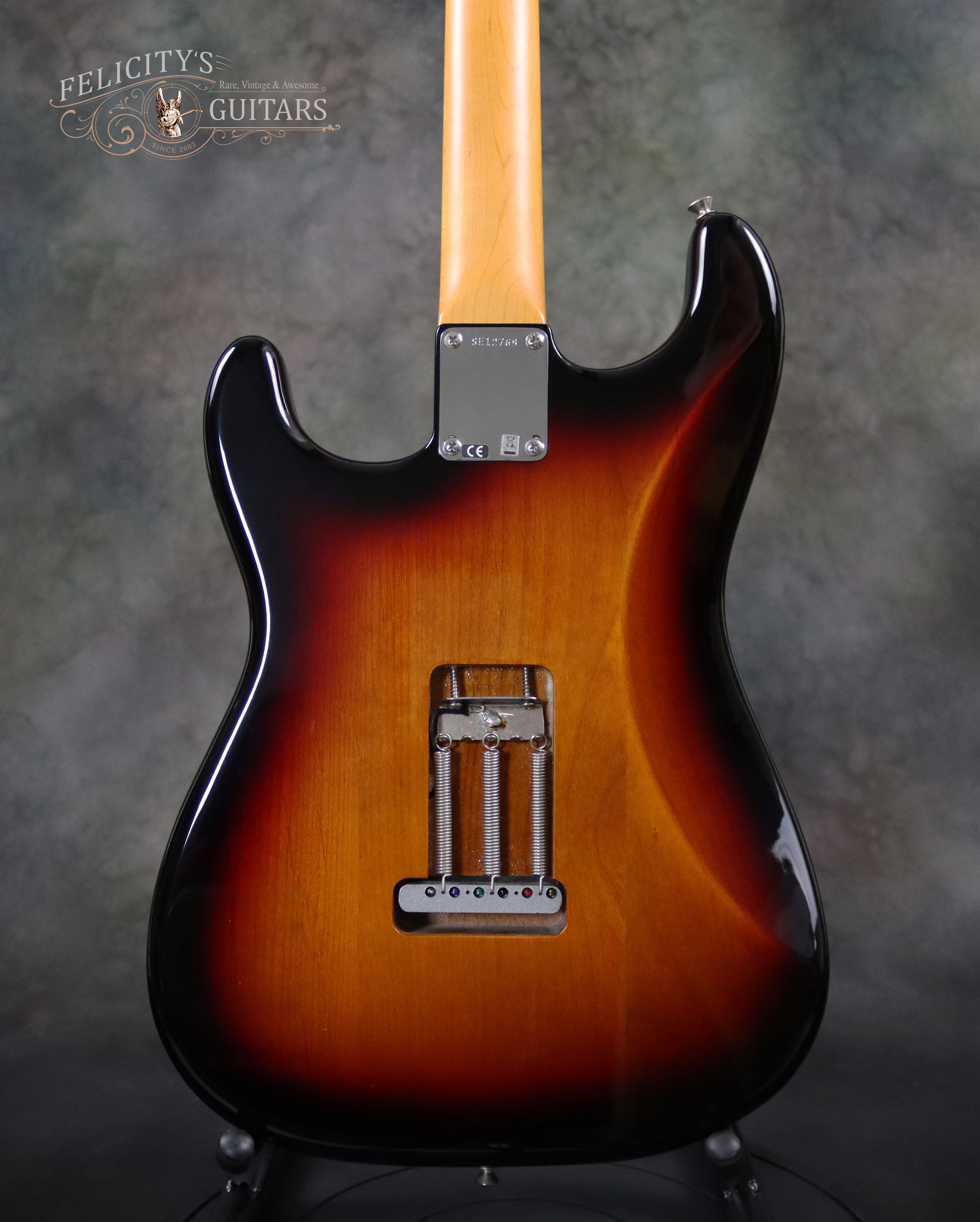

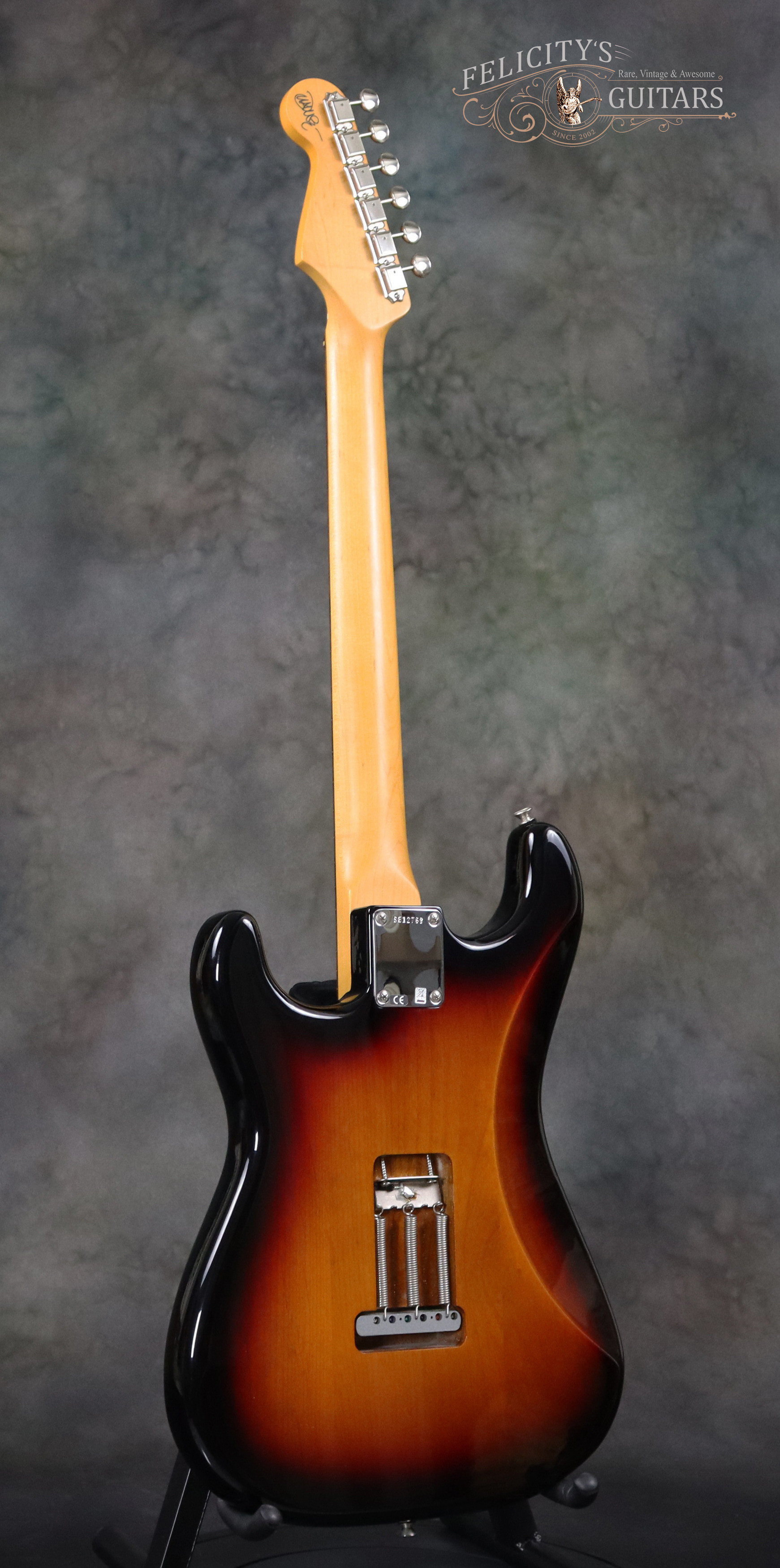

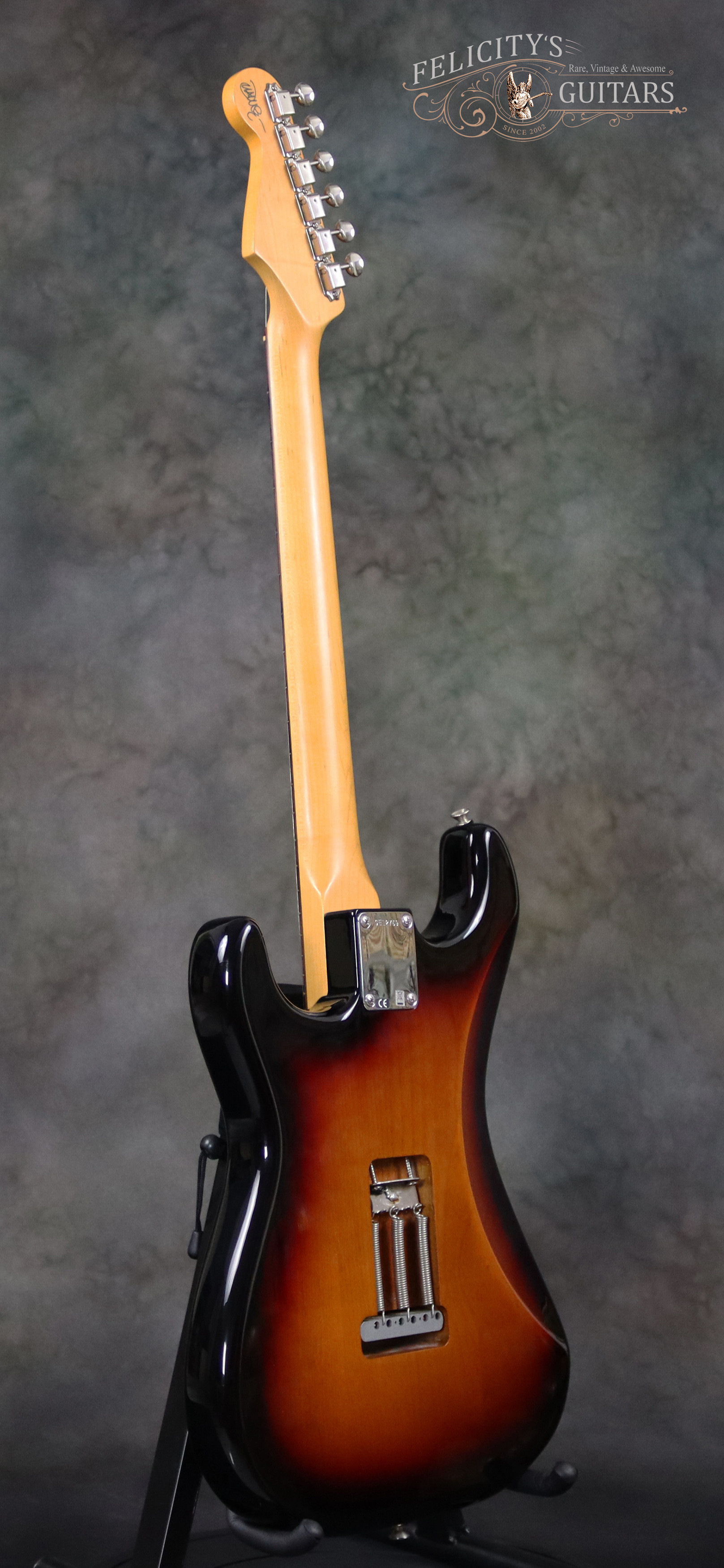

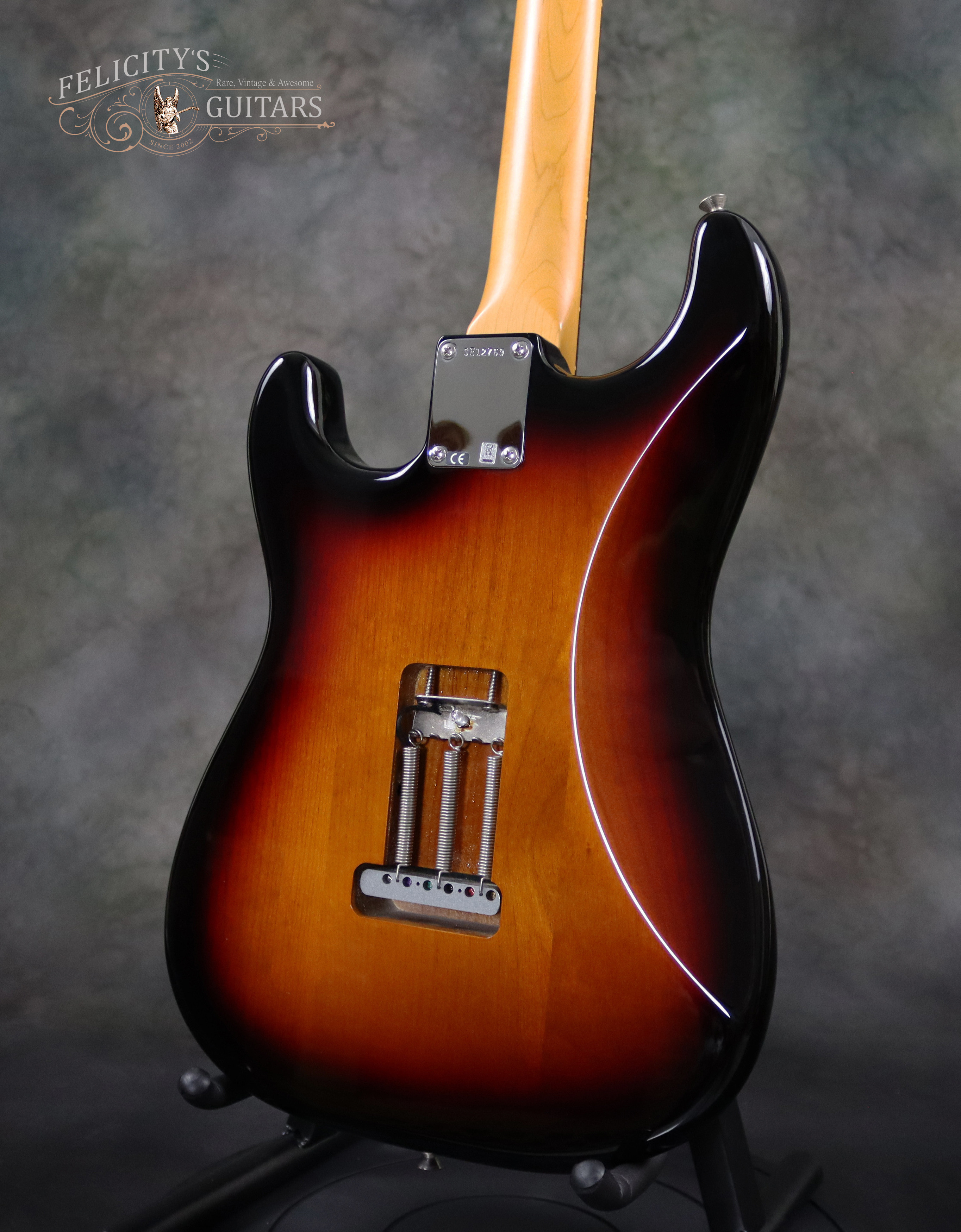

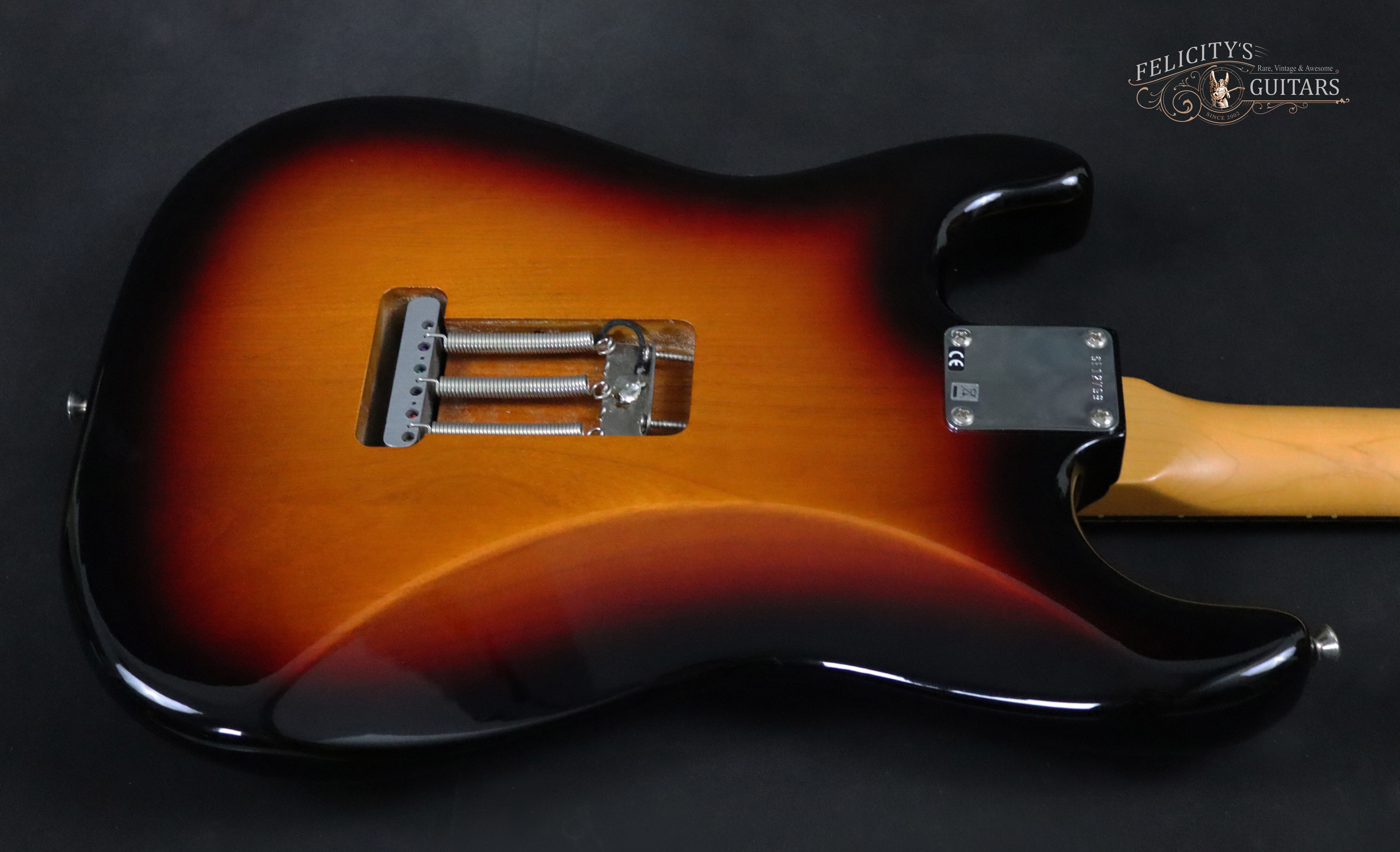

Other	No Back Tremolo Cover Plate (open)

neck

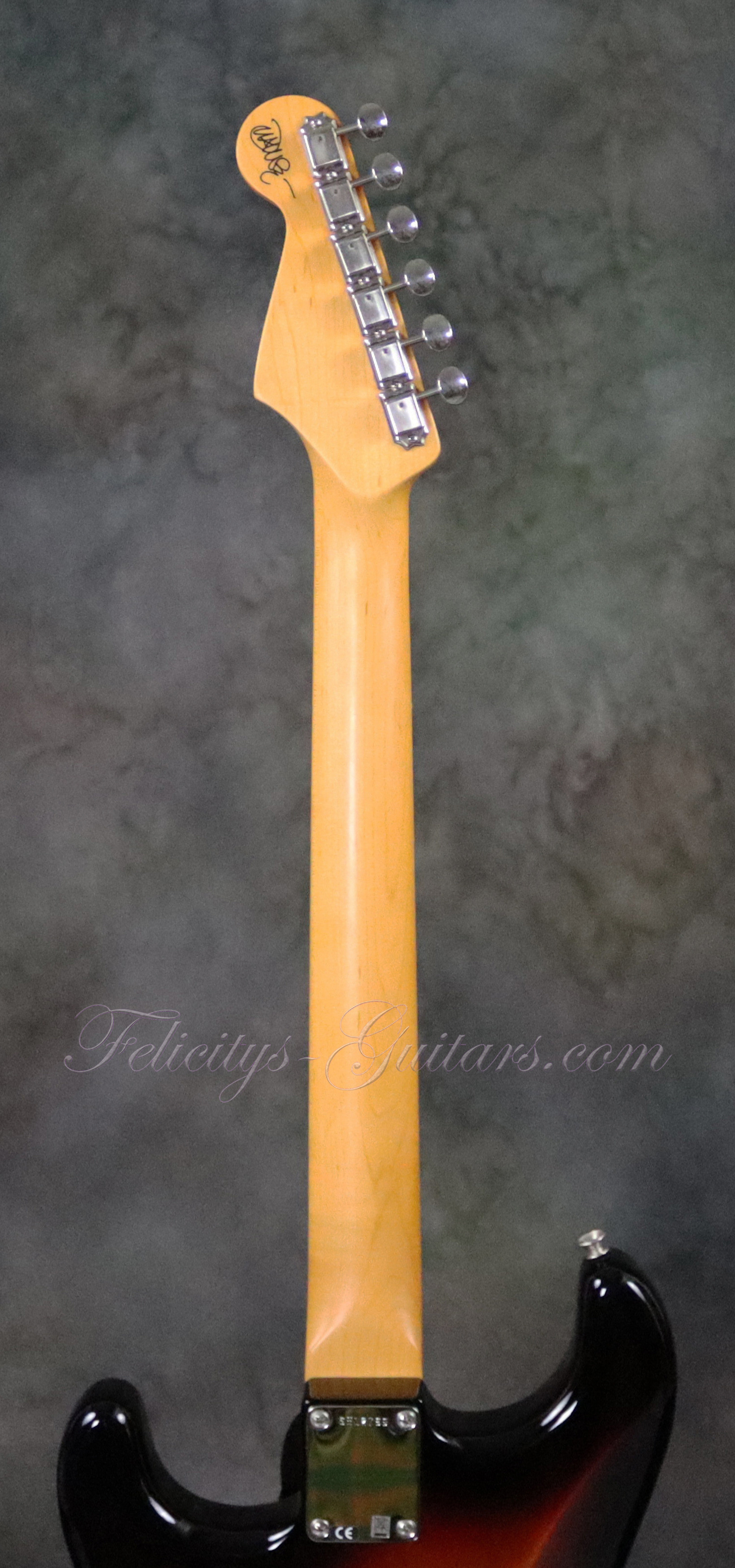

Neck Material	1-piece Maple with Satin Urethane Finish on Back
Truss Rod	Neck Butt Access, 2-way Adjustable

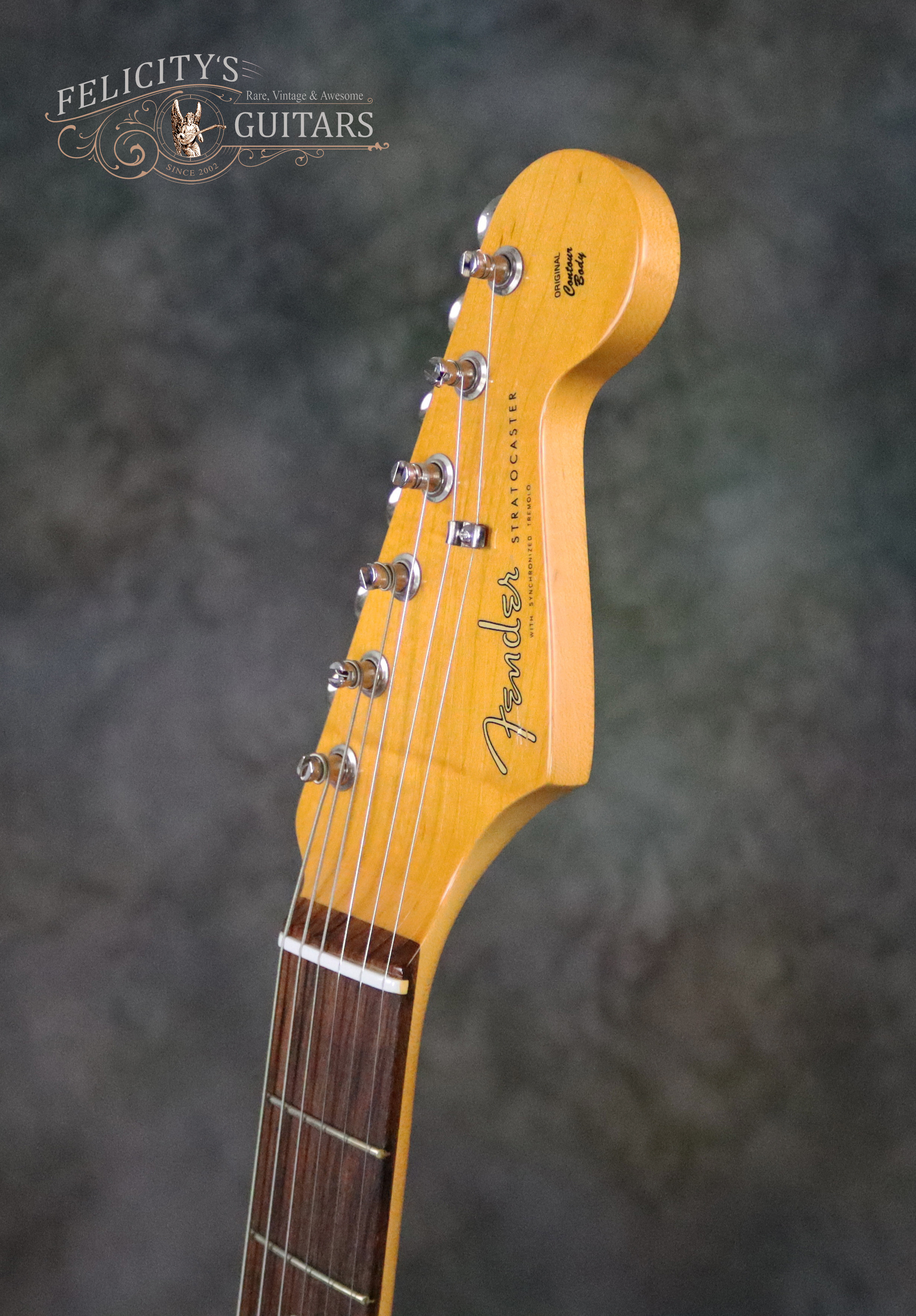

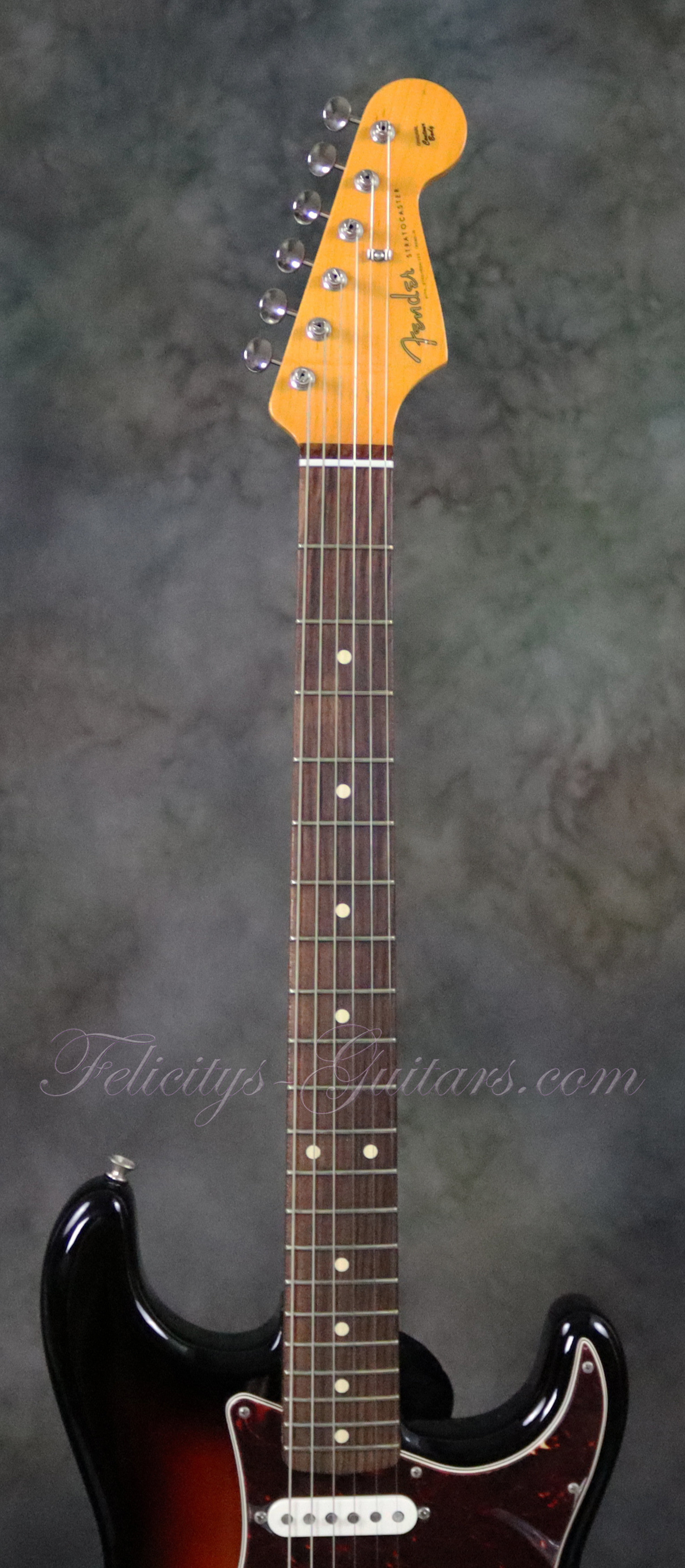

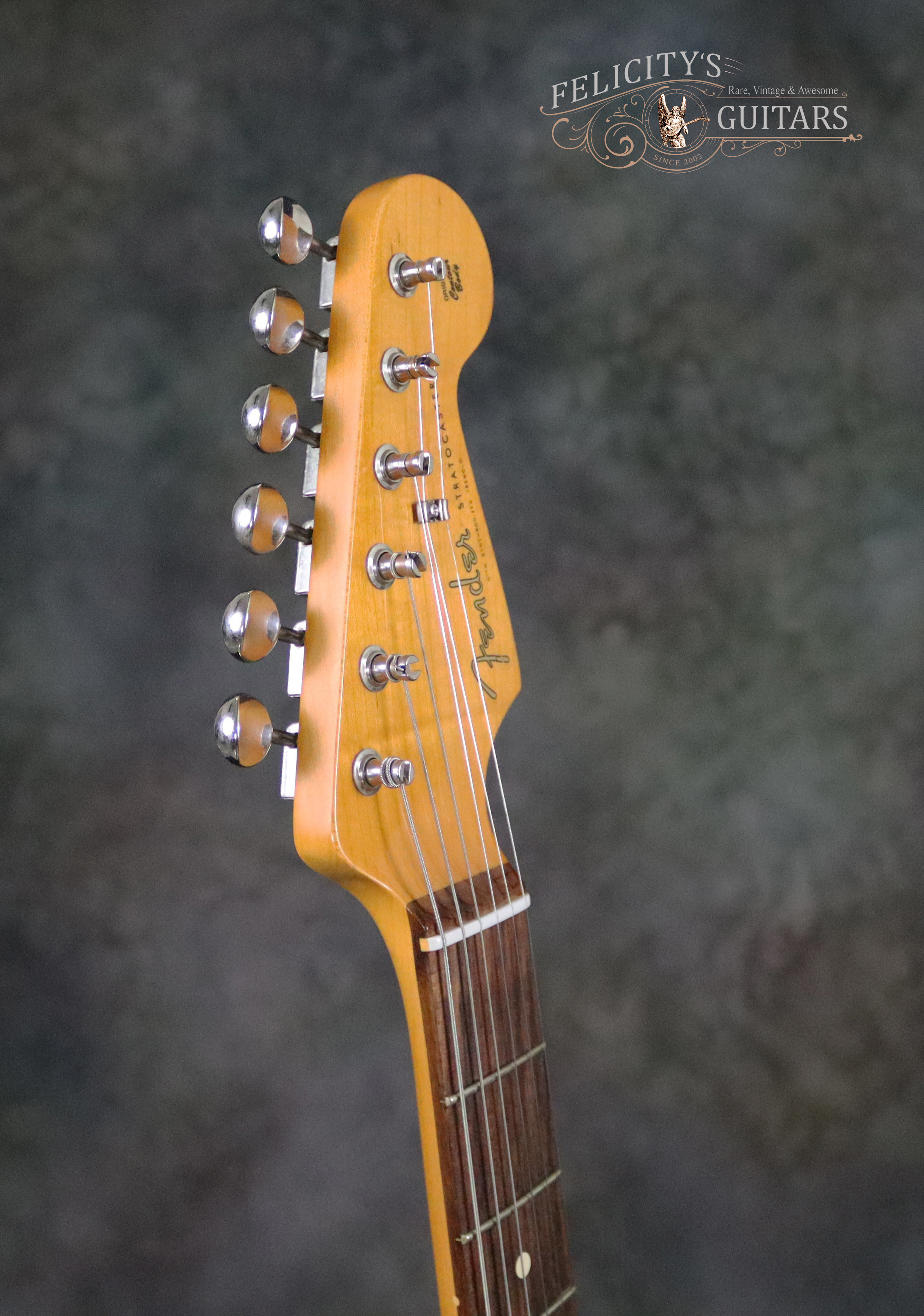

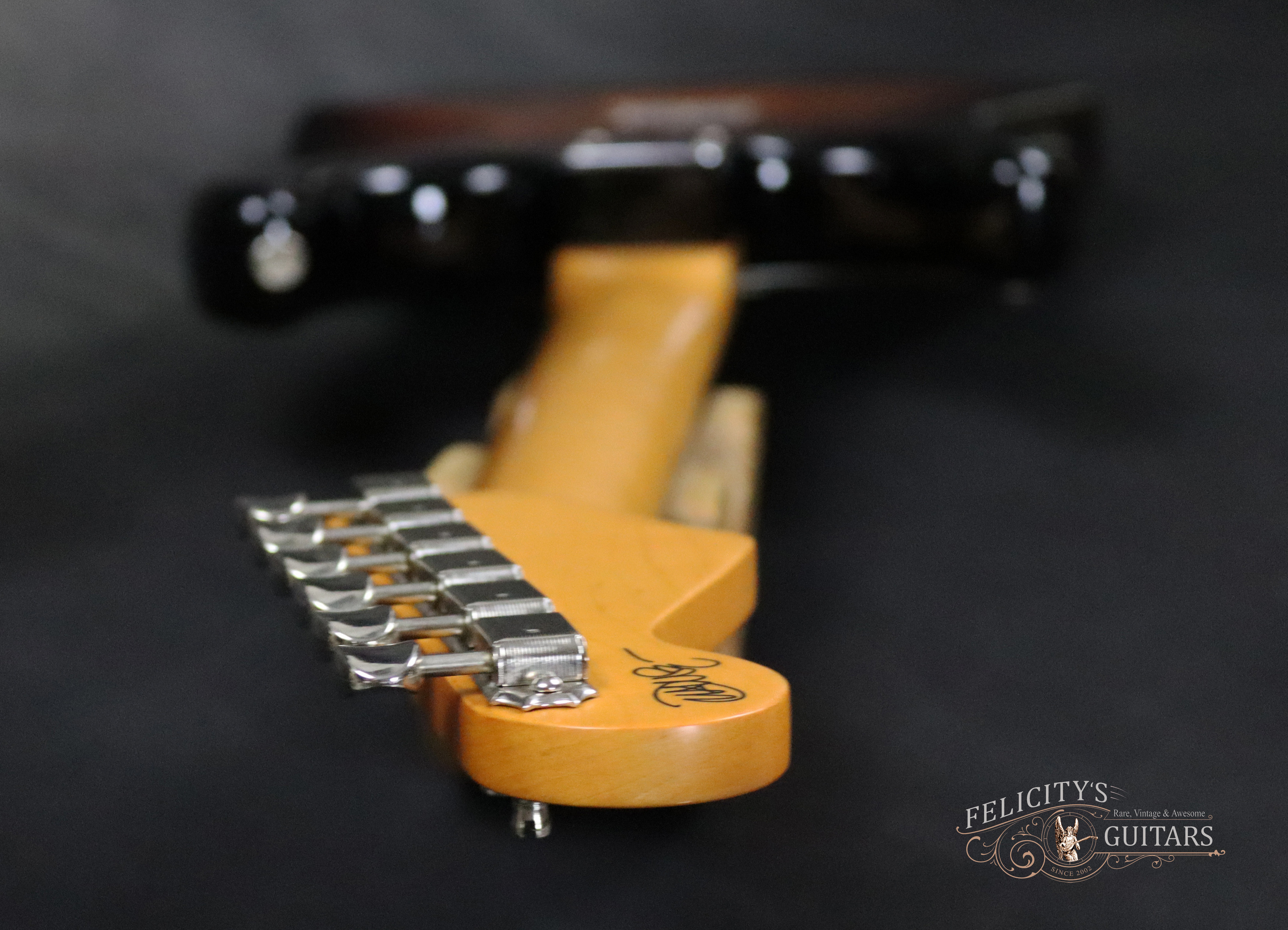

Peghead Particulars	Front: Natural Maple with Pre-CBS Fender® Logo / Strat Synchronized Tremolo & Original Custom Body Decals
	Back: Artist’s Signature
Neck Profile	Thick ‘C’ Shape

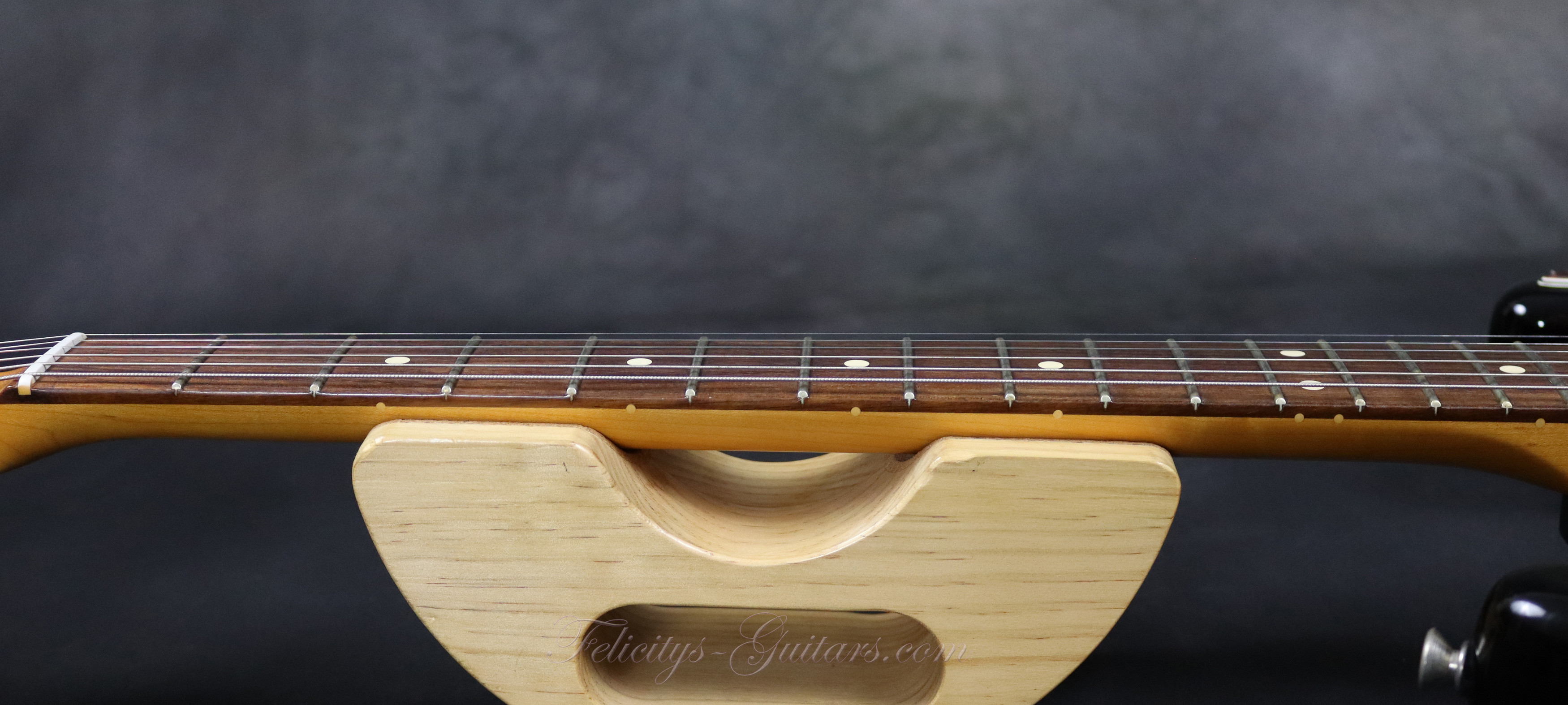

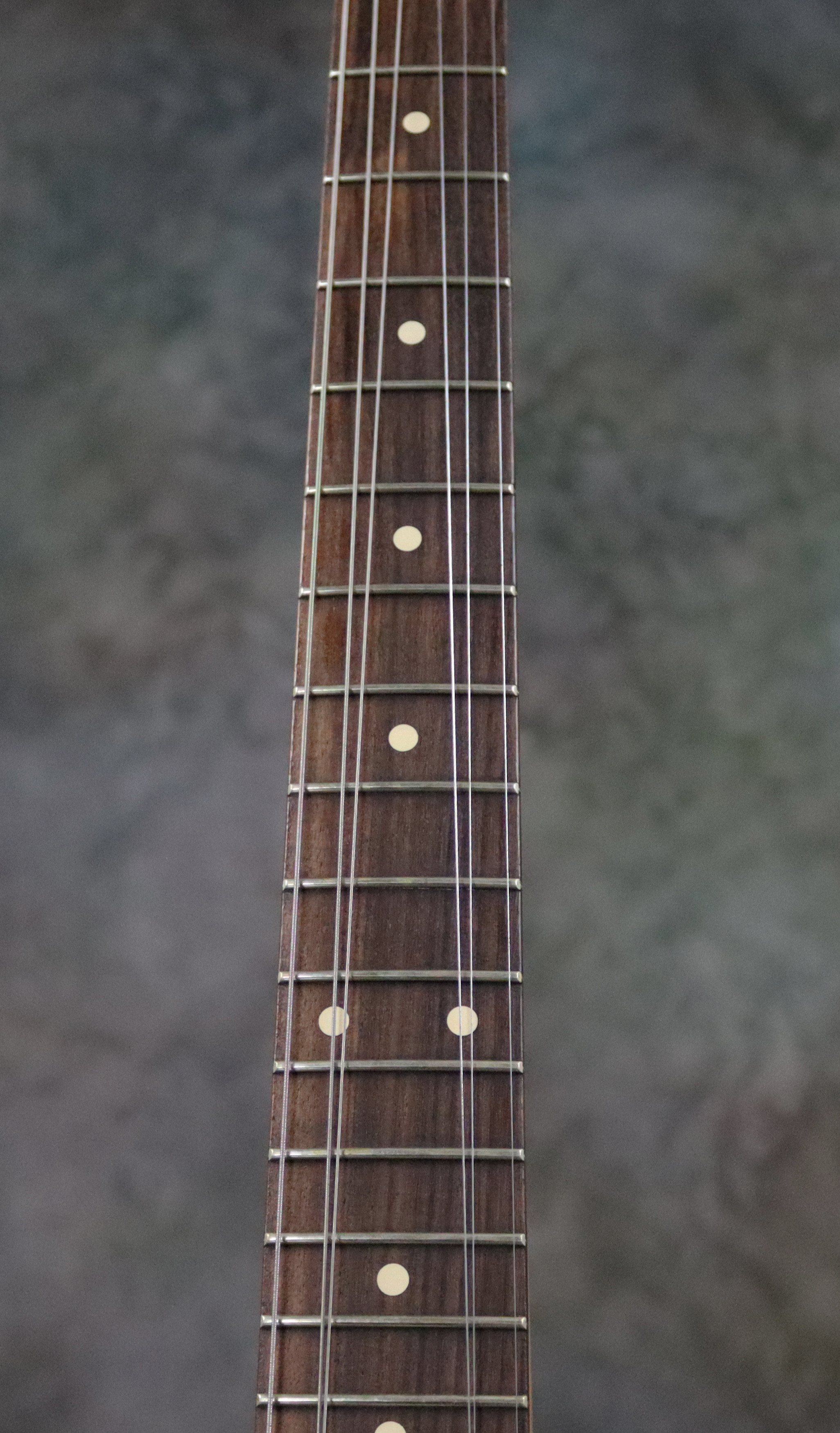

Fingerboard Material	African Rosewood
Fingerboard Radius	9.5”
Scale Length	25.5"
No. Frets / Type	21 Dunlop® 6105 Narrow Jumbo
Nut Size / Material	1.650” / Synthetic Bone

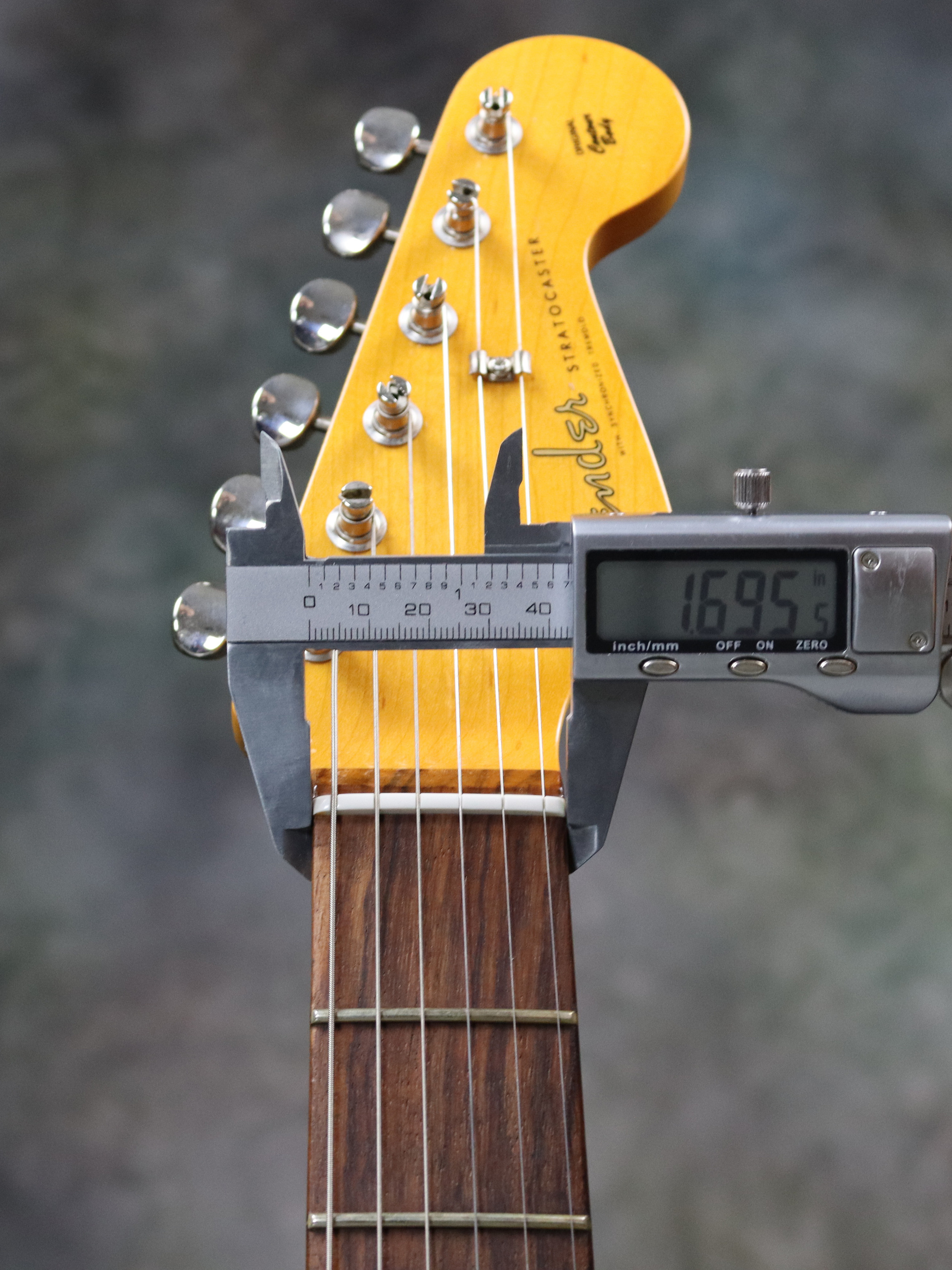

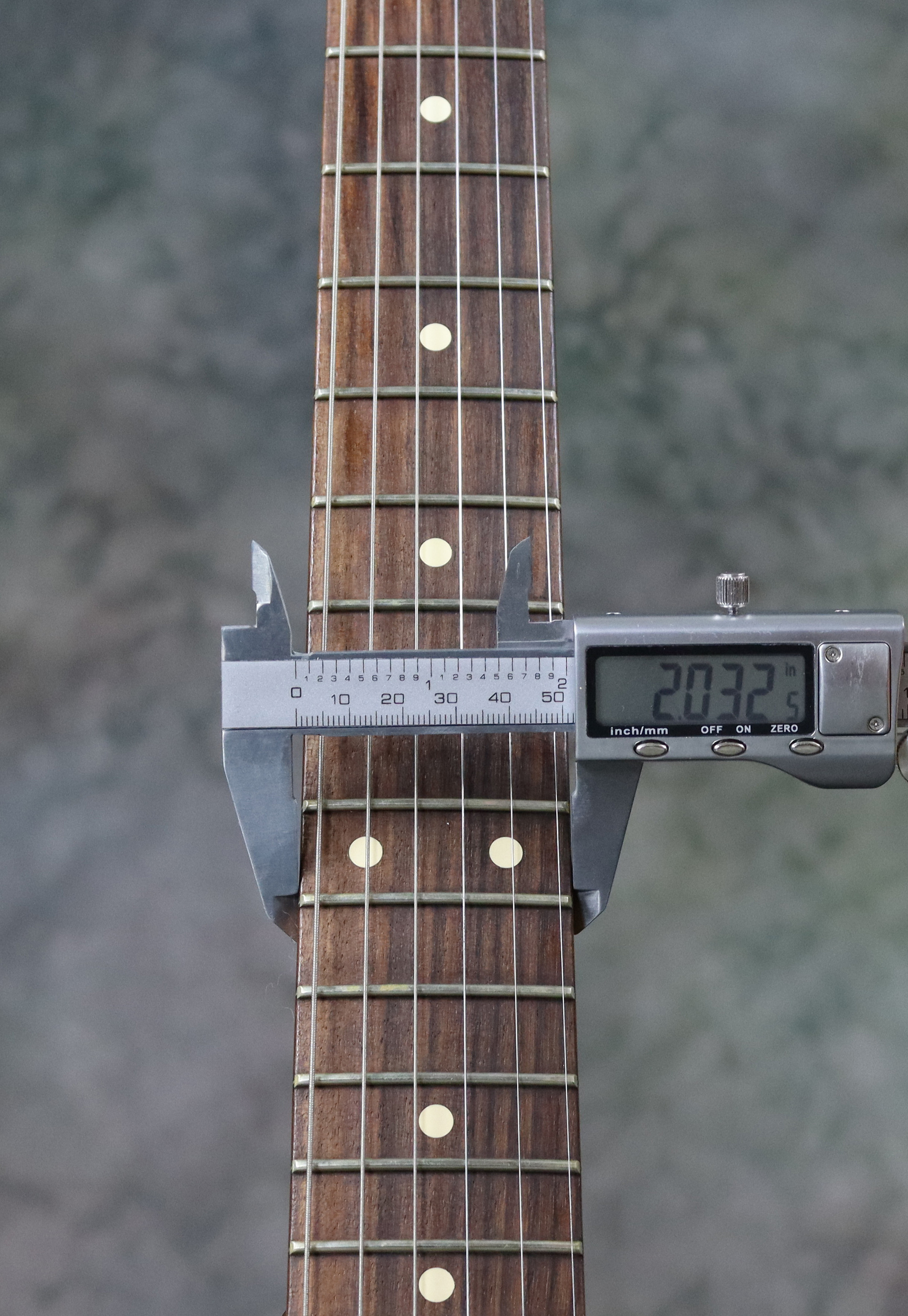

Neck Width	1.695” at 1st fret / 2.032” at 12th fret
Neck Depth	0.840" at 1st fret / 0.970" at 12th fret
Fingerboard Inlays	Pearloid White Dot
Neck Binding	No
Side Dots	White
Neck Joint	Bolt-on

hardware

Bridge / Tremolo	Chrome, American vintage synchronized tremolo, open, with (max) 5-springs
String Tree	Nickel, T-Tree (Extended spacing from Nut)

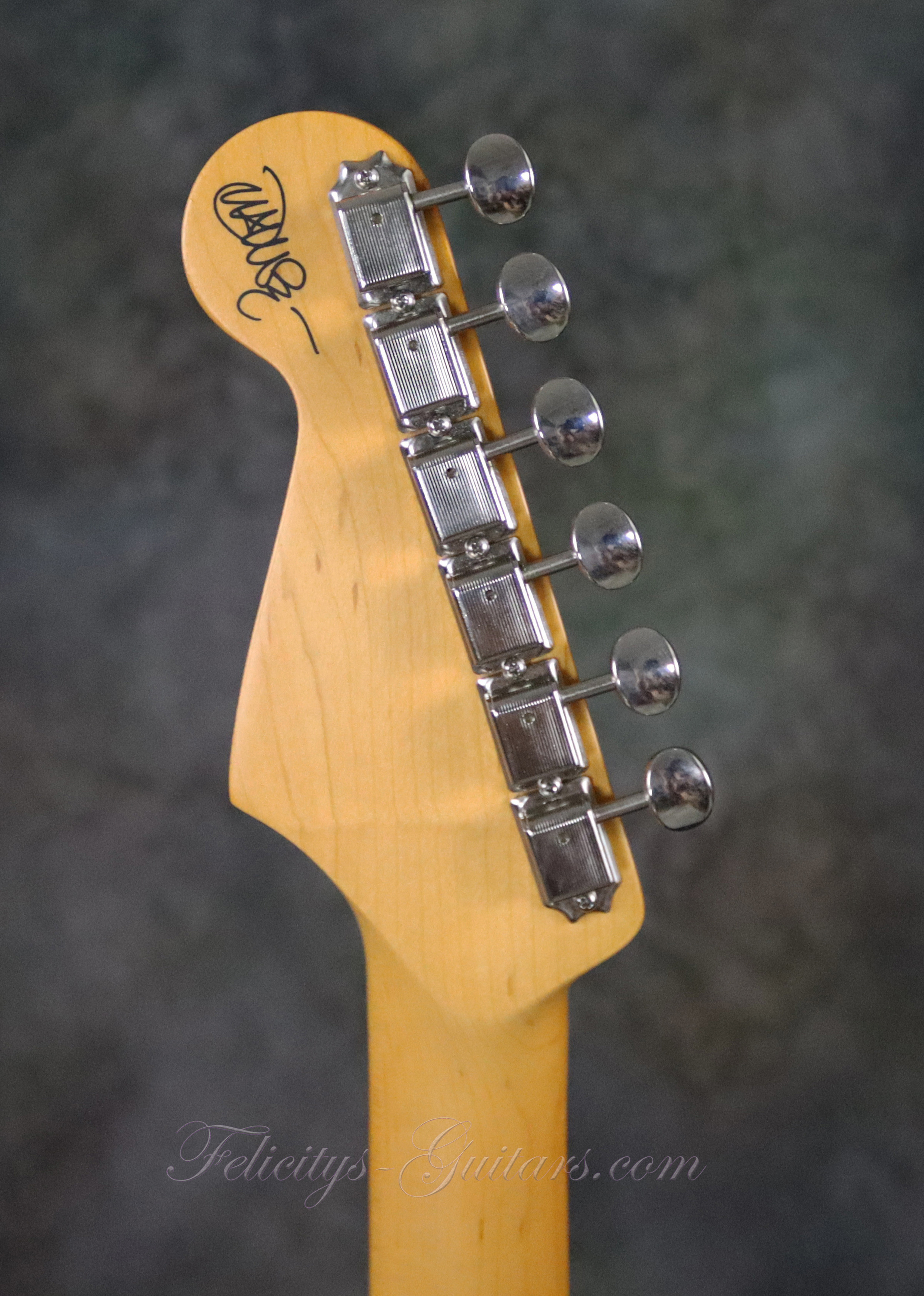

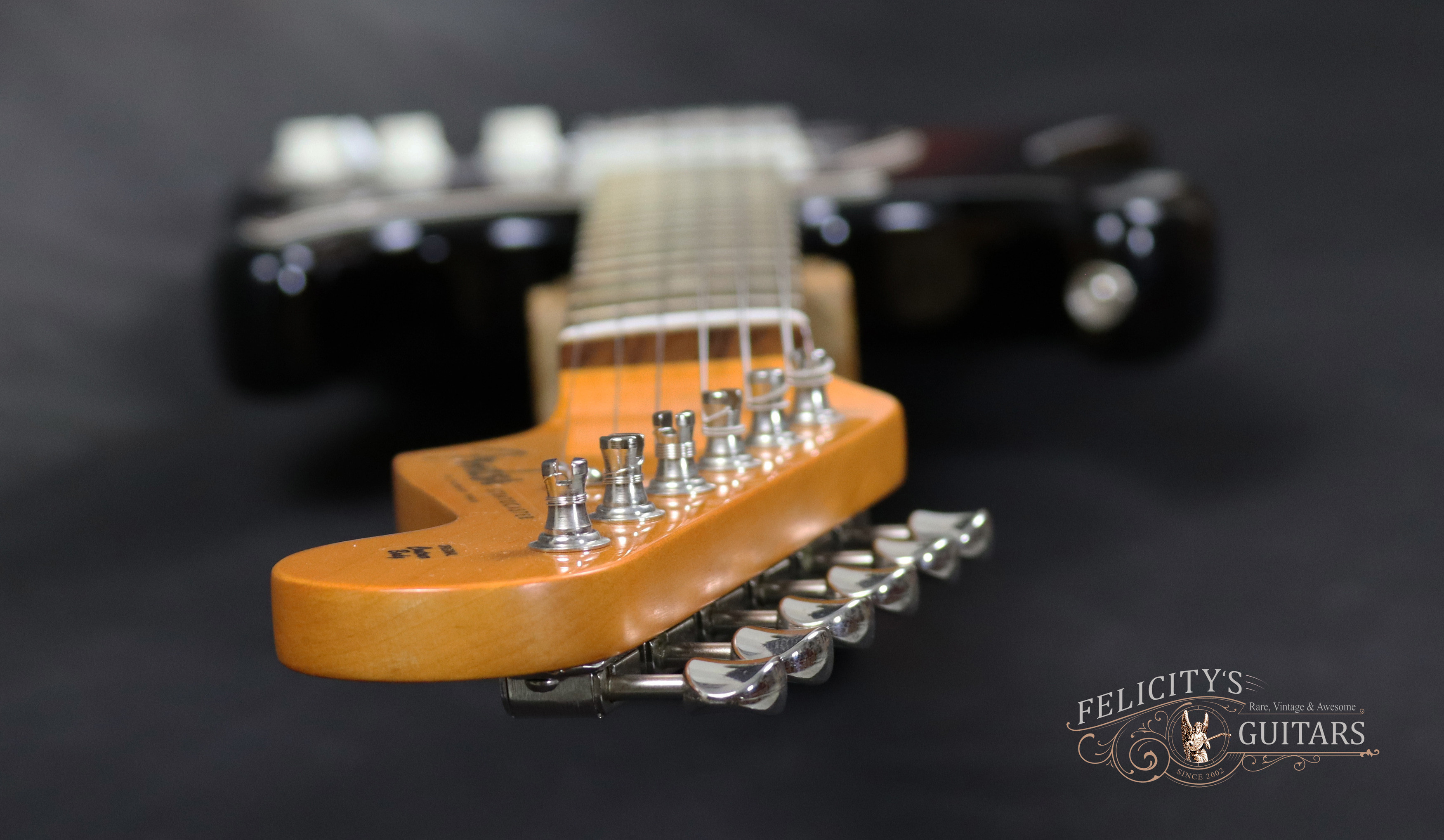

Tuning Machines	Chrome, Fender® Gotoh® 6-in-Line American Vintage Cast/Sealed, 14:01 Ratio

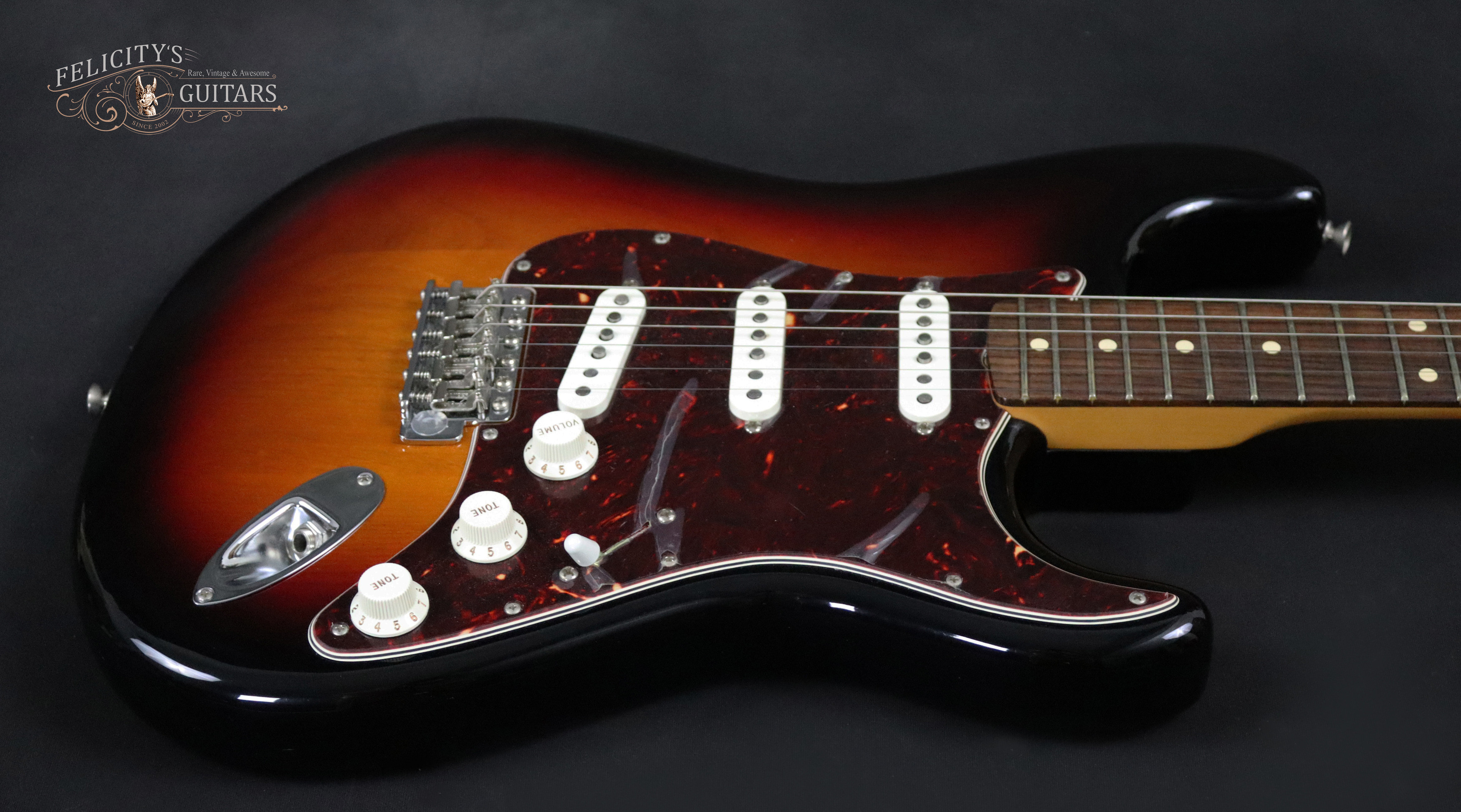

Pickup Cover / Ring	White Plastic, Exposed Pole, Pickguard-mounted SSS configuration / no Rings
Strap Buttons	Polished Aluminum End Pins
Pickguard	4-ply Tortoise, 11-hole modern config, shielded (plastic covered)
Control Knobs	White Plastic Strat™ Knobs with no Dial Pointers
Switch	White Plastic Blade Tip

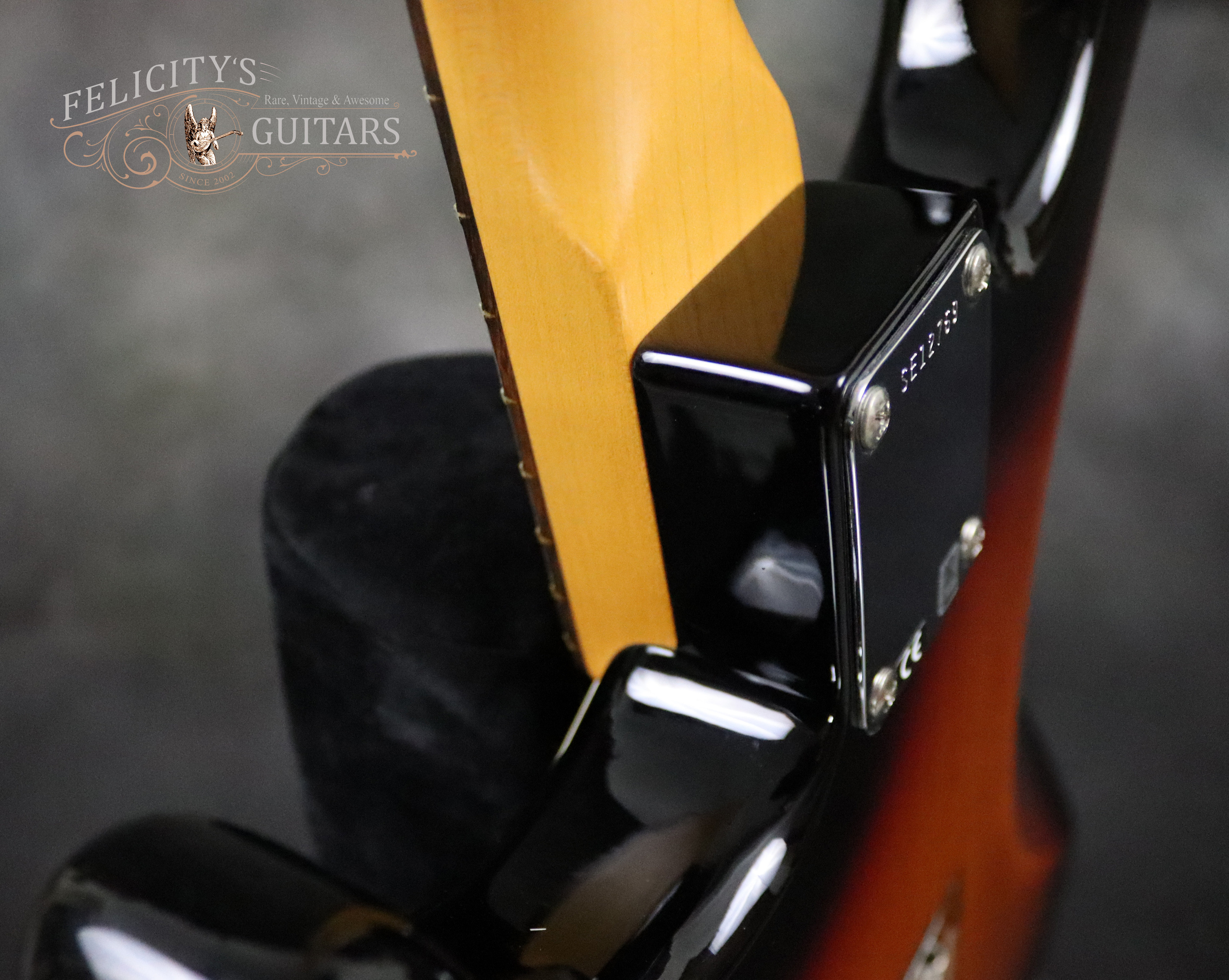

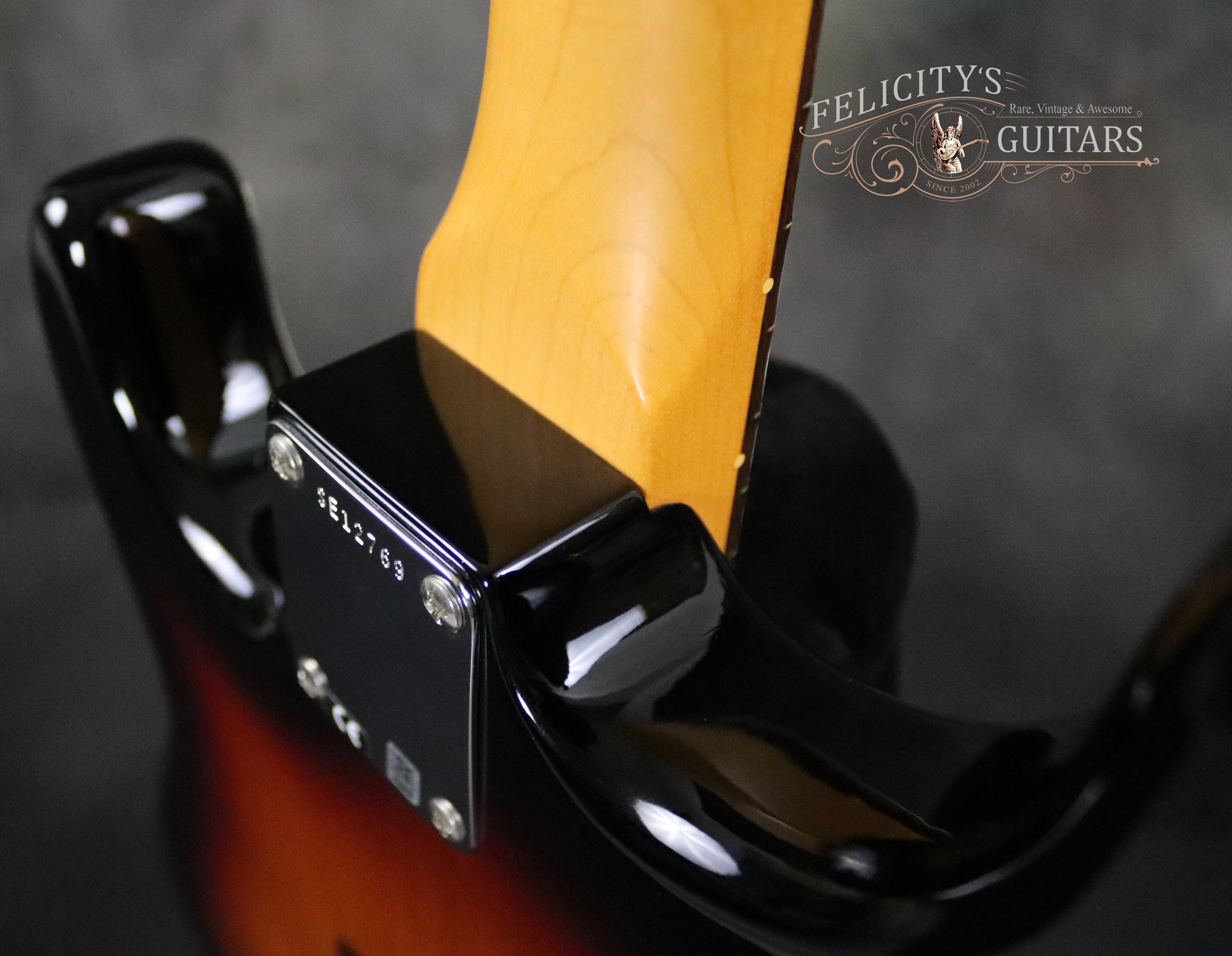

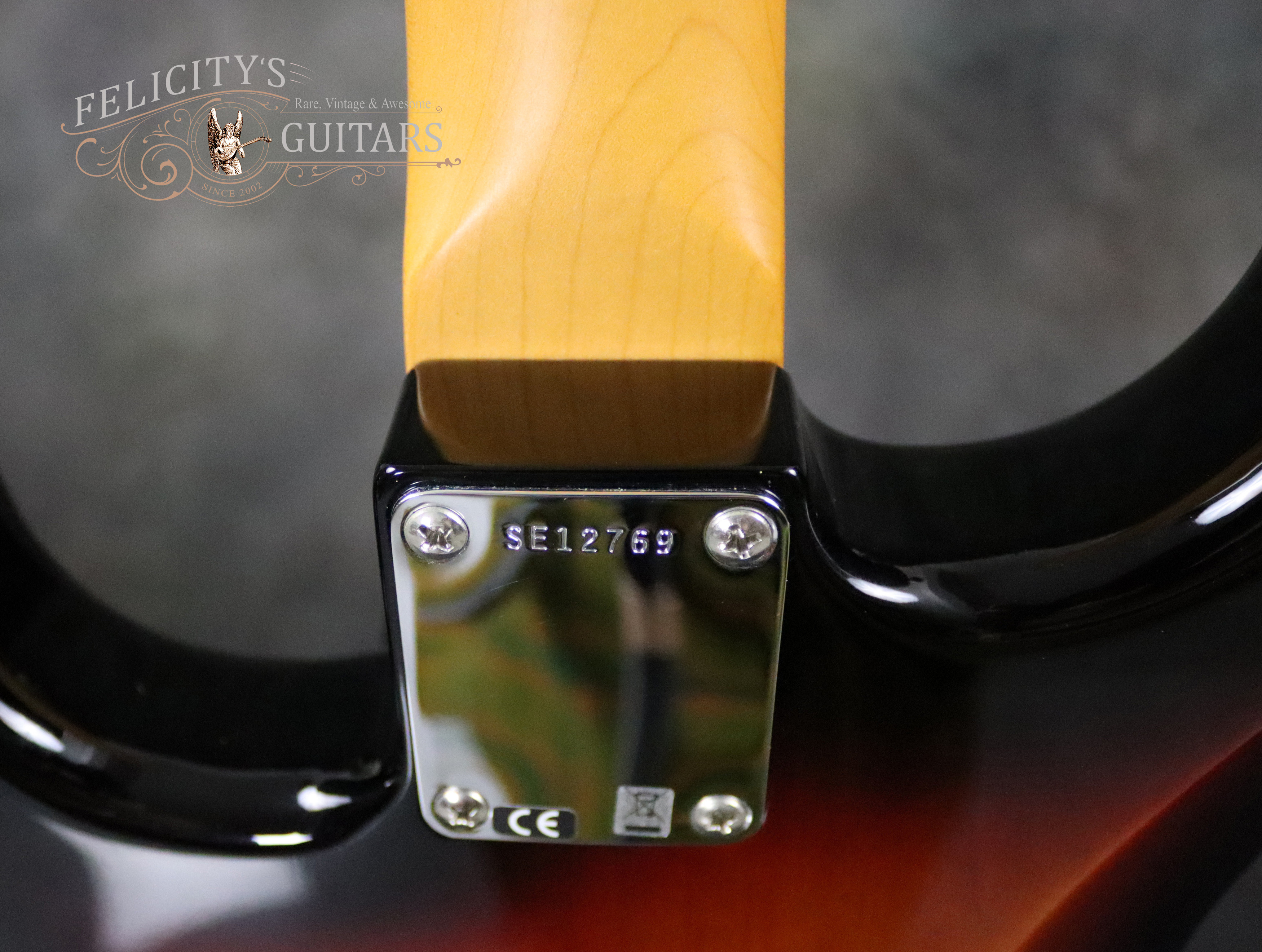

Neck Plate	Chrome, 4-bolt with Stamped Serial Number

electronics

Bridge Pickup	Fender® Big Dipper™ Stratocaster Single Coil, Alnico V, DCR 7.75k
Middle Pickup	Fender® Big Dipper™ Stratocaster Single Coil, Alnico V, DCR 6.41k
Neck Pickup	Fender® Big Dipper™ Stratocaster Single Coil, Alnico V, DCR 5.80k
Active / Passive	Passive
Series / Parallel	Series
Controls	1 Volume, 2 Tone, 5-position Blade Pickup Selector
Vol Potentiometer	250k
Tone Potentiometers	250k
Capacitor / Resistor	.22uF
Harness	Standard pickguard-mounted Strat™ Wiring
S-1 Switch	No
Greasebucket T-Circuit	No
MDX/TBX Circuit	No
Active Electronics	No
Piezo	No
Kill Switch	No
Output Jack	Switchcraft™ 1/4" 2-Conductor Mono

miscellaneous

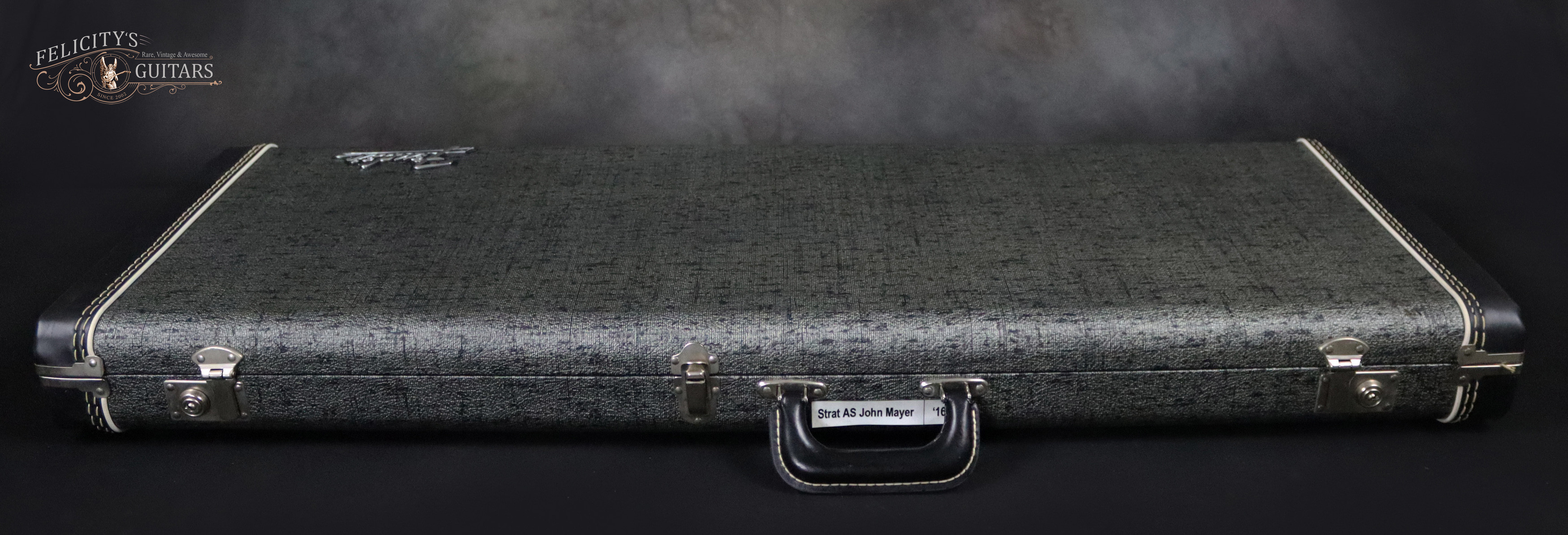

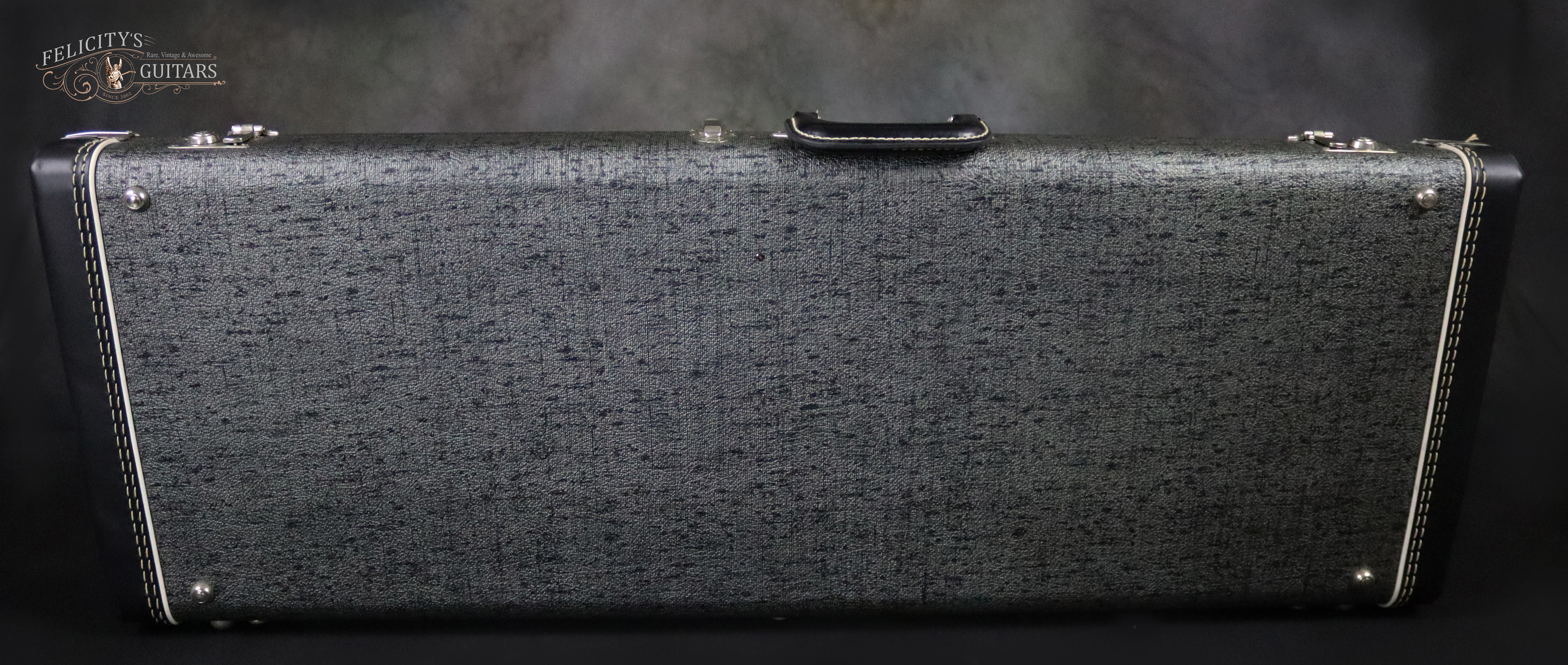

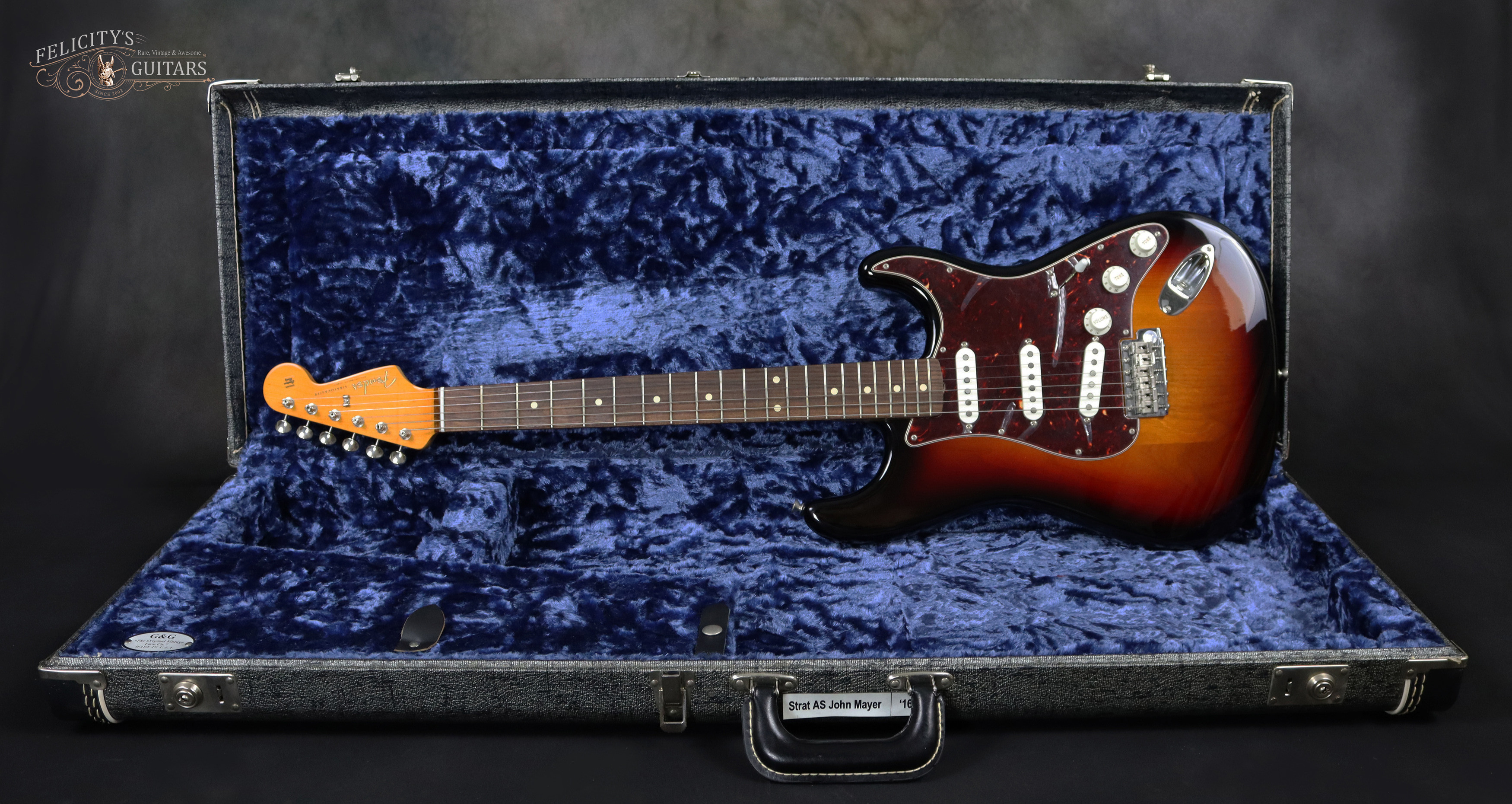

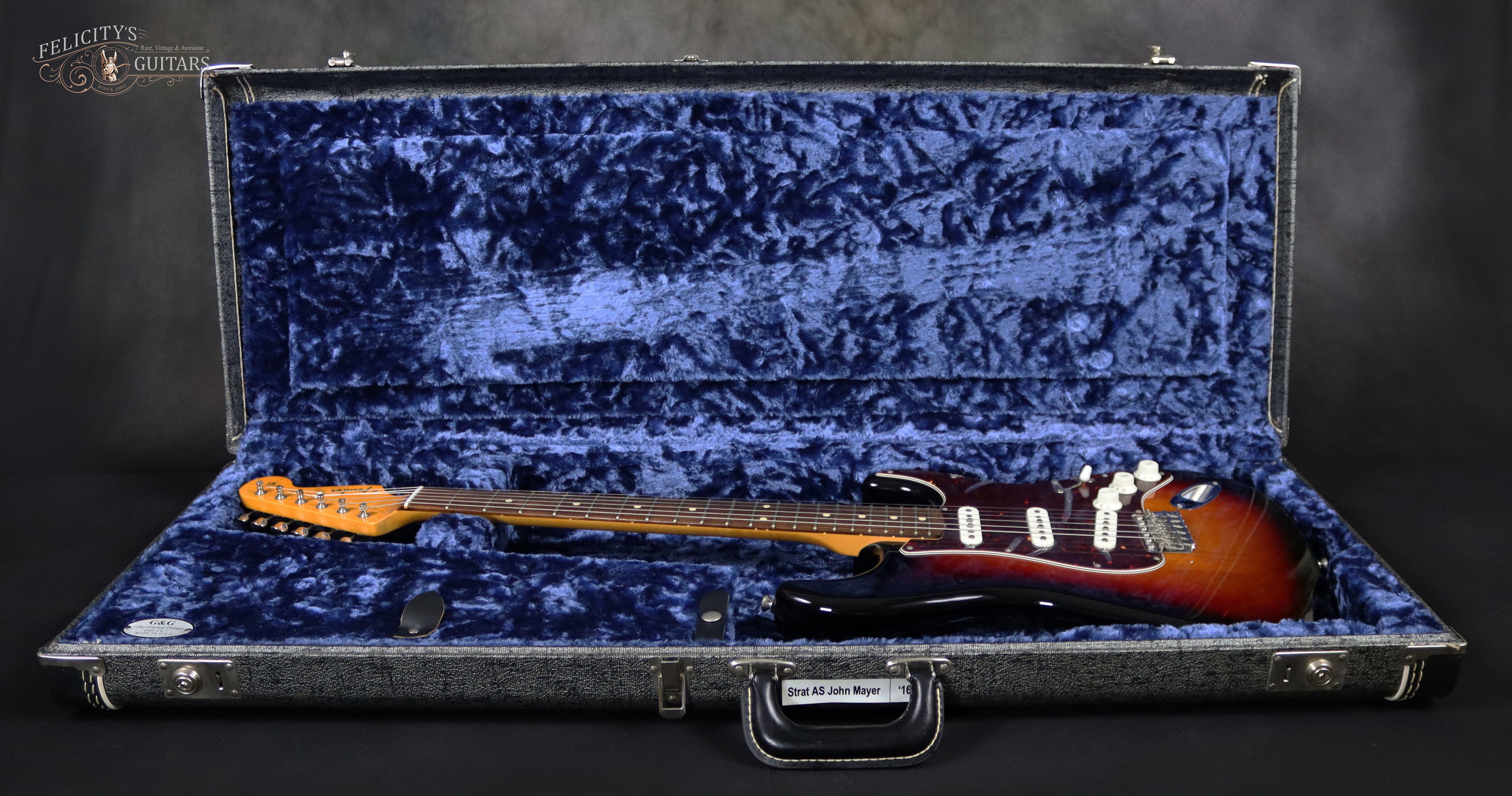

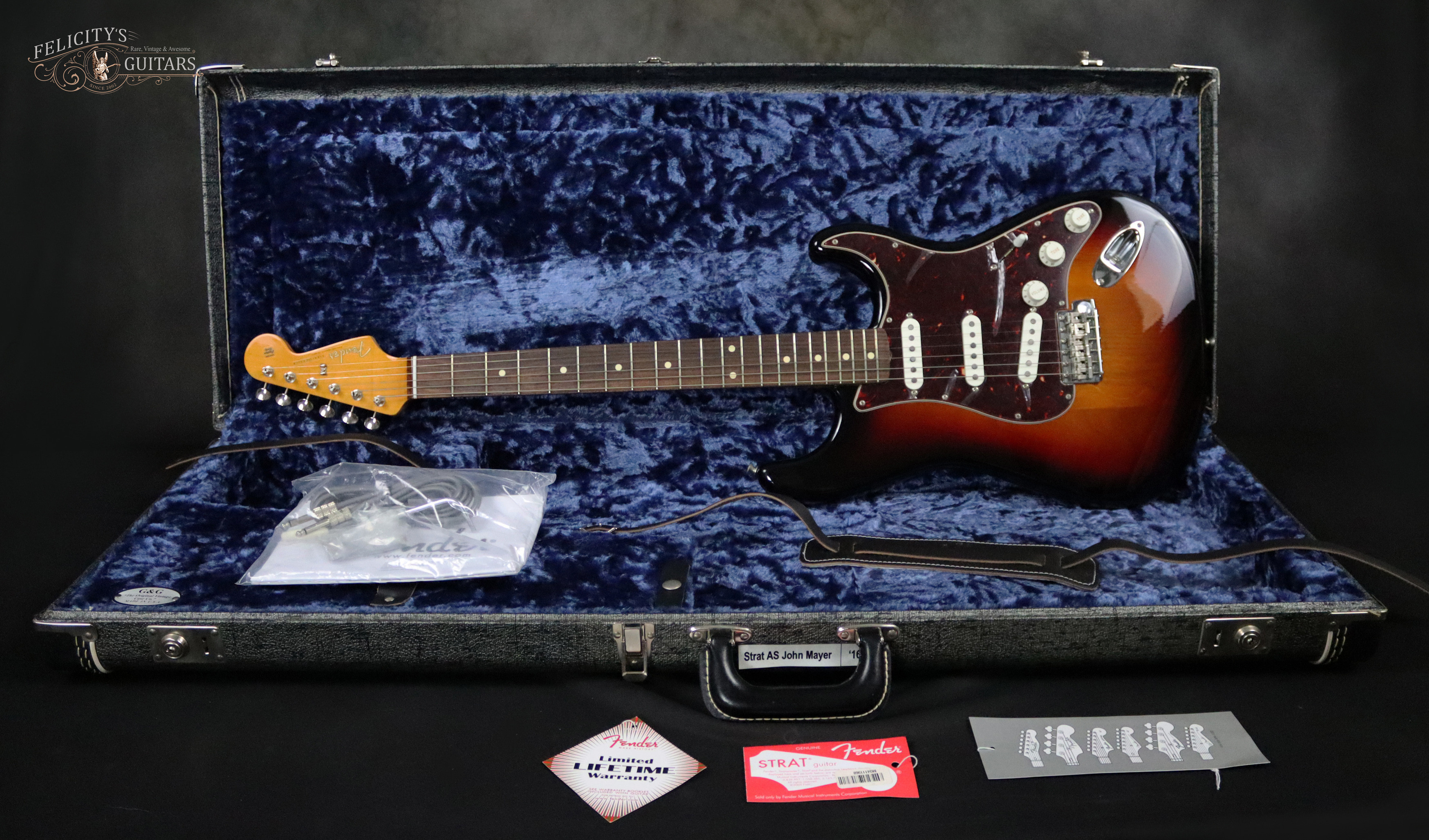

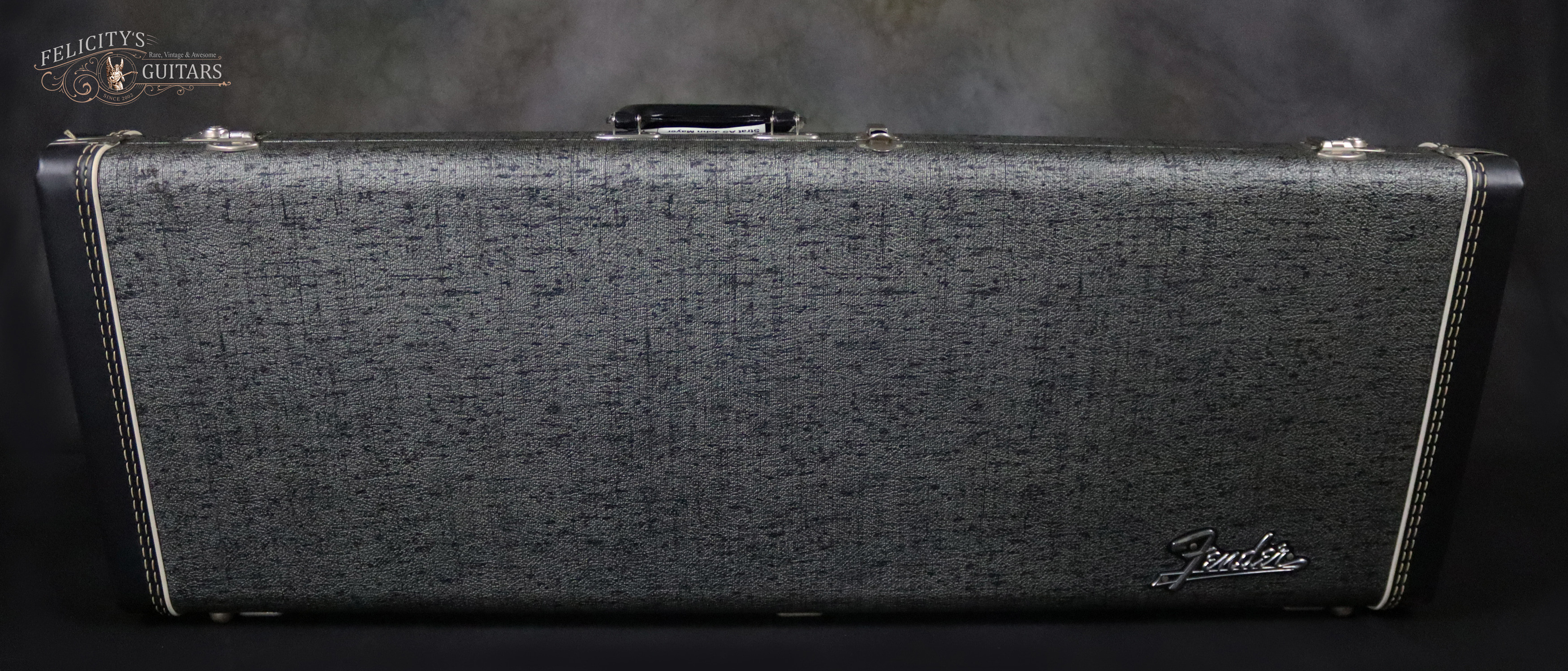

Case / Gigbag	Fender® U.S.A. G&G Vintage Style Hardshell Case, Grey with plush Royal Blue interior
Strap Locks	No
Strings	Fender® U.S.A. 250R Nickel Plated Steel (.010-.046 Gauges)
Tools / Accessories	Hex Wrench for Saddles / Chrome Bridge Cover, Gig Bag, Guitar Strap, Cable, Case Keys
Manual / Literature	Fender® U.S.A. Owner’s Manual, Ltd Lifetime Warranty, all factory-shipped Hang Tags
C.O.A.	No
Other	No
Weight	Is the actual weighed-value in US Standard Units

Disclosure	Some technical Specs may have been extracted from Fender® U.S.A. and/or internet archives. The words Fender® / Gotoh® and the associated designs are registered trademarks of the Fender Musical Instruments Corporation and the other named entities, if any, respectively

Thanks for looking !
