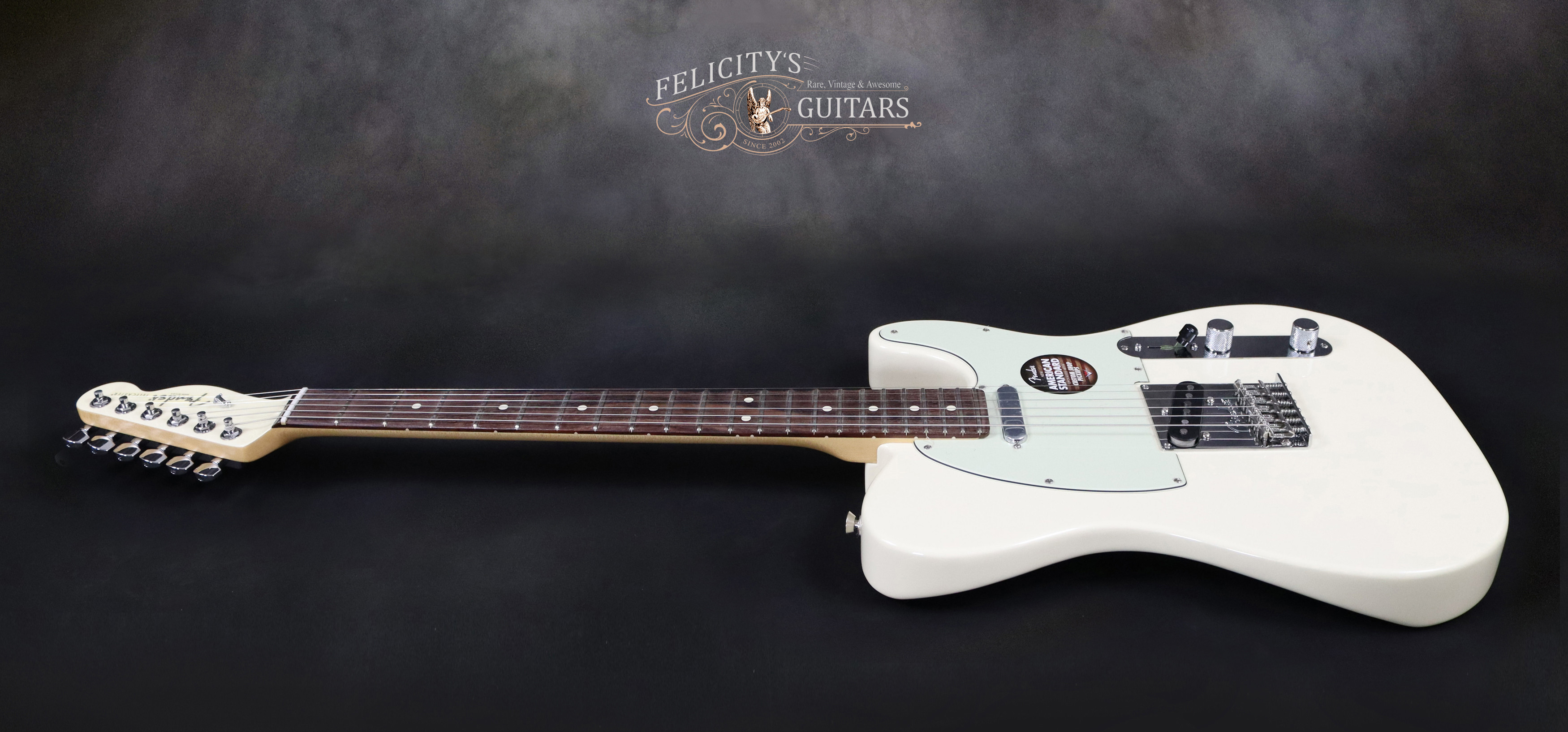

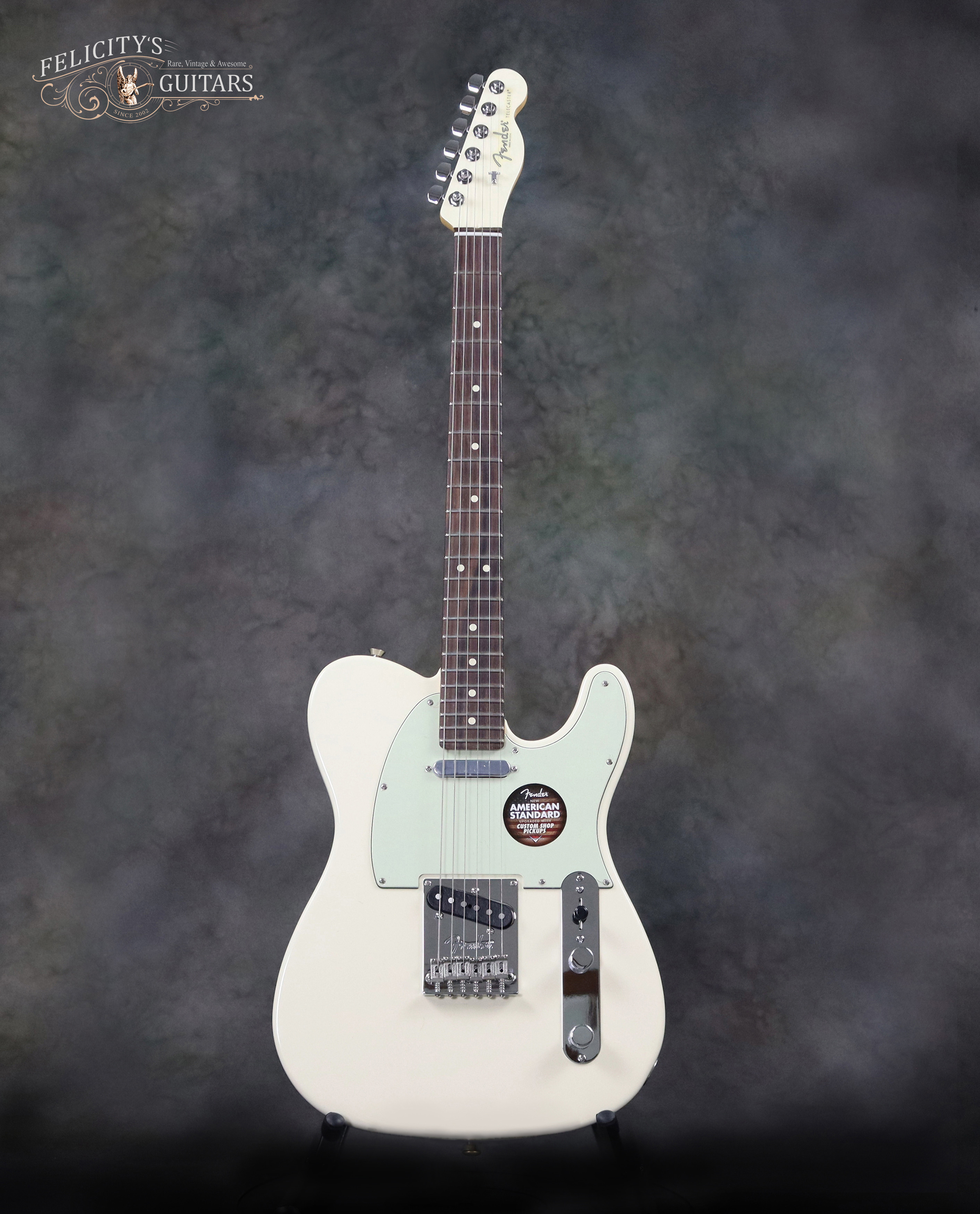

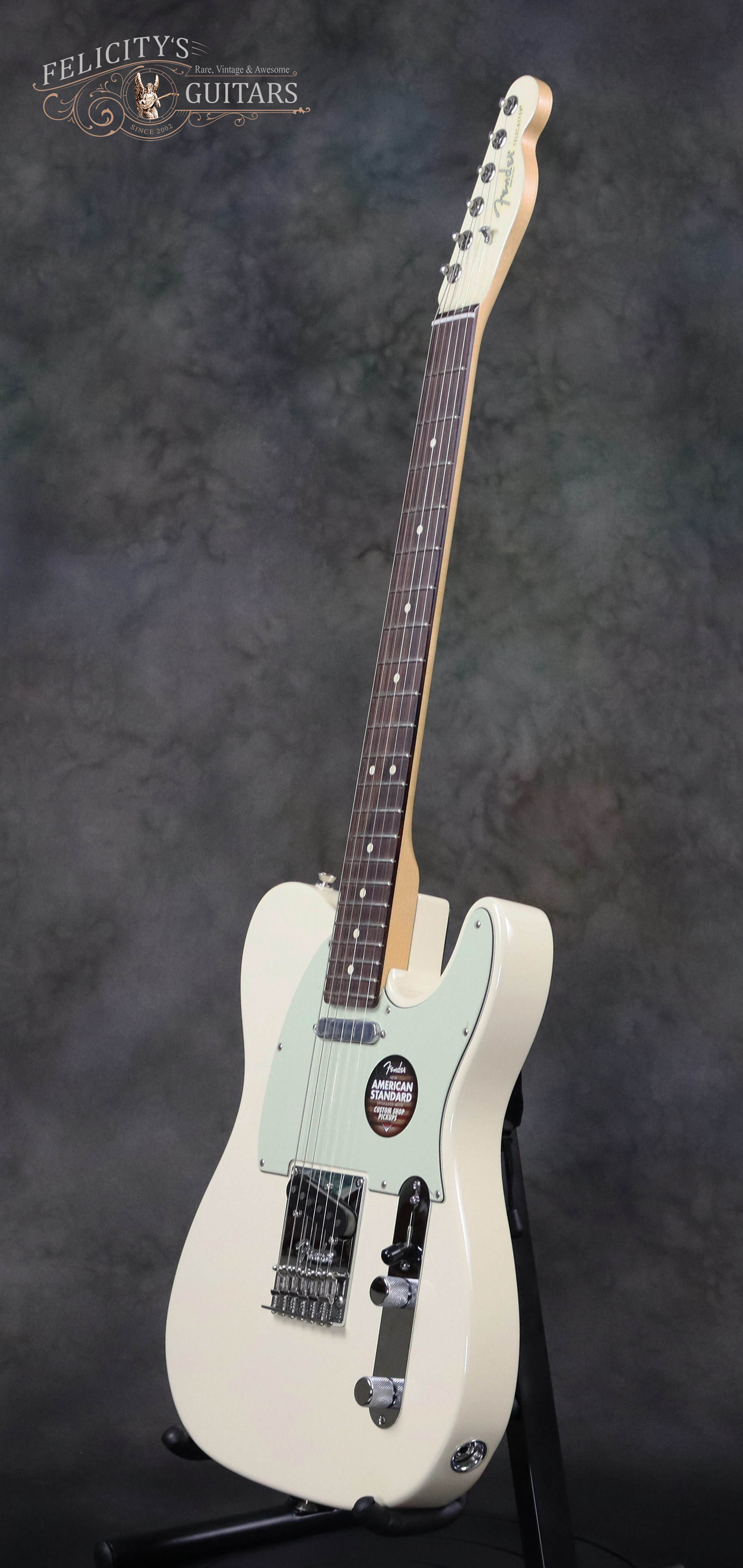

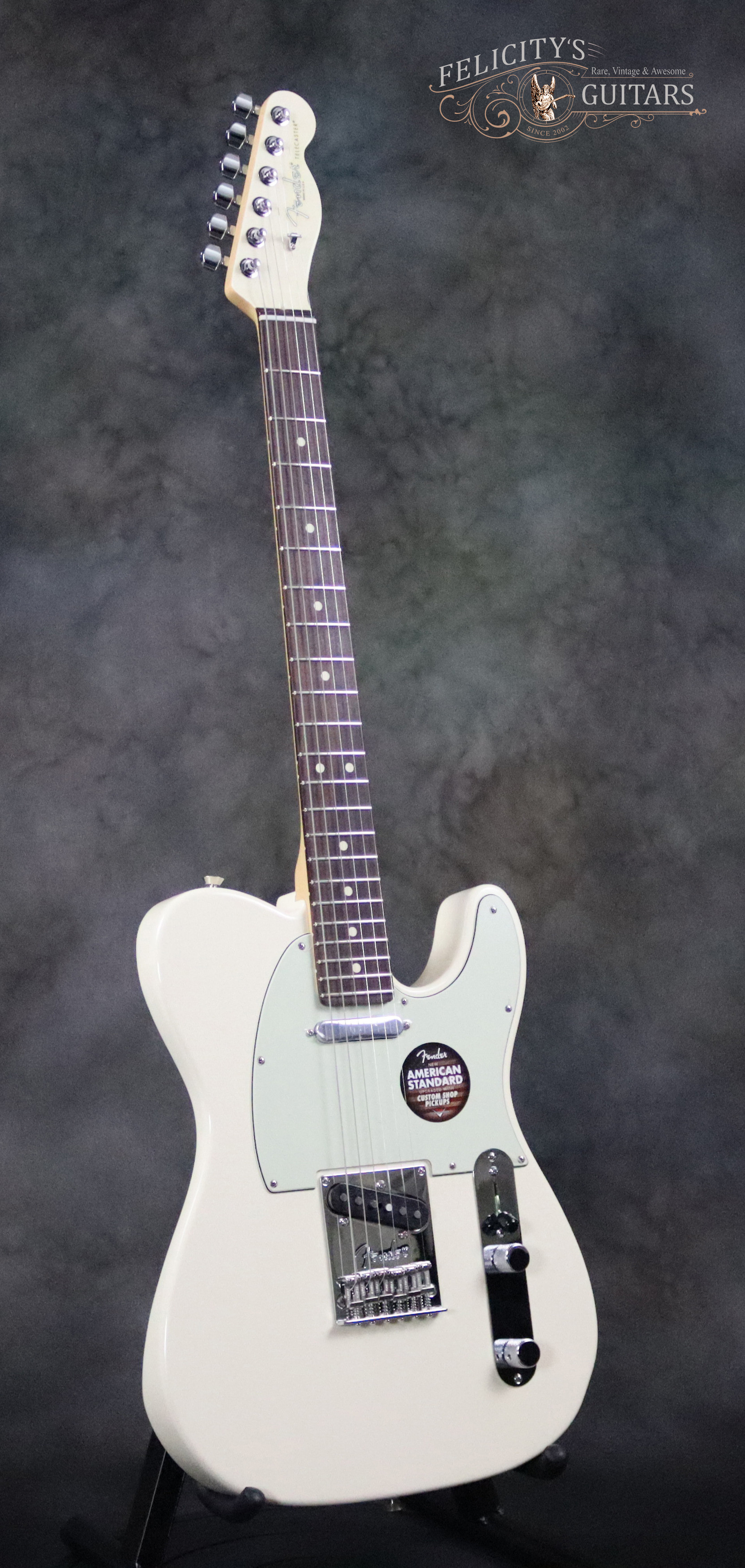

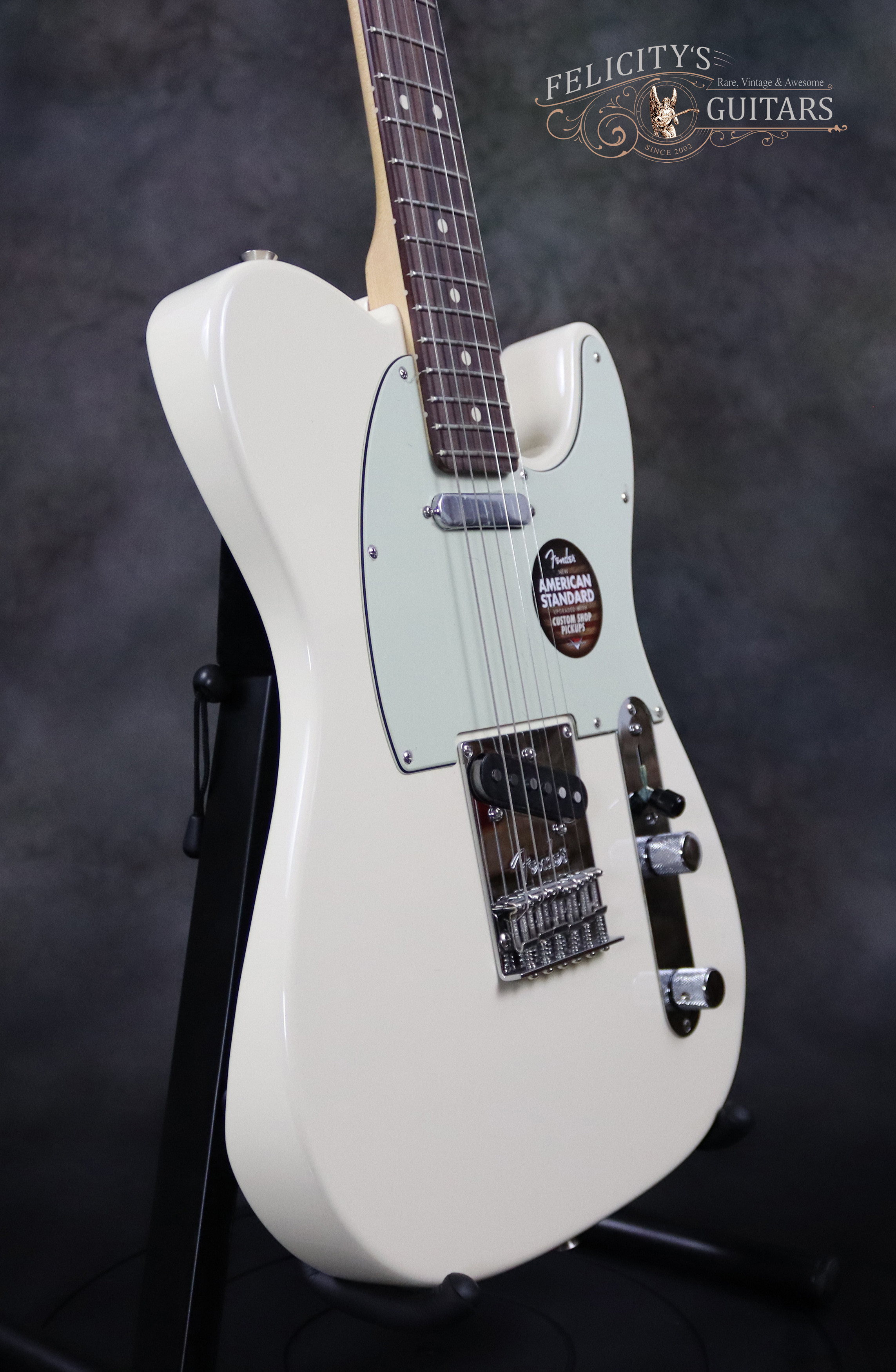

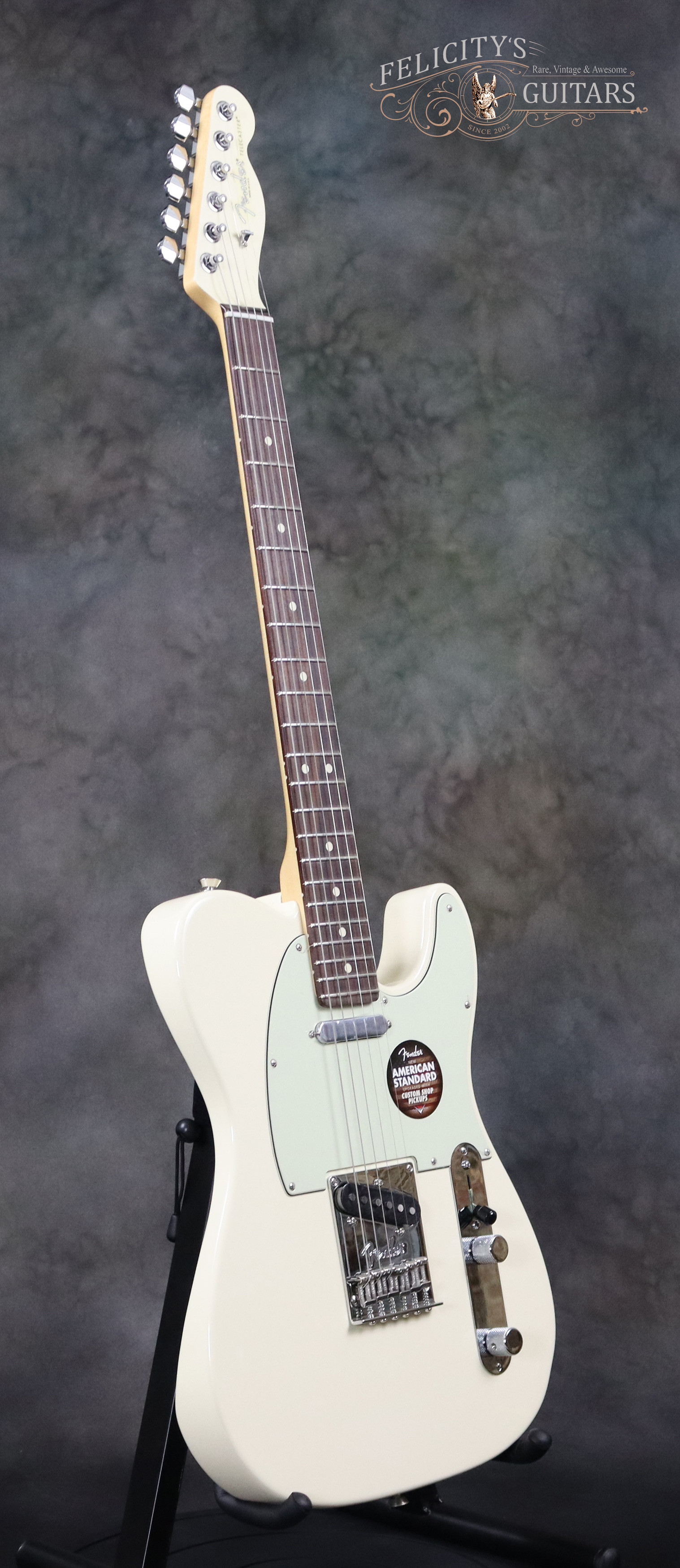

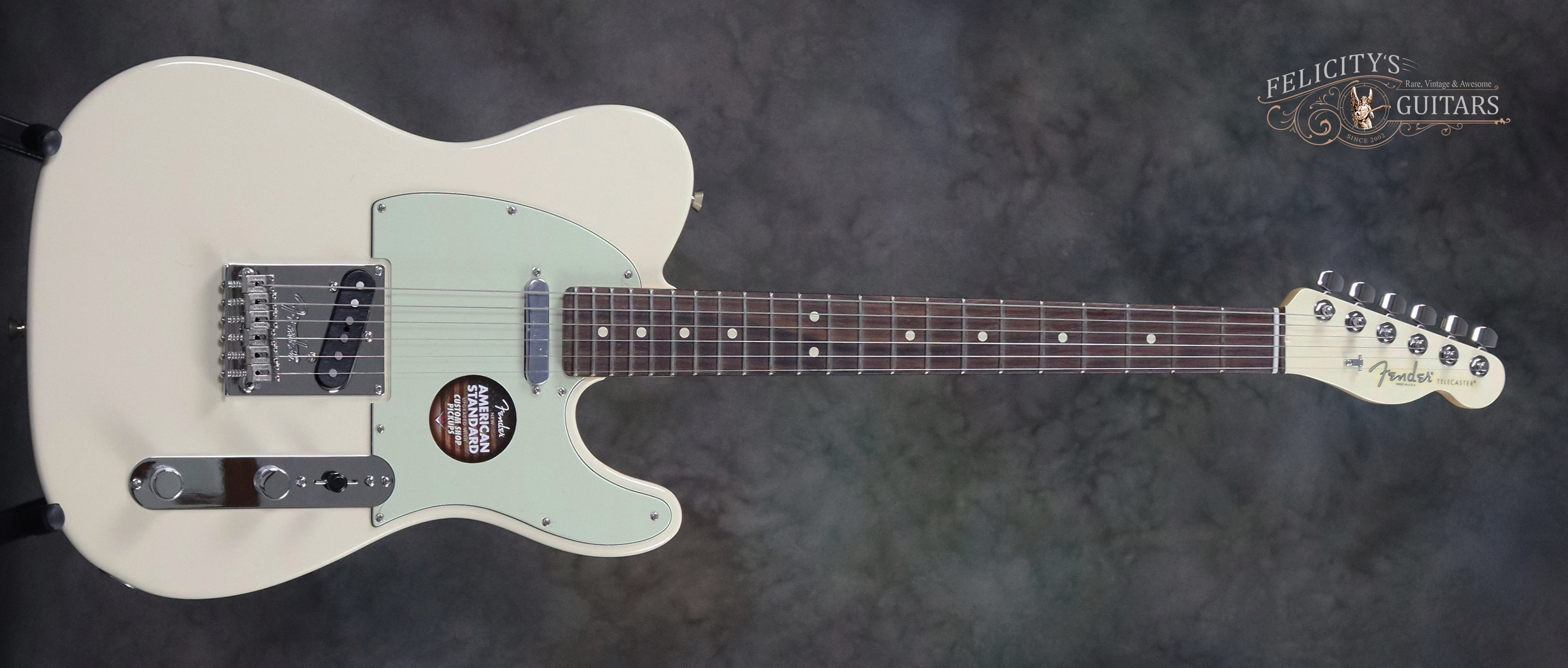

2016 FENDER TELECASTER AMERICAN STANDARD LTD ED IN OLYMPIC WHITE FINISH

The American Standard series embodies the spirit of Fender in its full glory.

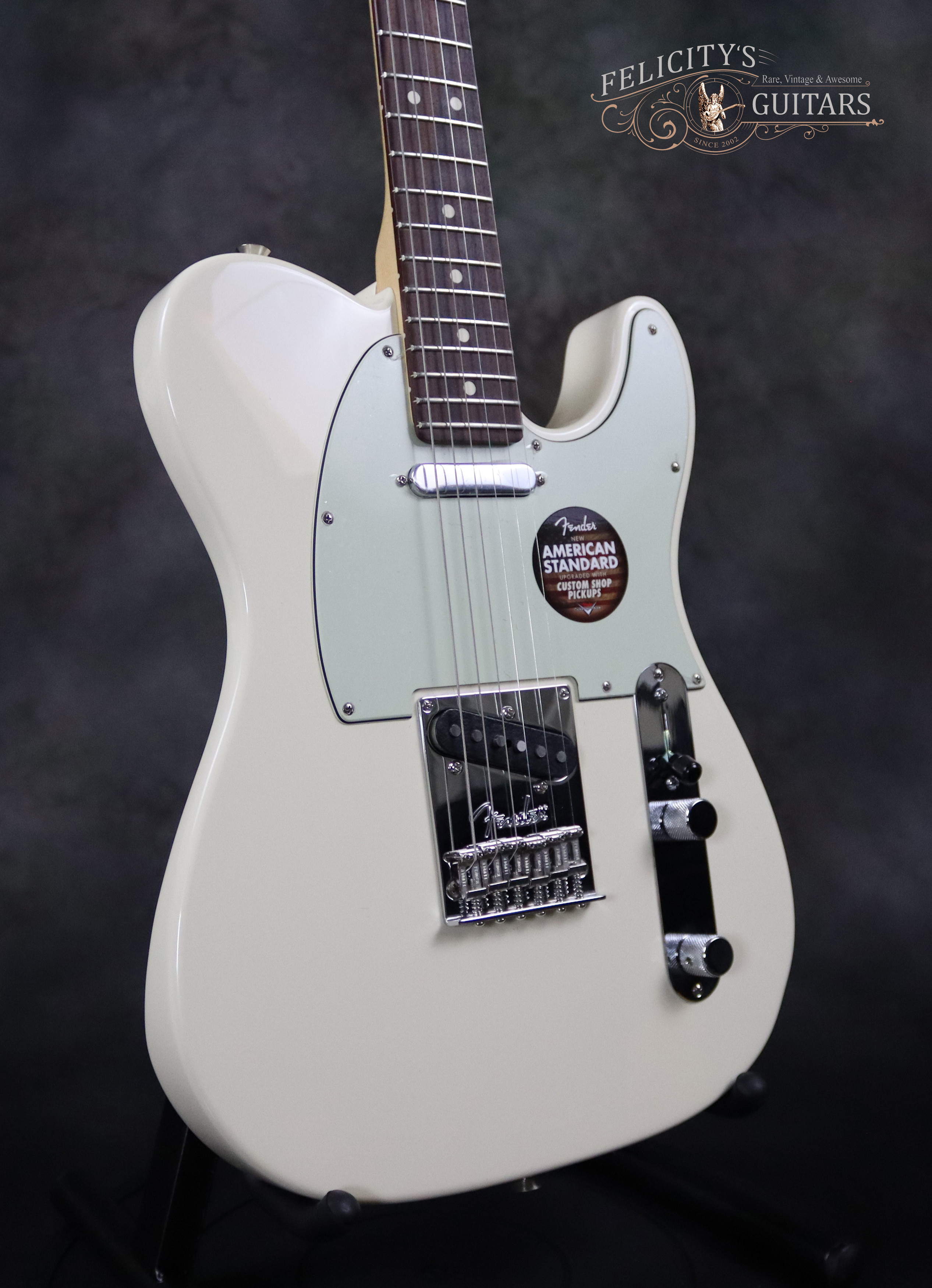

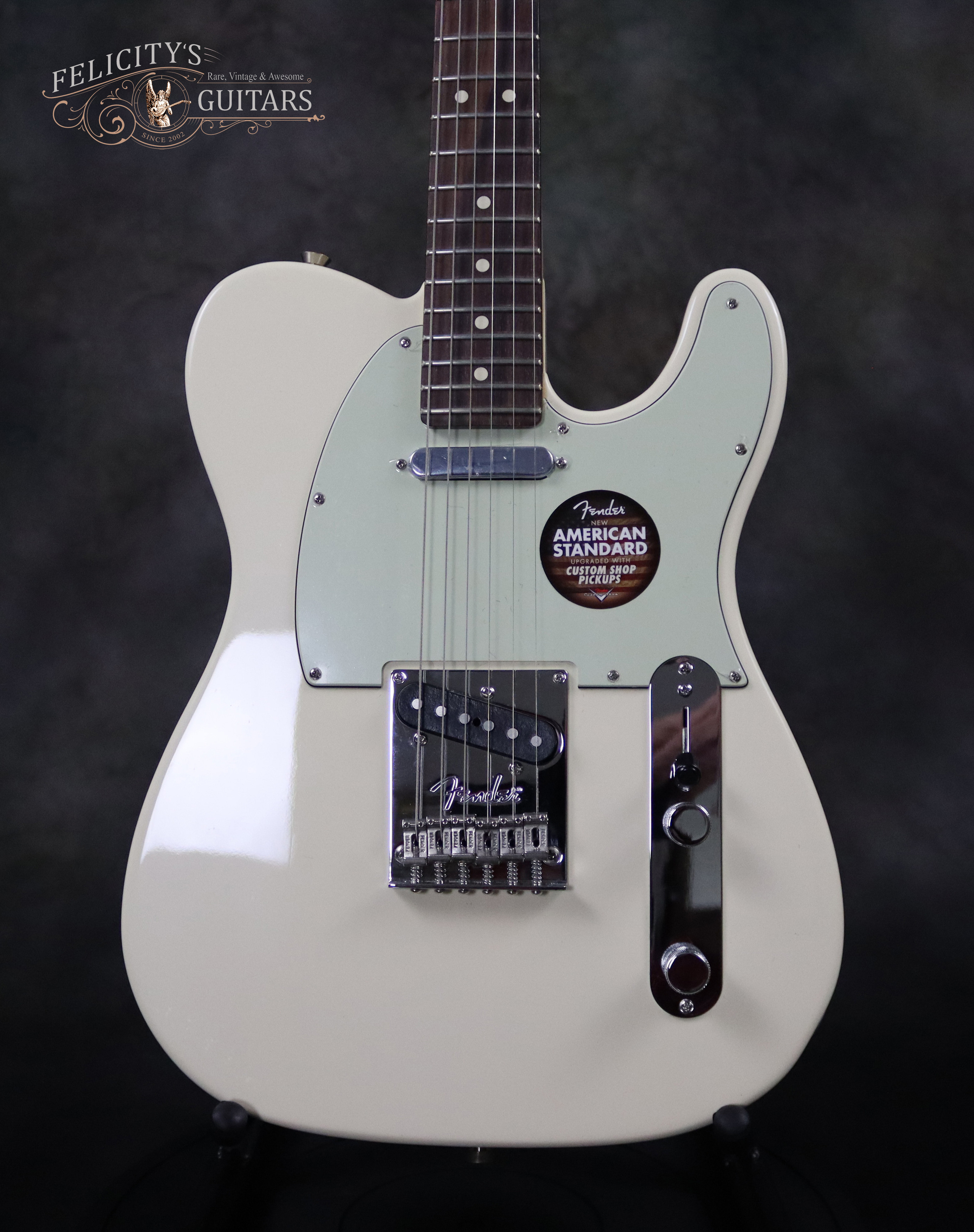

The 2016 Limited Edition American Standard Telecaster is one of the latest limited edition models introduced into the Fender catalog. It features top shelf materials, some of the finest pieces of Fender hardware and iconic Fender® Custom Shop Vintage ’58 pickups and Limited Edition matching Olympic White Headstock.
 

The 2016 Limited Edition American Standard Telecaster at a glance:

  • Uncommon and attractive looks provided by the Olympic white color scheme and matching white headstock make this guitar stand out

  • Maple Neck with C profile, 22 medium jumbo frets and rosewood fingerboard

  • Upgraded Fender® Custom Shop American Vintage `58 Single-Coil Tele pickups; produce a warm prominent midrange with tight, focused bass

  • Fender® U.S.A. Deluxe form-fit molded case with plush padded Interior

2016-Fender-Tele-American-Std-Olympic-White

USD 1,000,000

Add to Cart

Shipping will be calculated at check out

description

Key features include: flat-top alder body, bolt-on maple neck with C profile, 22-fret rosewood fingerboard (medium jumbo frets, dot inlays, and 1.685" nut), modern Tele bridge and Fender tuning machines. American Vintage `58 Single-Coil Tele pickups replace the stock American Standard single-coils, delivering that classic late 50`s tone.


The Olympic White color scheme with gloss polyurethane finish and matching headstock is a top-of-the-line limited color option. Fender U.S.A. Deluxe form-fit molded case is included.


This guitar is in brand new and unplayed condition the same as when it left the factory. You can be the first person to play this awesome Limited Edition Tele!

Specifications

General

Condition

Brand New (NOS)

Number of Strings

6

Orientation

Right-handed

Country of Origin

U.S.A.

Year

2016

Limited Edition / Series

Yes

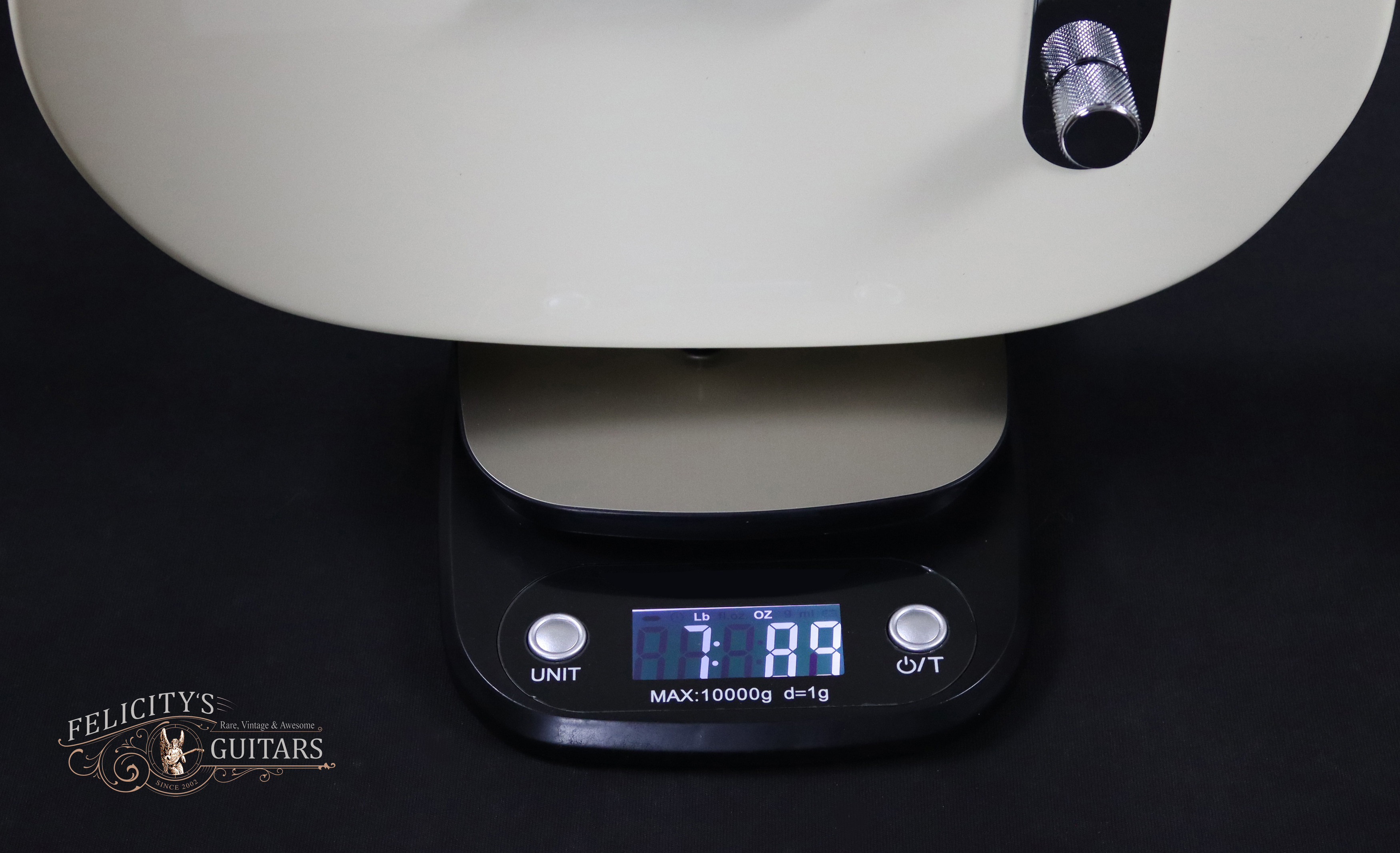

Weight

7-lbs 8.9-oz

body

Body Type

Solidbody, String-through

Body Shape

Singlecut Tele-Style

Body Material

2-pc  Alder

Body Carve

Front: Flat

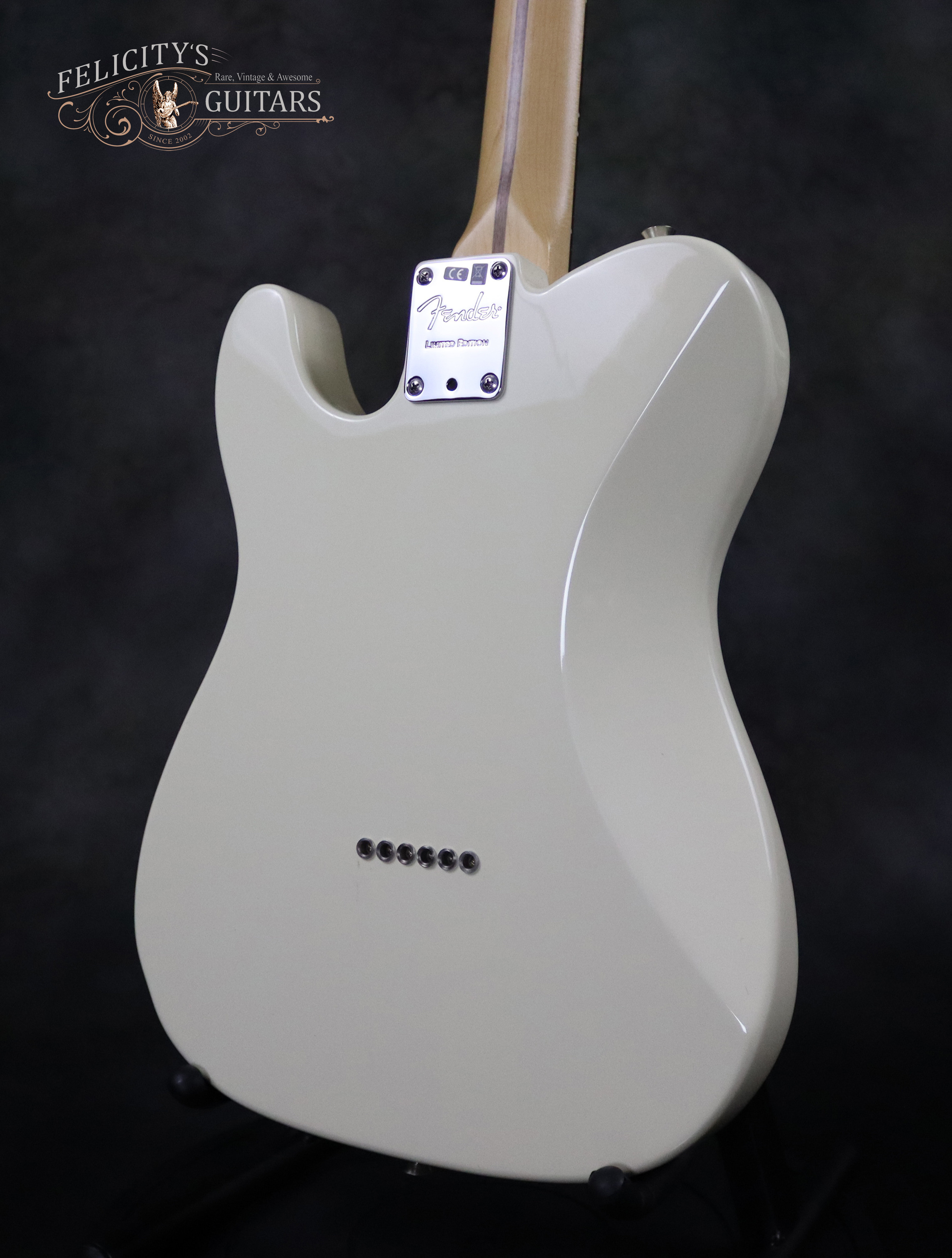

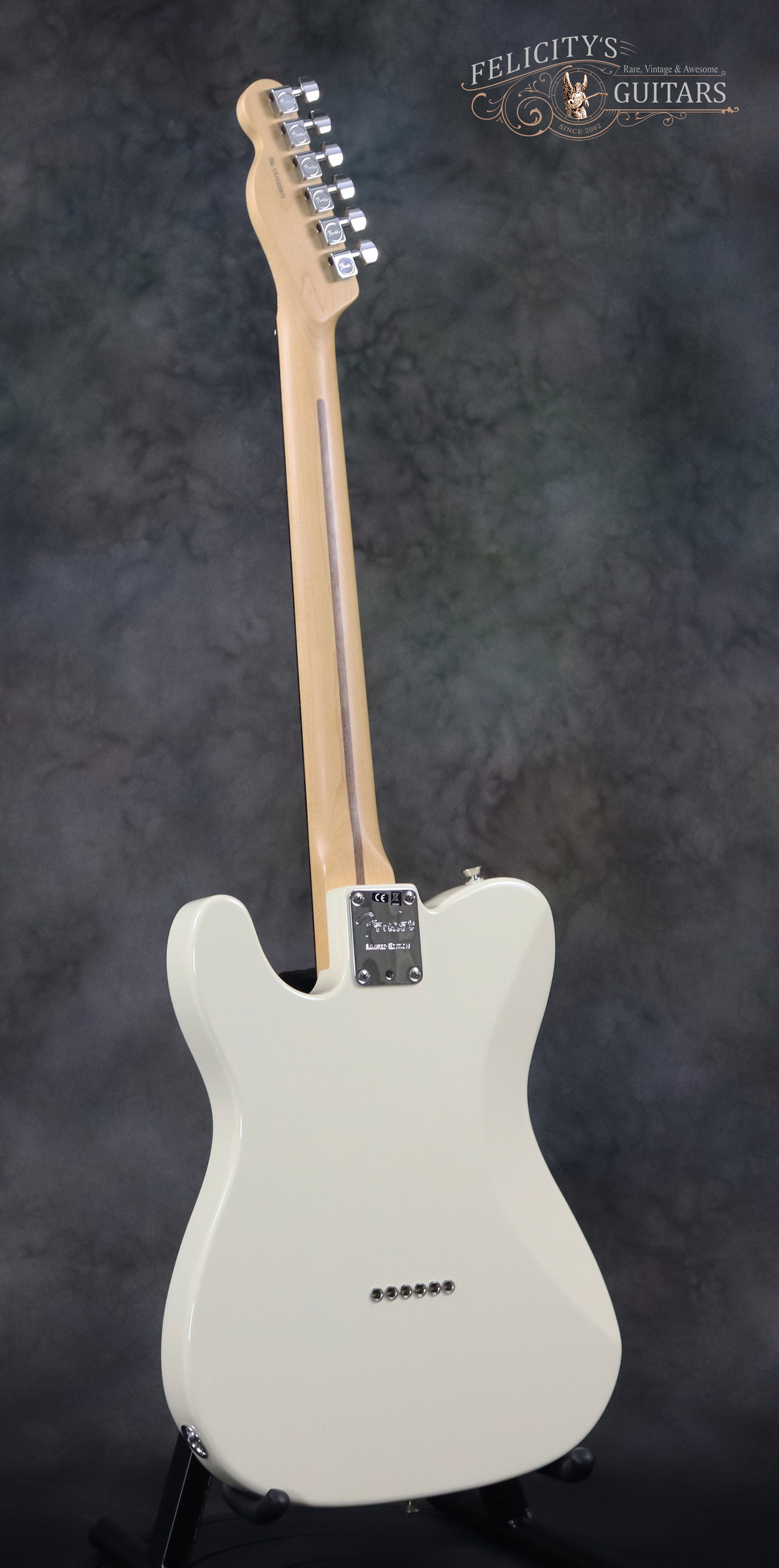

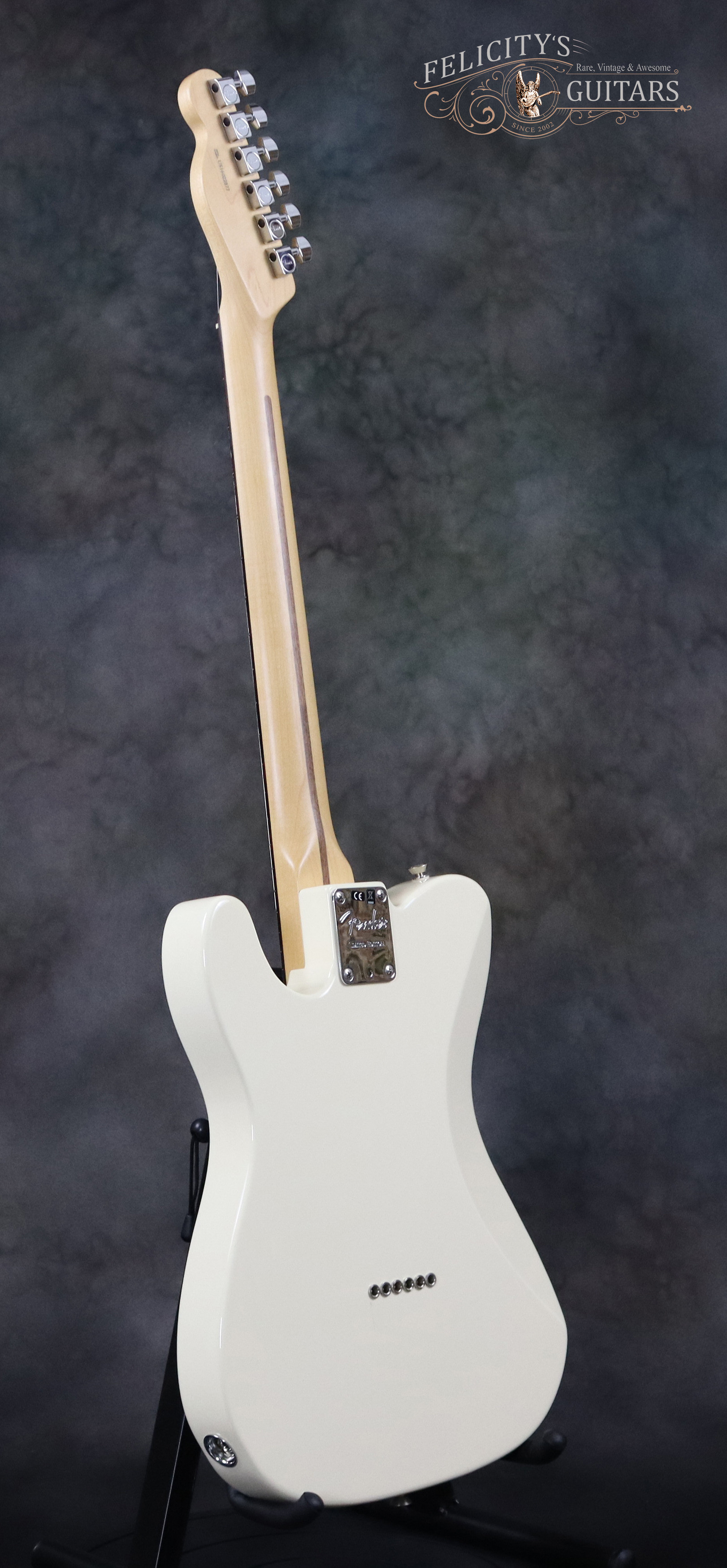

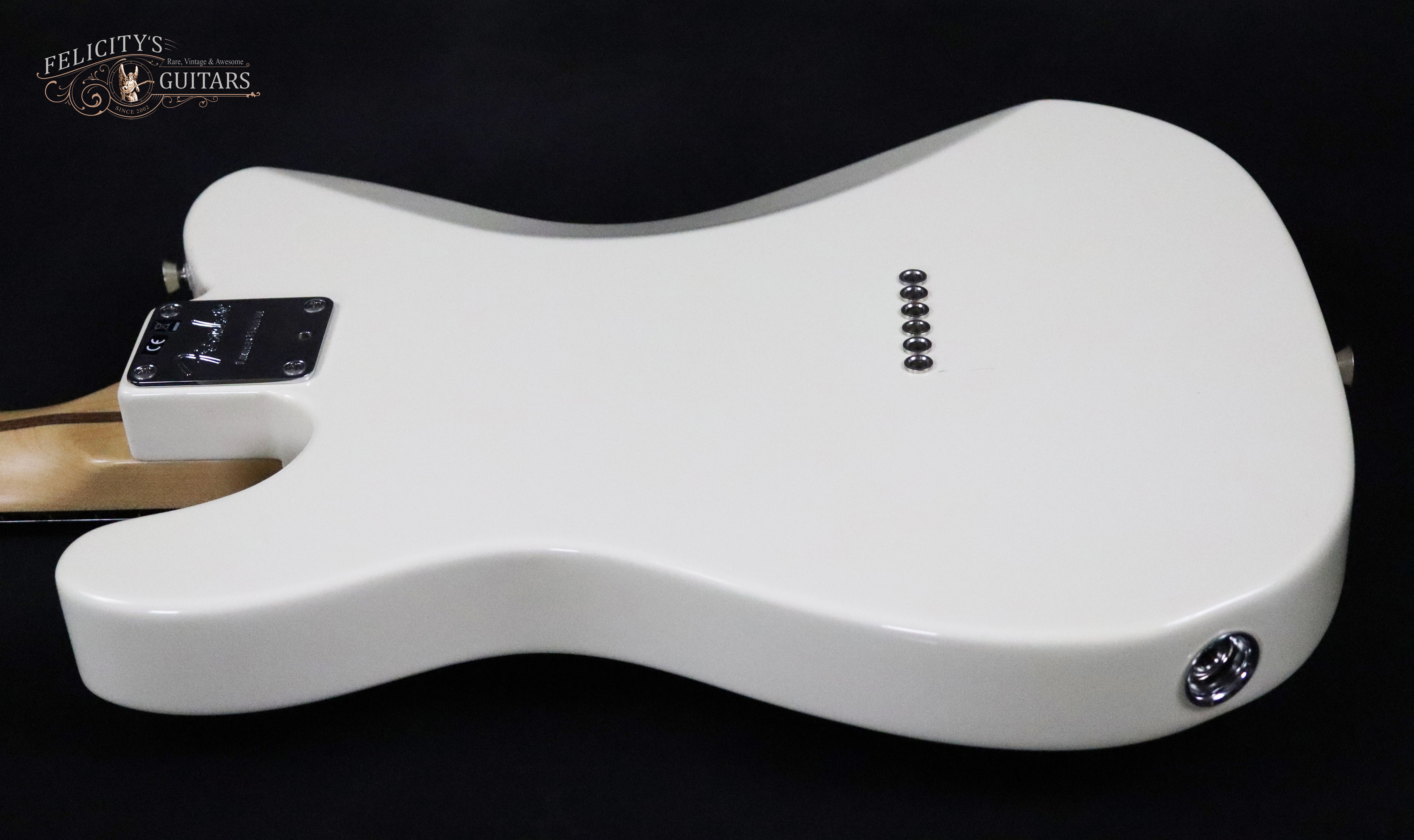

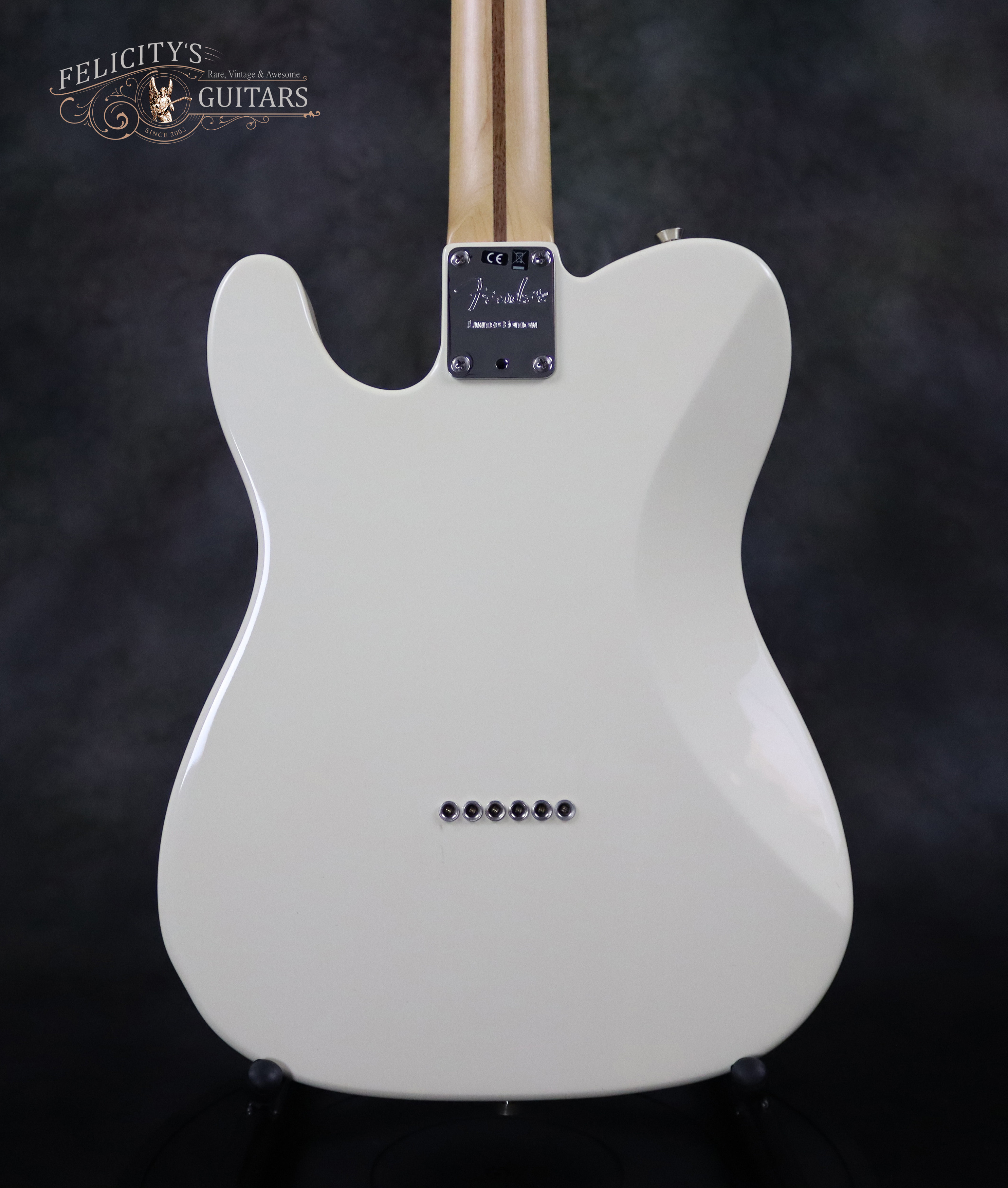

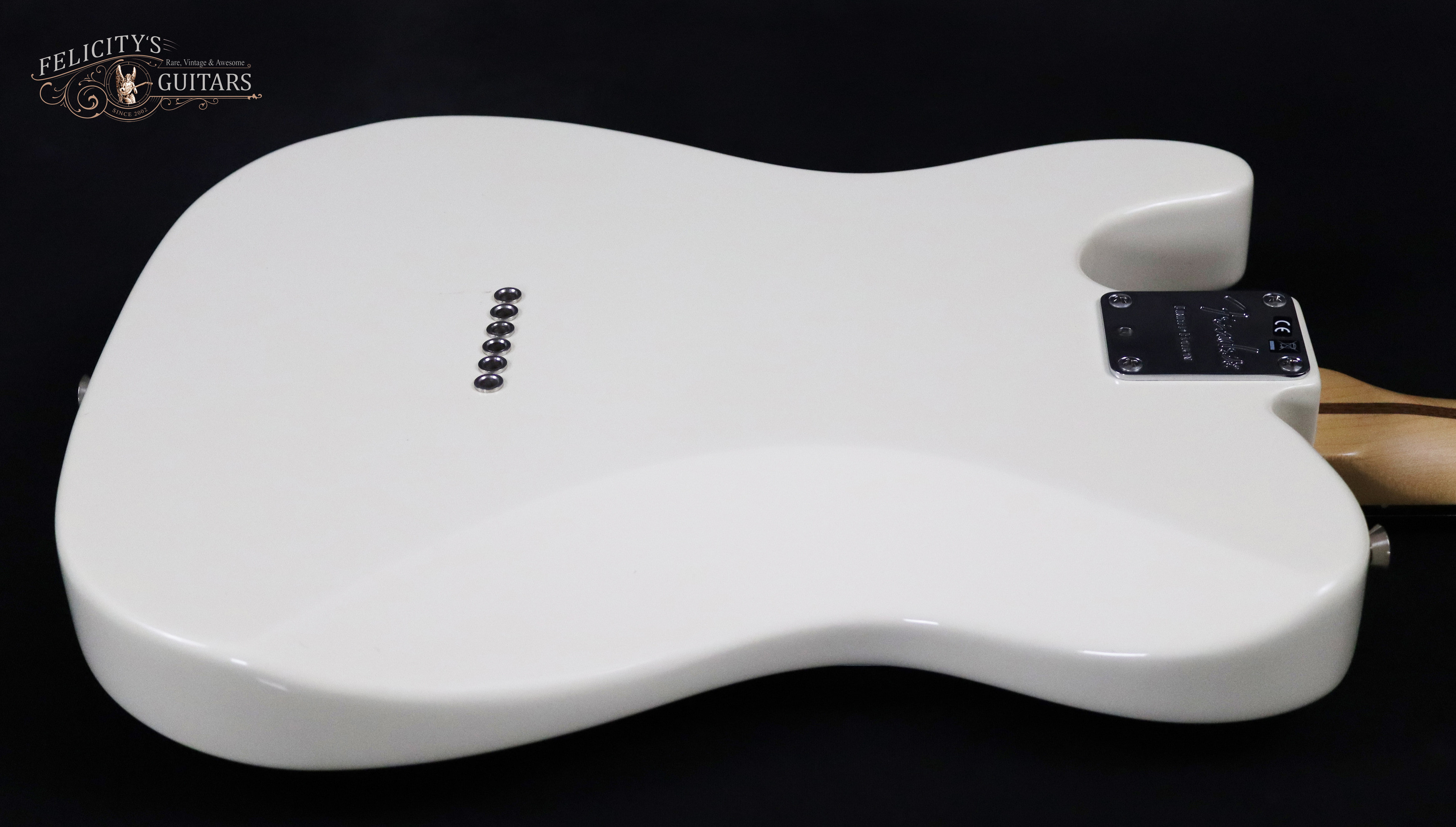

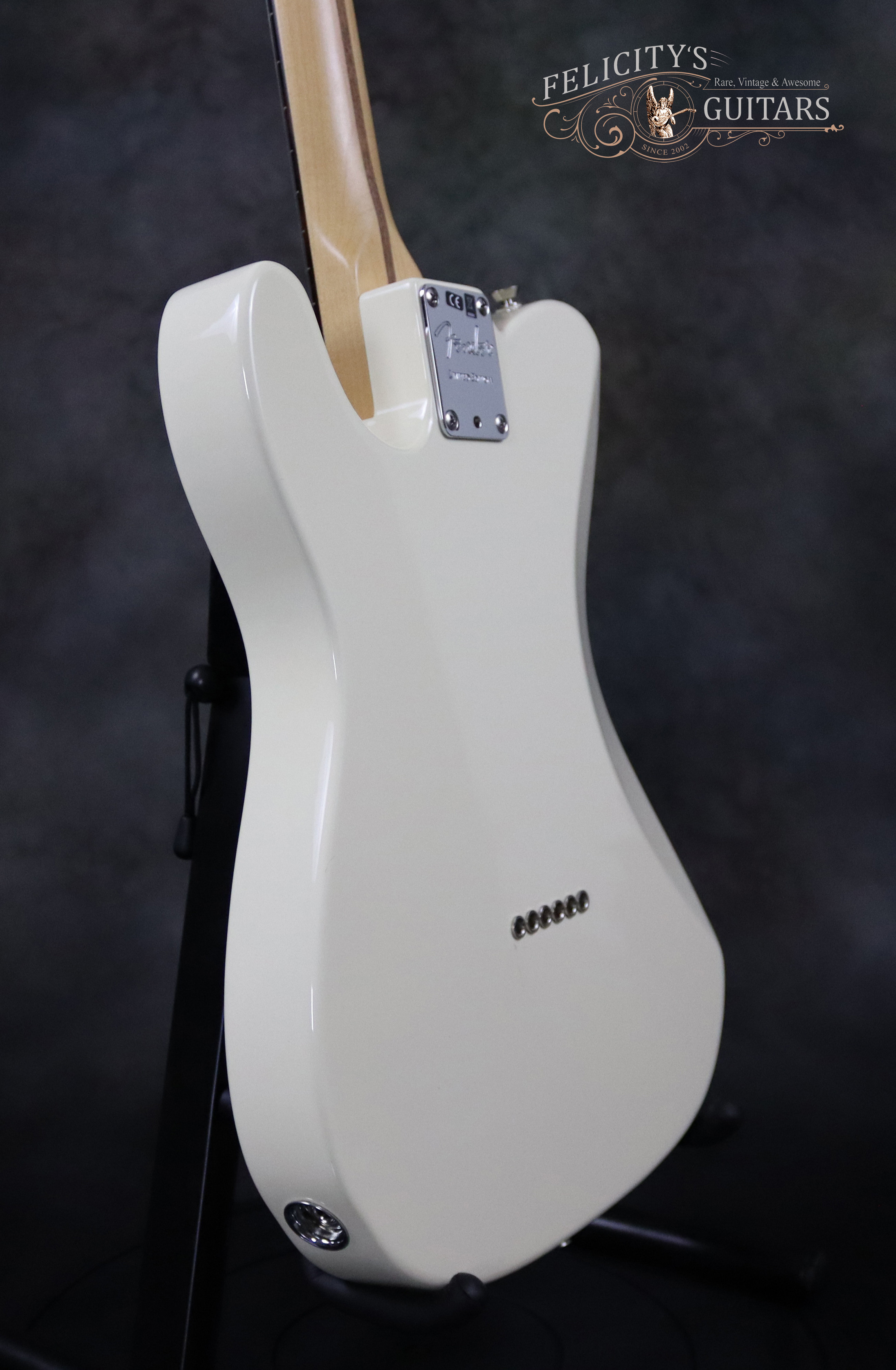

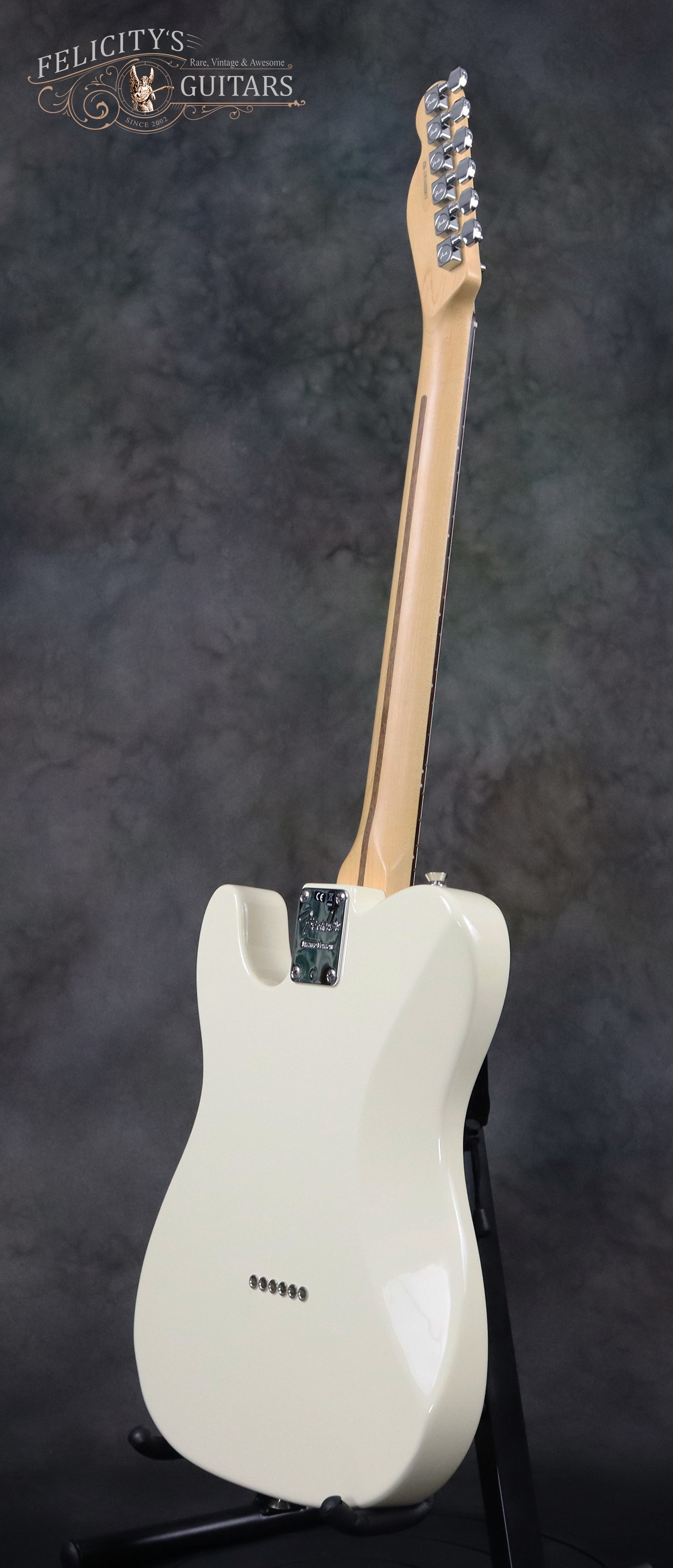

Back: Deep Waist Contour

Body Binding

Front: No

Back: No

Weight Relief

Un-chambered

Body Finish Type

Hi-Gloss Polyurethane

Color

Front: Olympic White

Back: Olympic White

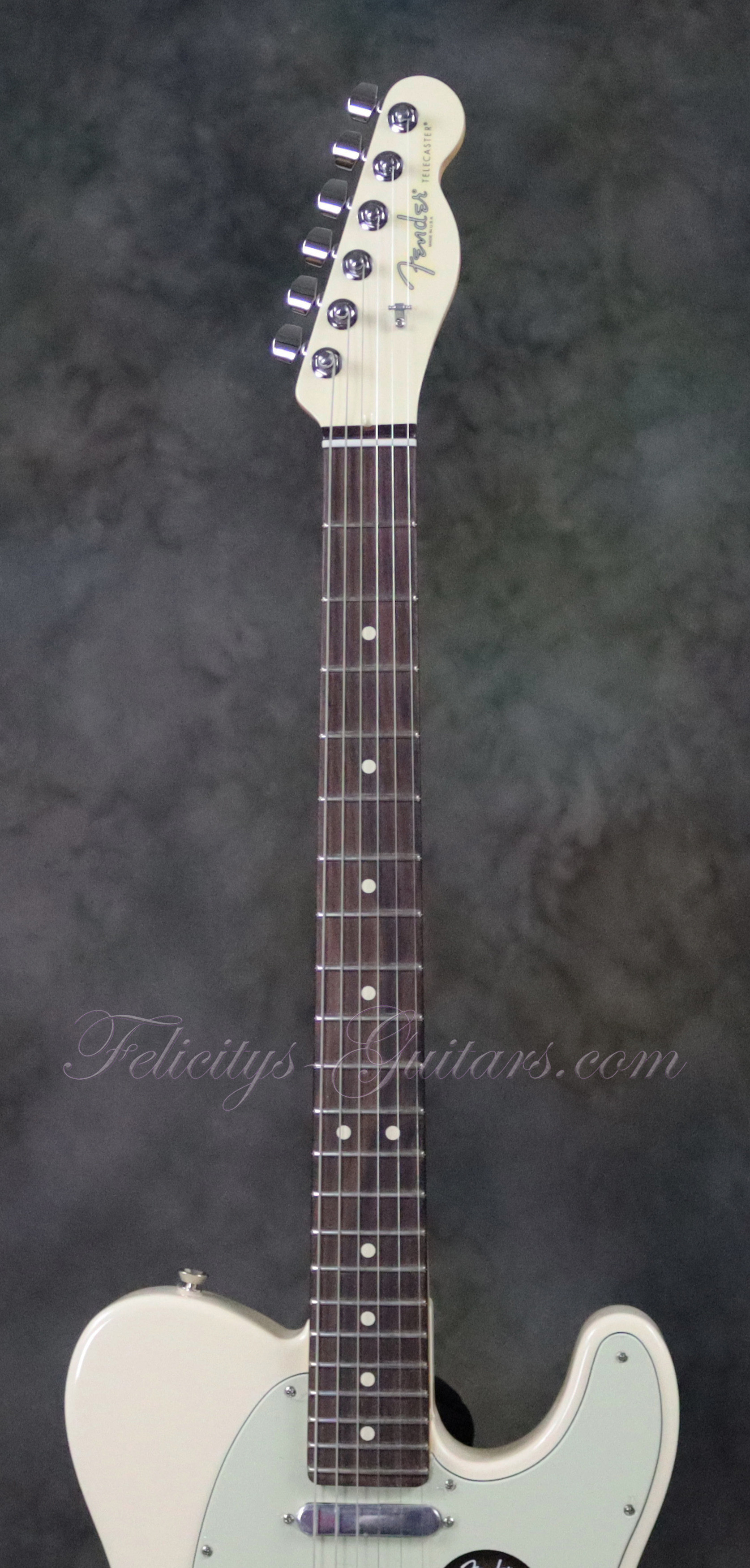

neck

Neck Material

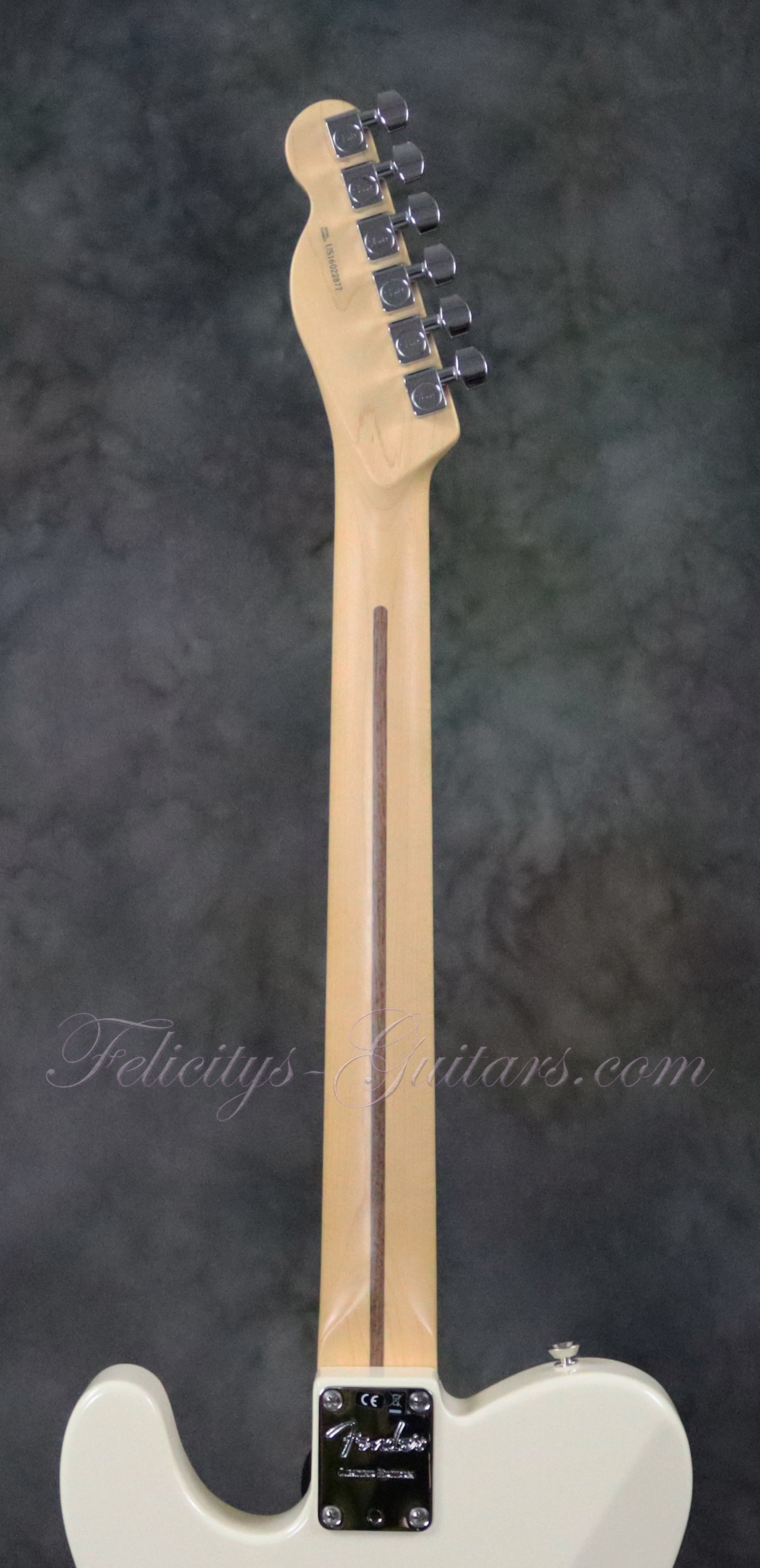

1-pc Maple with Skunk-stripe, Satin Finish on Back

Truss Rod

Bi-Flex 1/8” Nut 2-way Adjustable (peghead access)

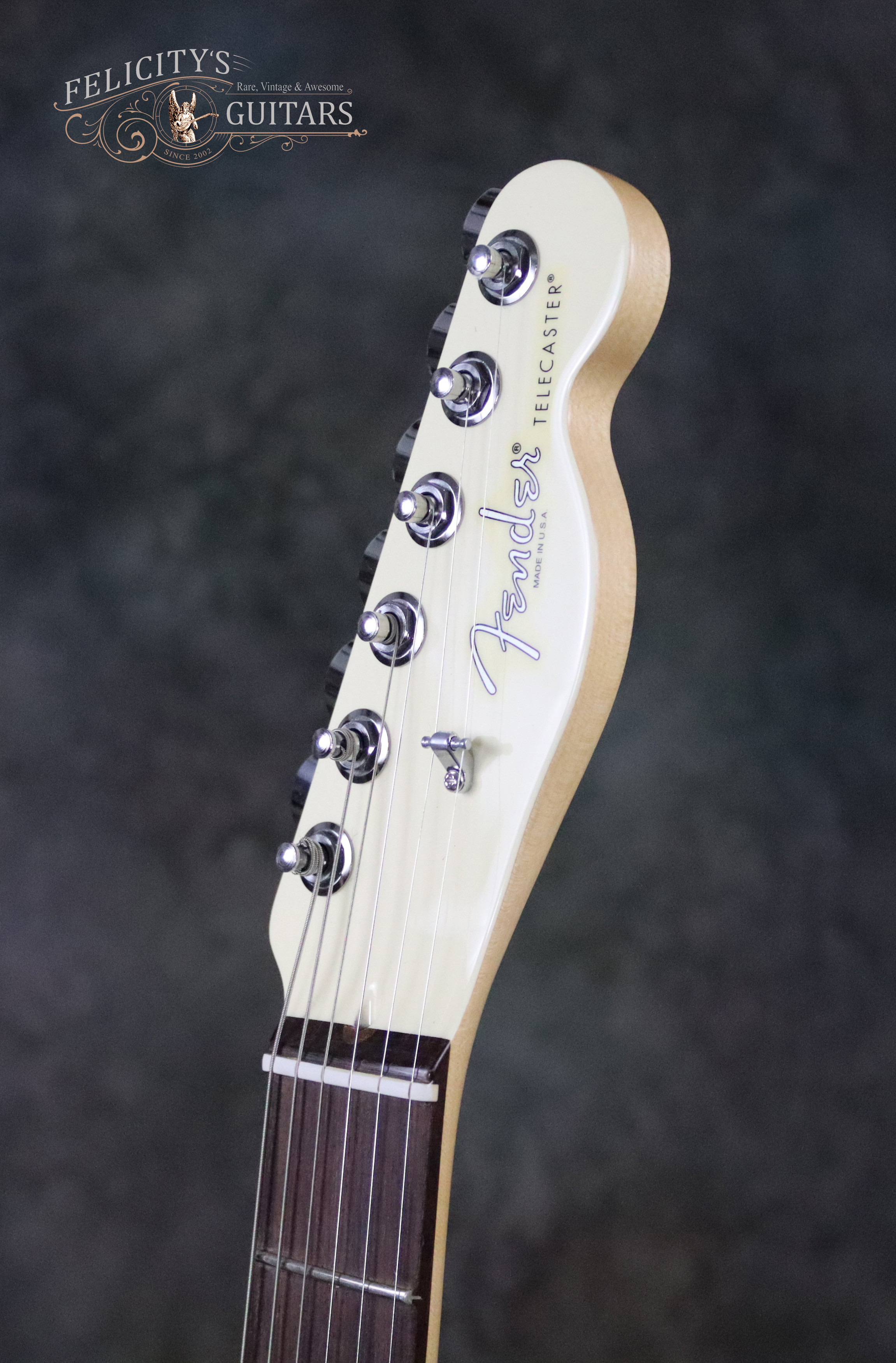

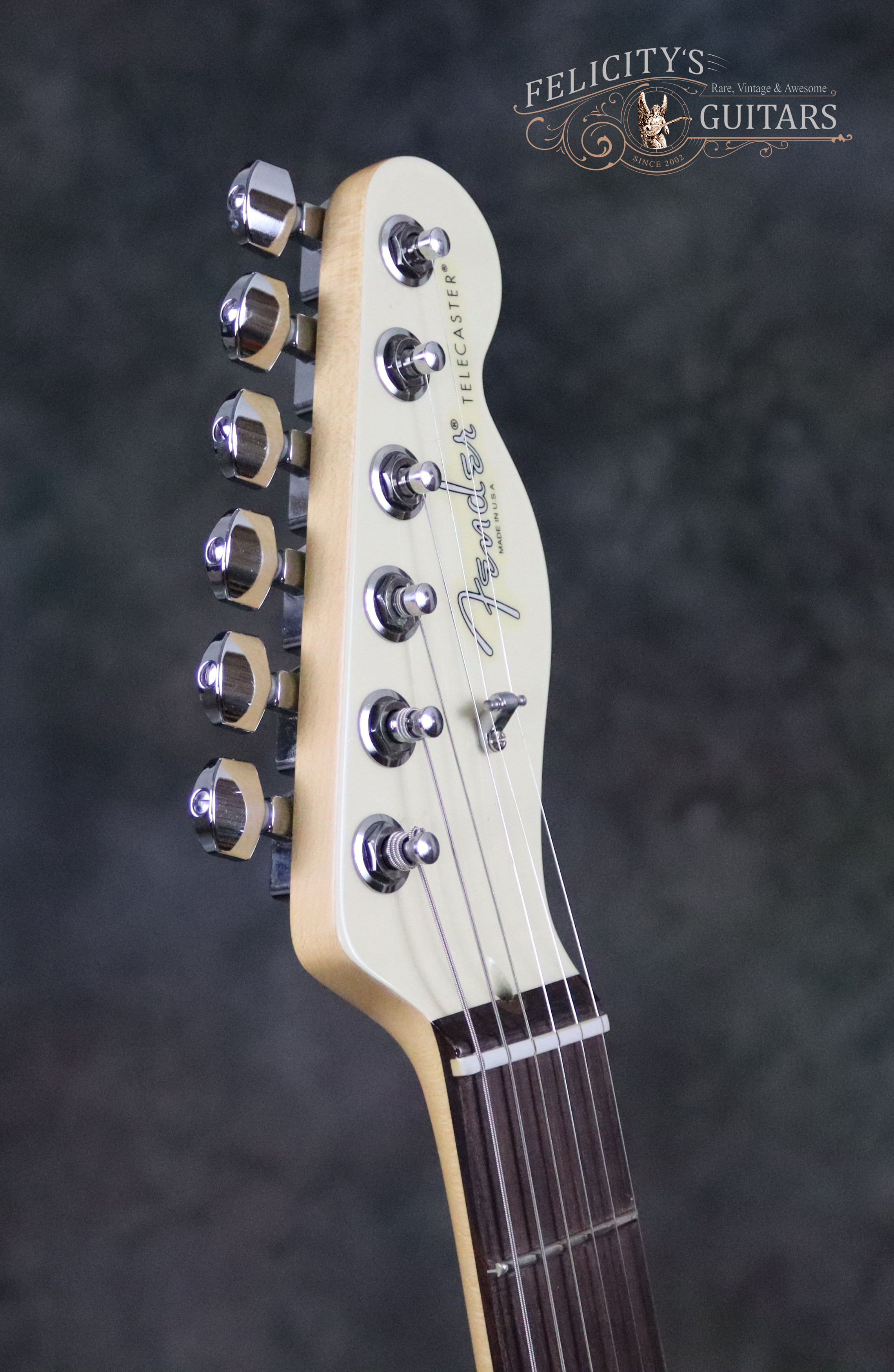

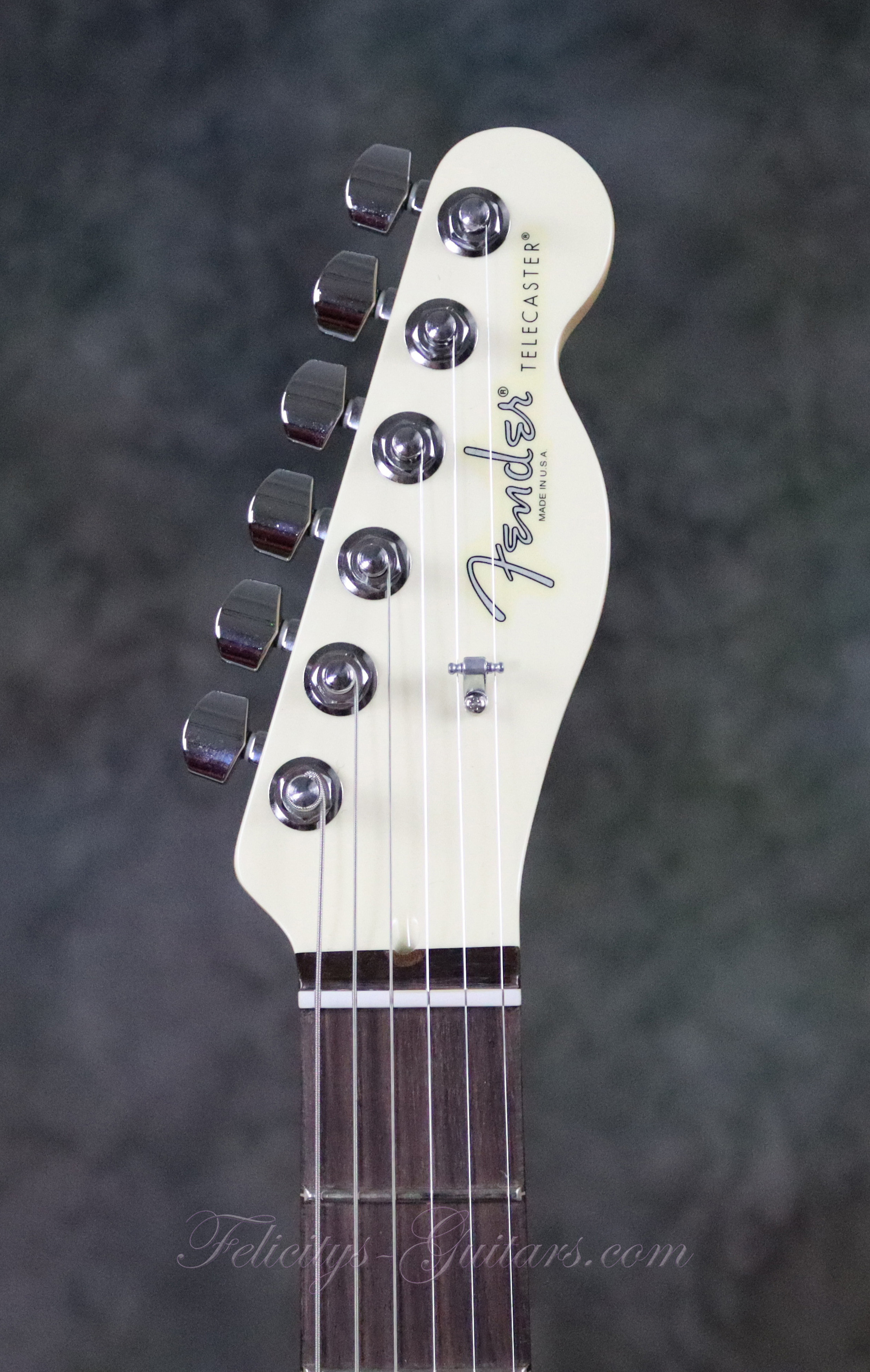

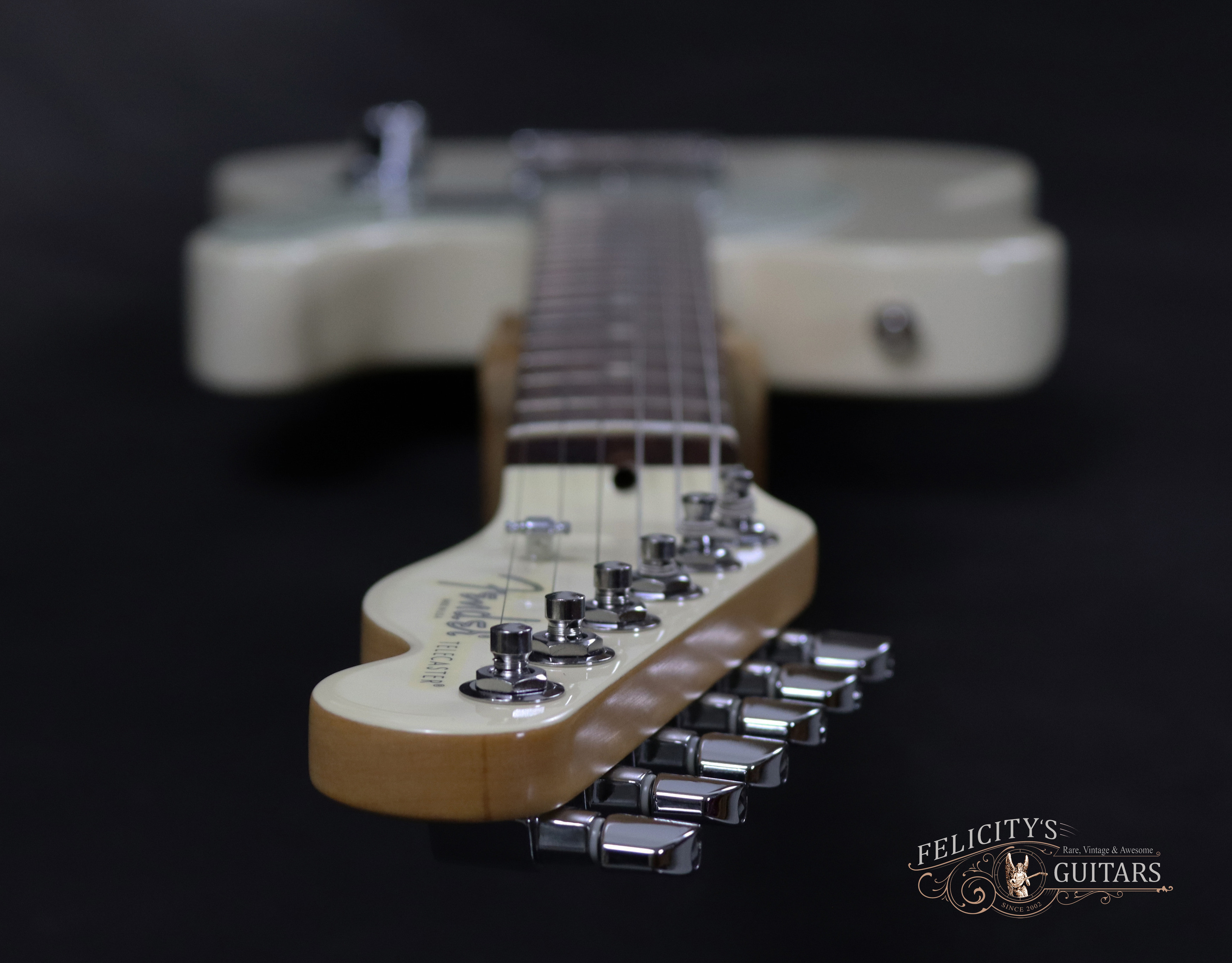

Peghead Particulars

Front: Unbound Olympic White, Pre-CBS Style Silver Fender® Logo and Telecaster™ Decal

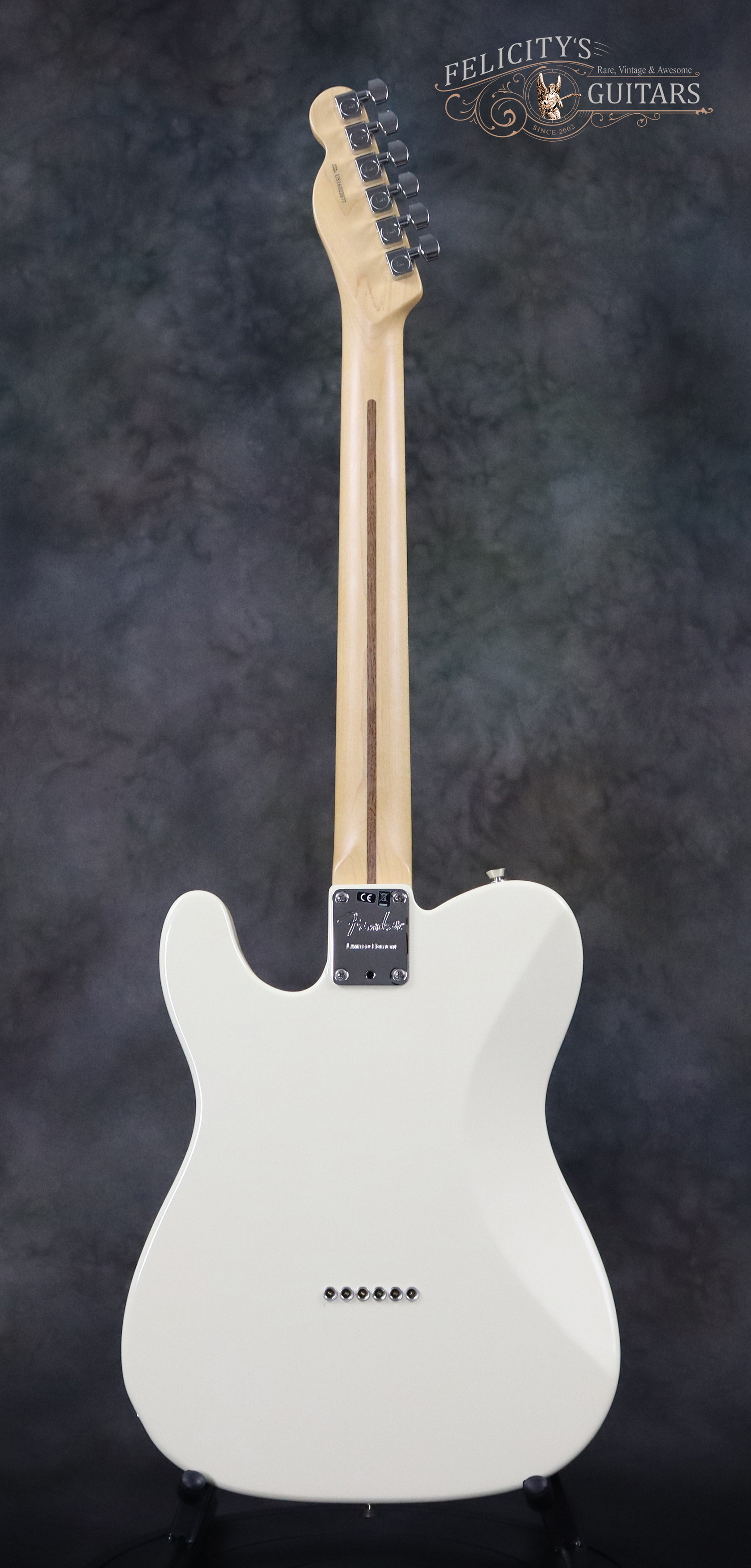

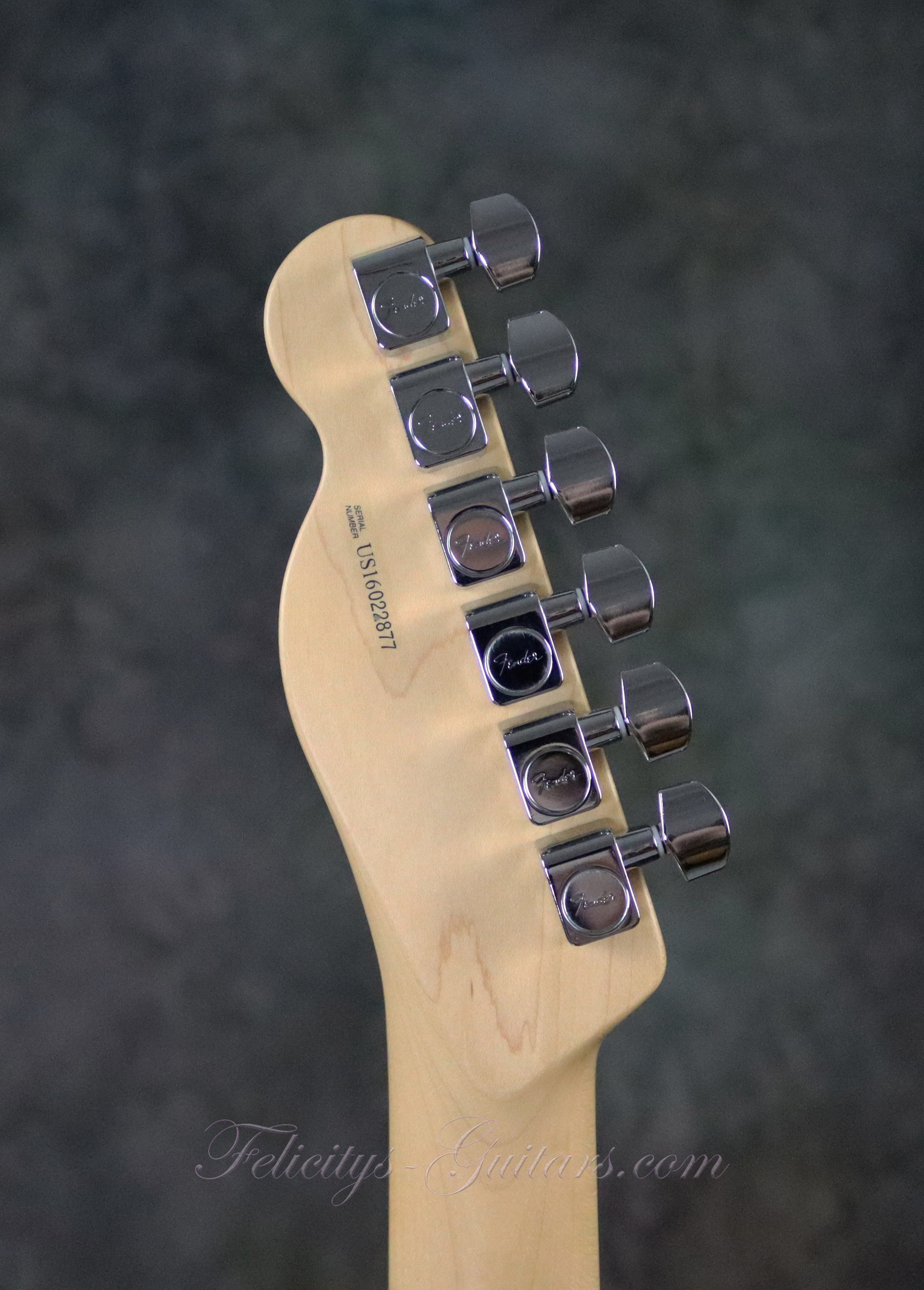

Back: Ink Stamped Made in U.S.A. and Serial Number

Neck Profile

‘C’ Shape

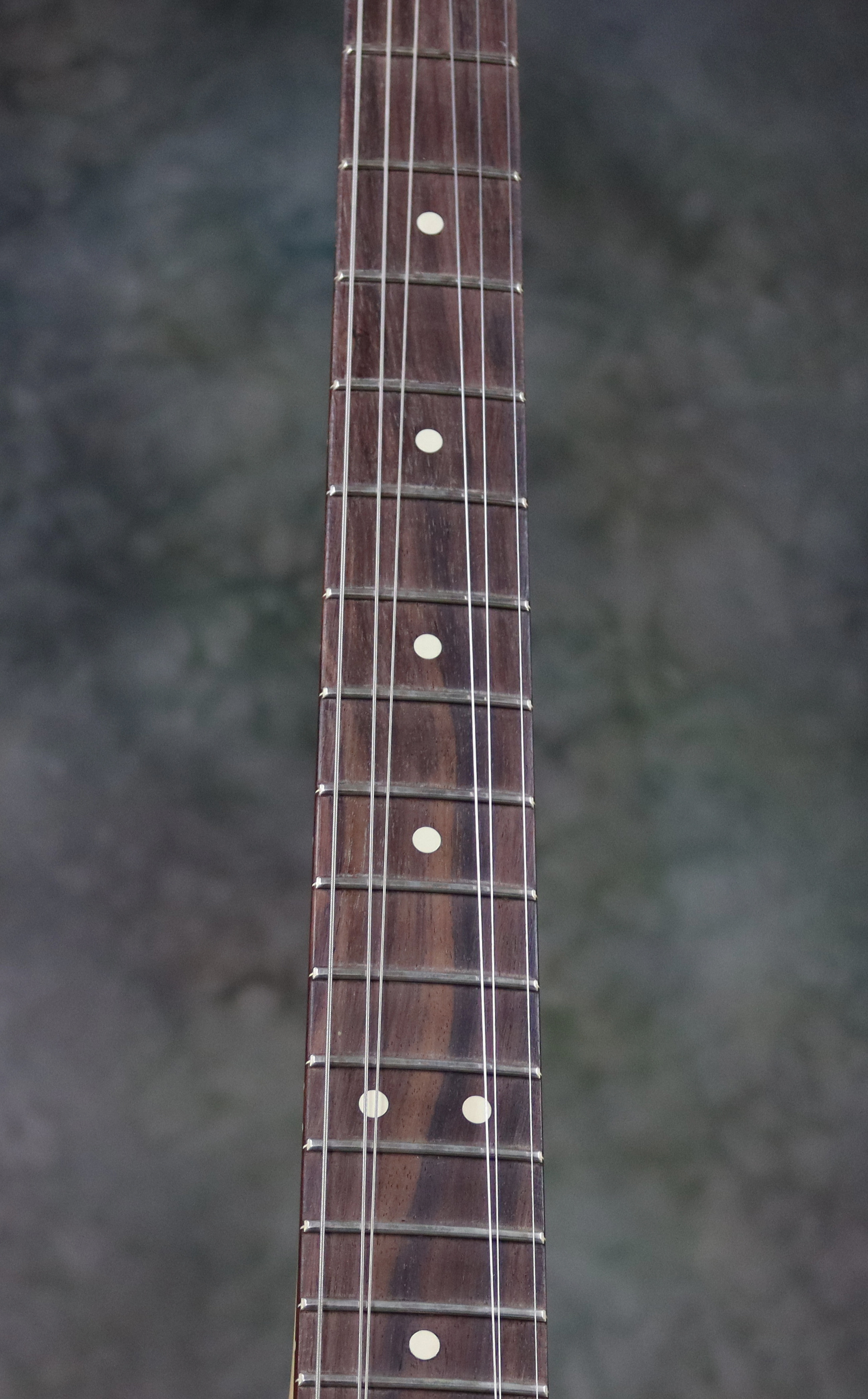

Fingerboard Material

Rosewood

Fingerboard Radius

9.5”

Scale Length

25.5"

No. Frets / Type

22 Medium Jumbo

Nut Size / Material

1.685” / Synthetic Bone

Neck Width

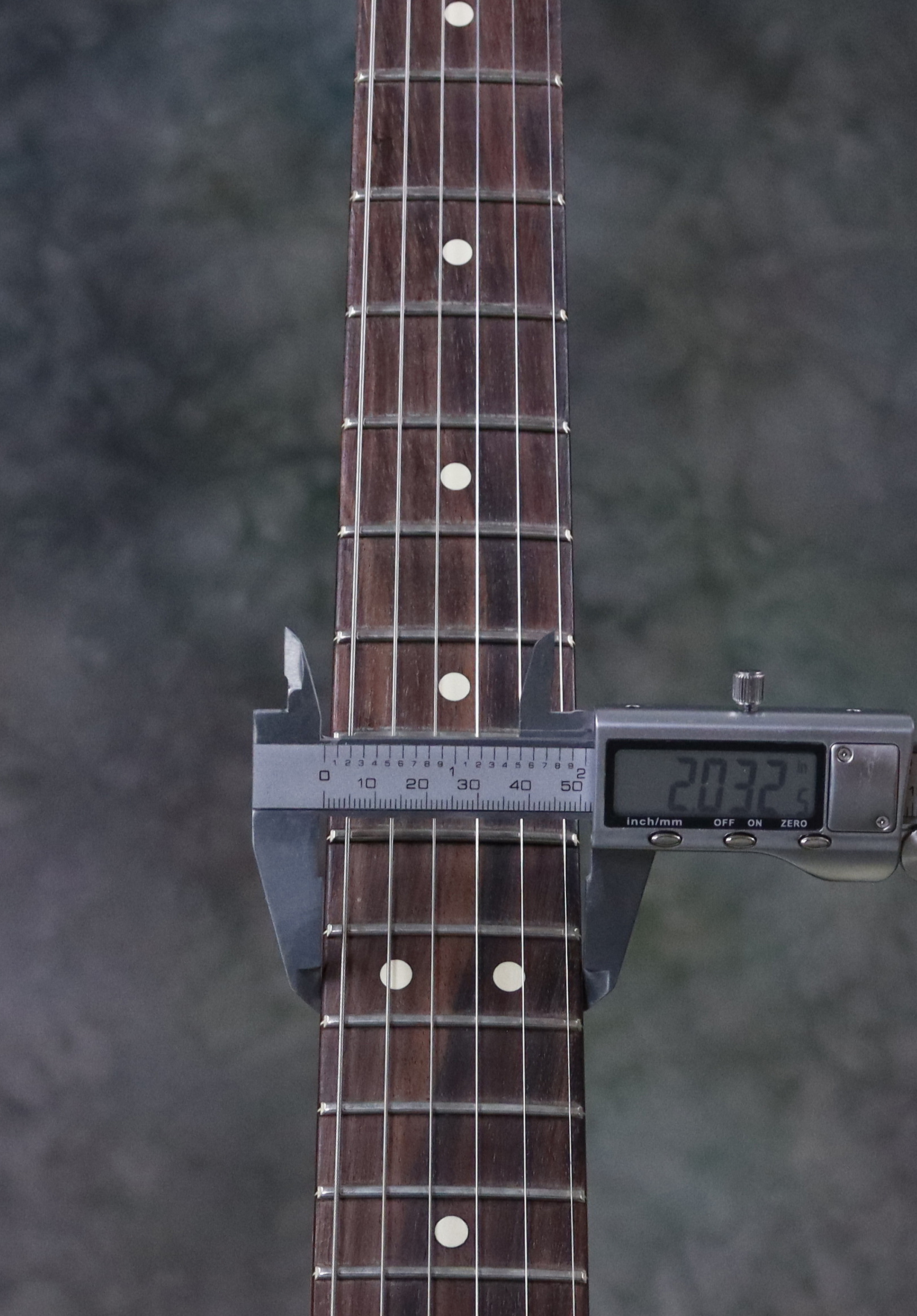

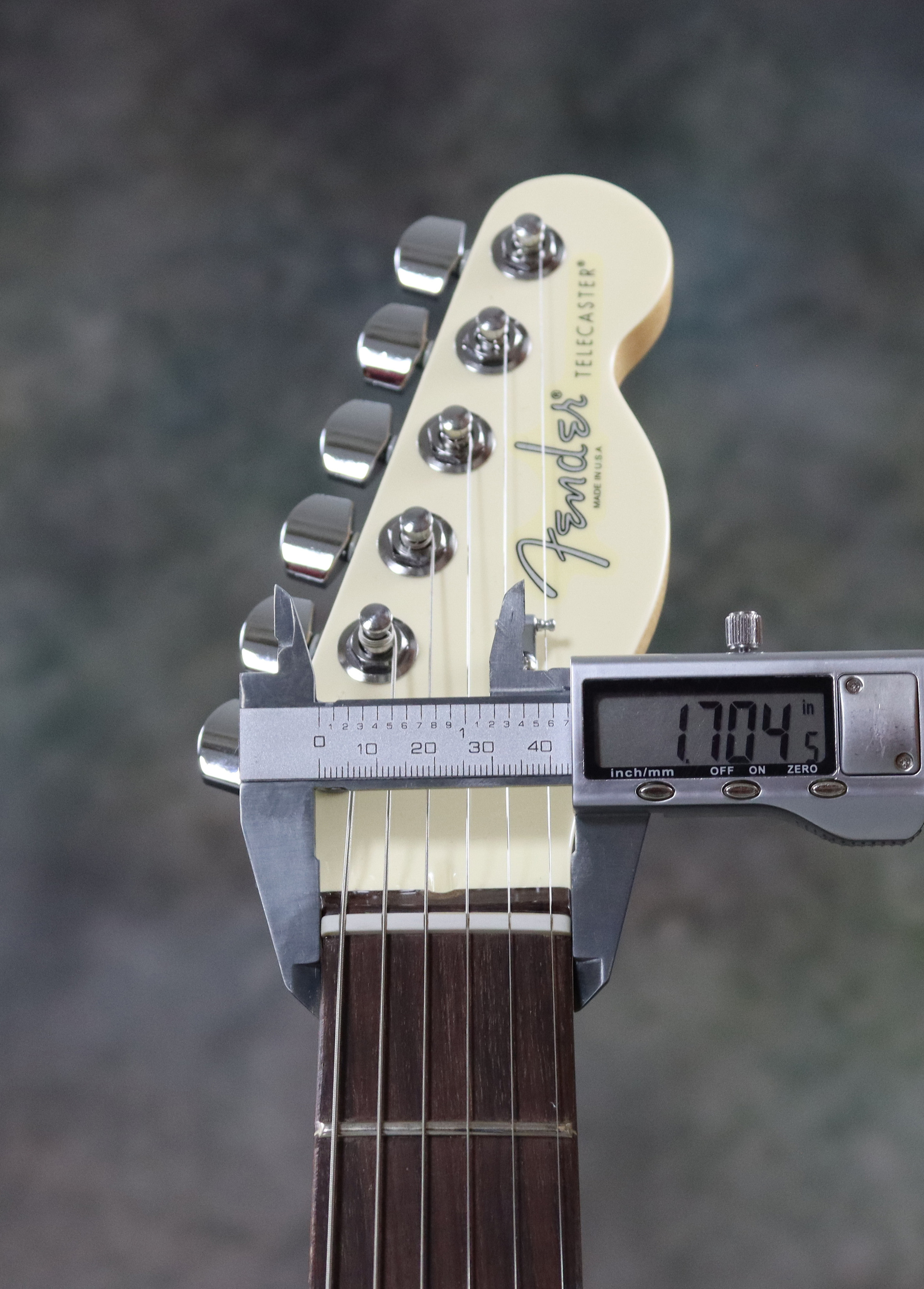

1.704” at 1st fret / 2.032” at 12th fret

Neck Depth

0.820” at 1st fret / 0.870” at 12th fret

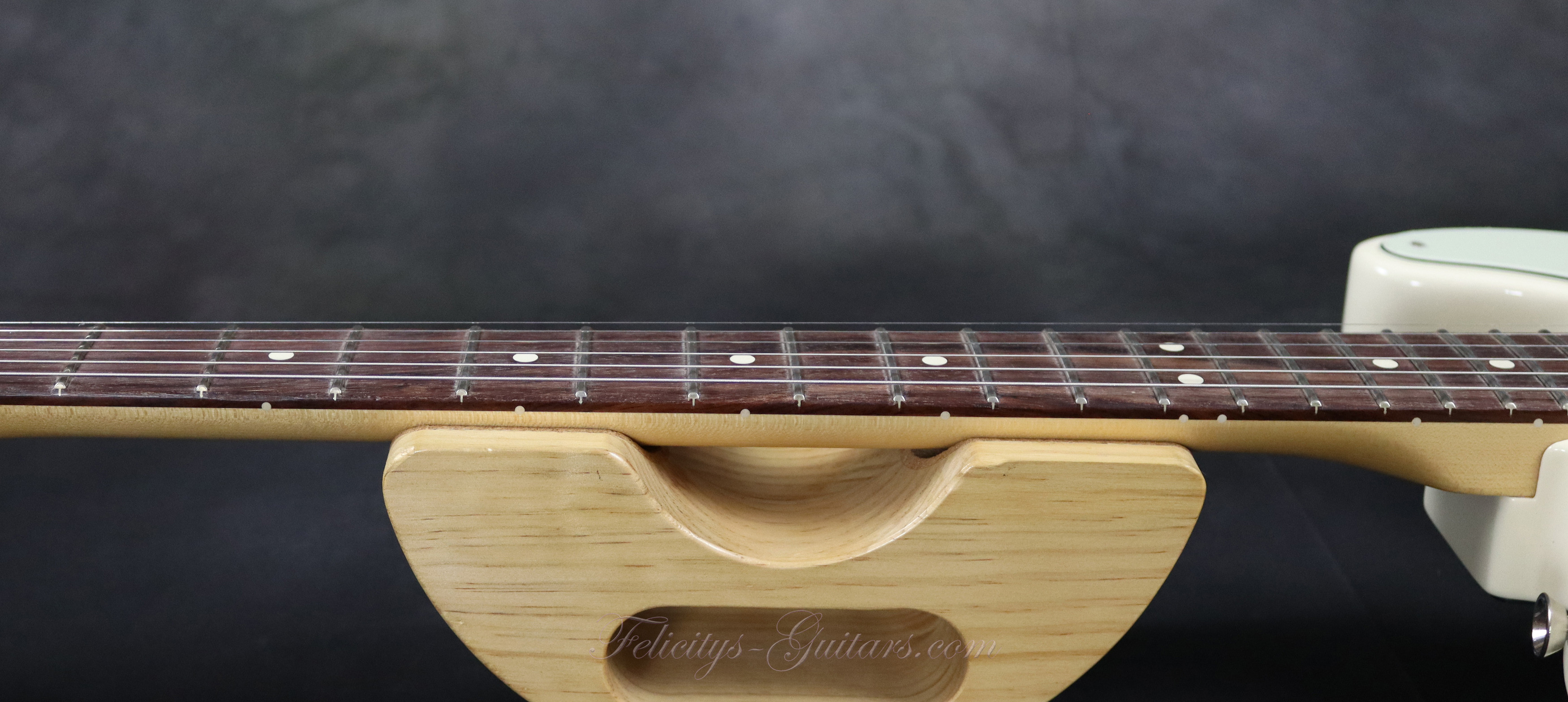

Fingerboard Inlays

White Pearloid Dots

Neck Binding

No

Side Dots

White Acrylic

Neck Joint

4-Bolt with Micro-tilt

hardware

Bridge

Chrome Plated, 6-Saddle American Standard, w/Strings-thru-Body

T-String

Chrome Plated, Ezy-Glider Roller T- Style

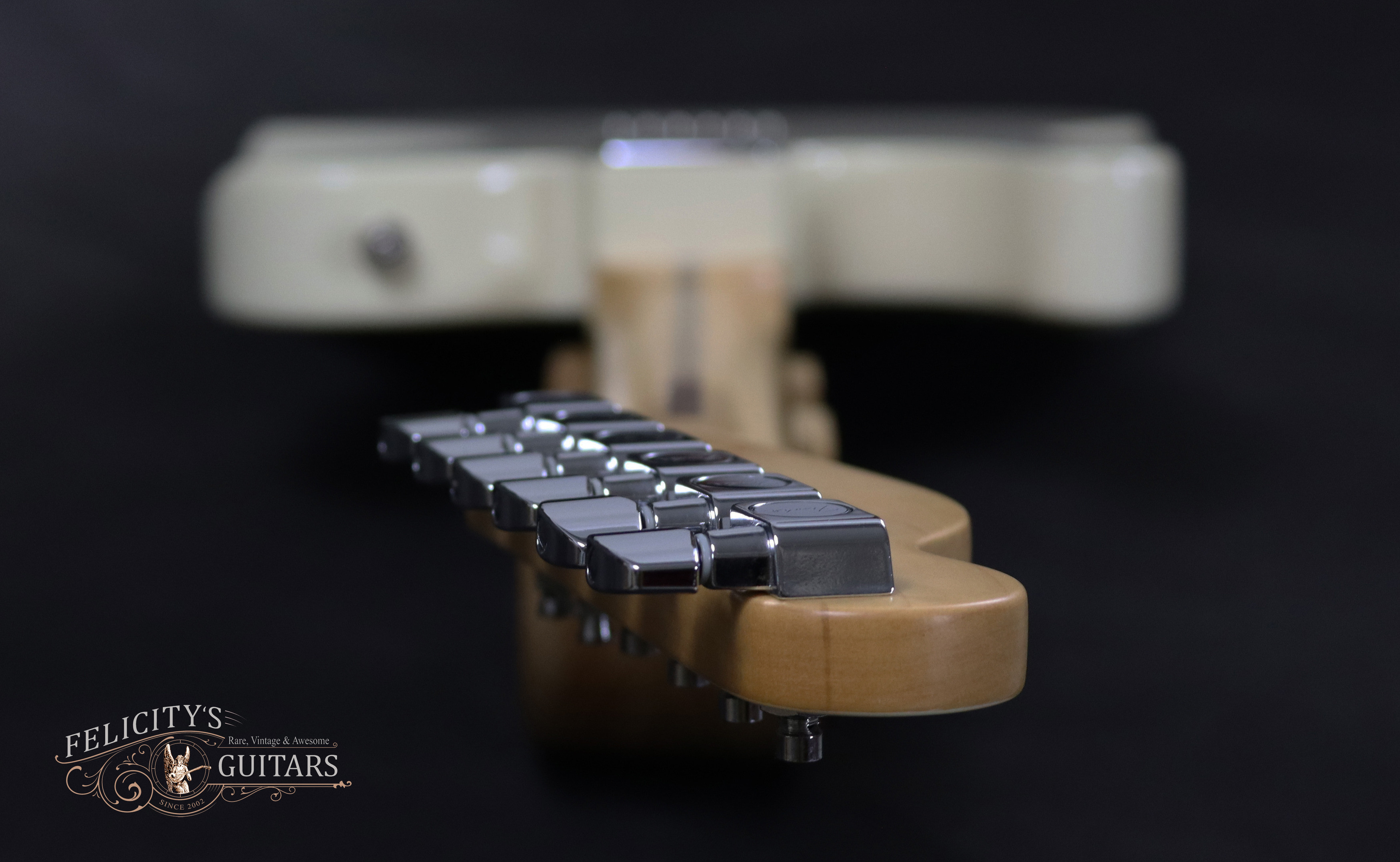

Tuning Machines

Chrome Plated, Fender® Sealed with Chrome Buttons / 14:01 Ratio

Pickup Cover / Ring

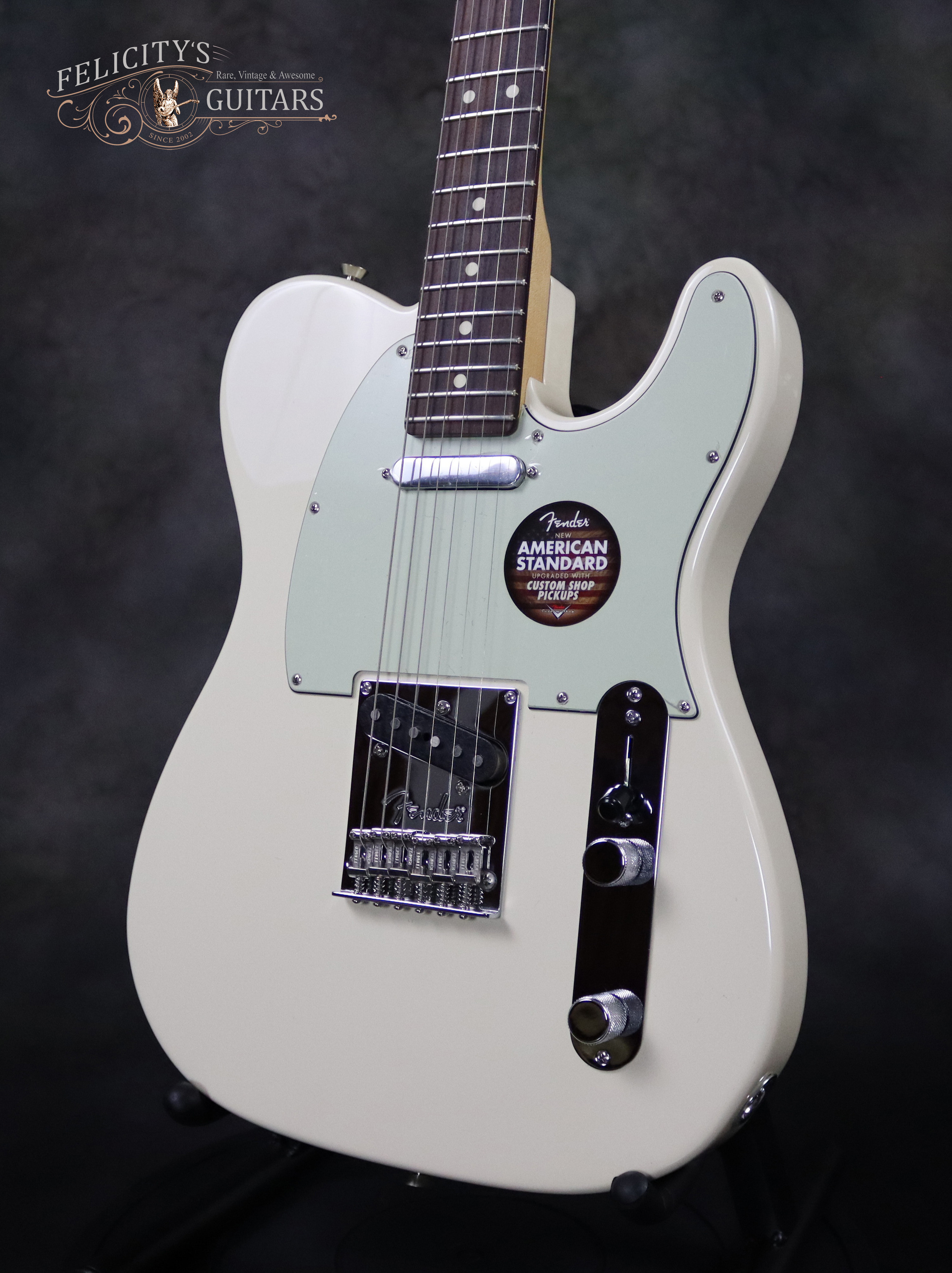

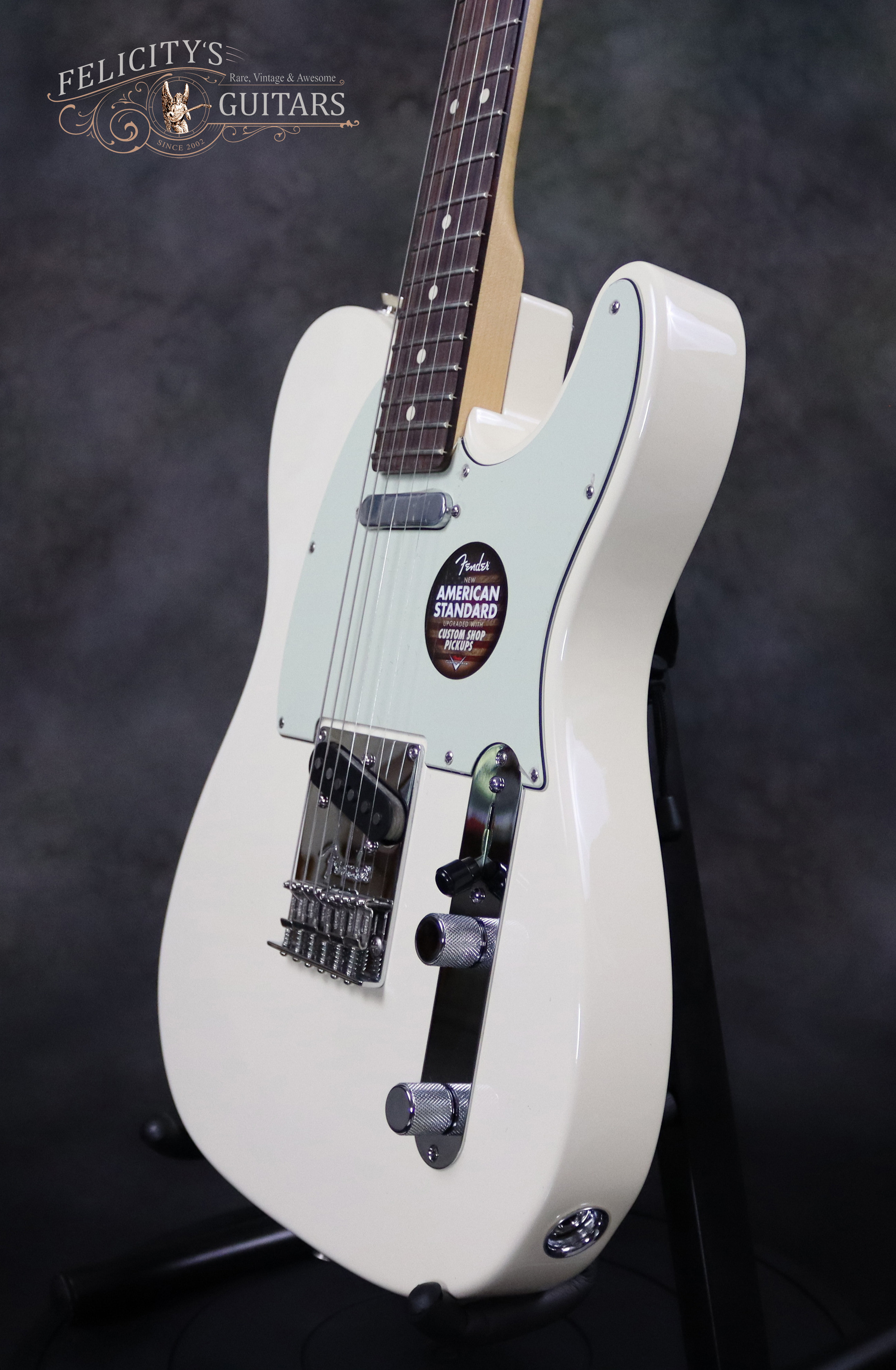

Bridge: Black (uncovered) Single-Coil / Neck: Chrome Plated Single-Coil with No Ring

Strap Buttons

Polished Aluminum End Pins

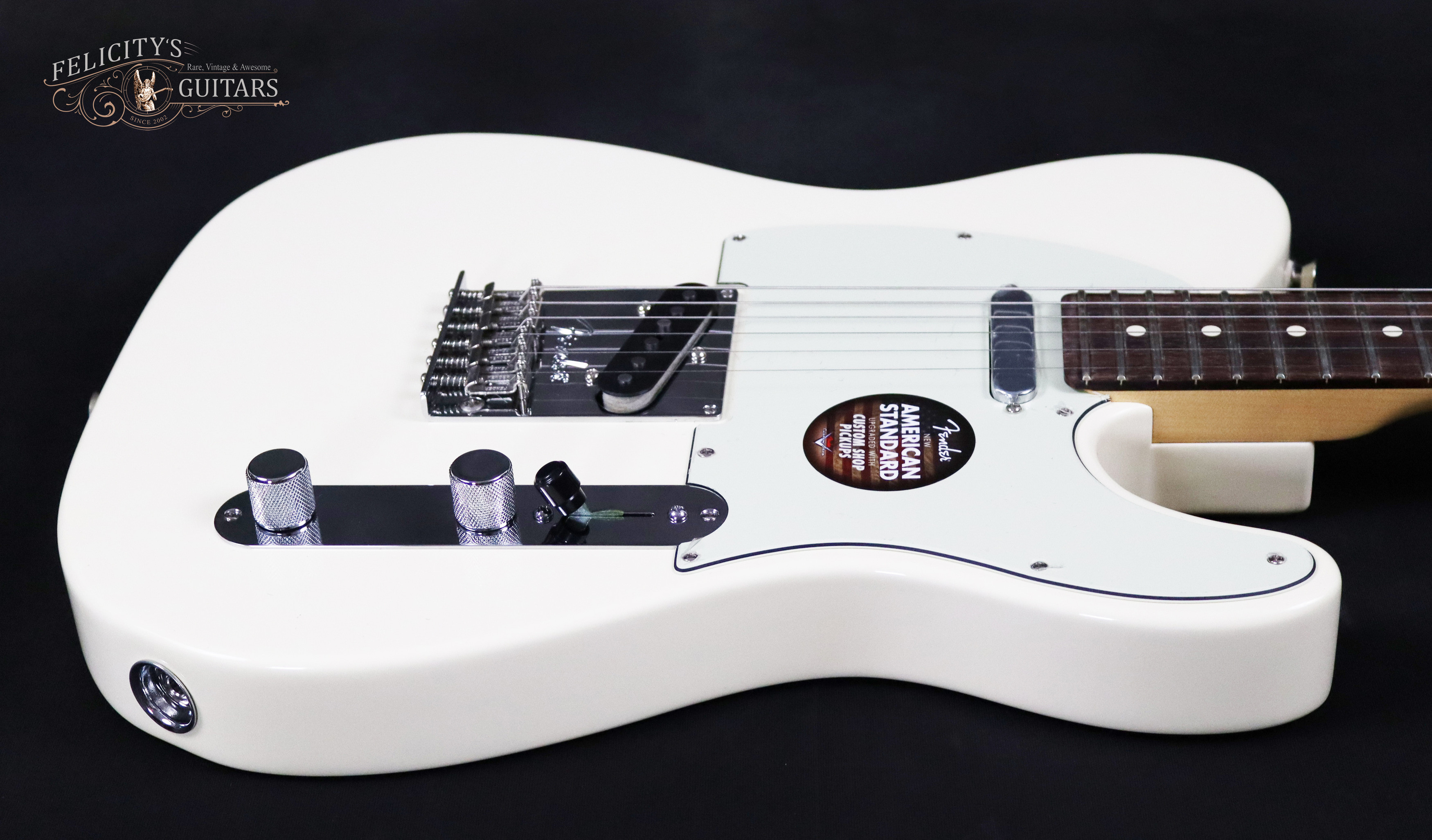

Pickguard

3-Ply Mint Green/Black/White, 8-hole, Tele-Standard

Control Knobs

Chrome Plated, Tele Control-Plate with Chrome Knurled-Rim Flat Top Knobs

Switch

Black, Plastic ‘Barrel’ Tip (3-pos Blade)

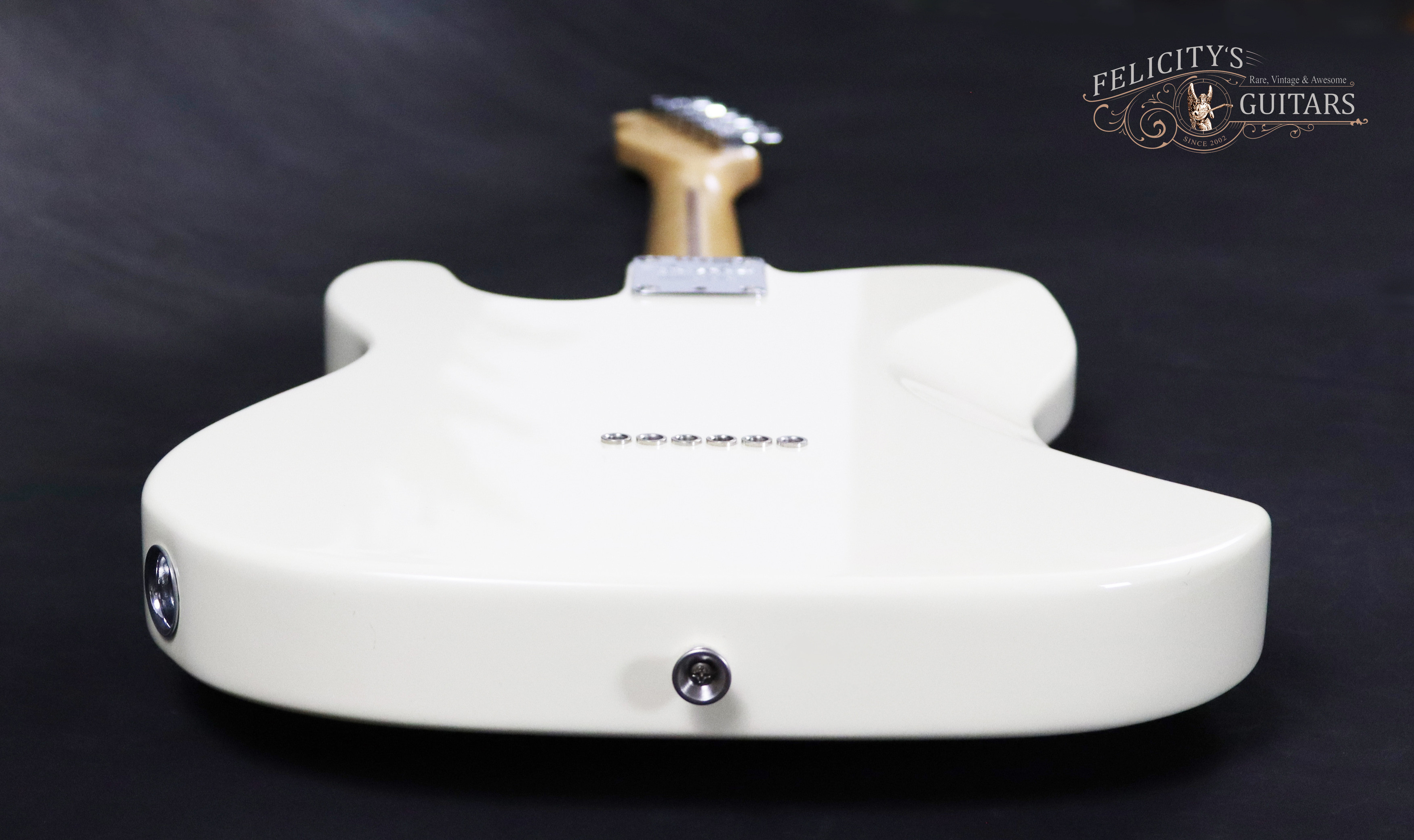

Output Jack

Chrome Plated, rear-lower-bout mounted

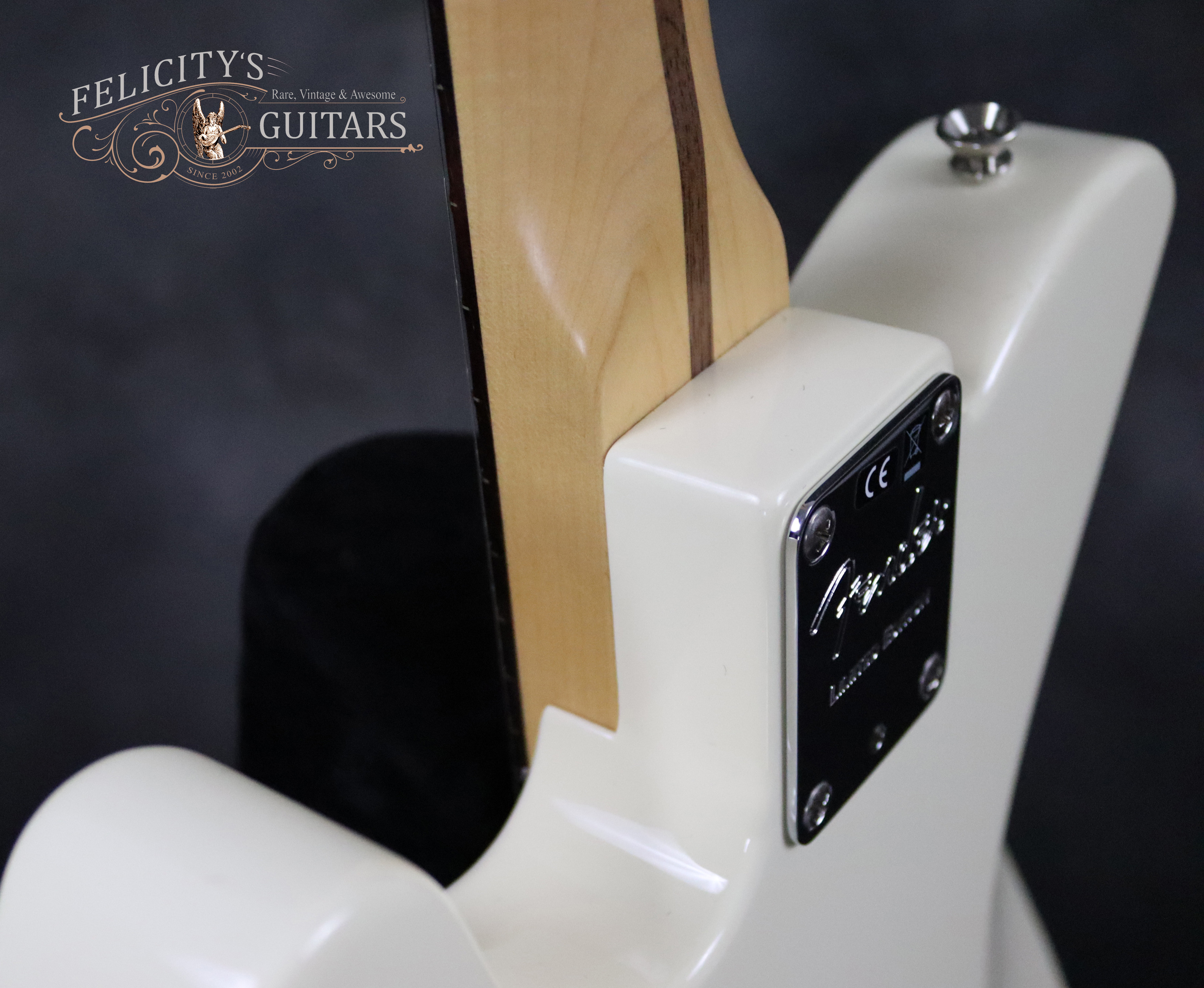

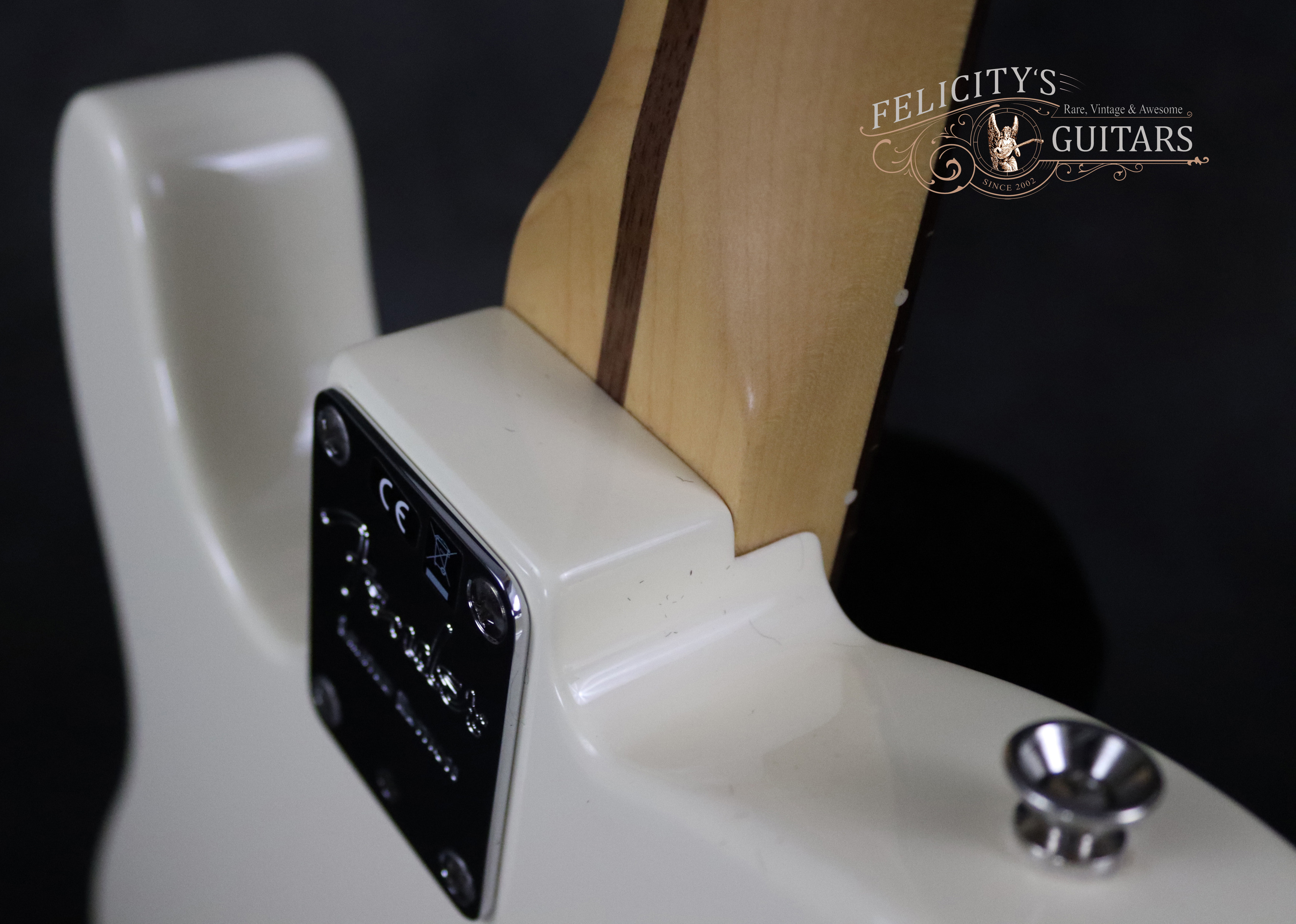

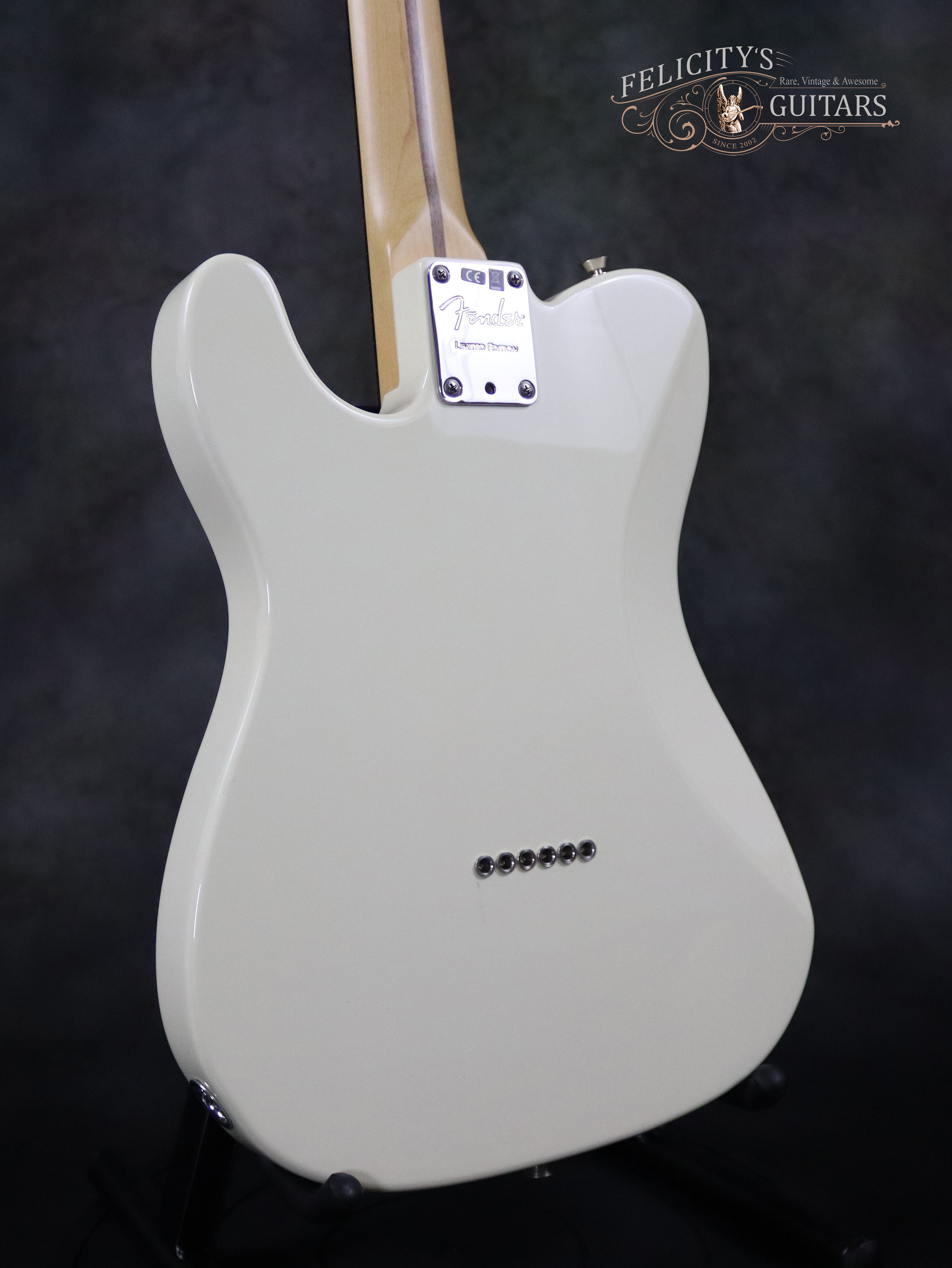

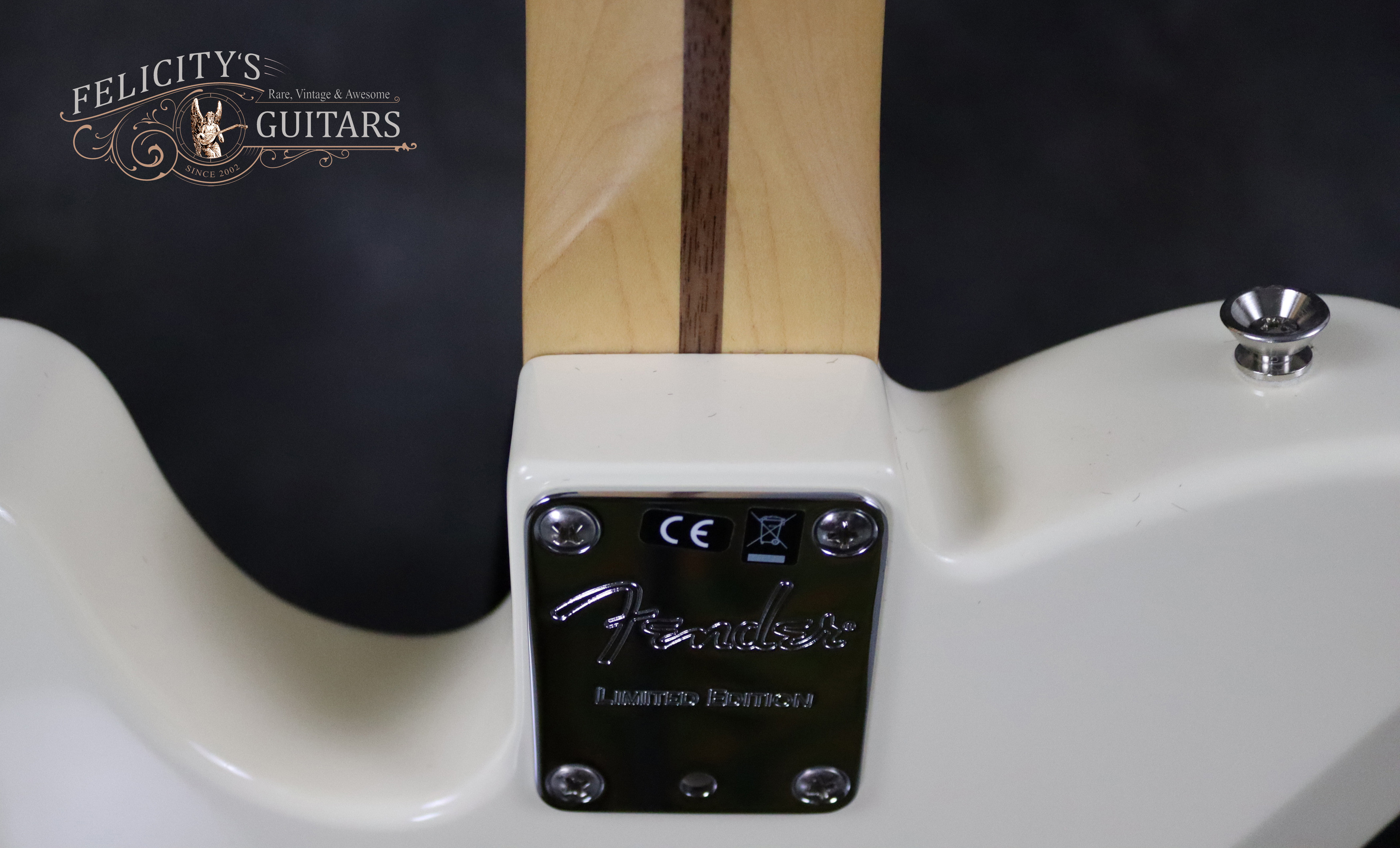

Neck Plate

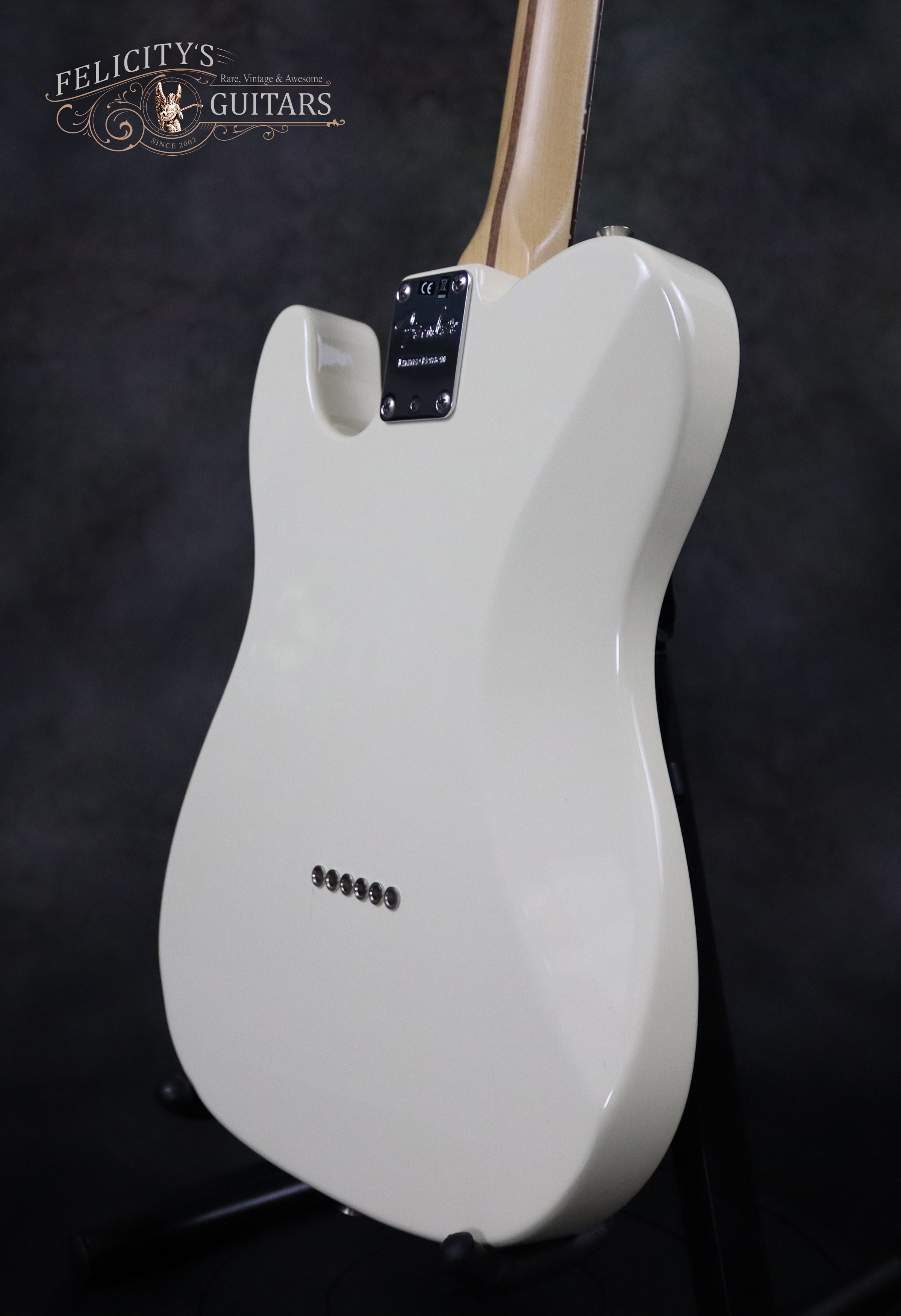

Chrome Plated, Stamped with Fender® Logo and ‘Limited Edition’

electronics

Bridge Pickup

Uncovered Fender® Custom Shop Vintage ’58 Single-Coil Bridge, Alnico 5, DCR 6.72k

Middle Pickup

No

Neck Pickup

Chrome Plated, Fender® Custom Shop Vintage ’58 Single-Coil Neck, Alnico 5, DCR 7.48k

Active / Passive

Passive

Series / Parallel

Series

Controls

Master Volume, Master Tone, 3-position Blade Pickup Selector

Vol Potentiometer

250k

Tone Potentiometer

250k

Capacitor / Resistor

.022uF – 20% – 50v values

Harness

Standard Control-plate mounted Telecaster Wiring

Coil-split / Coil-tap

No

Piezo

No

Active EQ

No

Kill switch

No

Output Jack

1/4" 2-Conductor Mono

miscellaneous

Case / Gigbag

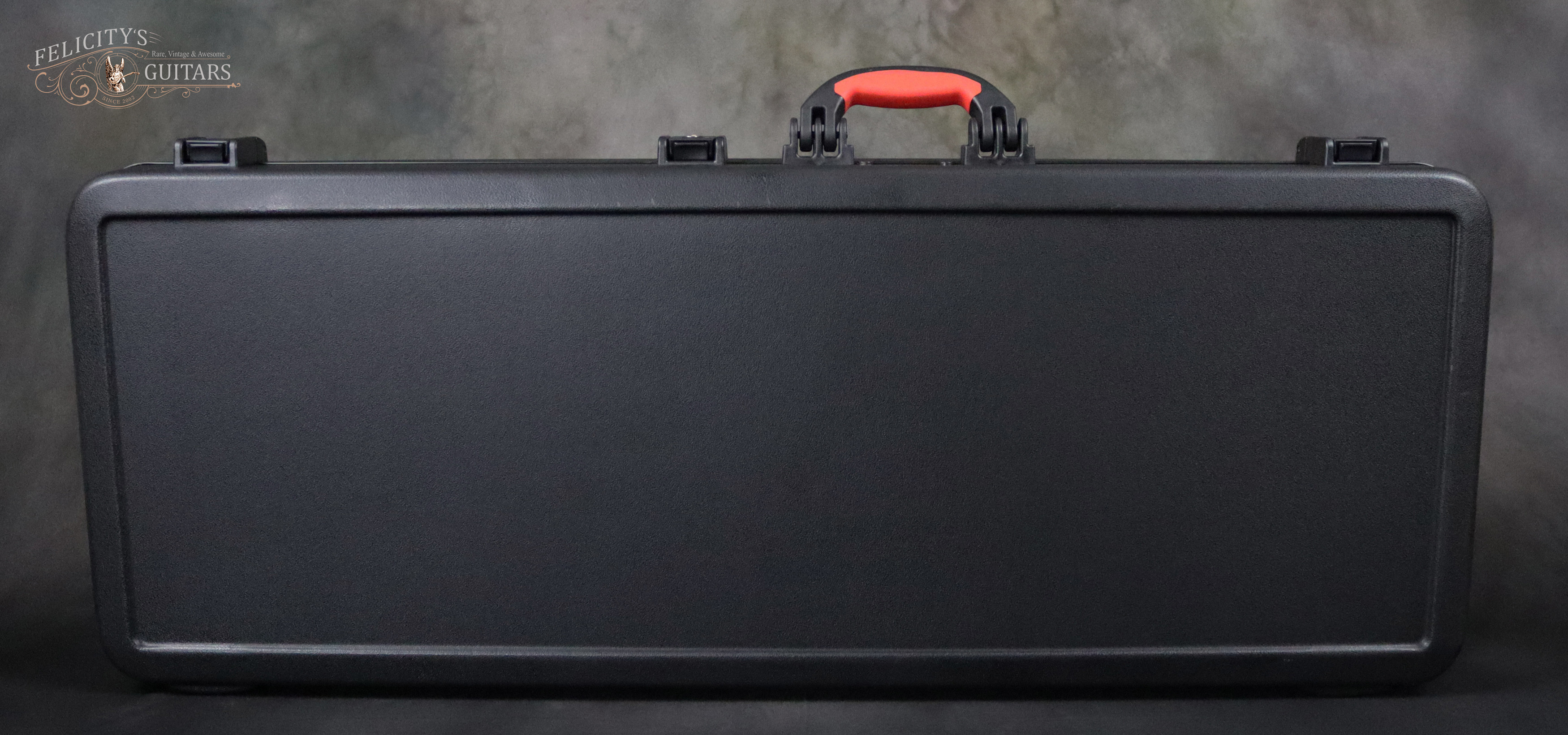

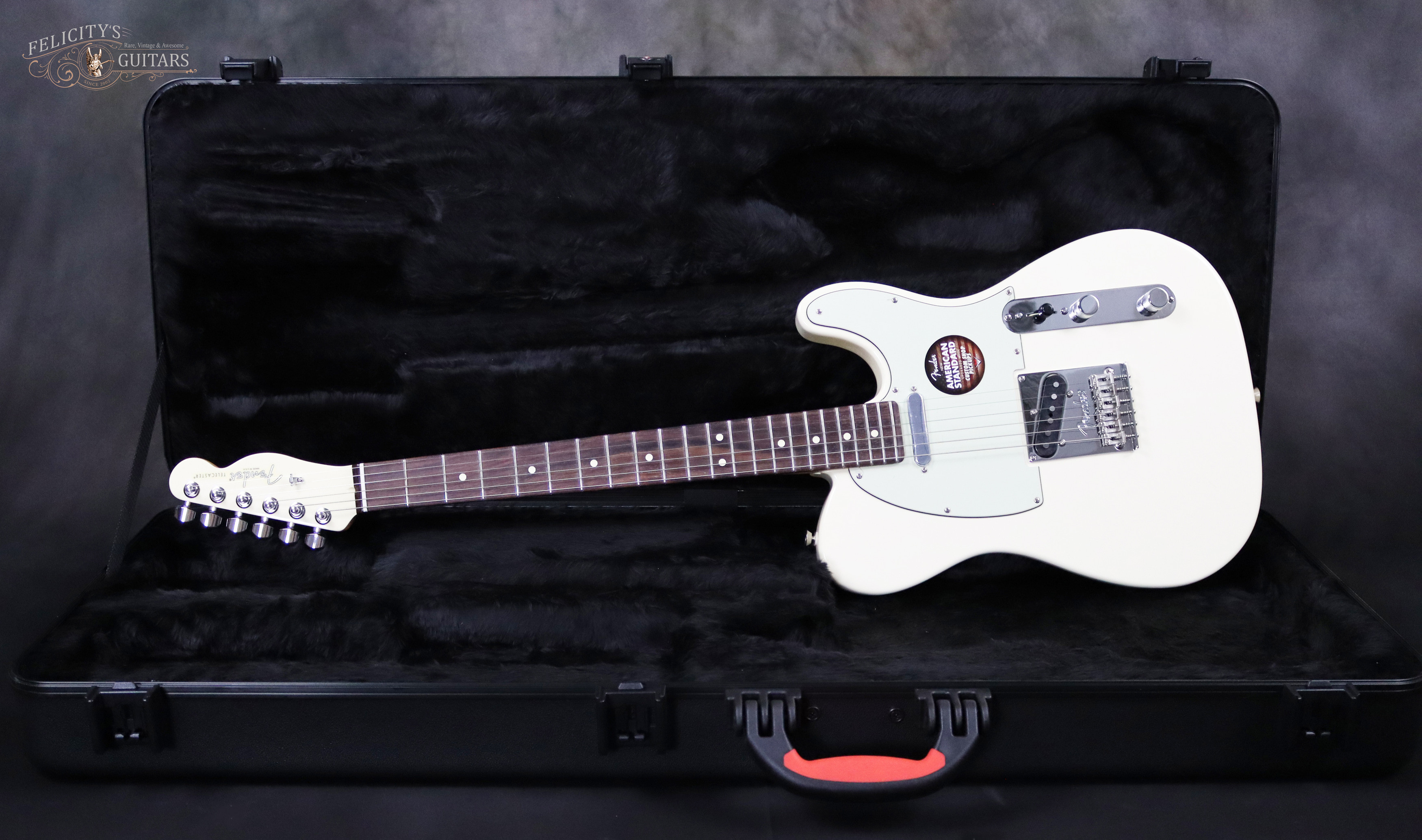

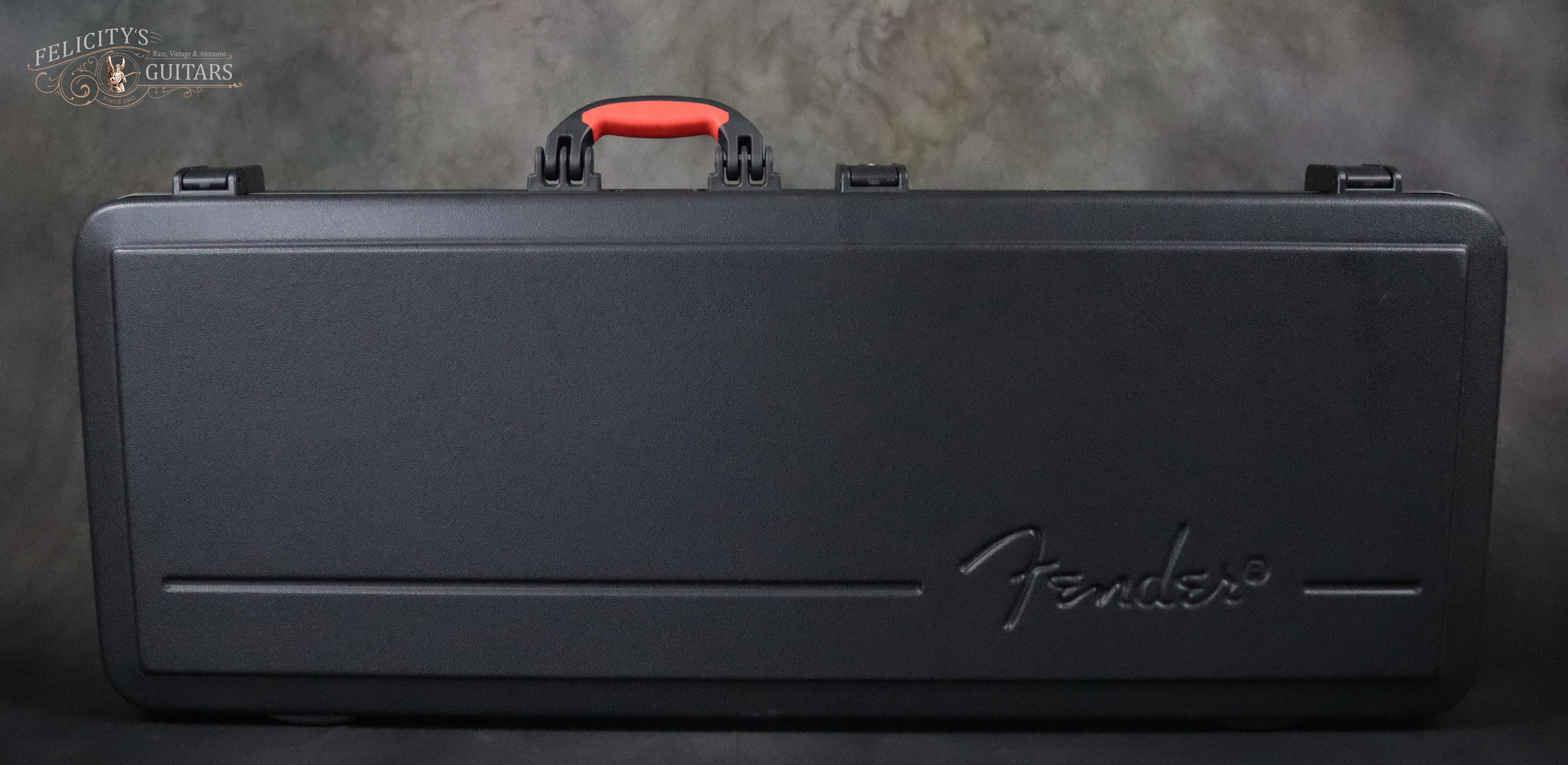

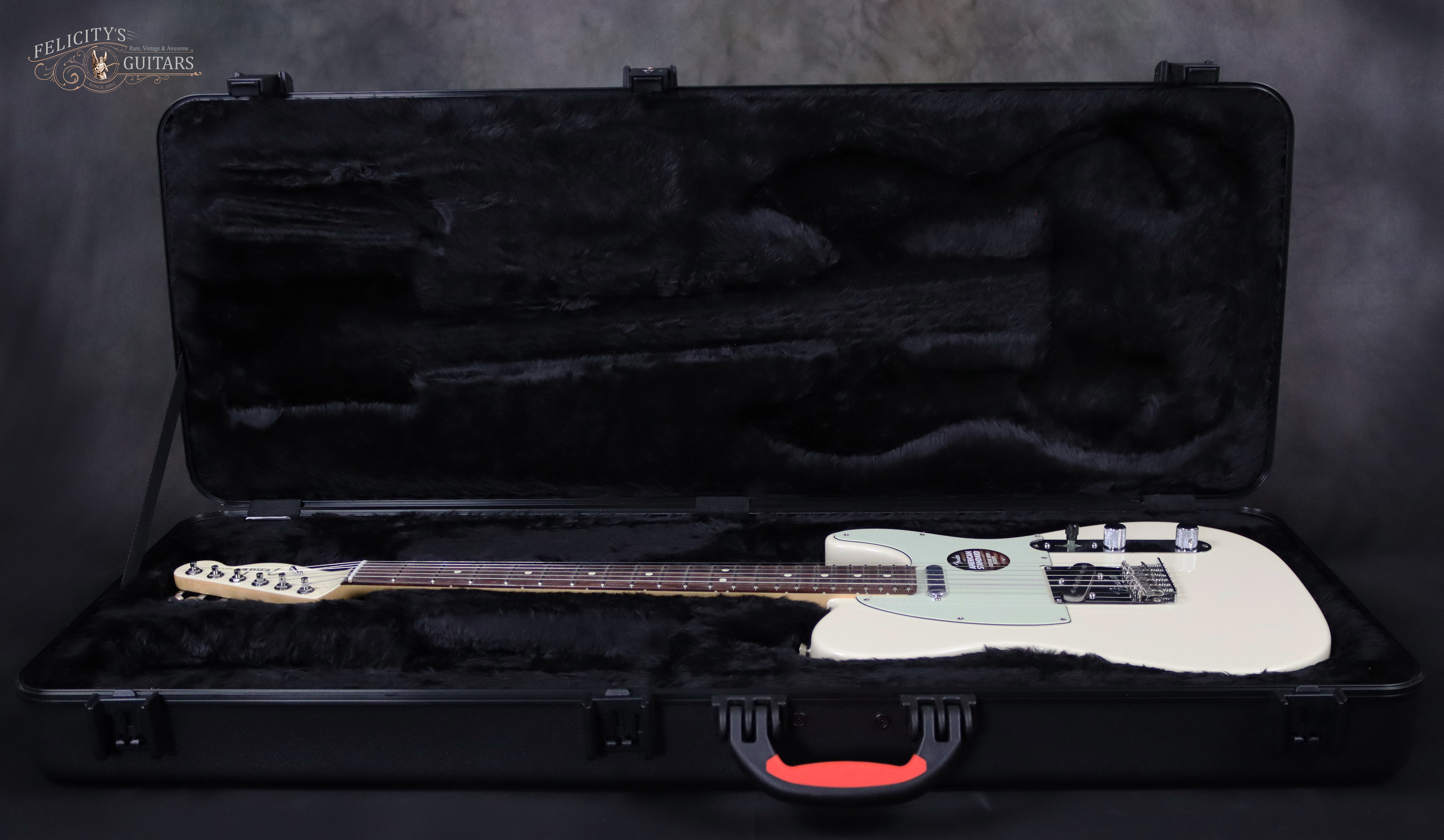

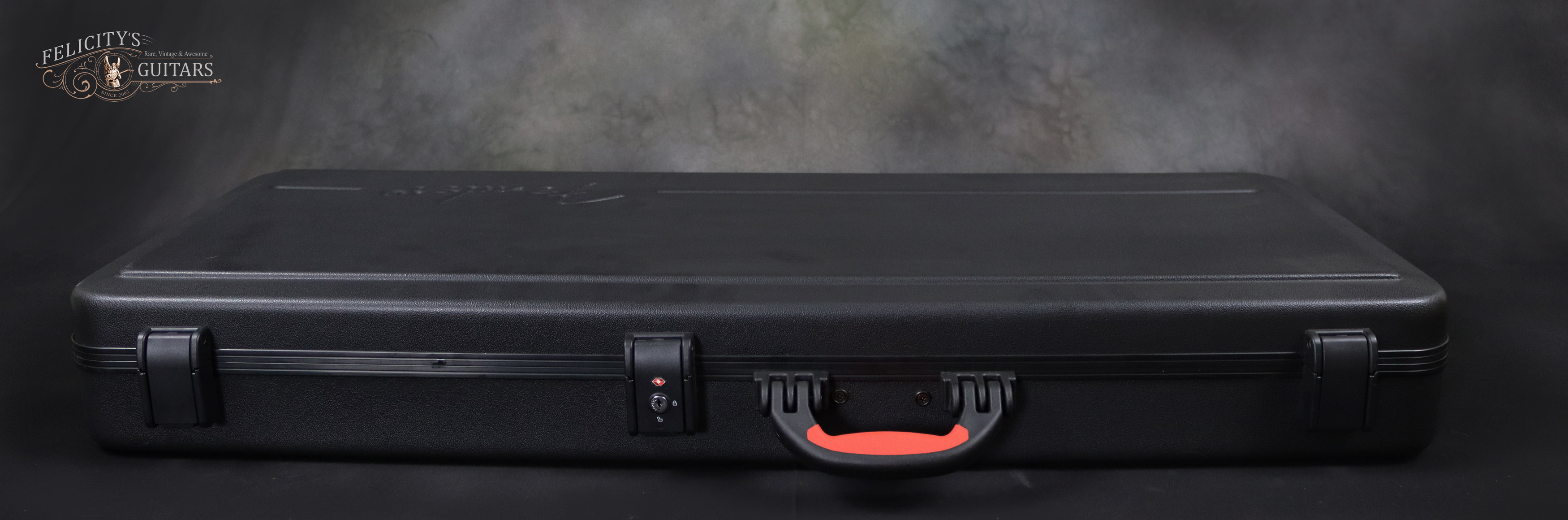

Fender® U.S.A. Deluxe Molded Case with Black Interior and locking center latch

Strap Locks

No

Strings

Fender® U.S.A. NPS (.009-.042 Gauges)

Tools / Accessories

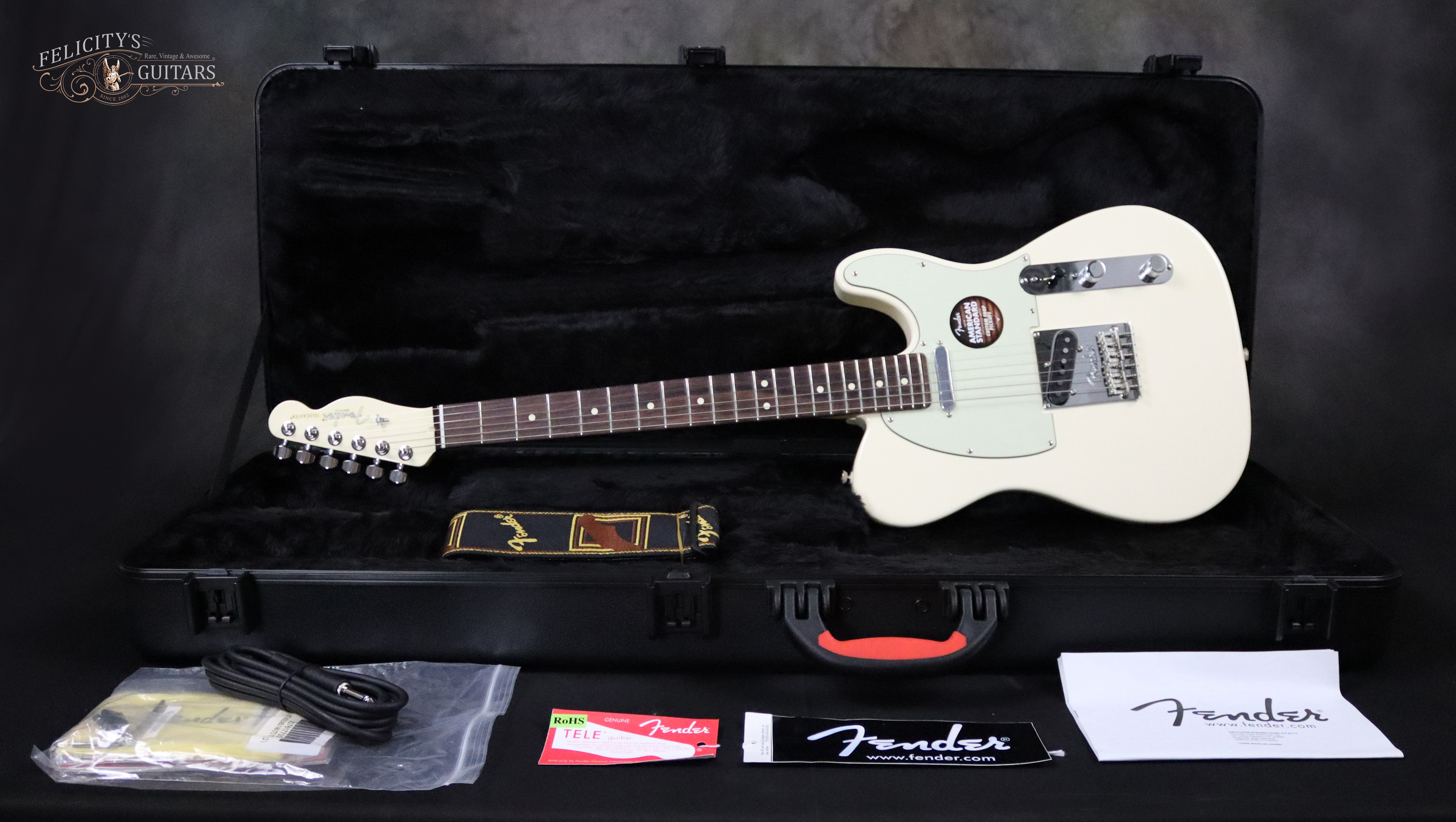

1/8” Truss Rod Wrench / Fender® Logo Strap, Cable, Polishing Cloth and case keys

Manual / Literature

Fender® U.S.A. Owner’s Manual, Instructions, Fliers and All Factory Hang Tags

C.O.A.

No

Other

No

Weight

Is the actual weighed-value in US Standard Units


Disclosure



Some technical Specs may have been extracted from Fender® U.S.A. and/or internet archives. The words Fender® and the associated designs are registered trademarks of the Fender Musical Instruments Corporation and the other named entities, respectively

Thanks for looking !
