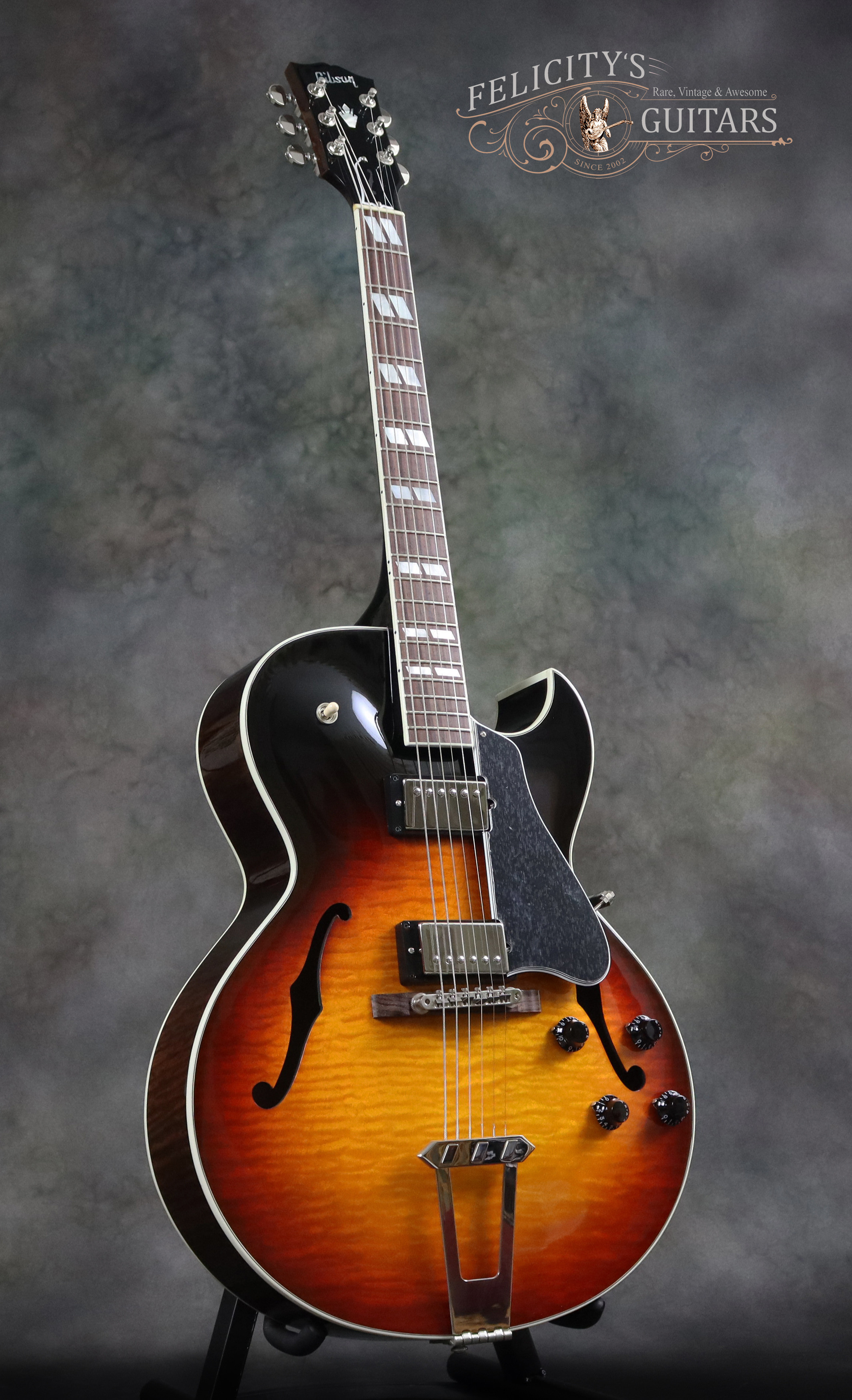

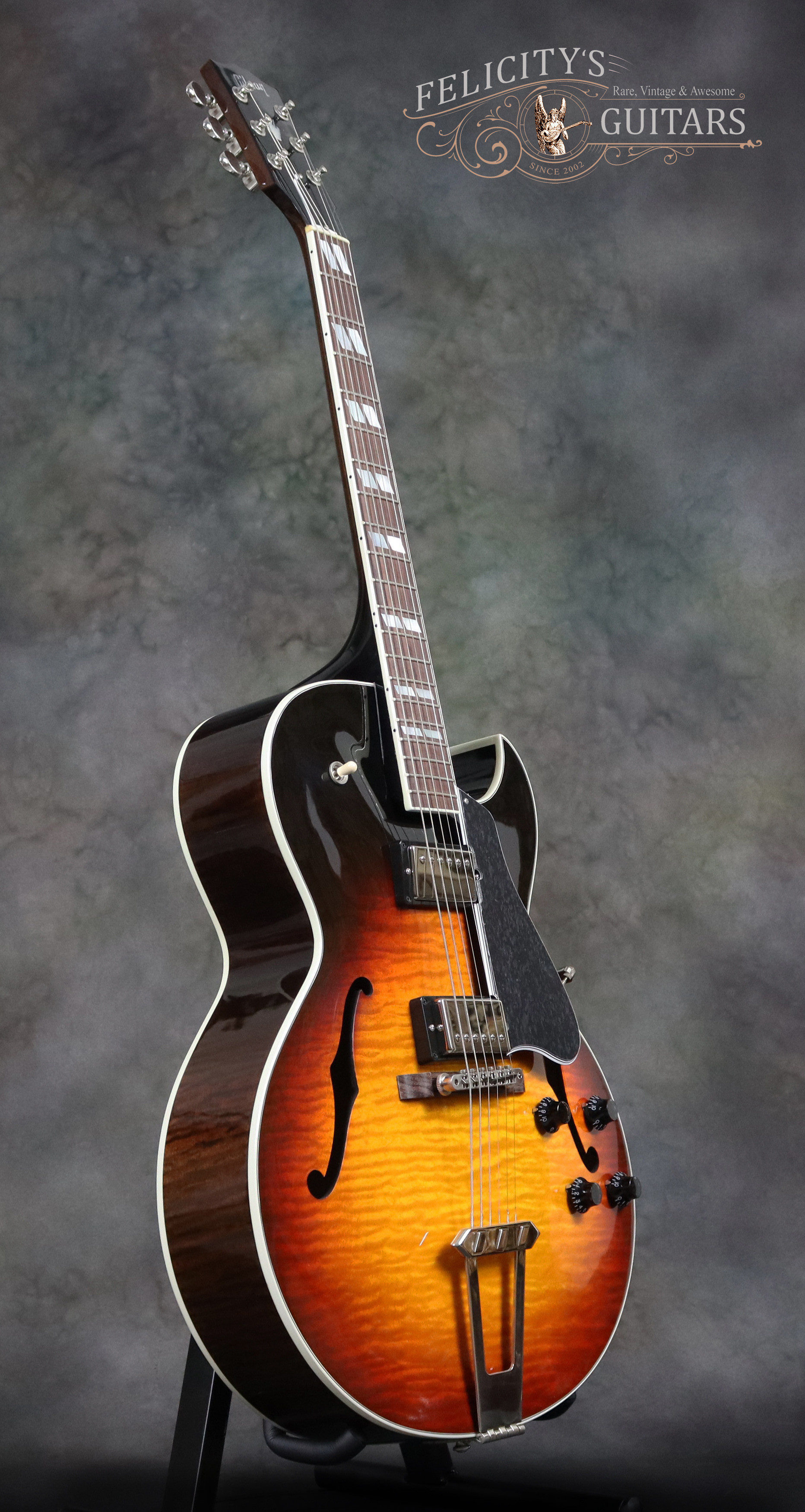

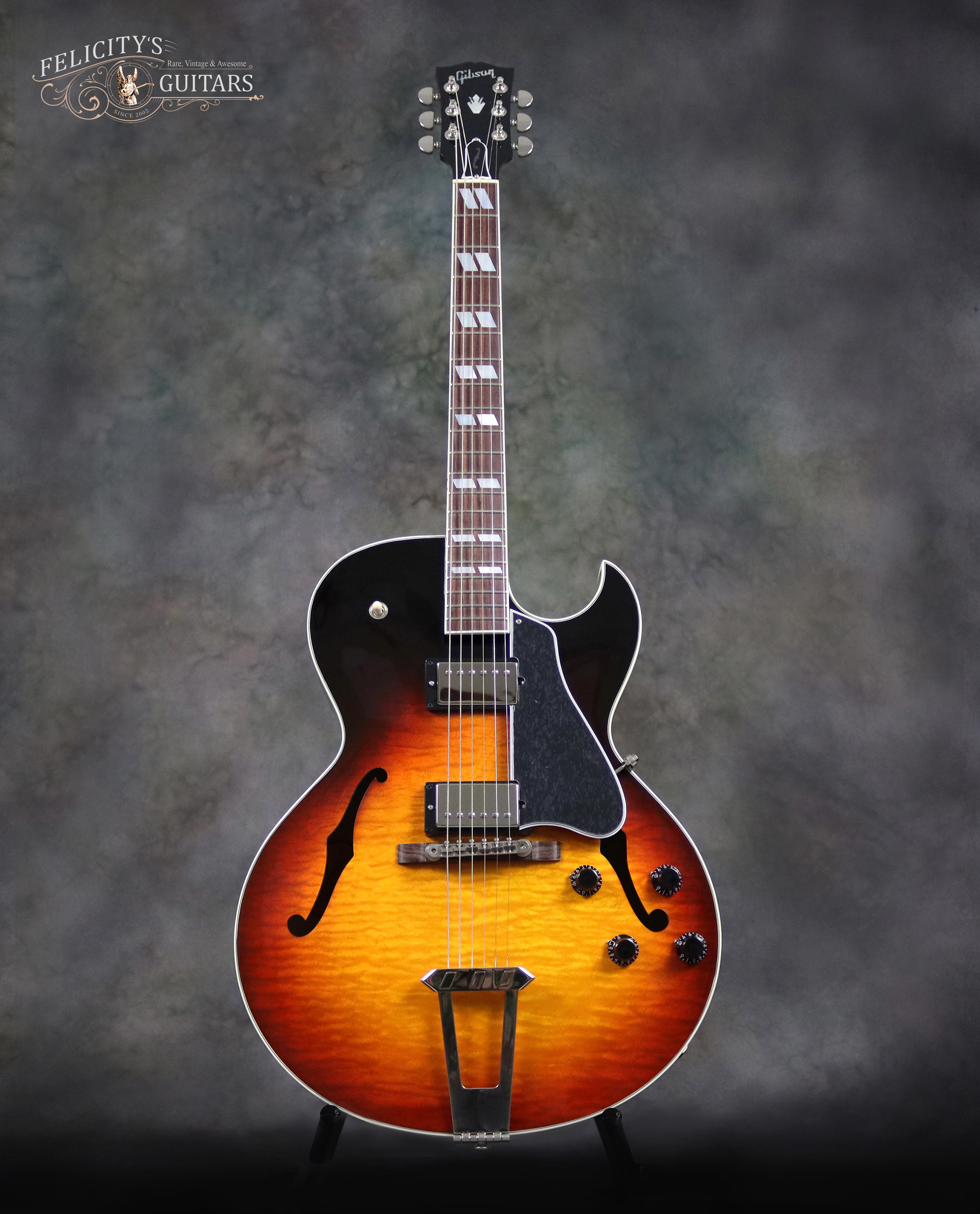

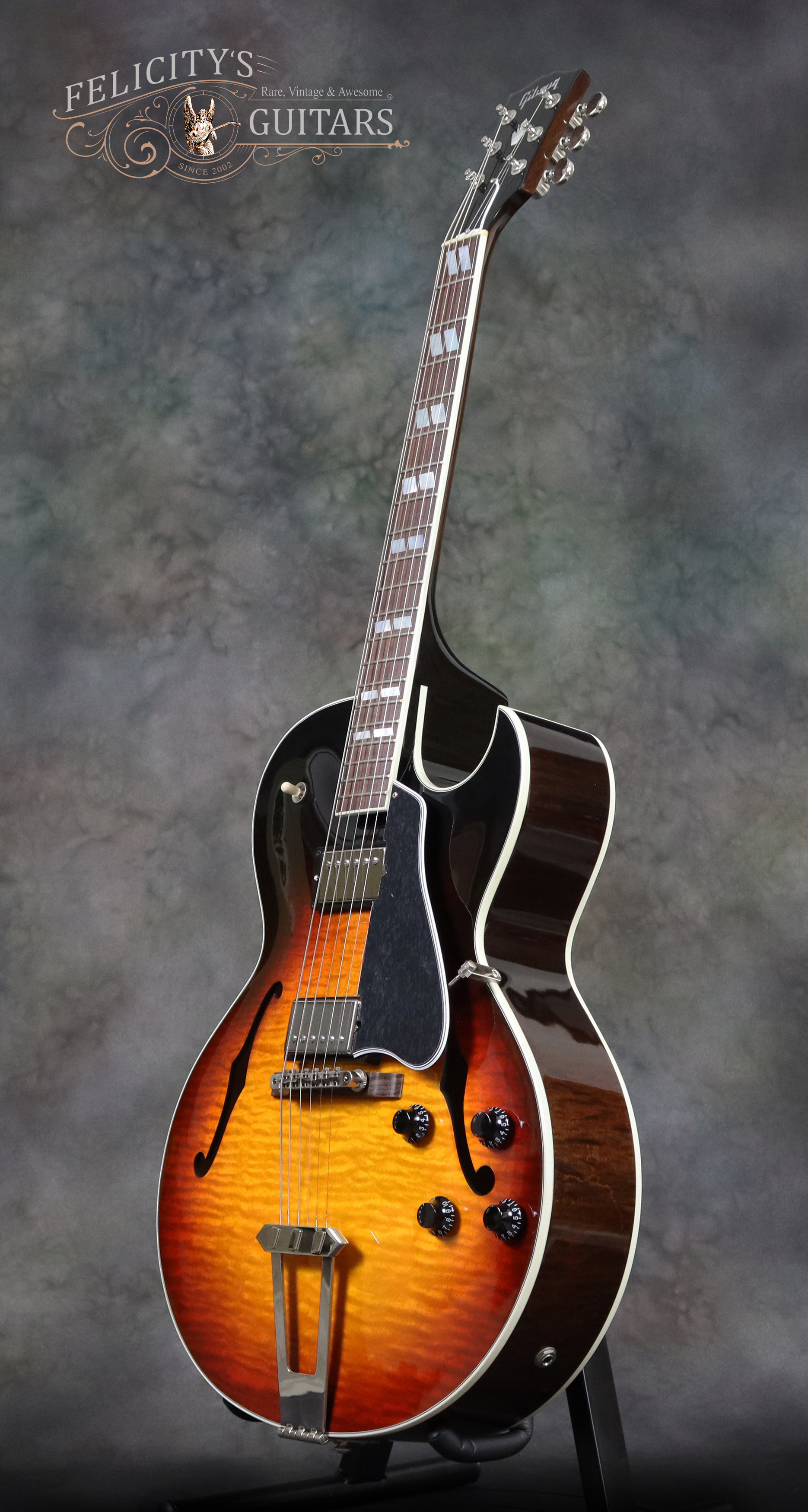

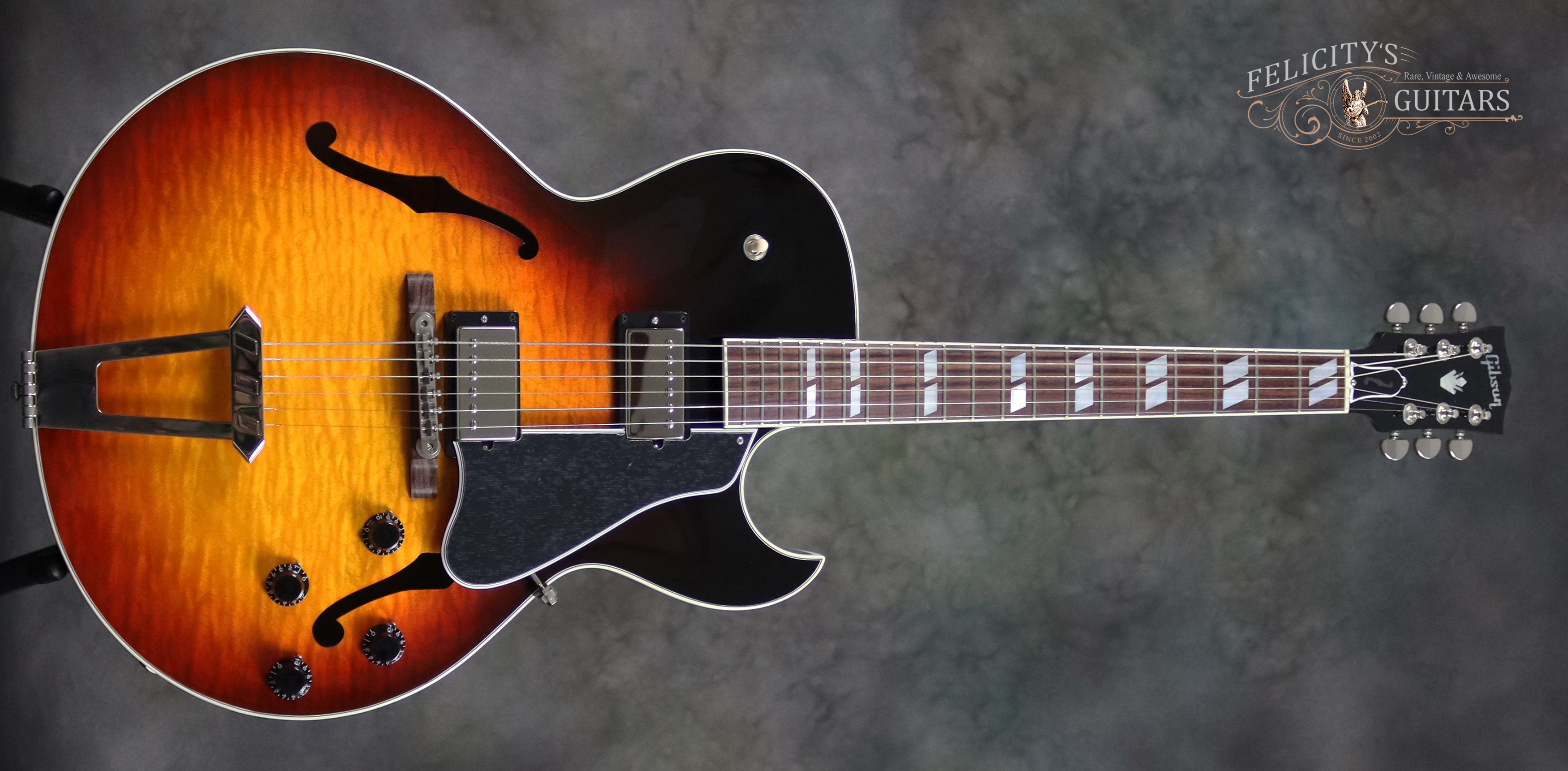

2016 GIBSON MEMPHIS ES-175 FIGURED HOLLOWBODY IN VINTAGE SUNBURST FINISH

Elegant looks on a fantastic archtop-electric.

Ever since it hit the scene in 1949 the ES-175 as an intermediate alternative to the exclusive L-5 and has remained the world's favorite "jazz box", and none looks as good as the 2016 ES-175 Figured from Gibson Memphis.

 

The 2016 Gibson Memphis ES-175 Figured at a glance:
  • Classic fully-hollow single-cutaway design body
  • Rosewood fingerboard with split-parallelogram Mother of Pearl inlays
  • Highly figured maple top and back
  • Rolled fingerboard binding for superb playing comfort
  • Historic truss rod
  • Two ‘57 Classic humbuckers with slightly unmatched coils for vintage PAF tones
  • ABR-1 bridge with titanium saddles
  • High-gloss nitrocellulose lacquer finish
2016-Gibson-Memphis-ES-175-Figured-Vintage-Sunburst

USD 1,000,000

Add to Cart

Shipping will be calculated at check out

description

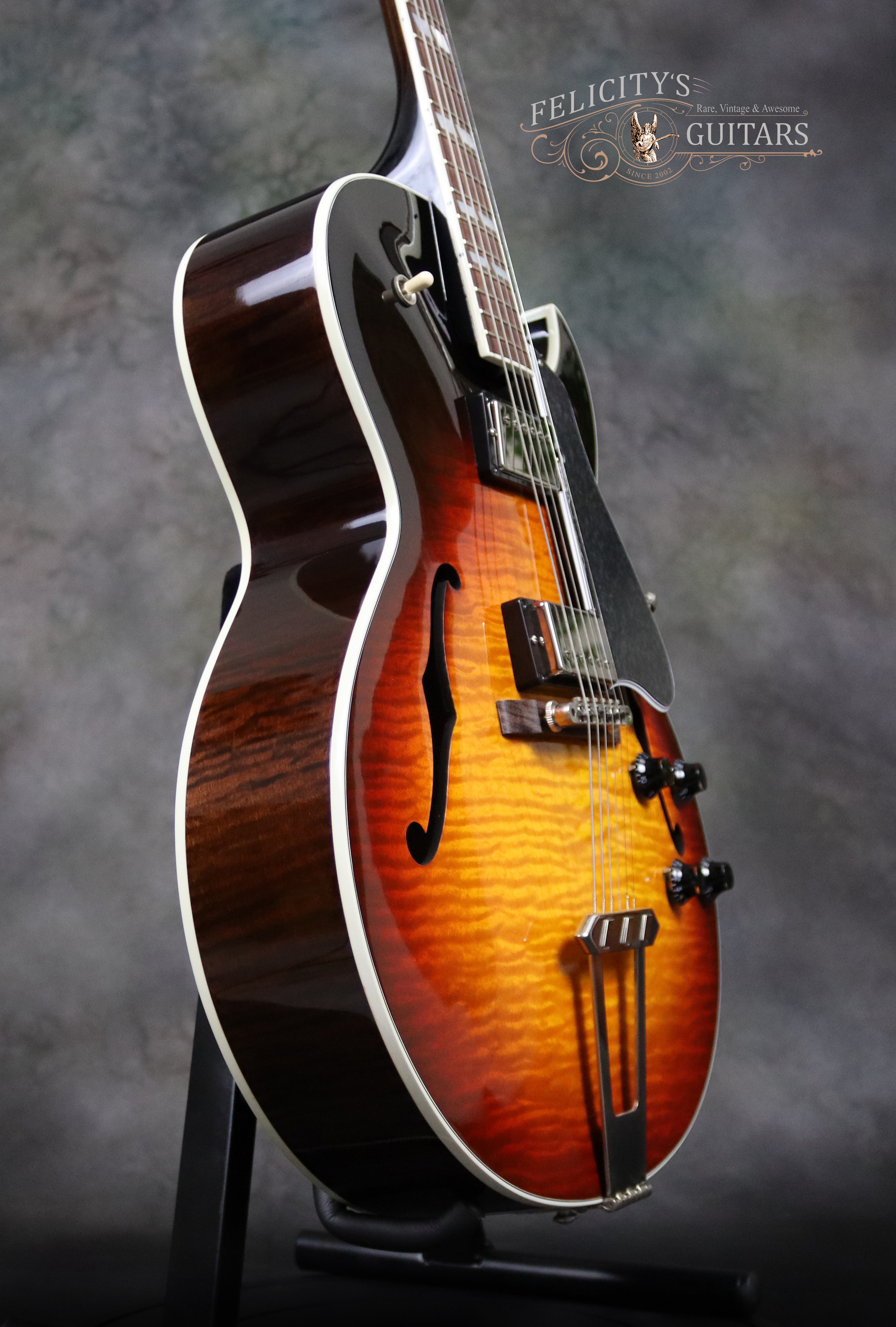

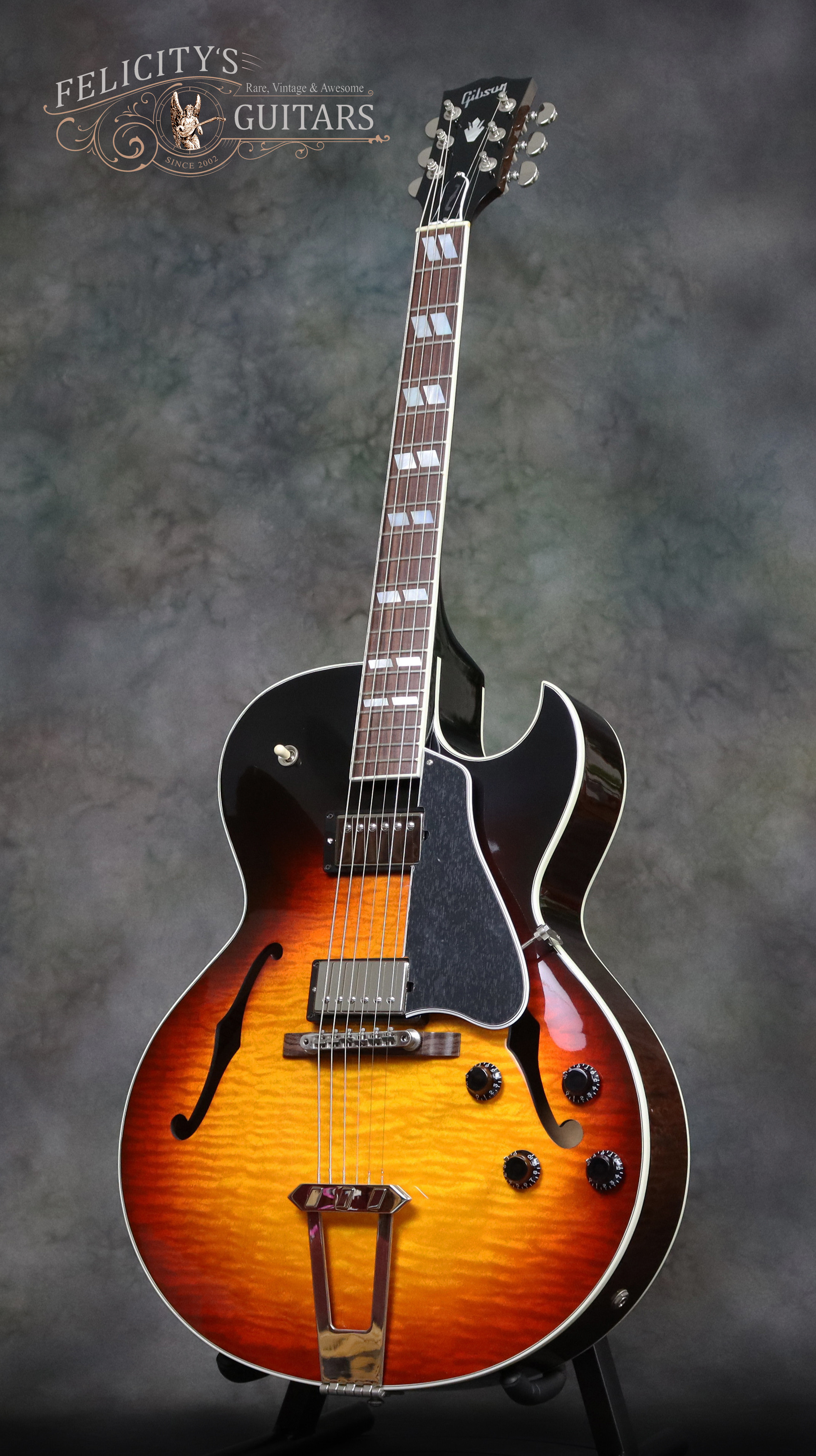

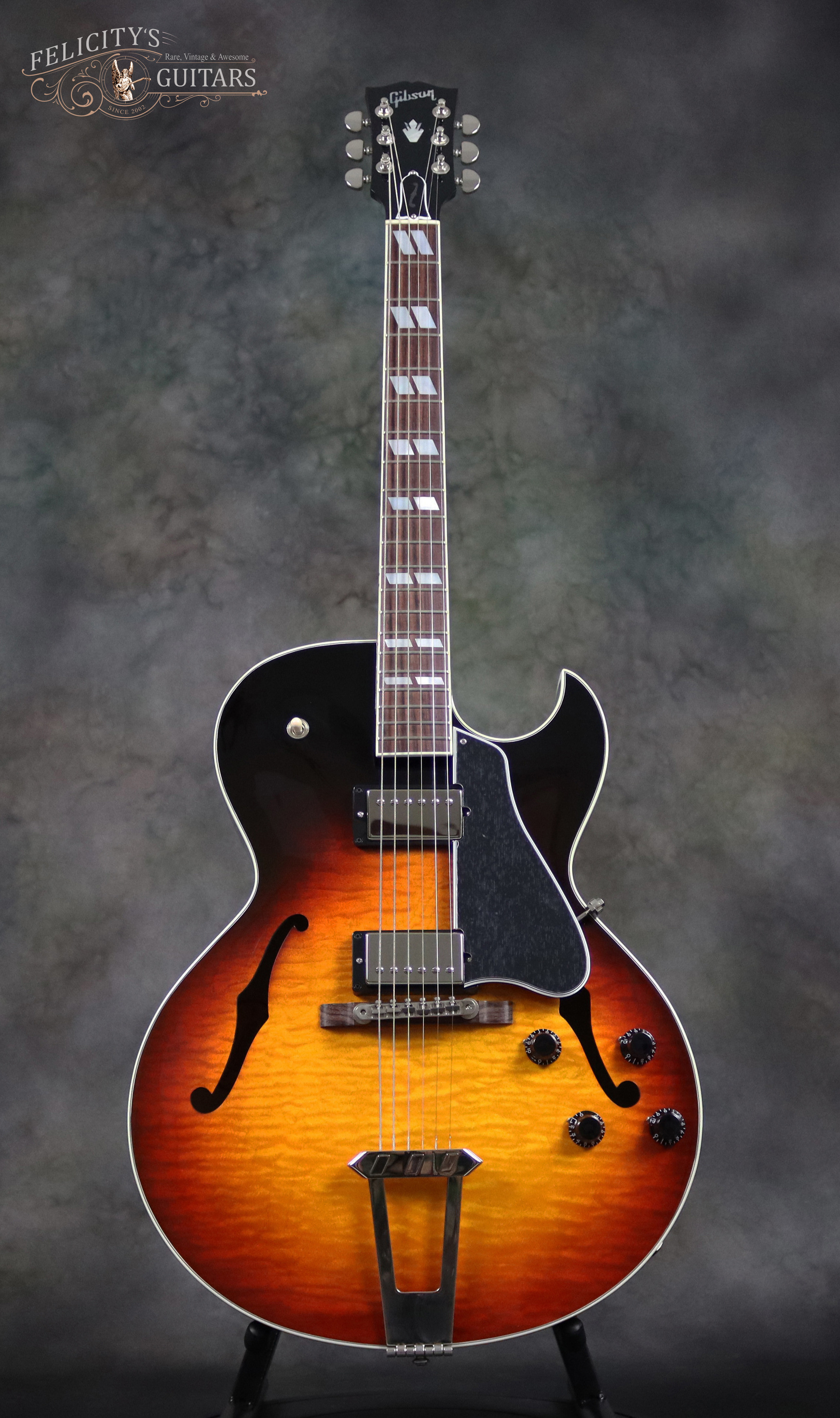

It was the first Electric Spanish model (ES stands for Electric Spanish) by Gibson to feature a Florentine cutaway. In 2016, 175 appears in two versions and this is the affordable one, if that could be said for a $4,849 guitar. 2016 ES-175 Figured is a marvelous jazz box, made in the vein of classic 175s but with a modern touch. Back, sides and the top are all made of flamed maple, AAA grade maple to be precise.

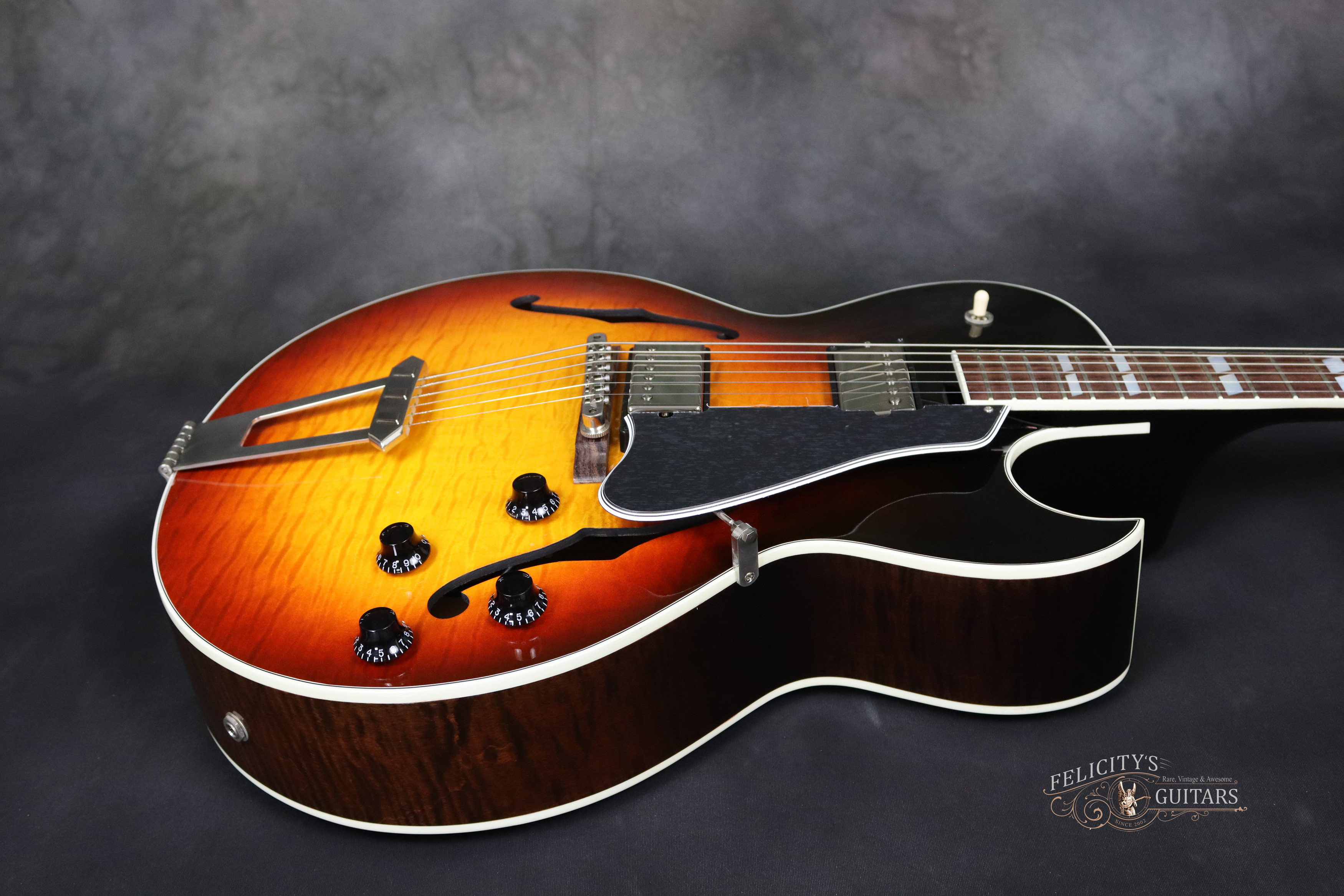

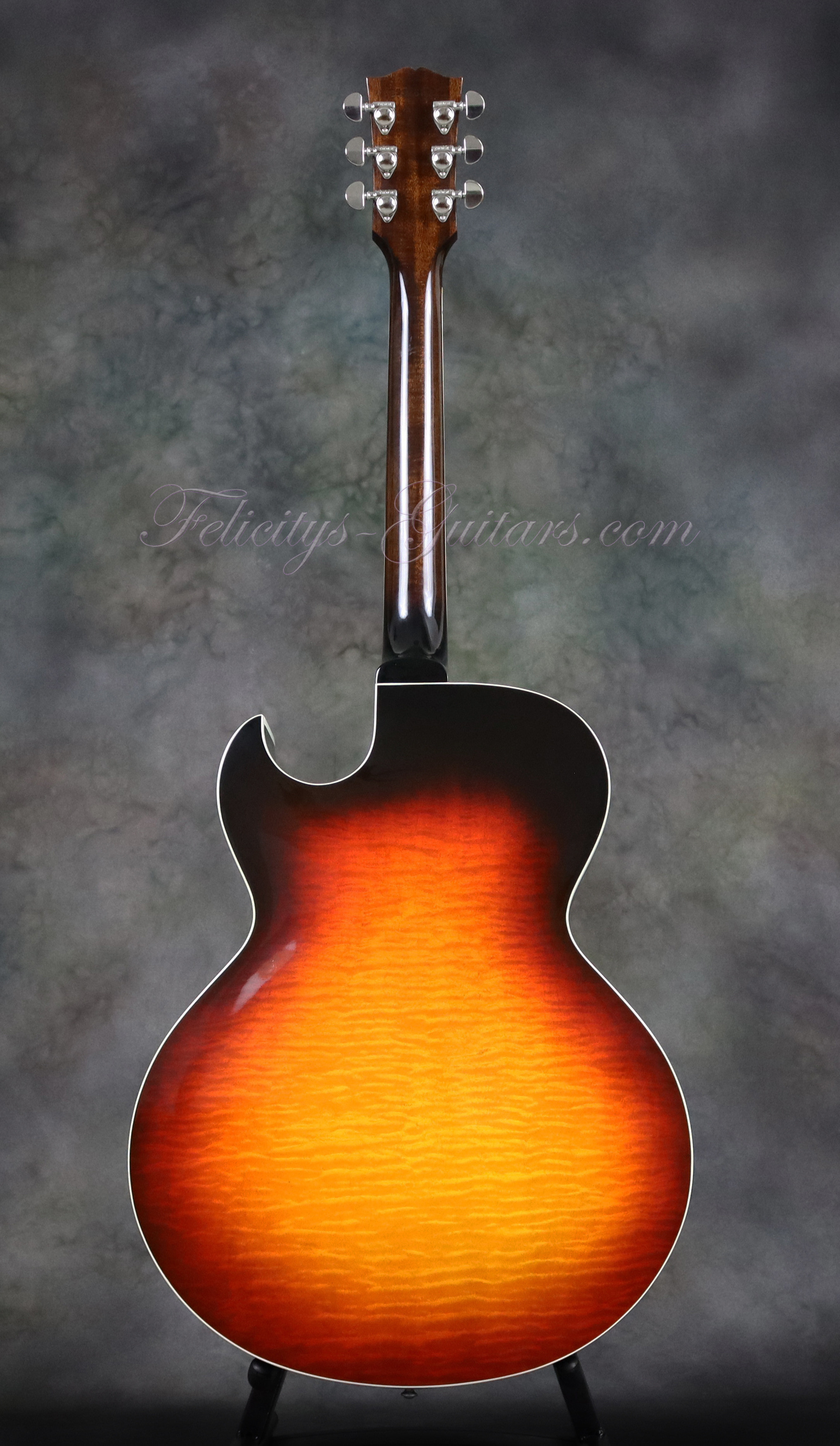

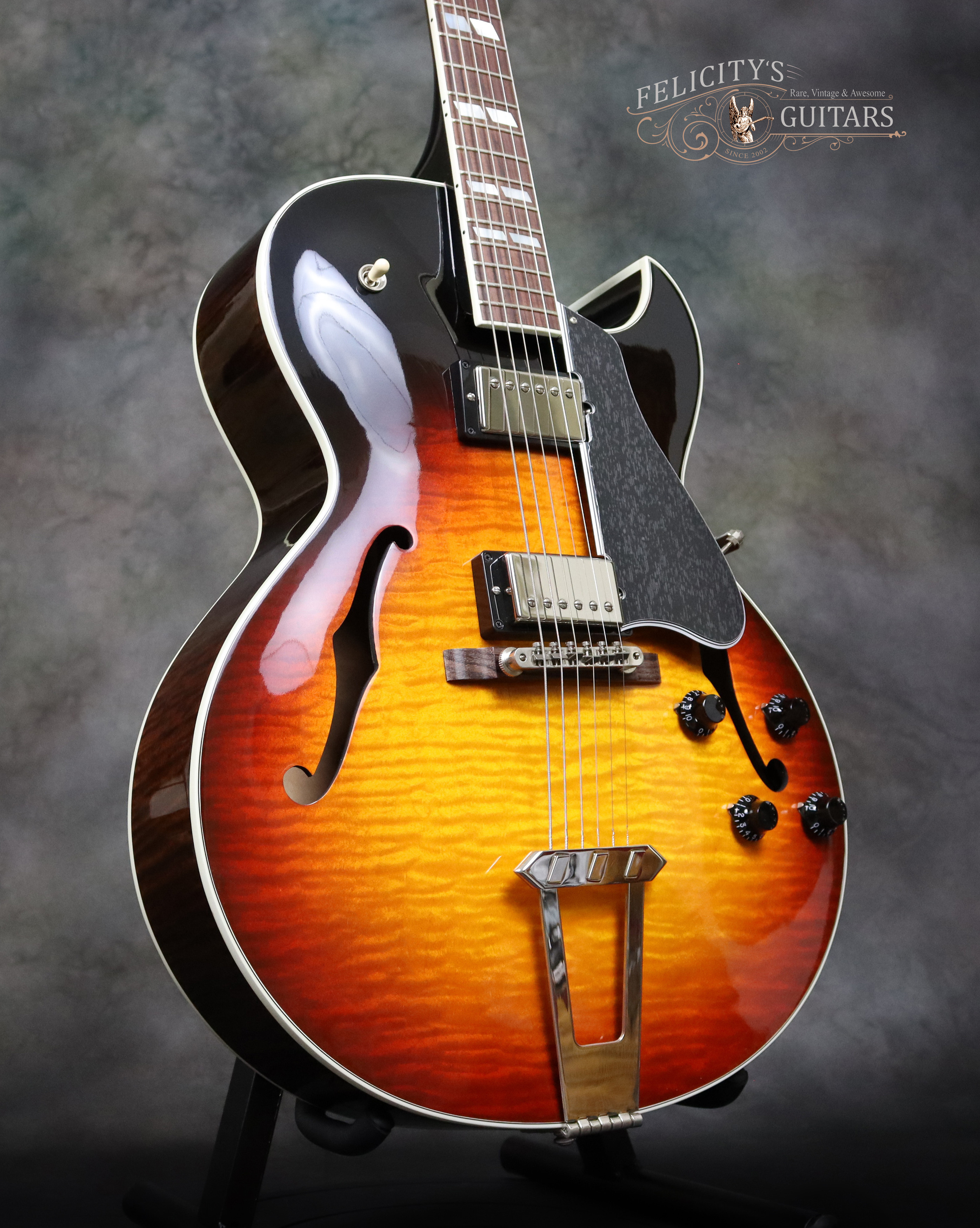

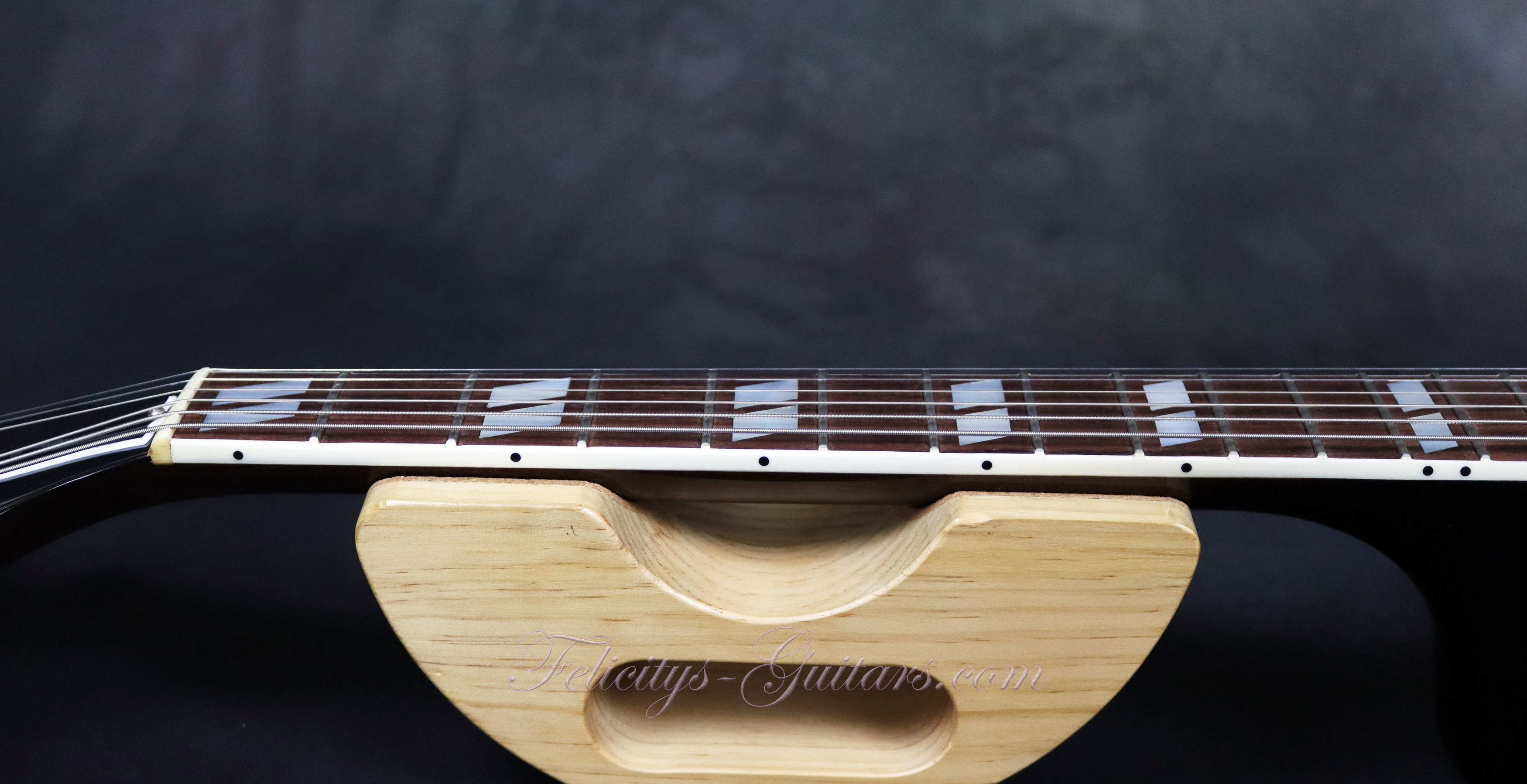

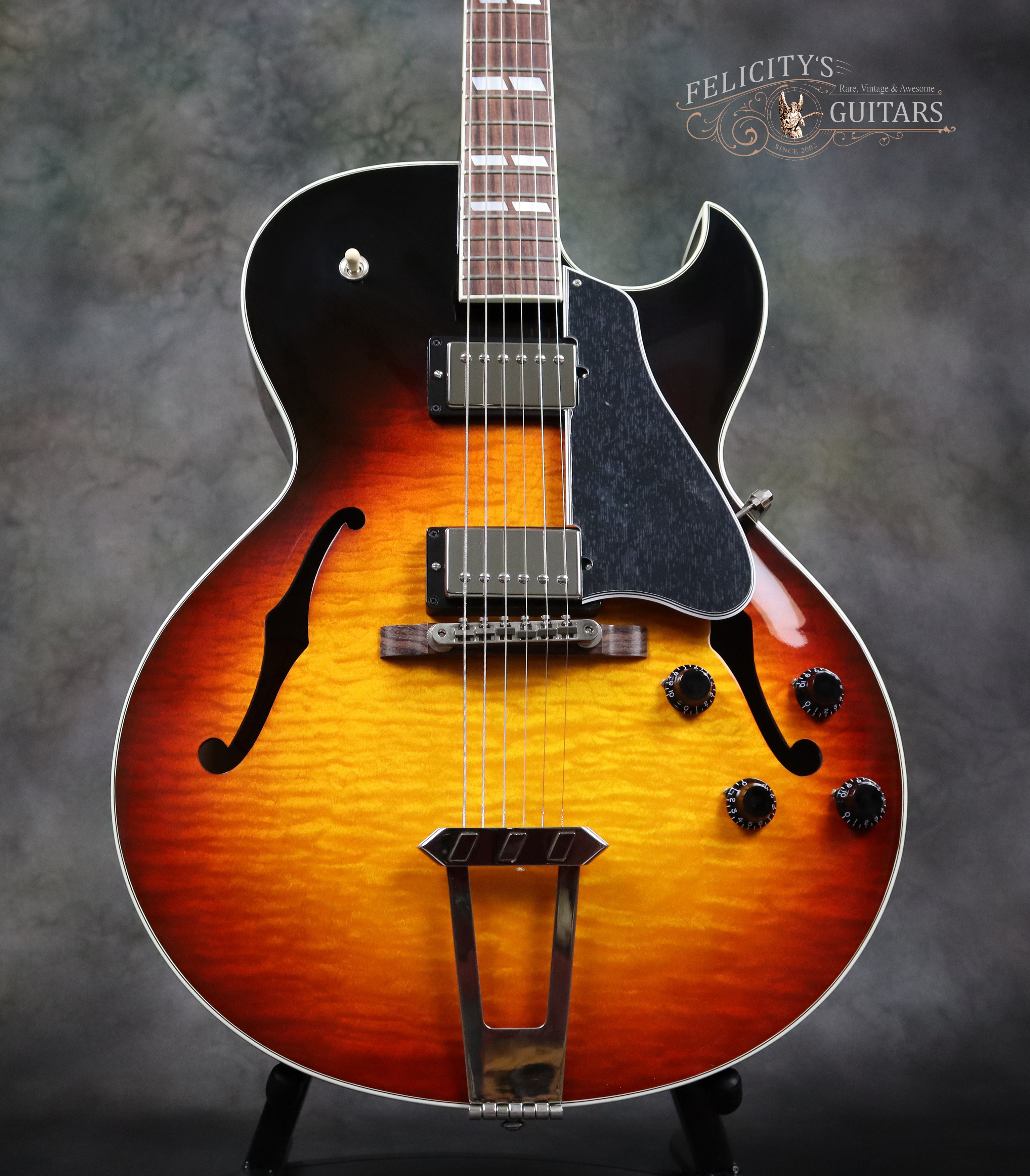

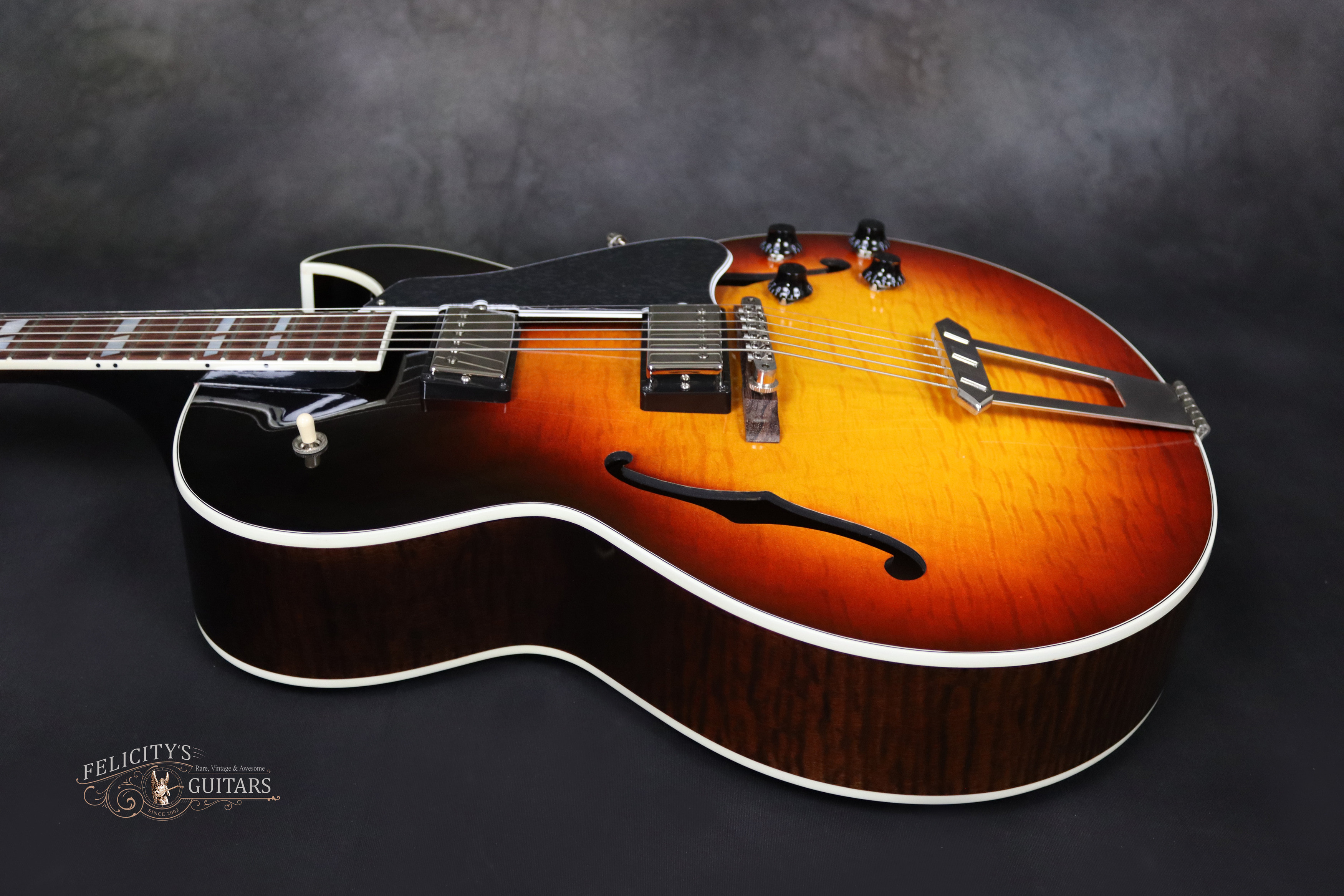

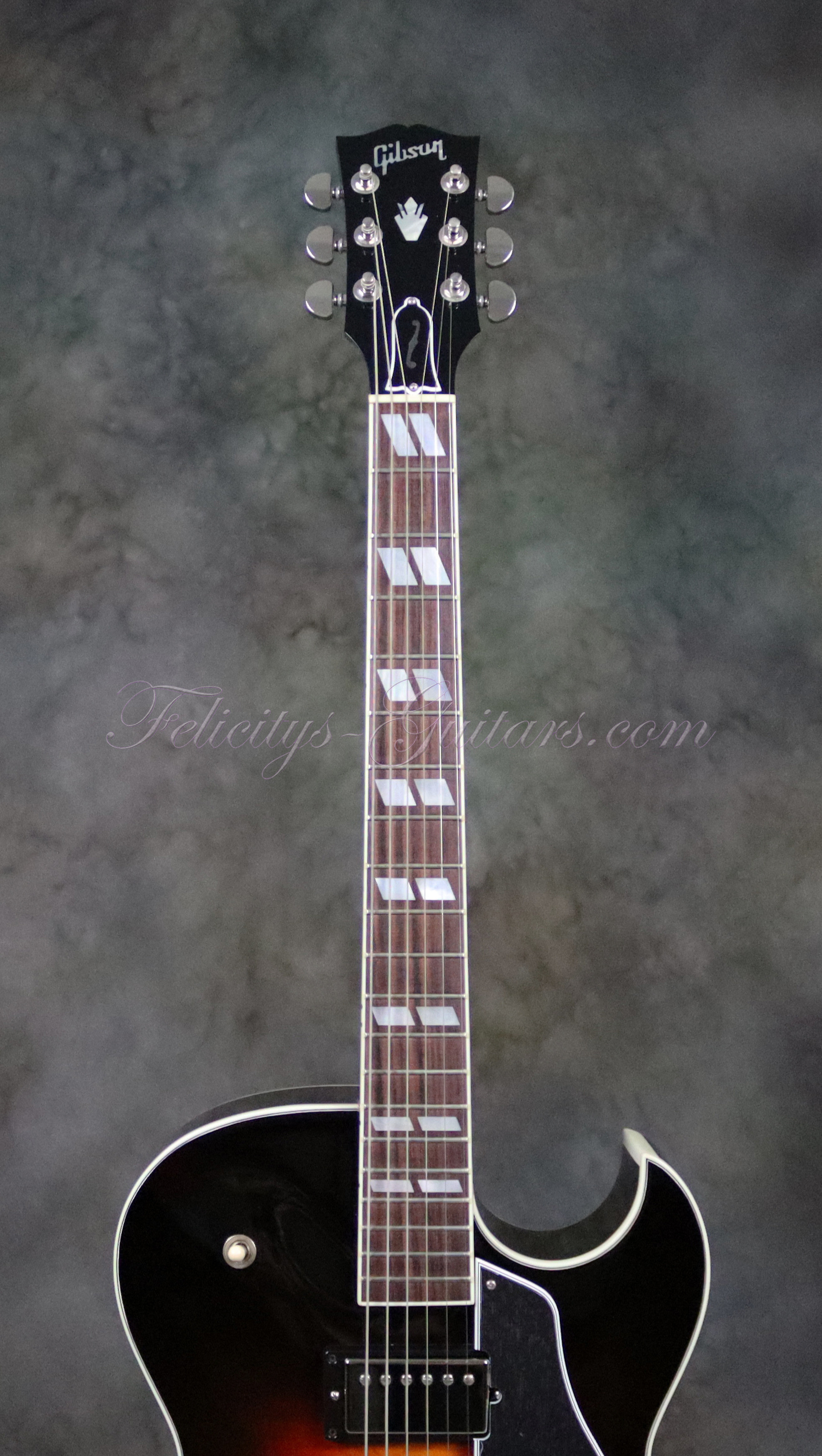

Both the back and top are arched and both feature classic crème binding around the edges. Top is also decorated with a plastic pickguard and "f" holes. Mahogany neck is a one piece, attached at the 14th fret and equipped with a rounded C profile. 20-fret fingerboard on its top is made of rosewood (split parallelogram inlays, 12" radius, and 1-11/16" bone nut).

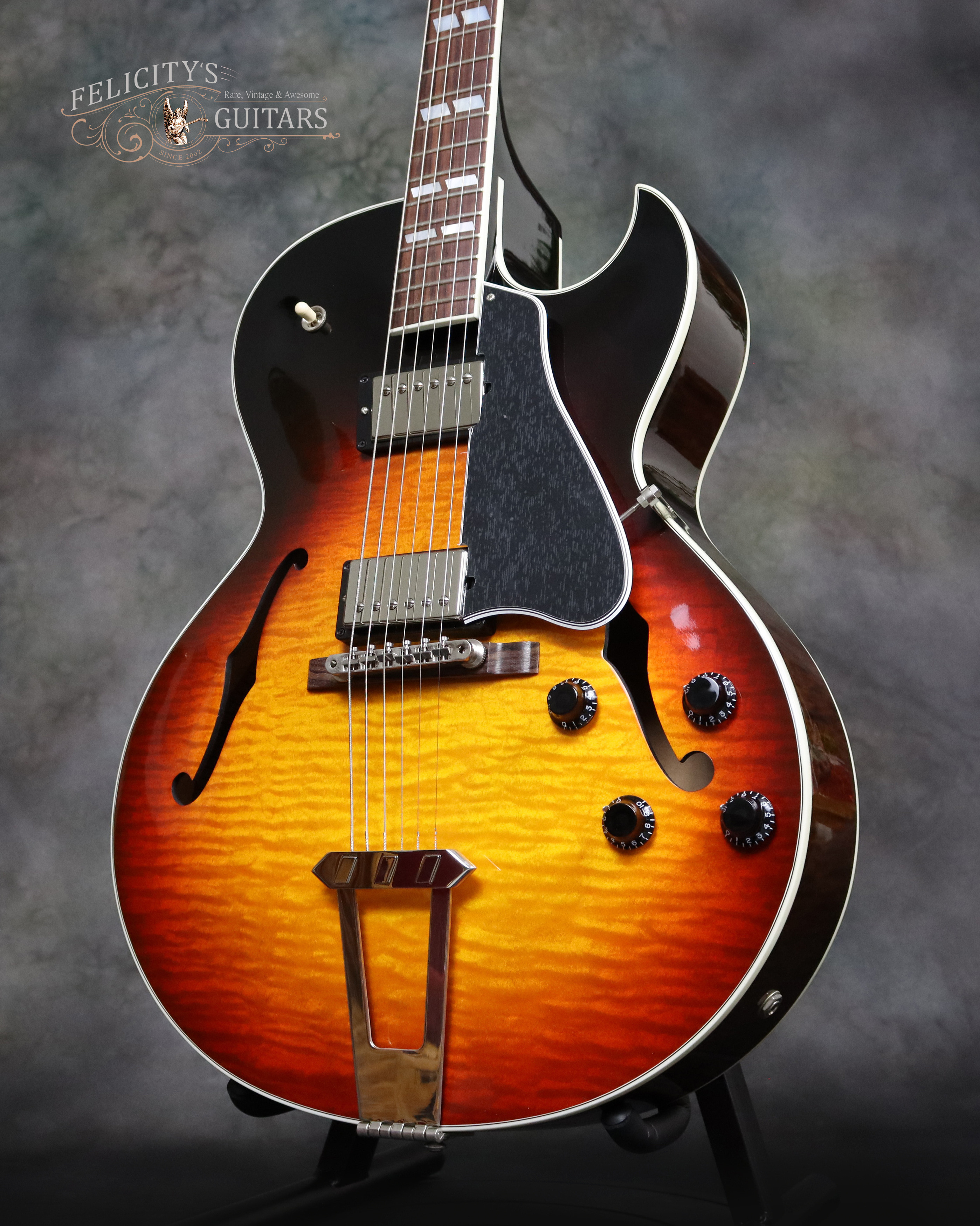

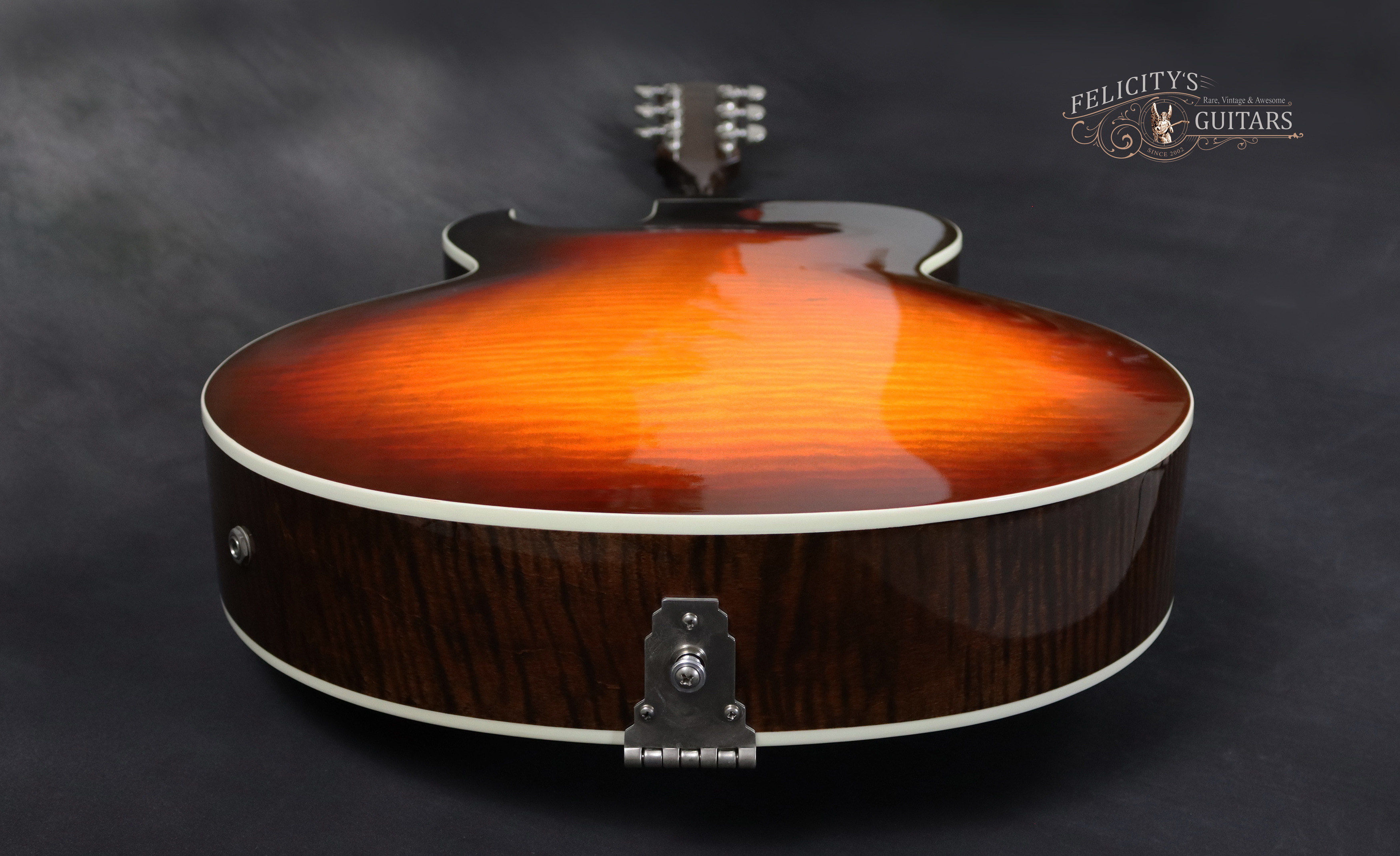

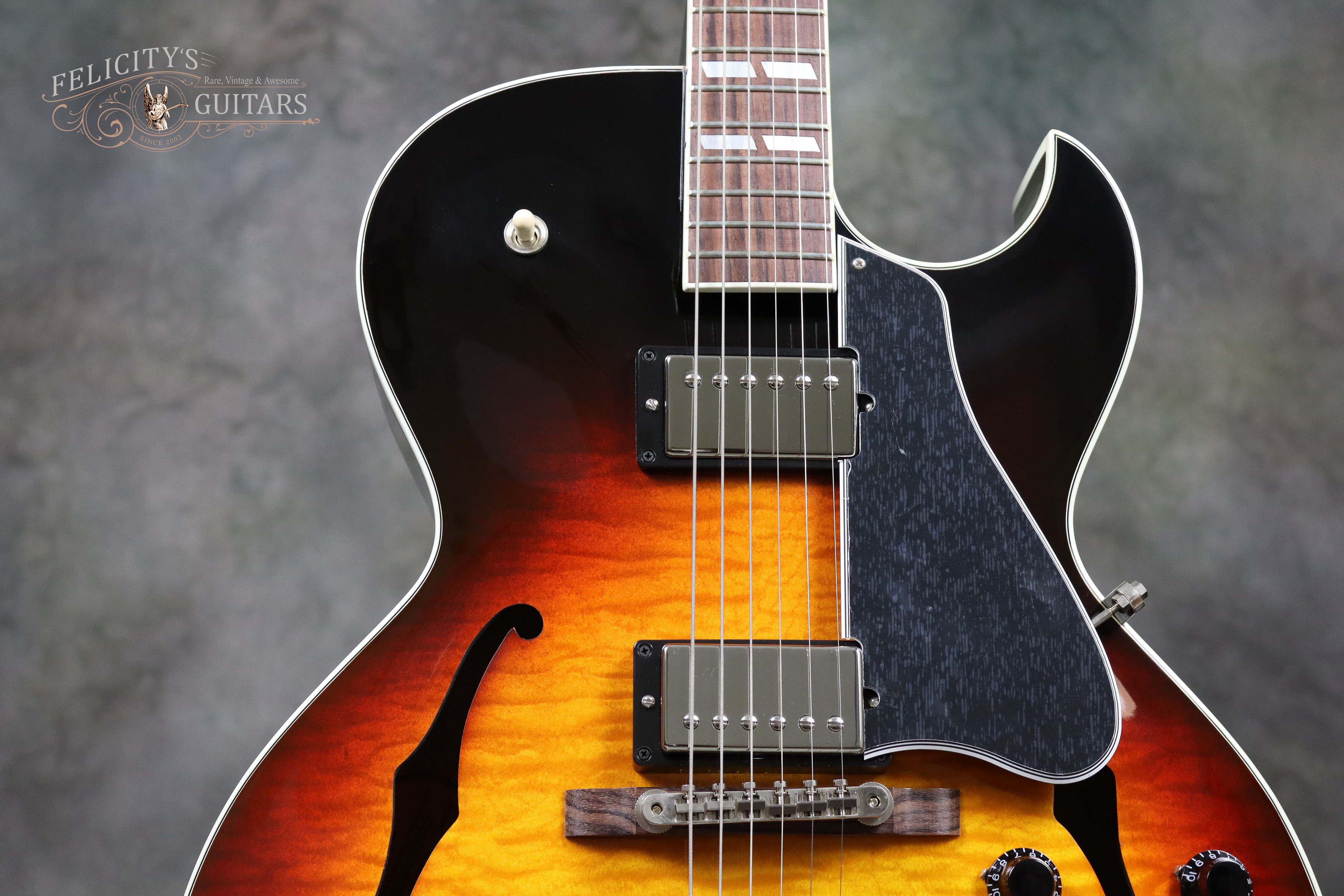

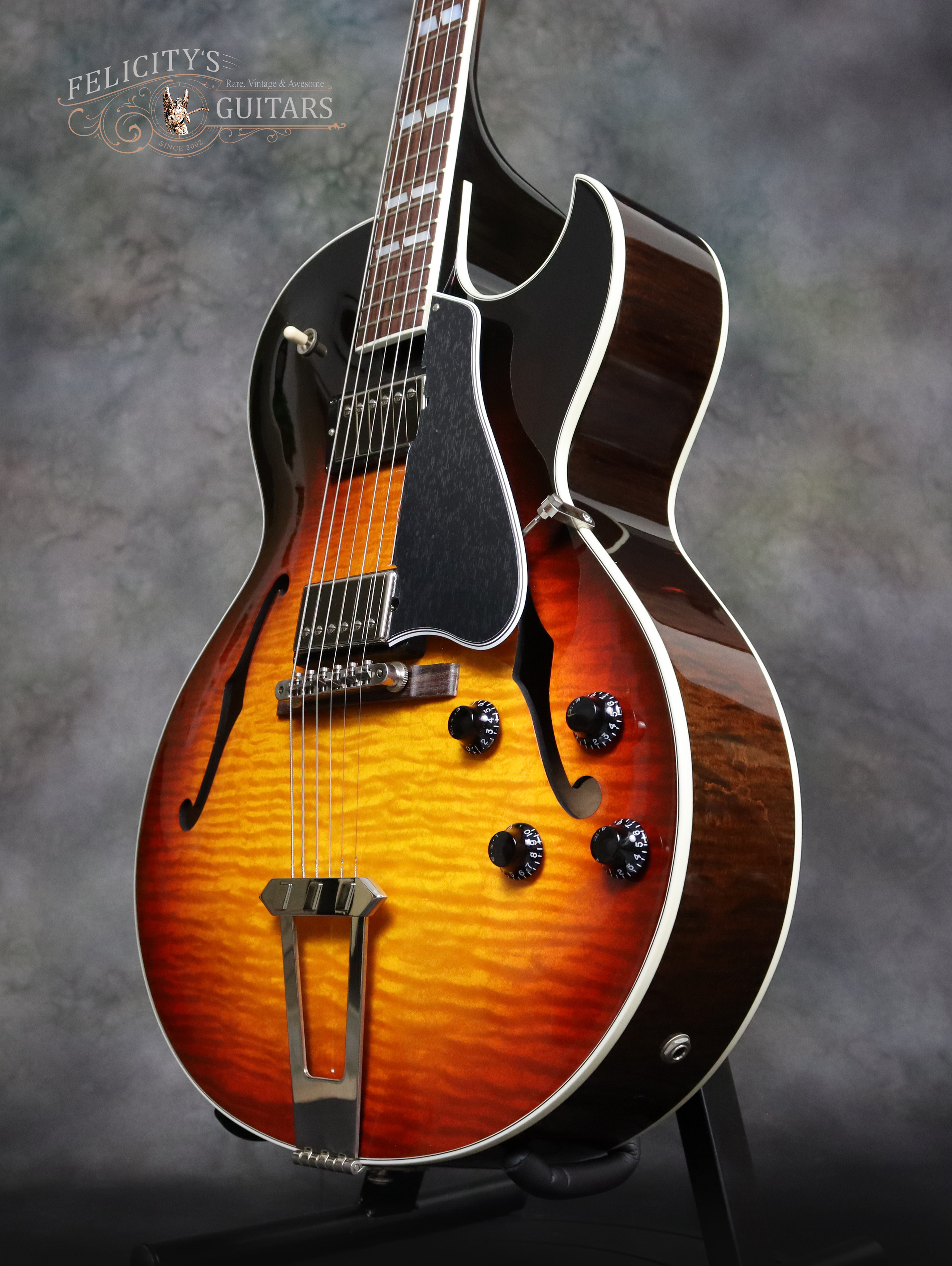

Classic `57 humbuckers installed in the bridge and neck positions bring slightly unmatched coils for that vintage PAF tone. Standard set of two volume knobs, two tone knobs and a three-way toggle pickup switch is featured in the controls unit. ABR-1 Bridge with wooden base and vintage trapezoid tailpiece, and a set of Grover Rotomatic tuners keep the tuning and intonation in check with surgical precision.

The wood, construction, and headstock pitch all contribute greatly to the tone, aiding this guitar's exceptional sustain and depth, and yielding a resonance that can be felt right through the body. The soundwaves resonate within the hollow airspace of the Maple veneered Body, around the F-holes, and throughout the solid glue joints.

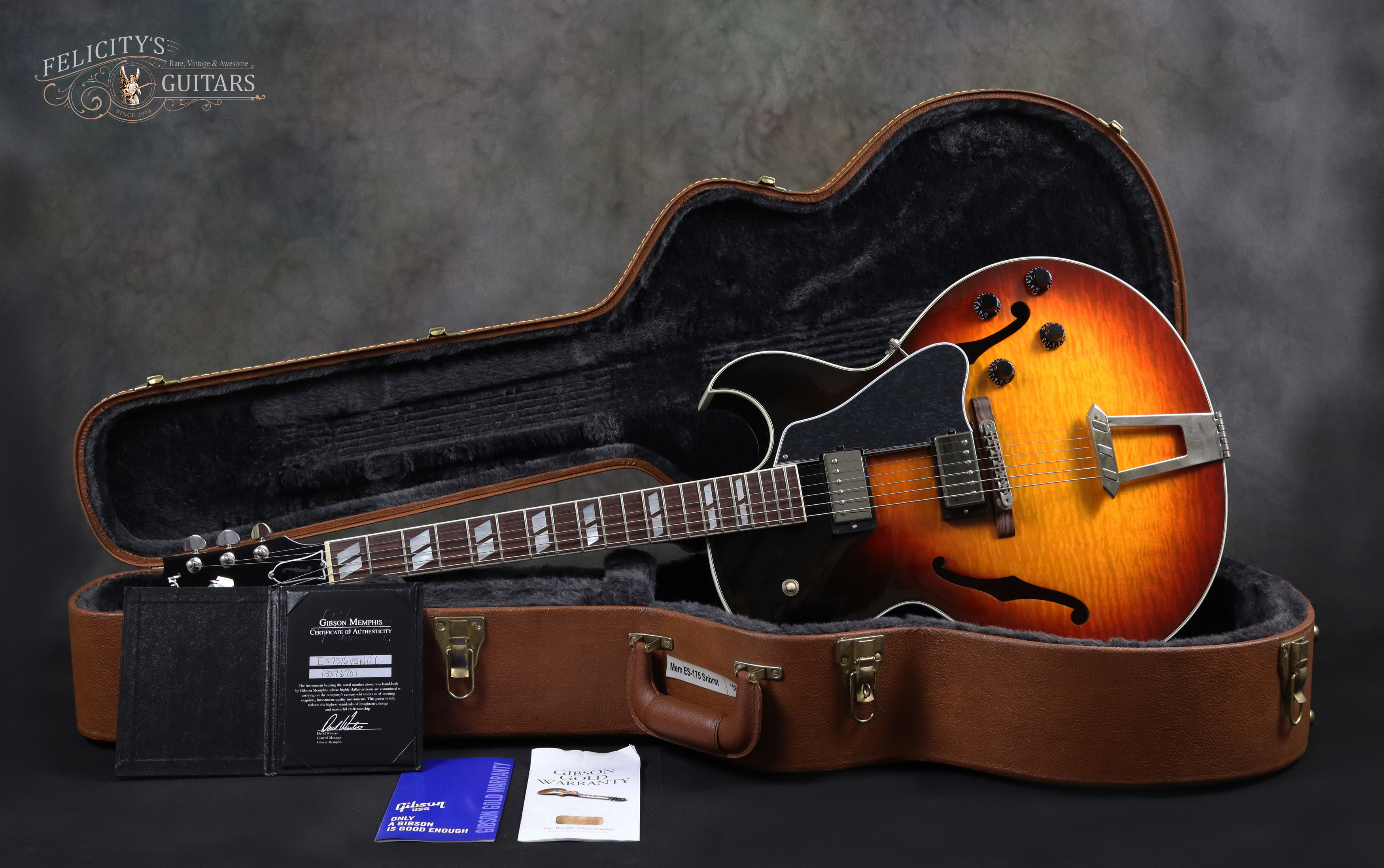

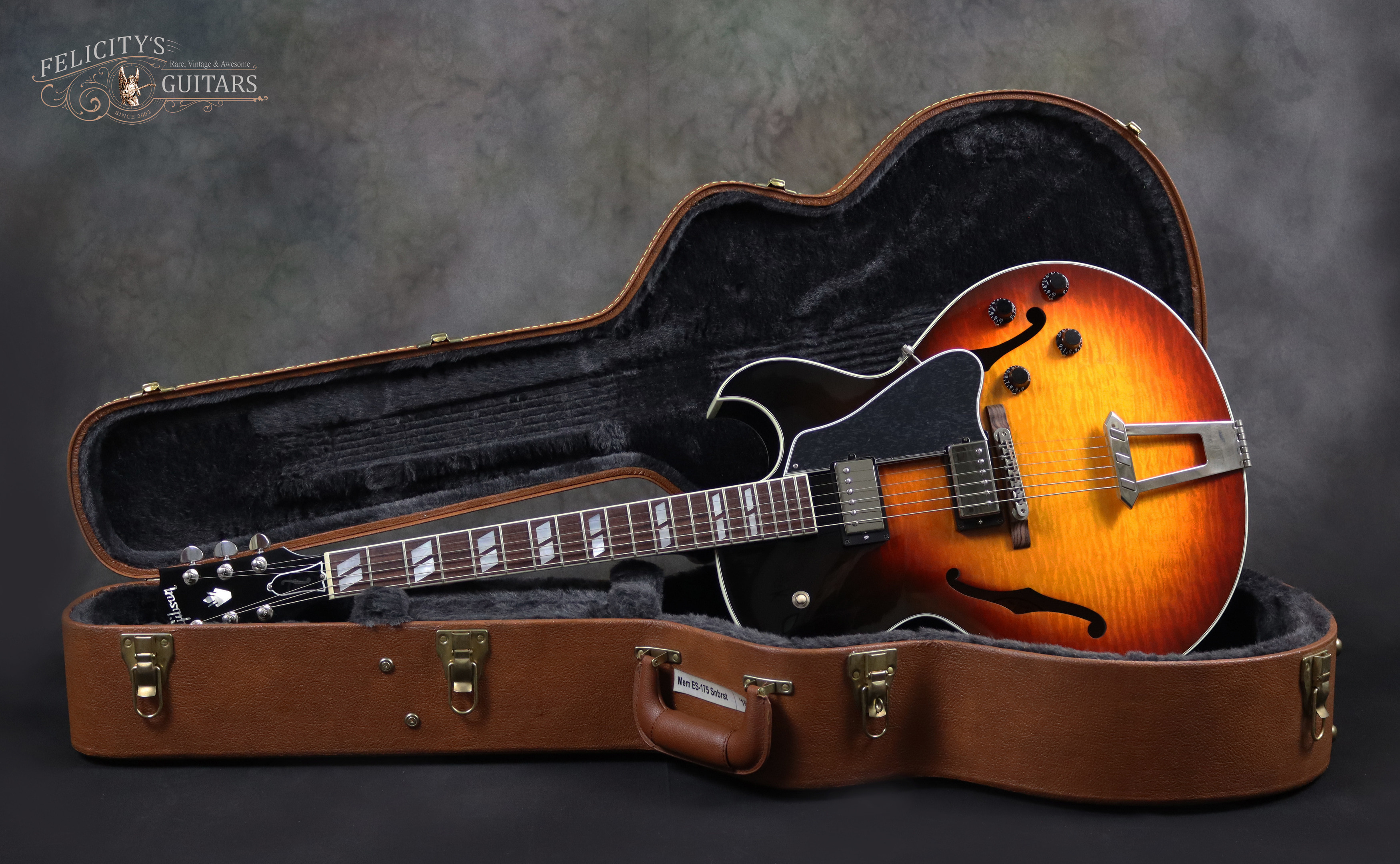

Original hardshell case and C.O.A. included.

Specifications

General

Condition

Brand New

Number of Strings

6

Orientation

Right-handed

Country of Origin

U.S.A.

Year

2015

Limited Edition / Series

Limited Run

Weight

7-lbs 5.8-oz

body

Body Type

Hollowbody

Body Shape

Venetian Single Cutaway

Body Material

Select Laminated Tonewoods with 1-pc Grade-AAA Flamed Maple Veneer Top & Back

Body Carve

Front: Arched / Figured

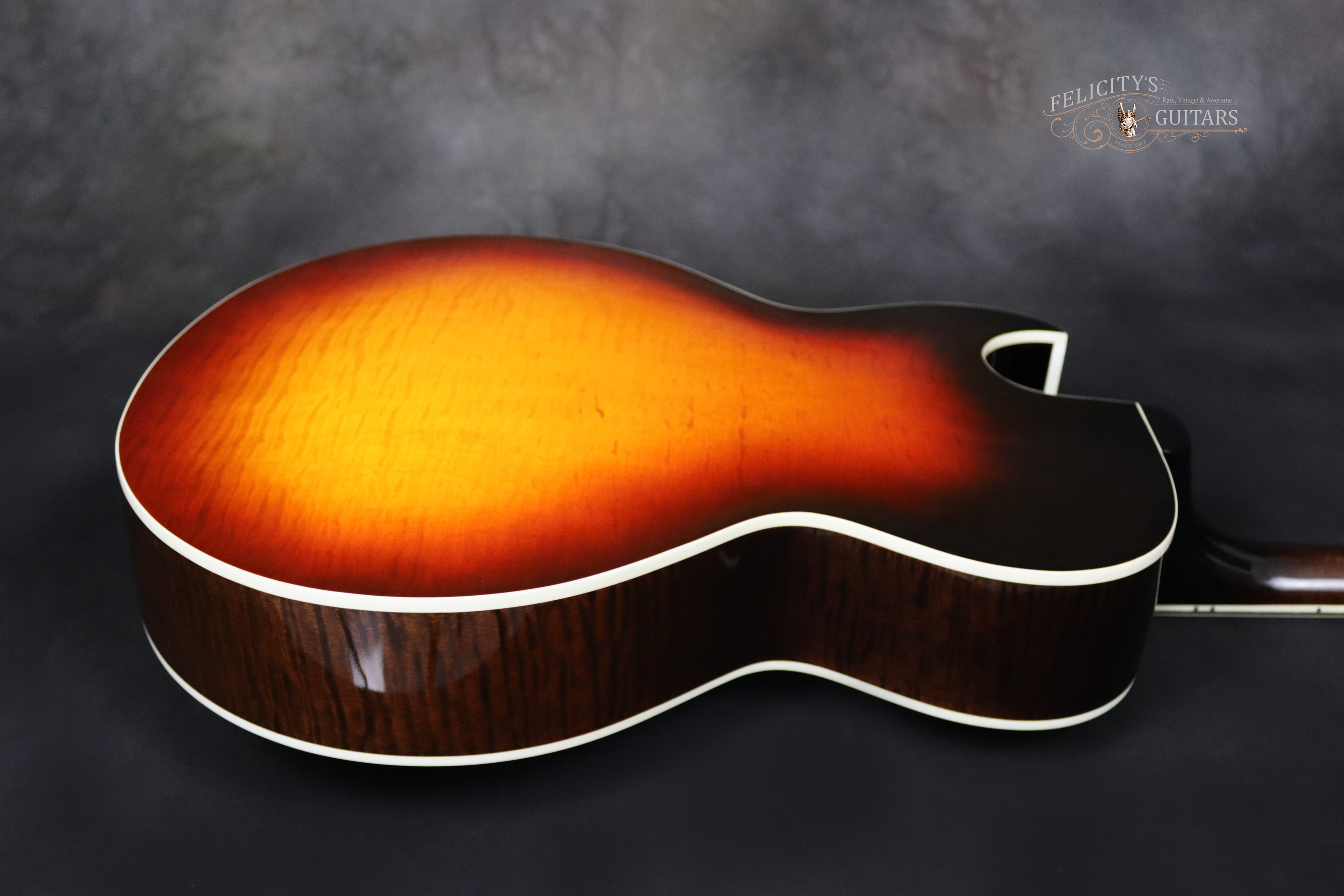

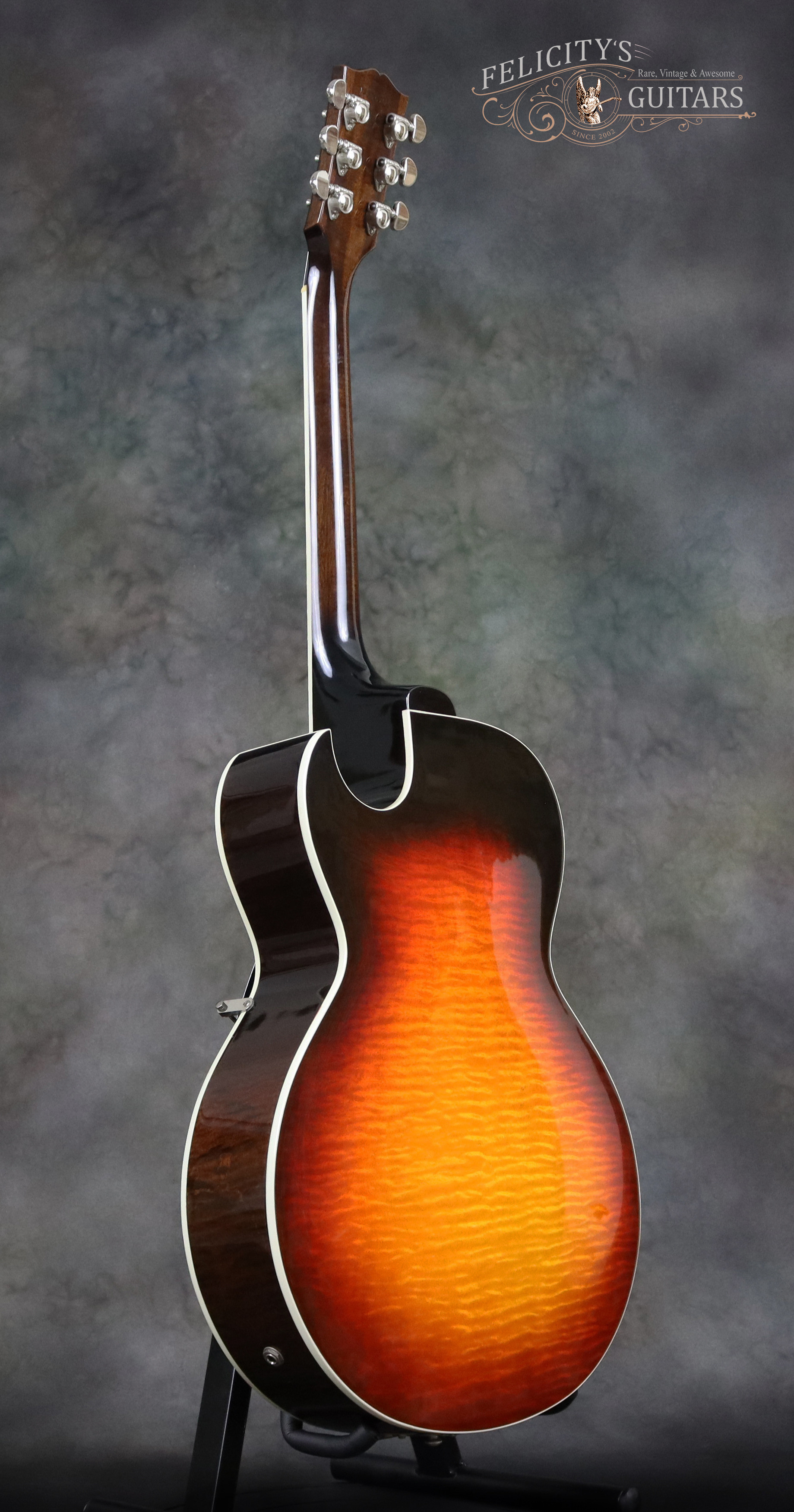

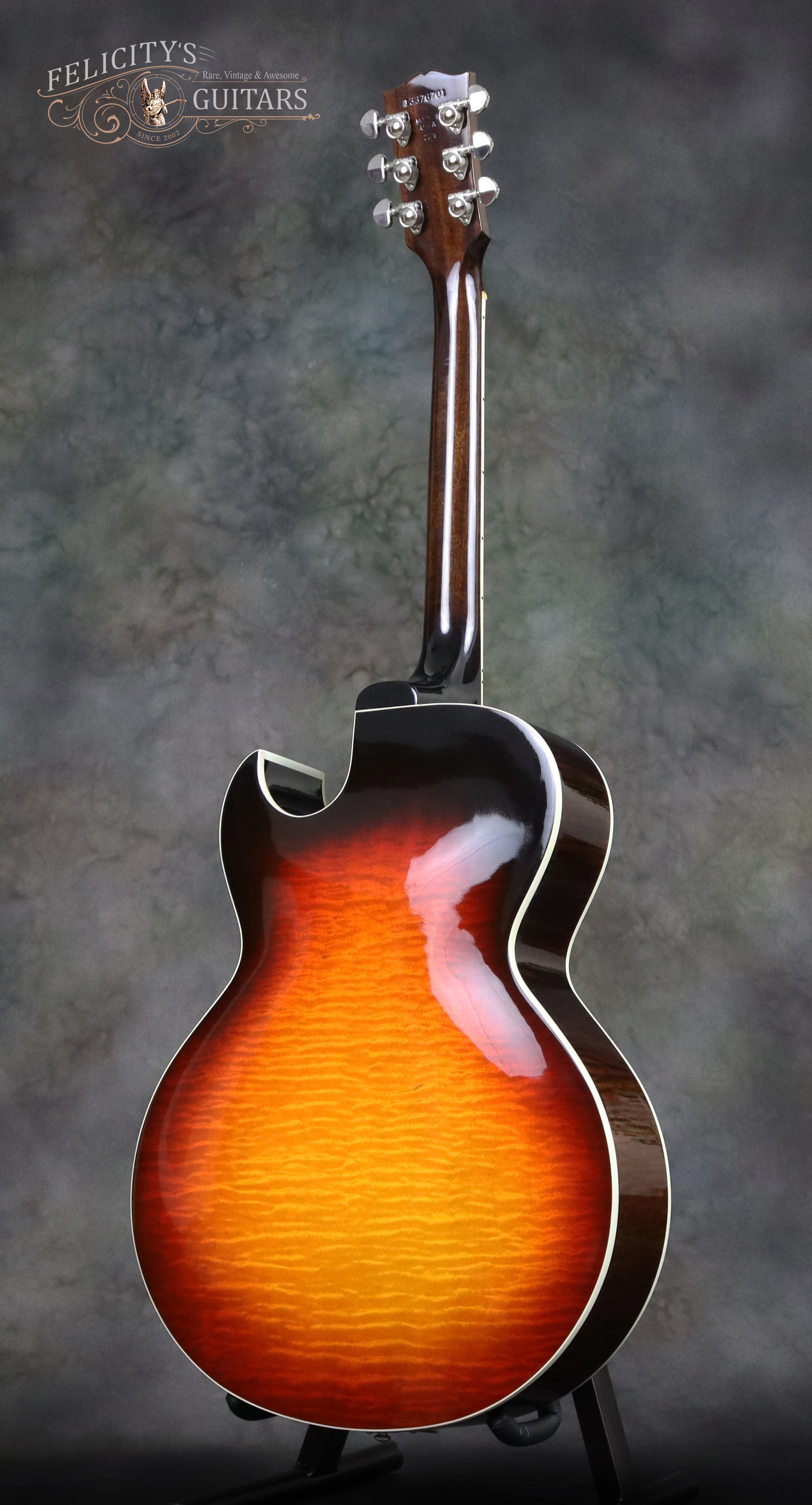

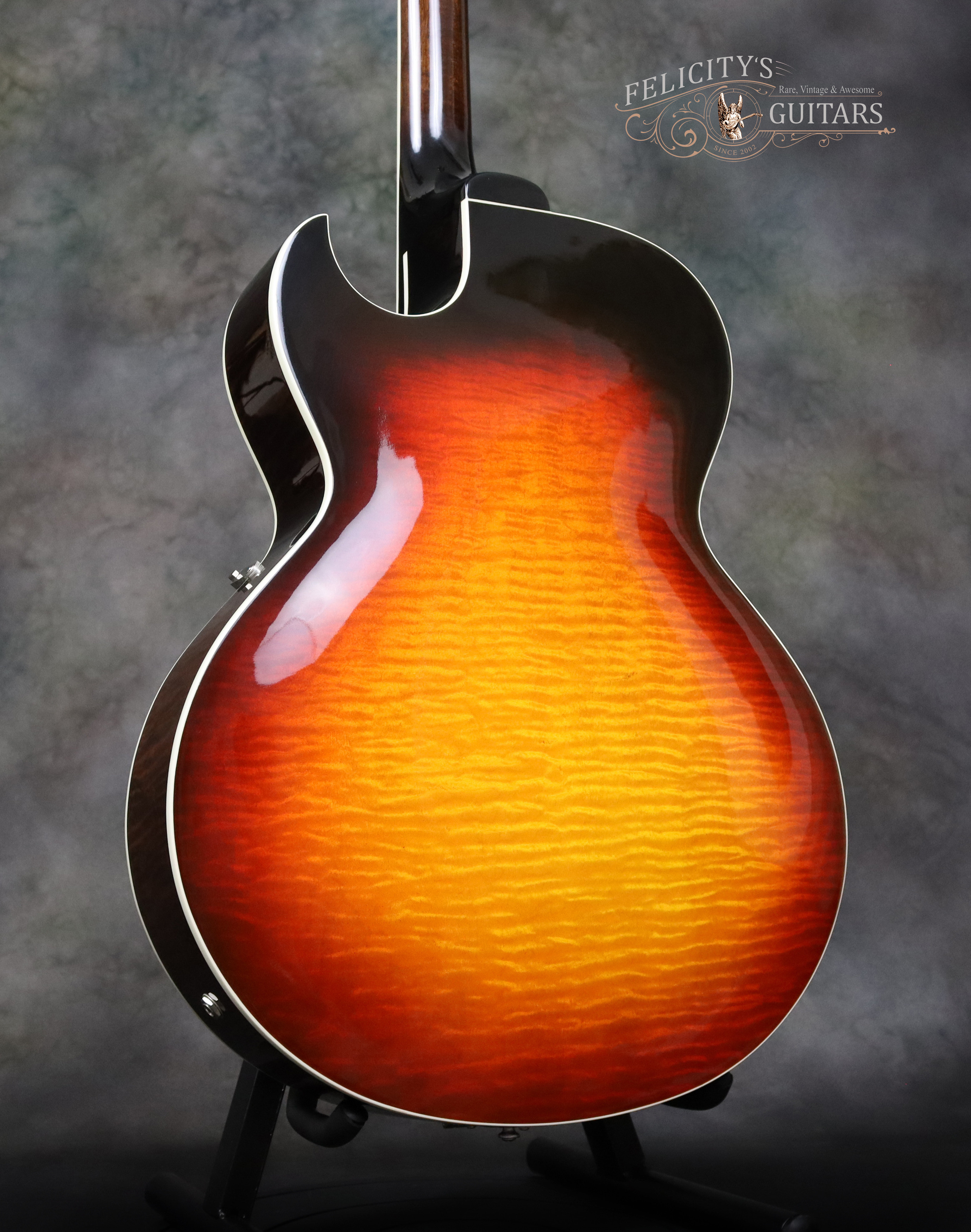

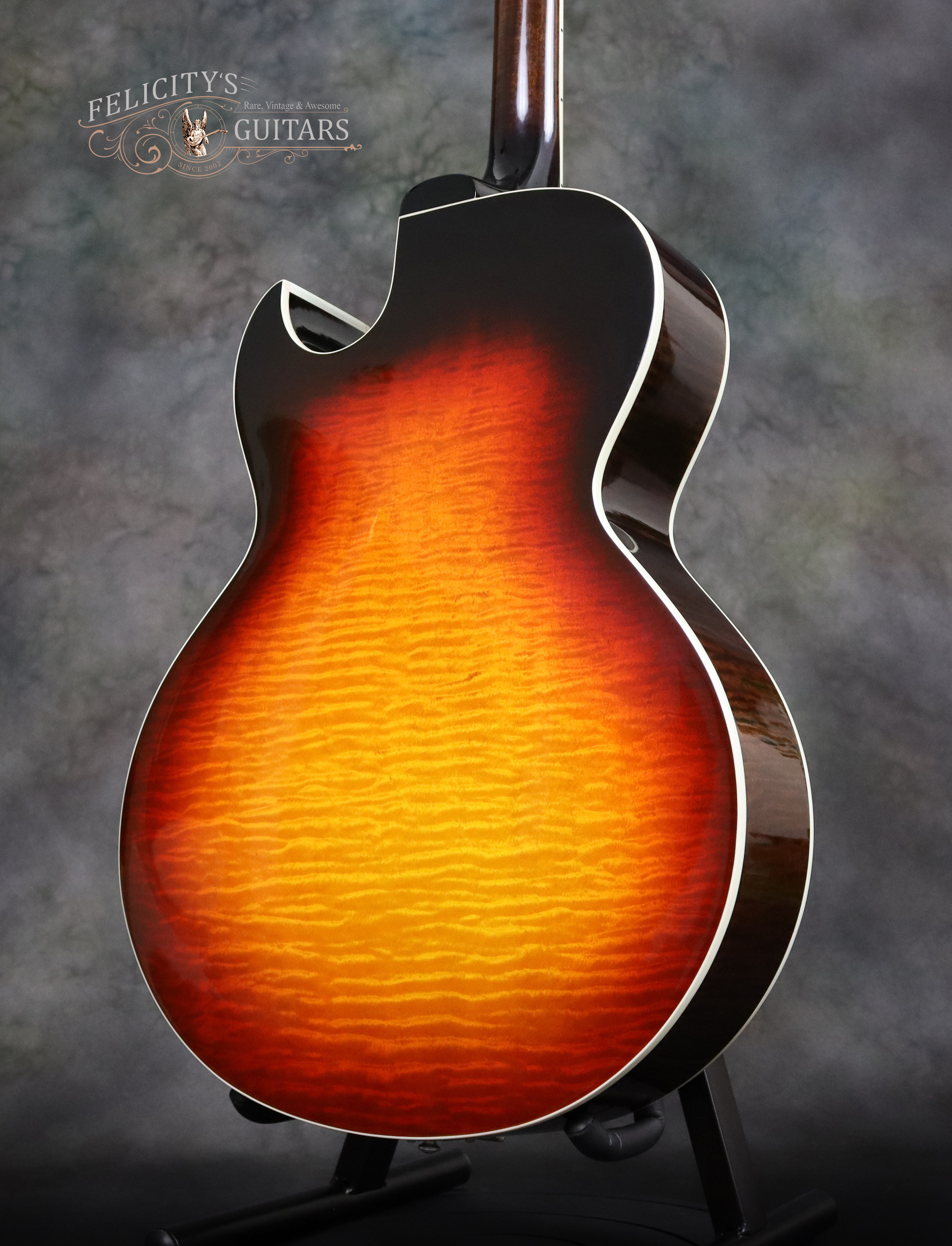

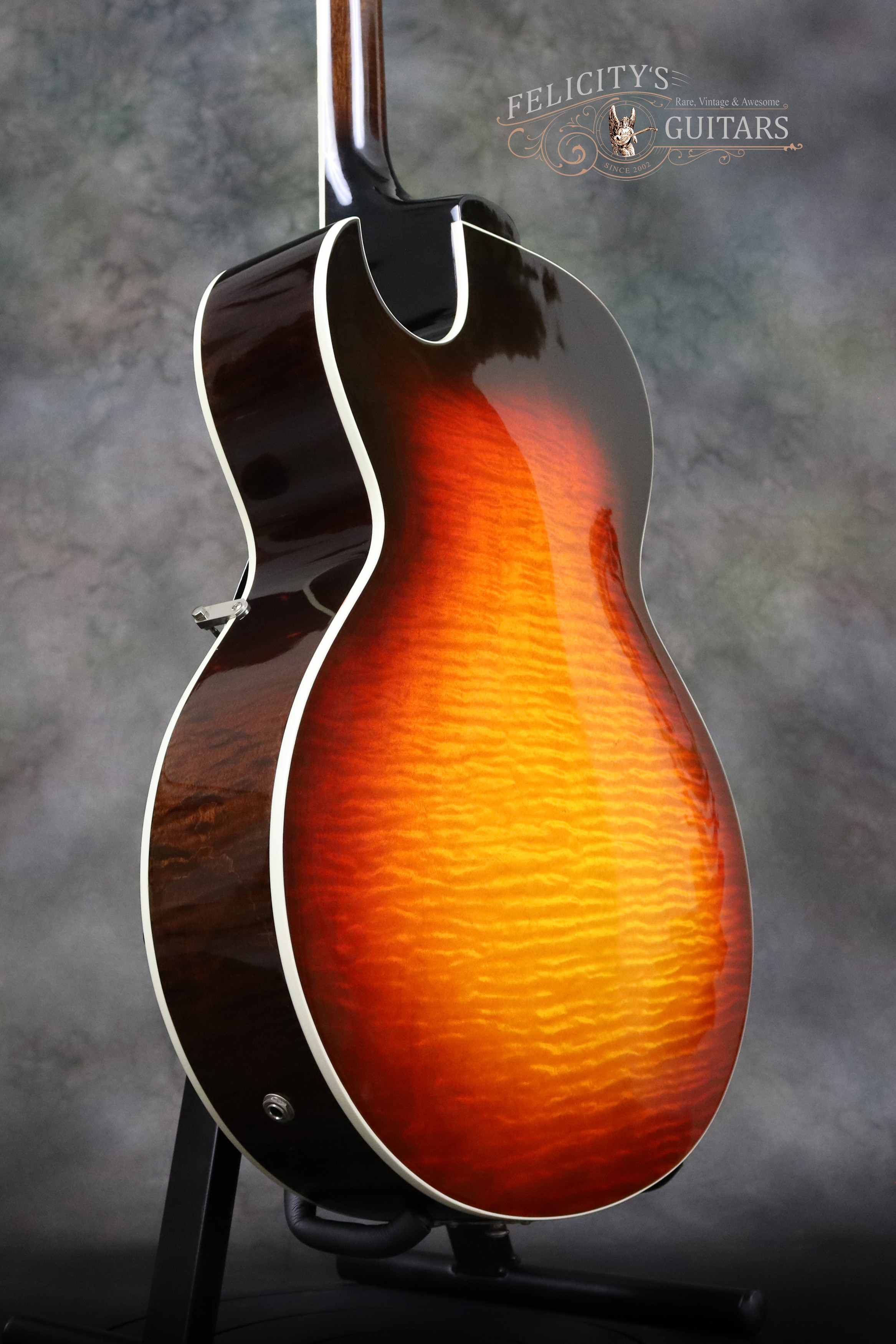

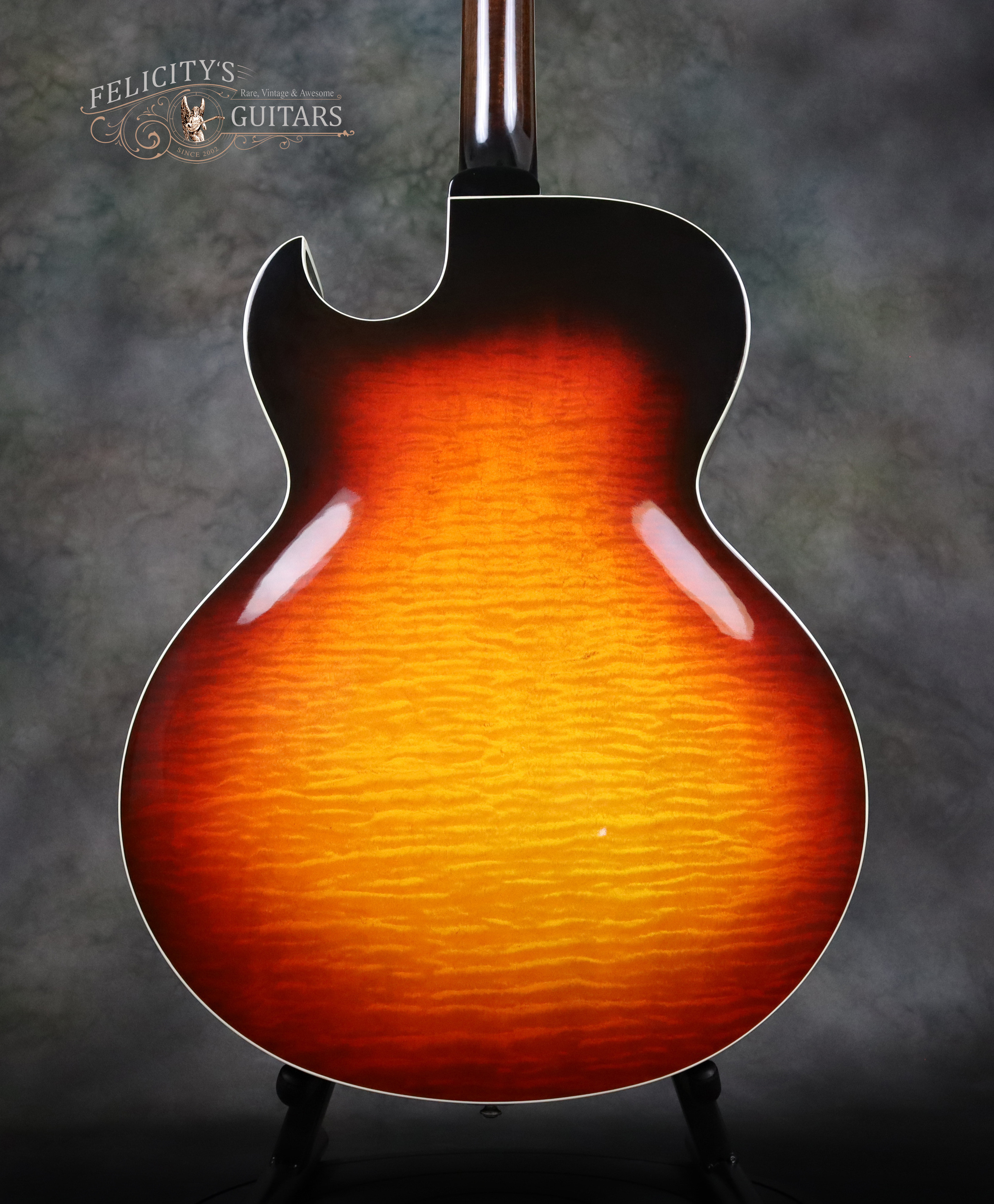

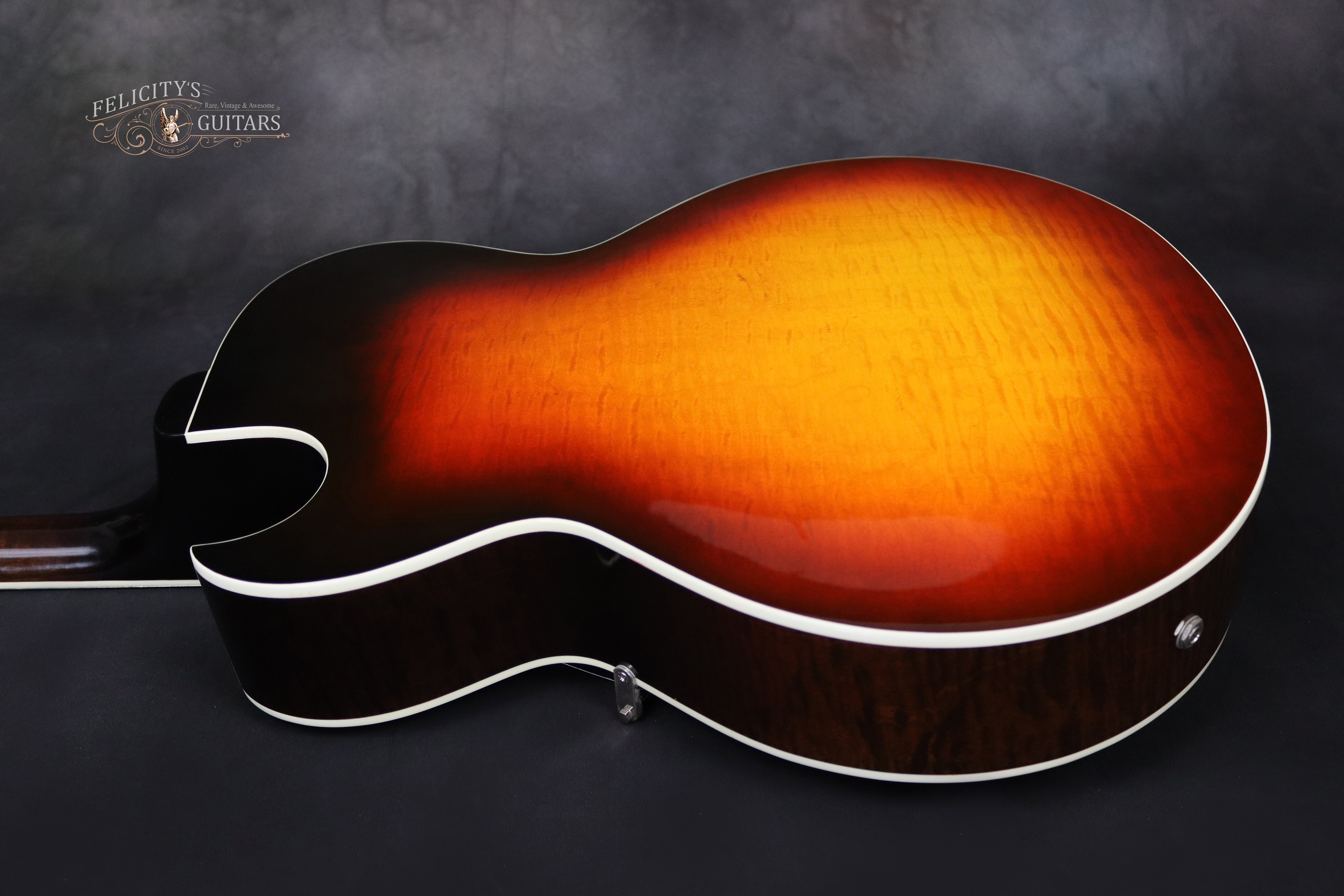

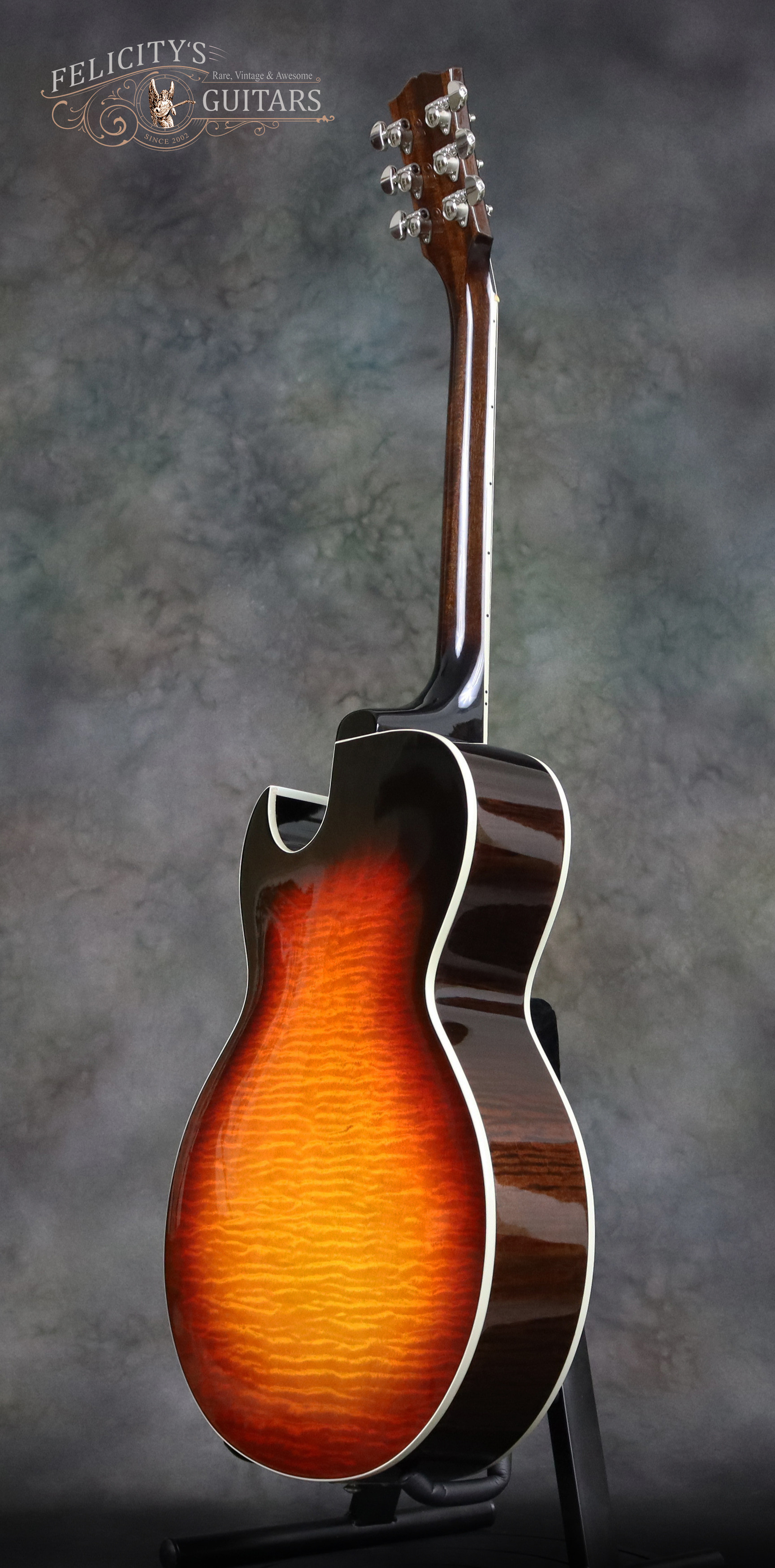

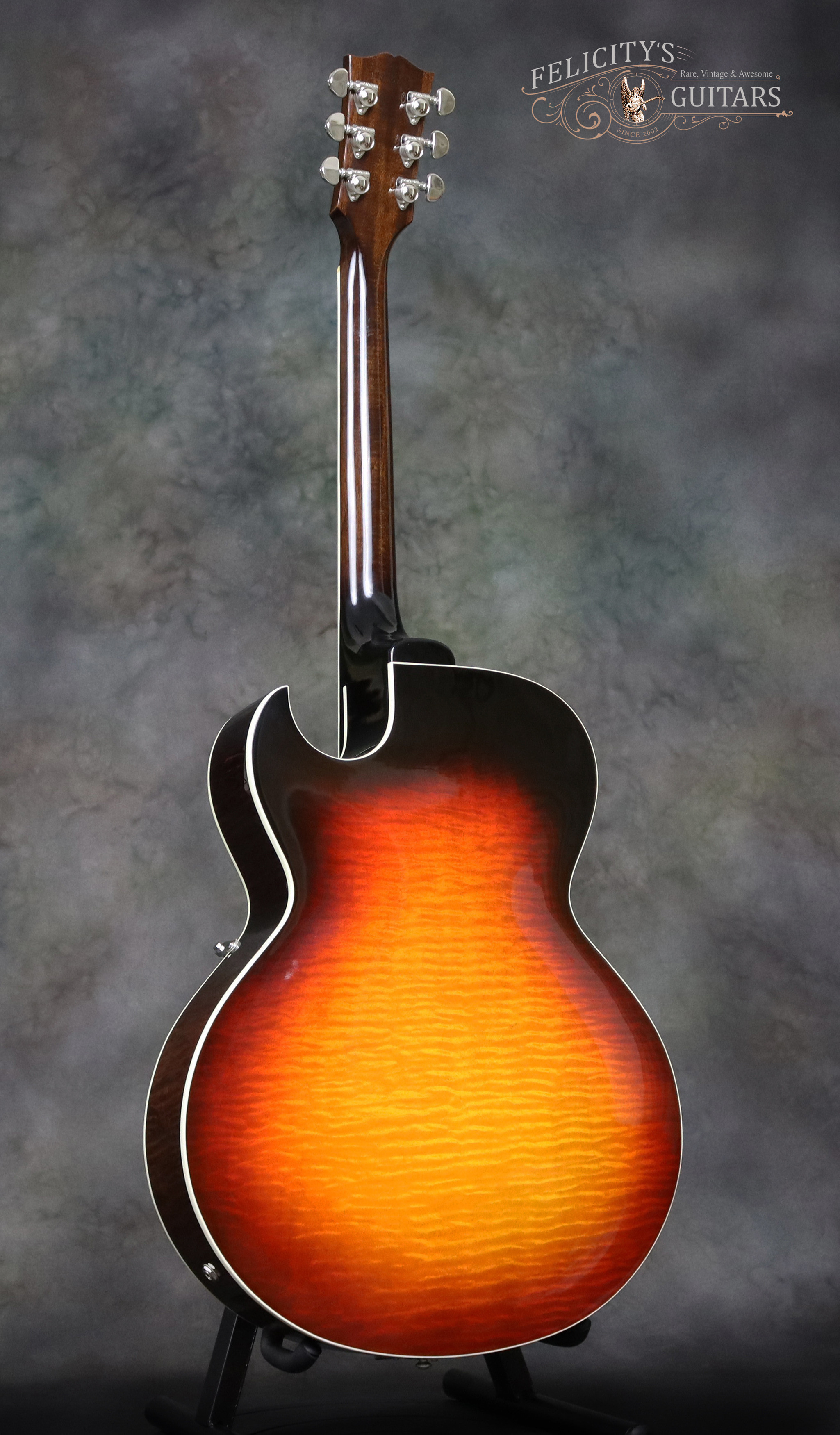

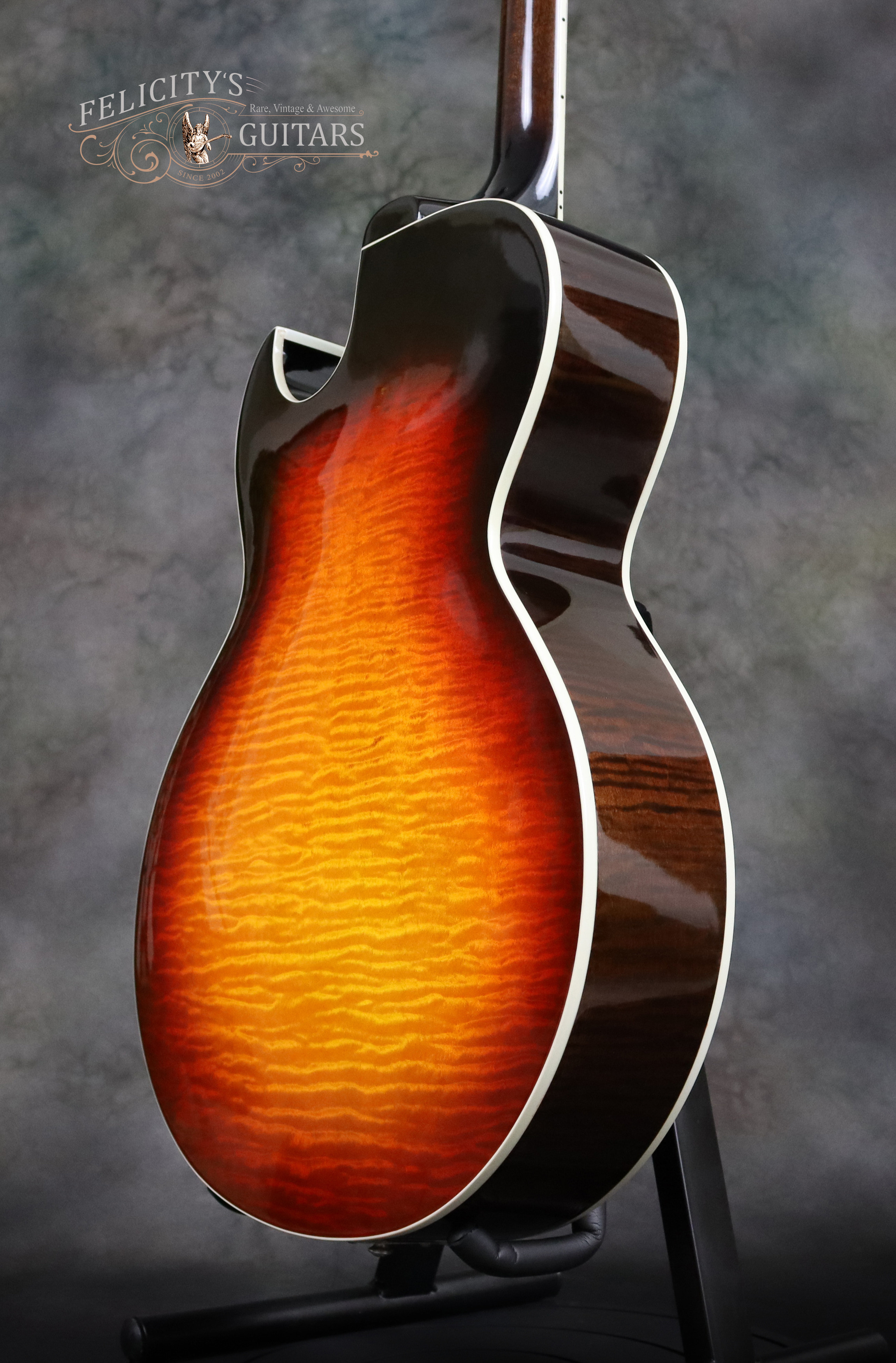

Back: Arched / Figured

Body Binding

Front: 3-ply W/B/W & unbound f-holes

Back: 1-ply White

Rims:3-ply W/B/W

Weight Relief

Hollow

Build Materials Used

Franklin Titebond 50 Glue

Body Finish Type

High-gloss Nitrocellulose Lacquer

Color

Front: Vintage Sunburst

Back & Neck: Vintage Sunburst

neck

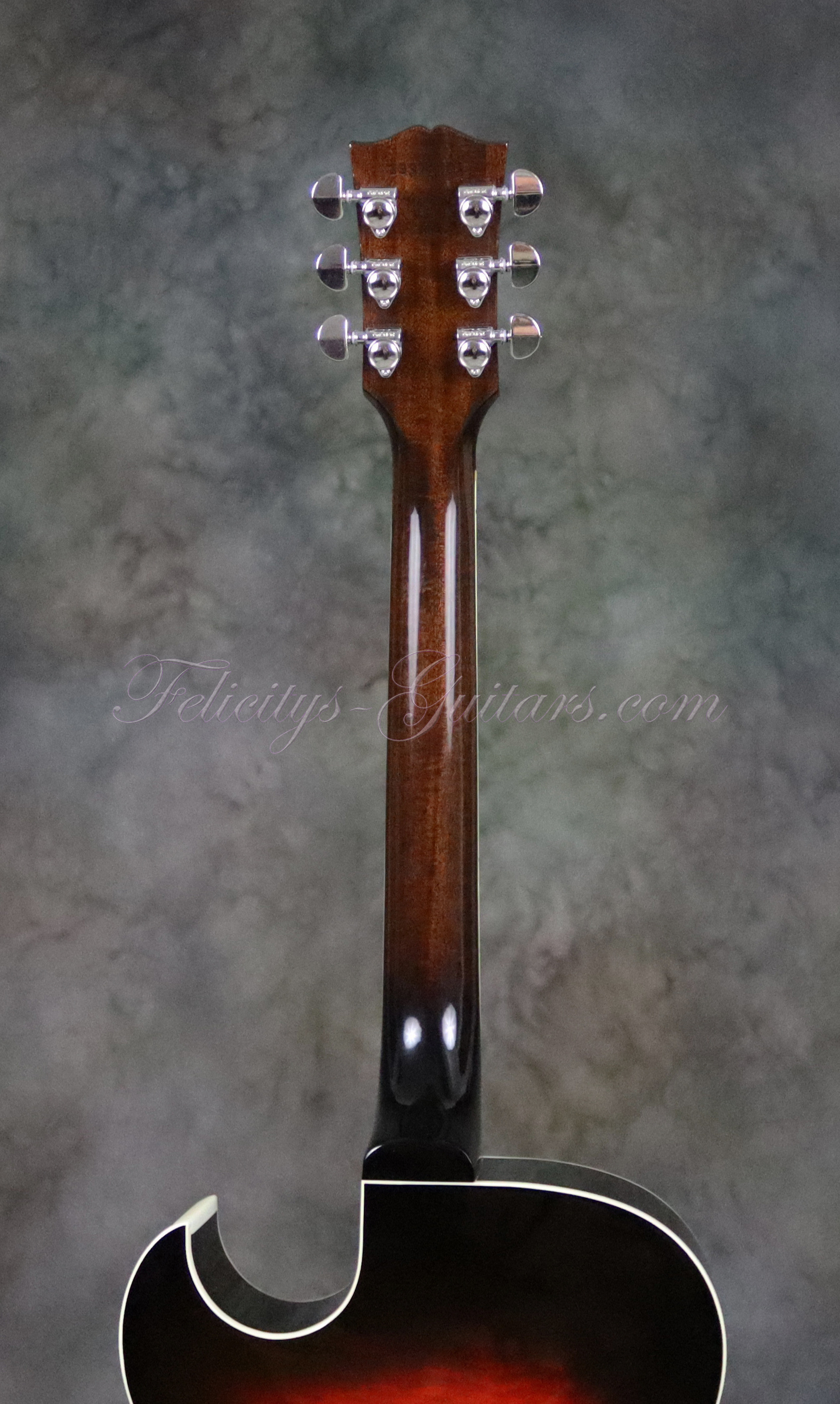

Neck Material

1-pc Mahogany

Truss Rod

Gibson® Historic 2-way Adjustable

Truss Rod Cover

2-ply B/W Bell Style with Hot-Stamped White ‘f-hole symbol’

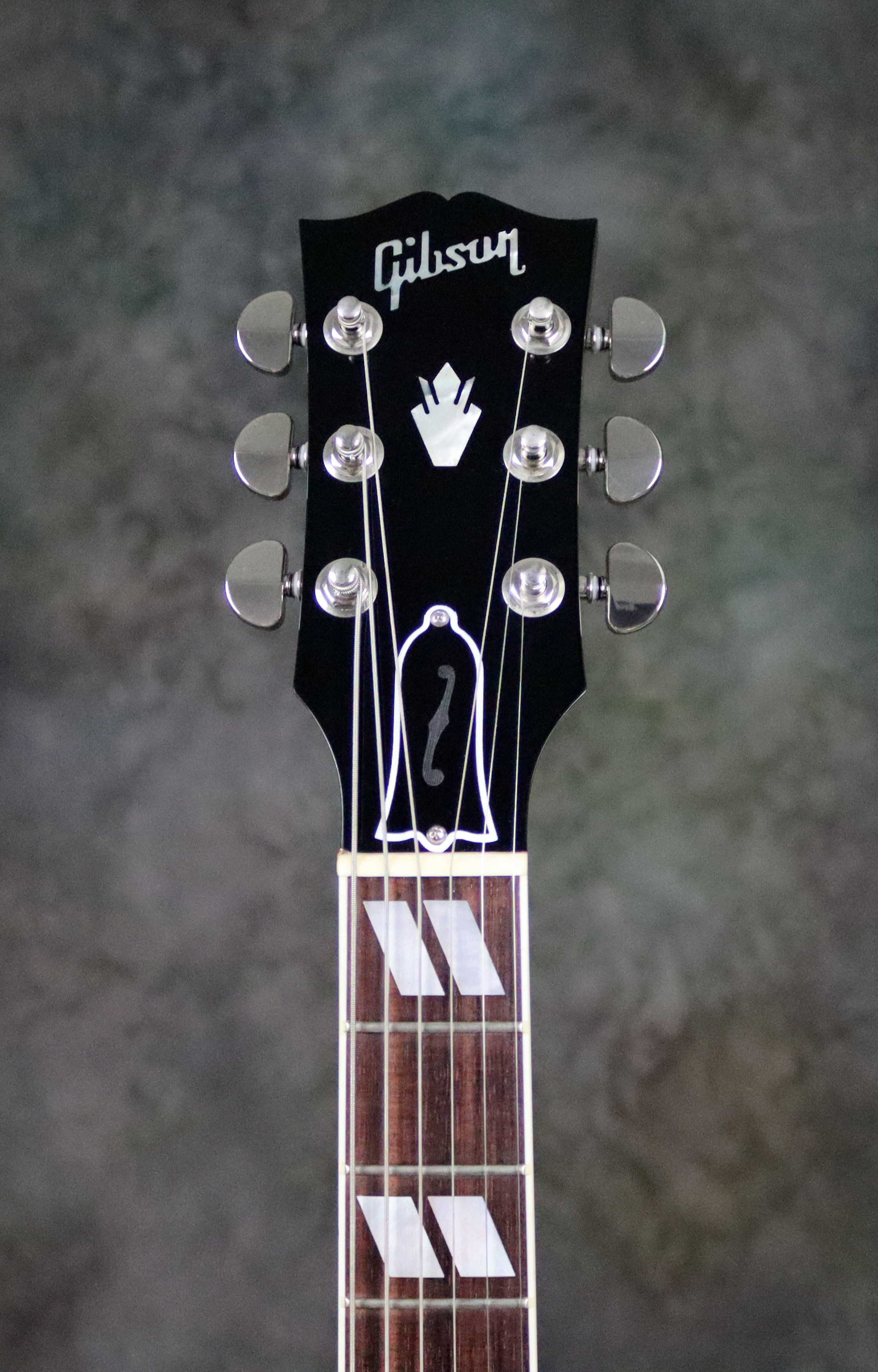

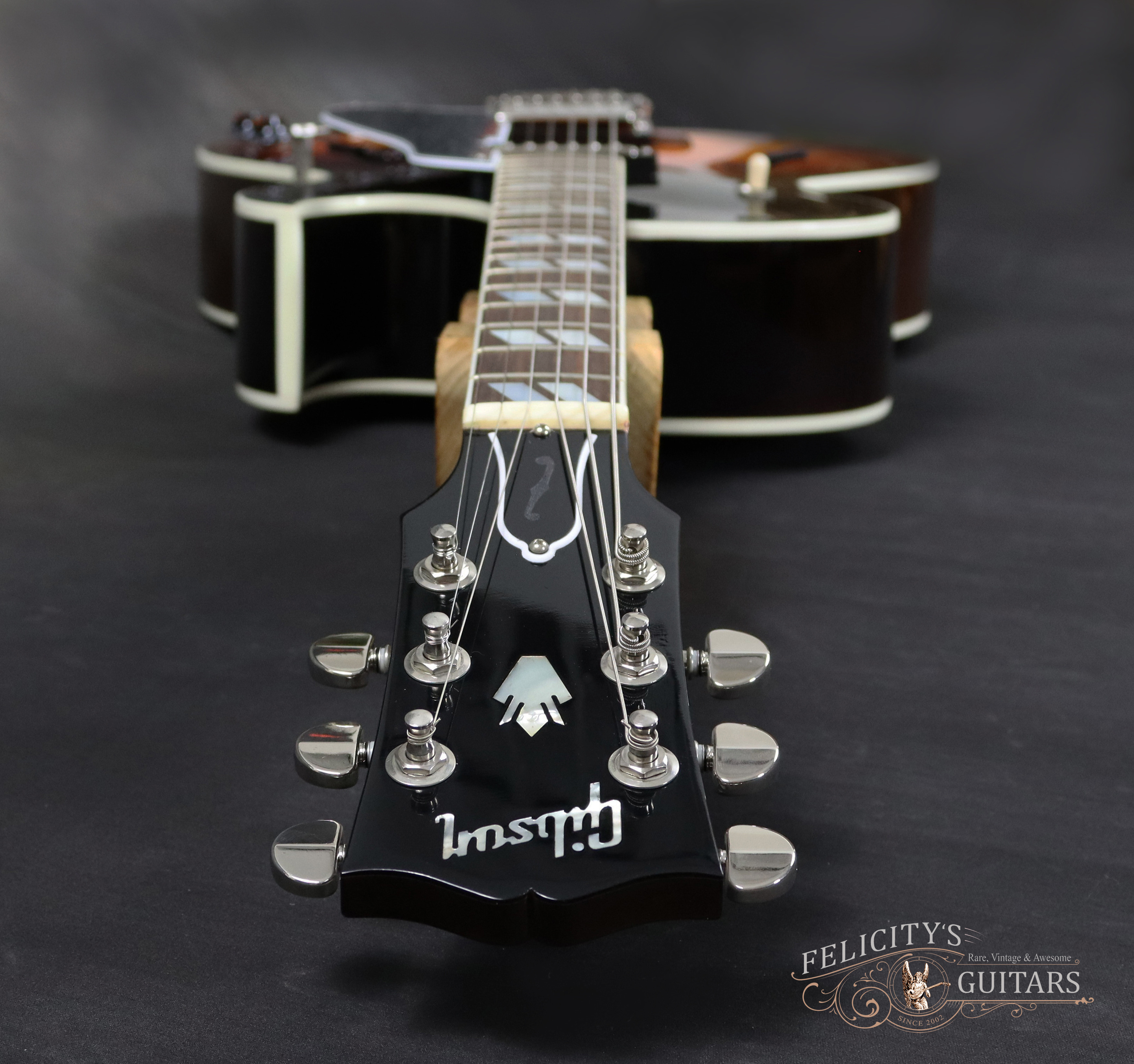

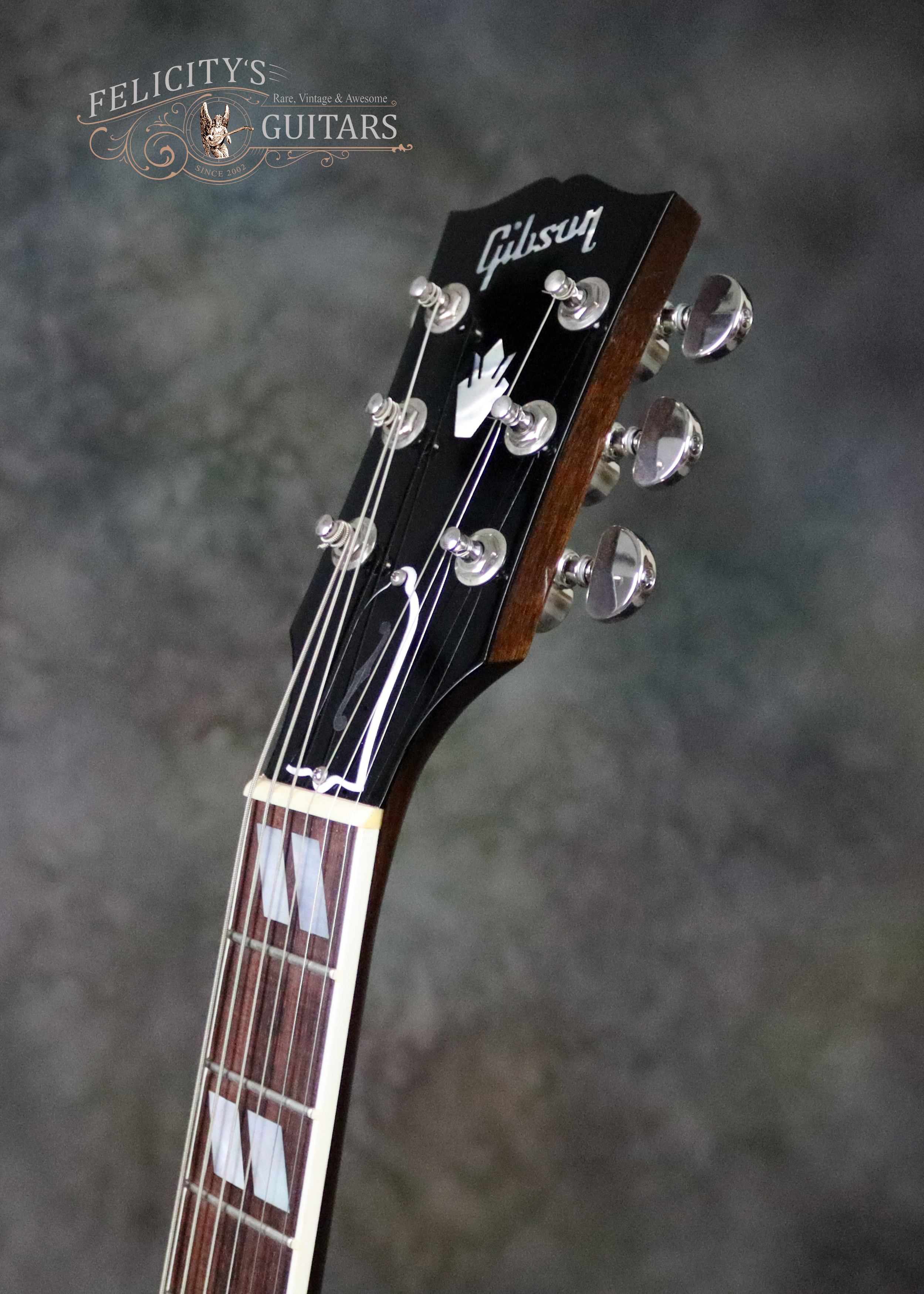

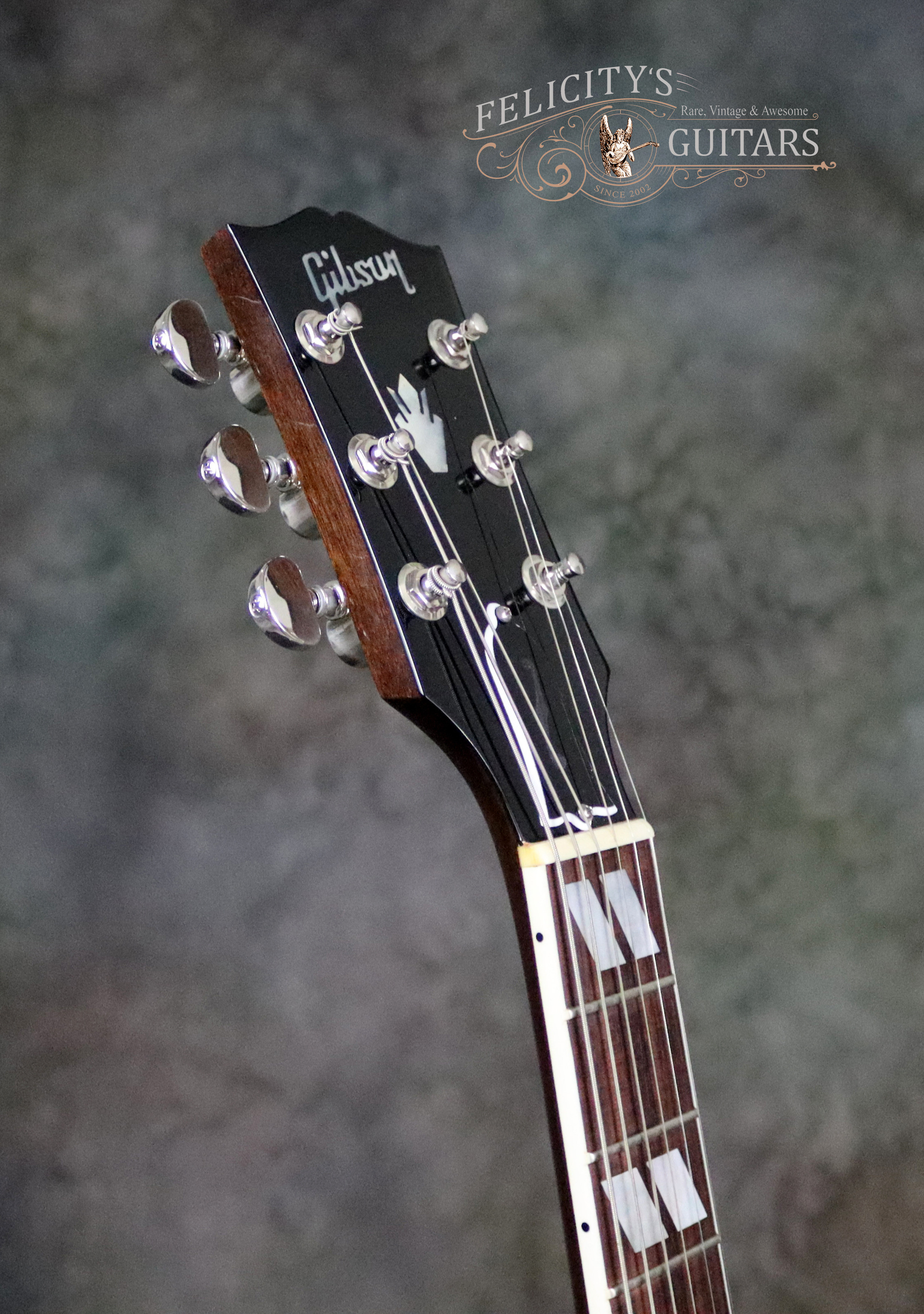

Peghead Particulars

Front: Unbound, Gloss Black, MOP Gibson® Logo and ‘Holly’ Inlays


Back: Wood-stamped Serial Number

Neck Profile

Slim Rounded ‘C’

Fingerboard Material

Rosewood

Fingerboard Radius

12”

Scale Length

24.75"

No. Frets / Type

20 Medium Jumbo

Nut Size / Material

1-11/16" / Bone

Neck Width

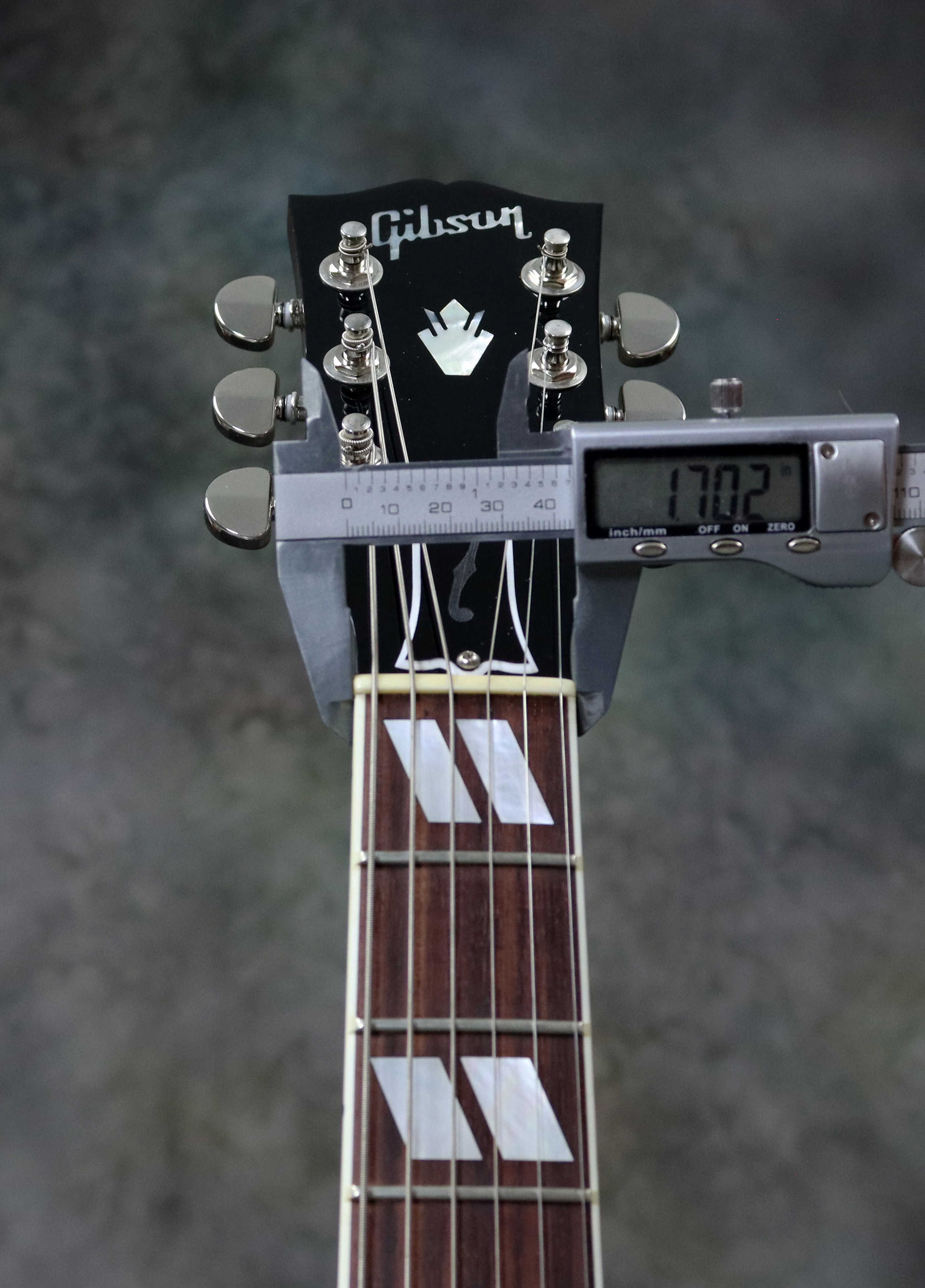

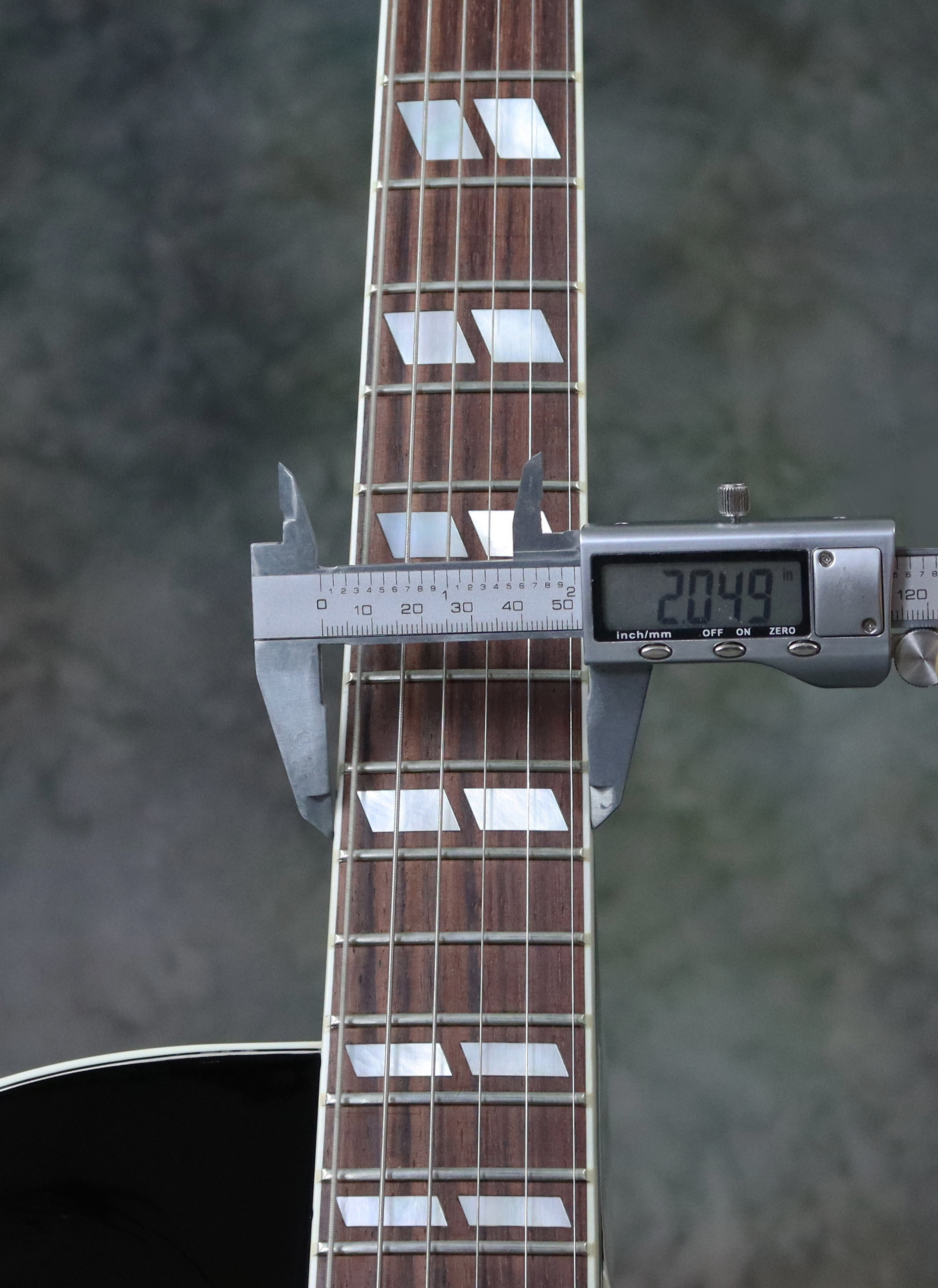

1.702" at 1st fret / 2.049" at 12th fret / 2.262” at E.O.B.

Neck Depth

0.735" at 1st fret / 0.780" at 9th fret

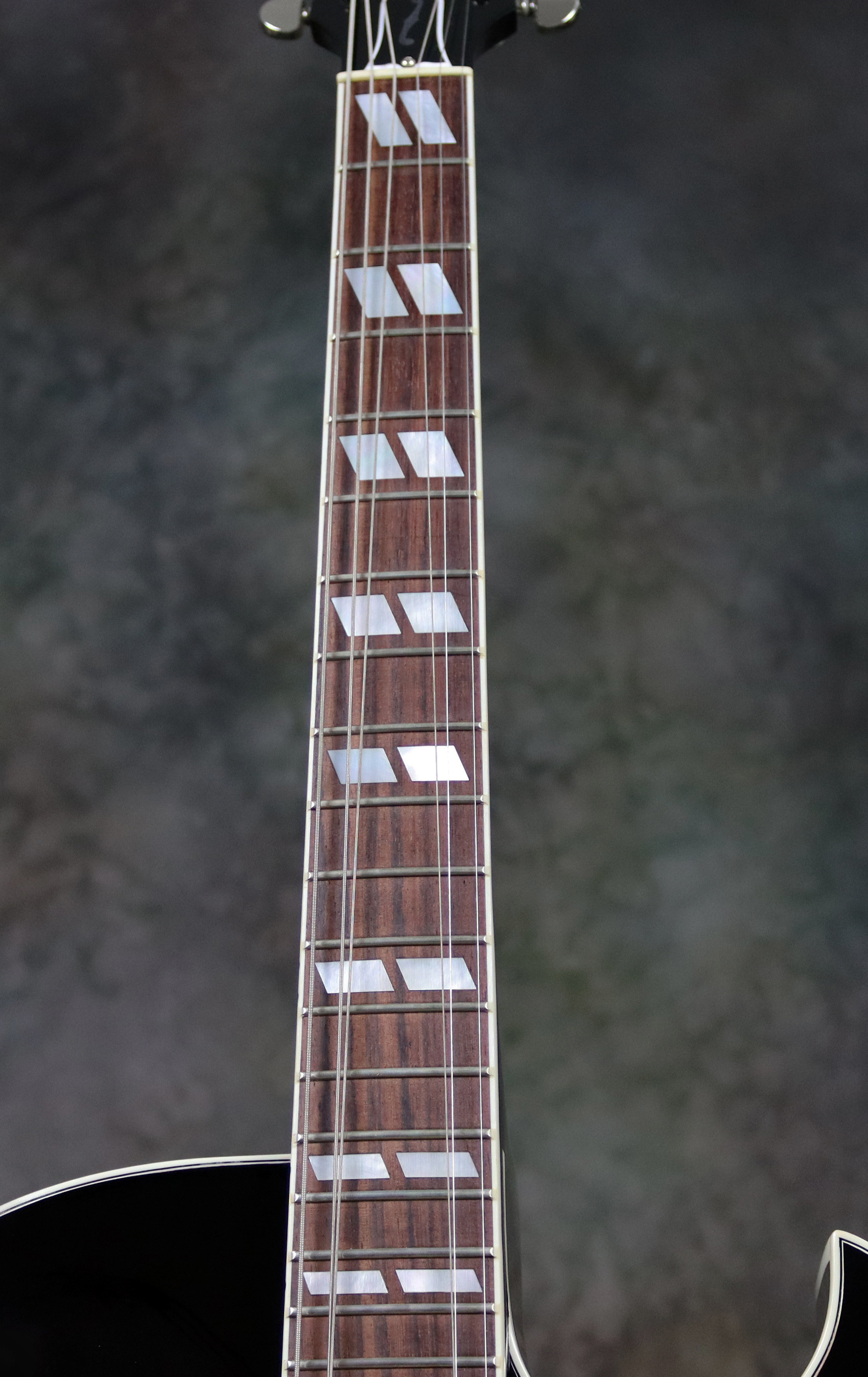

Fingerboard Inlays

Mother of Pearl Split Parallelograms

Neck Binding

White

Side Dots

Black

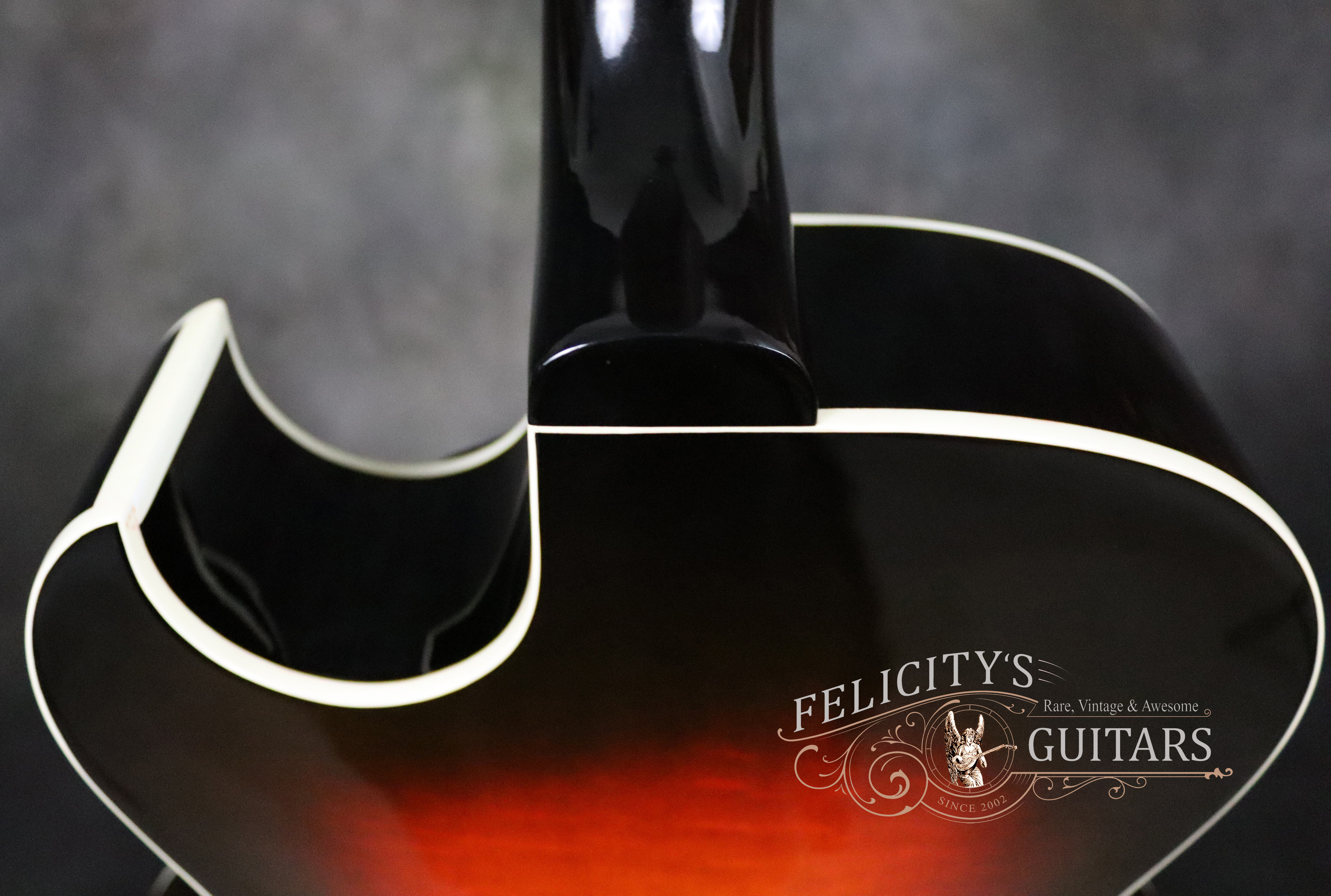

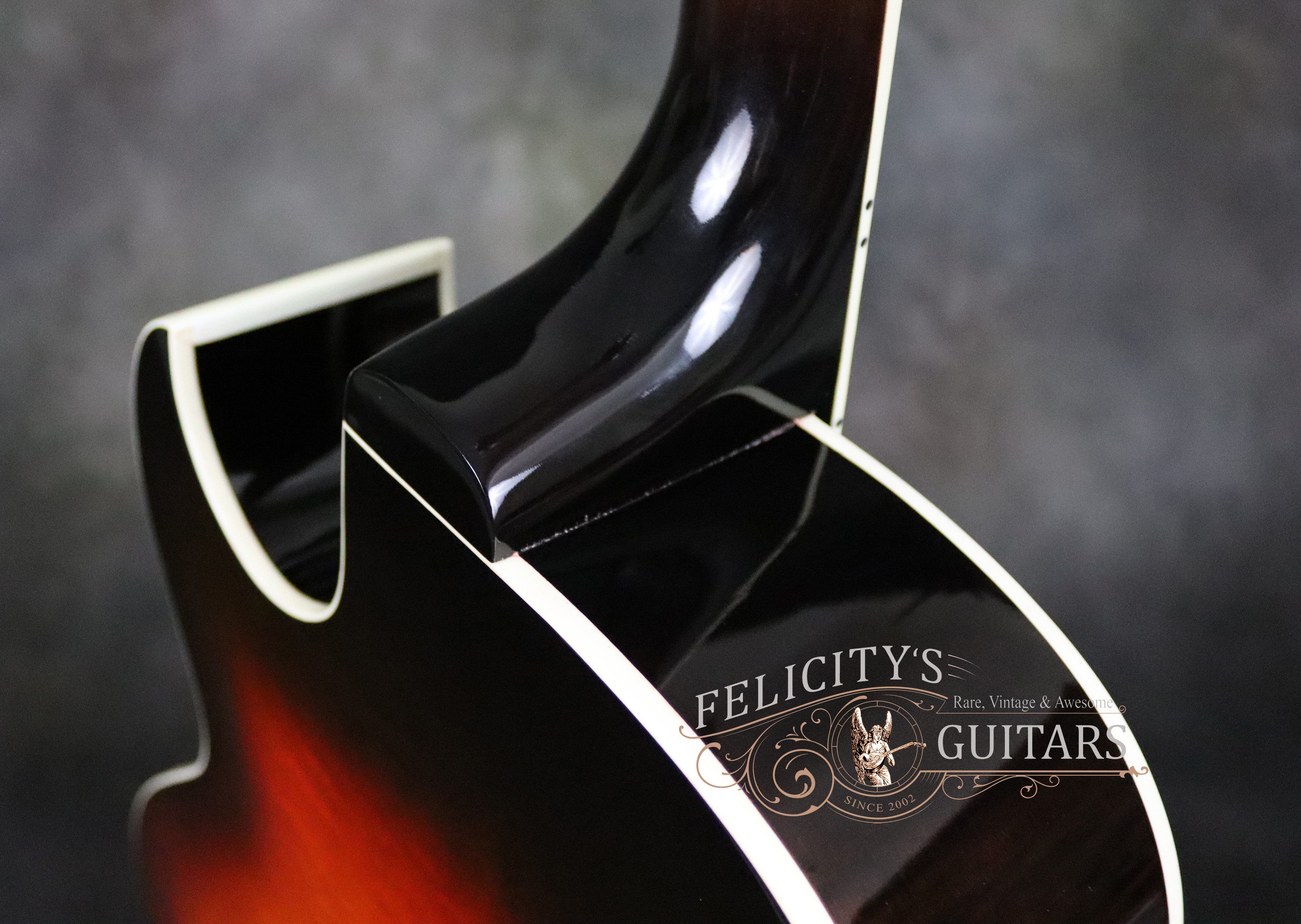

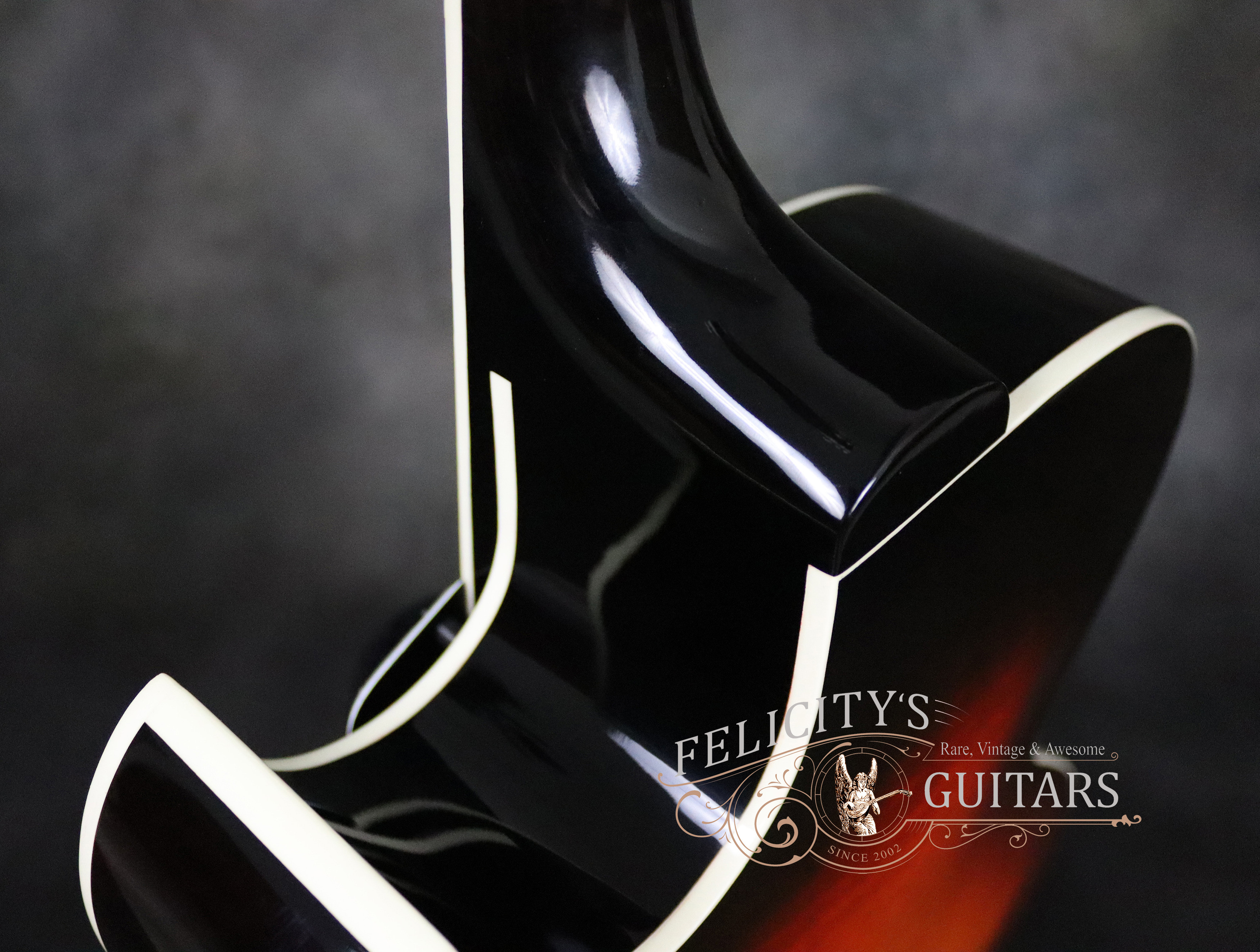

Neck Joint

Mortise and Tenon, Franklin Titebond 50 Glue

hardware

Bridge

Nickel, ABR-1 with Titanium Saddles/inserts, Die cast Aluminium on Rosewood Base

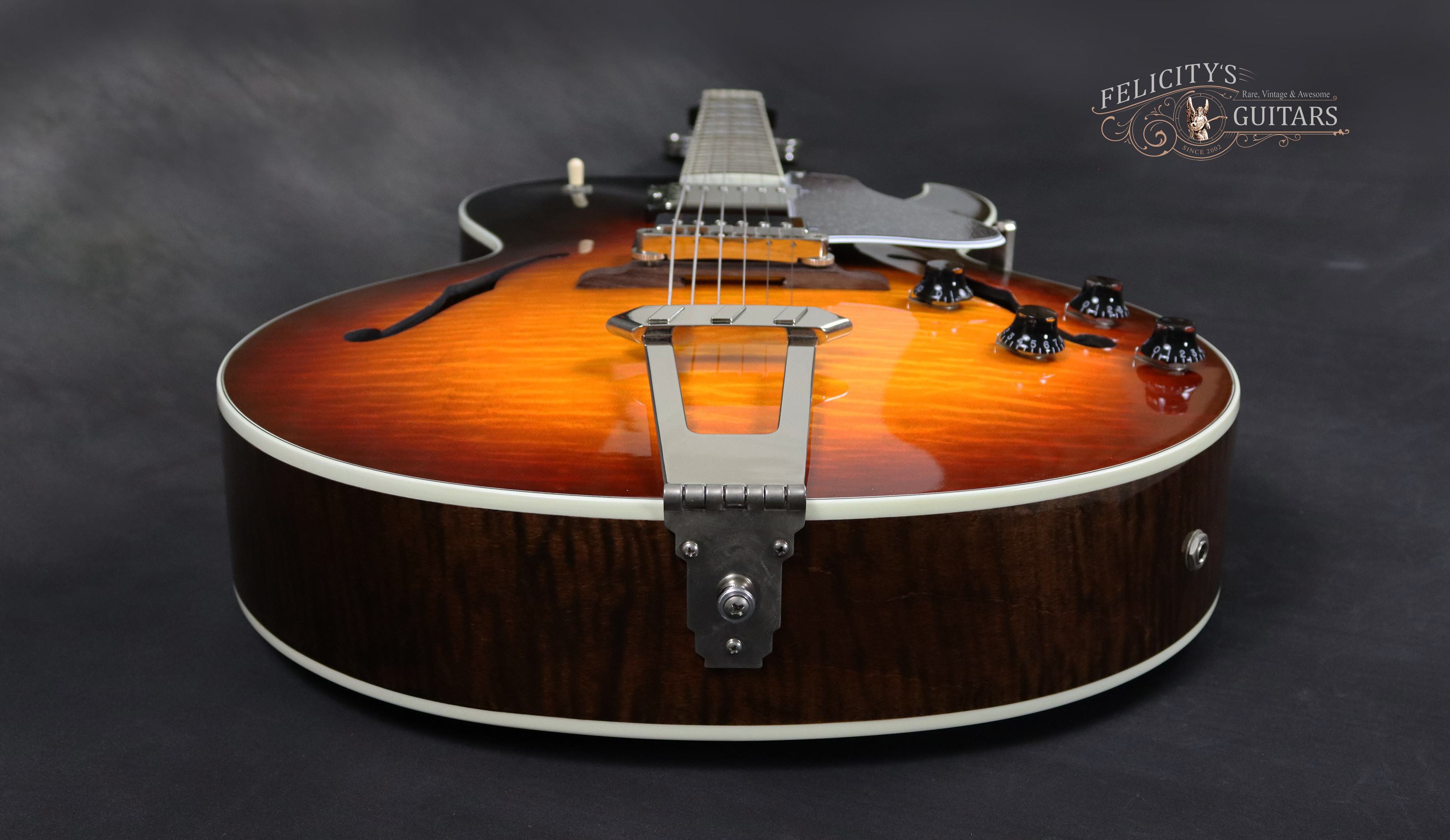

Tailpiece / Tremolo

Nickel, Triple-Parallelogram Floating Trapeze, Die cast Zinc-Aluminium

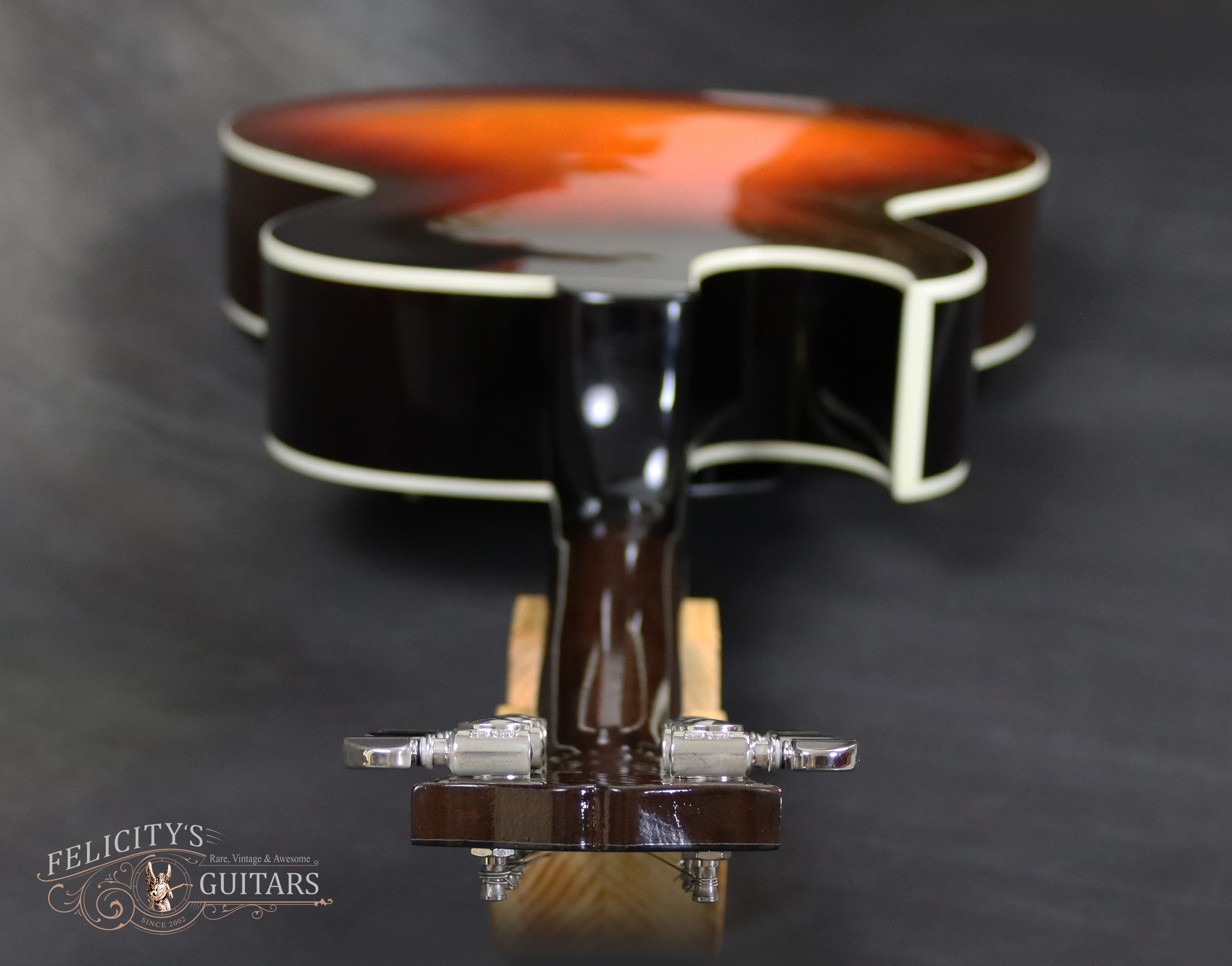

Tuning Machines

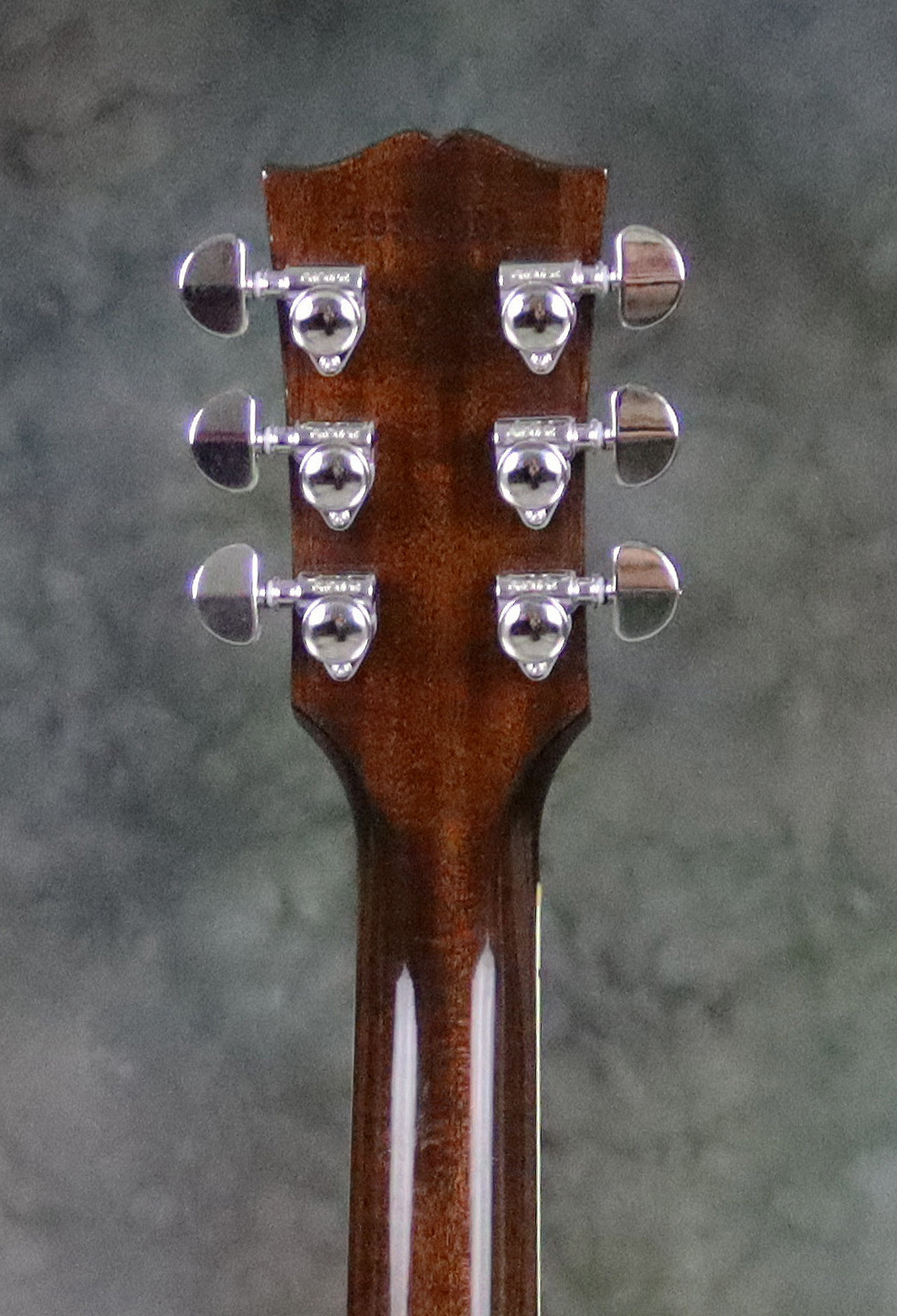

Nickel, Milk Bottle Grover Rotomatic, 18:01 Ratio

Pickup Cover / Ring

Chrome Plated Cover / Black Staggered and Arched Humbucker Mounting Rings

Strap Buttons

Polished Aluminum End Pins

Pickguard

4-ply B/W ES 60-degree Bevel

Control Knobs

Black Top Hats with Dial Pointers

Switch

White Plastic Tip with No Lead/Rhythm Washer

electronics

Bridge Pickup

'57 Classic Humbucker, Alnico II, Wax Potted, DCR 8.52k

Middle Pickup

No

Neck Pickup

'57 Classic Humbucker, Alnico II, Wax Potted, DCR 7.92k

Active / Passive

Passive

Series / Parallel

Series

Controls

2 Volume, 2 Tone, 3-position Pickup Toggle Switch

Vol Potentiometer

500K

Tone Potentiometer

500K

Capacitors

0.022mf 20% values Lead / 0.015mf 20% values Rhythm

Harness

Handwired

Push-pull

No

Piezo

No

Active EQ

No

Kill switch

No

Output Jack

Switchcraft™ 1/4" 2-Conductor Mono

miscellaneous

Case / Gigbag

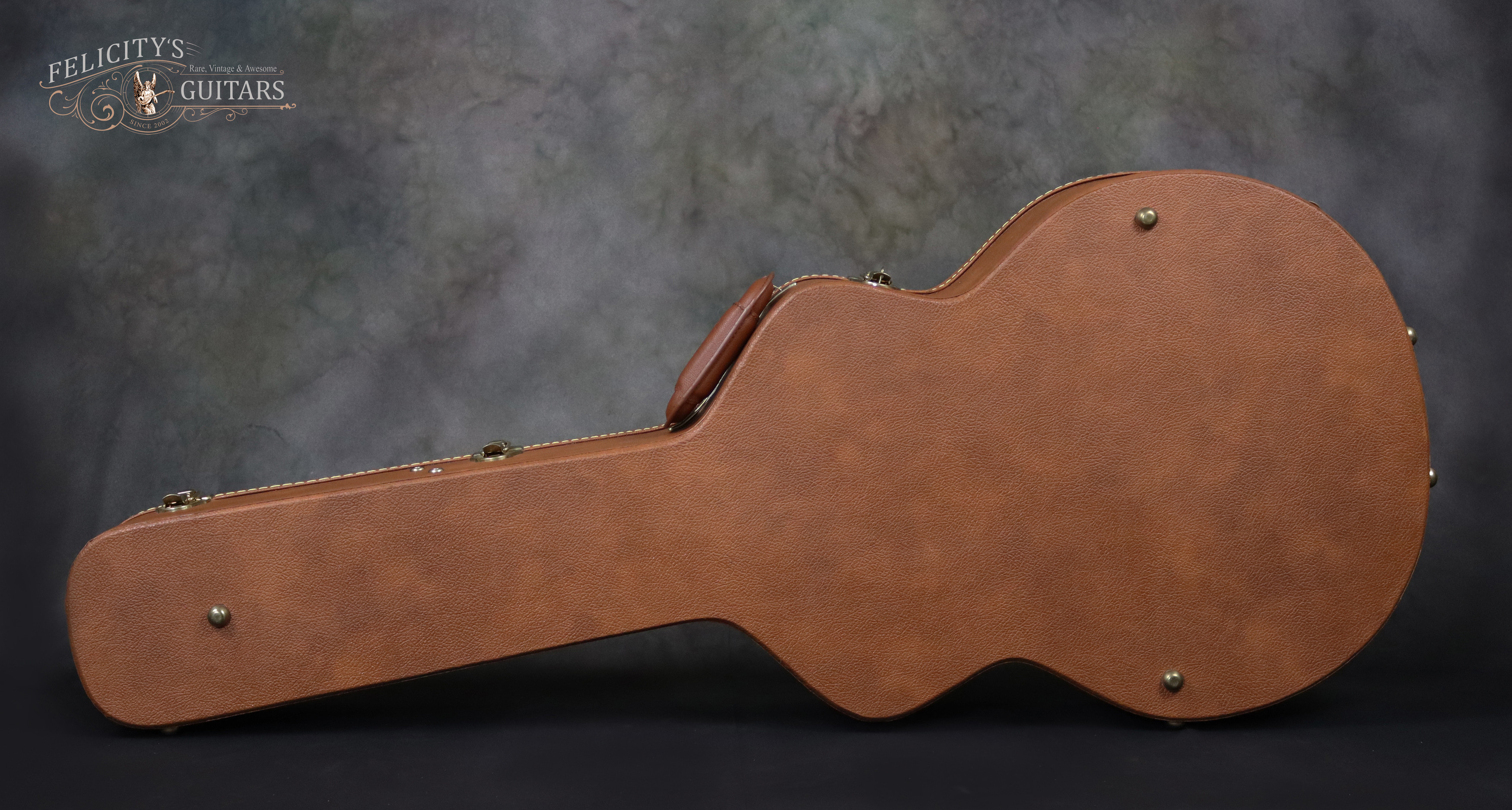

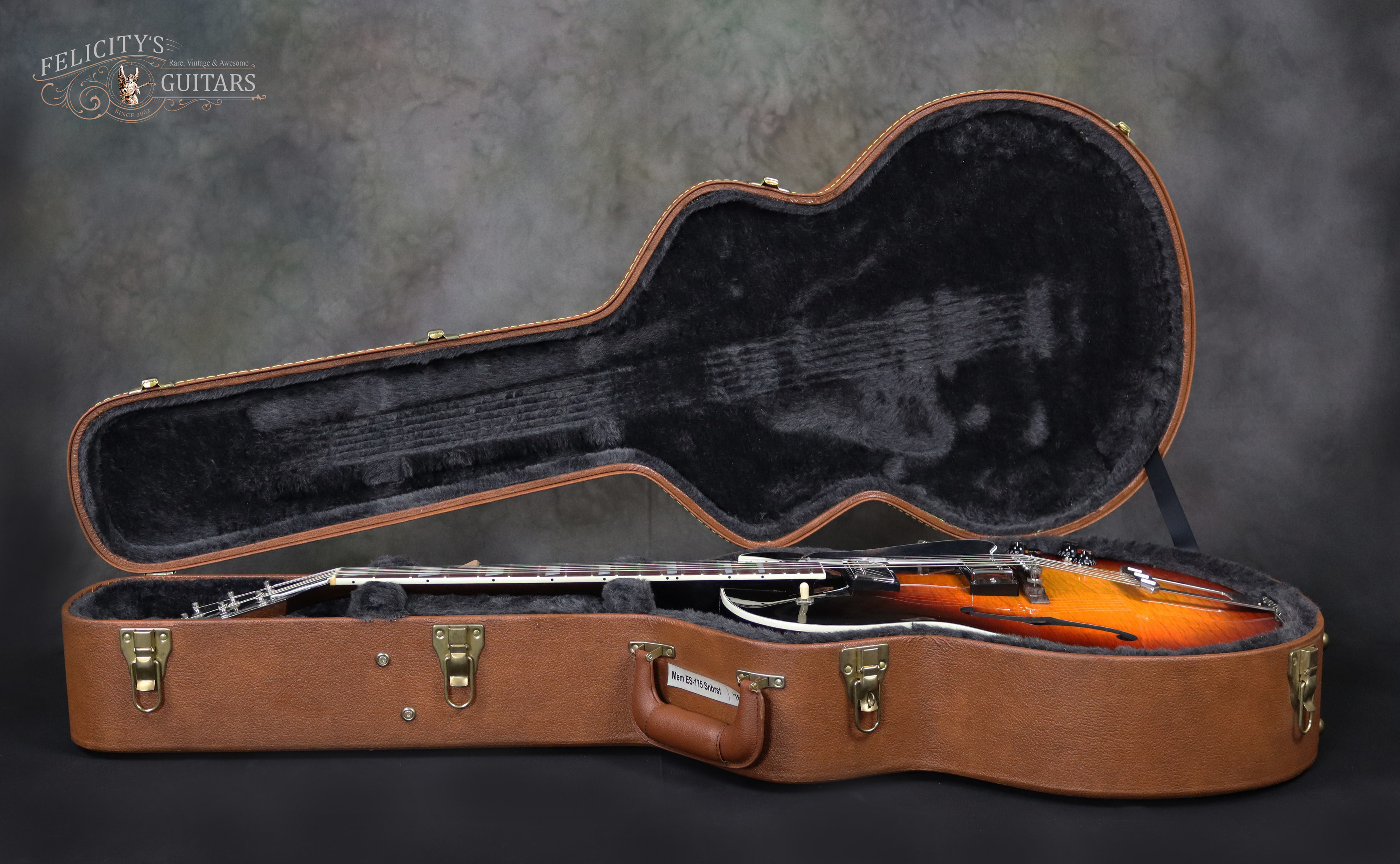

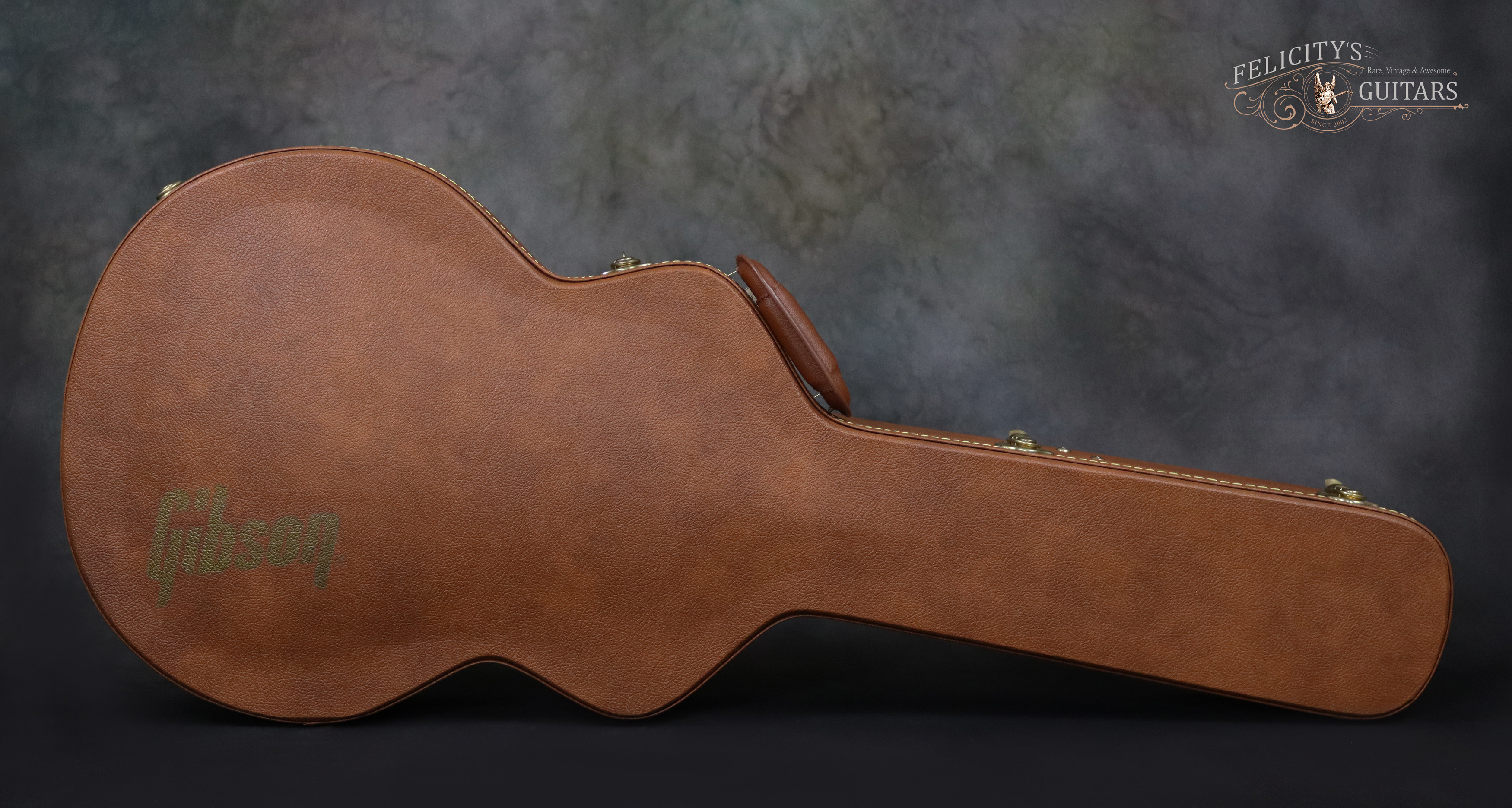

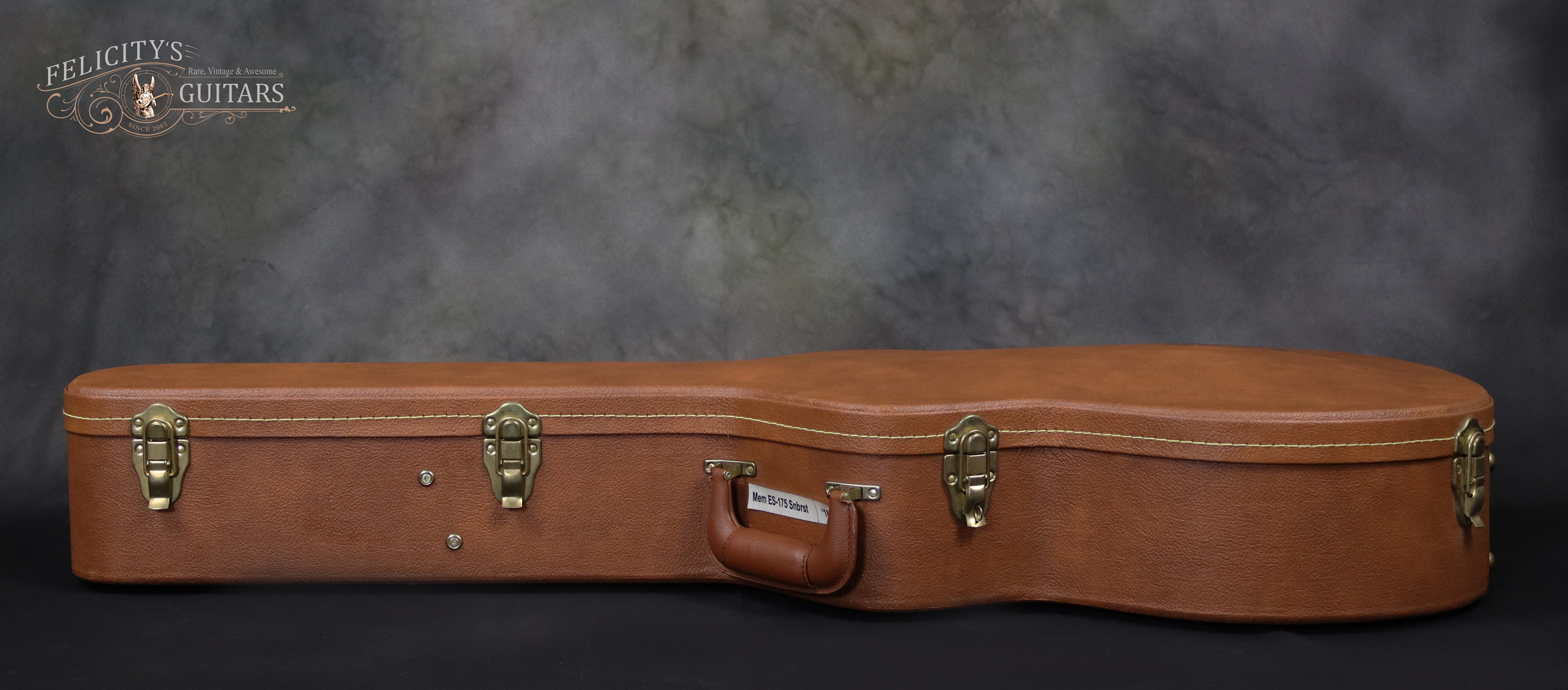

Gibson® Memphis Brown Hardshell Case with White Interior and lock-hasps

Strap Locks

No

Strings

Gibson® U.S.A. Brite Wires .010 .013 .017 .026 .036 .046 (Light Gauge)

Tools / Accessories

No

Manual / Literature

Gibson® Memphis Gold Warranty

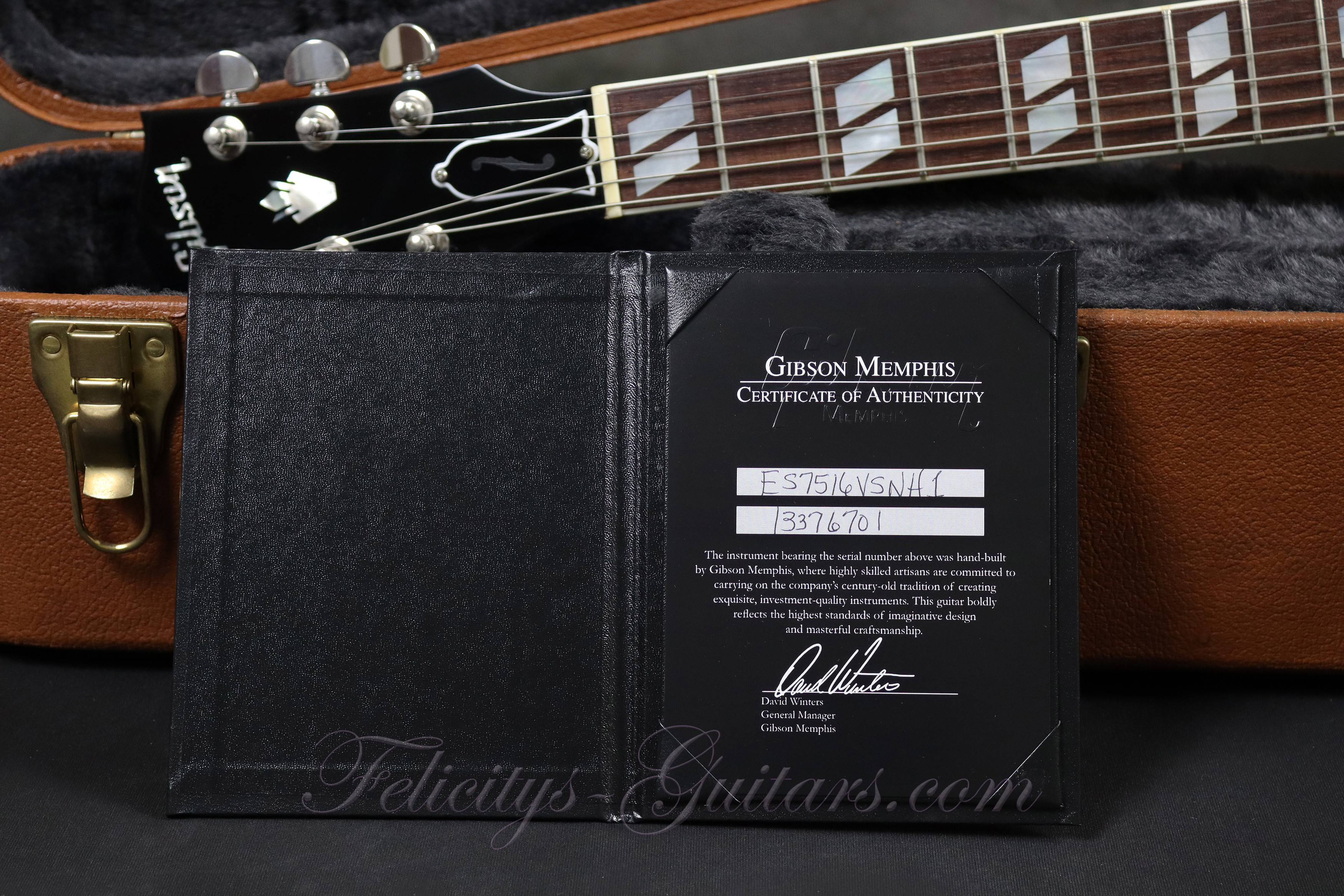

C.O.A.

Gibson® Memphis Certificate of Authenticity

Other

Oxidation of Nickel finish of Trapeze Tailpiece while stored exclusively inside case

Weight

Is the actual weighed-value in US Standard Units


Disclosure



Some technical Specs may have been extracted from Gibson® U.S.A. / Memphis website and/or internet archives. The words Gibson® / Grover® and the associated designs are registered trademarks of Gibson® Brands, Inc. and the other named entities, if any, respectively
