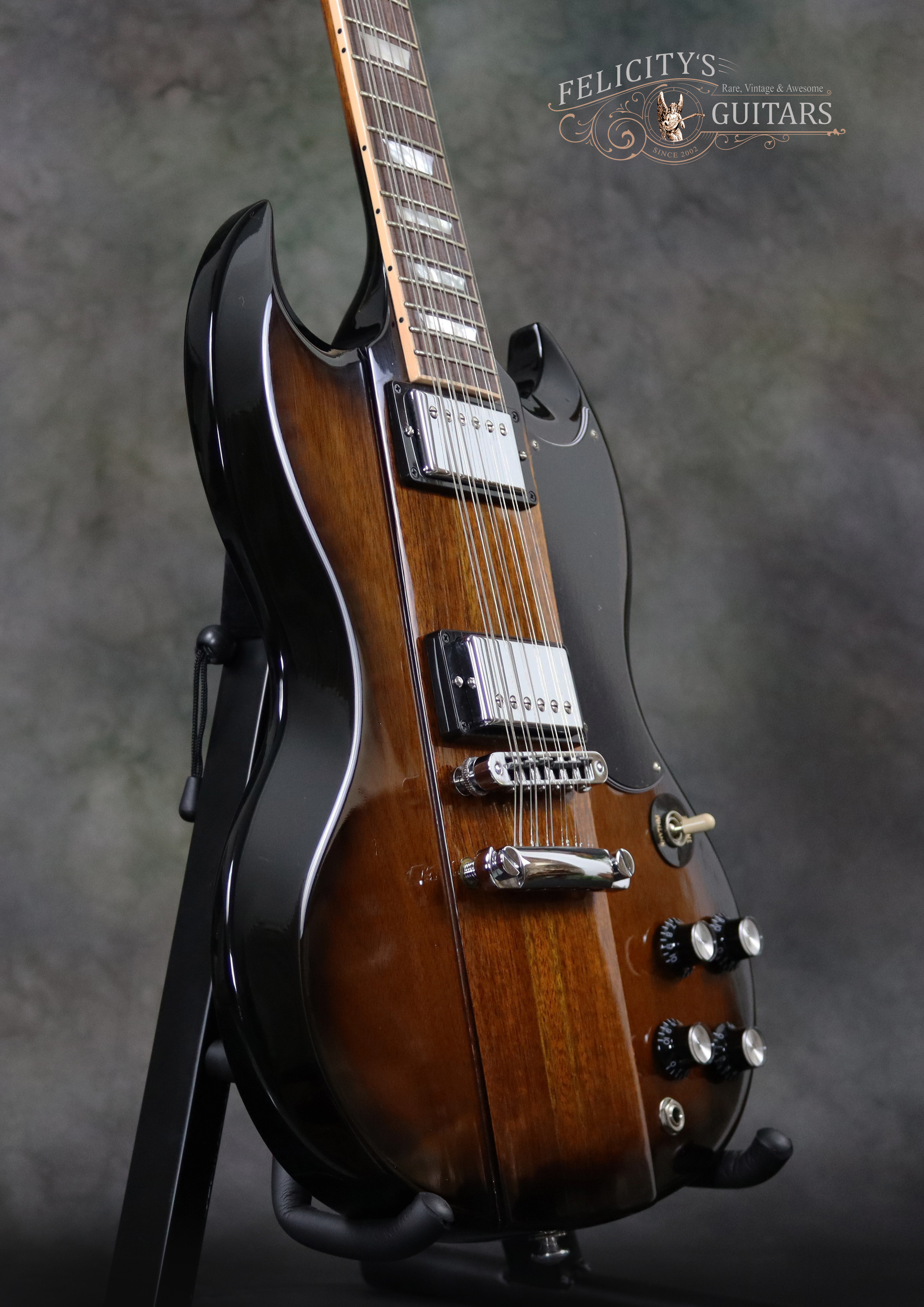

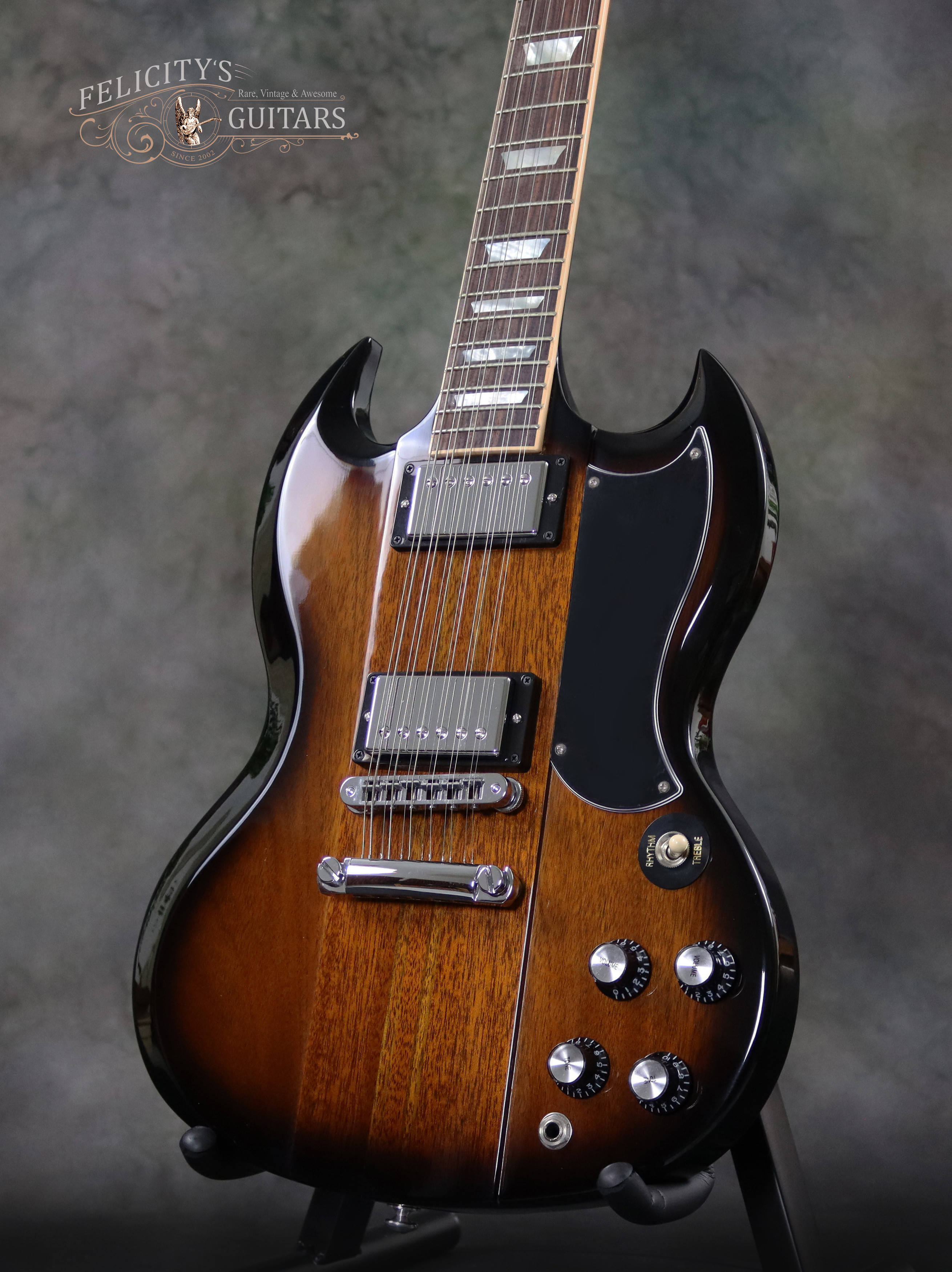

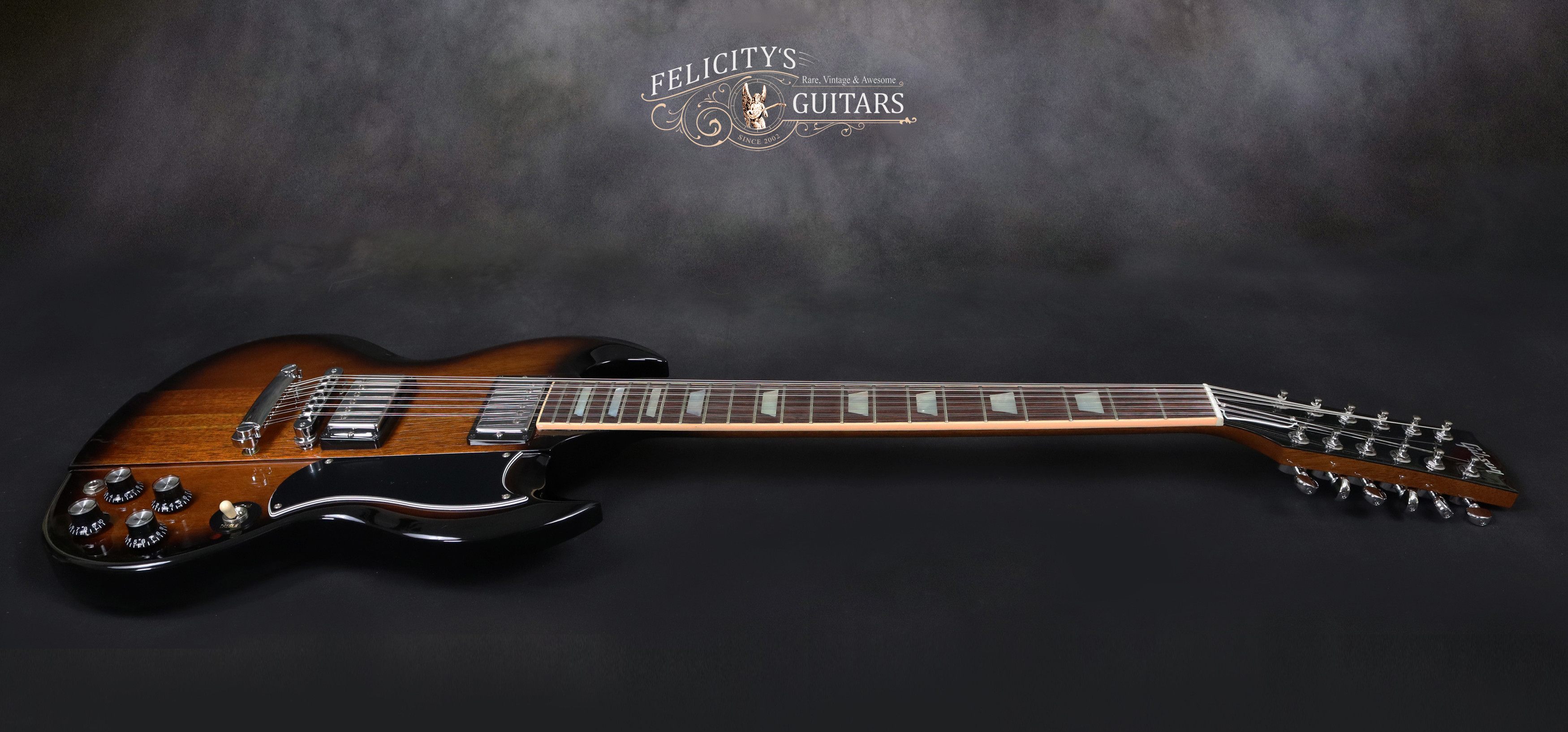

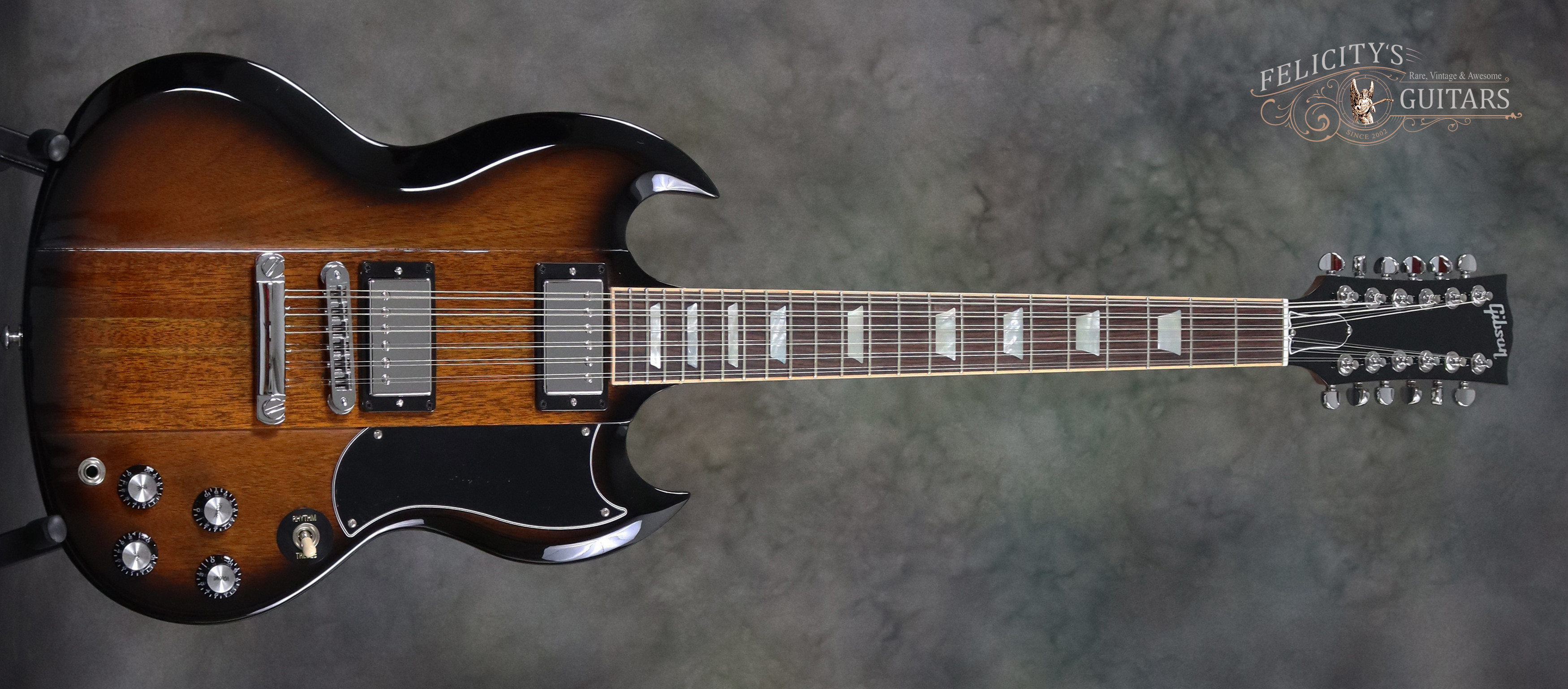

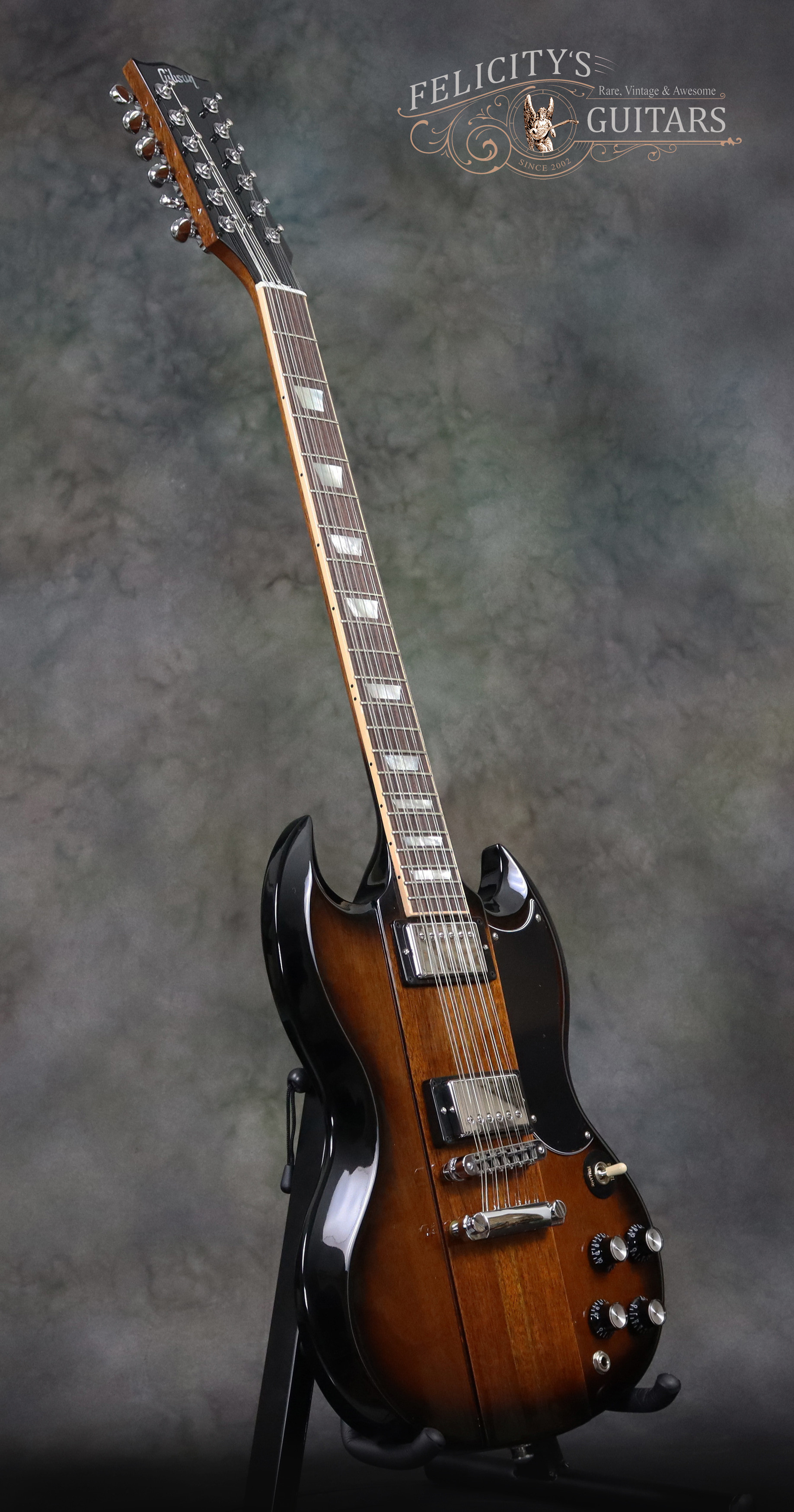

2016 GIBSON SG-12 NECK-THROUGH LTD EDITION IN VINTAGE SUNBURST FINISH

Limited to 75 pieces worldwide!

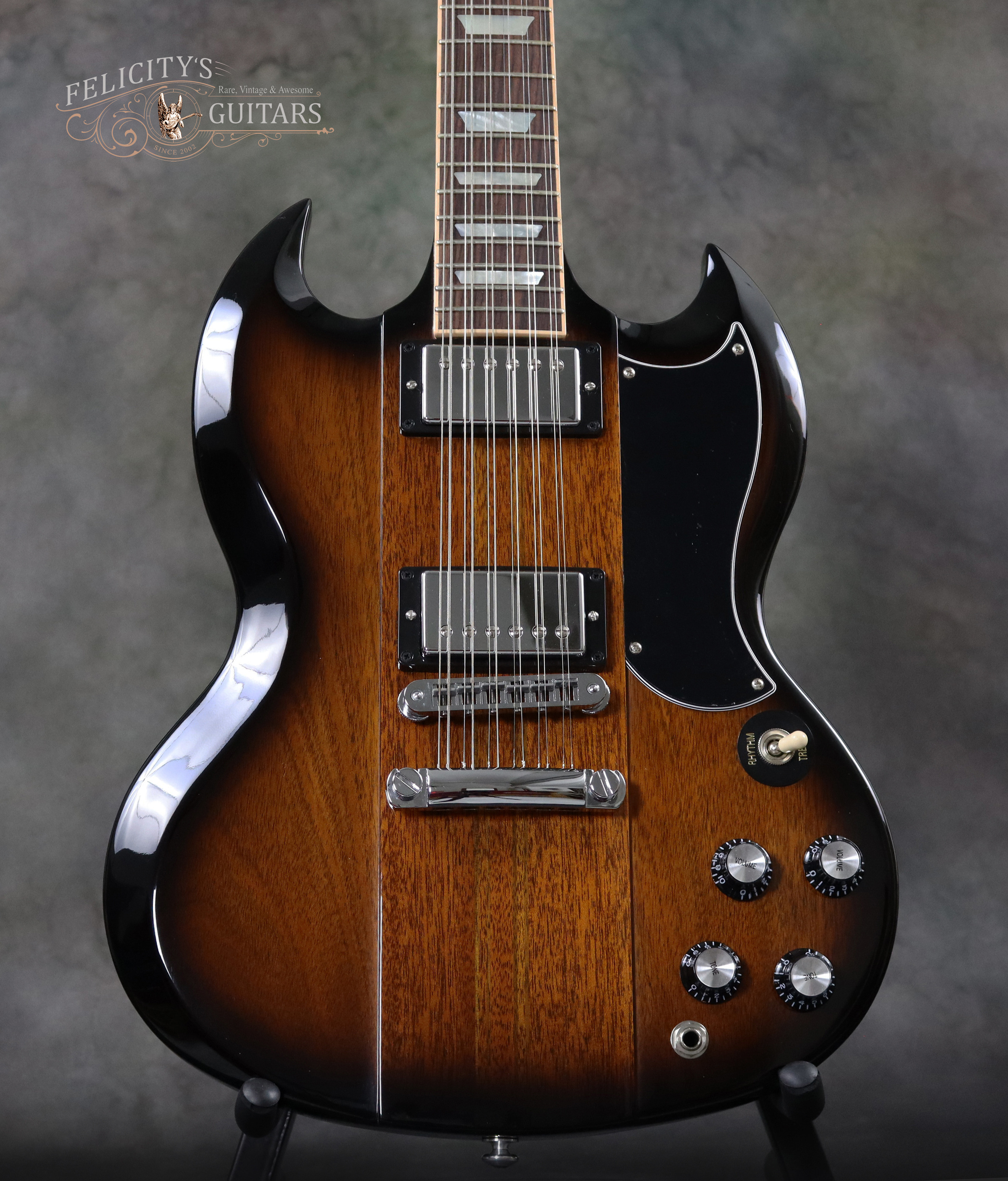

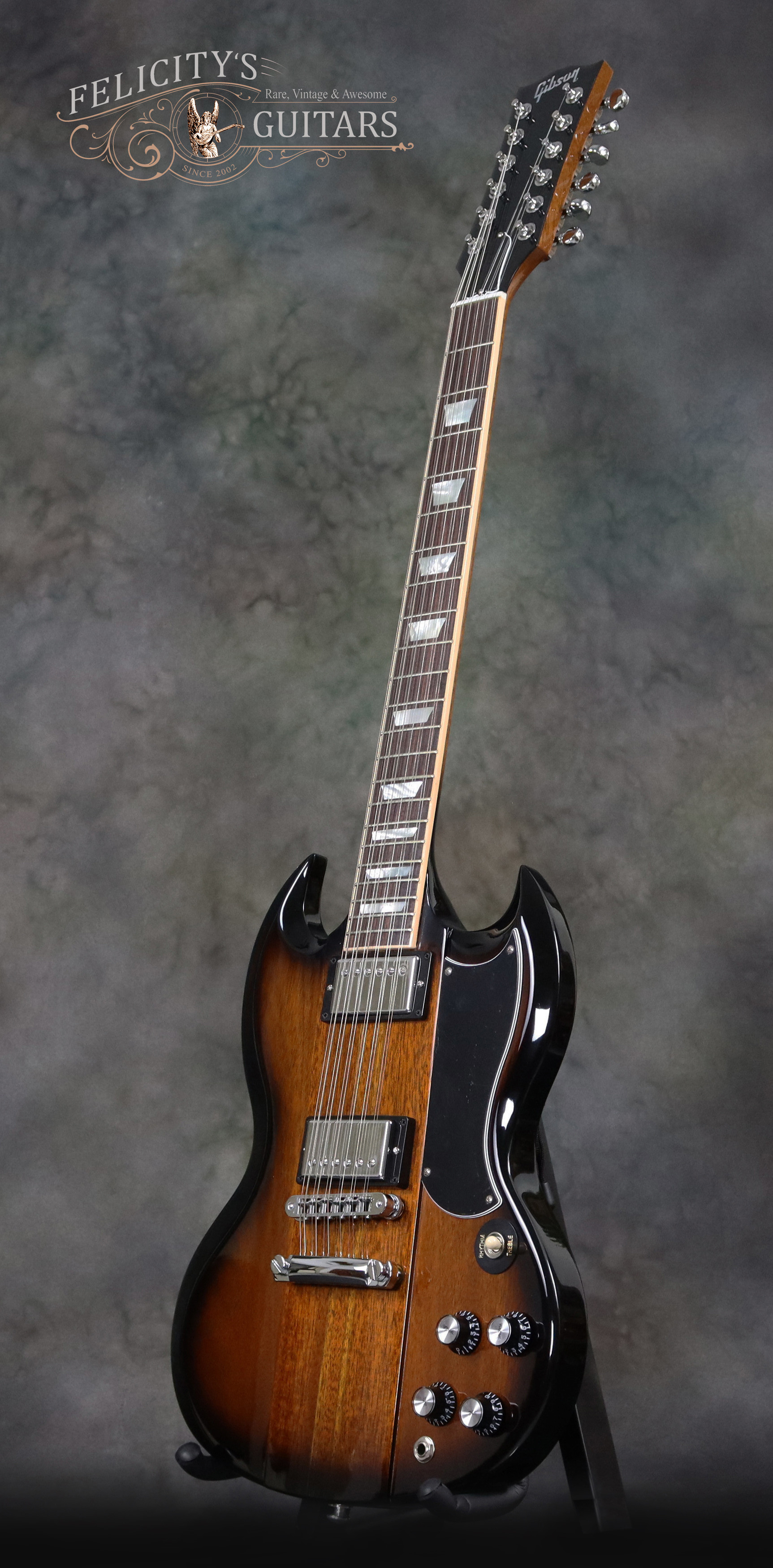

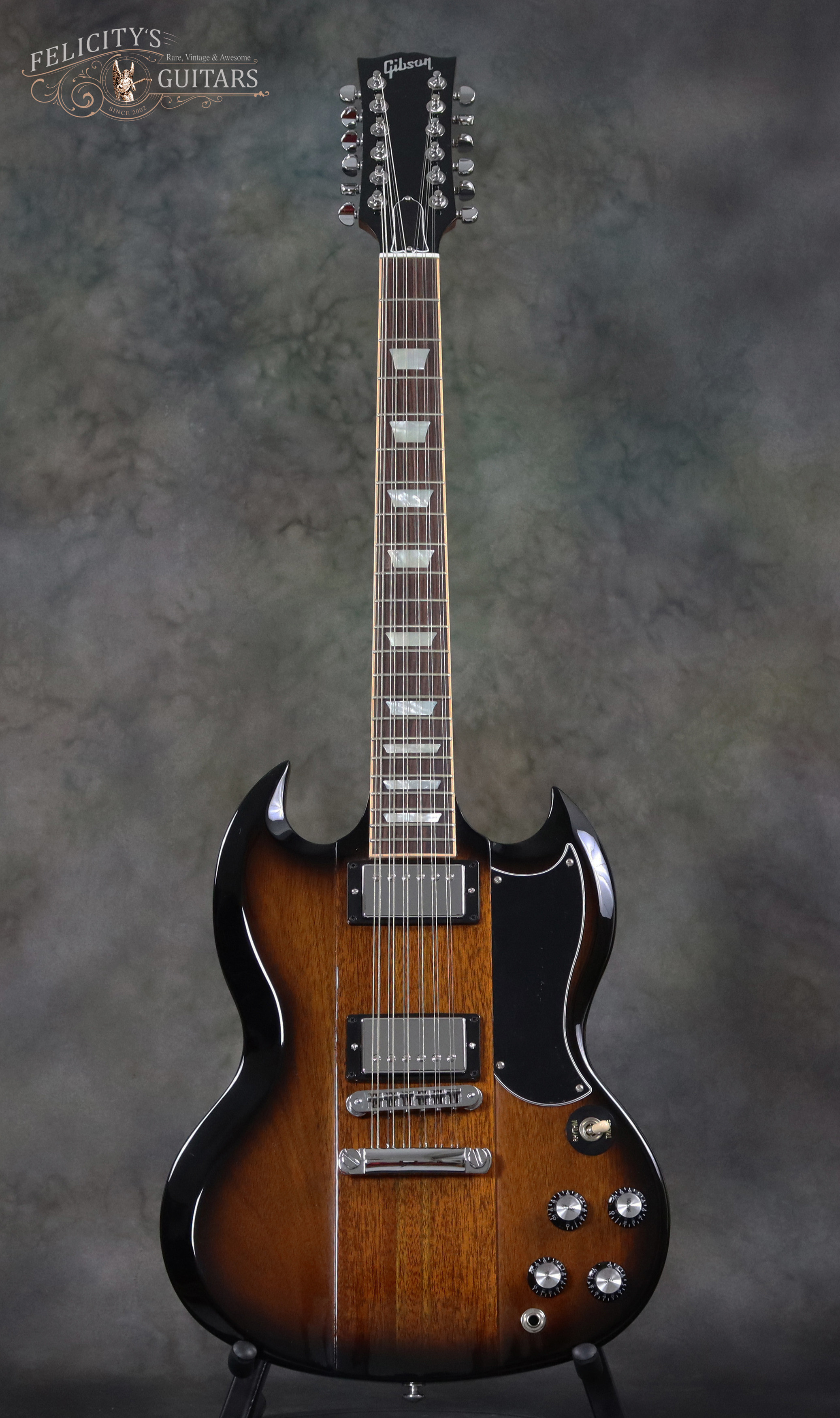

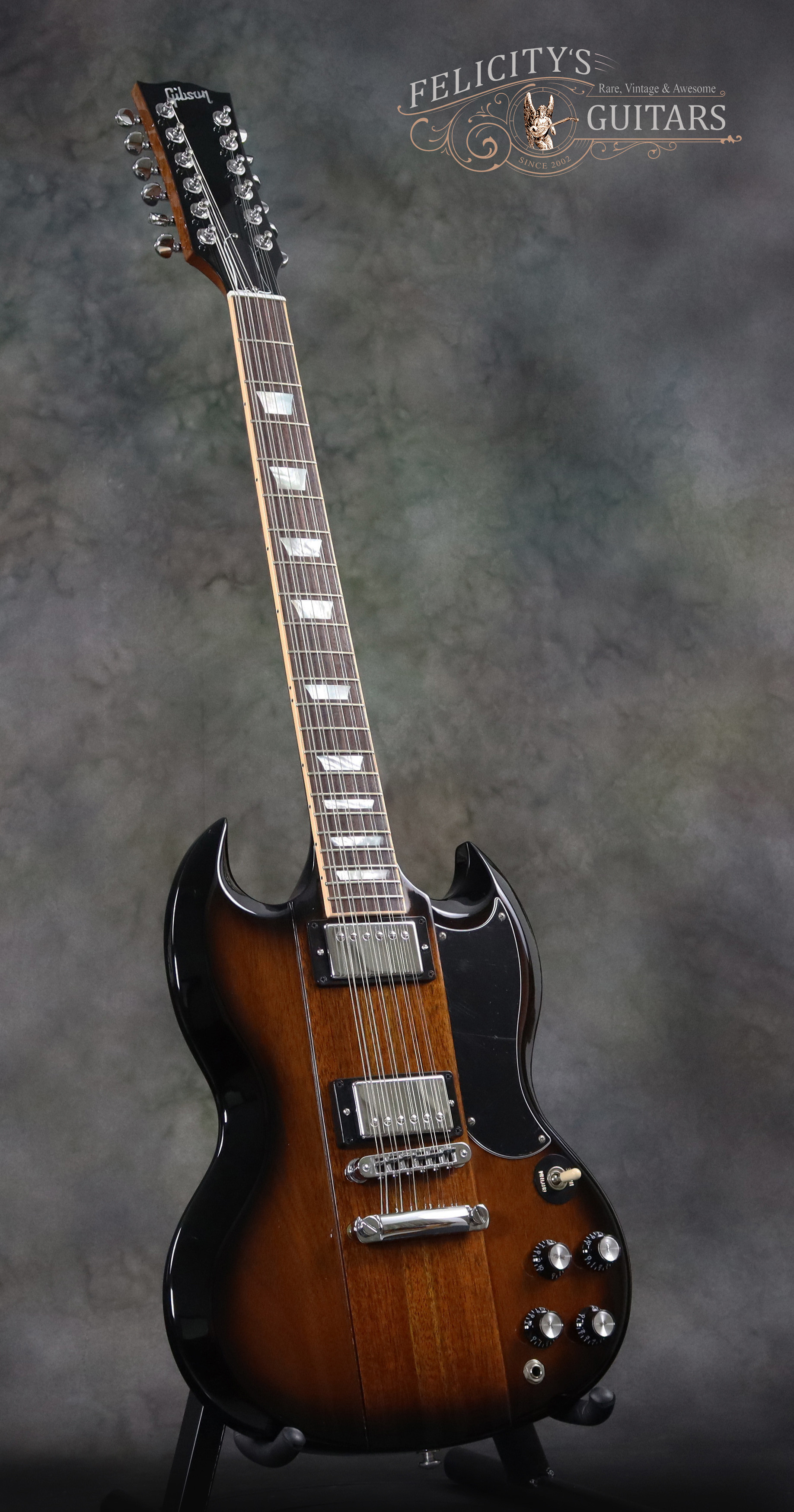

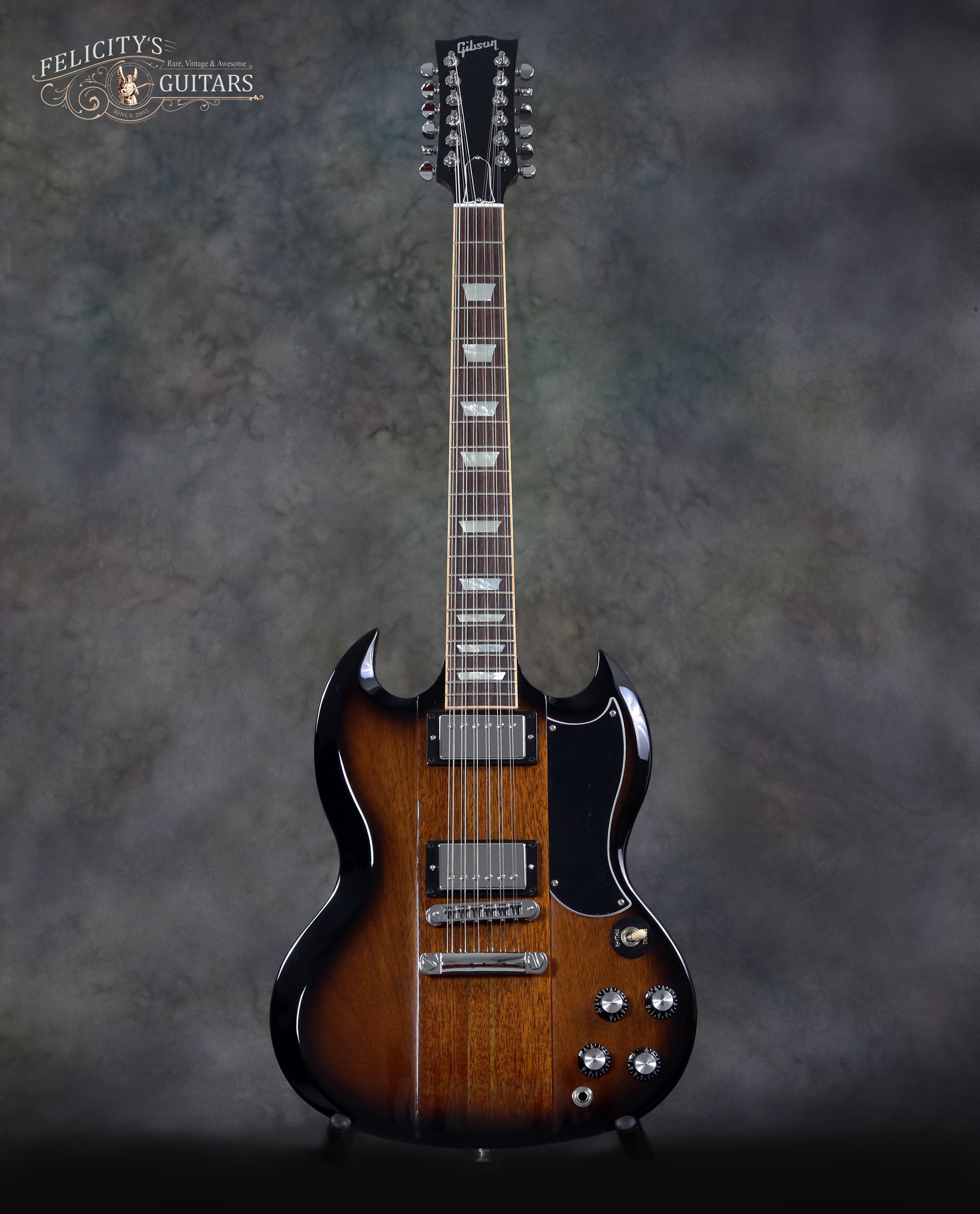

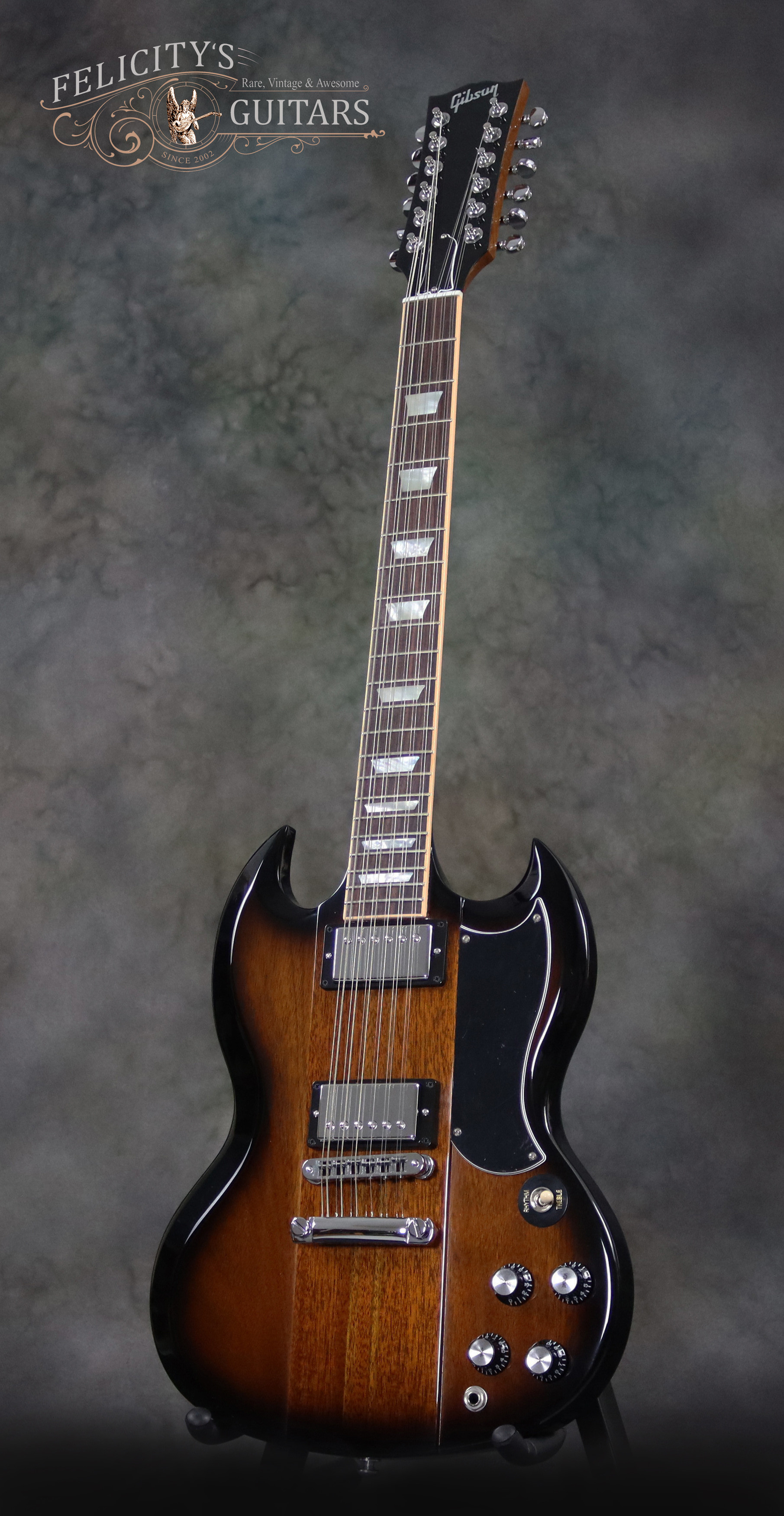

Instantly recognizable thanks to its iconic shape, this SG is however everything but your typical SG. 12-strings, a 9-ply neck-through-body construction, a specially designed 5-ply pickguard, genuine Mother-of-Pearl inlays and a combination of Burstbucker 1 & 2 humbuckers make this guitar a premium choice for players and collectors alike.

 

The 2016 Gibson SG 12-String Neck-Through Limited at a glance:

  • 12-String Electric Guitar

  • Full-length maple/walnut neck with Firebird profile and rosewood fingerboard

  • Gibson Burstbucker 1 Neck Pickup, Gibson Burstbucker 2 Bridge Pickup

  • Tune-O-Matic bridge and stopbar tailpiece

  • 12 Grover Mini Rotomatic tuners


2016-Gibson-SG-Neck-Through-12-string-Vintage-Sunburst

USD 1,000,000

Add to Cart

Shipping will be calculated at check out

description

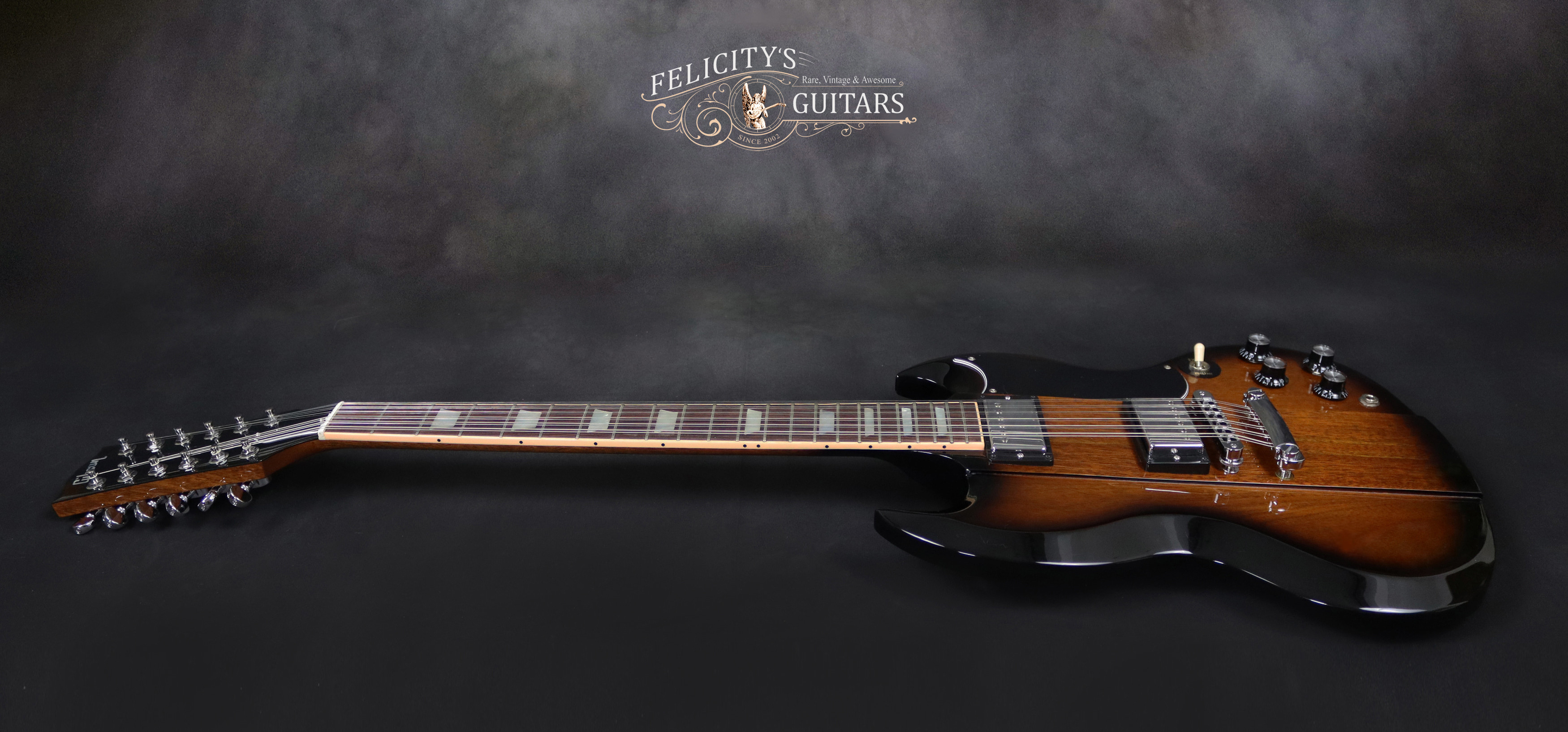

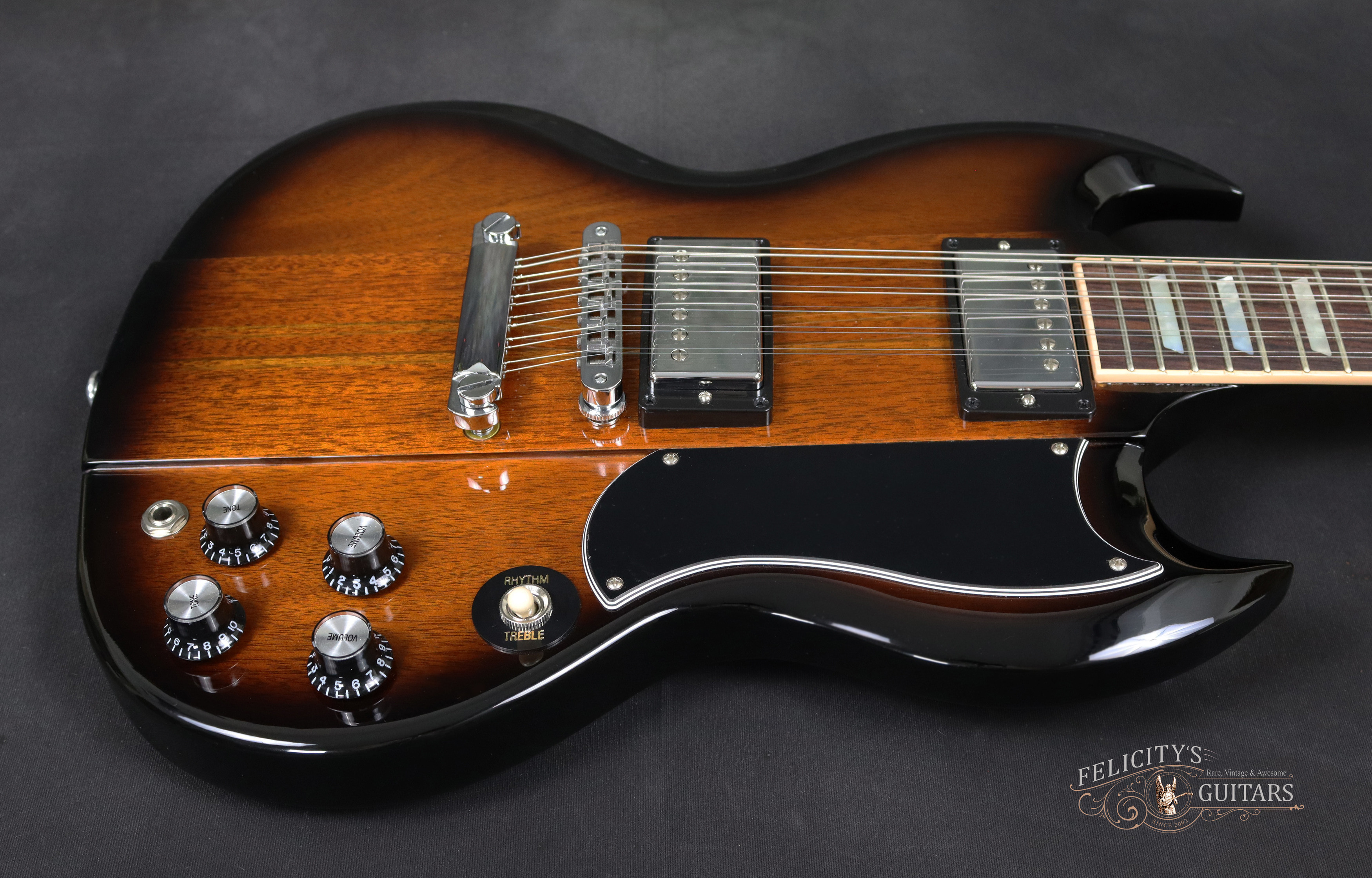

With the Gibson SG 12-String Neck-Through Limited Vintage Sunburst, Gibson USA presents a unique interpretation of the legendary "Solid Guitar" with twelve strings and the Gibson Firebird-inspired, continuous neck with an inspiring, independent sound. Accordingly, it is made of nine stripes of mahogany and walnut laminated separation veneers, while its fretboard is made of rosewood. The neck has the particularly thin "Firebird" profile so that even complex chords can be mastered effortlessly on the wider fretboard.

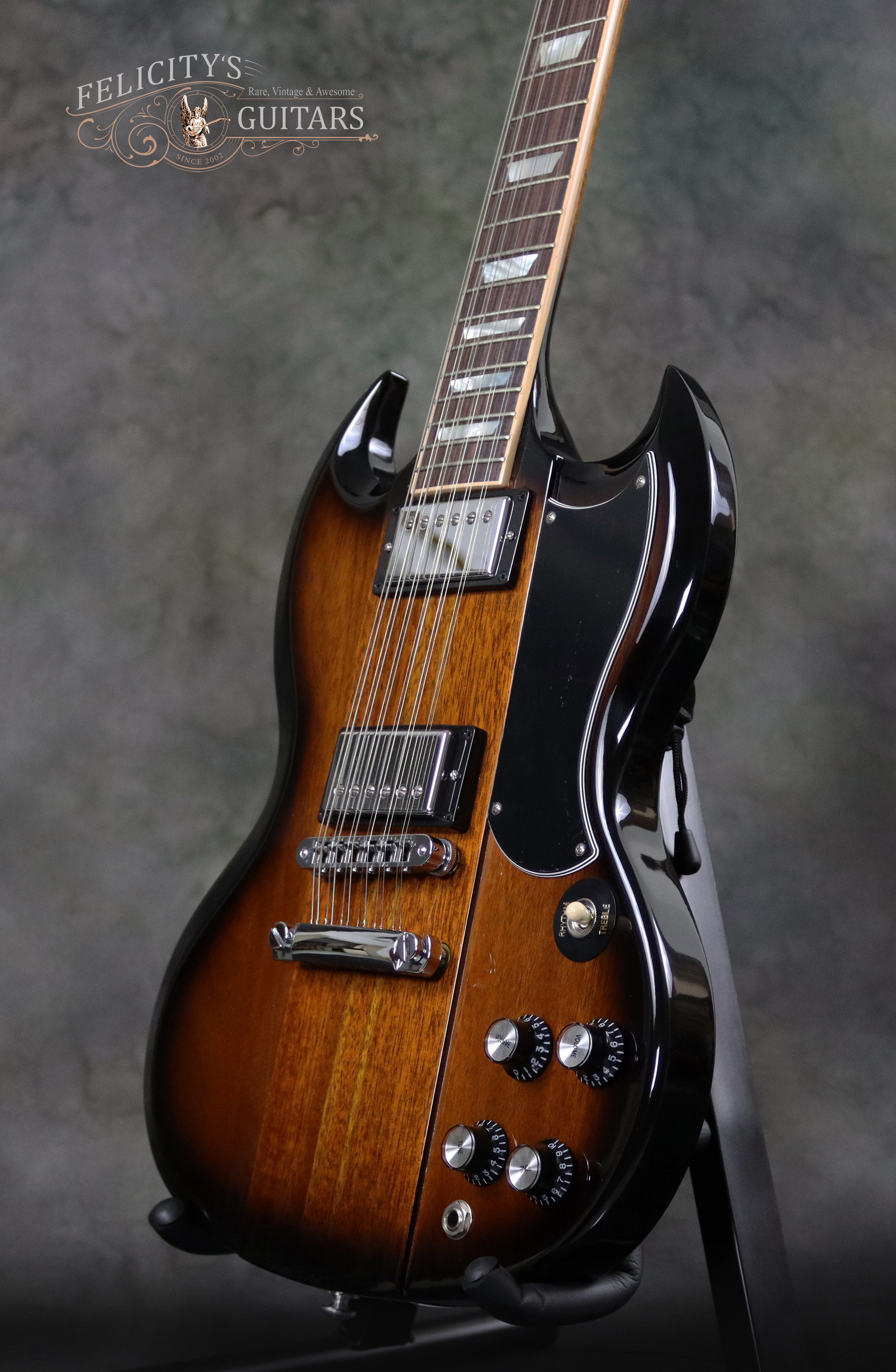

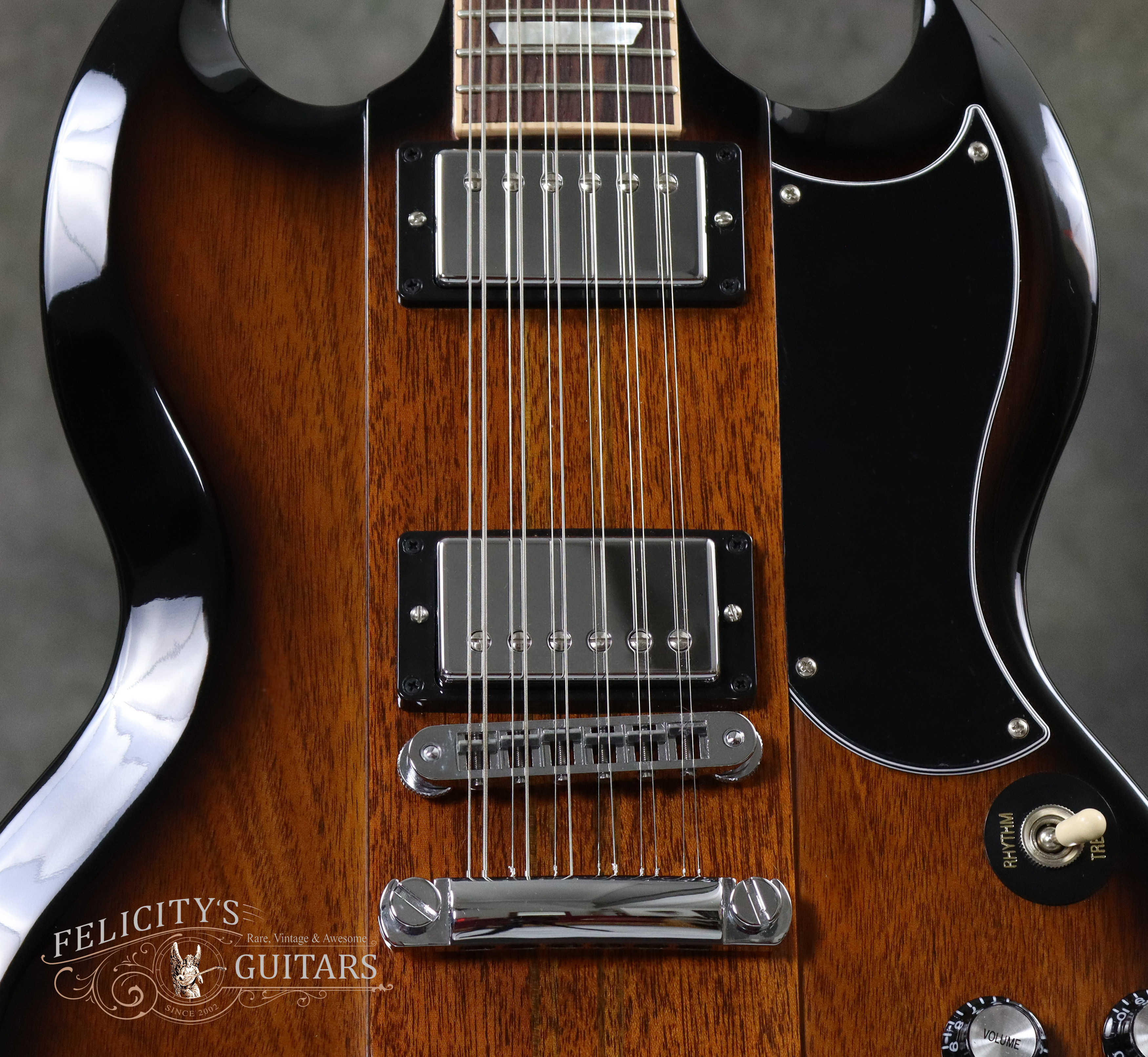

Harmonious 12-string sound. A Gibson Burstbucker 1 at the neck and a Gibson Burstbucker 2 at the bridge are used as pickups on the Gibson SG 12-String Neck-Through. These classic humbuckers have an authentic vintage sound that does not deny its origins from the legendary PAFs of the golden era of guitar making. The familiar circuit with a 3-way toggle switch as well as individual volume and tone controls for each pickup can also be used to precisely adjust the sound character.


Specially designed 12-string hardware to meet the requirements of a 12-string guitar, completes the equipment of the Gibson SG 12-String Neck-Through Limited. The strings are guided from the classic Stopbar tailpiece over a Tune-O-Matic bridge, which ensures perfect intonation and string position for each pair of strings. At the headstock, the strings first run over a Tektoid nut, whose dense, self-lubricating material significantly increases tuning stability before they find a hold on the twelve Grover Mini Rotomatics.

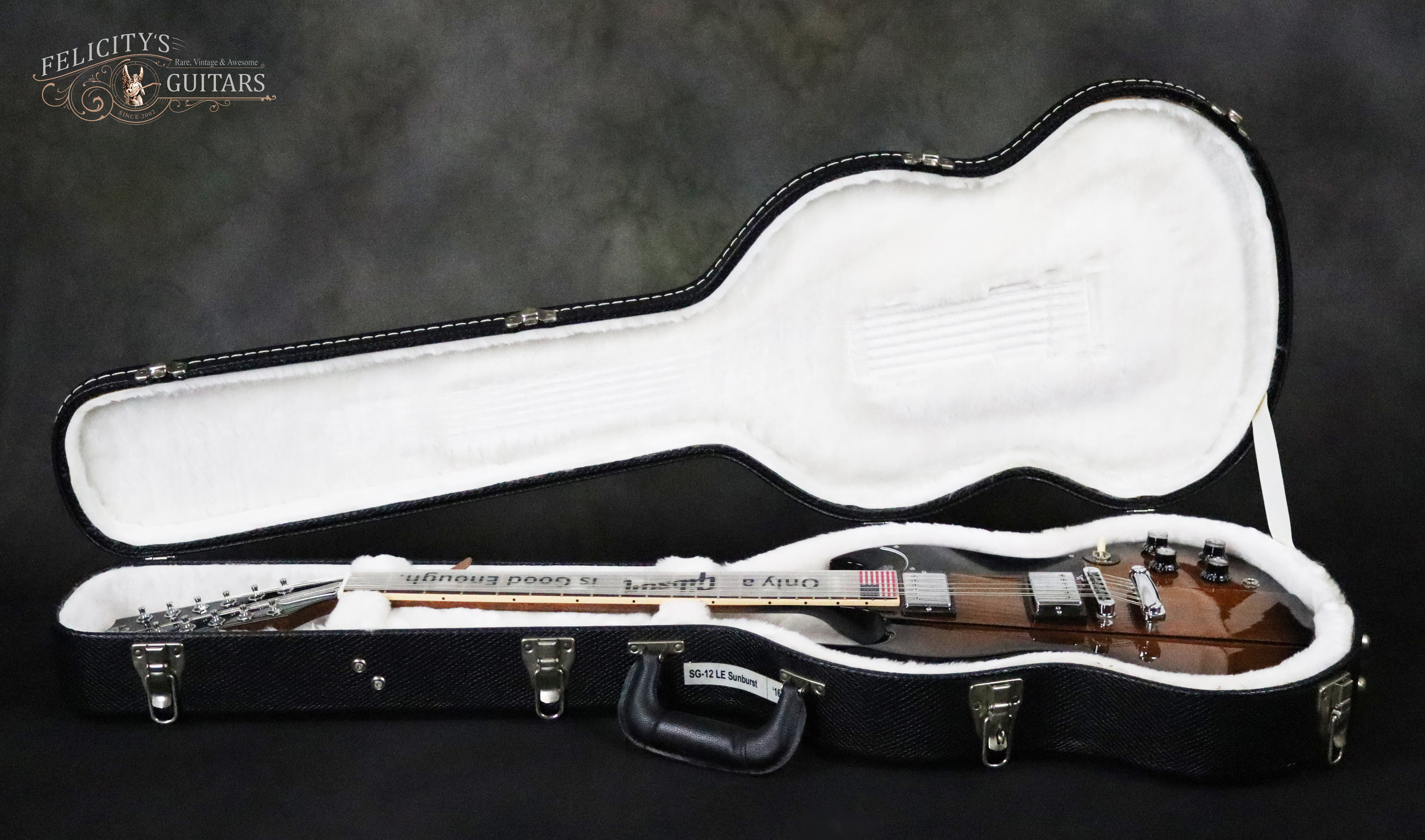

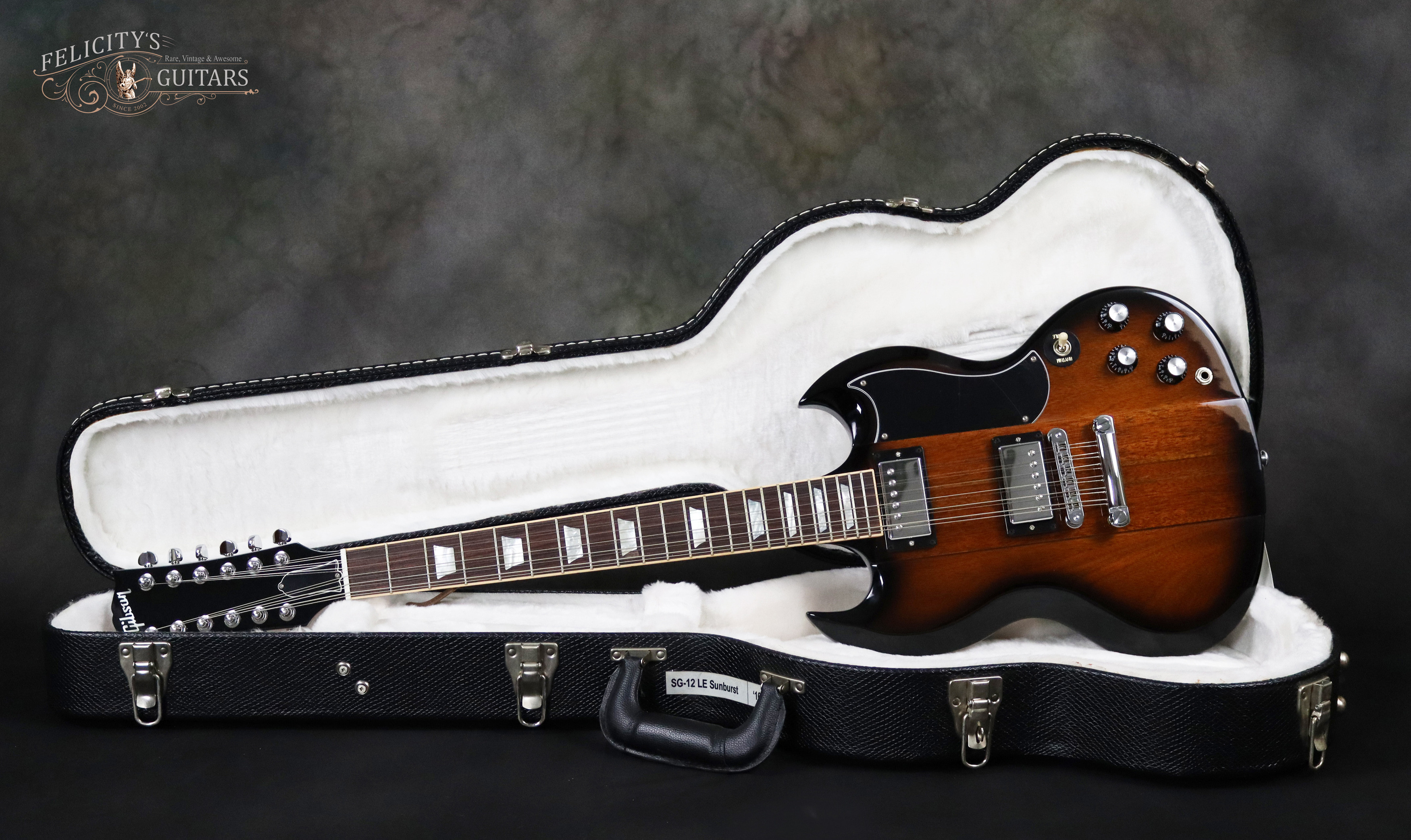

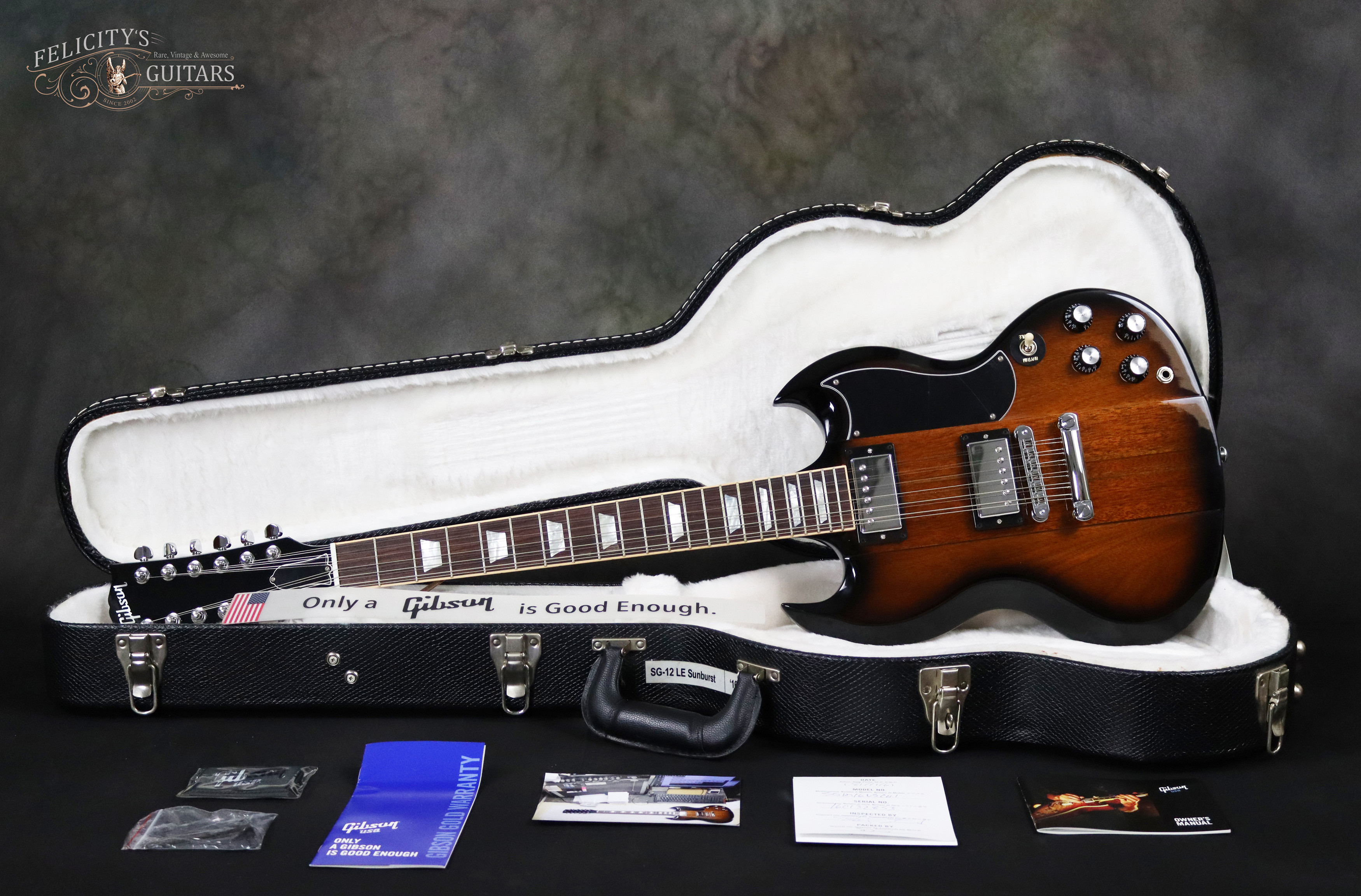

Includes form-fit Classic Gibson 12-string Hardshell Case.

Specifications

General

Condition

Brand New (NOS)

Number of Strings

12

Orientation

Right-handed

Country of Origin

U.S.A.

Year

2016

Limited Edition / Series

75-pc Worldwide

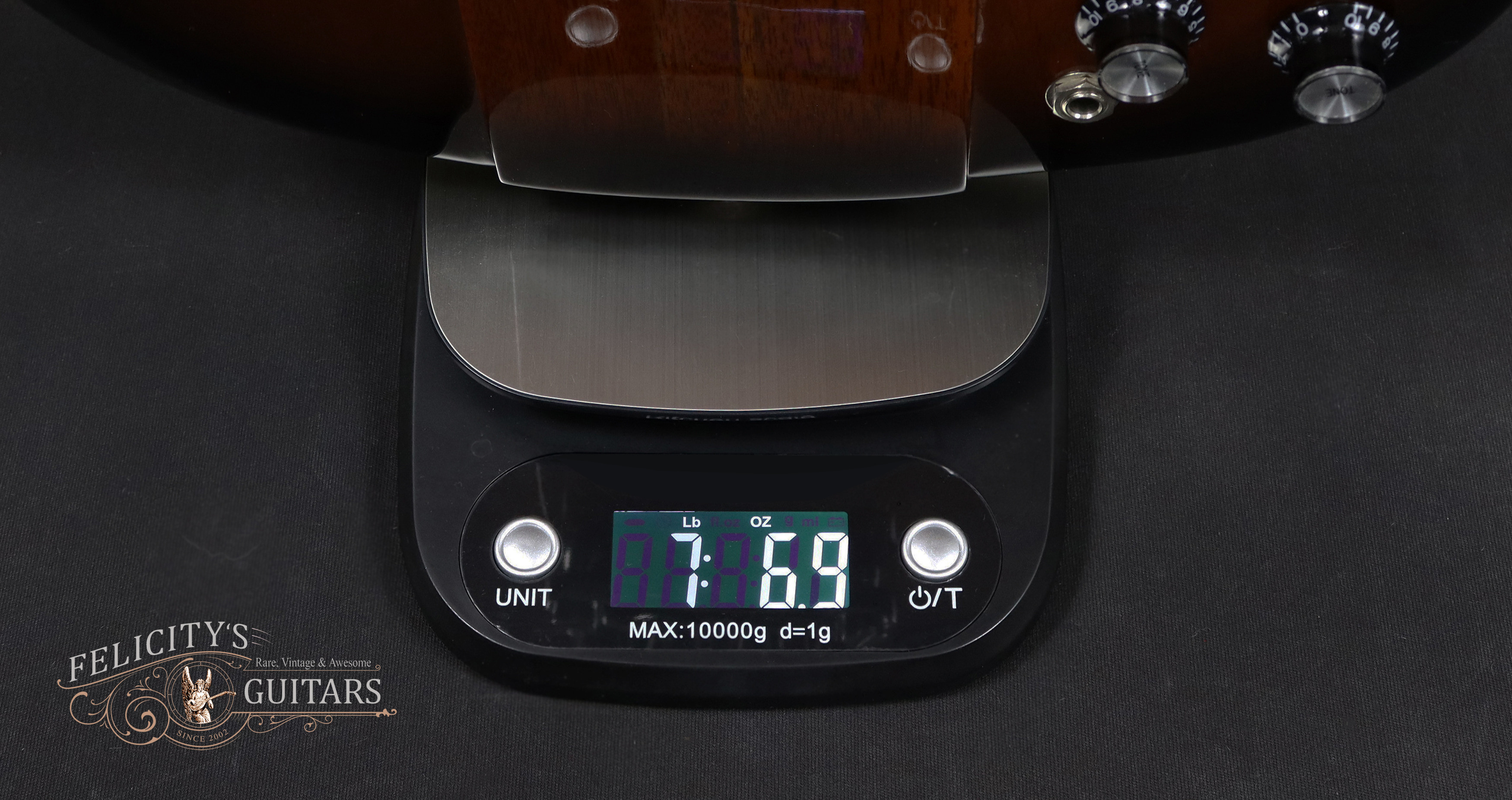

Weight

7-lbs 6.9-oz

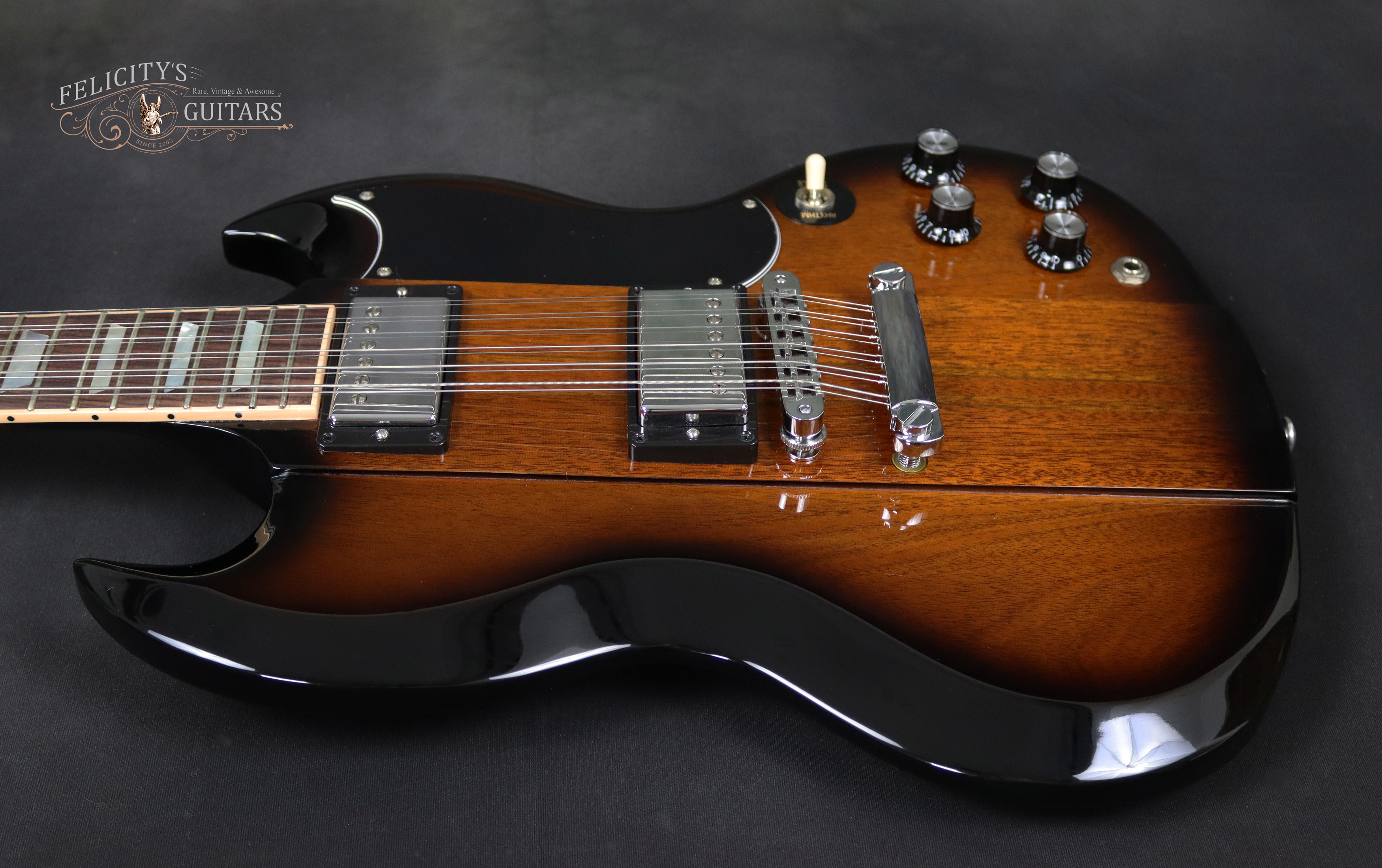

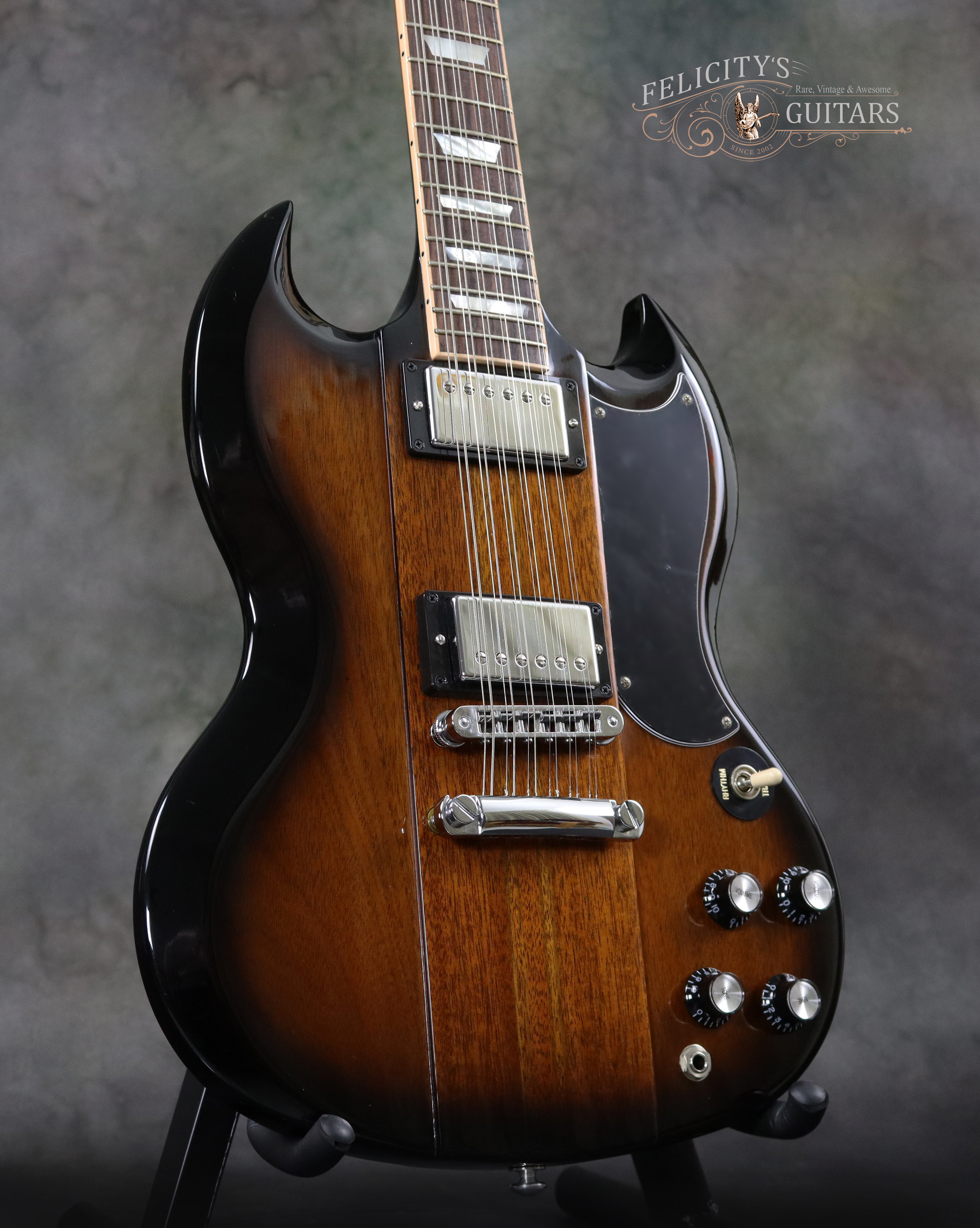

body

Body Type

Neck-through Construction Solidbody

Body Shape

Double-Cutaway

Body Material

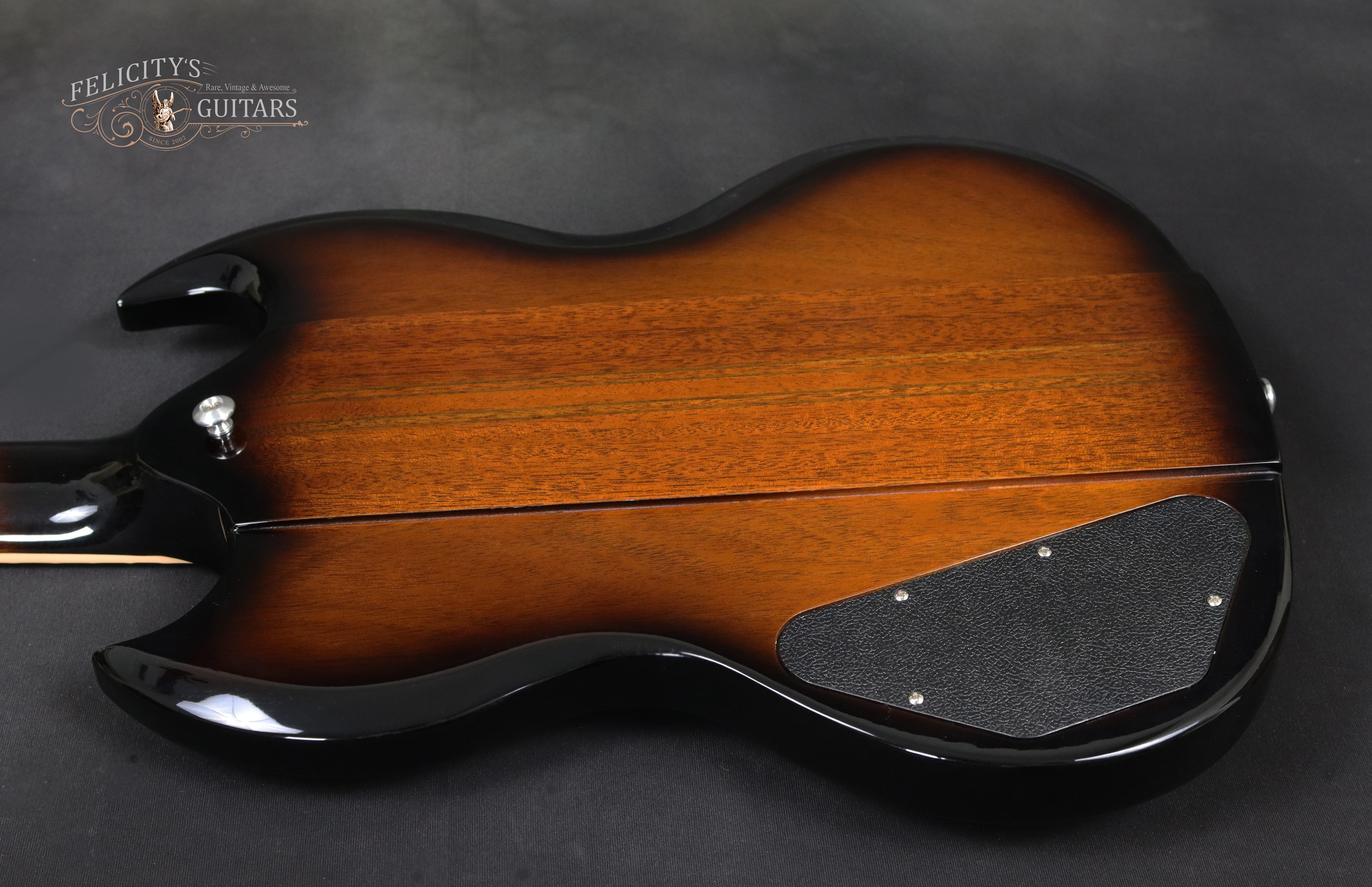

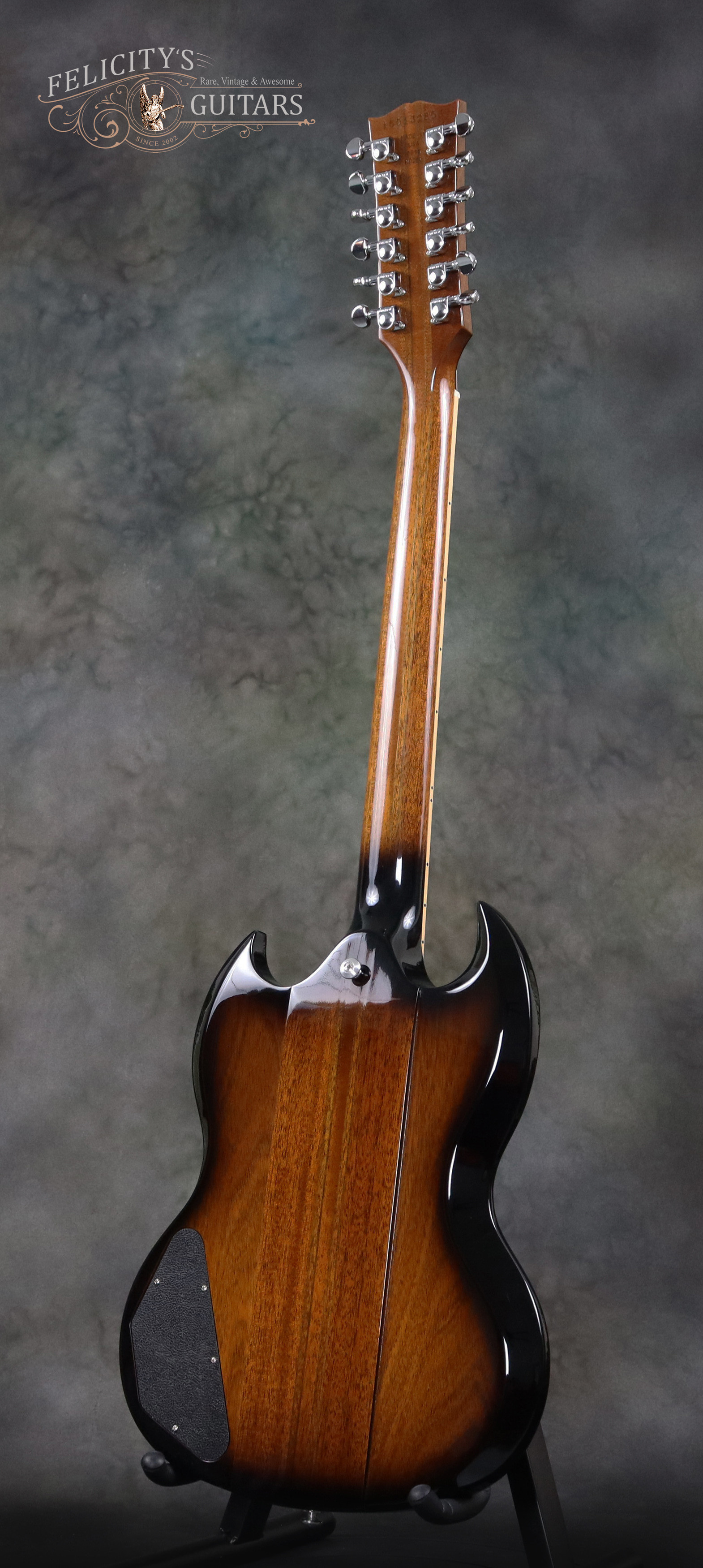

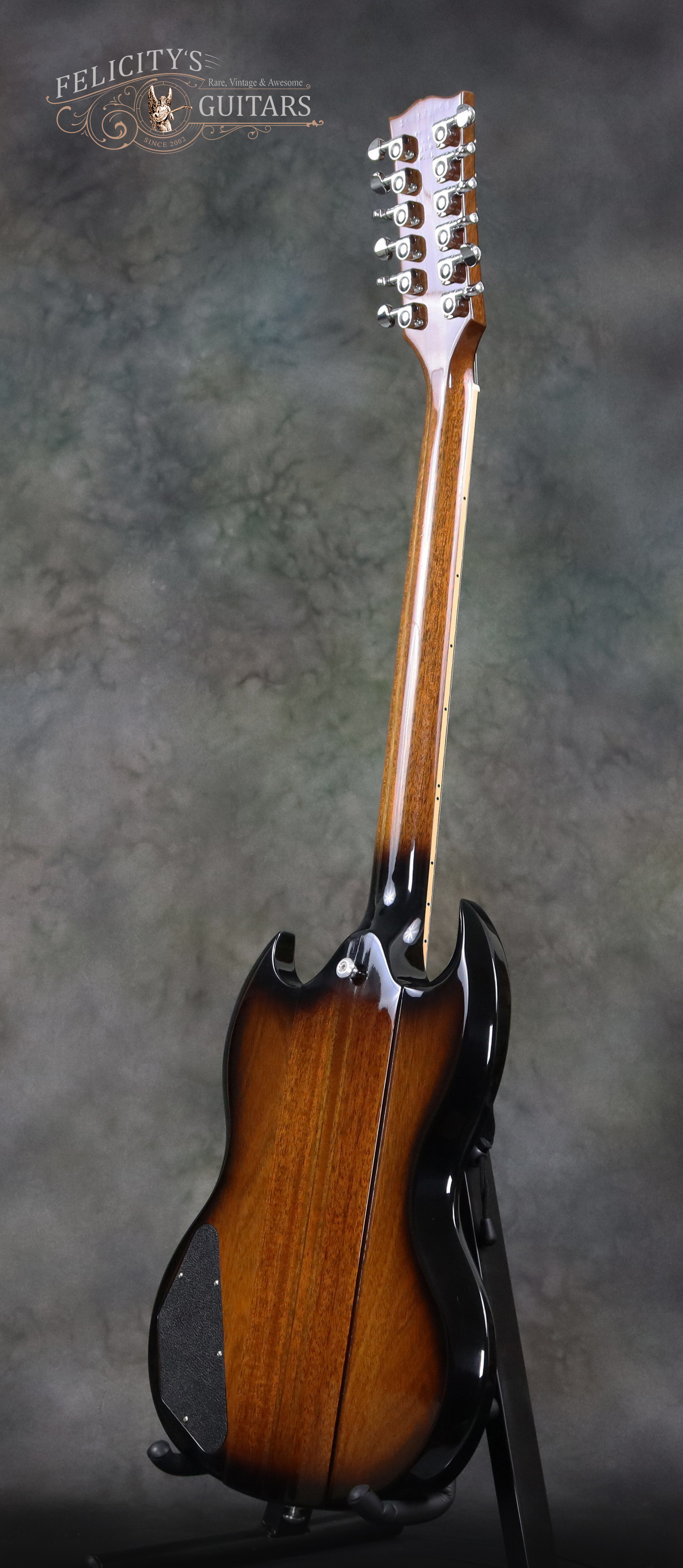

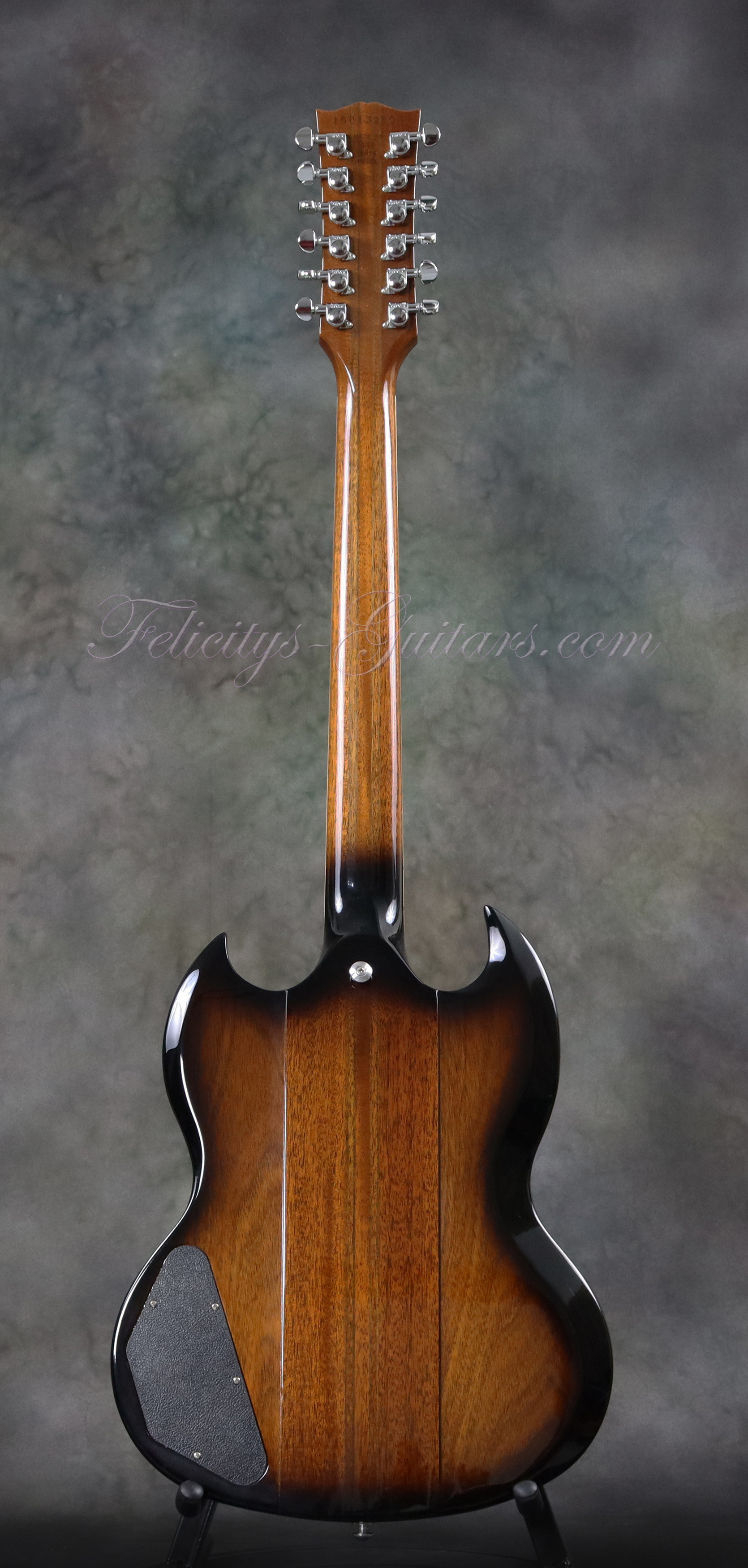

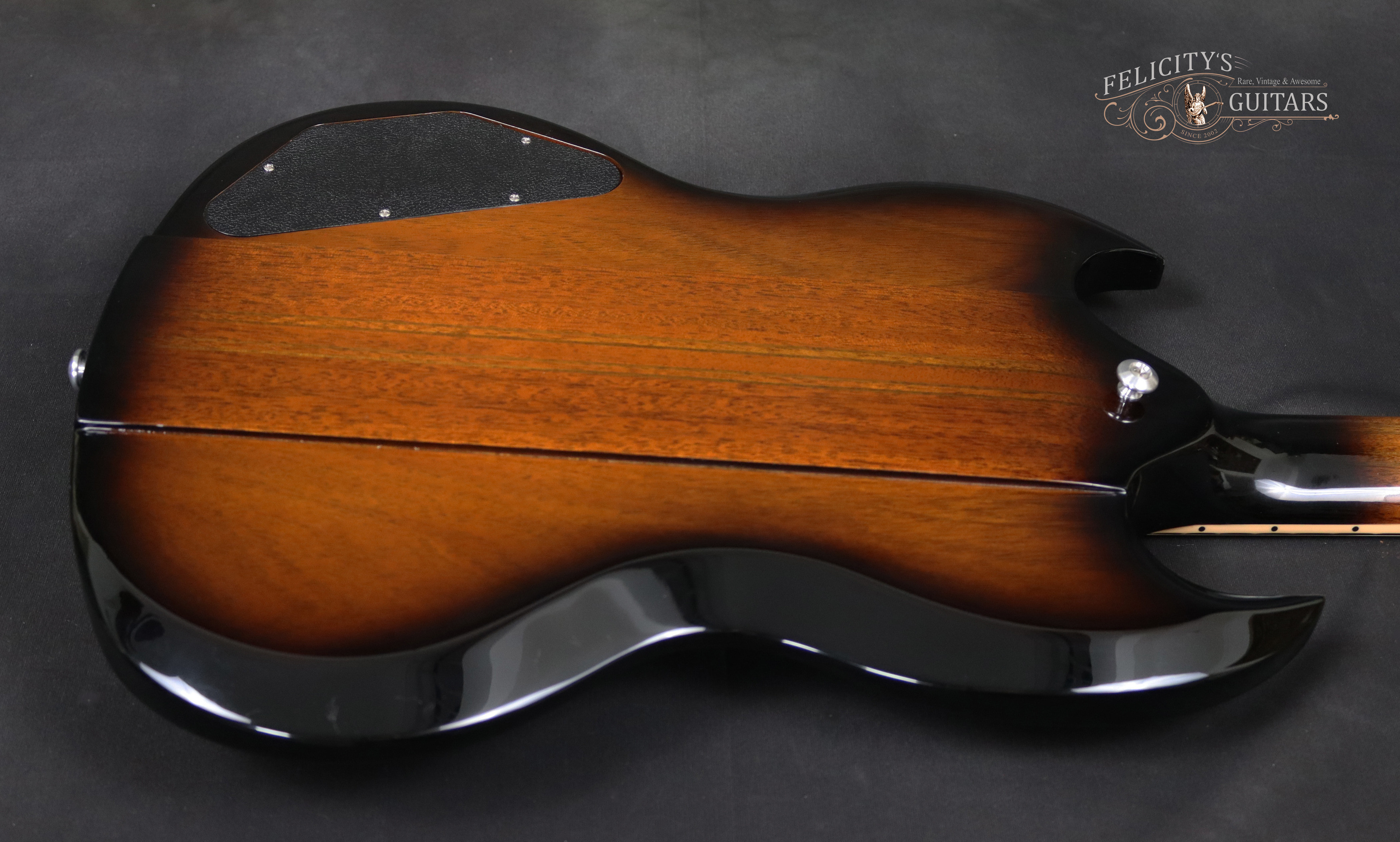

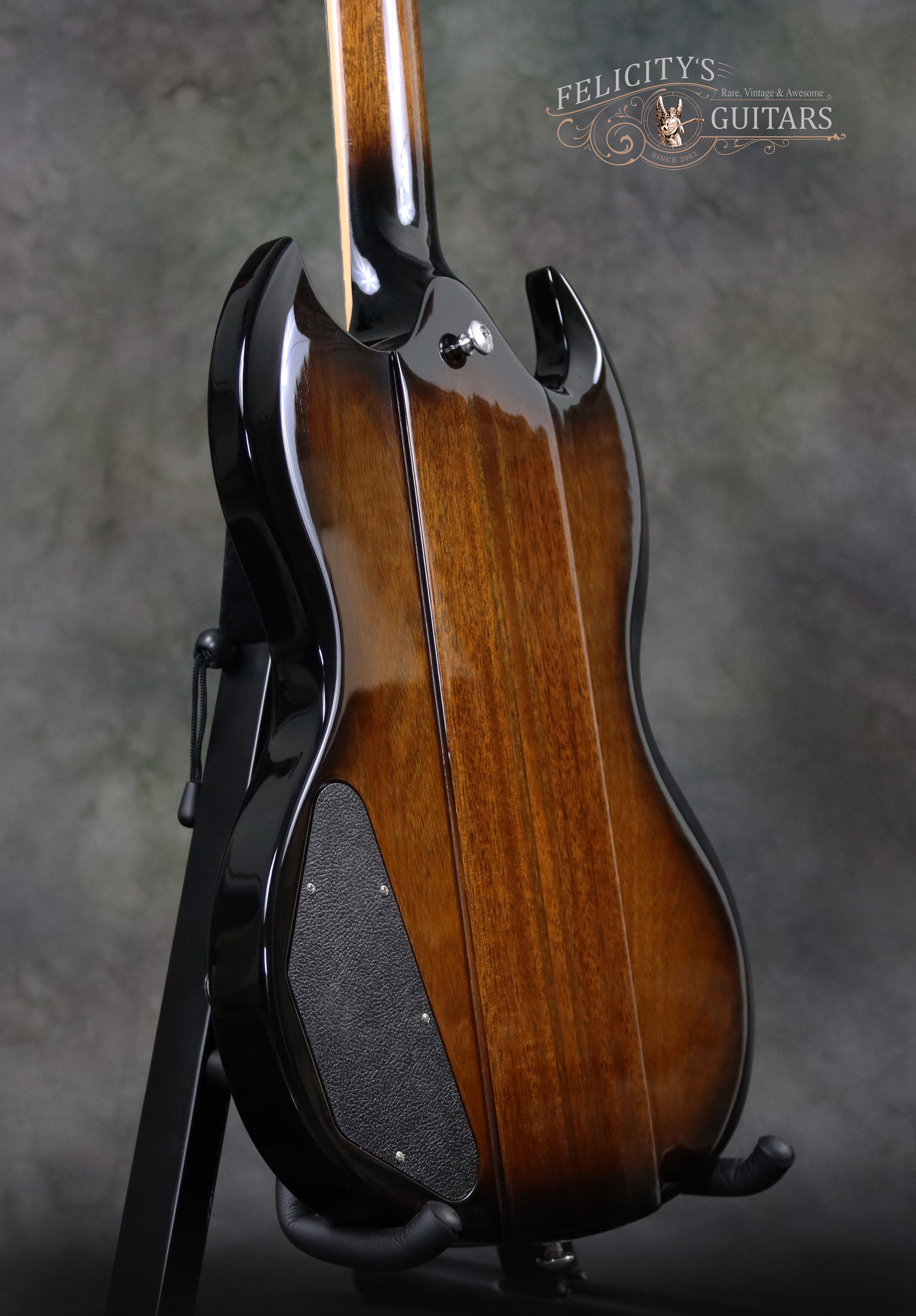

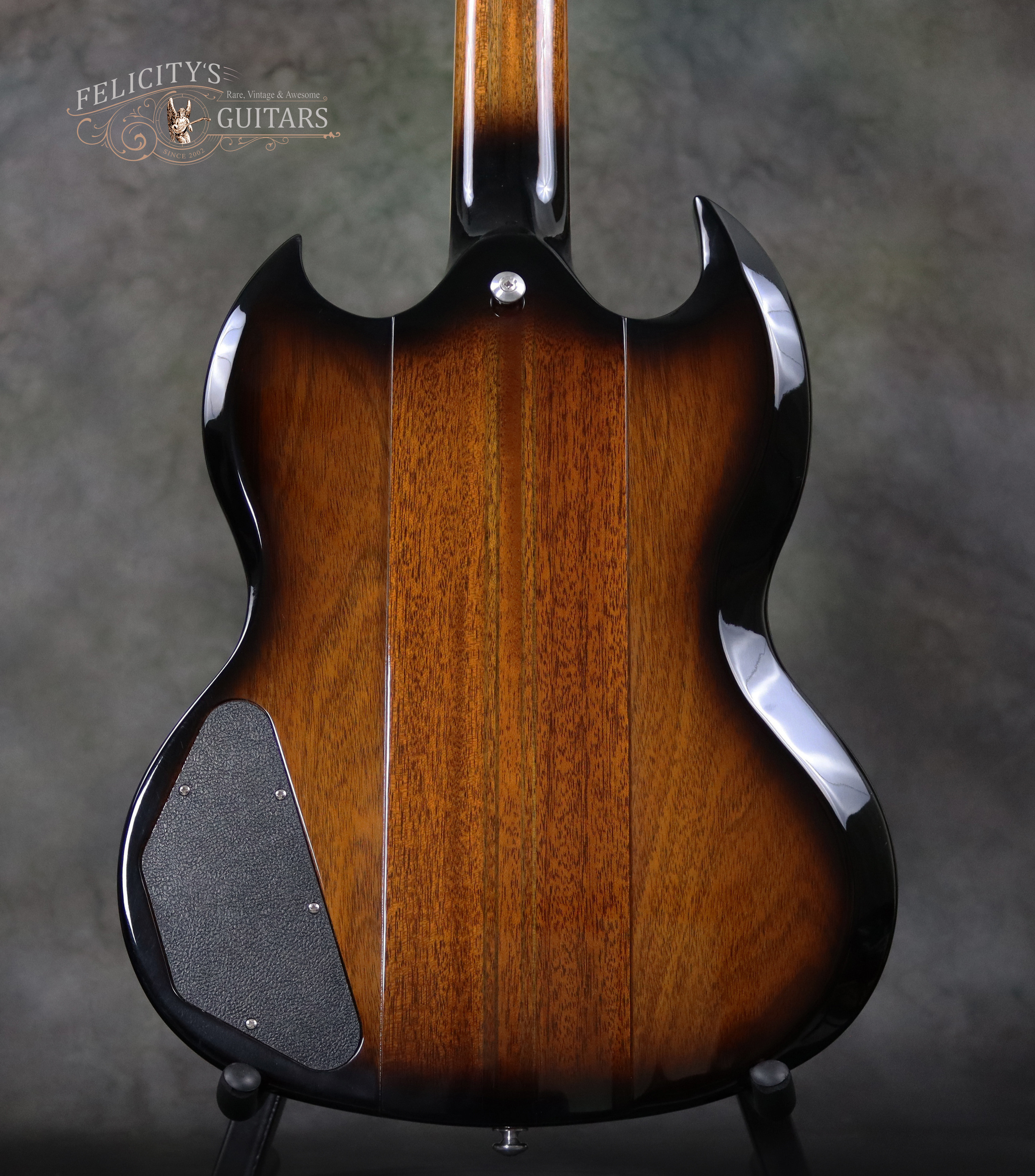

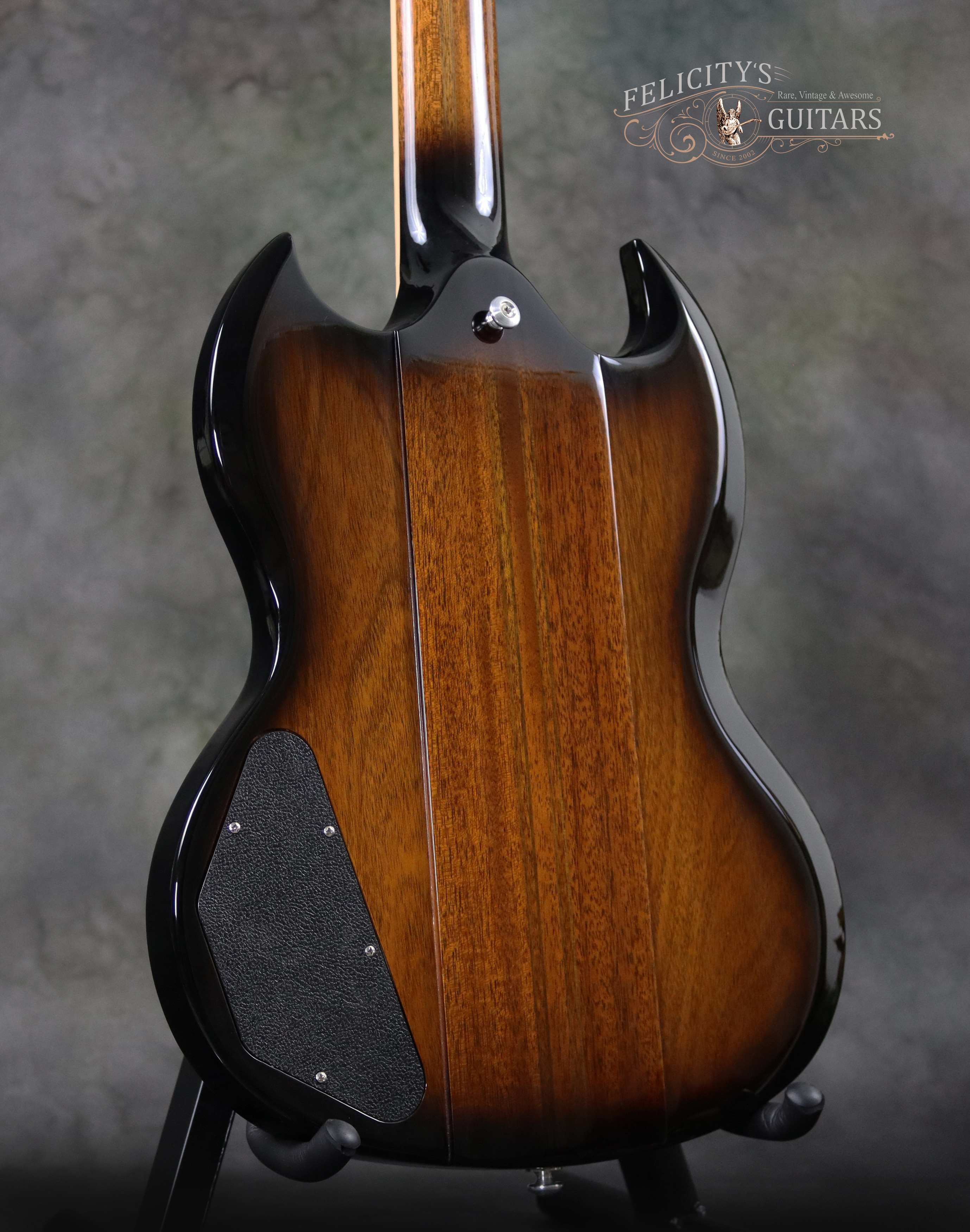

9-ply Mahogany/Walnut Neck-Through with 2-pc Mahogany Body ‘Wings’

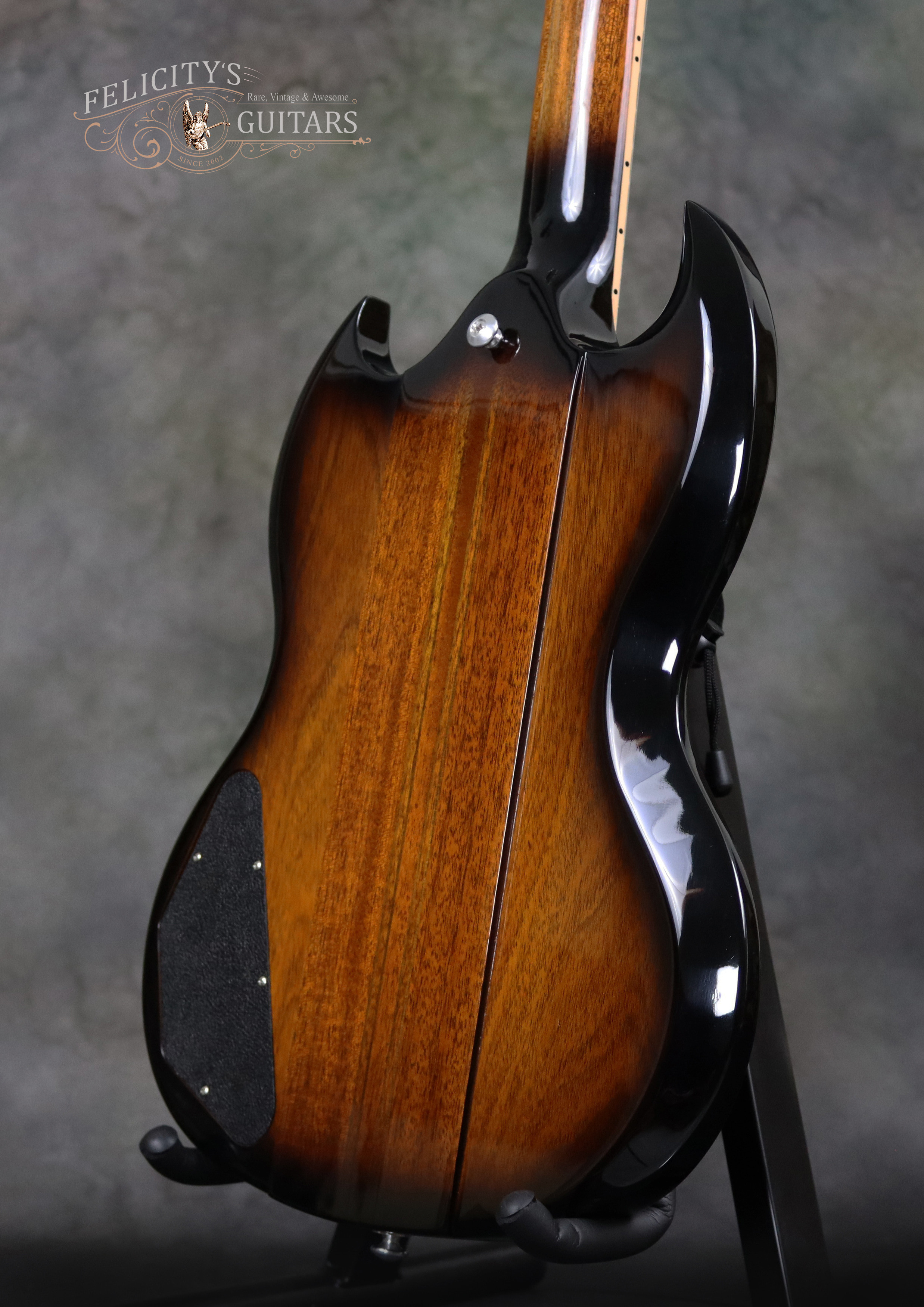

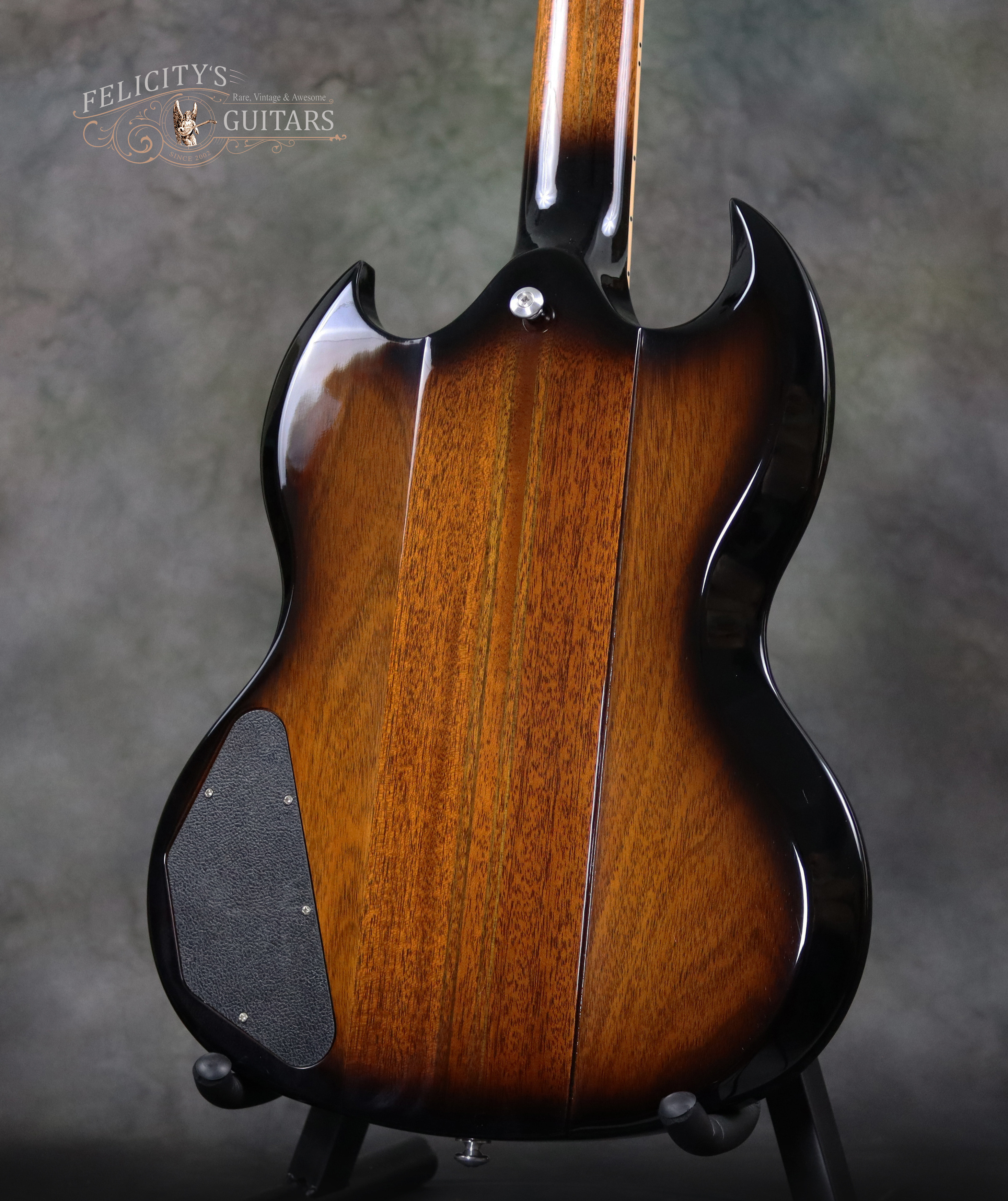

Body Carve

Front: Flat

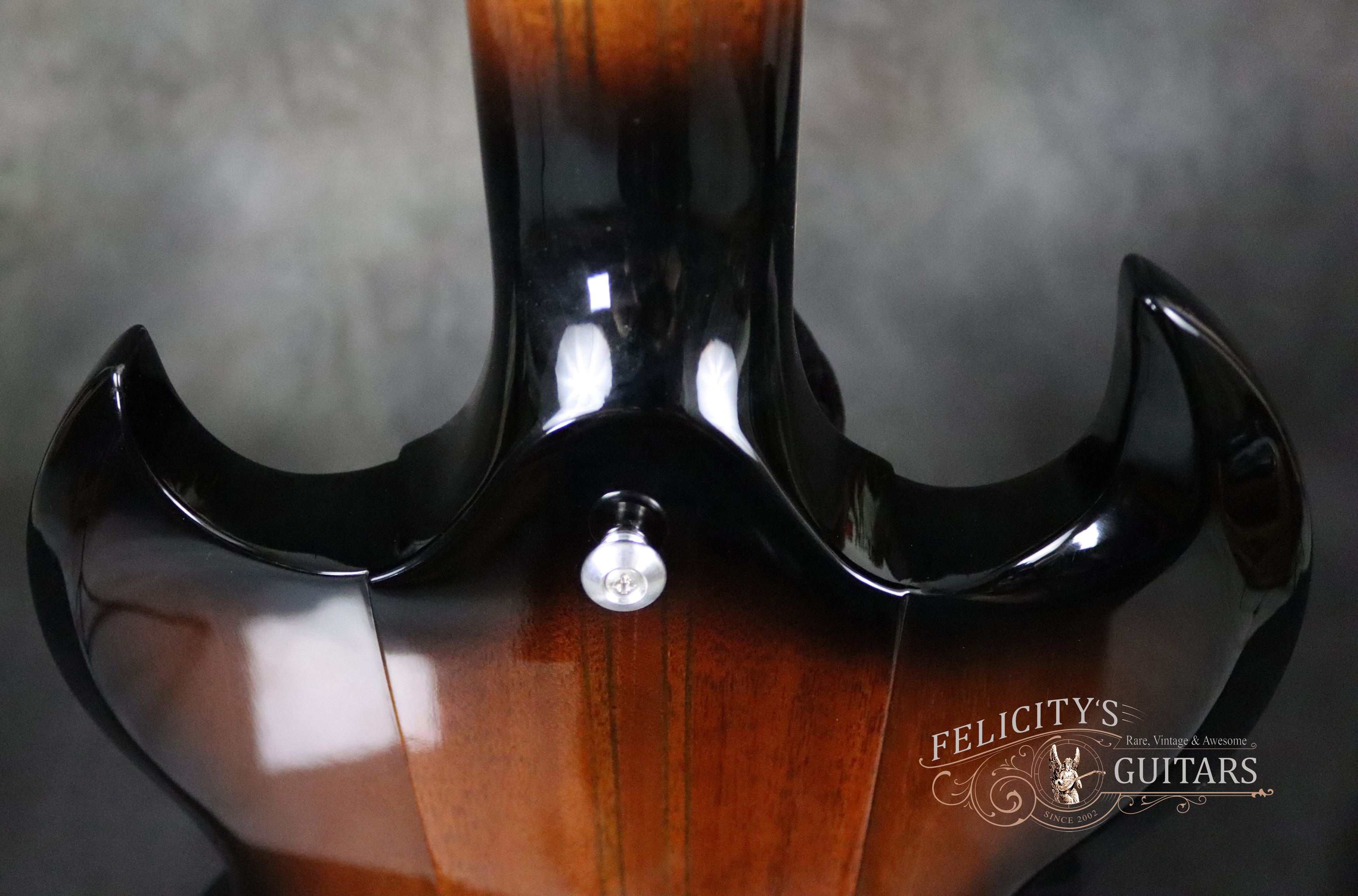

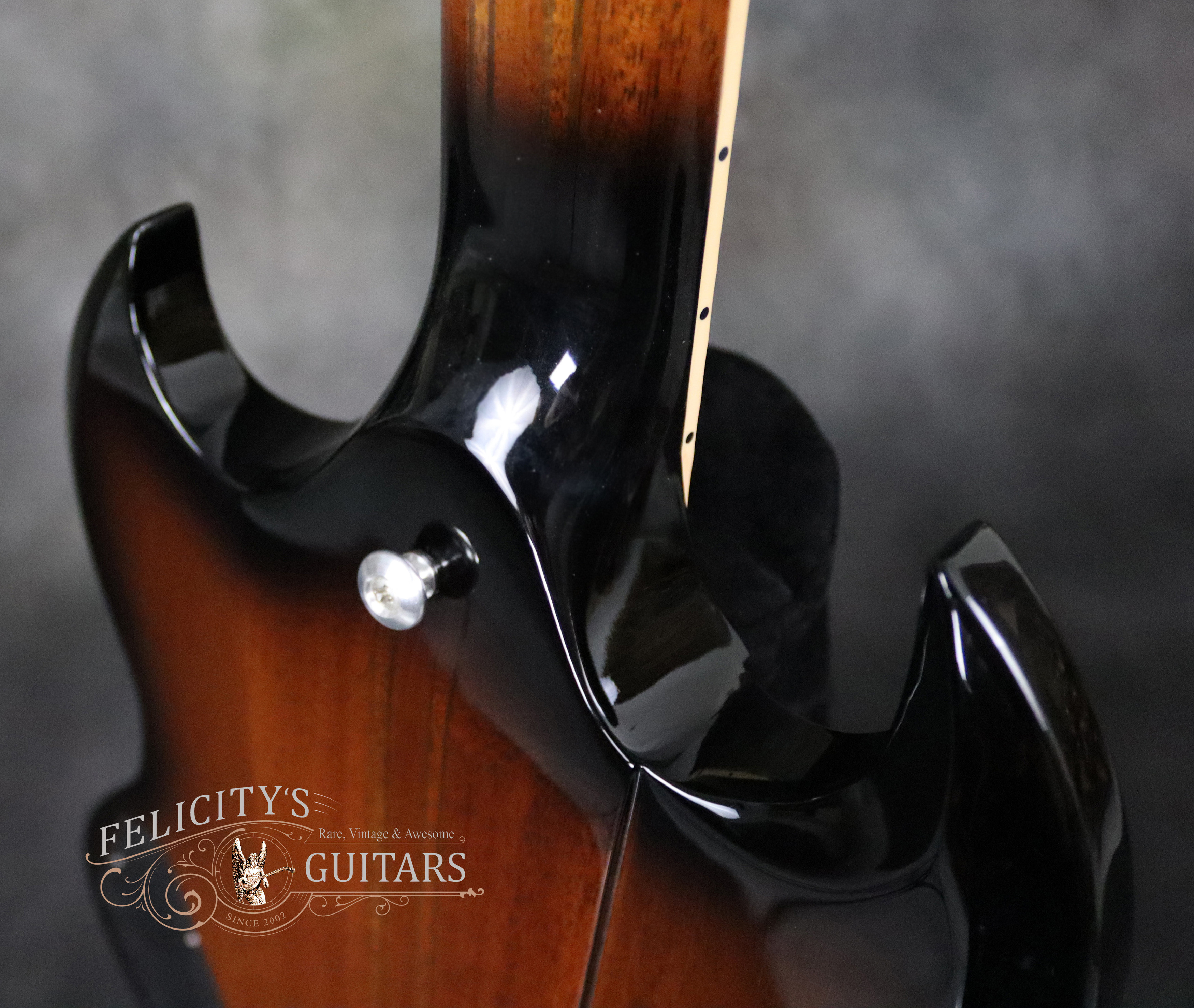

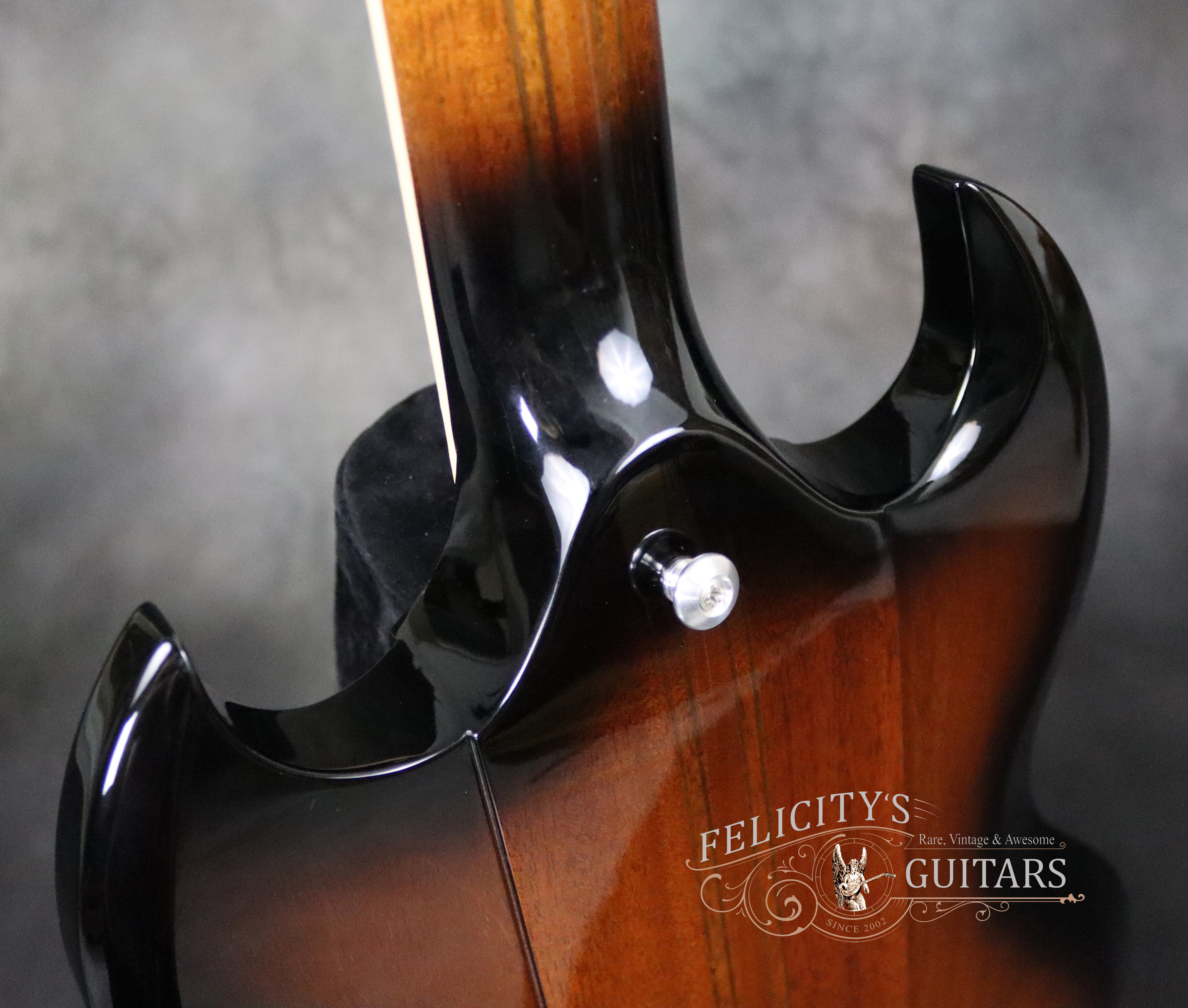

Back: Deep Bevel Upper Rim

Body Binding

Front: Unbound

Back: Unbound

Weight Relief

No

Build Materials Used

Franklin Titebond 50 Glue

Body Finish Type

High-gloss Nitrocellulose Lacquer

Color

Front: Vintage Sunburst

Back & Neck: Vintage Sunburst

neck

Neck Material

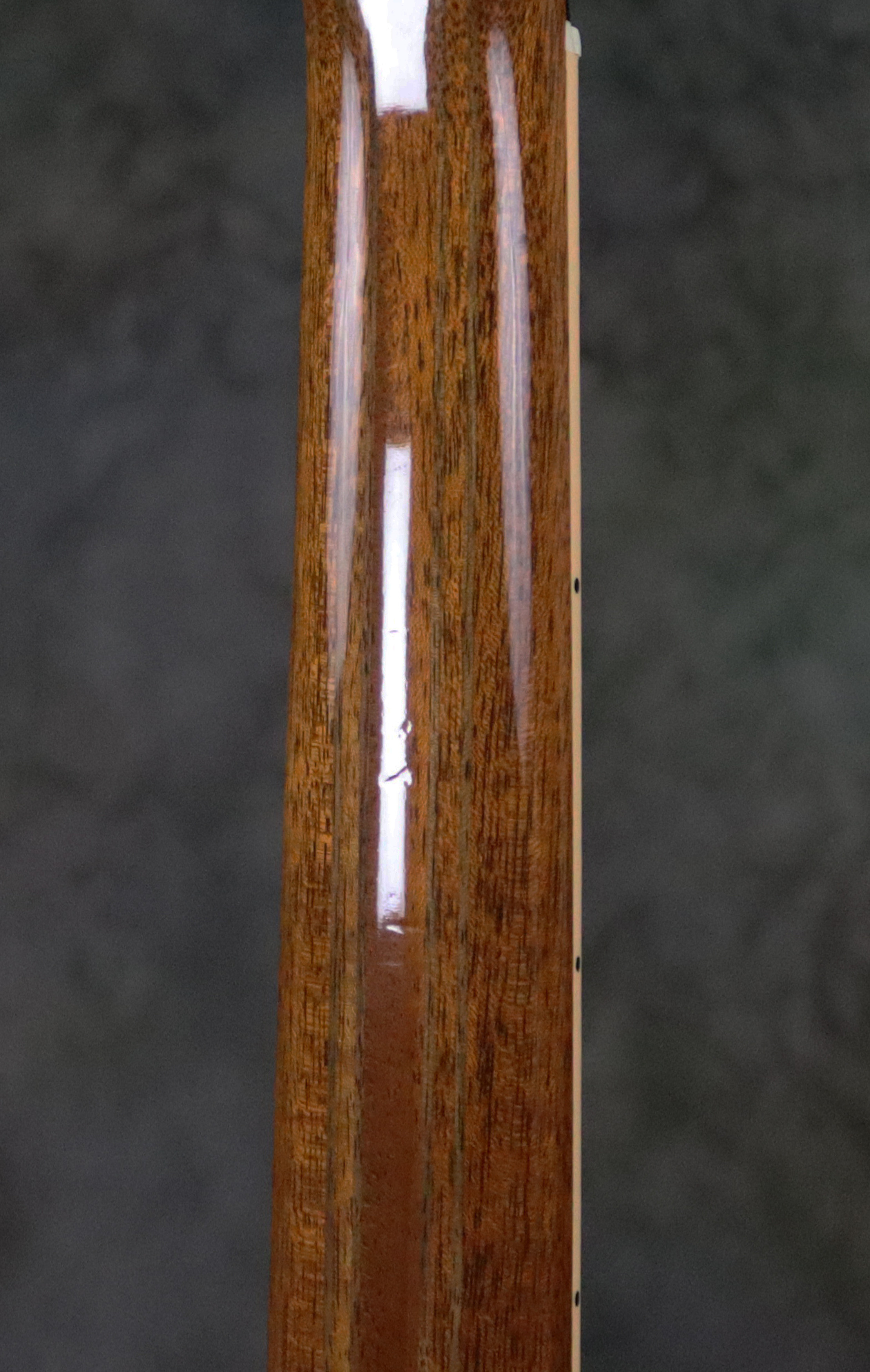

9-ply Mahogany/Walnut Laminate

Truss Rod

2-way Adjustable

Truss Rod Cover

2-ply B/W Bell Style Blank

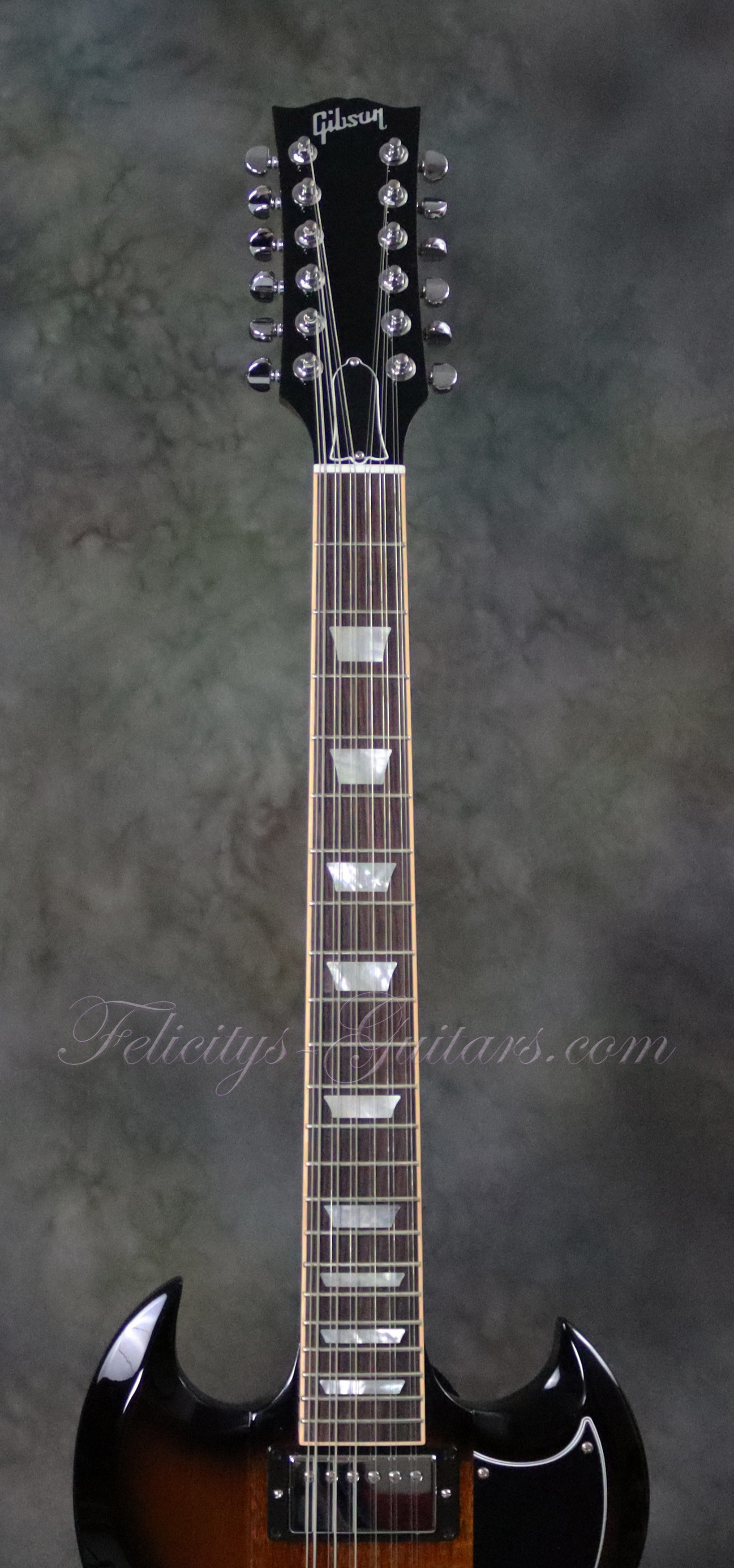

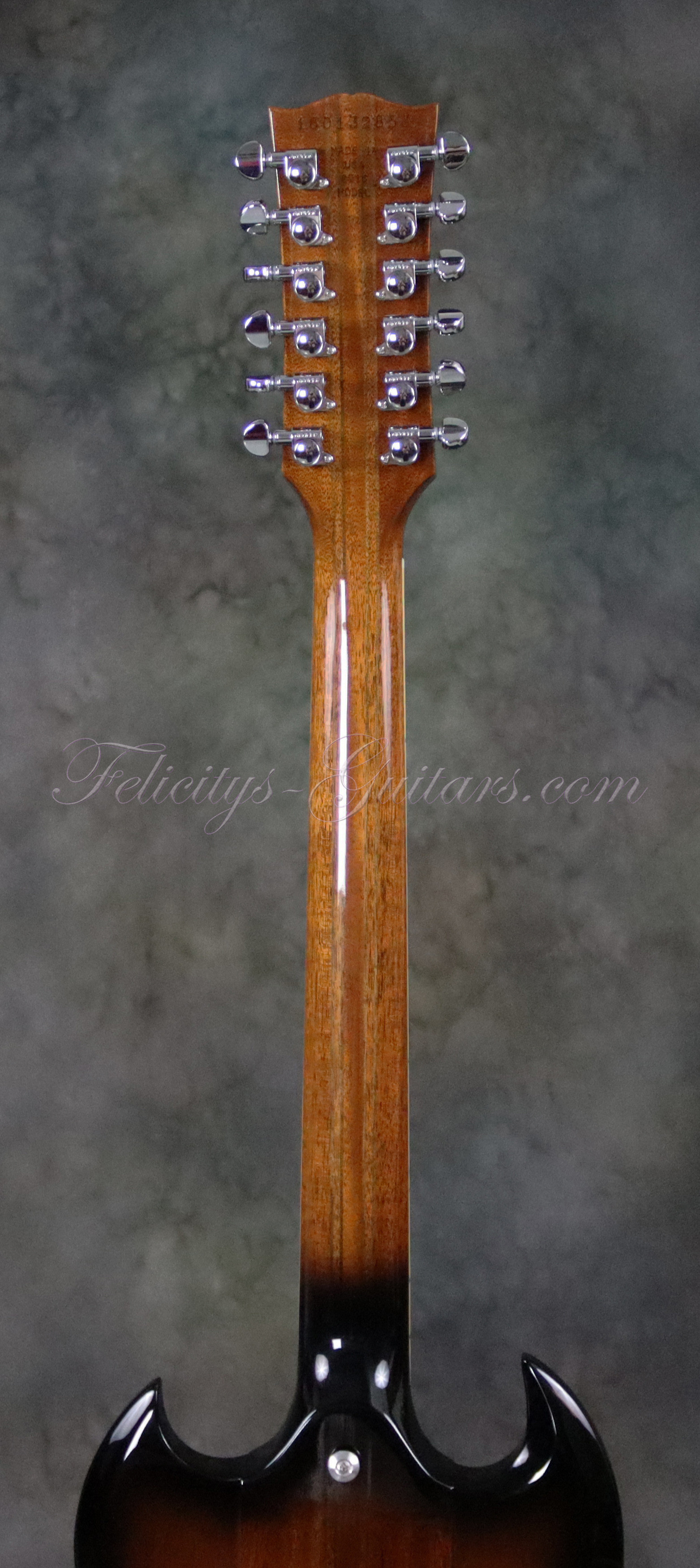

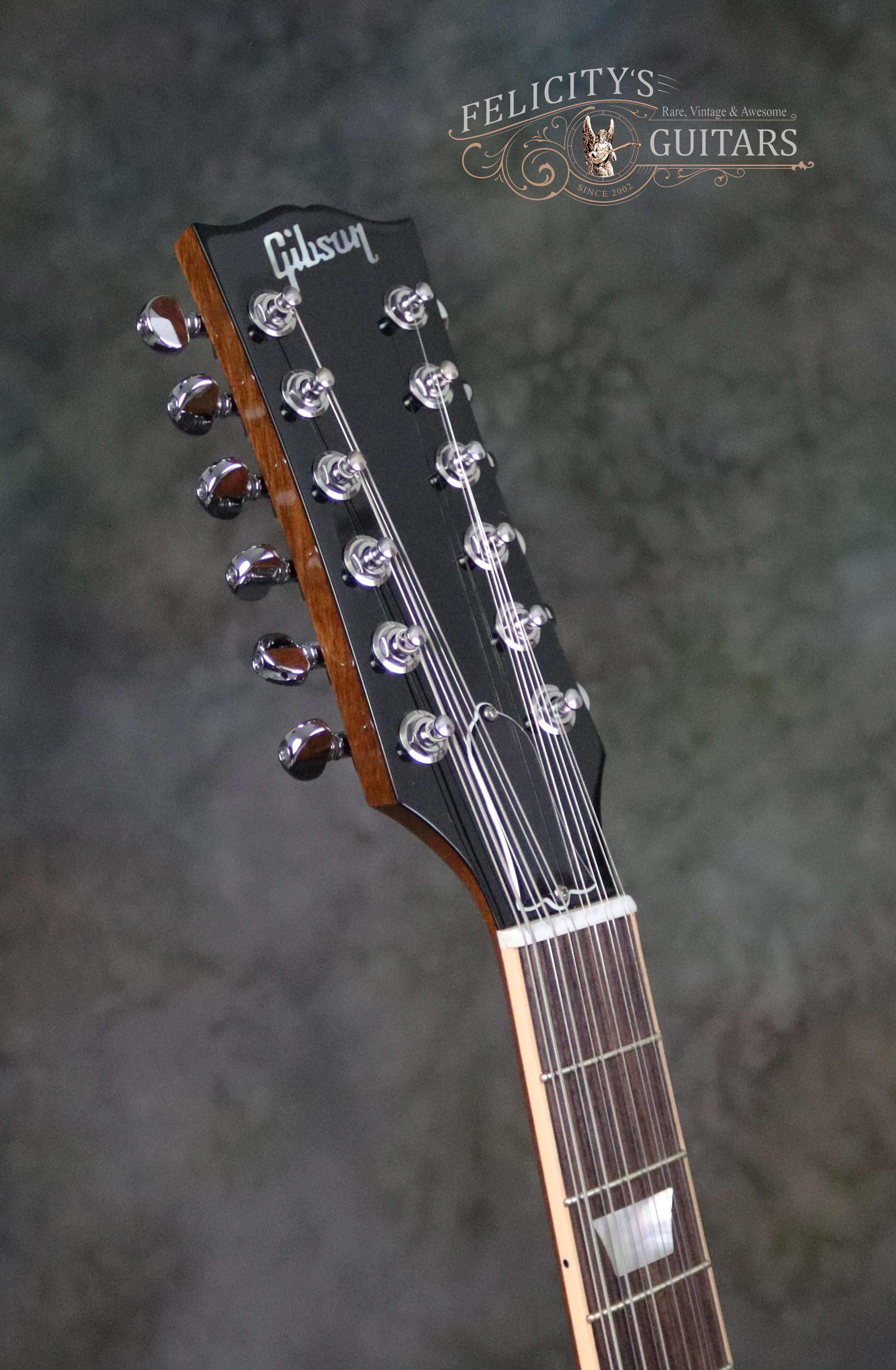

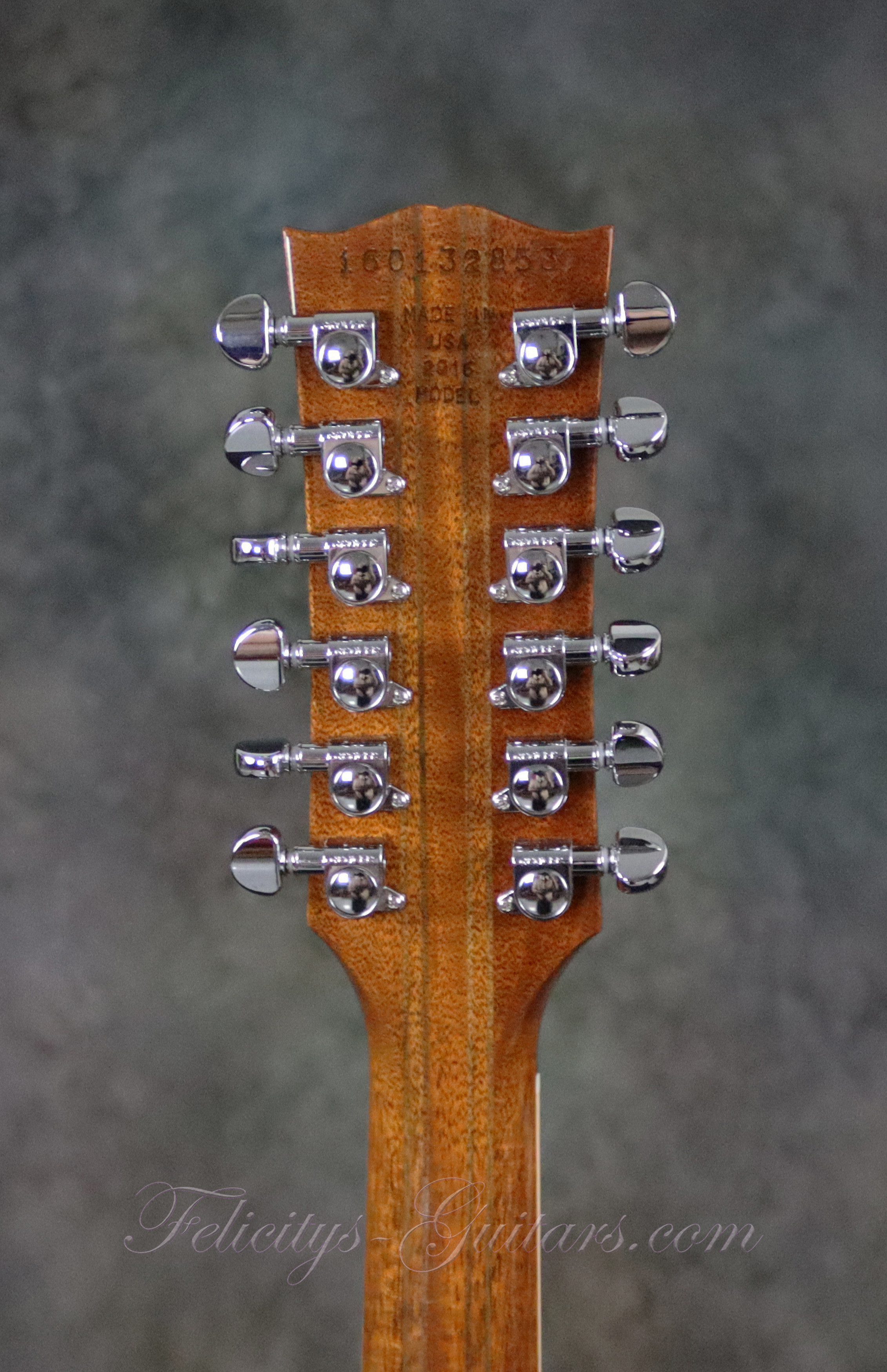

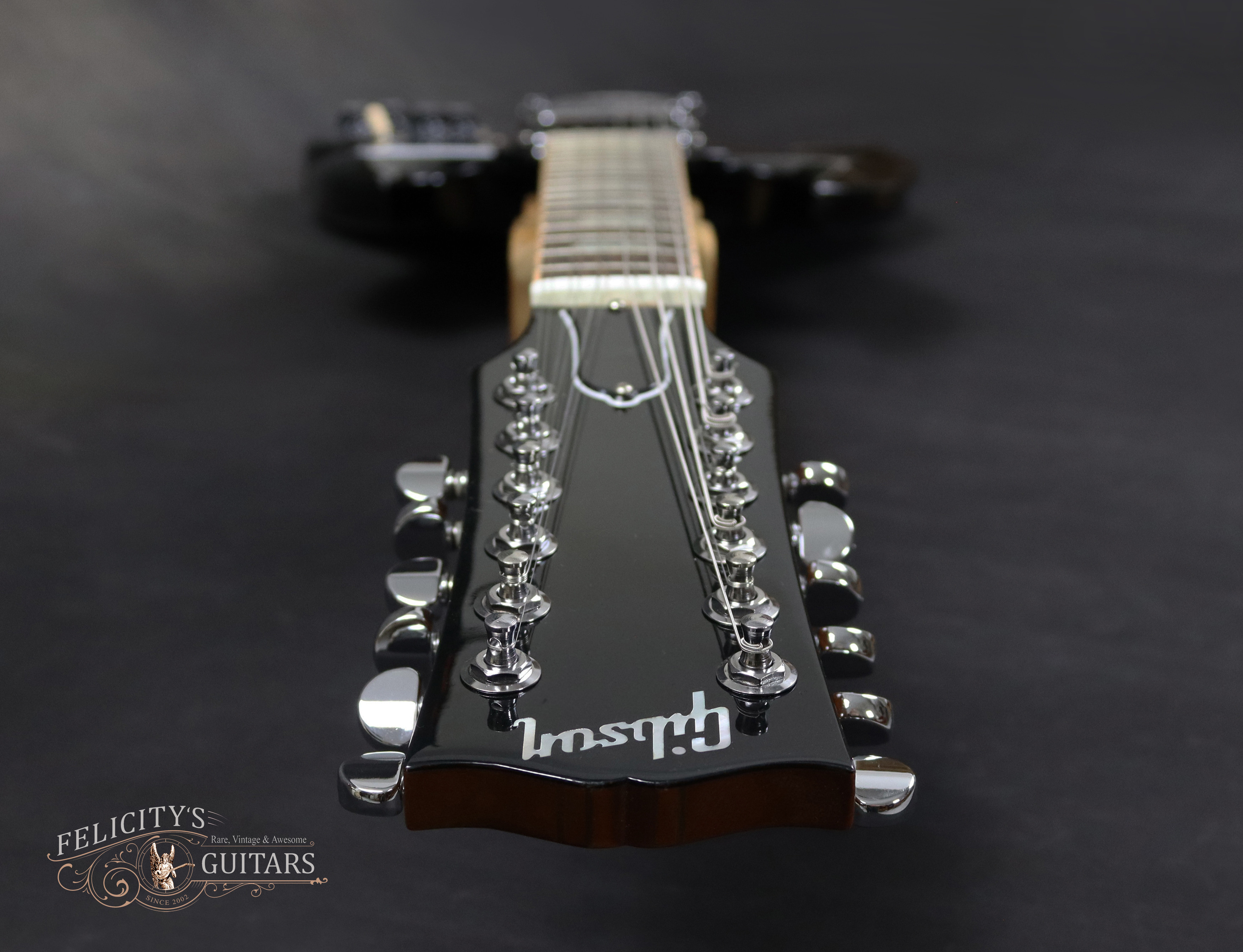

Peghead Particulars

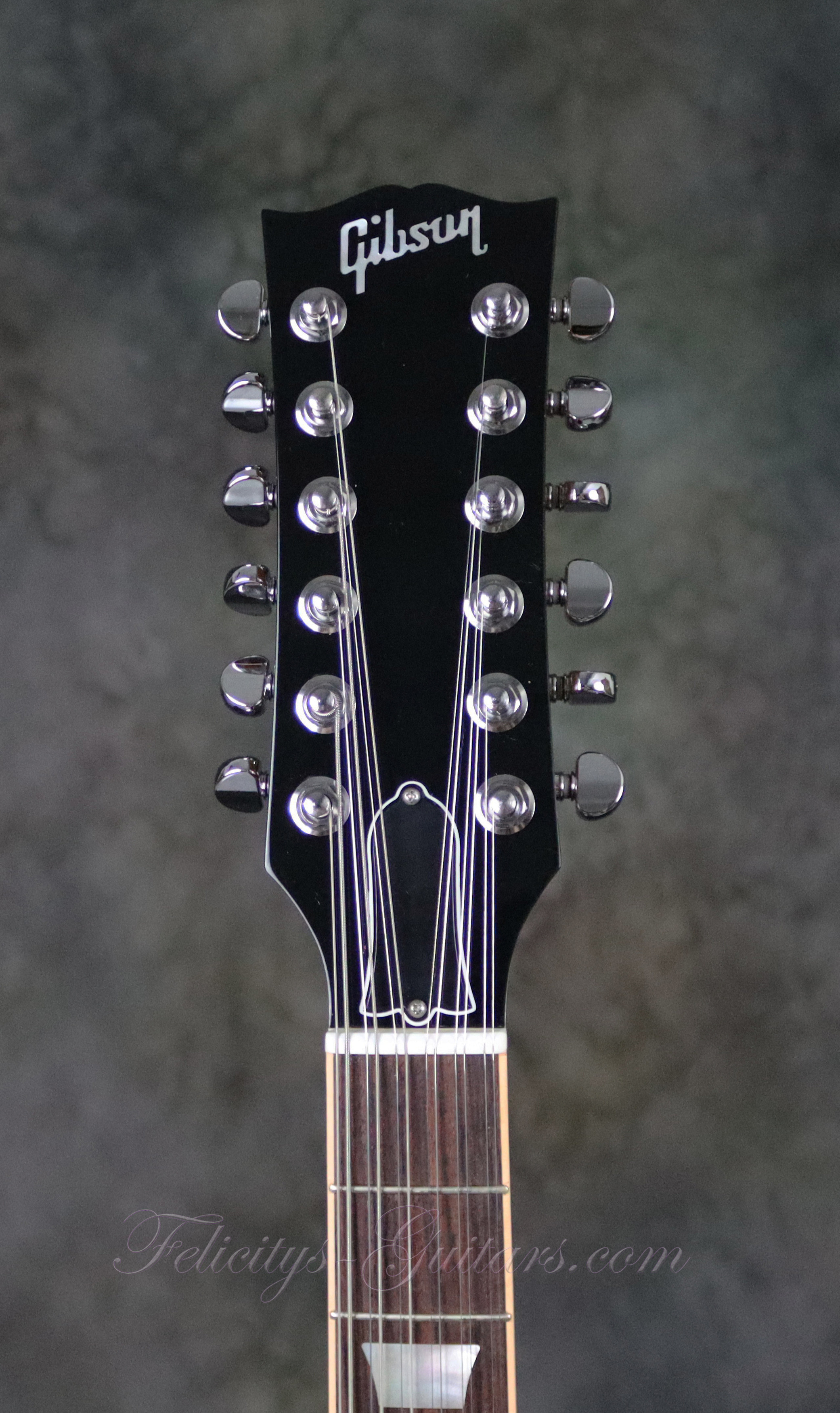

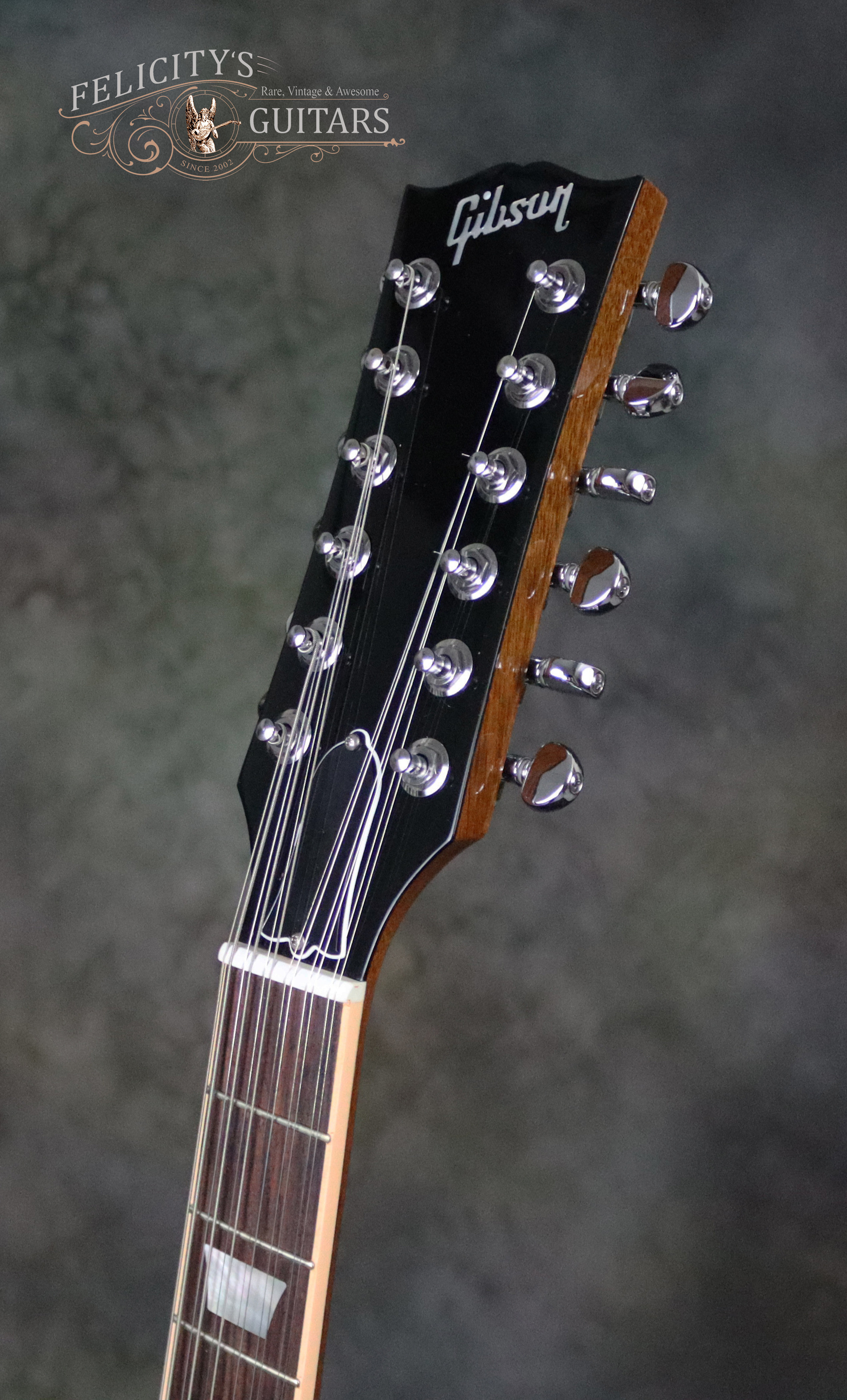

Front: Unbound, Gloss Black, MOP Gibson® Logo Inlay


Back: Wood-stamped ‘Made in U.S.A. 2016 Model’ and Serial Number

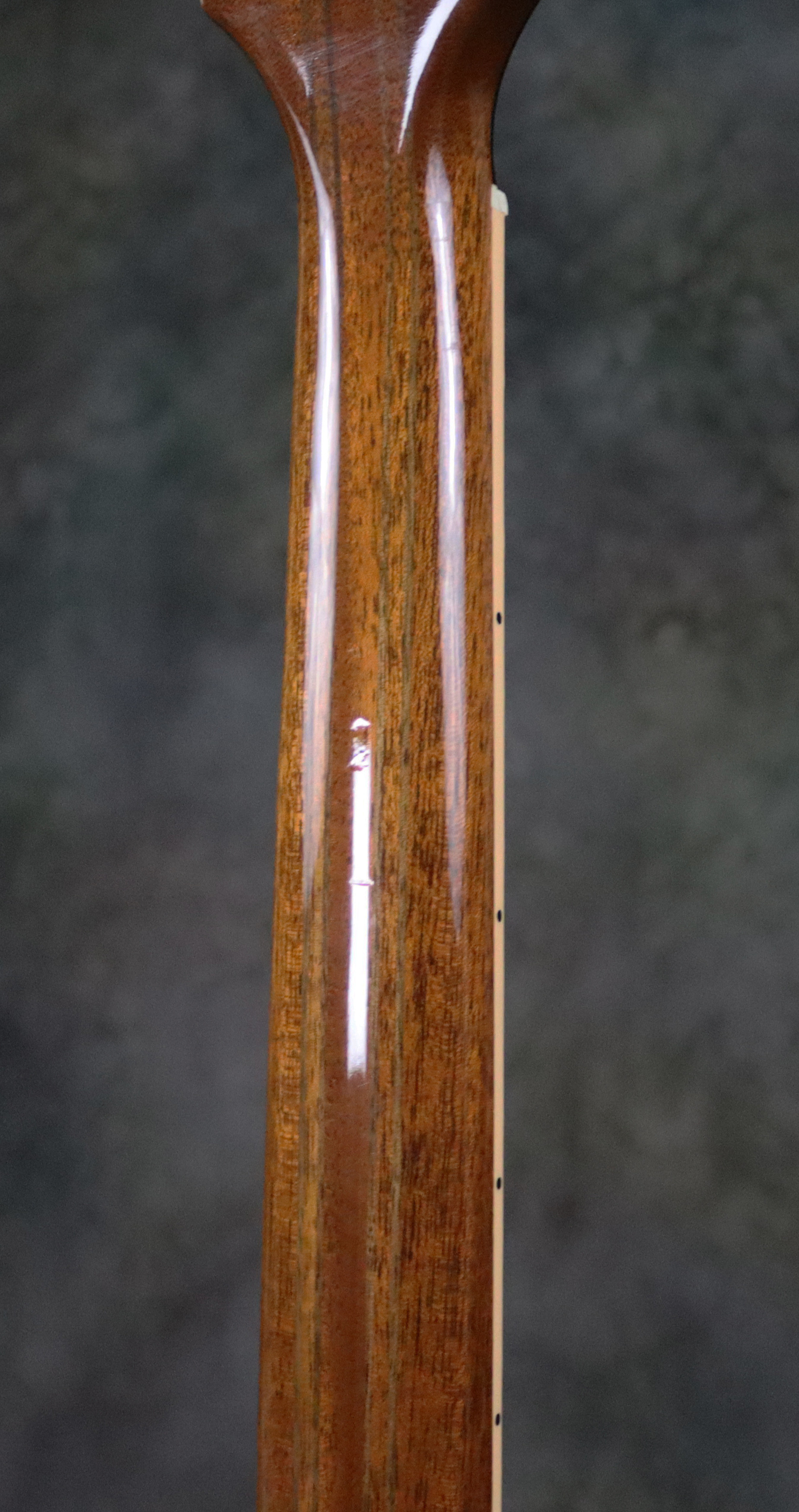

Neck Profile

Slim Taper ‘C’

Fingerboard Material

Rosewood

Fingerboard Radius

12”

Scale Length

24.75"

No. Frets / Type

22 Medium Jumbo

Nut Size / Material

1.745"/ Tektoid

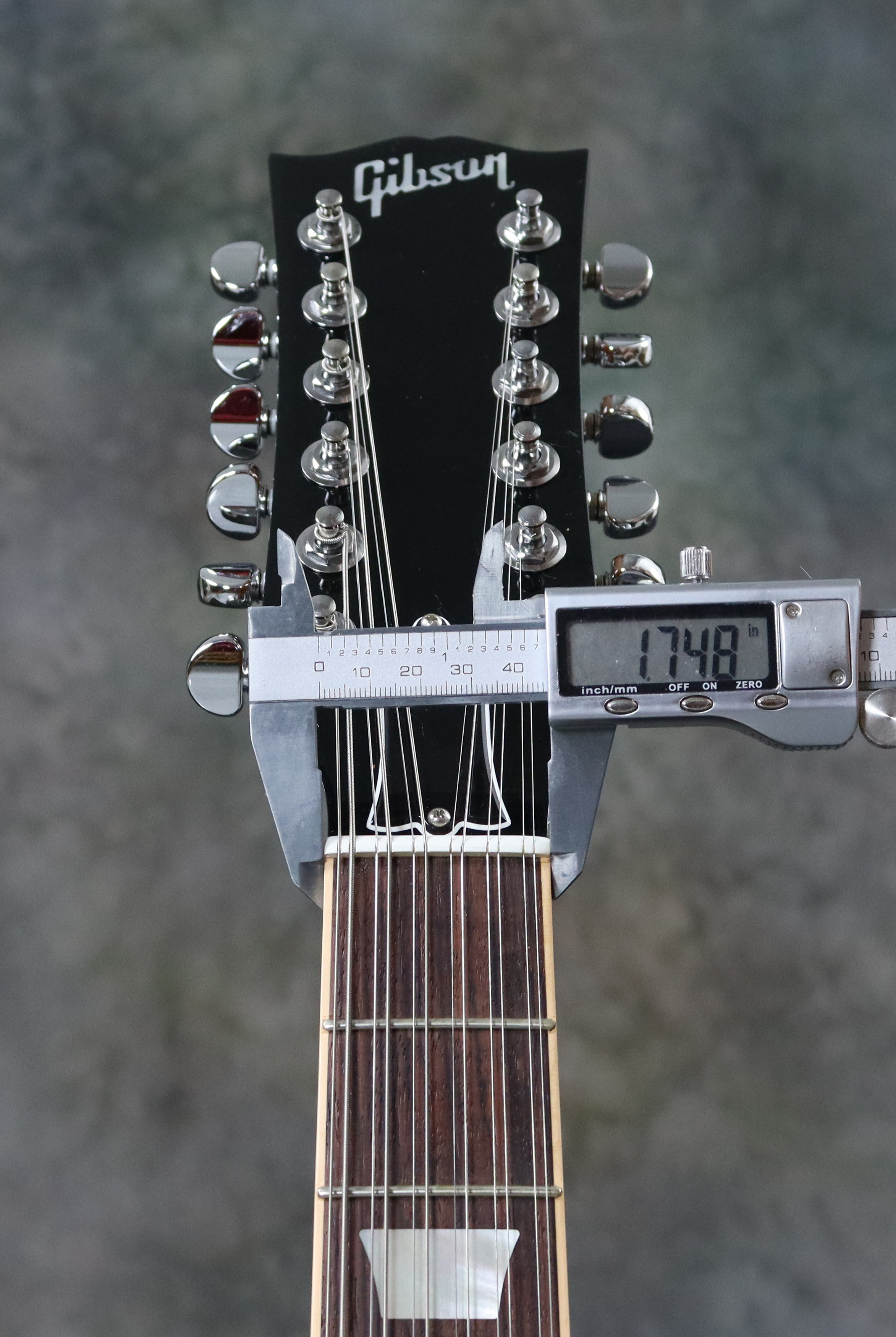

Neck Width

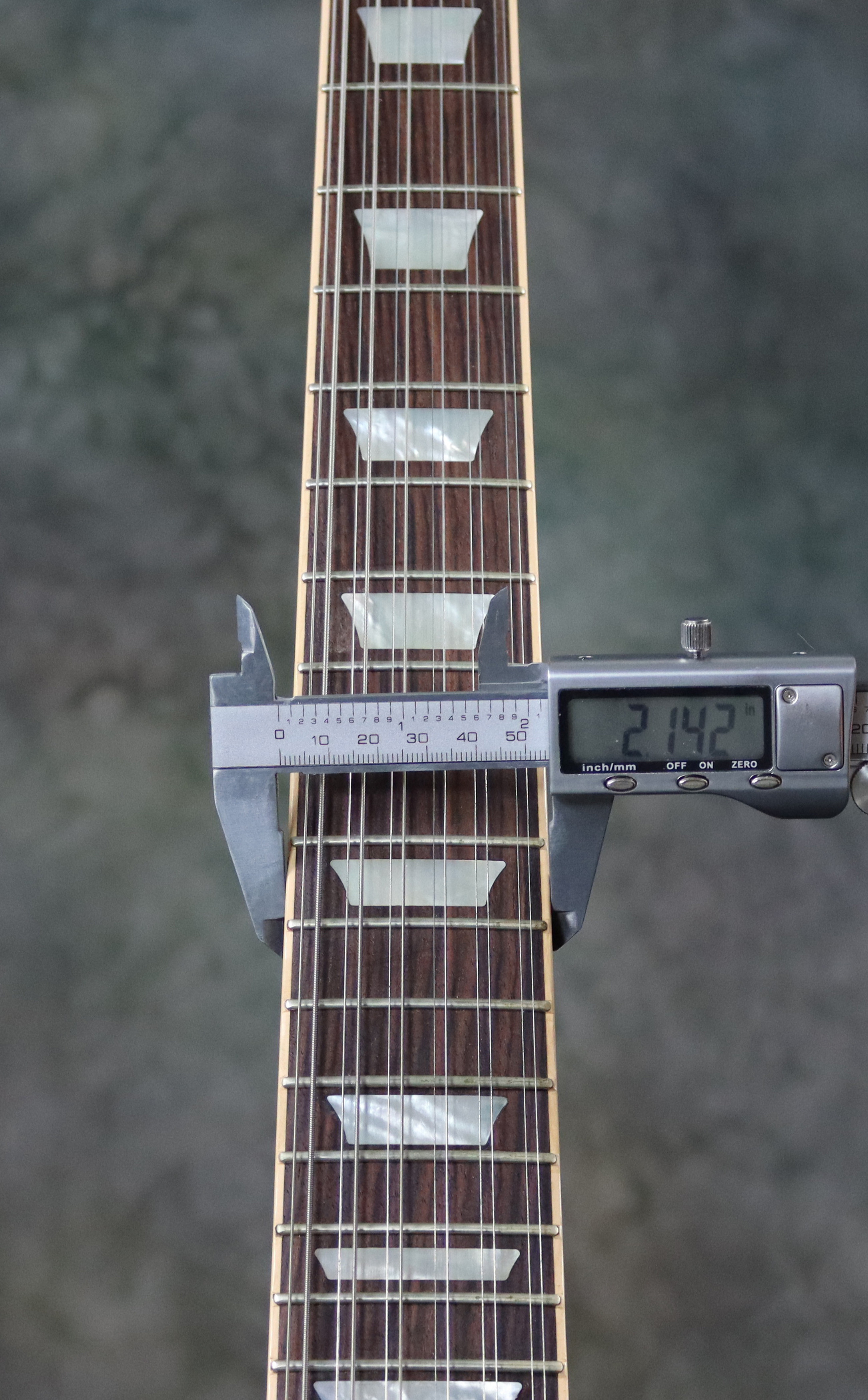

1.748" at 1st fret / 2.142" at 12th fret / 2.280” at E.O.B.

Neck Depth

0.800" at 1st fret / 0.850" at 12th fret

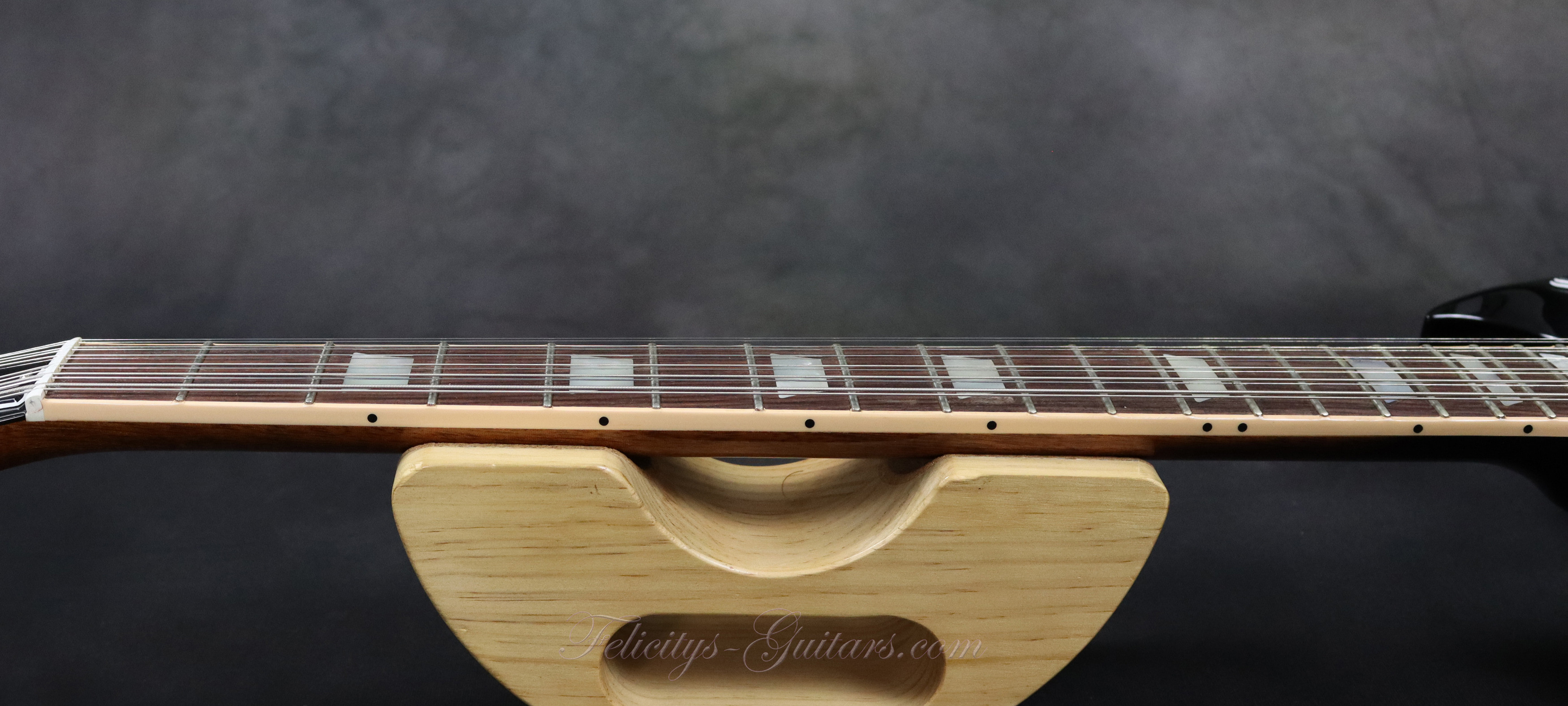

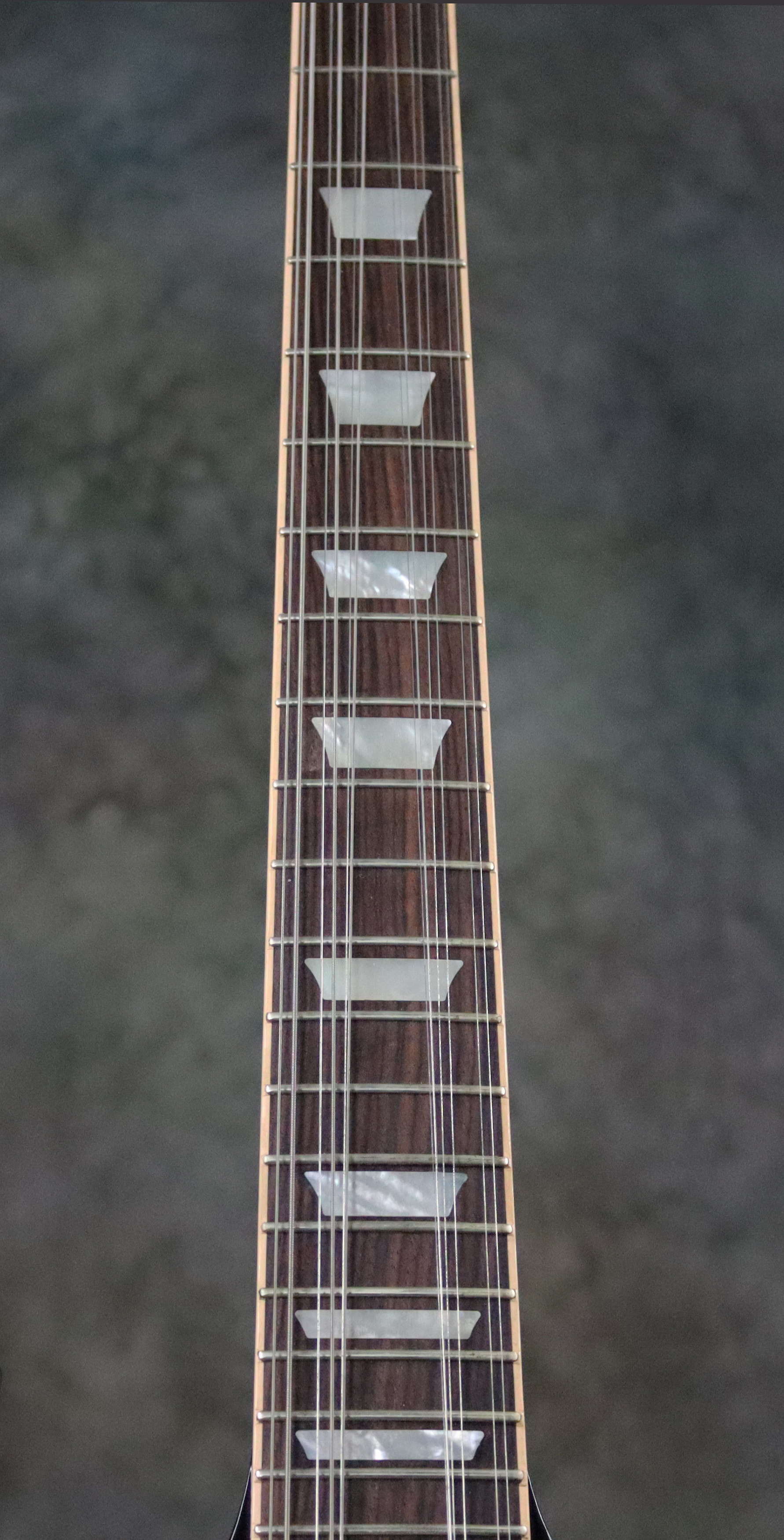

Fingerboard Inlays

Mother of Pearl Trapezoid

Neck Binding

Cream

Side Dots

Black

Neck Joint

Through Body, Franklin Titebond 50 Glue

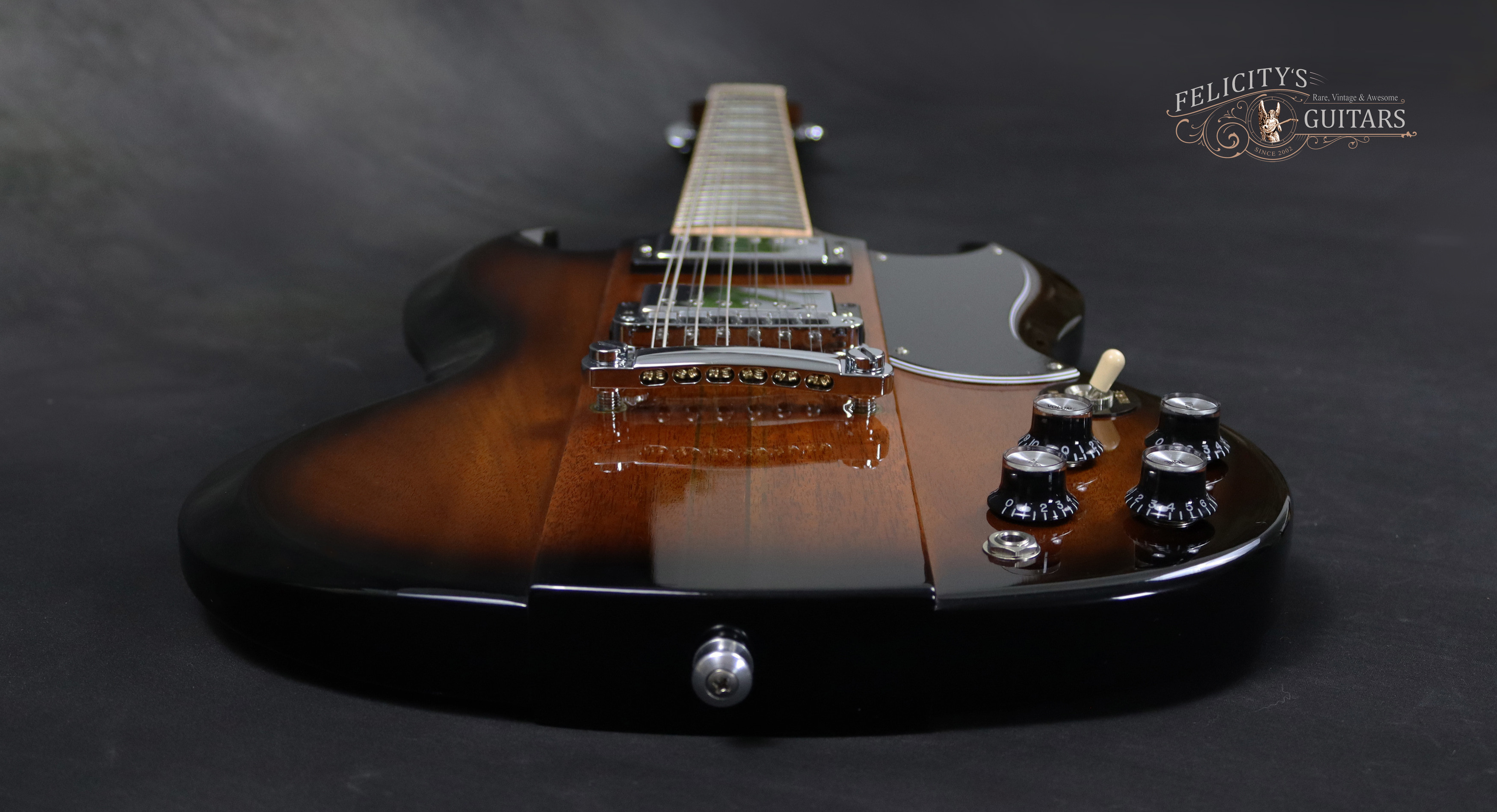

hardware

Bridge

Chrome Plated, Tune-o-Matic, Aluminium

Tailpiece / Tremolo

Chrome Plated, Stop Bar, Aluminium

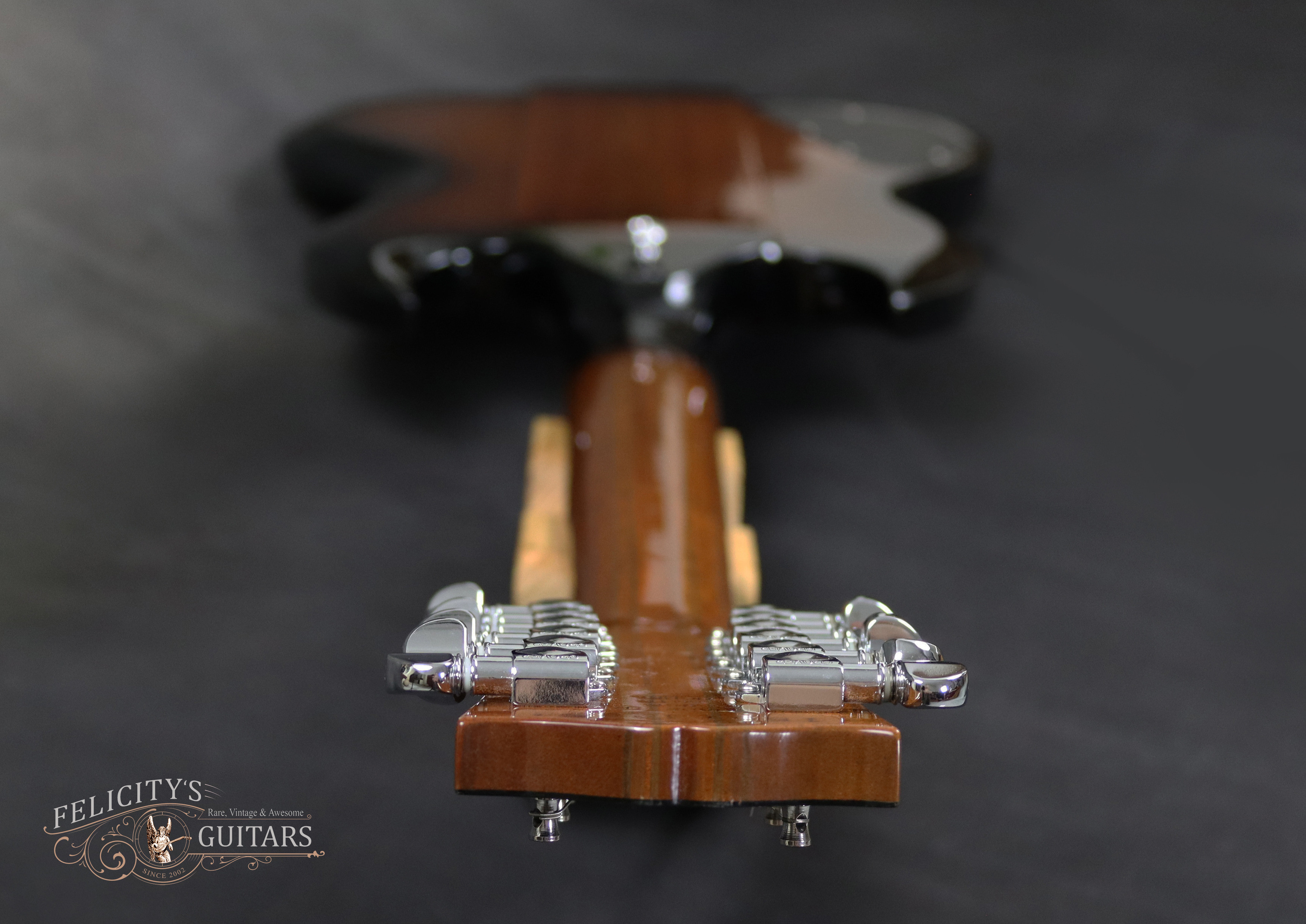

Tuning Machines

Chrome Plated, Grover® Mini Rotomatic, 14:01 Ratio

Pickup Cover / Ring

Chrome Plated Cover / Black Staggered Height Humbucker Mounting Rings

Strap Buttons

Polished Aluminum End Pins

Pickguard

5-ply B/W long Bevel ‘SG-Std’ Profile

Control Knobs

Black Top Hats with Silver Insert and no Dial Pointers

Switch

Black Plastic Tip with Black/Silver Rhythm/Treble Washer

electronics

Bridge Pickup

Burstbucker 2, Alnico II, DCR 8.40k

Middle Pickup

No

Neck Pickup

Burstbucker I, Alnico II, DCR 7.50k

Active / Passive

Passive

Series / Parallel

Series

Controls

2 Volume, 2 Tone, 3-position Pickup Toggle Switch

Vol Potentiometer

500k

Tone Potentiometer

500k

Capacitors

.022uF – 20% - 120v values

Harness

SG Standard

Push-pull

No

Piezo

No

Active EQ

No

Kill switch

No

Output Jack

Switchcraft™ 1/4" 2-Conductor Mono

miscellaneous

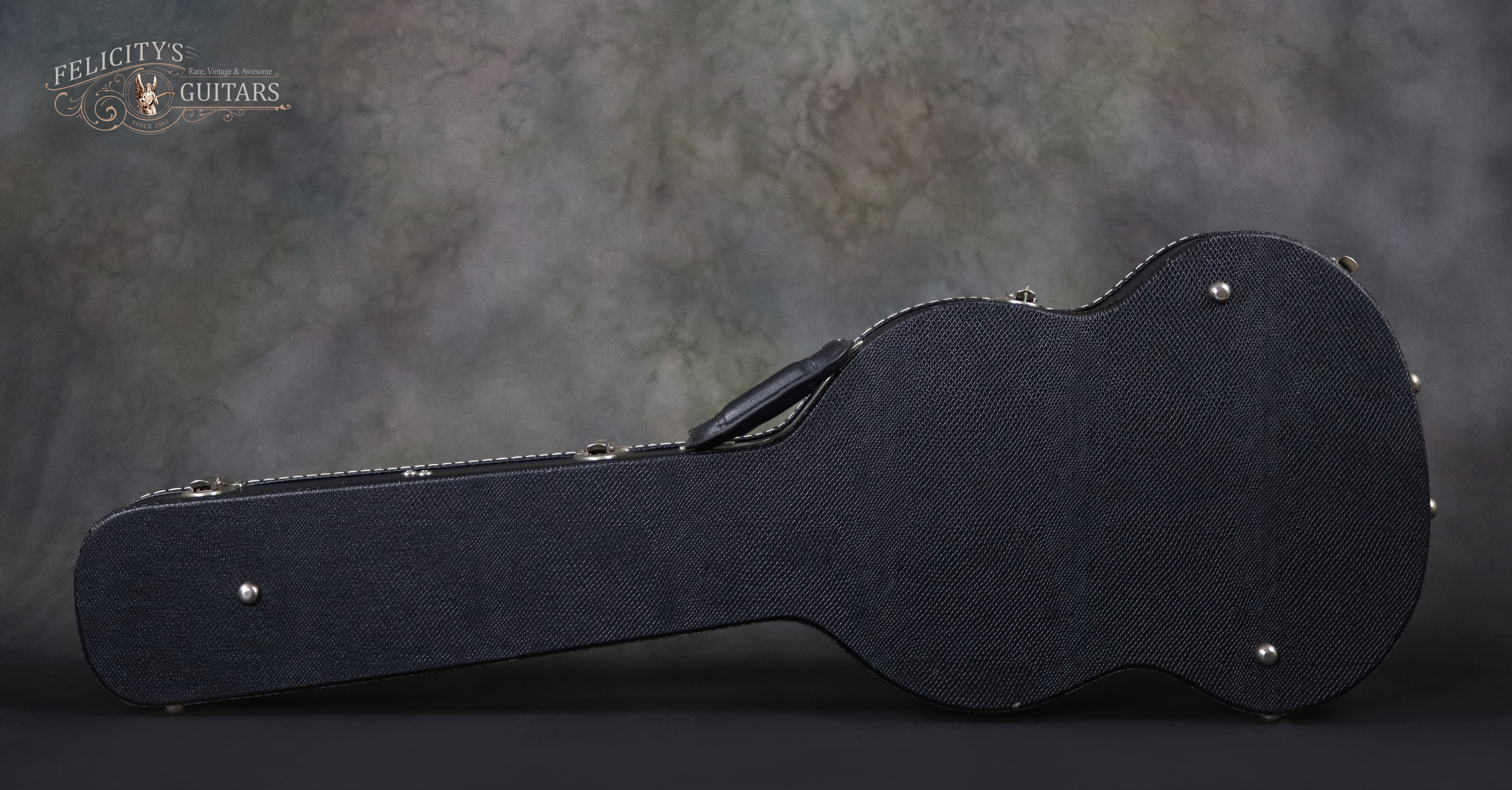

Case / Gigbag

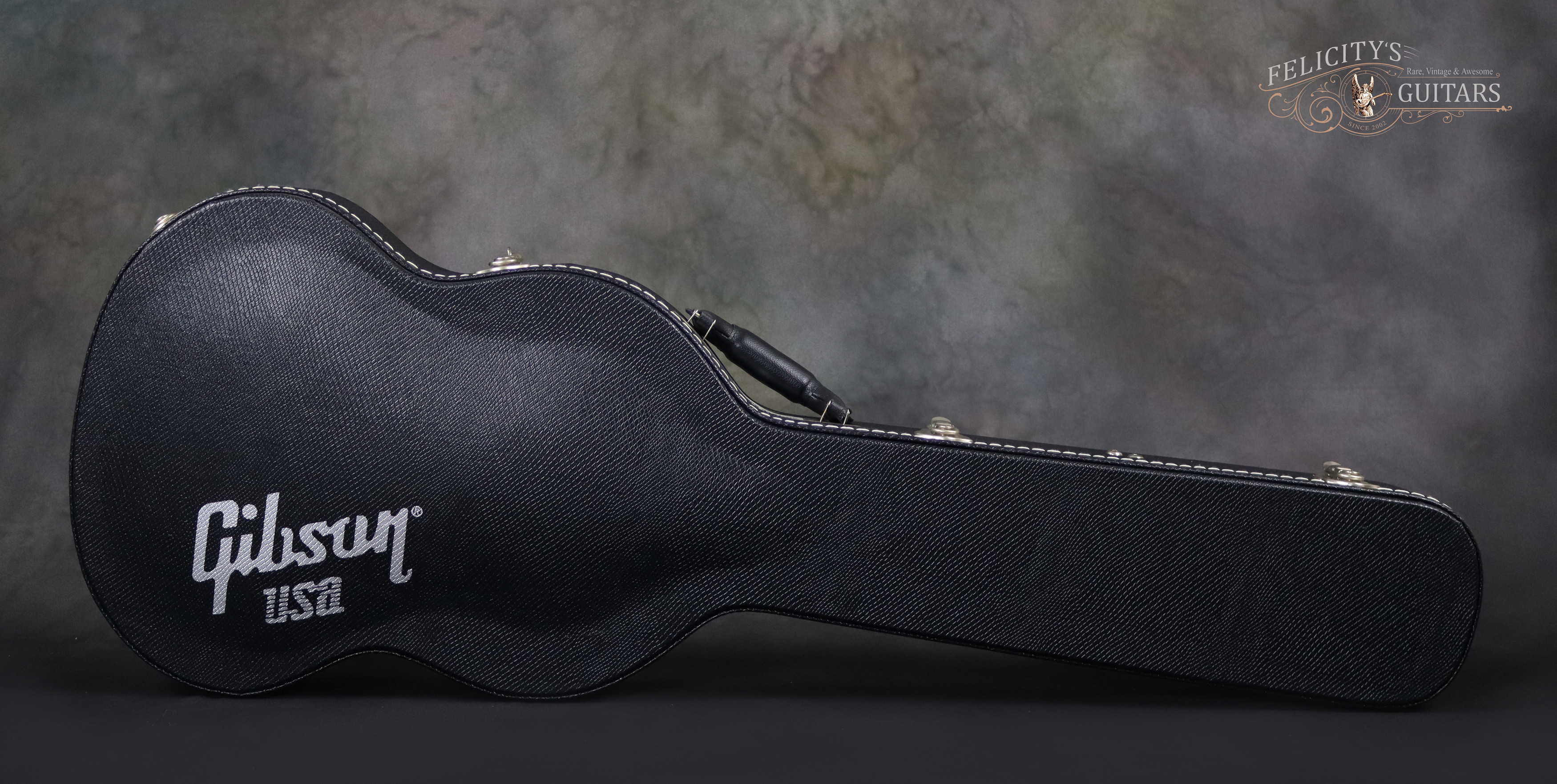

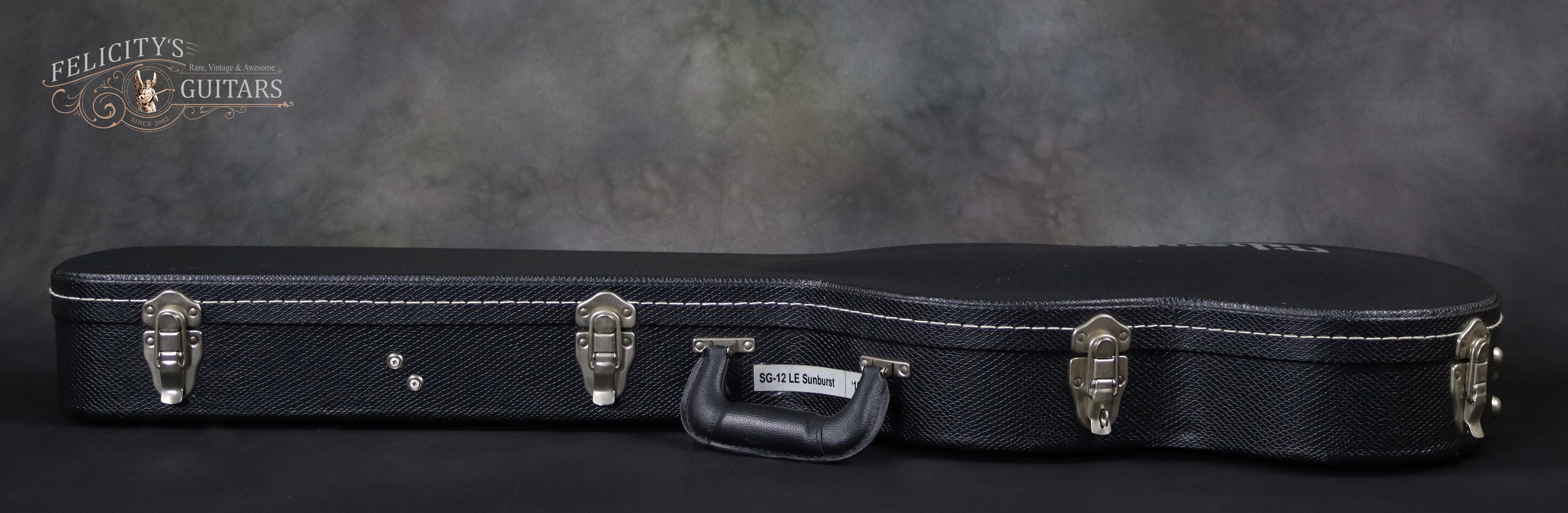

Gibson® U.S.A. form-fit 12-String Black Hardshell Case with White Interior & lock-hasp

Strap Locks

No

Strings

D’Addario® NYXL .010, .011, .016, .026, .036, .047 Gauges

Tools / Accessories

Gibson® U.S.A. Truss Rod Wrench / Polishing Cloth

Manual / Literature

Gibson® U.S.A. Owner’s Manual, Gold Warranty, Pre-ship Checklist and Baby Photo

C.O.A.

No

Other

No

Weight

Is the actual weighed-value in US Standard Units


Disclosure



Some technical Specs may have been extracted from Gibson® U.S.A. and/or internet archives. The words Gibson® / Grover® and the associated designs are registered trademarks of Gibson® Brands, Inc. and the other named entities, if any, respectively
