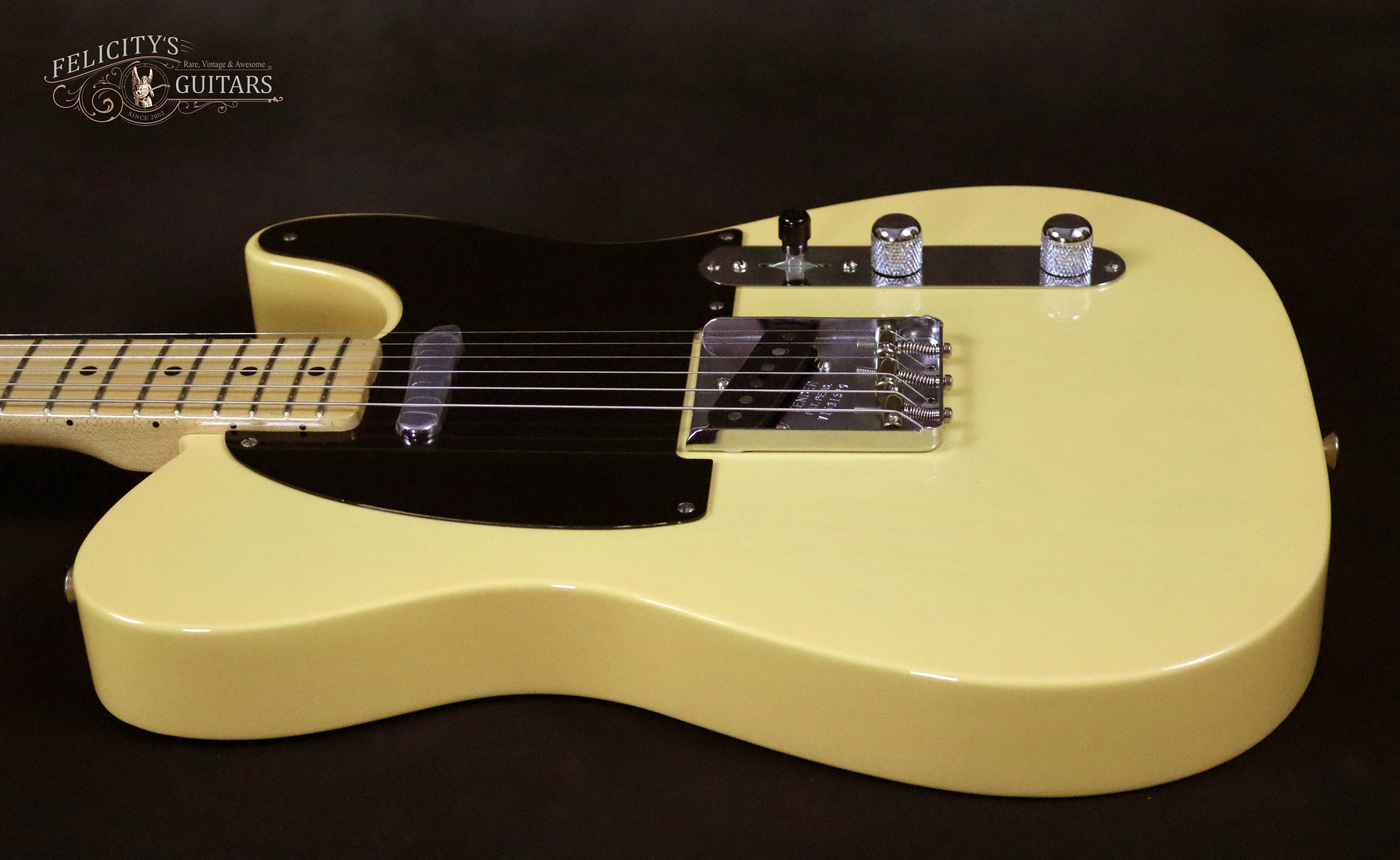

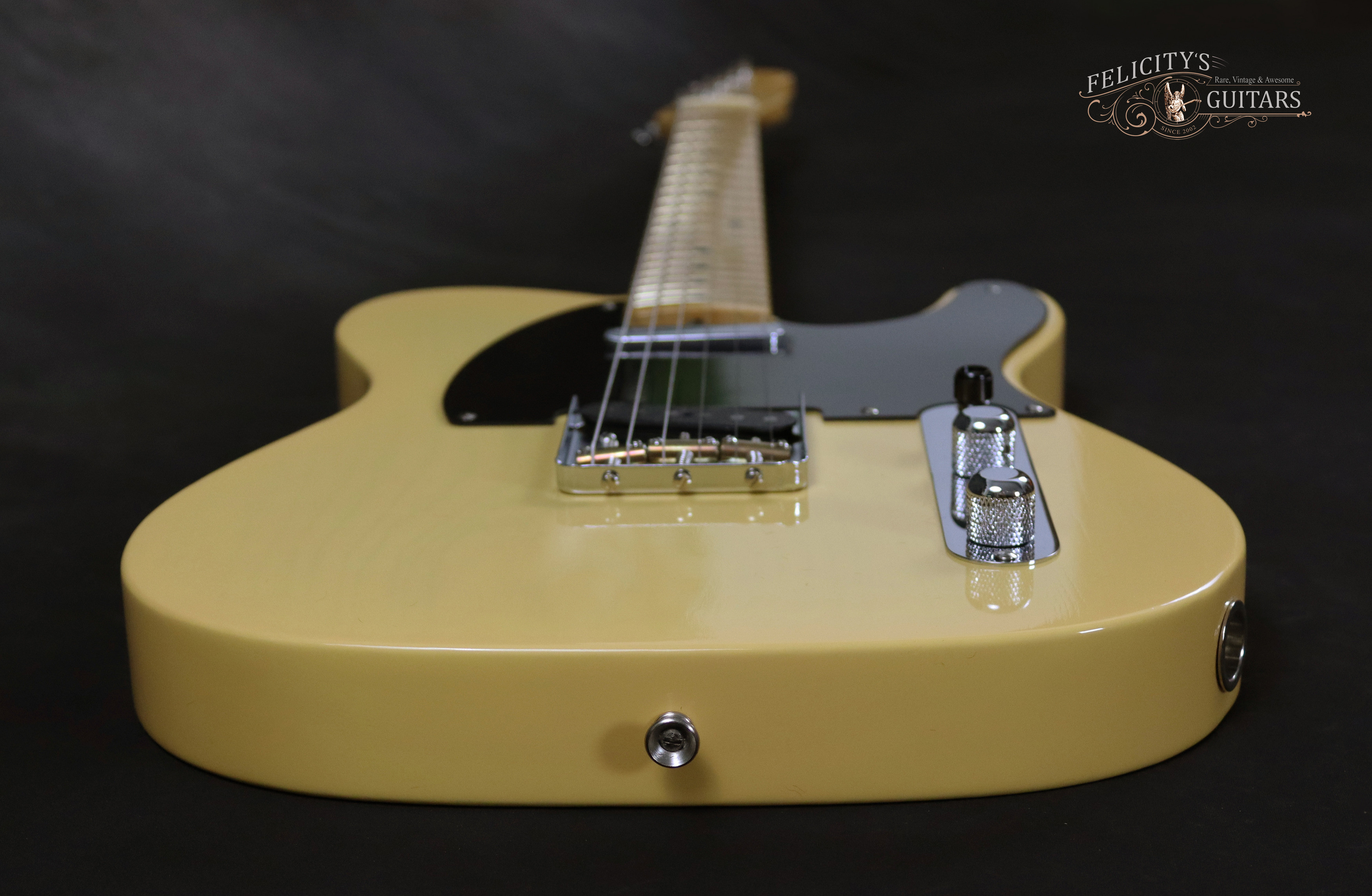

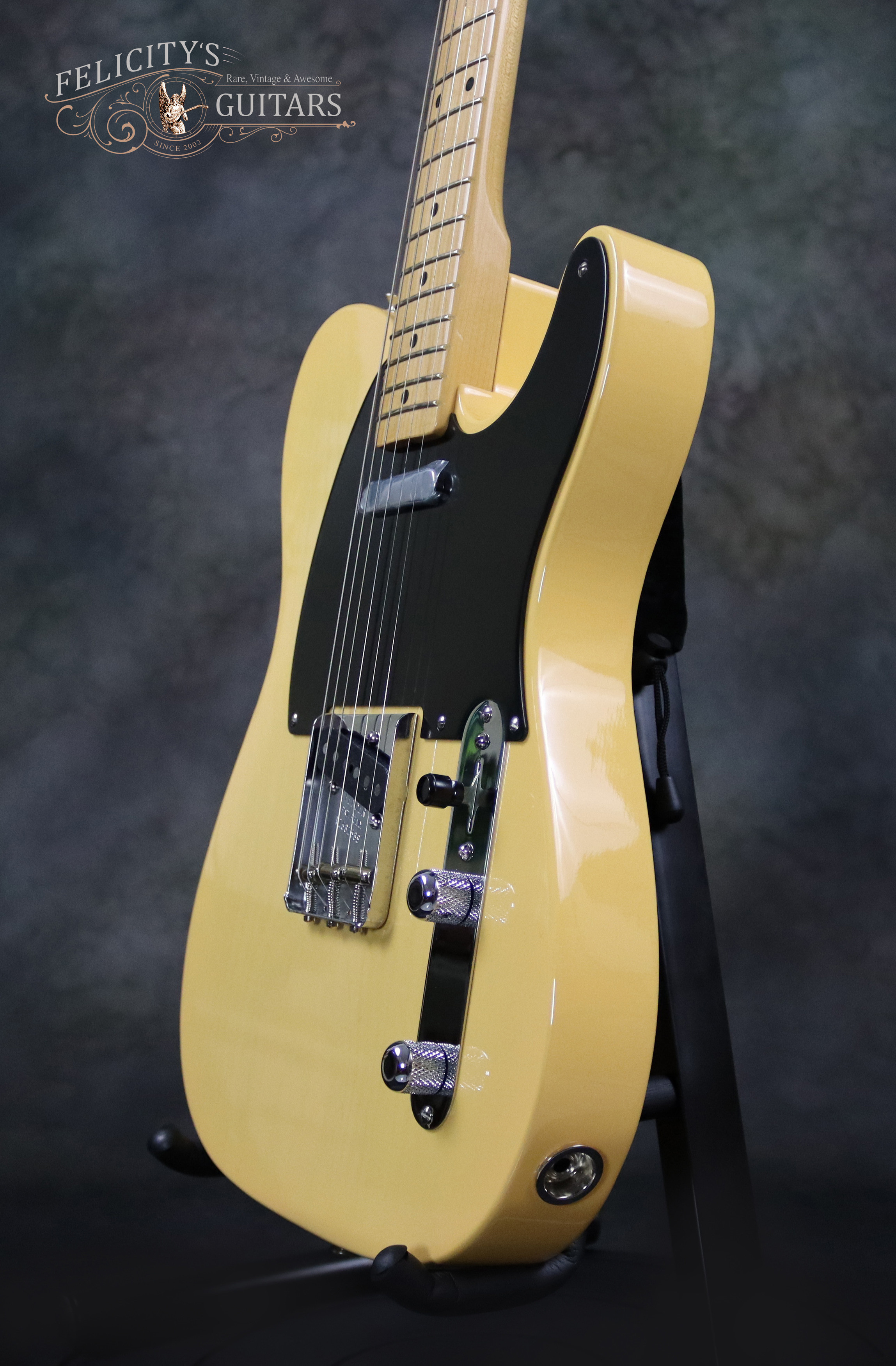

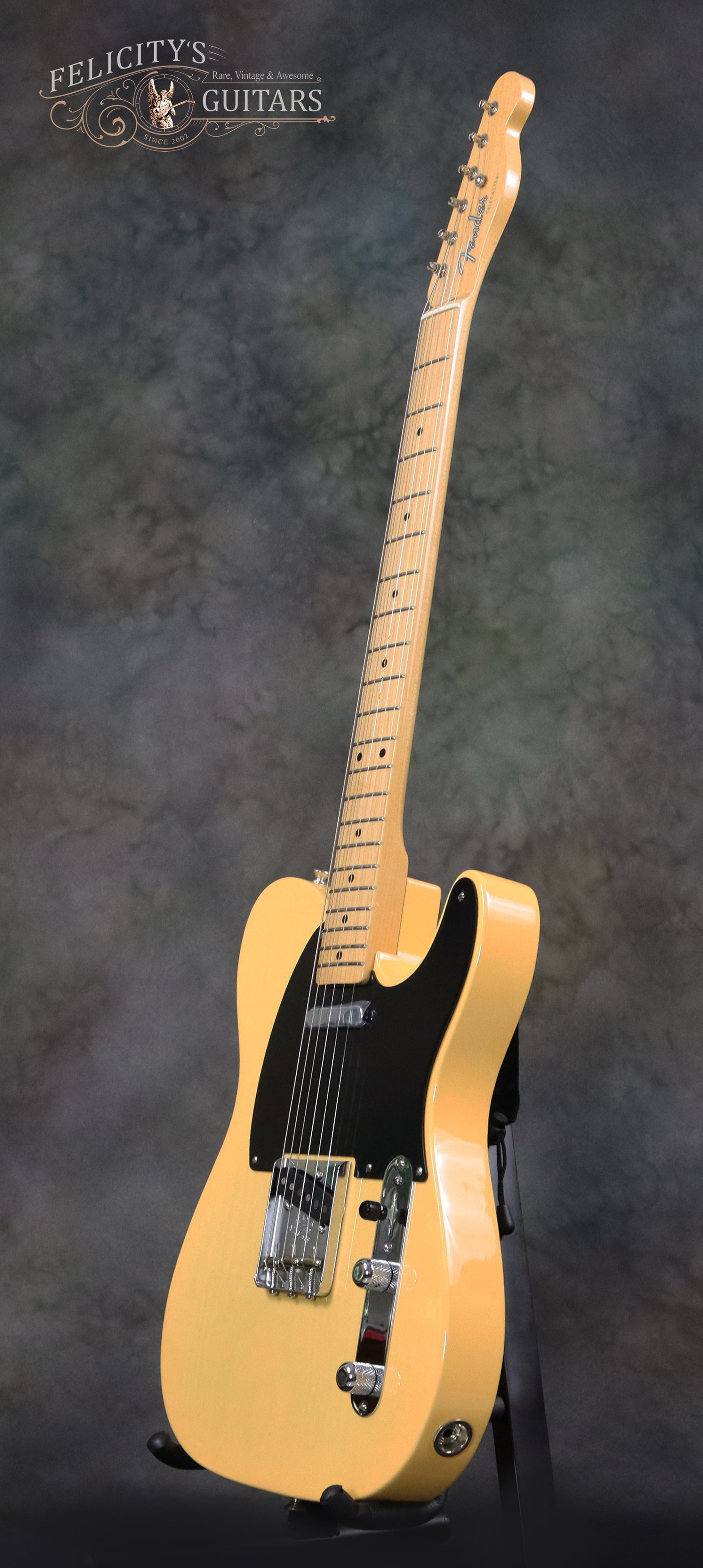

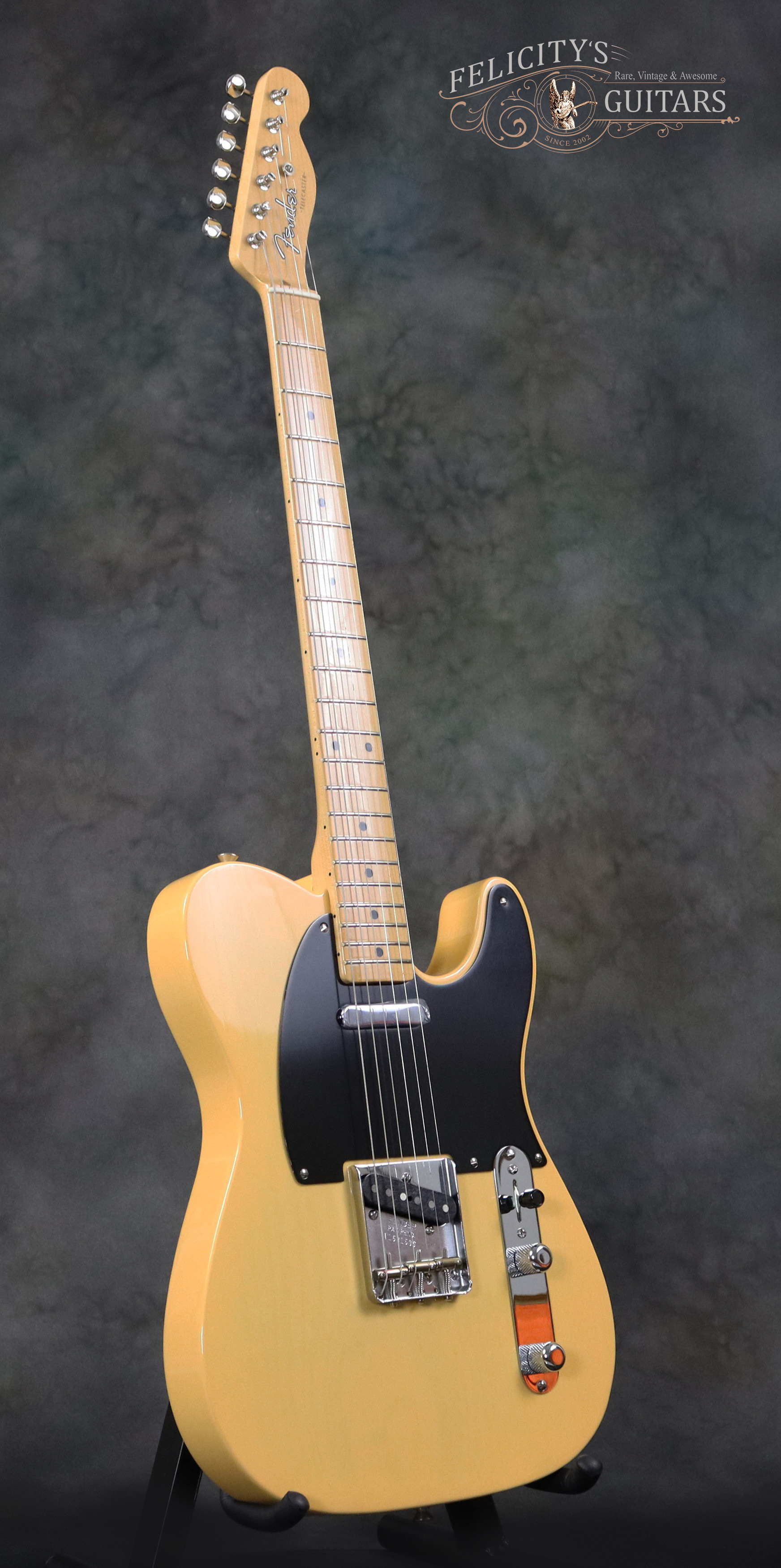

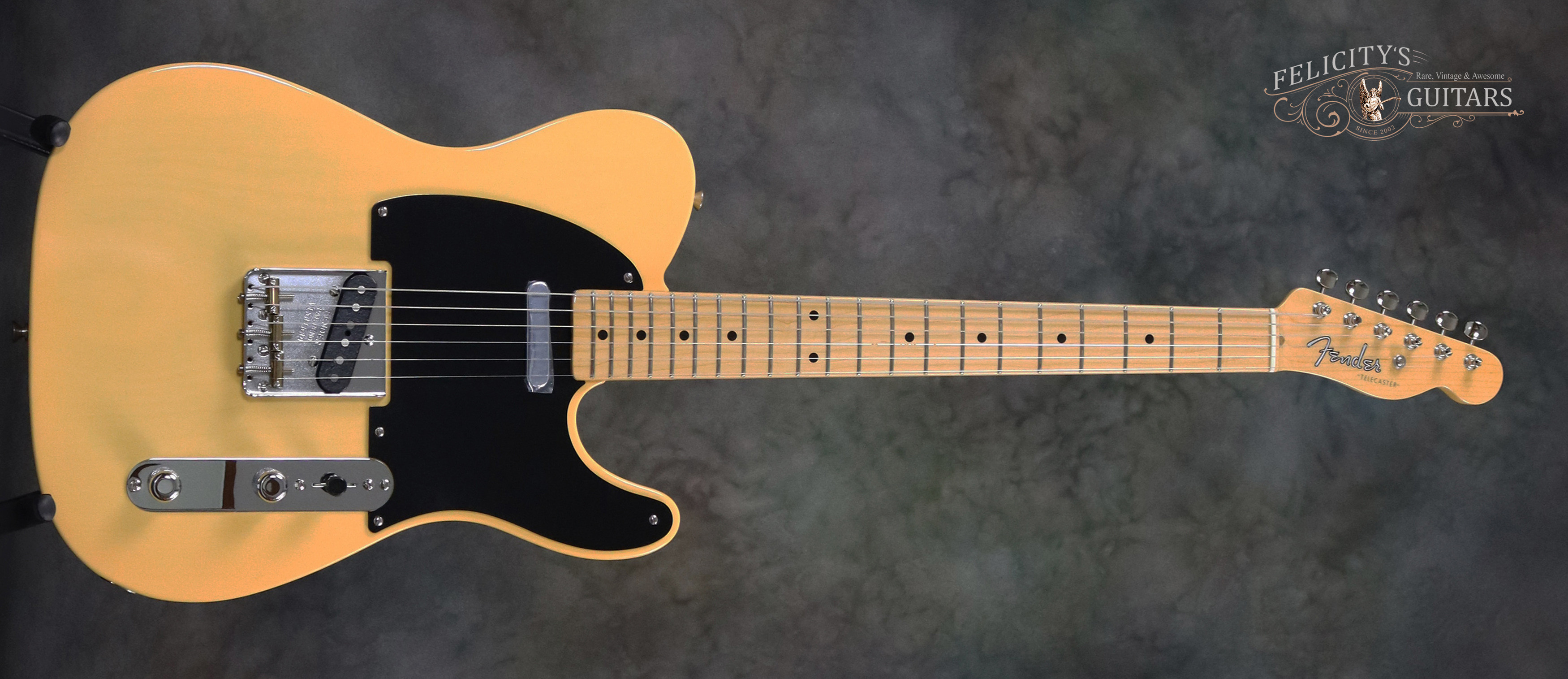

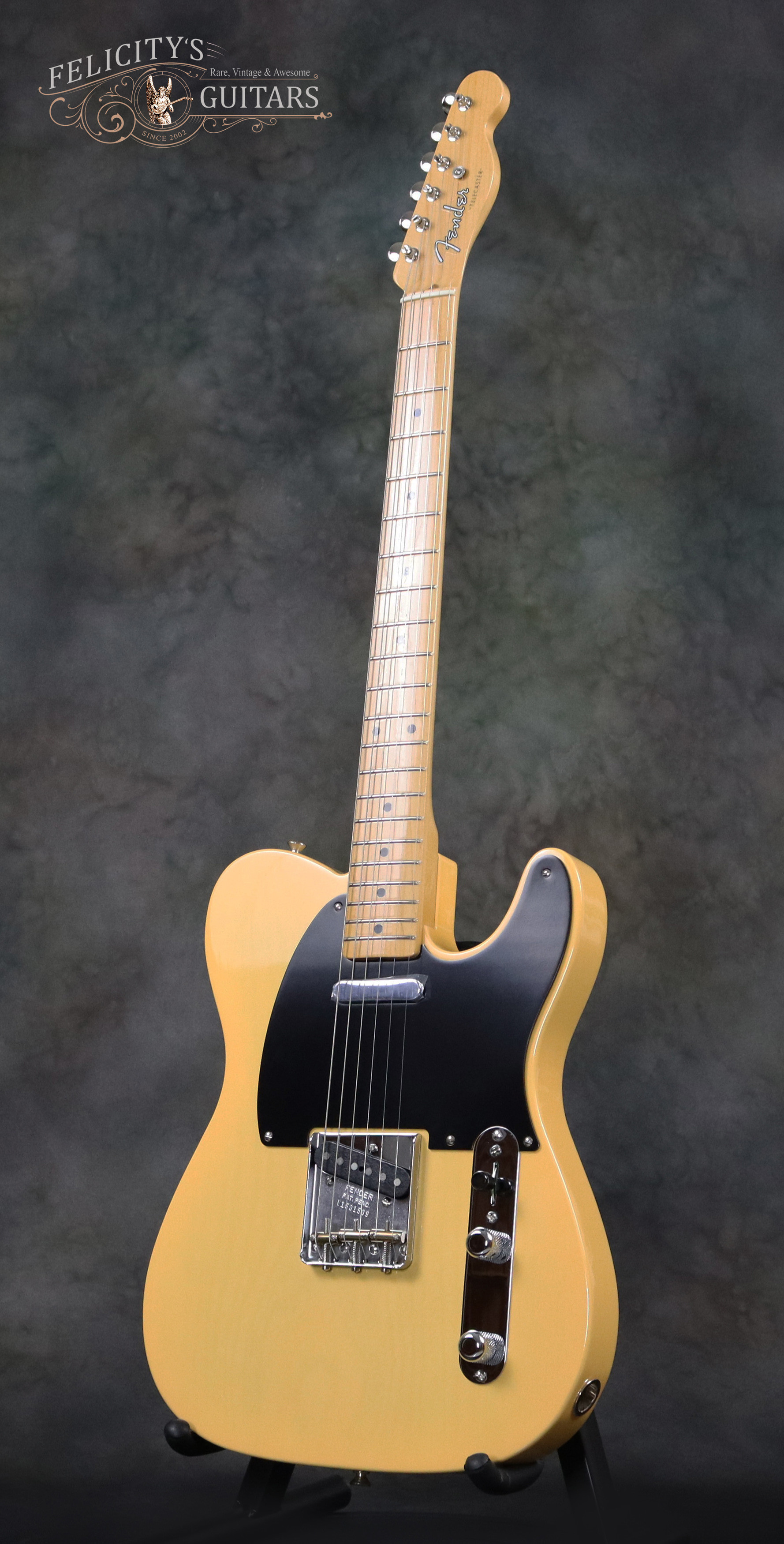

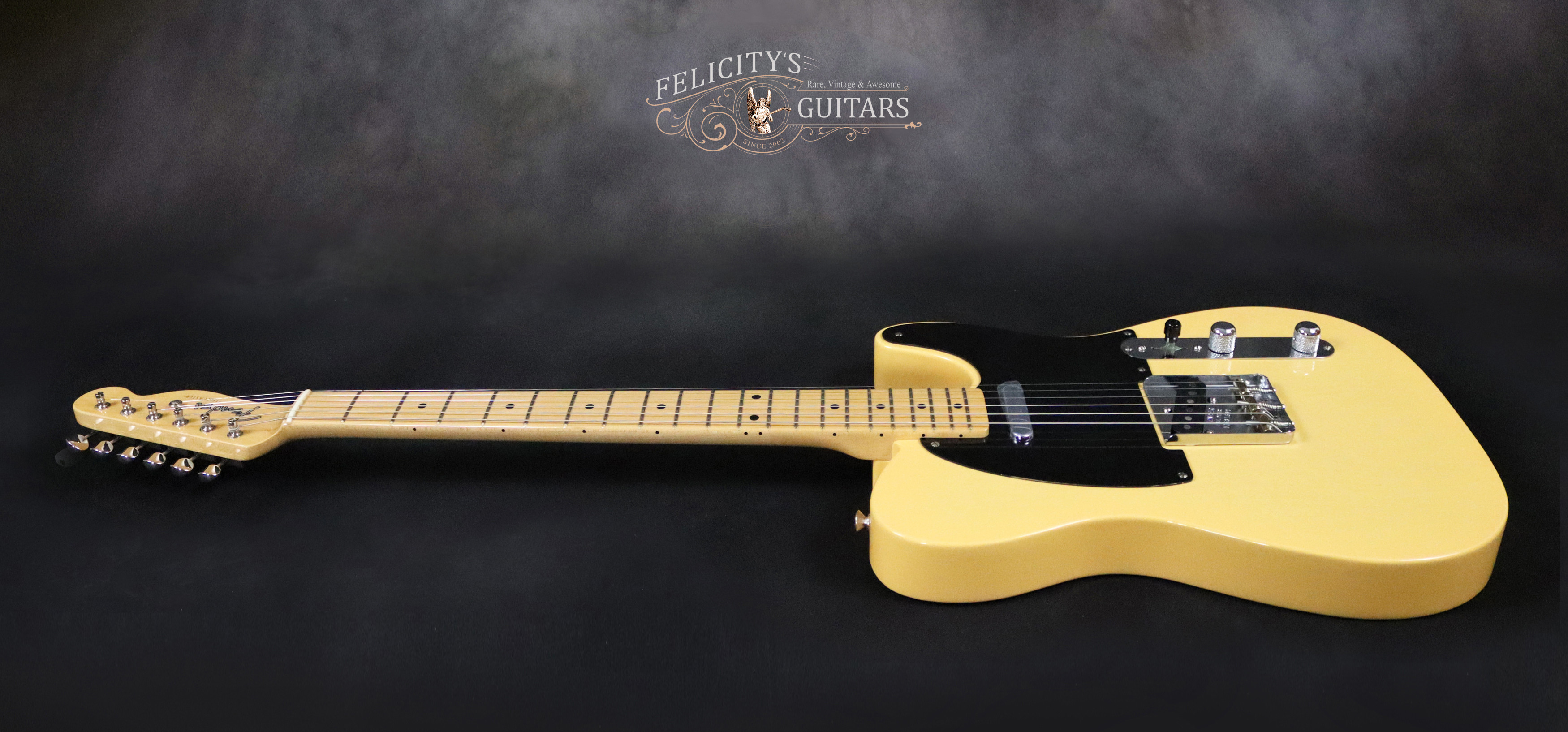

2016 TELECASTER '52 AVRI IN BUTTERSCOTCH BLONDE FINISH

Fender not only knows where it´s going, but also remembers where it came from.

The American Vintage Series introduces an all-new lineup of original-era model year guitars that bring Fender history and heritage to authentic and exciting new life. With key features and pivotal design elements spanning the mid-1950s to the mid-1960s, new American Vintage series instruments delve deep into Fender´s roots-expertly preserving an innovative U.S. guitar-making legacy like never before.

The 2016 American Vintage Series '52 Telecaster at a glance:

Premium lightweight Ash body, has slightly lighter Butterscotch Blonde finish
One-piece maple neck with U-shape profile, 7.25"-radius fingerboard with comfortably rolled edges
Fender-Gotoh Deluxe vintage-style tuners
Vintage-style Tele bridge with compensated brass saddles allow for more accurate intonation
American Vintage Tele single-coil pickups wound to period-correct specs and sound
Tele circuit with three-position switch exude vintage authenticity, as do the brass bridge saddles, and ashtray bridge cover

2016-Fender-Telecaster-AVS-'52-Butterscotch

USD 1,000,000

Add to Cart

Shipping will be calculated at check out

Photo Gallery

description

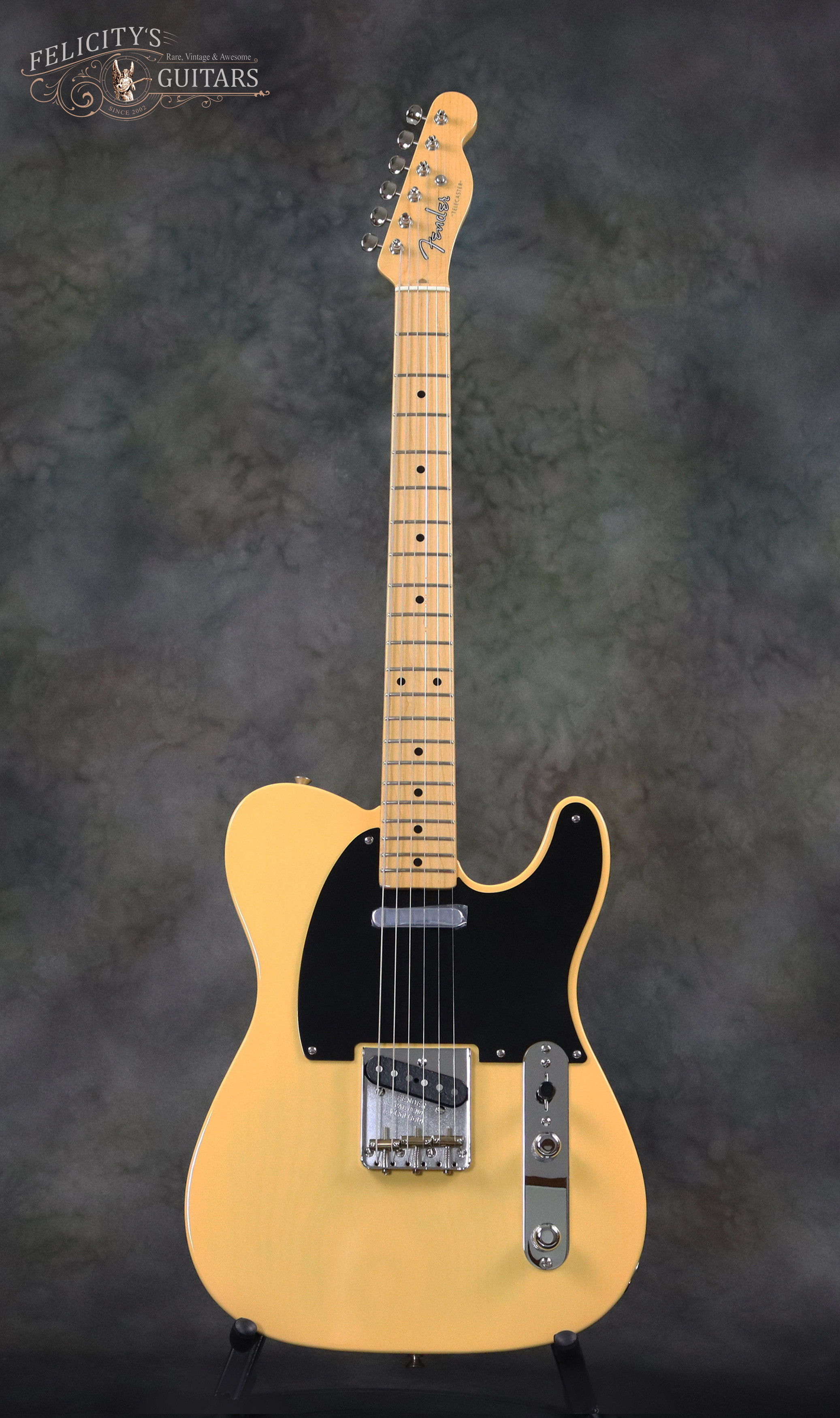

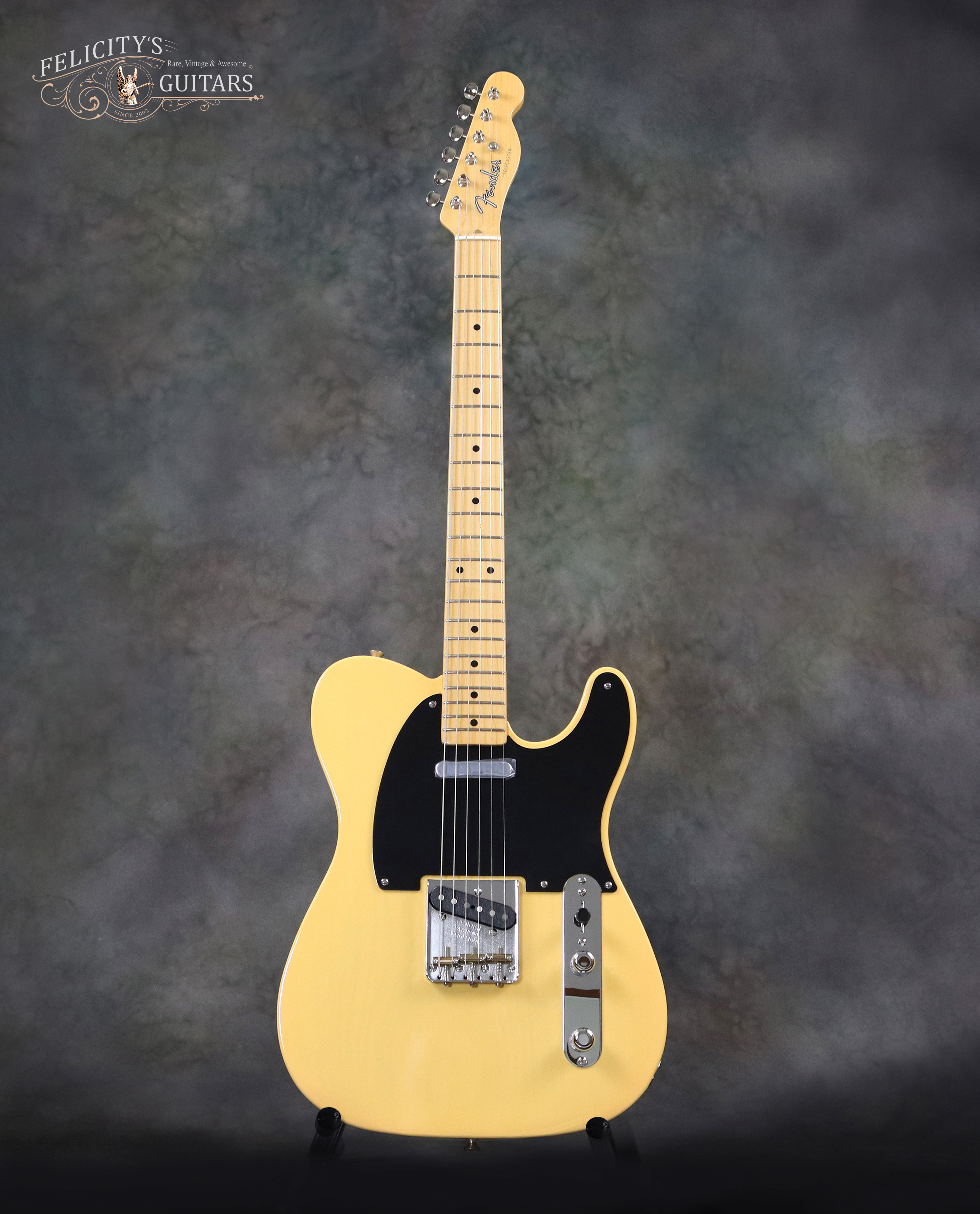

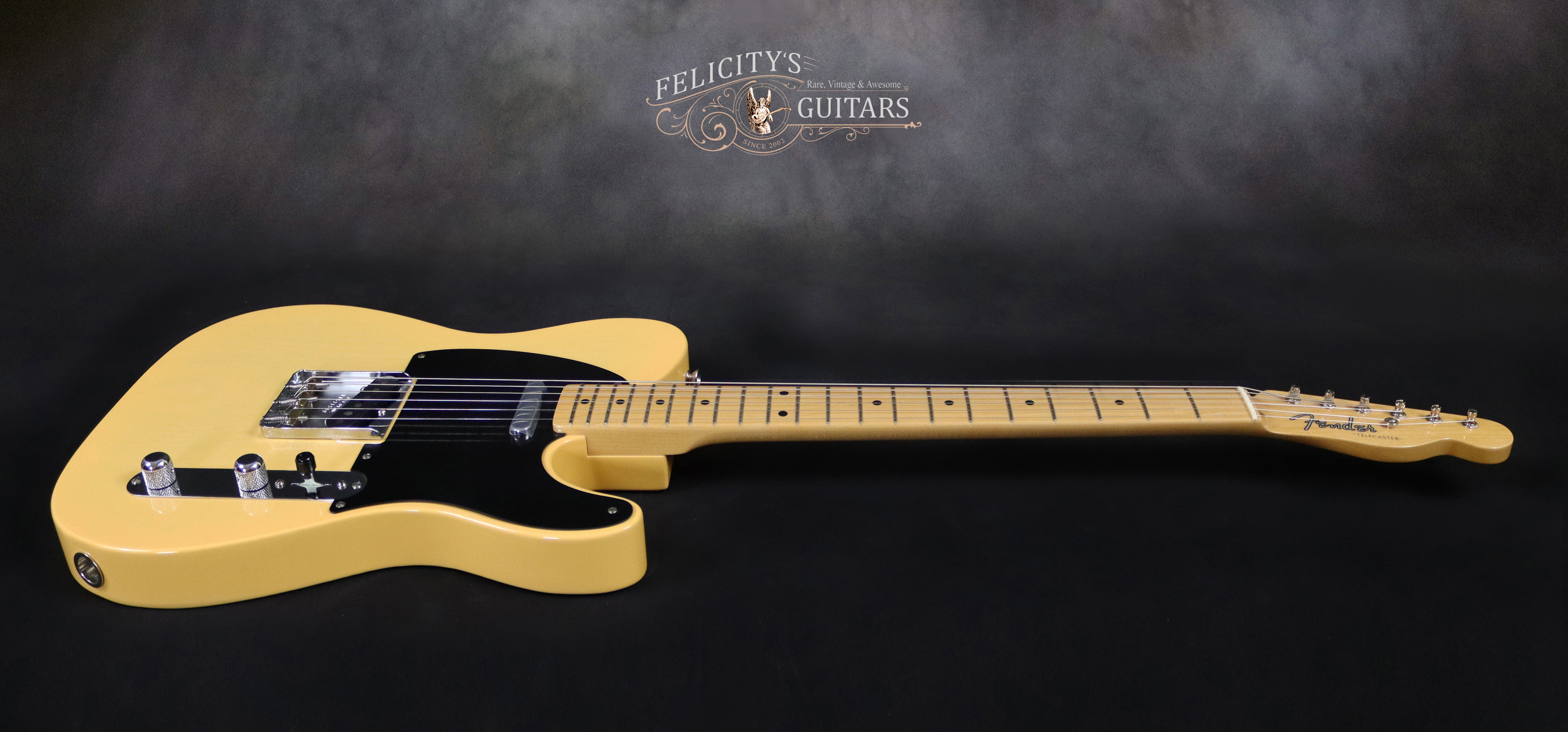

One of the longest-running production models in Fender's history, the Telecaster guitar has been modified only slightly in its more than 50 legendary years, with its great strength inherent in its classic simplicity. This guitar is as close to vintage as you can get! The American Vintage '52 Tele retains every detail of the vintage original. Its premium ash body, one-piece U-shaped maple neck with 7.25"-radius fingerboard, single-ply black pickguard and original Tele circuit with three-position switch exude vintage authenticity, as do the brass bridge saddles, and ashtray bridge cover.

This guitar is in brand new and unplayed condition, and you can be the first person to play her! Original Fender Select Vintage Tweed Hardshell Case is included along with a wealth of vintage–repro case candies!

Specifications

General

Condition	Brand New (NOS)
Number of Strings	6
Orientation	Right-handed
Country of Origin	U.S.A.
Year	2016
Limited Edition / Series	No

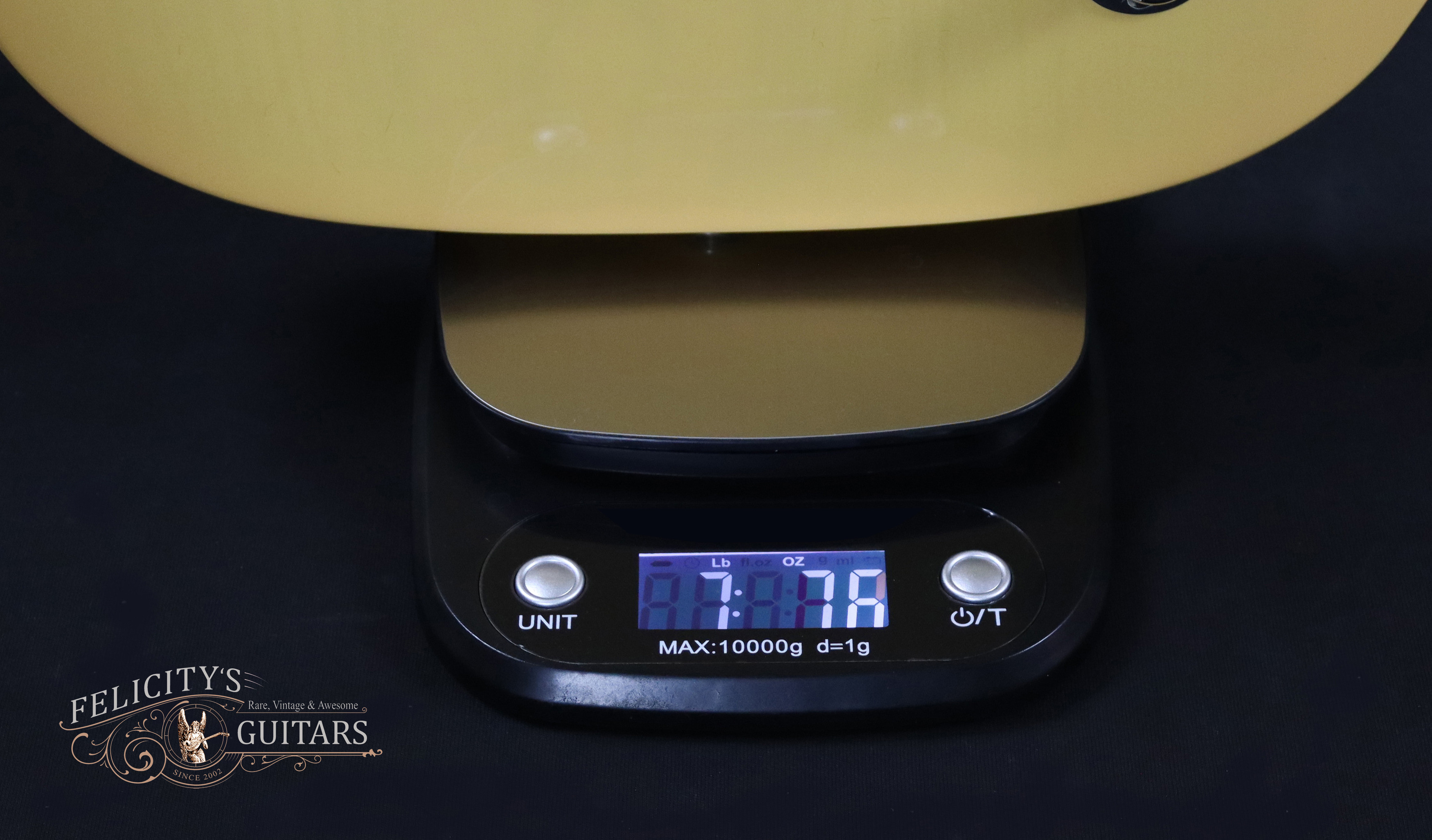

Weight	7-lbs 7.6-oz

body

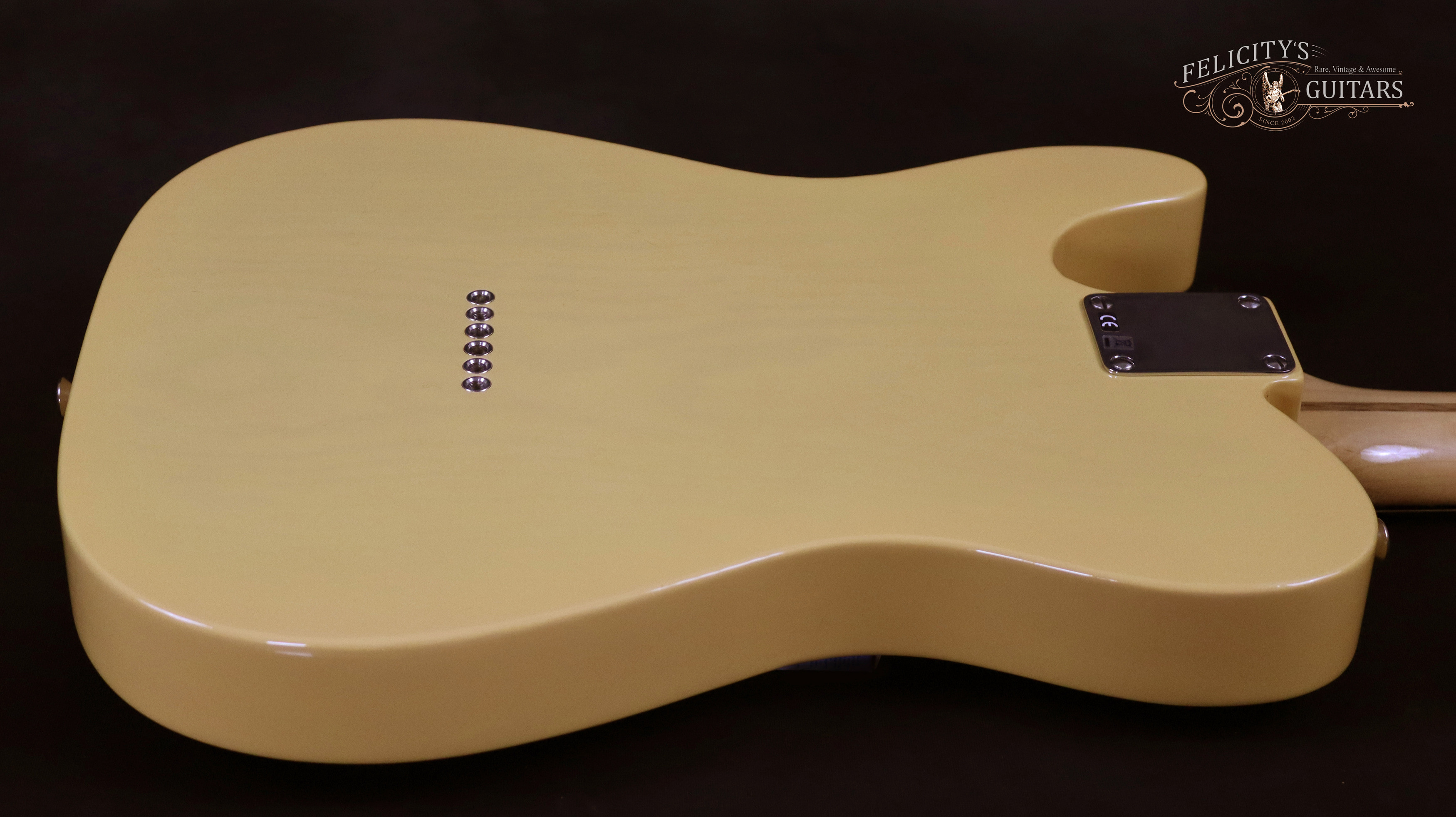

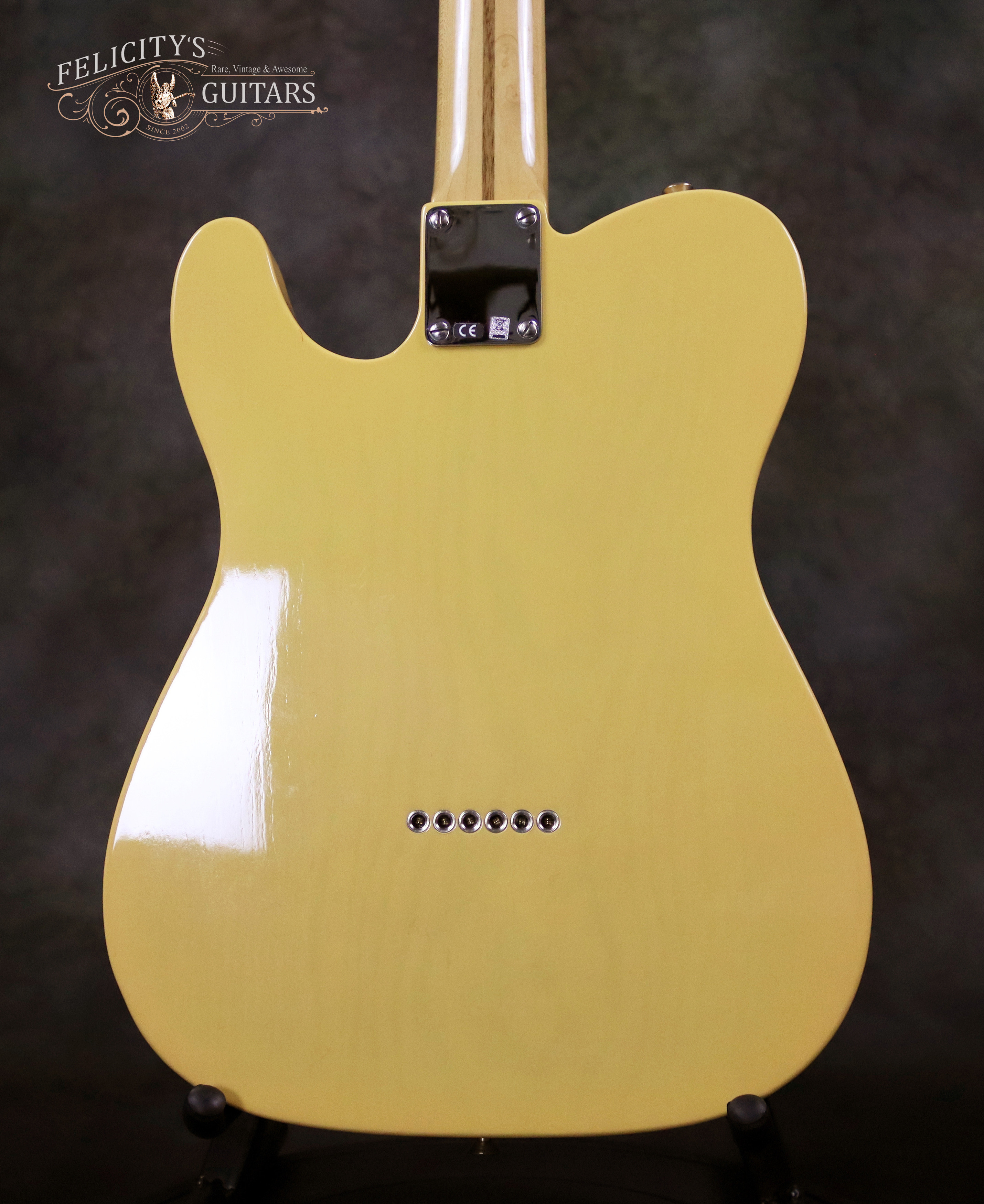

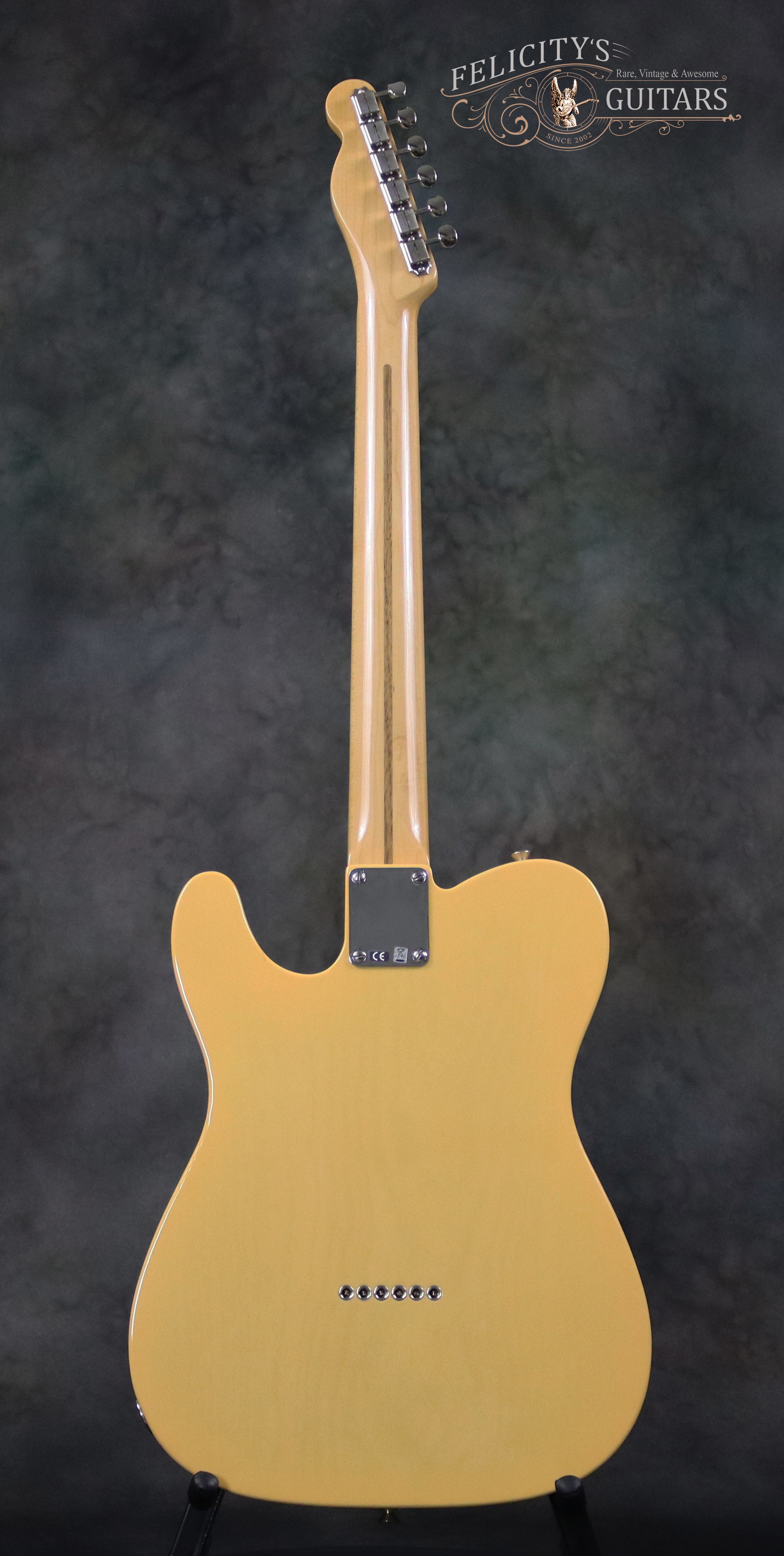

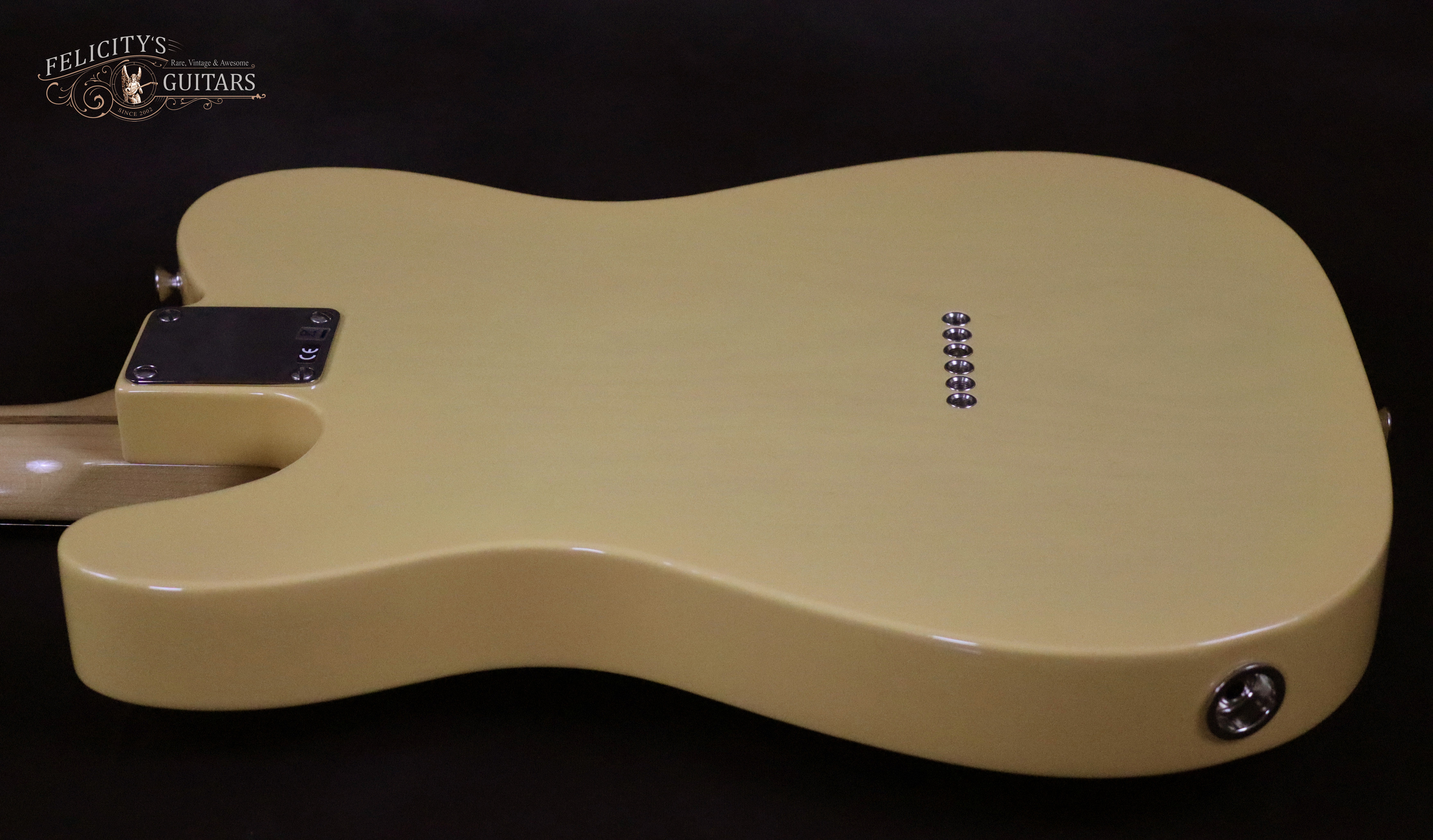

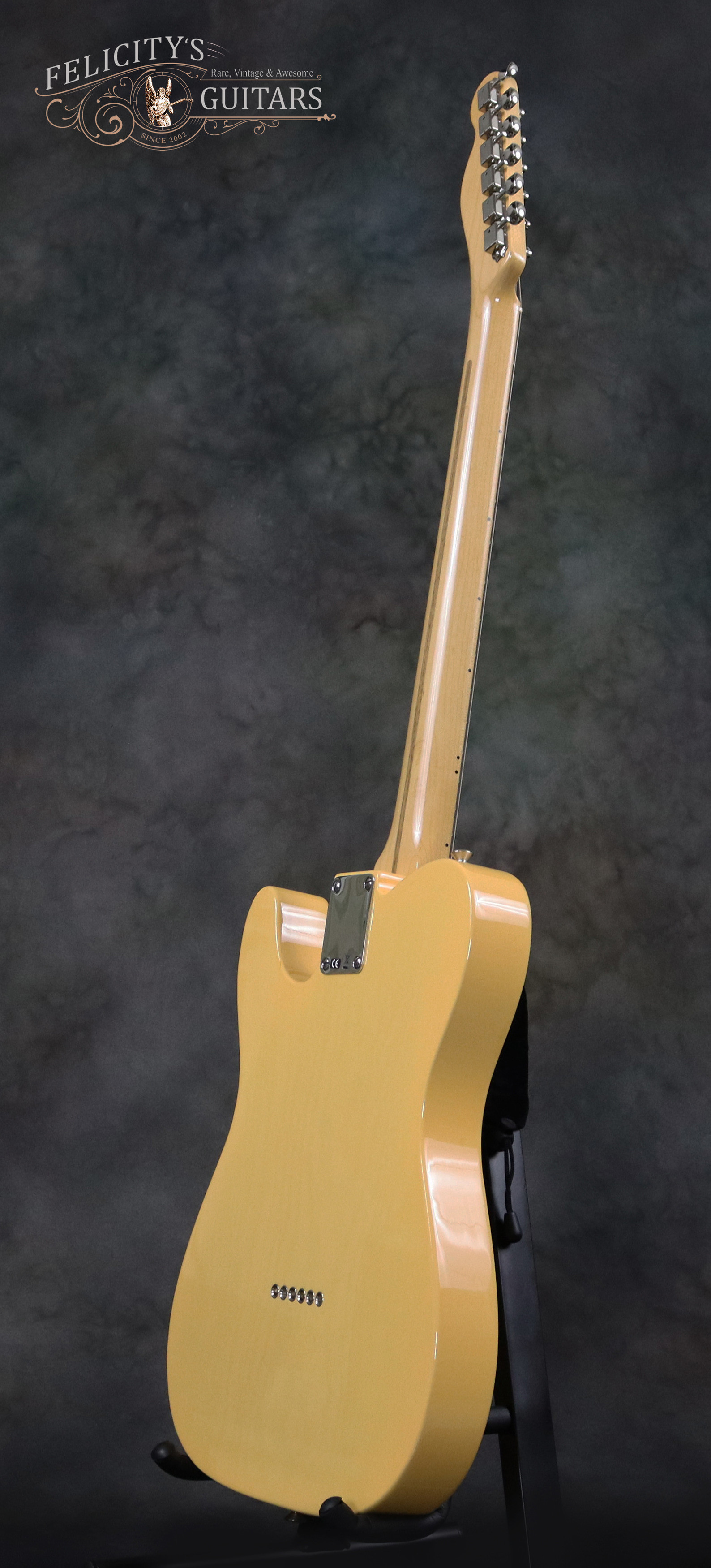

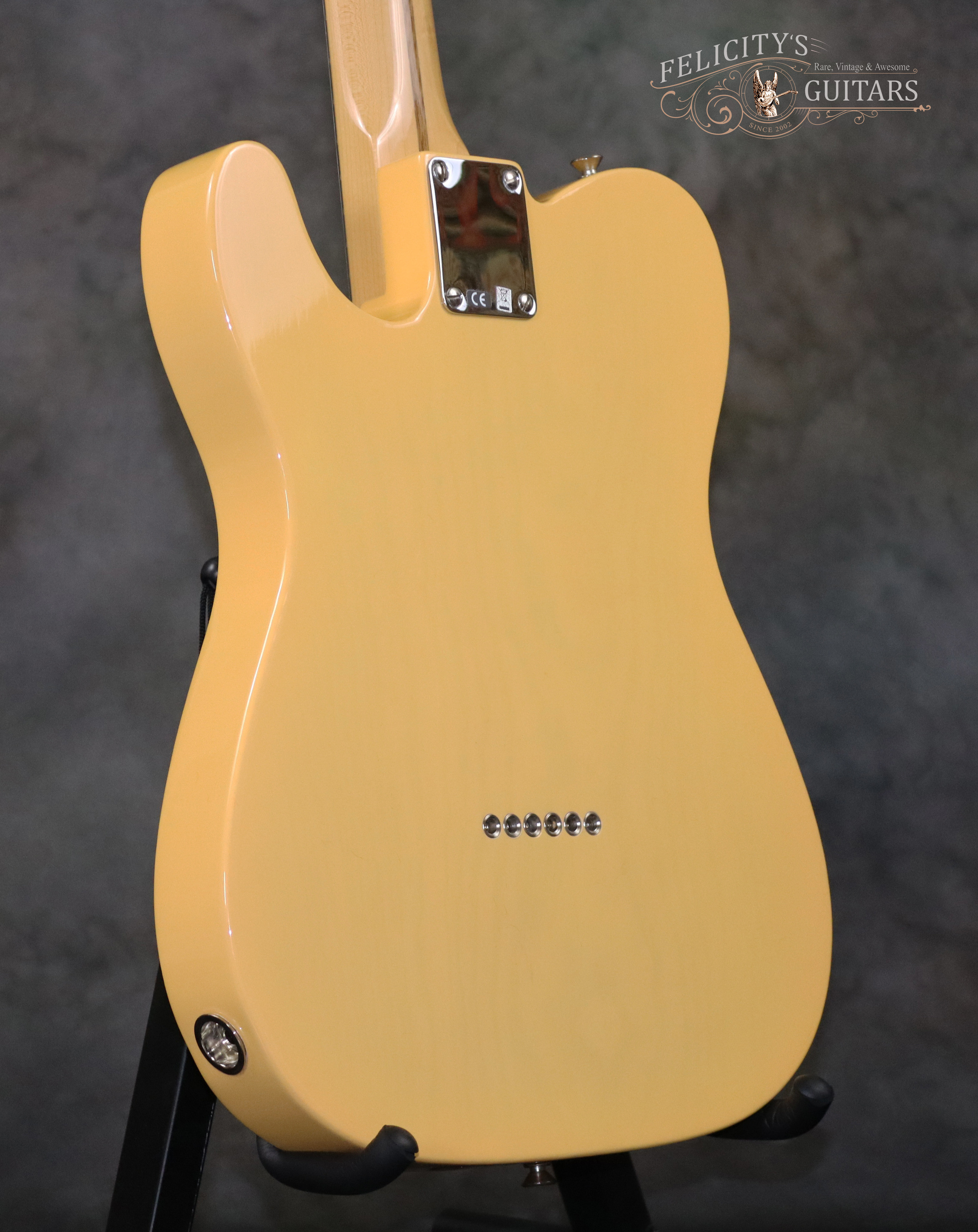

Body Type	Solidbody, String-through
Body Shape	Singlecut Tele-Style
Body Material	2-pc Lightweight Ash
Body Carve	Front: Flat	Back: Flat
Body Binding	Front: No	Back: No
Weight Relief	Un-chambered
Body Finish Type	Gloss Nitrocellulose Lacquer
Color	Front: Butterscotch Blonde	Back: Butterscotch Blonde

neck

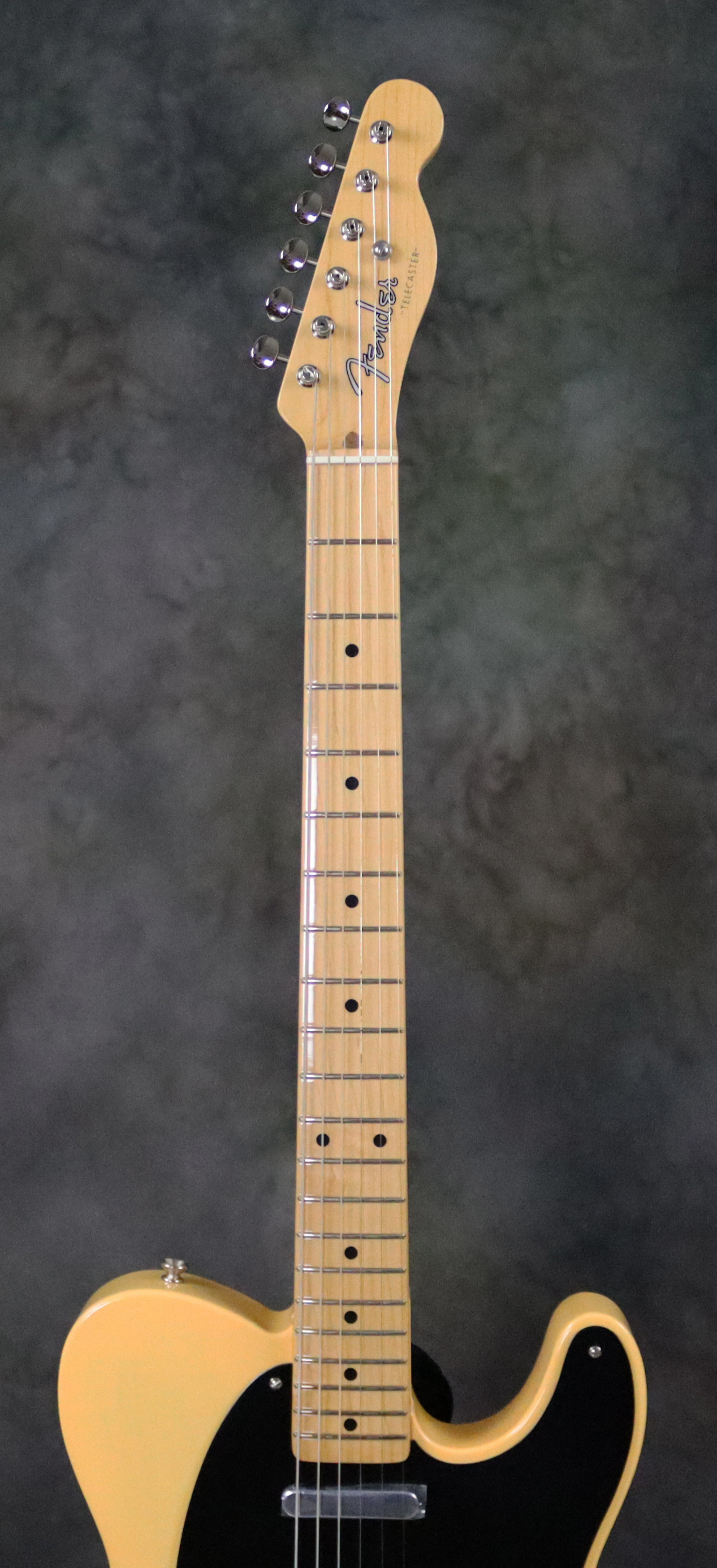

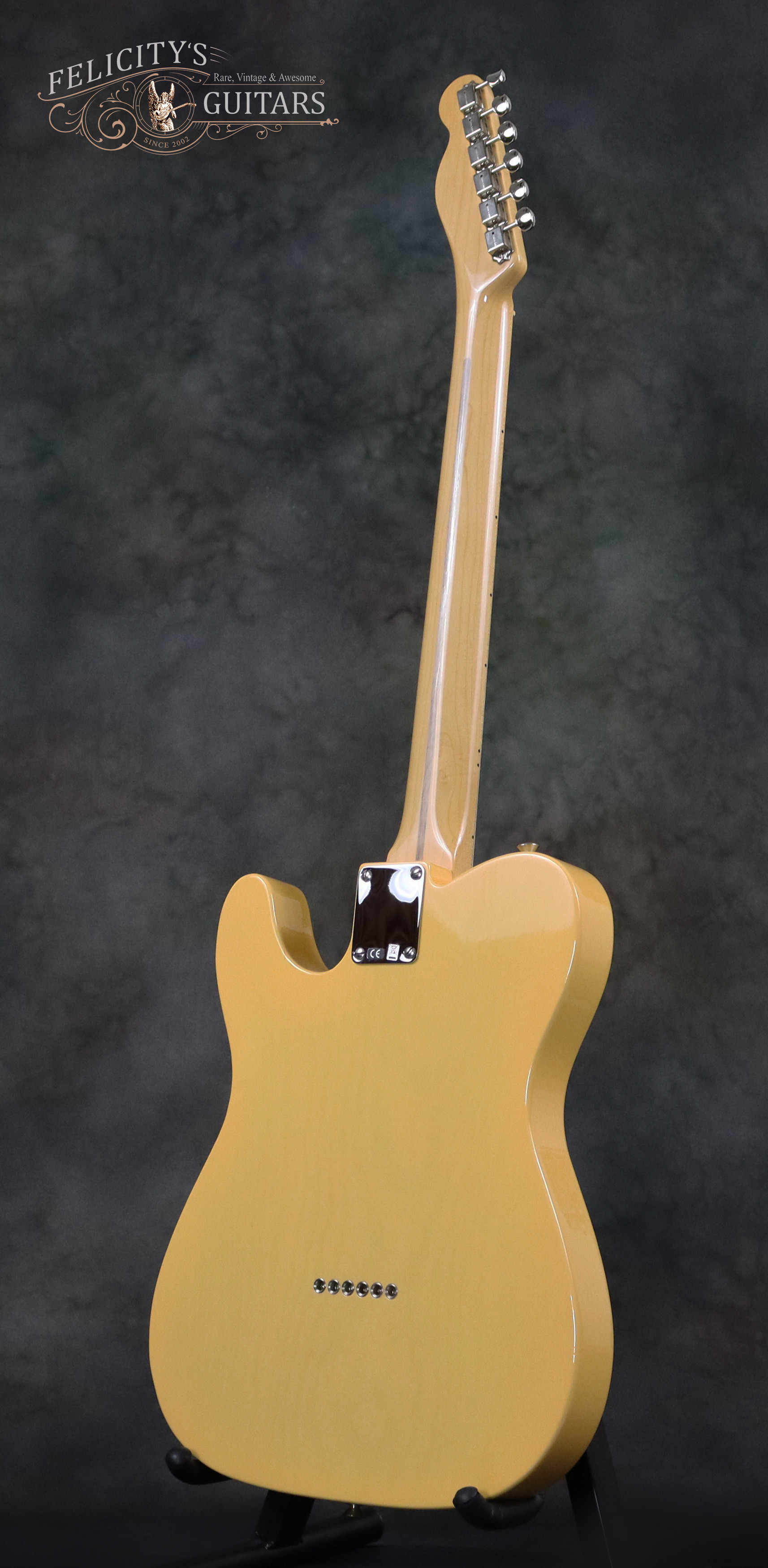

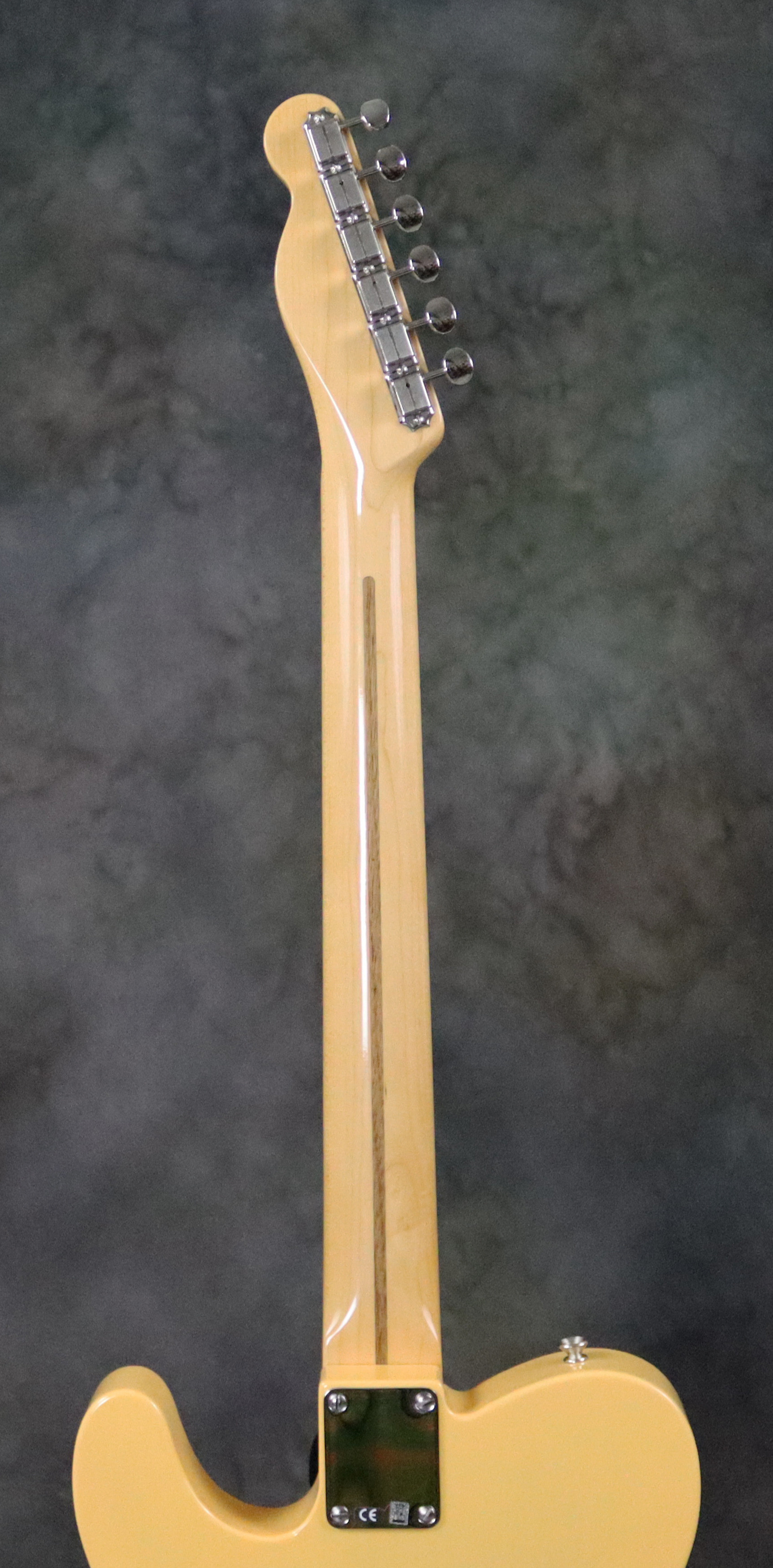

Neck Material	1-pc Maple with Skunk-stripe, Semi-gloss Finish both Front and Back
Truss Rod	2-way Adjustable, Neck-butt access

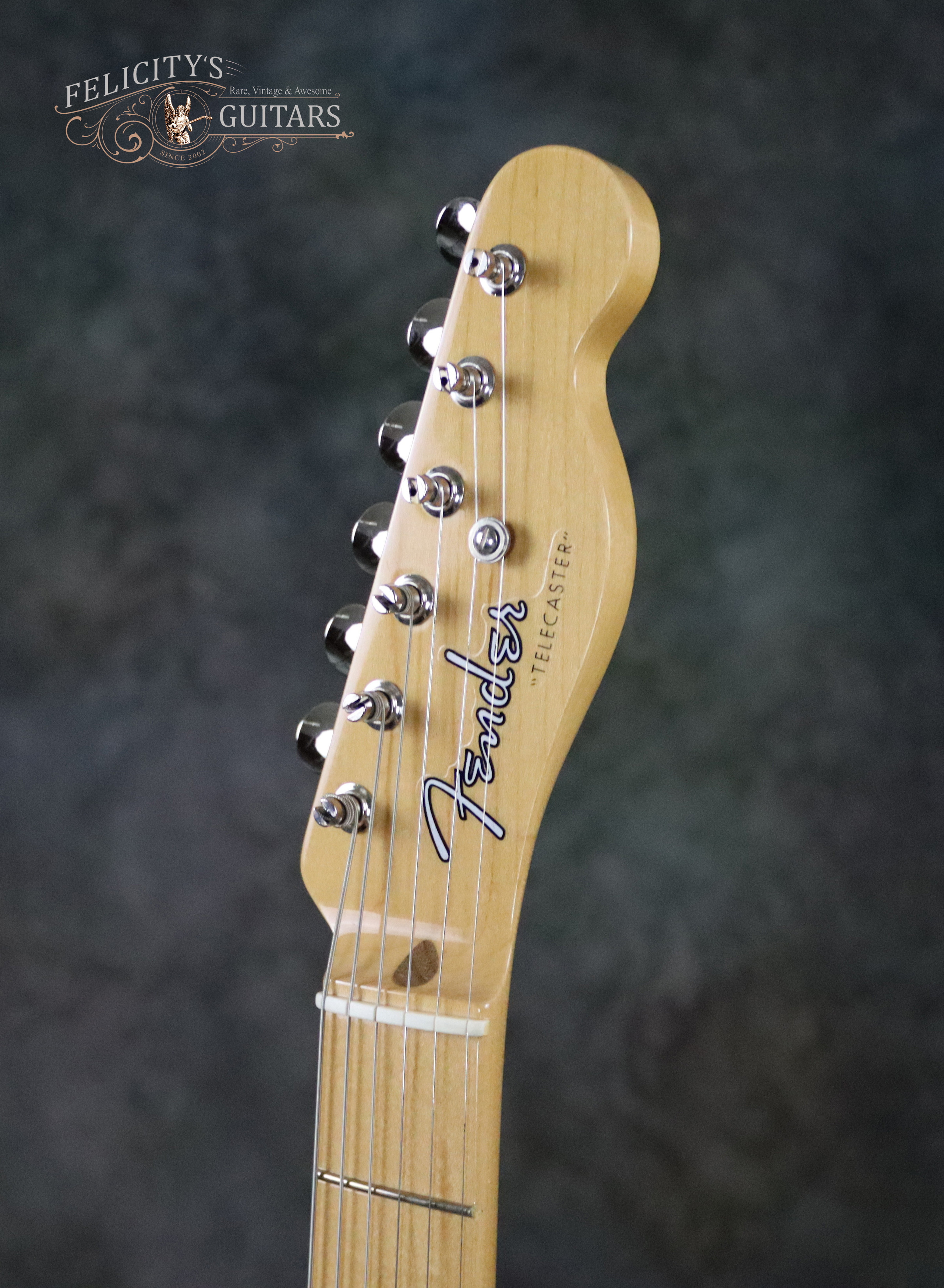

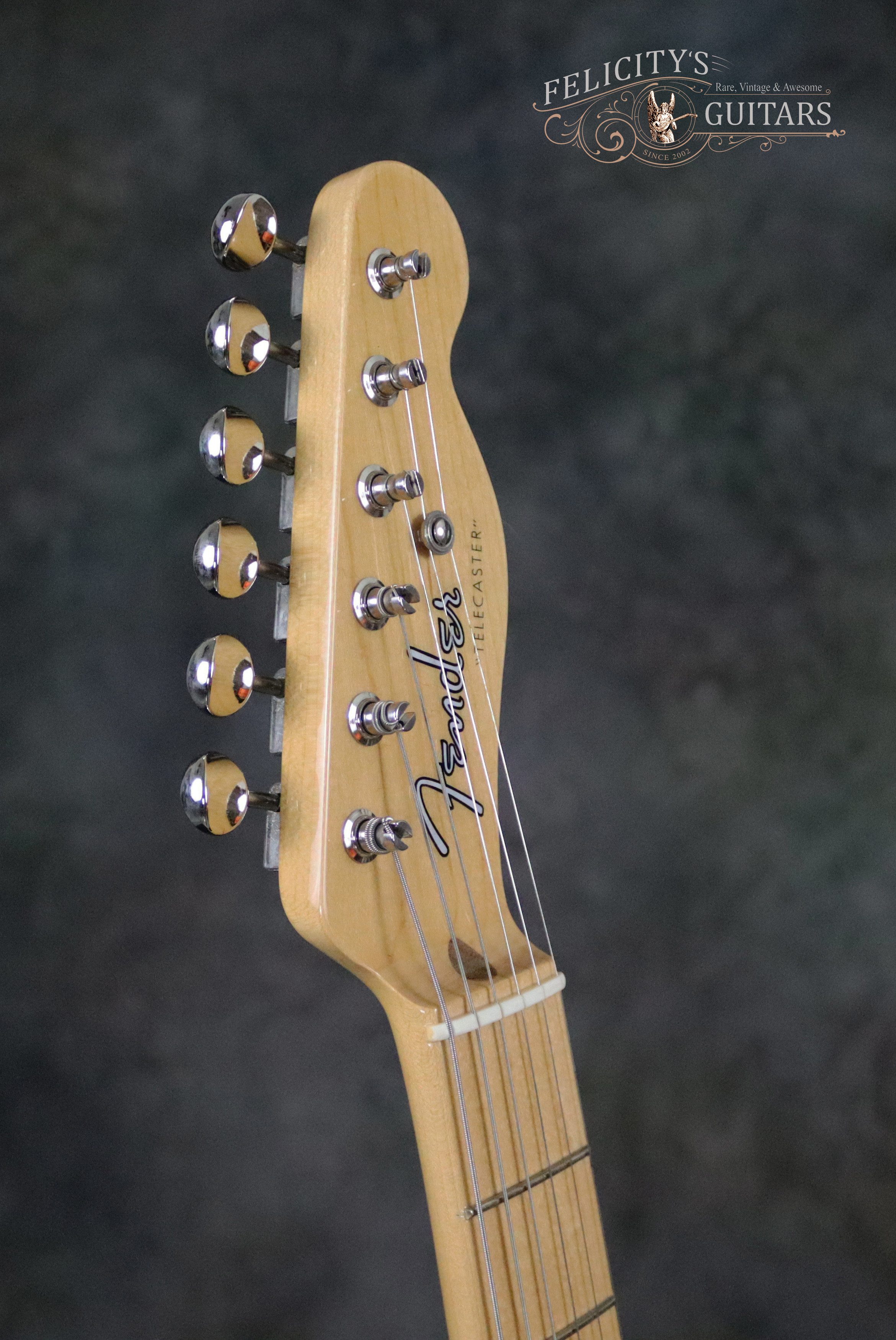

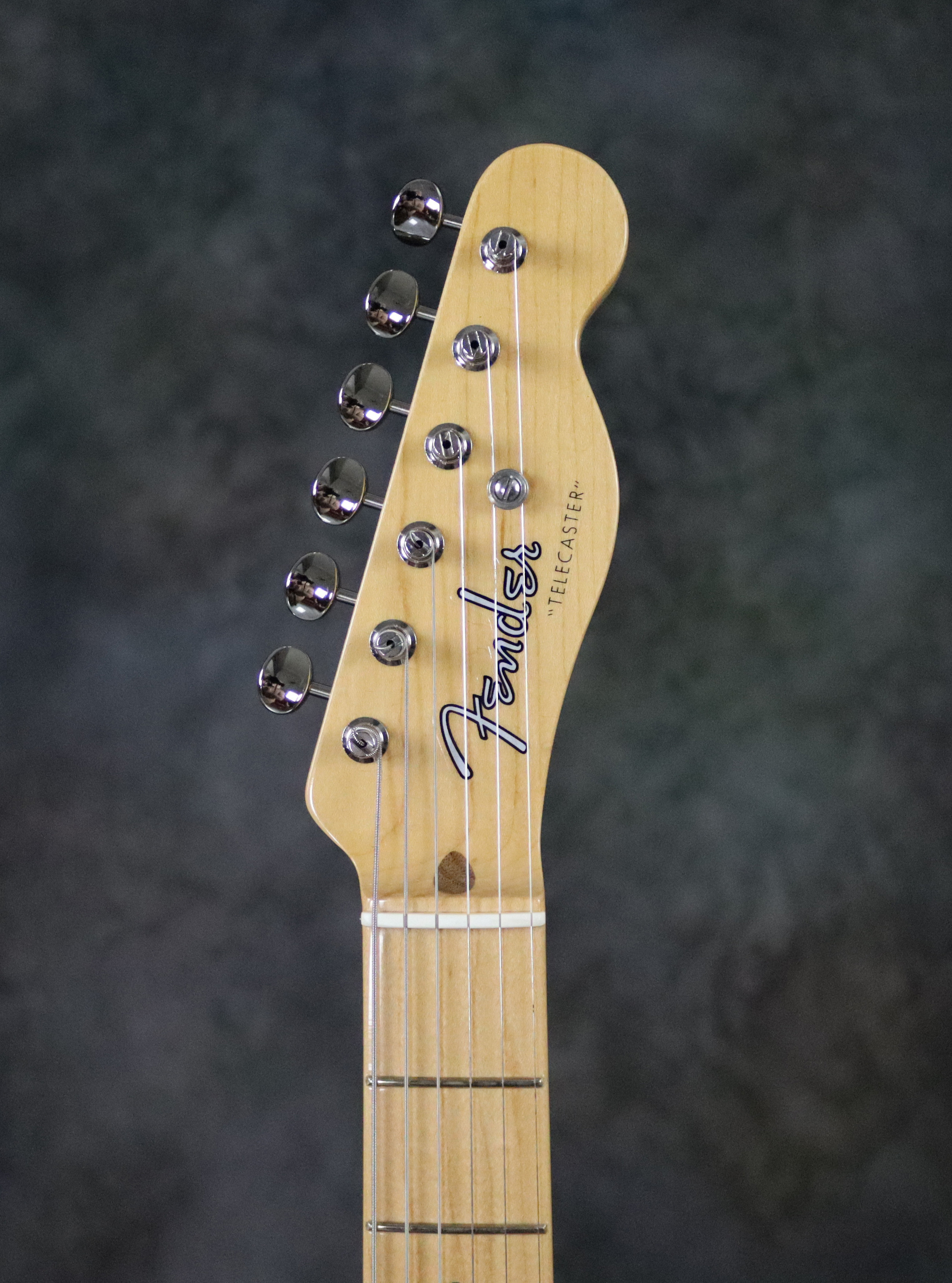

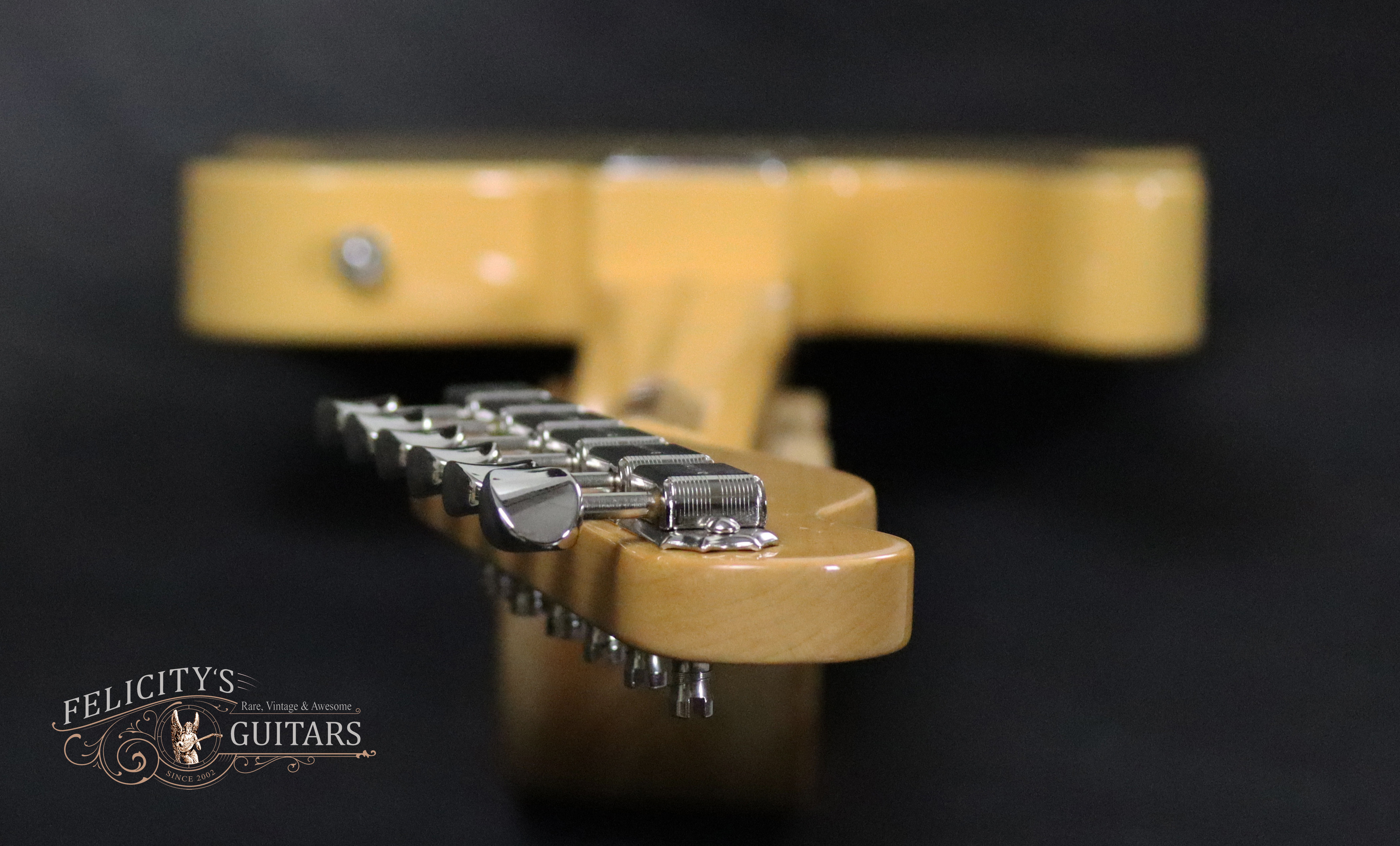

Peghead Particulars	Front: Unbound Natural Maple, Fender® Pre-CBS “Spaghetti” Logo & Telecaster™ Decal
	Back: Blank
Neck Profile	‘U’ Shape

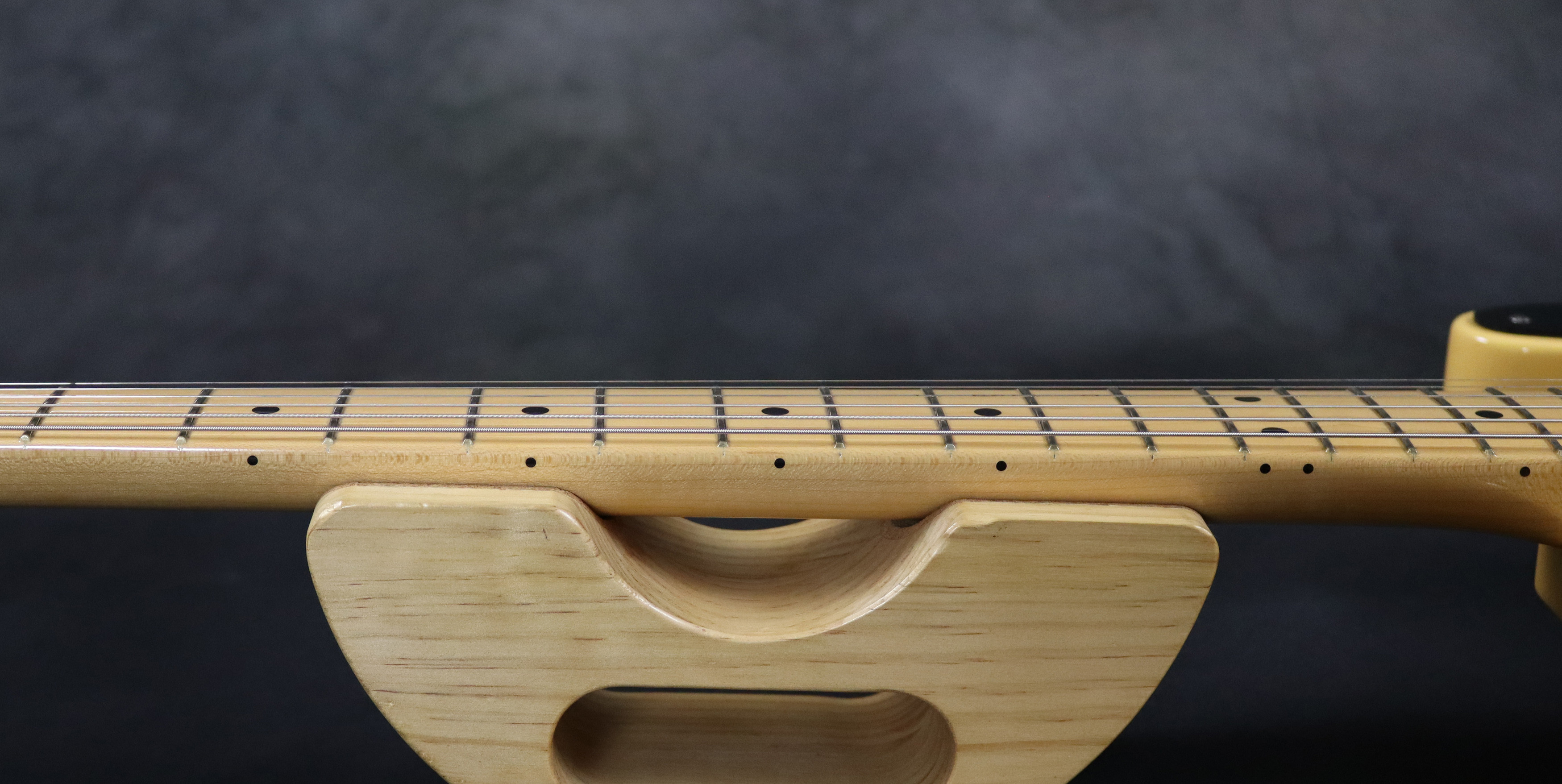

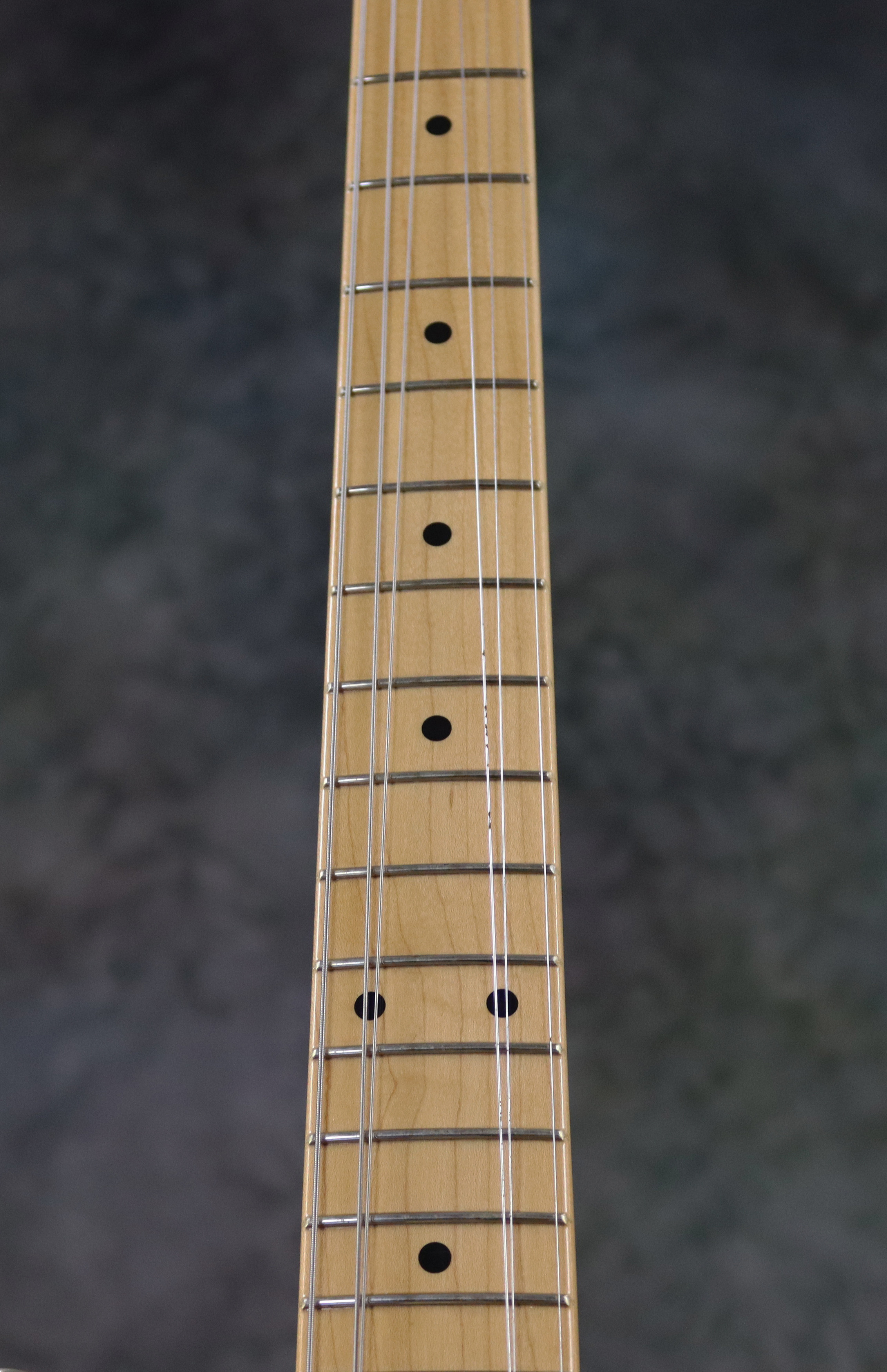

Fingerboard Material	Maple
Fingerboard Radius	7.25”
Scale Length	25.5"
No. Frets / Type	21 Vintage Style (Thin & Tall)
Nut Size / Material	1.650” / Synthetic Bone

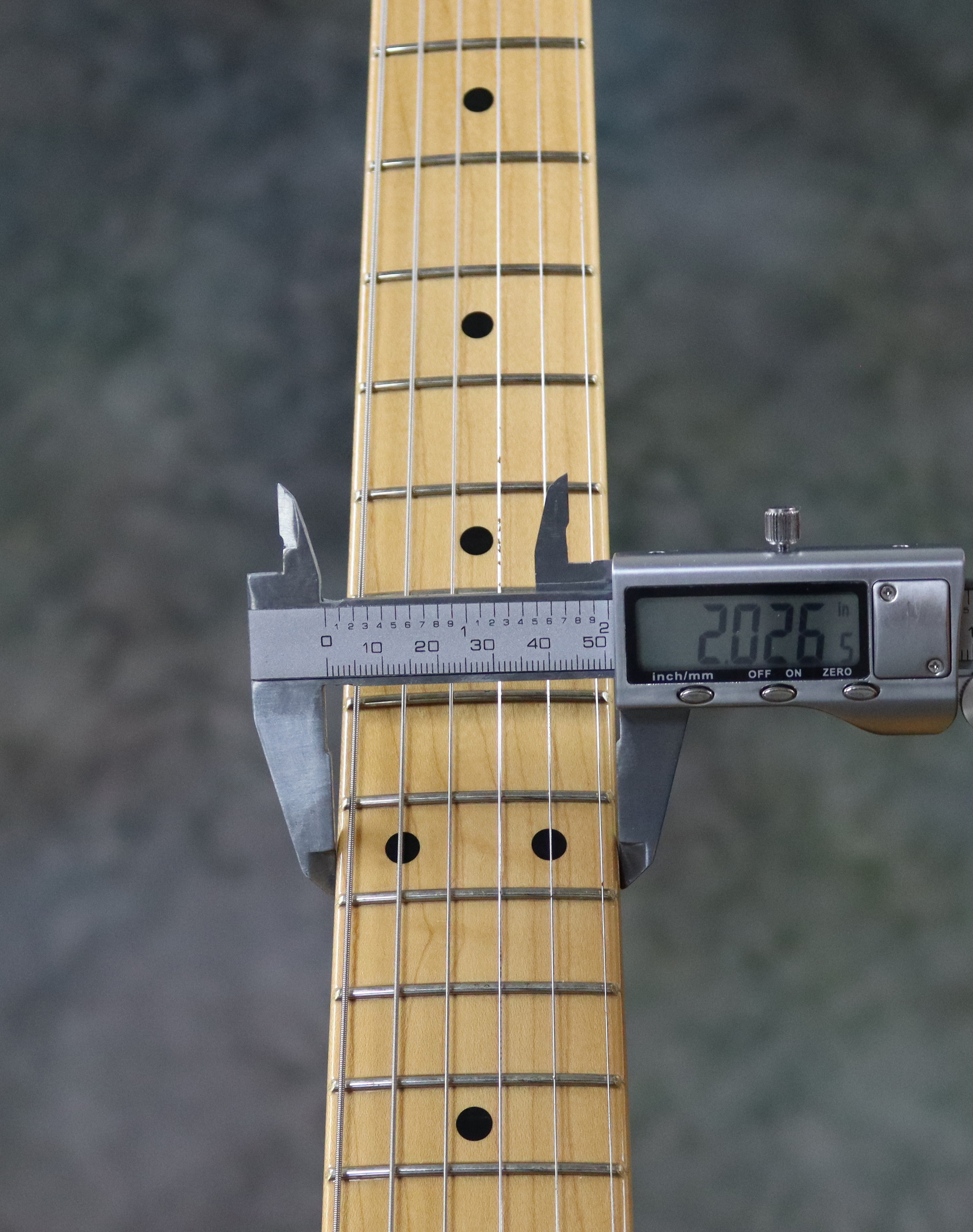

Neck Width	1.667” at 1st fret / 2.026” at 12th fret
Neck Depth	0.905” at 1st fret / 1.000” at 12th fret
Fingerboard Inlays	Black Acrylic Dots
Neck Binding	No
Side Dots	Black Acrylic
Neck Joint	Bolt-on

hardware

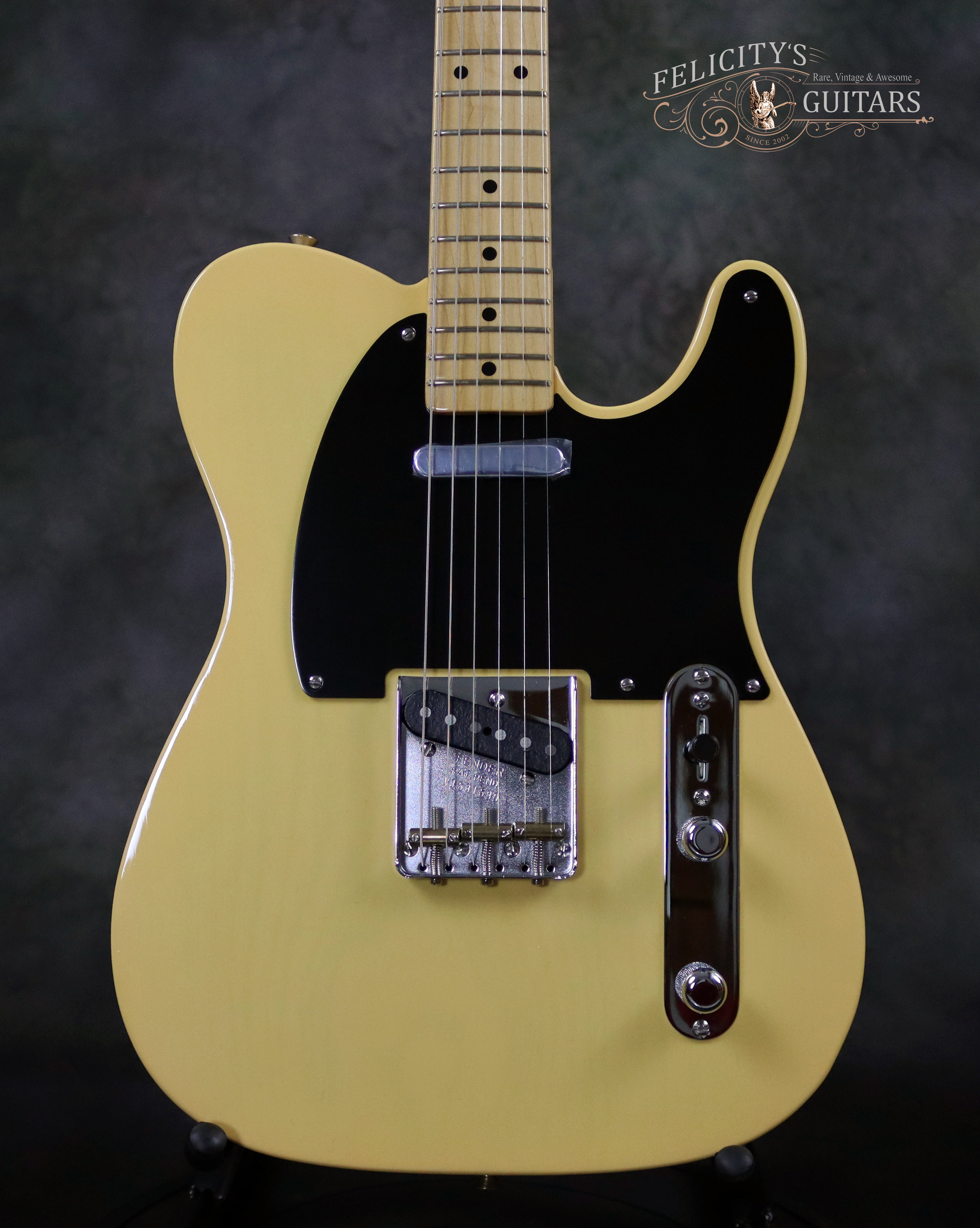

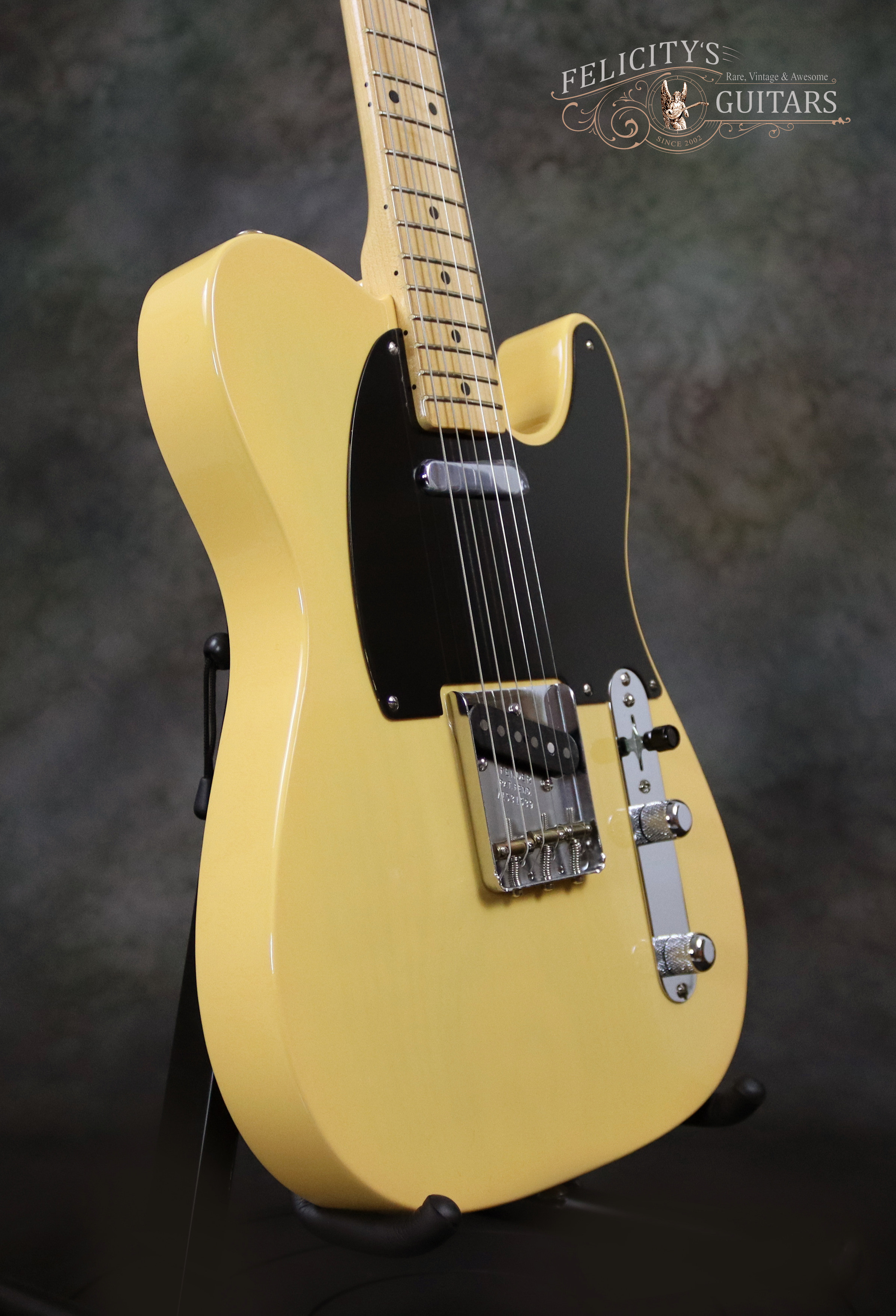

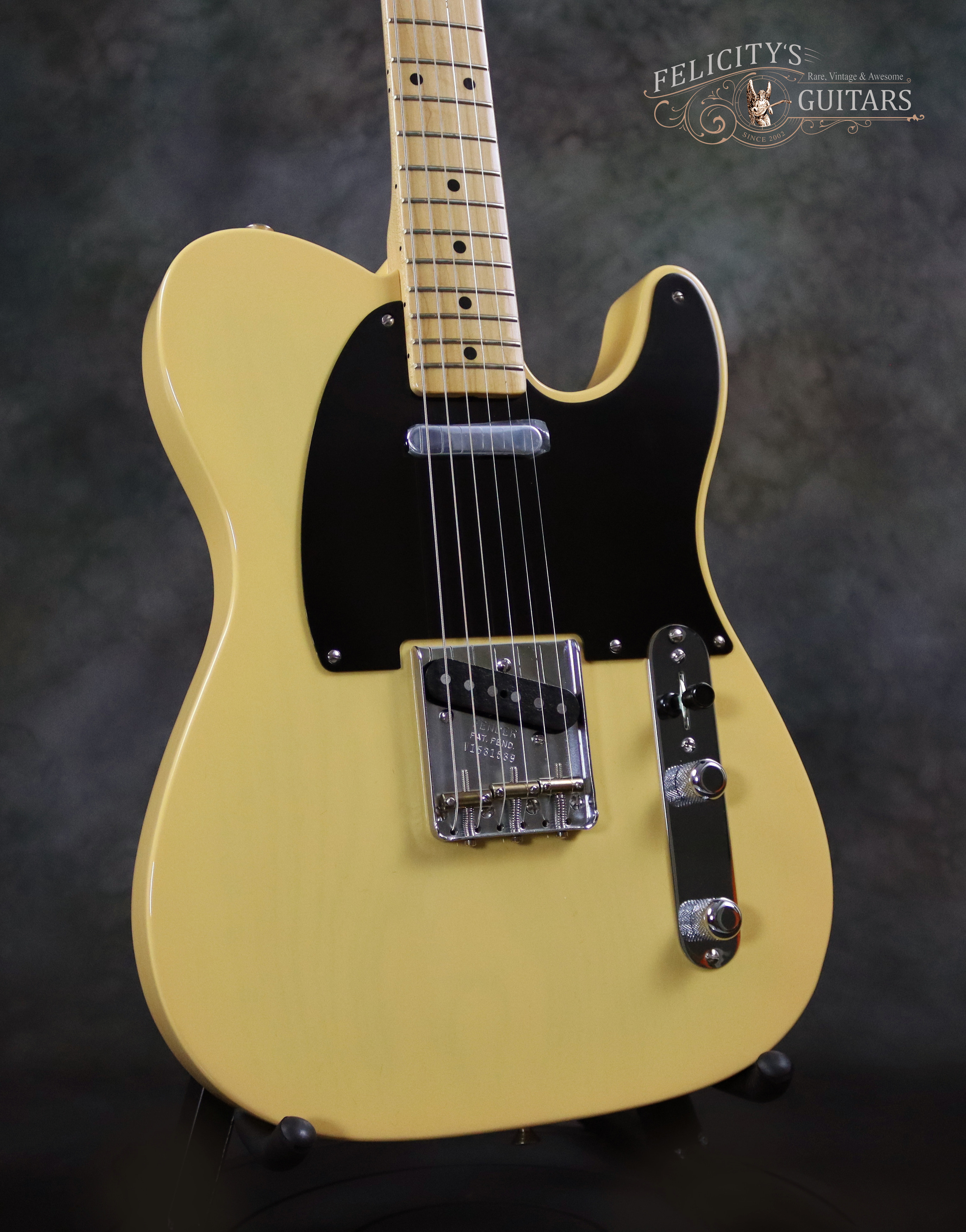

Bridge	Chrome Plated, Vintage Style Tele Bridge with 3-Brass Saddles, ‘Ash Tray’ Bridge Cover
T-String	Chrome Plated, ‘50s ‘Screw-and-Washer’ Style

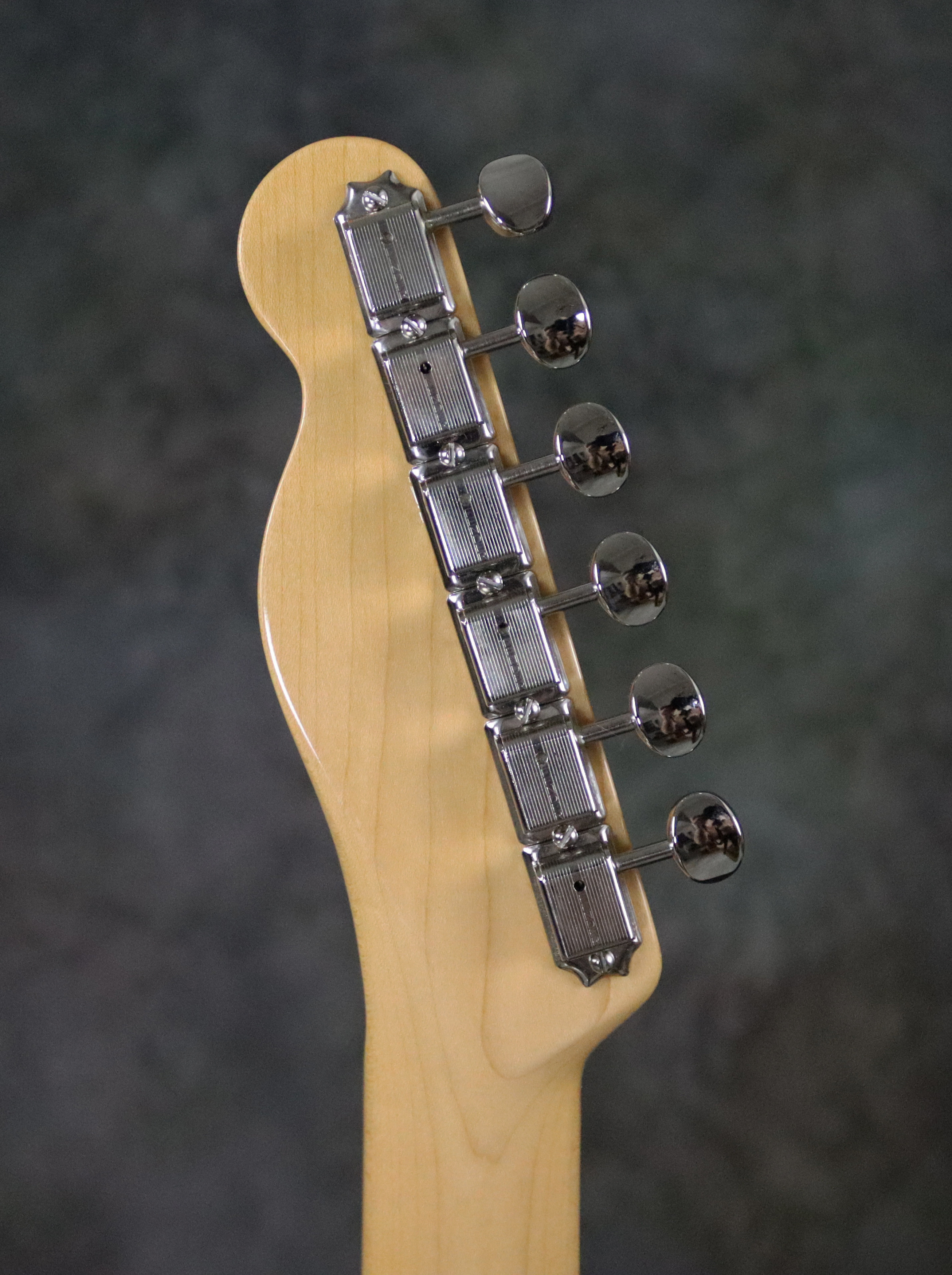

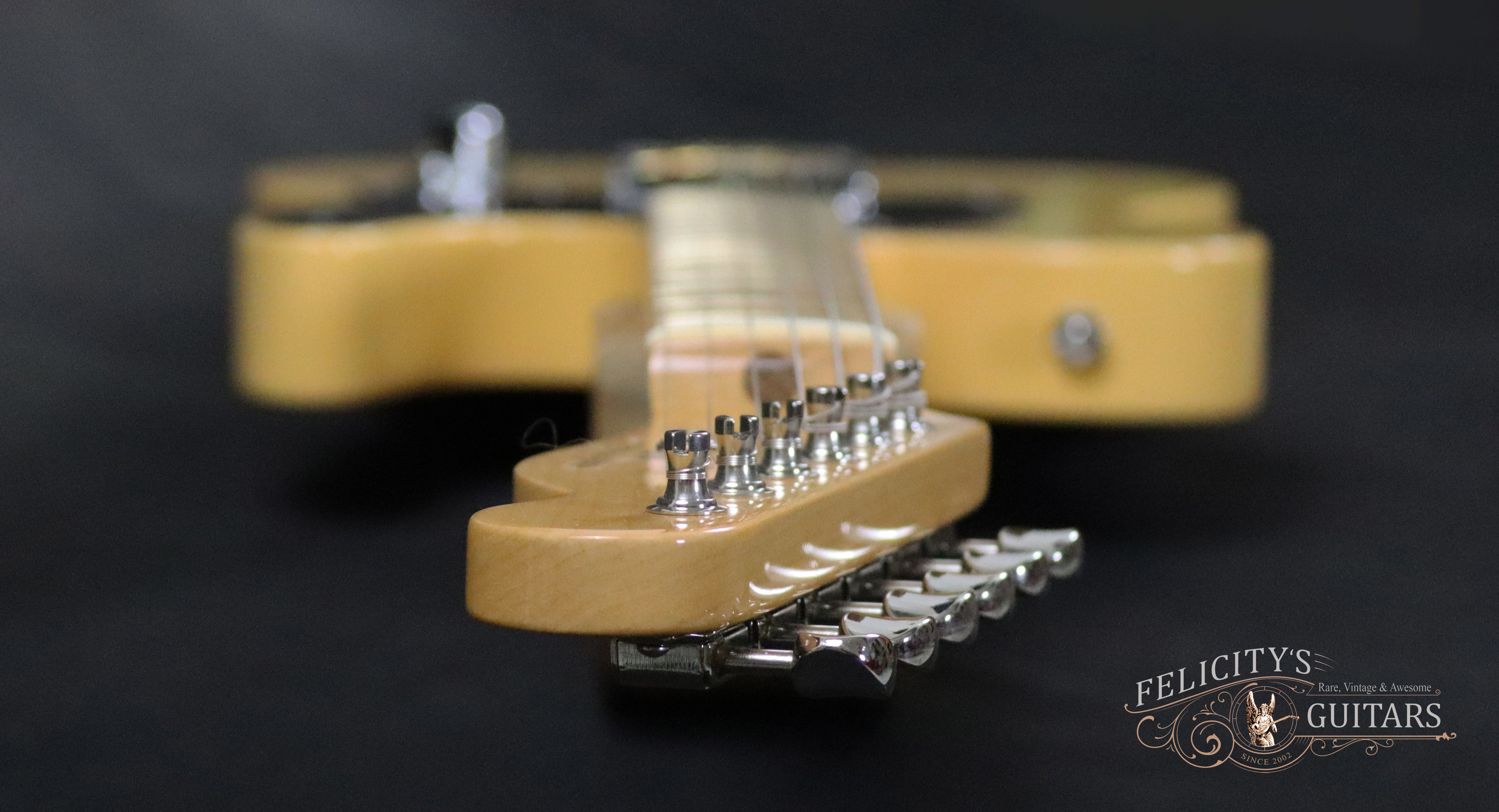

Tuning Machines	Chrome Plated, Fender−Gotoh® Deluxe Vintage Style / 14:01 Ratio
Pickup Cover / Ring	Bridge: Black (uncovered) Single-Coil / Neck: Chrome Covered Single-Coil with No Ring
Strap Buttons	Aluminum End Pins
Pickguard	1-ply Black Parchment, 5-hole Vintage Style

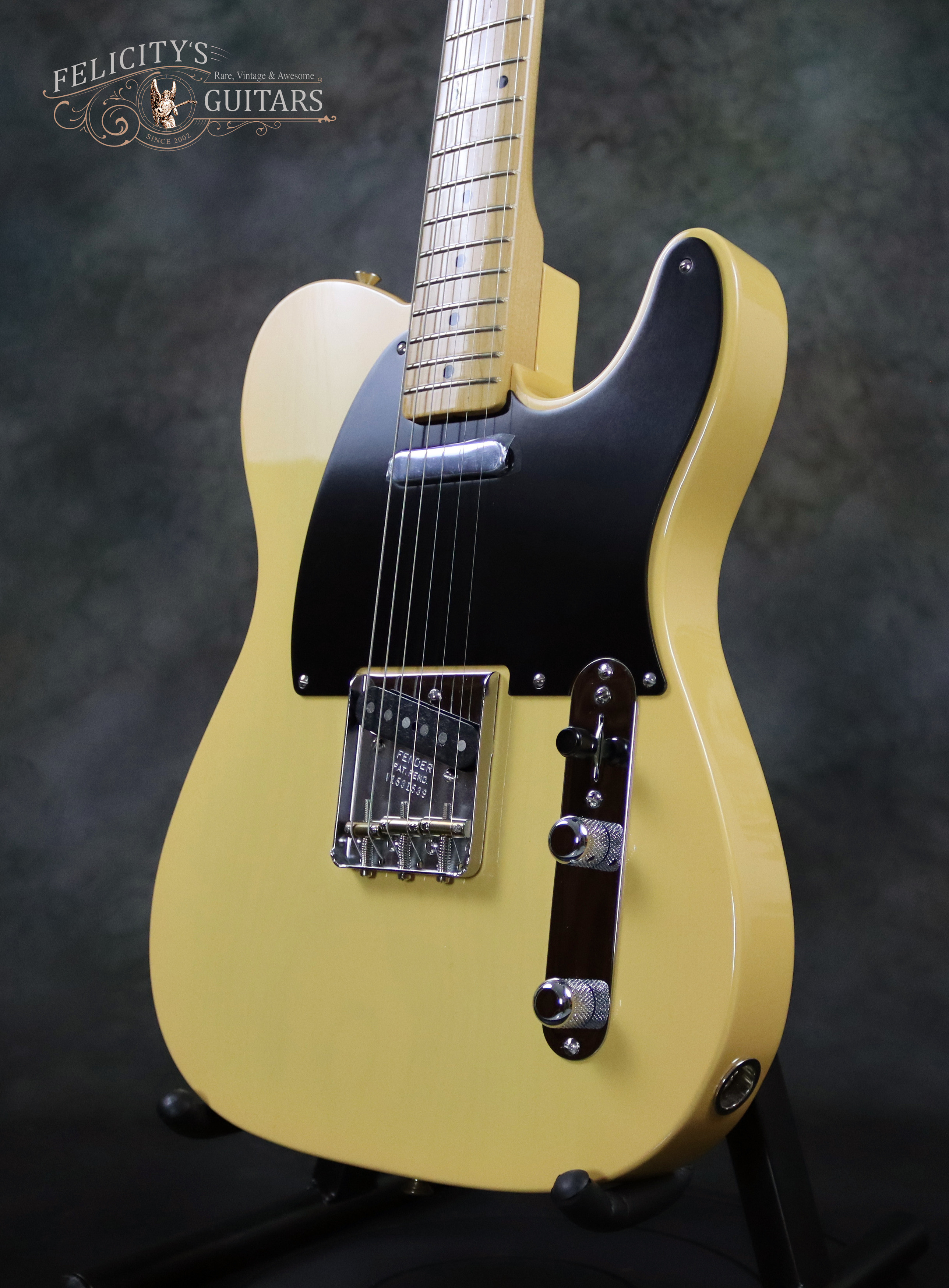

Control Knobs	Chrome Plated, Tele Control-Plate with Chrome Knurled-Rim Dome-Top Knobs
Switch	Black, Plastic ‘Barrel’ Tip Blade Switch

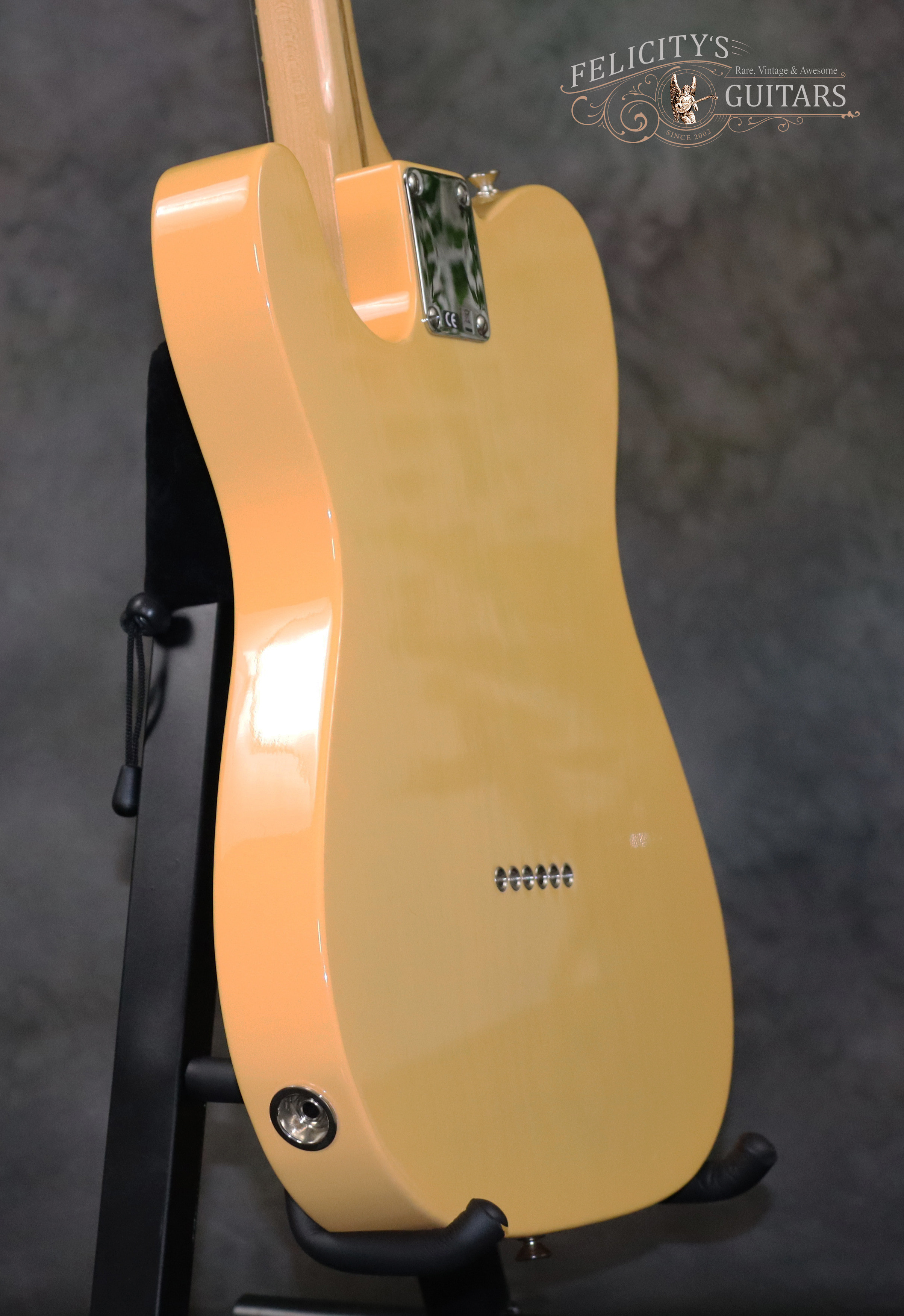

Output Jack	Chrome Plated, rear-lower-bout mounted

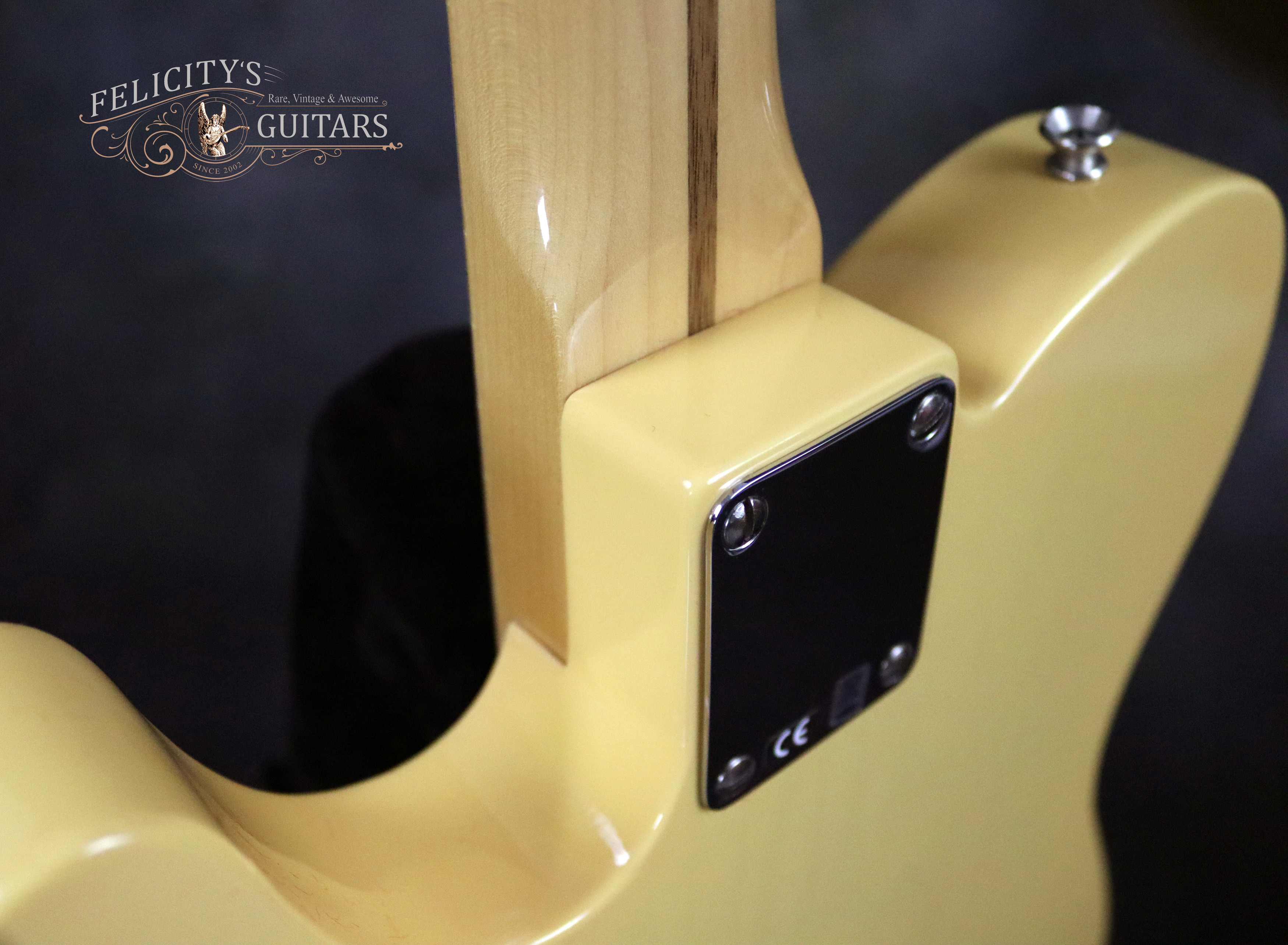

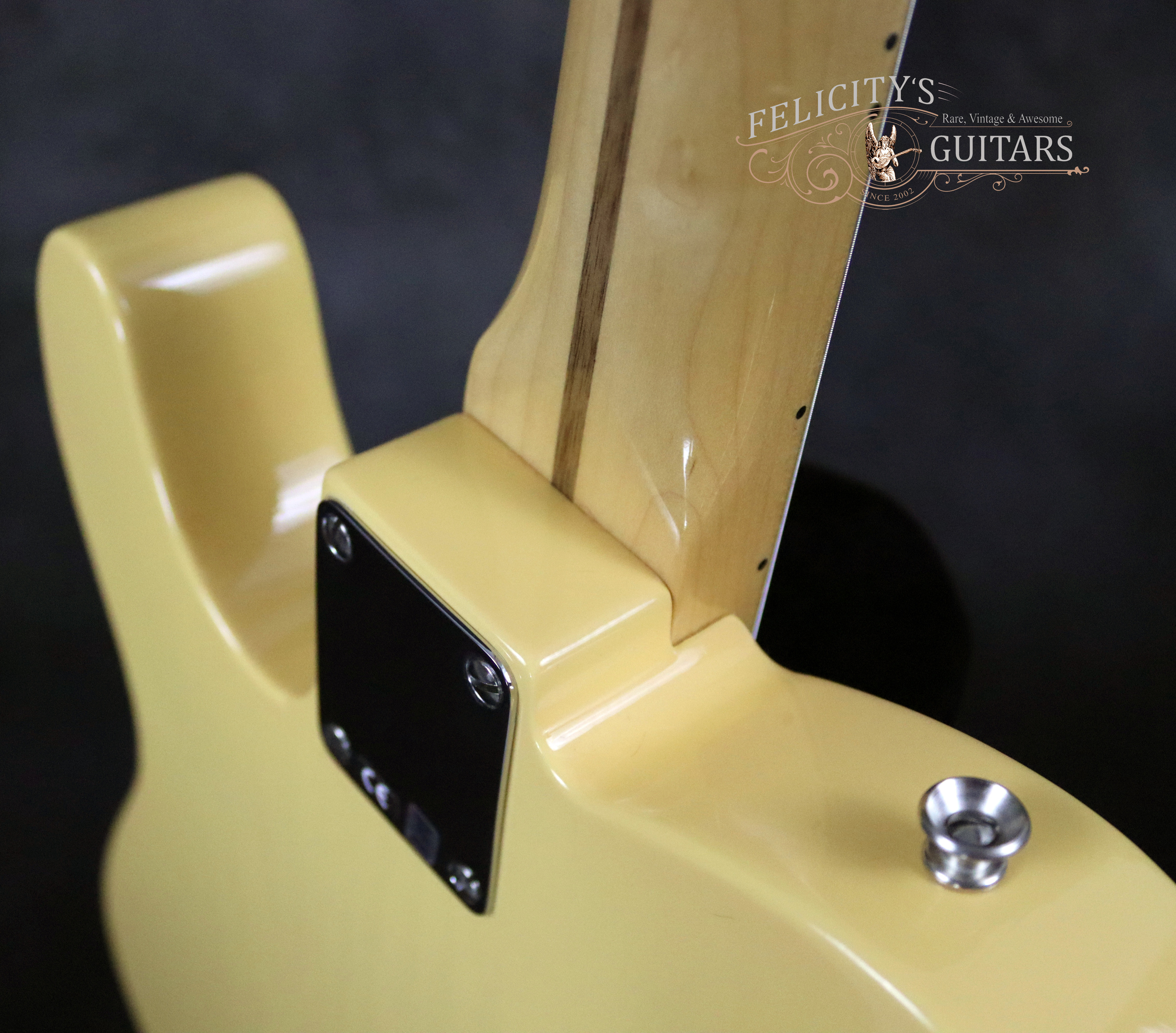

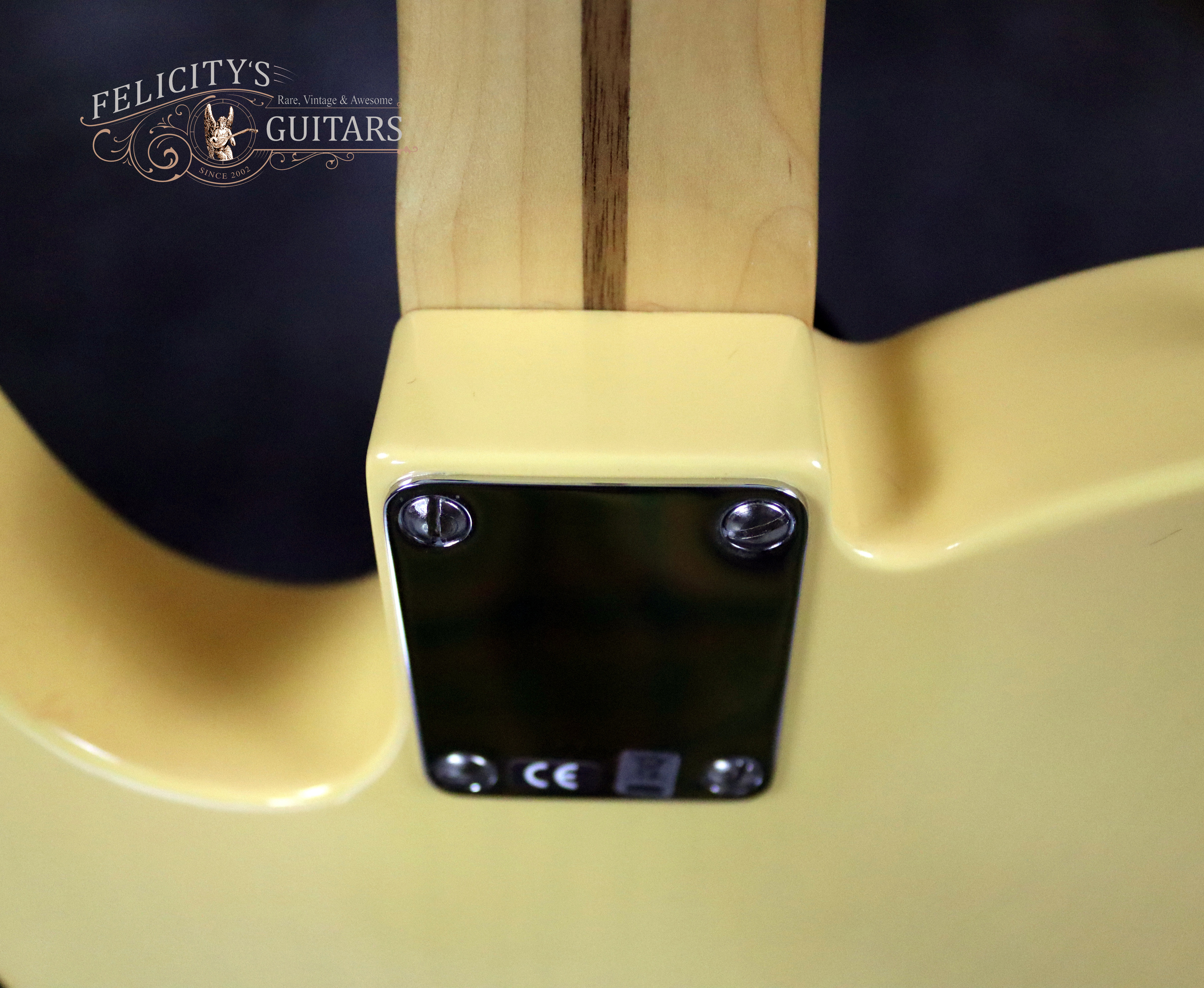

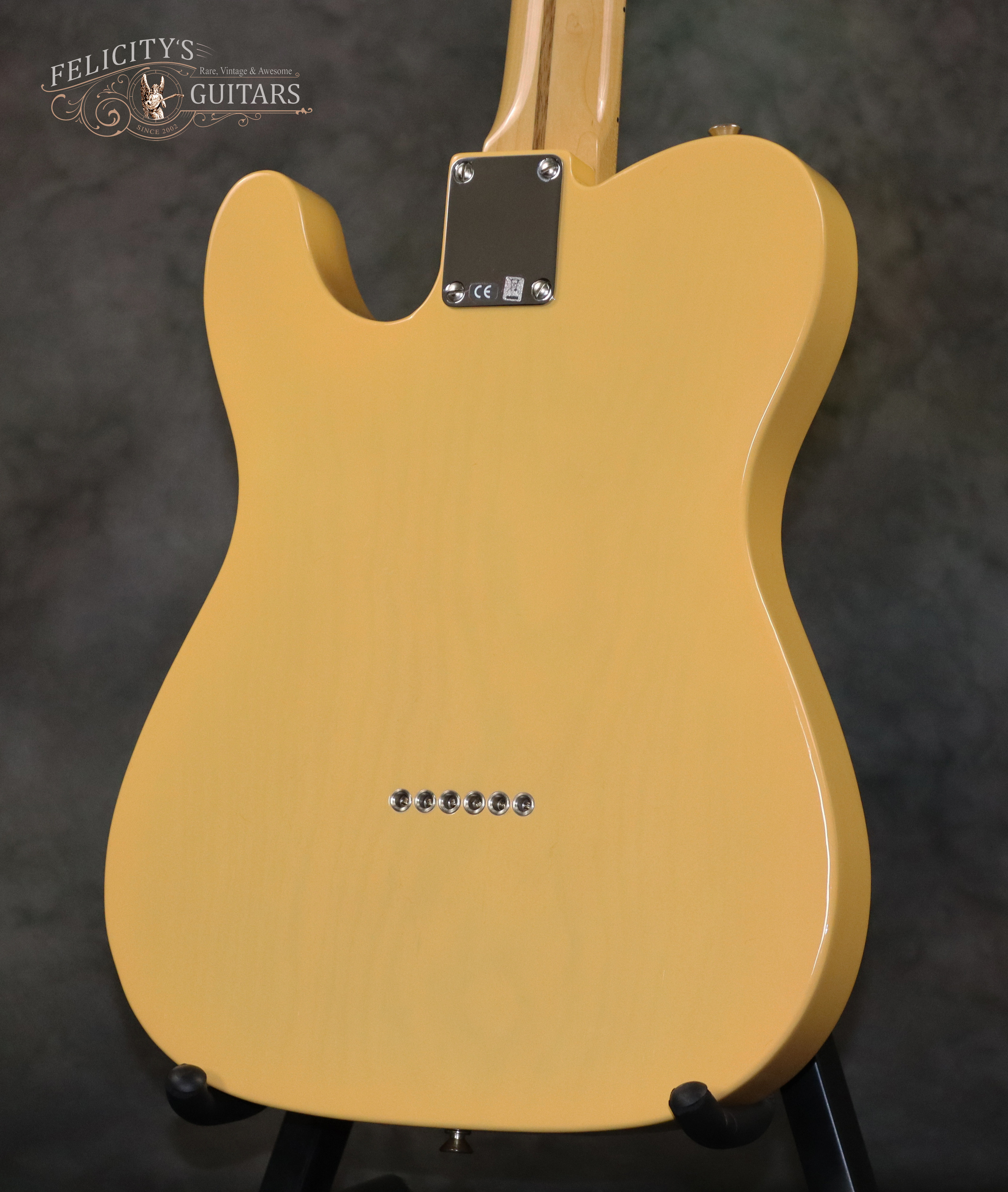

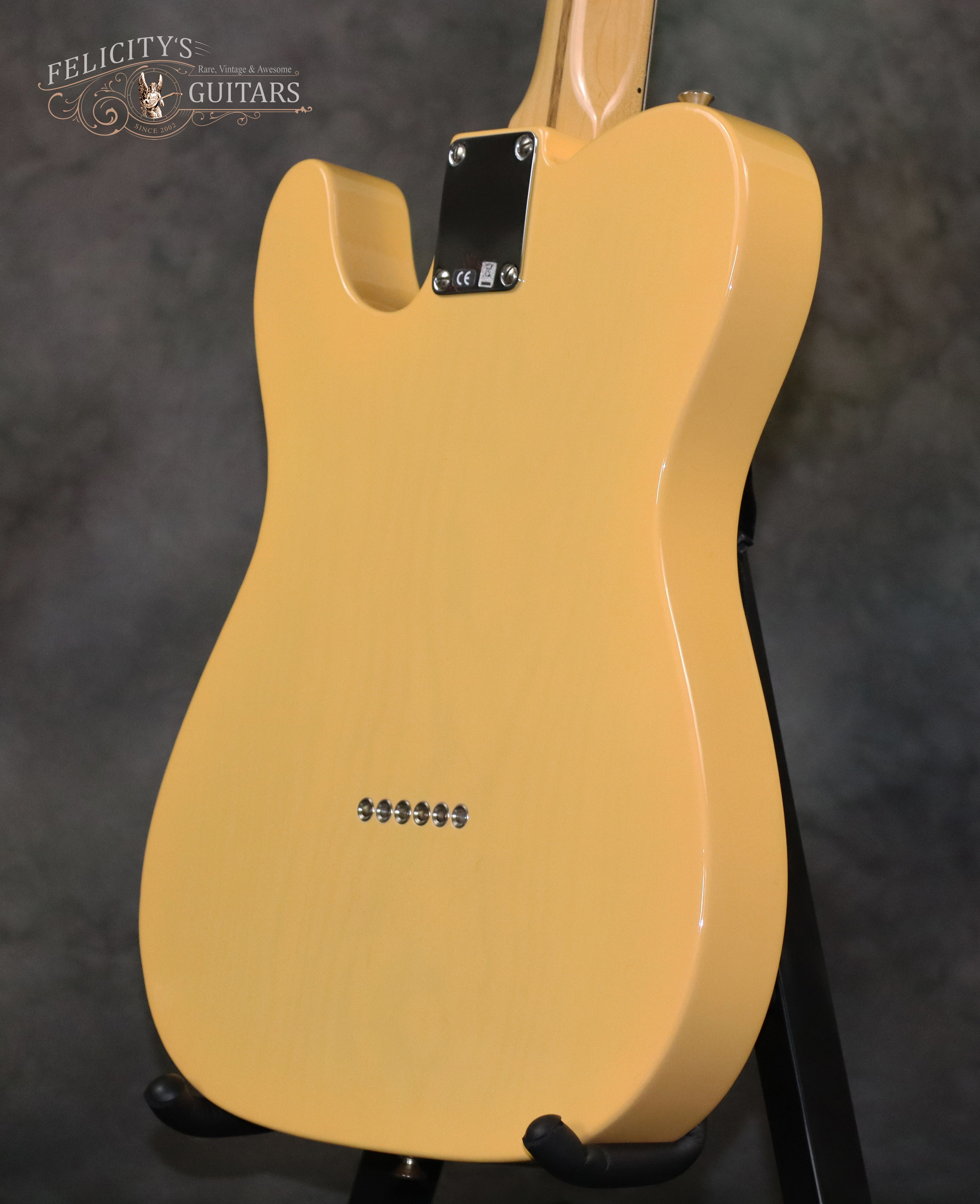

Neck Plate	Chrome Plated 4-bolt (Plain)

electronics

Bridge Pickup	Uncovered Fender® American Vintage '52 Single-Coil Tele, Alnico 3, DCR 6.6k
Middle Pickup	No
Neck Pickup	Chrome Plated, Fender® American Vintage '52 Single-Coil Tele, Alnico 3, DCR 7.2k
Active / Passive	Passive
Series / Parallel	Series
Controls	Master Volume, Master Tone, 3-position Blade Pickup Selector; Pos-1 Bridge Pickup, Pos-2 Neck Pickup
	with Tone Control (Bright Vintage Circuit), Pos-3 Neck Pickup with No Tone Control (Dark Vintage Circuit)
Vol Potentiometer	250k
Tone Potentiometer	250k
Capacitor / Resistor	Vintage Circuit Values
Harness	Vintage Control-plate Mounted Telecaster Wiring
Coil-split / Coil-tap	No
Piezo	No
Active EQ	No
Kill switch	No
Output Jack	1/4" 2-Conductor Mono

miscellaneous

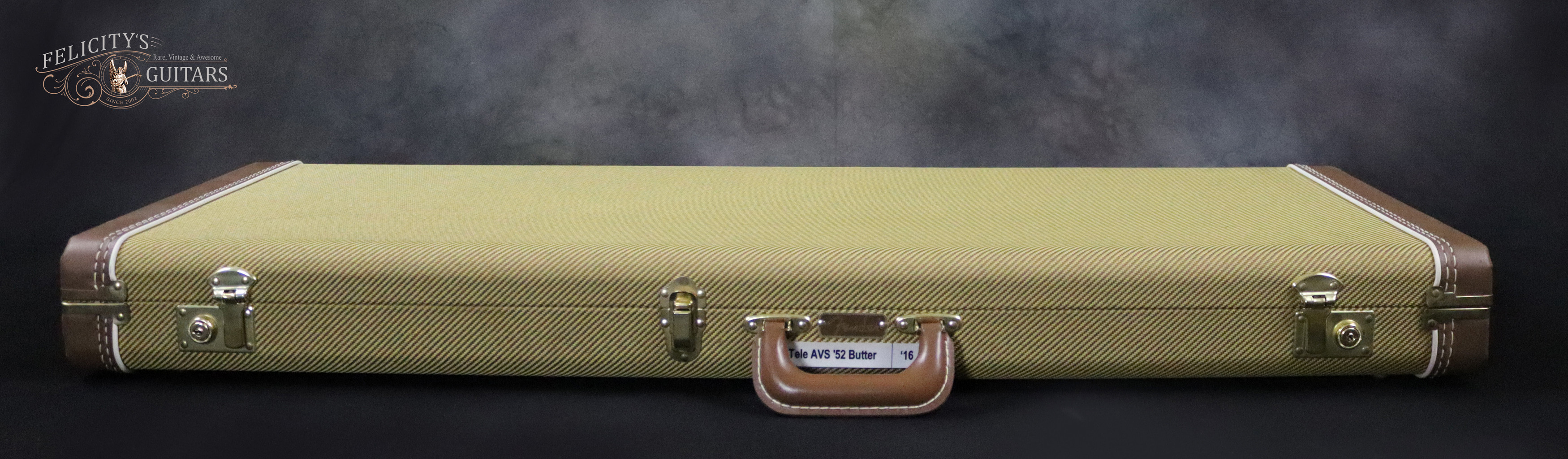

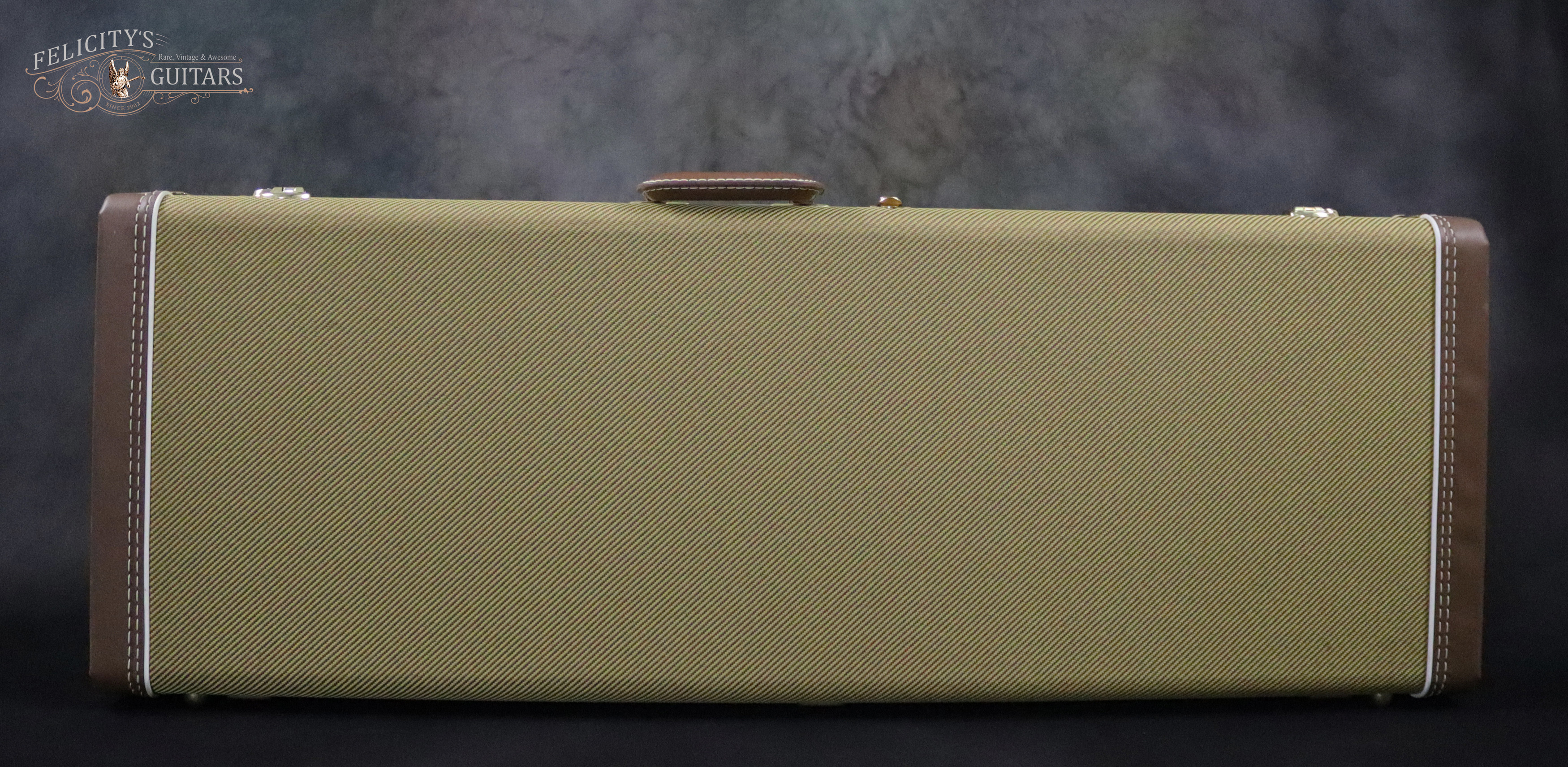

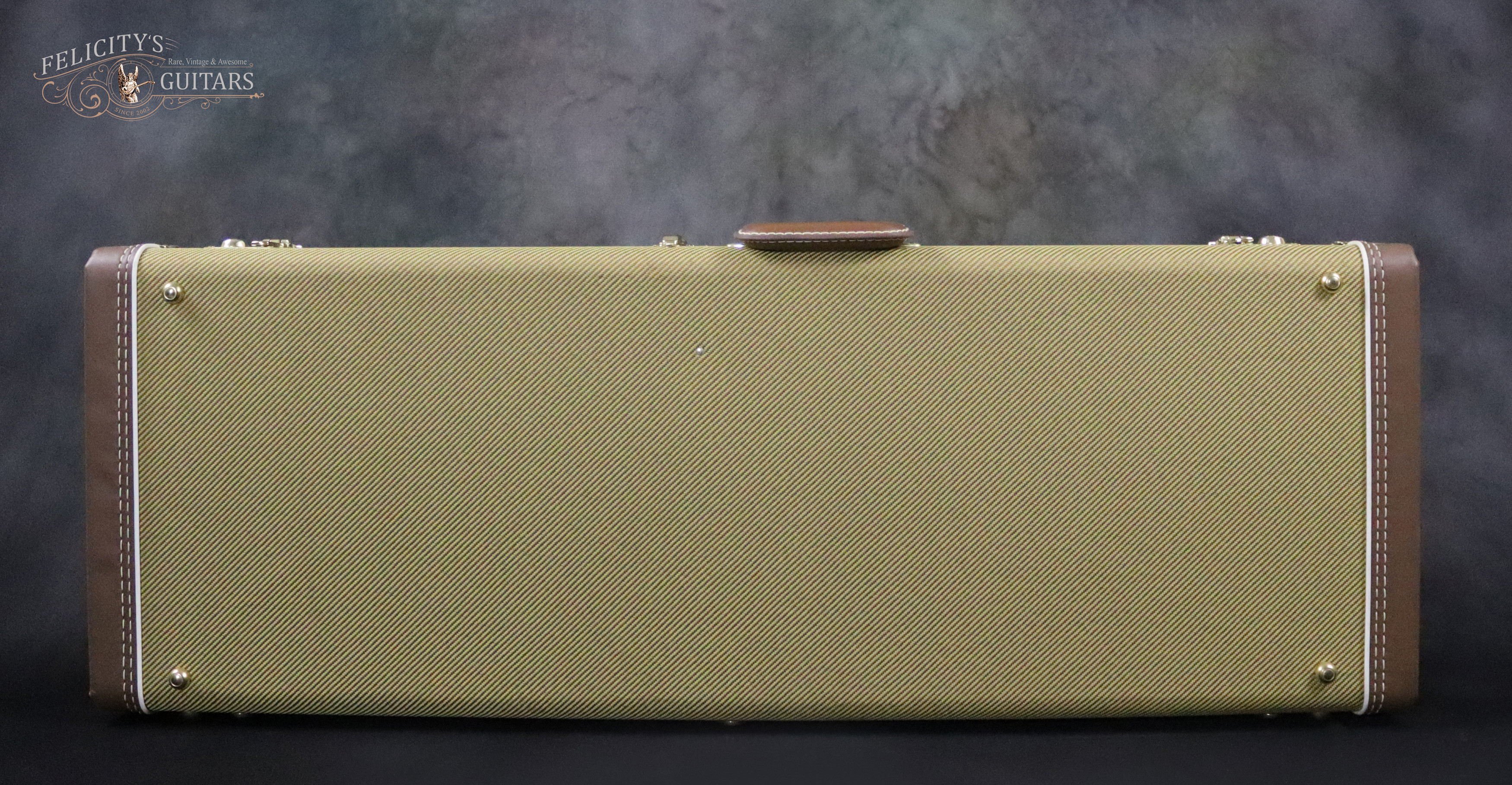

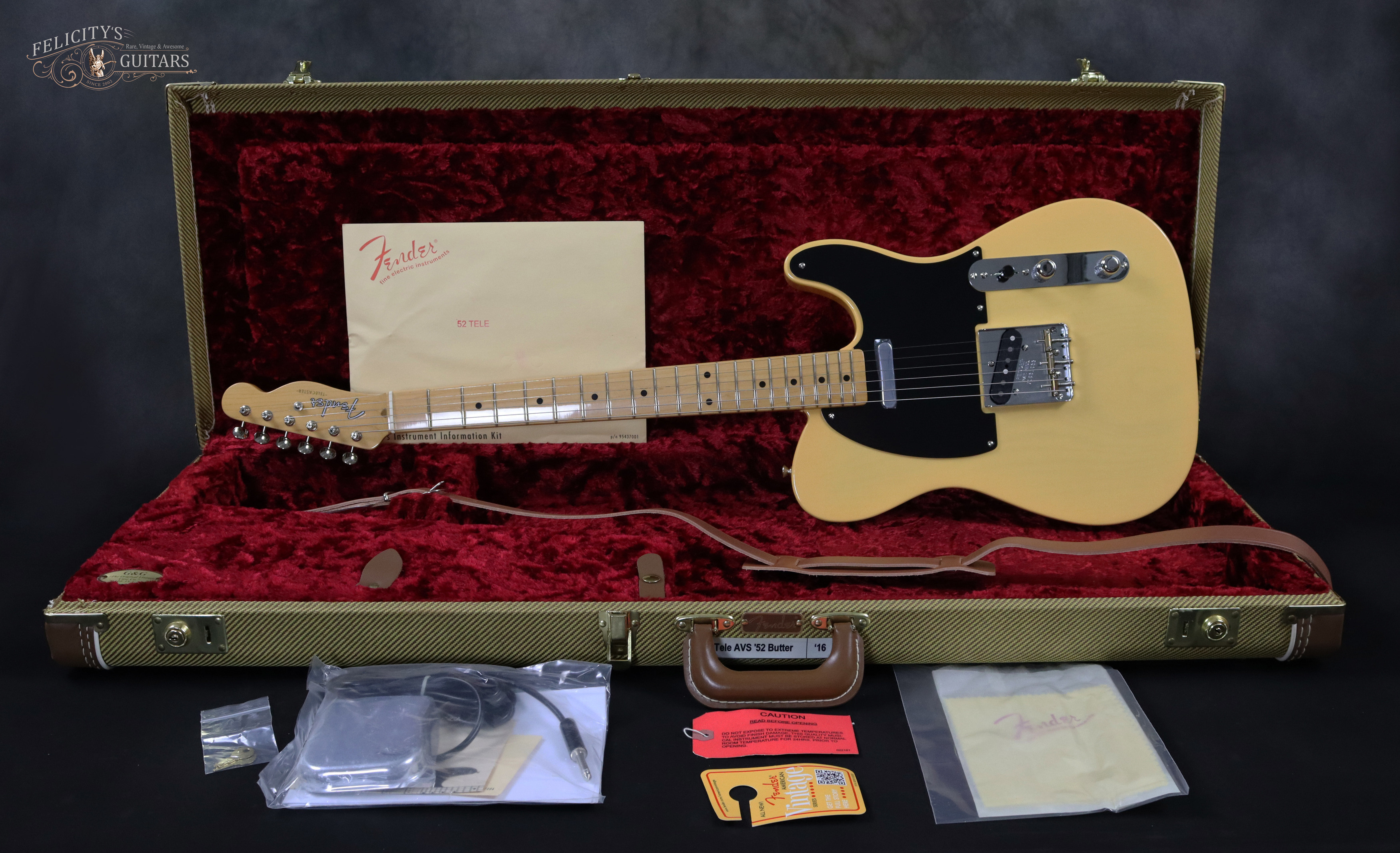

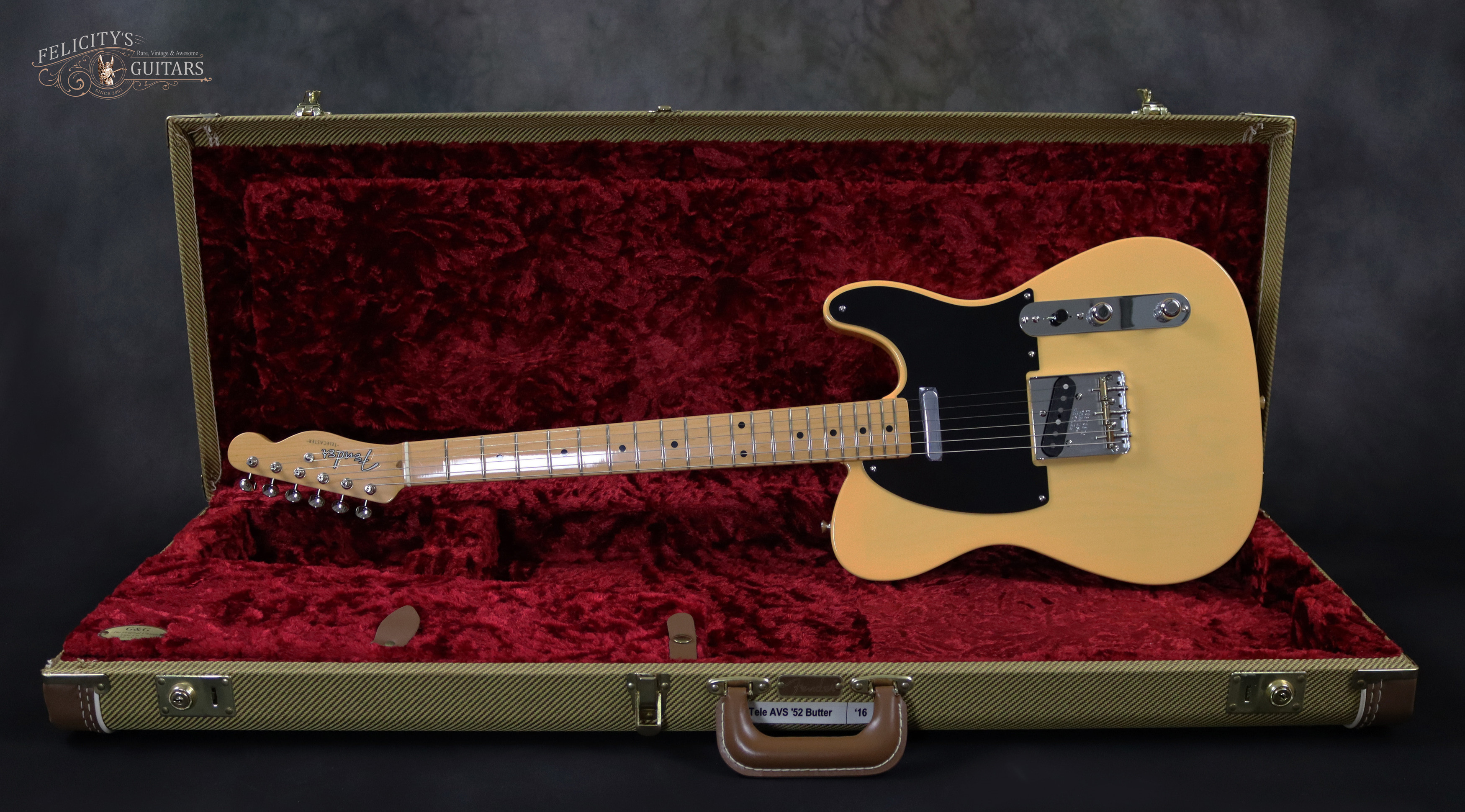

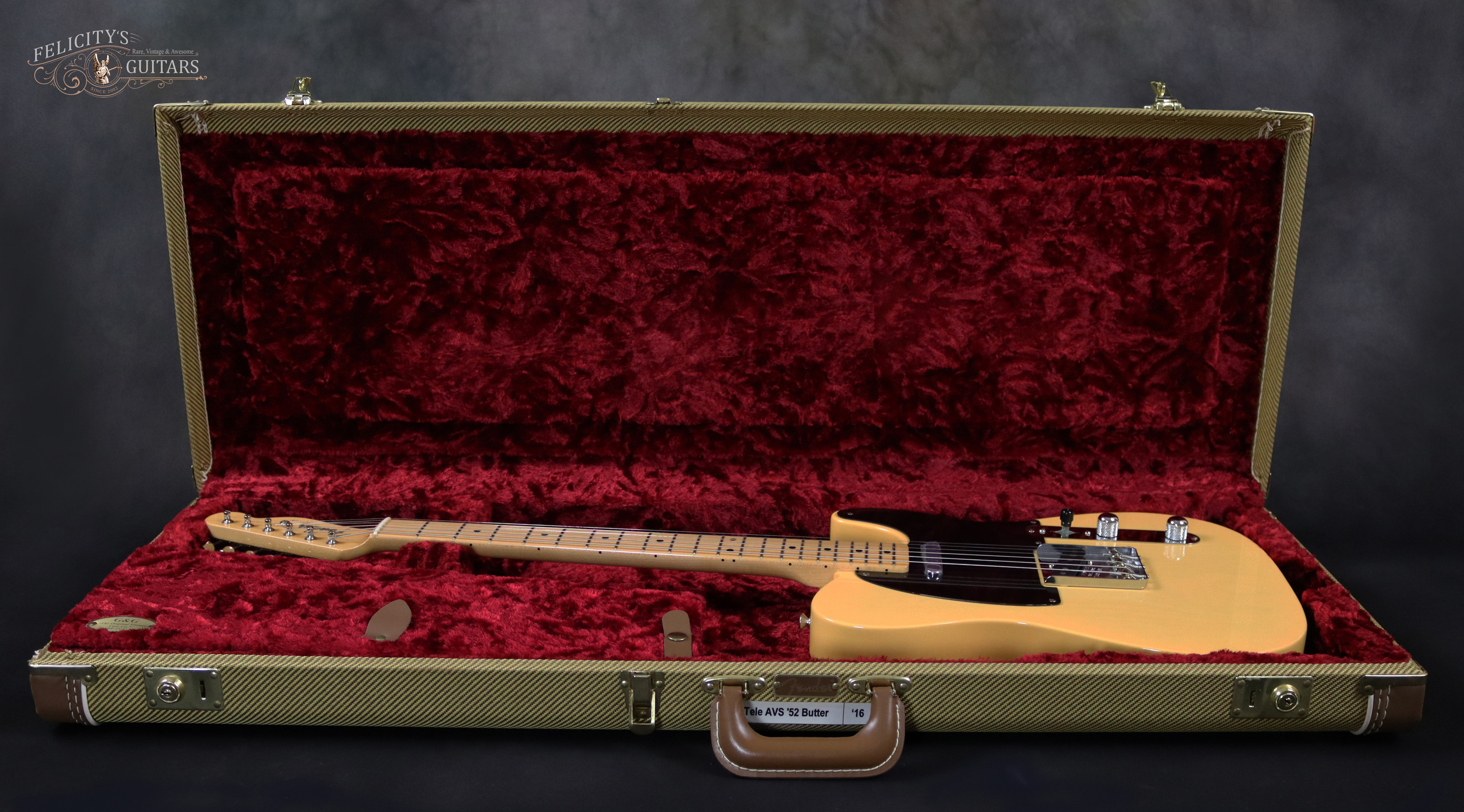

Case / Gigbag	Fender® U.S.A. Deluxe Vintage Tweed Hardshell Case with Red Crushed Velvet Interior
Strap Locks	No
Strings	Fender® USA 250R NPS, (.010-.046 Gauges)
Tools / Accessories	Saddle Height Wrench / Vintage '52 Strap, Cable, Polishing Cloth, Ash-tray Bridge Cover

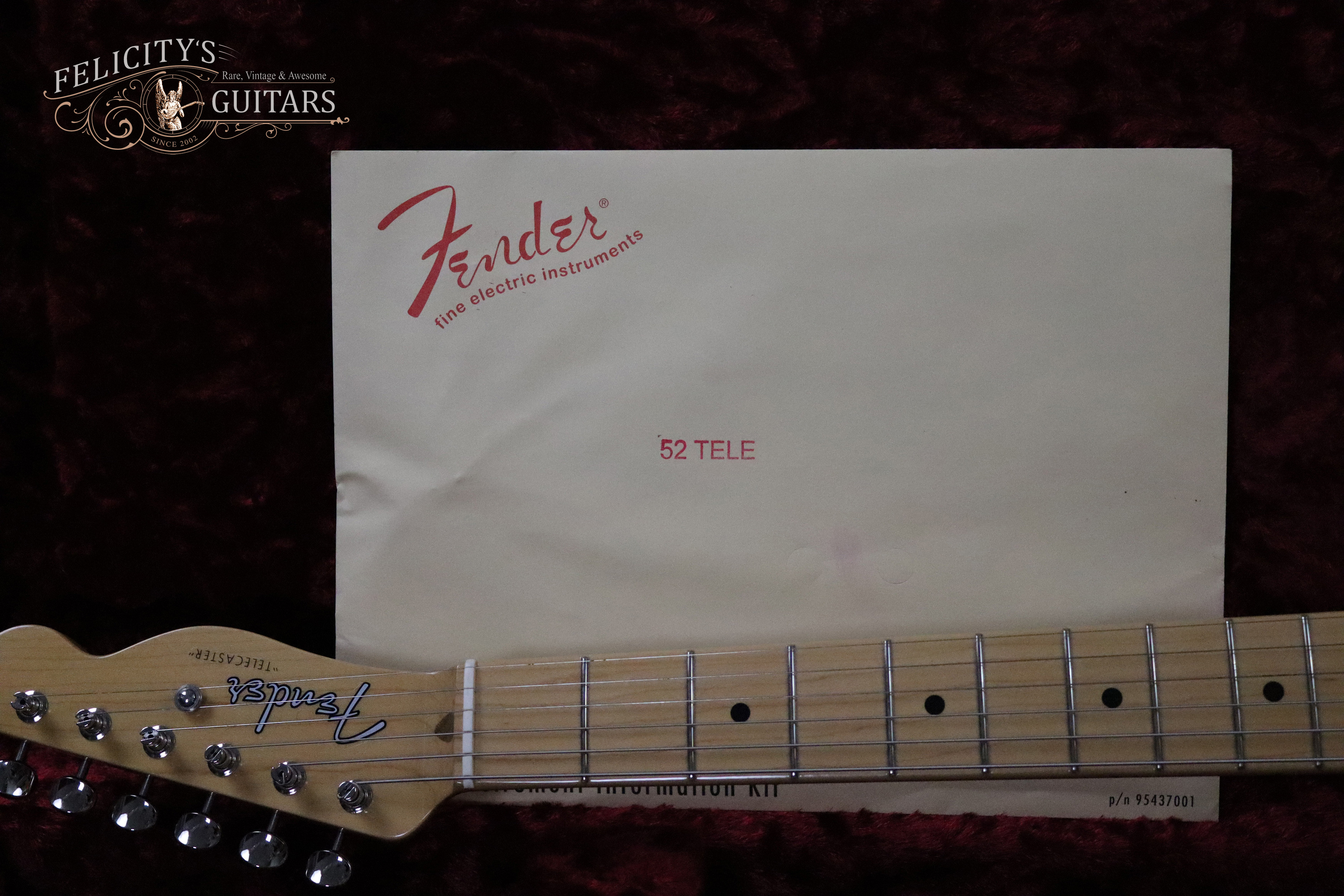

Manual / Literature	Fender® U.S.A. Owner’s Manual, Instruction Manual, Vintage Wiring Kit, (sealed) '50s Telecaster Information Kit and All
	Factory Hang Tags
C.O.A.	No
Other	Case Keys
Weight	Is the actual weighed-value in US Standard Units

Disclosure	Some technical Specs may have been extracted from Fender® U.S.A. and/or internet archives. The words Fender® / Gotoh® and the associated designs are registered trademarks of the Fender Musical Instruments Corporation and the other named entities, respectively
