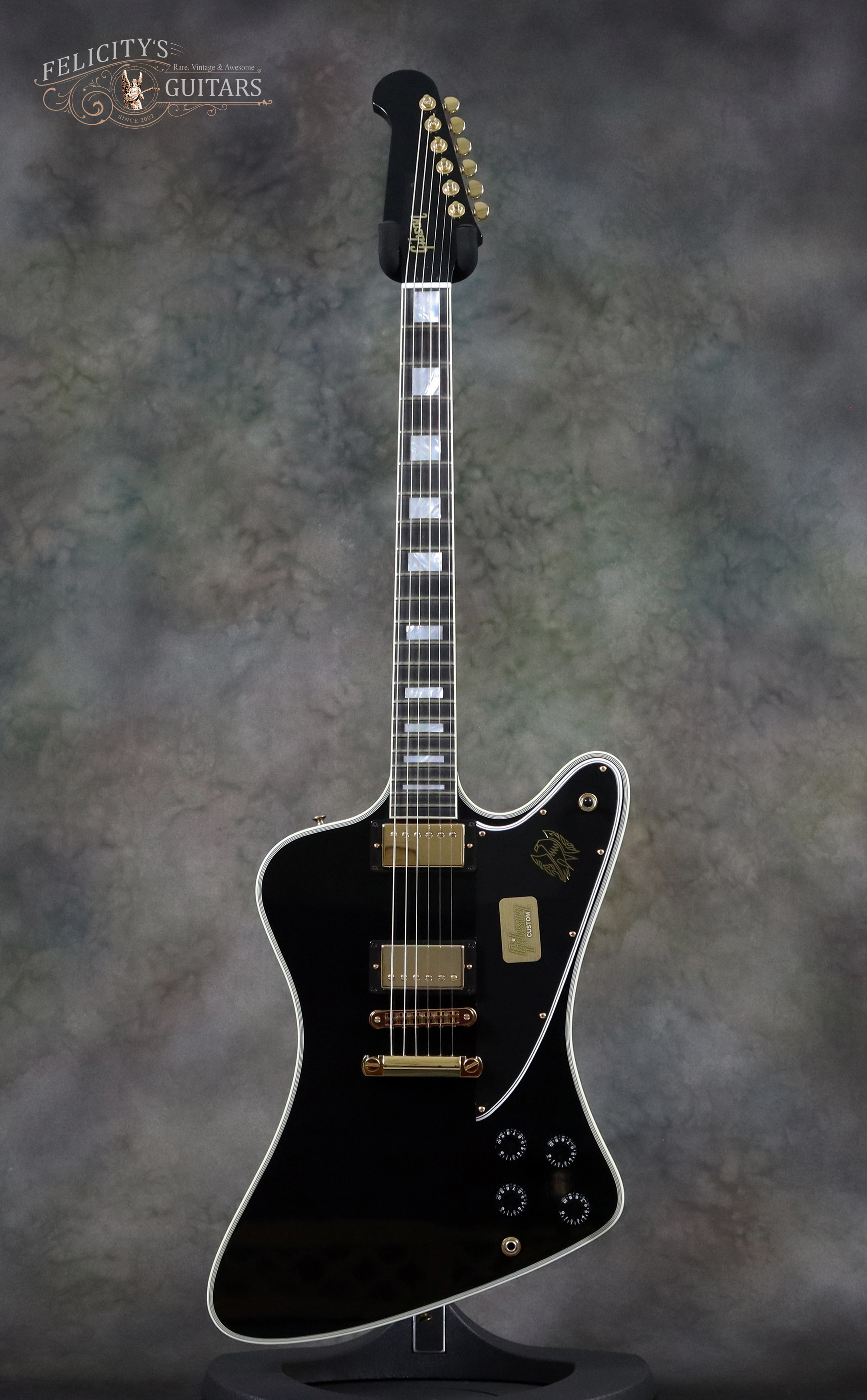

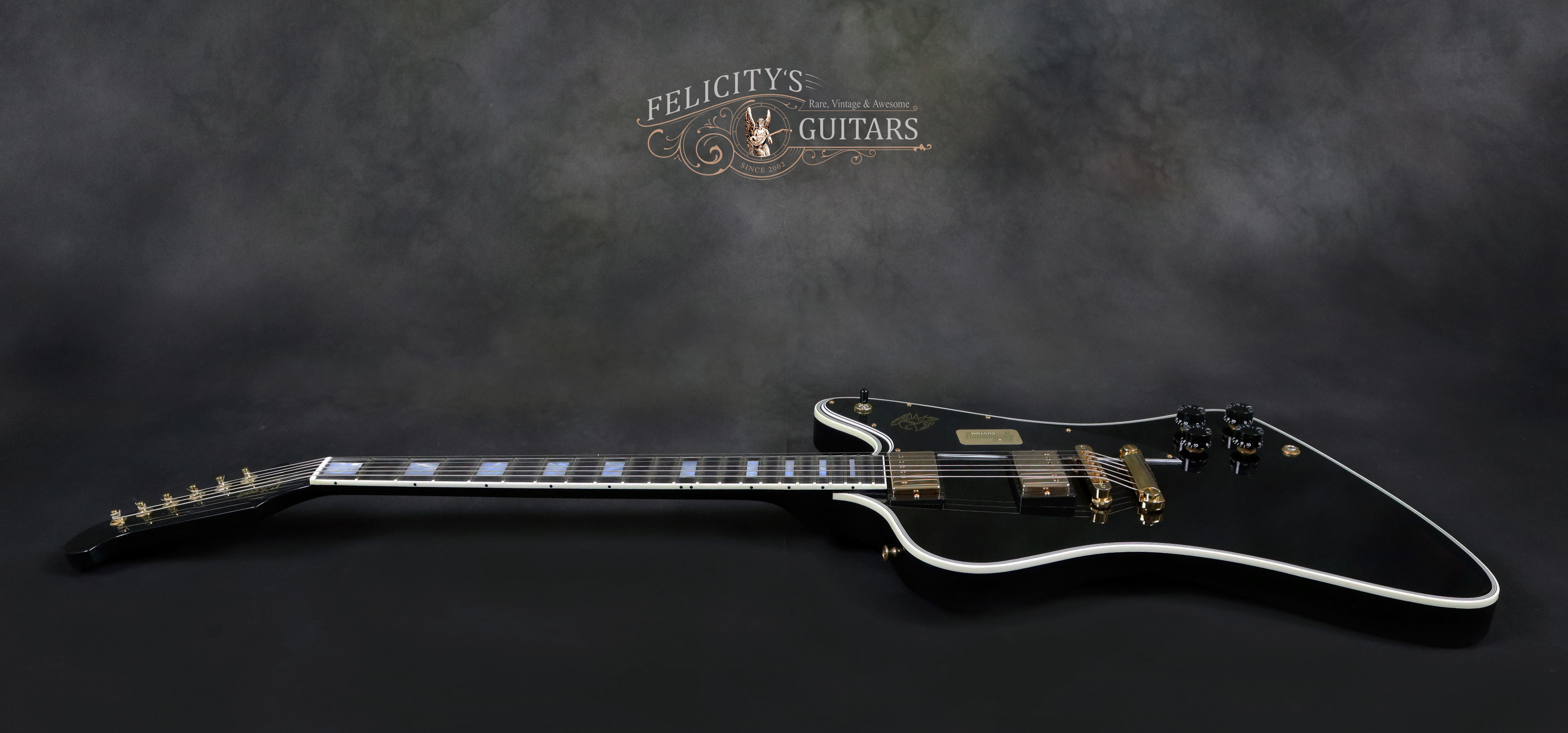

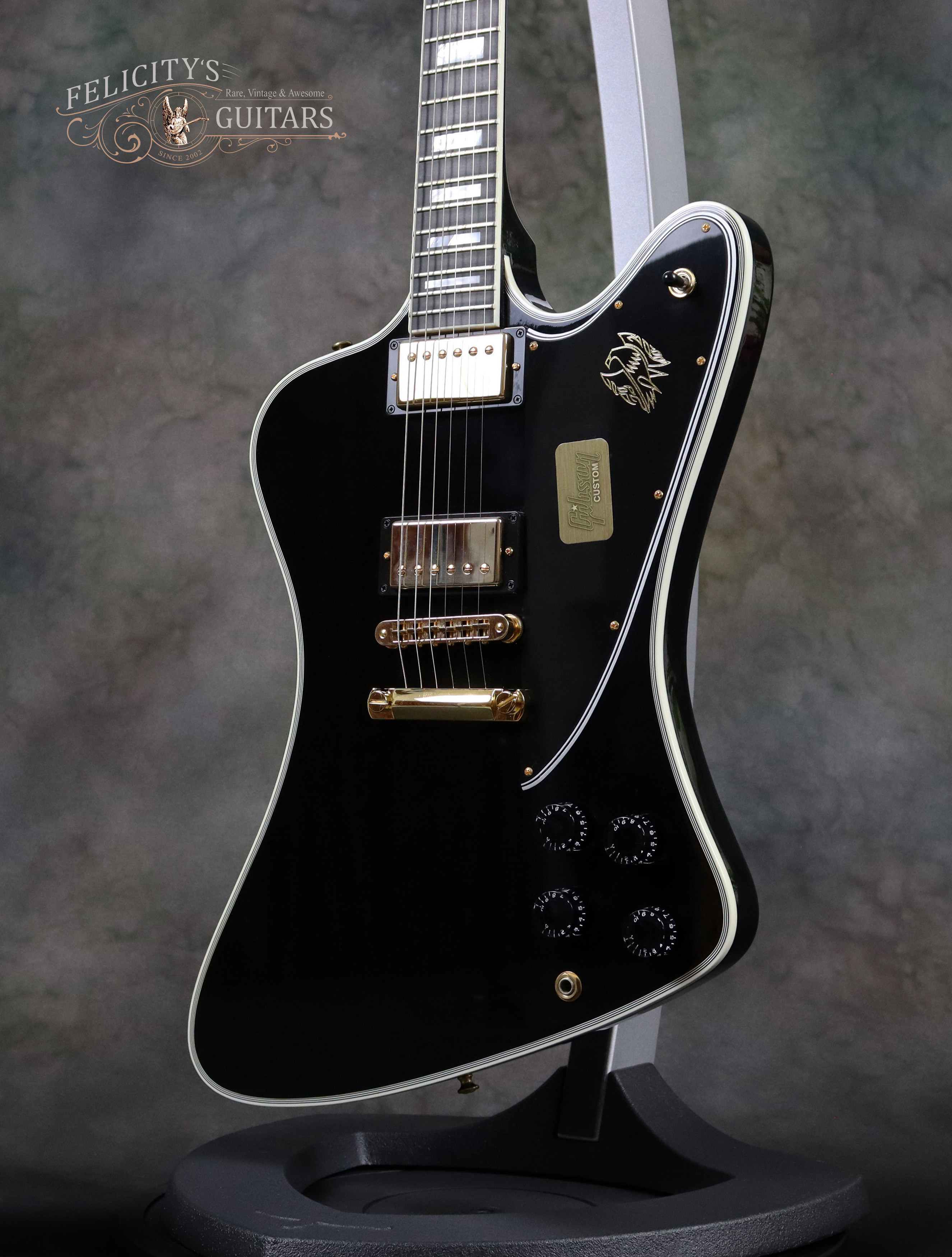

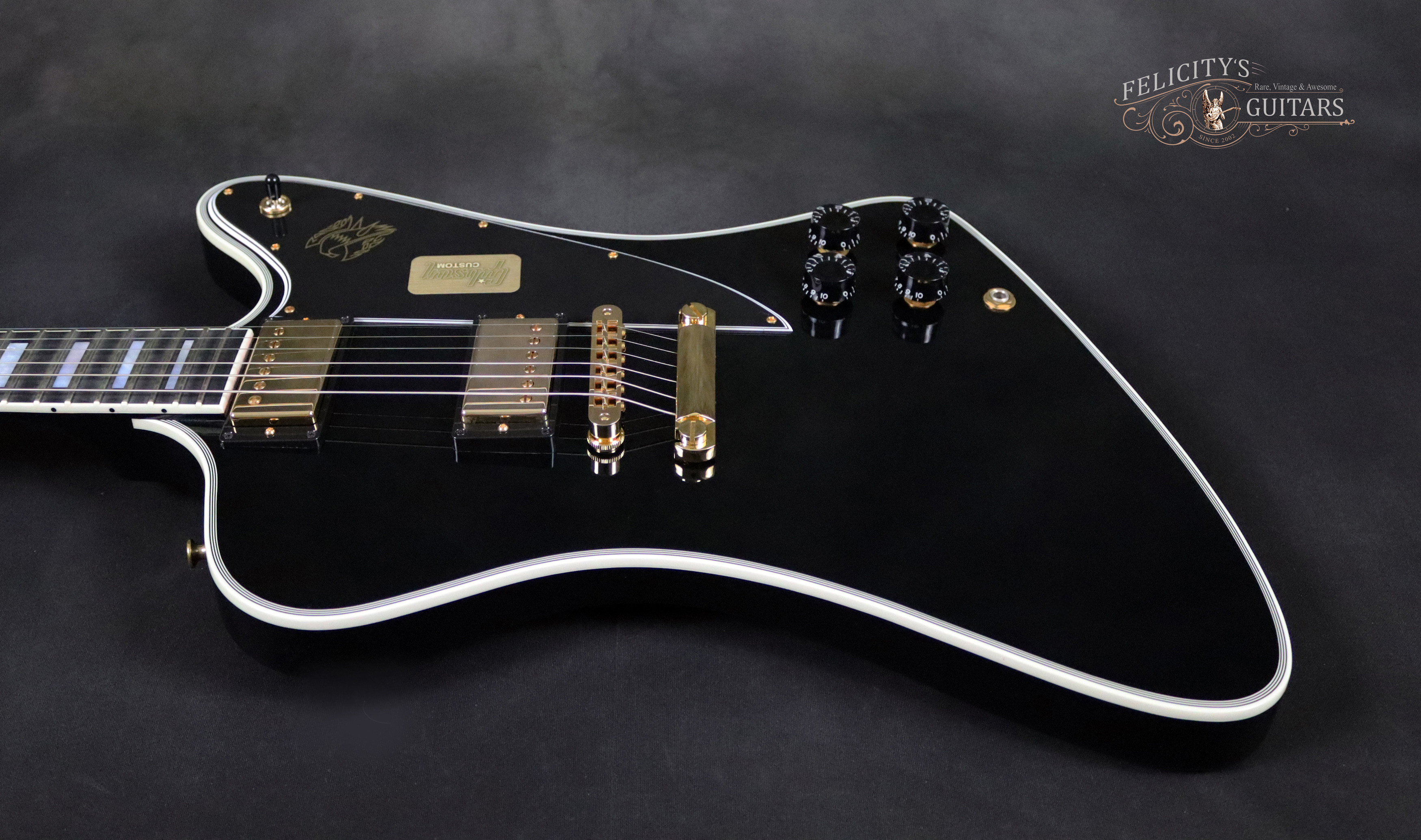

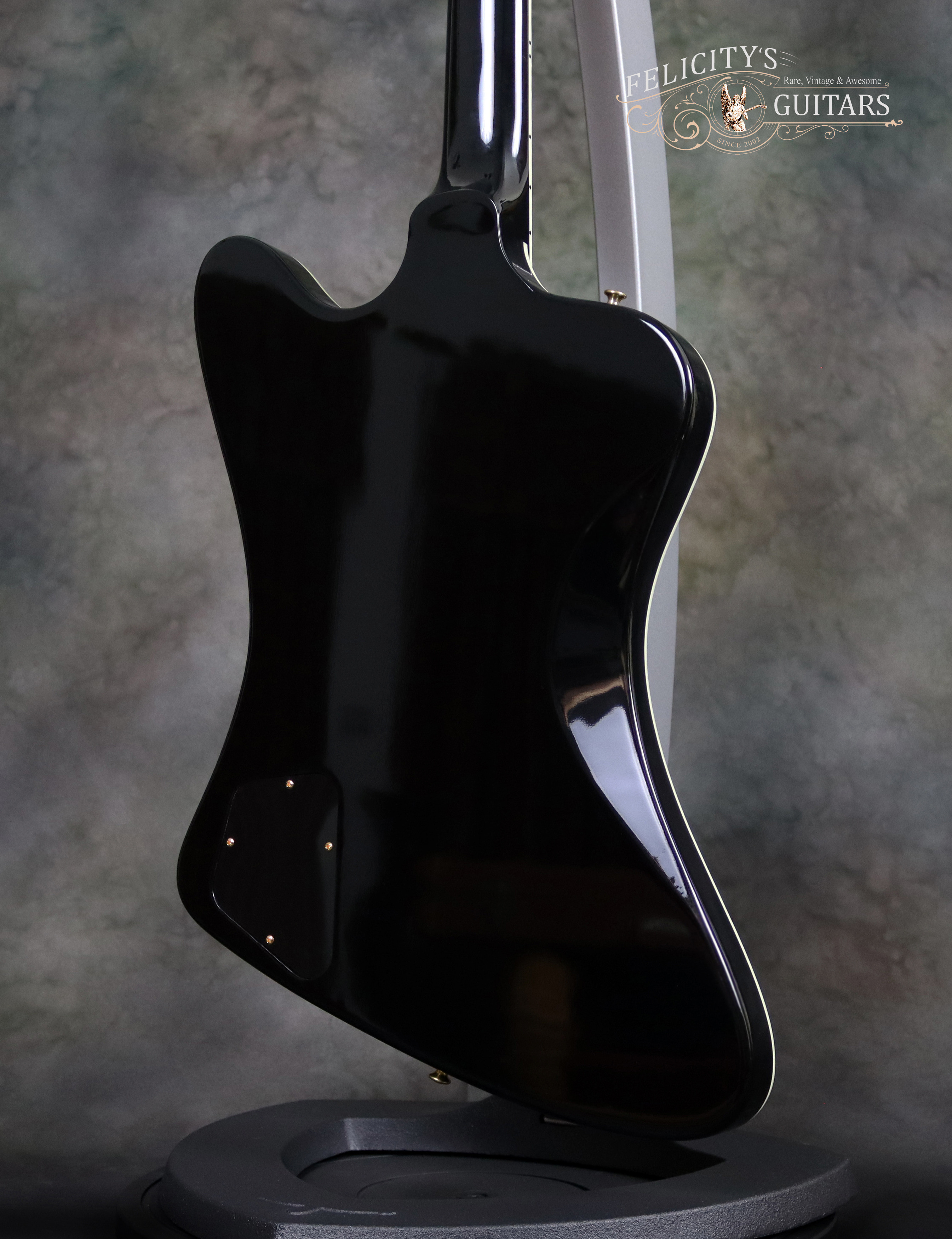

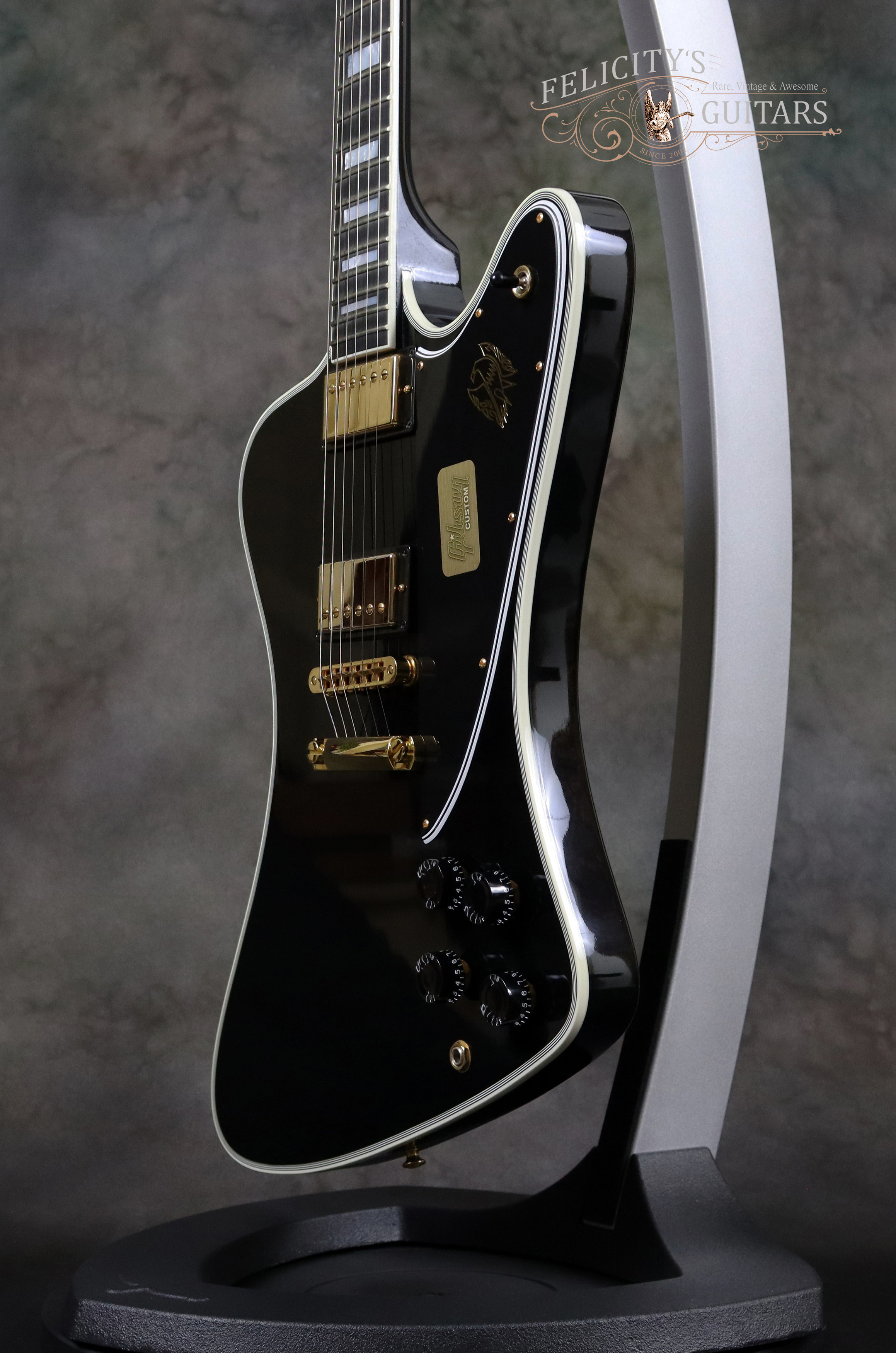

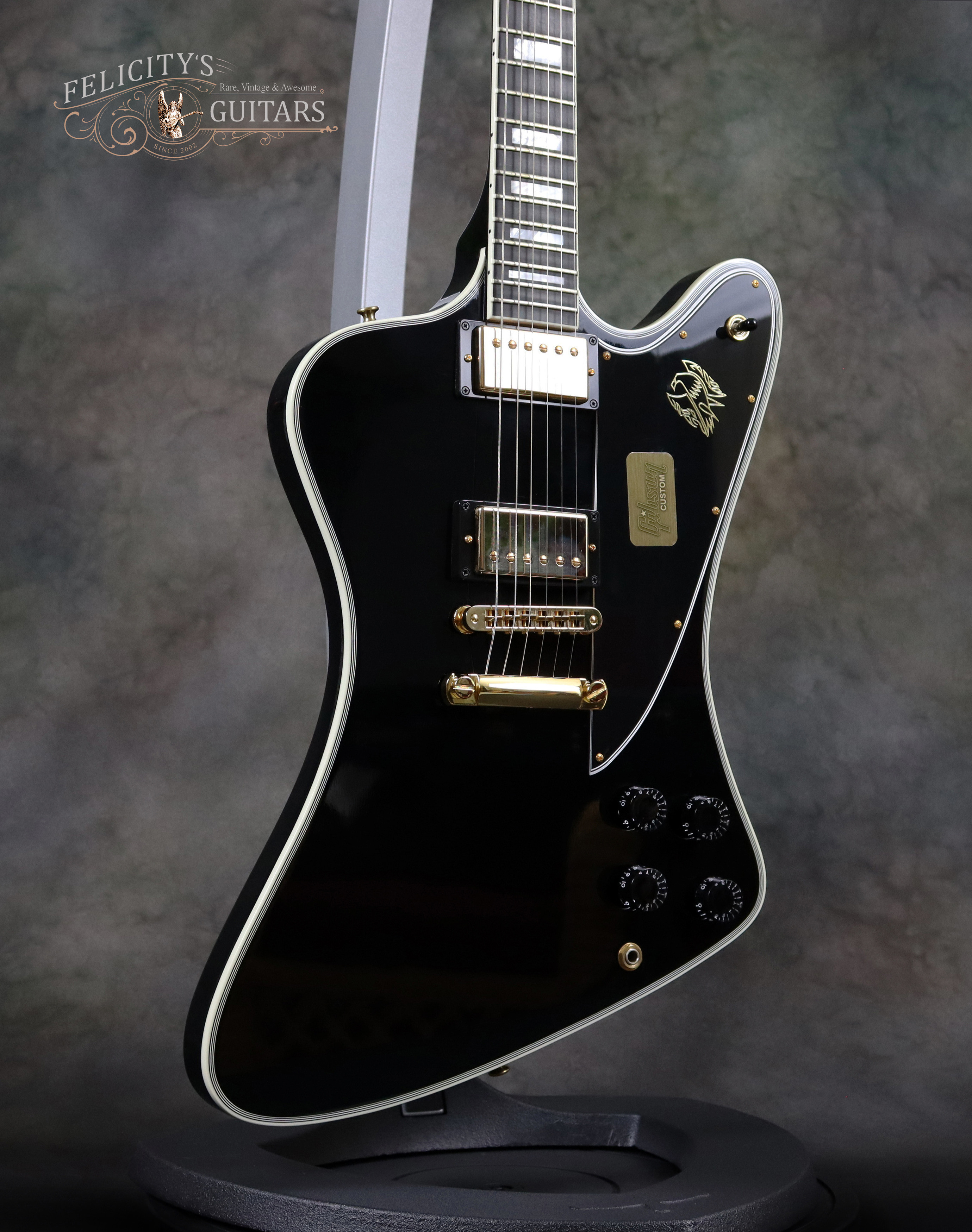

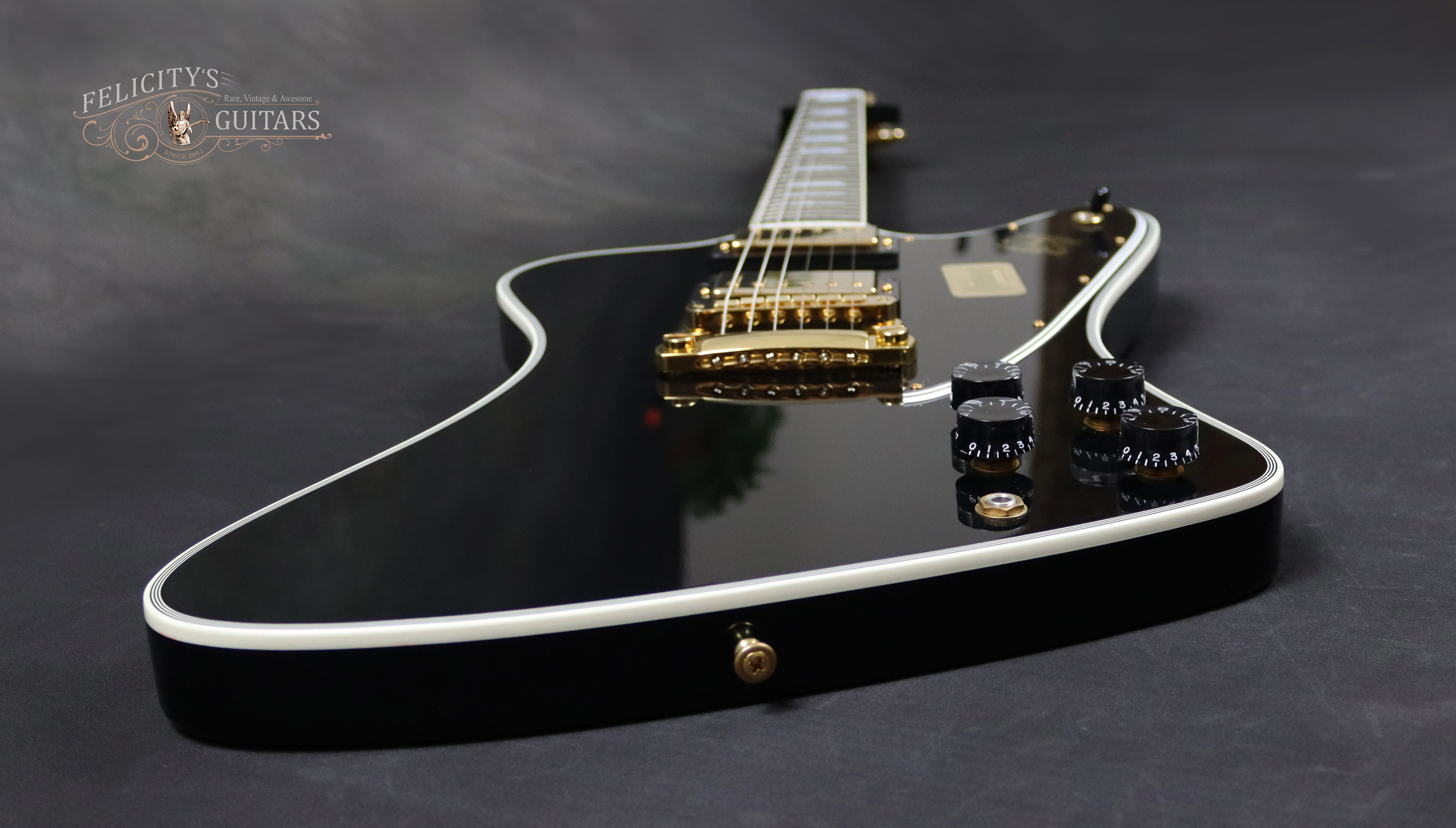

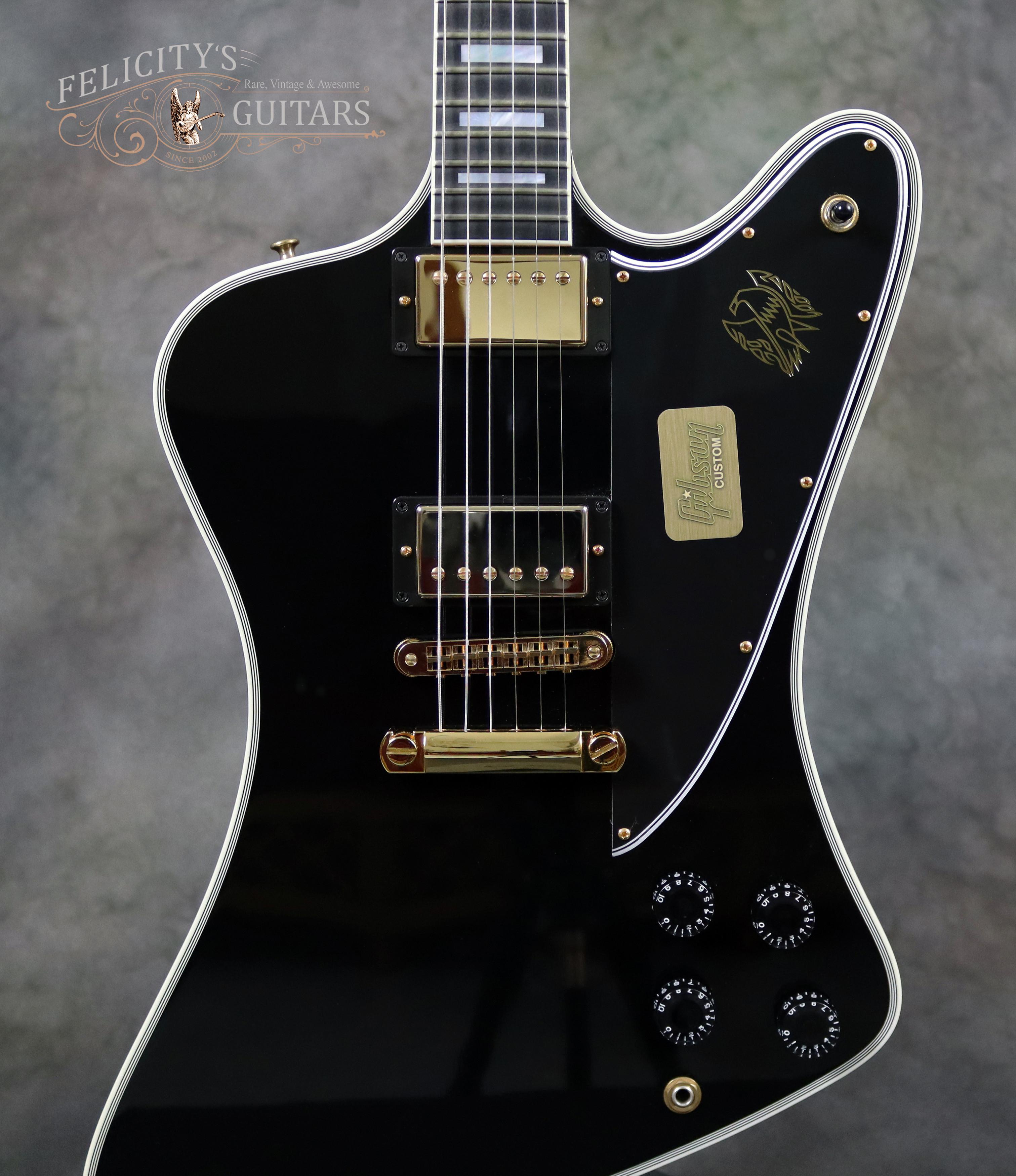

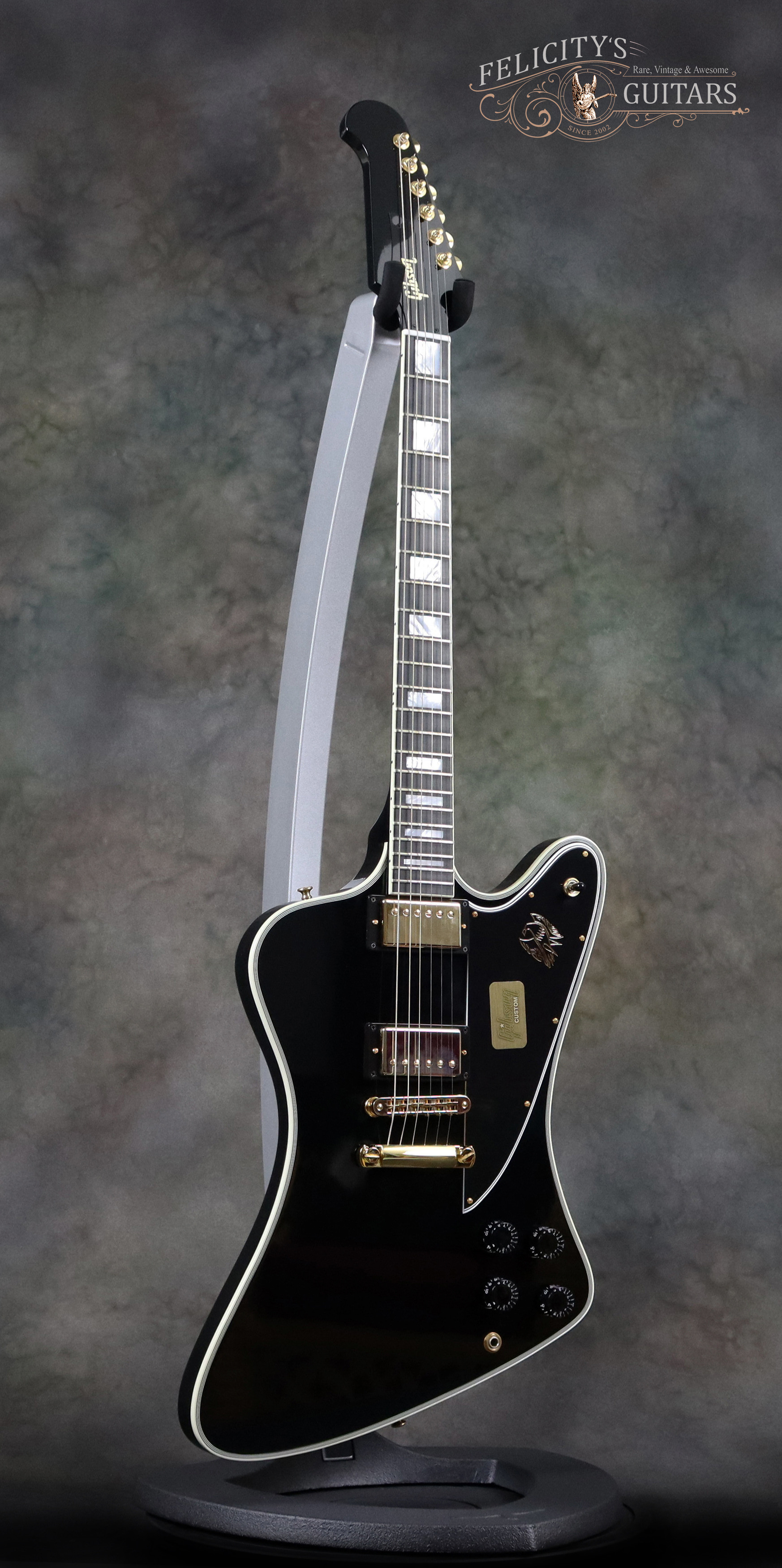

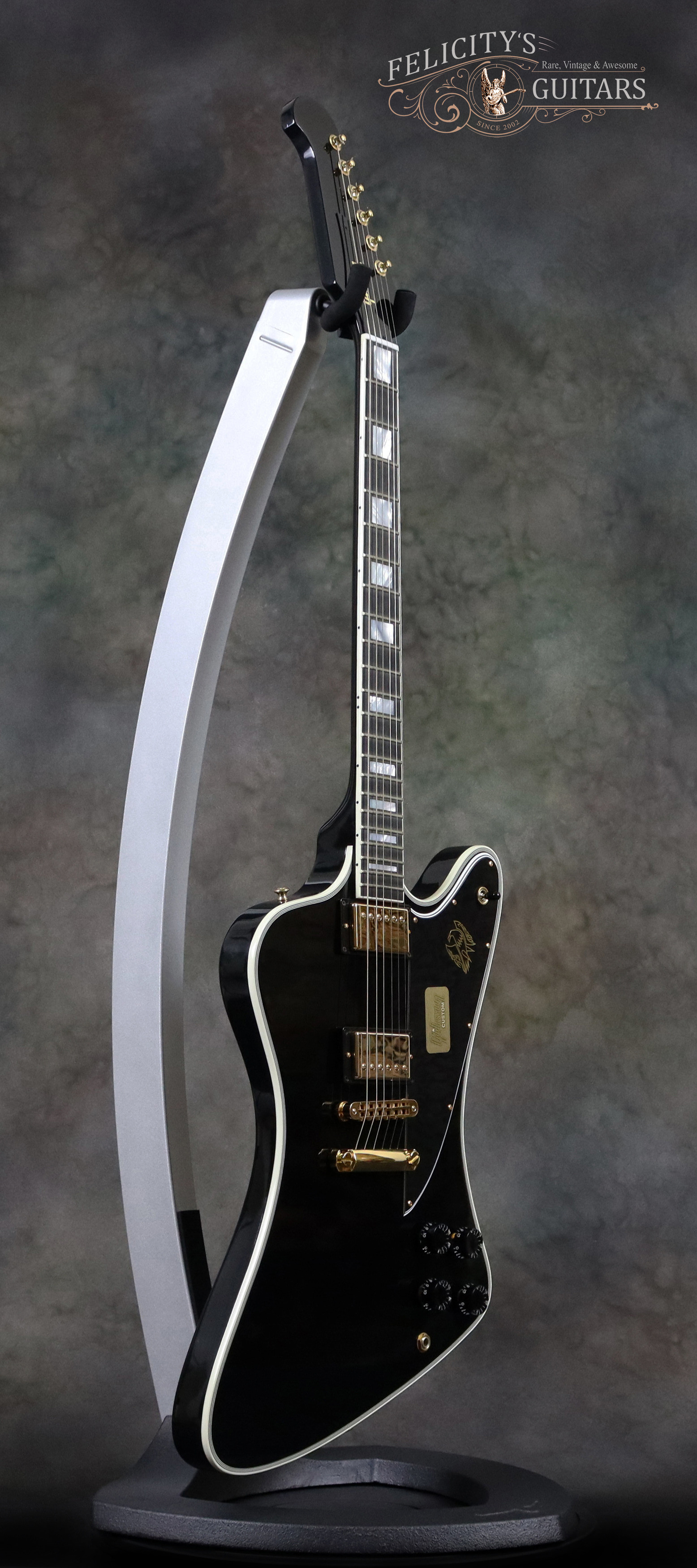

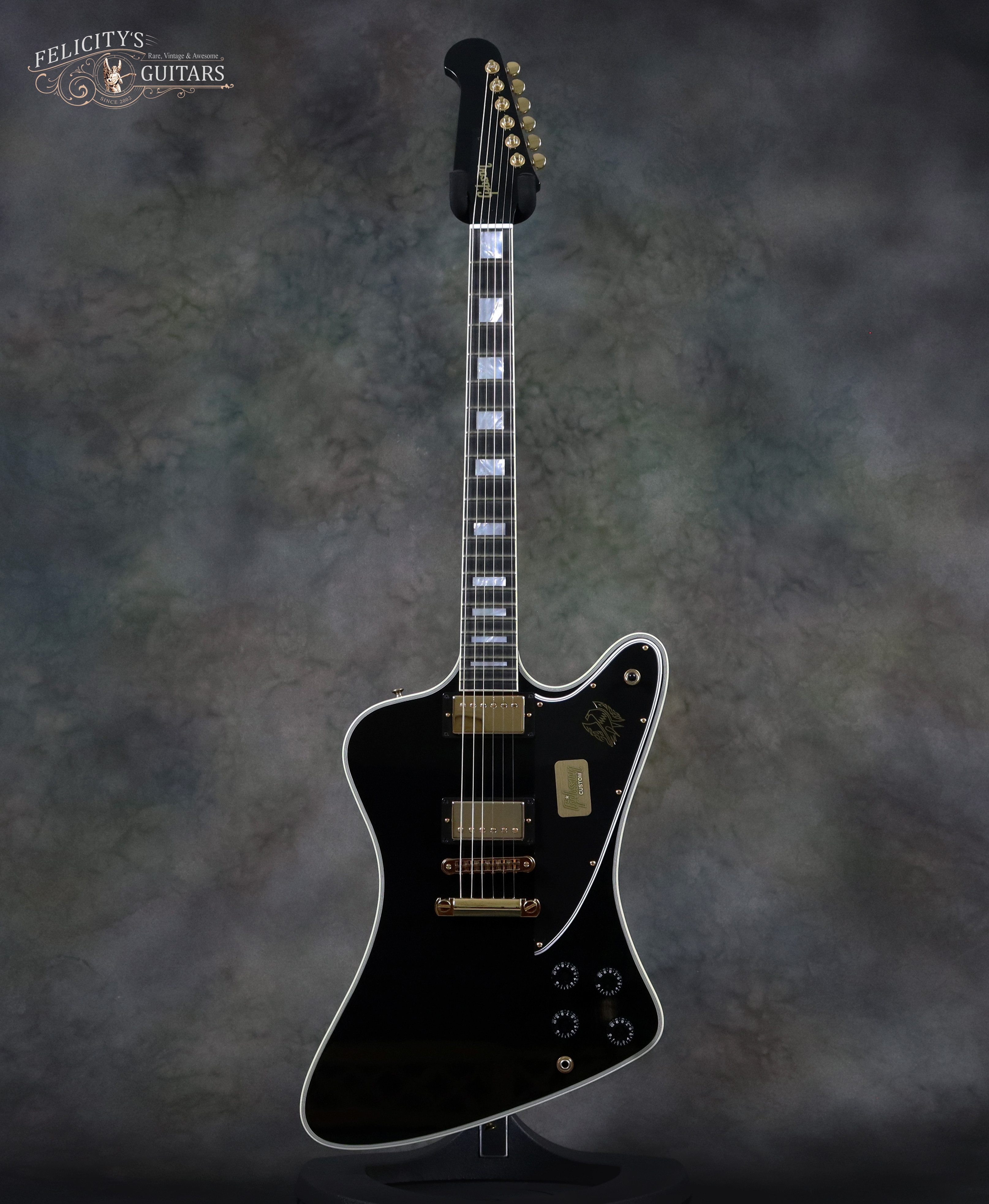

2017 GIBSON CUSTOM FIREBIRD V ‘CUSTOM’ IN EBONY FINISH

The boldest and best-dressed Bird yet!

Gibson Custom Shop is the pinnacle of craftsmanship, quality, and sound excellence. Each instrument celebrates Gibson's legacy through accuracy, authenticity and attention to detail.

The 2017 Firebird V Custom at a glance:

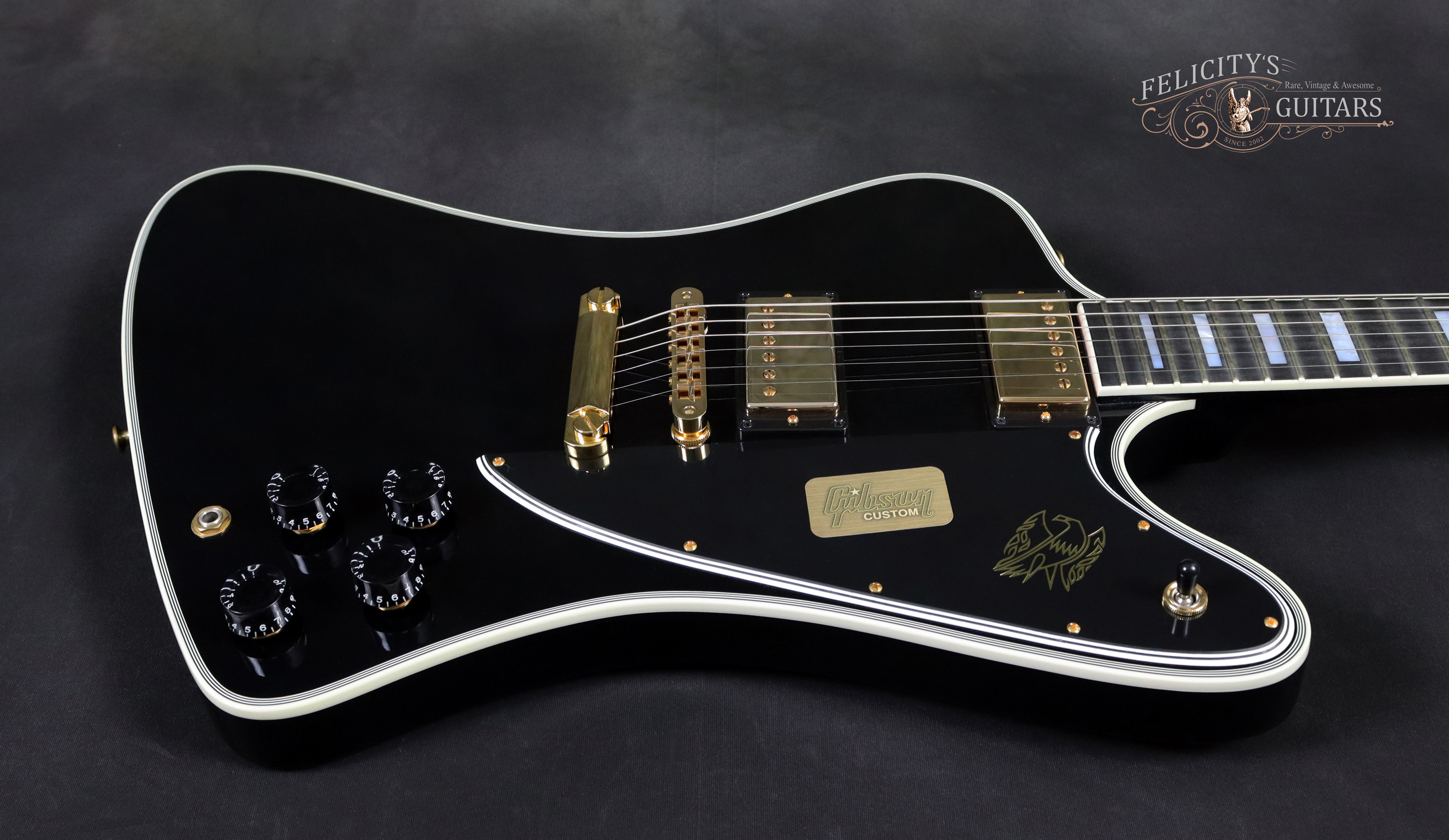

Solid Mahogany Body with High gloss Ebony Finish and multi-ply Bindings
1-piece solid Mahogany bound-neck, and fast medium C-shape profile
Solid Ebony fingerboard with genuine Mother of Pearl Custom Block inlays
All Gold Plated Hardware
Grover Tuners
High Output 498T "Hot Alnico" and 490R “Modern Classic” Humbucker Pickups
Handwired Harness; CTS Pots, Orange Drop Caps & Switchcraft Pickup Toggle switch
Limited Production with Certificate of Authenticity

2017-Gibson-Custom-Firebird-V-Custom-Ebony

USD 1,000,000

Add to Cart

Shipping will be calculated at check out

Photo Gallery

description

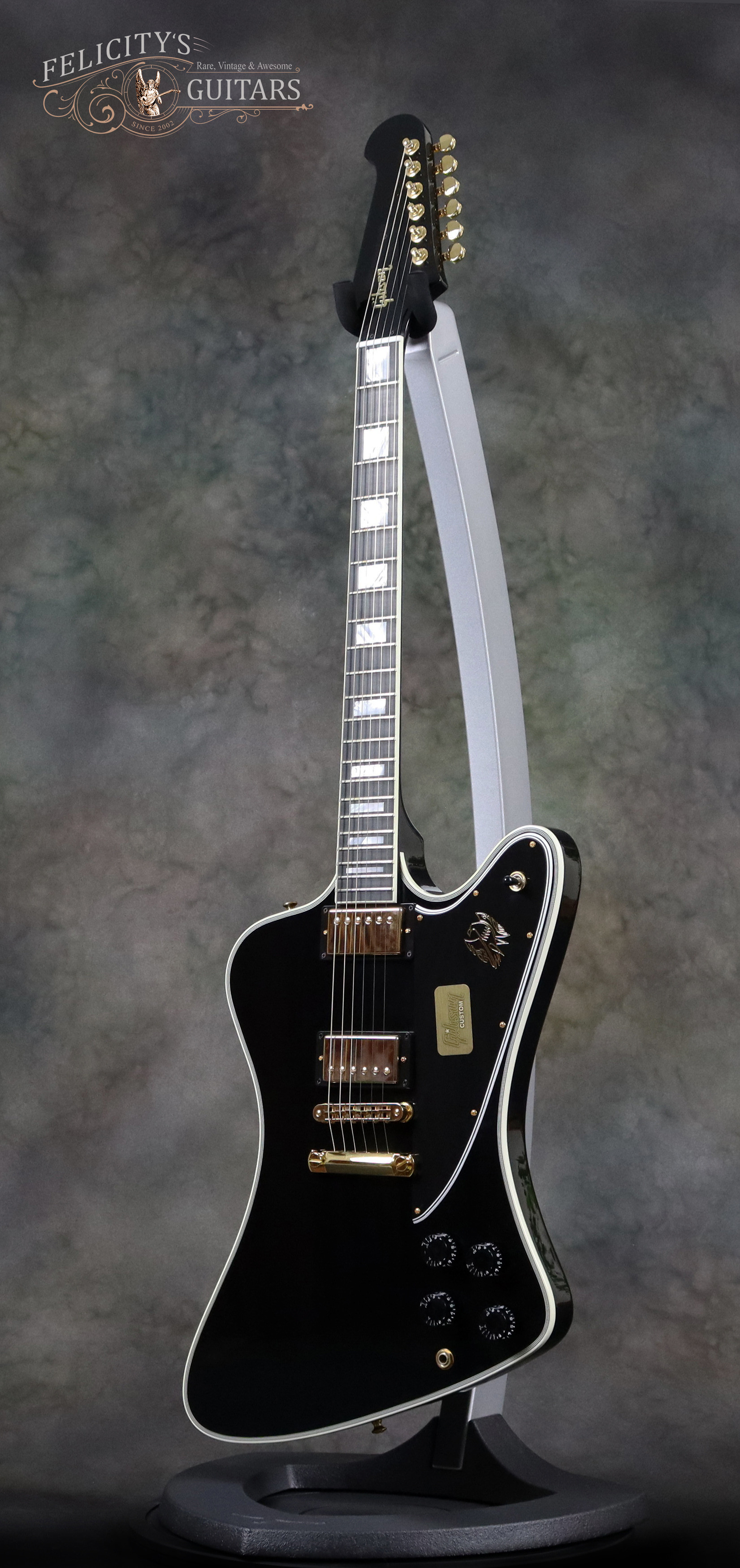

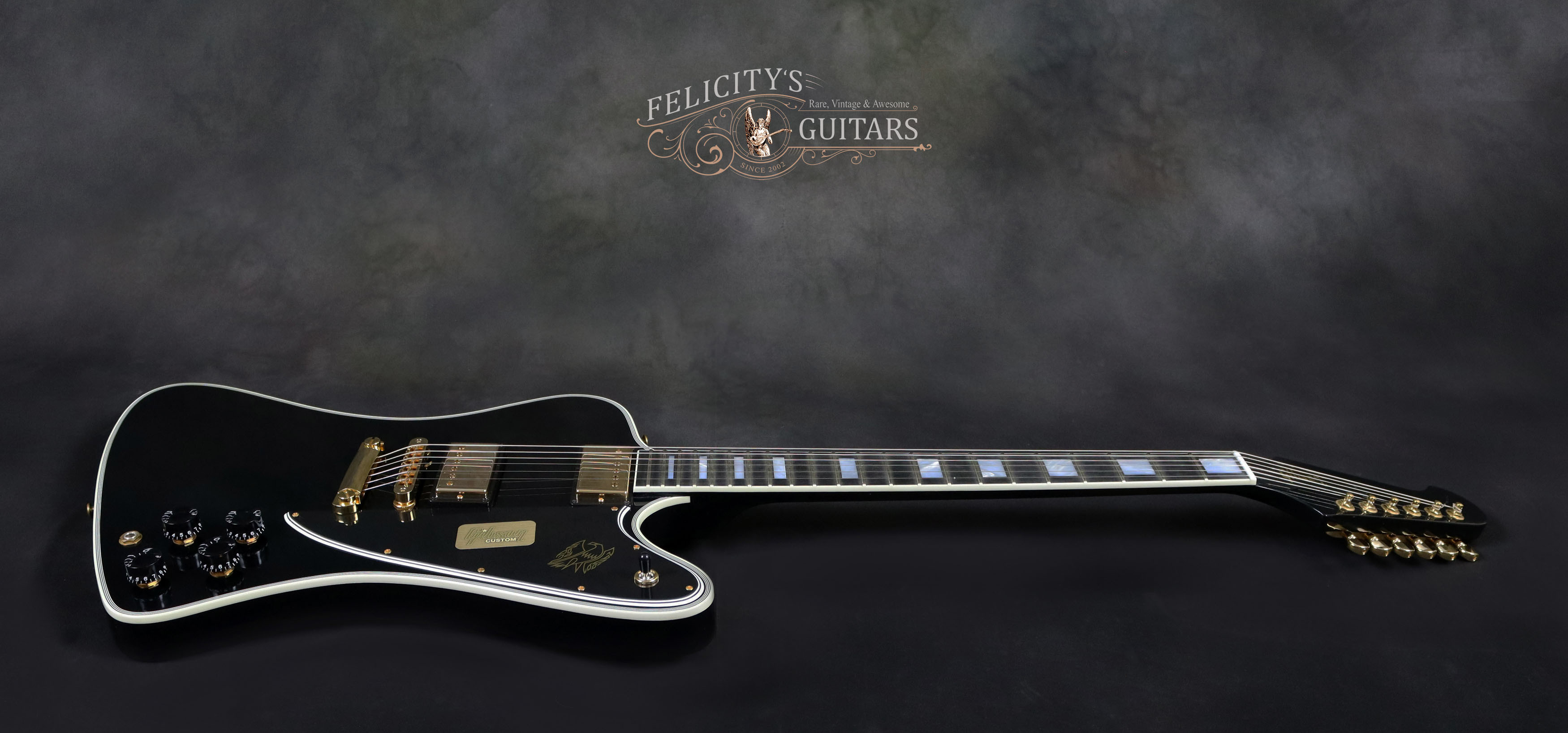

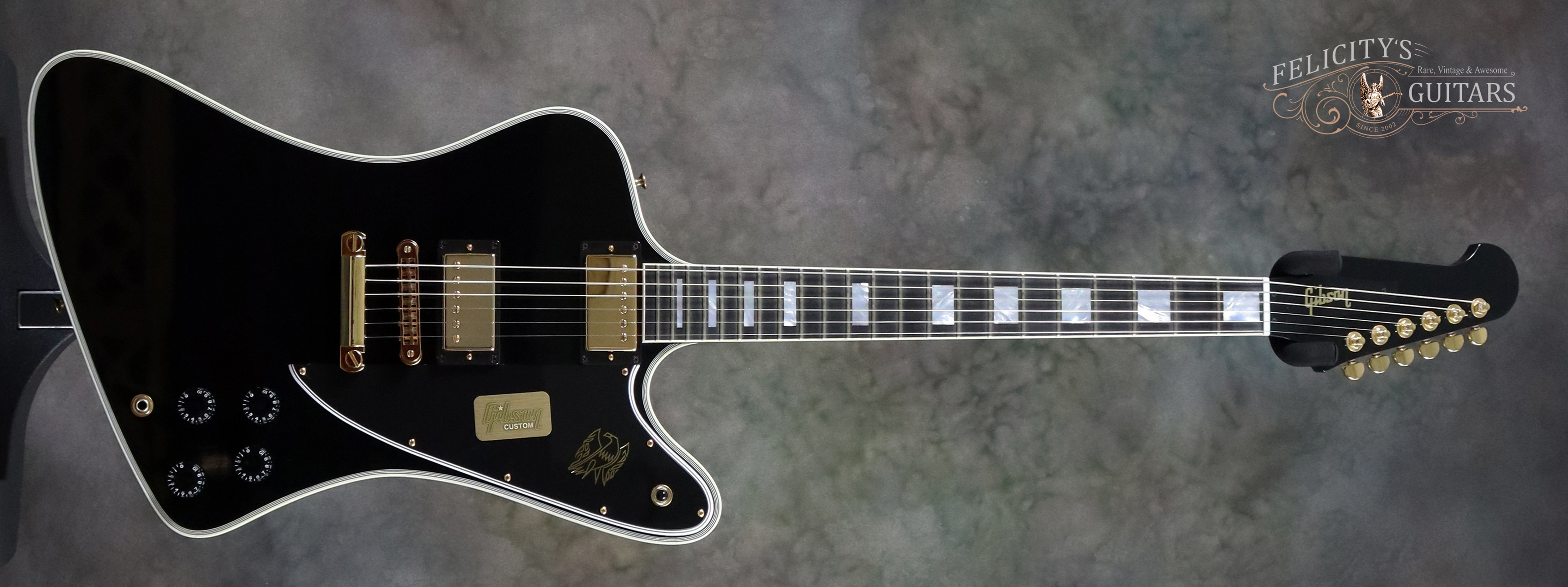

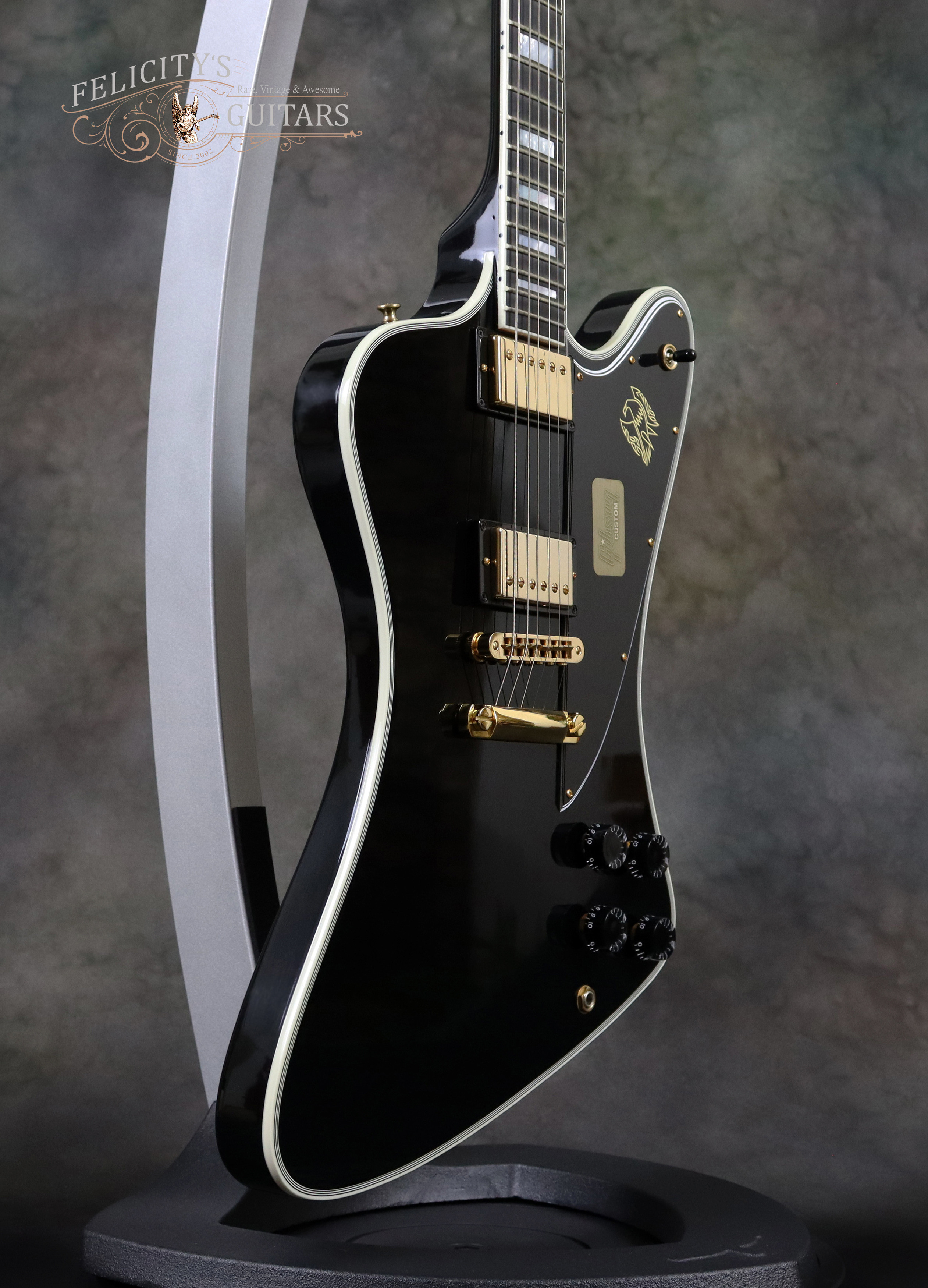

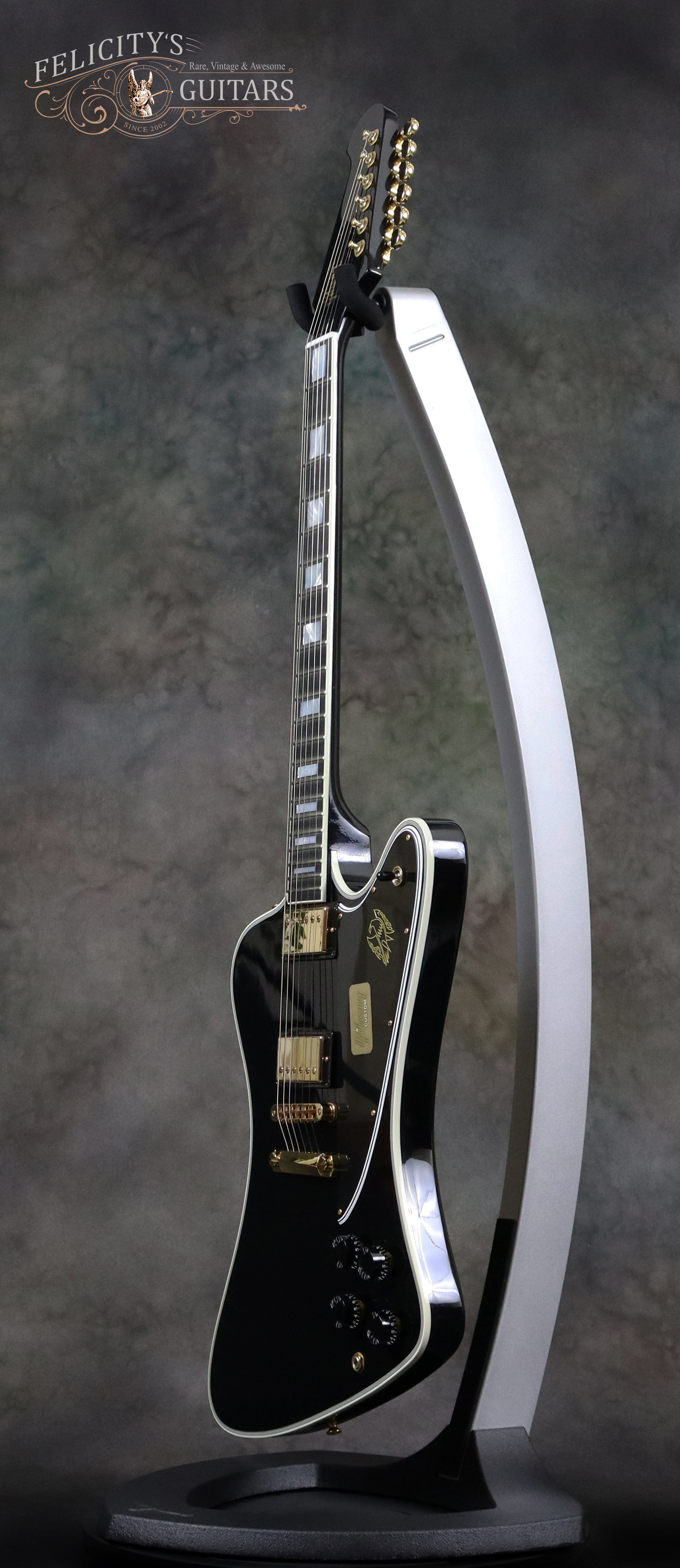

The 2017 Firebird Custom retains the signature streamlined shape that makes it one of Gibson's most visually enticing guitars while adding modern features for more tonal "umph." Its matched 490/498 pickup set and solid mahogany body deliver a punchy, clarity of voice that easily turns aggressive based on the player's level of attack. It all adds up to a very expressive guitar adorned in Gibson's elegant Custom appointments and available in limited quantity of 200 pieces worldwide.

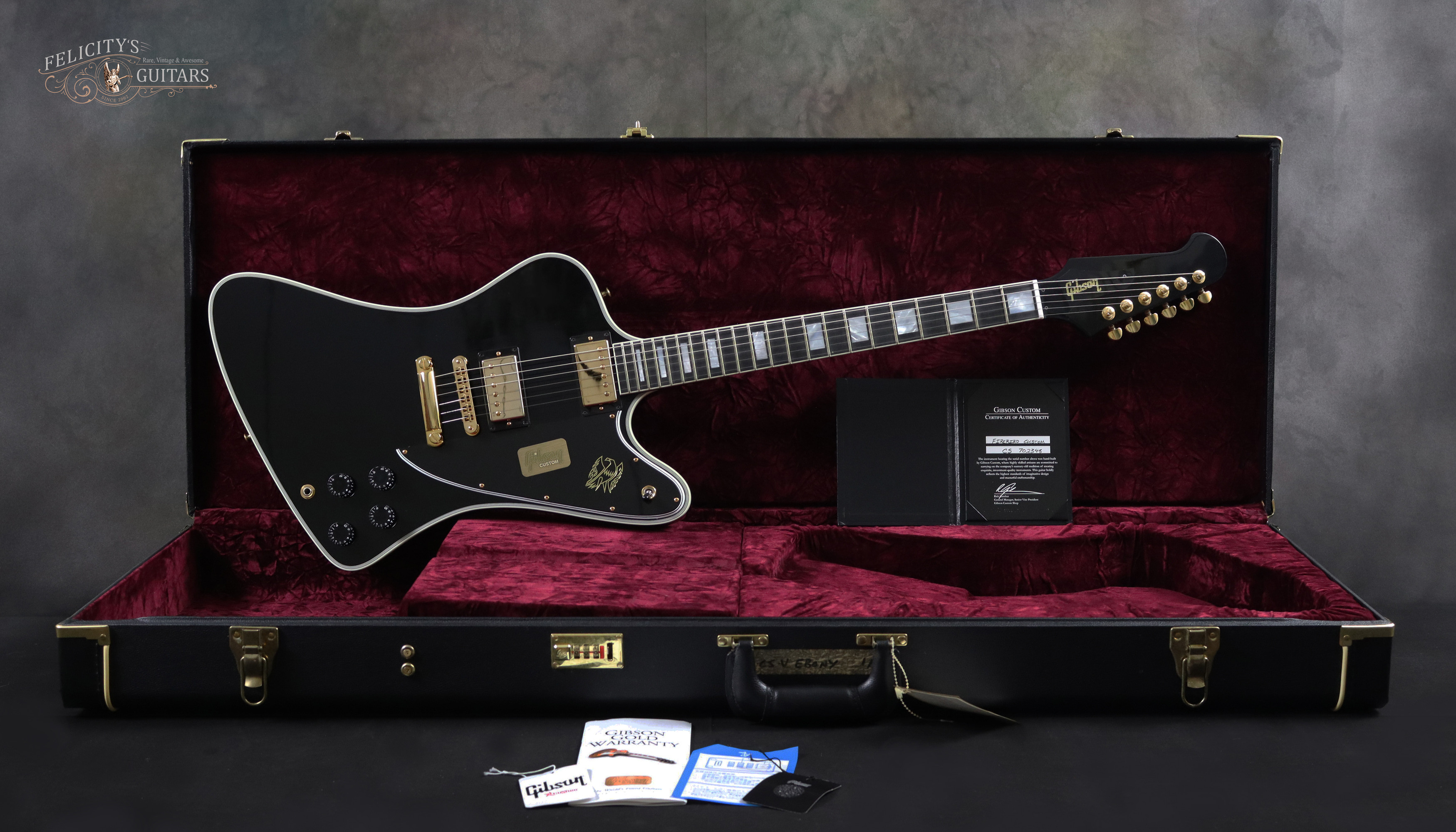

This guitar is professionally setup and protected in the original Gibson Custom hardshell case

Specifications

General

Condition	New
Number of Strings	6
Left/Right-handed	Right-handed
Country of Origin	United States
Year	2017
Limited Edition	Yes, 200-pc Worldwide

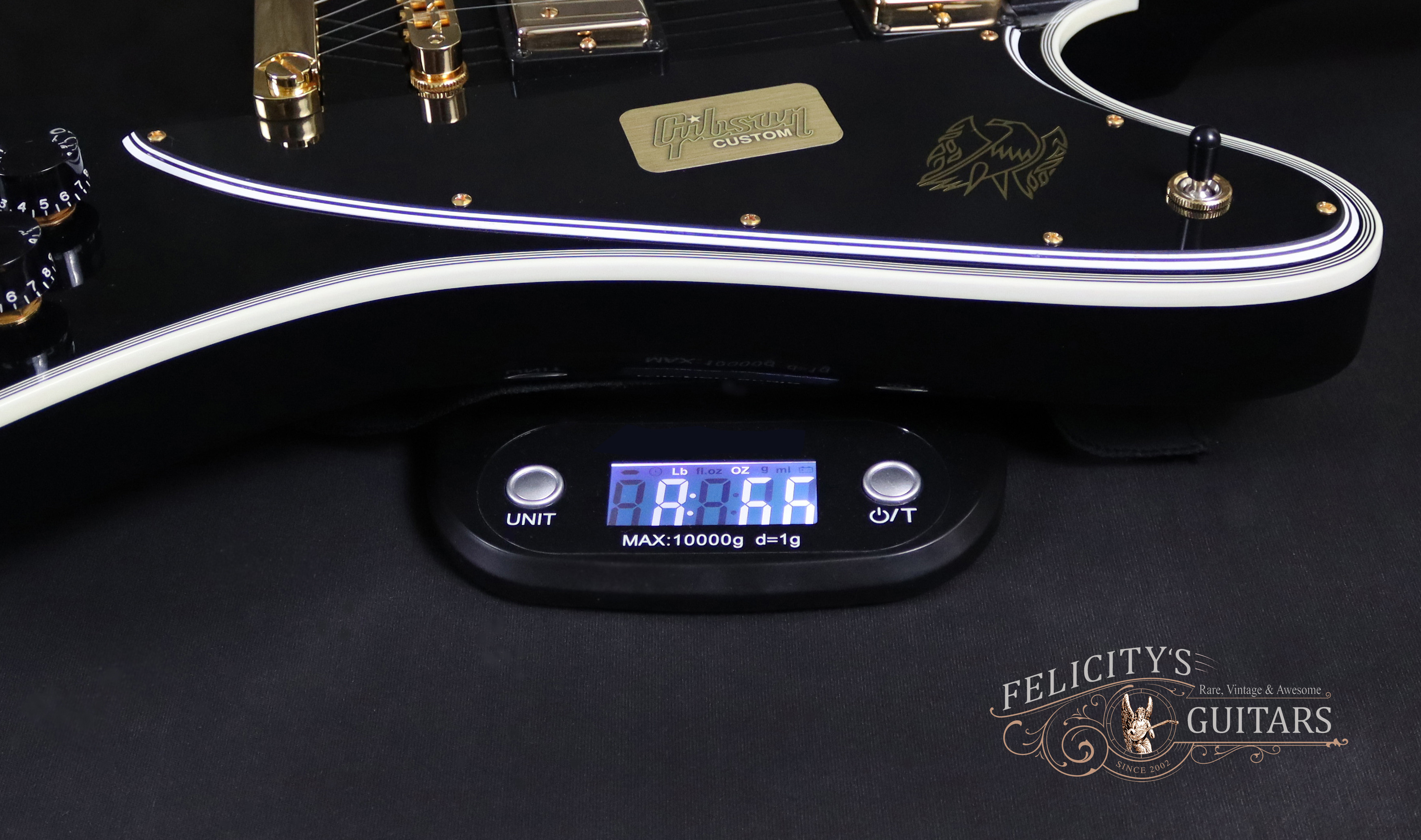

Weight	8-lbs 6.6-oz

body

Body Type	Offset, Solidbody
Body Shape	Reverse Firebird
Body Construction	Designer with Neck Tenon

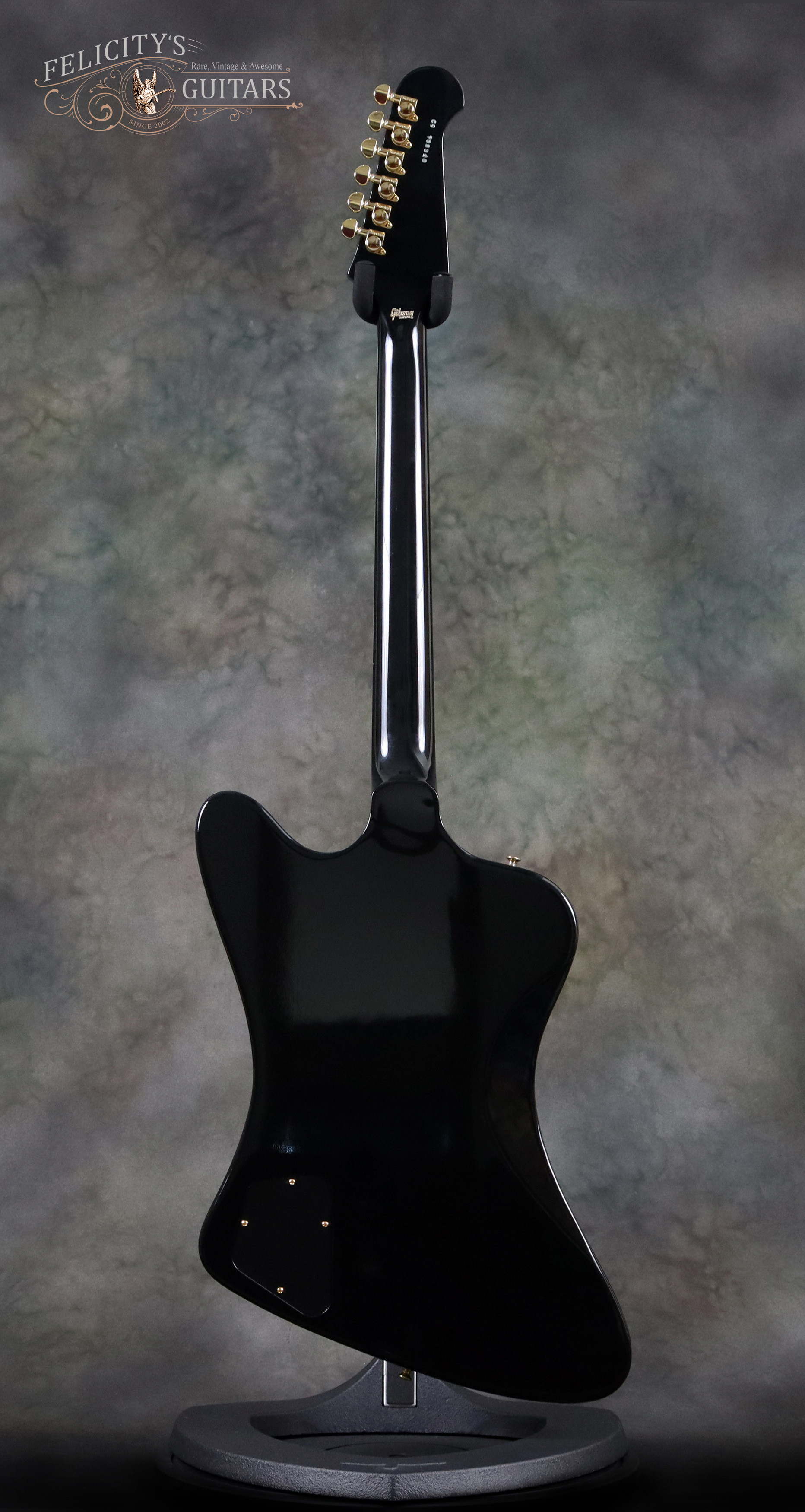

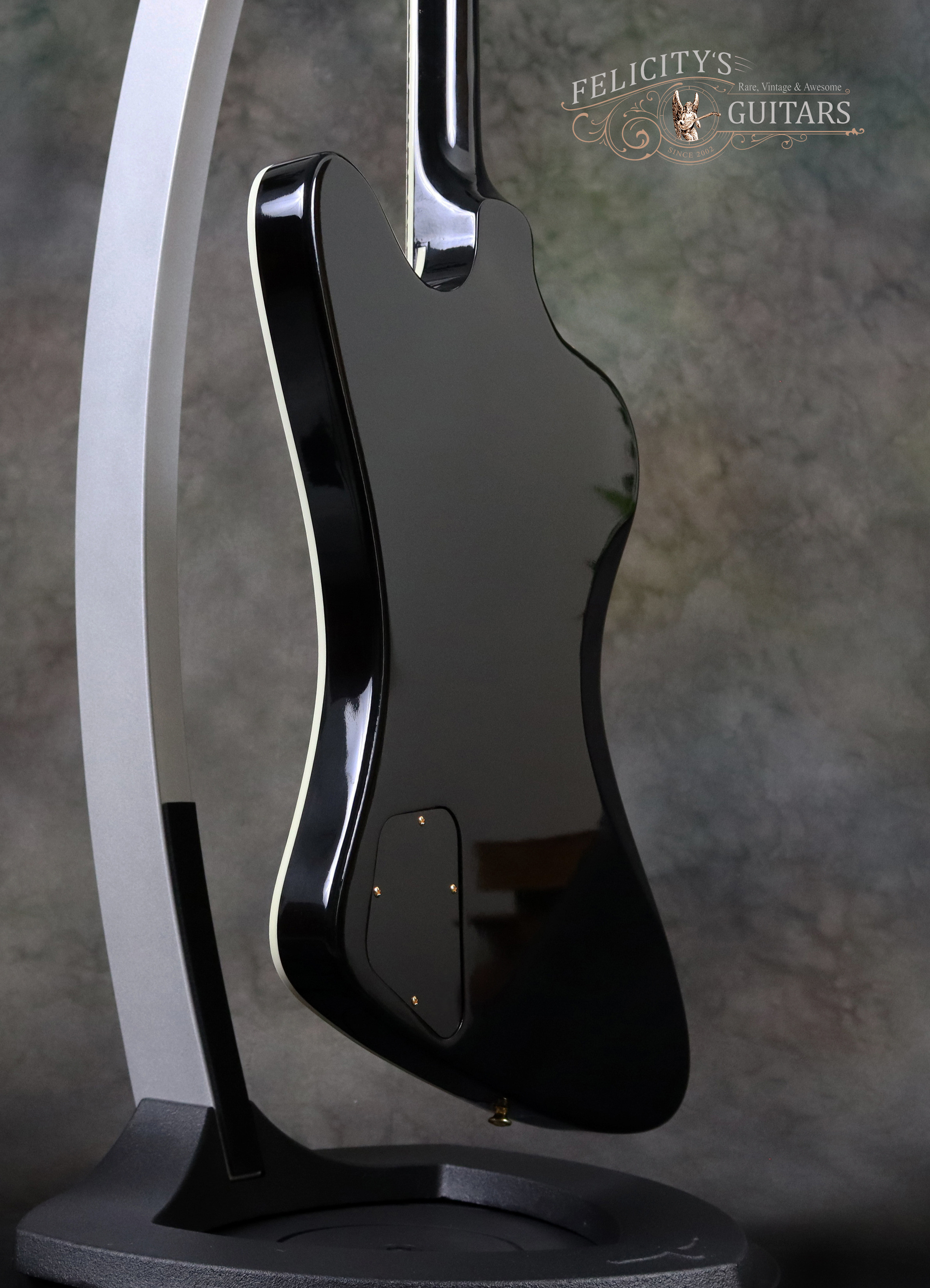

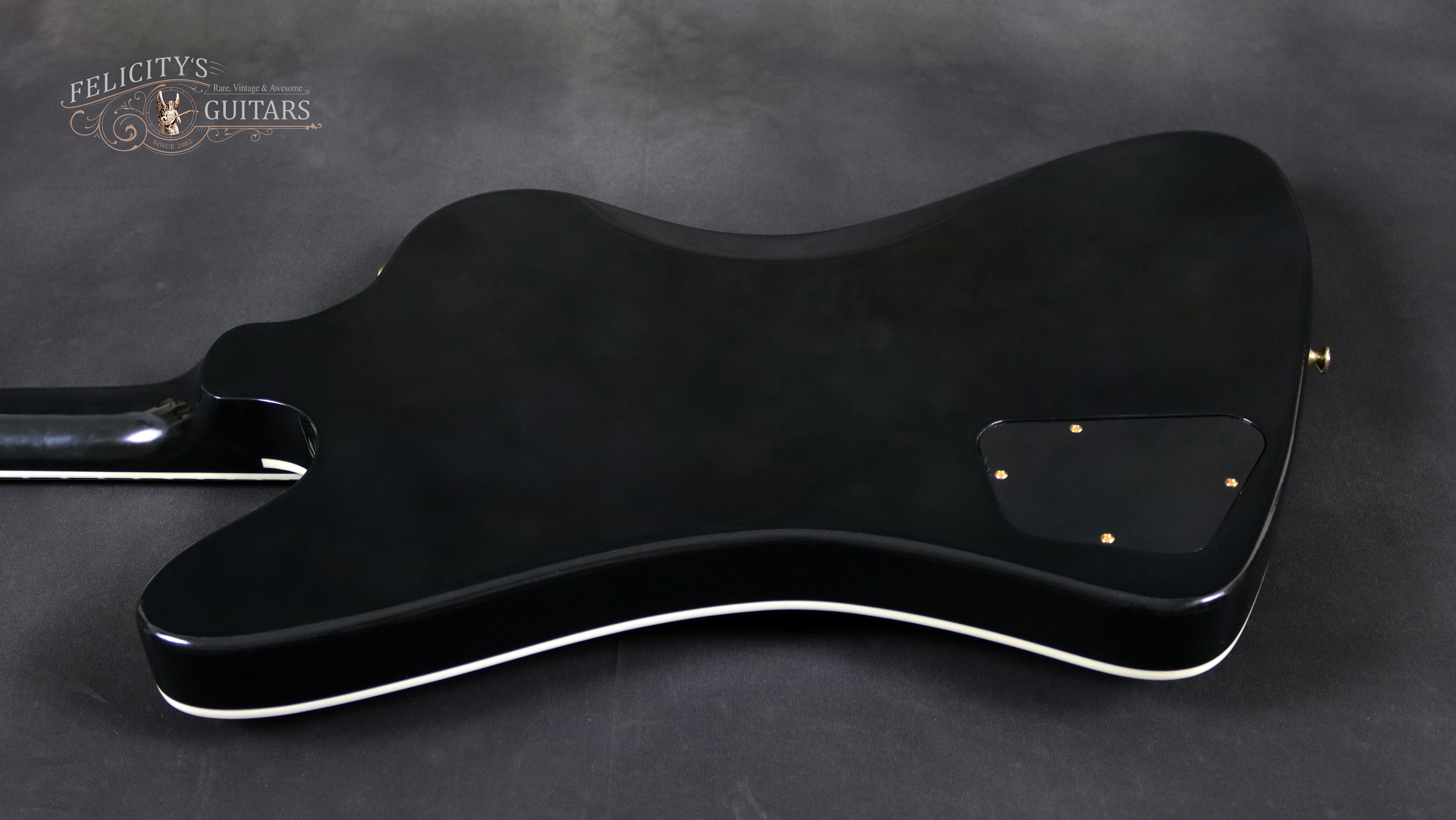

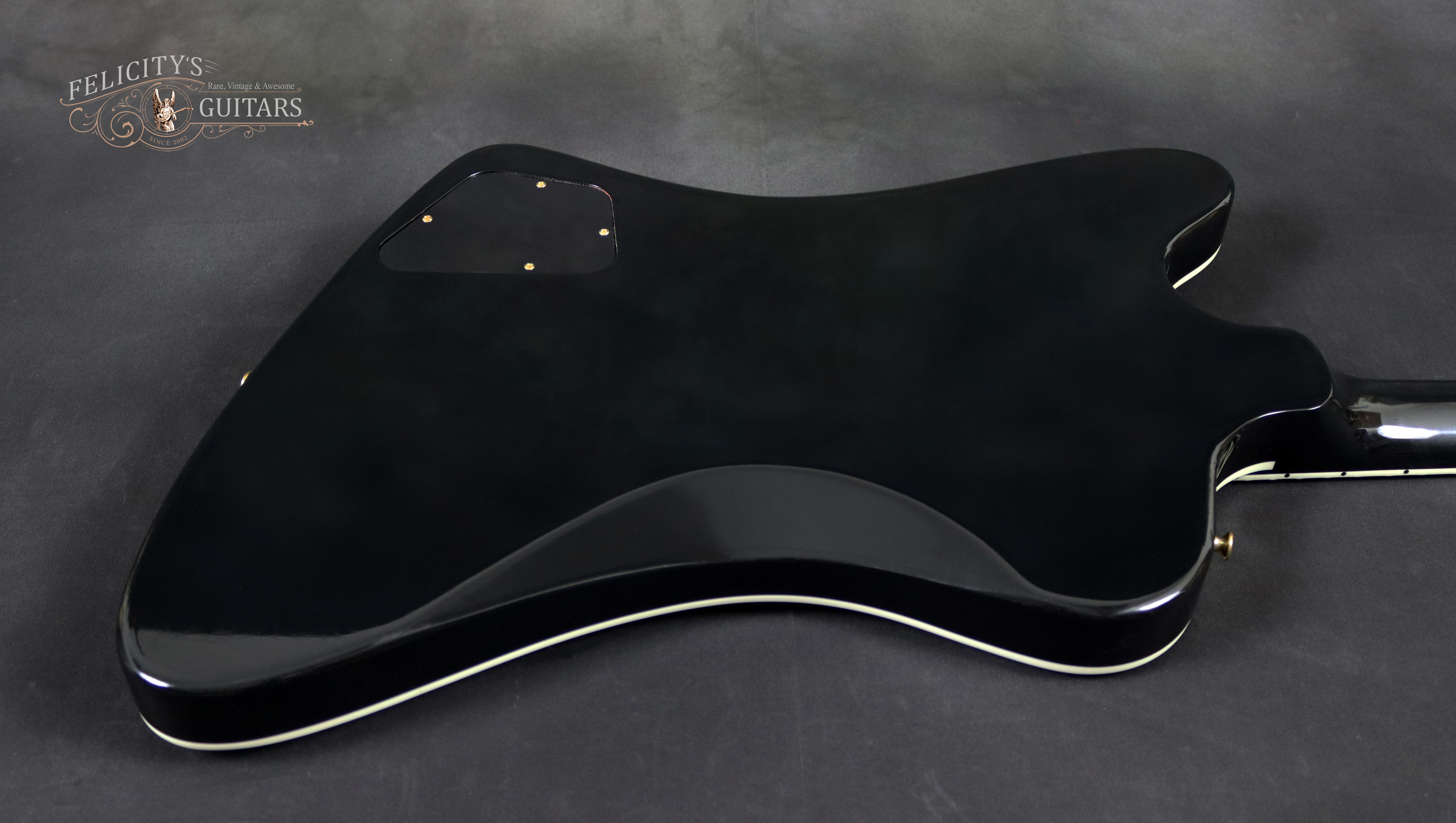

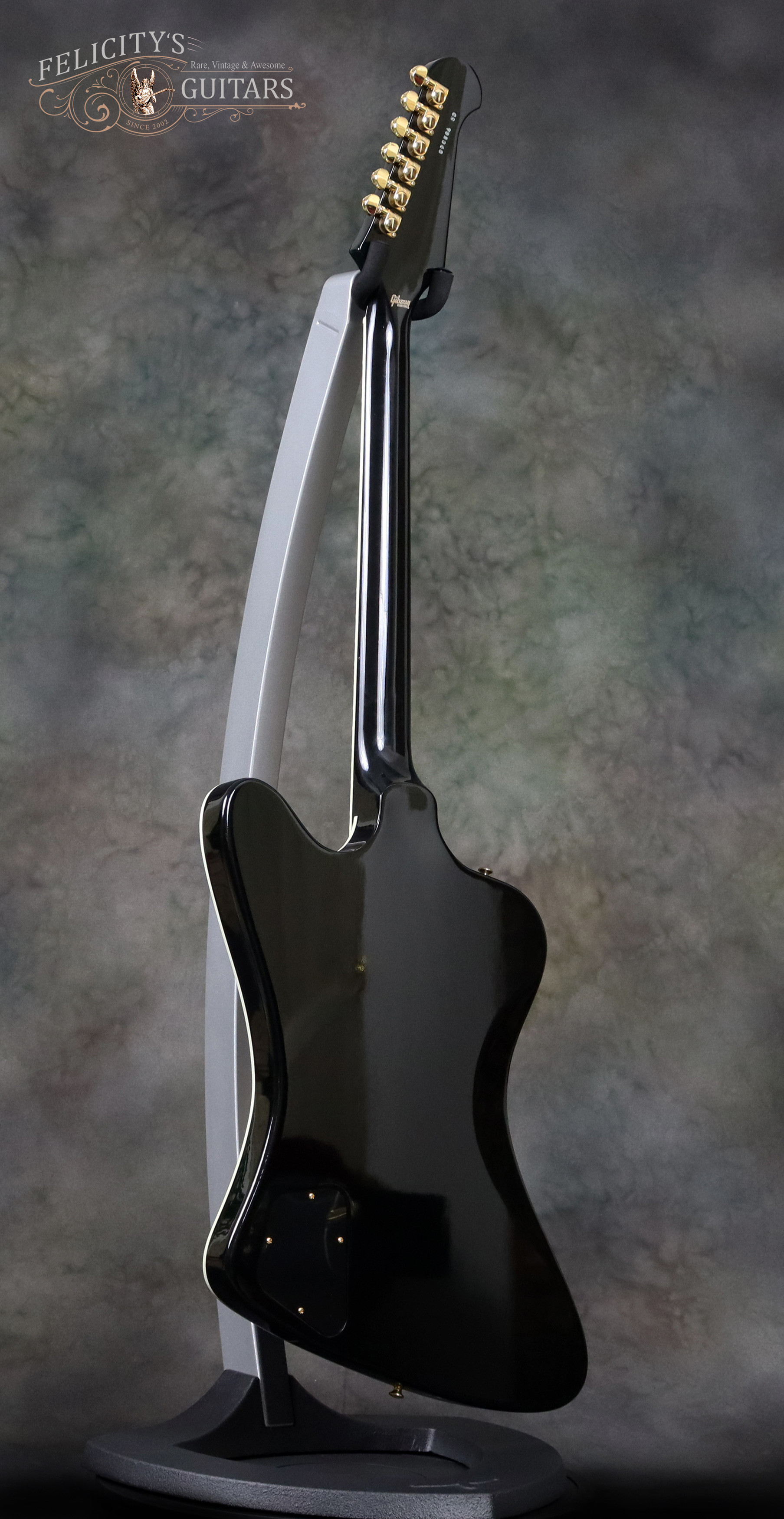

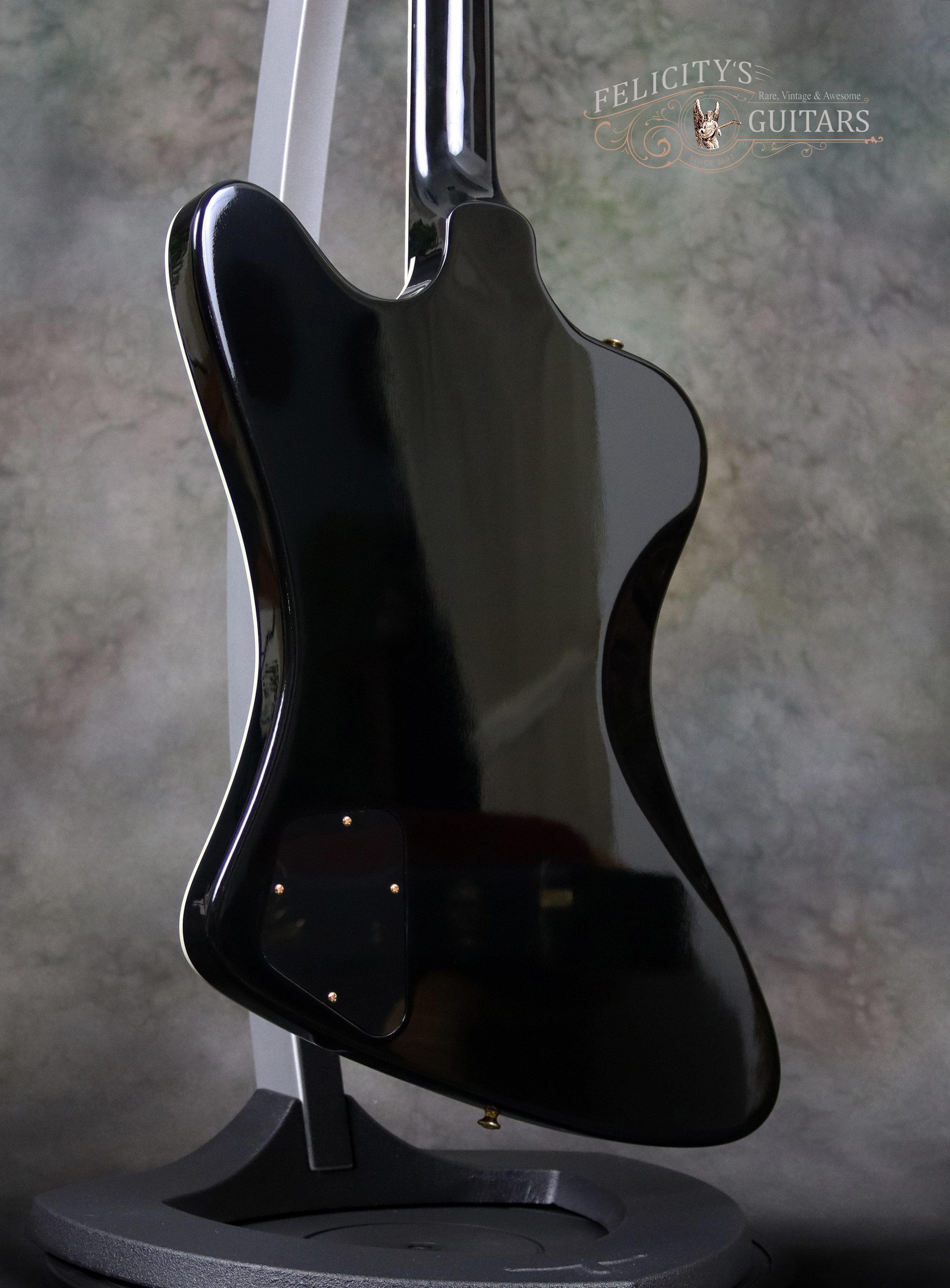

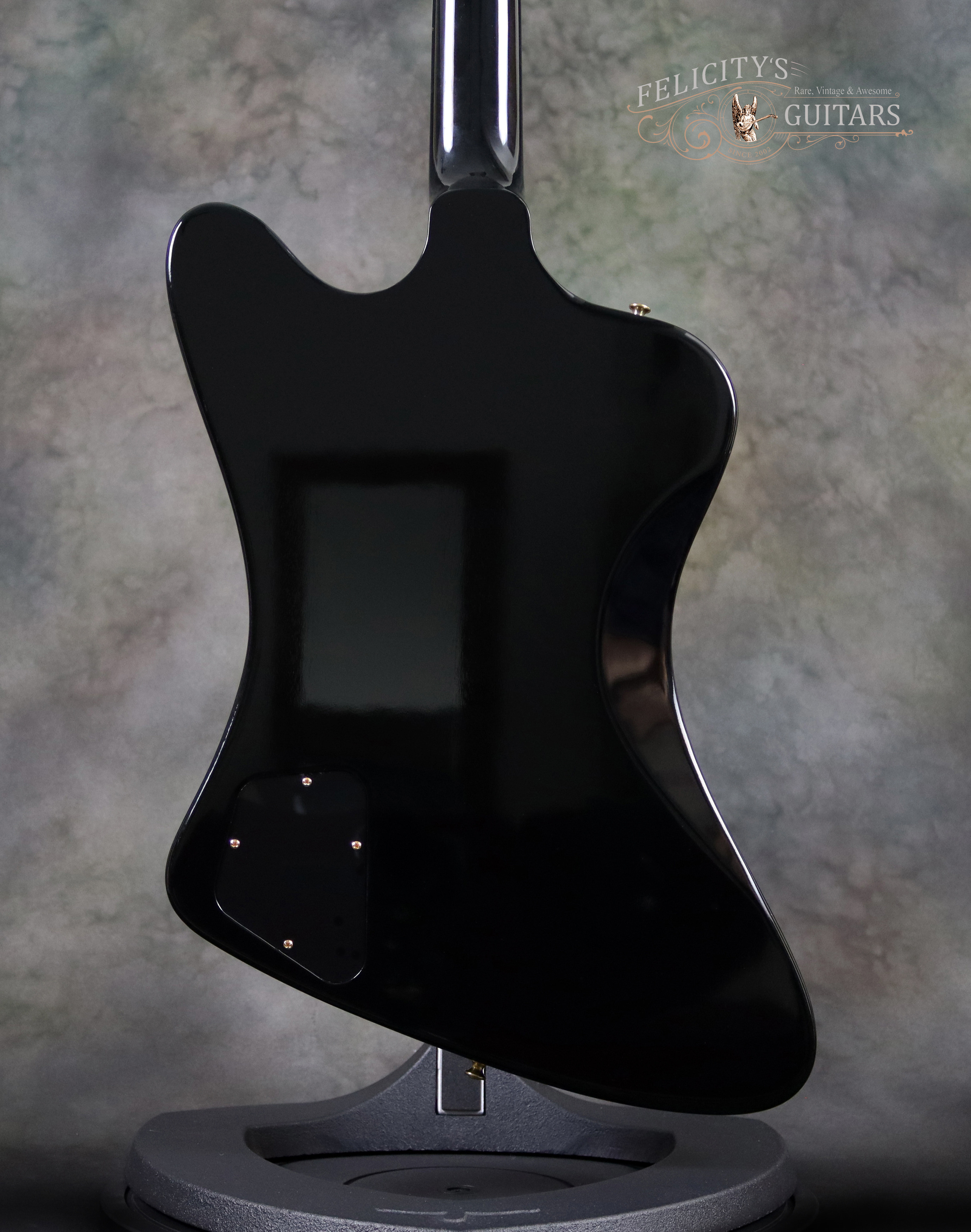

Body Carve	Front: Flat	Back: Waist Contour Carve
Body Material	Solid Mahogany
Body Binding	Front: 7-ply B/W	Back: No
Weight Relief	No
Materials Used	Franklin Titebond 50
Body Finish	High-gloss Nitrocellulose Lacquer
Color	Front: Ebony	Back & Neck: Ebony

neck

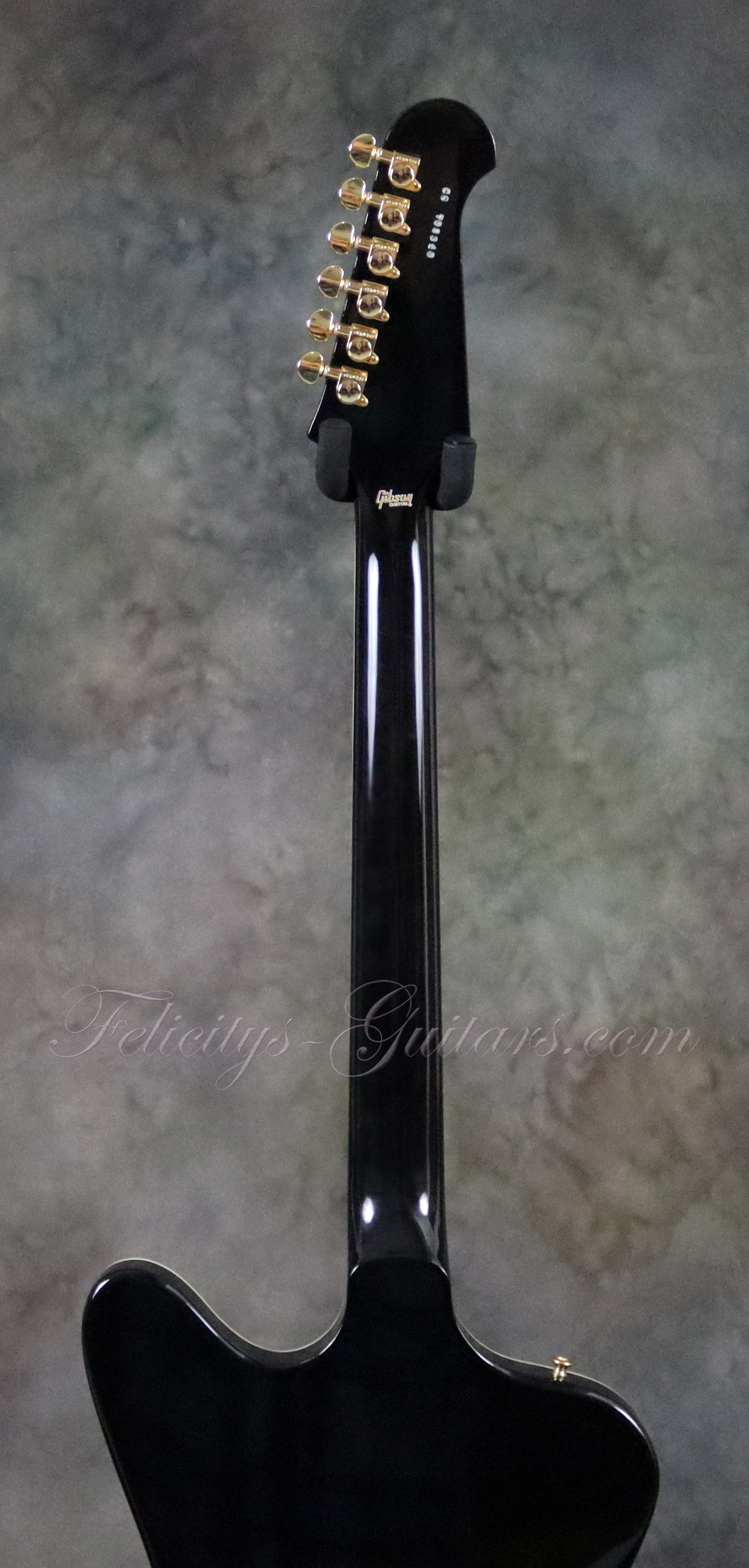

Neck Material	1-piece Solid Mahogany
Truss Rod	2-way Adjustable
Truss Rod Cover	1-ply Black, Reverse Firebird Style with Gold Silkscreen Gibson Logo

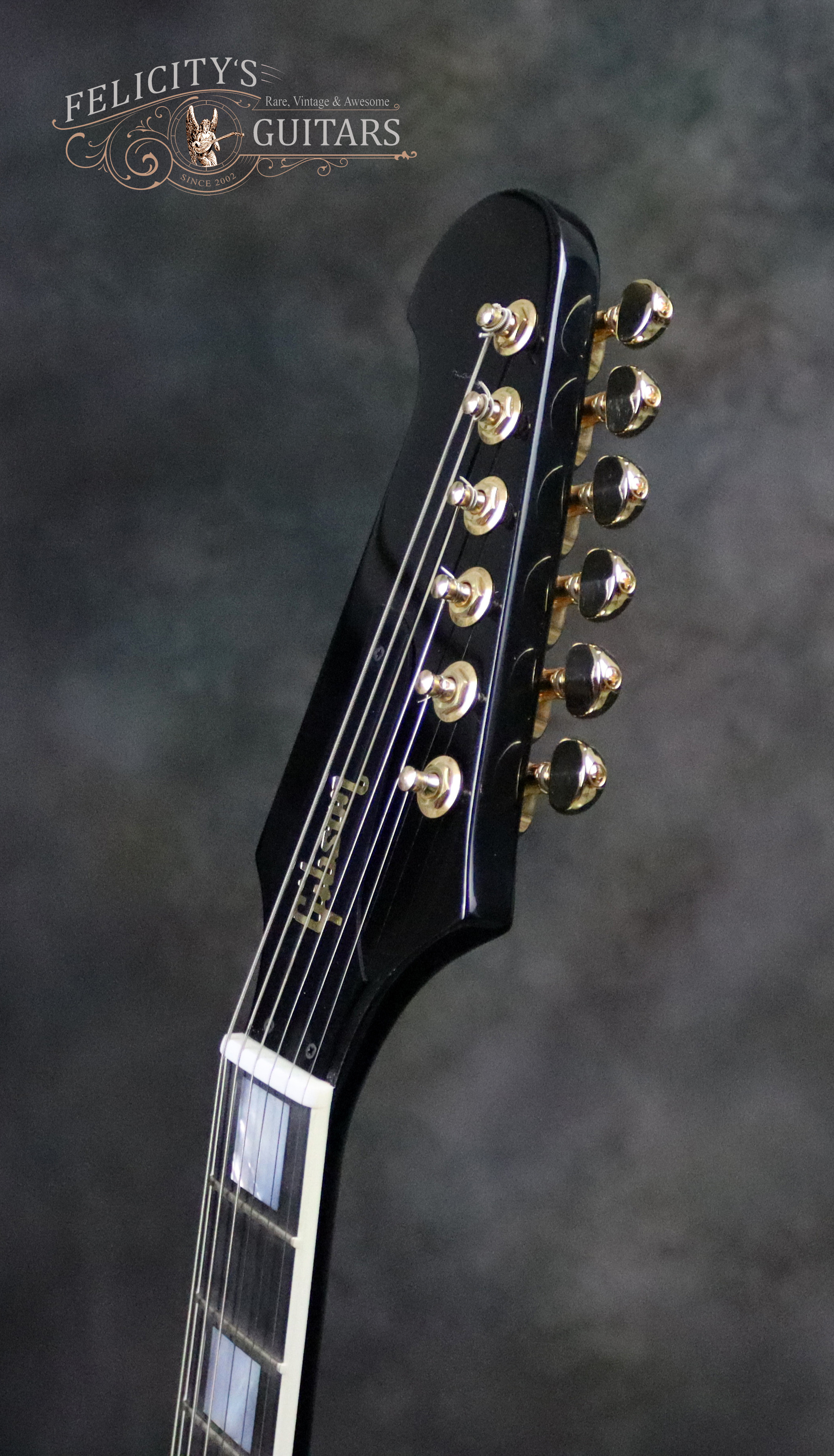

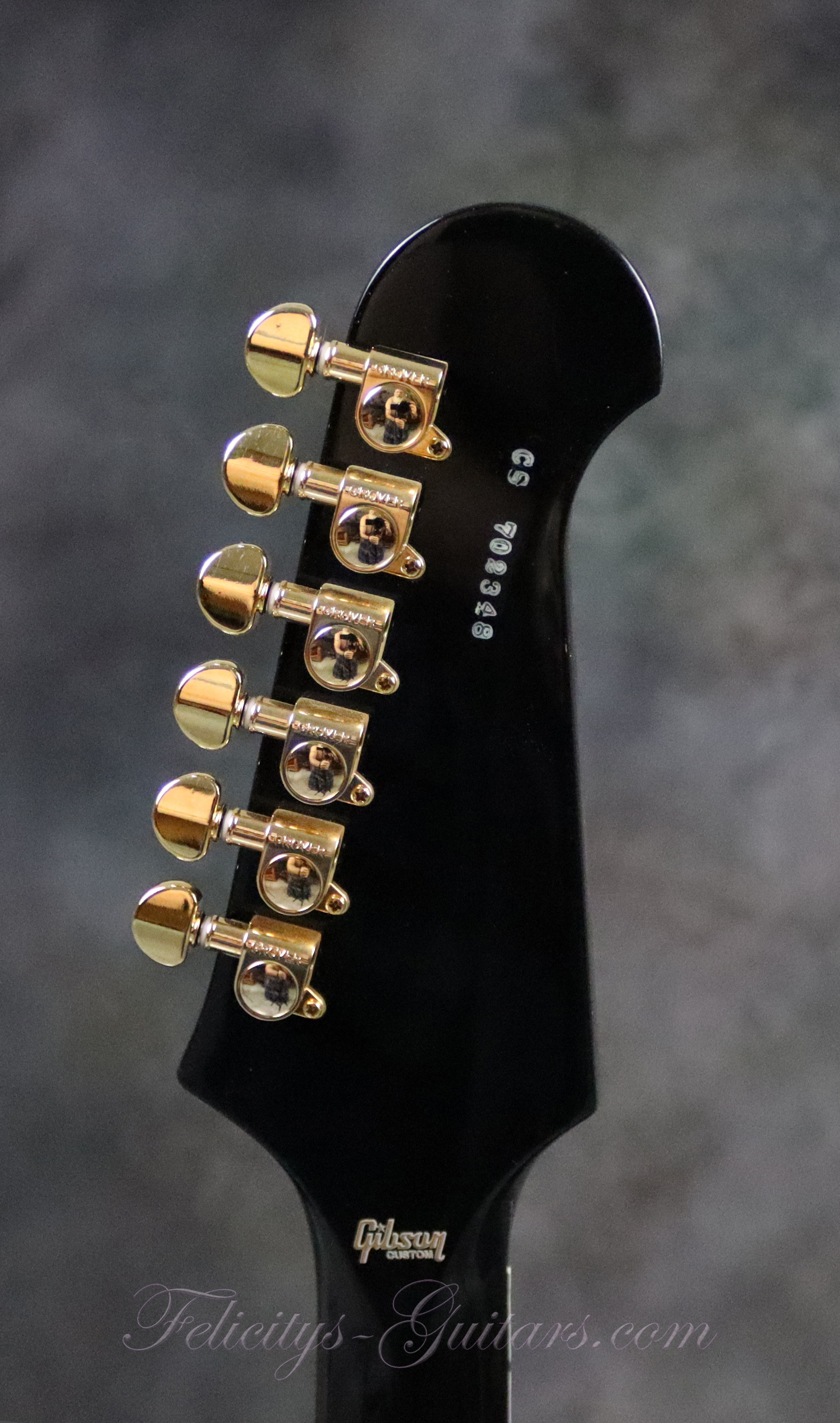

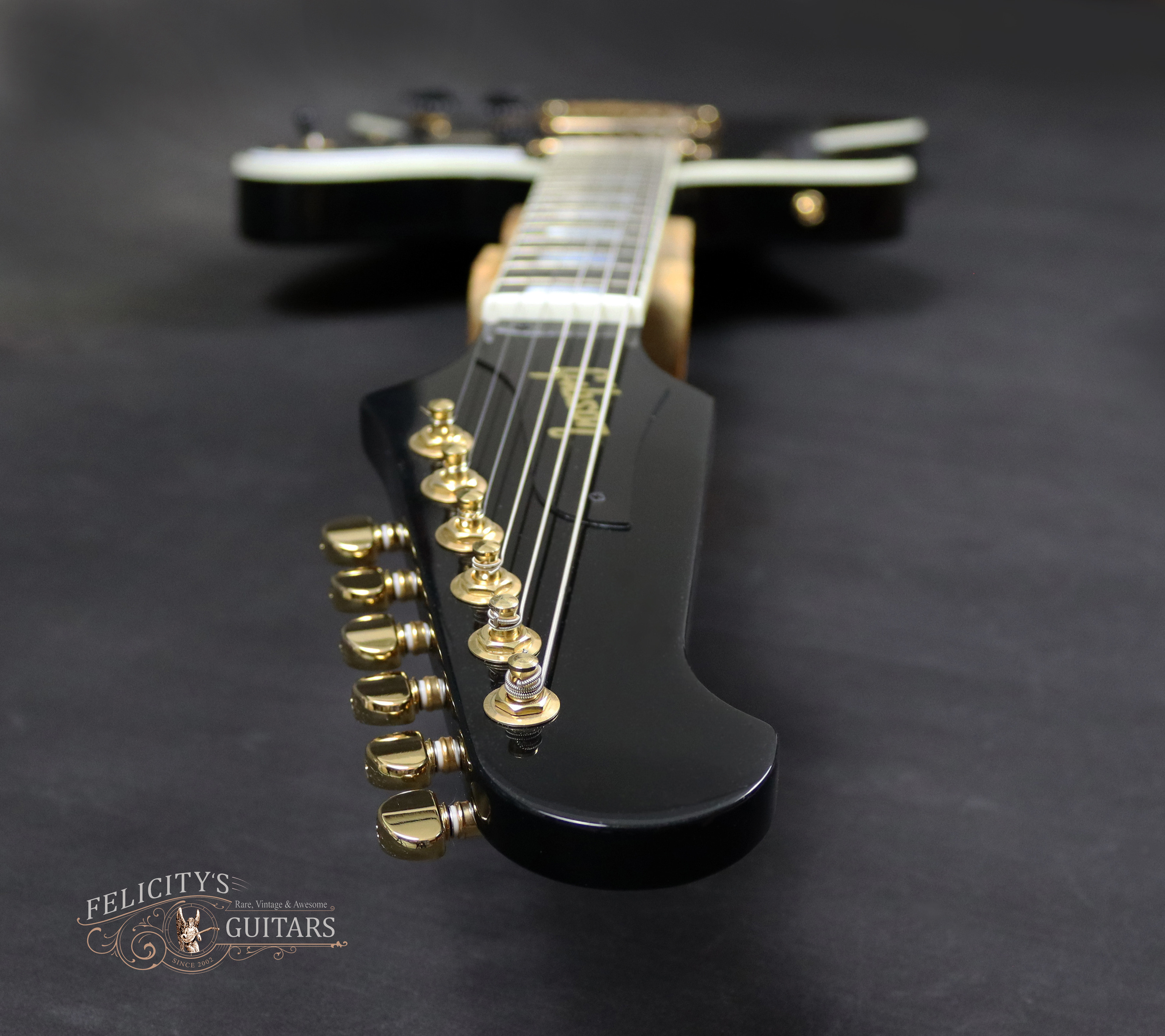

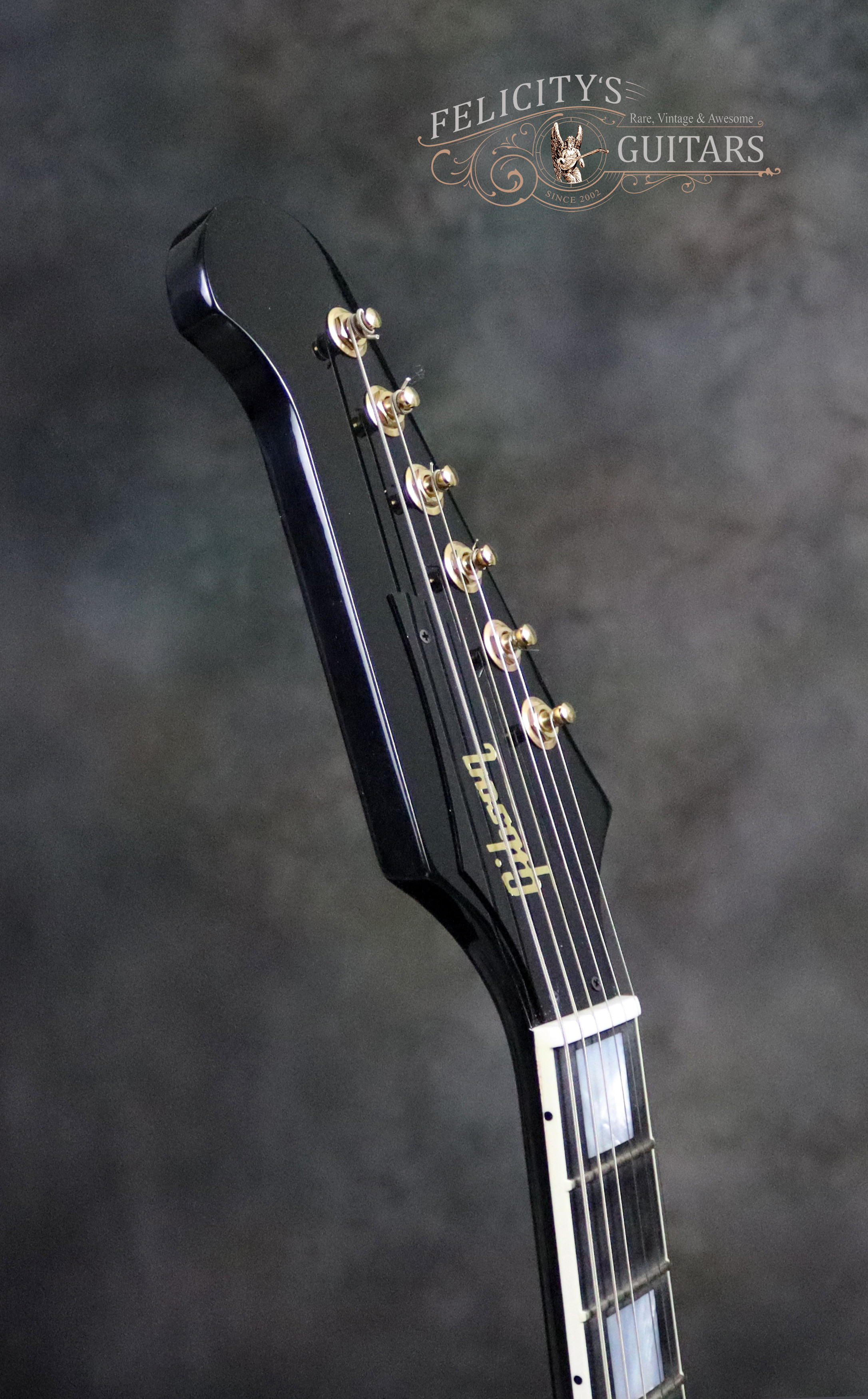

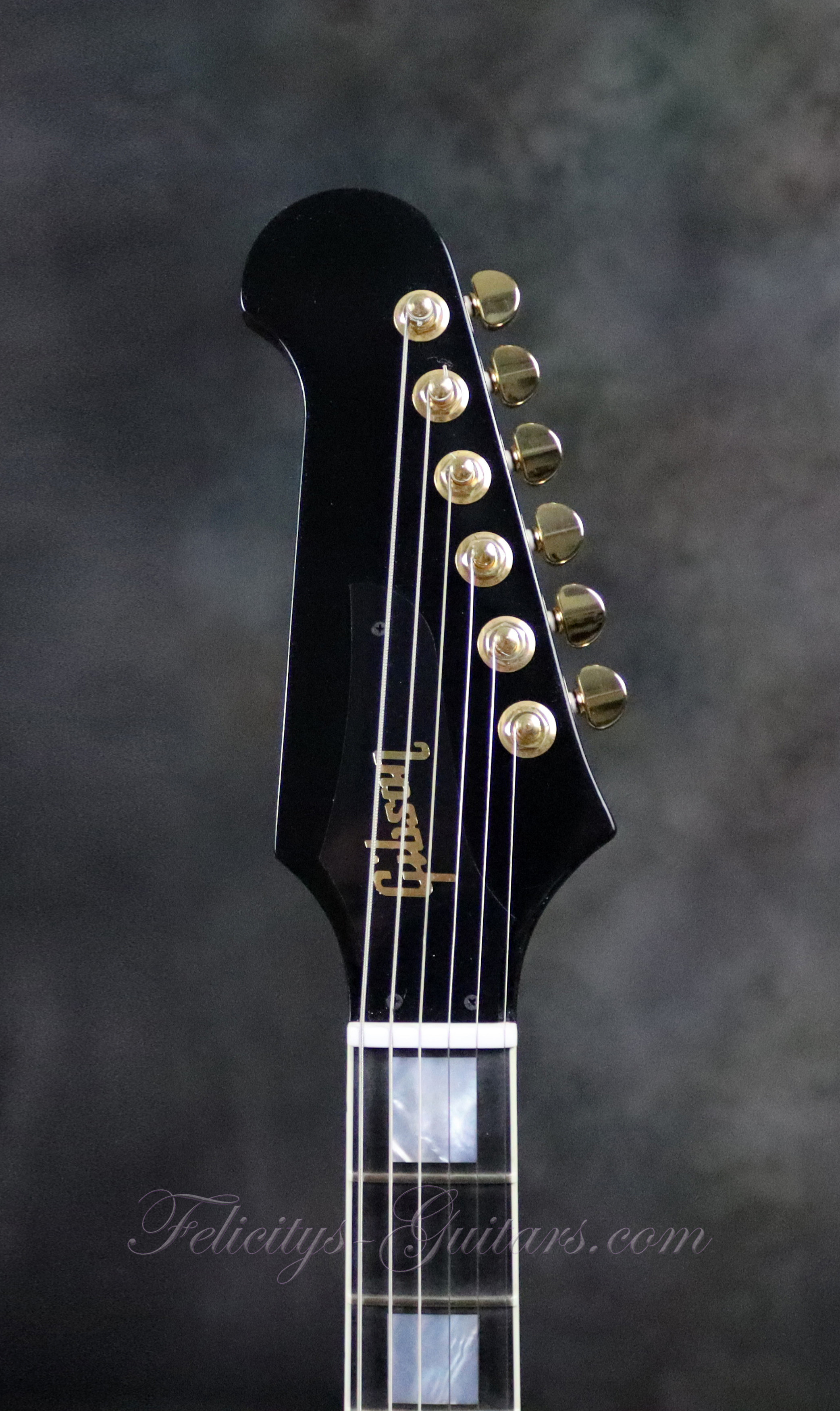

Peghead Particulars	Front: Unbound, Flat, Gloss Ebony Finish with No Inlays
	Back: Ink stamped; CS Serial Number & Gold Gibson Custom Decal
Neck Profile	Medium C-Shape
Fingerboard Material	Solid Ebony
Fingerboard Radius	12”
Scale Length	24.75"

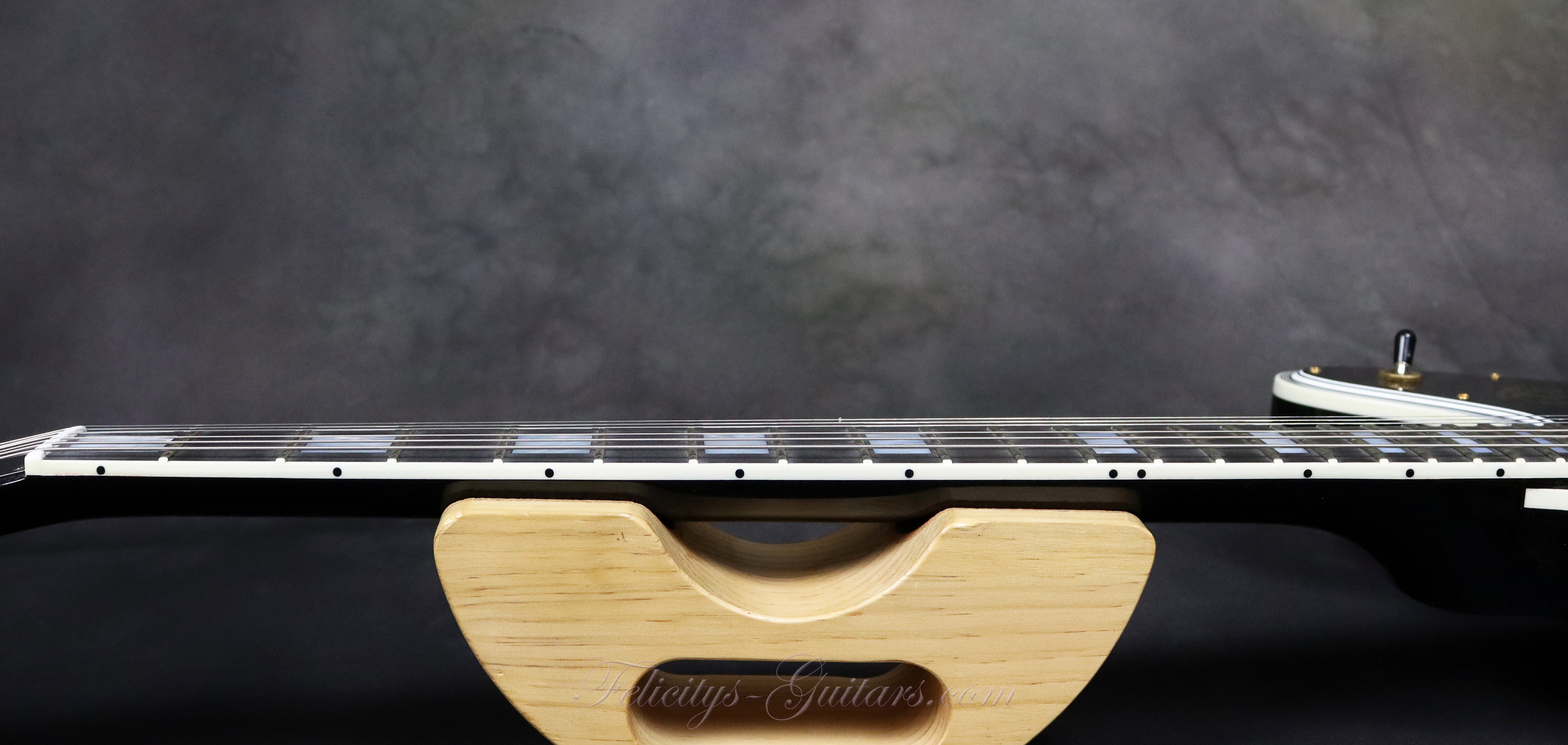

No. Frets / Type	22 Medium-Jumbo
Nut Size / Material	1.6875" / Corian

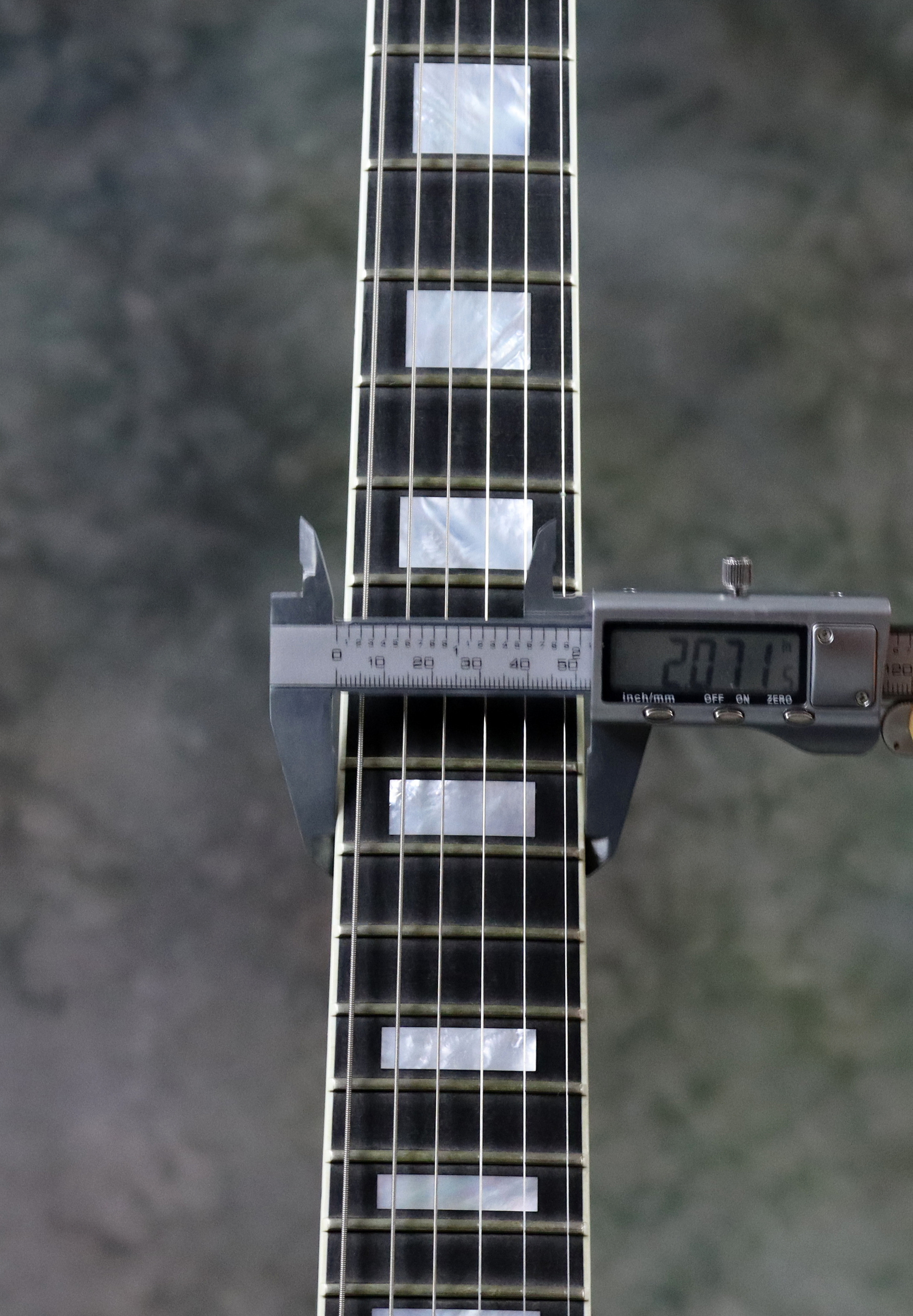

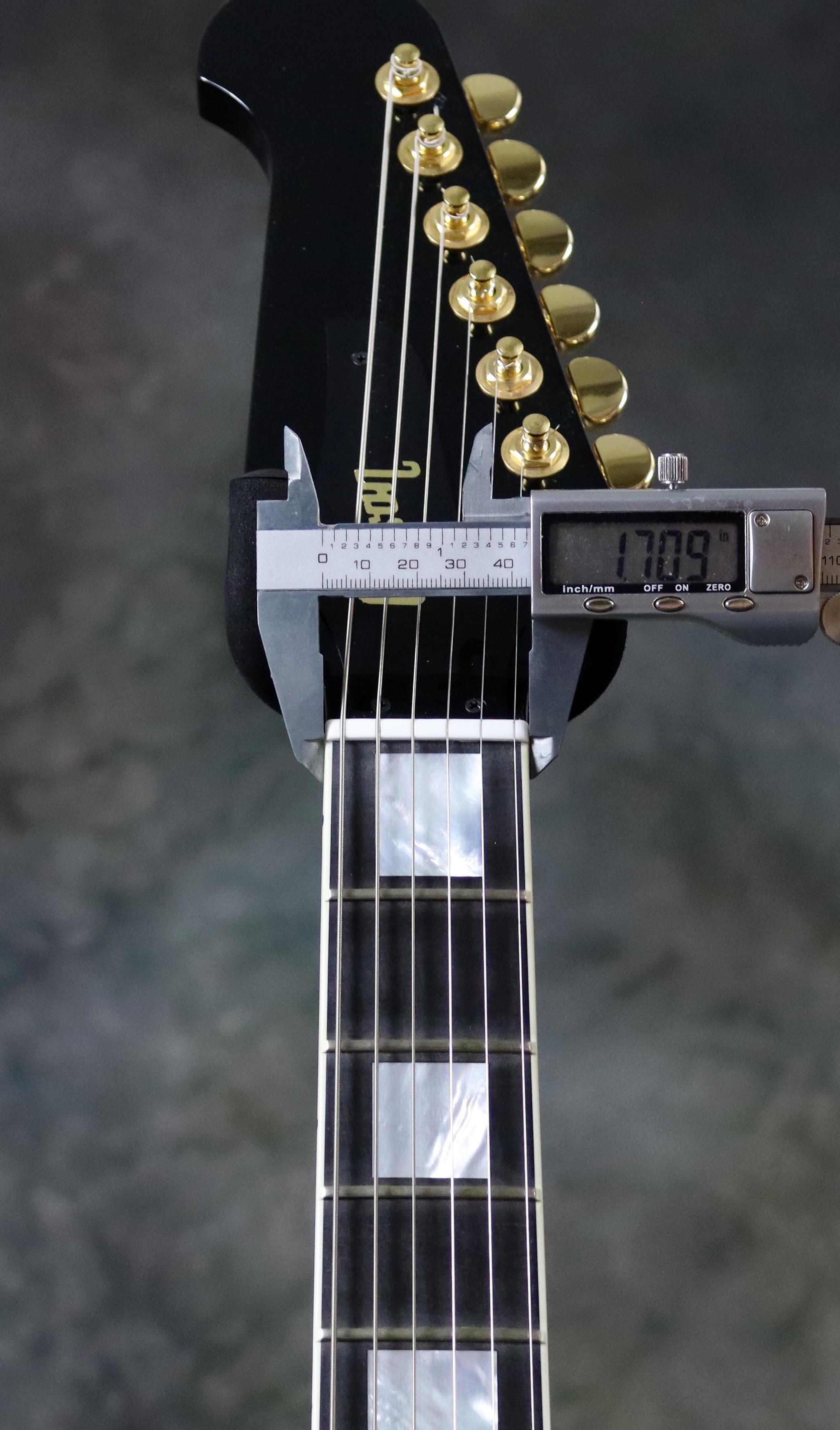

Neck Width	1.700” at 1st fret / 2.070" at 12th fret
Neck Depth	0.840” at 1st fret / 0.920" at 12th fret

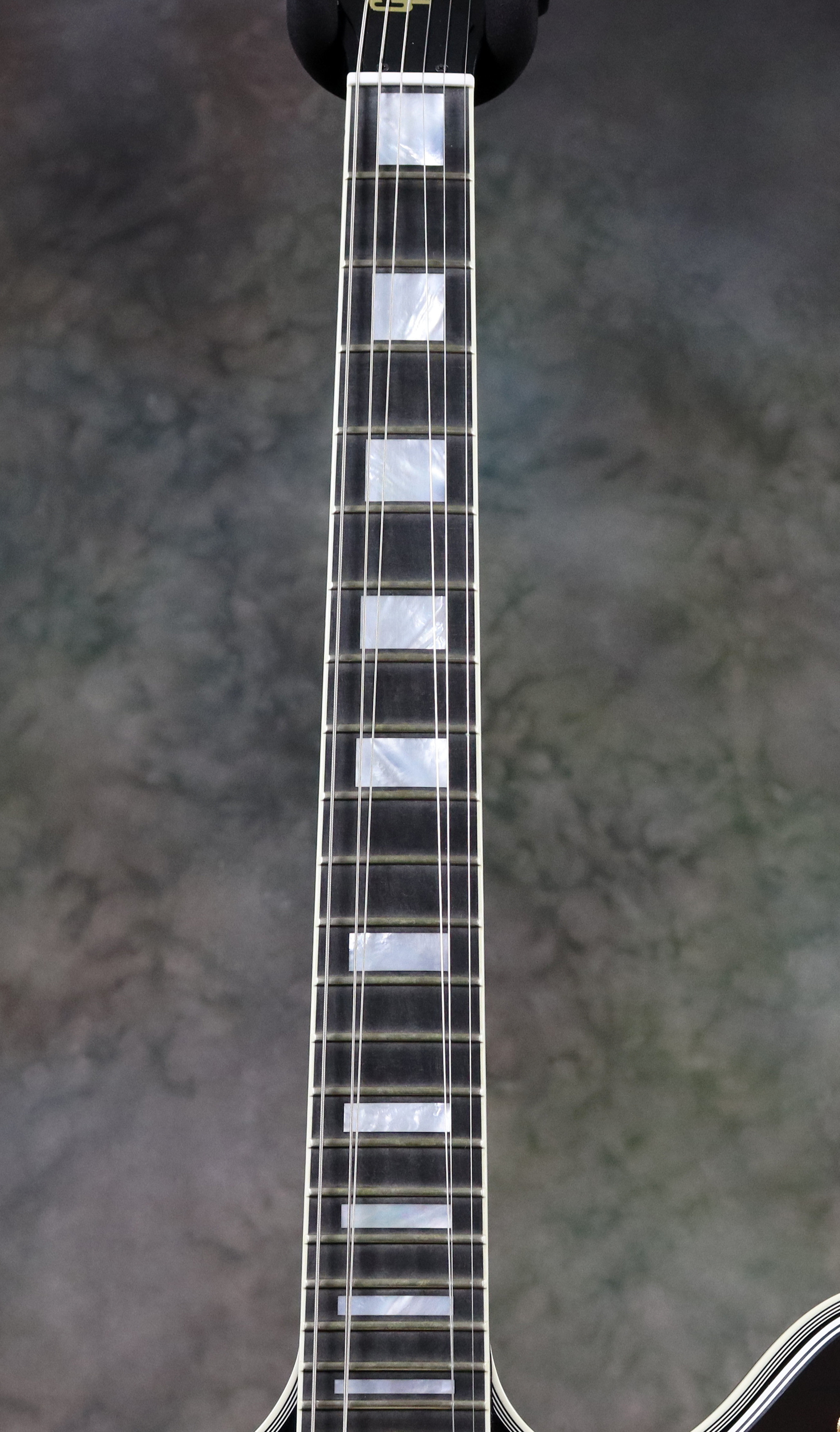

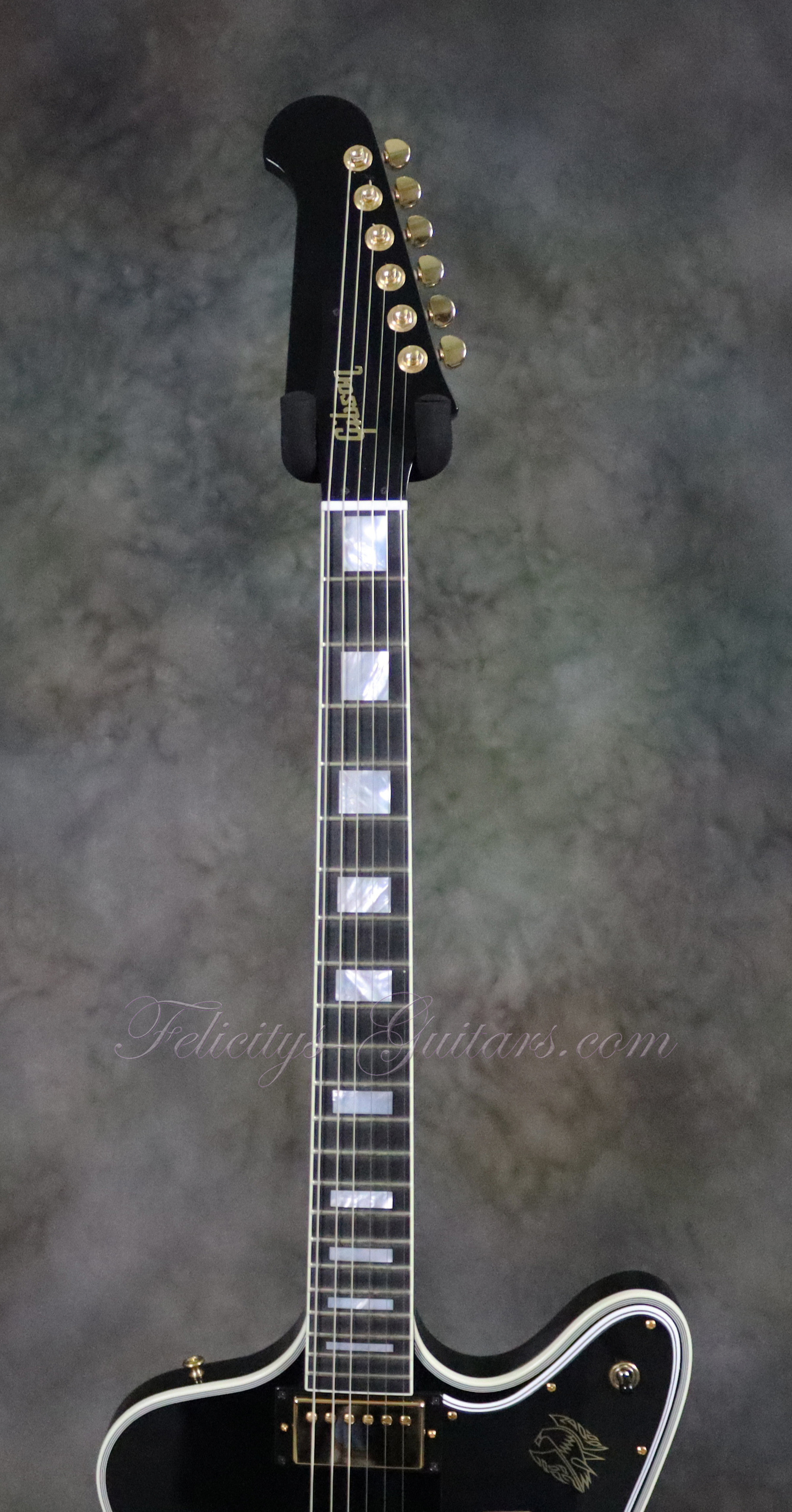

Fingerboard Inlays	Mother of Pearl, Large Block ‘Custom’ Style
Neck Binding	White
Side Dots	Black
Neck Joint	Mortise & Tenon, affixed with Franklin Titebond 50

hardware

Bridge	Gold, Tune-O-Matic, Zamak
Tailpiece / Tremolo	Gold, Stop Bar, Zamak

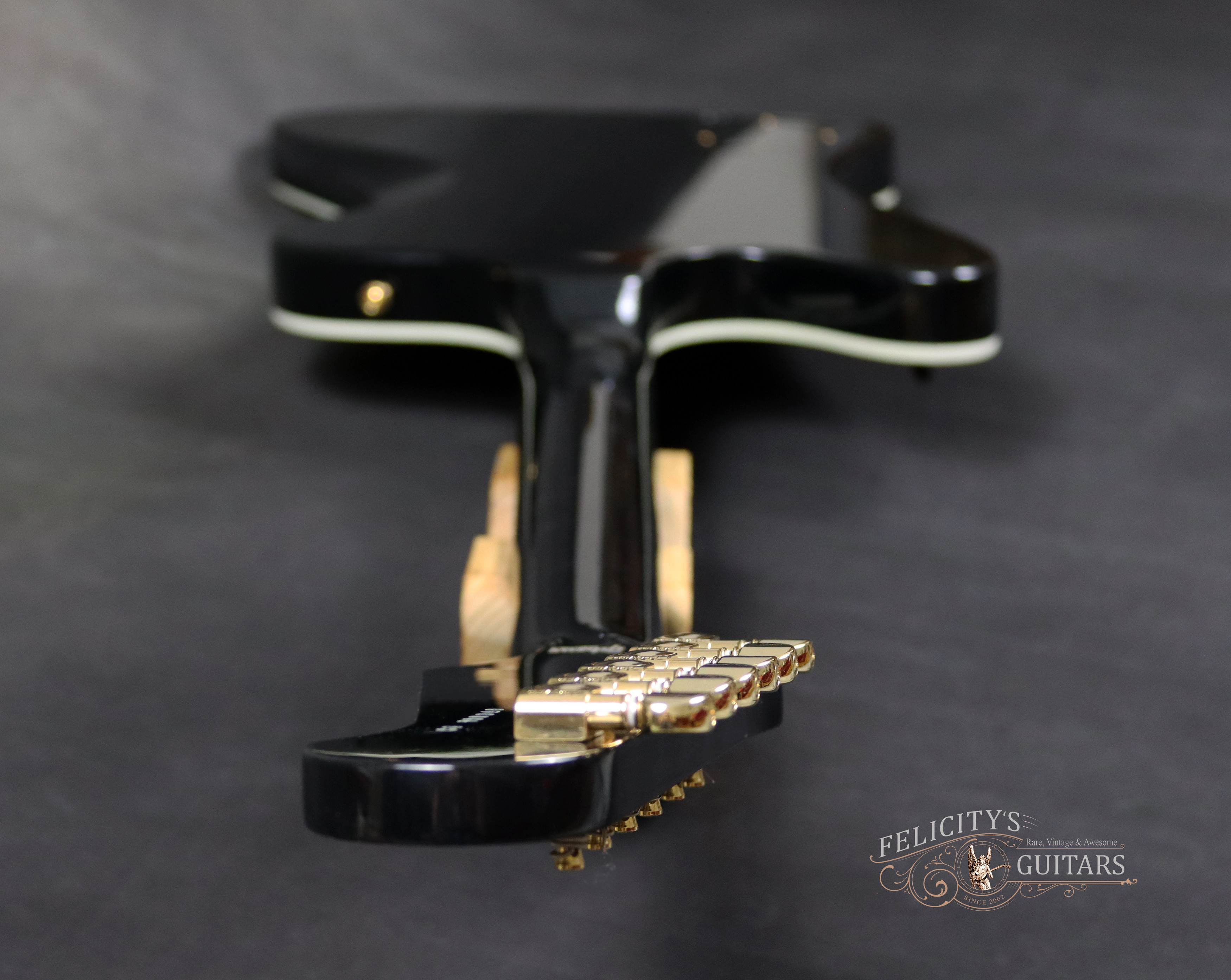

Tuning Machines	Gold, 6 in-a-row, Mini Grovers / 18:01 Ratio
Pickup Cover / Ring	Gold, with Black Plastic ‘M69’ Seats and no Dressing-Rings
Strap Buttons	Brass Aluminum End Pins

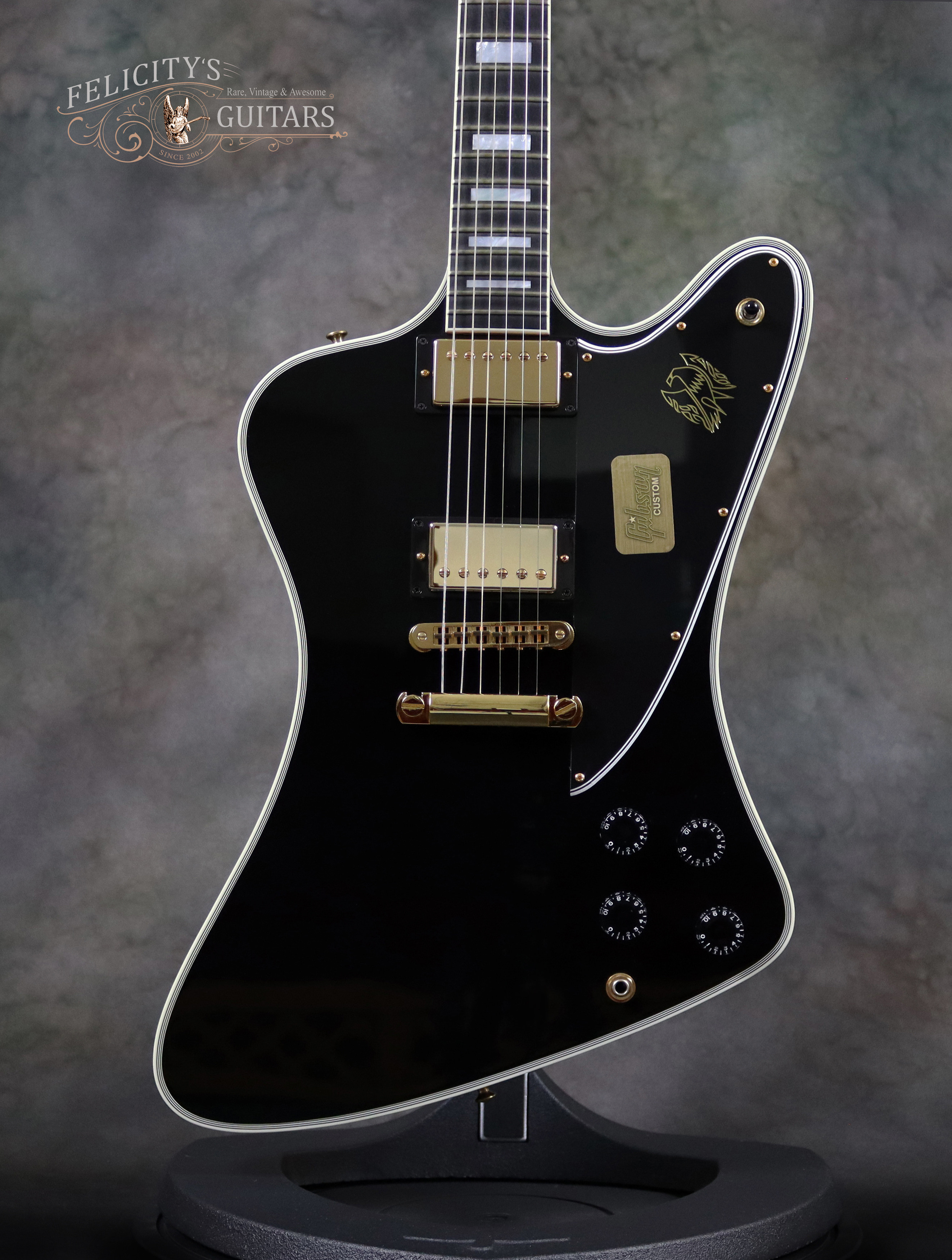

Pickguard	3-ply B/W Long Bevel, Hot-Stamped Gold FB Emblem & GCS Decal
Control Knobs	Black Speed Knobs with no Dial Pointers
Switch	3-position, Black Tip, with no Plastic Washer
Back Plates	Black Plastic Harness Cover with Gold Screws

electronics

Bridge Pickup	Gold, Gibson® 498T "Hot Alnico" Humbucker, Alnico 5, 13.8k
Middle Pickup	No
Neck Pickup	Gold, Gibson® 490R “Modern Classic” Humbucker, Alnico 2, 8.5k
Series / Parallel	Series
Active / Passive	Passive
Controls	2 Volume, 2 Tone, Switchcraft 3-way Pickup Toggle Switch
Vol Potentiometer	500k CTS Log-A
Tone Potentiometer	500k CTS Linear-B
Capacitors	.022uF Value Orange Drops

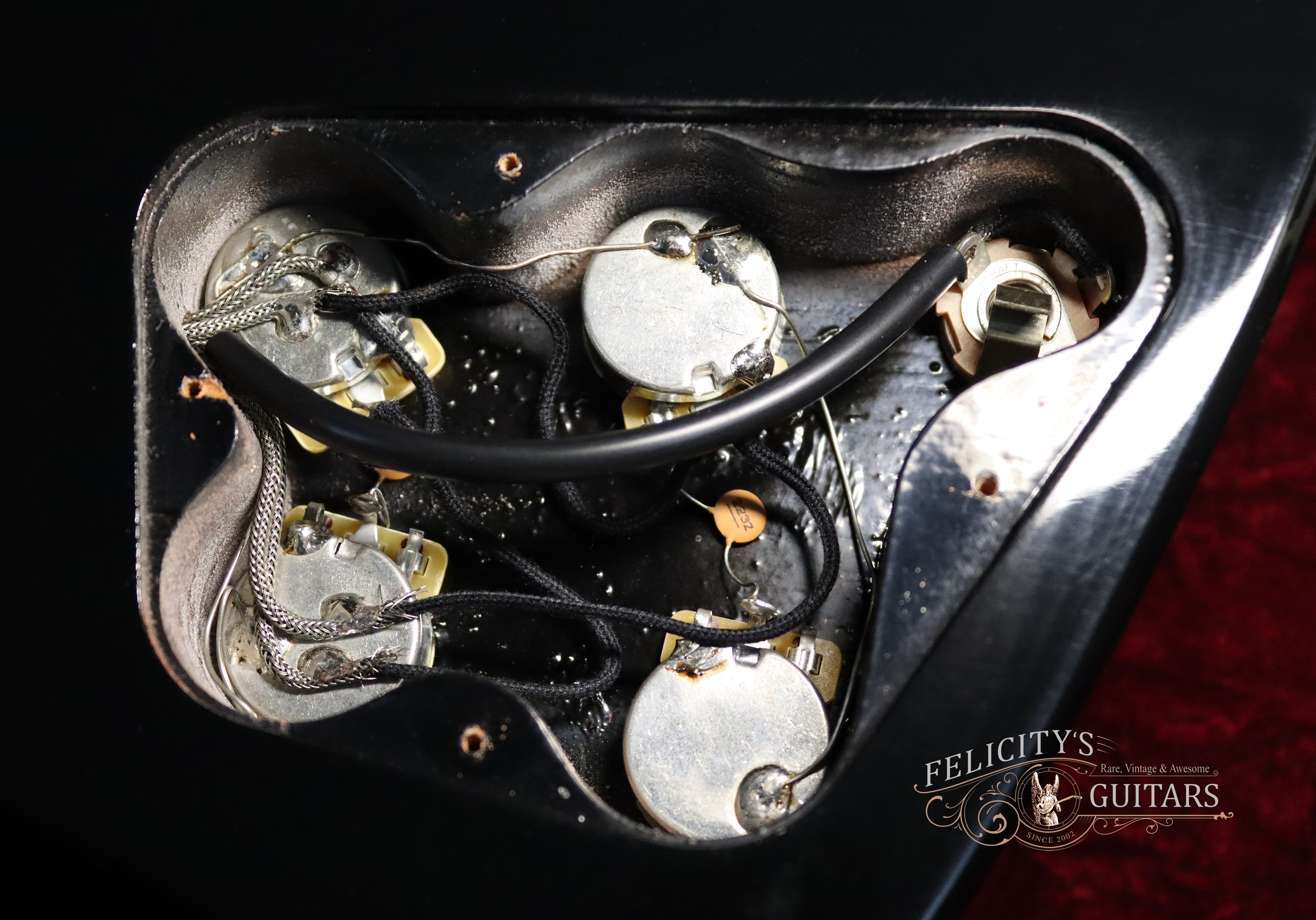

Harness	Custom Hand-wired Harness
Push-pull	No
Piezo	No
Active EQ	No
Kill switch	No
Output Jack	1/4" 2-Conductor Mono

miscellaneous

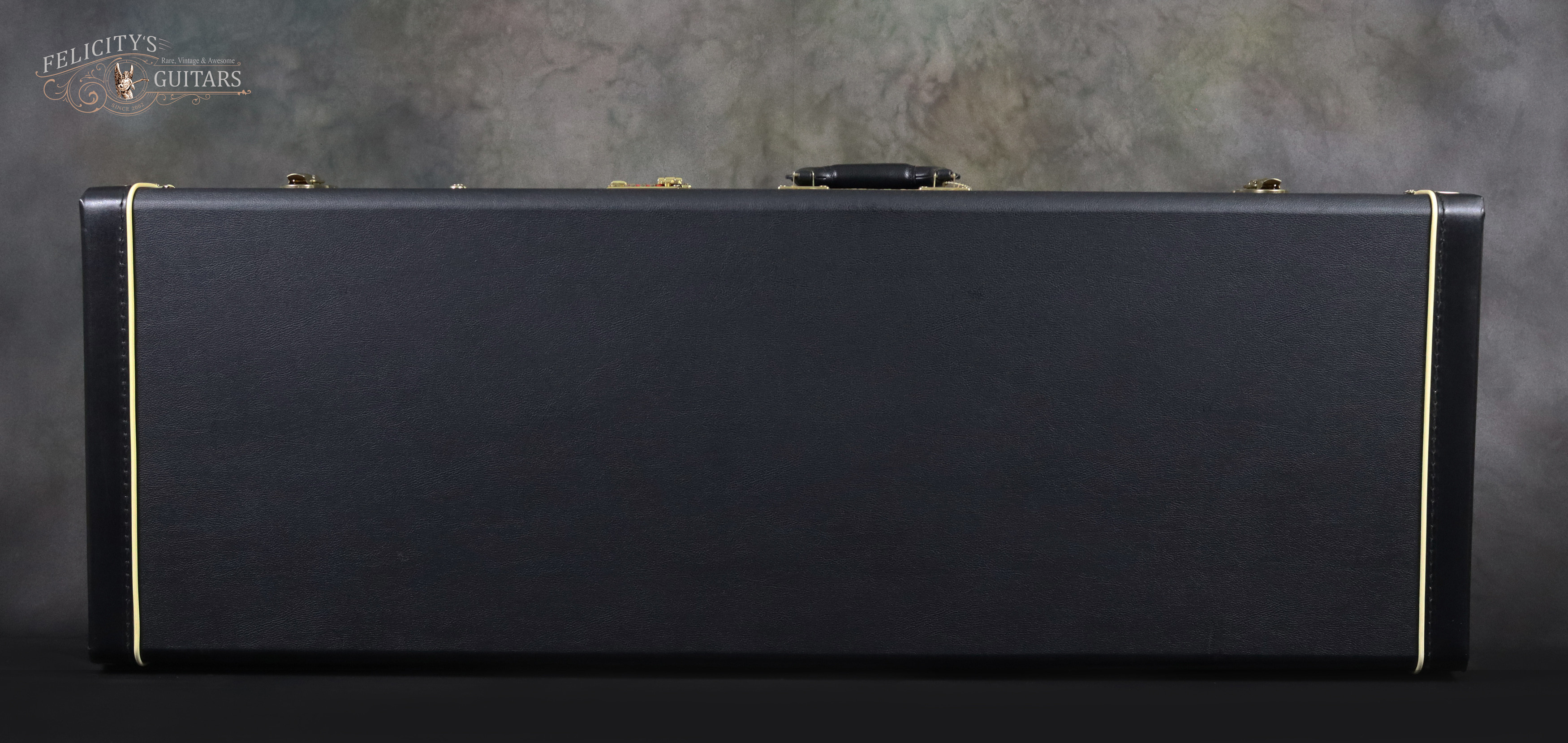

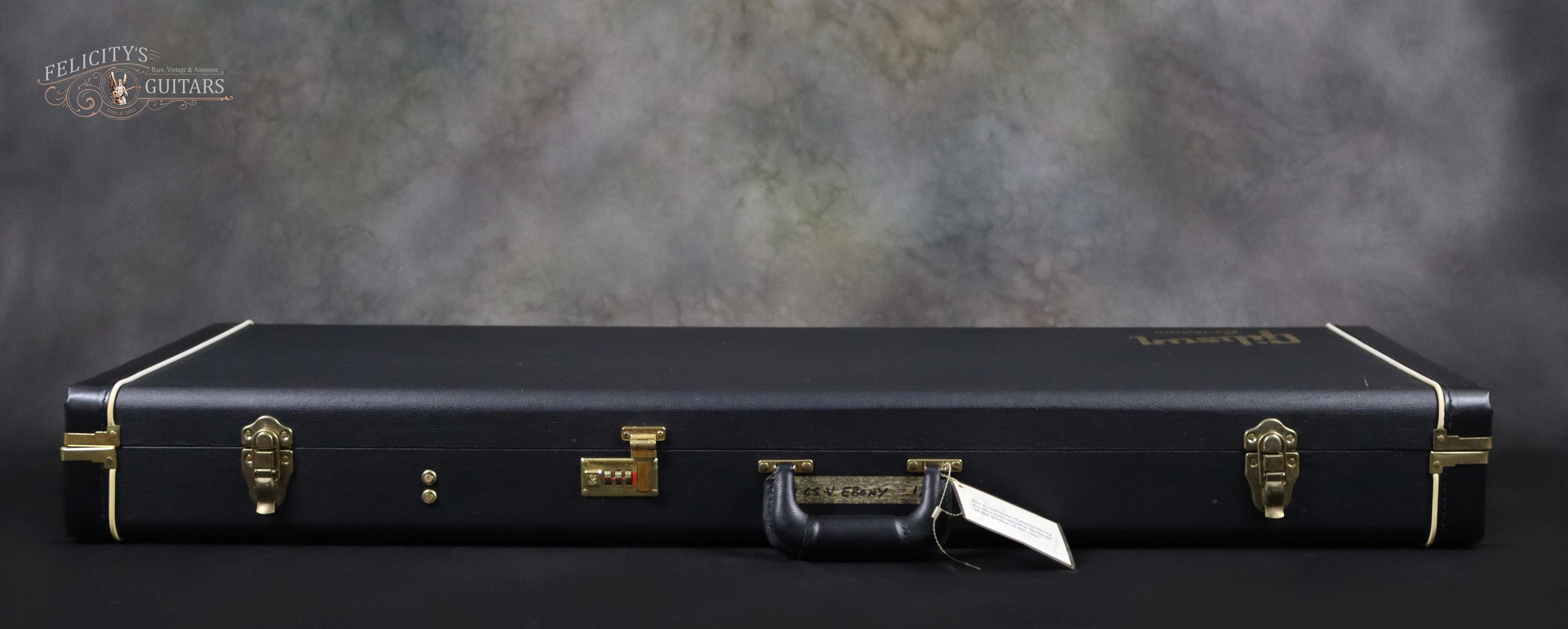

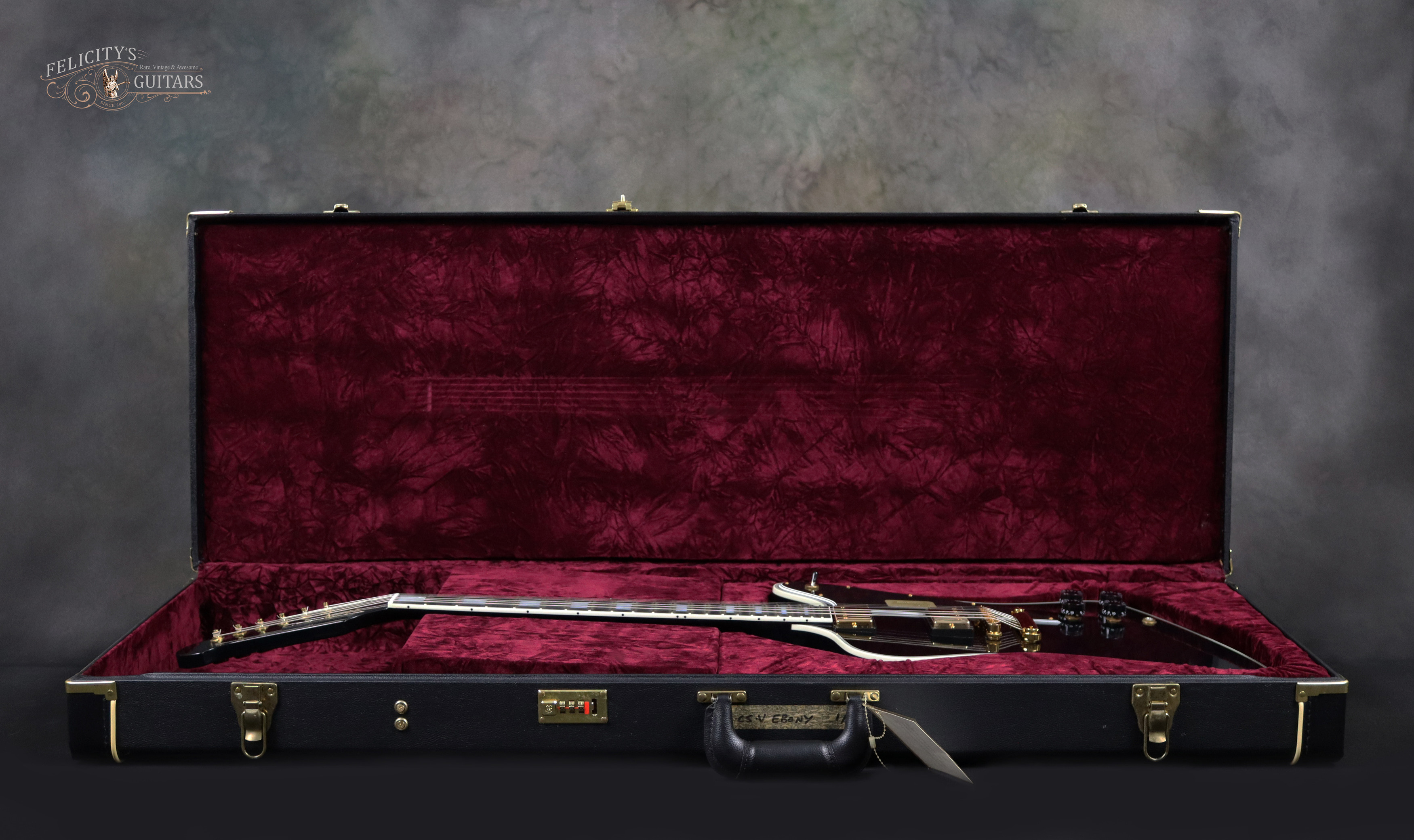

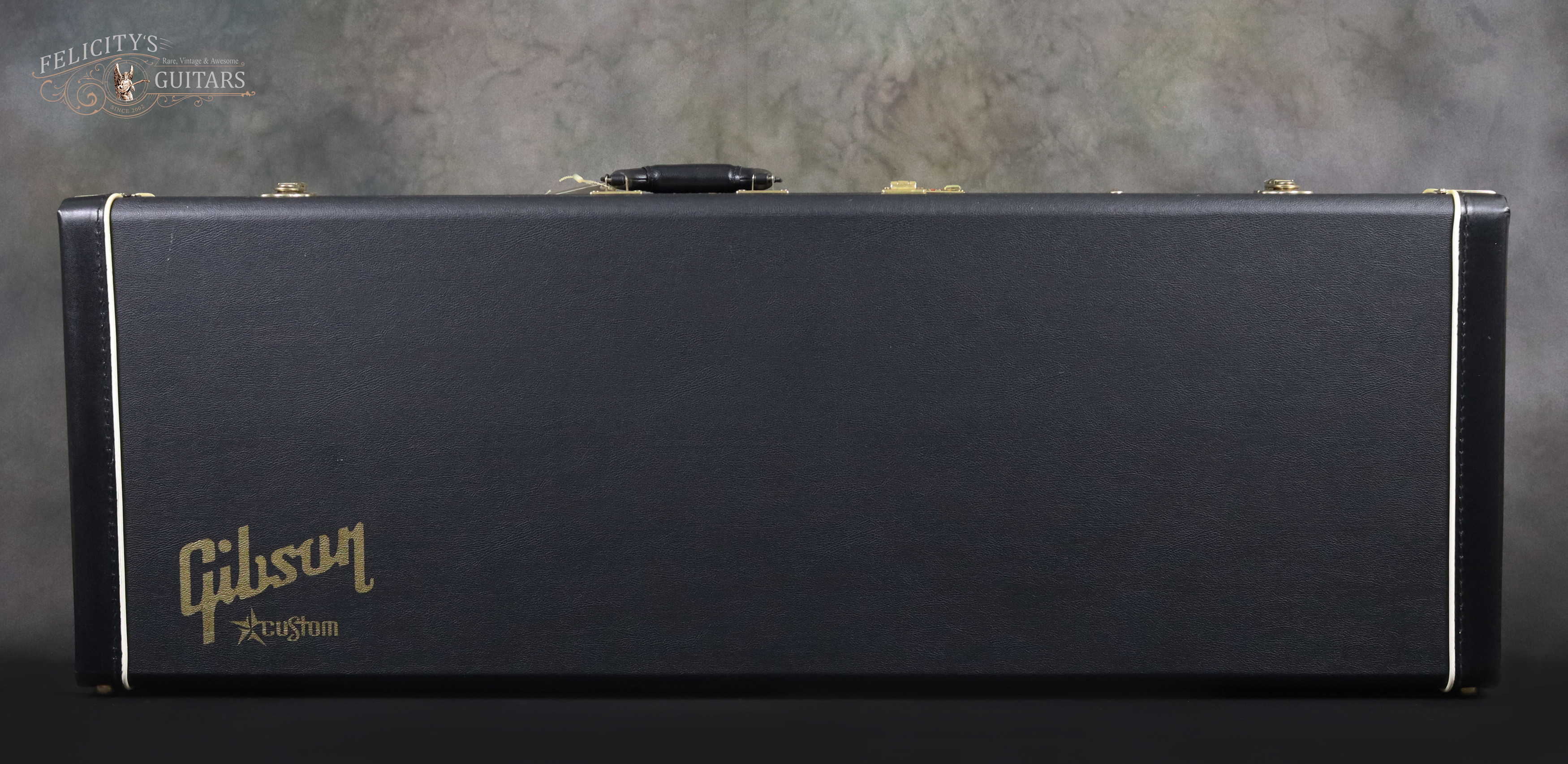

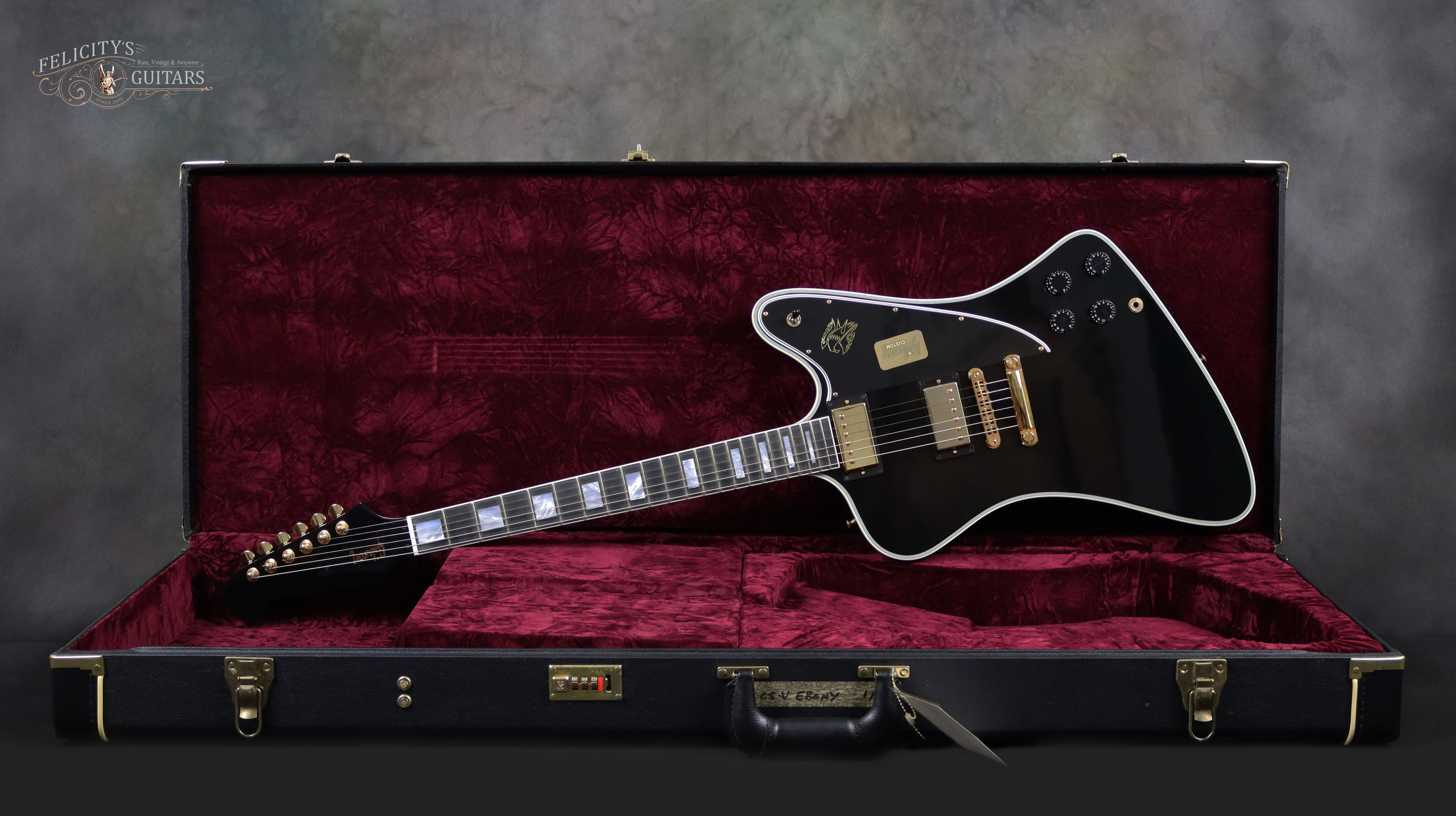

Case / Gigbag	Gibson® Custom Black OHSC with Maroon interior, and comb-lock
Strap Locks	None
Strings	Elixir® Polyweb .010, .012, .016, .026, .036, .046 − Gauges
Tools / Accessories	No
Manual / Other	Gibson® CS Gold Warranty Card, Lock Instructions and CS Hang Tags

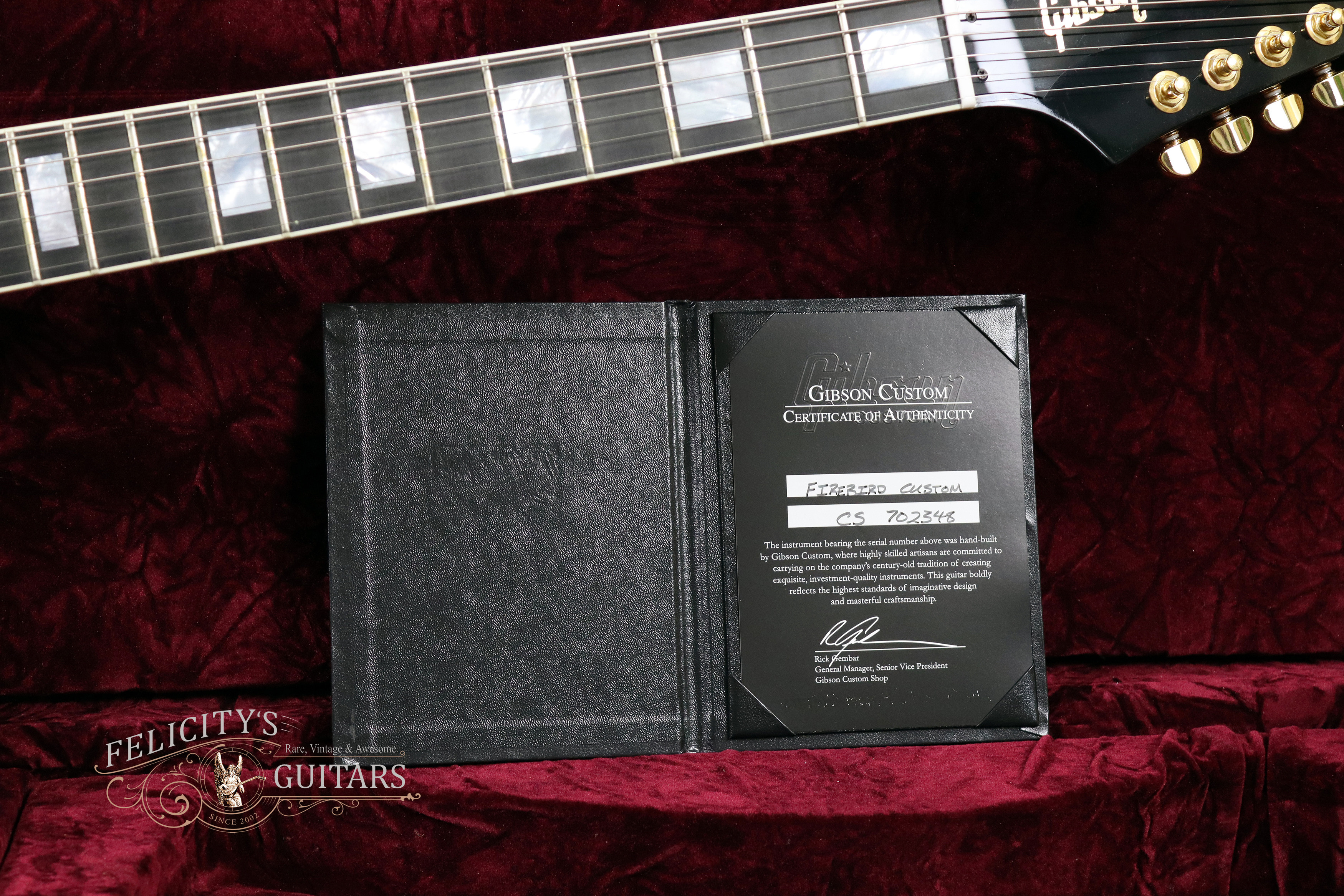

C.O.A.	Gibson® Custom Certificate of Authenticity Booklet
Weight	Is the actual weighed-value in US Standard Units

Disclosure	Certain technical specs may have been extracted from Gibson® website and/or internet archives. The words Gibson® / Switchcraft™ / Grover® and the associated designs are registered trademarks of Gibson® Brands, Inc. and the other named manufacturers, if any, respectively.

Thanks for looking !
