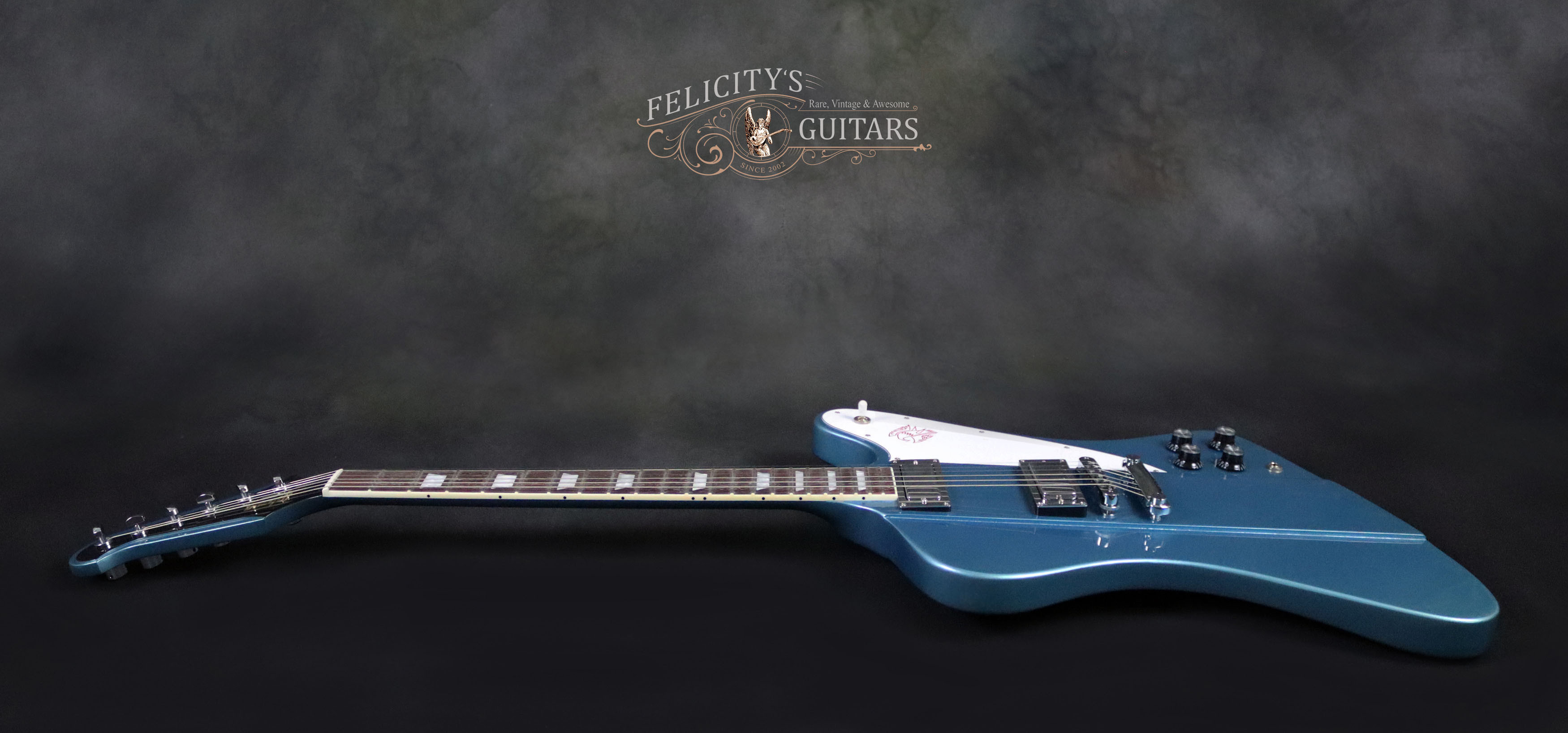

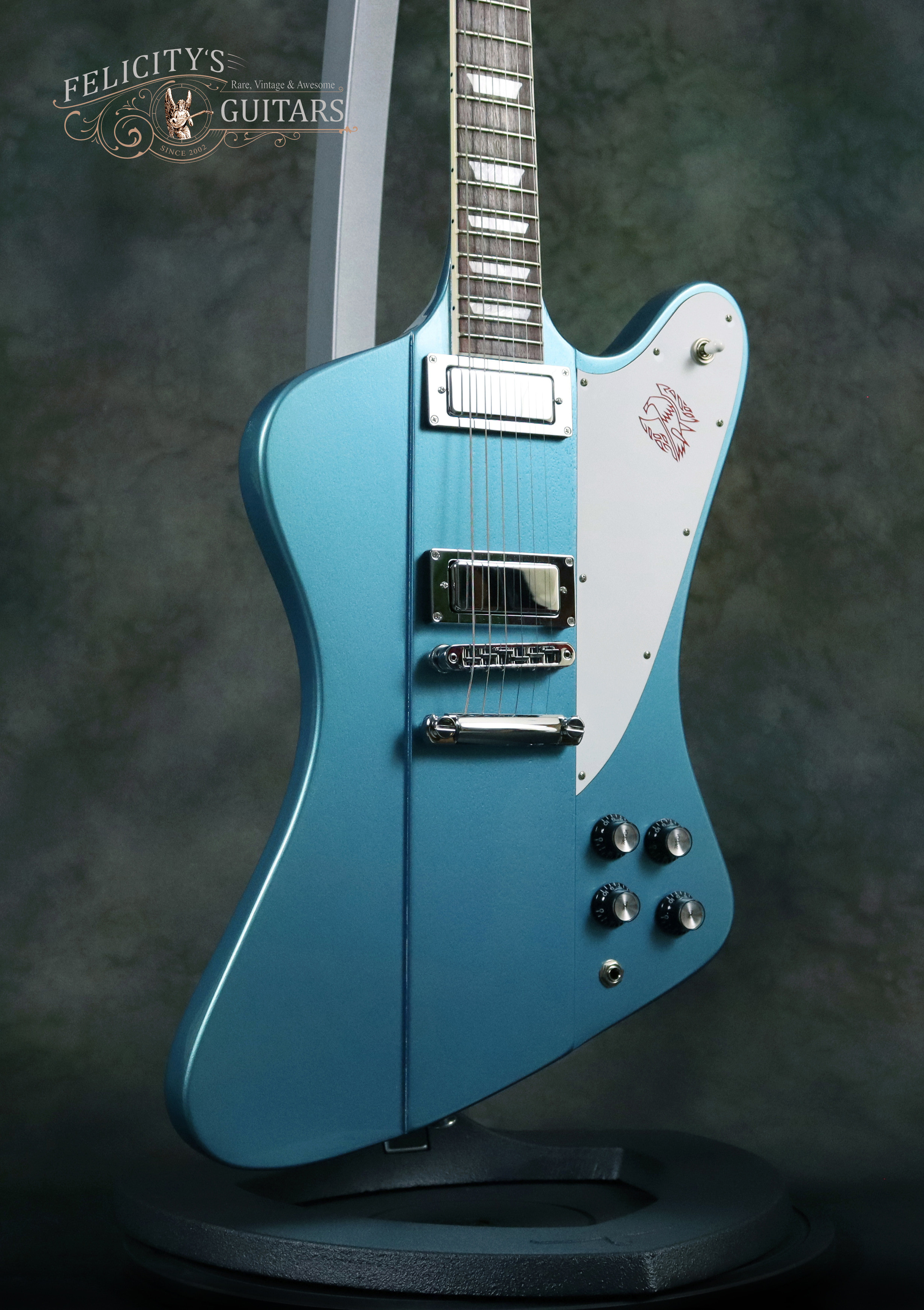

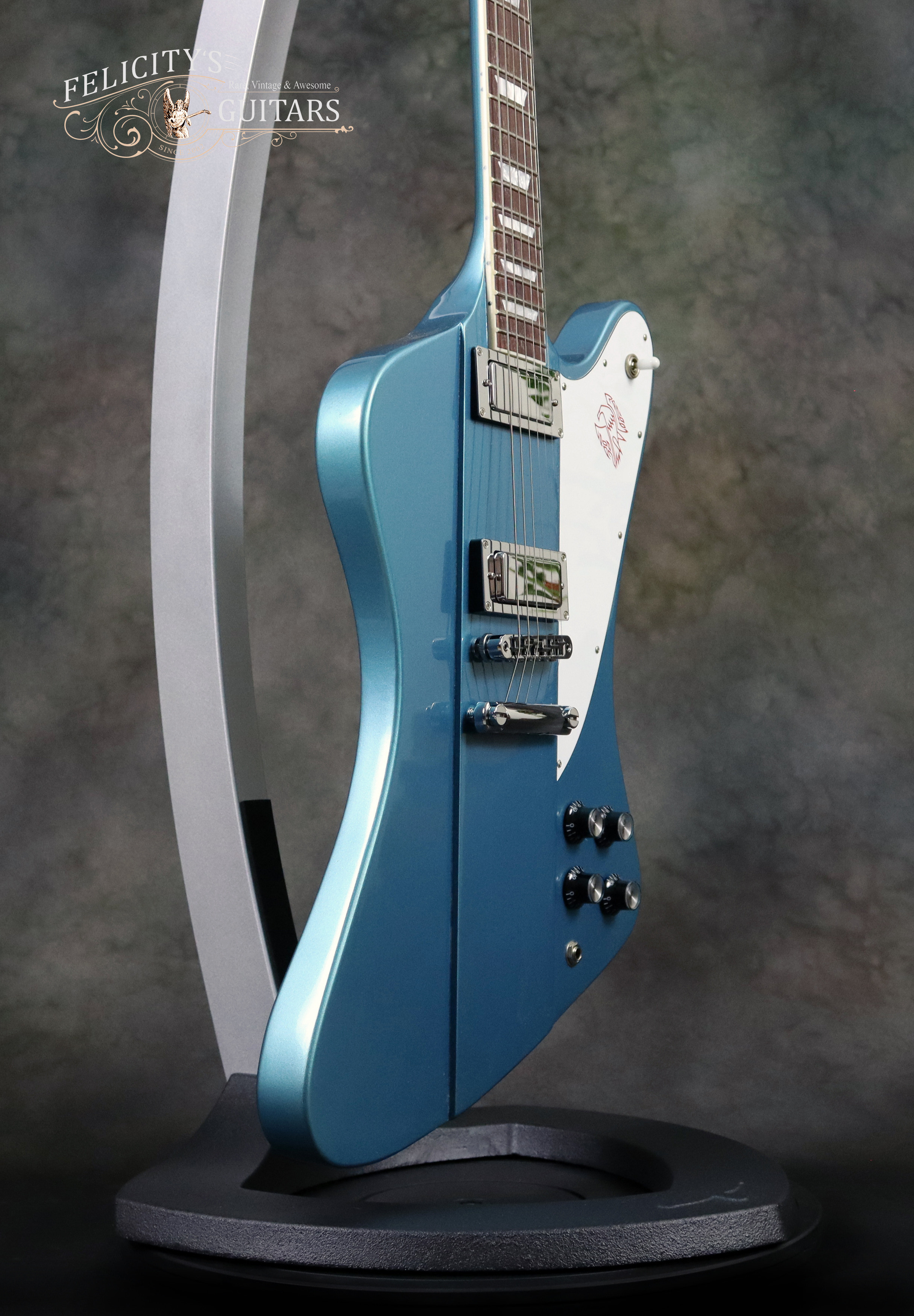

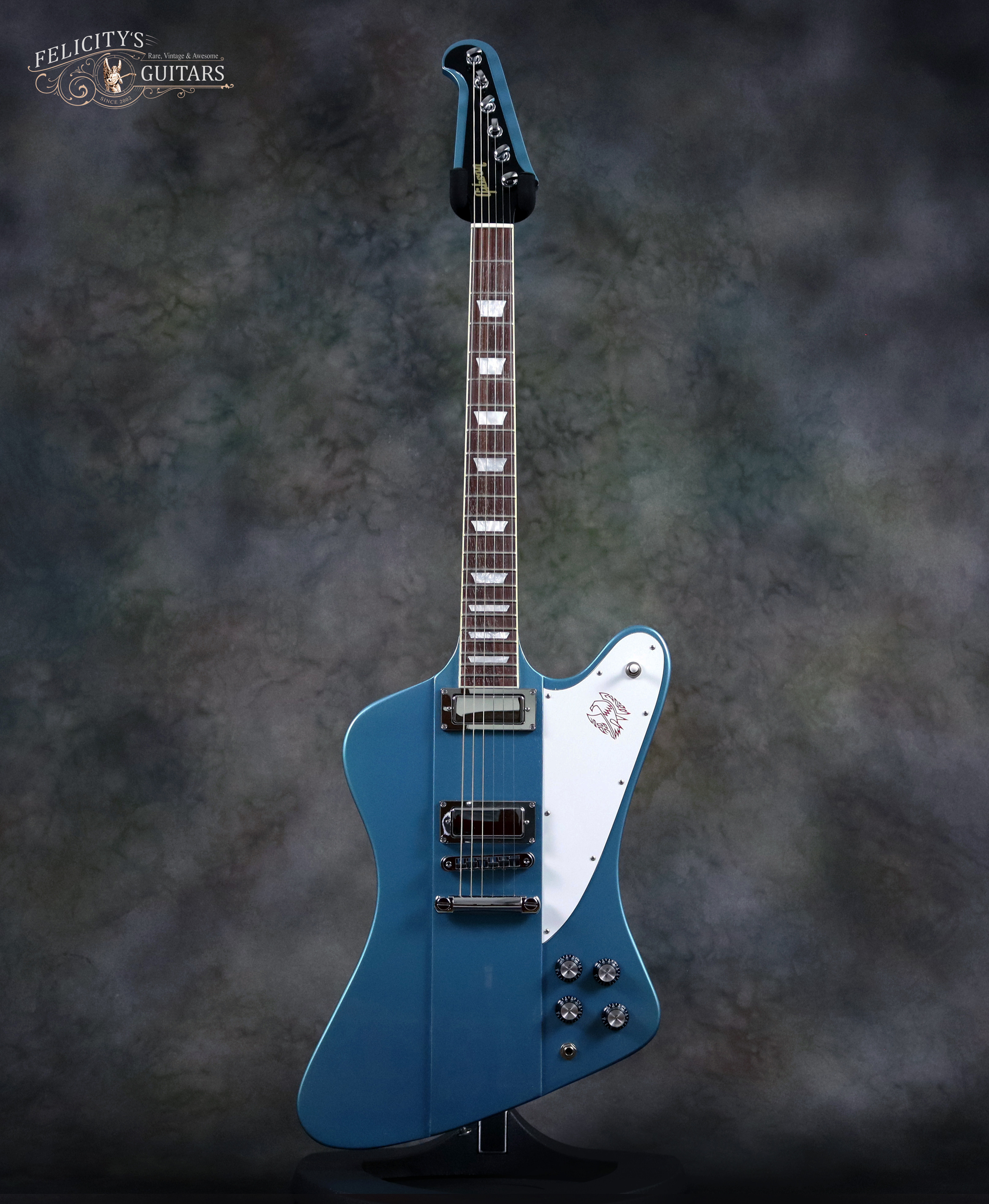

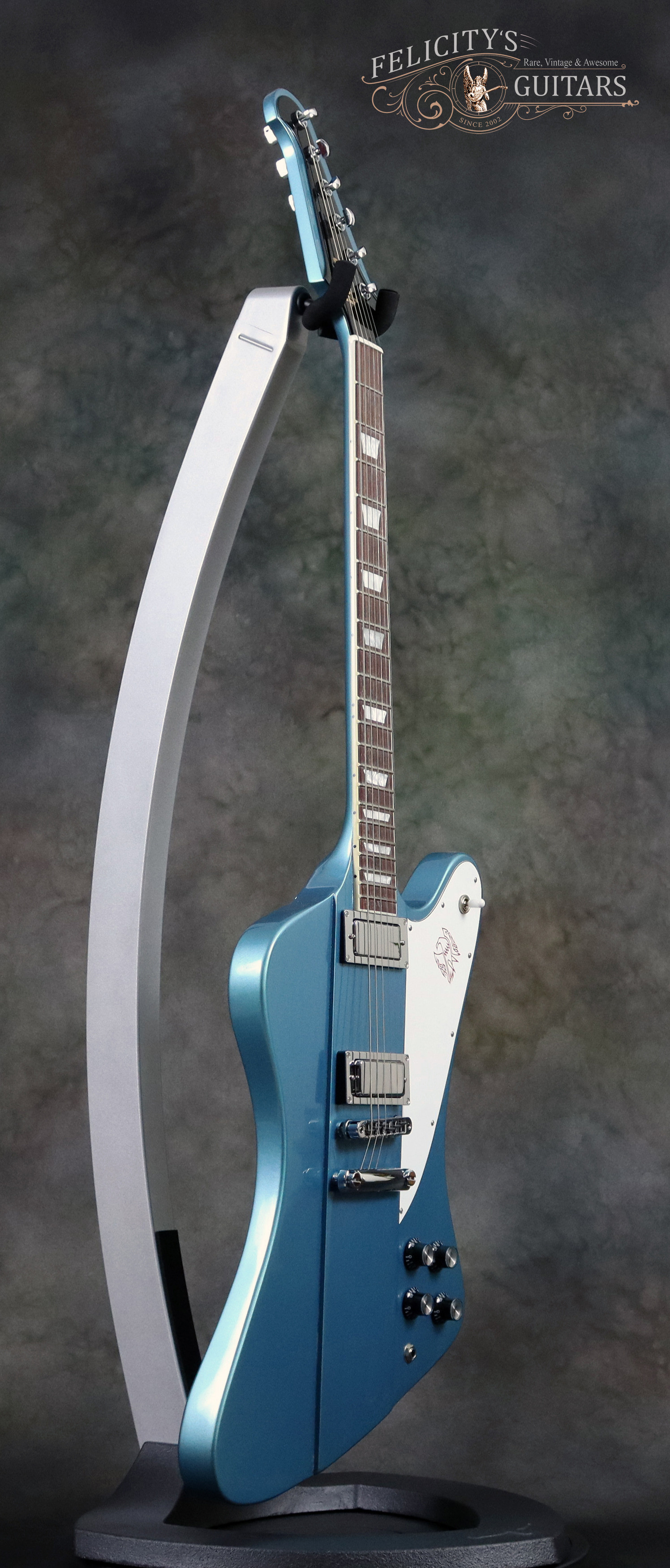

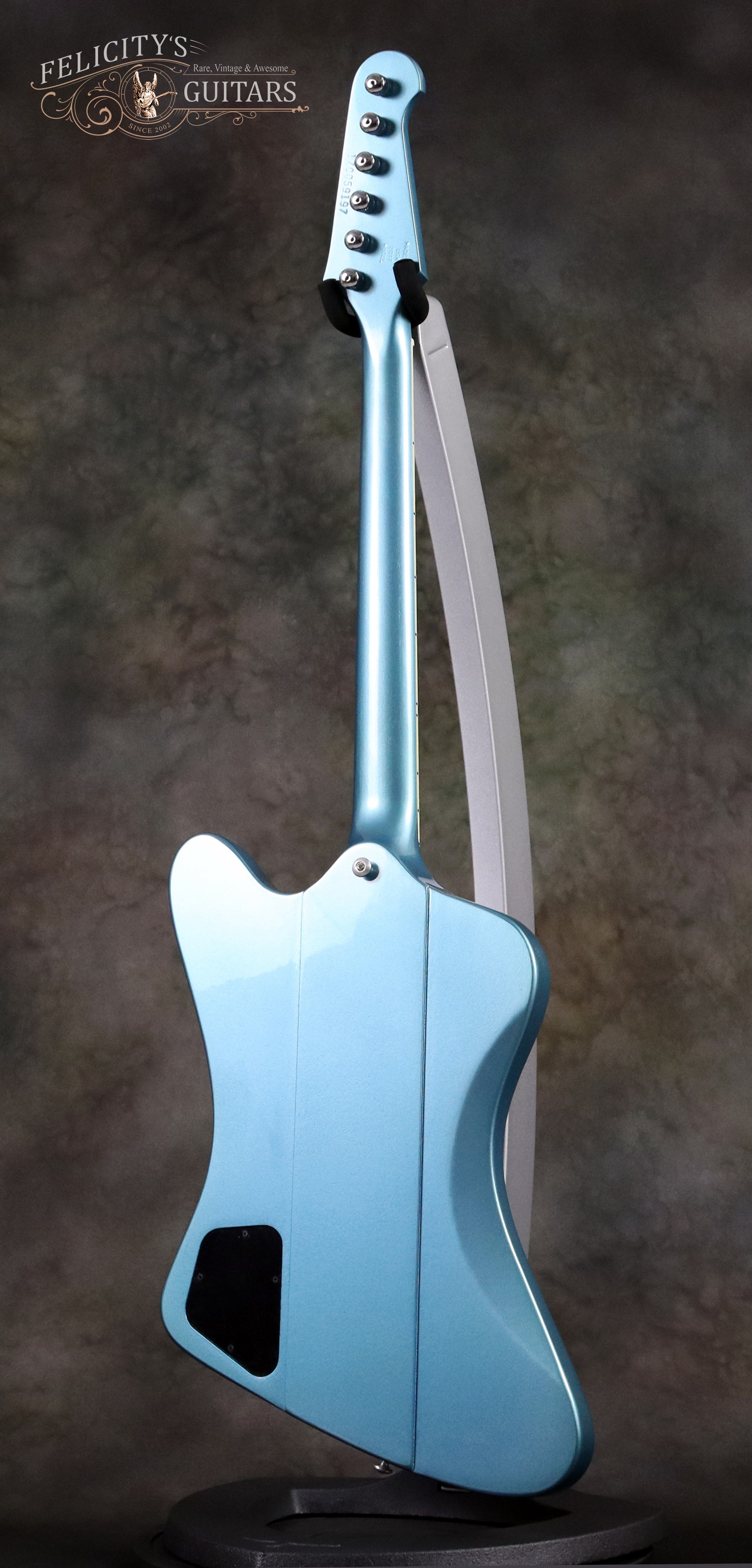

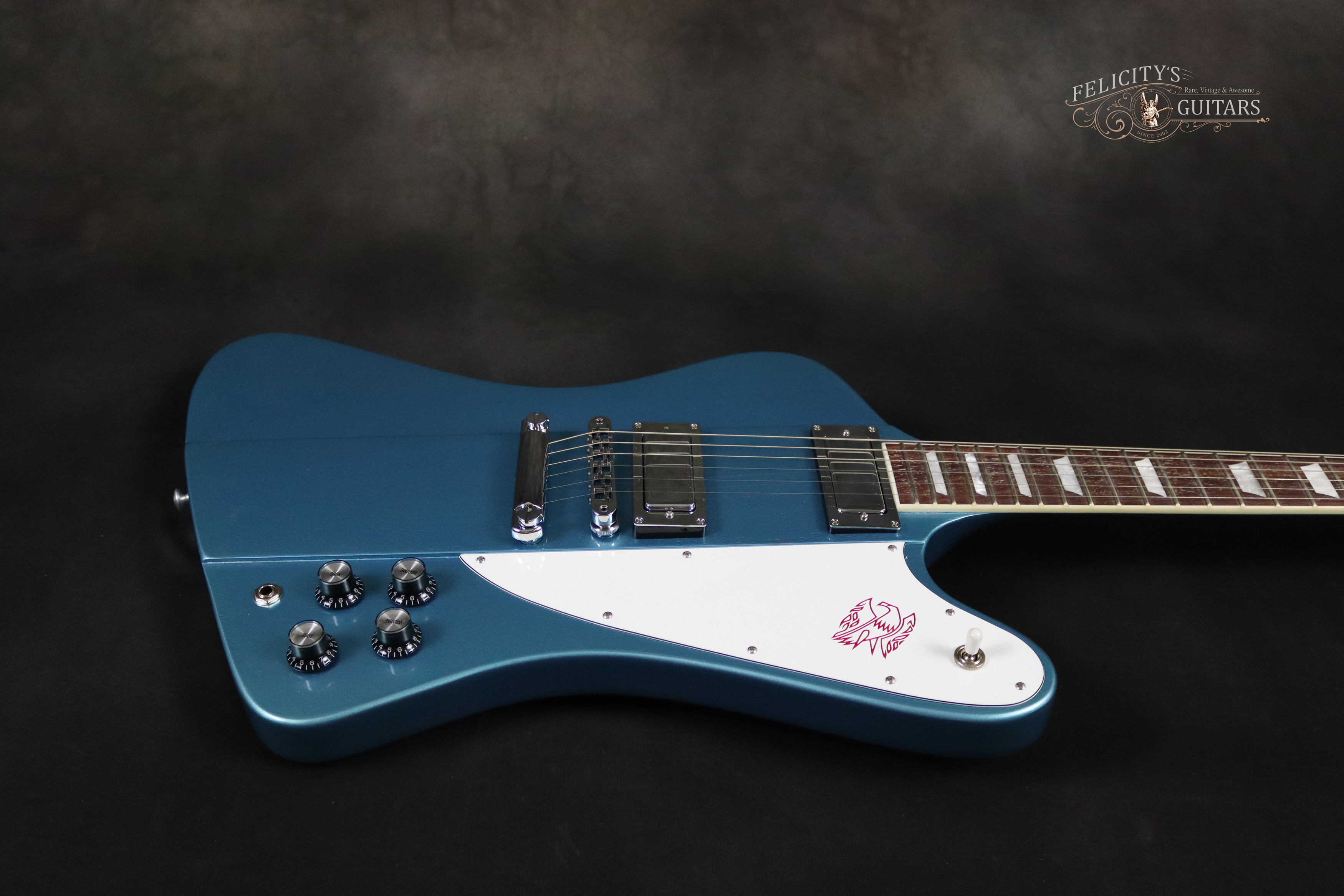

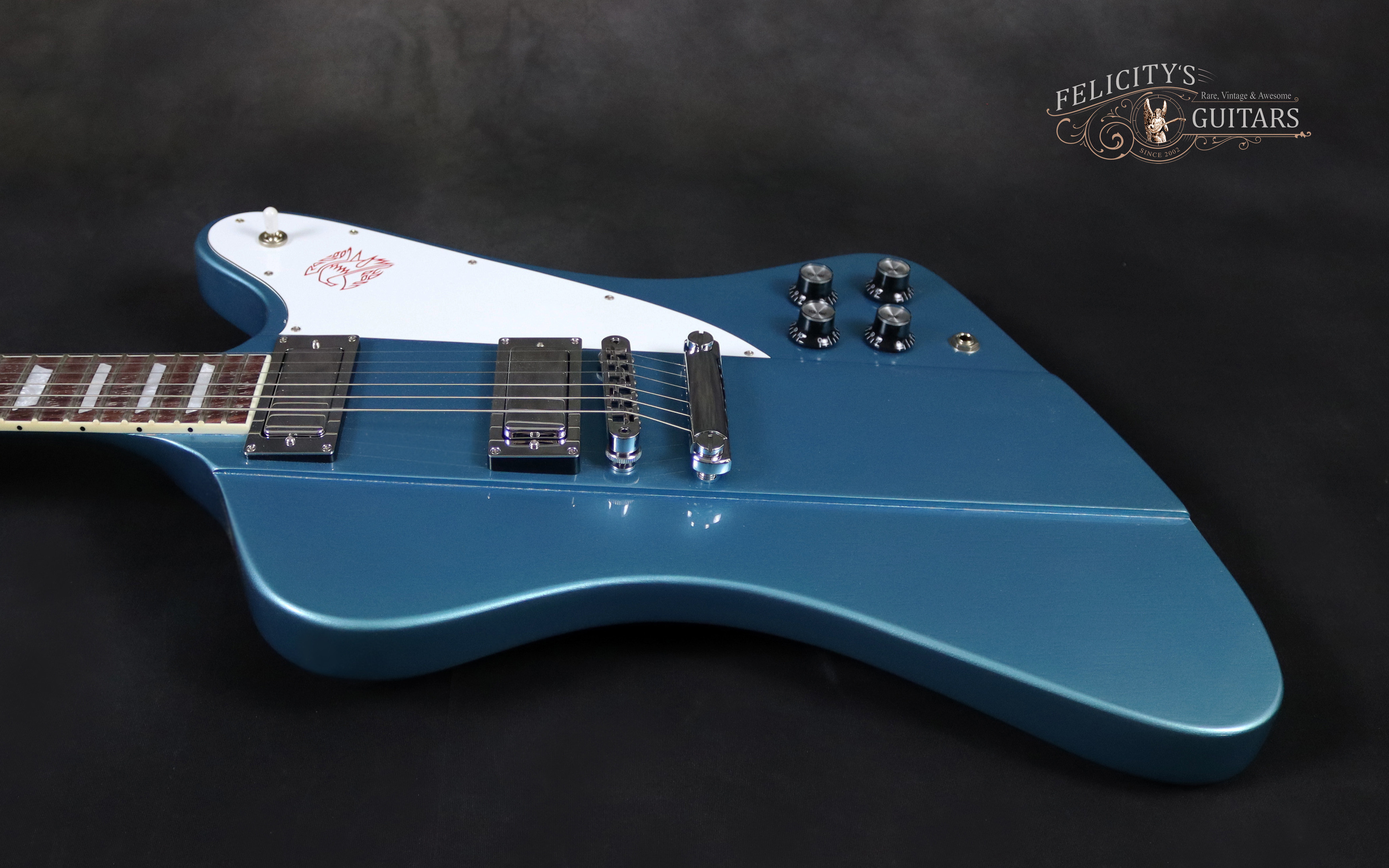

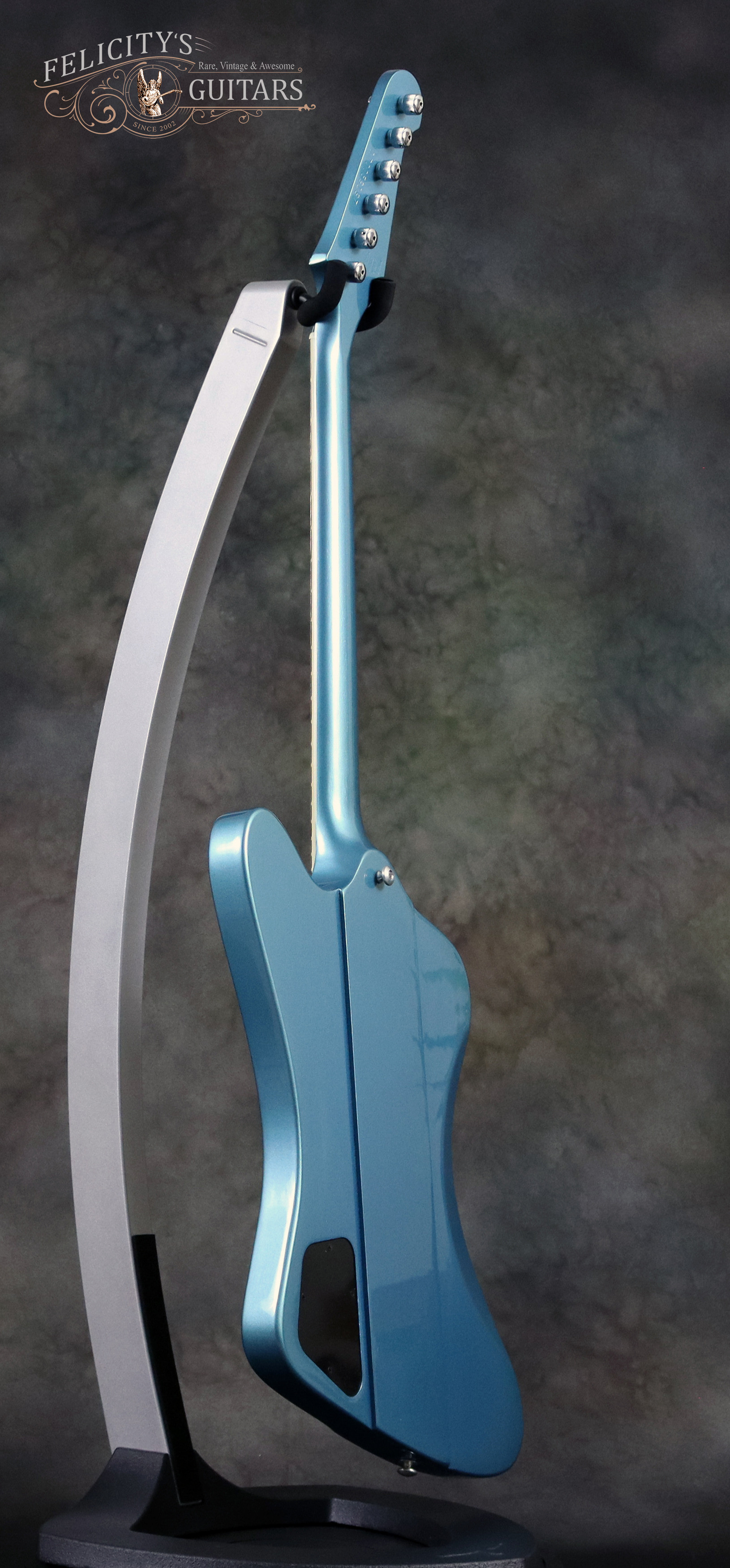

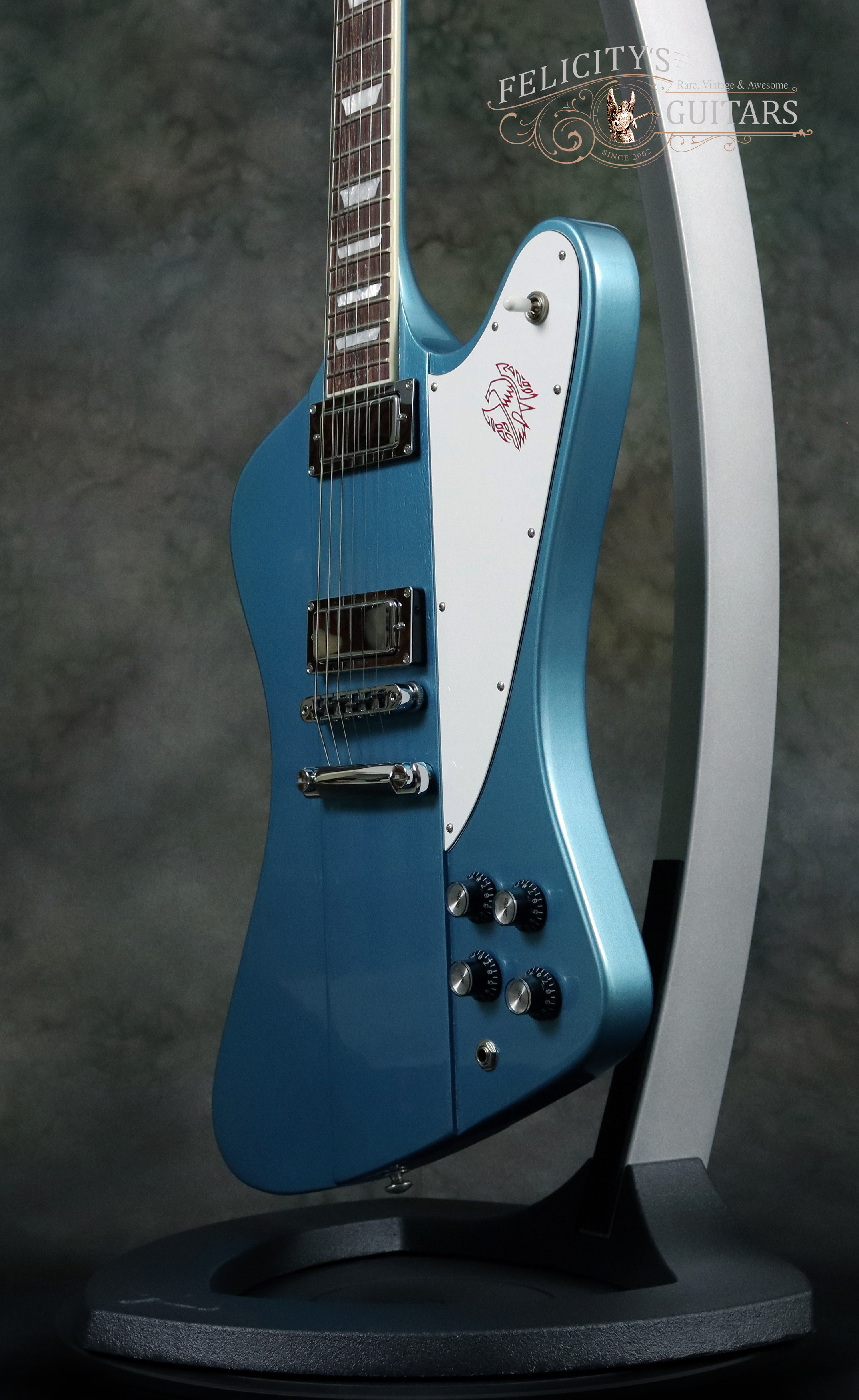

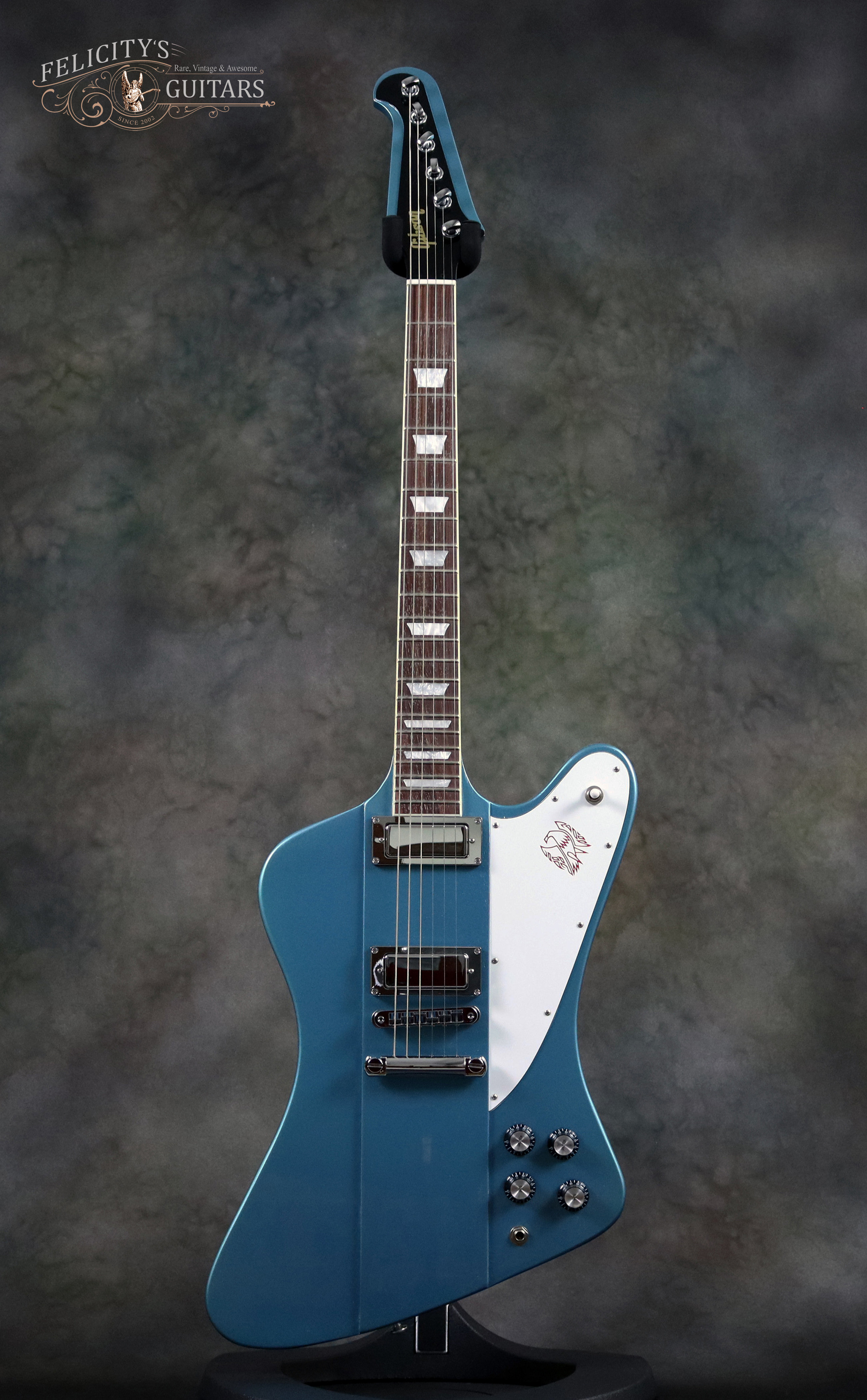

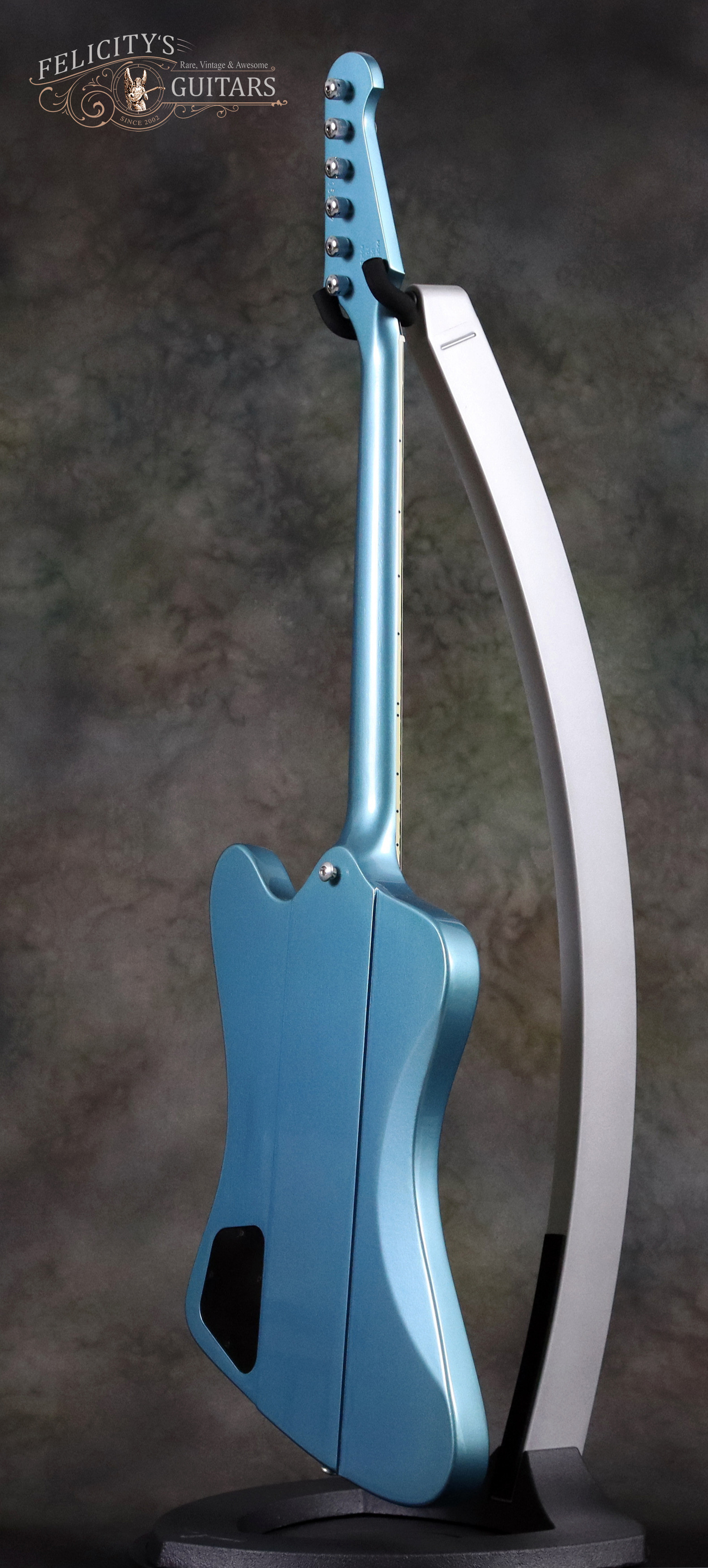

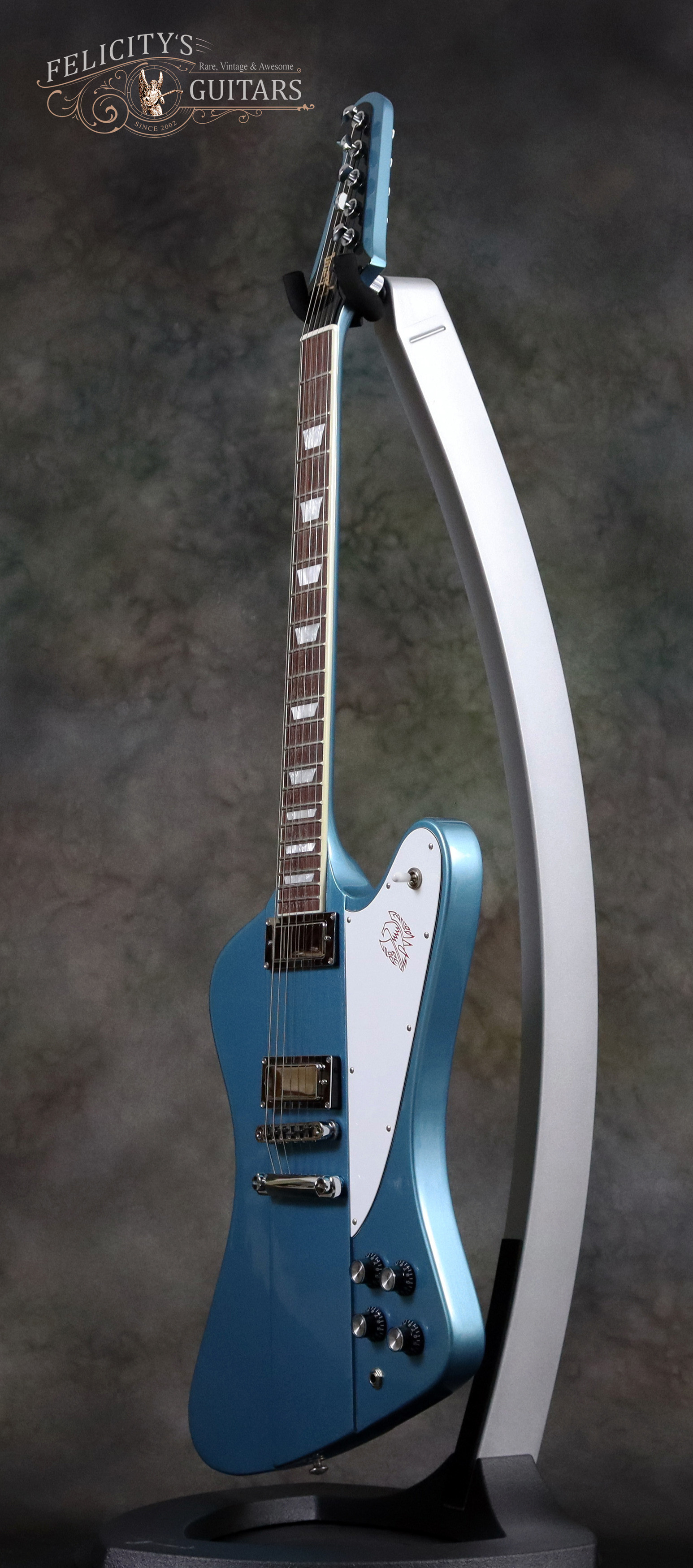

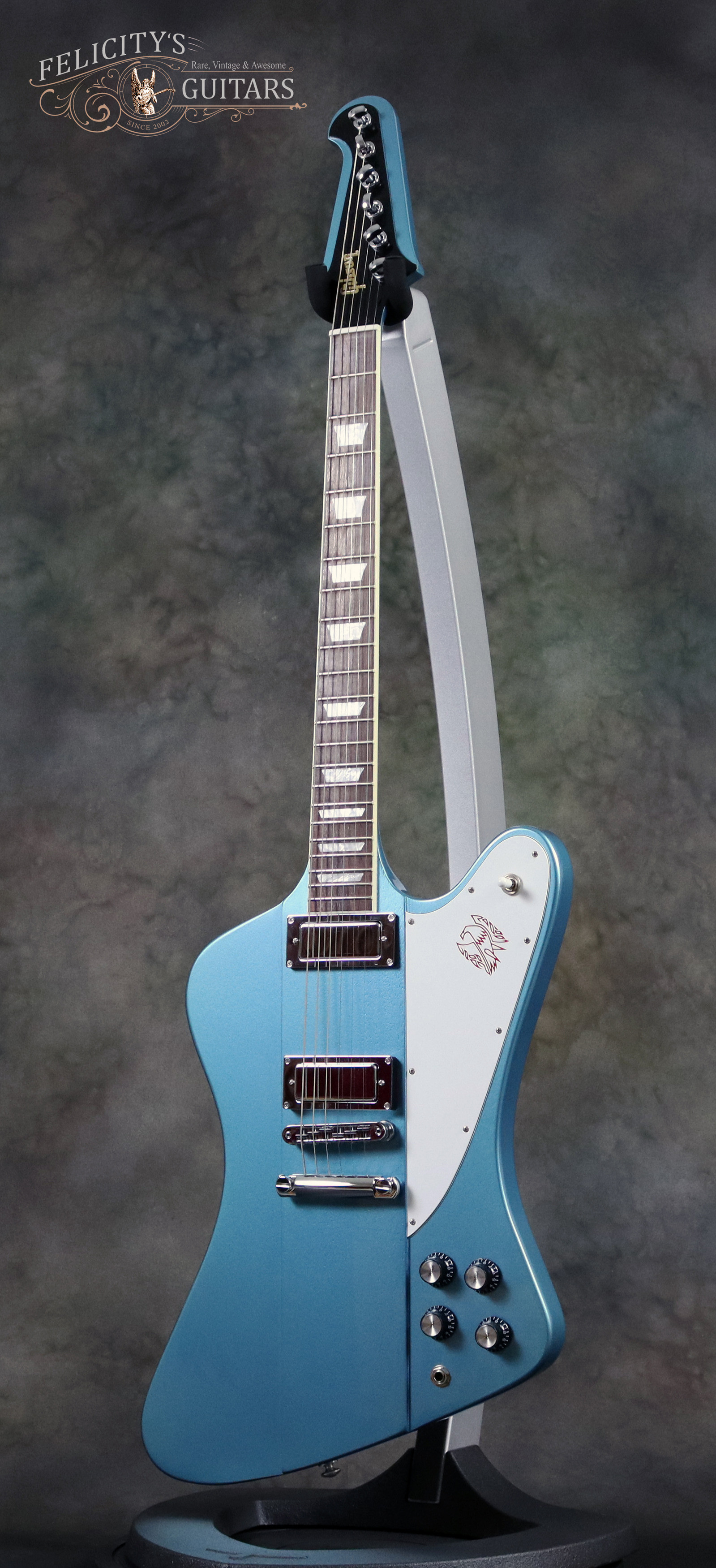

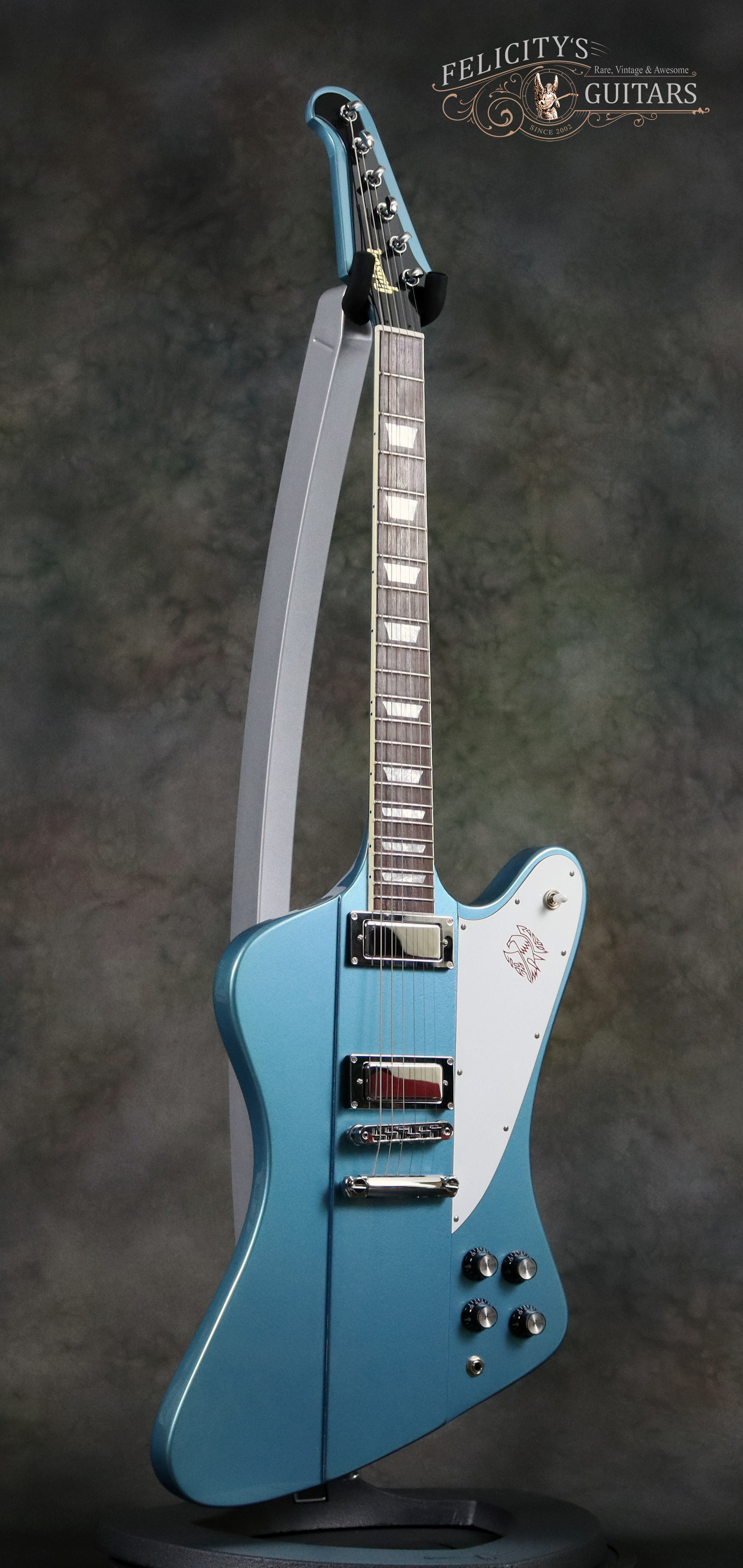

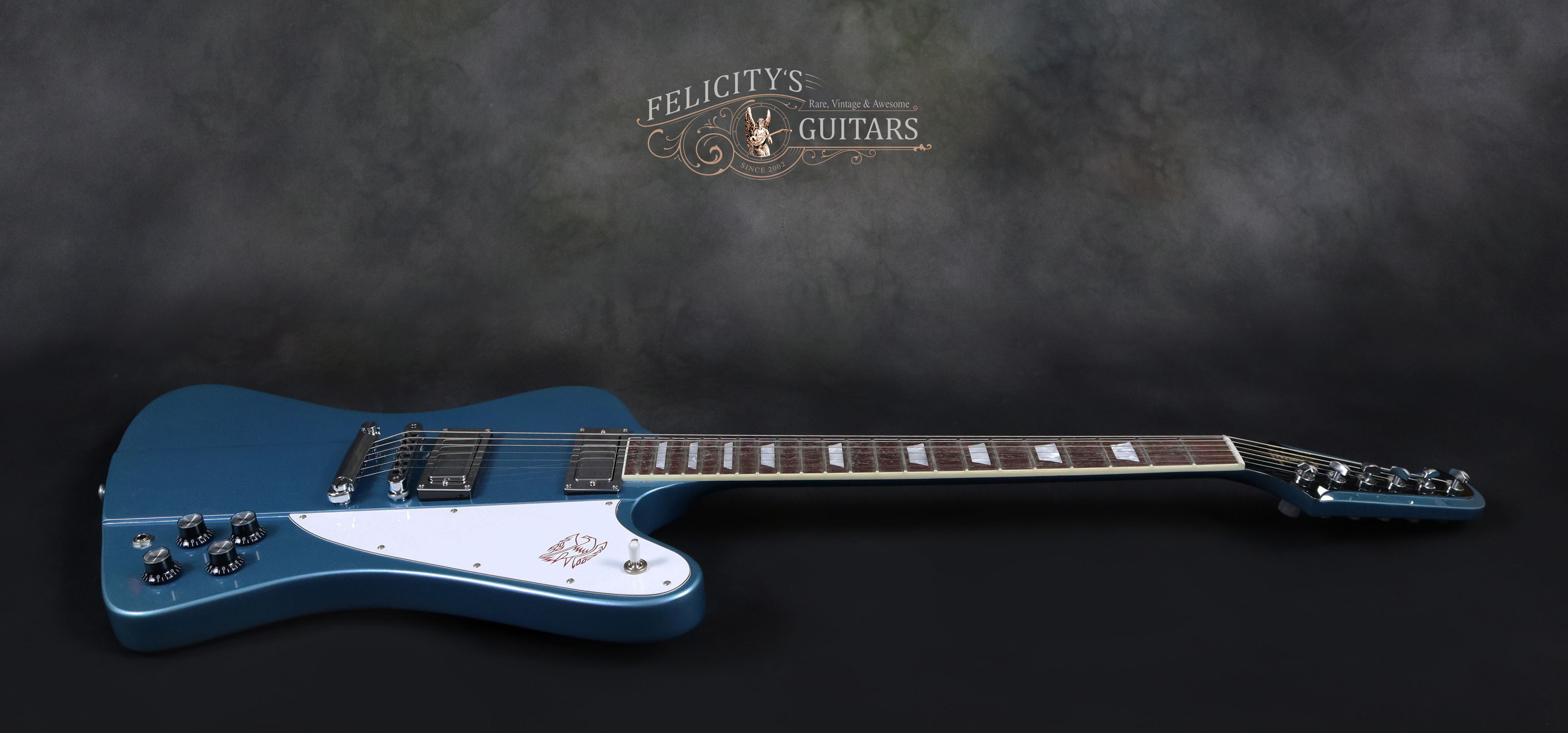

2017 GIBSON FIREBIRD V ‘T’ IN PELHAM BLUE FINISH

The Gibson Firebird rocks a reverse body and headstock design as originally introduced in 1963 and was Gibson's first neck-through-body design.

The Firebird has been favored by many acclaimed artists such as Brian Jones - Rolling Stones, Eric Clapton - Cream, Steve Winwood - Traffic, Warren Haynes - Govt Mule / Allman Bros, Phil Manzanera - Roxy Music, Allen Collins - Lynyrd Skynrd, Steven Clark - Def Leppard, Lzzy Hale - Halestorm, Dave Grohl - Foo Fighters, Paul Stanley – Kiss, Clarence Gatemouth Brown, Slash and Johnny Winter – to name a few.

The 2017 Gibson Firebird V ‘T’ at a glance:

Mahogany Body & Multi-piece Mahogany/Walnut neck with slim, super-fast Firebird profile

Rosewood Fingerboard

Aluminum Tune-O-Matic Bridge and Stopbar Tailpiece

Steinberger Gearless Tuners with 40:01 Ratio

Chrome Hardware

High Output 495T and 495R Mini Humbucking Pickups

Pelham Blue Finish

2017-Gibson-Firebird-V-Traditional-Pelham-Blue

USD 1,000,000

Add to Cart

Shipping will be calculated at check out

Photo Gallery

description

The Firebird 2017 T is the most expensive of the new 2017 non-custom shop models, and comes in in two variants; Vintage Sunburst and Pelham Blue. Both feature chrome-plated hardware, high gloss finish and classic Firebird pickguard with Firebird logo.The body of the 2017 Firebird T is made of solid mahogany wings glued onto the mahogany/walnut neck. The neck is equipped with a fast and smooth slim taper profile in the back and a (one-piece) 22-fret rosewood fingerboard on top. Hardware and electronics appointments include a standard two-piece bridge unit, gearless 40:01 ratio Steinberger tuners and two 495 minibucker pickups.

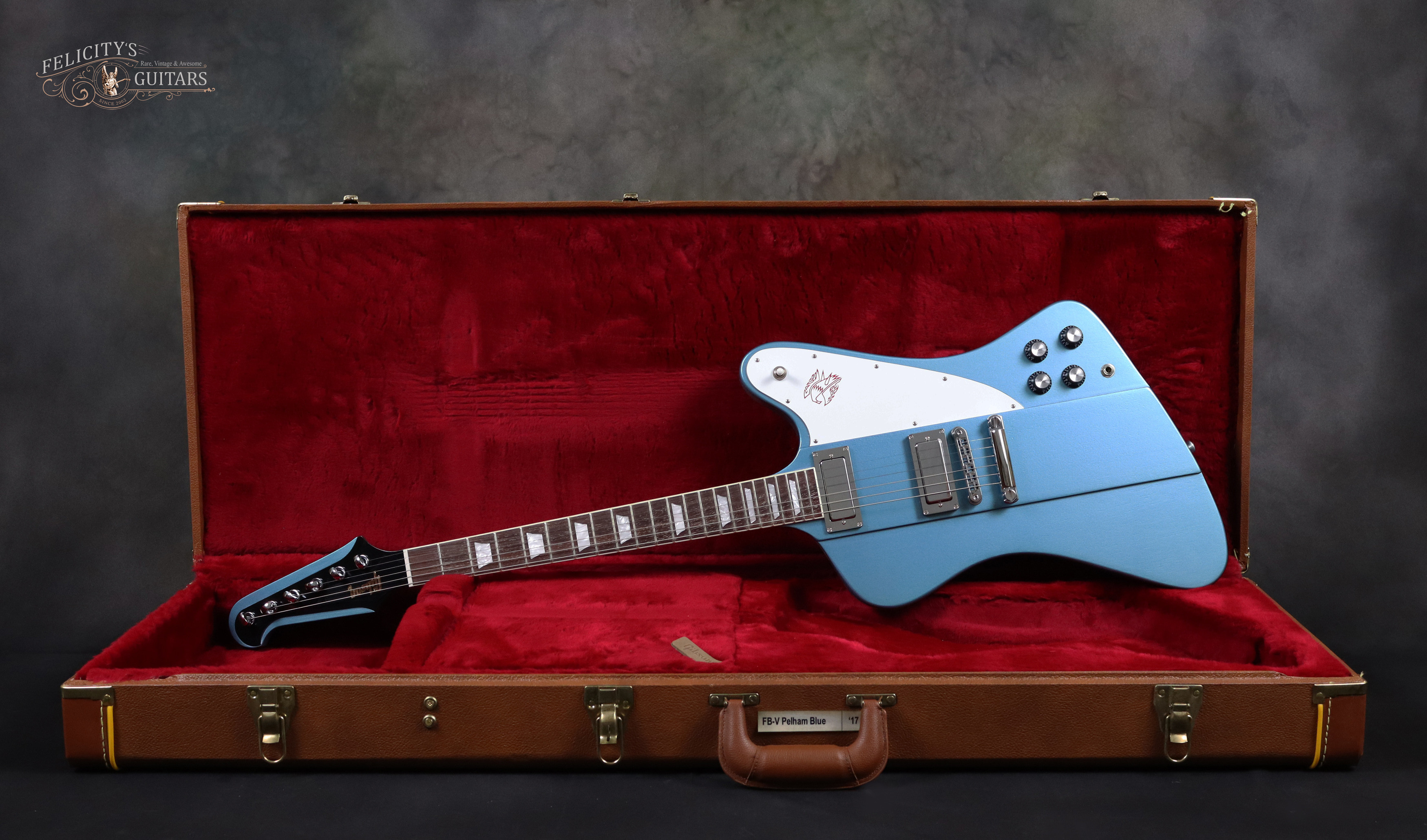

This guitar is professionally setup and protected in the original Gibson hardshell case.

Specifications

General

Condition	New
Number of Strings	6
Left/Right-handed	Right-handed
Country of Origin	U.S.A.
Year	2017
Limited Edition / Series	No

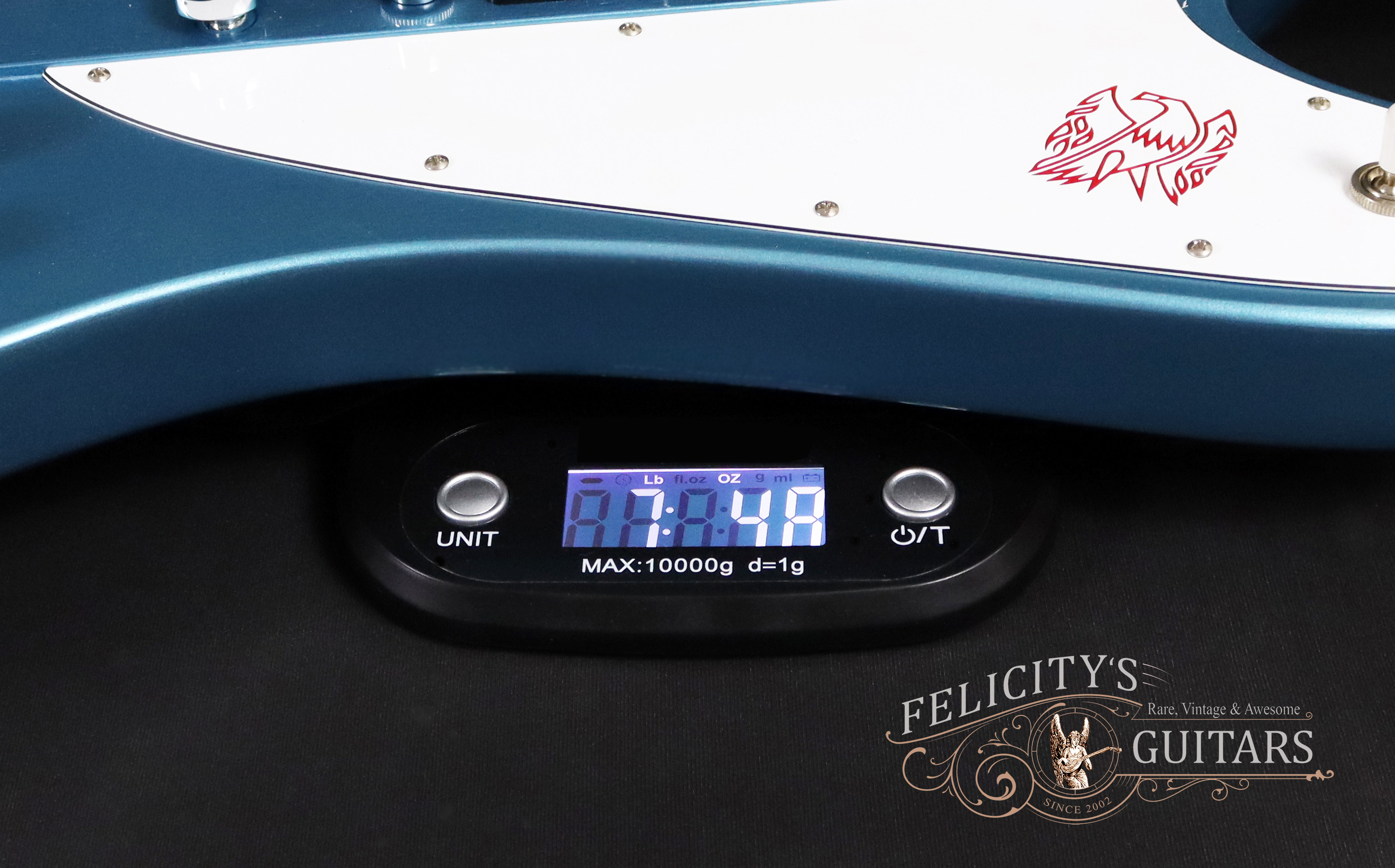

Weight	7-lbs 4.8-oz

body

Body Type	Offset, Solidbody
Body Shape	Reverse Firebird

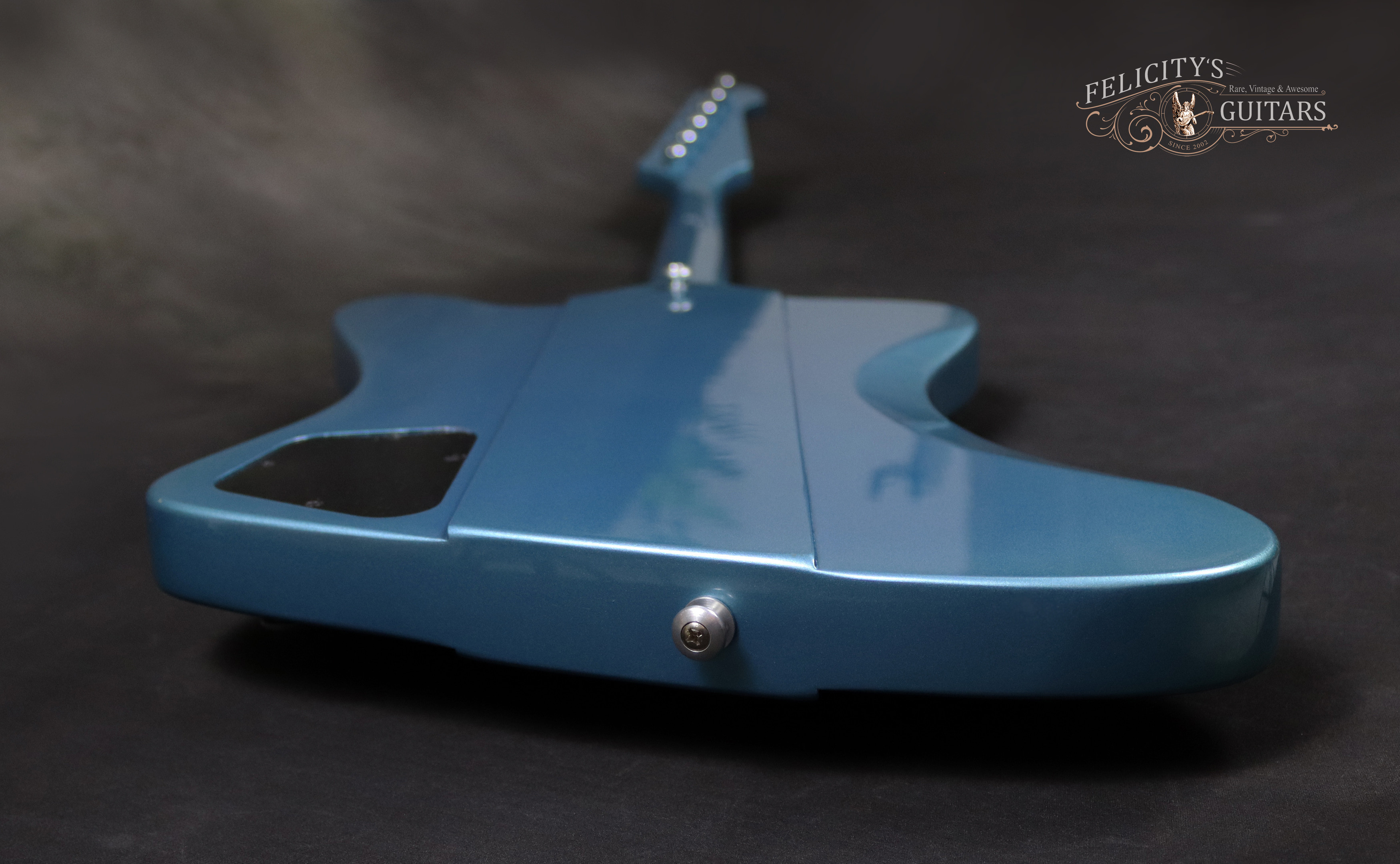

Body Construction	Neck-thru-Body with affixed Upper & Lower Body Wings

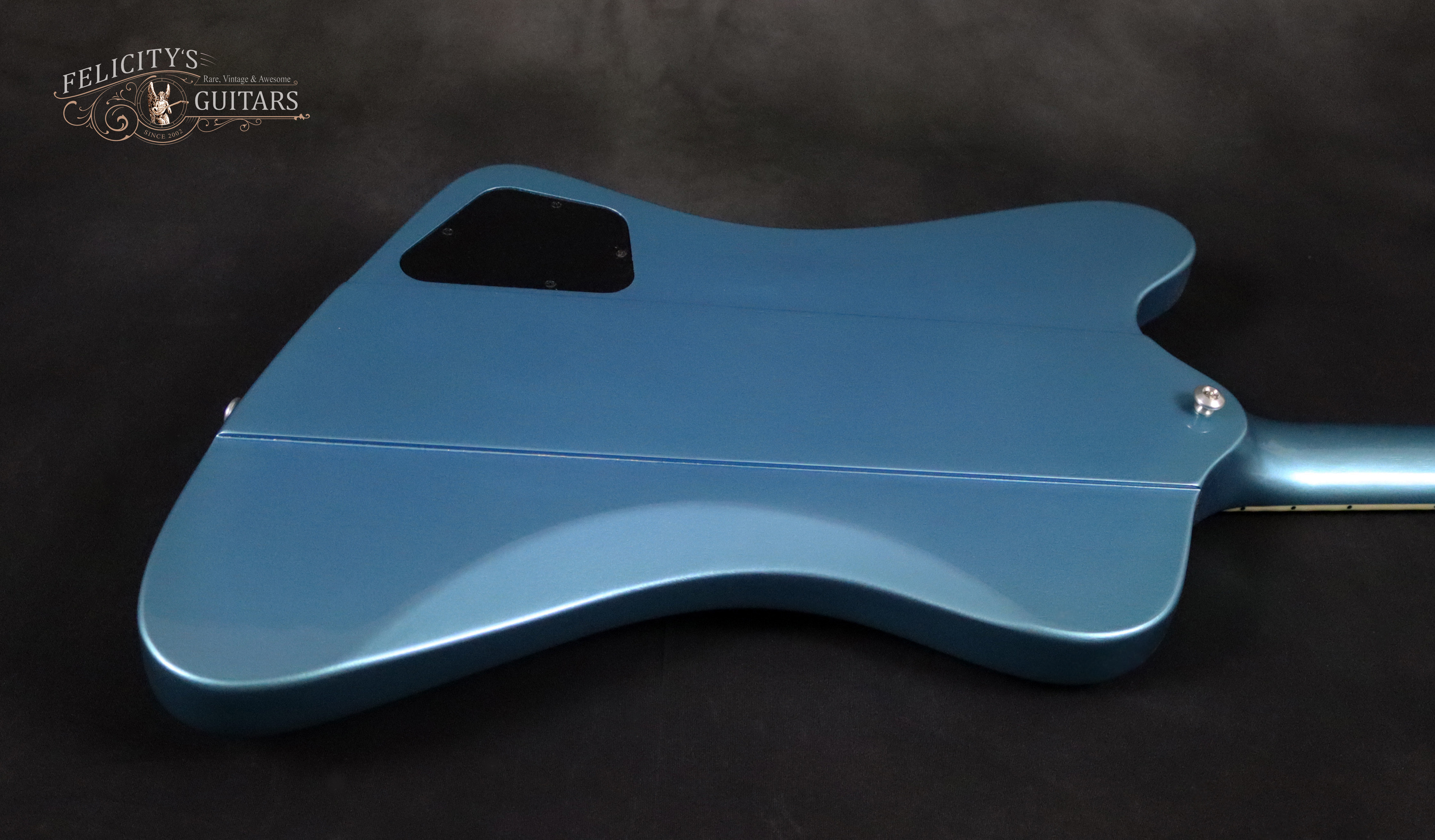

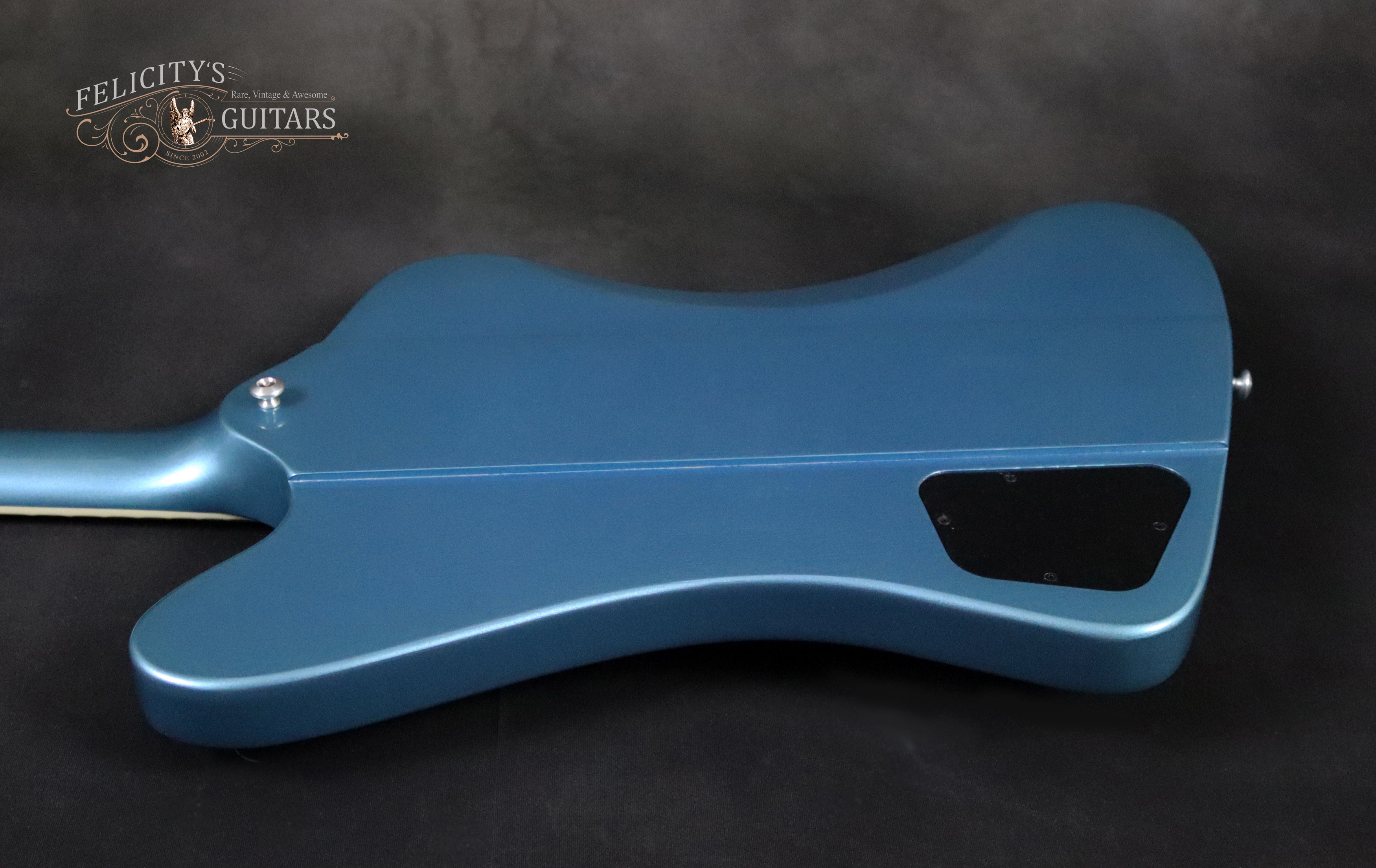

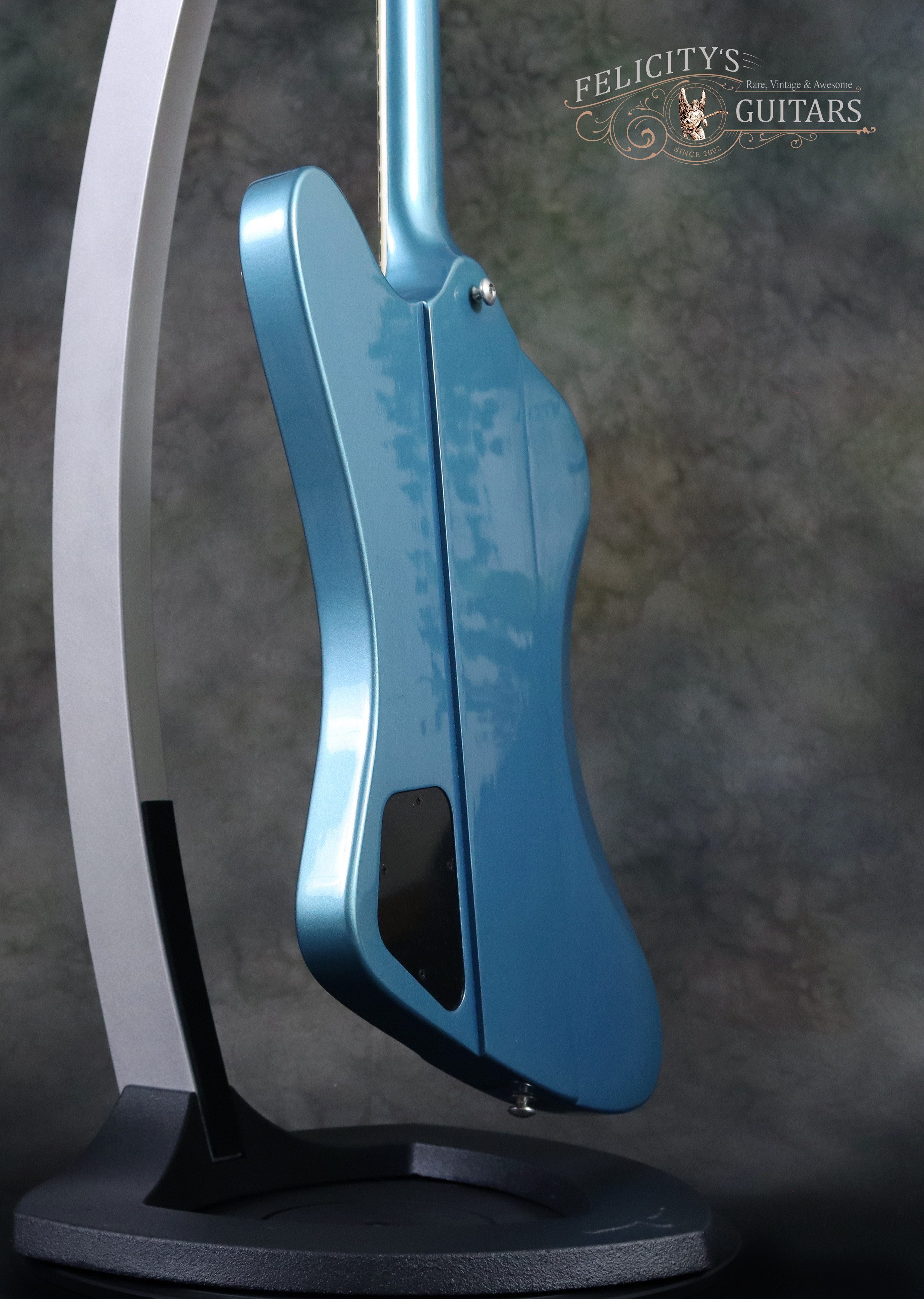

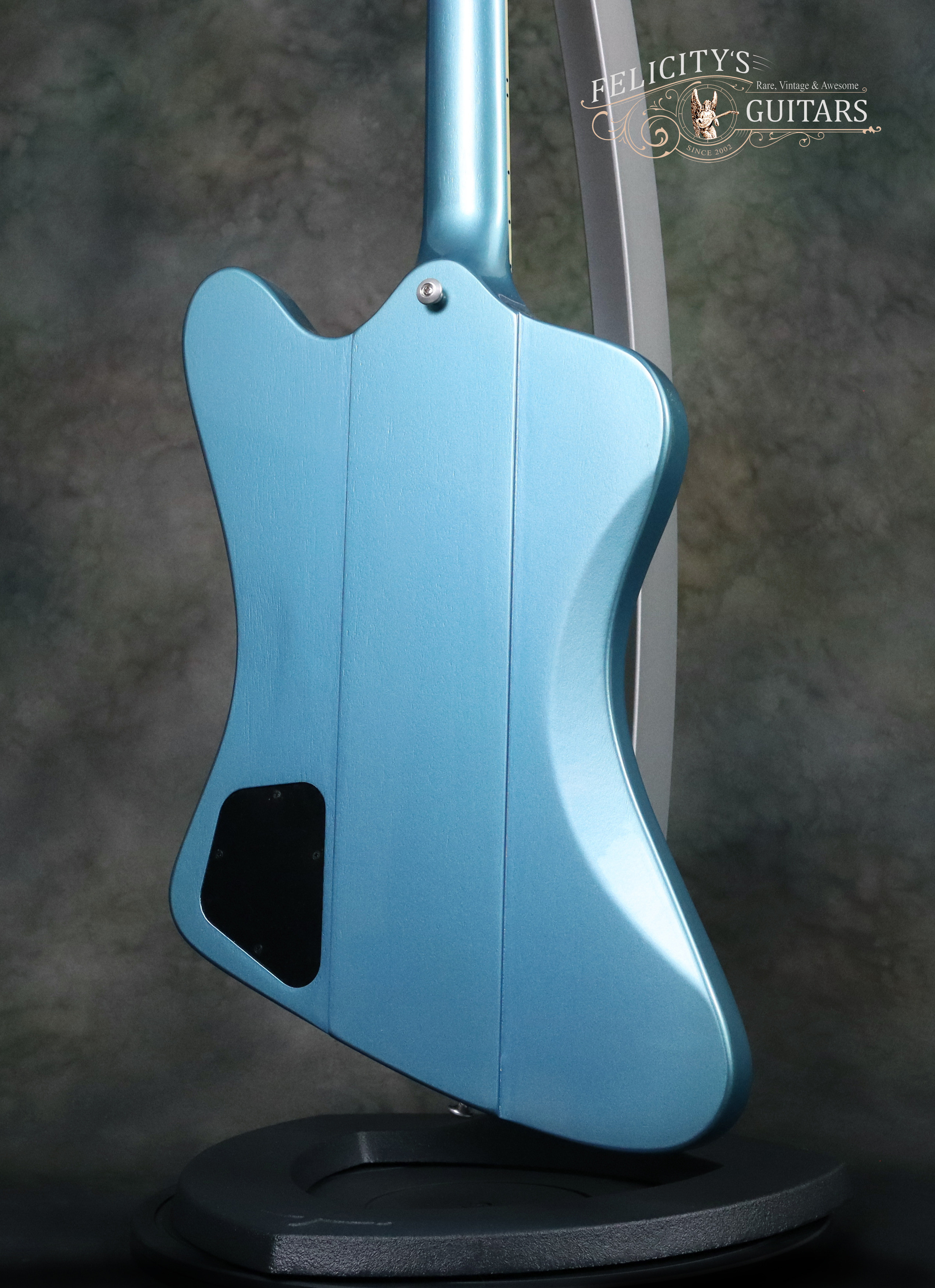

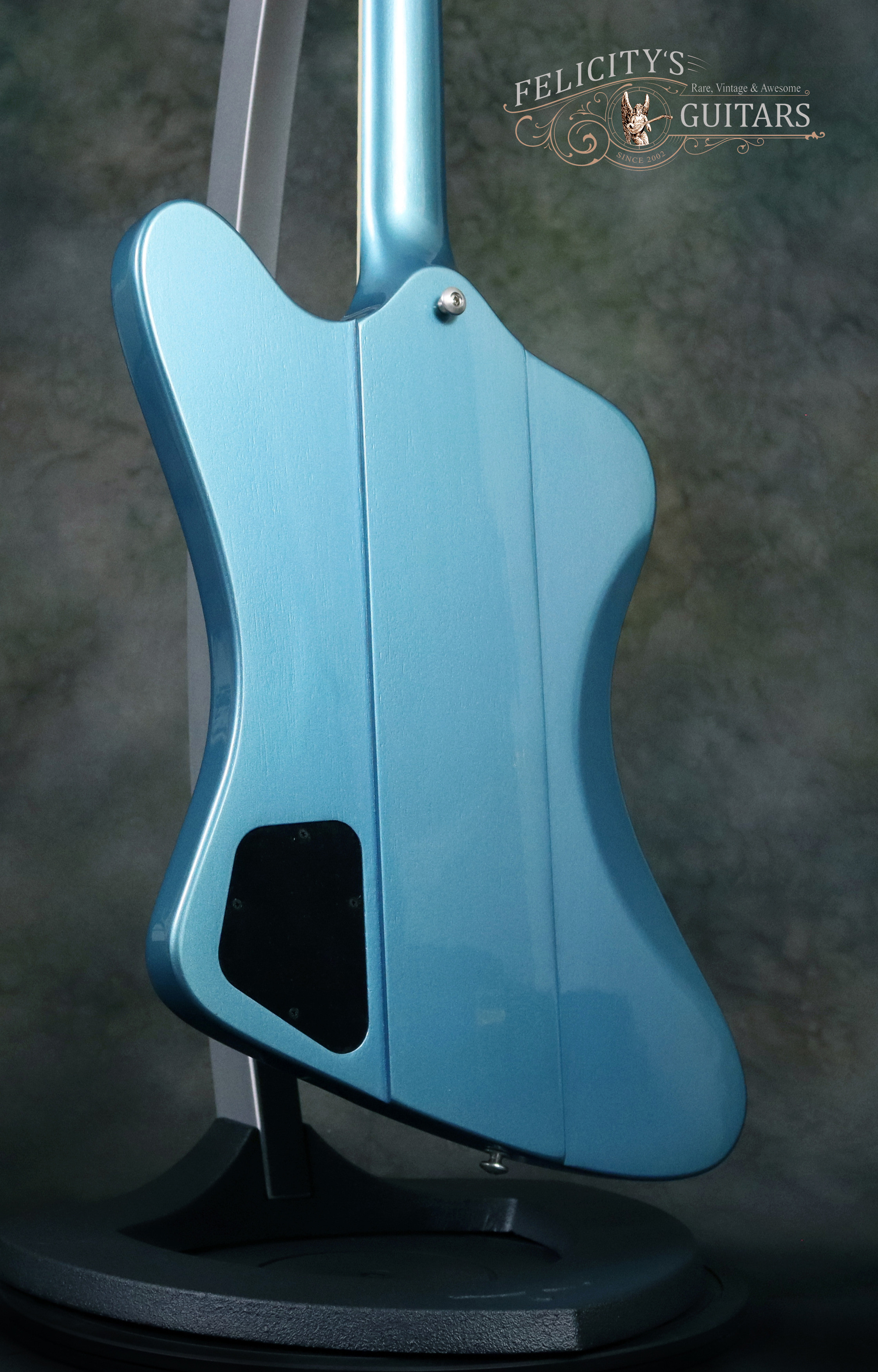

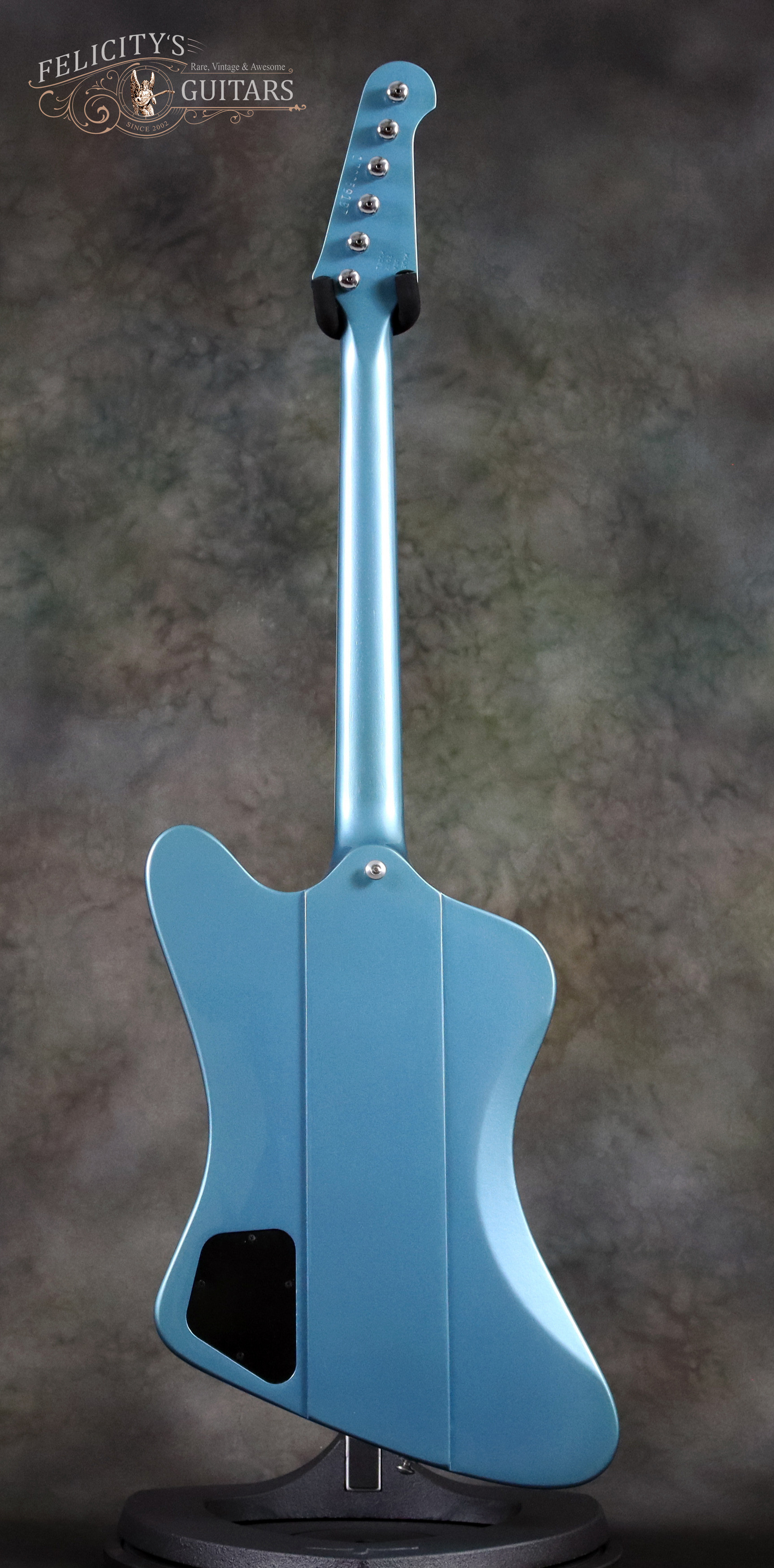

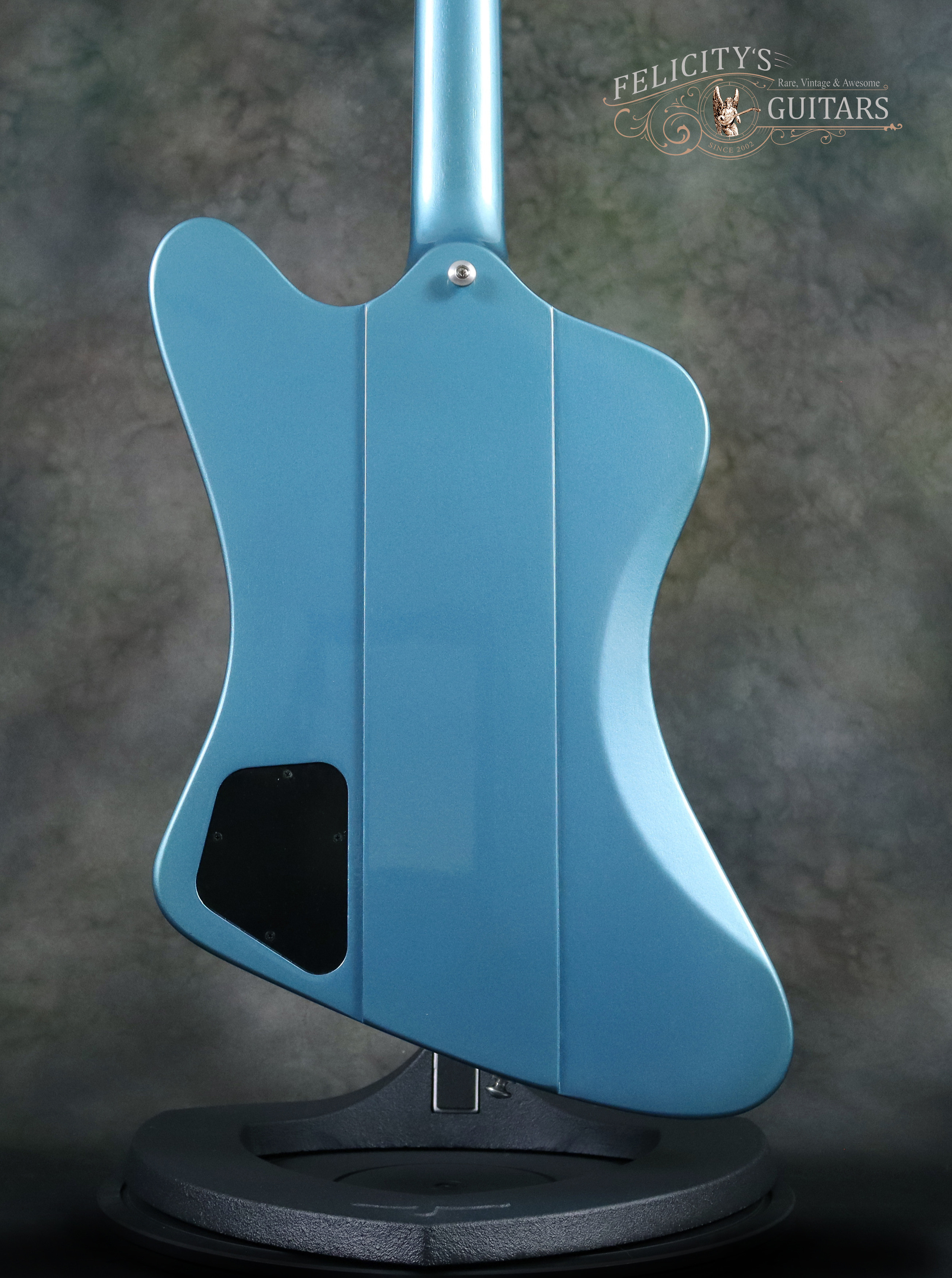

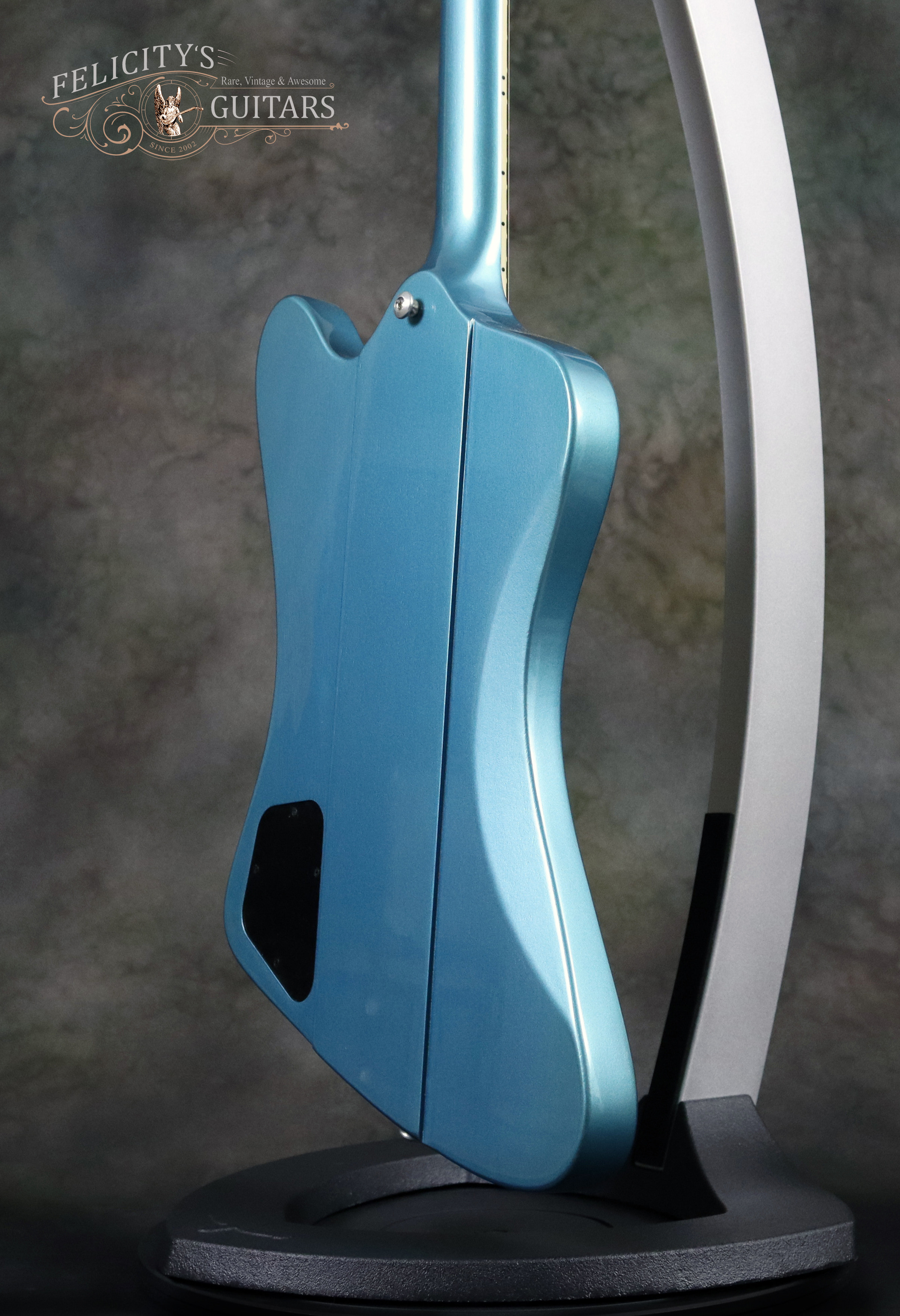

Body Carve	Front: Flat / Rear: Waist Contour Carve
Body Material	2-pc Mahogany
Body Binding	Front: No / Back: No
Weight Relief	No
Materials Used	Franklin Titebond 50
Body Finish	High-gloss Nitrocellulose Lacquer
Color	Front: Pelham Blue / Back and Neck: Pelham Blue

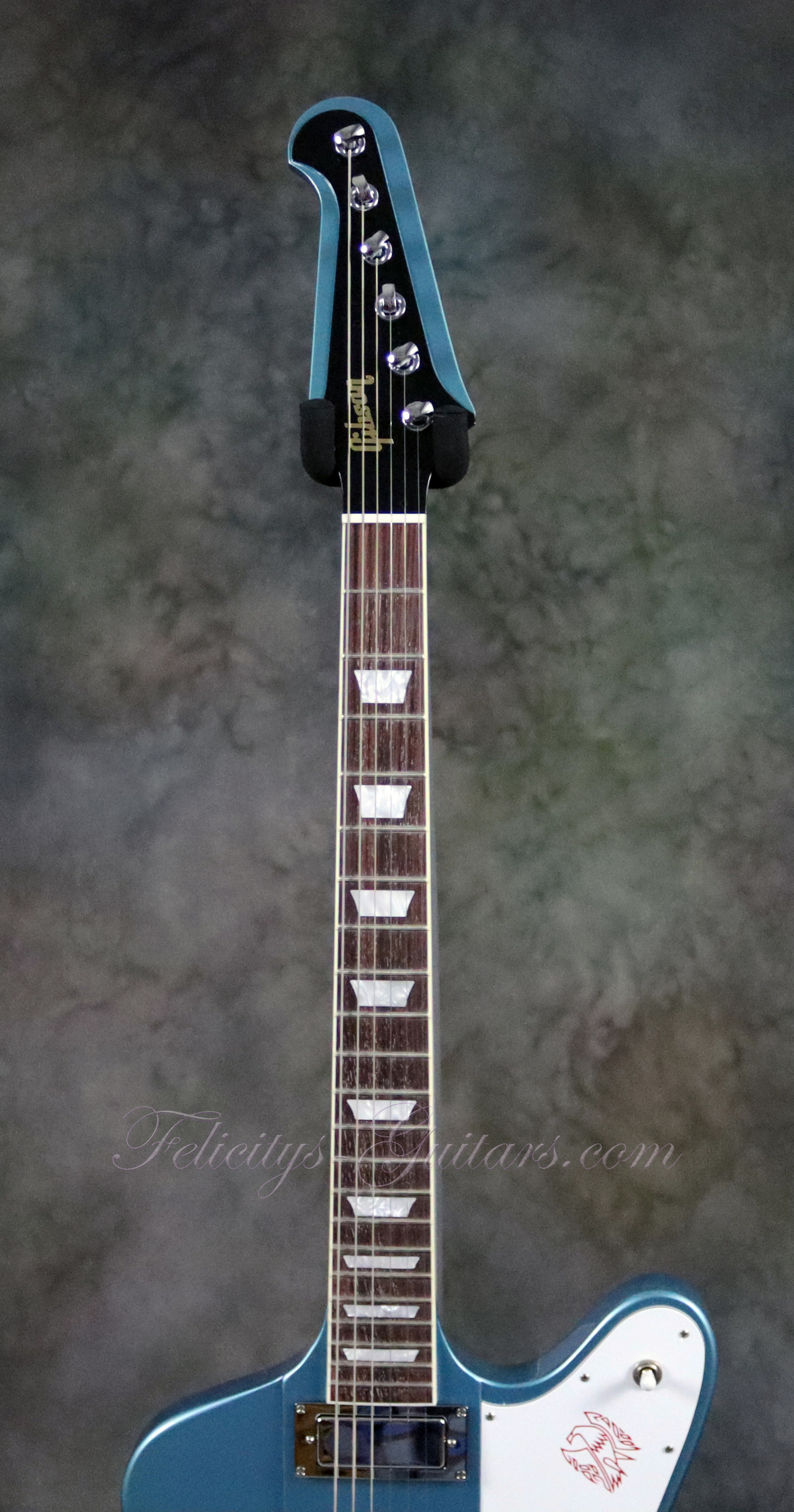

neck

Neck Material	9-ply Mahogany/Walnut Laminate
Truss Rod	2-way Adjustable
Truss Rod Cover	9-ply Mahogany/Walnut Laminate

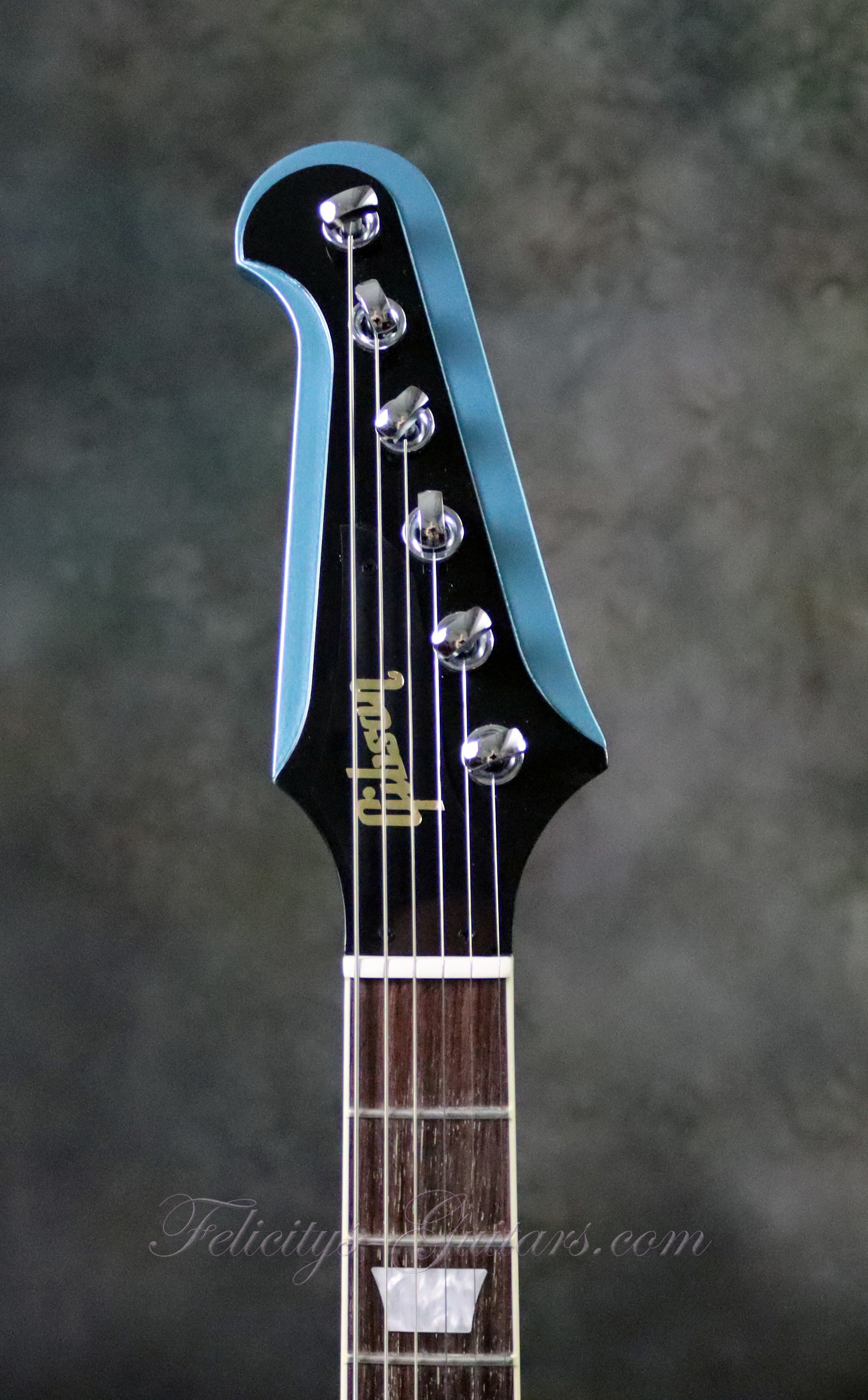

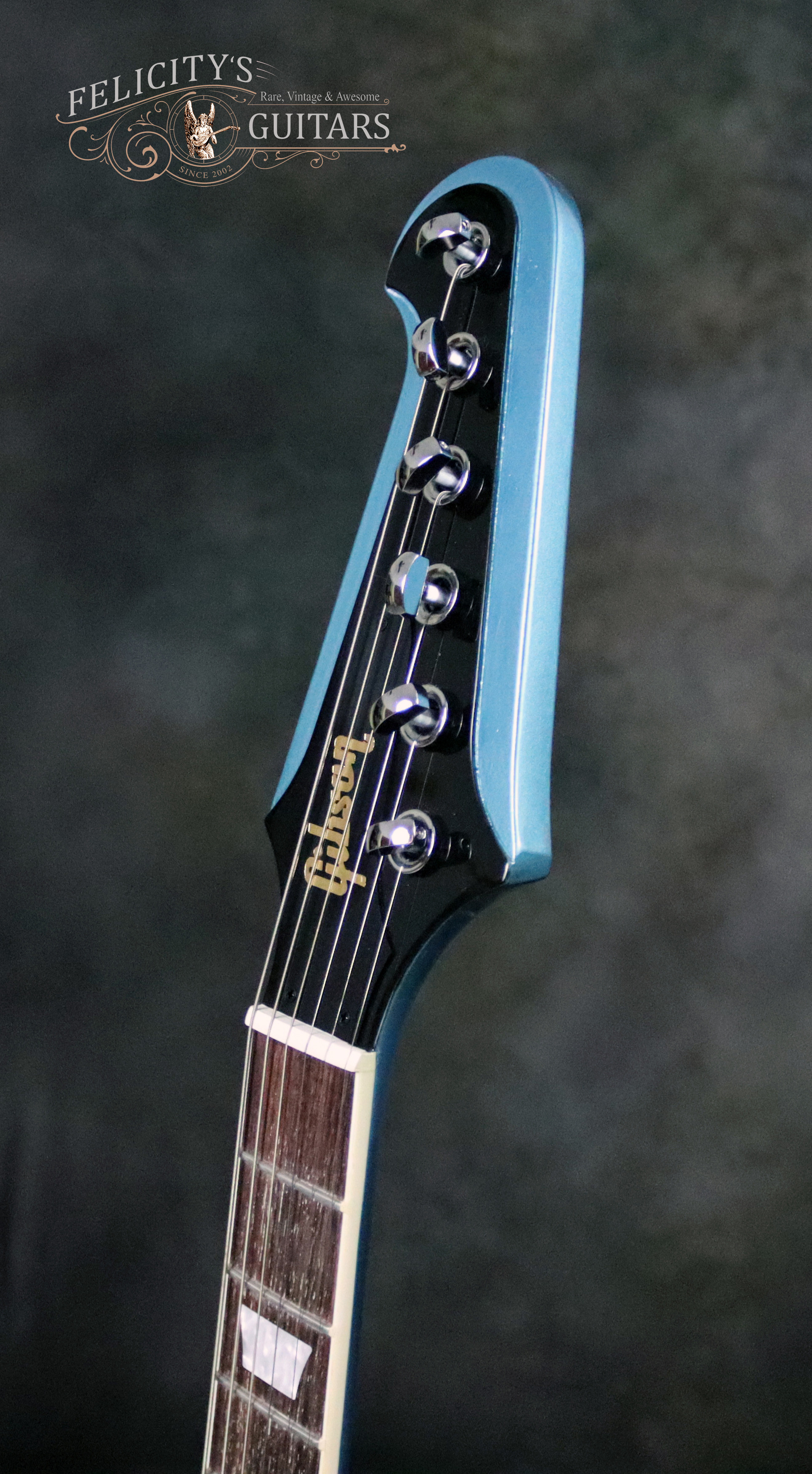

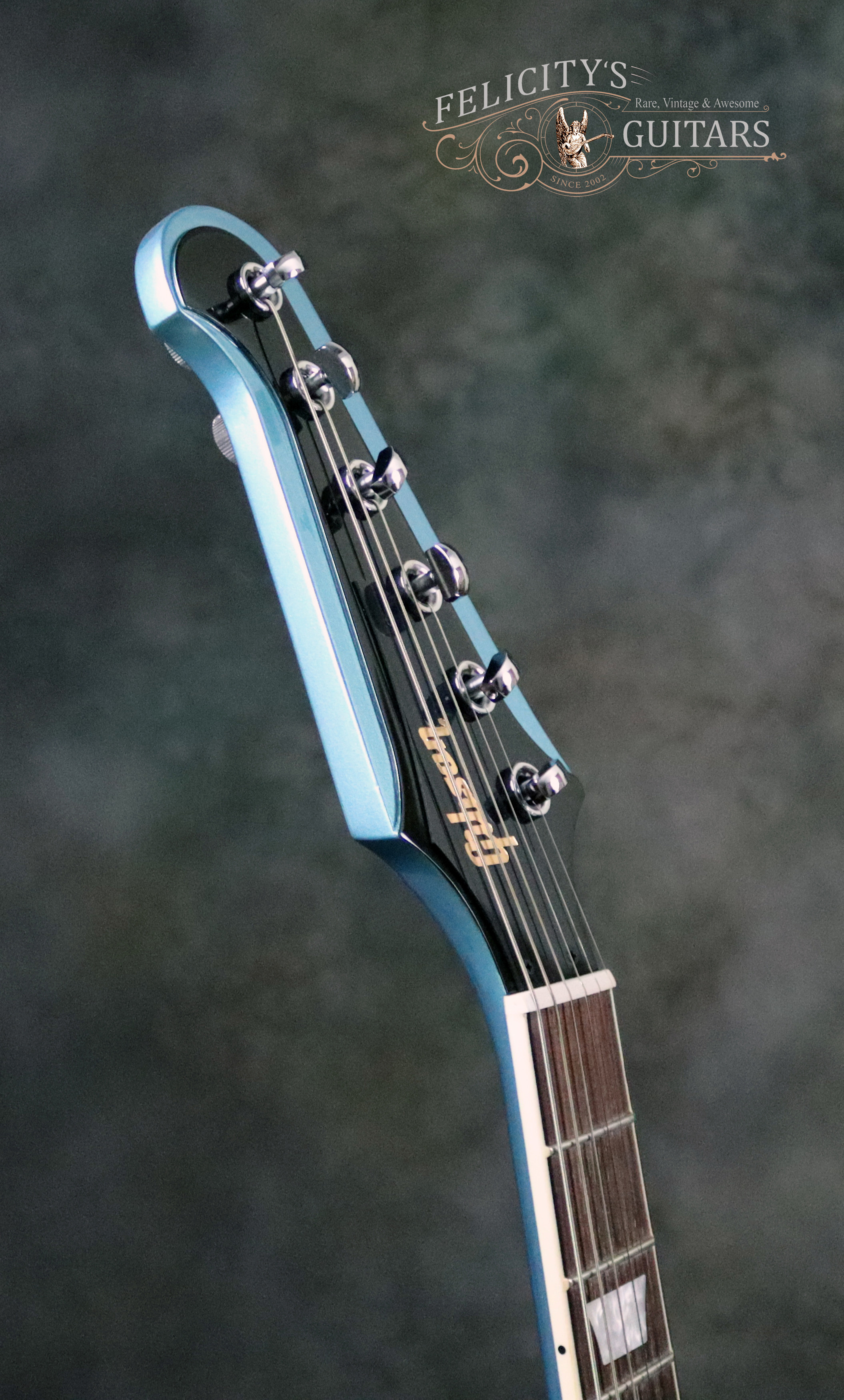

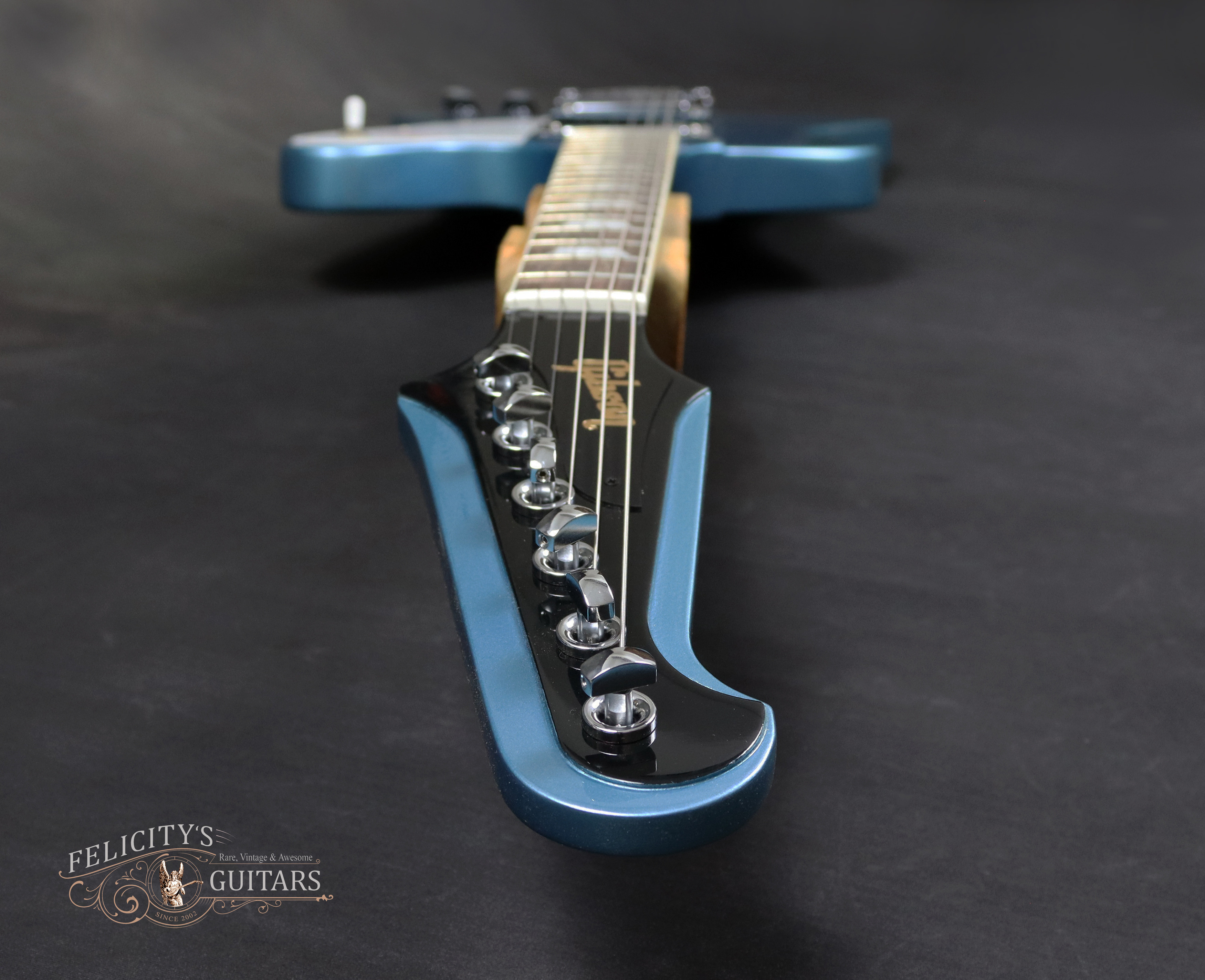

Peghead Particulars	Front: Terraced 2-Tone Color Scheme Black/Pelham Blue, no Inlays

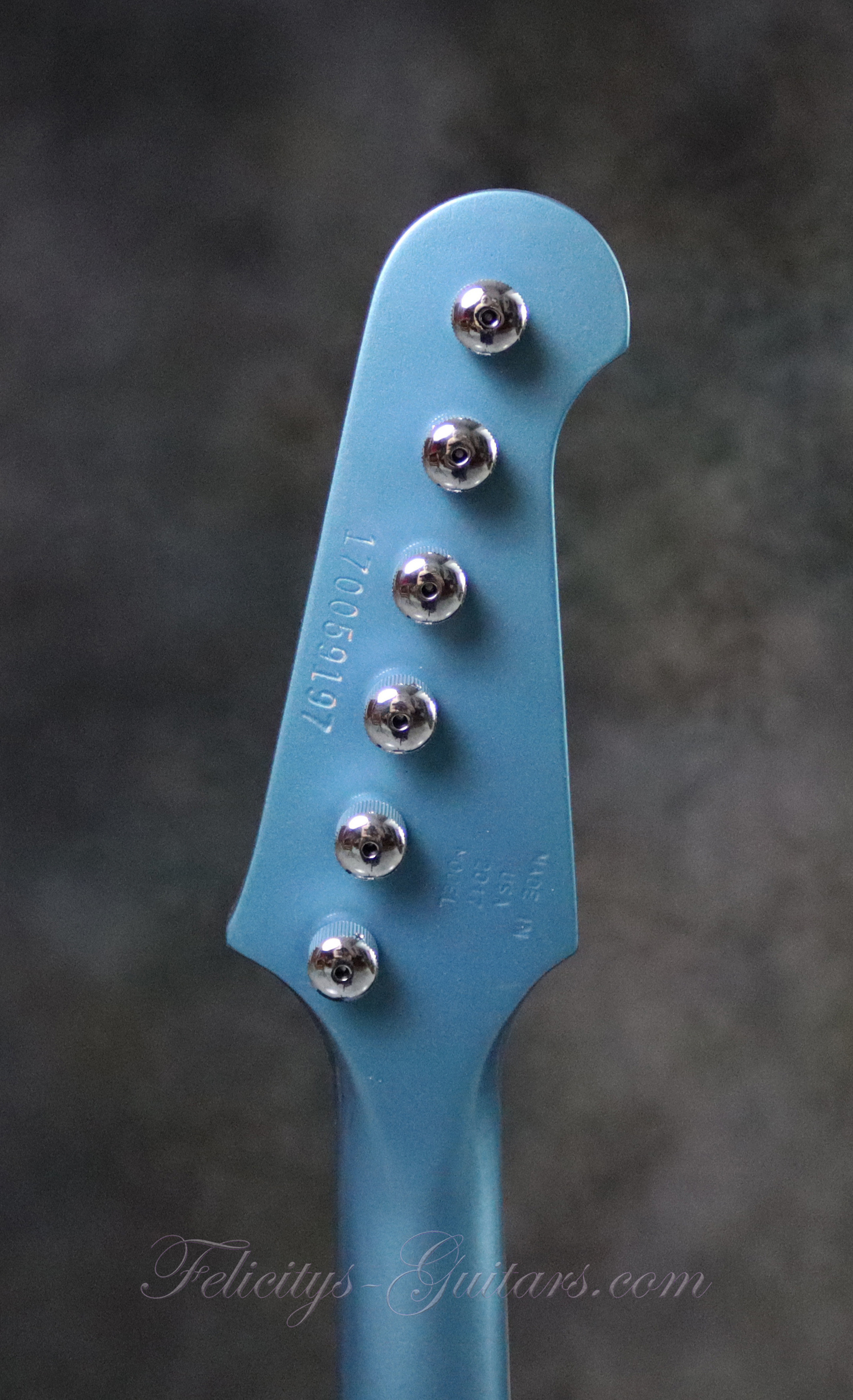

	Back: Wood-stamped; Made in U.S.A. 2017 Model & Serial Number

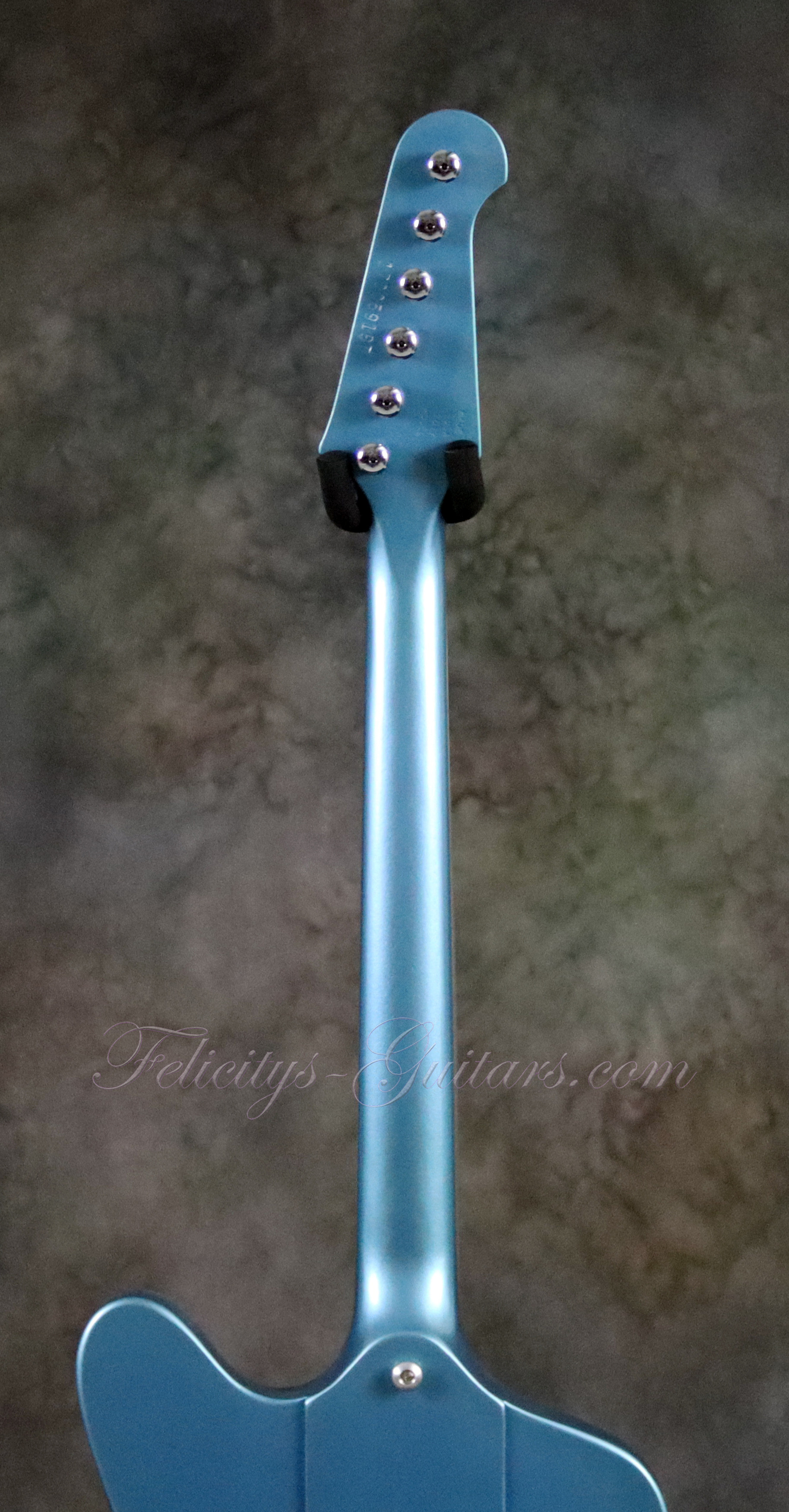

Neck Profile	Slim Taper

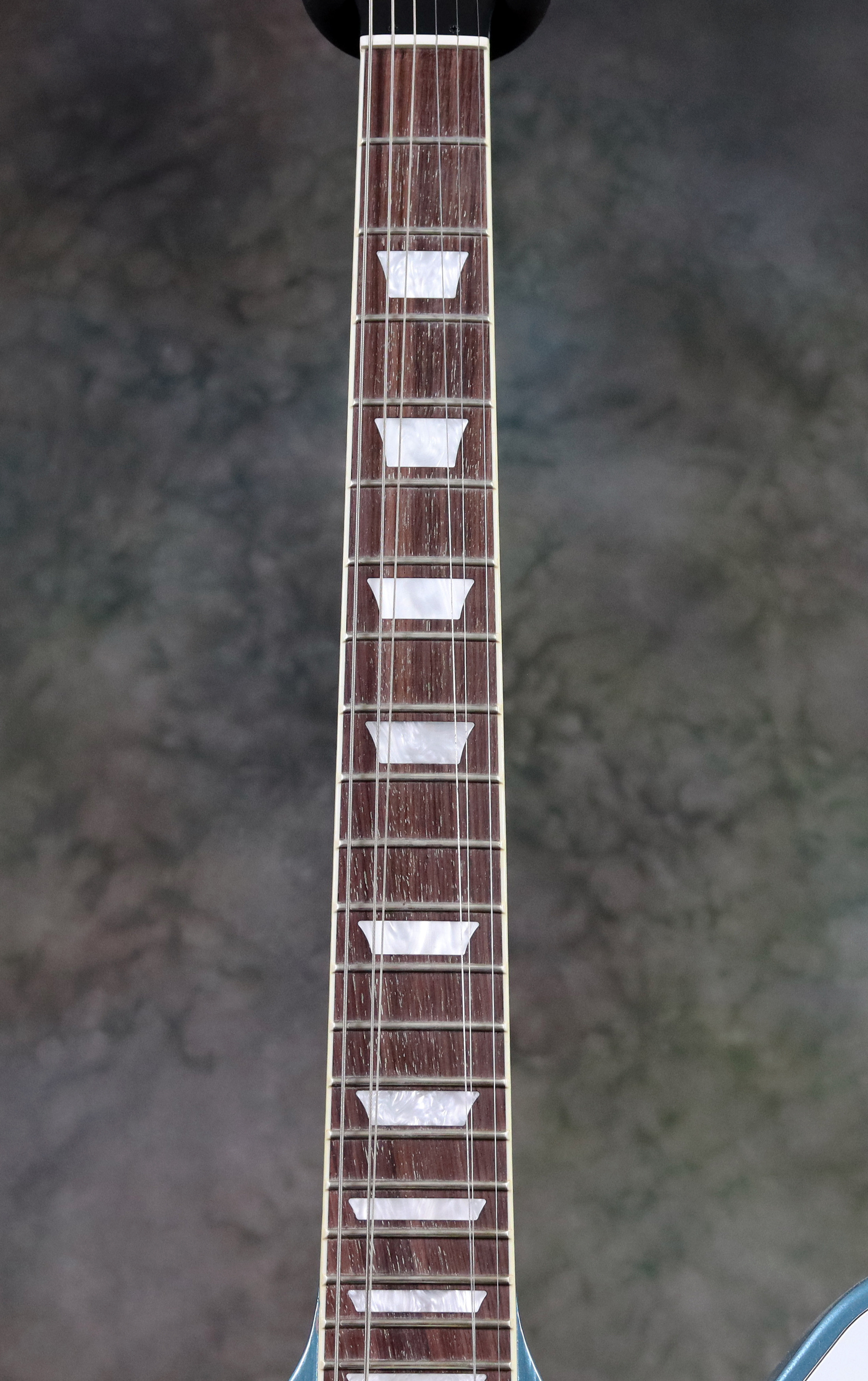

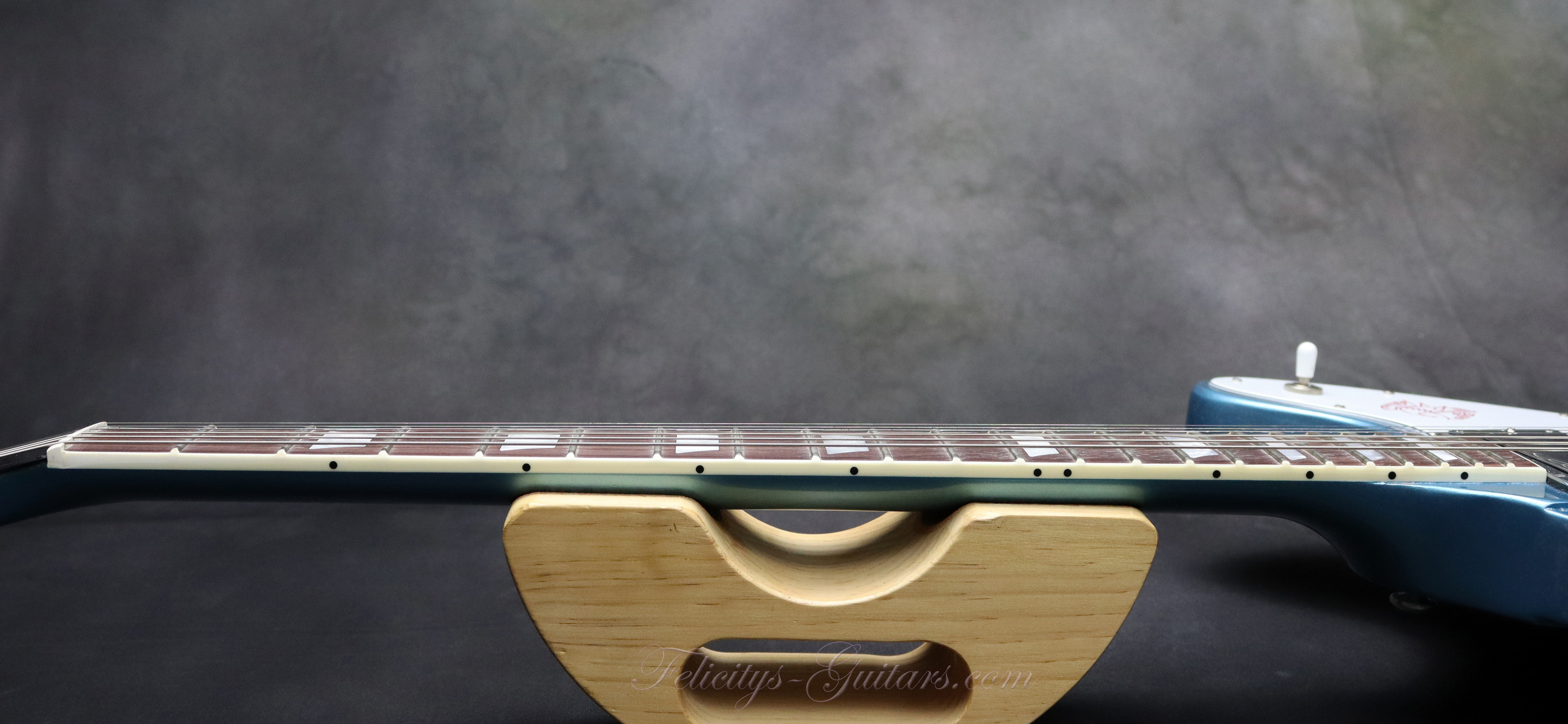

Fingerboard Material	Rosewood
Fingerboard Radius	12”
Scale Length	24.75"
No. Frets / Type	22 Medium Jumbo / Cryogenically Treated

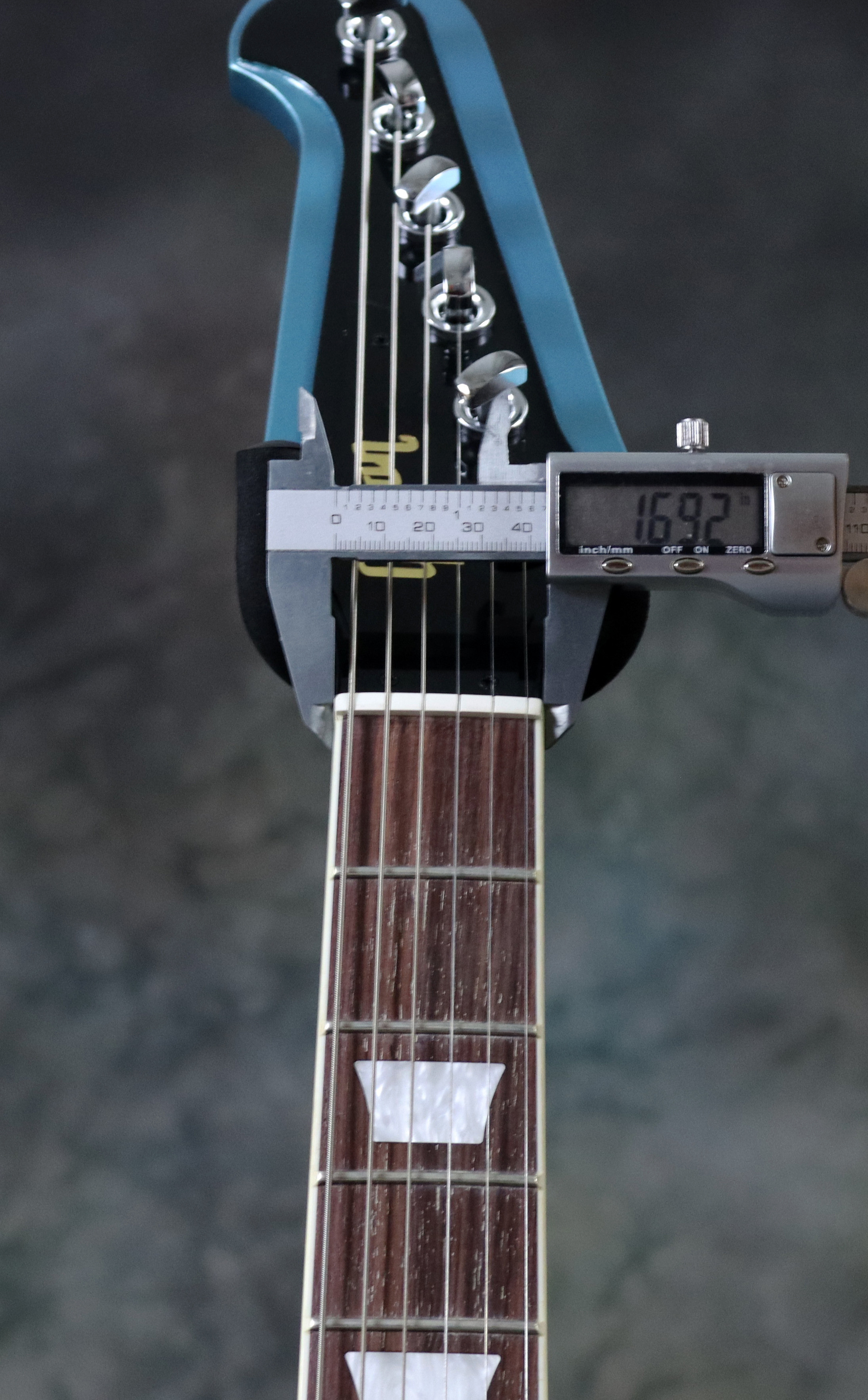

Nut Size / Material	1.695" / Self-lubricating Tektoid

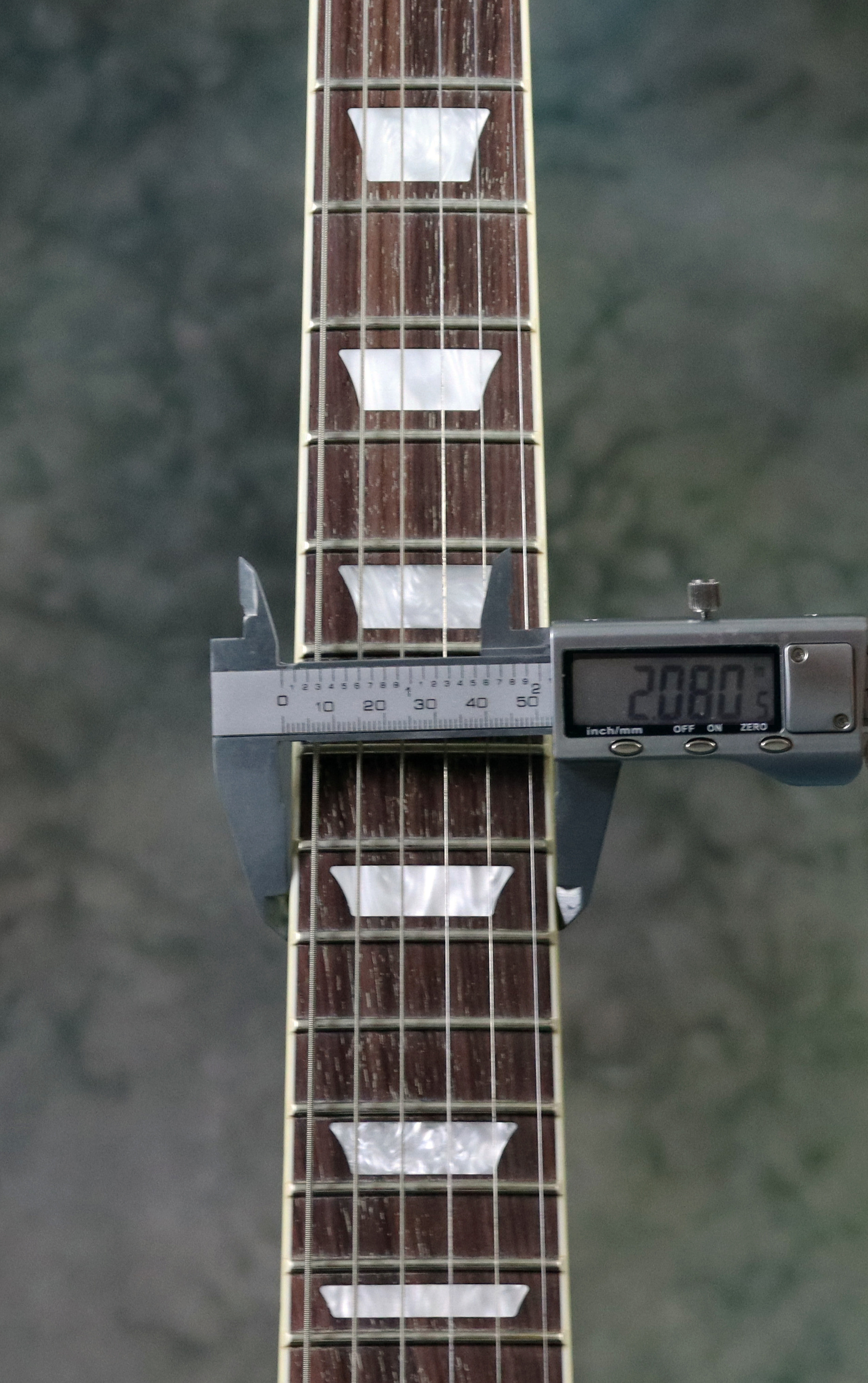

Neck Width	1.700” at 1st fret / 2.080" at 12th fret
Neck Depth	0.800” at 1st fret / 0.850" at 12th fret
Fingerboard Inlays	Acrylic Trapezoids
Neck Binding	White
Side Dots	Black
Neck Joint	Neck-thru-Body, Franklin Titebond 50

hardware

Bridge	Chrome, Tune-O-Matic, Aluminum
Tailpiece / Tremolo	Chrome, Stop Bar, Aluminum

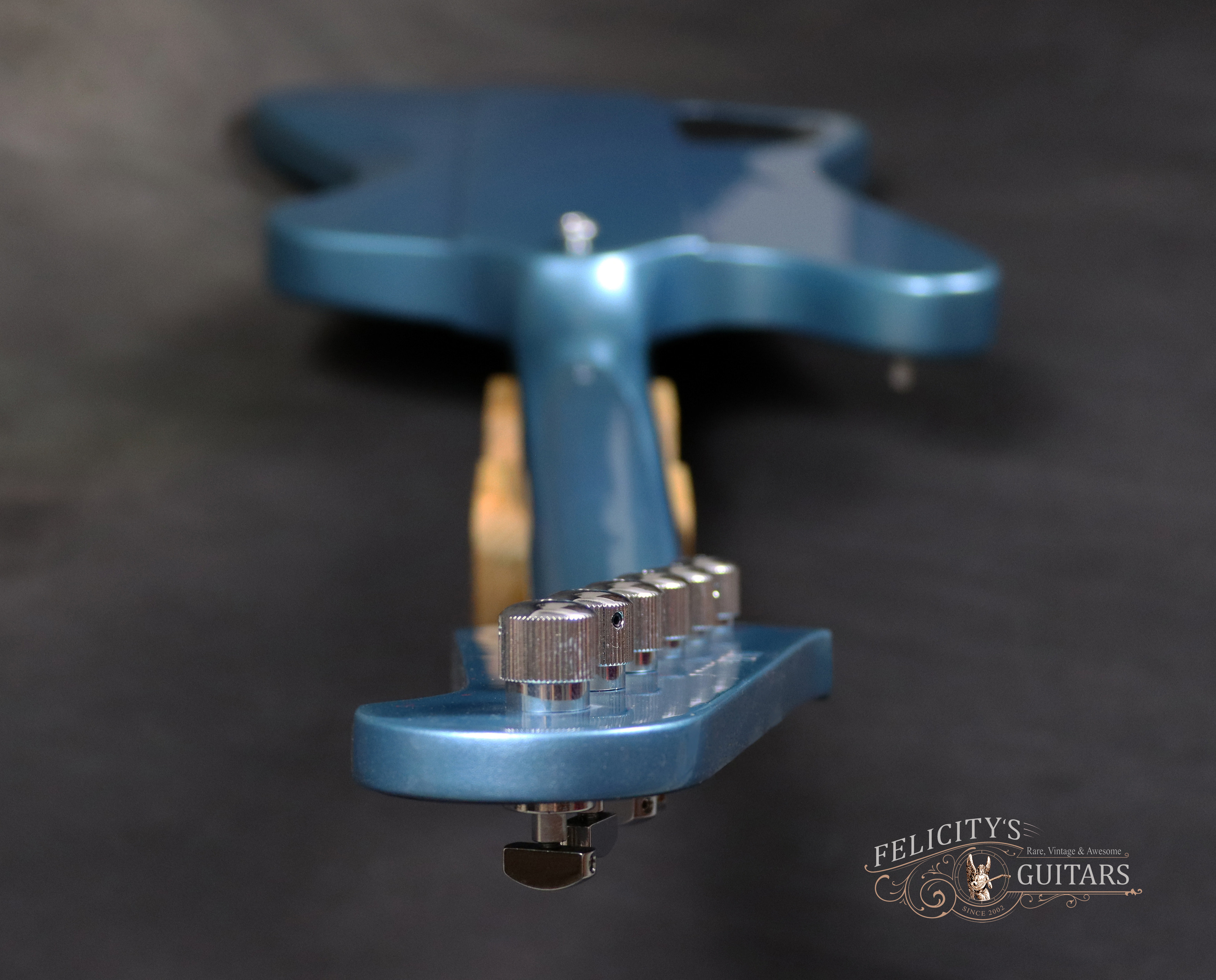

Tuning Machines	Chrome, Steinberger Gearless, 40:01 Ratio
Pickup Cover / Ring	Chrome, with Chrome Rings atop Black M69 Seats
Strap Buttons	Polished Aluminum End Pins

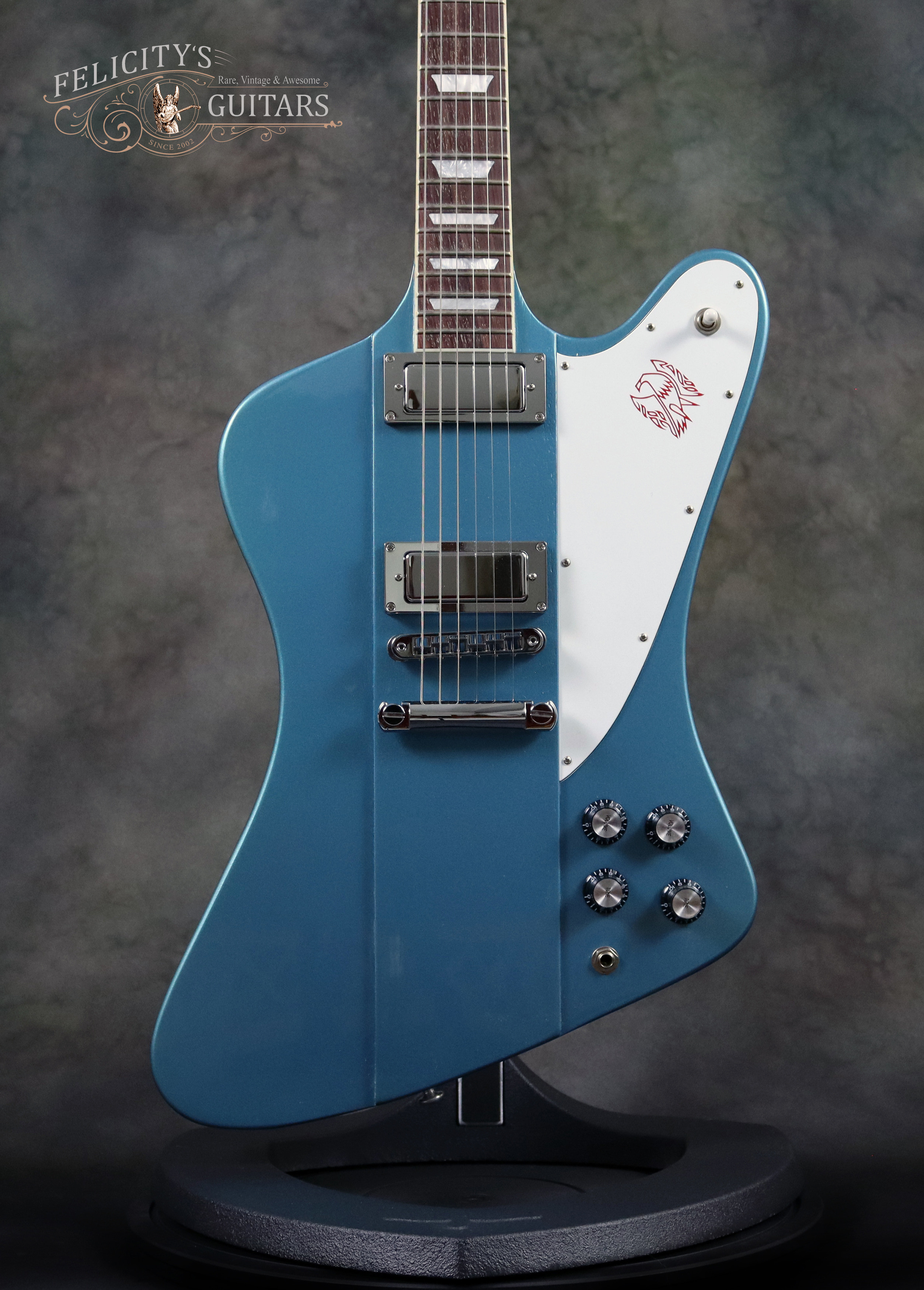

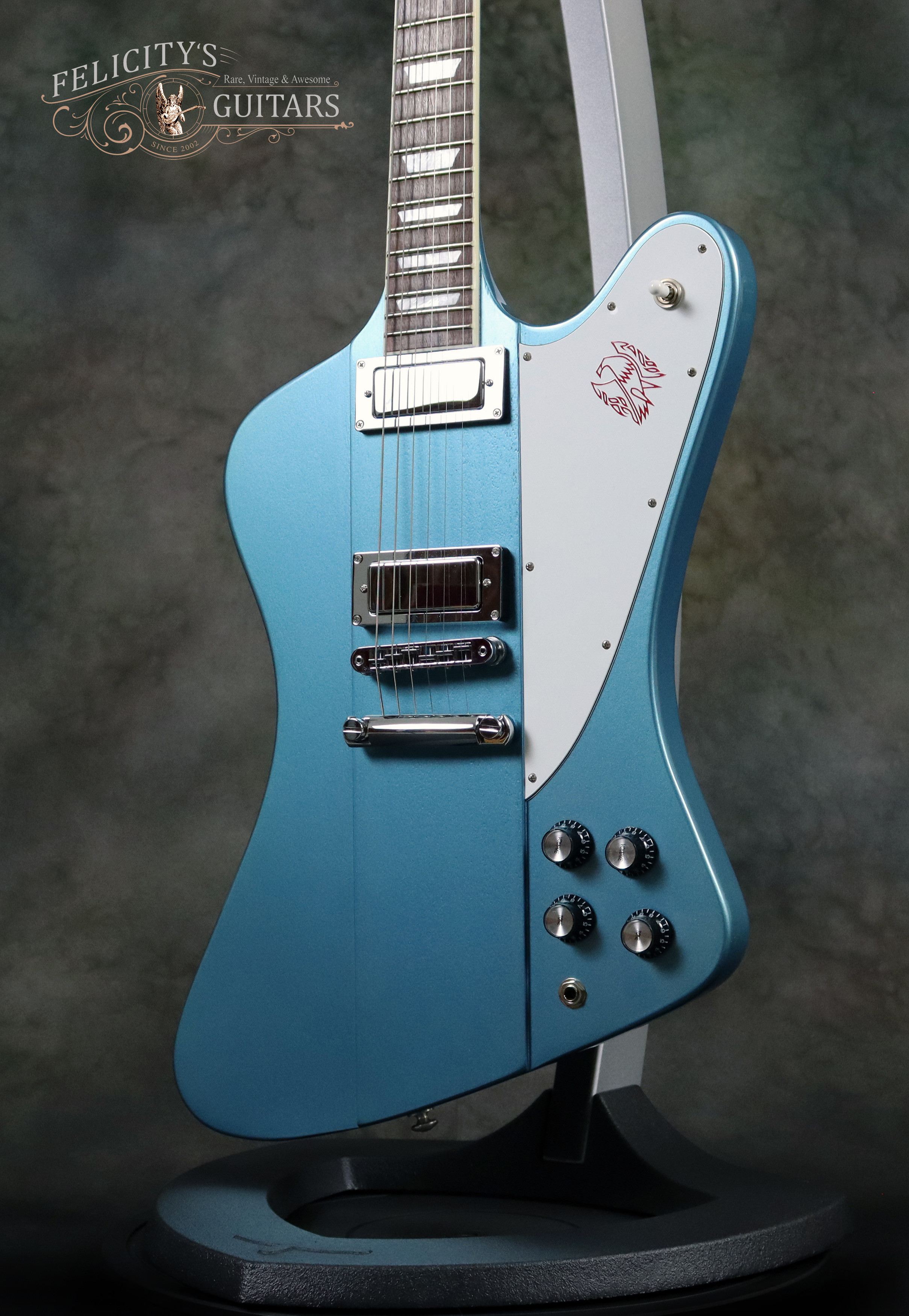

Pickguard	3-ply W/B/W with Hot Stamped Red Firebird Emblem
Control Knobs	Black Top Hats with Silver Inserts and no Dial Pointers
Switch	3-position, White Tip, No Plastic Washer
Back Plates	Black Plastic Harness Cover

electronics

Bridge Pickup	495T Mini-Humbucker, Dual-Ceramic Blade, 24.6k
Middle Pickup	No
Neck Pickup	495R Mini-Humbucker, Dual-Ceramic Blade, 15.7k
Active / Passive	Passive
Series / Parallel	Series
Controls	2 Volume, 2 Tone, 3-way Pickup Selector Toggle Switch
Vol Potentiometer	500k
Tone Potentiometer	500k
Capacitors	.022uF Values

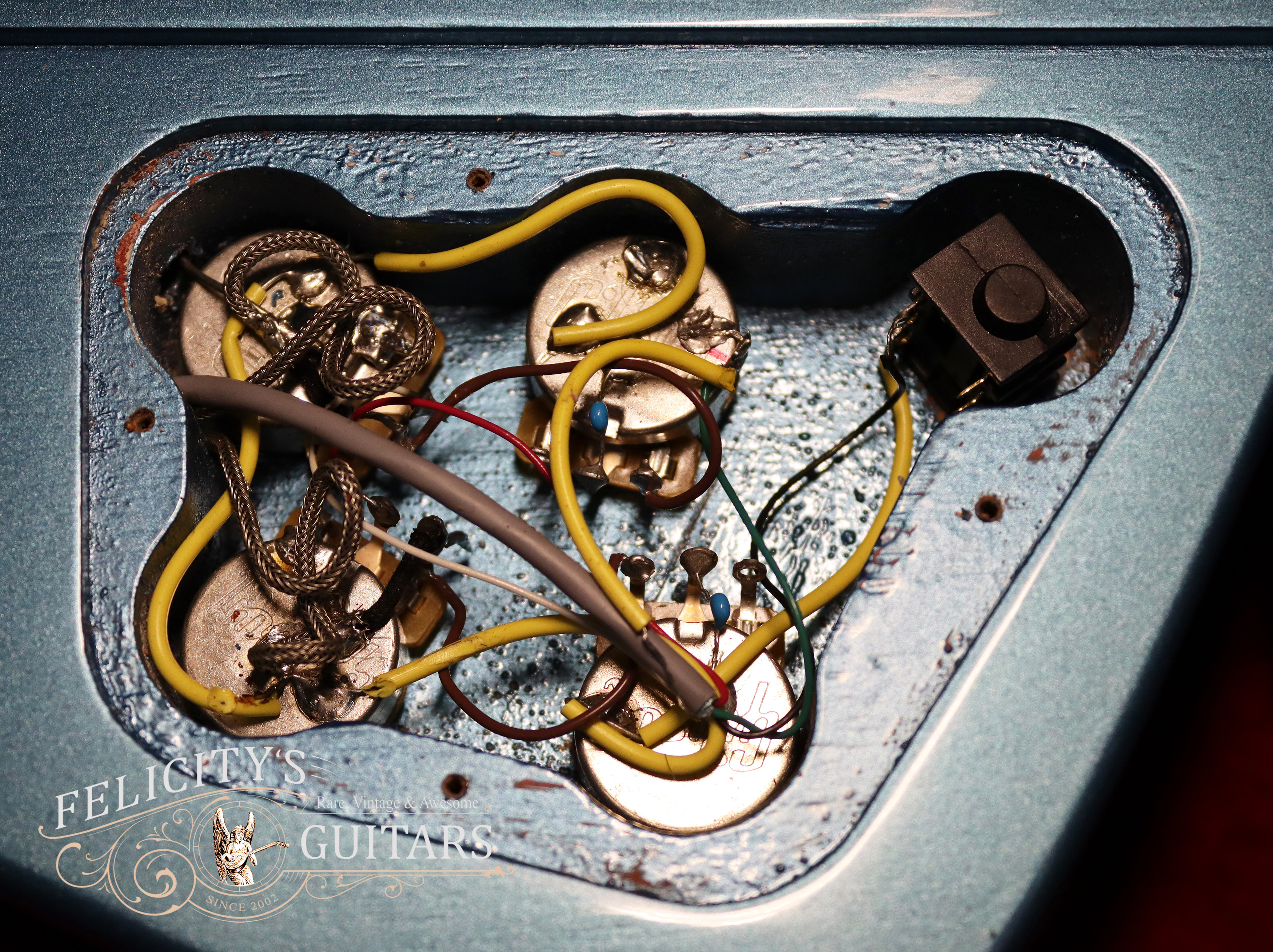

Harness	Gibson Firebird Standard
Push-pull	No
Piezo	No
Active EQ	No
Kill switch	No
Output Jack	1/4" 2-Conductor Mono

miscellaneous

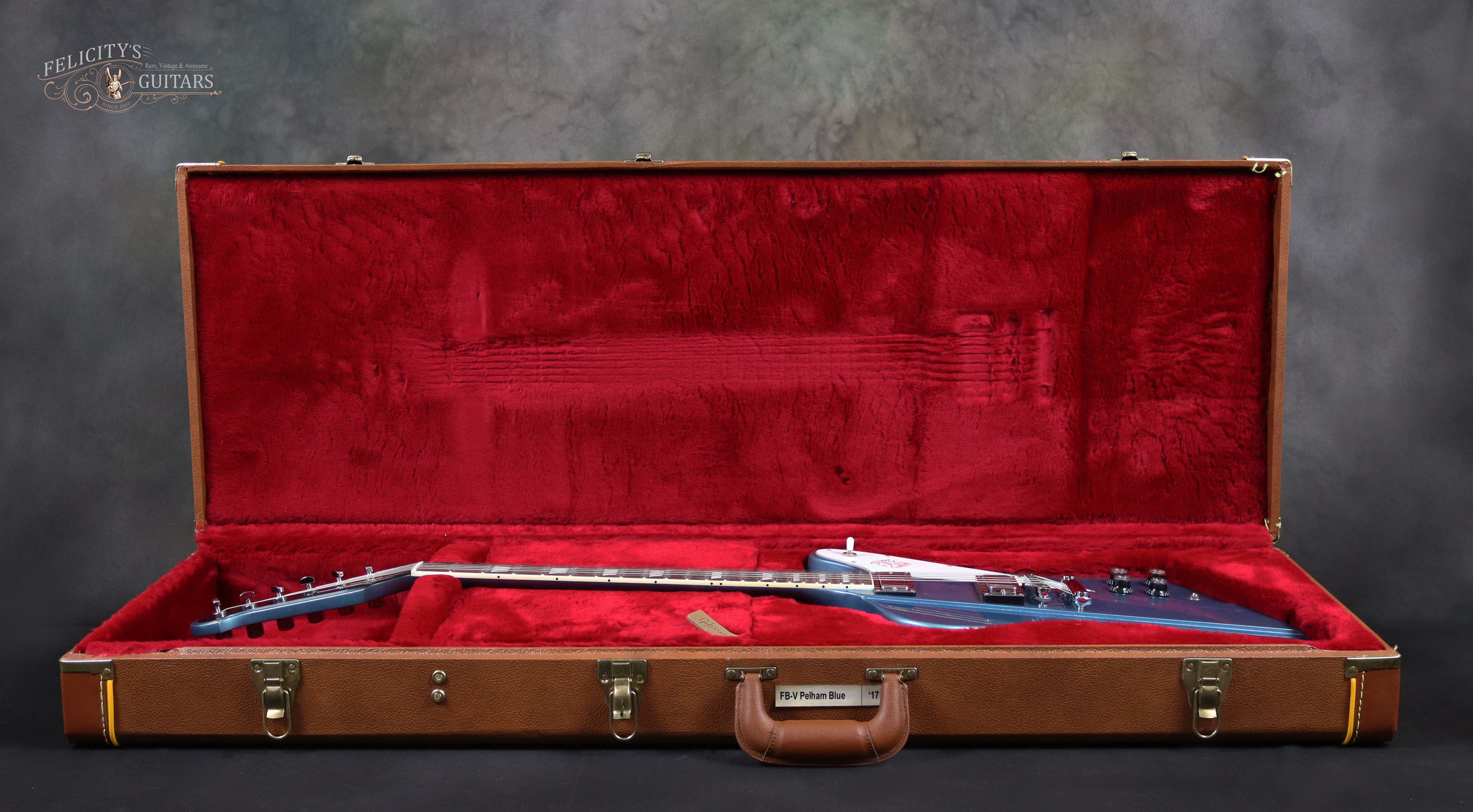

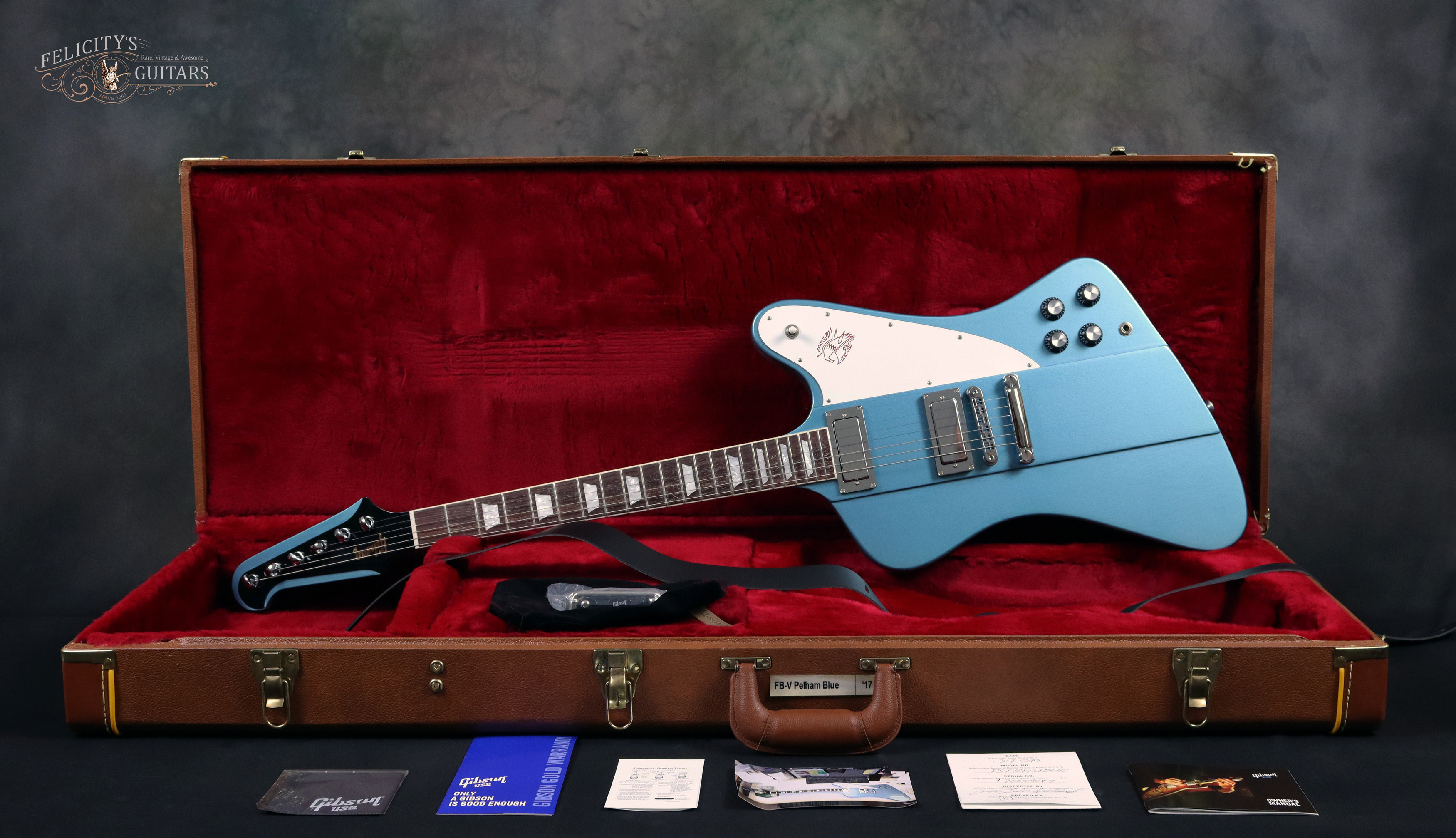

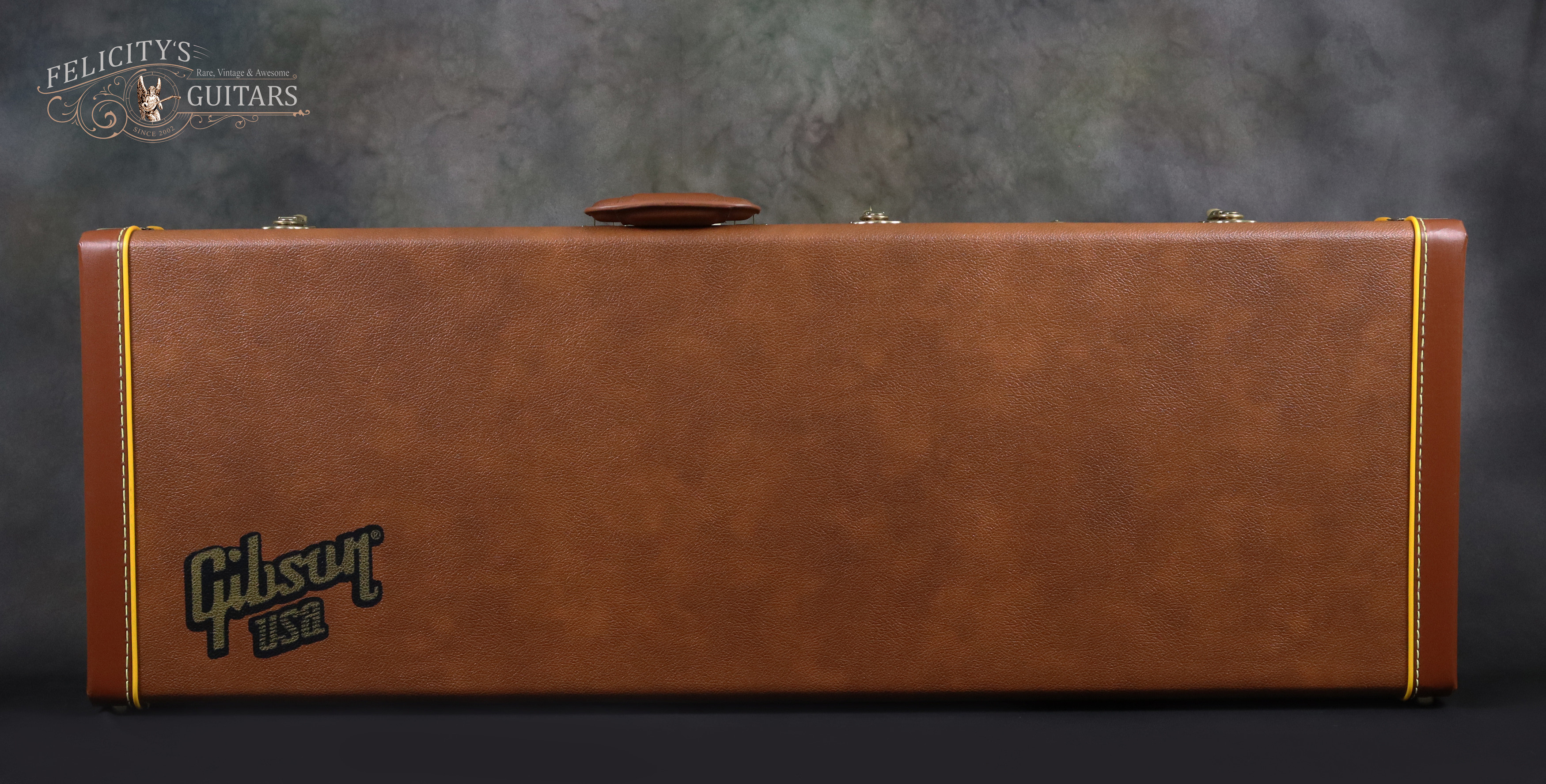

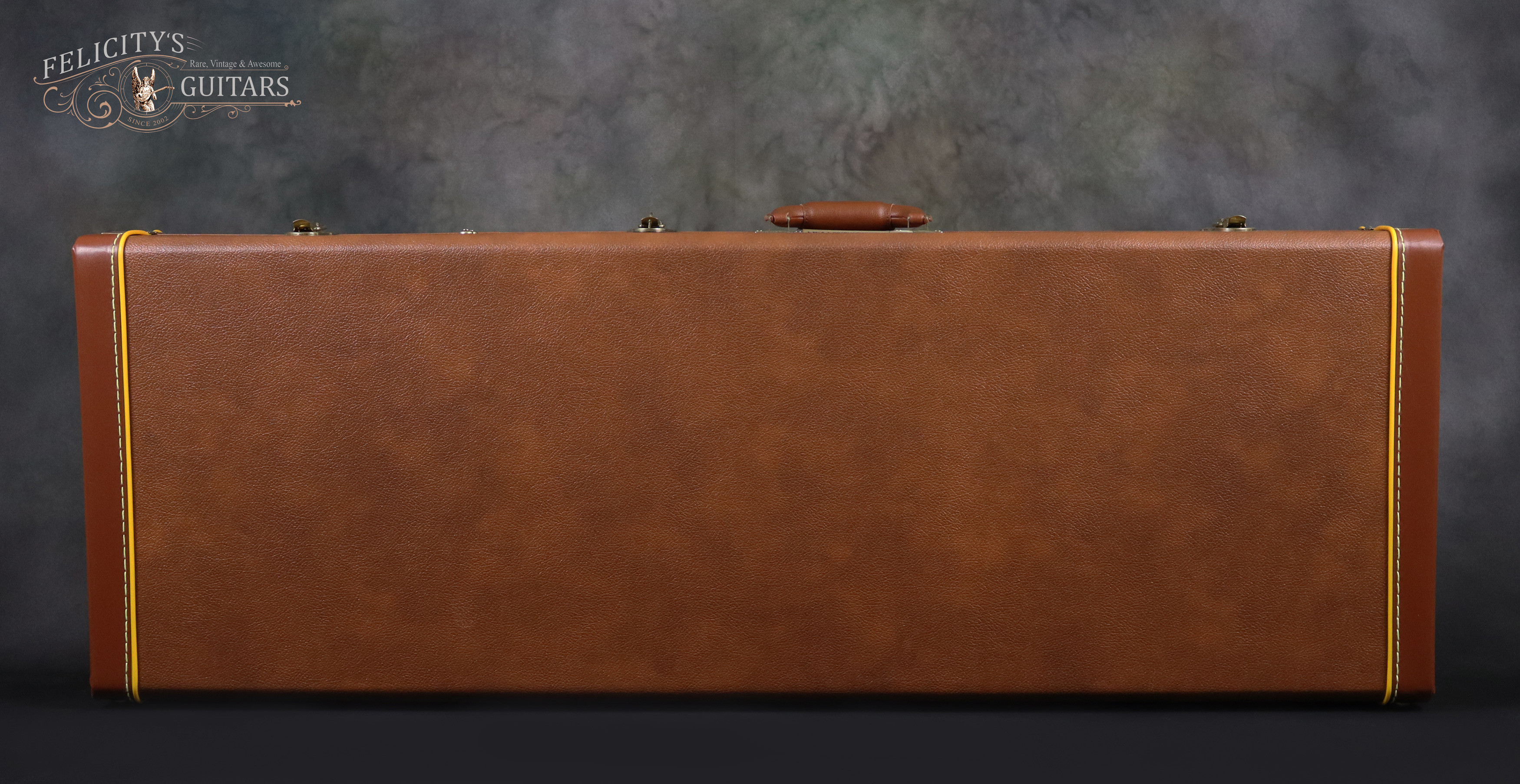

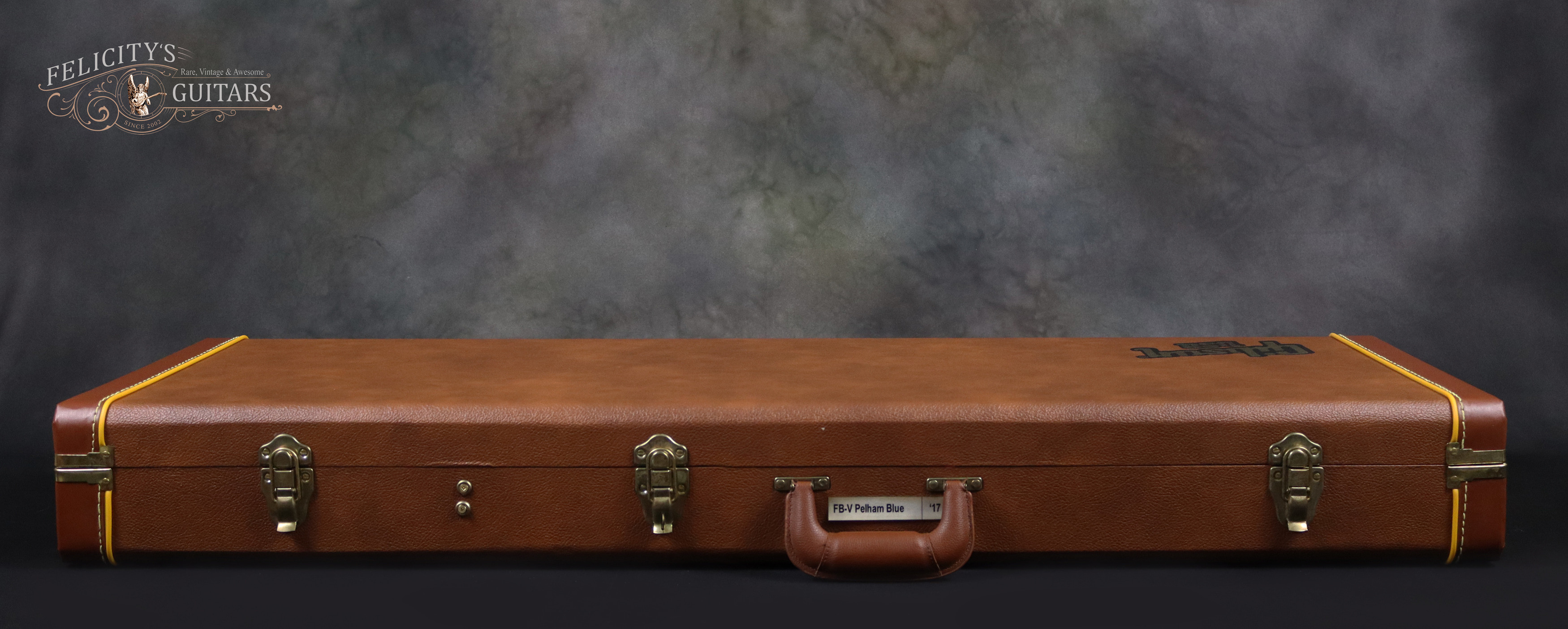

Case / Gigbag	Gibson OHSC with Red interior, and lock
Strap Locks	None
Strings	Elixir® Polyweb .010, .012, .016, .026, .036, .046 − Gauges

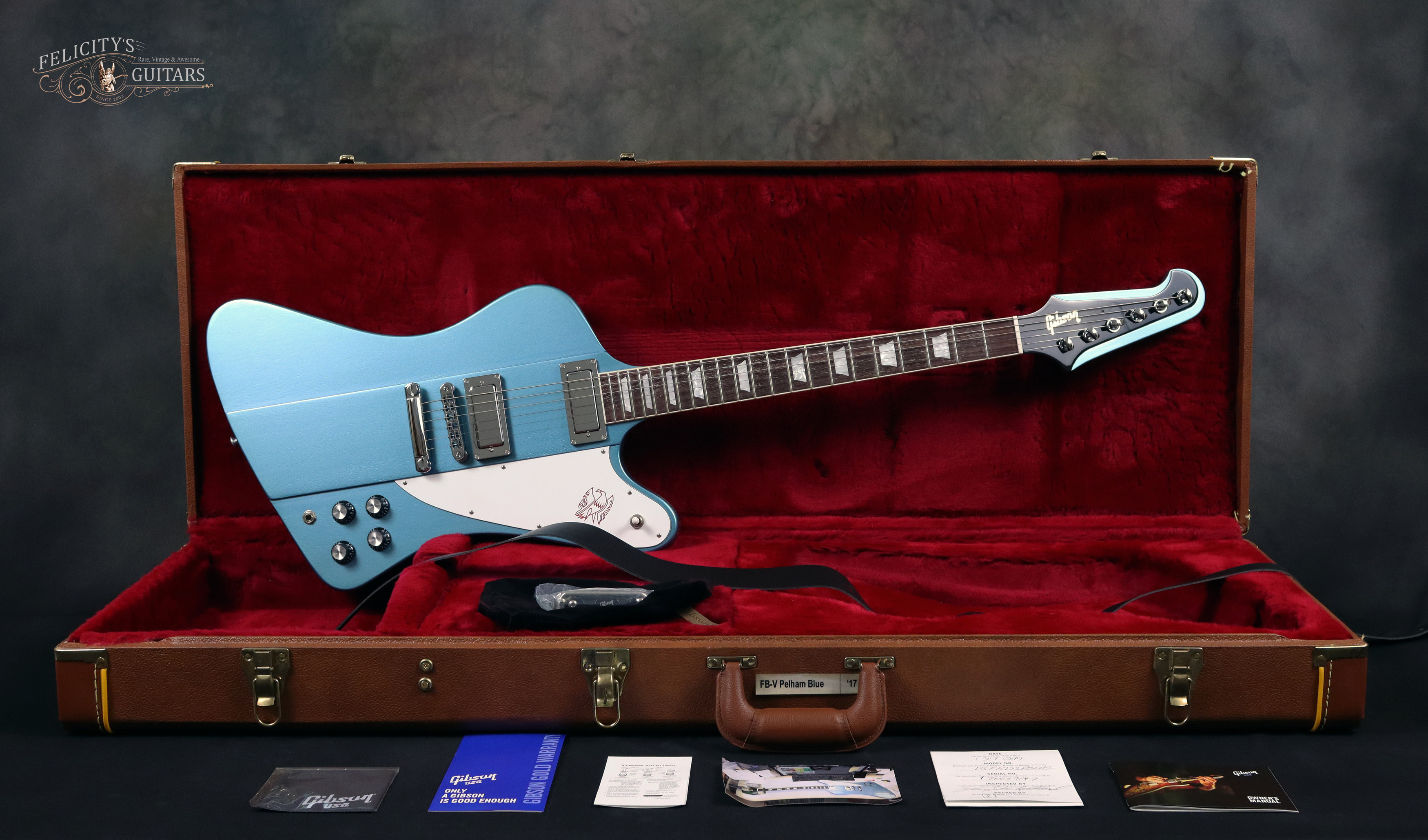

Tools / Accessories	Gibson Accessory Kit (Strap, Polish Cloth, Multi-tool)
Manual / Literature	Gibson USA's Owner’s Manual, Gold Warranty Card, Baby Photo
C.O.A.	None
Other	No
Weight	Is the actual weighed-value in US Standard Units

Disclosure	Certain technical specs may have been extracted from Gibson® website and/or internet archives. The words Gibson® / Switchcraft™ and the associated designs are registered trademarks of Gibson® Brands, Inc. and the other named manufacturers, if any, respectively.
